Article

Experimental Study on Bidirectional Bending Performance of Steel-Ribbed Composite Slabs for Electrical Substations

by
Lin Li
1,
Zhenzhong Wei
1,
Yong Liu
1,
Yunan Jiang
1,
Haomiao Chen
2,
Yu Zhang
2,*,
Kaifa Zhang
2,
Kunjie Rong
2 and
Li Tian
2
1
Shandong Electric Power Engineering Consulting Institute Co., Ltd., Jinan 250013, China
2
School of Civil Engineering, Shandong University, Jinan 250061, China
*
Author to whom correspondence should be addressed.
Buildings 2025, 15(19), 3540; https://doi.org/10.3390/buildings15193540
Submission received: 21 July 2025 / Revised: 9 September 2025 / Accepted: 29 September 2025 / Published: 1 October 2025
(This article belongs to the Section Building Structures)
Versions Notes

Abstract

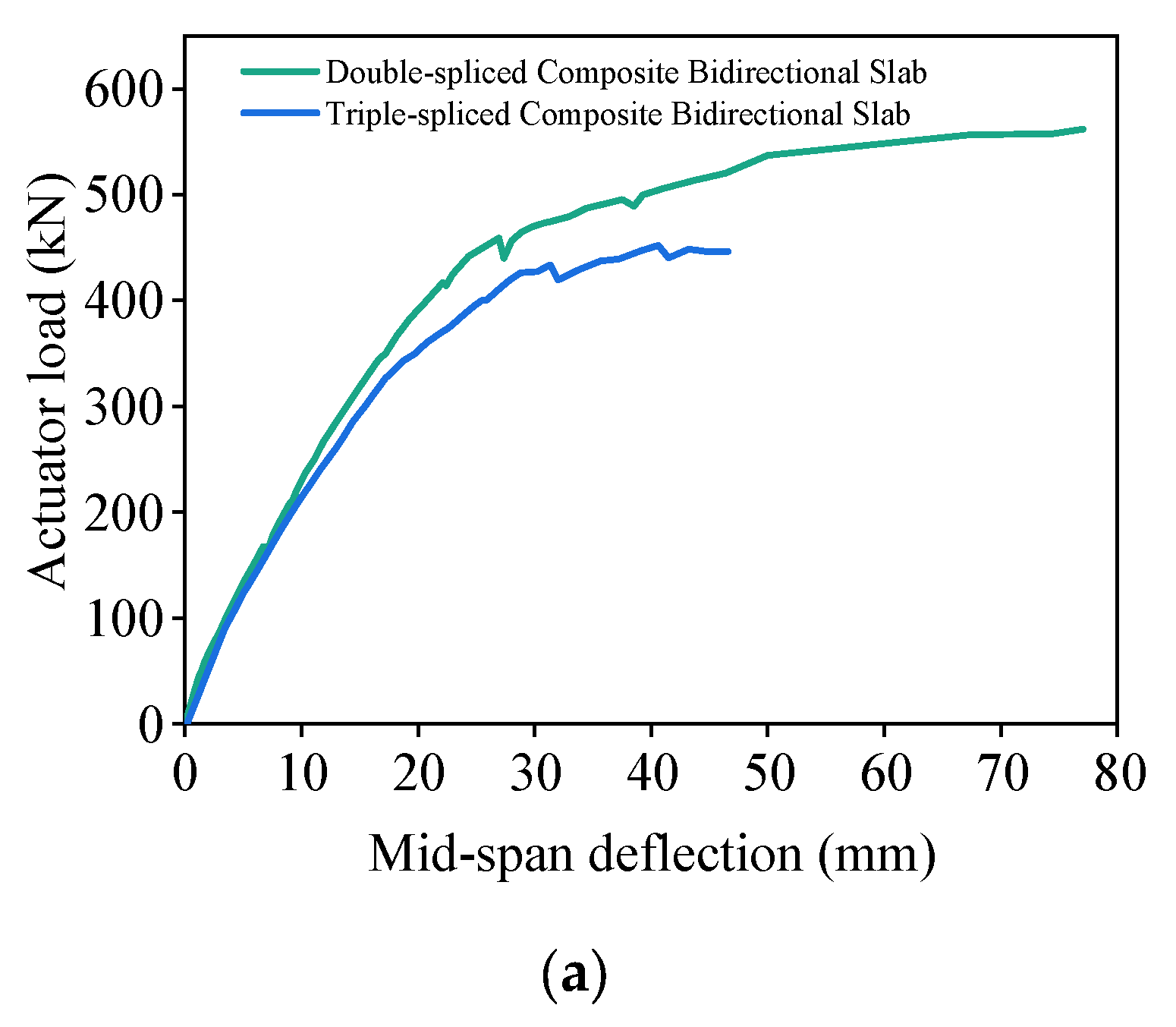

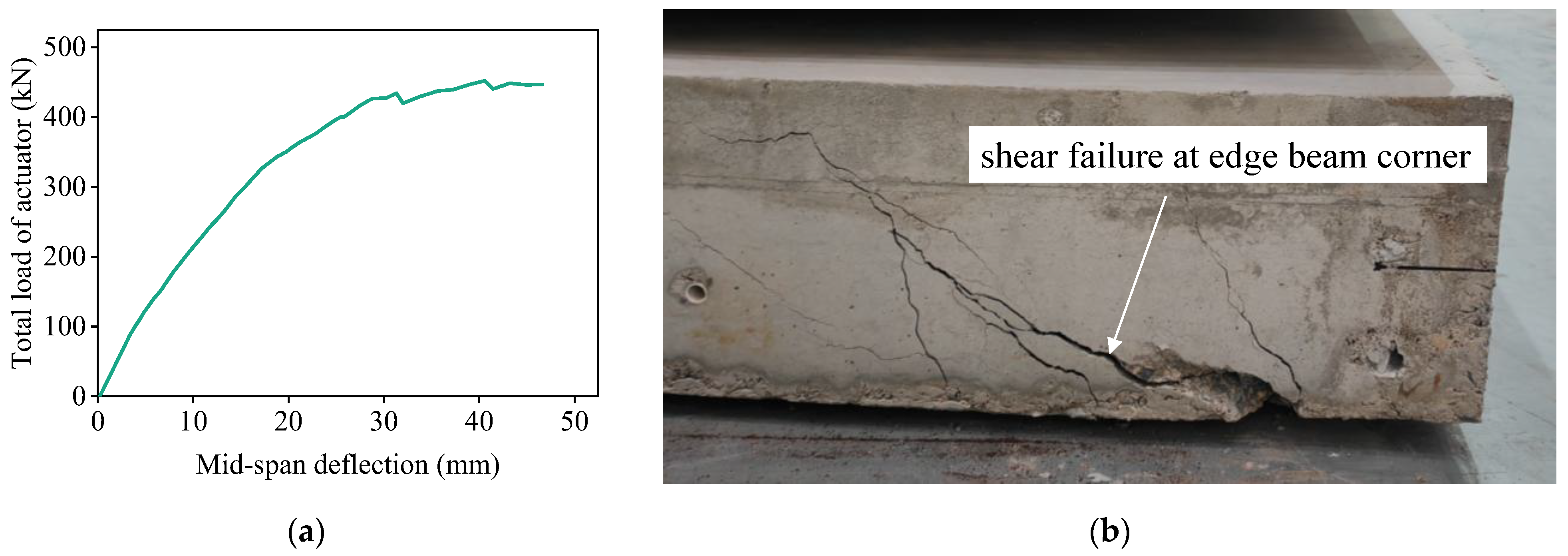

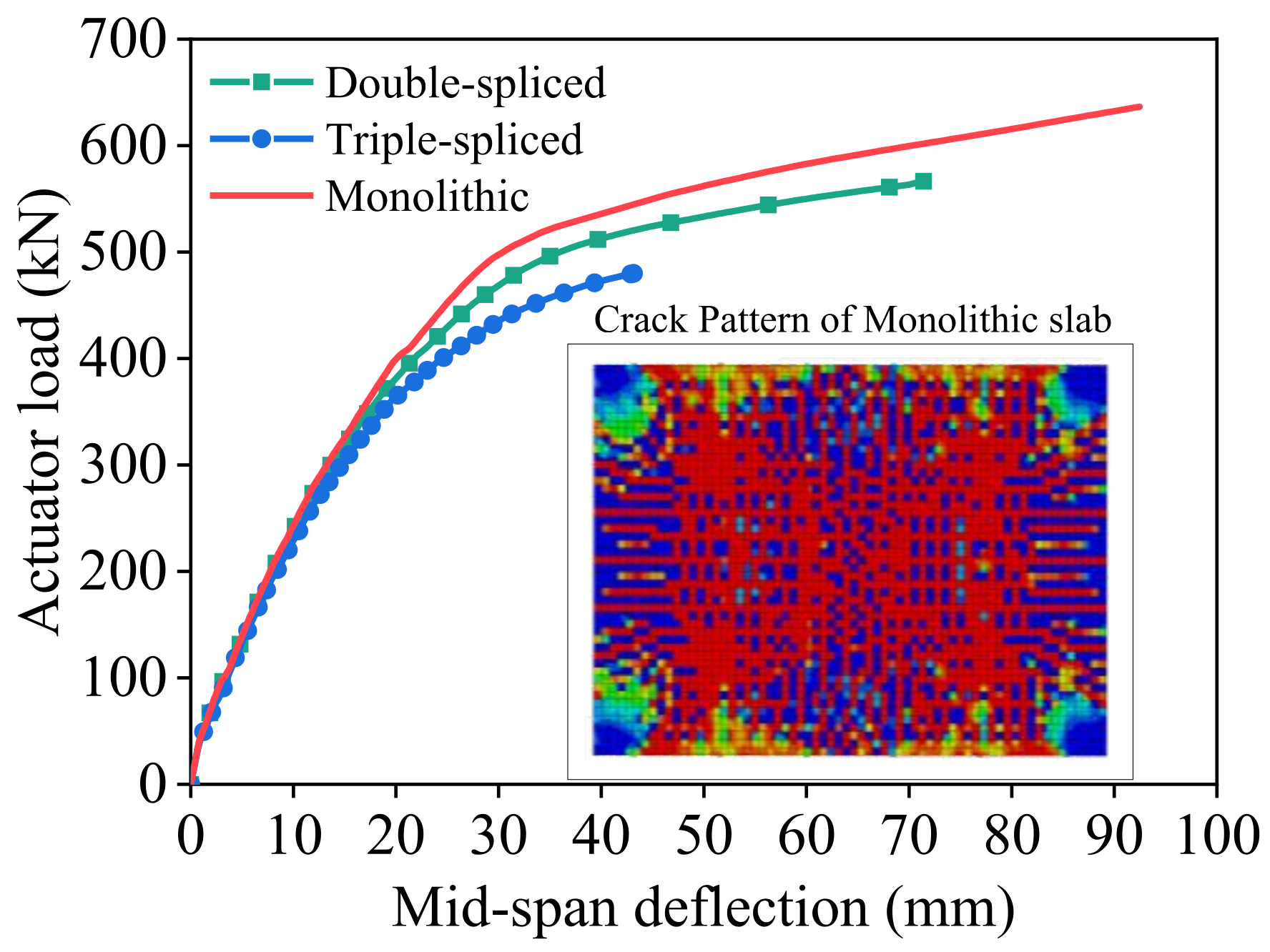

This study investigates the bidirectional bending performance of double- and triple-spliced steel-ribbed composite slabs for substation applications. Full-scale experiments and numerical parametric analyses were conducted to evaluate ultimate load, ductility, stiffness, failure modes, and load-transfer mechanisms. Results indicate that double-spliced slabs exhibit better performance than triple-spliced slabs, showing a 24.5% higher ultimate load and 65.3% greater ductility, with well-developed orthogonal cracks and yielding of both longitudinal prestressing steel and transverse reinforcement. Triple-spliced slabs display partial bidirectional behavior due to reduced transverse integrity, with stresses in edge slabs concentrated at the corners. Compared with monolithic slabs, spliced slabs show nearly identical stiffness at cracking onset but progressively reduced stiffness, load capacity, and ductility in the mid-to-late loading stages. Joint-crossing reinforcement is critical for transverse load transfer, and increasing its diameter is more effective than increasing its strength in preventing premature joint-controlled failure. These findings provide significant theoretical guidance and technical support for the prefabricated construction of high-voltage substation floor systems.
Keywords: prefabricated construction; steel-ribbed composite slab; prestressed composite slab; bidirectional bending performance; electrical substation prefabricated construction; steel-ribbed composite slab; prestressed composite slab; bidirectional bending performance; electrical substation
