Segmented Timber Shells for Circular Construction: Relocation, Structural Assessment, and Robotic Fabrication of a Modular, Lightweight Timber Structure
Abstract
:1. Introduction

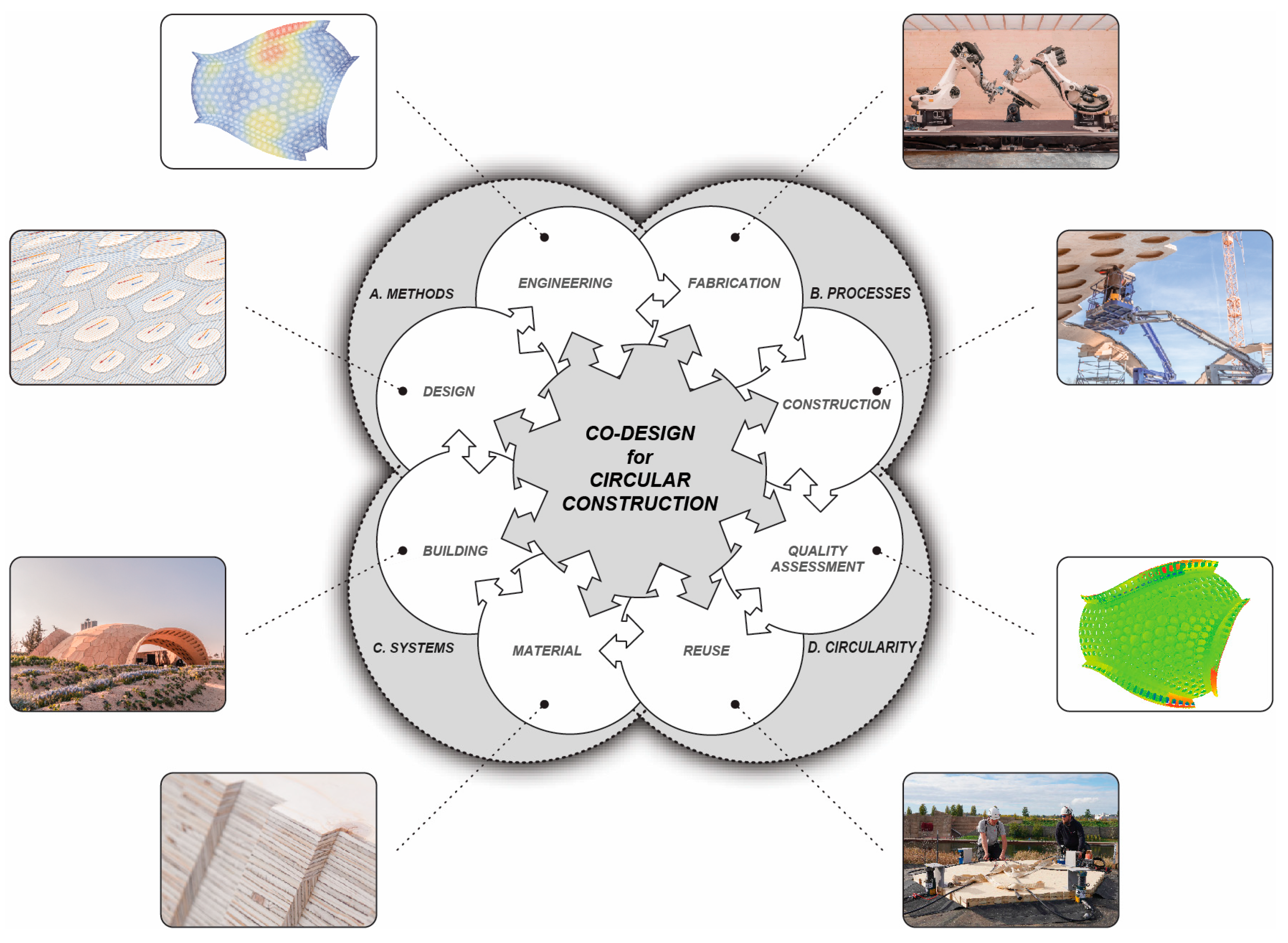

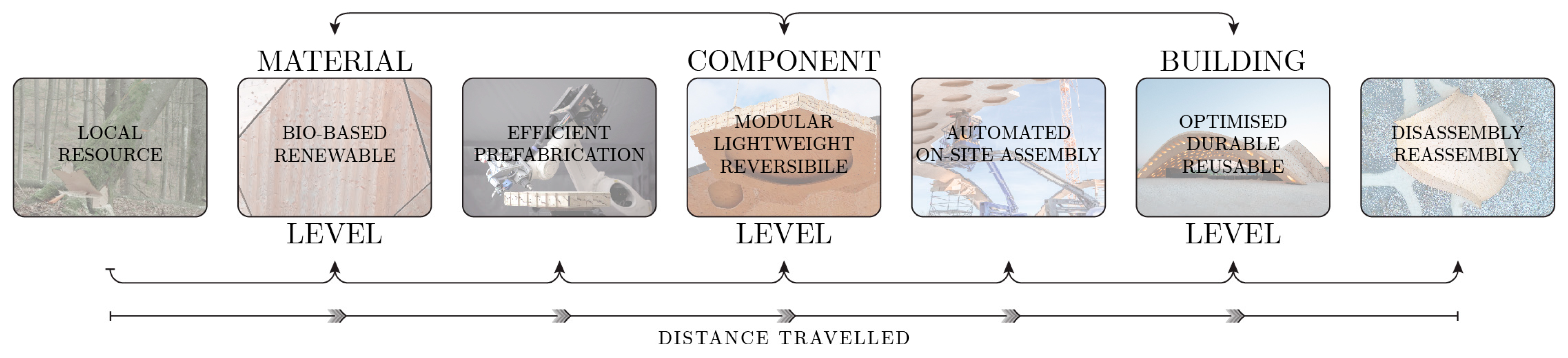

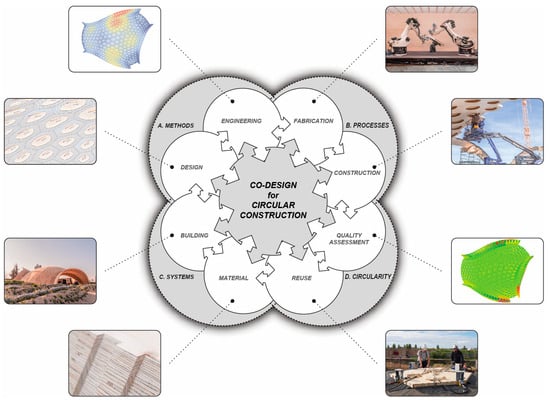

1.1. Co-Design for Circular Construction
1.2. Segmented Timber Shells
1.3. Advanced Quality Assessment Models
1.4. Research Development

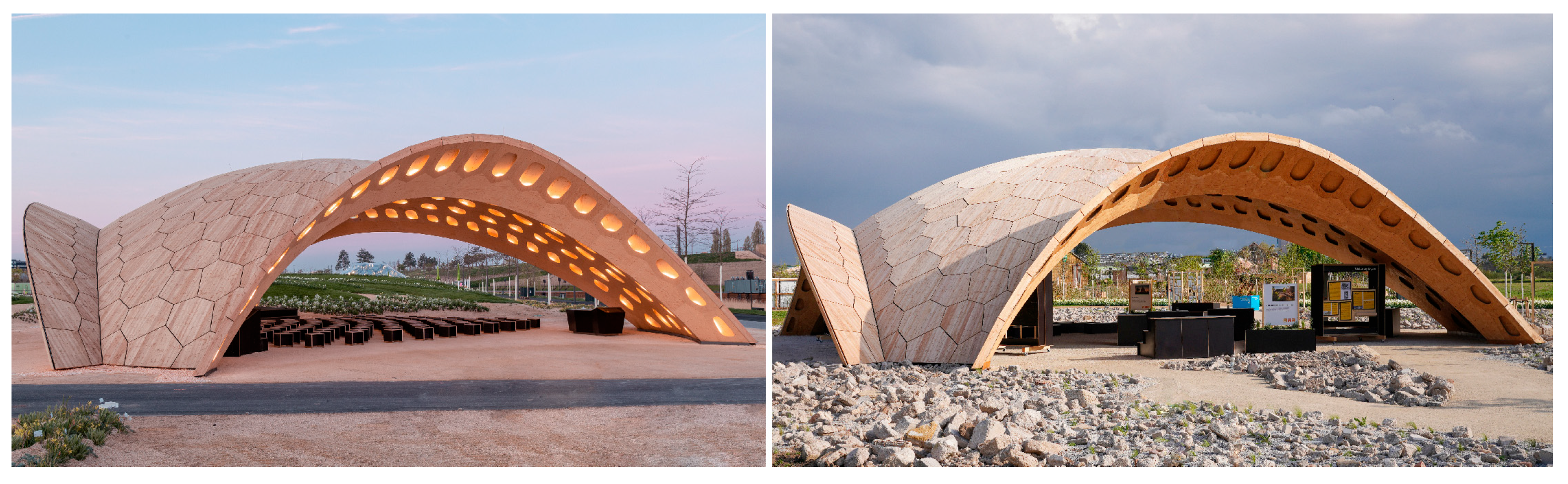

2. BUGA Wood Pavilion 2023

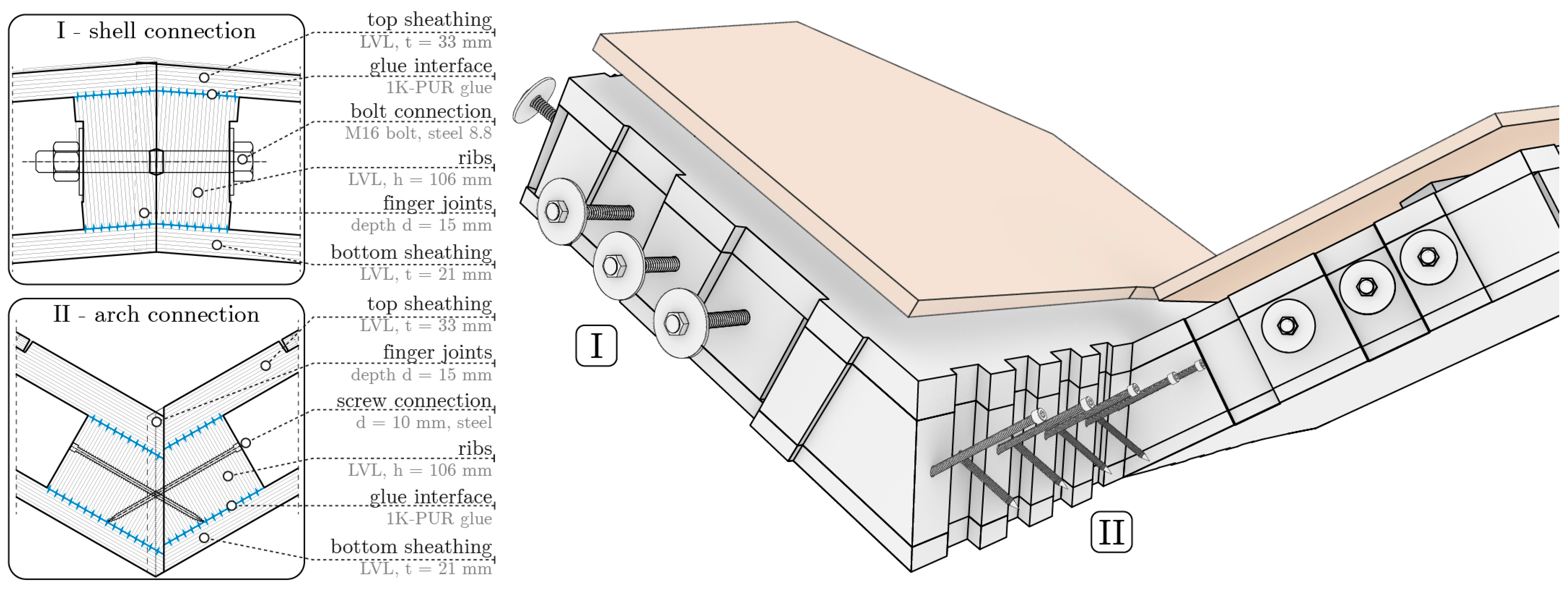

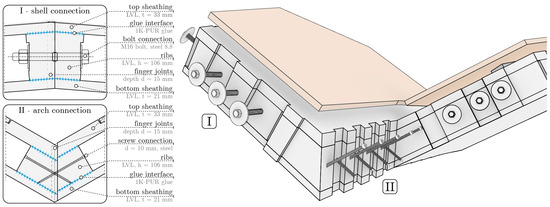

2.1. Design for Reuse
2.2. Relocation of the Shell Structure

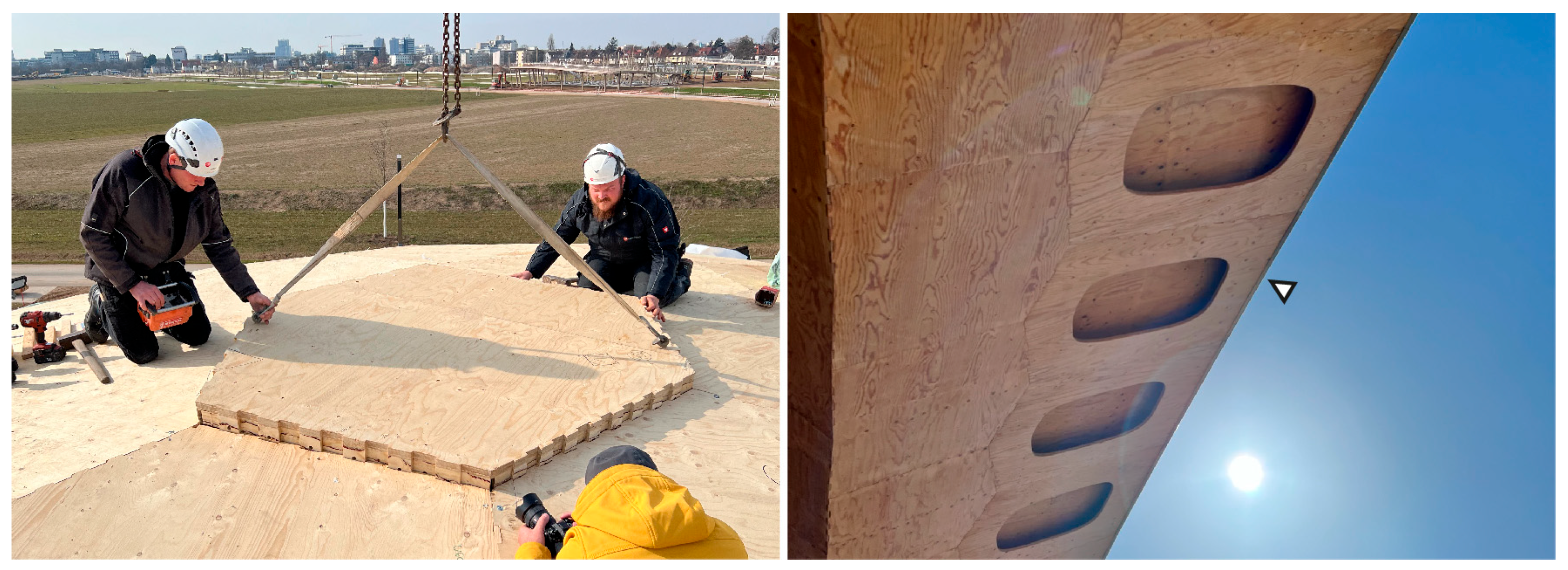

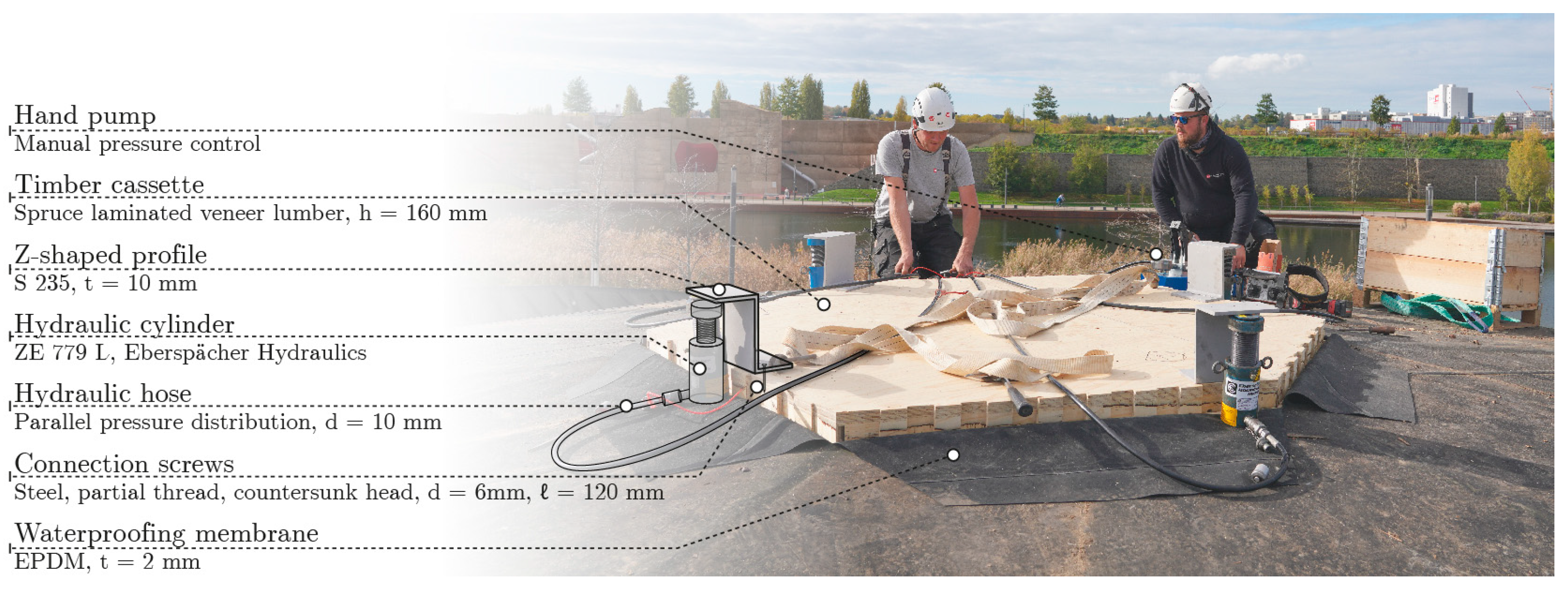

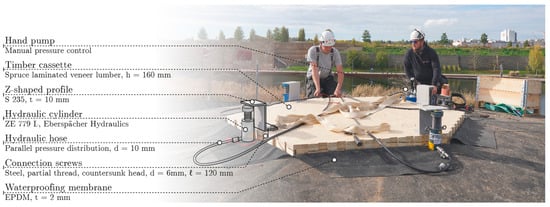

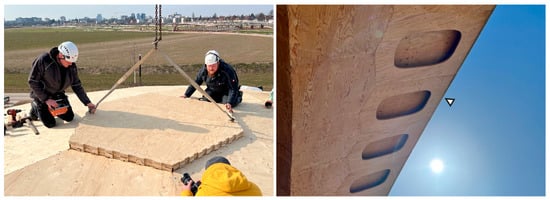

2.2.1. Non-Destructive Dismantling

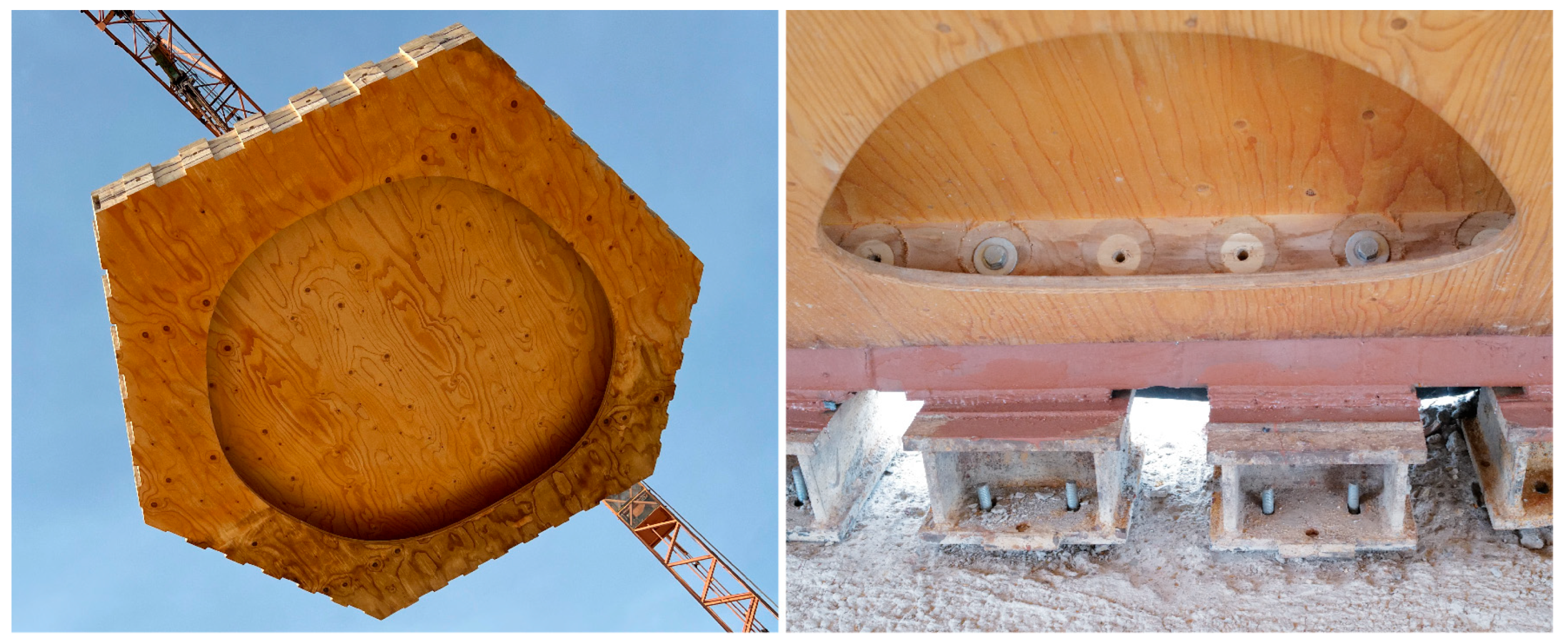

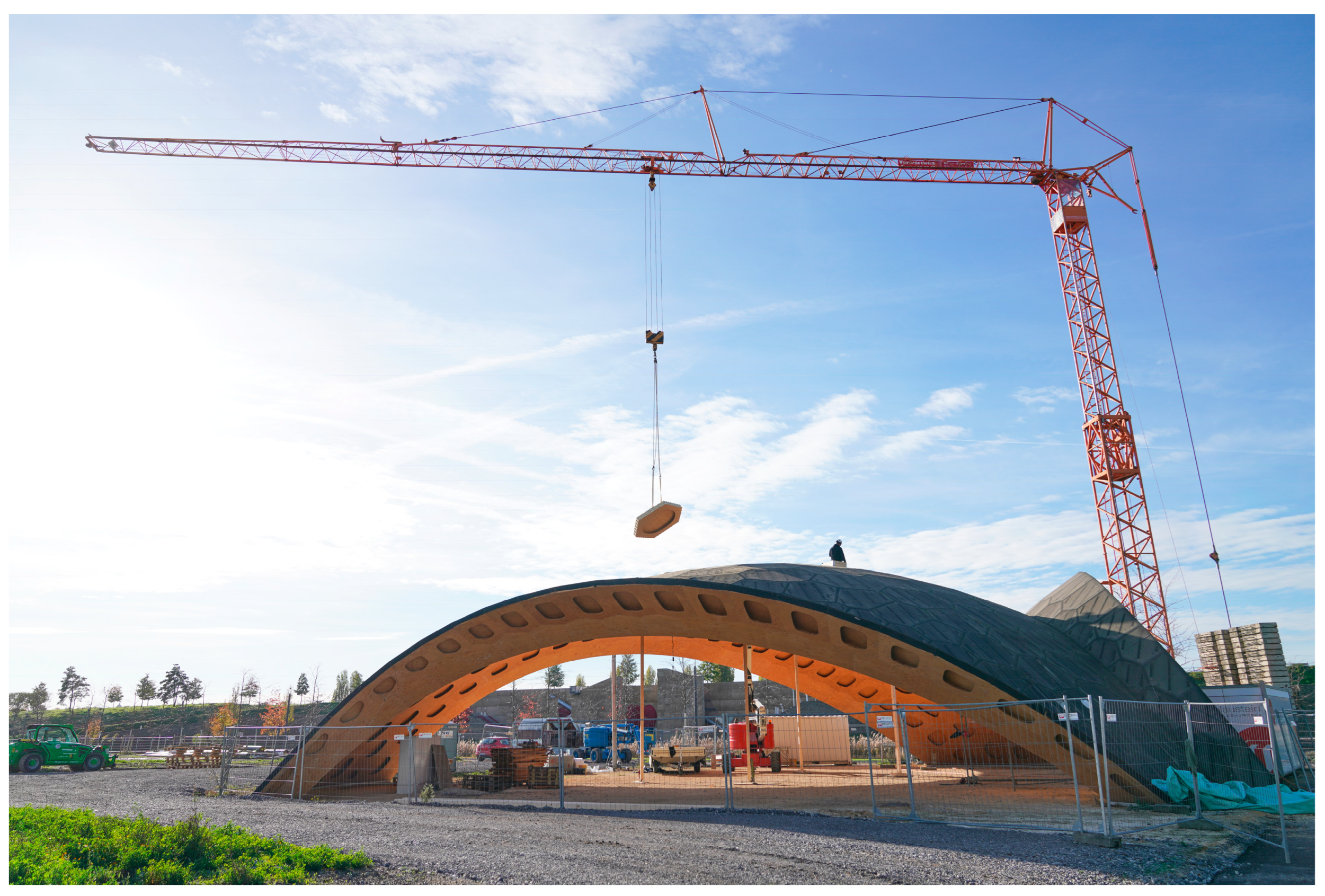

2.2.2. Reconstruction

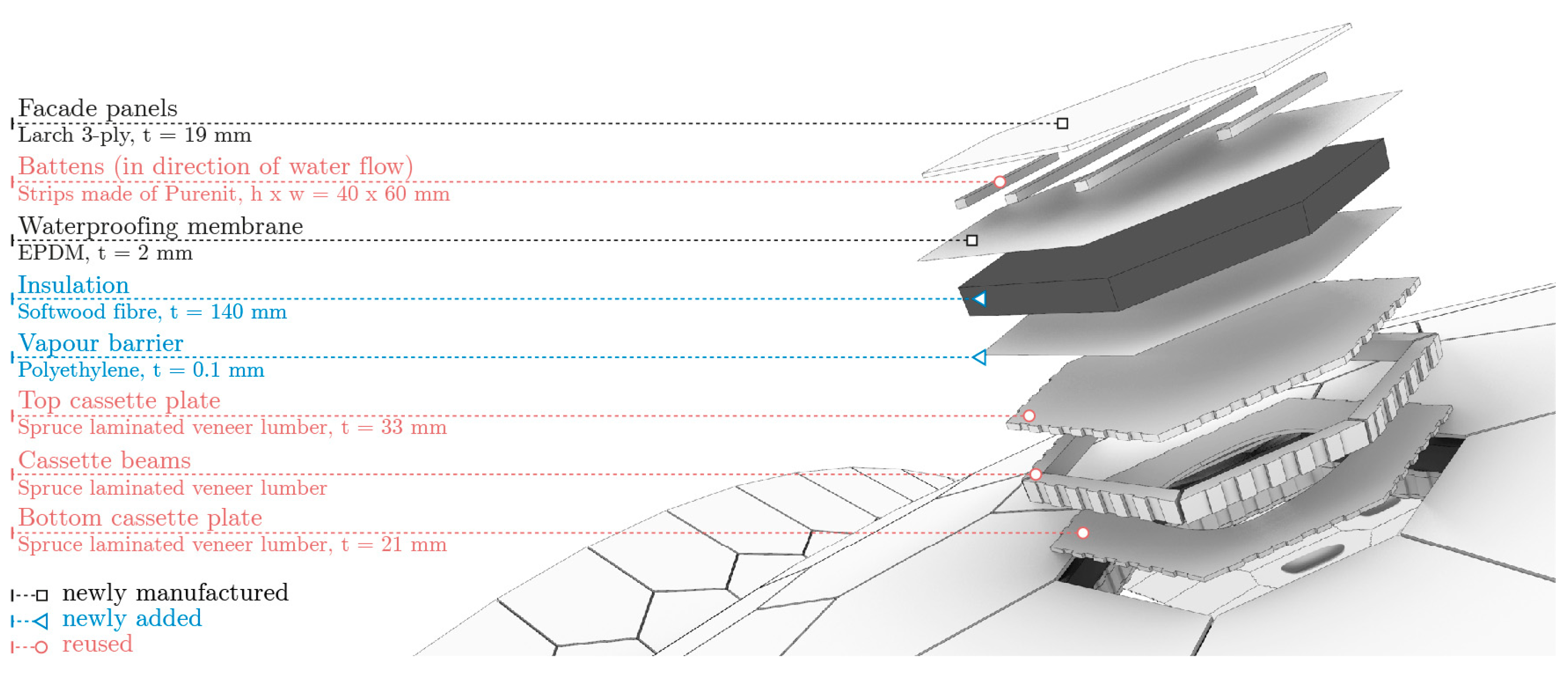

2.2.3. Design for Permanent Extension
3. Methods and Results of the Advanced Quality Assessment

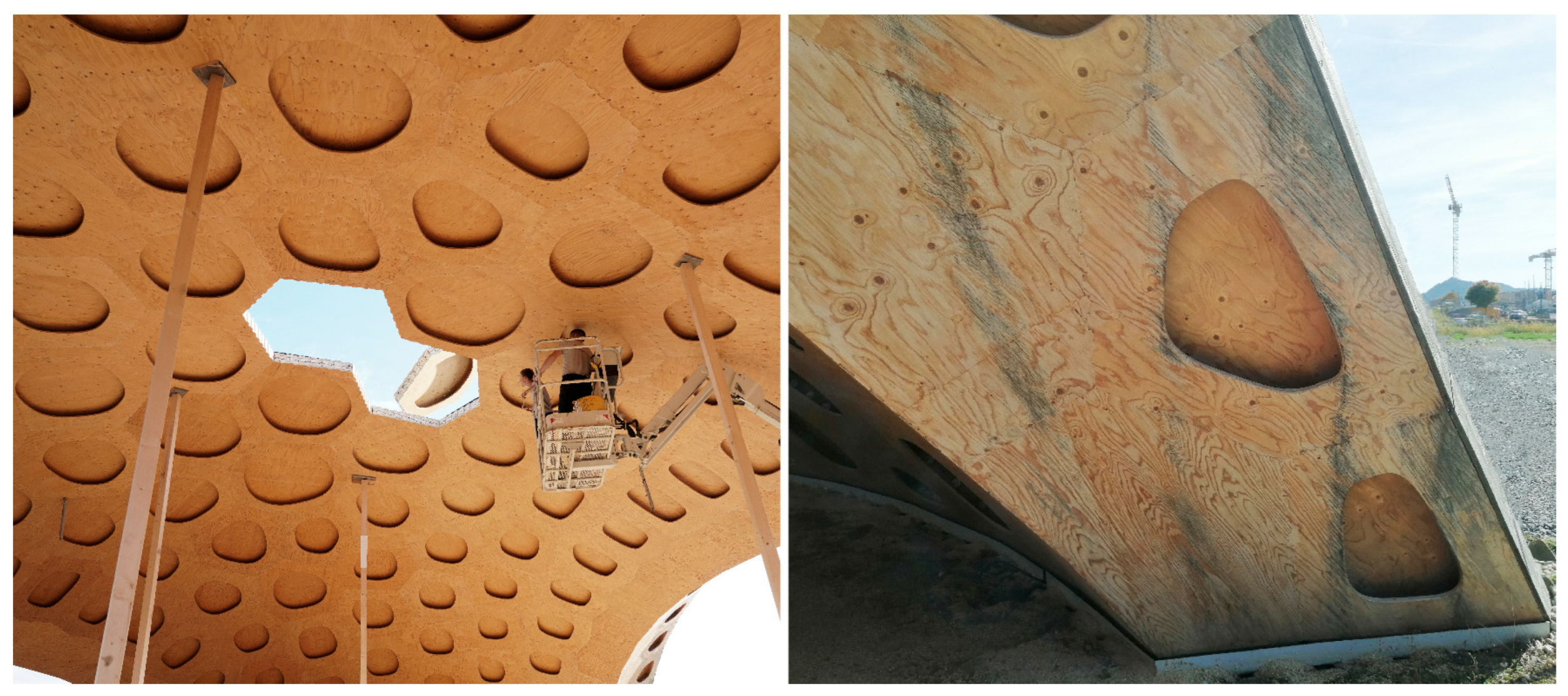

3.1. Visual Inspection
3.2. Geodetic Assessment

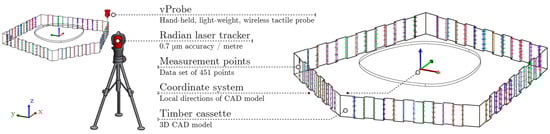

3.2.1. Laser Tracking of Shell Components

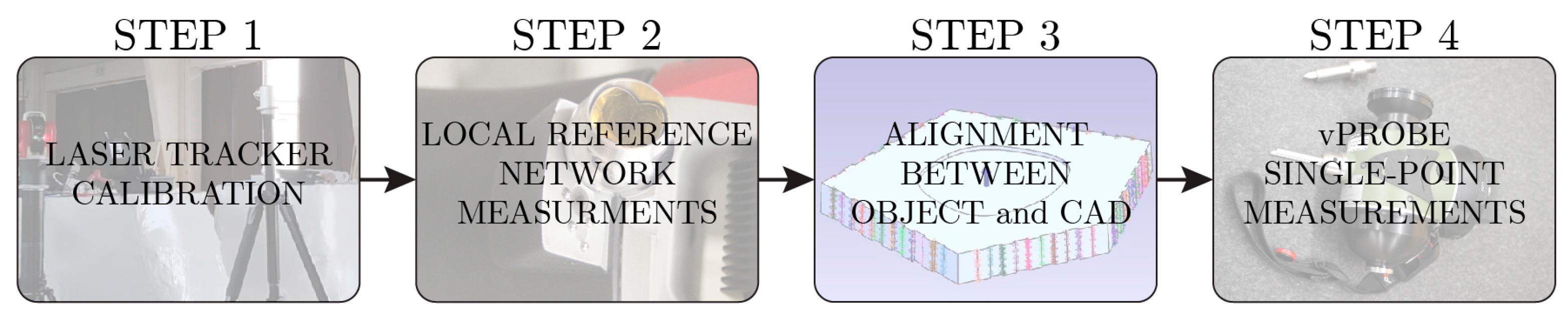

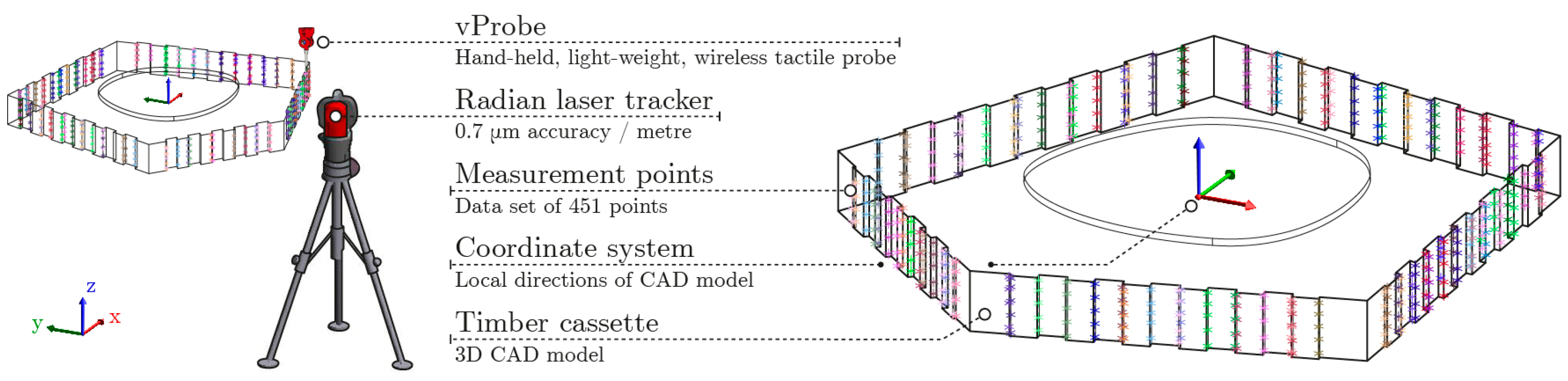

Methods

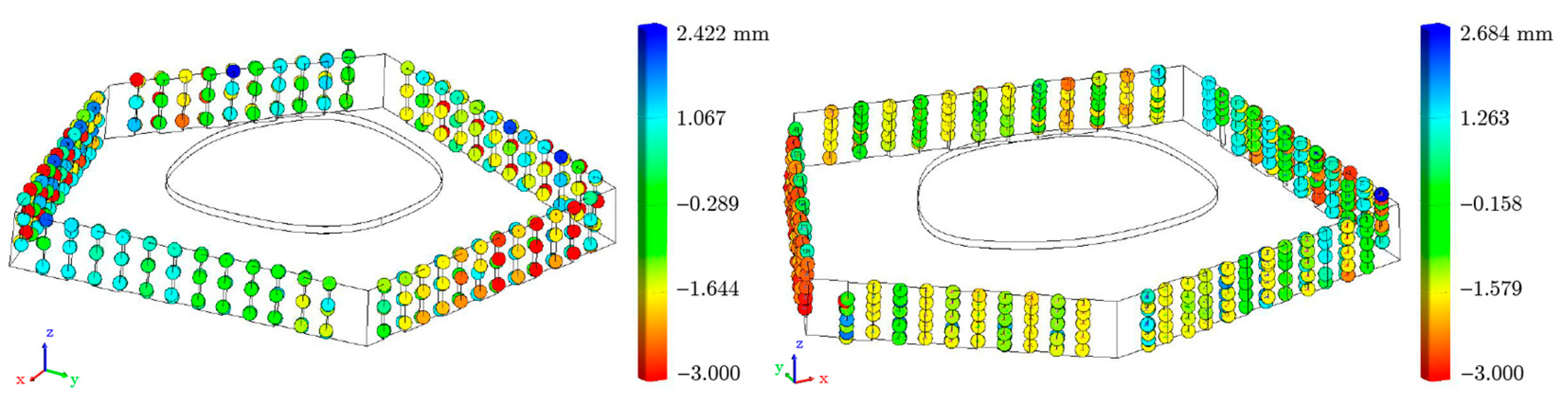

Results

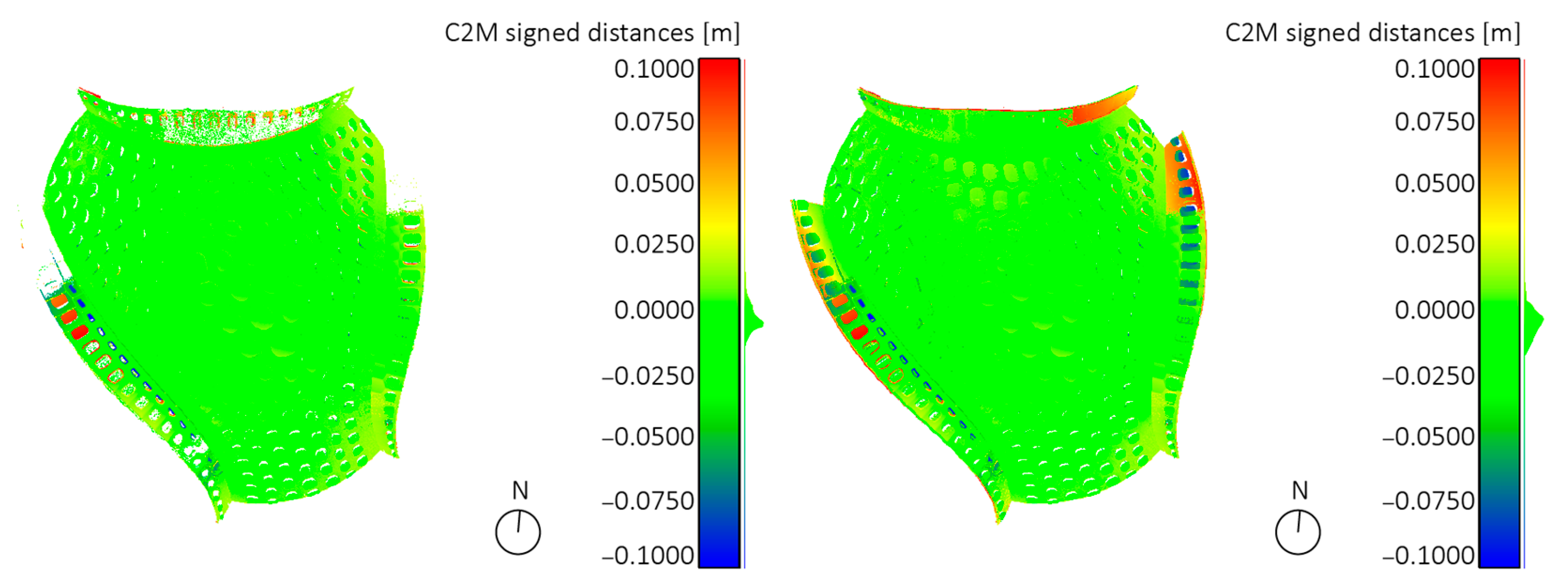

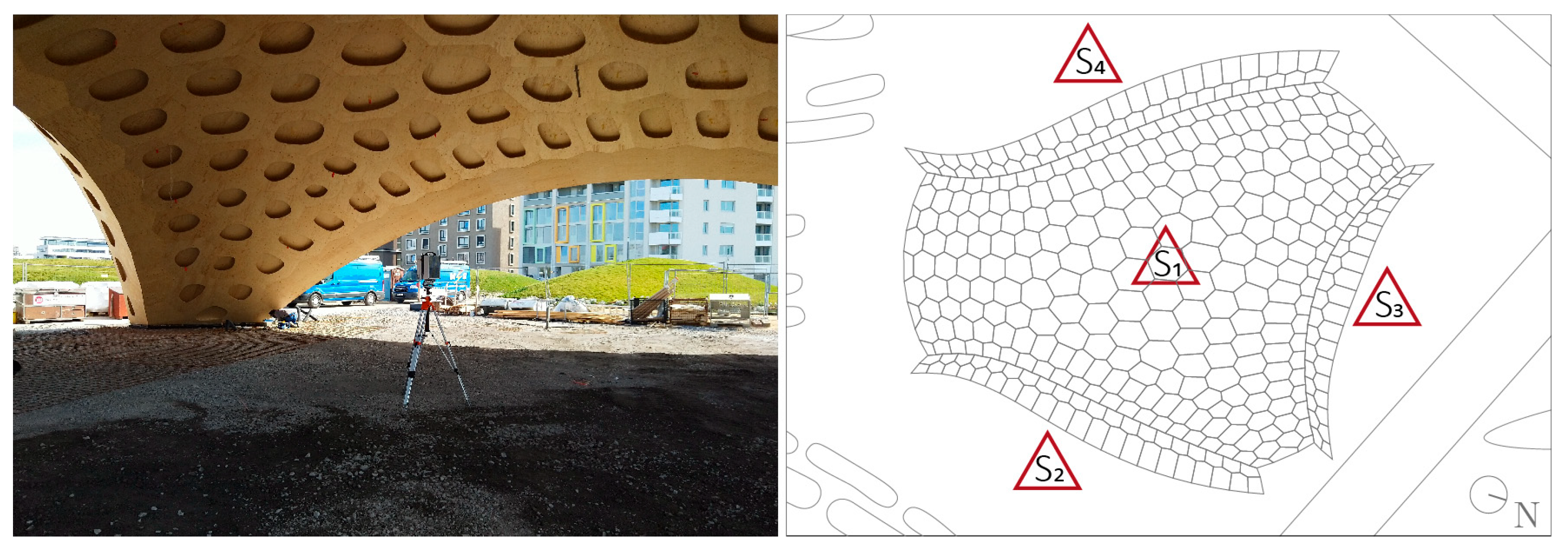

3.2.2. Laser Scanning of the Shell Structure
Methods
Results
3.3. Structural Assessment
3.3.1. Deviations from Normative Regulations

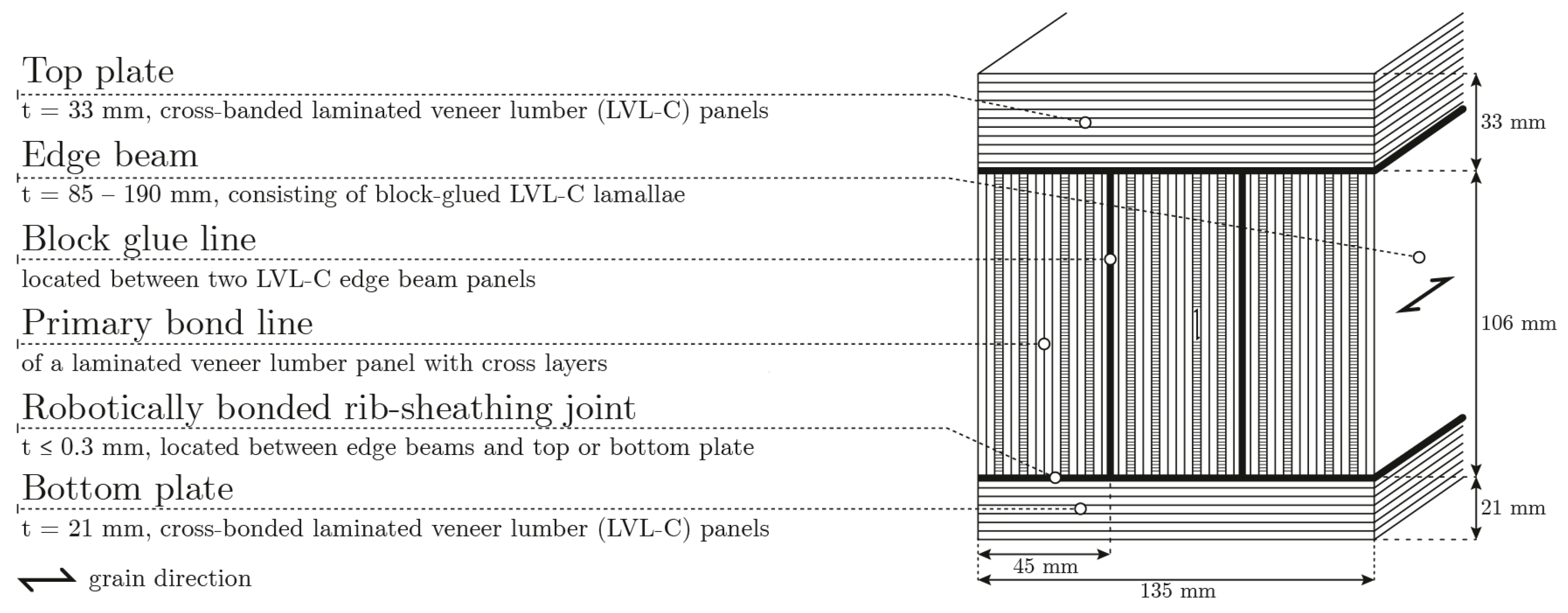

3.3.2. Timber Cassette Components
Methods
Results
3.3.3. Adhesive

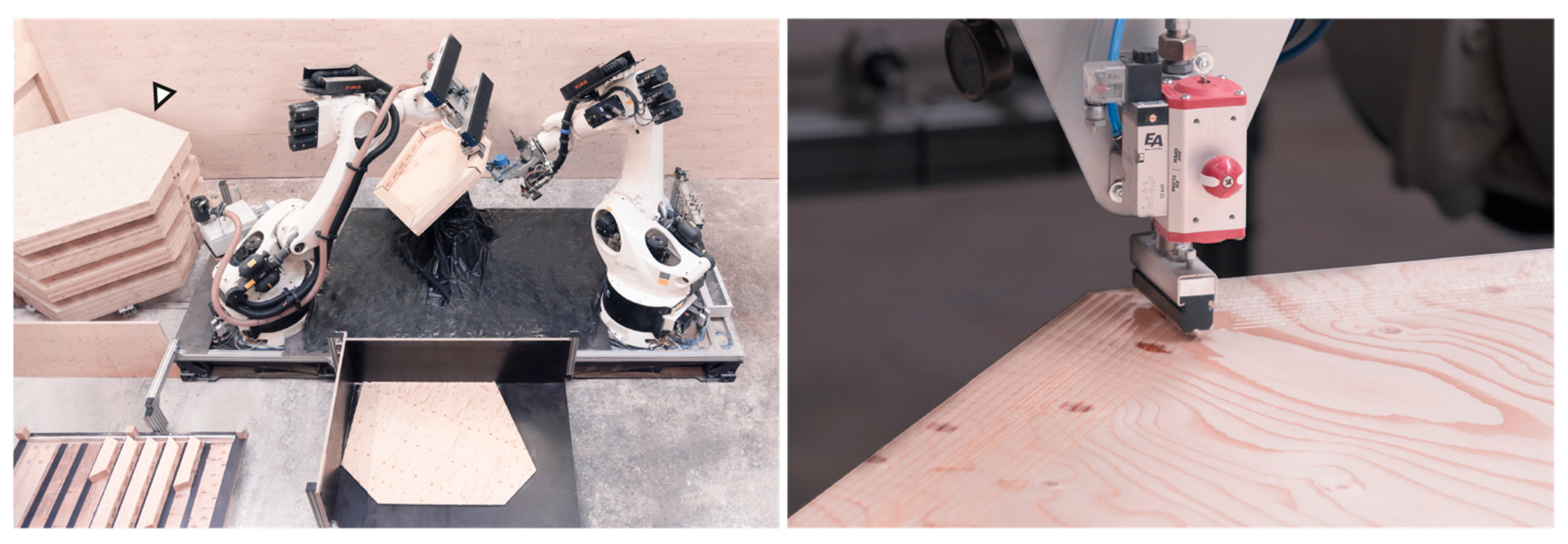

3.3.4. Robotic Fabrication and Workshop Implementation
Methods
Results

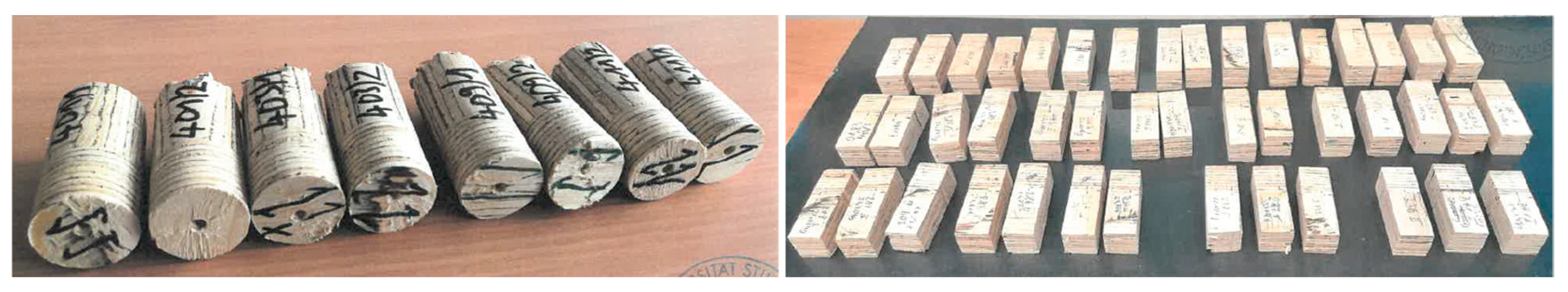

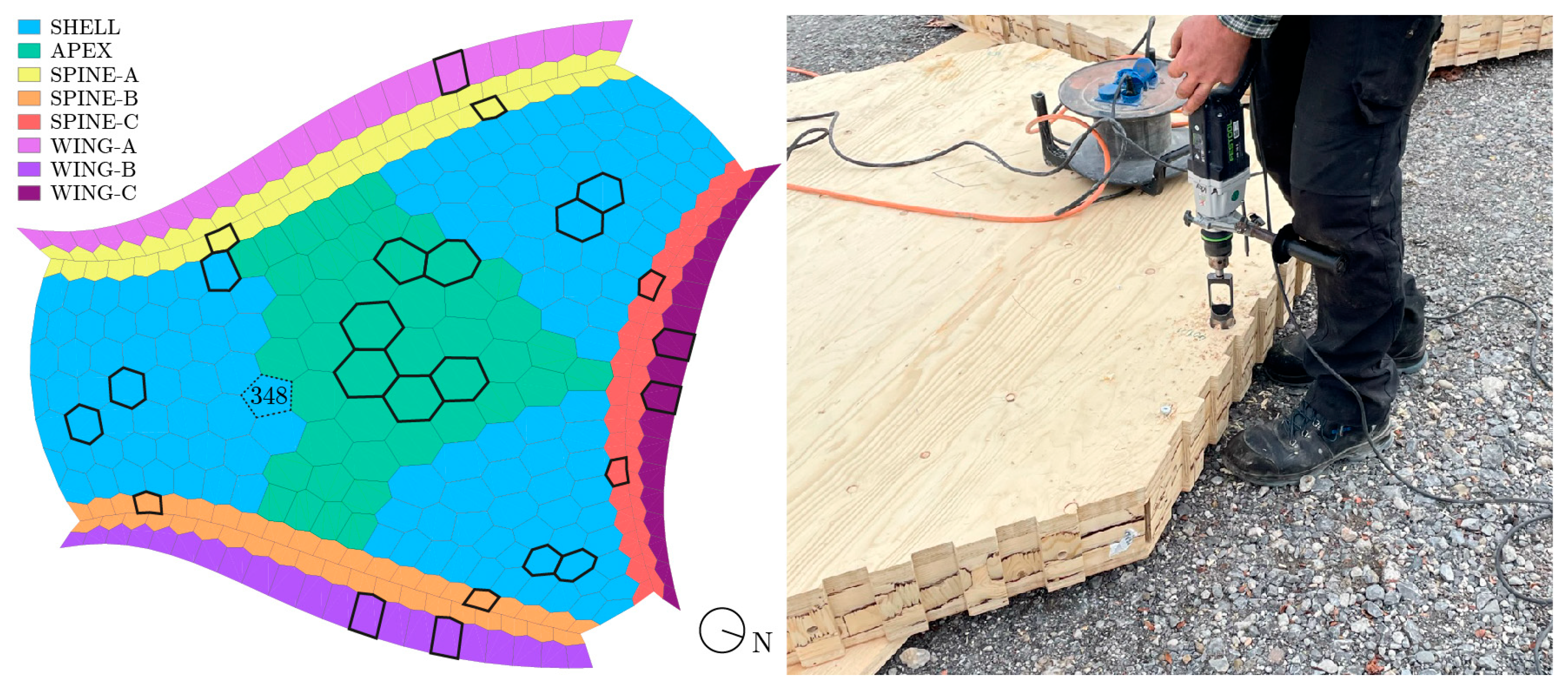

3.3.5. Robotically Bonded Joints

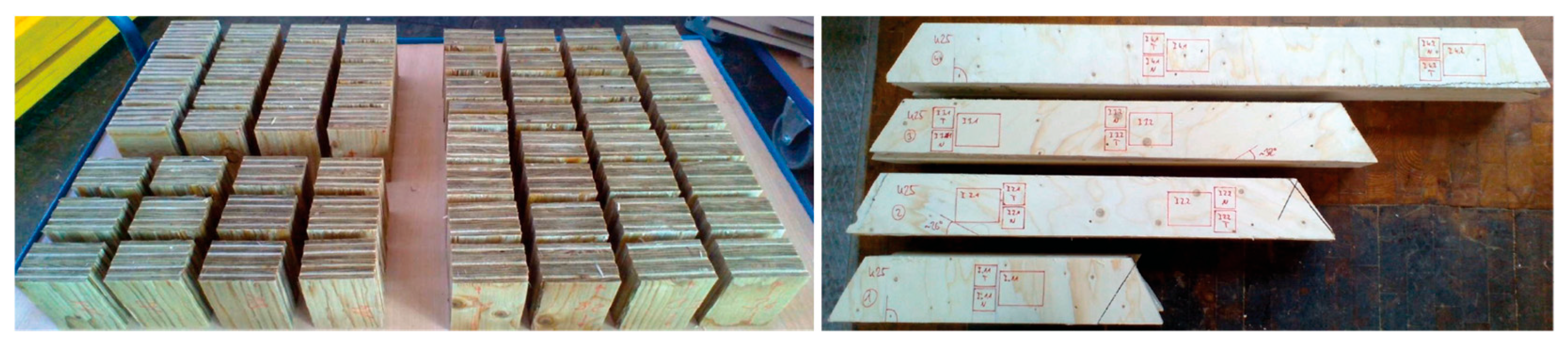

Methods
BUGA Wood Pavilion 2019
BUGA Wood Pavilion 2023
Results for BUGA Wood Pavilion 2019
- First test series
- Second and third test series and the expert report
Results for BUGA Wood Pavilion 2023

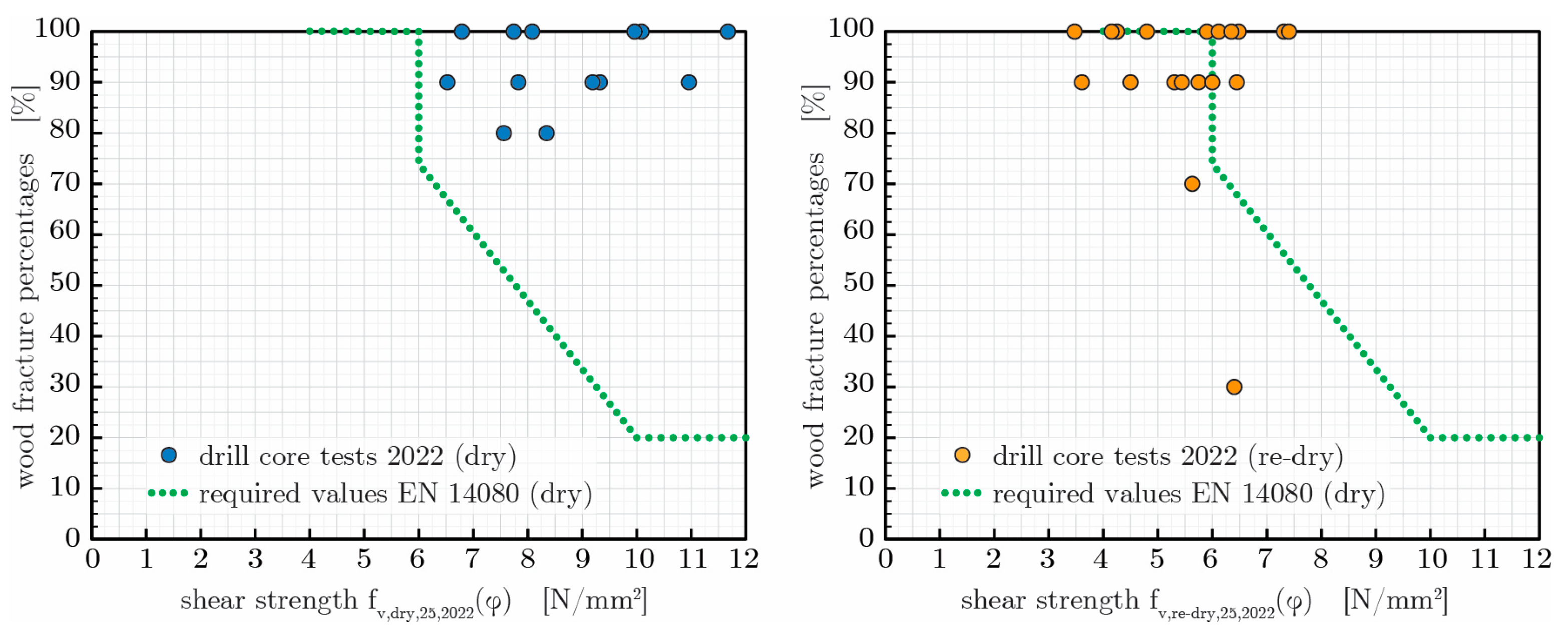

Comparison of Initial (2019) and Residual (2022) Bond Line Tests

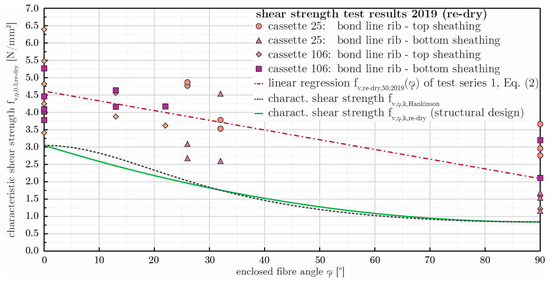

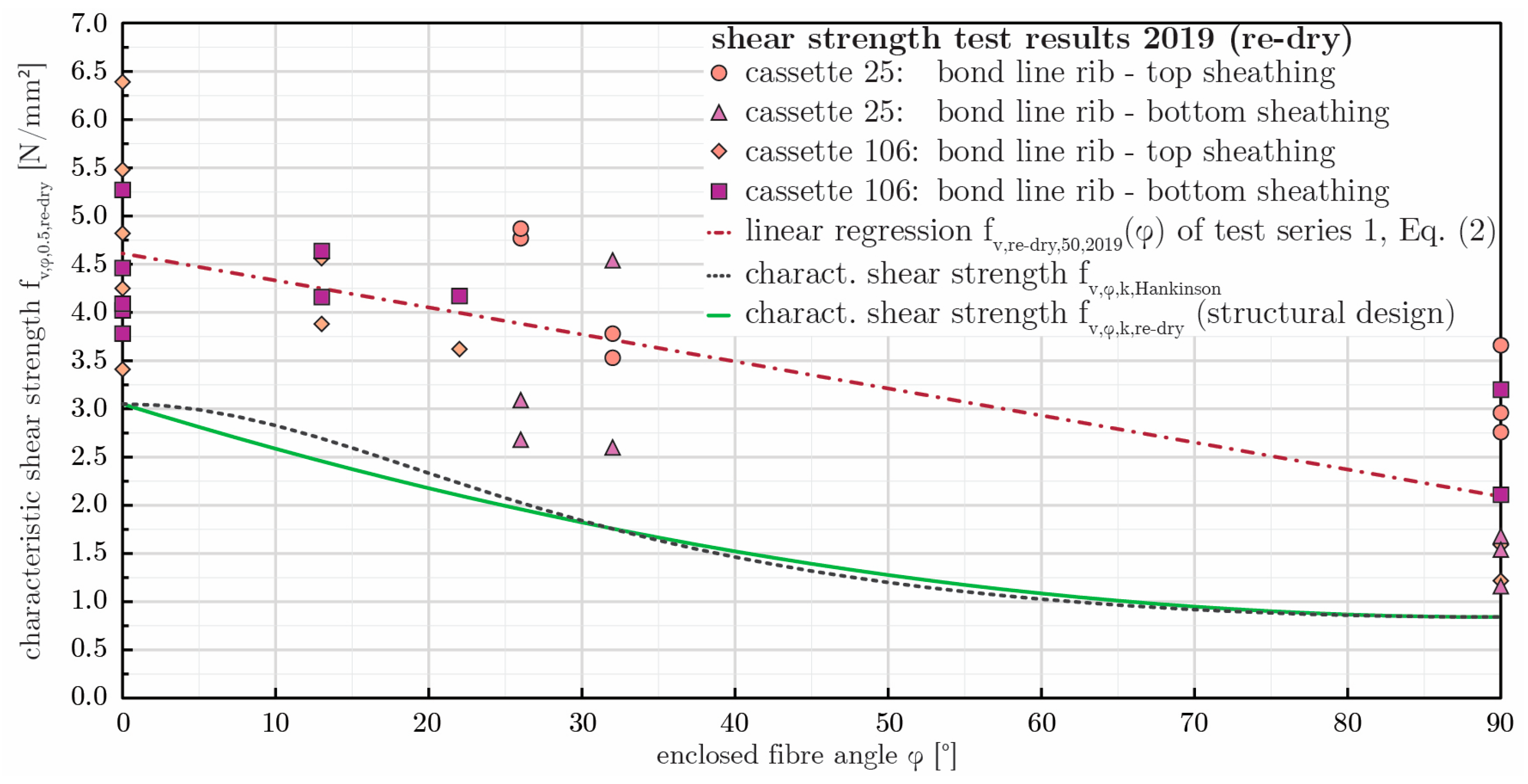

Derivation of Characteristic Bond Line Shear Strengths for Structural Design
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviations
ITKE | Institute of Building Structures and Structural Design, University of Stuttgart |
MPA | Materials Testing Institute, University of Stuttgart |
ICD | Institute for Computational Design and Construction, University of Stuttgart |
IIGS | Institute of Engineering Geodesy, University of Stuttgart, Germany |
IntCDC | Integrative Computational Design and Construction for Architecture |
STS | Segmented timber shell |
BUGA | Federal Horticultural Show (in German: Bundesgartenschau) |
LVL | Laminated veneer lumber |
API | Automated Precision Incorporated |
CAD | Computer-aided Design |
SMR | Spherically Mounted Retroreflector |
P2P | Point-to-point |
P2S | Point-to-surface |
RMS | Root Mean Square |
std | Standard deviation |
TLS | Terrestrial laser scanning |
C2M | Cloud-to-mesh |
MPA | Materials Testing Institute |
LVL-C | Laminated veneer lamellae with cross layers |
WFP | Wood fracture percentage |
1C-PUR | Fiber-reinforced, one-component polyurethane |
TBA | Technical Building Approval |
CLT | Cross-laminated timber |
TDS | Technical data sheet |
MC | Moisture content |
COV | Coefficient of variation |
DoP | Declaration of Performance |
R2 | Coefficient of determination |
fv | Shear strength |
φ | Angle between fiber directions |
ksize | Weibull size effect exponent |
A | Shearing area |
Aref | Reference shearing area |
GLT | Glued laminated timber |
kmod | Modification factor for duration of load and moisture content |
γM | Partial factor for material properties |
