Combined Utilization of Construction and Demolition Waste and Propylene Fiber in Cement-Stabilized Soil

by
Genbao Zhang
1,
Zhiqing Ding
2,
Runhong Zhang
2,3,
Changfu Chen
4,5,
Guihai Fu
1,6,
Xiao Luo
1,
Yufei Wang
7,* and
Chao Zhang
8
1
College of Civil Engineering, Hunan City University, Yiyang 413000, China
2
Institute for Smart City of Chongqing University in Liyang, Chongqing University, Liyang 213300, China
3
College of Aerospace Engineering, Chongqing University, Chongqing 400045, China
4
Key Laboratory of Building Safety and Energy Efficiency of the Ministry of Education, Hunan University, Changsha 410082, China
5
College of Civil Engineering, Hunan University, Changsha 410082, China
6
Hunan Engineering Research Center of Structural Safety and Disaster Prevention for Urban Underground Infrastructure, Yiyang 413000, China
7
School of Design and Built Environment, Curtin University, Bentley, WA 6102, Australia
8
College of Civil Engineering, Hunan University of Science and Technology, Xiangtan 411100, China
*
Author to whom correspondence should be addressed.
Buildings 2022, 12(3), 350; https://doi.org/10.3390/buildings12030350
Submission received: 7 February 2022 / Revised: 3 March 2022 / Accepted: 9 March 2022 / Published: 14 March 2022
(This article belongs to the Special Issue The Impact of Building Materials on Construction Sustainability)
Browse Figures
Versions Notes

Abstract

:
Construction and demolition (C&D) waste has become a research hotspot due to the need for environmental sustainability and strength enhancement of cementitious materials. However, wider applications of C&D waste are limited, as its non-homogeneous surface nature limits its workability. This research evaluated the feasible utilization of C&D waste as aggregates in polypropylene-fiber-reinforced cement-stabilized soil (CSS) under sulfate-alkali activation. CSS specimens incorporated Portland cement and C&D waste in 10%, 20%, and 30% proportions. Also, polypropylene fiber after alkali activation by sodium sulfate (at 0.2%, 0.4%, and 0.8% dosing level) was defined as 1%, 2%, and 4%. Strength enhancement was examined through unconfined compressive strength (UCS) and flexural strength tests at 7, 14 and 28 days. Test results indicated that mechanical properties showed significant improvement with increasing levels of Portland cement and sodium sulfate, while the improvement dropped after excessive addition of C&D waste and polypropylene fiber. Optimal proportioning was determined as 30%, 4%, 20%, and 0.8% for Portland cement, polypropylene fiber, C&D waste, and sodium sulfate, respectively. Scanning electron microscope (SEM) analysis attributed the enhancement to hydration product (ettringite) formation, bridging effect and increased particle friction. Additionally, the decrease in amplification was ascribed to the destruction of interface transition-zone (ITZ) strength, resulting in premature failure.

1. Introduction

The rapid development of infrastructure has released numerous construction and demolition (C&D) waste, reaching an annual production of 3039 Mt in China alone [1]. However, solid waste resourcing is still not globally applied, with utilization rates varying dramatically from 5–90%, resulting in resource waste and environmental pollution [2,3,4]. Specifically, the construction process generates greenhouse gas emissions along with solid waste, leading to climate change and soil erosion [5,6]. The sustainable lifecycle of construction activity has therefore become essential to creating eco-friendly architecture [7,8]. C&D waste utilization yields application potentials including aggregates in cementitious materials and road base materials (embankment, subbase and asphalt pavement) [9,10]. Through grinding–incineration treatment, C&D waste presents enhanced bonding properties with the binding mixture [11,12]. Moreover, as the production of cement generates up to 7% of its carbon footprint, utilizing C&D waste tackles the problem with the benefits of waste utilization and cement usage reduction [13]. However, C&D waste shows weaker performance, owing to the wall effect and a further quantity of cracks [14,15,16,17]. Old interface transition zones (ITZs) in C&D waste exhibit weaker strength, becoming highly prone to cracks. Simultaneously, C&D waste weakens density and durability, despite its advantages in abrasion resistance [18,19,20]. As a result, the replacement threshold limitation for natural aggregate is concluded as being 50% with scarified compressive strength [21,22,23]. Application strategies maximizing the potential of C&D waste have therefore become a research hotspot that has been extensively explored.
The use of C&D waste as aggregates in cement-stabilized soil (CSS) for foundations has been reported as a rapidly emerging method [24,25,26]. CSS demonstrates outstanding suitability, due to its economic effect and simple operation, which can be further enhanced while being prepared in situ [27,28]. The application fields include foundation treatments, leakage-stopping and slope reinforcement, where large quantities of low strength materials are required [29]. As a result, the 50% threshold limitation can be exceeded. The widely sourced soil incorporated in CSS varies from sand, coal gangue, and volcanic slag to ground concrete, which enables the material to satisfy the demand for in situ preparation.
In addition, C&D waste represents positive coupling with sulfate dosage. First, C&D waste particles further develop performance enhancement provided by sulfate. Two previous studies on salt activators have proved the SO42− ions as superior hydration catalysts, reducing the initial and final setting time of CSS by 81.1% and 67.8%, respectively [30,31]. Meanwhile, cations (such as Na+, Ca2+) fulfill the function of alkalinities, forming more dispersed glassy phases [32]. C&D waste particles therefore form a compact structure with the binder, resulting in significant improvement in compressive strength. Second, C&D waste demonstrates resistance to sulfate erosion. Sulfate attack becomes a bigger issue as salt proportion increases, which leads to large-scale sulfate heaving, cracking, and structure failure [33,34]. Tang et al. [35] claimed that C&D waste inhibited the degree of sulfate erosion and remarkably strengthened the durability.
However, the poor cracking resistance and shrinkage deformation often present hindrances in the wider application of C&D waste in CSS. Proven enhancements include chemical additives, such as lime and cement in the stabilized soil matrix, but the enhanced blocks are prone to cracking and sudden failure [36,37,38]. To the authors’ knowledge, previous literature demonstrates the mitigation provided by increased cement blending [39,40]. However, sulfate erosion depends on many more factors (pH, temperature, aggregates, etc.) [41]. The coupling has not yet been clearly assessed, which therefore suggests numerous potential scopes for machine-learning research [42,43,44,45].
Fibrous materials were introduced to improve the mechanical properties in this scenario, bringing intersecting and bridging effects to the mixture. The randomly distributed fiber yields the benefits of crack reduction and unconfined compressive strength (UCS) increments [46]. An increase of up to 115% in UCS was observed in the experimental study, and the strength can be further enhanced by switching fiber types [47,48,49,50]. Polypropylene fiber showed resistance against sulfate deterioration. Mixtures with polypropylene fiber inclusion exhibit higher porosity, which allows more space for expansion and consequent hydrate-phase (gypsum and ettringite) formation [51,52,53]. Previous literature includes numerous studies on fiber-reinforcement treatment. However, its combination with the use of C&D waste has rarely been investigated.
This research presents the mechanical enhancement of CSS by the combination of C&D waste and polypropylene fiber. Portland cement 42.5 was employed to provide better stabilization and mechanical performance. Testing variables include admixture of cement, C&D waste, fiber, and sodium sulfate. Apart from the compressive and flexural strength test, scanning electron microscope (SEM) analysis was conducted to examine the proposed mixture. Ultimately, an optimum mixture design was selected according to the experimental analysis.

2. Materials and Experimental Program

2.1. Materials Selection

The soil for this research was collected from the under-construction metro station Zhushan Road of line 5 in Nanjing, and consisted of silty clay taken from 12 m below the surface. Table 1 and Table 2 list the mechanical properties and composition of the soil sample. Polypropylene fiber was chosen for this research, owing to its superior tensile strength, chemical stability, and dispersibility. Table 3 shows the performance specifications of the polypropylene fiber. C&D waste was collected from a construction site in Nanjing containing waste masonry blocks, fine sand, and gravel. Particles were ground and sieved to a size less than 5 mm. Portland cement 42.5 and sodium sulfate were used as cemental binder and alkali catalyst, respectively. The tests were carried out with strict reference to GB/T50123-1999 [54].

2.2. Mixture Design

The adopted testing variable included the dosage of fiber, C&D waste, sodium sulfate and cement. The content of water was kept constant at 80%. Other contents were defined from Equation (1), where a is the abbreviation for admixture and W is the weight of pre-dried soil.
ρ a = W a W
Specifically, Portland cement and C&D waste were used at 10%, 20% and 30%. Dosing level of fiber was 1%, 2%, 4% and of sodium sulfate was 0.2%, 0.4%, 0.8% among total weight. Table 4 provides the mixing percentages for each variable. The integrated mixture design resulted in 81 combinations of variables along 3 control groups. The specified mixture design is shown in the Appendix A.

2.3. Specimen Preparation

The specimens were prepared in accordance with GB/T50123-1999 [54], identifying with the mixing design presented in Table 4. Pre-dried soil and C&D waste were adequately ground and sieved to ensure similar gradations. Meanwhile, fiber agglomeration was avoided by air gun pretreatment and batch incorporation. Specifically, the high-pressure gas ejected from the air gun blew the polypropylene fiber towards the mortar. Fibers were grouped into small clusters to avoid weakening the inhibition of agglomeration due to excessive dosing at one time. The concocted soil-cement mixture was injected into the mold and vibrated to expel entrapped air. The samples were then wrapped in clean film and placed in the curing chamber for standard curing (temperature (20 ± 2) °C, relative humidity above 95%) until the test was conducted. Three replicated samples were prepared for each variable combination to conduct the compressive and flexural strength test.

2.4. Testing Procedure

Mechanical performance was evaluated in this research conforming to GB/T50123-1999 [54]. The sample dimensions for UCS and flexural strength test were kept consistent with the protocol as 50 mm × 50 mm × 50 mm and 40 mm × 40 mm × 160 mm, respectively. Tests were carried out at 7, 14, and 28 days of curing age. The day before the compressive performance evaluation, specimens were removed from the curing conditions and immersed in water at 24 °C for 24 h to simulate a real working environment. All laboratory tests were conducted by YAW-4206 and DY-208JX automatic pressure testers at a strain rate of 0.04 MPa/s until failure occurs.
SEM analysis was conducted to explore the modification of CSS at the microstructure level with the inclusion of polypropylene fiber, cement, C&D waste, and sodium sulfate. The fracture surface of UCS was cut into pieces measuring 1 cm × 1 cm × 1 cm to be observed.

3. Results and Discussion

3.1. Unconfined Compressive Strength Test

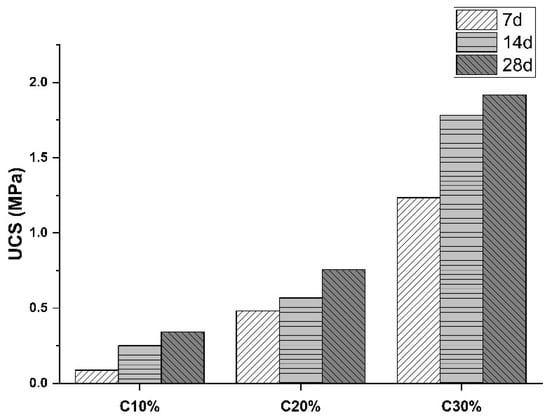

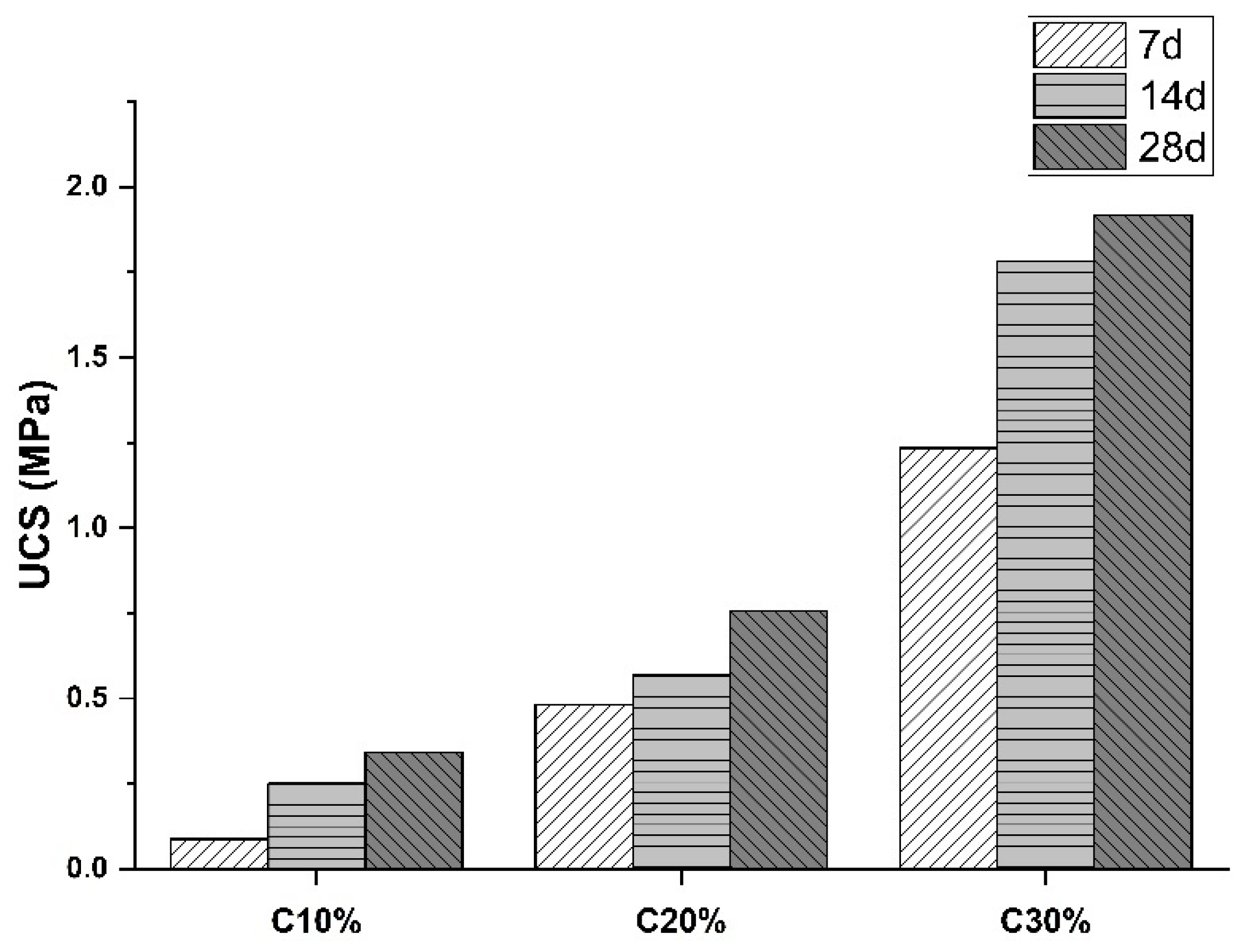

Figure 1 depicts the UCS test results of the control groups, indicating the performance enhancement by increasing Portland cement dosage and curing age. It can be observed that cement inclusion improved the strength of soil at all curing ages, while the maximum 28 d improvement reached 153.44%. The enhancement was attributed to more cement hydration products. When the cement content increases gradually, the consequent calcium silicate (CaSiO3) and C-S-H gel fill the porosity and significantly improve the compressive strength [55,56]. Simultaneously, UCS increases rapidly in the early curing stage (7–14 d), and the growth rate slowed down with time. The maximum increments from 7 to 14 days and 14 to 28 days curing stage were 185.73% and 36.18%, respectively, indicating the hydration products promoted the increase in bonding strength between cement and soil particles. At the curing age of 28 days, the hydration reaction was thorough, and the strength of the sample gradually stabilized to maintain a stable value.
However, Portland cement introduced an undesired failure mode as well. A brittle fracture surface was observed after the UCS test, presenting a distinct oblique shear plane. The failure occurred without obvious signs beforehand, which resulted in soil spalling and form damage. The effect can be ascribed to the alkali–silica reaction (ASR), which indicates that Portland cement increases the material’s brittleness [57,58,59]. Therefore, the specimen cannot be deformed in response to external forces.

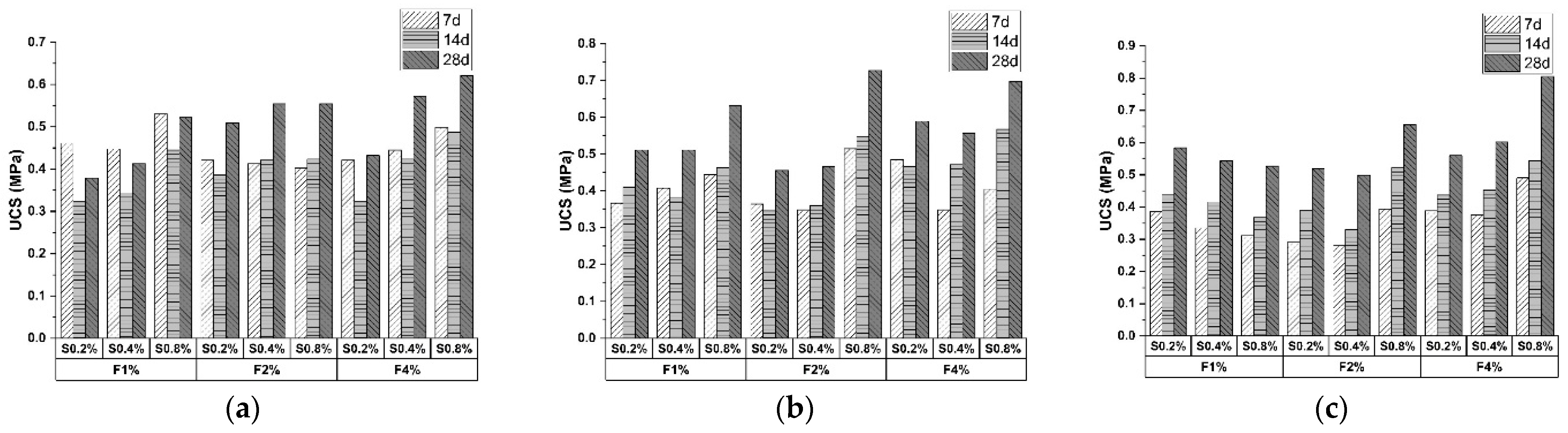

Figure 2 shows the UCS results for specimens dosed with 10% cement, while Figure 2a–c are divided into the C&D waste dosing levels of 10%, 20% and 30%. Figure 3 and Figure 4 illustrate the UCS of specimens with 20% and 30% cement under the same logic. It is evident in Figure 2 and Figure 3 that polypropylene fiber inclusion increases UCS performance. This can be ascribed to the inhibitory characteristics of fiber against sudden failure. With increased percentage, polypropylene fibers form spatial network-like structures and bridging effects in CSS slurry, which gradually inhibit crack generation [60,61]. The fiber bridge can additionally produce deformation constraints when the sample cracks. Moreover, polypropylene fiber provides higher movement resistance than that between soil particles [62]. Given that, the friction impedes particle displacement in the CSS specimen, which further exploits the strength enhancement among external forces. However, as in Figure 4c, a 31.52% degeneration was noticed. This was because with the cement dosage rising, the decrease in sample compactness caused by excessive fiber incorporation could no longer be neutralized by soil and C&D waste [63,64]. As observed in microstructure analysis, numerous fiber/binder ITZs appeared in the CSS, which significantly impaired the bonding strength. Notably, the compressive strength again grew significantly at 0.8% sodium sulfate in Figure 4c from 2–4% fiber dosage. This may be ascribed to sodium sulfate activating the formation of hydration products, providing strength and fewer air voids and thereby compensating for the reduction.

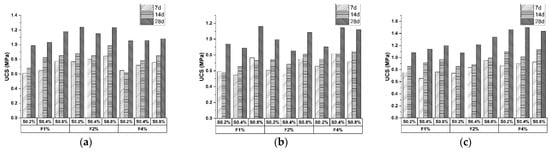

As shown in the above figures, the UCS test result increased with the increasing C&D waste percentage. The physical speculation for the performance improvement is that C&D waste demonstrates higher strength compared with soil. Particles act as support in the specimen, preventing premature collapse. Furthermore, C&D waste participates in the hydration of cement in CSS, with consequent hydration products that strengthen the material [65,66,67]. During the hardening process, calcium hydroxide (CH) generated by hydration serves as acidic and alkaline catalysts, respectively. The effect is to activate the hydration of silica, alumina, and old mortar in C&D waste, which produces C-S-H to enhance sample blocks [68,69,70]. However, for the experimental groups with 10%, 20% and 30% cement content, the peak compressive strength increments were 54.26%, 42.23% and 9.19%, respectively. The enhancement receded with cement proportion as the binder hydration approached completion.
Previous studies have confirmed the role of sulfate as an enhancer of mechanical properties. The incorporation of sulfate alters the hydration process, leading to the retardation mechanism of ettringite formation (Equations (2) and (3)) [71,72]. The reason for the phenomenon can be attributed to the ability of C-S-H to adsorb sulfate. The uptake and release of sulfate ions lead to the rapidly accelerated rate of ettringite production and performance development occurs during late curing stage. Moreover, the formation of cement hydration products with increasing sodium sulfate mass ratio was specifically explored, as it improves CSS performance without introducing impurities. Alkali-activated SO42− reacts with Ca2+ in the binder and AlO2− in the liquid phase to form ettringite, which yields mechanical compensation effect [73,74,75]. In addition, free Na+ form NaOH, raising the early-age pH value. Higher alkalinity fulfills the function of accelerating the dissolution of active SiO2 and Al2O3, mitigating the hindrance for further ettringite formation [76,77,78].
C3A + 3CSH2 + 26H→C6AS3H32
2C3A + C6AS3H32 + 4H→3C4ASH12

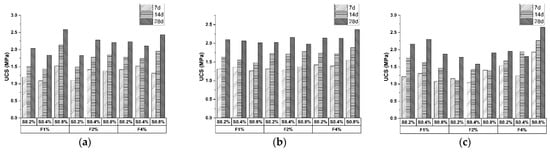

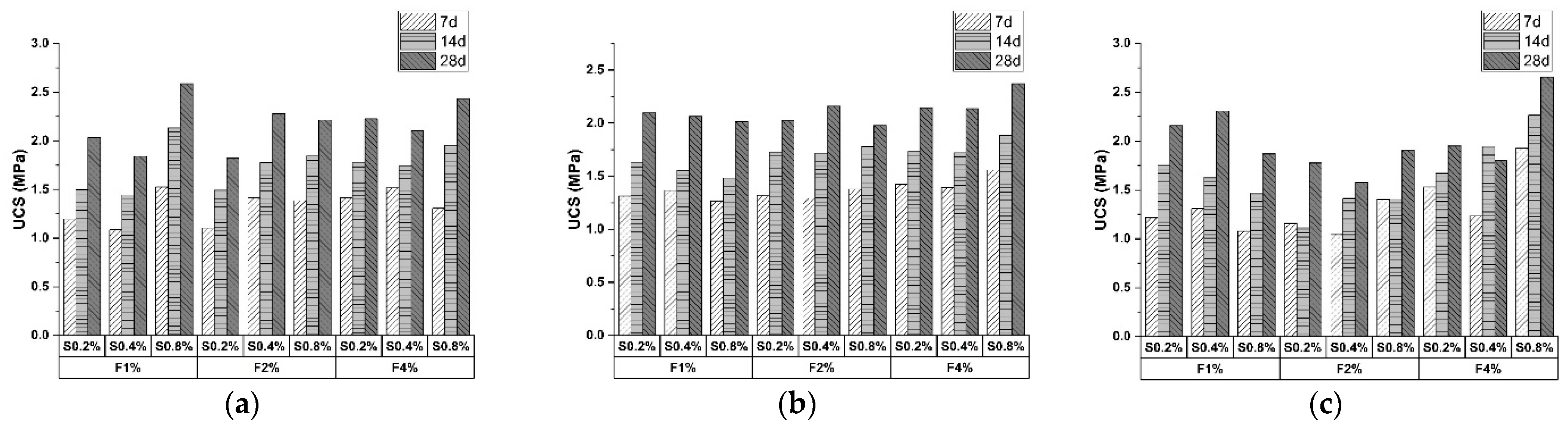

As illustrated in the figures, the UCS test results developed readily during the 14- to 28-day curing period, but slowly during the early stage. The average growth levels from 7 d to14 d and from 14 d to 28 d were 15.42% and 30.49%, respectively, a trend consistent with previous literature. However, the property alteration in this research failed to demonstrate an increasing trend. UCS showed rapid improvement from 0.2–0.8% sodium sulfate, while the durability of specimens with 0.4% sodium sulfate appeared not to be influenced by the dosing level. Compared with samples mixed with 0.2% sodium sulfate, the 0.4% proportion provided modification ranging from −14–31.36%, which indicates that the inclusion of 0.4% sodium sulfate impeded the UCS enhancement. Since the dosage was nowhere near the level of sulfate attack, the causes of the errors can be ascribed to inaccurate data recording and raw material discrepancies.

3.2. Flexural Strength Test

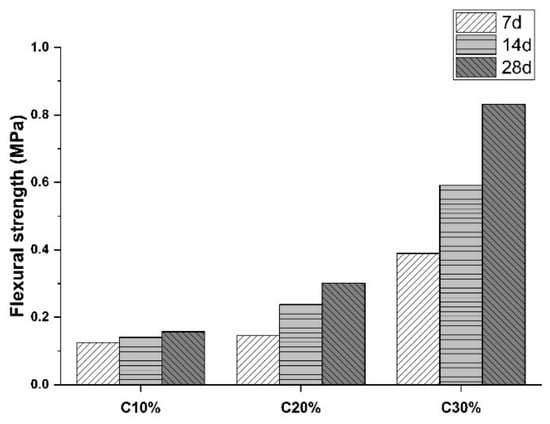

Figure 5 presents the flexural performance escalation of the control group due to the raising of the Portland cement proportion. It can be distinctly observed that the flexural strength increased at higher cement content (20–30%) during all curing ages. The increments ranged from 16.82–91.19% and 148.95–176.91%, respectively, for the 10–20% and 20–30% dosing levels. The maximum amplification achieved 1.94 times that for specimens with a low dosage (10–20%).

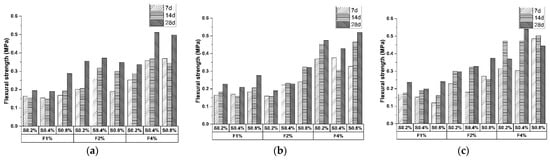

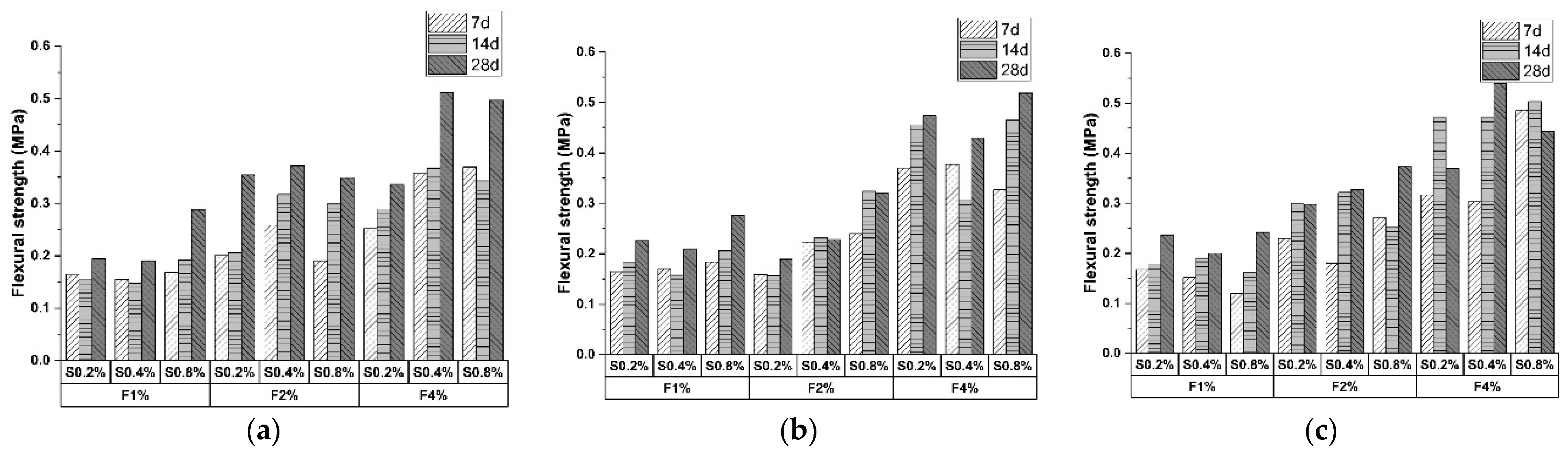

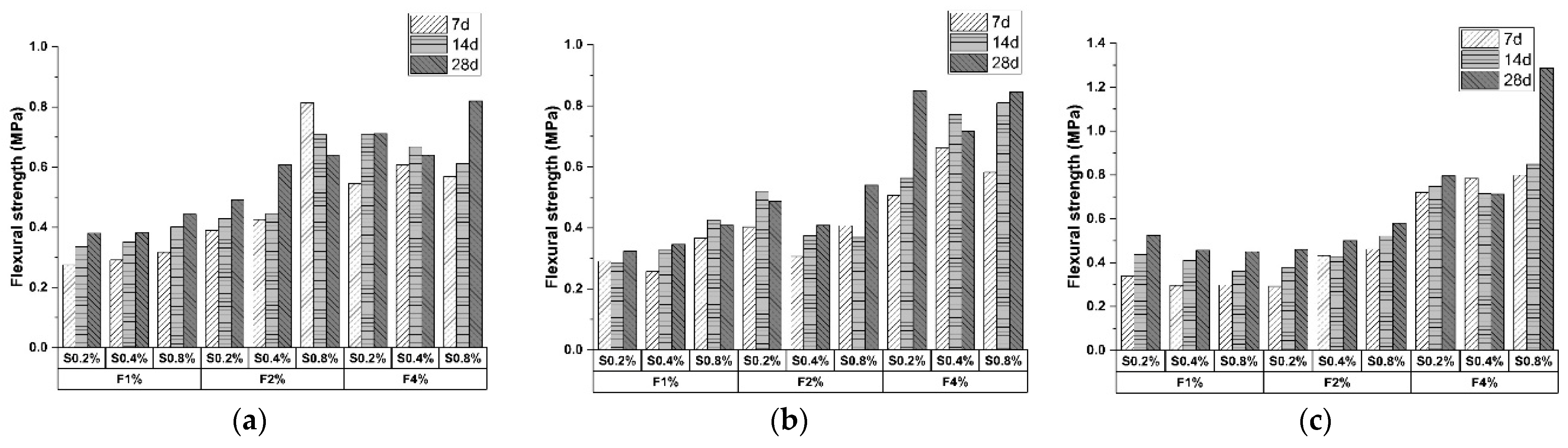

As illustrated in Figure 6, the polypropylene fiber content demonstrated a positive effect on flexural strength growth. Mechanical properties were enhanced by up to 82.33% and 150.31% for the 1–2% and 2–4% dosing levels, respectively. Figure 7 and Figure 8 represent the same trend, as evidenced by peak improvements in the ranges of 59.02–79.65% and 38.62–132.72%, respectively. The observation demonstrates that fibrous material contributes to flexural performance modification [79]. Specimens are therefore endowed with certain strength after the appearance of cracks, mitigating the property deterioration of weak fiber/binder ITZs [80,81]. Moreover, the maximum values of flexural strength are recorded for specimens containing 30% C&D waste and 4% fiber in Figure 6 and Figure 7, while the peak switches to 20% C&D waste in Figure 8. The value of flexural strength then decreases from 2.03 MPa to 1.45 MPa after 30% C&D waste is added. The degeneration may be attributed to excessive C&D waste particles, which impeded the bridging effect [82]. An optimum mixture design therefore should be considered to achieve the balance between mechanical performance and material consumption.
The positive effect of C&D waste dosage on flexural strength can be distinctly seen from the above figures. This can be attributed to a similar reason as for the UCS results, which involved the enhancement of hydrate reaction and physical strength. However, Figure 8c illustrates deterioration, due to the increase in C&D waste leading to more large particles and entrapped air. Moreover, the peak improvements were 56.83% and 57.2%, as shown in Figure 7 and Figure 8, while the flexural strength of the 10% cement group remained at a relatively stable level. The maximum increment in Figure 6 is 21.62%, which is 2.64 times smaller than the overall peak enhancement. This reveals that cement yields the impact of activating old mortar and improving bonding strength [83,84].
The influence of sodium sulfate dosing level is of special concern, since it has been proposed as an outstanding mechanical strength enhancer. However, as illustrated in the figures, the maximum flexural strength growth reached 69.96%, revealing that the contribution of hydration products to flexural strength is minimal. Moreover, compared with the remarkable flexural strength enhancement from the 0.2–0.8% proportion, the modification effect from the 0.2–0.4% proportion is insignificant. The source of error is similar to the reason discussed in Section 3.1.

3.3. Optimum Mixture Design

An optimum mixture design is proposed in order to seek a balance between mechanical properties and economic benefits. Table 5 and Table 6 show the rankings of UCS and flexural strengths, respectively, with the inclusion of various admixtures and curing age. Combining the two tables provides a reference for the selection.
It is evidenced that 30% cement content and longer curing time are more likely to produce peak enhancement than the other combinations. As shown in Table 5 and Table 6, the specimens with the top 10 enhancement levels were mixed with 30% cement, while 76.2% results were obtained after 28 days. In addition, a higher dosing level of polypropylene fiber presented a prominent performance improvement, as expressed in the tables by 15 specimens that were reinforced by 4% fiber content. It is noteworthy that the specimens ranked 1 to 4 in Table 5 were included 0.8% sodium sulfate, revealing that the effect of this inclusion tended toward maximum UCS improvement. However, the trend was not pronounced for flexural strength. Four samples in Table 6 constitute 0.2% and 0.8% sodium sulfate content, while two samples were enhanced by 0.4% proportion. Various dosages demonstrated an average influence factor on flexural resistance. C&D waste yielded a negative correlation with strength increment. Rankings in Table 5 and Table 6 show that 71.4% of specimens reinforced by a lower C&D waste proportion (10% to 20%) presented peak mechanical property enhancement. Additionally, flexural strength manifested more sensitivity to C&D waste content, as indicated in Table 6 by the sole specimens with the inclusion of 30% C&D waste that were located in lower rankings (5–10). Consequently, the specimen with variable percentages of 30%, 4%, 20% and 0.8% for Portland cement, polypropylene fiber, C&D waste, and sodium sulfate, respectively, is considered as exhibiting peak property enhancement, evidenced by its high rankings in Table 5 and Table 6.

3.4. SEM Analysis

The specimen that was prepared with 30% Portland cement, 30% C&D waste, 0.4% sodium sulfate, and 4% polypropylene fiber was selected to be observed, as it demonstrated evident strength reduction. The microstructure was as presented in Figure 9a. When the specimen failed, polypropylene fiber at the section was pulled out, reflecting the strengthening mechanism of the bridging effect. Fibers were randomly distributed within the mixture, forming a spatial mesh structure that effectively reinforced the CSS [85]. However, significant porosity between particles can be readily observed, which was the major cause of undesirable mechanical performance. At a low sodium sulfate dosing level (0.4%), the over-doped fibers underwent an agglomeration effect within the slurry, and the incompletely activated cement was unable to produce sufficient amounts of hydration by-products, leading to the formation of numerous weak ITZs [86]. Figure 9b illustrates the microstructure of the specimen prepared with the aforementioned optimal mixture design. The coupling enhancement between the variables is demonstrated by the aggregates wrapped by C-S-H and ettringite. The entrapped air voids between the C&D waste and the fibers are adequately filled, resulting in promotion of ITZ strength and mechanical performance.
Figure 10 compares microstructures of untreated polypropylene fiber with fiber used for CSS reinforcement. Ordinary polypropylene fiber represents a smooth surface, while Figure 10b illustrates the unevenness of the alkali-treated fibers. The friction provided by the crude surface enhances the particle cohesion from a physical aspect as the fibrous material cannot participate in the cement hydration [87]. Network-like polypropylene fiber therefore shows effectiveness in particle movement restriction and crack inhibition. In addition, fiber with a rougher surface yields a larger surface area for C-S-H and ettringite attachment, compensating the reduction in compactness due to fiber incorporation.

4. Conclusions

This research conducted a series of laboratory tests to examine the enhancement of cement-stabilized soil (CSS) specimen performance with the inclusion of Portland cement, polypropylene fiber, construction and demolition (C&D) waste, and sodium sulfate. The inclusion effects on unconfined compressive strength (UCS) and flexural strength was evaluated. Primary conclusions drawn from the above analysis are summarized as follows.
(1) Portland cement hydration products raise the UCS and flexural strength results simultaneously. Ettringite presents effectiveness in enhancing physical performance, while introducing brittle failure mode.
(2) With increasing dosage of polypropylene fiber, an improvement in flexural strength is continuous, while UCS enhancement is mitigated at a 30% cement dosage.
(3) UCS and flexural strength increase with the introduction of C&D waste. The lower dosing level (10–20%) exhibits better effectivity.
(4) Mechanical properties of CSS increase with the addition of sodium sulfate content. The proportion of 0.8% derives the maximum increment. Meanwhile, 14 d–28 d curing time represents higher enhancement efficiency.
(5) Scanning electron microscope (SEM) analysis on the UCS fracture surface explained the mechanism of alkali-activated fiber reinforcement. Polypropylene fiber generates a spatial network, wrapping specimens against deformation and cracking. Sodium sulfate supplements the enhancement by catalyzing cement hydration, thus promoting the strength of the mechanical bond between fiber, aggregates, and CSS matrix.
(6) The combination of 30% Portland cement content, 4% polypropylene fiber content, 20% C&D waste content, and 0.8% sodium sulfate content is considered the optimal mixture design. By balancing the dosing level of each variable, the specimen yields the best general mechanical properties.

Author Contributions

Conceptualization, G.Z.; methodology, G.Z.; writing-original draft, Z.D.; writing-review & editing, R.Z.; project administration, R.Z.; formal analysis, C.C.; validation, C.C.; visualization, G.F.; visualization, X.L.; writing-review & editing, Y.W.; formal analysis, C.Z.; resources, C.Z. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by Key Project of the Hunan Education Department (grant number 21A0511), National Natural Science Foundation of China (grant numbers 51908201 and 51978254), Natural Science Foundation of Hunan Province (grant numbers 2020JJ5024; 2021JJ50142), and Hunan Provincial Science and Technology Plan (grant number 2021NK4273). The authors appreciate their support.

Data Availability Statement

The data presented in this study are openly available.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. The Portland Cement, C&D waste, propylene fiber, and sodium sulfate proportion of the samples in this test.
Table A1. The Portland Cement, C&D waste, propylene fiber, and sodium sulfate proportion of the samples in this test.
IDPortland CementC&D WastePropylene FiberSodium Sulfate
Control 110%NANANA
Control 220%NANANA
Control 330%NANANA
110%10%1%0.2%
20.4%
30.8%
42%0.2%
50.4%
60.8%
74%0.2%
80.4%
90.8%
1020%1%0.2%
110.4%
120.8%
132%0.2%
140.4%
150.8%
164%0.2%
170.4%
180.8%
1930%1%0.2%
200.4%
210.8%
222%0.2%
230.4%
240.8%
254%0.2%
260.4%
270.8%
2820%10%1%0.2%
290.4%
300.8%
312%0.2%
320.4%
330.8%
344%0.2%
350.4%
360.8%
3720%1%0.2%
380.4%
390.8%
402%0.2%
410.4%
420.8%
434%0.2%
440.4%
450.8%
4630%1%0.2%
470.4%
480.8%
492%0.2%
500.4%
510.8%
524%0.2%
530.4%
540.8%
5530%10%1%0.2%
560.4%
570.8%
582%0.2%
590.4%
600.8%
614%0.2%
620.4%
630.8%
6420%1%0.2%
650.4%
660.8%
672%0.2%
680.4%
690.8%
704%0.2%
710.4%
720.8%
7330%1%0.2%
740.4%
750.8%
762%0.2%
770.4%
780.8%
794%0.2%
800.4%
810.8%

References

  1. Natianal Bureau of Statistics of China. China Statistical Yearbook; China Statistics Press: Beijing, China, 2019.
  2. Huang, B.; Wang, X.; Kua, H.; Geng, Y.; Bleischwitz, R.; Ren, J. Construction and demolition waste management in China through the 3R principle. Resour. Conserv. Recycl. 2018, 129, 36–44. [Google Scholar] [CrossRef]
  3. Construction and Demolition Waste. 2018. Available online: https://ec.europa.eu/environment/topics/waste-and-recycling/construction-and-demolition-waste_en (accessed on 1 March 2022).
  4. Pacheco-Torgal, F.; Ding, Y.; Colangelo, F.; Tuladhar, R.; Koutamanis, A.D. Advances in Construction and Demolition Waste Recycling: Management, Processing and Environmental Assessment; Woodhead Publishing: Sawston, UK, 2020. [Google Scholar]
  5. Pierrehumbert, R. There is no Plan B for dealing with the climate crisis. Bull. At. Sci. 2019, 75, 215–221. [Google Scholar] [CrossRef] [Green Version]
  6. Pierrehumbert, R. How to decarbonize? Look to Sweden. Bull. At. Sci. 2016, 72, 105–111. [Google Scholar] [CrossRef] [Green Version]
  7. Alley, R.B.; Marotzke, J.; Nordhaus, W.D.; Overpeck, J.T.; Peteet, D.M.; Pielke, R.A., Jr.; Pierrehumbert, R.T.; Rhines, P.B.; Stocker, T.F.; Talley, L.D.; et al. Abrupt Climate Change. Science 2003, 299, 2005–2010. [Google Scholar] [CrossRef] [Green Version]
  8. Jellinek, A.M.; Lenardic, A.; Pierrehumbert, R. Earth’s supecontinental climate control. In EGU General Assembly Conference Abstracts; European Geosciences Union: Munich, Germany, 2021. [Google Scholar]
  9. Liu, C.; Wu, D.; Li, Y.; Du, Y. Large-scale pavement roughness measurements with vehicle crowdsourced data using semi-supervised learning. Transp. Res. Part C Emerg. Technol. 2021, 125, 103048. [Google Scholar] [CrossRef]
  10. Li, X.; Li, Y.; Jia, T.; Zhou, L.; Hijazi, I.H. The six dimensions of built environment on urban vitality: Fusion evidence from multi-source data. Cities 2021, 121, 103482. [Google Scholar] [CrossRef]
  11. Ghouleh, Z.; Shao, Y. Turning municipal solid waste incineration into a cleaner cement production. J. Clean. Prod. 2018, 195, 268–279. [Google Scholar] [CrossRef]
  12. Zhu, W.; Chen, X.; Struble, L.J.; Yang, E.-H. Characterization of calcium-containing phases in alkali-activated municipal solid waste incineration bottom ash binder through chemical extraction and deconvoluted Fourier transform infrared spectra. J. Clean. Prod. 2018, 192, 782–789. [Google Scholar] [CrossRef]
  13. García-Taengua, E.; Sonebi, M.; Crossett, P.; Taylor, S.; Deegan, P.; Ferrara, L.; Pattarini, A. Performance of sustainable SCC mixes with mineral additions for use in precast concrete industry. J. Sustain. Cem. Mater. 2015, 5, 157–175. [Google Scholar] [CrossRef]
  14. Sun, J.; Wang, Y.; Liu, S.; Dehghani, A.; Xiang, X.; Wei, J.; Wang, X. Mechanical, chemical and hydrothermal activation for waste glass reinforced cement. Constr. Build. Mater. 2021, 301, 124361. [Google Scholar] [CrossRef]
  15. Tang, Y.; Feng, W.; Chen, Z.; Nong, Y.; Guan, S.; Sun, J. Fracture behavior of a sustainable material: Recycled concrete with waste crumb rubber subjected to elevated temperatures. J. Clean. Prod. 2021, 318, 128553. [Google Scholar] [CrossRef]
  16. Wang, B.; Yan, L.; Fu, Q.; Kasal, B. A Comprehensive Review on Recycled Aggregate and Recycled Aggregate Concrete. Resour. Conserv. Recycl. 2021, 171, 105565. [Google Scholar] [CrossRef]
  17. Tayeh, B.A.; Alsaffar, D.; Alyousef, R. The Utilization of Recycled Aggregate in High Performance Concrete: A Review. J. Mater. Res. Technol. 2020, 9, 8469–8481. [Google Scholar] [CrossRef]
  18. del Valle-Zermeño, R.; Giro-Paloma, J.; Formosa, J.; Chimenos, J.M. APC Fly Ash Recycling: Development of a Granular Material from Laboratory to a Pilot Scale. Waste Biomass Valorization 2017, 8, 1409–1419. [Google Scholar] [CrossRef]
  19. Toraldo, E.; Saponaro, S.F. A road pavement full-scale test track containing stabilized bottom ashes. Environ. Technol. 2014, 36, 1114–1122. [Google Scholar] [CrossRef] [Green Version]
  20. Huang, H.; Xue, C.; Zhang, W.; Guo, M. Torsion design of CFRP-CFST columns using a data-driven optimization approach. Eng. Struct. 2021, 251, 113479. [Google Scholar] [CrossRef]
  21. Guo, Z.; Tu, A.; Chen, C.; Lehman, D.E. Mechanical properties, durability, and life-cycle assessment of concrete building blocks incorporating recycled concrete aggregates. J. Clean. Prod. 2018, 199, 136–149. [Google Scholar] [CrossRef]
  22. Liu, J.; Wu, C.; Wu, G.; Wang, X. A novel differential search algorithm and applications for structure design. Appl. Math. Comput. 2015, 268, 246–269. [Google Scholar] [CrossRef]
  23. Xu, H.; Wang, X.-Y.; Liu, C.-N.; Chen, J.-N.; Zhang, C. A 3D root system morphological and mechanical model based on L-Systems and its application to estimate the shear strength of root-soil composites. Soil Tillage Res. 2021, 212, 105074. [Google Scholar] [CrossRef]
  24. Wen, P.; Wang, C.; Song, L.; Niu, L.; Chen, H. Durability and Sustainability of Cement-Stabilized Materials Based on Utilization of Waste Materials: A Literature Review. Sustainability 2021, 13, 11610. [Google Scholar] [CrossRef]
  25. Ifediniru, C.; Ekeocha, N.E. Performance of cement-stabilized weak subgrade for highway embankment construction in Southeast Nigeria. Int. J. Geo-Eng. 2022, 13, 1. [Google Scholar] [CrossRef]
  26. Dahale, P.P.; Nagarnaik, P.B.; Gajbhiye, A.R. Utilization of solid waste for soil stabilization: A review. Electron. J. Geotech. Eng. 2012, 17, 2443–2461. [Google Scholar]
  27. Islam, M.S.; Elahi, T.E.; Shahriar, A.R.; Mumtaz, N. Effectiveness of fly ash and cement for compressed stabilized earth block construction. Constr. Build. Mater. 2020, 255, 119392. [Google Scholar] [CrossRef]
  28. Kariyawasam, K.; Jayasinghe, C. Cement stabilized rammed earth as a sustainable construction material. Constr. Build. Mater. 2016, 105, 519–527. [Google Scholar] [CrossRef]
  29. Anagnostopoulos, C.A. Strength properties of an epoxy resin and cement-stabilized silty clay soil. Appl. Clay Sci. 2015, 114, 517–529. [Google Scholar] [CrossRef]
  30. Donatello, S.; Fernández-Jimenez, A.; Palomo, A. Very high volume fly ash cements. Early age hydration study using Na 2 SO 4 as an activator. J. Am. Ceram. Soc. 2013, 96, 900–906. [Google Scholar] [CrossRef]
  31. Huang, Y.; An, C.; Zhang, Q.; Zang, L.; Shao, H.; Liu, Y.; Zhang, Y.; Yuan, H.; Wang, C.; Wang, Y. Cost-effective mechanochemical synthesis of highly dispersed supported transition metal catalysts for hydrogen storage. Nano Energy 2020, 80, 105535. [Google Scholar] [CrossRef]
  32. Huang, L.; Yang, Z. Early hydration of tricalcium silicate with potassium hydroxide and sulfate from pore solution and solid view. Constr. Build. Mater. 2019, 230, 116988. [Google Scholar] [CrossRef]
  33. Atashband, S.; Sabermahani, M.; Elahi, H. Internal and External Effects of Sodium Sulfate on the Strength of Soil Cement. Iran. J. Sci. Technol. Trans. Civ. Eng. 2020, 45, 2595–2610. [Google Scholar] [CrossRef]
  34. Tsai, Y.-H.; Wang, J.; Chien, W.-T.; Wei, C.-Y.; Wang, X.; Hsieh, S.-H. A BIM-based approach for predicting corrosion under insulation. Autom. Constr. 2019, 107, 102923. [Google Scholar] [CrossRef]
  35. Tang, Z.; Li, W.; Ke, G.; Zhou, J.L.; Tam, V.W. Sulfate attack resistance of sustainable concrete incorporating various industrial solid wastes. J. Clean. Prod. 2019, 218, 810–822. [Google Scholar] [CrossRef]
  36. Firoozi, A.A.; Guney Olgun, C.; Firoozi, A.A.; Baghini, M.S. Fundamentals of soil stabilization. Int. J. Geo-Eng. 2017, 8, 26. [Google Scholar] [CrossRef] [Green Version]
  37. Sharma, L.; Sirdesai, N.; Sharma, K.; Singh, T. Experimental study to examine the independent roles of lime and cement on the stabilization of a mountain soil: A comparative study. Appl. Clay Sci. 2018, 152, 183–195. [Google Scholar] [CrossRef]
  38. Wu, C.; Wang, X.; Chen, M.; Kim, M.J. Differential received signal strength based RFID positioning for construction equipment tracking. Adv. Eng. Inform. 2019, 42, 100960. [Google Scholar] [CrossRef]
  39. Wang, L.; Roy, A.; Seals, R.K.; Byerly, Z. Suppression of Sulfate Attack on a Stabilized Soil. J. Am. Ceram. Soc. 2005, 88, 1600–1606. [Google Scholar] [CrossRef]
  40. Xu, S.; Wang, J.; Shou, W.; Ngo, T.; Sadick, A.-M.; Wang, X. Computer Vision Techniques in Construction: A Critical Review. Arch. Comput. Methods Eng. 2020, 28, 3383–3397. [Google Scholar] [CrossRef]
  41. Zhang, W.; Wu, C.; Zhong, H.; Li, Y.; Wang, L. Prediction of undrained shear strength using extreme gradient boosting and random forest based on Bayesian optimization. Geosci. Front. 2020, 12, 469–477. [Google Scholar] [CrossRef]
  42. Sun, J.; Wang, Y.; Yao, X.; Ren, Z.; Zhang, G.; Zhang, C.; Chen, X.; Ma, W.; Wang, X. Machine-Learning-Aided Prediction of Flexural Strength and ASR Expansion for Waste Glass Cementitious Composite. Appl. Sci. 2021, 11, 6686. [Google Scholar] [CrossRef]
  43. Sun, J.; Ma, Y.; Li, J.; Zhang, J.; Ren, Z.; Wang, X. Machine learning-aided design and prediction of cementitious composites containing graphite and slag powder. J. Build. Eng. 2021, 43, 102544. [Google Scholar] [CrossRef]
  44. Sun, Y.; Li, G.; Zhang, J.; Sun, J.; Xu, J. Development of an Ensemble Intelligent Model for Assessing the Strength of Cemented Paste Backfill. Adv. Civ. Eng. 2020, 2020, 1–6. [Google Scholar] [CrossRef]
  45. Zhang, C.; Kordestani, H.; Masri, S.F.; Wang, J.; Sun, L. Data-driven system parameter change detection for a chain-like uncertainties embedded structure. Struct. Control Heal. Monit. 2021, 28, e2821. [Google Scholar] [CrossRef]
  46. Cristelo, N.; Cunha, V.M.; Dias, M.; Gomes, A.T.; Miranda, T.; Araújo, N. Influence of discrete fibre reinforcement on the uniaxial compression response and seismic wave velocity of a cement-stabilised sandy-clay. Geotext. Geomembr. 2015, 43, 1–13. [Google Scholar] [CrossRef] [Green Version]
  47. Kumar, A.; Walia, B.S.; Mohan, J. Compressive strength of fiber reinforced highly compressible clay. Constr. Build. Mater. 2006, 20, 1063–1068. [Google Scholar] [CrossRef]
  48. Aslani, F.; Sun, J.; Bromley, D.; Ma, G. Fiber-reinforced lightweight self-compacting concrete incorporating scoria aggregates at elevated temperatures. Struct. Concr. 2019, 20, 1022–1035. [Google Scholar] [CrossRef]
  49. Wang, J.; Dai, Q.; Si, R.; Guo, S. Investigation of properties and performances of Polyvinyl Alcohol (PVA) fiber-reinforced rubber concrete. Constr. Build. Mater. 2018, 193, 631–642. [Google Scholar] [CrossRef]
  50. Wang, J.; Dai, Q.; Si, R.; Ma, Y.; Guo, S. Fresh and mechanical performance and freeze-thaw durability of steel fiber-reinforced rubber self-compacting concrete (SRSCC). J. Clean. Prod. 2020, 277, 123180. [Google Scholar] [CrossRef]
  51. Dobrovolski, M.E.; Munhoz, G.S.; Pereira, E.; Medeiros-Junior, R.A. Effect of crystalline admixture and polypropylene microfiber on the internal sulfate attack in Portland cement composites due to pyrite oxidation. Constr. Build. Mater. 2021, 308, 125018. [Google Scholar] [CrossRef]
  52. Wang, J.; Dai, Q.; Guo, S.; Si, R. Study on Rubberized Concrete Reinforced with Different Fibers. ACI Mater. J. 2019, 116, 21–31. [Google Scholar] [CrossRef]
  53. Yu, X.; Sun, Y.; Zhao, D.; Wu, S. A revised contact stiffness model of rough curved surfaces based on the length scale. Tribol. Int. 2021, 164, 107206. [Google Scholar] [CrossRef]
  54. China MoHaU-RDotPsRo (Ed.) Standard for Soil Test Method, in GB/T 50123-1999; Planning Press: Beijing, China, 1999. [Google Scholar]
  55. Sun, J.; Huang, Y.; Aslani, F.; Wang, X.; Ma, G. Mechanical enhancement for EMW-absorbing cementitious material using 3D concrete printing. J. Build. Eng. 2021, 41, 102763. [Google Scholar] [CrossRef]
  56. Zhang, W.; Li, H.; Li, Y.; Liu, H.; Chen, Y.; Ding, X. Application of deep learning algorithms in geotechnical engineering: A short critical review. Artif. Intell. Rev. 2021, 54, 5633–5673. [Google Scholar] [CrossRef]
  57. Amini, O.; Ghasemi, M. Laboratory study of the effects of using magnesium slag on the geotechnical properties of cement stabilized soil. Constr. Build. Mater. 2019, 223, 409–420. [Google Scholar] [CrossRef]
  58. Feng, J.; Chen, B.; Sun, W.; Wang, Y. Microbial induced calcium carbonate precipitation study using Bacillus subtilis with application to self-healing concrete preparation and characterization. Constr. Build. Mater. 2021, 280, 122460. [Google Scholar] [CrossRef]
  59. Wang, M.; Yang, X.; Wang, W. Establishing a 3D aggregates database from X-ray CT scans of bulk concrete. Constr. Build. Mater. 2021, 315, 125740. [Google Scholar] [CrossRef]
  60. Singh, V.; Gu, N.; Wang, X. A theoretical framework of a BIM-based multi-disciplinary collaboration platform. Autom. Constr. 2011, 20, 134–144. [Google Scholar] [CrossRef]
  61. Xu, J.; Wu, Z.; Chen, H.; Shao, L.; Zhou, X.; Wang, S. Triaxial Shear Behavior of Basalt Fiber-Reinforced Loess Based on Digital Image Technology. KSCE J. Civ. Eng. 2021, 25, 3714–3726. [Google Scholar] [CrossRef]
  62. Sun, J.; Aslani, F.; Lu, J.; Wang, L.; Huang, Y.; Ma, G. Fibre-reinforced lightweight engineered cementitious composites for 3D concrete printing. Ceram. Int. 2021, 47, 27107–27121. [Google Scholar] [CrossRef]
  63. Aslani, F.; Sun, J.; Huang, G. Mechanical Behavior of Fiber-Reinforced Self-Compacting Rubberized Concrete Exposed to Elevated Temperatures. J. Mater. Civ. Eng. 2019, 31, 04019302. [Google Scholar] [CrossRef]
  64. Hou, L.; Wu, S.; Zhang, G.; Tan, Y.; Wang, X. Literature Review of Digital Twins Applications in Construction Workforce Safety. Appl. Sci. 2020, 11, 339. [Google Scholar] [CrossRef]
  65. Dimitriou, G.; Savva, P.; Petrou, M.F. Enhancing mechanical and durability properties of recycled aggregate concrete. Constr. Build. Mater. 2018, 158, 228–235. [Google Scholar] [CrossRef]
  66. Xiang, G.X.; Xiang, G.X.; Gao, X.; Gao, X.; Tang, W.J.; Tang, W.J.; Jie, X.Z.; Jie, X.Z.; Huang, X.; Huang, X. Numerical study on transition structures of oblique detonations with expansion wave from finite-length cowl. Phys. Fluids 2020, 32, 056108. [Google Scholar] [CrossRef]
  67. Zhang, H.; Liu, Y.; Deng, Y. Temperature gradient modeling of a steel box-girder suspension bridge using Copulas probabilistic method and field monitoring. Adv. Struct. Eng. 2020, 24, 947–961. [Google Scholar] [CrossRef]
  68. Cheng, H.L.; Wang, C.Y. The influence of sodium silicate on the properties of recycled aggregate. Gypsum Cem. Build. 2005, 12, 12–14. [Google Scholar]
  69. Tam, V.W.; Soomro, M.; Evangelista, A.C.J. A review of recycled aggregate in concrete applications (2000–2017). Constr. Build. Mater. 2018, 172, 272–292. [Google Scholar] [CrossRef]
  70. Nanayakkara, O.; Gunasekara, C.; Sandanayake, M.; Law, D.W.; Nguyen, K.; Xia, J.; Setunge, S. Alkali activated slag concrete incorporating recycled aggregate concrete: Long term performance and sustainability aspect. Constr. Build. Mater. 2020, 271, 121512. [Google Scholar] [CrossRef]
  71. Joseph, S.; Skibsted, J.; Cizer, Ö. A quantitative study of the C3A hydration. Cem. Concr. Res. 2018, 115, 145–159. [Google Scholar] [CrossRef]
  72. Zhao, R.; Zhang, L.; Guo, B.; Chen, Y.; Fan, G.; Jin, Z.; Guan, X.; Zhu, J. Unveiling substitution preference of chromium ions in sulphoaluminate cement clinker phases. Compos. Part B Eng. 2021, 222, 109092. [Google Scholar] [CrossRef]
  73. Marchon, D.; Flatt, R.J. Mechanisms of Cement Hydration, in Science and Technology of Concrete Admixtures; Elsevier: Amsterdam, The Netherlands, 2016; pp. 129–145. [Google Scholar]
  74. Liu, B.; Spiekermann, R.; Zhao, C.; Püttmann, W.; Sun, Y.; Jasper, A.; Uhl, D. Evidence for the repeated occurrence of wildfires in an upper Pliocene lignite deposit from Yunnan, SW China. Int. J. Coal Geol. 2022, 250, 103924. [Google Scholar] [CrossRef]
  75. Wang, L.; Yuan, J.; Wu, C.; Wang, X. Practical algorithm for stochastic optimal control problem about microbial fermentation in batch culture. Optim. Lett. 2017, 13, 527–541. [Google Scholar] [CrossRef]
  76. Mähler, J.; Persson, I. A Study of the Hydration of the Alkali Metal Ions in Aqueous Solution. Inorg. Chem. 2011, 51, 425–438. [Google Scholar] [CrossRef]
  77. Huang, L.; Yan, P. Effect of alkali content in cement on its hydration kinetics and mechanical properties. Constr. Build. Mater. 2019, 228, 116833. [Google Scholar] [CrossRef]
  78. Salvador, R.P.; Cavalaro, S.H.; Segura, I.; Figueiredo, A.D.; Pérez, J. Early age hydration of cement pastes with alkaline and alkali-free accelerators for sprayed concrete. Constr. Build. Mater. 2016, 111, 386–398. [Google Scholar] [CrossRef]
  79. Xiao, X.; Bu, G.; Ou, Z.; Li, Z. Nonlinear in-plane instability of the confined FGP arches with nanocomposites reinforcement under radially-directed uniform pressure. Eng. Struct. 2021, 252, 113670. [Google Scholar] [CrossRef]
  80. Zhang, W.; Tang, Z. Numerical Modeling of Response of CFRP–Concrete Interfaces Subjected to Fatigue Loading. J. Compos. Constr. 2021, 25, 04021043. [Google Scholar] [CrossRef]
  81. Wang, J.; Dai, Q.; Si, R. Experimental and Numerical Investigation of Fracture Behaviors of Steel Fiber–Reinforced Rubber Self-Compacting Concrete. J. Mater. Civ. Eng. 2022, 34, 04021379. [Google Scholar] [CrossRef]
  82. Shi, T.; Lan, Y.; Hu, Z.; Wang, H.; Xu, J.; Zheng, B. Tensile and Fracture Properties of Silicon Carbide Whisker-Modified Cement-Based Materials. Int. J. Concr. Struct. Mater. 2022, 16, 2. [Google Scholar] [CrossRef]
  83. Sun, J.; Lin, S.; Zhang, G.; Sun, Y.; Zhang, J.; Chen, C.; Morsy, A.M.; Wang, X. The effect of graphite and slag on electrical and mechanical properties of electrically conductive cementitious composites. Constr. Build. Mater. 2021, 281, 122606. [Google Scholar] [CrossRef]
  84. Li, J.; Qin, Q.; Sun, J.; Ma, Y.; Li, Q. Mechanical and conductive performance of electrically conductive cementitious composite using graphite, steel slag, and GGBS. Struct. Concr. 2020, 22, 1–15. [Google Scholar] [CrossRef]
  85. Wang, J.; Dai, Q.; Si, R.; Guo, S. Mechanical, durability, and microstructural properties of macro synthetic polypropylene (PP) fiber-reinforced rubber concrete. J. Clean. Prod. 2019, 234, 1351–1364. [Google Scholar] [CrossRef]
  86. Aslani, F.; Hou, L.; Nejadi, S.; Sun, J.; Abbasi, S. Experimental analysis of fiber-reinforced recycled aggregate self-compacting concrete using waste recycled concrete aggregates, polypropylene, and steel fibers. Struct. Concr. 2019, 20, 1670–1683. [Google Scholar] [CrossRef]
  87. Xu, J.; Wu, Z.; Chen, H.; Shao, L.; Zhou, X.; Wang, S. Study on Strength Behavior of Basalt Fiber-Reinforced Loess by Digital Image Technology (DIT) and Scanning Electron Microscope (SEM). Arab. J. Sci. Eng. 2021, 46, 11319–11338. [Google Scholar] [CrossRef]
Buildings 12 00350 g001 550
Figure 1. Compressive strength enhancement for the control group (Note: C represents Portland cement).
Figure 1. Compressive strength enhancement for the control group (Note: C represents Portland cement).
Buildings 12 00350 g001
Buildings 12 00350 g002 550
Figure 2. Unconfined compressive strength of 10% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Figure 2. Unconfined compressive strength of 10% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Buildings 12 00350 g002
Buildings 12 00350 g003 550
Figure 3. Unconfined compressive strength of 20% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Figure 3. Unconfined compressive strength of 20% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Buildings 12 00350 g003
Buildings 12 00350 g004 550
Figure 4. Unconfined compressive strength of 30% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Figure 4. Unconfined compressive strength of 30% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Buildings 12 00350 g004
Buildings 12 00350 g005 550
Figure 5. Flexural strength enhancement of control group (Note: C represents Portland cement).
Figure 5. Flexural strength enhancement of control group (Note: C represents Portland cement).
Buildings 12 00350 g005
Buildings 12 00350 g006 550
Figure 6. Flexural strength of 10% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Figure 6. Flexural strength of 10% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Buildings 12 00350 g006
Buildings 12 00350 g007 550

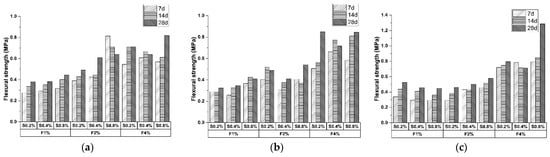

Figure 7. Flexural strength of 20% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Figure 7. Flexural strength of 20% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Buildings 12 00350 g007
Buildings 12 00350 g008 550

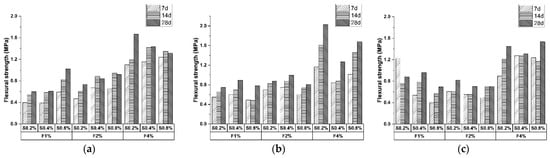

Figure 8. Flexural strength of 30% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Figure 8. Flexural strength of 30% cement specimen with (a) 10% C&D waste; (b) 20% C&D waste; (c) 30% C&D waste (Note: S represents sodium sulfate; F represents polypropylene fiber).
Buildings 12 00350 g008
Buildings 12 00350 g009 550
Figure 9. Microstructure of fracture surface after flexural strength test: (a) prior failed specimen; (b) optimum mixture design specimen.
Figure 9. Microstructure of fracture surface after flexural strength test: (a) prior failed specimen; (b) optimum mixture design specimen.
Buildings 12 00350 g009
Buildings 12 00350 g010 550
Figure 10. Microstructure of polypropylene fiber: (a) untreated fiber; (b) alkali-treated fiber.
Figure 10. Microstructure of polypropylene fiber: (a) untreated fiber; (b) alkali-treated fiber.
Buildings 12 00350 g010
Table
Table 1. Physical and mechanical properties of soil sample.
Table 1. Physical and mechanical properties of soil sample.
Soil PropertiesValue
Specific gravity2.69
Liquid limit (%)38.87
Plastic limit (%)21.55
Plasticity index17.32
Maximum dry density (g/cm3)1.51
Optimum moisture content (%)25.37
Table
Table 2. Concentration of composition in sample soil.
Table 2. Concentration of composition in sample soil.
CompositionConcentration Value
Sand17.8%
Silt64.6%
Clay17.5%
Mineral CompositionConcentration Value
Quartz33.8%
Kaolinite52.4%
Montmorillonite1.3%
Elixirite7.6%
Calcite2.1%
Organic matter2.9%
Table
Table 3. Physical and mechanical properties of polypropylene fiber.
Table 3. Physical and mechanical properties of polypropylene fiber.
Polypropylene Fiber PropertiesValue
Diameter (μm)10
Cut length (mm)10
Density (g/cm3)0.91
Tensile strength (MPa)486
Stretching limit (%)15
Acid resistanceExcellent
Alkali resistanceExcellent
Table
Table 4. Testing variables and proportion.
Table 4. Testing variables and proportion.
Testing VariableProportion
42.5 Portland cement10%; 20%; 30%
Polypropylene fiber1%; 2%; 4%
C&D waste10%; 20%; 30%
Sodium sulfate0.2%; 0.4%; 0.8%
Water80%
Table
Table 5. Unconfined compressive strength ranking.
Table 5. Unconfined compressive strength ranking.
CementC&D WasteFiberSodium SulfateCuring Time (Day)UCS (MPa)Ranking
30%30%4%0.8%282.65721
30%10%1%0.8%282.58802
30%10%4%0.8%282.43363
30%20%4%0.8%282.37204
30%30%1%0.4%282.30845
30%10%2%0.4%282.28166
30%30%4%0.8%142.26567
30%10%4%0.2%282.22568
30%10%2%0.8%282.21489
30%20%2%0.4%282.159210
Table
Table 6. Flexural strength ranking.
Table 6. Flexural strength ranking.
CementC&D WasteFiberSodium SulfateCuring Time (Day)Flexural Strength (MPa)Ranking
30%20%4%0.2%282.02861
30%20%4%0.8%281.67522
30%10%4%0.2%281.66903
30%20%4%0.2%141.61244
30%30%4%0.8%281.53345
30%20%4%0.8%141.45566
30%30%4%0.2%281.45047
30%10%4%0.4%281.43208
30%10%4%0.4%141.41899
30%10%4%0.8%141.349710
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, G.; Ding, Z.; Zhang, R.; Chen, C.; Fu, G.; Luo, X.; Wang, Y.; Zhang, C. Combined Utilization of Construction and Demolition Waste and Propylene Fiber in Cement-Stabilized Soil. Buildings 2022, 12, 350. https://doi.org/10.3390/buildings12030350

AMA Style

Zhang G, Ding Z, Zhang R, Chen C, Fu G, Luo X, Wang Y, Zhang C. Combined Utilization of Construction and Demolition Waste and Propylene Fiber in Cement-Stabilized Soil. Buildings. 2022; 12(3):350. https://doi.org/10.3390/buildings12030350

Chicago/Turabian Style

Zhang, Genbao, Zhiqing Ding, Runhong Zhang, Changfu Chen, Guihai Fu, Xiao Luo, Yufei Wang, and Chao Zhang. 2022. "Combined Utilization of Construction and Demolition Waste and Propylene Fiber in Cement-Stabilized Soil" Buildings 12, no. 3: 350. https://doi.org/10.3390/buildings12030350

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
