Digital Technologies Role in the Preservation of Jewish Cultural Heritage: Case Study Heyman House, Oradea, Romania

Department of Geography, Tourism and Territorial Planning, Faculty of Geography, Tourism and Sport, University of Oradea, 1 Universitatii Street, 410087 Oradea, Romania
Faculty of Geography, “Babes-Bolyai” University, Sighetul Marmației Extension, 435500 Sighetul Marmației, Romania
Department of Digital Economy, Samarkand State University, Samarkand 140105, Uzbekistan
Faculty of Geography, “Babes-Bolyai” University, 400090 Cluj Napoca, Romania
School of Tourism, Hospitality & Events Management, Department of Tourism, Moi University, Kesses, Eldoret 3900-30100, Kenya
Department of Physical and Economic Geography, Faculty of Science, L. N. Gumilyov Eurasian National University, Nur-Sultan 010008, Kazakhstan
Department of Tourism and Recreational Geography, Faculty of Geography, Ecology and Tourism, Kyrgyz National University of J. Balasagyn, Bishkek 720033, Kyrgyzstan
Author to whom correspondence should be addressed.
Buildings 2022, 12(10), 1617;
Submission received: 28 August 2022 / Revised: 26 September 2022 / Accepted: 30 September 2022 / Published: 5 October 2022
(This article belongs to the Special Issue Research on Vernacular Architecture)


The Jewish architectural heritage is and will remain an integral part of the local cultural heritage, but part of it still needs to be discovered, rehabilitated, maintained and valued. For Oradea, a Central–Eastern European city, this challenge is very specific because the Jewish communities before World War II were very strong and prosperous and because of the current desire to assert the city in the tourism market through urban regeneration. The Jewish community of Oradea had an important representative in Éva Heyman, a child of the Holocaust, nicknamed “Anne Frank of Transylvania”, which became famous. At the age of 13 years, Éva Heyman kept a diary during the Jewish ghettos in Oradea. In addition to the diary, her story is about the house where she grew up, built in the Art Nouveau style at the center of Oradea. Even though this house is of inestimable value from an aesthetic and cultural point of view, very little is known among the local population. Moreover, it is not listed as a historical monument, and its current state of preservation is precarious. With the increasing importance of preserving cultural heritage and computer graphics development, the digitization of historical buildings began to be used more and more for evaluation, preservation and promotion. This paper attempts to highlight the story of Éva Hayman and the house where she grew up. The paper further presents the innovative methods by which it is desired to achieve the presented goal for this architectural jewel. The results show that three-dimensional digitization methods are powerful tools for preservation and use for the benefit of the general public, education professionals, administrators and investors, art historians, restorers, etc., who are concerned with the collection preservation, exploration and mediation of the Jewish cultural heritage.

1. Introduction

At the end of the 18th century and the beginning of the 20th century, the recognition of Jews as entitled to equality and citizenship rights included efforts within the community to integrate into their societies as citizens. As a result, they have become politically and culturally active in the wider European civil society, expressing their new energies in architecture. Presently, Europe is facing the problem of a huge and very visible Jewish cultural heritage, requiring rehabilitation, maintenance and valorization. This is particularly evident in Central–Eastern countries, where the Jewish minority represents a minimal fraction of the population. However, It is worth noting that Jewish communities were very strong, rich, prosperous and well organized before World War II.
The Jewish heritage of different countries is an immense treasure of humanity. Spread over the centuries, through many states of the world, Jews have managed, in a short time, to build a material heritage of great importance, value and beauty [1,2,3,4]. This was mainly because they dealt extensively with trade, traveled long distances, assimilated knowledge in various fields, learned from other peoples, were literate and made progress inside the adoptive societies where they lived. They often bought valuable properties and real estate in the central parts of the localities and built houses, places of worship, shops, ritual baths and other specific constructions.
At the end of the war, the number of Jews in Europe reduced significantly. Indeed, more than 6 million people of Jewish nationality died without guilt in Nazi camps [5]. Many of the survivors went to other lands (Israel, the USA and so on). The war affected their constructions; the religious ones were destroyed or desecrated or received improper destinations. Few have retained their role and purpose [6]. In some villages, only the cemeteries and the memories of some older people, who have direct information from those times, remain to date. Their experience needs to be taken over and passed on to new generations.
Currently, there are “88 synagogues in Romania, and only 43 functions as such… one third (34) of the total number of synagogues are historical and/or architectural monuments… Of the over 720 localities where there are Jewish Cemeteries, only in 148 of them we can still find Jewish communities” [7]. The newest synagogue was built in Sighetu Marmatiei, Maramures County, inaugurated in 2021—the only one built-in post-war Europe. However, the architectural testimonies of Jews can be found in many other cities in Romania [8,9,10]. In Oradea, the first Jews were mentioned in 1489. The maximum number was recorded in 1941, 21,333 people, which accounted for 22.95% of the total population. Only 3313 Jews remained in the city by September 1945. In 1992, only 294 were registered, representing 0.13% of the population [11]. The city has a rich and diversified cultural heritage, consisting of religious monuments (synagogues, cemeteries) and buildings of great beauty (houses, palaces). The vast majority of them are listed on the list of historical monuments, both as attractive elements locally and nationally or even internationally [2].
Therefore, the built Jewish heritage must be preserved in situ to maintain its original appearance and functionality, considering that the Municipality of Oradea is one of the most famous destinations in Eastern Europe for cultural tourism based on these heritage monuments [12,13]. At the same time, the palaces built by the city’s Jewish community between the 19th and 20th centuries are true local symbols, creating a bridge between the past and the present, being of indisputable value to the local community. Thus, Jewish heritage must be preserved, capitalized on and promoted as soon as possible before they are completely destroyed, especially where the number of inhabitants of Jewish nationality is low and cannot solve the numerous and urgent cases in localities [14,15,16,17,18].
Based on the accelerated development of computer processing power and computational algorithms, new methods have been identified by which cultural heritage can be documented, preserved and promoted [18,19,20,21,22,23]. These technologies identify terrestrial laser scanning (TLS), which can render in a three-dimensional format both at the point clouds and the textured surfaces of the target objects [24,25,26,27,28]. There are several advantages and disadvantages in the field of cultural heritage conservation through digital technologies such as TLS. The preservation and reflection of memory, history and tradition can be altered by creating virtual cultural repositories at the level at which a real museum can make it through its functions and means. In contrast, virtual museums and digital reconstructions of cultural artifacts help to protect, preserve and promote [29]. Three-dimensional digitization of material cultural heritage (domain: Historical buildings, monuments and archaeological sites) is a multidimensional process that depends on the nature of the subject of the digitization and the purpose for which it is performed [20,30]. The documentation process in 3D models and basic plans is successfully used in territorial planning, tourism, conservation, restoration, etc. [20,31,32]. All these innovative techniques work together to create a virtual reality, easily accessible, complete and complex, facilitating the protection of data obtained through digital storage for later use, which should not be neglected for responsible custody [18,33].

1.1. Jews of Oradea and the Belle Époque

Oradea, one of the most cosmopolitan cities in Romania, as the heir and successor of a Jewish community whose special coordinates placed it until the interwar period, is among the most important in this part of Europe. It is not easy to condense the general picture of the constructive effort of the Oradea Jewish community at the turn of the 19th and 20th centuries, a period marked by the activity of Jewish architects, builders and engineers or by the personality of some Jewish sponsors, but also of some great patrons, in the context of clear testimonies, evoking the Jewish contribution on the urban, cultural, intellectual and industrial development of the city, as well as the potential for capitalization in the current conditions. Oradea was once the most important and active Jewish community in Hungary (the largest after Budapest) and, after the Great Union, the most important and active Jewish community in Romania, witnessing the major impact of Jewish culture on the main aspects of society, the development of urban life, but especially on architecture [34]. A valuable Jewish heritage must be protected and passed on to future generations in memory of the sacrifice of about 25,000 Jews in and around Oradea, deported and exterminated in the Auschwitz-Birkenau camps in May 1944. The drama of the Jewish community in Oradea was spent during the Horthy occupation (September 1940–October 1944), when the largest ghetto in Hungary operated in the city, after the one in Budapest [35].
The Jewish quarter of Oradea does not have such a tumultuous past as Kazimierz. However, it maintains a specific unitary character over a much larger area. With the emancipation of the Jews, it spread to almost the entire historic center, to the city limits of the nineteenth century. A dramatic presence now materializes all this great past by absence. Thus, the lack of funds has stagnated rehabilitation/restoration or functional conversion [36,37]. There are still many Jewish buildings in an advanced state of degradation, which require essential interventions. The first step was taken by foreigners who studied our past and urged us to open our eyes to our values. Thus, through Fredric Bedoire’s book, The Jewish Contribution to Modern Architecture, Oradea’s fame had the chance to make its way around the world again after almost a century of oblivion [38]. Bedoire, in his study of the contribution of Jews to the development of modern architecture from 1830 to 1930, includes Oradea in the chapter “The Promised City”, along with Łódź, New York and Chicago, observing that it is perhaps the clearest European example of urban culture. The city is known for the active role of the large Jewish community in its economic and cultural development.
Due to its geographical location and rich historical and political experience, the city has witnessed sediments of various cultural influences, which have been manifested over time through architectural language and built heritage. As Philip Bohlman observes, “As a border town with a cosmopolitan vocation and extensive rail connections, Großwardein [Oradea-Mare] flourished because of its cultural diversity and became one of the metropolises where Jews, from the East and from the West, they met”. It was, in fact, a city at the “crossroads of many nations” [39]. As a cosmopolitan “metropolis”, Oradea had a large Jewish community, which gradually became very important in the economic and social life of the city evident in the built fund. The most spectacular buildings constructed during the Belle Époque period were owned by large Jewish merchants, industrialists, bankers, entrepreneurs or intellectuals. To these are added many cultural, cosmopolitan aspects of the city, such as names of people, places, shops and cafes, titles of books and fashion magazines, various cultural trends and sequences of everyday urban life.
Many important Jewish architects and builders made remarkable contributions to the enrichment of Oradea’s built heritage; some of them worked in other important cities of the Austro–Hungarian Empire, including Vienna and Budapest. Along with them, the names of the Jewish financiers, to whom many of the most representative buildings of the city are due, should be listed. Their approach was punctuated by the evolution of architecture, from the discreet ambiance of the neoclassical, the exuberant eclectic to the “new” architecture of Art Nouveau, which unquestionably marked the image of Oradea and its specific features, a process reported objectively, to the context of the evolution of architecture in Central Europe. Thus, most of the buildings erected in Oradea at the beginning of the twentieth century bear the imprint of the Viennese Secession on the Hungarian chain and are due to the initiatives of the richest inhabitants, merchants, intellectuals, bankers, entrepreneurs and industrialists, mostly Jews, among which we distinguish, however: Emil Adorján, Imre Darvas, Arnold Füchsl, Mór Füchsl, Ede Kurländer, Adolf Moskovits, Miksa Moskovits, Jakab Schwarz, Adolf Sonnenfeld, Miklos Stern, Sándor Ullmann, Lajos Weiszlovits and L. Houses, villas, institutions, buildings or synagogues are not the only material heritage built by the Jews of Oradea. They also prospered through industry and industrial activity in Oradea through the diversity of production fields. The multitude of Jewish enterprises and Jewish entrepreneurs marked the urban and social development of the city at the turn of the nineteenth and twentieth centuries [2].
Local or foreign architects, builders and craftsmen (mostly Jews) have created real works of art, which only prove the artistic and cultural connection of Oradea with the space of Central and Western Europe. In this sense, Bedoire remarked: “The purpose of the buildings in Oradea was not to expose entrepreneurs or families individually but to beautify the city and give it a place in the new world” [38]. At present, a responsible and balanced intervention could qualify Oradea in the top of important cities in Europe in terms of Jewish heritage and cultural events that could take place. Indeed, Romania is already listed, along with Hungary, Poland and the Czech Republic, on the tourism map profile. Under these conditions, developing a tourism system focused on capitalizing on the Jewish cultural heritage would make significant material contributions to the preservation and maintenance of local heritage. One solution would be to popularize Oradea’s image as a center of Jewish interest where, paradoxically, the vibrant Jewish life of yesterday still pulsates strongly through all the fibers of the city. For example, one of the little-known houses from an architectural and patrimonial point of view is the house where Eva Heyman lived with her parents. This 13-year-old child plays the role of symbol for the city of Oradea.

1.2. The Lost and Found Journal

The Holocaust literature has reached a thematic supersaturation [40]. This hypothesis is also reinforced by the study of Éric Conan and Henry Rousso on the stages of awareness of certain limited events [41,42], such as the Holocaust, beginning with (1) a form of oblivion (1944–1955), followed by (2) the consolidation of the discourse, (3) its demystification and, last but not least, (4) the formation of an obsession with this discourse. Beyond a seemingly sterile categorization, this staging of the Holocaust discourse explains forgetting/ignoring a little girl’s diary, Éva Heyman, nicknamed in the literature (as it exists) as “Anna Frank of Transylvania”. Éva Heyman, a well-educated thirteen-year-old girl from a wealthy Jewish family with liberal visions, wrote a diary in Oradea during the Holocaust. We already know from the first pages that he comes from a rich family of Hungarianized Jews. In the pages of the diary, Éva wrote about her personal feelings; petty idylls with boys; carefully noted her relationship with her family; and described the constant fear of Nazi officers, deportation and the gloomy future [43]. Éva Heyman was deported to Auschwitz, her last record being on the day of the deportation of Jews from Oradea. Her mother, a Holocaust survivor (on the famous golden train), returned to Budapest, where she retrieved the girl’s diary and published it. The volume was originally published by Eva’s mother, Ági, in 1948, after which she committed suicide following depression. It is interesting to note how, in the Hungarian version, Ági Zsolt appeared as the author, and the title is My Daughter, Éva [38], as if the text were a creation of her mother. In 1964, the text was translated into Hebrew by Yehuda Márton under the title Yomanah shel Evah Hayman. From the Hebrew version, the English translation was published in 1974, entitled The Diary of Eva Heyman, and a second edition appeared in 1988, entitled The Diary of Eva Heyman: Child of the Holocaust. In 1991 a volume appeared in the Romanian space, prefaced by Oliver Lustig [43], and in 2013 in French, under the title J’ai vécu si peu [44]. We can already see how the diary is timidly edited, with the Romanian edition being almost inaccessible to the public.
By using Instagram Stories, the technology entrepreneurs Mati and Maya Kochavi created a visual diary based on the short life of Eva Heyman to raise awareness of the Holocaust among the new generation and attracted 300 million video views and 1.2 million followers, demonstrating that social networks are the best way to reach the younger generation. The 70 short videos of the film shot with cell phones in Ukraine about Eva’s experiences were posted on Instagram for 24 h with the frequency established by the rules of the game of this social network. From her moments of joy to the arrival of the German tanks, through the confinement, deportation and murder of the Hungarian Jews. All told and shared in the most up-to-date audiovisual language. The account, based on the audiovisual reproduction of her personal diary, was activated on May 2019, coinciding with the start of Yom Hashoah (Holocaust Remembrance Day) and was endorsed even by Israel Prime Minister Benjamin Netanyahu, who declared on Twitter that “Every day, episode by episode, the great tragedy of our people is essentially exposed through the story of one girl”.
Eva Heyman’s diary fell into a separate category of Holocaust literature [45]. Jacob Boas framed this text in an anthology dedicated to children who, during the Holocaust, recorded their personal experiences in a diary. It is noteworthy that all of them died, and their texts went through many adventures to be recovered and published. The diary is fascinating in two ways. First of all, we witness the reflection of a large phenomenon, such as the Holocaust, from the perspective of a pre-adolescent. On the other hand, the little story of the little girl, her personal feelings and the impulses that determine her to write such a text give us a monster of what she understands from the family space from a psychological point of view. An approach from two perspectives would be useful precisely in order to be able to capitalize on the text pertinently: the psychological one and the contextual one. This is the reason why diaries are so extraordinary. Compared to other testimonies, memoirs or novels, diaries reveal the immediate thoughts, fears and wishes of the person writing them. They, therefore, represent the most personal and intimate accounts of someone’s life.
The “Tikva” Association from Oradea, through various actions carried out with the help of volunteers, made the tragedy of Éva known to the general public. Among the most important achievements of the association was the erection of a statue of the girl in Oradea, in Nicolae Bălecescu Park, the place from where 3000 Jews were deported to Auschwitz every day between 24 May and 3 June 1944. In addition, the death trains left, the statue symbolized all the children from Oradea and Bihor who died in the Holocaust, and the association organized a traveling exhibition. Furthermore, it included the case of the child in educational materials dedicated to the Holocaust.

1.3. The Study Object—Heyman House

Heyman House is located in the center of Oradea, inside the so-called “Oradea Historical Center” Urban Ensemble, on Aurel Lazăr Street 3, next to other objectives on the List of Historic Monument Buildings in Oradea, such as Dr. Aurel Lazăr House, Darvas la Roche House or the Oradea State Theater (Figure 1). Considering the central location and the fact that the history of the construction is very little known, most tourists and even the inhabitants of the city pass without noticing and discovering it. The house is a bigger building with a common courtyard and a staircase that climbs up to the top floor. Currently, the house encloses commercial space and offices on the ground floor. The upper floors were sold privately and are used as living apartments.
The memory of the place, now lost, involves the Veiszlovits family, well-known Jews from Oradea between 1890 and 1944. The property on Aurel Lazar Street, no. 3 and Republicii Street no. 3 were bought by Adolf Veiszlovits (1831–1907) and bequeathed, in 1910, to Iosif Heyman’s widow, Luiza, born Veiszlowits (1871–1944), Adolf’s daughter. The two properties communicated with each other on Republicii Street no. 3 sheltering the house and company of Adolf Veiszlowits. Inside the plot on Republicii Street no. 3 was the old summer theatre, a wooden construction, which became a cinema in 1927. Although initially, on Aurel Lazar Street no. 3, there was no construction on the street, there is a stable inside. Engineer–architect Bela Heyman was the owner of the Heyman cinema, located on the plot on Republicii Street no. 3 (where today there is a block of flats and a commercial building with a floor).
The house on Aurel Lazar Street no. 3 (Figure 1) was built in 1928 (according to the year inscribed on a facade from the courtyard). Here lived Bela Heyman on the second floor, and his sister Lili Moldovan, on the first floor. Eva Heyman and her mother, Agnes Racz, lived in this house until 1935, when their parents divorced. The building has a balanced, elegant facade with refined ornamental elements, neo-classical and neo-renaissance. The bas-relief with human figures, the panels with floral elements on the main bay window, the window frames and the cornices that mark horizontally are noticeable. There is a metal element at the corner formed by the pipe and the eaves, with curvilinear shapes, which constitutes the monogram HB (Heyman Bela). The facade from the courtyard is equally interesting. It is distinguished by the general composition, the hardware of the parapets of the balconies and doors and the carpentry of the windows and doors. The interior has been treated with the same care and is distinguished by details and finishes. The architect is believed to have been Frigyes Spiegel or Bela Heyman.
Starting from the architectural gem represented by the Heyman House, this paper used three-dimensional laser scanning (TLS) and cartographic method to document the building to prevent further damage due to material vulnerability, climatic conditions and harmful human action. The data in digital format thus obtained were processed and analyzed in dedicated programs to obtain expressive results for determining the current state of conservation and the solutions needed to be adopted to improve its condition. The 3D models thus created were uploaded on an interactive platform through which users can navigate and interact with the object through various available filters, resulting in a real-time simulation designed to meet their knowledge needs [46,47]. This approach can represent a pilot project to obtain digital materials of the material cultural heritage in general and the Jewish one, in particular, from Oradea Municipality, all this leading to responsible custody of the monuments.

2. Materials and Methods

The methodology used for documenting the building took into account both the obtaining of 2D and 3D visual information and the extraction of quantitative and qualitative data related to different characteristics of the building. Three main stages were adopted to achieve this goal depending on the results provided: 1. Realization of the 2D model of the facade by the cartographic method; 2. Realization and interpretation of the 3D model of the facade by terrestrial laser scanning (TLS); 3. Online publication of the 3D model.

2.1. Realization of the 2D Model of the Facade by the Cartographic Method

In order to achieve the two-dimensional model of the facade, we took into account field measurements with the total station Spectra Precision Focus 8 in order to georeference the object based on the target points applied to the building. These determinations resulted in the size and contour of the facade and its gaps.
The vectorization of the elements related to the facade of the building was made on orthogonal photographs taken from the field, thus eliminating perspective errors. The very high resolution of the photos purchased with the Pentax K20D camera was the basis for obtaining very good results. This was performed by taking photos from different angles of the analyzed facade and from different positions so that as many details of the facade as possible could be taken. The images thus obtained were entered into Adobe Photoshop 2020, where they were processed in terms of lens correction, correction of geometric distortions and chromatic aberrations.
Furthermore, they facilitated the most detailed distinction of all the elements. The measurements were processed in the Toposys 7.0 software. This program offers the possibility of processing the geodetic network, performing calculations and adjusting the data packet. In the last phase, the facade survey. The final model of the analyzed object was made in the commercial software AutoCAD 2022.
The Spectra Precision Focus 8 total station and Pentax K20D camera were chosen due to the fact that they are complementary, portable and easy-to-use instruments while capturing and rendering with high fidelity the intrinsic and extrinsic characteristics of heritage buildings. At the same time, these tools are some of the most used for recording work that requires high accuracy. The computer programs used to create the final model were chosen in such a way as to leave the possibility of adjusting and correcting the measurements taken from the field, as well as having numerous features for 2D and 3D design.

2.2. Realization and Interpretation of the 3D Model of the Façade by Terrestrial Laser Scanning (TLS)

The terrestrial laser scanning (TLS) of the building facade was performed with the Leica C10 Scanner, a device that has an accuracy of ±4 mm. This device has the advantage of offering a fast and high-quality scan, and the built-in Smart X-Mirror video camera has the ability to capture and reproduce the texture of the scene faithfully.
For a complete and accurate capture of the target object, the scan was performed from three different stations: the building’s center, left and right. In order to merge the resulting three-point clouds, several three target points were placed directly on the scanned surface when purchasing the field photos. Target points were placed so as to be visible to the scanner used, and their position was accurately determined from any of the three scan points.
The three TLS point clouds on the Heyman House facade were introduced for processing in Leica Cyclone software. This is a software specialized in the processing of point clouds, which offers a wide set of options for processing the results obtained after laser scanning in fields such as engineering, construction or topography.
The first action taken in this software was to georeference point clouds in a local coordinate system to be further analyzed using different computational algorithms. At the same time, the relationship between the three scanning stations was established here through a procedure called scan registration. The procedure aims to unite the three clouds of resulting points and render them in the form of a single compact entity. This action is automatic, based only on the measurement results of the distance from each scanning station to the control points located on the facade.
The integrated point cloud was further introduced into AutoCAD 2022 2D and 3D processing software developed and marketed by Autodesk Revit. The analyses performed in this program were aimed at generating a continuous mesh surface based on the point cloud obtained, as well as the arrangement of the texture over it. Furthermore, the stage of making the 3D model is important in obtaining a model suitable for interactive visualization and the analyses necessary for the restoration–conservation processes (Figure 2).
The results were evaluated in CloudCompare v2.12 alpha to determine characteristics such as density, roughness, and surface variation, which practically shows the degree of accuracy of the point clouds and, therefore, suitability for interactive viewing. In addition, point clouds were also examined to determine with great accuracy the aspects related to physical characteristics: Height, width, length and verticality.

2.3. Online Publication of the 3D Model

The complete and interactive presentation of the models made was chosen for publication within the Atis cloud platform. This platform is a free one that aims to manage and capitalize on three-dimensional data resulting from laser scanning and photogrammetry. It is easy to manage by the content creator and easy to access by visitors. The quality of the models and the performance of the running mode is also very high.
The webpage is based on a unique approach to other platforms for interactive viewing of three-dimensional models, allowing the user to view the data presented interactively and change the perspective on the scene and the viewing mode. Thus, the user can view the model in “3D ships” format or in scan format, access each scanning station separately and view the results obtained from that point in many ways, from RGB to polygonal model and intensity fashion. Nevertheless, one of the most important options of Atis is based on offering the possibility to perform different measurements directly on the three-dimensional model published in the cloud quickly and easily.

3. Results and Discussion

3.1. Realization of the 2D Model of the Facade by the Cartographic Method

Based on the measurements performed in the field and the processing in the programs Toposys 7.0 and AutoCAD 2022, architectural sketches were obtained, representing the surveys of the facade of the analyzed building (Figure 3). Based on the analysis of these sketches, valuable technical information can be extracted, including situation plans, level plans, facades and various vertical sections. At the same time, they allow the visualization and analysis of additional details such as stereotomy of facades, types of finishes and decorations.

3.2. Realization and Interpretation of the 3D Model of the Façade by Terrestrial Laser Scanning (TLS)

For the façade of the Heyman House, based on the three scanning positions, rough point clouds were generated, comprising 8,745,320 individual points. A total of 2,281,455 points were considered useless for scanning or as part of the area of interest, which was eliminated during the results processing stage. Thus, 6,463,865 individual points were further processed to obtain the final models (Figure 4d). The endpoint clouds for each scan are shown in Figure 4. Scan position 1 (Figure 4a) was defined by a point cloud of 2,057,614 points. Scan position 2 (Figure 4b) was assigned the most individual points, that is, 2,599,841 points. In comparison, scan position 3 (Figure 4c) recorded only 1,806,410 points.
The large number of points generated shows that the cloud is dense enough to be suitable for interactive viewing and the development of analyses of the main physical characteristics. The roof of the building presents inaccuracies due to scanning stations located at ground level, which could not be accurately recorded. At the same time, some gaps and discontinuities were identified within the facade, especially in terms of upper areas and areas related to windows and doors. This type of error results from the scanner’s location (only on the ground), the self-occlusion phenomenon that occurs in the upper areas of the building and the high reflectivity developed by the glass of windows and doors, leading to the loss of shape. Although these inaccuracies exist, the model created is of sufficient accuracy for the purpose of the present study, i.e., the reproduction of the models on the facade of the monument [48].
In order to determine the quality of the point cloud, it was analyzed in CloudCompare through three analyses (roughness, surface density and surface variation), defining the aspects mentioned. All three analyses are available from the “compute geometric features” tool in CloudCompare v2.12 alpha. In the case of the analyzed point clouds, it was chosen that all the analyses performed in this program be performed by selecting a “local neighbourhood radius” of 50 mm, which means that the determinations are made inside a sphere with a radius (r) of 50 mm.
In order to define the texture of the analyzed surfaces, establishing the roughness of the point cloud is a basic feature. Within the analysis portion (50 mm), the roughness values of a point are equal to the distance between them, and the most appropriate plan is calculated on its nearest neighbors [49]. The roughness of the analyzed point cloud is between 0.0 and 5 cm, with an average of 0.27 cm and a standard deviation of 0.32 cm (Figure 5a). Approximately 96% of the points record roughness values below 10 mm, while only 0.25% exceed the value of 20 mm. The highest roughness values were obtained in areas with materials that raise scanning difficulties as well as in the marginal areas of the surfaces, these being considered small errors; but overall, the point cloud analyzed had very small deviations in terms of roughness.
Figure 5b shows the results of the surface density analysis. This characteristic has values between a minimum of 127.32 points calculated in the sphere with a radius of 50 mm and a maximum of 25,210.14 points. These values represent the number of neighbors divided by the neighborhood surface (S), as follows S = N/(Pi. R2) [50].
Surface densities amount to an average value of 10,627.79 points, with a standard deviation of 4590.54. About half of the points of the cloud (48.7%—3.1 million points) have average values of surface density, between 5000 and 15,000. The points whose values are very high (over 20,000) are found in a percentage of 7%, while values very small (below 2000) recorded about 6% of the points. The surface variation feature indicates differences in the topography of the point cloud. Its values are low, that is, between 0.0 and 0.31, with an average of only 0.02 and a standard deviation of up to 0.03 (Figure 5). Therefore, all subsequent analyses are strongly influenced by the density and accuracy of the point cloud taken. Suppose each point includes precise information regarding its coordinates in the object space, then the implemented analyses will have a high degree of fidelity. Based on the case of the analyzed point cloud, the results of all three examined characteristics indicate a sufficiently dense surface that registers very few deviations, most of them being generated by the surfaces not very suitable for laser acquisition (TLS).
The acquired point cloud leaves the possibility to perform the analyses aimed at extracting some essential characteristics for the evaluation-conservation-promotion process, namely determining the dimensions of the building. By projecting the X, Y and Z coordinates within a scalar field, each point making up the final cloud was assigned an exact value, as well as a color of the representation associated with it.
The results obtained from implementing the size analysis show that the point cloud has a length (coordinate X) of approximately 20.47 m, of which 14.9 m are related to the Heyman House (Figure 6a). In addition, the Y coordinate recorded maximum values of 7.72 m (Figure 6b), while the Z coordinate (height) had values of up to 17.65 m (Figure 6c).

3.3. Online Publication of the 3D Model

For this element of real significance for the city of Oradea and the Jewish community to be as attractive and accessible as possible to the interested public, the digital models thus created were uploaded on a platform dedicated to hosting and viewing three-dimensional files—Cintoo. Heyman House models can be viewed by accessing the link: (accessed on 27 August 2022).
Unlike others of the same kind, the platform offers a complete experience by allowing the user an advanced inspection of the model by changing the view mode and settings, object geometry, colors, etc. The main display modes are those in textured format (2D panoramic and RGB), both the dot cloud and the continuous mesh surface (Figure 7a,c) and in a polygonal format without rendering the original color (Figure 7b). In addition, the platform also allows viewing in intensity mode, X-ray and heightmap, and selecting one of the three perspectives on the scene, which coincide with the three scan points. At the same time, annotations can be added directly to the point cloud or the polygonal surface of the model, and the surfaces sectioned and cut based on the tools available in the application.
Performing measurements directly on the platform is undoubtedly one of the biggest advantages offered by the Atis platform. The determinations can be performed in five different calculation modes (i.e., freehand, ortho X, ortho Y, ortho Z and distro), both in metric (millimeter, centimeter and metric) and imperial (inches and feet) projection systems, with an accuracy preset by the user. Figure 8 shows some measurements made on some of the most interesting architectural elements proposed by the scanned facade of the Heyman House.
Creating such virtual spaces in which people are interested in interacting with monuments dynamically and interactively is individualized as a global goal. Recent studies in the field [51,52,53] show that through these experiences, users are more likely to become more aware of the need to protect cultural heritage. This approach can be seen as a tool to facilitate the involvement of local decision-makers [54] to restore and preserve a monument currently not added to the List of Historical Monuments in Bihor County, but which brings together all the attributes for this.

4. Conclusions

The need to digitize the building to preserve and promote the elements of Jewish material heritage is of real applicability to solidify the ethnic identity in Oradea in particular and Romania in general. For such former or present multi-ethnic sites, the management of the Jewish heritage can thus contribute to a better understanding of the complexity of niche tourism and heritage-based tourism [8,55,56]. The working methodology approach is a simple one, from the implementation point of view, being at the same time very fast in execution compared to the classic documentation methods. The disadvantages stem from the fact that the software and the necessary equipment are quite expensive.
A key component in this paper is the metric survey of a building of true historical and architectural value together with documentation, study and valorization. The spatial documentation of Heyman House is of the highest importance. It offers an accurate record of the site and provides a comprehensive base dataset by which site managers and conservators can monitor it and perform necessary restoration work to ensure its physical integrity. Three-dimensional models of buildings can be used by engineers and architects, scientists and historians. In urban cultural heritage, the 3D model is useful for documentation, visualization and reconstruction purposes. Thus, the work methodology aims at offering practical possibilities for the implementation of the evaluation–conservation–promotion trinomial. The way of obtaining the data in digital format allows the analysis and determination of the degraded areas of the monument (evaluation), on the basis of which the policies necessary to protect the monument (conservation) can be drawn up, and the publication of the models leads to a better knowledge of history building (promotion).
Heyman House 3D model is nothing less than a documentary of a historical monument. It can be further used for scientific research to preserve the site’s memory, and it can give access—either digitally or in printed form—to a physical structure that cannot otherwise be seen. Any detail preserved in an intelligible and reproducible form can support a reconstruction effort (if necessary) of this monument. Virtual models can be shared worldwide through the internet and easily stored in a digital format or printed with a 3D printer. The 3D model can support different groups of people who are involved or interested in the topic of Oradea Jewish urban cultural heritage and Eva Heyman’s story, such as local, regional or national government institutions, Oradea municipality; scientists, local inhabitants and other individuals with interest in architecture and the urban heritage.
At the same time, such representations could capitalize on the existing Jewish heritage and history by integrating Oradea into a specialized tourism circuit and developing a cultural tourism profile. This representation can increase the attractiveness of the monument, considering that 3D representations are recognized as having an increased impact on potential tourists, causing them to also visit physically after experiencing the virtual visit. At the same time, virtual representations can help make the monument accessible for people with mobility impairments or can have educational purposes for children and teenagers.

Author Contributions

Conceptualization, V.G. and D.C.I.; methodology, V.G., Z.B. and I.J.; software, T.C.; validation, D.K. formal analysis, T.C., A.I. investigation, V.G., T.C. and D.C.I.; data curation, G.I. and B.S.; writing—original draft preparation, G.I., N.H., A.I., D.K., Z.B. and K.N.u.; writing—review and editing, V.G., T.C., D.C.I., I.J. and B.S.; supervision, V.G. and D.C.I.; funding acquisition, N.H. All authors have read and agreed to the published version of the manuscript.


The research was partially supported by the University of Oradea within the Grants Competition “Scientific Research of Excellence Related to Priority Areas with Capitalization through Technology Transfer: INO–TRANSFER–UO”, Projects No. 329/2021; No. 317/2021. The research undertaken was made possible by the equal scientific involvement of all the authors concerned.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study may be obtained on request from the corresponding author.


The research undertaken was made possible by the equal scientific involvement of all the authors concerned.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Haba, M.I.; Dnistrianska, N.I.; Ilnytska-Hykavchuk, H.Y.; Makar, O.P.; Senkiv, M.I. Jewish Cultural Heritage of the Lviv Oblast as a Tourism Resource. J. Geol. Geogr. Geoecol. 2020, 29, 502–511. [Google Scholar] [CrossRef]
  2. Herman, G.V.; Tătar, C.F.; Pușcaș, B.D. Assessing the Importance of the Jewish Urban Cultural Heritage in Oradea, Bihor County, Romania. Forum Geogr. 2018, 17, 152–159. [Google Scholar] [CrossRef]
  3. Krakover, S. Coordinated Marketing and Dissemination of Knowledge: Jewish Heritage Tourism in Serra Da Estrela, Portugal. Rev. Tur. Desenvolv. 2012, 1, 11–16. [Google Scholar]
  4. Krakover, S. A Heritage Site Development Model: Jewish Heritage Product Formation in South-Central Europe. J. Herit. Tour. 2017, 12, 81–101. [Google Scholar] [CrossRef]
  5. Crowe, D.M. The Holocaust: Roots, History, and Aftermath. Boulder; Westview Press: Boulder, CO, USA, 2008. [Google Scholar]
  6. Gilbert, M. Routledge Atlas of the Holocaust: The Complete History, 4th ed.; Routledge: Oxford, UK, 2002. [Google Scholar]
  7. Federatia Comunitatilor Evreiesti din Romania. Centrul pentru Administrarea Patrimoniului Imobiliar [Federation of Jewish Communities in Romania. Center for Real Estate Management]. Patrimoniul Iudaic din Romania—Reabilitare, Restaurare Si optiuni de Conservare [Romania’s Jewish Heritage—Rehabilitation, Restoration and Conservation Options]. 2009. Available online: (accessed on 22 February 2022).
  8. Corsale, A. Jewish Heritage Tourism in Bucharest: Reality and Visions. Geogr. J. 2017, 183, 261–271. [Google Scholar] [CrossRef]
  9. Corsale, A. Jewish Heritage in Timişoara, Romania. In Old Memories and New Images; PRT: Timisoara, Romania, 2020. [Google Scholar]
  10. Geissbühler, S. The Struggle for Holocaust Memory in Romania and How Ukraine Can Learn from It. Isr. J. Foreign Aff. 2016, 10, 471–480. [Google Scholar] [CrossRef]
  11. Herman, G.; Banto, N.; Caciora, T.; Grama, V.; Ungureanu, M.; Furdui, S.; Buhas, R.; Buhas, S. Tourism in Bihor County, Romania. Trends and Perspectives. Folia Geogr. 2020, 62, 87–105. [Google Scholar]
  12. Ilies, A.; Hurley, P.D.; Ilies, D.C.; Baias, S. Tourist Animation—A Chance for Adding Value to Traditional Heritage: Case Studies in The Land of Maramures (Romania). Rev. De Etnogr. Si Folc. J. Ethnogr. Folk. 2017, 1, 131–151. [Google Scholar]
  13. Braham, R.L.; Tibori, S.Z. Enciclopedia Geografică a Holocaustului din Transilvania de Nord [Geographical Encyclopedia of the Holocaust in Northern Transylvania]; Cartier Istoric: Chisinau, Moldova, 2019. [Google Scholar]
  14. Freire, J.; Gertner, R.; Gertner, D. Cultural appropriation and destination brands. Geo J. Tour. Geosites 2022, 40, 79–88. [Google Scholar] [CrossRef]
  15. Brauch, J.; Lipphardt, A.; Nocke, A. Jewish Topographies (Heritage, Culture and Identity); Routledge: Oxford, UK; School of Environmental Sciences, University of Ulster: Coleraine, UK, 2008. [Google Scholar]
  16. Corsale, A. Issues and Changes Related to Dissonant Heritage: A Case from Jewish and Polish Heritage in the Small Towns of Western Ukraine. Tour. Plan. Dev. 2021, 18, 479–487. [Google Scholar] [CrossRef]
  17. Petrevska, B.; Krakover, S.; Collins-Kreiner, N. Preserving Cultural Assets of Others: Jewish Heritage Sites in Macedonian Cities. Tour. Geogr. Int. J. Tour. Place Space Environ. 2018, 20, 549–572. [Google Scholar] [CrossRef]
  18. Ilies, D.C.; Caciora, T.; Herman, G.V.; Ilies, A.; Ropa, M.; Baias, S. Geohazards affecting cultural heritage monuments. A complex case study from Romania. Geo J. Tour. Geosites 2020, 31, 1103–1112. [Google Scholar] [CrossRef]
  19. Ruggiero, C.; Gallo, A.; Lio, A.; Zappani, A.; Fortunato, G.; Muzzupappa, M. An Integrated Methodology for the Digitization, Survey and Visualization of Santa Maria Patirion’s Church. Int. J. Herit. Digit. Era 2012, 1 (Suppl. S1), 21–26. [Google Scholar] [CrossRef]
  20. Pavlidis, G.; Koutsoudis, A.; Arnaoutoglou, F.; Tsioukas, V.; Chamzas, C. Methods for 3D Digitization of Cultural Heritage. J. Cult. Herit. 2007, 8, 93–98. [Google Scholar] [CrossRef] [Green Version]
  21. Marcu, F.; Hodor, N.; Indrie, L.; Dejeu, P.; Ilieș, M.; Albu, A.; Sandor, M.; Sicora, C.; Costea, M.; Ilieș, D.C.; et al. Microbiological, Health and Comfort Aspects of Indoor Air Quality in a Romanian Historical Wooden Church. Int. J. Environ. Res. Public Health 2021, 18, 9908. [Google Scholar] [CrossRef]
  22. Ilieș, D.C.; Marcu, F.; Caciora, T.; Indrie, L.; Ilieș, A.; Albu, A.; Costea, M.; Burtă, L.; Baias, Ș.; Ilieș, M.; et al. Investigations of Museum Indoor Microclimate and Air Quality. Case Study from Romania. Atmosphere 2021, 12, 286. [Google Scholar] [CrossRef]
  23. Ilies, D.C.; Onet, A.; Grigore, H.; Liliana, I.; Alexandru, I.; Ligia, B.; Ovidiu, G.; Florin, M.; Stefan, B.; Tudor, C.; et al. Exploring the Indoor Environment of Heritage Buildings and Its Role in the Conservation of Valuable Objects. Environ. Eng. Manag. J. 2019, 18, 2579–2586. [Google Scholar] [CrossRef]
  24. Stylianidis, E.; Remondino, F. 3D Recording, Documentation and Management of Cultural Heritage; Whittles Publishing Dunbeath: Caithness, UK, 2016. [Google Scholar]
  25. Barsanti, S.G.; Gonizzi Barsanti, S.; Remondino, F.; Jiménez Fenández-Palacios, B.; Visintini, D. Critical factors and guidelines for 3D surveying and modelling in cultural heritage. Int. J. Herit. Digit. Era 2014, 3, 141–158. [Google Scholar] [CrossRef] [Green Version]
  26. Agosto, E.; Ardissone, P.; Bornaz, L.; Dago, F. 3D Documentation of cultural heritage: Design and exploitation of 3D metric surveys. In Applying Innovative Technologies in Heritage Science; IGI Global: Hershey, PA, USA, 2020. [Google Scholar]
  27. Lezzerini, M.; Antonelli, F.; Columbu, S.; Gadducci, R.; Marradi, A.; Miriello, D.; Parodi, L.; Secchiari, L.; Lazzeri, A. Cultural Heritage Documentation and Conservation: Three-Dimensional (3D) Laser Scanning and Geographical Information System (GIS) Techniques for Thematic Mapping of Facade Stonework of St. Nicholas Church (Pisa, Italy). Int. J. Archit. Herit. Conserv. Anal. Restor. 2016, 10, 9–19. [Google Scholar] [CrossRef]
  28. Kęsik, J.; Milosz, M.; Montusiewicz, J.; Samarov, K. Documenting the geometry of large architectural monuments using 3D scanning—The case of the dome of the Golden Mosque of the Tillya-Kori Madrasah in Samarkand. Digit. Appl. Archaeol. Cult. Herit. 2021, 22, e00199. [Google Scholar] [CrossRef]
  29. Nikonova, A.A.; Biryukova, M.V. The Role of Digital Technologies in the Preservation of Cultural Heritage. Muzeológia Kultúrne Dedičstvo 2017, 5, 169–173. [Google Scholar]
  30. Herman, G.V.; Caciora, T.; Ilies, D.C.; Ilies, A.; Deac, A.; Sturza, A.; Sonko, S.M.; Suba, N.S.; Nistor, S. 3D Modeling of the Cultural Heritage: Between Opportunity and Necessity. J. Appl. Eng. Sci. 2020, 10, 27–30. [Google Scholar] [CrossRef]
  31. Matoušková, E.; Pavelka, K.; Smolík, T. Earthen Jewish Architecture of Southern Morocco: Documentation of Unfired Brick Synagogues and Mellahs in the Drâa-Tafilalet Region. Appl. Sci. 2021, 11, 1712. [Google Scholar] [CrossRef]
  32. Stankov, U.; Vasiljević, Ð.; Jovanović, V.; Kranjac, M.; Vujičić, M.D.; Morar, C.; Bucur, L. Shared Aerial Drone Videos — Prospects and Problems for Volunteered Geographic Information Research. Open Geosci. 2019, 11, 462–470. [Google Scholar] [CrossRef]
  33. Idris, I.; Adi, K.R.; Firmansyah, R.; Nadhianty, A.; Mobaroq, M.H.; Putri, P.G.; Pratama, A.S.; Wahono, E.R. Developing smart tourism using virtual reality as a tourism promotion strategy in Indonesia. Geo J. Tour. Geosites 2021, 35, 332–337. [Google Scholar] [CrossRef]
  34. Wendt, J.; Ilies, A.; Tatar, C. The changes of social structure and life conditions in Romanian cities (case study of Oradea). J. Geogr. Politics Soc. 2011, 1, 19–34. [Google Scholar]
  35. Julean, D.I. Oradea, Romania: A living Jewish memorial. East Eur. Jew. Aff. 2012, 42, 111–128. [Google Scholar] [CrossRef]
  36. Morar, C.; Nagy, G.; Dulca, M.; Boros, L.; Sehida, K. Aspects Regarding the Military Cultural-Historical Heritage in the City of Oradea, Romania. Ann. Istrian Mediterr. Stud.–Ser. Hist. Sociol. 2019, 2, 303–322. [Google Scholar]
  37. Kostrikov, S.; Niemets, L.; Sehida, K.; Niemets, K.; Morar, C. Geoinformation Approach to Urban Geographic System Research (Case Studies of Kharkiv region, Ukraine). Visnyk V. N. Karazin Kharkiv Natl. Univ. Ser. Geol. Geogr. Ecol. 2018, 49, 107–124. [Google Scholar]
  38. Bedoire, F. The Promised City, in The Jewish Contribution to Modern Architecture 1830–1930; KTAV Publishing House: Stockholm, Sweden, 2004. [Google Scholar]
  39. Bohlman, P.V. Focus: Music, Nationalism, and the Making of the New Europe, 2nd ed.; Routledge: New York, NY, USA, 2011. [Google Scholar]
  40. Friedländer, S. When Memory Comes, New York: Farrar, Straus, Giroux, 1979; Noonday Press: New York, NY, USA, 1991. [Google Scholar]
  41. Conan, E.; Rousso, H. Vichy, un Passé Qui ne Passe Pas; Editions Gallimard: Paris, France, 1996. [Google Scholar]
  42. Boas, J. We Are Witnesess: Five Diaries of Teenagers Who Died in Holocaust; Scholastic Inc.: New York, NY, USA, 1995. [Google Scholar]
  43. Heyman, E. Am Trăit Atît de Puțin—Micul Meu Jurnal [I’ve Lived So Little—My Little Diary]; Editura Alex: Oradea, Romania, 1991. [Google Scholar]
  44. Zsolt, Á. Eva, Fata Mea [Eva, My Doughter]; Editura Hasefer: București, Romania, 2017. [Google Scholar]
  45. Schwartz, A. Éva Heyman, the Hungarian Anne Frank: Writing Against Persecution and Trauma. Hung. Stud. Rev. 2015, 42, 117–134. [Google Scholar]
  46. Guttentag, D.A. Virtual reality: Applications and implications for tourism. Tour. Manag. 2010, 31, 637–651. [Google Scholar] [CrossRef]
  47. Gutierrez, M.; Vexo, F.; Thalmann, D. Stepping into Virtual Reality; Springer Science & Business Media: London, UK, 2008. [Google Scholar]
  48. Keil, J.; Edler, D.; Schmitt, T.; Dickmann, F. Creating immersive virtual environments based on open geospatial data and game engines. KN-J. Cartogr. Geogr. Inf. 2021, 71, 53–65. [Google Scholar] [CrossRef]
  49. Seo, H. 3D Roughness Measurement of Failure Surface in CFA Pile Samples Using Three-Dimensional Laser Scanning. Appl. Sci. 2021, 11, 2713. [Google Scholar] [CrossRef]
  50. Cloud Compare, Version 2.6.1., User Manual. 2015. Available online: (accessed on 26 September 2022).
  51. Huang, Y.C.; Backman, K.F.; Backman, S.J.; Chang, L.L. Exploring the implications of virtual reality technology in tourism marketing: An integrated research framework. Int. J. Tour. Res. 2016, 18, 116–128. [Google Scholar] [CrossRef]
  52. Huang, Y.C.; Backman, S.J.; Backman, K.F.; Moore, D. Exploring user acceptance of 3D virtual worlds in travel and tourism marketing. Tour. Manag. 2013, 36, 490–501. [Google Scholar] [CrossRef]
  53. Xiao, W.; Mills, J.; Guidi, G.; Rodríguez-Gonzálvez, P.; Gonizzi Barsanti, S.; González-Aguilera, D. Geoinformatics for the conservation and promotion of cultural heritage in support of the UN Sustainable Development Goals. ISPRS J. Photogramm. Remote Sens. Off. Publ. Int. Soc. Photogramm. Remote Sens. 2018, 142, 389–406. [Google Scholar] [CrossRef]
  54. Caciora, T.; Herman, G.V.; Ilieș, A.; Baias, S.; Ilieș, D.C.; Josan, I.; Hodor, N. The Use of Virtual Reality to Promote Sustainable Tourism: A Case Study of Wooden Churches Historical Monuments from Romania. Remote Sens. 2021, 13, 1758. [Google Scholar] [CrossRef]
  55. Corsale, A.; Vuytsyk, O. Jewish Heritage Tourism between Memories and Strategies. Different Approaches from Lviv, Ukraine. Curr. Issues Tour. 2018, 21, 583–598. [Google Scholar] [CrossRef]
  56. Duda-Seifert, M.; Kajdanek, K. The Experience and Satisfaction of Visiting a Jewish Heritage Site in the Context of Cultural and Jewish Heritage Tourism. Evidence from Krakow, Poland. J. Tour. Cult. Chang. 2021, 20, 419–435. [Google Scholar] [CrossRef]

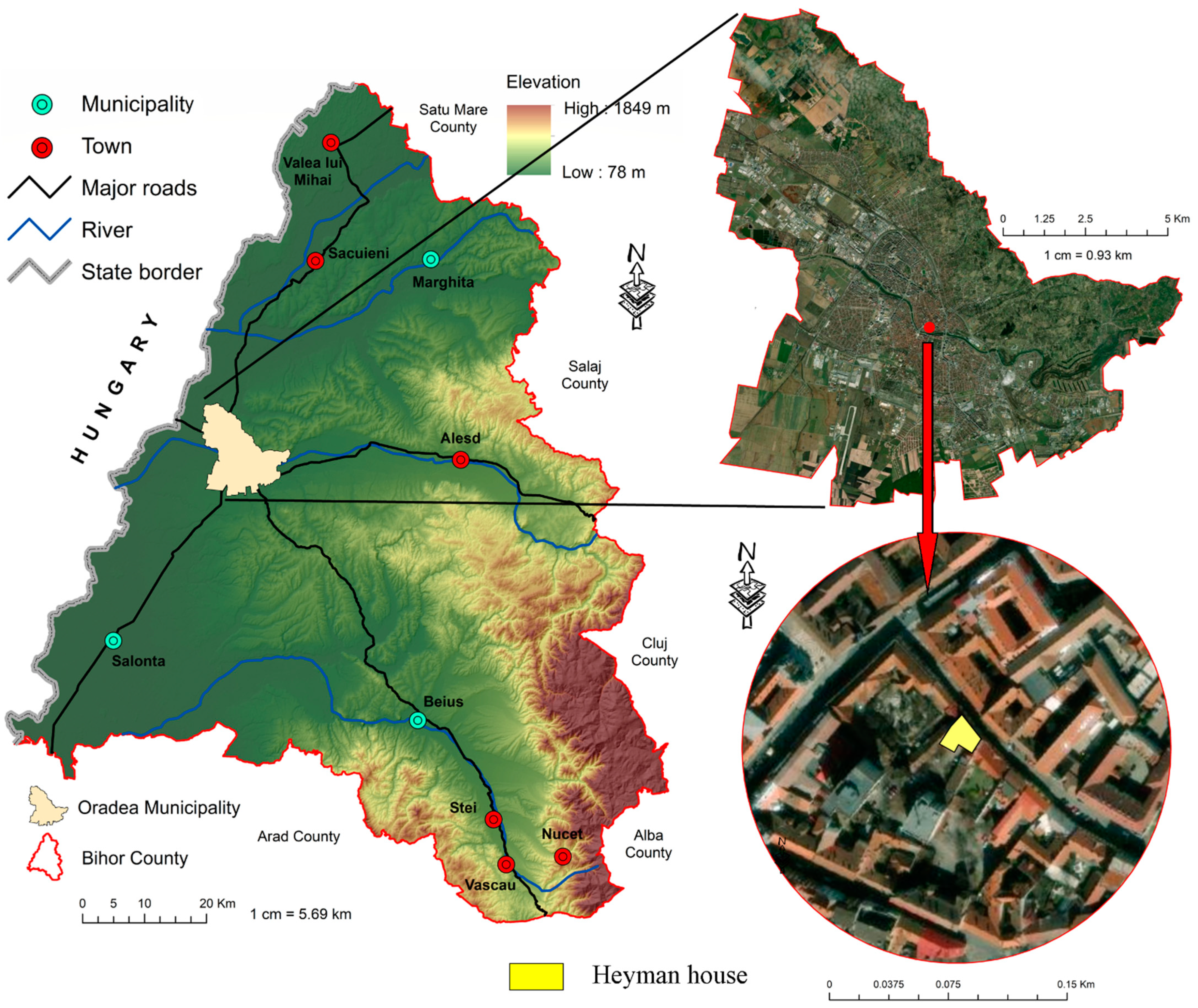

Figure 1. The location of the Heyman house at the county and the city of Oradea level.
Figure 1. The location of the Heyman house at the county and the city of Oradea level.
Buildings 12 01617 g001

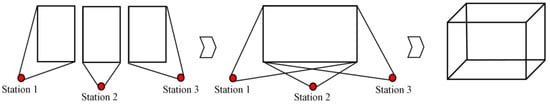

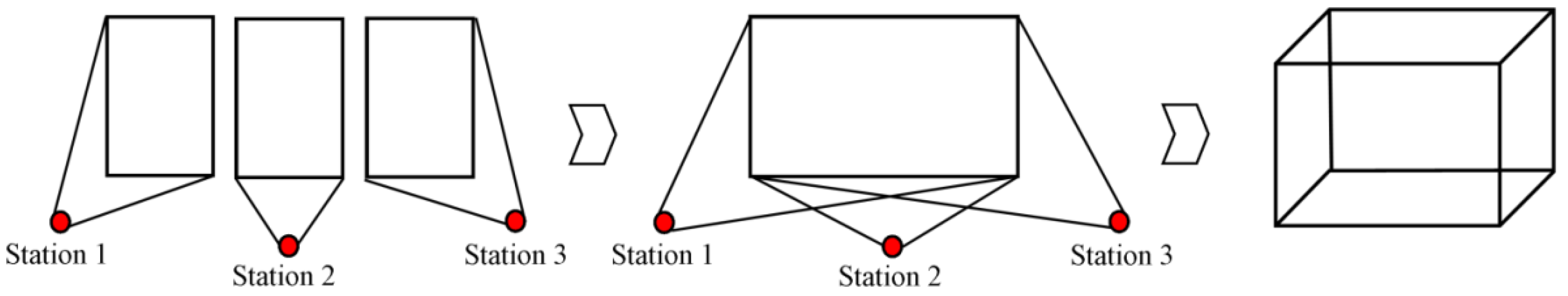

Figure 2. Processing of point clouds resulting from the three-point scan of the Heyman House in order to obtain the final three-dimensional model.
Figure 2. Processing of point clouds resulting from the three-point scan of the Heyman House in order to obtain the final three-dimensional model.
Buildings 12 01617 g002

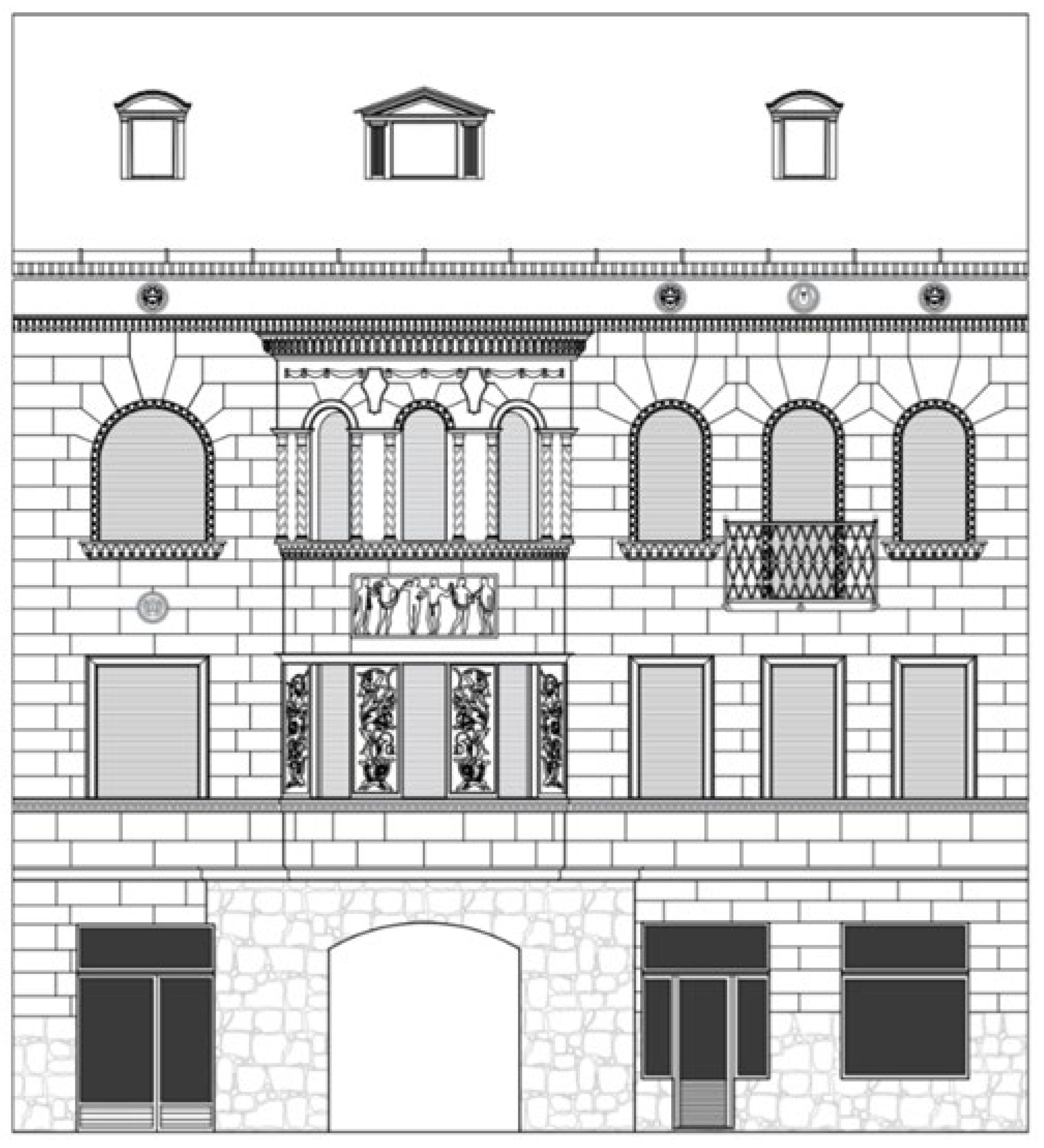

Figure 3. Two-dimensional survey of the facade of the Heyman House in Oradea, obtained by the cartographic method.
Figure 3. Two-dimensional survey of the facade of the Heyman House in Oradea, obtained by the cartographic method.
Buildings 12 01617 g003

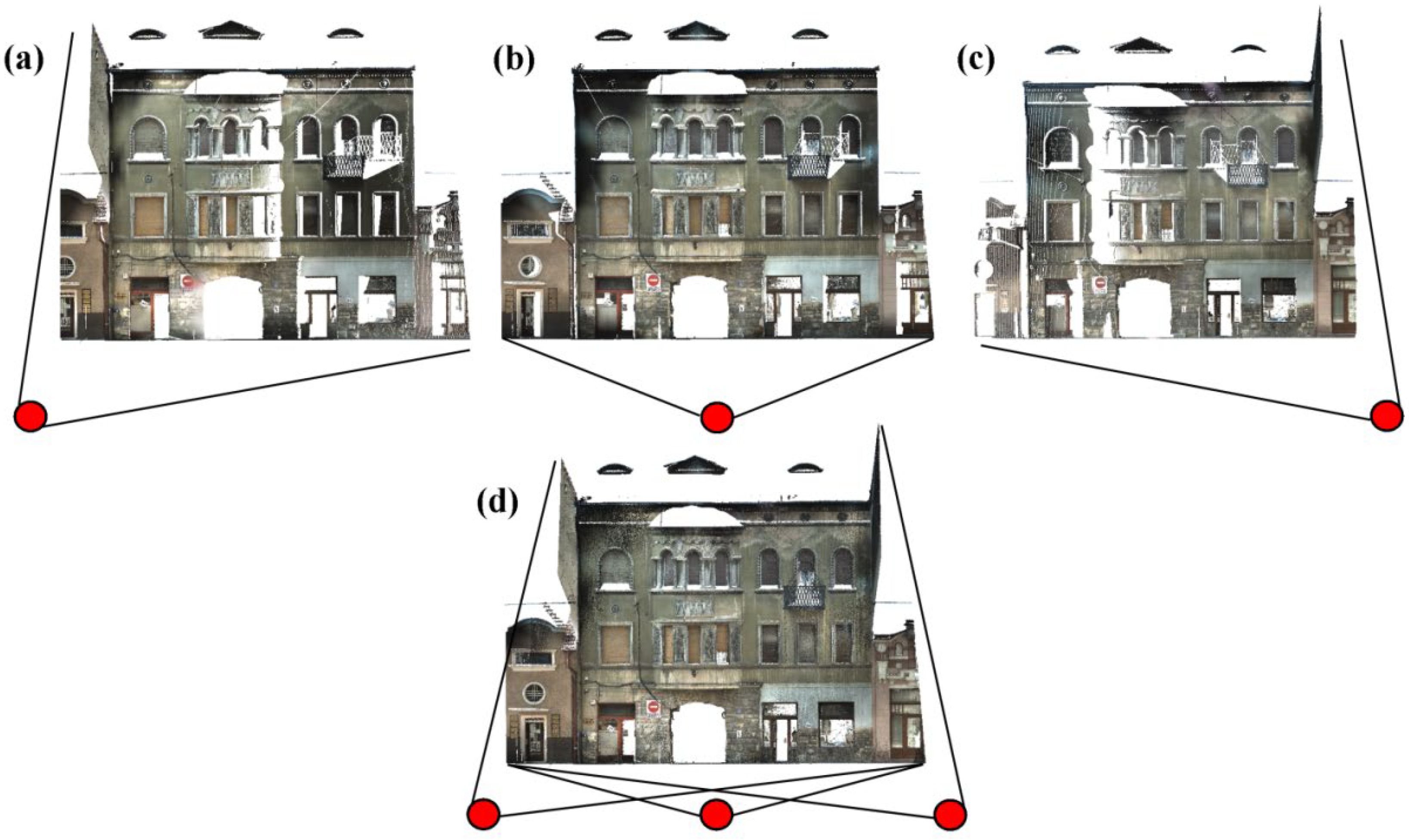

Figure 4. Presentation of point clouds resulting from terrestrial laser scanning (TLS) ((a) scan position 1—left; (b) scan position 2—center; (c) scan position 3—right; (d) results of interconnection of point clouds obtained from the three scan positions).
Figure 4. Presentation of point clouds resulting from terrestrial laser scanning (TLS) ((a) scan position 1—left; (b) scan position 2—center; (c) scan position 3—right; (d) results of interconnection of point clouds obtained from the three scan positions).
Buildings 12 01617 g004

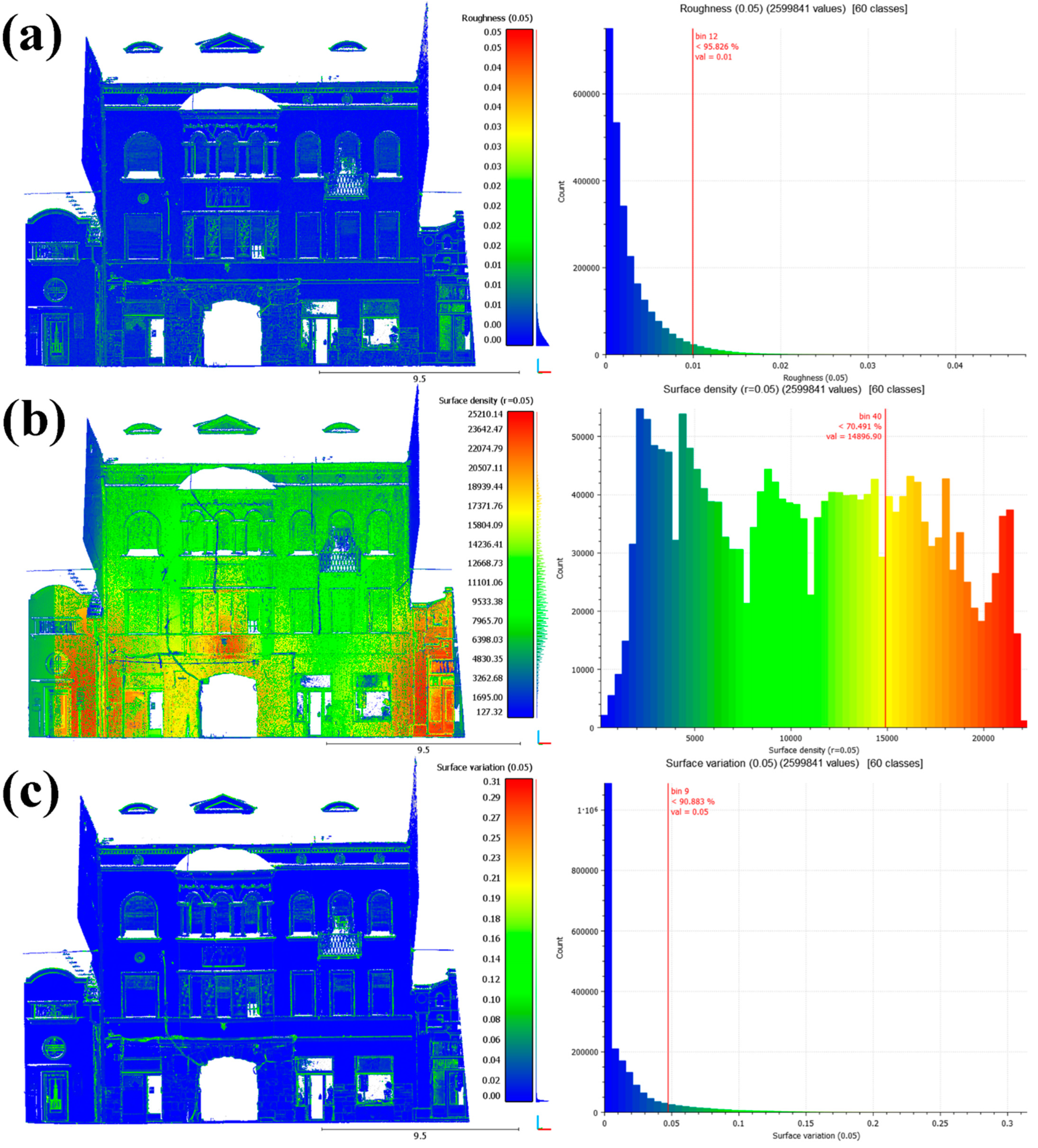

Figure 5. Determining the quality of the final point cloud of the Heyman House facade in the CloudCompare software ((a) determining the roughness of the point cloud; (b) determining the surface density of the point cloud; (c) determining the surface variation in the point cloud).
Figure 5. Determining the quality of the final point cloud of the Heyman House facade in the CloudCompare software ((a) determining the roughness of the point cloud; (b) determining the surface density of the point cloud; (c) determining the surface variation in the point cloud).
Buildings 12 01617 g005

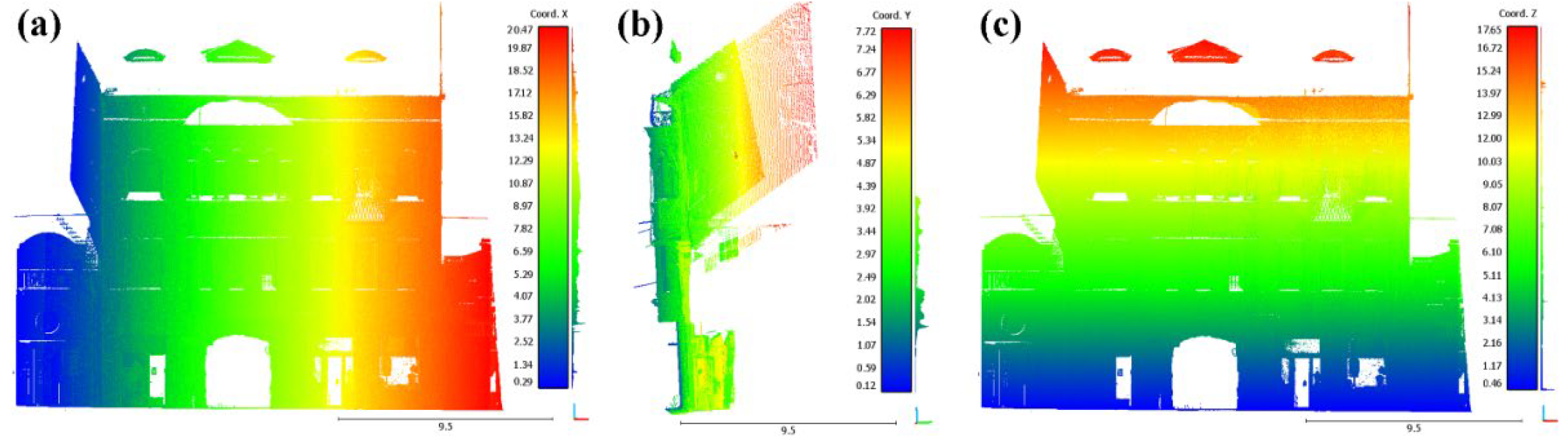

Figure 6. Presentation of the point cloud related to the Heyman House based on the X, Y and Z attributes ((a) X coordinate, (b) Y coordinate, (c) Z coordinate).
Figure 6. Presentation of the point cloud related to the Heyman House based on the X, Y and Z attributes ((a) X coordinate, (b) Y coordinate, (c) Z coordinate).
Buildings 12 01617 g006

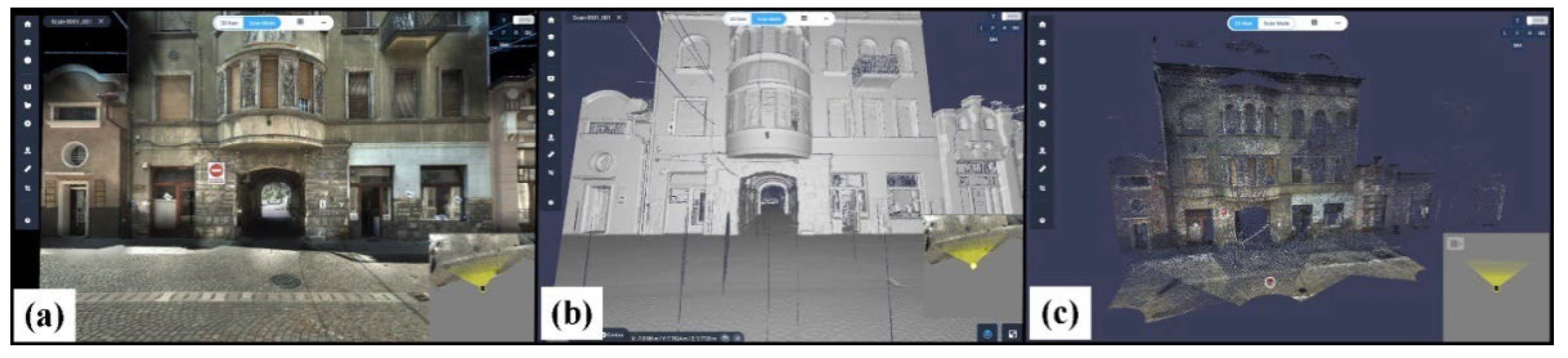

Figure 7. Possibilities of interactive visualization of digital models of the Heyman House ((a) visualization of the textured surface in 2D Panoramic mode; (b) visualization of the polygonal surface in Surface mode; (c) visualization of the point cloud in 3D navigation mode).
Figure 7. Possibilities of interactive visualization of digital models of the Heyman House ((a) visualization of the textured surface in 2D Panoramic mode; (b) visualization of the polygonal surface in Surface mode; (c) visualization of the point cloud in 3D navigation mode).
Buildings 12 01617 g007

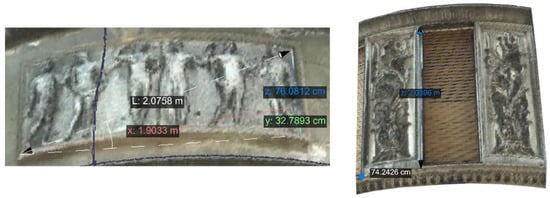

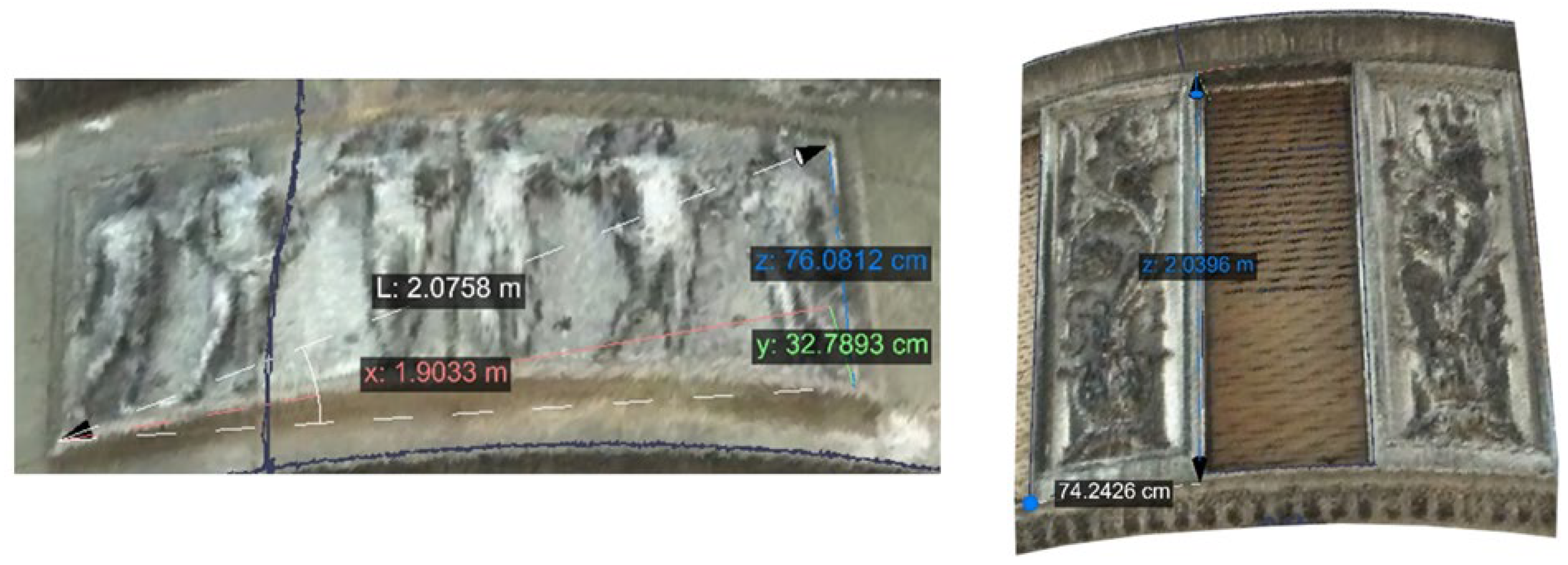

Figure 8. Carrying out determinations on architectural elements within the digital models of the Heyman House through the “measurements” option from the Cintoo platform.
Figure 8. Carrying out determinations on architectural elements within the digital models of the Heyman House through the “measurements” option from the Cintoo platform.
Buildings 12 01617 g008
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Grama, V.; Ilies, G.; Safarov, B.; Ilies, A.; Caciora, T.; Hodor, N.; Ilies, D.C.; Kieti, D.; Berdenov, Z.; Josan, I.; et al. Digital Technologies Role in the Preservation of Jewish Cultural Heritage: Case Study Heyman House, Oradea, Romania. Buildings 2022, 12, 1617.

AMA Style

Grama V, Ilies G, Safarov B, Ilies A, Caciora T, Hodor N, Ilies DC, Kieti D, Berdenov Z, Josan I, et al. Digital Technologies Role in the Preservation of Jewish Cultural Heritage: Case Study Heyman House, Oradea, Romania. Buildings. 2022; 12(10):1617.

Chicago/Turabian Style

Grama, Vasile, Gabriela Ilies, Bahodirhon Safarov, Alexandru Ilies, Tudor Caciora, Nicolaie Hodor, Dorina Camelia Ilies, Damiannah Kieti, Zharas Berdenov, Ioana Josan, and et al. 2022. "Digital Technologies Role in the Preservation of Jewish Cultural Heritage: Case Study Heyman House, Oradea, Romania" Buildings 12, no. 10: 1617.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
