Geopolymers as Sustainable Material for Strengthening and Restoring Unreinforced Masonry Structures: A Review
Abstract
:1. Introduction

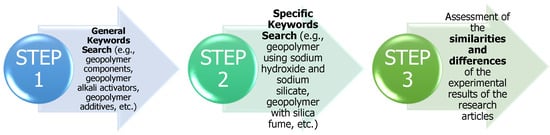

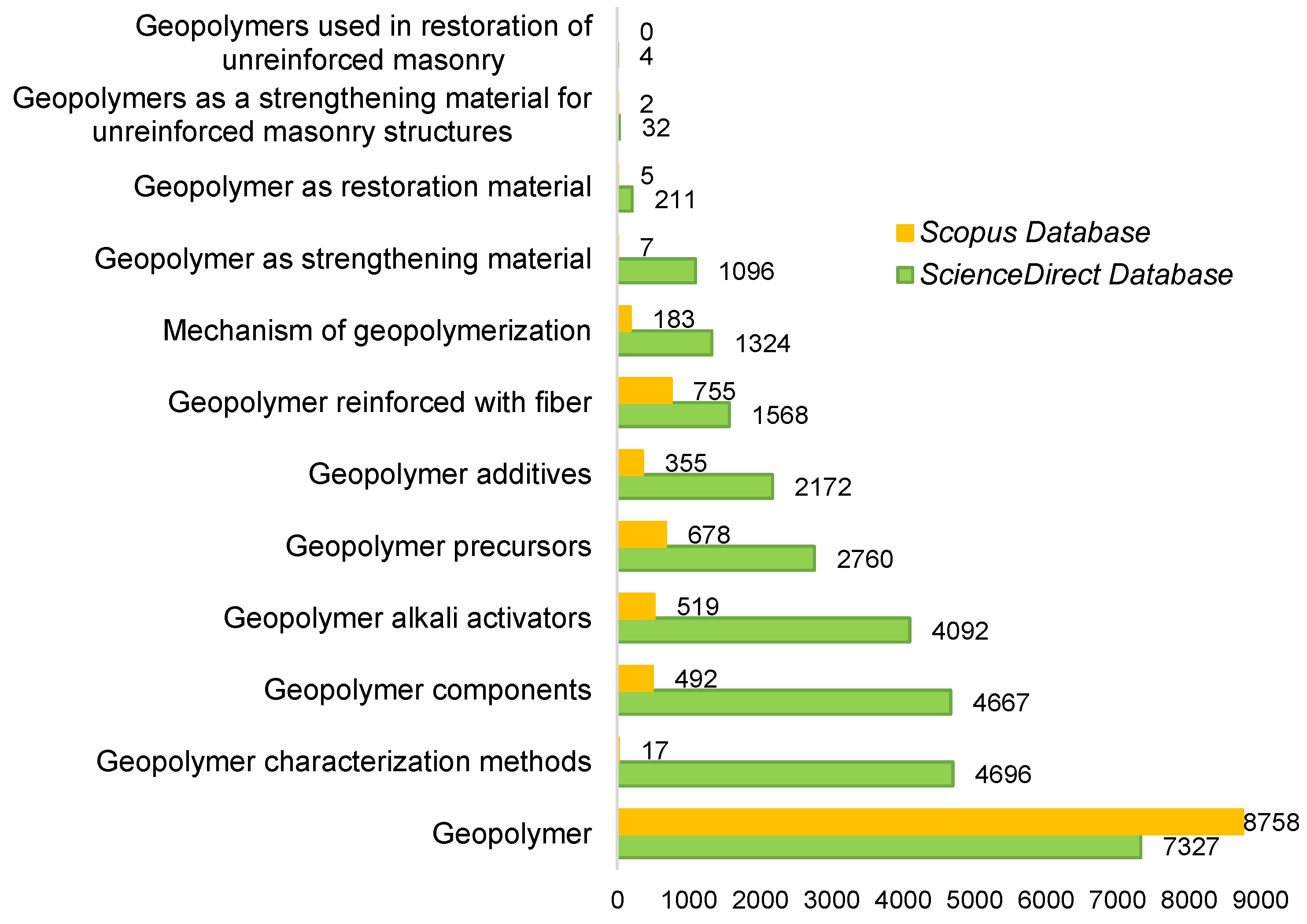

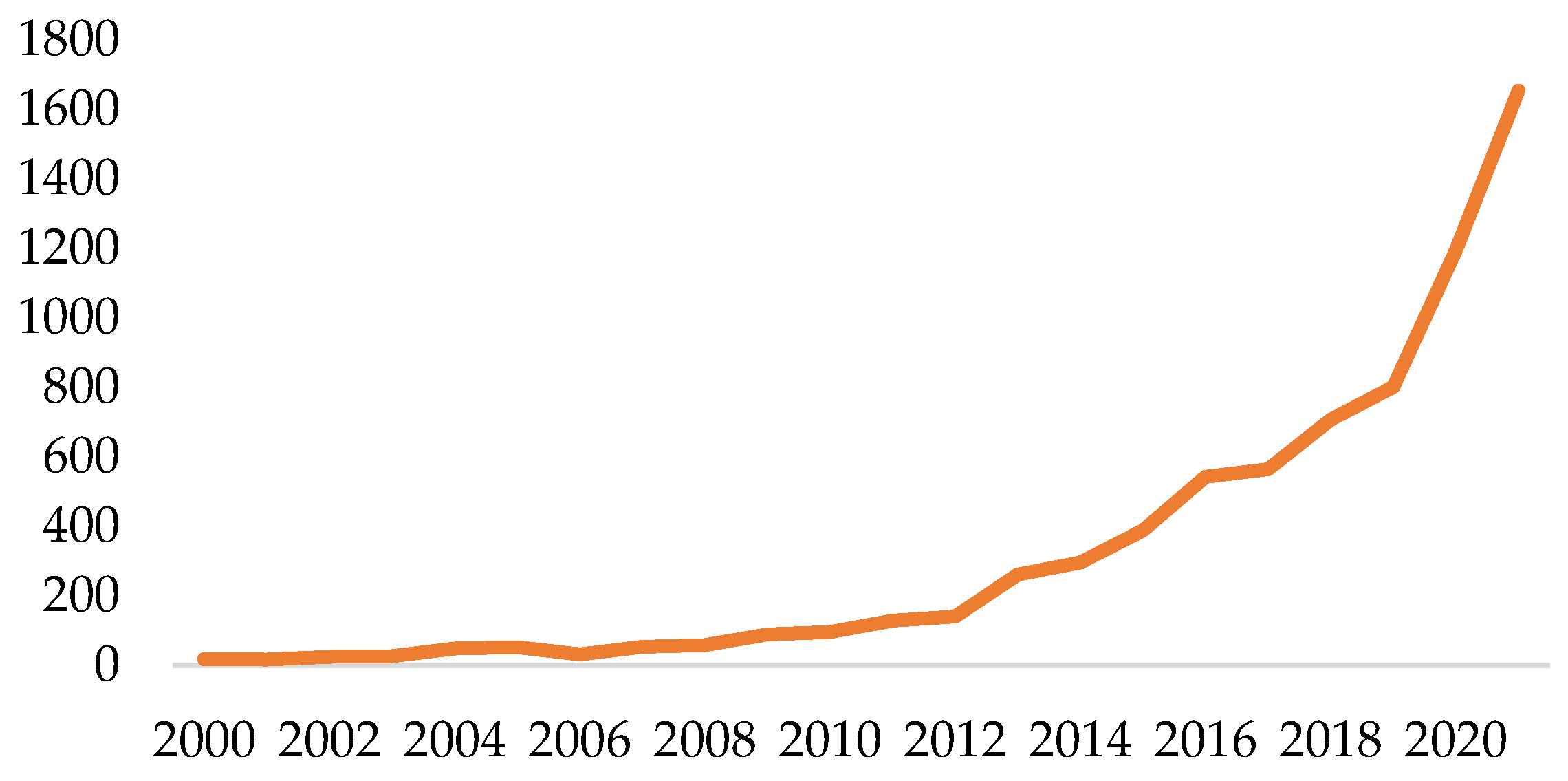

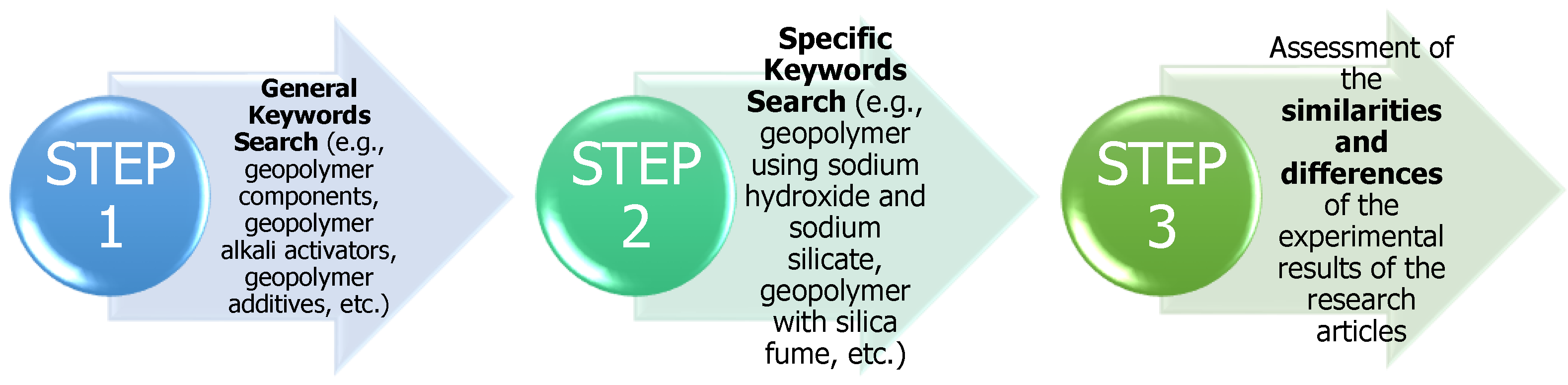

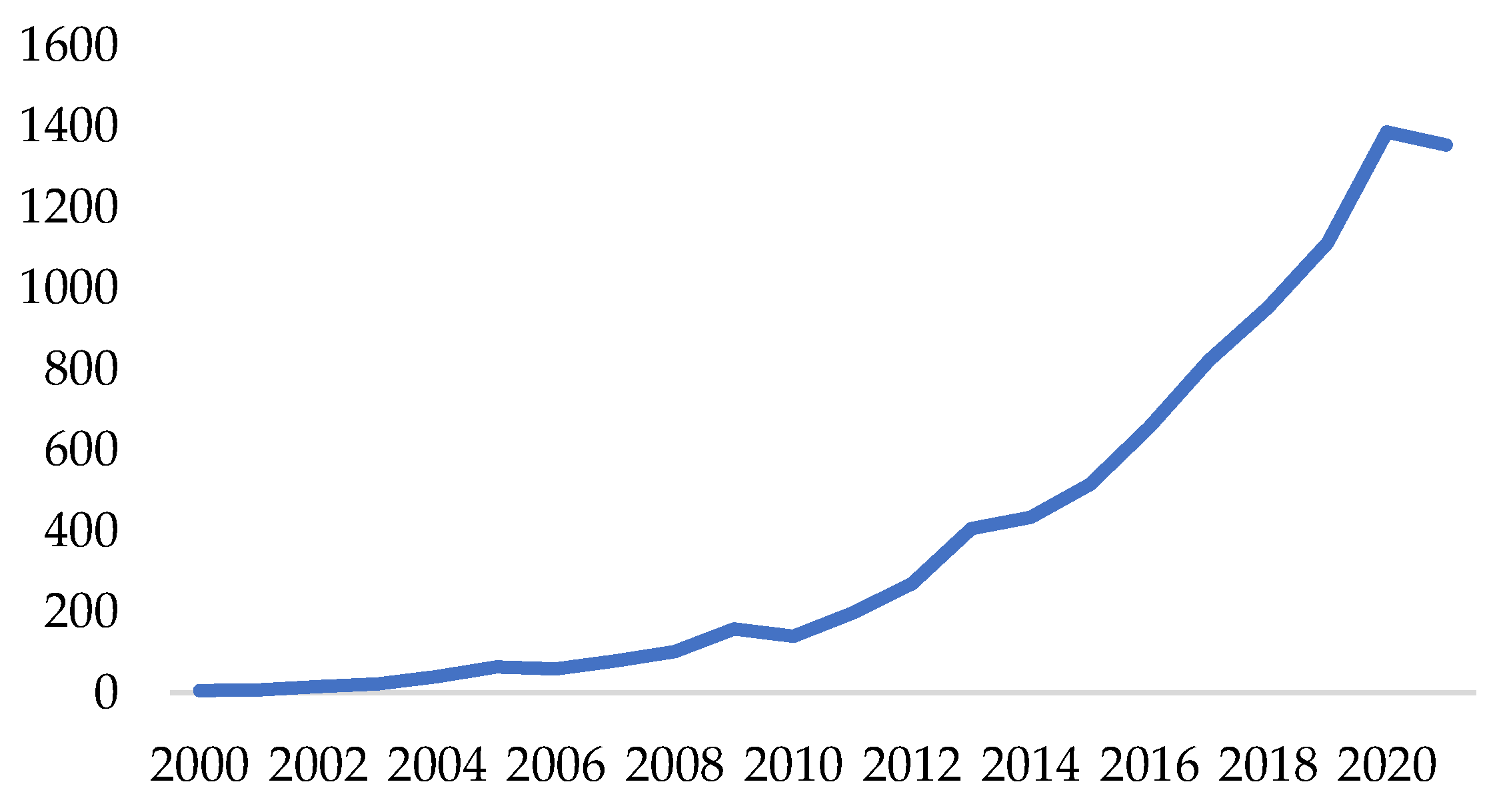

2. Collection and Sources of Literatures

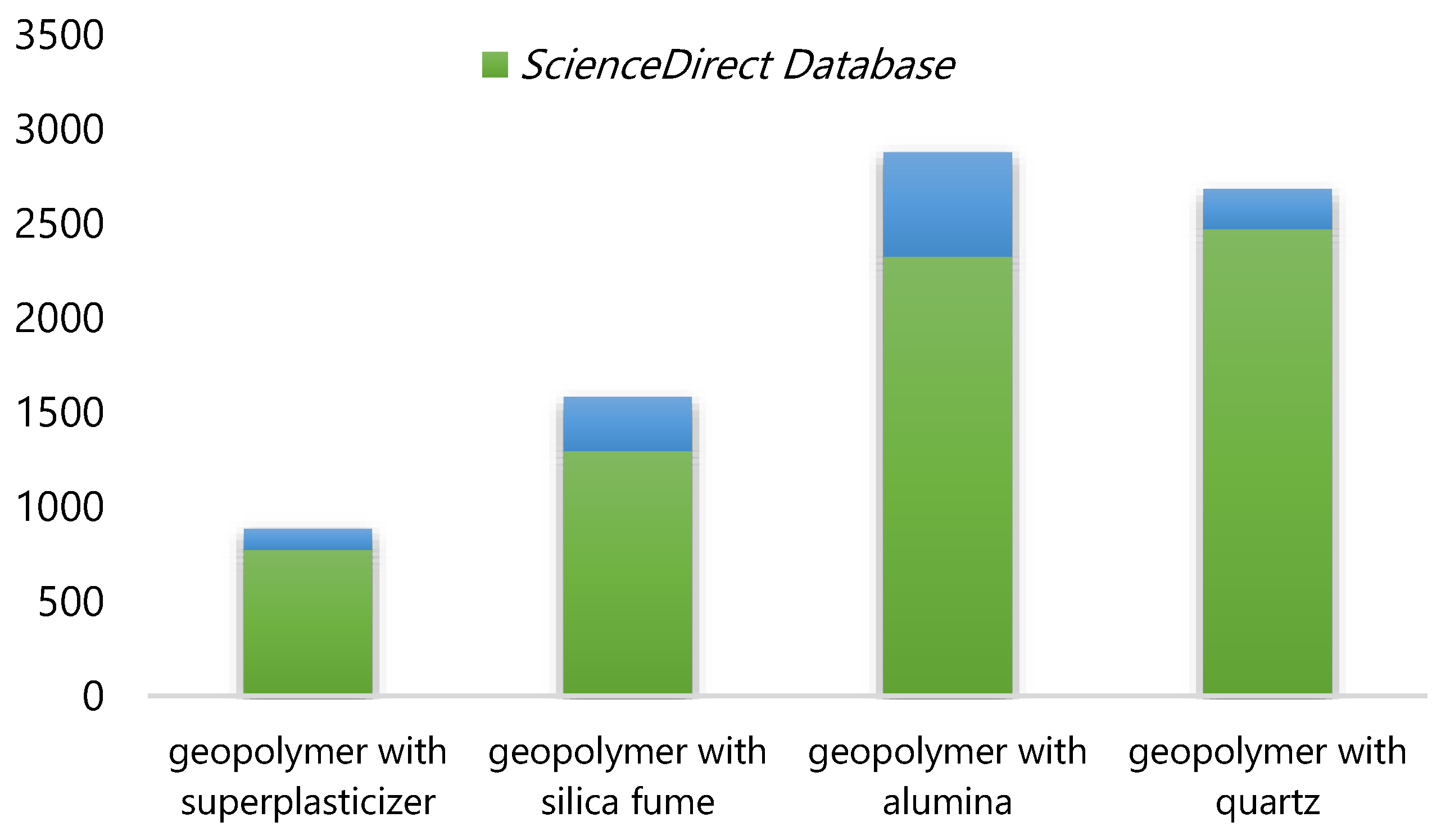

2.1. From the ScienceDirect Database
2.2. From the Scopus Database

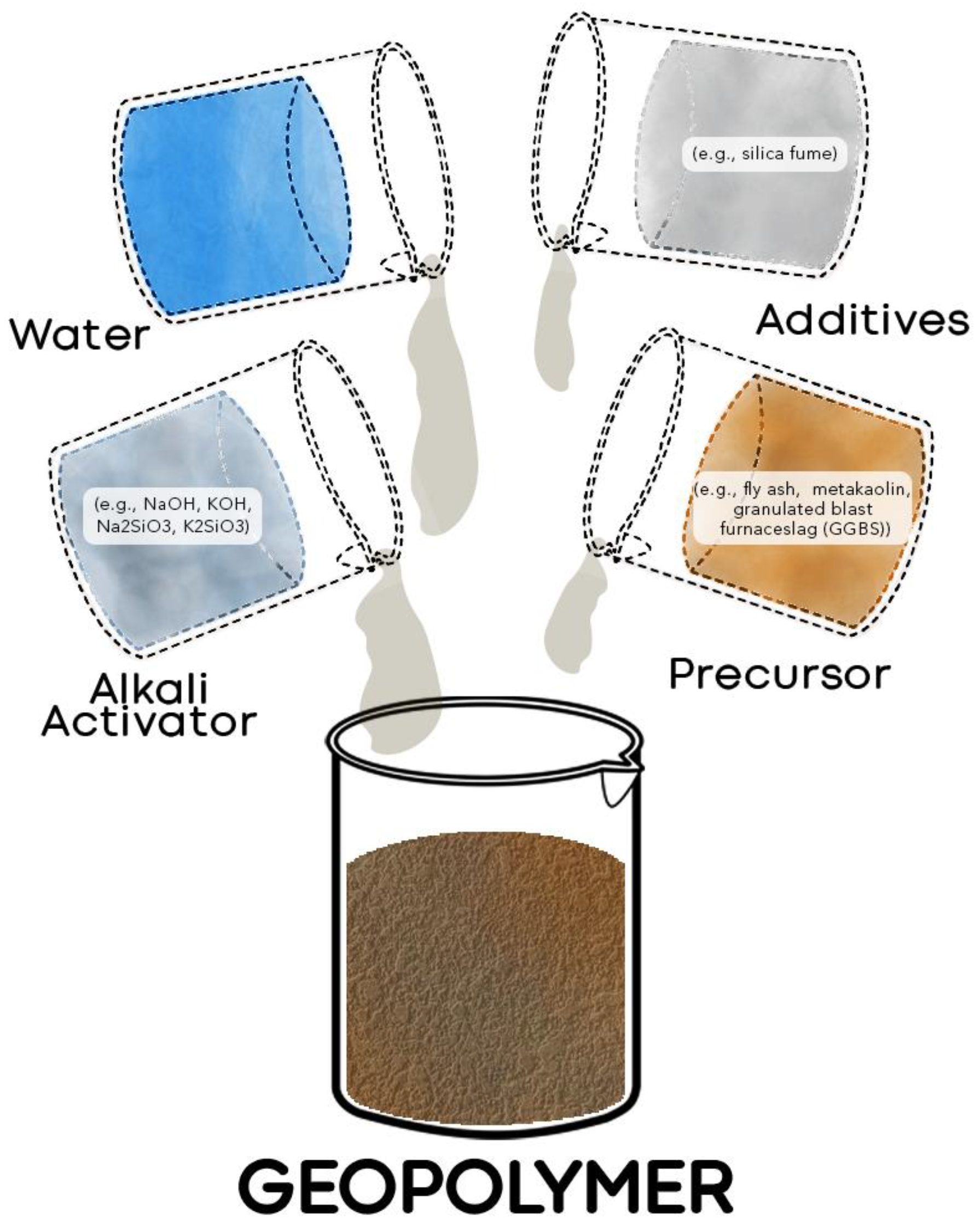

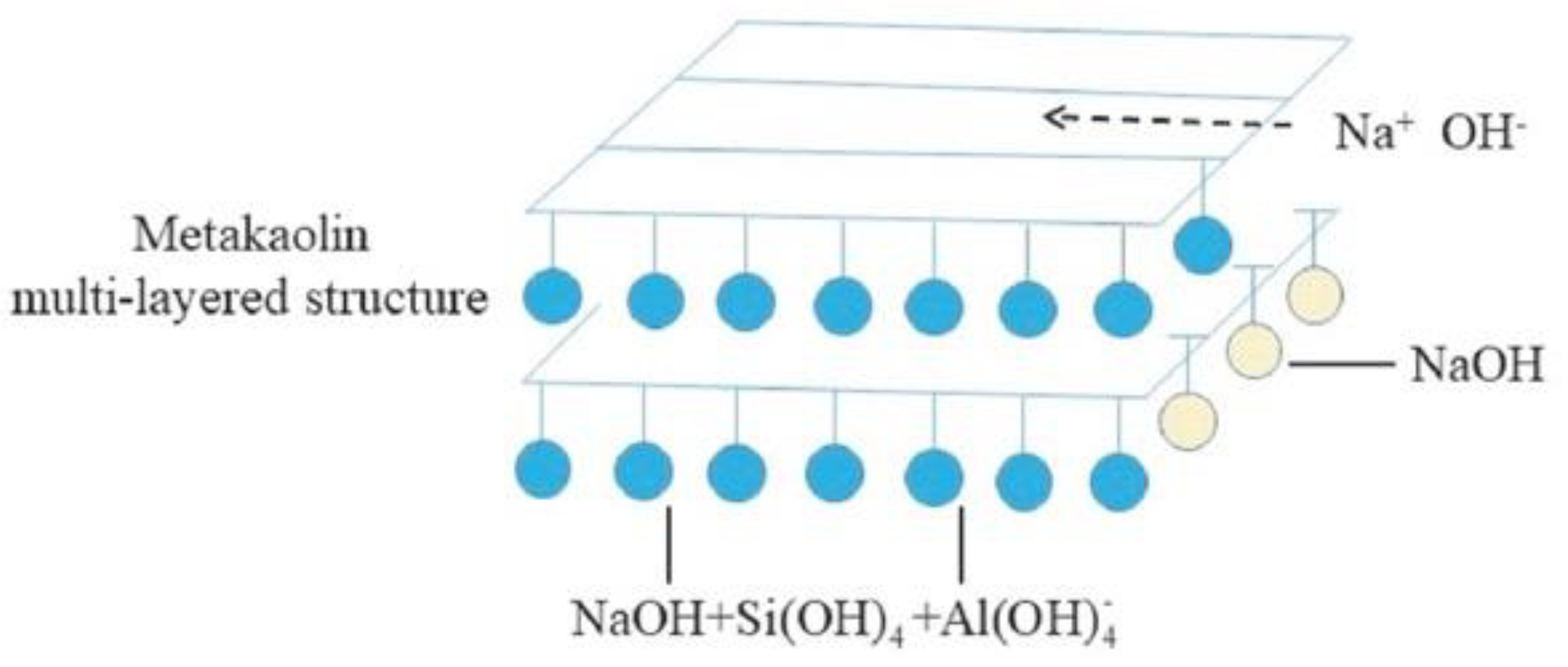

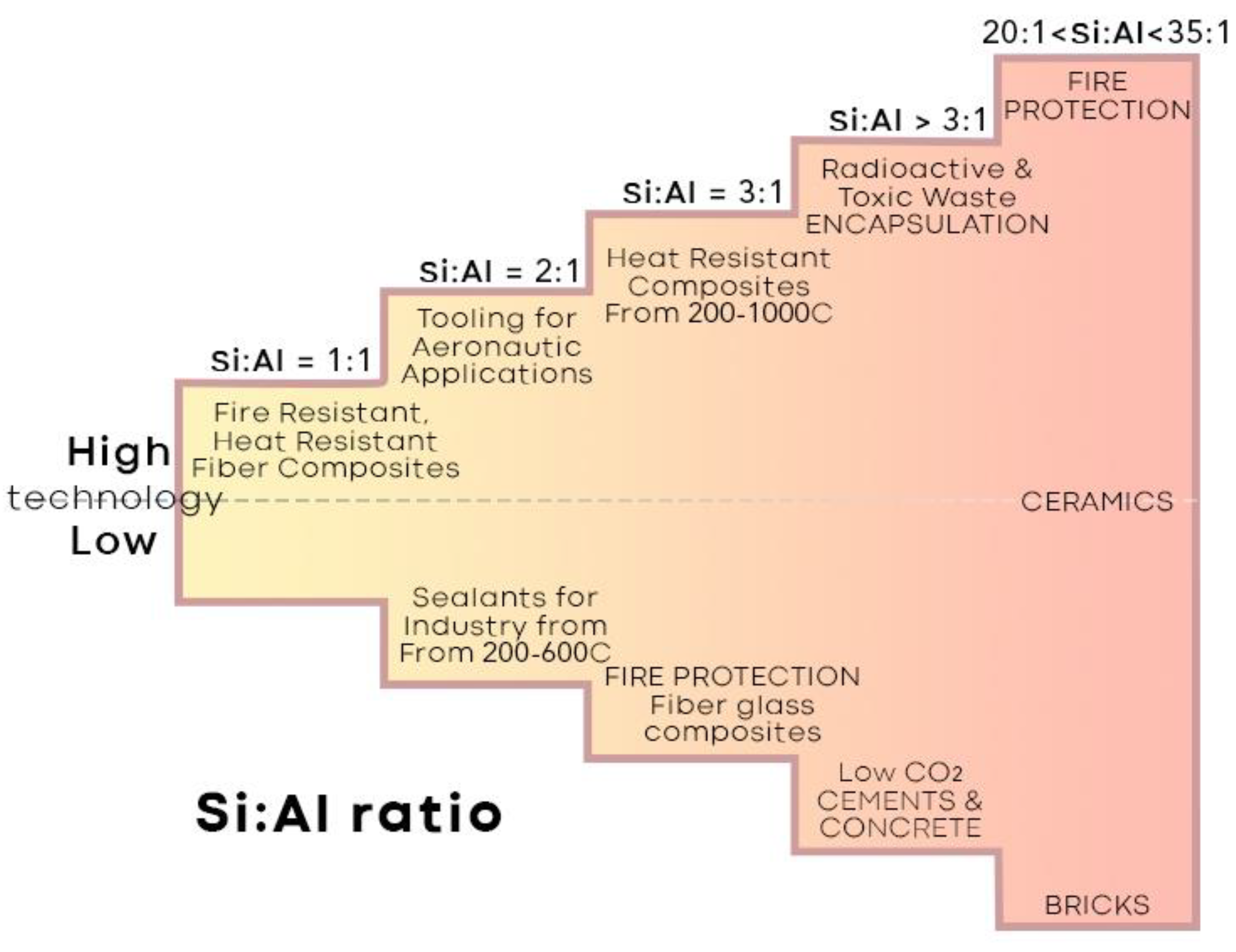

3. Geopolymerization Process and Components of Geopolymers
- i.
- Dissolution of SiO2, Al2O3 and calcium sources (CaSO4 and CaO).SiO2 + Al2O3 + OH− → SiO2 (OH)22− or SiO(OH)3−1 + Al(OH)4−CaSO4, CaO → Ca2+ +SO42− + OH−
- ii.
- Precipitation reactionsCa2+ + SiO2 (OH)22− or SiO(OH)3−1 + Al(OH)4− → CASH gelNa+ + SiO2 (OH)22− or SiO(OH)3−1 + Al(OH)4− → NASH gel
3.1. Alkali Activators

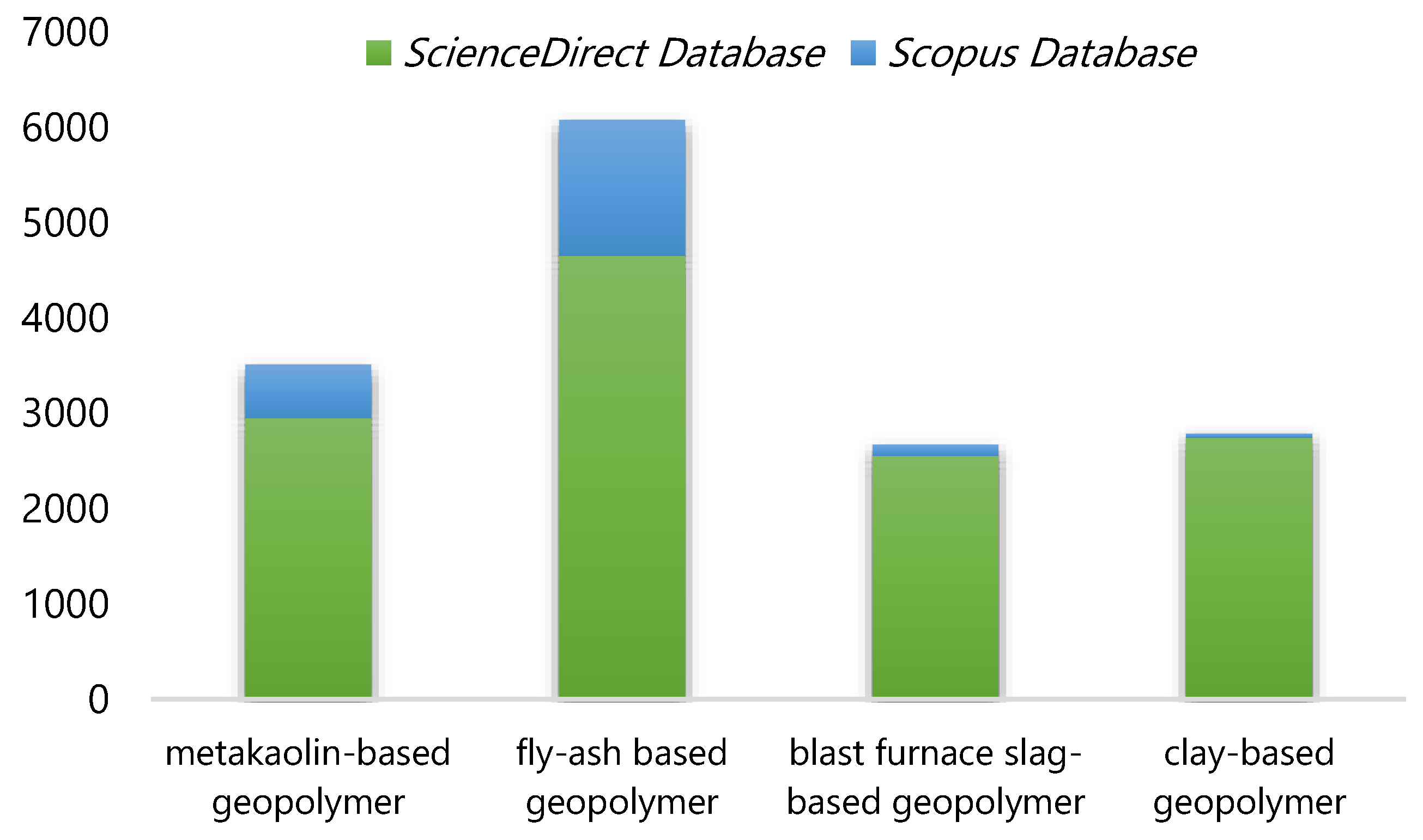

3.2. Precursors
3.3. Additives
4. Geopolymer Characterization Methods

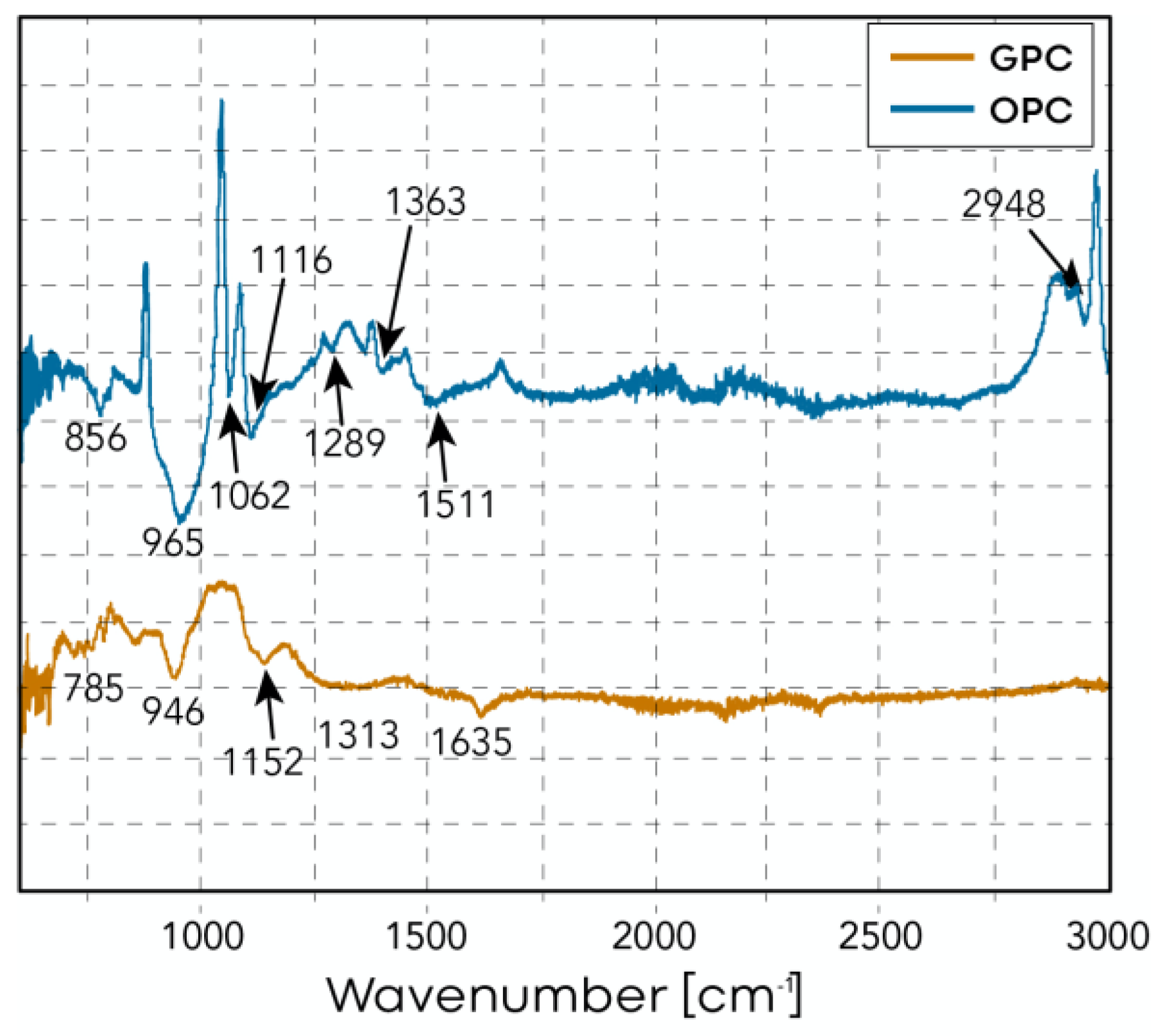

4.1. Fourier Transform Infrared Radiation (FT-IR) Spectroscopy

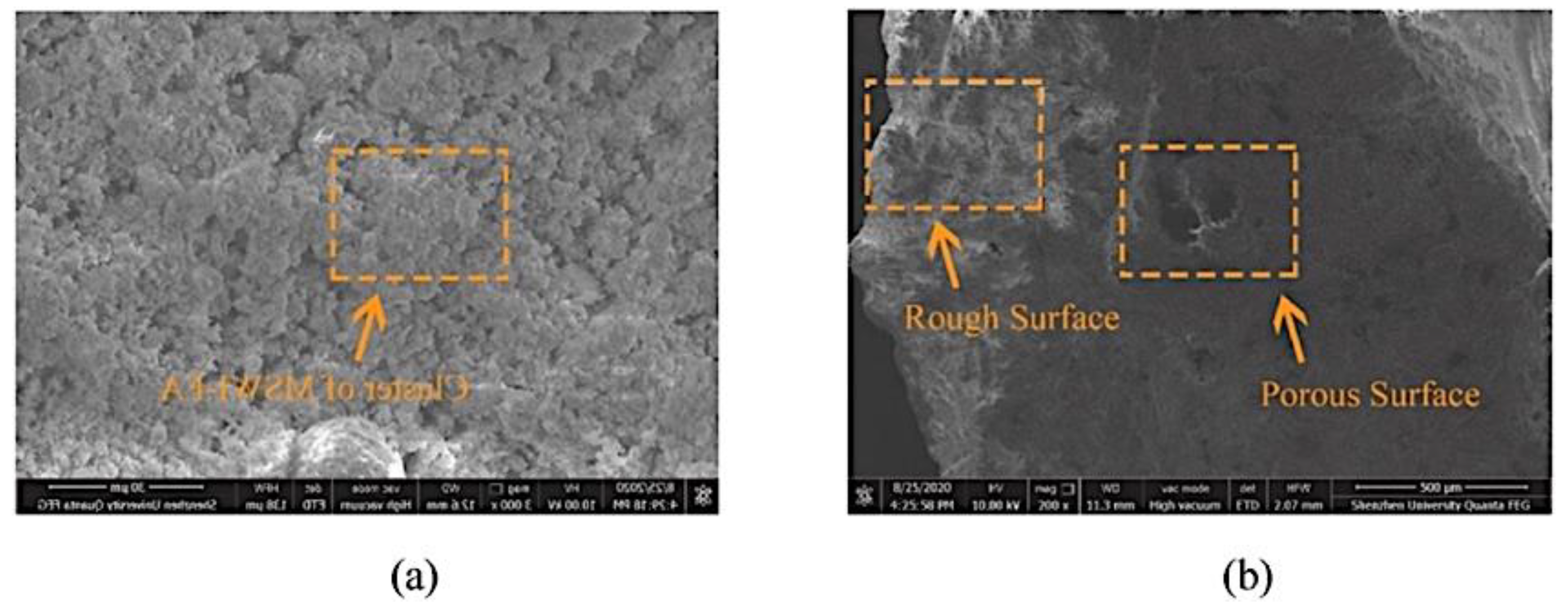

4.2. Scanning Electron Microscopy with Energy-Dispersive Spectroscopy (SEM-EDS)
4.3. Brunauer–Emmett–Teller (BET) Method
4.4. X-ray Fluorescence Analyis

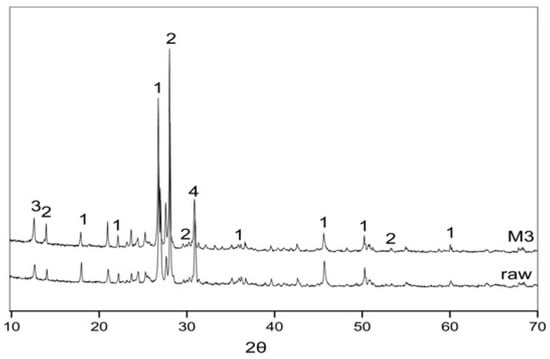

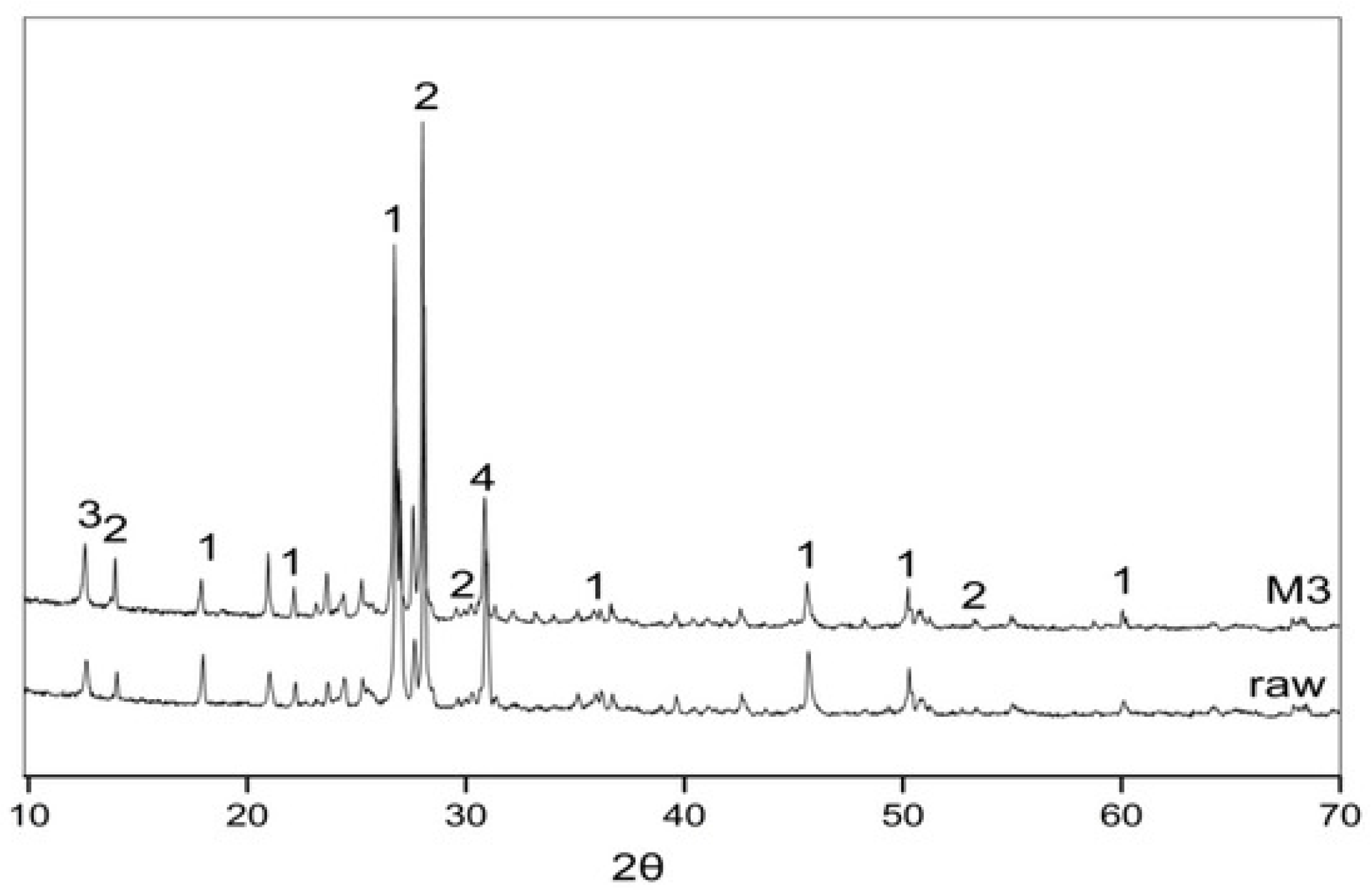

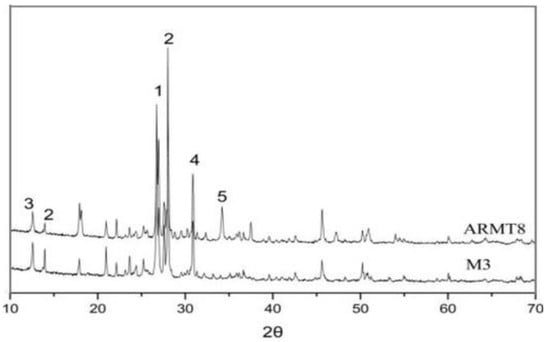

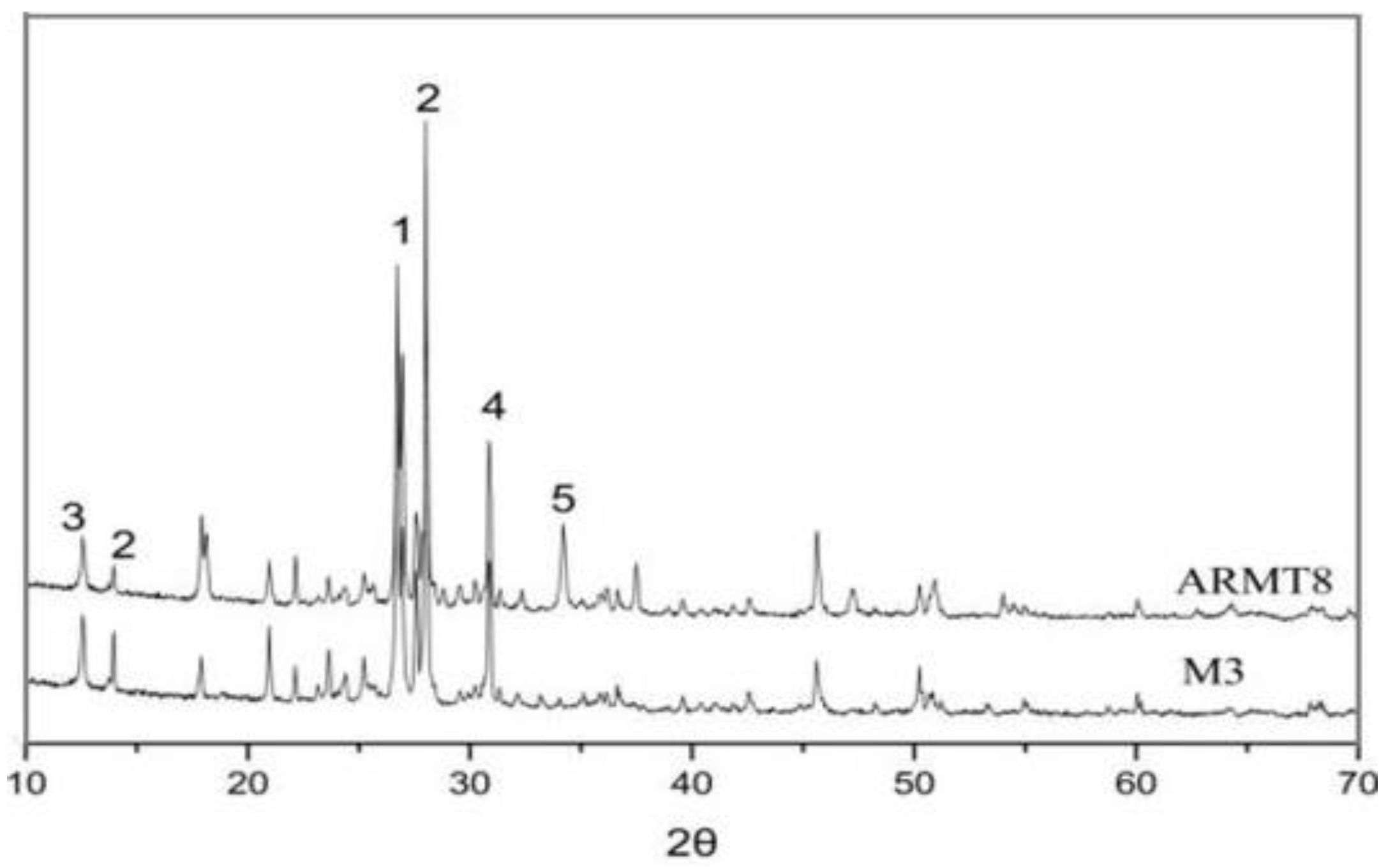

4.5. X-ray Diffraction Analysis
4.6. Nuclear Magnetic Resonance (NMR) Spectroscopy
- Dissolution of raw materials into mass monomers.
- Initial polymerization.
- Polymer collapse and quick rearrangement are brought about by dehydration.
- Subsequent polymerization persists mostly on fragmented bonds of the structure.

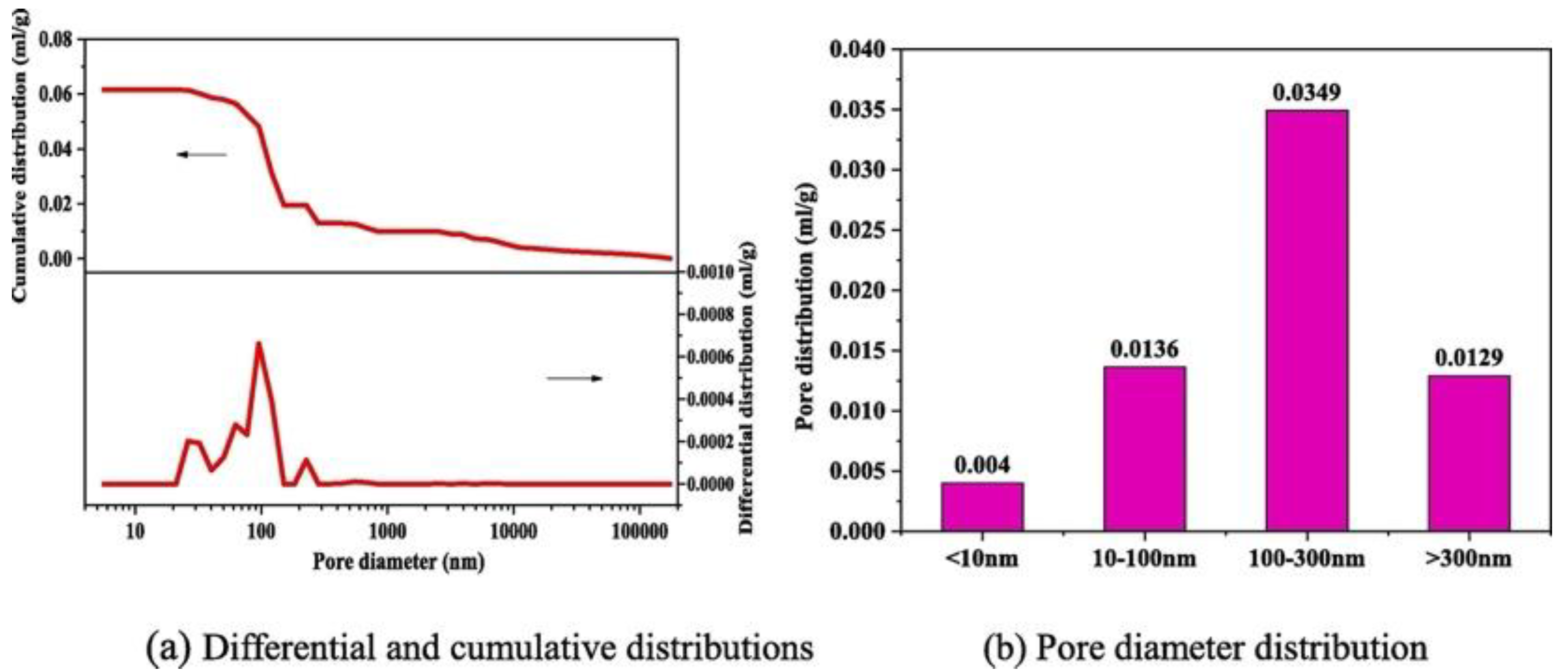

4.7. Mercury Intrusion Porosimetry (MIP)
5. Geopolymers as a Strengthening and Restoration Material
5.1. Geopolymers as a Strengthening Material
5.2. Geopolymers as a Restoration Material
6. Geopolymers Used as Grouting
7. Sustainability of Geopolymers in Unreinforced Masonry Structures (URMs)

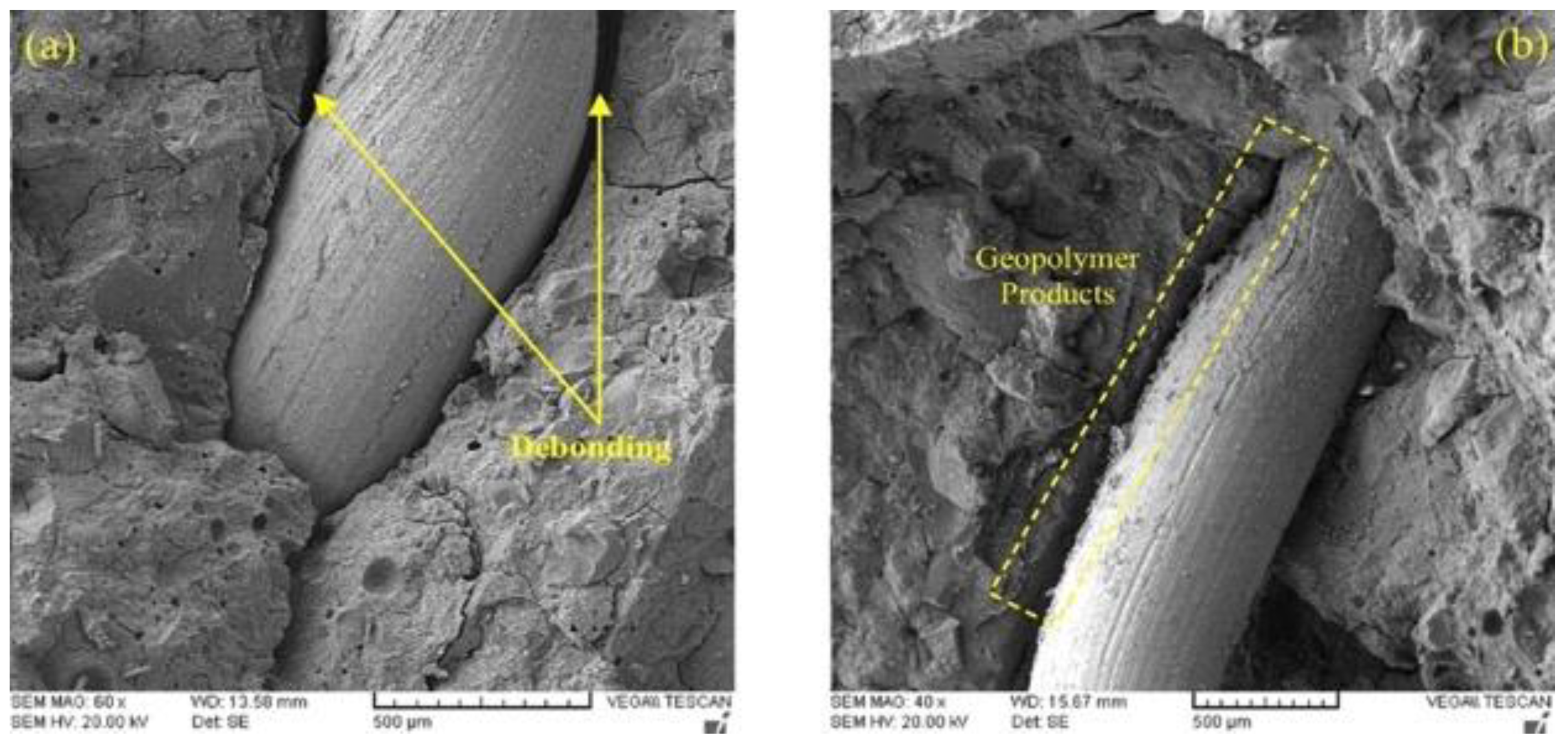

8. Fiber-Reinforced Geopolymers (FRG) Used as Unreinforced Masonry Structures (URMs)

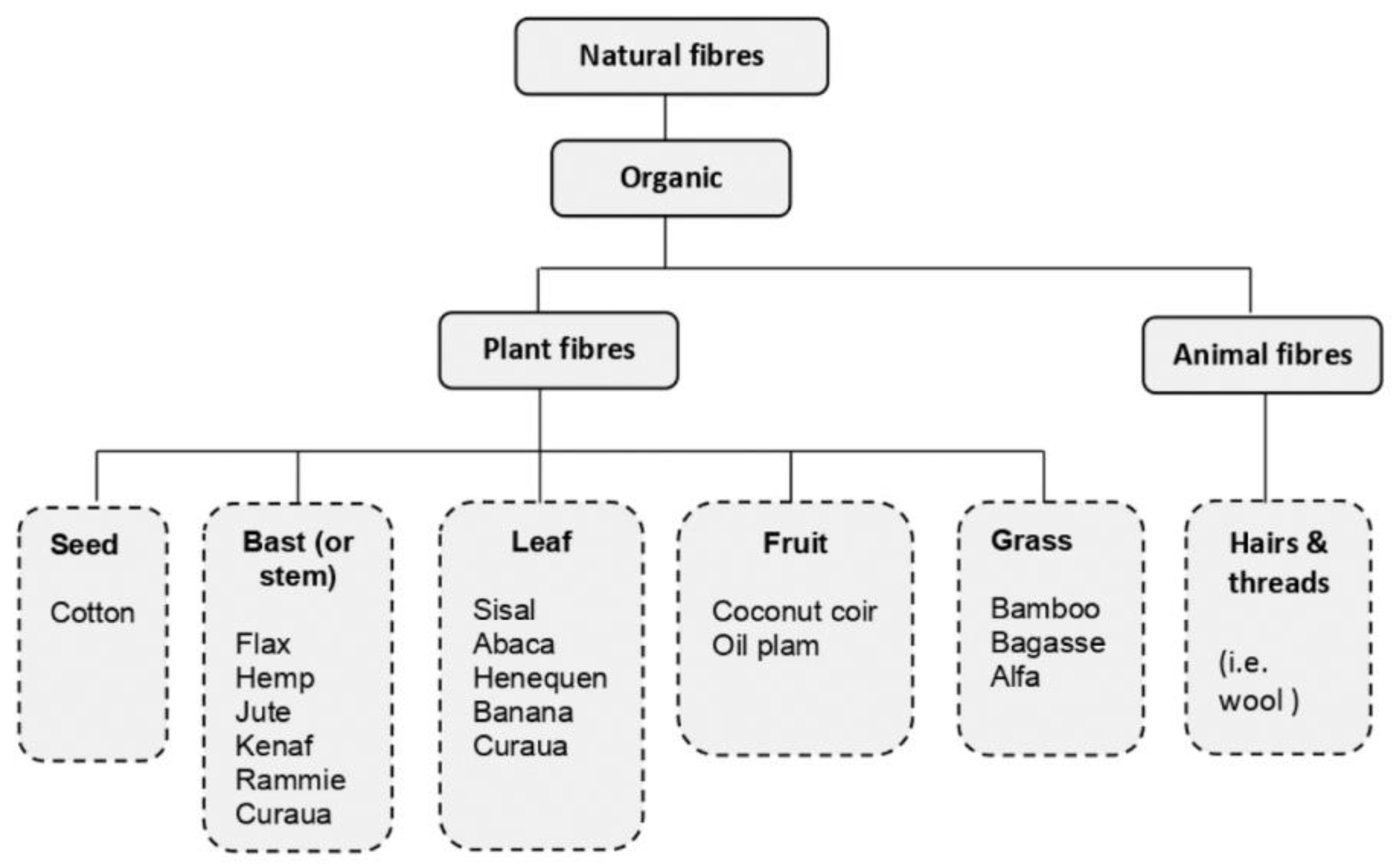

8.1. Natural Fibers
8.2. Synthetic Polymers
8.3. Metallic Fibers
8.4. Other Inorganic and Organic Fibers
9. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Conflicts of Interest
References
- Mahasenan, N.; Smith, S.; Humphreys, K. The Cement Industry and Global Climate Change Current and Potential Future Cement Industry CO2 Emissions. In Proceedings of the Greenhouse Gas Control Technologies—6th International Conference, Kyoto, Japan, 1–4 October 2002; pp. 995–1000. [Google Scholar] [CrossRef]
- Pham, T.M.; Lim, Y.Y.; Pradhan, S.S.; Kumar, J. Performance of rice husk Ash-Based sustainable geopolymer concrete with Ultra-Fine slag and Corn cob ash. Constr. Build. Mater. 2021, 279, 122526. [Google Scholar] [CrossRef]
- Neupane, K.; Hadigheh, S.A. Sodium hydroxide-free geopolymer binder for prestressed concrete applications. Constr. Build. Mater. 2021, 293, 123397. [Google Scholar] [CrossRef]
- Ricciotti, L.; Molino, A.; Roviello, V.; Chianese, E.; Cennamo, P.; Roviello, G. Geopolymer Composites for Potential Applications in Cultural Heritage. Environments 2017, 4, 91. [Google Scholar] [CrossRef] [Green Version]
- ASTM C1713-17. Standard Specification for Mortars for the Repair of Historic Masonry; ASTM International: West Conshohocken, PA, USA, 2017; Available online: https://www.astm.org/Standards/C1713.htm?fbclid=IwAR1lJ0zsSgzQ7inANg1tGU5iFSJ9ePwCqvsnvx1QpErBRncJ8nW4HNeYl98 (accessed on 3 August 2021).
- ICOMOS. Recommendations for the Analysis and Restoration of Historical Structures; ISCARSAH, International Council on Monuments and Sites: Paris, France, 2003. [Google Scholar]
- Ismail, N.; Ingham, J.M. In-plane and out-of-plane testing of unreinforced masonry walls strengthened using polymer textile reinforced mortar. Eng. Struct. 2016, 118, 167–177. [Google Scholar] [CrossRef]
- Meriggi, P.; de Felice, G.; De Santis, S. Design of the out-of-plane strengthening of masonry walls with fabric reinforced cementitious matrix composites. Constr. Build. Mater. 2020, 240, 117946. [Google Scholar] [CrossRef]
- Zhang, L.; Jia, Y.; Shu, H.; Zhang, L.; Lu, X.; Bai, F.; Zhao, Q.; Tian, D. The effect of basicity of modified ground granulated blast furnace slag on its denitration performance. J. Clean. Prod. 2021, 305, 126800. [Google Scholar] [CrossRef]
- Tober, M. PubMed, ScienceDirect, Scopus or Google Scholar—Which is the best search engine for an effective literature research in laser medicine? Med. Laser Appl. 2011, 26, 139–144. [Google Scholar] [CrossRef]
- John, M.J.; Anandjiwala, R.D. Recent developments in chemical modification and characterization of natural fiber-reinforced composites. Polym. Compos. 2021, 29, 187–207. [Google Scholar] [CrossRef]
- Zhou, S.; Yang, Z.; Zhang, R.; Zhu, X.; Li, F. Preparation and evaluation of geopolymer based on BH-2 lunar regolith simulant under lunar surface temperature and vacuum condition. Acta Astronaut. 2021, 189, 90–98. [Google Scholar] [CrossRef]
- Zailani, W.W.A.; Bouaissi, A.; Razak, R.A.; Yoriya, S. Bonding Strength Characteristics of FA-Based Geopolymer Paste as a Repair Material When Applied on OPC Substrate. Appl. Sci. 2020, 10, 3321. [Google Scholar] [CrossRef]
- Kaze, R.C.; à Moungam, L.M.B.; Cannio, M.; Rosa, R.; Kamseu, E.; Melo, U.C.; Leonelli, C. Microstructure and engineering properties of Fe2O3 (FeO) -Al2O3-SiO2 based geopolymer composites. J. Clean. Prod. 2018, 199, 849–859. [Google Scholar] [CrossRef]
- Chindaprasirt, P.; Chareerat, T.; Sirivivatnanon, V. Workability and strength of coarse high calcium fly ash geopolymer. Cem. Concr. Compos. 2007, 29, 224–229. [Google Scholar] [CrossRef]
- Singh, B.; Ishwarya, G.; Gupta, M.; Bhattacharyya, S.K. Geopolymer concrete: A review of some recent developments. Constr. Build. Mater. 2015, 85, 78–90. [Google Scholar] [CrossRef]
- Silva, G.; Kim, S.; Bertolotti, B.; Nakamatsu, J.; Aguilar, R. Optimization of a reinforced geopolymer composite using natural fibers and construction wastes. Constr. Build. Mater. 2020, 258, 119697. [Google Scholar] [CrossRef]
- Rattanasak, U.; Chindaprasirt, P. Influence of NaOH solution on the synthesis of fly ash geopolymer. Miner. Eng. 2009, 22, 1073–1078. [Google Scholar] [CrossRef]
- Ouda, A.S. A preliminary investigation on gamma-ray attenuation of alkali-activated concrete waste based-geopolymer modified with pozzocrete-fly ash. Prog. Nucl. Energy 2021, 134, 103681. [Google Scholar] [CrossRef]
- Leong, H.Y. The effect of different Na2O and K2O ratios of alkali activator on compressive strength of fly ash based-geopolymer. Constr. Build. Mater. 2016, 106, 500–511. [Google Scholar] [CrossRef] [Green Version]
- Quiatchon, P.R.J.; Dollente, I.J.R.; Abulencia, A.B.; Libre, R.G.D.G.; Villoria, M.B.D., Jr.; Guades, E.J.; Promentilla, M.A.B.; Ongpeng, J.M.C. Investigation on the Compressive Strength and Time of Setting of Low-Calcium Fly Ash Geopolymer Paste Using Response Surface Methodology. Polymers 2021, 13, 3461. [Google Scholar] [CrossRef] [PubMed]
- Solouki, A.; Viscomi, G.; Lamperti, R.; Tataranni, P. Quarry Waste as Precursors in Geopolymers for Civil Engineering Applications: A Decade in Review. Materials 2020, 13, 3146. [Google Scholar] [CrossRef] [PubMed]
- Moradi, M.J.; Khaleghi, M.; Salimi, J.; Farhangi, V.; Ramezanianpour, A.M. Predicting the compressive strength of concrete containing metakaolin with different properties using ANN. Measurement 2021, 183, 109790. [Google Scholar] [CrossRef]
- Wang, Y.S.; Peng, K.D.; Alrefaei, Y.; Dai, J.G. The bond between geopolymer repair mortars and OPC concrete substrate: Strength and microscopic interactions. Cem. Concr. Compos. 2021, 119, 103991. [Google Scholar] [CrossRef]
- Zhang, M.; Long, Y.; Yang, C.; Wu, F.; Yu, L.; Li, X.; Yang, K.; Zhu, X.; Tian, Y.; Zhao, M. Early hydration of blast furnace slag in the presence of sodium chromate. Constr. Build. Mater. 2021, 297, 123775. [Google Scholar] [CrossRef]
- Choi, Y.C.; Park, B. Effects of high-temperature exposure on fractal dimension of fly-ash- based geopolymer composites. J. Mater. Res. Technol. 2020, 9, 7655–7668. [Google Scholar] [CrossRef]
- Zhao, J.; Tong, L.; Li, B.; Chen, T.; Wang, C.; Yang, G.; Zheng, Y. Eco-friendly geopolymer materials: A review of performance improvement, potential application and sustainability assessment. J. Clean. Prod. 2021, 307, 127085. [Google Scholar] [CrossRef]
- Liang, G.; Zhu, H.; Li, H.; Liu, T.; Guo, H. Comparative study on the effects of rice husk ash and silica fume on the freezing resistance of metakaolin-based geopolymer. Constr. Build. Mater. 2021, 293, 123486. [Google Scholar] [CrossRef]
- Bao, S.; Qin, L.; Zhang, Y.; Luo, Y.; Huang, X. A combined calcination method for activating mixed shale residue and red mud for preparation of geopolymer. Constr. Build. Mater. 2021, 297, 123789. [Google Scholar] [CrossRef]
- Longos, A.; Tigue, A.A.; Malenab, R.A.; Dollente, I.J.; Promentilla, M.A. Mechanical and thermal activation of nickel-laterite mine waste as a precursor for geopolymer synthesis. Results Eng. 2020, 7, 100148. [Google Scholar] [CrossRef]
- Aziz, A.; Stocker, O.; El Hassani, I.E.E.A.; Laborier, A.P.; Jacotot, E.; El Khadiri, A.; El Bouari, A. Effect of blast-furnace slag on physicochemical properties of pozzolan-based geopolymers. Mater. Chem. Phys. 2021, 258, 123880. [Google Scholar] [CrossRef]
- El Idrissi, A.C.; Rozière, E.; Darson-Balleur, S.; Loukili, A. Resistance of alkali-activated grouts to acid leaching. Constr. Build. Mater. 2019, 228, 116681. [Google Scholar] [CrossRef]
- Tigue, A.A.S.; Malenab, R.A.J.; Dungca, J.R.; Yu, D.E.C.; Promentilla, M.A.B. Chemical Stability and Leaching Behavior of One-Part Geopolymer from Soil and Coal Fly Ash Mixtures. Minerals 2018, 8, 411. [Google Scholar] [CrossRef] [Green Version]
- Gursel, A.P.; Maryman, H.; Ostertag, C. A life-cycle approach to environmental, mechanical, and durability properties of “green” concrete mixes with rice husk ash. J. Clean. Prod. 2016, 112, 823–836. [Google Scholar] [CrossRef]
- Kumar, A.; Kumar, S. Development of paving blocks from synergistic use of red mud and fly ash using geopolymerization. Constr. Build. Mater. 2013, 38, 865–871. [Google Scholar] [CrossRef]
- Kalaw, M.E.; Culaba, A.; Hinode, H.; Kurniawan, W.; Gallardo, S.; Promentilla, M.A. Optimizing and characterizing geopolymers from ternary blend of philippine coal fly ash, coal bottom ash and rice hull ash. Materials 2016, 9, 580. [Google Scholar] [CrossRef] [PubMed]
- Yaseri, S.; Verki, V.M.; Mahdikhani, M. Utilization of high volume cement kiln dust and rice husk ash in the production of sustainable geopolymer. J. Clean. Prod. 2019, 230, 592–602. [Google Scholar] [CrossRef]
- Moni, S.M.F.K.; Ikeora, O.; Pritzel, C.; Görtz, B.; Trettin, R. Preparation and properties of fly ash-based geopolymer concrete with alkaline waste water obtained from foundry sand regeneration process. J. Mater. Cycles Waste Manag. 2020, 22, 1434–1443. [Google Scholar] [CrossRef]
- Sathonsaowaphak, A.; Chindaprasirt, P.; Pimraksa, K. Workability and strength of lignite bottom ash geopolymer mortar. J. Hazard. Mater. 2009, 168, 44–50. [Google Scholar] [CrossRef] [PubMed]
- Thokchom, S.; Dutta, D.; Ghosh, S. Effect of Incorporating Silica Fume in Fly Ash Geopolymers. Int. J. Civ. Environ. Eng. 2011, 5, 5. [Google Scholar] [CrossRef]
- Ban, C.C.; Ee, T.L.; Ramli, M. The engineering properties and microstructure of sodium carbonate activated fly ash/ slag blended mortars with silica fume. Compos. Part B Eng. 2019, 160, 558–572. [Google Scholar] [CrossRef]
- Rashad, A.M.; Ouda, A.S. An investigation on alkali-activated fly ash pastes modified with quartz powder subjected to elevated temperatures. Constr. Build. Mater. 2016, 122, 417–425. [Google Scholar] [CrossRef]
- Huang, Y.; Han, M. The influence of Al2O3 addition on microstructure, mechanical and formaldehyde adsorption properties of fly ash-based geopolymer products. J. Hazard. Mater. 2011, 193, 90–94. [Google Scholar] [CrossRef] [PubMed]
- Yu, J.; Chen, Y.; Chen, G.; Wang, L. Experimental study of the feasibility of using anhydrous sodium metasilicate as a geopolymer activator for soil stabilization. Eng. Geol. 2020, 264, 105316. [Google Scholar] [CrossRef]
- Pasupathy, K.; Cheema, D.S.; Sanjayan, J. Durability performance of fly ash-based geopolymer concrete buried in saline environment for 10 years. Constr. Build. Mater. 2021, 281, 122596. [Google Scholar] [CrossRef]
- Chen, K.; Lin, W.T.; Liu, W. Effect of NaOH concentration on properties and microstructure of a novel reactive ultra-fine fly ash geopolymer. Adv. Powder Technol. 2021, 32, 2929–2939. [Google Scholar] [CrossRef]
- Sivasakthi, M.; Jeyalakshmi, R.; Rajamane, N.P.; Jose, R. Thermal and structural micro analysis of micro silica blended fly ash based geopolymer composites. J. Non-Cryst. Solids 2018, 499, 117–130. [Google Scholar] [CrossRef]
- Lee, W.K.W.; van Deventer, J.S.J. The interface between natural siliceous aggregates and geopolymers. Cem. Concr. Res. 2004, 34, 195–206. [Google Scholar] [CrossRef]
- Sasui, S.; Kim, G.; Nam, J.; van Riessen, A.; Hadzima-Nyarko, M. Effects of waste glass as a sand replacement on the strength and durability of fly ash/GGBS based alkali activated mortar. Ceram. Int. 2021, 47, 21175–21196. [Google Scholar] [CrossRef]
- Kuri, J.C.; Majhi, S.; Sarker, P.K.; Mukherjee, A. Microstructural and non-destructive investigation of the effect of high temperature exposure on ground ferronickel slag blended fly ash geopolymer mortars. J. Build. Eng. 2021, 43, 103099. [Google Scholar] [CrossRef]
- Eliche-Quesada, D.; Calero-Rodríguez, A.; Bonet-Martínez, E.; Pérez-Villarejo, L.; Sánchez-Soto, P.J. Geopolymers made from metakaolin sources, partially replaced by Spanish clays and biomass bottom ash. J. Build. Eng. 2021, 40, 102761. [Google Scholar] [CrossRef]
- Riahi, S.; Nemati, A.; Khodabandeh, A.R.; Baghshahi, S. Investigation of interfacial and mechanical properties of alumina-coated steel fiber reinforced geopolymer composites. Constr. Build. Mater. 2021, 288, 123118. [Google Scholar] [CrossRef]
- Gómez-Casero, M.A.; Moral-Moral, F.J.; Pérez-Villarejo, L.; Sánchez-Soto, P.J.; Eliche-Quesada, D. Synthesis of clay geopolymers using olive pomace fly ash as an alternative activator. Influence of the additional commercial alkaline activator used. J. Mater. Res. Technol. 2021, 12, 1762–1776. [Google Scholar] [CrossRef]
- Mahmoodi, O.; Siad, H.; Lachemi, M.; Dadsetan, S.; Sahmaran, M. Development and characterization of binary recycled ceramic tile and brick wastes-based geopolymers at ambient and high temperatures. Constr. Build. Mater. 2021, 301, 124138. [Google Scholar] [CrossRef]
- Long, W.-J.; Peng, J.; Gu, Y.; Li, J.; Dong, B.; Xing, F.; Fang, Y. Recycled use of municipal solid waste incinerator fly ash and ferronickel slag for eco-friendly mortar through geopolymer technology. J. Clean. Prod. 2021, 307, 127281. [Google Scholar] [CrossRef]
- Güngör, D.; Özen, S. Development and characterization of clinoptilolite-, mordenite-, and analcime-based geopolymers: A comparative study. Case Stud. Constr. Mater. 2021, 15, e00576. [Google Scholar] [CrossRef]
- Wang, C.; Yang, Z.; Song, W.; Zhong, Y.; Sun, M.; Gan, T.; Bao, B. Quantifying gel properties of industrial waste-based geopolymers and their application in Pb2+ and Cu2+ removal. J. Clean. Prod. 2021, 315, 128203. [Google Scholar] [CrossRef]
- Freire, A.L.; Moura-Nickel, C.D.; Scaratti, G.; De Rossi, A.; Araújo, M.H.; Júnior, A.D.N.; Rodrigues, A.E.; Castellón, E.R.; Moreira, R.D.F.P.M. Geopolymers produced with fly ash and rice husk ash applied to CO2 capture. J. Clean. Prod. 2020, 273, 122917. [Google Scholar] [CrossRef]
- Saretta, Y. Seismic response of masonry buildings in historical centres struck by the 2016 Central Italy earthquake. Calibration of a vulnerability model for strengthened conditions. Constr. Build. Mater. 2021, 299, 123911. [Google Scholar] [CrossRef]
- Liu, X.; Jiang, J.; Zhang, H.; Li, M.; Wu, Y.; Guo, L.; Wang, W.; Duan, P.; Zhang, W.; Zhang, Z. Thermal stability and microstructure of metakaolin-based geopolymer blended with rice husk ash. Appl. Clay Sci. 2020, 196, 105769. [Google Scholar] [CrossRef]
- Nieves, L.J.J.; Elyseu, F.; Goulart, S.; de Souza Pereira, M.; Valvassori, E.Z.; Bernardin, A.M. Use of fly and bottom ashes from a thermoelectrical plant in the synthesis of geopolymers: Evaluation of reaction efficiency. Energy Geosci. 2021, 2, 167–173. [Google Scholar] [CrossRef]
- Hui-Teng, N.; Cheng-Yong, H.; Yun-Ming, L.; Abdullah, M.M.A.; Hun, K.E.; Razi, H.M.; Yong-Sing, N. Formulation, mechanical properties and phase analysis of fly ash geopolymer with ladle furnace slag replacement. J. Mater. Res. Technol. 2021, 12, 1212–1226. [Google Scholar] [CrossRef]
- Zawrah, M.F.; Badr, H.A.; Khattab, R.M.; Sadek, H.E.H.; Sawan, S.A.; El-Kheshen, A.A. Fabrication and characterization of non-foamed and foamed geopolymers from industrial waste clays. Ceram. Int. 2021, 47, 29320–29327. [Google Scholar] [CrossRef]
- Jamil, N.H.; Abdullah, M.M.A.B.; Pa, F.C.; Mohamad, H.; Ibrahim, W.M.A.W.; Chaiprapa, J. Influences of SiO2, Al2O3, CaO and MgO in phase transformation of sintered kaolin- ground granulated blast furnace slag geopolymer. J. Mater. Res. Technol. 2020, 9, 14922–14932. [Google Scholar] [CrossRef]
- Parvathy, S.S.; Sharma, A.K.; Anand, K.B. Comparative study on synthesis and properties of geopolymer fine aggregate from fly ashes. Constr. Build. Mater. 2019, 198, 359–367. [Google Scholar] [CrossRef]
- Jansen, M.S. Effect of Water-Solids Ratio on the Compressive Strength, Degree of Reaction and Microstructural Characterization of Fly Ash-Waste Glass-Based Geopolymers. Ph.D. Thesis, University of Minnesota Duluth, Duluth, MI, USA, 2017. [Google Scholar]
- Opiso, E.M.; Tabelin, C.B.; Maestre, C.V.; Aseniero, J.P.J.; Park, I.; Villacorte-Tabelin, M. Synthesis and characterization of coal fly ash and palm oil fuel ash modified artisanal and small-scale gold mine (ASGM) tailings based geopolymer using sugar mill lime sludge as Ca-based activator. Heliyon 2021, 7, e06654. [Google Scholar] [CrossRef]
- Huseien, G.F.; Ismail, M.; Tahir, M.; Mirza, J.; Hussein, A.; Khalid, N.H.; Sarbini, N.N. Effect of binder to fine aggregate content on performance of sustainable alkali activated mortars incorporating solid waste materials. Chem. Eng. Trans. 2018, 63, 667–672. [Google Scholar] [CrossRef]
- Abdel-Gawwad, H.A.; Abd El-Aleem, S. Effect of reactive magnesium oxide on properties of alkali activated slag geopolymer cement pastes. Ceram.-Silik. 2015, 59, 37–47. [Google Scholar]
- Sadat, M.R.; Bringuier, S.; Muralidharan, K.; Runge, K.; Asaduzzaman, A.; Zhang, L. An atomistic characterization of the interplay between composition, structure, and mechanical properties of amorphous geopolymer binders. J. Non-Cryst. Solids 2016, 434, 53–61. [Google Scholar] [CrossRef]
- Huo, W.; Zhu, Z.; Zhang, J.; Kang, Z.; Pu, S.; Wan, Y. Utilization of OPC and FA to enhance reclaimed lime-fly ash macadam based geopolymers cured at ambient temperature. Constr. Build. Mater. 2021, 303, 124378. [Google Scholar] [CrossRef]
- Yu, L.; Zhang, Z.; Huang, X.; Jiao, B.; Li, D. Enhancement experiment on cementitious activity of copper-mine tailings in a geopolymer system. Fibers 2017, 5, 47. [Google Scholar] [CrossRef] [Green Version]
- Haq, I.U.; Akhtar, K.; Malik, A. Effect of experimental variables on the extraction of silica from the rice husk ash. J. Chem. Soc. Pak. 2014, 36, 382–387. [Google Scholar]
- Mucsi, G.; Szenczi, A.; Nagy, S. Fiber reinforced geopolymer from synergetic utilization of fly ash and waste tire. J. Clean. Prod. 2018, 178, 429–440. [Google Scholar] [CrossRef]
- Yuan, J.; Li, L.; He, P.; Chen, Z.; Lao, C.; Jia, D.; Zhou, Y. Effects of kinds of alkali-activated ions on geopolymerization process of geopolymer cement pastes. Constr. Build. Mater. 2021, 293, 123536. [Google Scholar] [CrossRef]
- Carabba, L.; Santandrea, M.; Carloni, C.; Manzi, S.; Bignozzi, M.C. Steel fiber reinforced geopolymer matrix (s-frgm) composites applied to reinforced concrete structures for strengthening applications: A preliminary study. Compos. Part B Eng. 2017, 128, 83–90. [Google Scholar] [CrossRef]
- Lin, H.; Liu, H.; Li, Y.; Kong, X. Thermal stability, pore structure and moisture adsorption property of phosphate acid-activated metakaolin geopolymer. Mater. Lett. 2021, 301, 130226. [Google Scholar] [CrossRef]
- Hu, Y.; Shao, Z.; Wang, J.; Zang, J.; Tang, L.; Ma, F.; Qian, B.; Ma, B.; Wang, L. Investigation into the influence of calcium compounds on the properties of micropore-foamed geopolymer. J. Build. Eng. 2021, 45, 103521. [Google Scholar] [CrossRef]
- Hager, I.; Sitarz, M.; Mróz, K. Fly-ash based geopolymer mortar for high-temperature application—Effect of slag addition. J. Clean. Prod. 2021, 316, 128168. [Google Scholar] [CrossRef]
- ASCE. Seismic Evaluation and Retrofit of Existing Buildings, 41st ed.; American Society of Civil Engineers: Reston, VA, USA, 2014. [Google Scholar] [CrossRef]
- Laskar, S.M.; Talukdar, S. Slag-based geopolymer concrete as reinforced concrete jacketing agent. J. Mater. Civ. Eng. 2021, 33, 04021150. [Google Scholar] [CrossRef]
- Bencardino, F.; Condello, A. Eco-friendly external strengthening system for existing reinforced concrete beams. Compos. Part B Eng. 2016, 93, 163–173. [Google Scholar] [CrossRef]
- Bencardino, F.; Condello, A. Innovative solution to Retrofit Rc Members: Inhibiting-Repairing-Strengthening (IRS). Constr. Build. Mater. 2016, 117, 171–181. [Google Scholar] [CrossRef]
- Ding, Z.; Lu, C.; Cui, P.; Xu, W.T. Primal study on mechanical properties of phosphate-based geopolymer. Key Eng. Mater. 2017, 726, 490–494. [Google Scholar] [CrossRef]
- Junaid, M.T.; Elbana, A.; Altoubat, S. Flexural response OF geopolymer and fiber REINFORCED Geopolymer concrete beams reinforced With GFRP bars and Strengthened using CFRP sheets. Structures 2020, 24, 666–677. [Google Scholar] [CrossRef]
- Mastali, M.; Mastali, M.; Abdollahnejad, Z.; Dalvand, A. Increasing the flexural capacity of geopolymer concrete beams using partially deflection hardening cement-based layers: Numerical study. Sci. Iran. 2017, 24, 2832–2844. [Google Scholar] [CrossRef] [Green Version]
- Maras, M.M.; Kose, M.M. Structural behavior of masonry panels strengthened using geopolymer composites in compression tests. Iran. J. Sci. Technol. Trans. Civ. Eng. 2020, 45, 767–777. [Google Scholar] [CrossRef]
- Tamburini, S.; Natali, M.; Garbin, E.; Panizza, M.; Favaro, M.; Valluzzi, M.R. Geopolymer matrix for fibre reinforced Composites aimed at strengthening masonry structures. Constr. Build. Mater. 2017, 141, 542–552. [Google Scholar] [CrossRef]
- Murat Maras, M. Experimental behavior of injected geopolymer grout using styrene-butadiene latex for the repair and strengthening of masonry walls. Adv. Struct. Eng. 2021, 24, 2484–2499. [Google Scholar] [CrossRef]
- Le Chi, H.; Louda, P.; Periyasamy, A.; Bakalova, T.; Kovacic, V. Flexural behavior of carbon textile-reinforced geopolymer composite thin plate. Fibers 2018, 6, 87. [Google Scholar] [CrossRef] [Green Version]
- Shaikh, F.U.A. Tensile and flexural behaviour of recycled polyethylene terephthalate (PET) fibre reinforced geopolymer composites. Constr. Build. Mater. 2020, 245, 118438. [Google Scholar] [CrossRef]
- Bencardino, F.; Condello, A.; Ashour, A.F. Single-lap shear bond tests on steel Reinforced Geopolymeric Matrix-concrete joints. Compos. Part B Eng. 2017, 110, 62–71. [Google Scholar] [CrossRef] [Green Version]
- Abu Obaida, F.; El-Maaddawy, T.; El-Hassan, H. Bond Behavior of Carbon Fabric-Reinforced Matrix Composites: Geopolymeric Matrix versus Cementitious Mortar. Buildings 2021, 11, 207. [Google Scholar] [CrossRef]
- Zhang, S.; Yang, D.; Sheng, Y.; Garrity, S.W.; Xu, L. Numerical Modelling of FRP-reinforced masonry walls under in-plane seismic loading. Constr. Build. Mater. 2017, 134, 649–663. [Google Scholar] [CrossRef]
- Wan, Q.; Zhang, Y.; Zhang, R. Using mechanical activation of quartz to enhance the compressive strength of metakaolin based geopolymers. Cem. Concr. Compos. 2020, 111, 103635. [Google Scholar] [CrossRef]
- He, W.; Liu, C.; Zhang, L. Effects of sodium chloride on the mechanical properties of slag composite matrix geopolymer. Adv. Cem. Res. 2019, 31, 389–398. [Google Scholar] [CrossRef]
- Calabrese, A.S.; D’Antino, T.; Colombi, P.; Poggi, C. Study of the influence of interface normal stresses on the bond behavior of FRCM composites using direct shear and modified beam tests. Constr. Build. Mater. 2020, 262, 120029. [Google Scholar] [CrossRef]
- Amran, M.; Al-Fakih, A.; Chu, S.H.; Fediuk, R.; Haruna, S.; Azevedo, A.; Vatin, N. Long-term durability properties of geopolymer concrete: An in-depth review. Case Stud. Constr. Mater. 2021, 15, e00661. [Google Scholar] [CrossRef]
- Razak, R.A.; Maliki, N.A.; Abdullah, M.M.; Ken, P.W.; Yahya, Z.; Junaidi, S. Performance of fly ash based geopolymer concrete in seawater exposure. In AIP Conference Proceedings; AIP Publishing LLC: Melville, NY, USA, 2021; Volume 2339, p. 020201. [Google Scholar] [CrossRef]
- Alanazi, H.; Yang, M.; Zhang, D.; Gao, Z.J. Bond strength of PCC pavement repairs using metakaolin-based geopolymer mortar. Cem. Concr. Compos. 2016, 65, 75–82. [Google Scholar] [CrossRef]
- Lashkari, S.; Yazdipanah, F.; Shahri, M.; Sarker, P. Mechanical and durability assessment of cement-based and alkali-activated coating mortars in an aggressive marine environment. SN Appl. Sci. 2021, 3, 1–17. [Google Scholar] [CrossRef]
- Allali, F.; Joussein, E.; Kandri, N.I.; Rossignol, S. The influence of calcium content on the performance of metakaolin-based geomaterials applied in mortars restoration. Mater. Des. 2016, 103, 1–9. [Google Scholar] [CrossRef]
- Occhipinti, R.; Stroscio, A.; Finocchiaro, C.; Fugazzotto, M.; Leonelli, C.; Faro, M.J.L.; Megna, B.; Barone, G.; Mazzoleni, P. Alkali activated materials using pumice from the Aeolian Islands (Sicily, Italy) and their potentiality for cultural heritage applications: Preliminary study. Constr. Build. Mater. 2020, 259, 120391. [Google Scholar] [CrossRef]
- Moutinho, S.; Costa, C.; Andrejkovičová, S.; Mariz, L.; Sequeira, C.; Terroso, D.; Rocha, F.; Velosa, A. Assessment of properties of metakaolin-based geopolymers applied in the conservation of tile facades. Constr. Build. Mater. 2020, 259, 119759. [Google Scholar] [CrossRef]
- Kohout, J.; Koutník, P.; Bezucha, P.; Kwoczynski, Z. Leachability of the metakaolinite-rich materials in different alkaline solutions. Mater. Today Commun. 2019, 21, 100669. [Google Scholar] [CrossRef]
- Güllü, H.; Al Nuaimi, M.M.D.; Aytek, A. Rheological and strength performances of cold-bonded geopolymer made from limestone dust and bottom ash for grouting and deep mixing. Bull. Eng. Geol. Env. 2021, 80, 1103–1123. [Google Scholar] [CrossRef]
- Güllü, H.; Agha, A.A. The rheological, fresh and strength effects of cold-bonded geopolymer made with Metakaolin and slag for Grouting. Constr. Build. Mater. 2021, 274, 122091. [Google Scholar] [CrossRef]
- Canakci, H.; Güllü, H.; Alhashemy, A. Performances of Using Geopolymers Made with Various Stabilizers for Deep Mixing. Materials 2019, 12, 2542. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Canakci, H.; Güllü, H.; Dwle, M.I.K. Effect of Glass Powder Added Grout for Deep Mixing of Marginal Sand with Clay. Arab. J. Sci. Eng. 2018, 43, 1583–1595. [Google Scholar] [CrossRef]
- Ongpeng, J.M.C.; Guades, E.J.; Promentilla, M.A.B. Cross-Organizational Learning Approach in the Sustainable Use of Fly Ash for Geopolymer in the Philippine Construction Industry. Sustainability 2021, 13, 2454. [Google Scholar] [CrossRef]
- Bhattacharya, S.; Nayak, S.; Dutta, S.C. A critical review of retrofitting methods for unreinforced masonry structures. Int. J. Disaster Risk Reduct. 2014, 7, 51–67. [Google Scholar] [CrossRef] [Green Version]
- Longo, F.; Lassandro, P.; Moshiri, A.; Phatak, T.; Aiello, M.A.; Krakowiak, K.J. Lightweight geopolymer-based mortars for the structural and energy retrofit of Buildings. Energy Build. 2020, 225, 110352. [Google Scholar] [CrossRef]
- Guo, T.; Wu, T.; Gao, L.; He, B.; Ma, F.; Huang, Z.; Bai, X. Compressive strength and electrochemical impedance response of red mud-coal metakaolin geopolymer exposed to sulfuric acid. Constr. Build. Mater. 2021, 303, 124523. [Google Scholar] [CrossRef]
- Guo, X.; Pan, X. Mechanical properties and mechanisms of fiber reinforced fly ash–steel slag based geopolymer mortar. Constr. Build. Mater. 2018, 179, 633–641. [Google Scholar] [CrossRef]
- Wang, S.; Xue, Q.; Ma, W.; Zhao, K.; Wu, Z. Experimental study on mechanical properties of fiber-reinforced and geopolymer-stabilized clay soil. Constr. Build. Mater. 2021, 272, 121914. [Google Scholar] [CrossRef]
- Camargo, M.; Adefrs Taye, E.; Roether, J.; Tilahun Redda, D.; Boccaccini, A. A review on natural Fiber-Reinforced Geopolymer and Cement-Based Composites. Materials 2020, 13, 4603. [Google Scholar] [CrossRef]
- Abbass, M.; Singh, D.; Singh, G. Properties of hybrid geopolymer concrete prepared using rice husk ash, fly ash AND GGBS with coconut fiber. Mater. Today Proc. 2021, 45, 4964–4970. [Google Scholar] [CrossRef]
- Huang, Y.; Tan, J.; Xuan, X.; Liu, L.; Xie, M.; Liu, H.; Yu, S.; Zheng, G. Study on untreated and alkali treated rice straw reinforced geopolymer composites. Mater. Chem. Phys. 2021, 262, 124304. [Google Scholar] [CrossRef]
- Promentilla, M.; Malenab, R.; Ngo, J. Chemical treatment of waste abaca for natural fiber-reinforced geopolymer composite. Materials 2017, 10, 579. [Google Scholar] [CrossRef] [Green Version]
- Jabbar, A.; Militký, J.; Wiener, J.; Javaid, M.U.; Rwawiire, S. Tensile, surface and thermal characterization of jute fibres after novel treatments. Indian J. Fibre Text. Res. 2016, 41, 249–254. [Google Scholar]
- Ribeiro, M.G.S.; Ribeiro, M.G.S.; Keane, P.F.; Sardela, M.R.; Kriven, W.M.; Ribeiro, R.A.S. Acid resistance of metakaolin-based, bamboo fiber geopolymer composites. Constr. Build. Mater. 2021, 302, 124194. [Google Scholar] [CrossRef]
- Noushini, A.; Hastings, M.; Castel, A.; Aslani, F. Mechanical and flexural performance of synthetic fibre reinforced geopolymer concrete. Constr. Build. Mater. 2018, 186, 454–475. [Google Scholar] [CrossRef]
- Zhong, H.; Zhang, M. Effect of recycled tyre polymer fibre on engineering properties of sustainable strain hardening geopolymer composites. Cem. Concr. Compos. 2021, 122, 104167. [Google Scholar] [CrossRef]
- Kheradmand, M.; Mastali, M.; Abdollahnejad, Z.; Pacheco-Torgal, F. Experimental and numerical investigations on the flexural performance of geopolymers reinforced with short hybrid polymeric fibres. Compos. Part B Eng. 2017, 126, 108–118. [Google Scholar] [CrossRef] [Green Version]
- Fiset, J.; Cellier, M.; Vuillaume, P.Y. Macroporous geopolymers designed for facile polymers post-infusion. Cem. Concr. Compos. 2020, 110, 103591. [Google Scholar] [CrossRef]
- Haddaji, Y.; Majdoubi, H.; Mansouri, S.; Tamraoui, Y.; El Bouchti, M.; Manoun, B.; Oumam, M.; Hannache, H. Effect of synthetic fibers on the properties of geopolymers based on non-heat treated phosphate mine tailing. Mater. Chem. Phys. 2021, 260, 124147. [Google Scholar] [CrossRef]
- Catauro, M.; Papale, F.; Lamanna, G.; Bollino, F. Geopolymer/PEG Hybrid Materials Synthesis and Investigation of the Polymer Influence on Microstructure and Mechanical Behavior. Mater. Res. 2015, 18, 698–705. [Google Scholar] [CrossRef] [Green Version]
- Chen, X.; Zhu, G.; Zhou, M.; Wang, J.; Chen, Q. Effect of Organic Polymers on the Properties of Slag-based Geopolymers. Constr. Build. Mater. 2018, 167, 216–224. [Google Scholar] [CrossRef]
- Ranjbar, N.; Kashefi, A.; Maheri, M.R. Hot-pressed geopolymer: Dual effects of heat and curing time. Cem. Concr. Compos. 2018, 86, 1–8. [Google Scholar] [CrossRef]
- Bernal, S.A. Effect of the activator dose on the compressive strength and accelerated carbonation resistance of alkali silicate-activated slag/metakaolin blended materials. Constr. Build. Mater. 2015, 98, 217–226. [Google Scholar] [CrossRef]
- Shadnia, R.; Zhang, L.; Li, P. Experimental study of geopolymer mortar with incorporated PCM. Constr. Build. Mater. 2015, 84, 95–102. [Google Scholar] [CrossRef]
- Caggiano, A.; Gambarelli, S.; Martinelli, E.; Nisticò, N.; Pepe, M. Experimental characterization of the post-cracking response in Hybrid Steel/Polypropylene Fiber-Reinforced Concrete. Constr. Build. Mater. 2016, 125, 1035–1043. [Google Scholar] [CrossRef]
- Masi, G.; Rickard, W.D.A.; Bignozzi, M.C.; van Riessen, A. The effect of organic and inorganic fibres on the mechanical and thermal properties of aluminate activated geopolymers. Compos. Part B Eng. 2015, 76, 218–228. [Google Scholar] [CrossRef]
- Qin, Y.; Chen, X.; Li, B.; Guo, Y.; Niu, Z.; Xia, T.; Meng, W.; Zhou, M. Study on the mechanical properties and microstructure of chitosan reinforced metakaolin-based geopolymer. Constr. Build. Mater. 2021, 271, 121522. [Google Scholar] [CrossRef]
- Sathanandam, T.; Awoyera, P.O.; Vijayan, V.; Sathishkumar, K. Low carbon building: Experimental insight on the use of fly ash and glass fibre for making geopolymer concrete. Sustain. Environ. Res. 2017, 27, 146–153. [Google Scholar] [CrossRef]
- Sittinun, A.; Chang, Y.-H.; Ummartyotin, S. Development of geopolymer derived from slag waste based composite film on cotton fabric: A preliminary approach for flame retardant behavior. Materialia 2021, 15, 101052. [Google Scholar] [CrossRef]
Composition (%) | Source | SiO2 | Al2O3 | Na2O | MgO | MnO | P2O5 | K2O | SO3 | TiO2 | ZrO2 | CaO | Fe2O3 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Coal Fly Ash (Class F) | [65] | 56.5 | 22.5 | 0.48 | 3.16 | 1.49 | 0.86 | 10.2 | 5.78 | ||||
Coal Fly Ash (Class C) | [49] | 38.8 | 19.5 | 0.87 | 1.84 | 26.2 | 2.87 | ||||||
Coal Bottom Ash | [66] | 39.4 | 34.3 | 1.57 | 1.19 | 0.90 | 6.3 | 15.0 | |||||
Palm oil fuel Ash | [67] | 46.2 | 10.4 | 7.28 | - | 0.67 | 7.4 | 5.47 | |||||
Rice Husk Ash | [66] | 78.0 | 0.54 | 0.50 | 1.94 | 0.25 | 1.14 | 0.16 | |||||
Ceramic Waste Powder | [68] | 72.8 | 12.2 | 13.5 | 1.00 | 0.01 | 0.56 | ||||||
Calcined Gangue | [58] | 53.4 | 42.3 | 0.16 | 0.21 | 0.89 | 0.89 | 0.23 | 1.33 | 0.34 | 1.06 | ||
Kaolin | [54] | 54.0 | 31.7 | 0.11 | 6.05 | 1.41 | 0.10 | 4.89 | |||||
Metakaolin | [66] | 50.6 | 45.7 | 0.23 | 0.11 | 0.14 | 0.2 | 0.31 | |||||
GGBS | [55] | 30.4 | 10.5 | 3.20 | 0.71 | 0.98 | 0.05 | 50.4 | 0.53 |
Chemical Shift (ppm) | Interpretation | Source |
---|---|---|
50 and 70 | aluminosilicates | [12] |
0–20 | six-coordinate aluminum resonating from [Al(H2O)6]3+ | |
25 | Al(V) peak | |
72–110 | Si atoms with various linkages |
Authors | Technique | Unreinforced Geopolymer or with Fiber Reinforcement |
---|---|---|
I. Beams | ||
[81] | Jacketing | Ultrafine blast furnace slag based |
[82] | Jacketing | Steel-reinforced geopolymer matrix |
[83] | Jacketing—analytical method | Steel-reinforced geopolymer matrix |
[84] | Jacketing | Carbon-fiber-reinforced phosphate-based geopolymer (PBG) |
[85] | Glass-fiber-reinforced geopolymer bars | Fly-ash-based geopolymer beams |
[86] | Thin deflection hardening fiber-reinforced layers | Fly-ash-based geopolymer beams |
II. Wall | ||
[87] | Thickening | Polypropylene-reinforced fly-ash based |
[88] | Thickening | Metakaolin-slag-sodium-silicate geopolymer (GP) |
[89] | Grouting | Additive styrene butadiene (SB) latex geopolymer grout |
III. Thin plates | ||
[90] | Carbon textile-reinforced geopolymer composite | Fly-ash based |
[91] | Textile-reinforced geopolymer composite | Hybrid PVA fiber and AR-glass textile-reinforced geopolymer composites |
IV. Bond strength | ||
[92] | Single-lap shear test | Steel-reinforced geopolymer matrix |
[93] | Single-lap shear test | Fly-ash with slag geopolymer |
[22] | Interfacial transition zone | Fly-ash based |
[94] | Exposure to high temperature | Fly-ash based |
[76] | Molar concentration | Steel-fiber-reinforced geopolymer |
[95] | Slant shear test | Metakaolin geopolymer against cement mortar |
V. Mechanical tests only | ||
[96] | Compressive strength only | Activated quartz based |
[38] | Effect of sodium chloride | Slag composite matrix |
Fiber | Physical Behavior | Mechanical Behavior | Thermal Behavior | Source |
---|---|---|---|---|
Polyvinyl alcohol (PVA) | 1% (v/v) resulted in 40% loss in flowability of geopolymer |
| Flexural strength did not change significantly in the range of 600 °C and 700 °C | [133] |
Basalt | 1% (v/v) resulted in 26% loss in flowability |
| Temperatures of 200 °C and 250 °C caused a decrease in values of flexural strength of 35% and 70% |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Abulencia, A.B.; Villoria, M.B.D.; Libre, R.G.D., Jr.; Quiatchon, P.R.J.; Dollente, I.J.R.; Guades, E.J.; Promentilla, M.A.B.; Garciano, L.E.O.; Ongpeng, J.M.C. Geopolymers as Sustainable Material for Strengthening and Restoring Unreinforced Masonry Structures: A Review. Buildings 2021, 11, 532. https://doi.org/10.3390/buildings11110532
Abulencia AB, Villoria MBD, Libre RGD Jr., Quiatchon PRJ, Dollente IJR, Guades EJ, Promentilla MAB, Garciano LEO, Ongpeng JMC. Geopolymers as Sustainable Material for Strengthening and Restoring Unreinforced Masonry Structures: A Review. Buildings. 2021; 11(11):532. https://doi.org/10.3390/buildings11110532
Chicago/Turabian StyleAbulencia, Anabel B., Ma. Beatrice D. Villoria, Roneh Glenn D. Libre, Jr., Pauline Rose J. Quiatchon, Ithan Jessemar R. Dollente, Ernesto J. Guades, Michael Angelo B. Promentilla, Lessandro Estelito O. Garciano, and Jason Maximino C. Ongpeng. 2021. "Geopolymers as Sustainable Material for Strengthening and Restoring Unreinforced Masonry Structures: A Review" Buildings 11, no. 11: 532. https://doi.org/10.3390/buildings11110532
