Oxidative Leaching of Zinc and Alkalis from Iron Blast Furnace Sludge
Abstract
:1. Introduction
2. Materials and Methods
2.1. Material
2.2. Experimental Procedure
3. Results

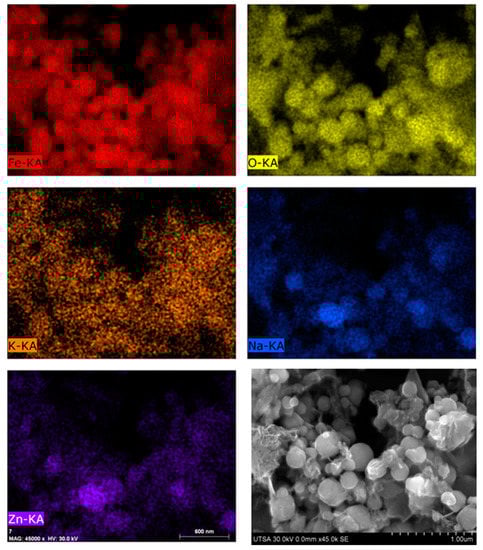

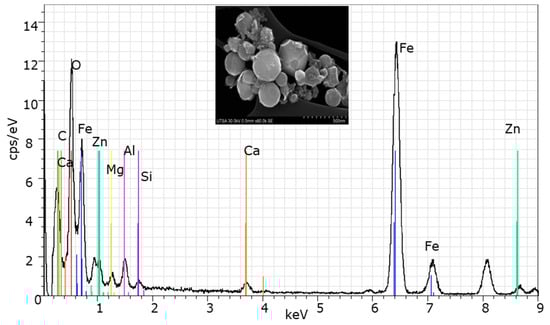

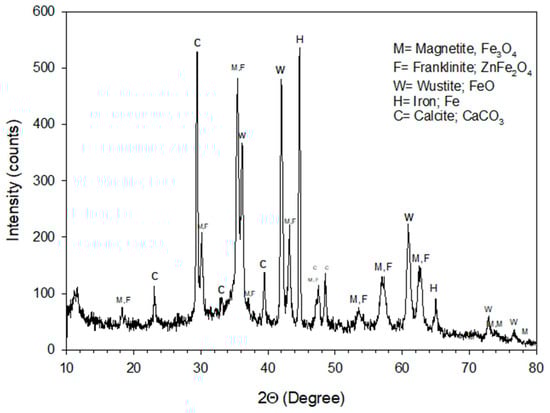

3.1. BFS Characterization

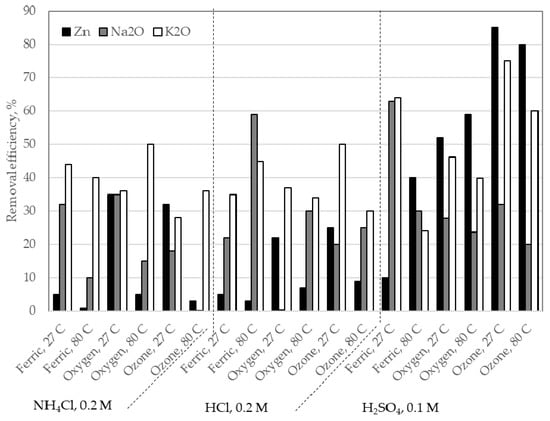

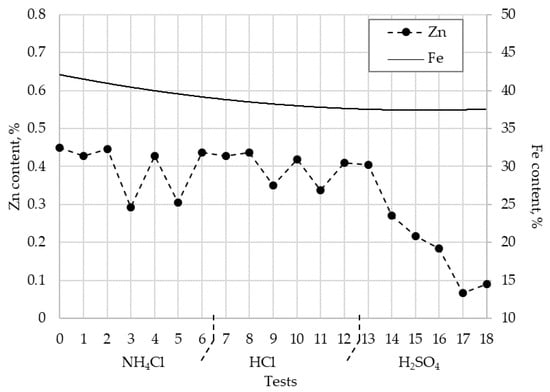

3.2. Removal of Zinc and Alkali from Blast Furnace Dust by Different Experimental Conditions

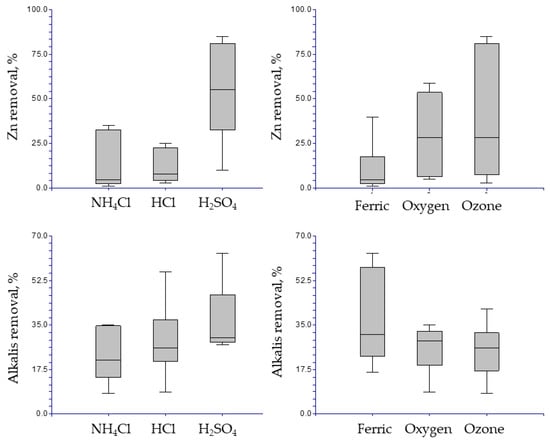

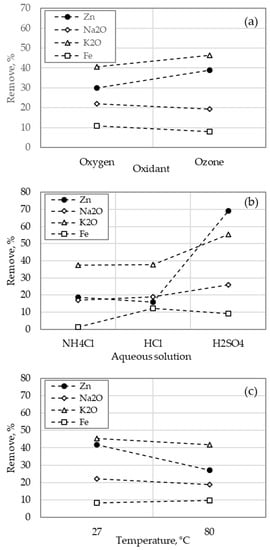

3.3. 3× 3 × 2 Experimental Design and Analysis of Variance

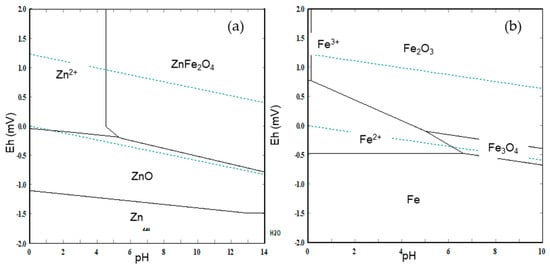

4. Discussion
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Trinkel, V.; Mallow, O.; Aschenbrenner, P.; Rechberger, H.; Fellner, J. Characterization of blast furnace sludge with respect to heavy metal distribution. Ind. Eng. Chem. Res. 2016, 55, 5590–5597. [Google Scholar] [CrossRef]
- Geological Survey, U.S. Mineral Commodity Summaries; United States Government Printing Office: Washington, DC, USA, 2019; p. 89.
- Halli, P.; Hamuyuni, J.; Leikola, M.; Lundström, M. Developing a sustainable solution for recycling electric arc furnace dust via organic acid leaching. Miner. Eng. 2018, 124, 1–9. [Google Scholar] [CrossRef]
- Sedlakova, Z.; Havlik, T. Appearance of non-ferrous metals in iron and steel making plant and their possible treatment. Acta Metall. Slovaca 2006, 12, 209–218. [Google Scholar]
- Kukurugya, F.; Vindt, T.; Havlík, T. Behavior of zinc, and calcium from electric arc furnace (EAF) dust in hydrometallurgical processing in sulfuric acid solutions: thermodynamic and kinetic aspects. Hydrometallurgy 2015, 154, 20–32. [Google Scholar] [CrossRef]
- Dutra, A.J.B.; Paiva, P.R.P.; Tavares, L.M. Alkaline leaching of zinc from electric arc furnace steel dust. Miner. Eng. 2006, 19, 478–485. [Google Scholar] [CrossRef]
- Williams, P.J.; Cloete, T.E. The production and use of cictric acid for the removal of potassium from the iron ore concentrate of the Sishen Iron Ore Mine, South Africa. S. Afr. J. Sci. 2010, 106, 1–5. [Google Scholar] [CrossRef]
- Yusfin, Y.S.; Chernousov, P.I.; Garte, V.; Karpov, Y.A.; Petelin, A.L. The role of alkalis and conserving resources in blast-furnca smelting. Metallurgist 1999, 43, 54–58. [Google Scholar] [CrossRef]
- Aydin, S.; Dikec, F. The removal of alkalis from iron ores by chloride volatilization. Can. Metall. Q. 1990, 29, 213–216. [Google Scholar] [CrossRef]
- Oustadakis, P.; Tsakiridis, P.E.; Katsiapi, A.; Agatzini-Leonardou, S. Hydrometallurgical process for zinc recovery from electric arc furnace dust (EAFD): Part I: Characterization and leaching by diluted sulphuric acid. J. Hazard. Mater. 2010, 179, 1–7. [Google Scholar] [CrossRef]
- Wang, J.; Wang, Z.; Zhang, Z.; Zhang, G. Removal of zinc from basic oxygen steelmaking filter cake by selective leaching with butyric acid. J. Cleaner Prod. 2019, 209, 1–9. [Google Scholar] [CrossRef]
- Leclerc, N.; Meux, E.; Lecuire, J.M. Hydrometallurgical recovery of zinc and lead from electric arc furnace dust using mononitrilotricetate anion and hexahydrated ferric chloride. J. Hazard. Mater. 2002, 91, 257–270. [Google Scholar] [CrossRef]
- Lin, X.; Peng, Z.; Yan, J.; Li, Z.; Hwang, J.Y.; Zhang, Y.; Li, G.; Jiang, T. Pyrometallurgical recycling of electric arc furnace dust. J. Cleaner Prod. 2017, 149, 1079–1100. [Google Scholar] [CrossRef]
- She, X.; Wang, J.; Wang, G.; Xue, Q.; Zhang, X. Removal mechanism of Zn, Pb and alcalis from metallurgical dusts in direct reduction process. J. Iron. Steel Res. Int. 2014, 21, 488–495. [Google Scholar] [CrossRef]
- Havlik, T.; Turzakova, M.; Stopic, S.; Friedrich, B. Atmospheric leaching of EAF dust with diluted sulphuric acid. Hydrometallurgy 2005, 77, 41–50. [Google Scholar] [CrossRef]
- Kul, M.; Oskay, K.O.; Simsir, M.; Subutay, H.; Kirgezen, H. Optimization of selective leaching of Zn from electric arc furnace steelmaking dust using response surface methodology. Trans. Nonferrous Met. Soc. China 2015, 25, 2753–2762. [Google Scholar] [CrossRef]
- Trung, Z.H.; Kukurugya, F.; Takacova, Z.; Orac, D.; Laubertova, M.; Miskufova, A.; Havlik, T. Acidic leaching both of zinc and iron from basic oxygen furnace sludge. J. Hazard. Mater. 2011, 192, 1100–1107. [Google Scholar] [CrossRef] [PubMed]
- Veres, J.; Lovás, M.; Jakabský, S.; Sepelák, V.; Hredzák, S. Characterization of blast furnace slufge and removal of zinc by microwave assisted extraction. Hydrometallurgy 2012, 129–130, 67–73. [Google Scholar] [CrossRef]
- Shawabkeh, R.A. Hydrometallurgical extraction of zinc from Jordanian electric arc furnace dust. Hydrometallurgy 2010, 104, 61–65. [Google Scholar] [CrossRef]
- Ciba, J.; Zolotajkin, M.; Kluczka, J.; Loska, K.; Cebula, J. Comparison of methods for leaching heavy metals from composts. Waste Manage. 2003, 23, 897–905. [Google Scholar] [CrossRef]
- Zhang, D.; Zhang, X.; Yang, T.; Rao, S.; Hu, W.; Liu, W.; Chen, L. Selective leaching of zinc from blast furnace dust with mono-ligand and mixed-ligand complex leaching systems. Hydrometallurgy 2017, 169, 219–228. [Google Scholar] [CrossRef]
- Omran, M.; Fabrotius, T. Improved removal of zinc from blast furnace sludge by particle size separation and microwave heating. Miner. Eng. 2018, 127, 265–276. [Google Scholar] [CrossRef]
- Halli, P.; Hamuyuni, J.; Revitzer, H.; Lundström, M. Selection of leaching media for metal dissolution from electric arc furnace dust. J. Cleaner Prod. 2017, 164, 265–276. [Google Scholar] [CrossRef]
- Chaijraksa-Fujimoto, R.; Maruyama, K.; Miki, T.; Nagasaka, T. The selective alkaline leaching of zinc oxide from electric arc furace dust pre-treated with calcium oxide. Hydrometallurgy 2016, 159, 120–125. [Google Scholar] [CrossRef]
- Ruiz, O.; Clemente, C.; Alonso, M.; Alguacil, F.J. Recycling of an electric arc furnace flue dust to obtain high grade ZnO. J. Hazard. Mater. 2007, 141, 33–36. [Google Scholar] [CrossRef] [PubMed]
- Genstskens, R. Pressure leaching of zinc-bearing blast furnace dust. In Proceedings of the Lead-Zinc ’90, Warrendale, PA, USA, 18–21 February 1990; Minerals, Metals & Materials Society: Warrendale, PA, USA, 1990; pp. 529–545. [Google Scholar]
- Van Weert, G.; Van Sandwijk, A.; Kat, W.; Honingh, S. The treatment of iron making blast furnace dust by chloride hydrometallurgy. In Proceedings of the Hydrometallurgy Fundamentals, Technology and Innovation, Littleton, CO, USA, 1–5 August 1993; Hiskey, J.B., Warren, G.W., Eds.; Society for Mining, Metallurgy and Exploration: Englewood, IL, USA, 1993; pp. 931–946. [Google Scholar]
- Mcelroy, R.O.; Murray, W. Developments in the Terra Gaia process for the treatment of EAF dust. In Proceedings of the Iron Control and Disposal, Montreal, QC, Canada, 20–23 October 1996; Dutrizac, J.E., Harris, G.B., Eds.; Canadian Institute of Mining, Metallurgy and Petroleum: Montreal, QC, Canada, 1996; pp. 505–517. [Google Scholar]
- Olper, M. Zinc extraction from EAF dust with Ezinex Preocess. In Proceedings of the Recycling of Metals and Engineered Materials Minerals, Warrendale, PA, USA, 12–16 November 1995; Queneau, P.B., Peterson, R.D., Eds.; The Metals & Materials Society: Pittsburgh, PA, USA, 1995; pp. 563–578. [Google Scholar]
- Hintze, J. NCSS 2000. Available online: www.ncss.com (accessed on 19 April 2019).
- Roine, A. HSC Chemistry 6. Available online: www.outotec.com/hsc (accessed on 22 March 2019).
Sample Type | Optimal Condition | Zn Removal, % | Fe Loss, % | Reference |
---|---|---|---|---|
EAF dust (17.05% Zn) | 1 M H2SO4, 80 °C, 1 h. | 87 | up to 40% | [5] |
EAF dust (26.95% Zn) | 2.35 M H2SO4, 25 °C, 1 h. | 79 | 4 | [16] |
BOF sludge (2.74% Zn) | 1 M H2SO4, 80 °C, 15 min. | 70 | up to 60% | [17] |
BOF sludge (0.77% Zn) | 1 M H2SO4, 80 °C, 15 min (microwave assisted). | 86 | 4 | [18] |
EAF dust (20.32% Zn) | 3 M H2SO4, 60 °C, 1.5 h. | 80 | 45 | [10] |
EAF dust (29.1% Zn) | 1 M H2SO4, 50 °C, 1 h. | 72 | - | [19] |
EAF dust (20.9% Zn) | 1.2 M H2SO4, 80 °C, 1 h. | 80 | 20 | [15] |
Sample Type | Leached Media | Optimal Condition | Zn Removal, % | Fe Loss, % | Reference |
---|---|---|---|---|---|
BOS filter cake (6.52% Zn) | Butyric acid | 1.5 M butyric acid | 66 | <1 | [11] |
EAF dust (33.2% Zn) | Citric acid (previous NaOH roasting) | 0.8 M citric acid, 40 °C, 1 h | 100 | 8 | [3] |
EAF dust (33.2% Zn) | Leaching with different acid and alkaline media | 1.2 M HCl or 90% aqua regia; room temperature, 168 h | >90 | <5 | [23] |
BOF dust (5.1% Zn) | Iminodiacetic acid | 0.2 M iminodiacetic acid, 20 °C, 2 h | 63 | 6 | [21] |
EAF dust (24.24% Zn) | Sodium hydroxide (CaO pre-treatment) | CaO pre-treatment: 1100 °C, 5 h, air atm. Leaching: 2M NaOH; 70 °C, 2 h | >95 | - | [24] |
EAF dust (29% Zn) | Ammonium carbonate | 1 M (NH4)2CO3, 20 °C, 2 h | 49 | - | [25] |
EAF dust (12.2% Zn) | Sodium hydroxide | 6 M NaOH; 90 °C, 4 h | 74 | - | [6] |
Test | Leaching Media | Oxidant | Temperature |
---|---|---|---|
1 | 1 | 1 | 1 |
2 | 1 | 1 | 2 |
3 | 1 | 2 | 1 |
4 | 1 | 2 | 2 |
5 | 1 | 3 | 1 |
6 | 1 | 3 | 2 |
7 | 2 | 1 | 1 |
8 | 2 | 1 | 2 |
9 | 2 | 2 | 1 |
10 | 2 | 2 | 2 |
11 | 2 | 3 | 1 |
12 | 2 | 3 | 2 |
13 | 3 | 1 | 1 |
14 | 3 | 1 | 2 |
15 | 3 | 2 | 1 |
16 | 3 | 2 | 2 |
17 | 3 | 3 | 1 |
18 | 3 | 3 | 2 |
Element | Fe | Zn | Na2O | K2O | SiO2 | Al2O3 | CaO | MgO | S | C | |
---|---|---|---|---|---|---|---|---|---|---|---|
wt. % | 41.55 | 0.45 | 0.98 | 0.28 | 6.36 | 0.27 | 29.90 | 1.12 | 0.50 | 3.94 | |
Compounds | Weight (%) | ||||||||||
Metallic Iron | Fe | 42 | |||||||||
Wustite | FeO | 35 | |||||||||
Magnetite | Fe3O4 | 18 | |||||||||
Franklinite | ZnFe2O4 | 2 |
ANOVA for Zn | ||||||
Parameter | DF | SS | MS | F | Prob Level | Power |
Leaching media | 2 | 6952.778 | 3476.389 | 15.43 | 0.000481 * | 1.0 |
Oxidant | 2 | 2515.111 | 1257.556 | 5.58 | 0.019320 * | 0.751343 |
Temperature | 1 | 227.5556 | 227.5556 | 1.01 | 0.334684 | 0.152623 |
S | 12 | 2703 | 225.25 | - | - | - |
Total (Adjusted) | 17 | 12398.44 | - | - | - | - |
Total | 18 | - | - | - | - | - |
ANOVA for Na2O | ||||||
Parameter | DF | SS | MS | F | Prob Level | Power |
Leaching media | 2 | 621.1822 | 310.5911 | 1.32 | 0.303421 | 0.231437 |
Oxidant | 2 | 972.4589 | 486.2294 | 2.07 | 0.169474 | 0.342345 |
Temperature | 1 | 77.95842 | 77.95842 | 0.33 | 0.5756 | 0.082851 |
S | 12 | 2824.788 | 235.399 | - | - | - |
Total (Adjusted) | 17 | 4496.387 | - | - | - | - |
Total | 18 | - | - | - | - | - |
ANOVA for K2O | ||||||
Parameter | DF | SS | MS | F | Prob Level | Power |
Aqueous media | 2 | 651.17 | 325.585 | 1.98 | 0.180997 | 0.329381 |
Oxidant | 2 | 116.95 | 58.47501 | 0.36 | 0.708176 | 0.094407 |
Temperature | 1 | 175.7813 | 175.7813 | 1.07 | 0.321842 | 0.158614 |
S | 12 | 1975.63 | 164.6358 | - | - | - |
Total (Adjusted) | 17 | 2919.531 | - | - | - | - |
Total | 18 | - | - | - | - | - |
