Isothermal Sections of the Ni-Cr-Ta Ternary System at 1200 °C and 1300 °C

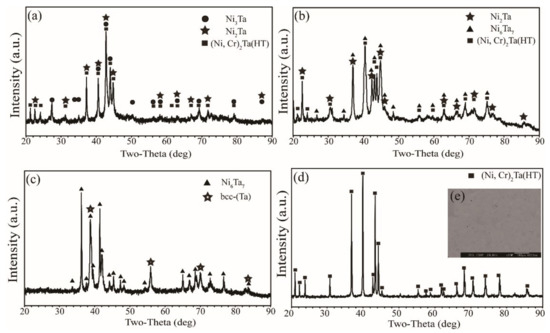

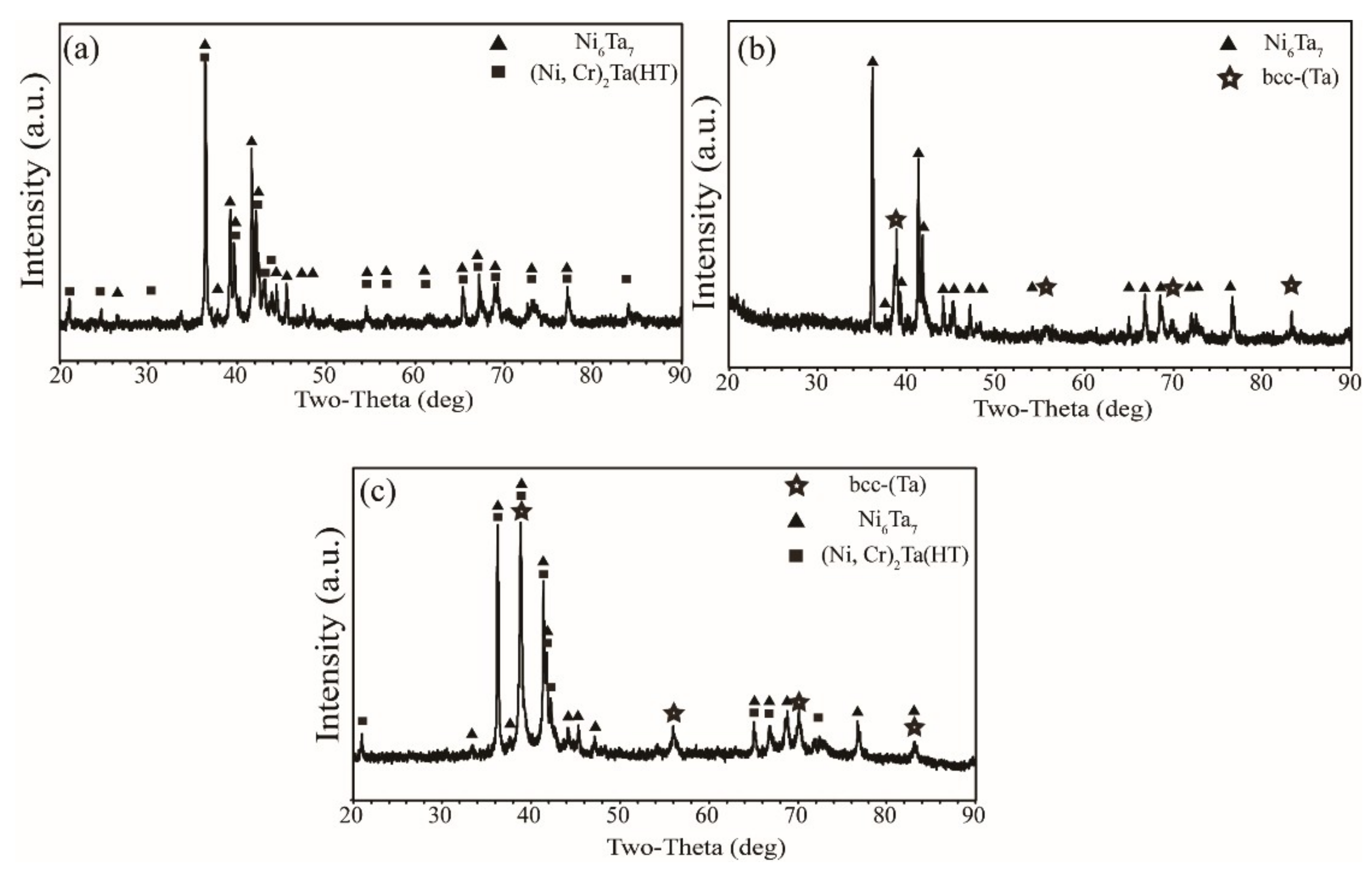

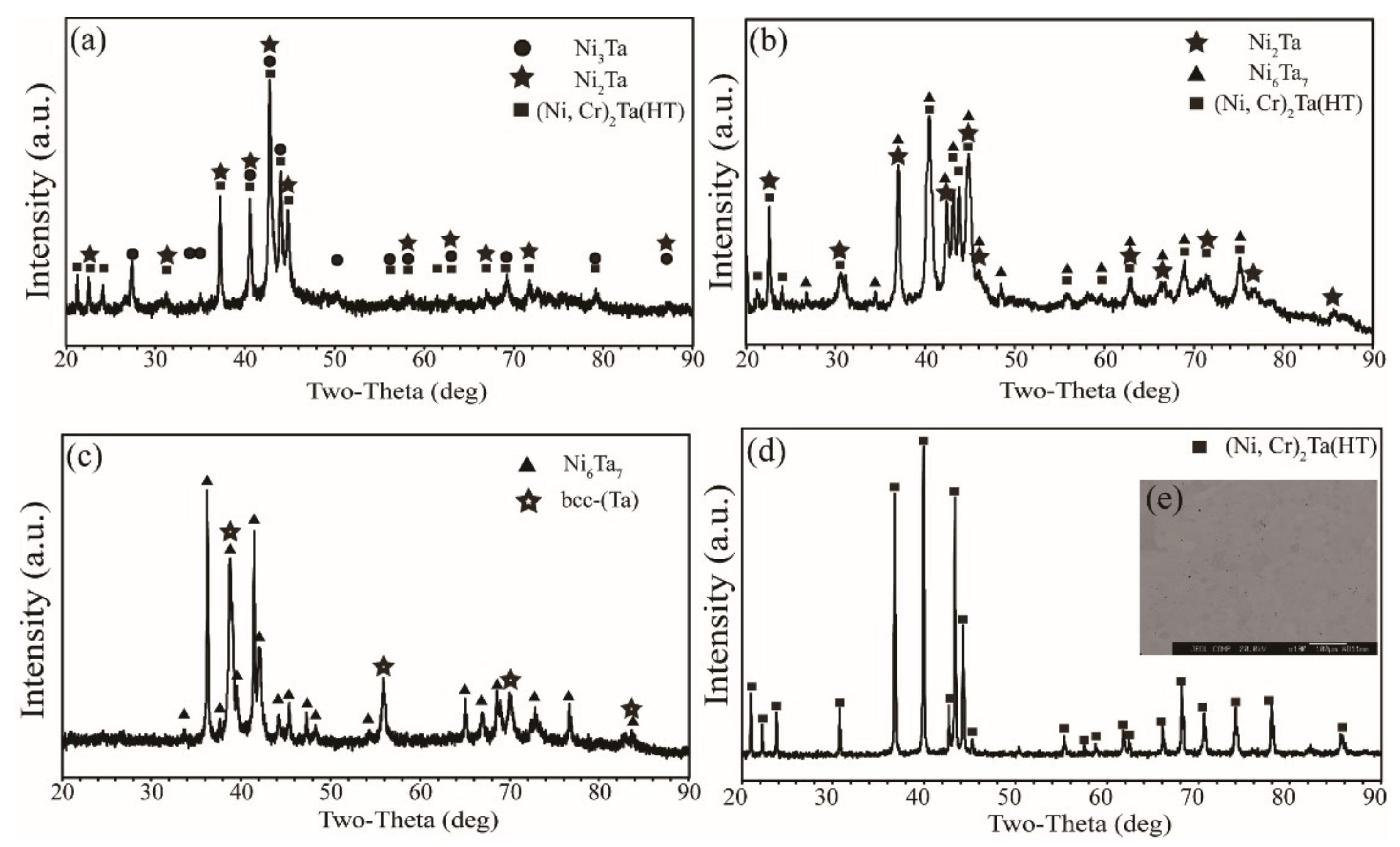

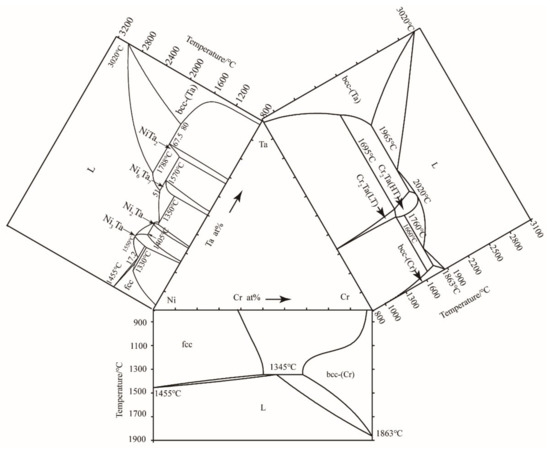

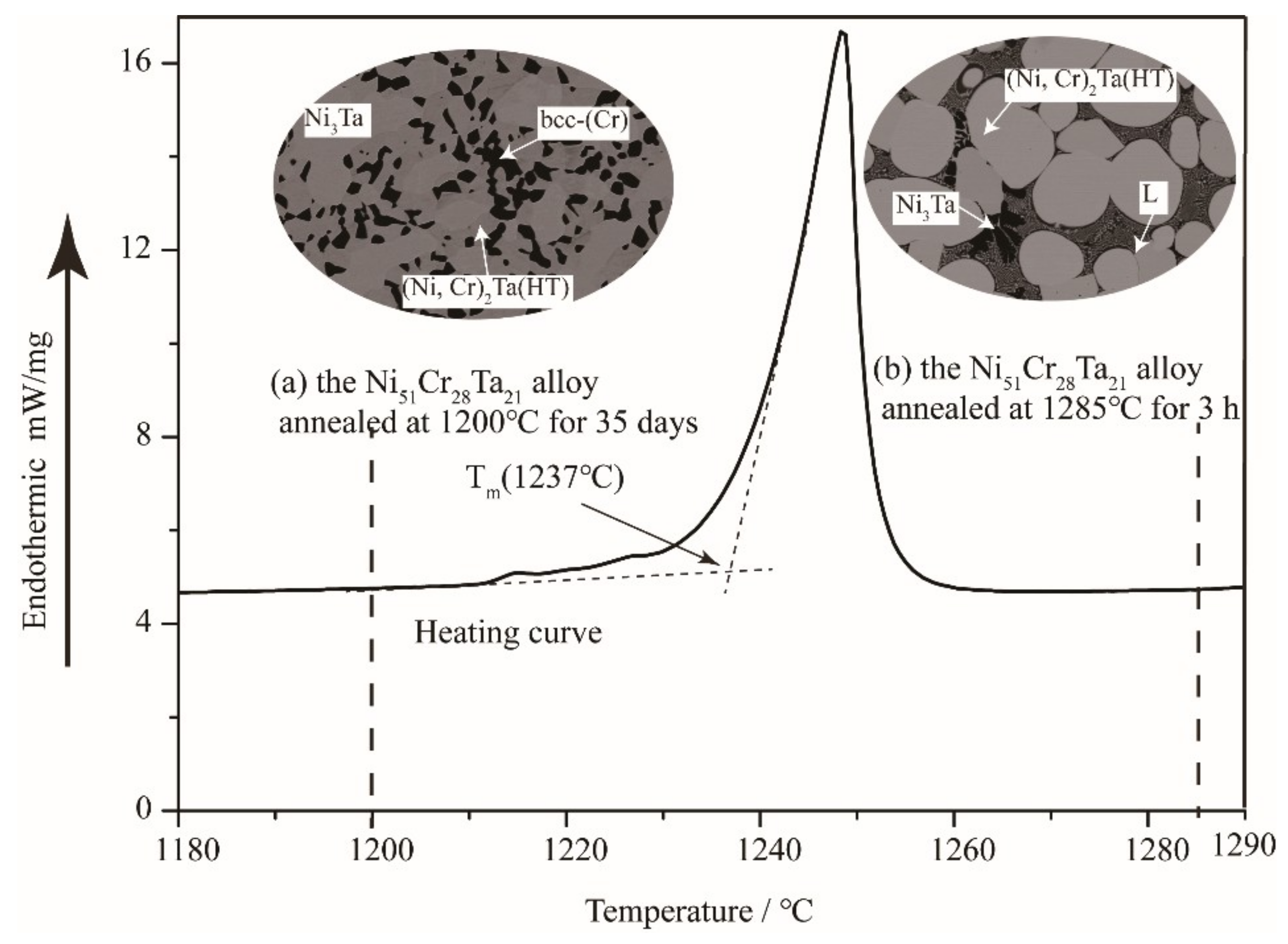

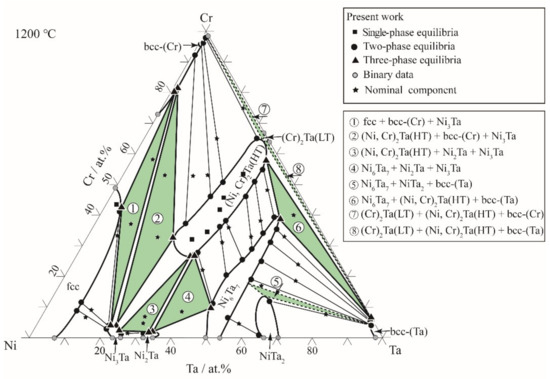

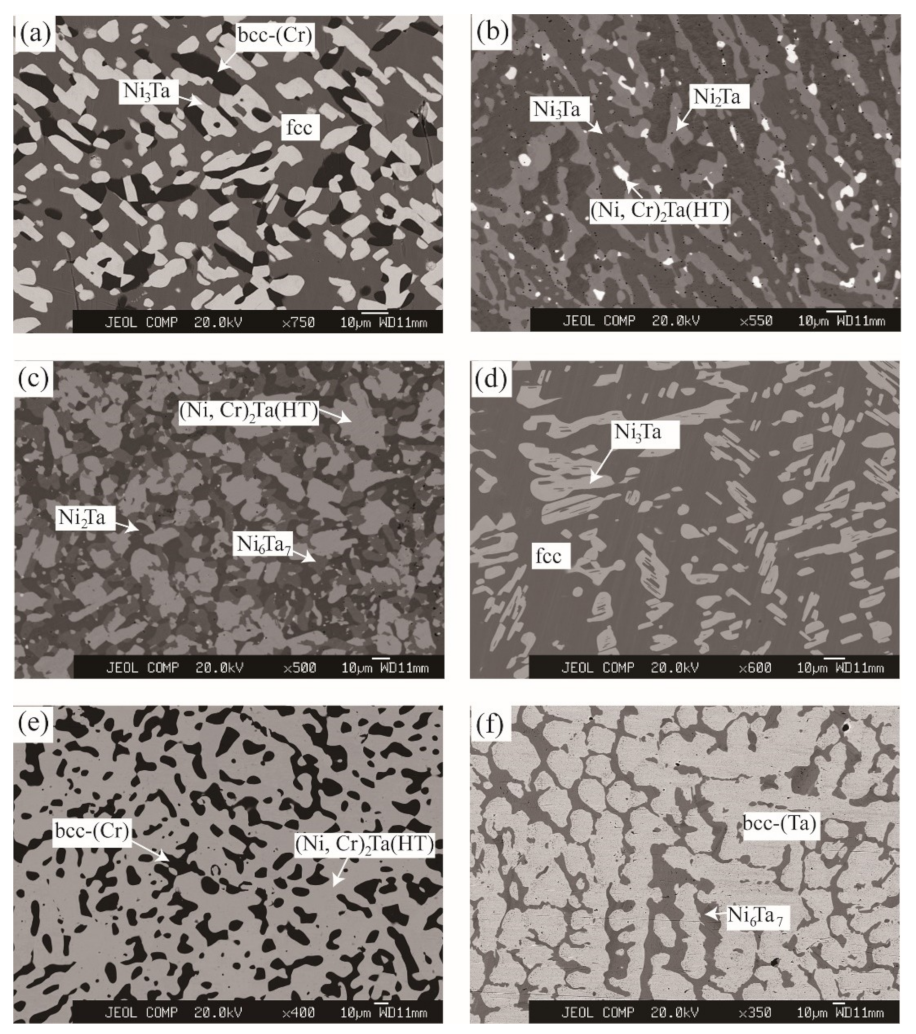

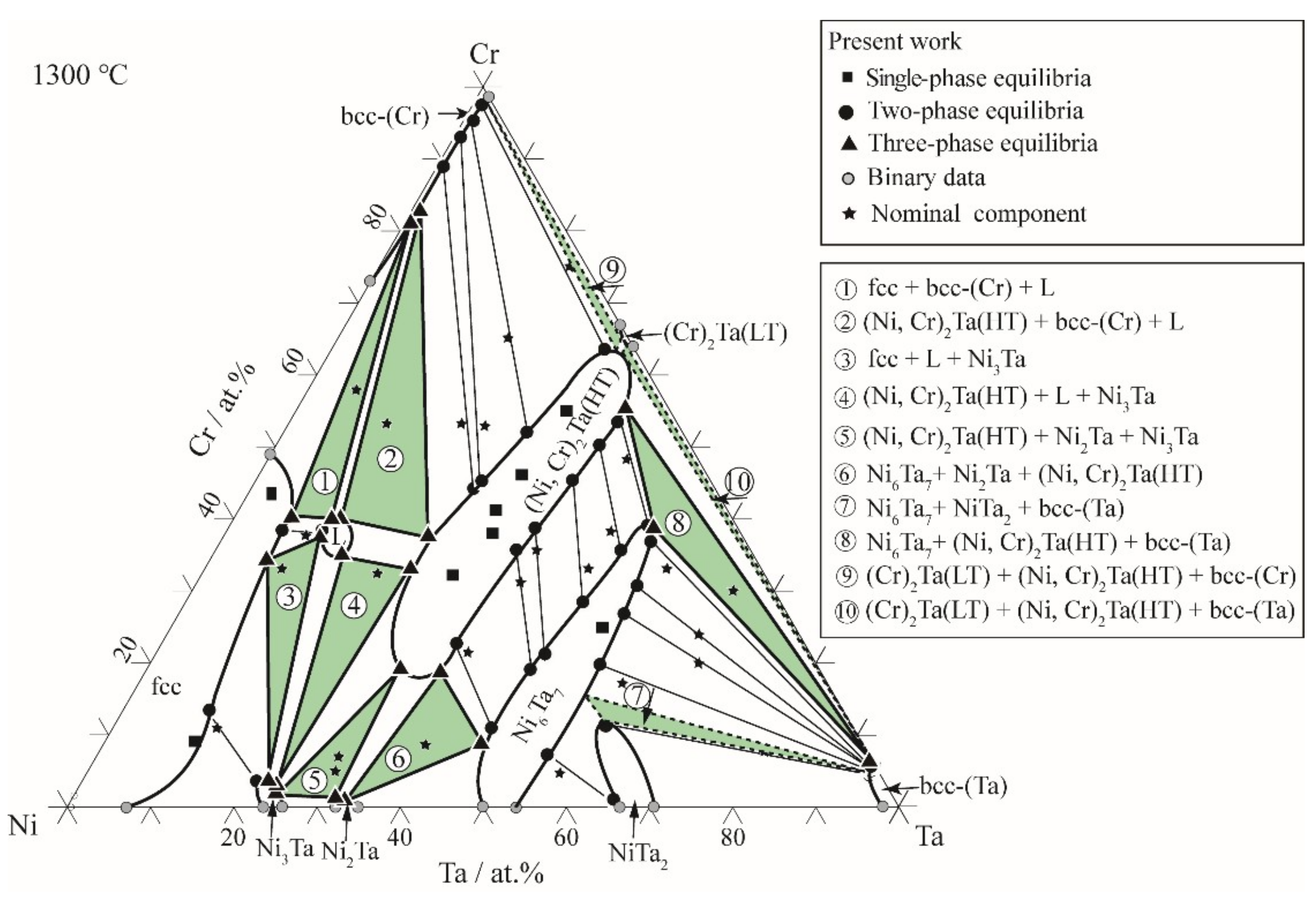

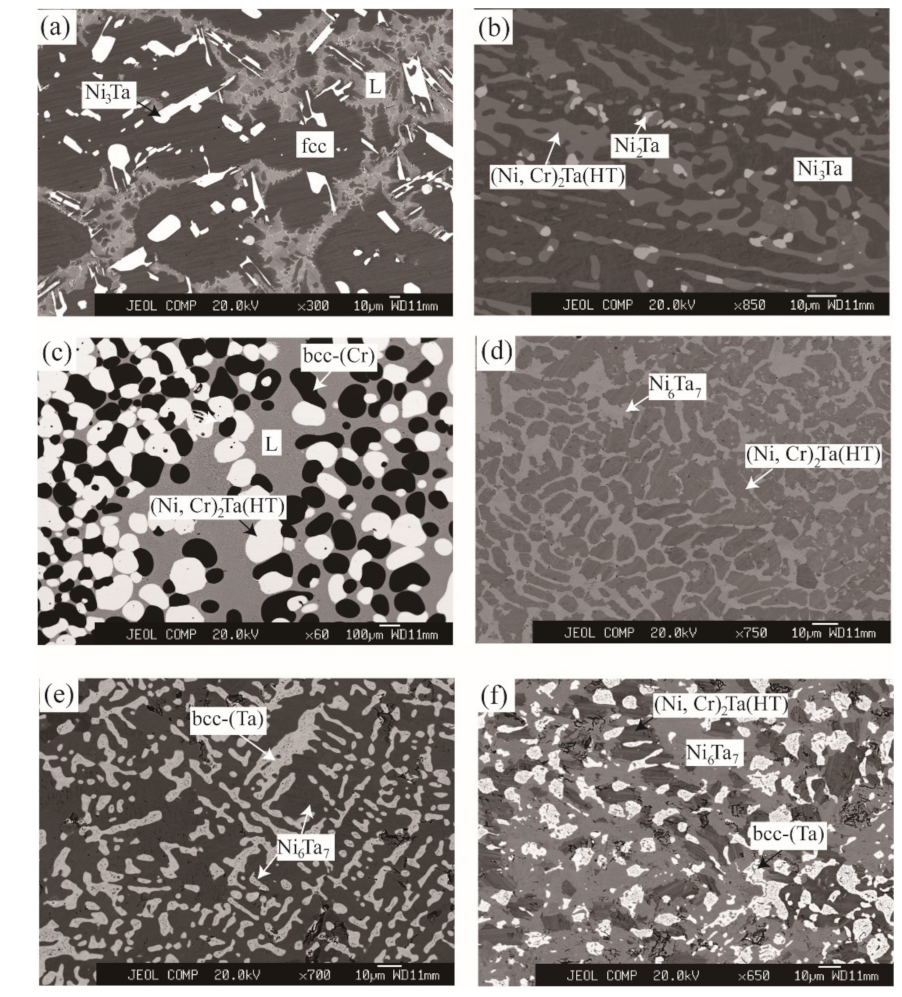

AbstractTwo isothermal sections of the Ni-Cr-Ta ternary system at 1200 °C and 1300 °C have been determined by using electron probe microanalysis, energy dispersive spectroscopy and differential scanning calorimeter. A Laves phase (Ni, Cr)2Ta(HT)(C14 structure) with large solid solubility stabilized by the Ni addition was determined in both two isothermal sections. The composition range of this phase was about 25.8–66.0 at.% Cr, 2.5-44.3 at.% Ni, and 24.0-40.0 at.% Ta at 1200 °C, which increased with raising temperature. The melting point of the Ni-Cr alloys decreased with the addition of Ta. No ternary compound was found in both these two isothermal sections. The present work could be significant for practical application of nickel-based alloys and future thermodynamics assessment of the Ni-Cr-Ta ternary system. View Full-Text
Share & Cite This Article
Wang, C.; Liang, Y.; Yang, S.; Yang, M.; Li, L.; Han, J.; Lu, Y.; Liu, X. Isothermal Sections of the Ni-Cr-Ta Ternary System at 1200 °C and 1300 °C. Metals 2019, 9, 770.
Wang C, Liang Y, Yang S, Yang M, Li L, Han J, Lu Y, Liu X. Isothermal Sections of the Ni-Cr-Ta Ternary System at 1200 °C and 1300 °C. Metals. 2019; 9(7):770.Chicago/Turabian Style
Wang, Cuiping; Liang, Yuhui; Yang, Shuiyuan; Yang, Mujin; Li, Lingling; Han, Jiajia; Lu, Yong; Liu, Xingjun. 2019. "Isothermal Sections of the Ni-Cr-Ta Ternary System at 1200 °C and 1300 °C." Metals 9, no. 7: 770.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
