Activation Volume and Energy for Dislocation Nucleation in Multi-Principal Element Alloys

Abstract

Incipient plasticity in multi-principal element alloys, CoCrNi, CoCrFeMnNi, and Al_0.1CoCrFeNi was evaluated by nano-indentation and compared with pure Ni. The tests were performed at a loading rate of 70 μN/s in the temperature range of 298 K to 473 K. The activation energy and activation volume were determined using a statistical approach of analyzing the “pop-in” load marking incipient plasticity. The CoCrFeMnNi and Al_0.1CoCrFeNi multi-principal element alloys showed two times higher activation volume and energy compared to CoCrNi and pure Ni, suggesting complex cooperative motion of atoms for deformation in the five component systems. The small calculated values of activation energy and activation volume indicate heterogeneous dislocation nucleation at point defects like vacancy and hot-spot.

1. Introduction

Traditional alloy design employs the addition of alloying elements to a principal constituent to enhance its properties via multi-phase complex microstructure. Multi-principal element alloys (MPEAs) represent a new generation of material system consisting of several elements in equimolar or near equimolar proportions. Despite the complex chemistry, high configurational entropy may favor formation of a simple solid solution instead of complex intermetallic compounds in these alloys, which are also referred to as high entropy alloys (HEAs) [1]. Certain range in atomic size difference, electronegativity difference, and mixing entropy/enthalpy of the constituent elements result in multiple concentrated phases in the microstructure [2,3,4,5].

The mechanical properties of MPEAs have been widely studied in recent years over a range of temperatures for potential applications in nuclear and aerospace industries. These include tensile/compressive properties, fatigue behavior, and fracture toughness [6,7,8,9,10,11,12]. It has been hypothesized that MPEAs have a distorted lattice structure which makes dislocation movement difficult and non-traditional in these alloy systems [1,6,7,8,13,14,15,16,17,18]. To understand dislocation nucleation and the activation process, nano-indentation technique has been widely used. The displacement burst (pop-in) in the nano-indentation load versus contact depth curve is attributed to dislocation nucleation. The “pop-in” represents the transition from elastic to plastic deformation in materials and typically happens at a small indentation depth of <100 nm [19,20,21,22,23,24,25,26]. The stress associated with the pop-in is approximately equal to the theoretical strength of the material and happens in small indented volume with a very low probability of having pre-existing dislocations. Therefore, many researchers have attributed the pop-in event to dislocation nucleation [21,25,27,28,29,30,31,32,33], and others have proposed vacancy assisted mechanisms [34]. It has been demonstrated that the pop-in during nano-indentation is time and temperature dependent, a kinetically limiting process that requires activation energy. It occurs in thermally and mechanically favorable positions, which makes it a probabilistic event, i.e., the load at which the pop-in takes place is distributed over a range rather than occurring at a fixed value each time, and this distribution is temperature and time dependent.

Nano-indentation technique has been extensively used to study the local scale elastic-plastic deformation behavior of metals/alloys and to determine the critical shear stress required for dislocation nucleation [19,20,21,22,23,24,25,26]. However, there are few reports and limited understanding of the effect of intrinsic length-scale and submicron plasticity in MPEAs. Wang et al. [35] and Zhu et al. [36] have investigated the activation volume and energy for the onset of plastic deformation in two body centered cubic (BCC) HEAs (of compositions NbTaTiZr and NbMoTaTiZr) and a face centered cubic (FCC) HEA (of composition CoCrFeMnNi) by nano-indentation. They reported a larger activation volume for HEAs compared to conventional metals, attributing it to complex nucleation mechanism. Still, there is limited understanding of the dependence of dislocation nucleation on alloy composition and microstructure, and there are multiple discrepancies in the published studies [2,36].

Here, incipient plasticity and dislocation nucleation were studied using nano-indentation for three different multi-principal element alloys, CoCrNi, CoCrFeMnNi, and Al_0.1CoCrFeNi. All the three alloys showed a single-phase FCC microstructure without any secondary phases. The three-component CoCrNi alloy showed higher strength than five-component CoCrFeMnNi [7,37] and was chosen to study the effect of the number of constituents. A comparison was made with a pure metal, Ni, to understand solid solution strengthening effects. In addition, Al_0.1CoCrFeNi alloy was chosen because it is a model FCC system for comparison with the results of CoCrFeMnNi. The present study paves the way for a fundamental understanding of small-scale deformation mechanisms in multi-principal element alloys as a function of alloy chemistry and microstructure.

2. Experimental

Alloys with nominal composition of CoCrNi, CoCrFeMnNi, and Al_0.1CoCrFeNi (in mole fractions) were prepared by arc melting the constituent pure elements (purity > 99.99%) in Ti-gettered Ar atmosphere. As-cast alloys were rolled up to a 70% reduction in thickness. After rolling, they were annealed at 1173 K for 20 h to obtain equiaxed dislocation-free grains and to remove residual stress from processing. The annealed samples were polished with SiC abrasive paper followed by microfiber cloth with 1 μm diamond suspension. The polished samples were then put in vibromet with 0.04 μm colloidal silica suspension to produce a surface finish equivalent in texture to an electro-polished sample. Crystal structure and phase identification were done using Rigaku III Ultima X-ray diffractometer (XRD Rigaku Corporation, Tokyo, Japan) with Cu-Kα radiation with wavelength of 1.54 Å. Scanning electron microscopy (SEM) was done using FEI Quanta ESEM (FEI Company, Hillsboro, OR, USA) to analyze the grain size and microstructure of the alloys.

Nano-indentation (Bruker, Minneapolis, MN, USA) was performed using a Berkovich diamond probe. The pop-in behavior of alloys was evaluated with a maximum load of 350 μN at 298 K, 373 K, and 473 K. One hundred indentations were made at each temperature with 10 μm distance between two indents to avoid overlap of their plastic zones. The indentations were done in load control mode with a constant loading rate of 70 μN/s. Elevated temperature indentations were performed using XSol600 heating stage with bottom and top heating to avoid any thermal gradients. To prevent oxidation of the sample, a continuous flow of Ar + 5% H₂ gas mixture was maintained with a flow rate of 1 lit/min.

3. Results and Discussion

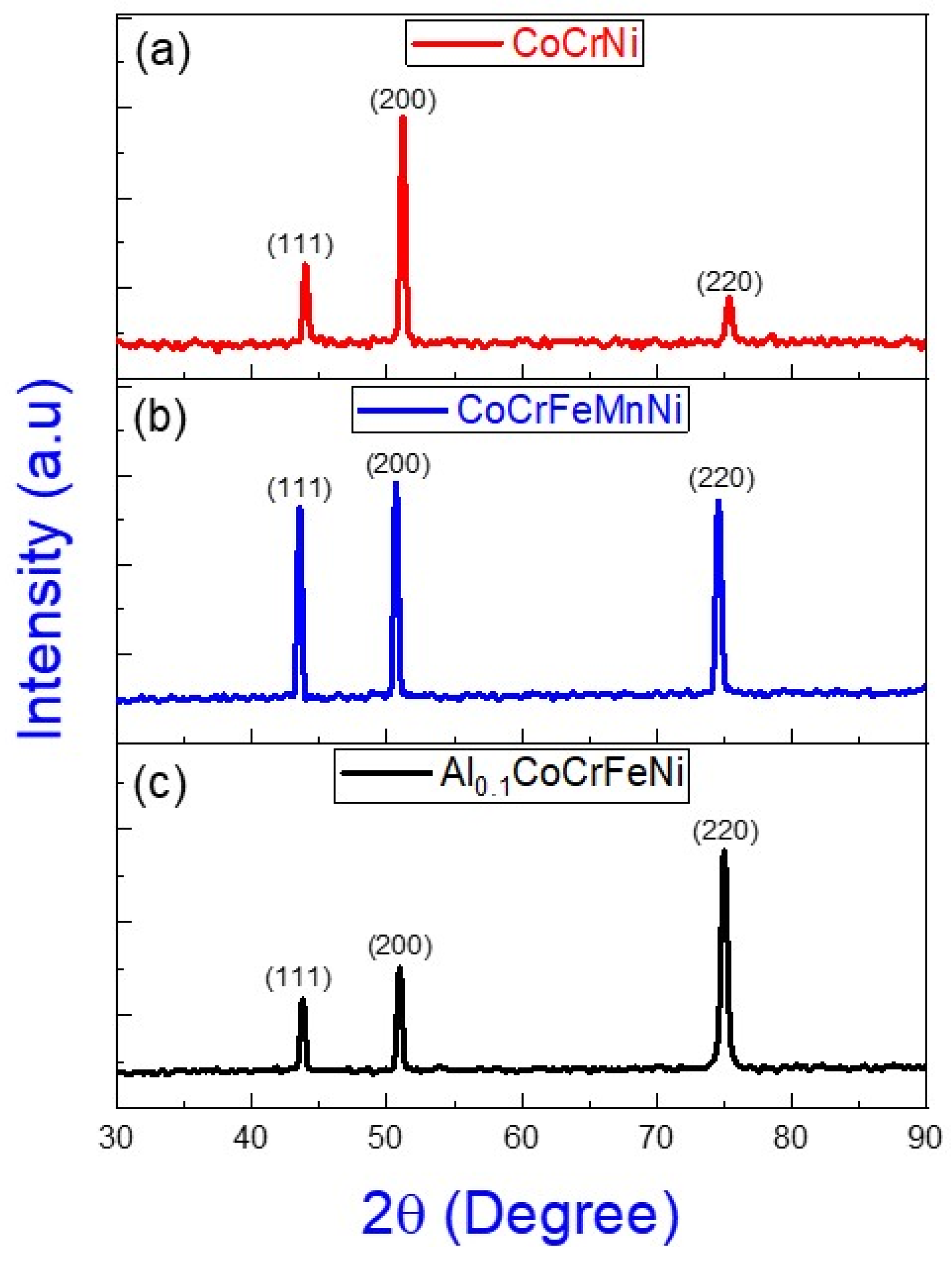

Figure 1a–c show the XRD patterns for the three alloys studied, which confirmed that they formed a simple FCC solid solution and were free of any secondary phases as reported previously [38,39,40]. The backscattered SEM images of the alloys are shown in Figure 2a–c. All three alloys showed equiaxed microstructure with an average grain size of ~30–60 μm. They also showed a significant number of annealing twins, which indicates low stacking fault energy in these alloys.

Deformation during nano-indentation is initially elastic and follows the Hertzian equation [34].

$$P=4/3E_r{R}^{\frac{1}{2}}{h}^{\frac{3}{2}}$$

(1)

where, $P$ is the load applied by the indenter, R is radius of the tip, and h is the indentation depth, $E_r$ is the reduced modulus of the indenter-sample combination and is defined by: $\frac{1}{E_r}=\frac{1-v^2}{E}+\frac{1-v_i^2}{E_i}$. E, ν, E_i = 1141 GPa, and ν_i = 0.07 are the Young’s modulus and Poisson’s ratio of the sample and diamond indenter, respectively. Figure 3a shows the typical load-displacement curve obtained from nano-indentation along with the Hertzian fit. The reduced modulus of the alloys was obtained from the fitting coefficient of the elastic part and values are summarized in

Table 1. Reduced modulus, activation volume, and activation energy of present face-centered cubic (FCC) alloys.

Alloys	Er (GPa)	Activation Volume (Å3)	Activation Energy (eV)
Ni	195 ± 7	4.12	0.23 ± 0.008
CoCrNi	195 ± 6	4.69	0.27 ± 0.01
CoCrFeMnNi	180 ± 4	9.01	0.50 ± 0.007
Al0.1CoCrFeNi	190 ± 5	8.04	0.47 ± 0.009

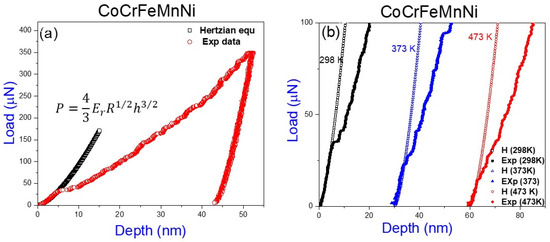

and are similar to earlier reports [41,42]. The initial part of the load-displacement curve followed Hertzian contact theory and subsequently deviated due to plastic deformation or elastic-to-plastic transition [34]. The load and displacement at the deviation point was determined for each indent. Figure 3b shows the temperature dependence of the pop-in load for the CoCrFeMnNi alloy. The load at first pop-in was found to decrease with increasing temperature; other alloys (CoCrNi and Al_0.1CoCrFeNi) and pure Ni showed a similar trend. This thermal softening has also been reported in several previous studies [34,36].

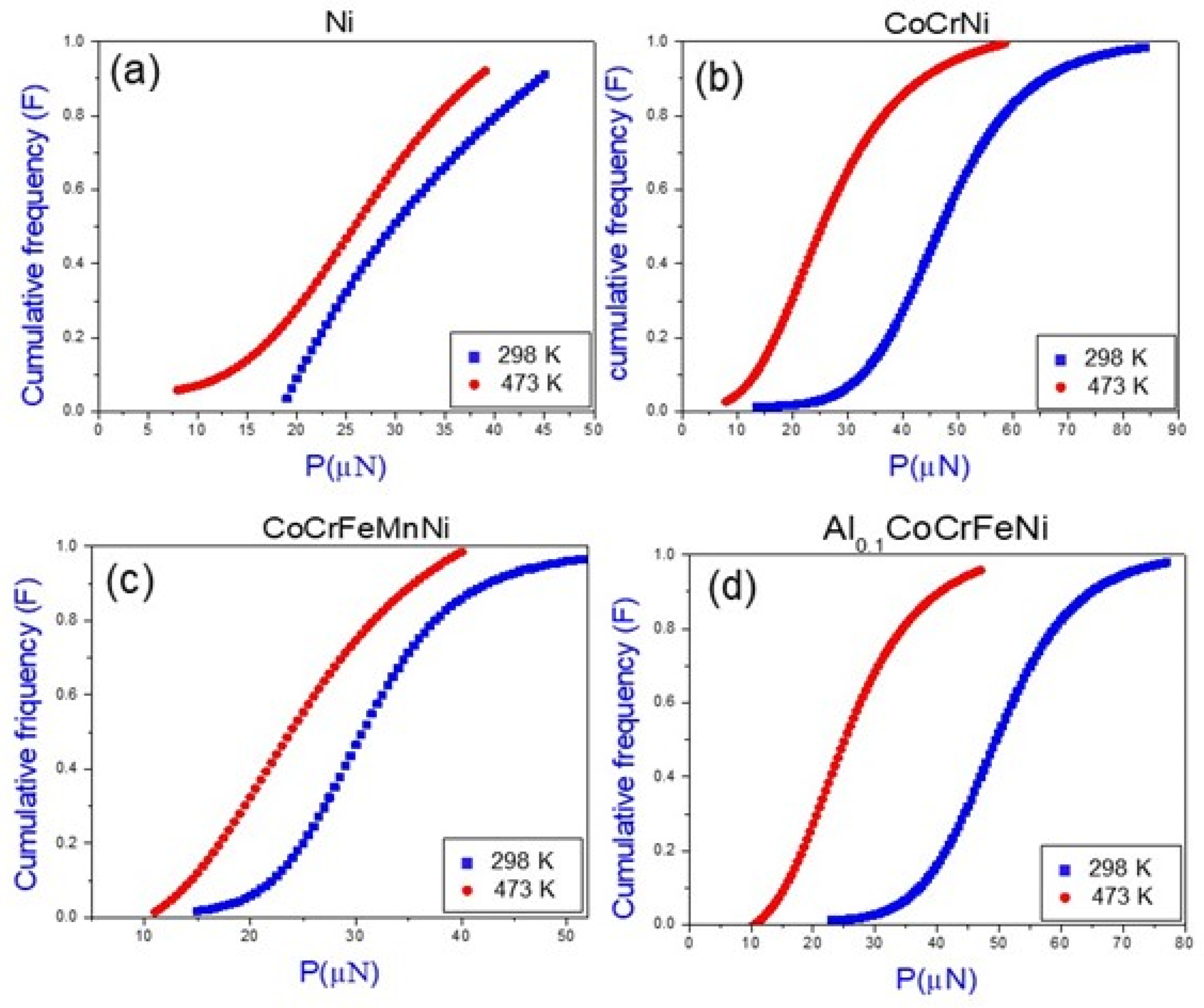

Figure 4 shows the statistical distribution of the pop-in load at room temperature (298 K) and 473 K for Ni, CoCrNi, CoCrFeMnNi, and Al_0.1CoCrFeNi. The experimentally obtained data at 373 K followed a similar trend and has not been included in the figure for clarity. It is also evident from Figure 4 that the pop-in load decreased with increasing temperature. The temperature dependence of displacement burst in multi-principal alloys indicates a stress-biased thermally activated mechanism similar to pure metals [34]. The shear stress beneath the indenter at pop-in is evaluated using Hertzian contact theory as [34]:

$$p_m={\left(\frac{6P{E}_r^2}{{\mathsf{\pi }}^3{R}^2}\right)}^{1/3}$$

(2)

$${\mathsf{\tau }}_m=0.31p_m$$

(3)

where, $p_m$ is the mean contact pressure and ${\tau }_m$ is the maximum shear stress at pop-in, which was in the range of ~$\frac{\mathsf{\mu }}{16}–\frac{\mathsf{\mu }}{10}$ (where µ is the shear modulus) at room temperature for all alloys. As the ideal shear strength of a metal also lies in a similar range ($\frac{\mathsf{\mu }}{30}–\frac{\mathsf{\mu }}{5}$) [36], it may be concluded that the pop-in event involves dislocation nucleation. Using the probabilistic distribution of pop-in stress, an analytical solution has been proposed to evaluate the activation volume and activation energy associated with the displacement burst [34]. Nucleation of dislocation involves an activation barrier which may be overcome by mechanical work done by the indenter or by the combined effect of thermal and mechanical work. The nucleation rate per unit volume, $\dot{n}$ is represented by [34]:

$$\dot{n}=\mathsf{\eta }\exp \left(-\frac{\mathsf{\epsilon }-\mathsf{\sigma }V}{kT}\right)$$

(4)

where η is a pre-exponential frequency factor, ɛ is the activation energy barrier for the process, and σV represents the stress bias. In the present condition, the stress bias is the maximum shear stress beneath the indenter. The activation volume of the process may be expressed as [34]:

$$V=\frac{\mathsf{\pi }}{0.47}{\left(\frac{3R}{4E_R}\right)}^{2/3}kT\mathsf{\alpha }$$

(5)

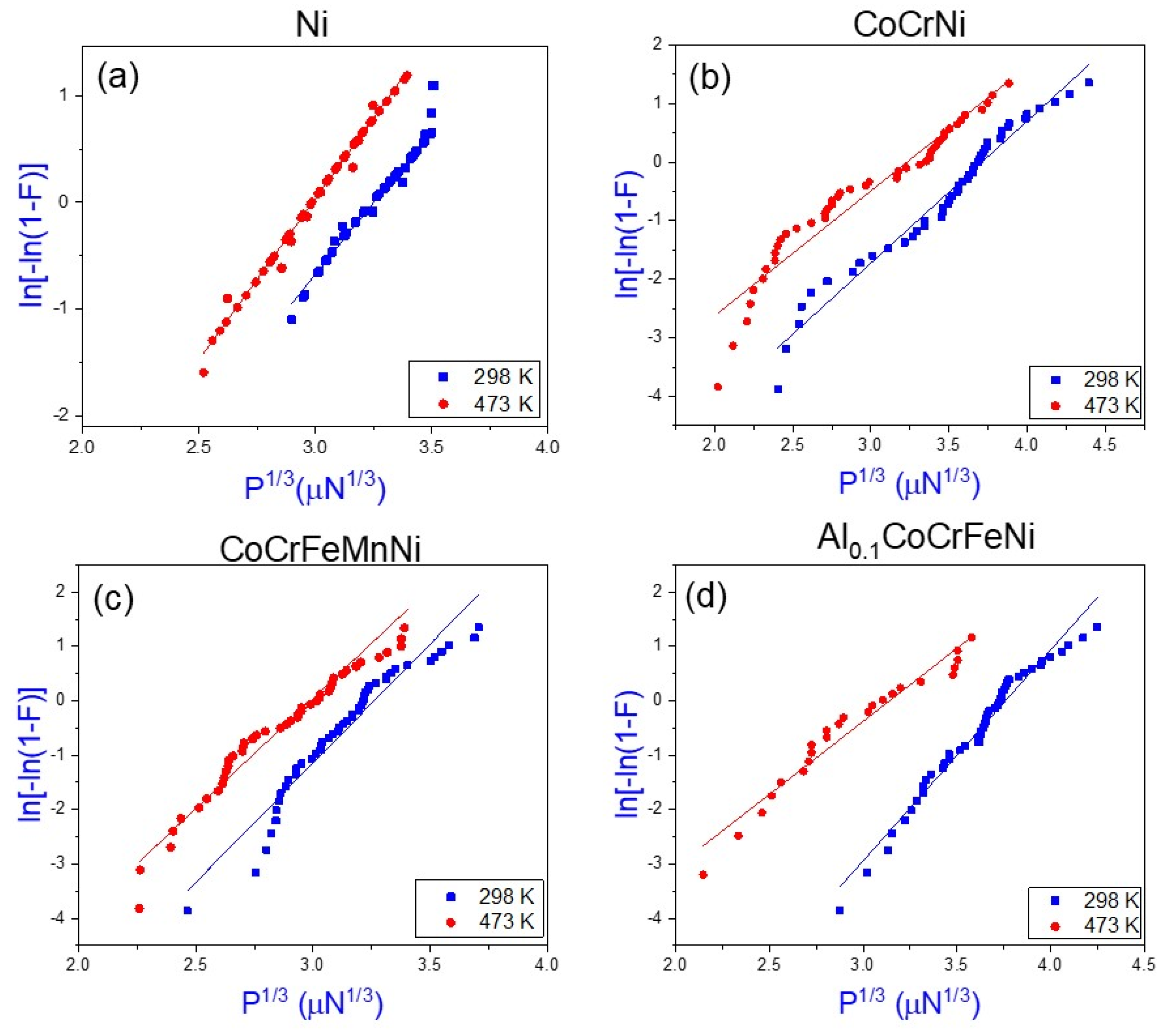

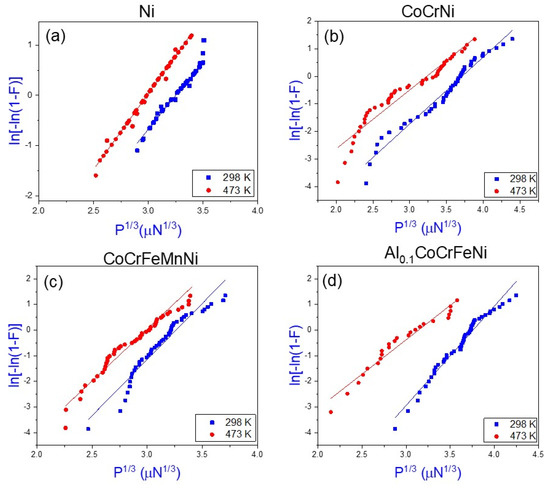

where, α is a time-independent parameter and is obtained from the slope of ln[−ln(1 − F)] versus P^1/3 plot (as shown in Figure 5), and F is the cumulative probability of the event (as shown in Figure 4). Figure 5 shows the ln[−ln(1 − F)] versus P^1/3 for Ni and the three MPEAs at room temperature and 473 K. Using averaged α value obtained from the slope of the curves and Equation (5), the activation volume was calculated. Activation volume for the three alloys and Ni are included in Table 1.

Equation (4) indicates that ɛ also plays an important role in the nucleation process. The activation enthalpy or ɛ may be evaluated from the pop-in load and activation volume using the equation [34]:

$$P^{1/3}=\mathsf{\gamma }kT+\frac{\mathsf{\pi }}{0.47}{\left(\frac{3R}{4E_R}\right)}^{2/3}\frac{\mathsf{\epsilon }}{V}$$

(6)

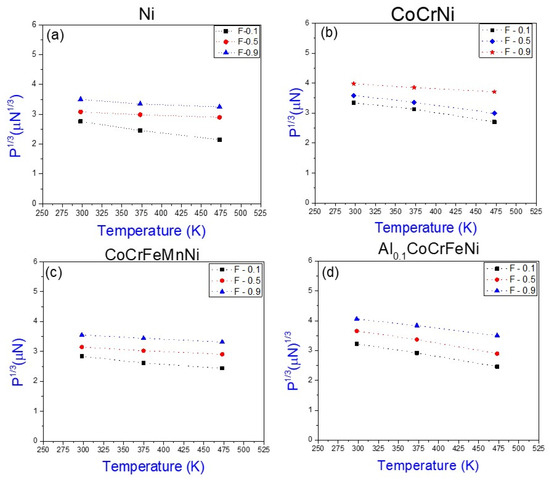

Figure 6 shows the P^1/3 vs. temperature (T) curves for pure Ni and the MPEAs at three different cumulative frequencies (F). P^1/3 vs. T shows a linear relation with slope γk and the intercept at 0 K in y-axis representing the second part of Equation (6). With the obtained P^1/3 at 0 K and the activation volume, ɛ was evaluated. This represents the energy required for nucleation at 0 K, i.e., all the work done is mechanical work, and there is no thermal work. The activation energy for pure Ni and the MPEAs are summarized in Table 1.

The average activation volume for pop-in in Ni was determined to be 4.12 ų, which falls within a similar range for FCC-Pt [34] and hexagonal close packed (HCP)-Mg [43]. The activation volume and activation energy evaluated for MPEAs using first-order shear bias statistical model were in the range of 4 to 9 ų and 0.23 to 0.50 eV, respectively. These values are much lower than that required for homogenous dislocation nucleation which is higher than 1 eV. The discrepancy in activation enthalpy between the experimentally measured value and that expected for homogenous nucleation has been explained by the presence of subcritical loops and thermal fluctuations, while other studies have ruled out these possibilities [44,45,46]. Vacancy migration during nano-indentation has been proposed as another possible mechanism [2]. But the self-diffusion rate is very slow at room temperature, and vacancy migration energy lies in the range of 1–2 eV. The obtained activation enthalpy for the three MPEAs is much lower than the vacancy migration energy. In addition, due to lower diffusivity in equi-atomic multi-component alloys than pure metals, vacancy migration is more difficult in these alloys. Several simulation studies have shown that surface ledges may act as potential sites for heterogeneous dislocation nucleation by reducing the activation energy [47,48]. Another proposed mechanism for heterogeneous dislocation nucleation involves hot-spots. At high temperatures, thermal vibrations generate asymmetry which create hot-spot defects below the surface (in the bulk) and act as potential sites for dislocation nucleation, whereas at 0 K the dislocation nucleates at surface defects [45,49]. In the current study, it was observed that the displacement at pop-in decreased with increasing temperature. The average pop-in depth for CoCrFeMnNi alloy corresponding to 298 K, 373 K, and 473 K was 8 nm, 5 nm, and 3 nm, respectively. A similar trend was observed for the other two alloys, CoCrNi and Al_0.1CoCrFeNi. The decreasing trend of pop-in depth with increasing temperature supports the hot-spot mechanism because with increasing temperature the fraction of hot-spot defects increases. This leads to lowering of the depth and load for pop-in. Vacancy clusters and impurity atoms have also been proposed as potential sites for dislocation nucleation [34]. Since the alloys were air cooled after annealing, there is a possibility of having vacancy concentration higher than the equilibrium concentration.

The activation volume and energy of incipient plasticity for CoCrFeMnNi and Al_0.1CoCrFeNi were roughly two times that of pure Ni. This indicates that in the case of MPEAs, the cooperative motion of several atoms is necessary for deformation in comparison with one to one atomic motion in pure metals. The activation volume and energy of the three-component CoCrNi alloy was marginally higher than pure Ni (14% higher) but significantly lower compared to the five-component alloys (~50% lower). This suggests that the dislocation mechanism in this medium entropy alloy (CoCrNi) may be similar to pure metals. The activation volume for dislocation nucleation in BCC TiZNbTa and TiZrNbTaMo HEAs were determined to be ~30 ų [35] which is more than that of the current studied MPEAs. It should also be noted that the obtained activation volume and activation energy for CoCrFeMnNi in the current work is different compared to that earlier reported by Zhu et al. for the same composition [36]. This may be attributed to the sample preparation conditions and the resulting surface state.

4. Conclusions

Shallow depth nano-indentation was performed for multi-principal five-component Al_0.1CoCrFeNi and CoCrFeMnNi alloys and three-component CoCrNi alloy to elucidate the mechanism associated with the onset of plasticity in these alloys. Nano-indentation was performed at three different temperatures of 298 K, 373 K, and 473 K. The experimentally obtained data were analyzed within the framework of first-order shear bias statistical model, and the activation volume and activation enthalpy of the process were calculated. The following can be concluded from the obtained experimental and analytical results:

• The pop-in load marking incipient plasticity was found to decrease with the increase of temperature for each of the three alloys indicating a thermally activated event.
• At all the temperatures, the pop-in shear stress was not constant but rather occurred over a range of loads. At room temperature, the values of the pop-in shear stress ranged over $\frac{\mathsf{\mu }}{16}$–$\frac{\mathsf{\mu }}{10}$ for three alloys.
• Using a statistical approach, the evaluated activation volume and enthalpy for the five-component multi-principal alloys were around 10 ų and 0.5 eV, respectively. The small values of activation volume and energy suggest heterogeneous dislocation nucleation.
• The CoCrFeMnNi and Al_0.1CoCrFeNi multi-principal alloys showed two times higher activation volume and energy compared to CoCrNi medium entropy alloy and pure Ni suggesting complex cooperative motion of atoms for deformation in these systems.
• Vacancy migration was ruled out as a possible nucleation mechanism because of the small values of activation volume and energy.
• Surface defects like ledges, vacancy clusters, and hot-spots created by asymmetry generated due to thermal vibration could be potential sites for heterogeneous dislocation nucleation in these alloys during nano-indentation.
