Next Article in Journal
Effect of Microstructure on the High-Cycle Fatigue Behavior of Ti(43-44)Al4Nb1Mo (TNM) Alloys
Previous Article in Journal
Evaluation of Low Cycle Fatigue Performance of Selective Laser Melted Titanium Alloy Ti–6Al–4V
Previous Article in Special Issue
Influence of Material Property Variation on Computationally Calculated Melt Pool Temperature during Laser Melting Process
Open AccessArticle

Effect of Process Parameters on Residual Stresses, Distortions, and Porosity in Selective Laser Melting of Maraging Steel 300

1
Centre for Rapid Prototyping and Manufacturing, Department of Mechanical and Mechatronic Engineering, Central University of Technology, Free State, 20 President Brand Street, Bloemfontein 9300, South Africa
2
Laboratory for Advanced Manufacturing, Department of Industrial Engineering, Stellenbosch University, Corner Joubert and Banghoek Street, Stellenbosch 7602, South Africa
*
Author to whom correspondence should be addressed.
Metals 2019, 9(10), 1042; https://doi.org/10.3390/met9101042
Received: 23 August 2019 / Revised: 9 September 2019 / Accepted: 11 September 2019 / Published: 25 September 2019
(This article belongs to the Special Issue Advances in Selective Laser Melting)

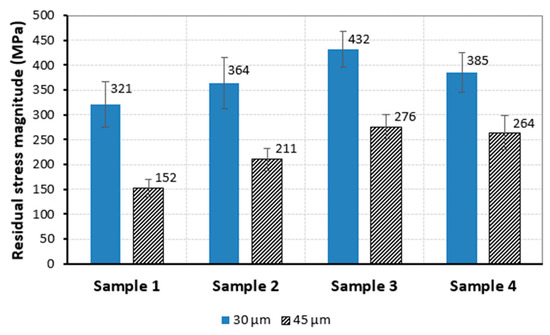

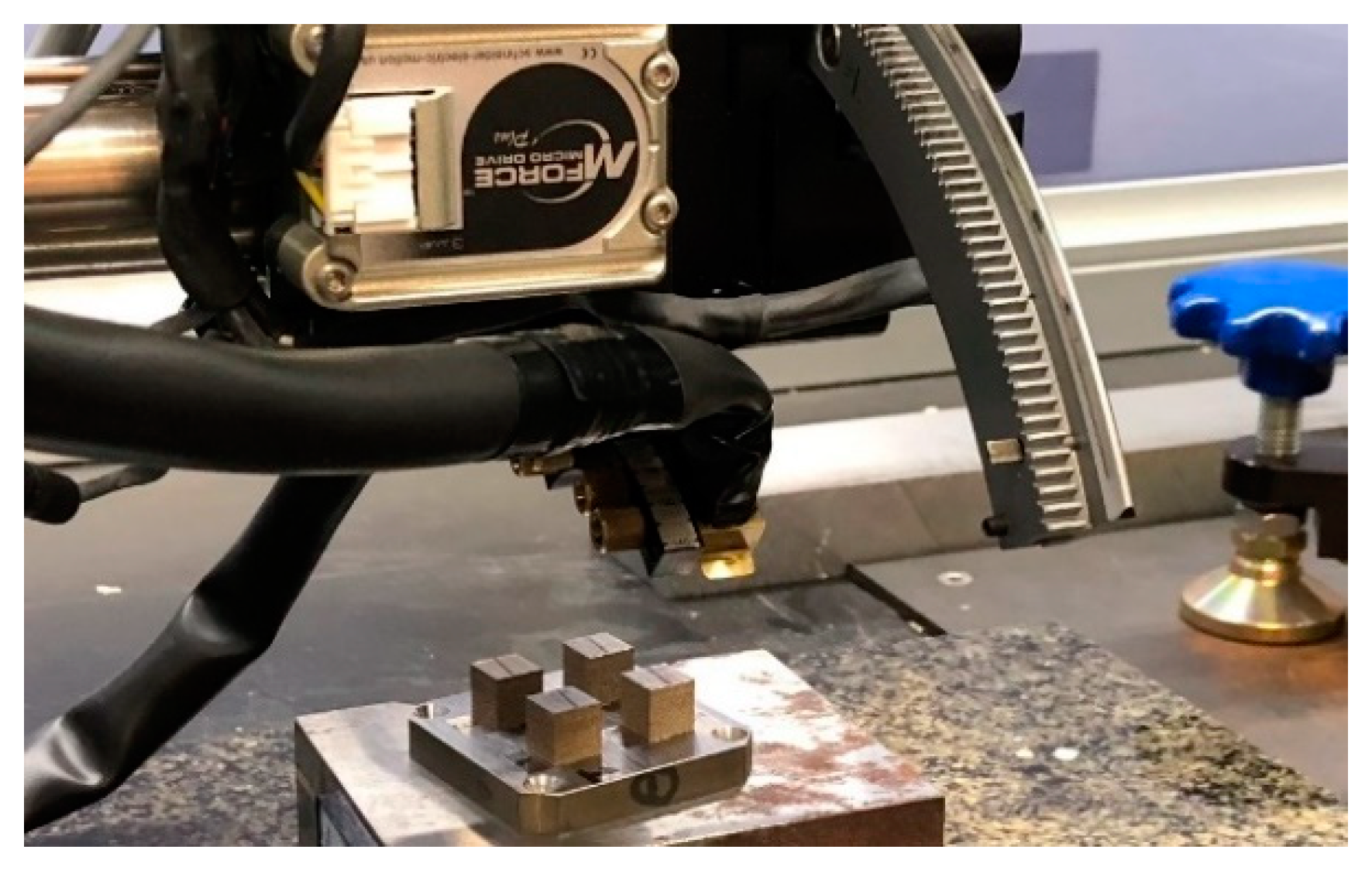

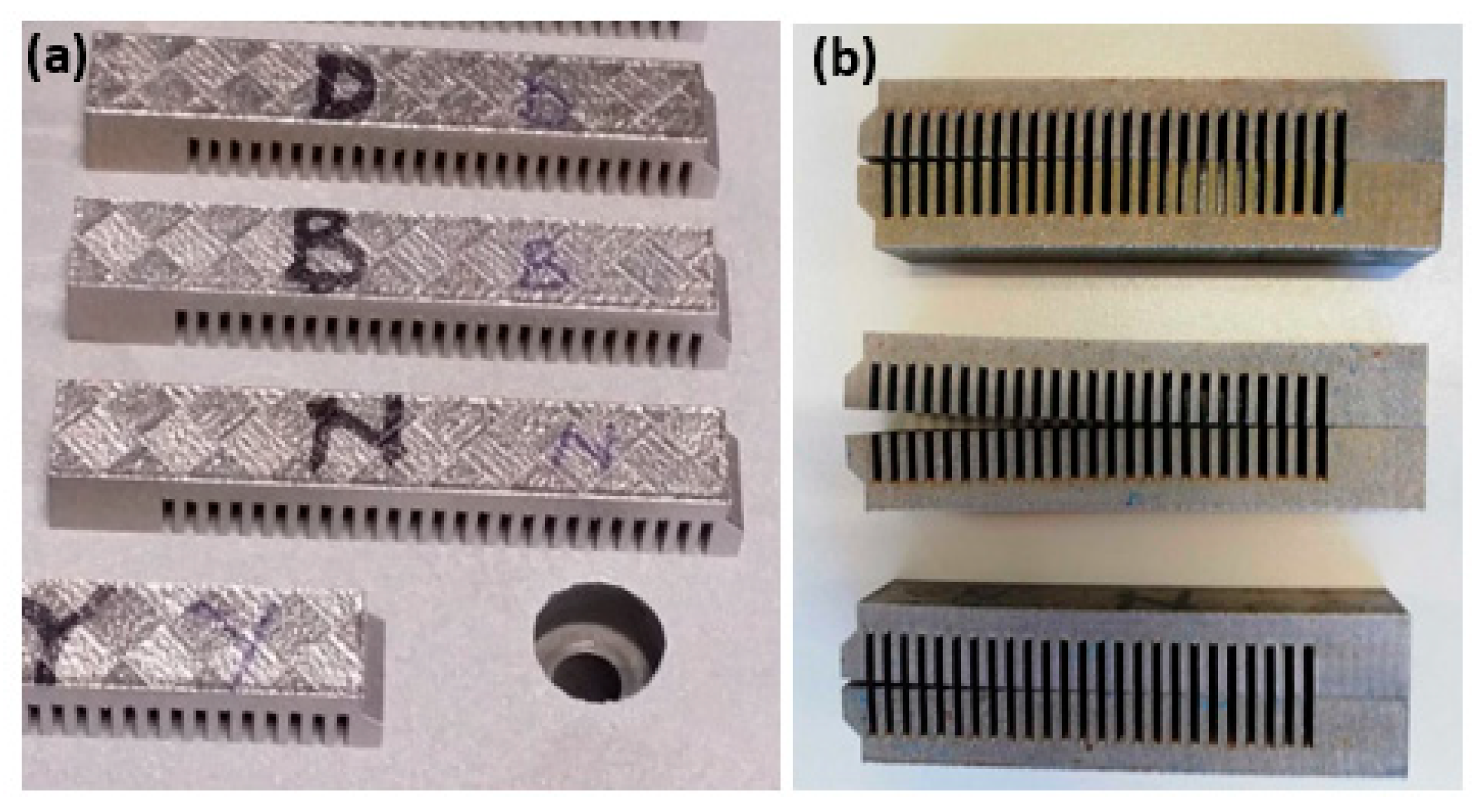

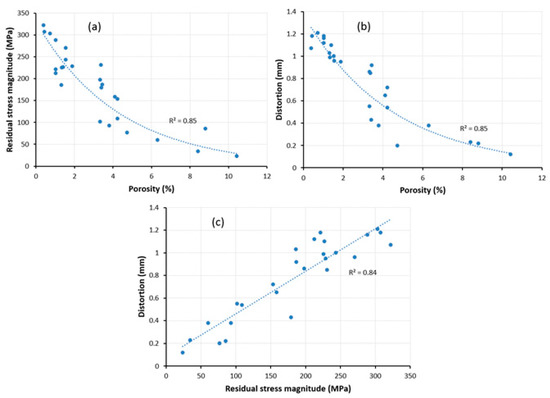

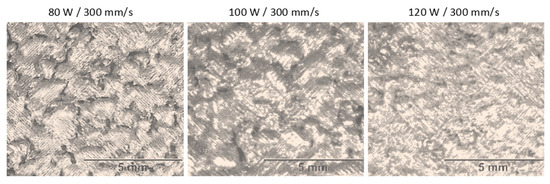

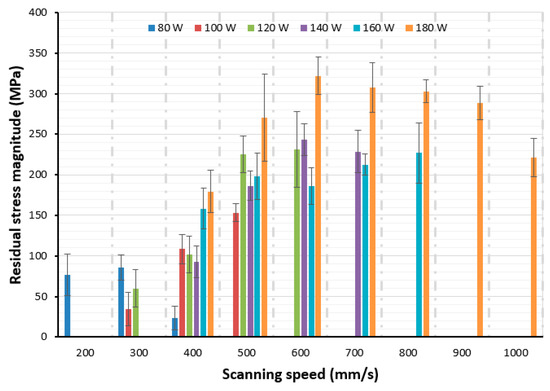

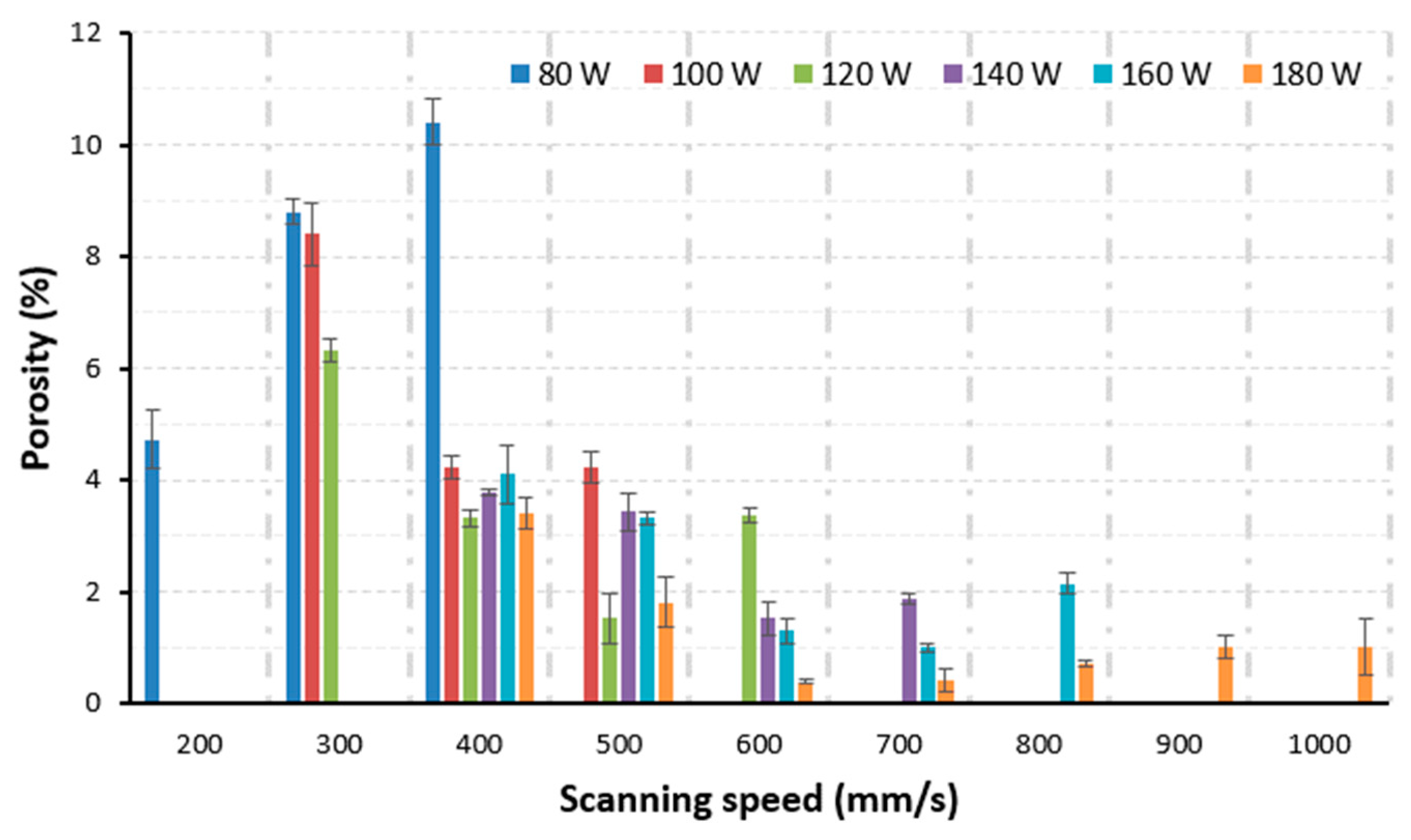

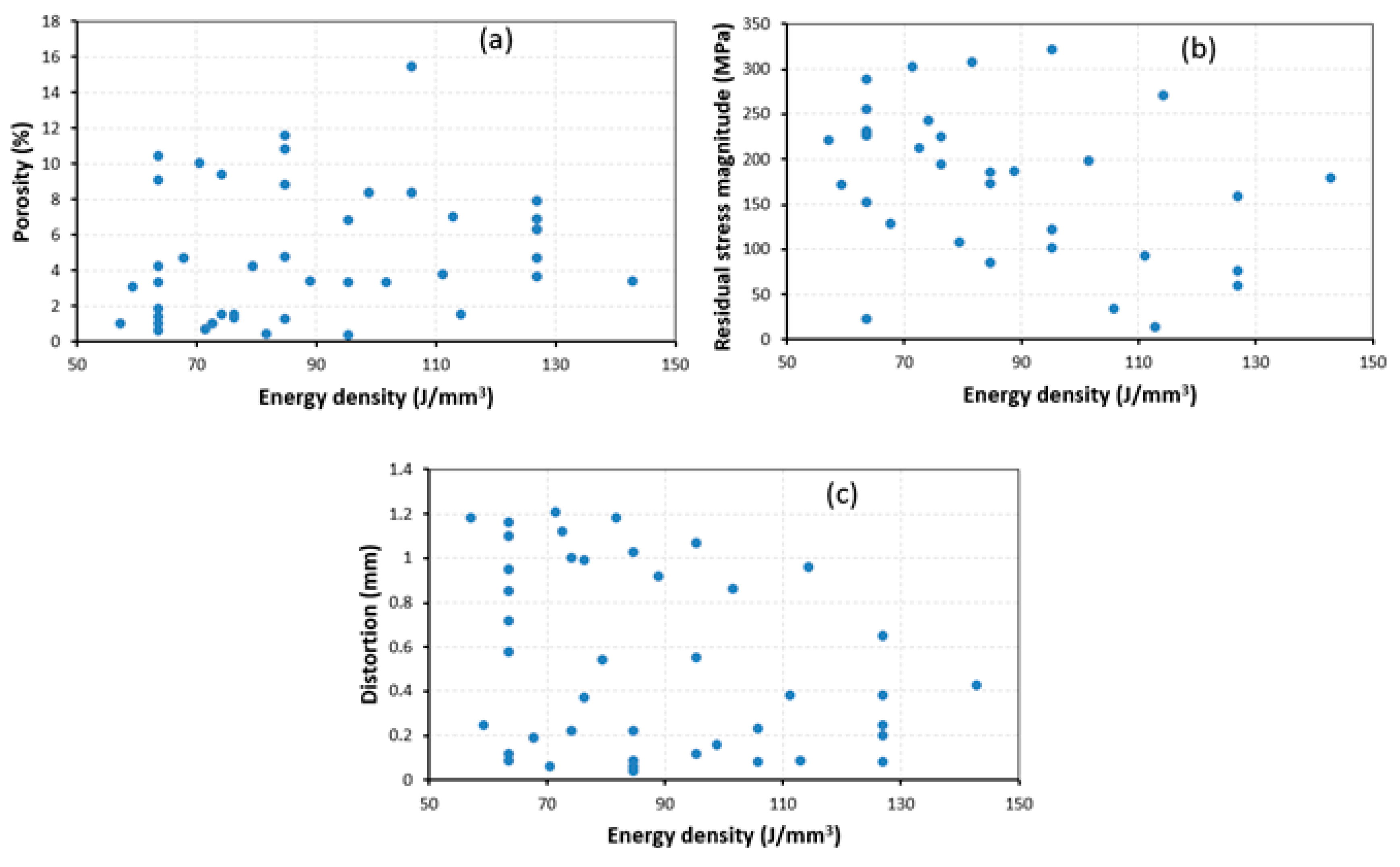

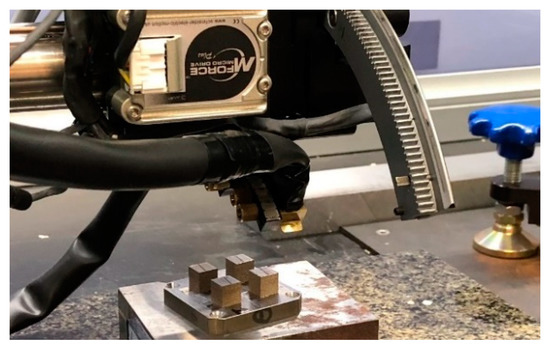

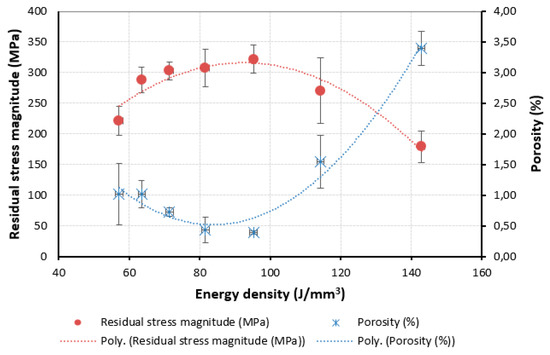

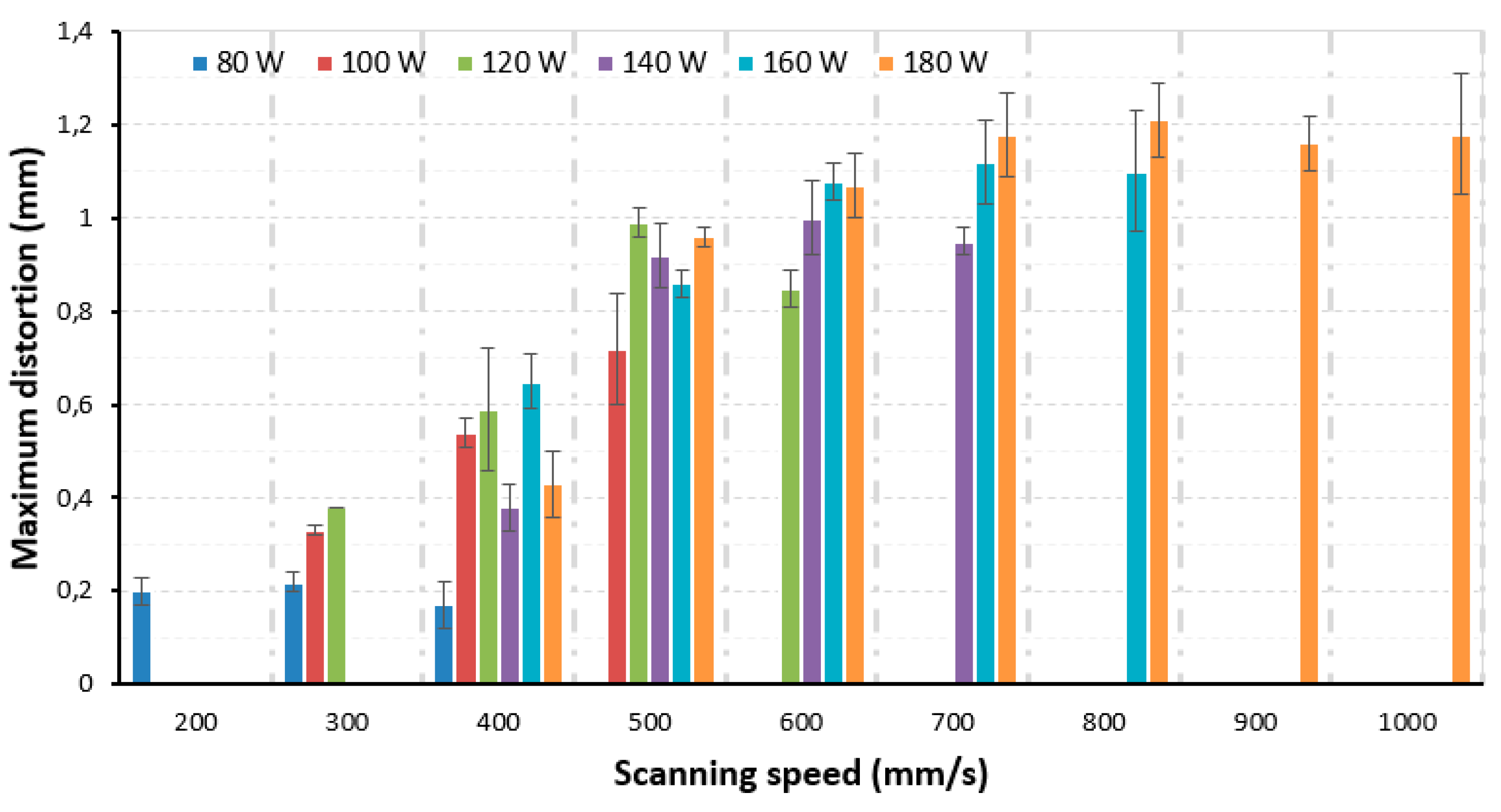

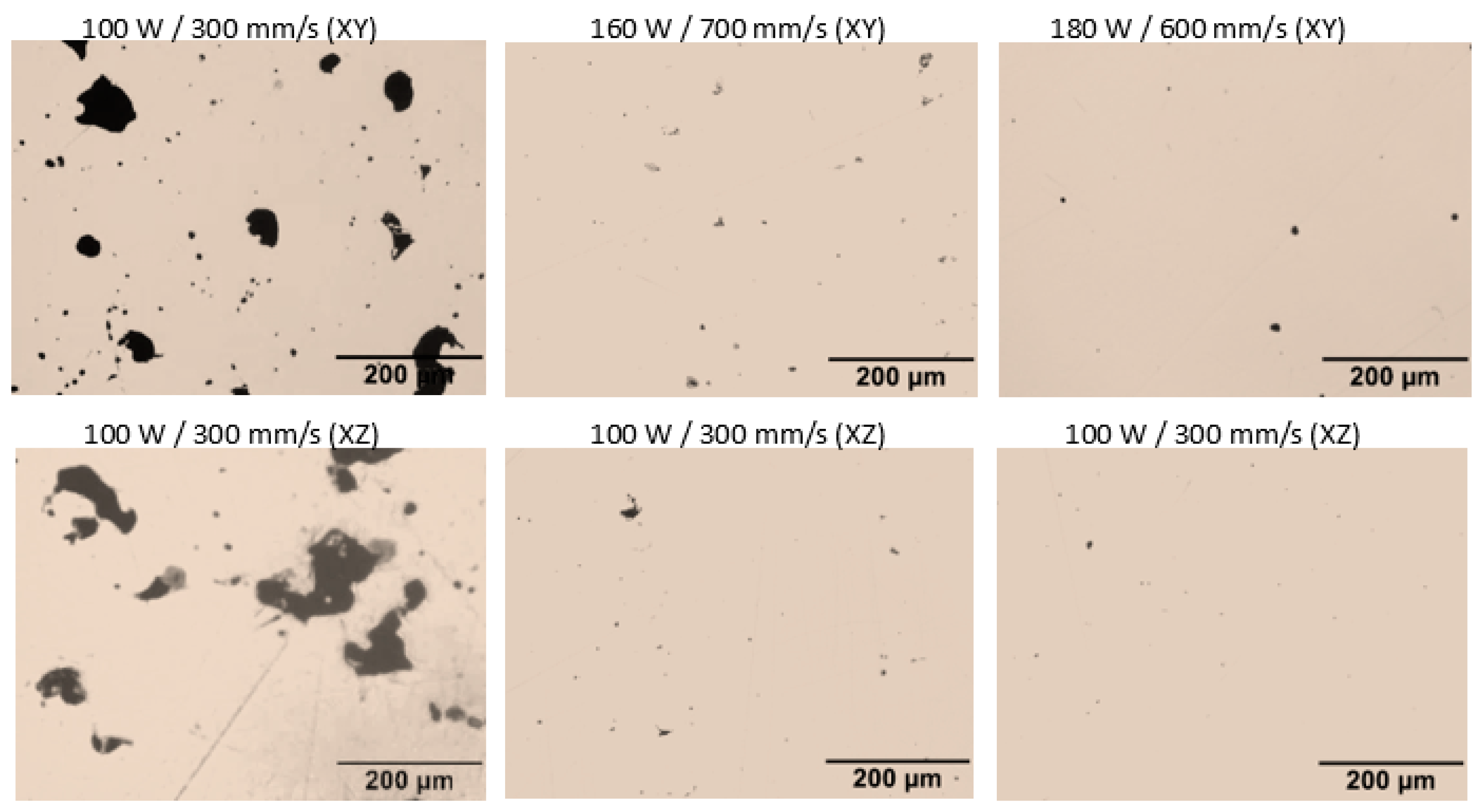

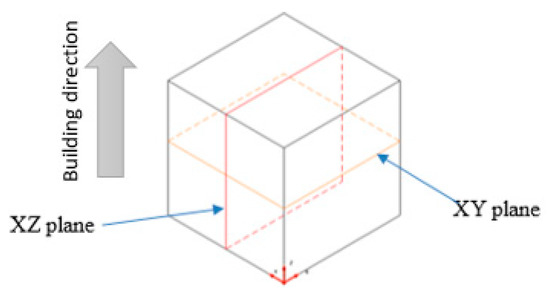

Selective laser melting (SLM) is one of the most well-known additive manufacturing methods available for the fabrication of functional parts from metal powders. Although SLM is now an established metal additive manufacturing technique, its widespread application in industry is still hindered by inherent phenomena, one of which is high residual stresses. Some of the effects of residual stresses–such as warping and thermal stress-related cracking–cannot be corrected by post processing. Therefore, establishing input process parameter combinations that result in the least residual stress magnitudes and related distortions and/or cracking is critical. This paper presents the influence of laser power, scanning speed, and layer thickness on residual stresses, distortions and achievable density for maraging steel 300 steel parts in order to establish the most optimum input parameter combinations. An analysis of the interdependence between process outcomes shows that high residual stress magnitudes lead to high dimensional distortions in the finished parts, whilst porous parts suffer relatively lower residual stresses and associated distortions. View Full-Text
Keywords: selective laser melting; residual stresses; distortions; porosity selective laser melting; residual stresses; distortions; porosity
Show Figures

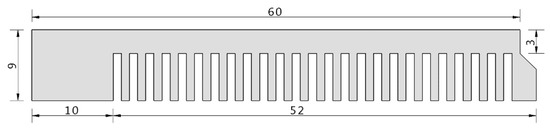

Figure 1

MDPI and ACS Style

Mugwagwa, L.; Yadroitsev, I.; Matope, S. Effect of Process Parameters on Residual Stresses, Distortions, and Porosity in Selective Laser Melting of Maraging Steel 300. Metals 2019, 9, 1042.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
