Finite Element Analysis of Surface Integrity in Deep Ball-Burnishing of a Biodegradable AZ31B Mg Alloy

1
School of Engineering, University of South Australia, Mawson Lakes, SA 5095, Australia
2
Future Industries Institute, University of South Australia, Mawson Lakes, SA 5095, Australia
*
Author to whom correspondence should be addressed.
Metals 2018, 8(2), 136; https://doi.org/10.3390/met8020136
Received: 29 December 2017 / Revised: 3 February 2018 / Accepted: 12 February 2018 / Published: 16 February 2018
  |
PDF [12911 KB, uploaded 23 February 2018]
  |

Abstract

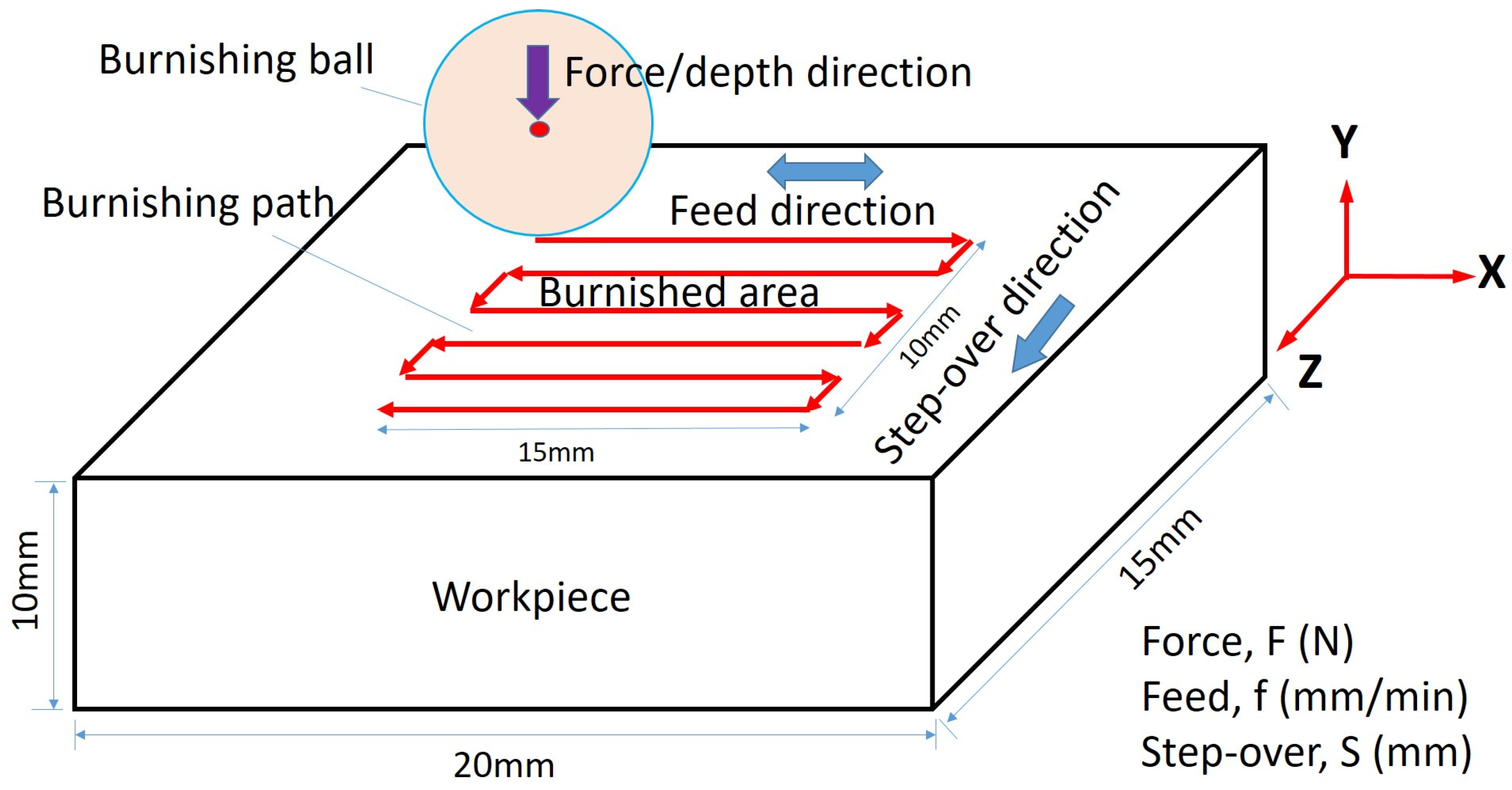

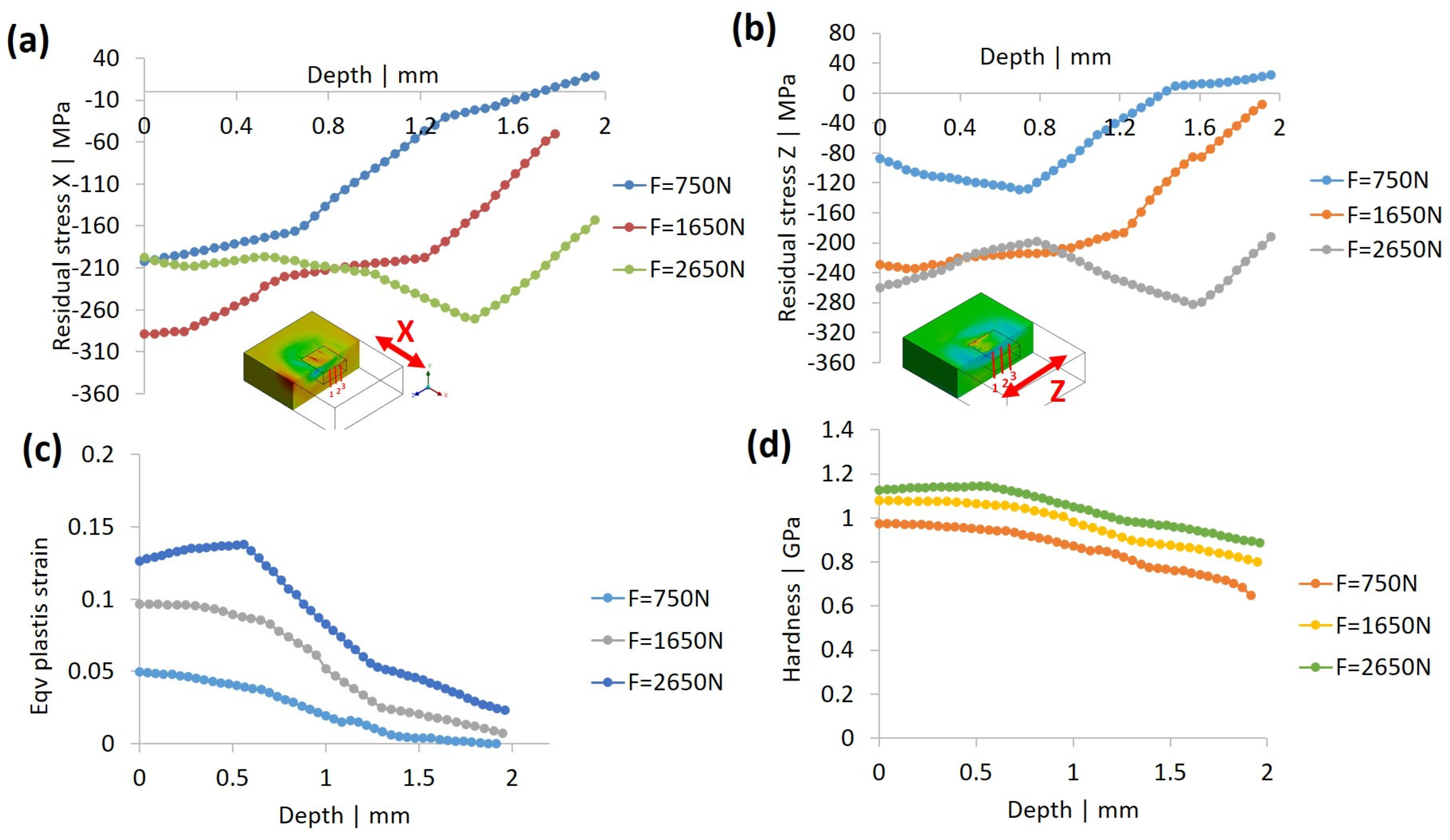

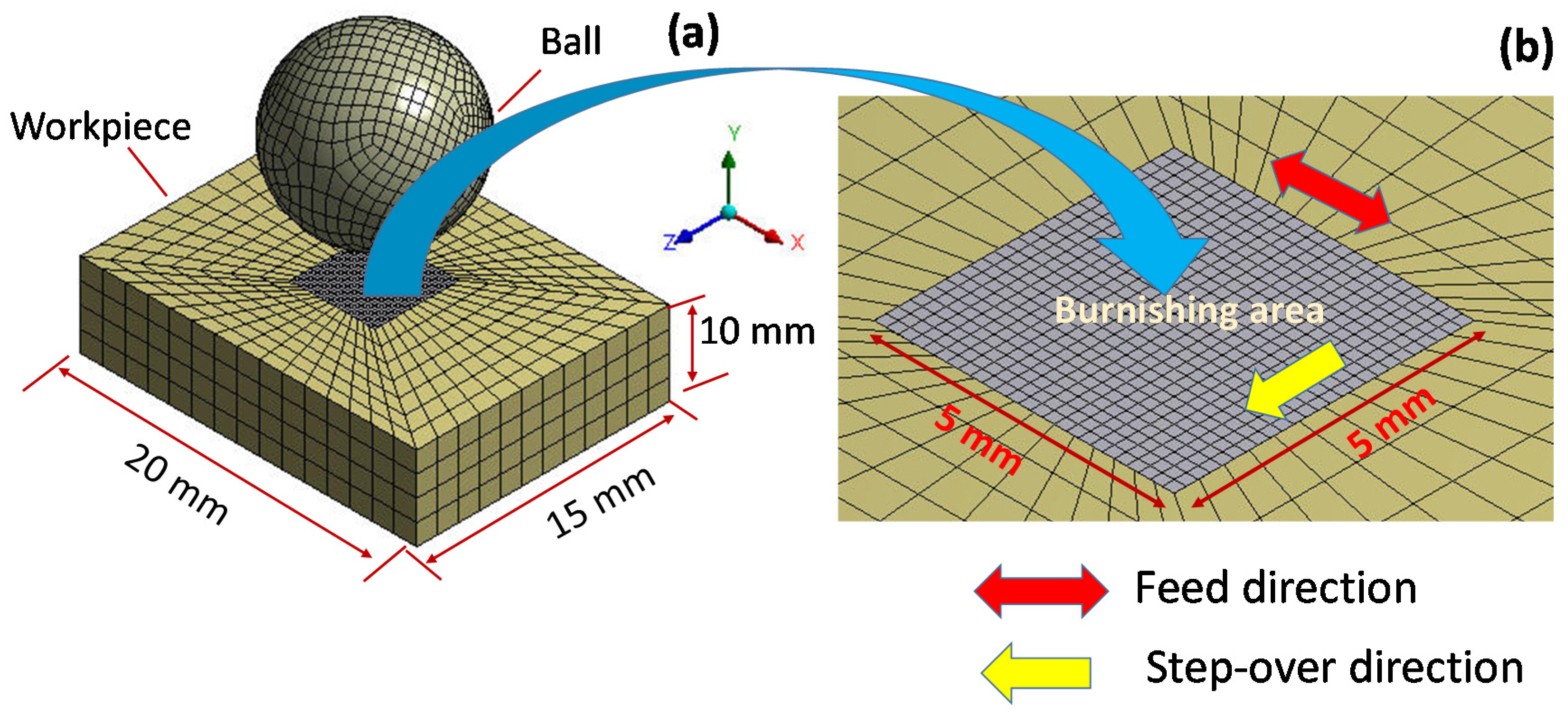

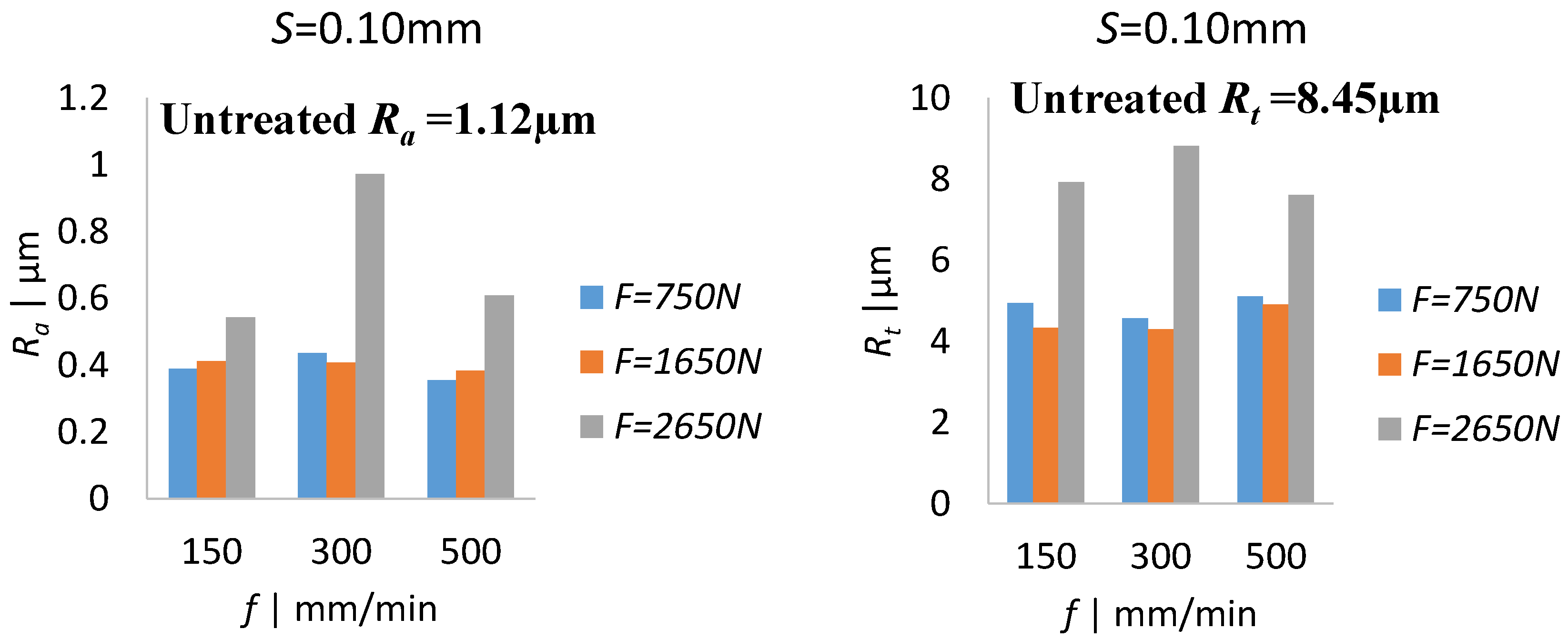

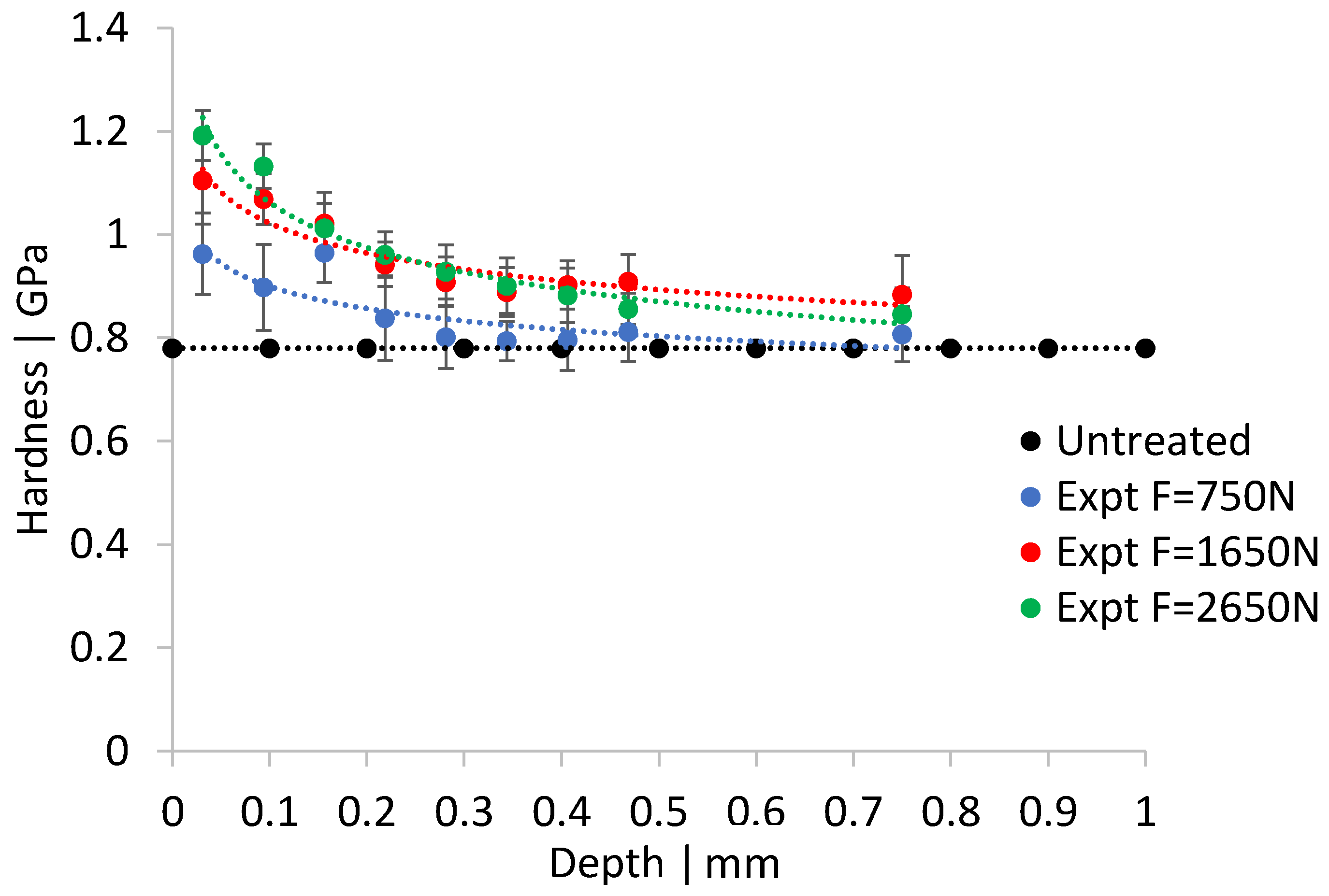

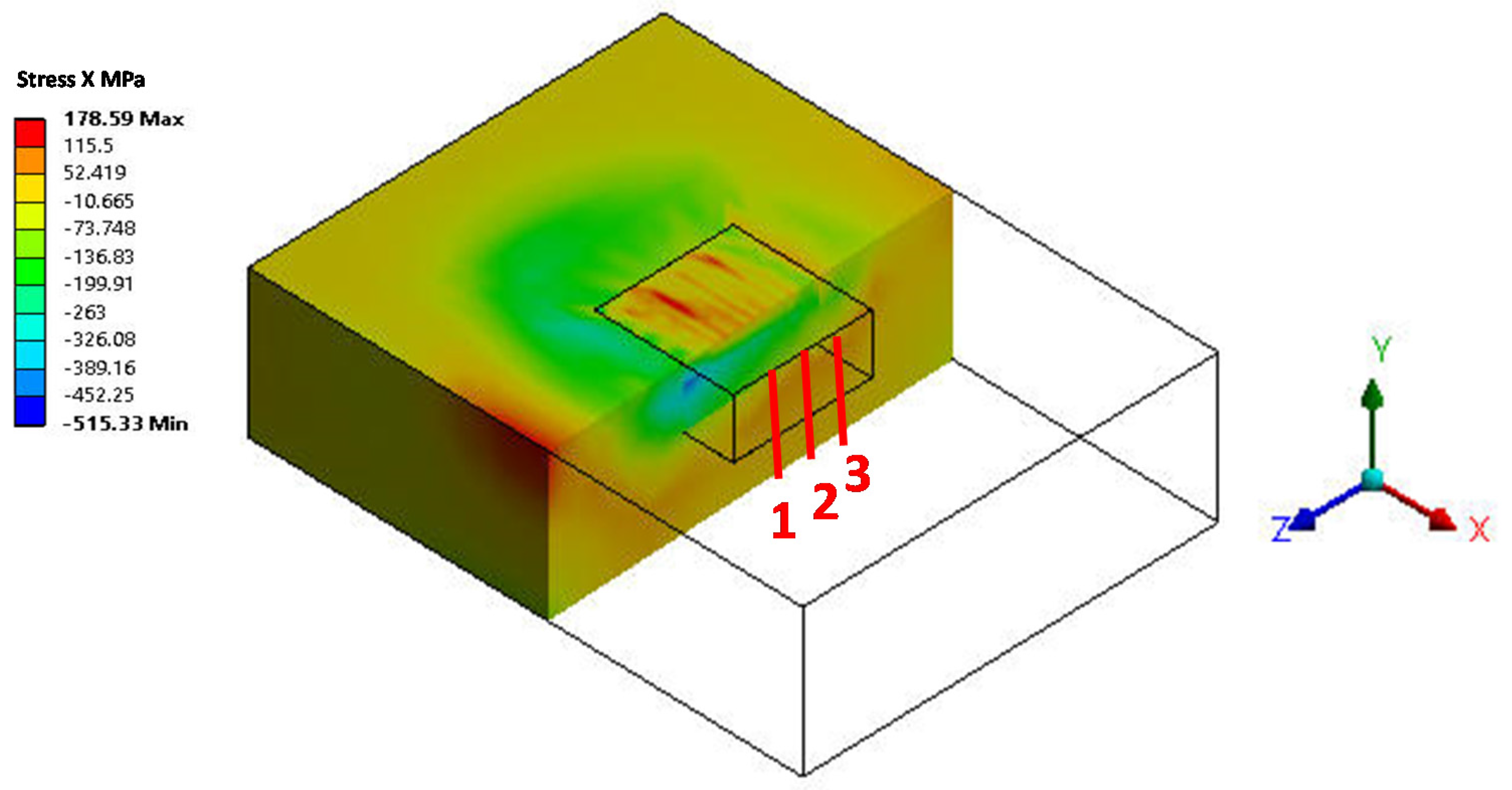

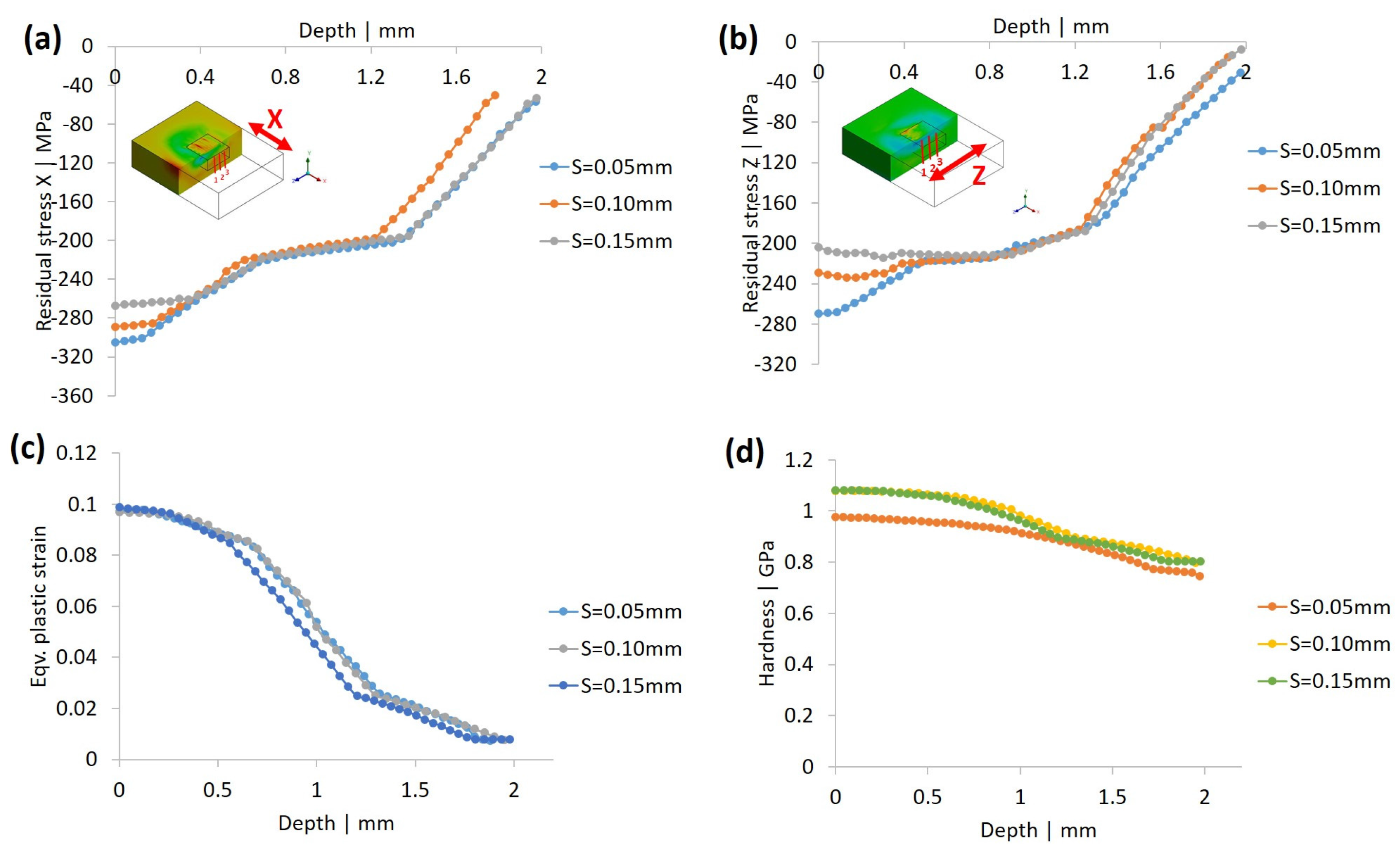

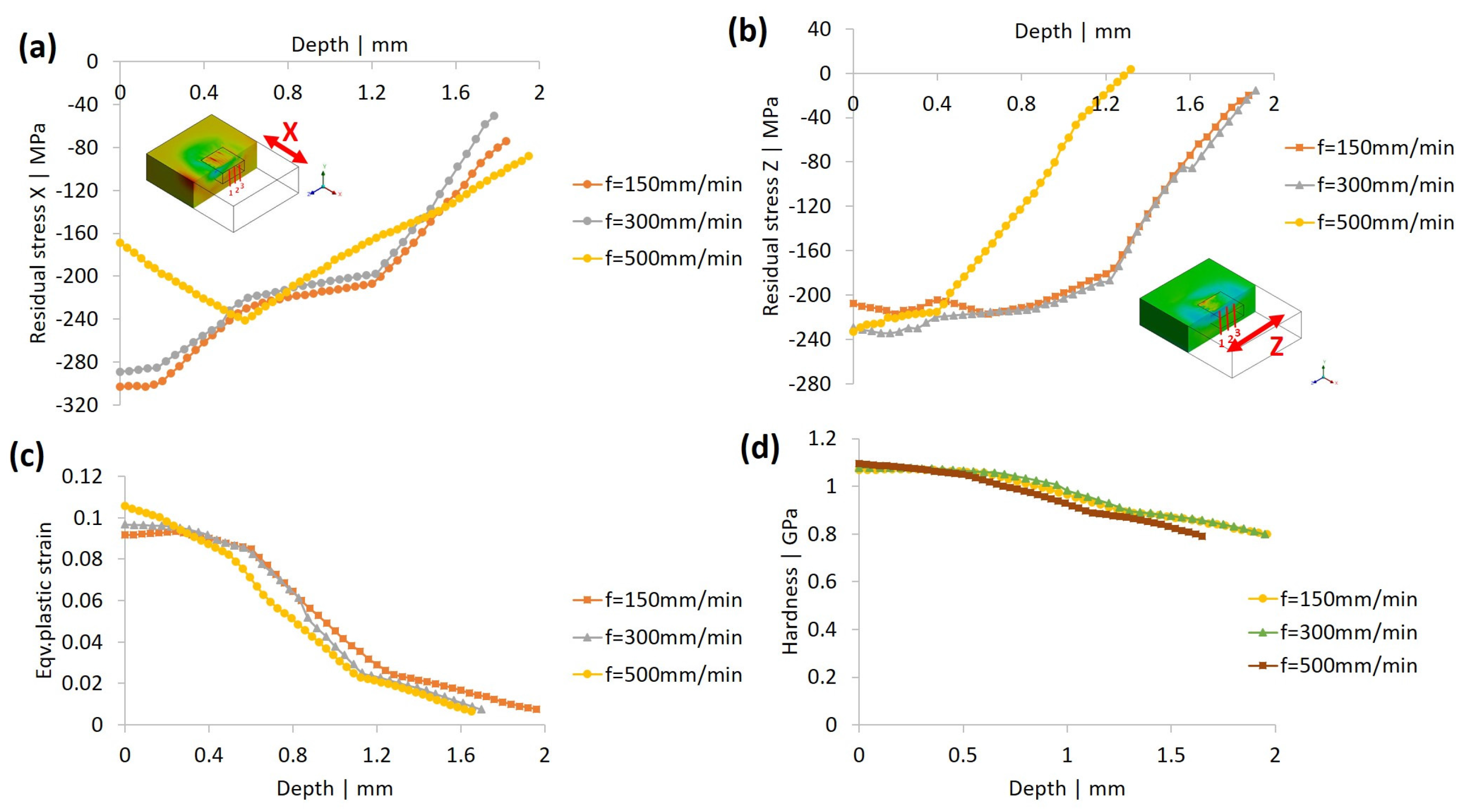

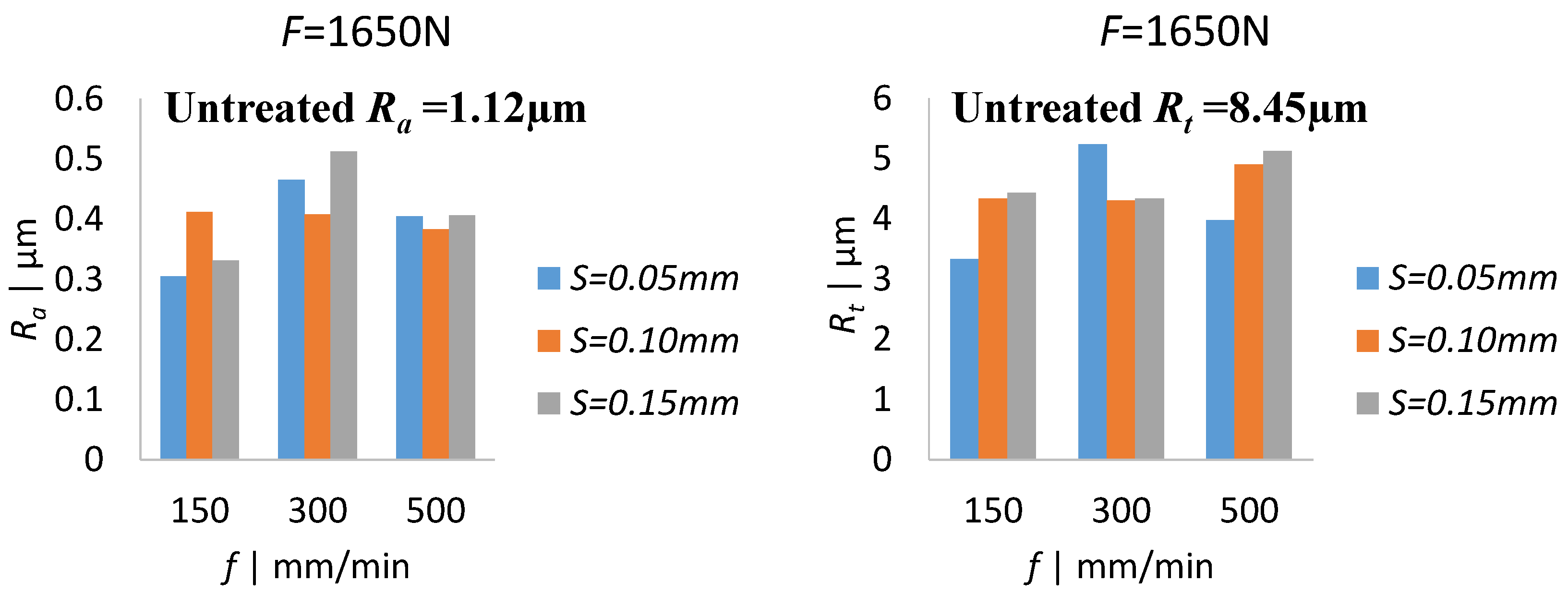

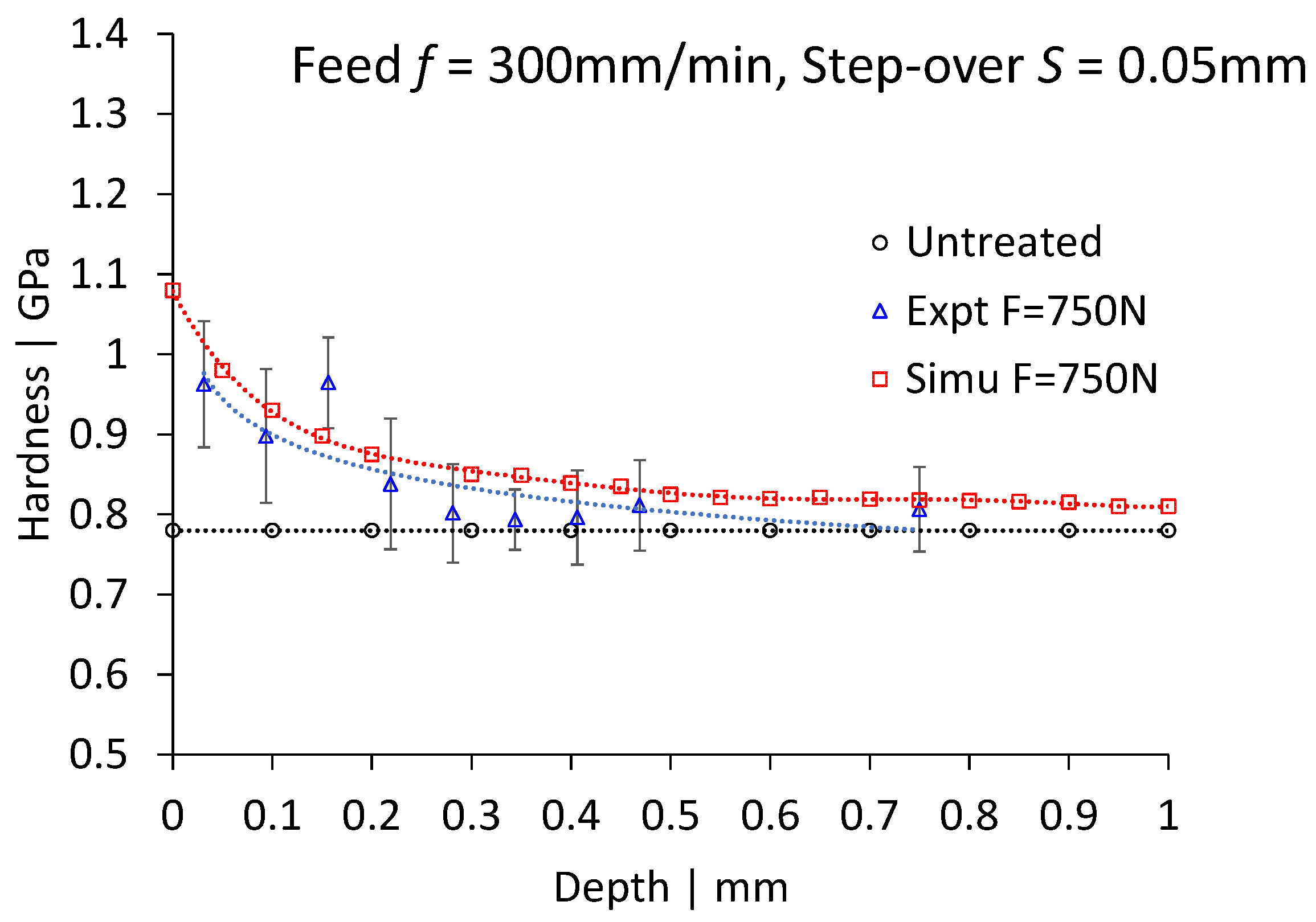

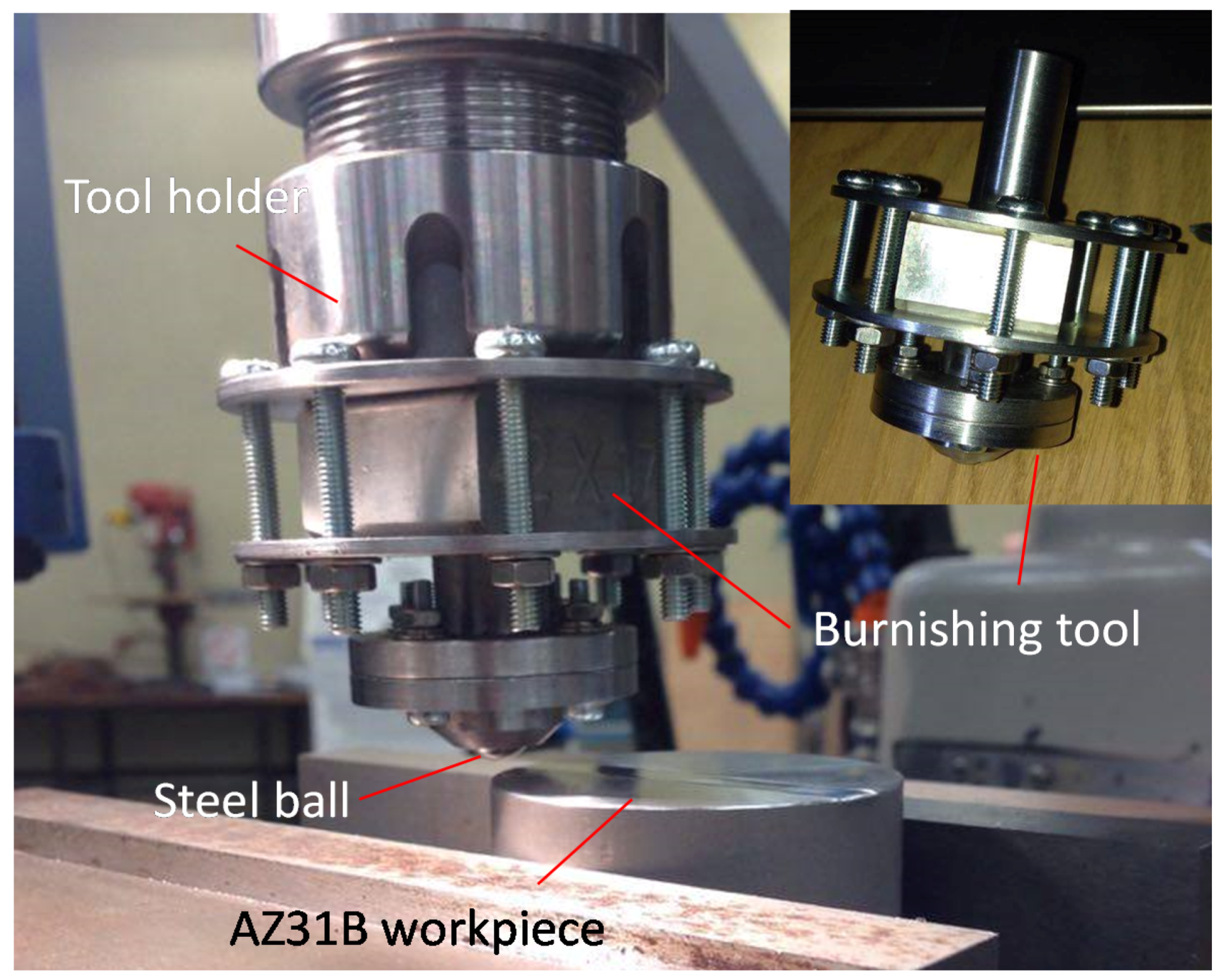

As an effective and affordable technique, deep ball-burnishing has been applied to induce the plastic deformation of material, thus resulting in an increased surface hardness, compressive residual stress, and finish quality. Recent research shows that the fast degradation of an Mg alloy implant is a prime limiting factor for its success in in vivo human trials. This paper presents a comprehensive investigation into deep ball-burnishing of a biodegradable AZ31B Mg alloy, in order to improve the alloy’s surface integrity. A series of experiments using an in-house built burnishing tool with a 10-mm steel ball have been conducted, with a key focus of exploring the influence of the major process parameters—e.g., burnishing force (750–2650 N), feed rate (150–500 mm/min), and step-over (0.05–0.15 mm)—on hardness and finish quality. With the aim of performing a parametric sensitivity study, a three-dimensional (3D) finite element (FE) model is developed to predict the deformation mechanics, plastic flow, hardness, and residual stress. The FE model agrees with the experiment, hence validating the reliability of the model. Results show that while burnishing significantly improves surface integrity compared to the untreated surface, burnishing force and step-over are shown to be dominant. The net material movement dictates generated residual stress (tensile or compressive), often negatively affecting the surface integrity (e.g., surface cracks), which may be responsible for the onset of corrosion. An appropriate burnishing strategy must therefore be planned, in order to achieve the intended process outcome. The resulting surface properties, enhanced by the deep ball-burnishing, are expected to potentially increase the corrosion resistance of AZ31B Mg alloy implants. View Full-Text
Keywords: deep ball-burnishing; biodegradable Mg alloys; surface finish; plastic strain; hardness; residual stress; FE modelling deep ball-burnishing; biodegradable Mg alloys; surface finish; plastic strain; hardness; residual stress; FE modelling
Figures

Figure 1
