Effects of Heat Treatment on Morphology, Texture, and Mechanical Properties of a MnSiAl Multiphase Steel with TRIP Behavior
Previous Article in Journal
High Quality Steel Casting by Using Advanced Mathematical Methods
Open AccessArticle

Analysis of Failure-Mode Dependent Joint Strength in Hole Clinching from the Aspects of Geometrical Interlocking Parameters

1
Dongnam Regional Division, Korea Institute of Industrial Technology, Gyeongsangnam-do 52845, Korea
2
Green Transportation System of Industrial Liaison Innovation Center, Pusan National University, 63, Busandaehak-ro, Geumjeong-gu, Pusan 609-735, Korea
3
School of Mechanical Engineering, Pusan National University, Busan 46241, Korea
4
Department of Industrial and Information Engineering and Economics, University of L’Aquila, 67100 L’Aquila AQ, Italy
5
Graduate School of Convergence Science, Pusan National University, Busan 46241, Korea
*
Author to whom correspondence should be addressed.
Metals 2018, 8(12), 1020; https://doi.org/10.3390/met8121020
Received: 1 October 2018 / Revised: 26 October 2018 / Accepted: 1 December 2018 / Published: 4 December 2018

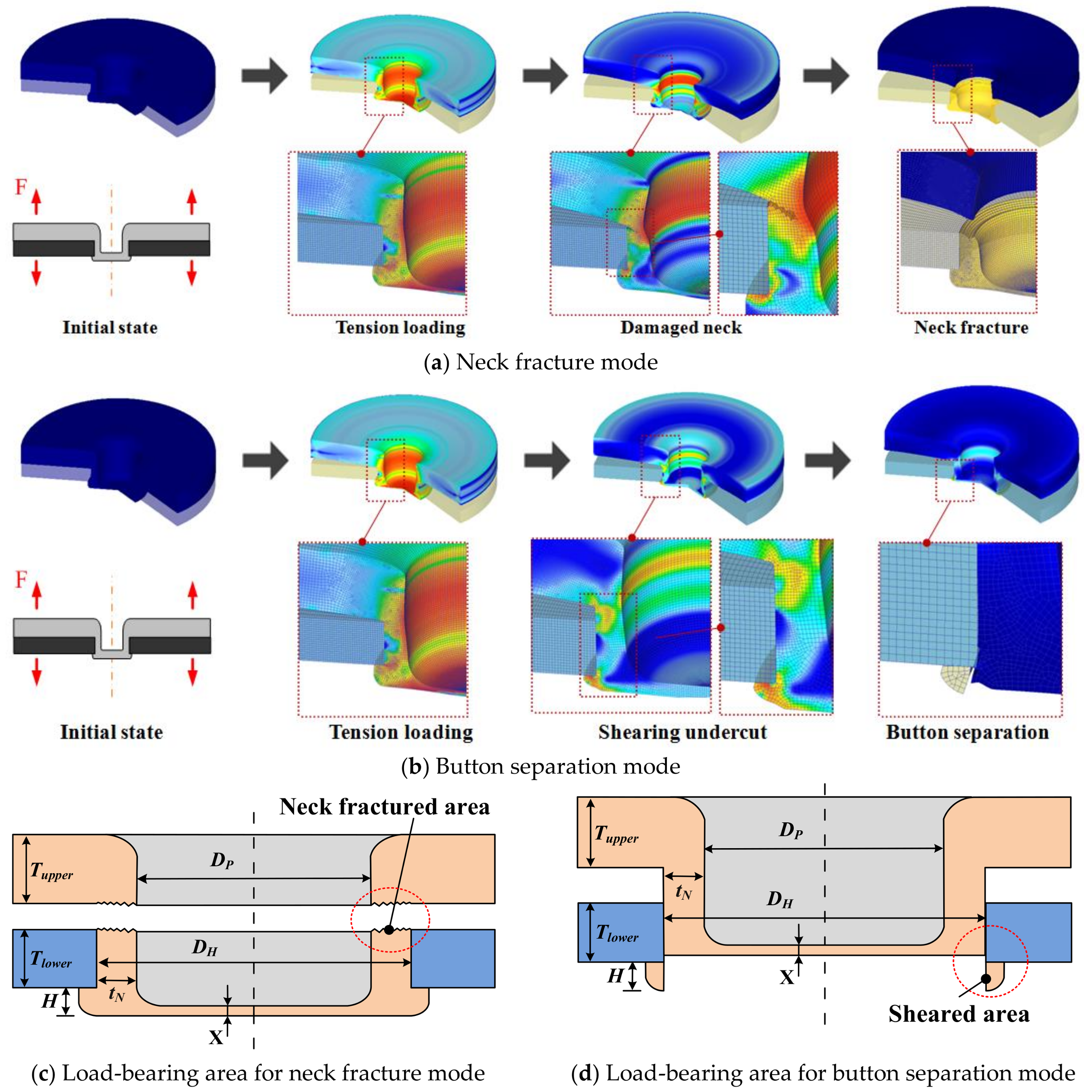

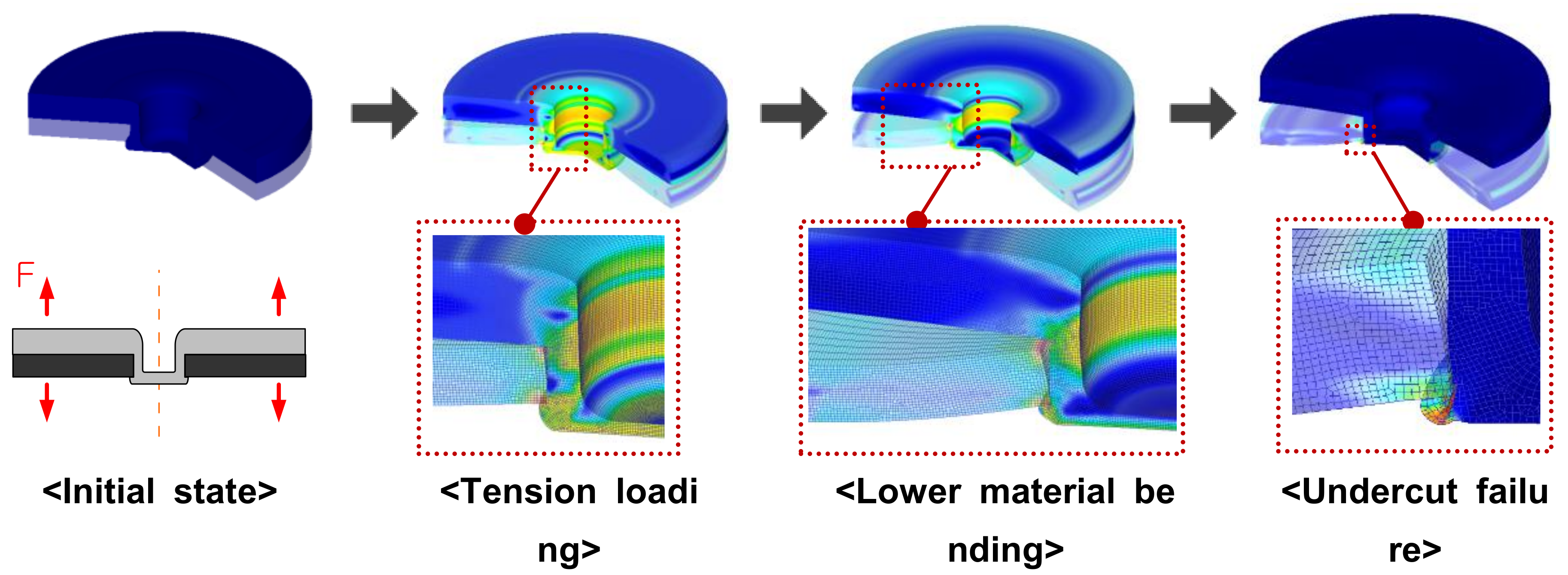

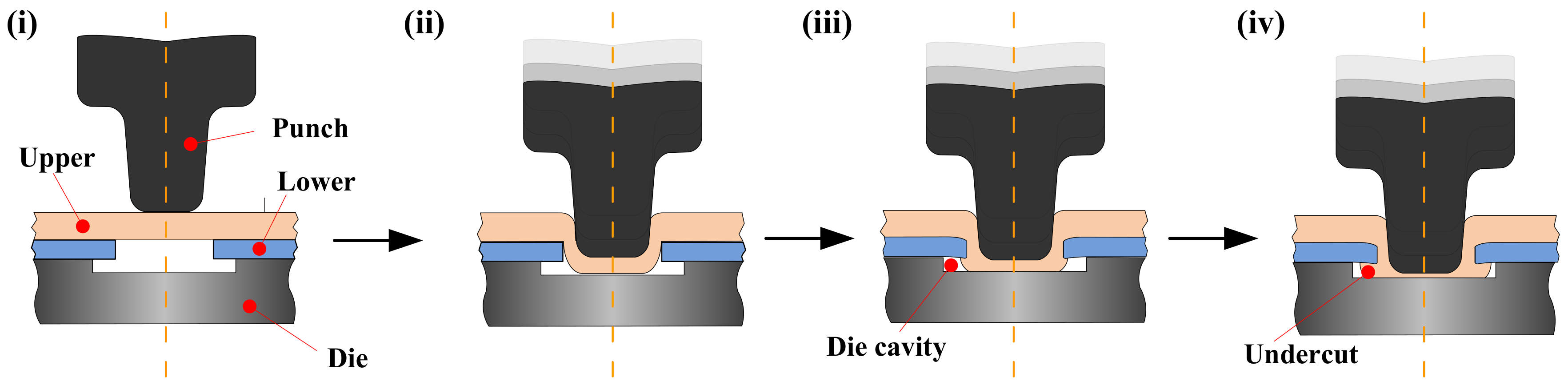

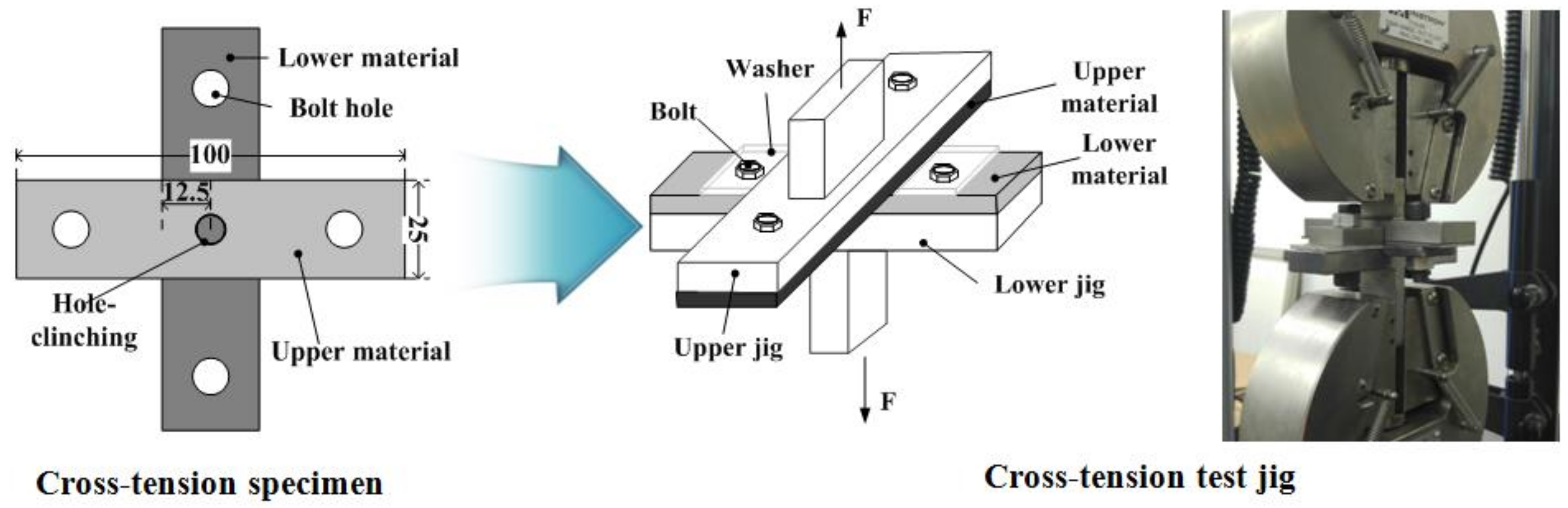

The hole-clinching process is one of the mechanical methods for joining dissimilar materials, such as aluminum alloy with advanced high-strength steel, hot-pressed steel, and carbon fiber reinforced plastics, employing forming technology-based methods. In joint design, the analysis of the failure-mode dependent joint strength is a crucial step in achieving structural performance for practical applications. In this study, the influence of the geometrical interlocking parameters on the failure-mode dependent joint strength was investigated in order to design the geometrical interlocking shape of the hole-clinched joint to achieve a target joint strength. Moreover, the failure process of the hole-clinched joint under pullout loading condition was studied to determine the geometrical interlocking parameters that affect joint strength. Based on the results of the finite element analysis, an analytical approach for the failure-mode dependent joint strength was proposed to predict the strength of the hole-clinched joint. In addition, the proposed analytical approach was applied to the hole-clinching process with dissimilar materials. Its effectiveness was then verified using the cross-tension test. Accordingly, it was found that it was possible to predict the failure modes and joint strength with a maximum error of 7.8%. View Full-Text
Keywords: hole-clinching; failure mode dependent joint strength; neck-fracture mode; button-separation mode; cross-tension test; dissimilar materials hole-clinching; failure mode dependent joint strength; neck-fracture mode; button-separation mode; cross-tension test; dissimilar materials
Show Figures

Graphical abstract

MDPI and ACS Style

Lee, C.-J.; Shen, G.; Kim, B.-M.; Lambiase, F.; Ko, D.-C. Analysis of Failure-Mode Dependent Joint Strength in Hole Clinching from the Aspects of Geometrical Interlocking Parameters. Metals 2018, 8, 1020.
