# A Probabilistic Fatigue Strength Assessment in AlSi-Cast Material by a Layer-Based Approach

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Statistical Analysis of Defects

- if $\xi \to 0$, a Gumbel or Type I distribution is defined; see Equation (2);
- if $\xi >0$, a Fréchet, or Type II distribution is defined;
- if $\xi <0$, a Weibull, or Type III distribution is defined.

#### 1.2. Consideration of Defects in Fatigue Design

#### 1.3. Measurement of Defects

#### 1.4. Outline of the Work

## 2. Materials and Methods

## 3. Experimental Results

#### 3.1. Computed Tomography

^{®}. The cumulative distribution function (CDF) of the GEV is given in Equation (1). A Kolmogorov–Smirnov (KS) test was conducted at a significance level of 5% to determine the goodness of fit for the statistical assessment of the distribution [76]. The empirical distribution of the samples was therefore compared with a hypothesized distribution. Thus, a value of ${p}_{KS}=1.00$ indicates a matching compliance between fit and data. In addition, the parameters for the distributions in this paper were statistically evaluated using the maximum likelihood estimation [28]. A summary of the statistical assessment within the above mentioned layers for Positions HP and LP is given in Figure 9. The trend of the pore size depending on the distance from the surface is plotted for the projected $\sqrt{area}$ for a probability of occurrence ${P}_{Occ}=50\%$ as a solid line with data points for the middle of each layer. Additionally, the scatter band for ${P}_{Occ}=10\%$ and ${P}_{Occ}=90\%$ of the corresponding distribution function is plotted as a dotted line and a dashed line, respectively, in Figure 9. The pore size for ${P}_{Occ}=50\%$ ranges from 46 to 555 µm for the HP specimens and from 102 to 424 µm for the LP specimens. Particularly, in the HP layers, an increased scatter band of the values for ${P}_{Occ}=10\%$ and ${P}_{Occ}=90\%$ can be observed. The reason for that is the occurrence of few very large defects in these sections, leading to a flatter curve of the GEV fit. In contrast, layers inheriting smaller defects result in a steep course of the cumulative distribution function and a lower scatter band of the data.

#### 3.2. Fatigue Strength

#### 3.3. Fractography

## 4. Layer-Based Fatigue Assessment Methodology

## 5. Conclusions

- The clustering of porosity obtained by computed tomography revealed a significant impact on the statistically evaluated parameters of the defect distribution given a high porosity, such as in sponge-like imperfect sections. The effect of clustering may increase the projected size of the largest defect distribution up to 100 µm in such cases; however, if there is a low pore density, clustering has a negligible effect on defect distribution, resulting into a deviation of only a few microns.
- Although the SDAS is quite constant across the whole investigated cross section, significant changes regarding pore size and distribution may occur due to local casting process conditions.
- In order to reduce effort regarding micro-computed tomography for large scan volumes, the applicable distribution function can be also obtained by scanning a smaller, albeit representable, volume and proposing the final distribution parameters scaled by the return value ratio. As illustrated, a deviation of only 11 µm for a defect size of 728 µm and 12 µm for a defect size of 134 µm is observed.
- The previously developed methodology using a probabilistic Kitagawa–Takahasi diagram was extended using defect distributions of computed tomography enabling a non-destructive determination of the fatigue strength.
- The layer-based assessment methodology leads to a sound estimation of the thick-walled specimen fatigue strength at strongly varying casting conditions with deviations in a range of −2.6% up to 12.9%. The introduced methodology enables the probabilistic calculation of the most damaged layer, both dependent on cyclic loading and local casting conditions.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

$\sqrt{area}$ | Defect size of Murakami’s approach |

$\alpha $ | Return period of the highly stressed volume |

$\kappa $ | Weibull factor |

${\sigma}_{LLF}$ | long-life fatigue strength |

${\sigma}_{LLF,{V}_{0}}$ | long-life fatigue strength of the reference volume ${V}_{0}$ |

${\sigma}_{LLF,{V}_{1}}$ | long-life fatigue strength of the $\alpha $-times enlarged volume ${V}_{0}$ |

$\Delta $ | Deviation of model to experiment |

${\sigma}_{0}$ | Fatigue range of near-defect-free material |

${\sigma}_{b}$ | Bending stress |

$\delta $ | Scale parameter of the GEV distribution |

${\delta}_{\alpha}$ | Scale parameter of the GEV distribution for the $\alpha $-times enlarged volume ${V}_{\alpha}$ |

$\mu $ | Location parameter of the GEV distribution |

${\mu}_{\alpha}$ | Location parameter of the GEV distribution for the $\alpha $-times enlarged volume ${V}_{\alpha}$ |

$\xi $ | Shape parameter of the GEV distribution |

${\xi}_{\alpha}$ | Shape parameter of the GEV distribution for the $\alpha $-times enlarged volume ${V}_{\alpha}$ |

${\nu}_{i}$ | Weighting factor for crack closure effect i |

${l}_{i}$ | Crack elongation, where the crack closure effect ${\nu}_{i}$ is completely developed |

$\Delta {K}_{th,lc}$ | Long crack threshold range |

$\Delta {K}_{th,\Delta a}$ | Crack threshold range in respect to the crack extension |

${a}_{SL}$ | Surface layer thickness |

h | Specimen height |

${M}_{b}$ | Bending moment |

$\Delta {K}_{th,eff}$ | Effective crack threshold range |

$\Delta a$ | Crack extension |

a | Crack length |

${a}_{m}$ | Crack length of the reference volume ${V}_{0}$ for a probability of occurrence of 50% |

${a}_{m,\alpha}$ | Crack length of the reference volume ${V}_{\alpha}$ for a probability of occurrence of 50% |

P | Probability |

${P}_{Occ}$ | Probability of occurrence |

${P}_{S}$ | Probability of survival |

${P}^{\alpha}$ | Defect distribution of $\alpha $-times enlarged volume ${V}_{\alpha}$ |

${V}_{90,0}$,${V}_{90,1}$ | 90% highly stressed volumes |

${V}_{\alpha}$ | $\alpha $-times enlarged highly stressed volume |

${p}_{ks}$ | p-value of the Kolmogorov–Smirnov test |

Y | Geometry factor |

${k}_{1}$ | Inverse slope of the S/N curve in finite life region |

${T}_{S}$ | Fatigue scatter band of the S/N-curve |

${N}_{T}$ | Transition knee point of the S/N-curve |

$\Psi $ | Sphericity |

${A}_{pore}$ | Surface area of pore |

R | Load ratio |

R-curve | Cyclic crack resistance curve |

HSV | Highly stressed volume |

SDAS | Secondary dendrite arm spacing |

GEV | Generalized extreme value distribution |

CDF | Cumulative distribution function |

FEM | Finite element method |

HCF | High cycle fatigue |

HIP | Hot isostatic pressing |

CT | Micro-computed tomography |

CP | Local casting process conditions |

CL | Clustering of defects |

GEV | Generalize extreme value distribution |

LP | Low porosity layer |

HP | High porosity layer |

SL | Surface layer |

LEVD | Largest extreme value distribution |

KTD | Kitagawa–Takahasi diagram |

HT | Heat treatment |

E | Young’s modulus |

TS | Tensile strength |

YS | Yield strength |

A | Elongation at fracture |

BM | Base material strength of near-defect-free material |

FDD | Focus detector distance |

FOD | Focus object distance |

## References

- Yang, Q.; Xia, C.; Deng, Y.; Li, X.; Wang, H. Microstructure and Mechanical Properties of AlSi7Mg0.6 Aluminum Alloy Fabricated by Wire and Arc Additive Manufacturing Based on Cold Metal Transfer (WAAM-CMT). Materials
**2019**, 12, 2525. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Feikus, F.J.; Bernsteiner, P.; Gutiérrez, R.F.; uszczak, M. Weiterentwicklungen bei Gehäusen von Elektromotoren. MTZ—Mot. Z.
**2020**, 81, 42–47. [Google Scholar] [CrossRef] - Berlanga-Labari, C.; Biezma-Moraleda, M.V.; Rivero, P.J. Corrosion of Cast Aluminum Alloys: A Review. Metals
**2020**, 10, 1384. [Google Scholar] [CrossRef] - Zerbst, U.; Madia, M.; Klinger, C.; Bettge, D.; Murakami, Y. Defects as a root cause of fatigue failure of metallic components. III: Cavities, dents, corrosion pits, scratches. Eng. Fail. Anal.
**2019**, 97, 759–776. [Google Scholar] [CrossRef] - Boileau, J.M.; Allison, J.E. The effect of solidification time and heat treatment on the fatigue properties of a cast 319 aluminum alloy. Metall. Trans.
**2003**, 34, 1807–1820. [Google Scholar] [CrossRef] - Zhang, L.Y.; Jiang, Y.H.; Ma, Z.; Shan, S.F.; Jia, Y.Z.; Fan, C.Z.; Wang, W.K. Effect of cooling rate on solidified microstructure and mechanical properties of aluminium-A356 alloy. J. Mater. Process. Technol.
**2008**, 207, 107–111. [Google Scholar] [CrossRef] - Savaş, Ö.; Kayikci, R. Application of Taguchi’s methods to investigate some factors affecting microporosity formation in A360 aluminium alloy casting. Mater. Des.
**2007**, 28, 2224–2228. [Google Scholar] [CrossRef] - Zhang, B.; Chen, W.; Poirier, D.R. Effect of solidification cooling rate on the fatigue life of A356.2-T6 cast aluminium alloy. Fatigue Fract. Eng. Mater. Struct.
**2000**, 23, 417–423. [Google Scholar] [CrossRef] - Felberbaum, M.; Rappaz, M. Curvature of micropores in Al–Cu alloys: An X-ray tomography study. Acta Mater.
**2011**, 59, 6849–6860. [Google Scholar] [CrossRef] [Green Version] - Rotella, A.; Nadot, Y.; Piellard, M.; Augustin, R.; Fleuriot, M. Fatigue limit of a cast Al-Si-Mg alloy (A357-T6) with natural casting shrinkages using ASTM standard X-ray inspection. Int. J. Fatigue
**2018**, 114, 177–188. [Google Scholar] [CrossRef] - Serrano-Munoz, I.; Buffière, J.Y.; Verdu, C.; Gaillard, Y.; Mu, P.; Nadot, Y. Influence of surface and internal casting defects on the fatigue behaviour of A357-T6 cast aluminium alloy. Int. J. Fatigue
**2016**, 82, 361–370. [Google Scholar] [CrossRef] - Leitner, M.; Stoschka, M.; Fröschl, J.; Wiebesiek, J. Surface Topography Effects on the Fatigue Strength of Cast Aluminum Alloy AlSi8Cu3. Mater. Perform. Charact.
**2018**, 7, 20170127. [Google Scholar] [CrossRef] - Pomberger, S.; Oberreiter, M.; Leitner, M.; Stoschka, M.; Thuswaldner, J. Probabilistic Surface Layer Fatigue Strength Assessment of EN AC-46200 Sand Castings. Metals
**2020**, 10, 616. [Google Scholar] [CrossRef] - DIN EN ISO 4287:2010-07; Geometrical Product Specifications (GPS)—Surface Texture: Profile Method—Terms, Definitions and Surface Texture Parameters. Beuth Verlag GmbH: Berlin, Germany, 2010.
- DIN EN ISO 4288:1998-04; Geometrical Product Specifications (GPS)—Surface Texture: Profile method—Rules and Procedures for the Assessment of Surface Texture. Beuth Verlag GmbH: Berlin, Germany, 1998.
- ISO 25178; Geometrical Product Specifications (GPS)—Surface Texture: Areal. Beuth Verlag GmbH: Berlin, Germany, 2012.
- Murakami, Y. Metal Fatigue: Effects of Small Defects and Nonmetallic Inclusions; Elsevier: Amsterdam, The Netherlands, 2002. [Google Scholar]
- Nourian-Avval, A.; Fatemi, A. Characterization and Analysis of Porosities in High Pressure Die Cast Aluminum by Using Metallography, X-ray Radiography, and Micro-Computed Tomography. Materials
**2020**, 13, 3068. [Google Scholar] [CrossRef] - Nudelis, N.; Mayr, P. A Novel Classification Method for Pores in Laser Powder Bed Fusion. Metals
**2021**, 11, 1912. [Google Scholar] [CrossRef] - ASTM E155-15; Standard Reference Radiographs for Inspection of Aluminum and Magnesium Castings. ASTM International: West Conshohocken, PA, USA, 2015.
- Aigner, R.; Pusterhofer, S.; Pomberger, S.; Leitner, M.; Stoschka, M. A probabilistic Kitagawa-Takahashi diagram for fatigue strength assessment of cast aluminium alloys. Mater. Sci. Eng. A
**2019**, 745, 326–334. [Google Scholar] [CrossRef] - Beretta, S.; Romano, S. A comparison of fatigue strength sensitivity to defects for materials manufactured by AM or traditional processes. Int. J. Fatigue
**2017**, 94, 178–191. [Google Scholar] [CrossRef] - Murakami, Y. Material defects as the basis of fatigue design. Int. J. Fatigue
**2012**, 41, 2–10. [Google Scholar] [CrossRef] - Leitner, M.; Garb, C.; Remes, H.; Stoschka, M. Microporosity and statistical size effect on the fatigue strength of cast aluminium alloys EN AC-45500 and 46200. Mater. Sci. Eng. A
**2017**, 707, 567–575. [Google Scholar] [CrossRef] - Romano, S.; Abel, A.; Gumpinger, J.; Brandão, A.D.; Beretta, S. Quality control of AlSi10Mg produced by SLM: Metallography versus CT scans for critical defect size assessment. Addit. Manuf.
**2019**, 28, 394–405. [Google Scholar] [CrossRef] - Romano, S.; Nezhadfar, P.D.; Shamsaei, N.; Seifi, M.; Beretta, S. High cycle fatigue behavior and life prediction for additively manufactured 17-4 PH stainless steel: Effect of sub-surface porosity and surface roughness. Theor. Appl. Fract. Mech.
**2020**, 106, 102477. [Google Scholar] [CrossRef] - Romano, S.; Brückner-Foit, A.; Brandão, A.; Gumpinger, J.; Ghidini, T.; Beretta, S. Fatigue properties of AlSi10Mg obtained by additive manufacturing: Defect-based modelling and prediction of fatigue strength. Eng. Fract. Mech.
**2018**, 187, 165–189. [Google Scholar] [CrossRef] - Beretta, S.; Murakami, Y. Statistical analysis of defects for fatigue strength prediction and quality control of materials. Fatigue Fract. Eng. Mater. Struct.
**1998**, 21, 1049–1065. [Google Scholar] [CrossRef] - Oberreiter, M.; Pomberger, S.; Leitner, M.; Stoschka, M. Validation Study on the Statistical Size Effect in Cast Aluminium. Metals
**2020**, 10, 710. [Google Scholar] [CrossRef] - Aigner, R.; Pomberger, S.; Leitner, M.; Stoschka, M. On the Statistical Size Effect of Cast Aluminium. Materials
**2019**, 12, 1578. [Google Scholar] [CrossRef] [Green Version] - Tiryakioğlu, M. Statistical distributions for the size of fatigue-initiating defects in Al–7%Si–0.3%Mg alloy castings: A comparative study. Mater. Sci. Eng. A
**2008**, 497, 119–125. [Google Scholar] [CrossRef] - Tiryakioğlu, M. On the relationship between statistical distributions of defect size and fatigue life in 7050-T7451 thick plate and A356-T6 castings. Mater. Sci. Eng. A
**2009**, 520, 114–120. [Google Scholar] [CrossRef] - Tenkamp, J.; Koch, A.; Knorre, S.; Krupp, U.; Michels, W.; Walther, F. Defect-correlated fatigue assessment of A356-T6 aluminum cast alloy using computed tomography based Kitagawa-Takahashi diagrams. Int. J. Fatigue
**2018**, 108, 25–34. [Google Scholar] [CrossRef] - Beretta, S. More than 25 years of extreme value statistics for defects: Fundamentals, historical developments, recent applications. Int. J. Fatigue
**2021**, 151, 106407. [Google Scholar] [CrossRef] - Mahdi, S.; Myrtene, C. Estimating Parameters of Gumbel Distribution using the Methods of Moments, probability weighted moments and maximum likelihood. Rev. Mat. Teor. Apl.
**2005**, 12, 151–156. [Google Scholar] [CrossRef] [Green Version] - Lawless, J.F. Statistical Models and Methods for Lifetime Data; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2002. [Google Scholar] [CrossRef]
- Kotz, S.; Nadarajah, S. Extreme Value Distributions: Theory and Applicaitons; Imperial College Press and Distributed by World Scientific Publishing Co.: Covent Garden, London, 2000. [Google Scholar] [CrossRef]
- Gumbel, E.J. Statistics of Extremes; Columbia University Press: New York Chichester, West Sussex, 1958. [Google Scholar]
- Kitagawa, H.; Takahashi, S. (Eds.) Applicability of Fracture Mechanics to Very Small Cracks or the Cracks in the Early Stage; American Society for Metals: Cleveland, 1976. [Google Scholar]
- Radaj, D. Geometry correction for stress intesity at elliptical cracks. Weld. Cut.
**1977**, 29, 198–402. [Google Scholar] - El Haddad, M.H.; Smith, K.N.; Topper, T.H. Fatigue Crack Propagation of Short Cracks. J. Eng. Mater. Technol.
**1979**, 101, 42. [Google Scholar] [CrossRef] - El Haddad, M.H.; Topper, T.H.; Smith, K.N. Prediction of non propagating cracks. Eng. Fract. Mech.
**1979**, 11, 573–584. [Google Scholar] [CrossRef] - Chapetti, M.D. Fatigue propagation threshold of short cracks under constant amplitude loading. Int. J. Fatigue
**2003**, 25, 1319–1326. [Google Scholar] [CrossRef] - Pippan, R.; Hohenwarter, A. Fatigue crack closure: A review of the physical phenomena. Fatigue Fract. Eng. Mater. Struct.
**2017**, 40, 471–495. [Google Scholar] [CrossRef] - Maierhofer, J.; Pippan, R.; Gänser, H.P. Modified NASGRO equation for physically short cracks. Int. J. Fatigue
**2014**, 59, 200–207. [Google Scholar] [CrossRef] [Green Version] - Maierhofer, J.; Kolitsch, S.; Pippan, R.; Gänser, H.P.; Madia, M.; Zerbst, U. The cyclic R-curve—Determination, problems, limitations and application. Eng. Fract. Mech.
**2018**, 198, 45–64. [Google Scholar] [CrossRef] - Sonsino, C.M. Zur Bewertung des Schwingfestigkeitsverhaltens von Bauteilen mit Hilfe örtlicher Beanspruchungen. Konstruktion
**1993**, 45, 25–33. [Google Scholar] - Rechnerischer Festigkeitsnachweis für Maschinenbauteile aus Stahl, Eisenguss- und Aluminiumwerkstoffen, 6th ed.; FKM-Richtlinie, VDMA-Verl.: Frankfurt am Main, Germany, 2012.
- Ai, Y.; Zhu, S.P.; Liao, D.; Correia, J.; Souto, C.; de Jesus, A.; Keshtegar, B. Probabilistic modeling of fatigue life distribution and size effect of components with random defects. Int. J. Fatigue
**2019**, 126, 165–173. [Google Scholar] [CrossRef] - Zhu, S.P.; Ai, Y.; Liao, D.; Correia, J.A.F.O.; De Jesus, A.M.P.; Wang, Q. Recent advances on size effect in metal fatigue under defects: A review. Int. J. Fract.
**2021**, 1–23. [Google Scholar] [CrossRef] - Léopold, G.; Nadot, Y.; Billaudeau, T.; Mendez, J. Influence of artificial and casting defects on fatigue strength of moulded components in Ti-6Al-4V alloy. Fatigue Fract. Eng. Mater. Struct.
**2015**, 38, 1026–1041. [Google Scholar] [CrossRef] - Iben Houria, M.; Nadot, Y.; Fathallah, R.; Roy, M.; Maijer, D.M. Influence of casting defect and SDAS on the multiaxial fatigue behaviour of A356-T6 alloy including mean stress effect. Int. J. Fatigue
**2015**, 80, 90–102. [Google Scholar] [CrossRef] - Romano, S.; Brandão, A.; Gumpinger, J.; Gschweitl, M.; Beretta, S. Qualification of AM parts: Extreme value statistics applied to tomographic measurements. Mater. Des.
**2017**, 131, 32–48. [Google Scholar] [CrossRef] [Green Version] - Nadot, Y.; Nadot-Martin, C.; Kan, W.H.; Boufadene, S.; Foley, M.; Cairney, J.; Proust, G.; Ridosz, L. Predicting the fatigue life of an AlSi10Mg alloy manufactured via laser powder bed fusion by using data from computed tomography. Addit. Manuf.
**2020**, 32, 100899. [Google Scholar] [CrossRef] - Rotella, A.; Nadot, Y.; Piellard, M.; Augustin, R.; Fleuriot, M. Influence of defect morphology and position on the fatigue limit of cast Al alloy: 3D characterization by X-ray microtomography of natural and artificial defects. Mater. Sci. Eng. A
**2020**, 785, 139347. [Google Scholar] [CrossRef] - Nadot, Y. Fatigue from Defect: Influence of Size, Type, Position, Morphology and Loading. Int. J. Fatigue
**2022**, 154, 106531. [Google Scholar] [CrossRef] - Åman, M.; Okazaki, S.; Matsunaga, H.; Marquis, G.B.; Remes, H. Interaction effect of adjacent small defects on the fatigue limit of a medium carbon steel. Fatigue Fract. Eng. Mater. Struct.
**2017**, 40, 130–144. [Google Scholar] [CrossRef] - Åman, M.; Okazaki, S.; Matsunaga, H.; Marquis, G.B.; Remes, H. The effect of interacting small defects on the fatigue limit of a medium carbon steel. Procedia Struct. Integr.
**2016**, 2, 3322–3329. [Google Scholar] [CrossRef] - Li, P.; Lee, P.D.; Maijer, D.M.; Lindley, T.C. Quantification of the interaction within defect populations on fatigue behavior in an aluminum alloy. Acta Mater.
**2009**, 57, 3539–3548. [Google Scholar] [CrossRef] - Bidhar, S.; Kuwazuru, O.; Shiihara, Y.; Utsunomiya, T.; Hangai, Y.; Nomura, M.; Watanabe, I.; Yoshikawa, N. Empirical formulation of stress concentration factor around an arbitrary-sized spherical dual-cavity system and its application to aluminum die castings. Appl. Math. Model.
**2015**, 39, 5707–5723. [Google Scholar] [CrossRef] - Ben Ahmed, A.; Houria, M.I.; Fathallah, R.; Sidhom, H. The effect of interacting defects on the HCF behavior of Al-Si-Mg aluminum alloys. J. Alloy. Compd.
**2019**, 779, 618–629. [Google Scholar] [CrossRef] - Campbell, J. Complete Casting Handbook: Metal Casting Processes, Techniques and Design; Elsevier Butterworth-Heinemann: Oxford, UK, 2011. [Google Scholar]
- Ernst, F.; Kube, D.; Klaus, G.; Nemak Dillingen GmbH. Al-Kurbelgehäuse mit thermisch gespritzter Eisenbasisbeschichtung: Gießtechnische Anforderungen. Giesserei
**2013**, 100, 44–51. [Google Scholar] - DIN EN 1706; Aluminium and Aluminium Alloys—Castings—Chemical Composition and Mechanical Properties; German version EN 1706:2010. Beuth Verlag GmbH: Berlin, Germany, 2013.
- Pomberger, S.; Stoschka, M.; Aigner, R.; Leitner, M.; Ehart, R. Areal fatigue strength assessment of cast aluminium surface layers. Int. J. Fatigue
**2020**, 133, 105423. [Google Scholar] [CrossRef] - Canals, L.; Badreddine, J.; McGillivray, B.; Miao, H.Y.; Levesque, M. Effect of vibratory peening on the sub-surface layer of aerospace materials Ti-6Al-4V and E-16NiCrMo13. J. Mater. Process. Technol.
**2019**, 264, 91–106. [Google Scholar] [CrossRef] - Alcaraz, J.Y.; Zhang, J.; Nagalingam, A.P.; Gopasetty, S.K.; Toh, B.L.; Gopinath, A.; Ahluwalia, K.; Ang, M.G.W.; Yeo, S.H. Numerical modeling of residual stresses during vibratory peening of a 3-stage Blisk—A multi-scale discrete element and finite element approach. J. Mater. Process. Technol.
**2022**, 299, 117383. [Google Scholar] [CrossRef] - Kumar, D.; Idapalapati, S.; Wang, W.; Child, D.J.; Haubold, T.; Wong, C.C. Microstructure-mechanical property correlation in shot peened and vibro-peened Ni-based superalloy. J. Mater. Process. Technol.
**2019**, 267, 215–229. [Google Scholar] [CrossRef] - Kumar, D.; Idapalapati, S.; Wang, W.; Narasimalu, S. Effect of Surface Mechanical Treatments on the Microstructure-Property-Performance of Engineering Alloys. Materials
**2019**, 12, 2503. [Google Scholar] [CrossRef] [Green Version] - van der Walt, S.; Schönberger, J.L.; Nunez-Iglesias, J.; Boulogne, F.; Warner, J.D.; Yager, N.; Gouillart, E.; Yu, T. scikit-image: image processing in Python. PeerJ
**2014**, 2, e453. [Google Scholar] [CrossRef] - Buades, A.; Coll, B.; Morel, J.M. A Non-Local Algorithm for Image Denoising. In Proceedings of the 2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR’05), San Diego, CA, USA, 20–25 June 2005; pp. 60–65. [Google Scholar] [CrossRef]
- Darbon, J.; Cunha, A.; Chan, T.F.; Osher, S.; Jensen, G.J. Fast nonlocal filtering applied to electron cryomicroscopy. In Proceedings of the 2008 5th IEEE International Symposium on Biomedical Imaging: From Nano to Macro, Paris, France, 14–17 May 2008; pp. 1331–1334. [Google Scholar] [CrossRef]
- Buades, A.; Coll, B.; Morel, J.M. Non-Local Means Denoising. Image Process. Line
**2011**, 1, 208–212. [Google Scholar] [CrossRef] [Green Version] - Froment, J. Parameter-Free Fast Pixelwise Non-Local Means Denoising. Image Process. Line
**2014**, 4, 300–326. [Google Scholar] [CrossRef] [Green Version] - Schneller, W.; Leitner, M.; Leuders, S.; Sprauel, J.M.; Grün, F.; Pfeifer, T.; Jantschner, O. Fatigue strength estimation methodology of additively manufactured metallic bulk material. Addit. Manuf.
**2020**, 39. [Google Scholar] [CrossRef] - Massey, F.J. The Kolmogorov-Smirnov Test for Goodness of Fit. J. Am. Stat. Assoc.
**1951**, 46, 68–78. [Google Scholar] [CrossRef] - Gänser, H.P.; Maierhofer, J.; Christiner, T. Statistical correction for reinserted runouts in fatigue testing. Int. J. Fatigue
**2015**, 80, 76–80. [Google Scholar] [CrossRef] - Leitner, H. Simulation des Ermüdungsverhaltens von Aluminiumgusslegierungen. Ph.D. Thesis, Montanuniversität Leoben, Leoben, Austria, 2001. [Google Scholar]
- ASTM International E 739; Standard Practice for Statistical Analysis of Linear or Linearized Stress-Life (S-N) and Strain Life (E-N) Fatigue Data. ASTM International: West Conshohocken, PA, USA, 1998.
- Dengel, D.; Harig, H. Estimation of the fatigue limit by progressively-increasing load tests. Fatigue Fract. Eng. Mater. Struct.
**1980**, 3, 113–128. [Google Scholar] [CrossRef] - Solberg, K.; Guan, S.; Razavi, S.M.J.; Welo, T.; Chan, K.C.; Berto, F. Fatigue of additively manufactured 316L stainless steel: The influence of porosity and surface roughness. Fatigue Fract. Eng. Mater. Struct.
**2019**, 42, 2043–2052. [Google Scholar] [CrossRef] [Green Version] - Oberreiter, M.; Aigner, R.; Pomberger, S.; Leitner, M.; Stoschka, M. Impact of microstructural properties on the crack threshold of aluminium castings. Eng. Fract. Mech.
**2021**, 241, 107431. [Google Scholar] [CrossRef]

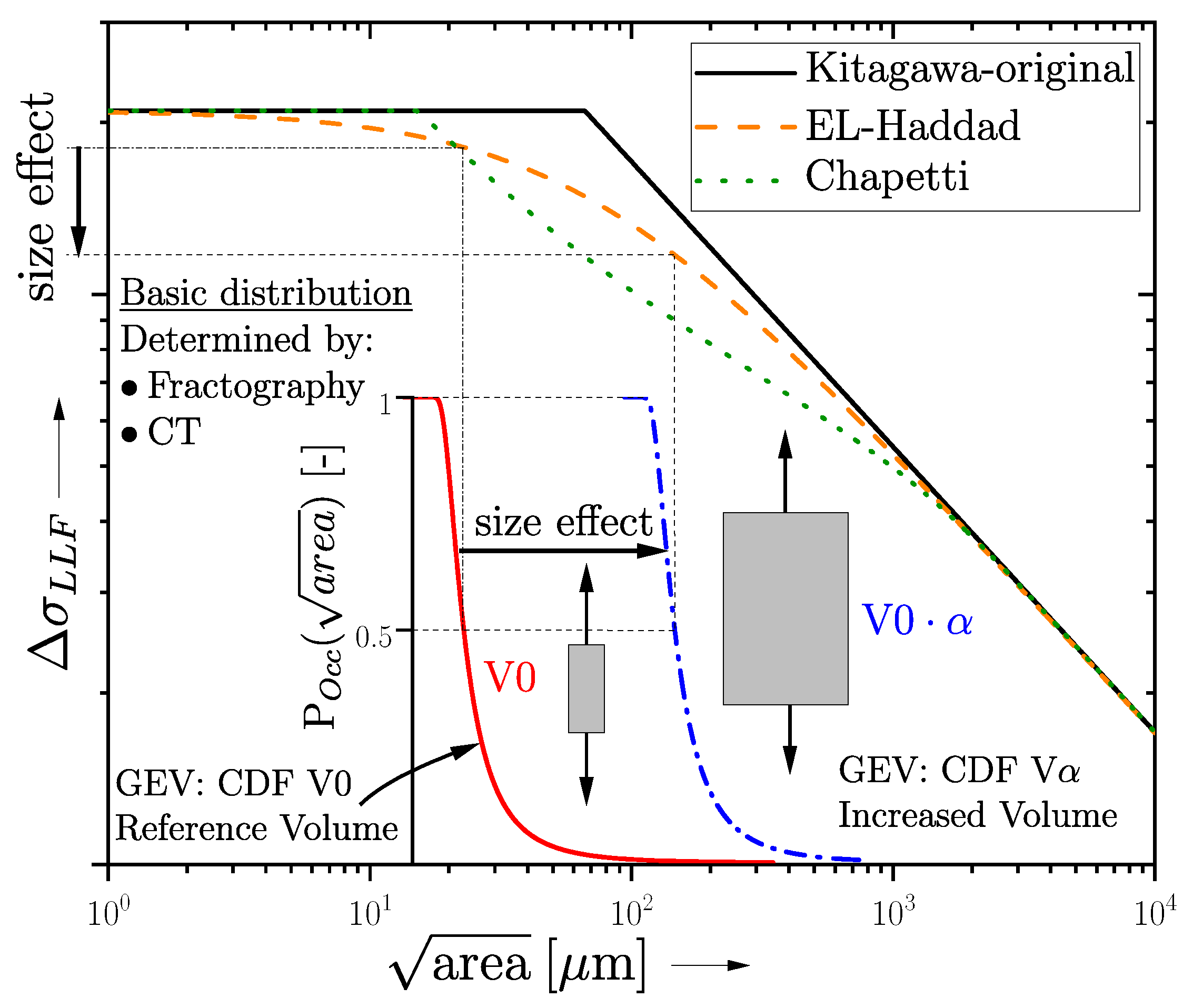

**Figure 1.**Setup of the Kitagawa diagram incorporating size effect (applying modification of El-Haddad).

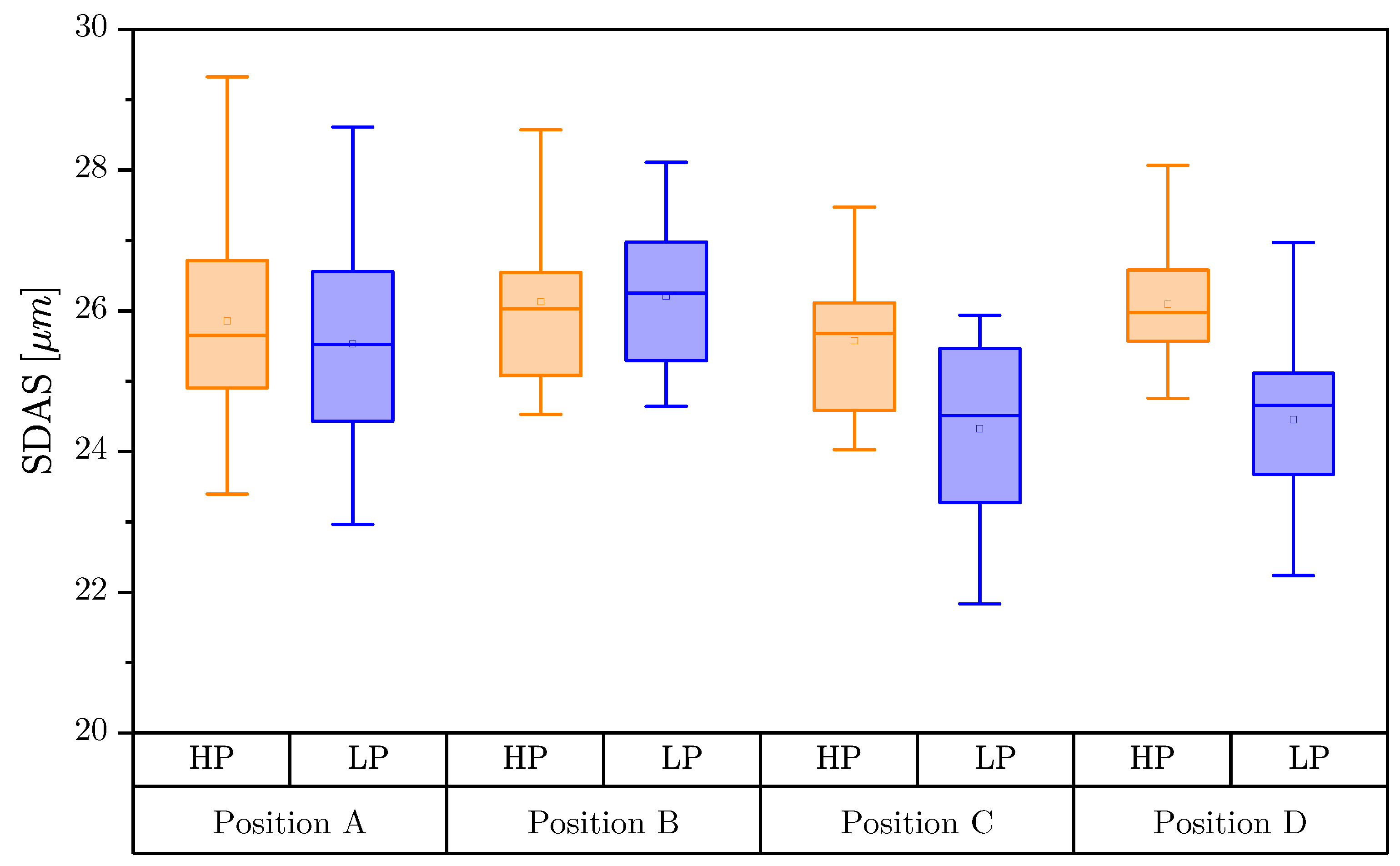

**Figure 2.**Comparison of SDAS values at Positions A–D for high-porosity (HP) and low-porosity (LP) regions in each specimen.

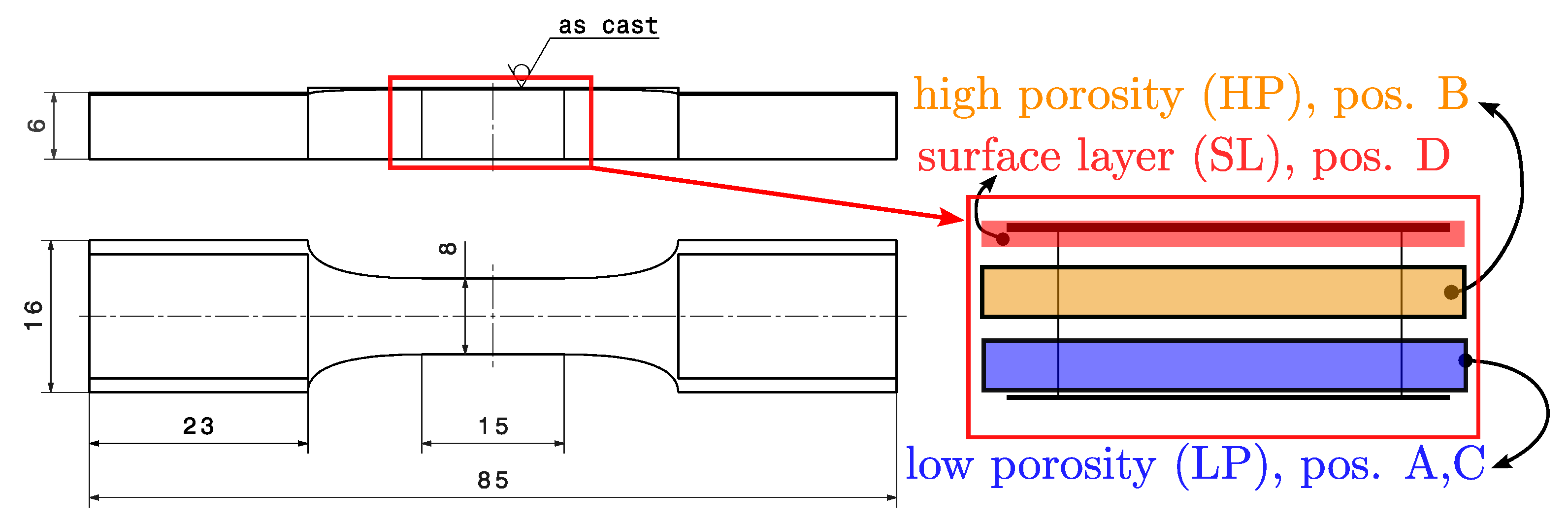

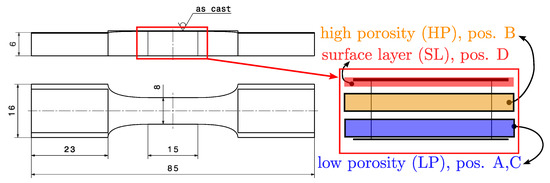

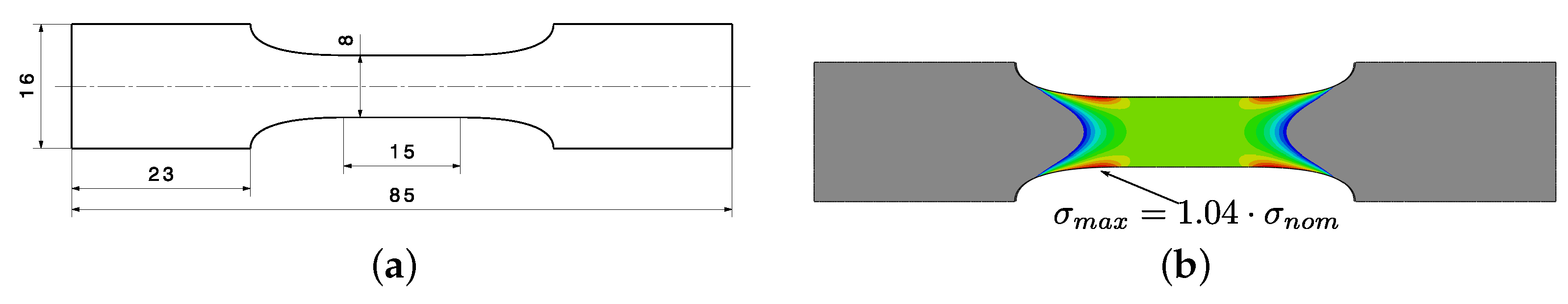

**Figure 4.**Thin-walled specimen for fatigue testing with a plate thickness of 1.5 mm. (

**a**) Illustration of the thin-walled specimen geometry with main dimensions in millimetres. (

**b**) Numerical analysis of stress concentration factor depicted as the maximum principal stress.

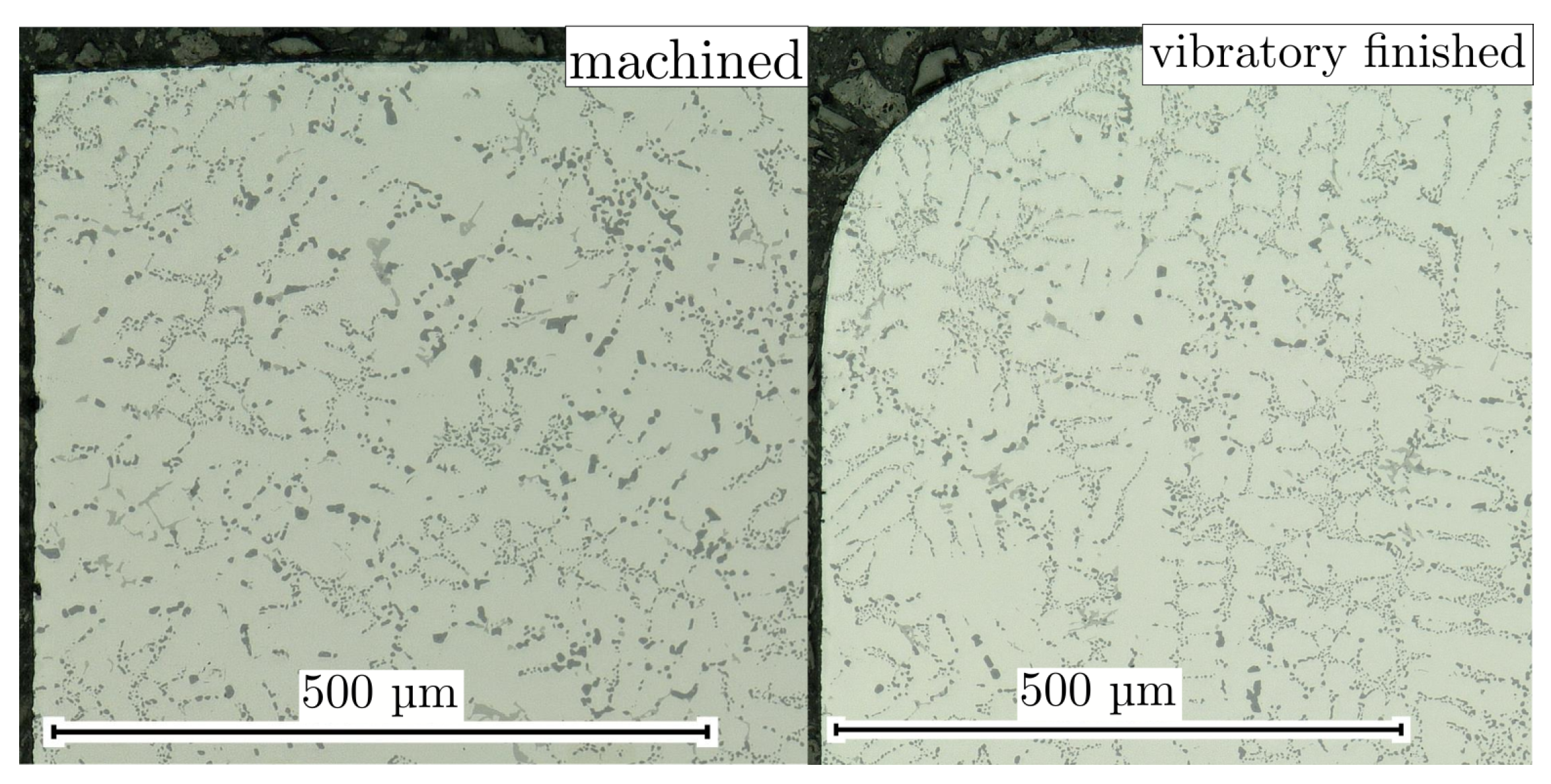

**Figure 5.**Comparison of AlSi-cast specimen cross sections in machined and vibratory finished conditions.

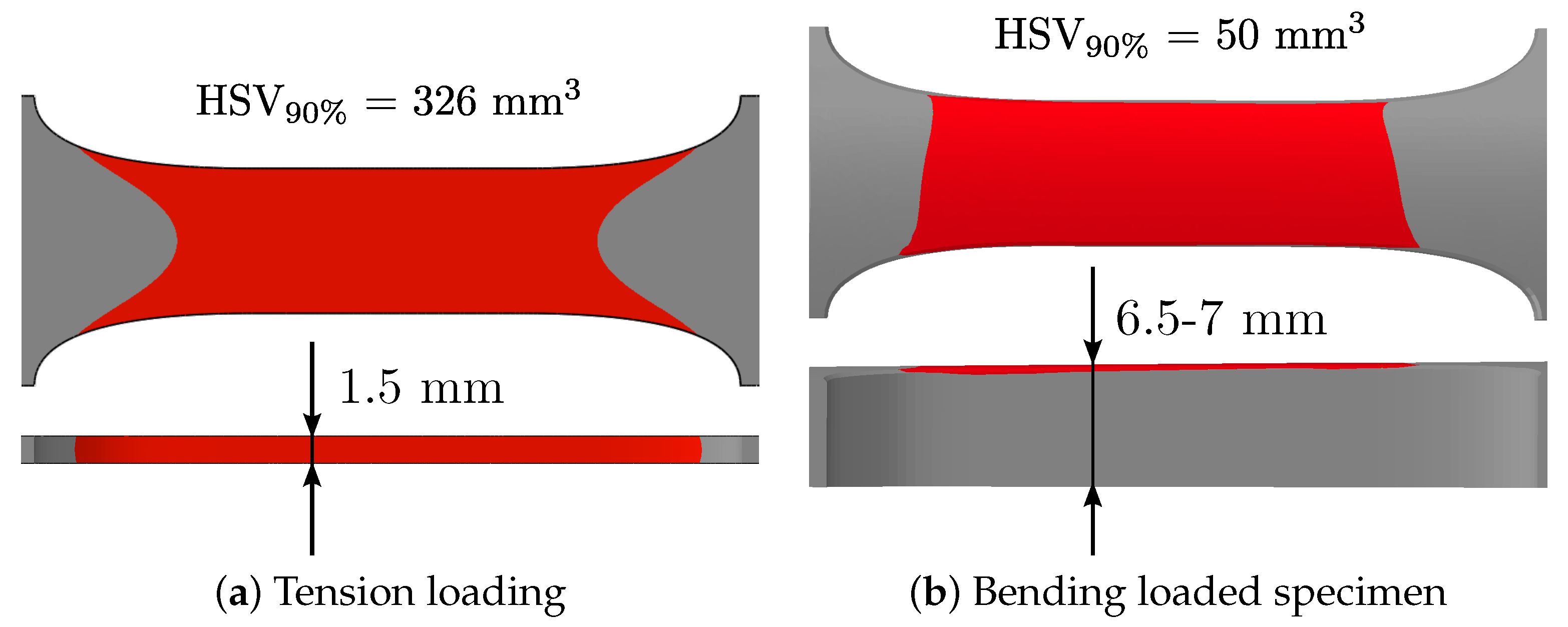

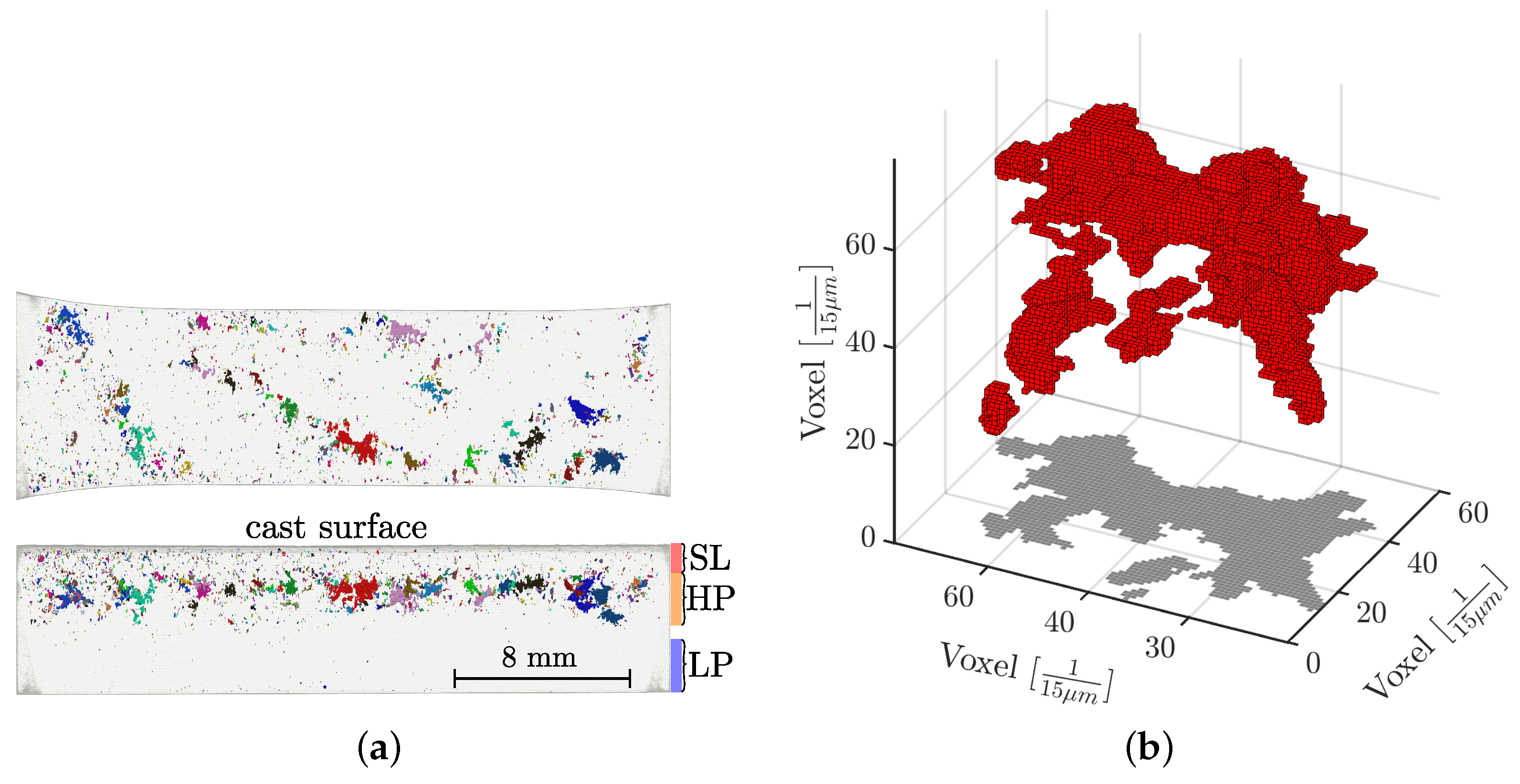

**Figure 7.**Representation of an exemplary CT scan. (

**a**) CT scan of a thick-walled specimen. (

**b**) Projection of clustered pore.

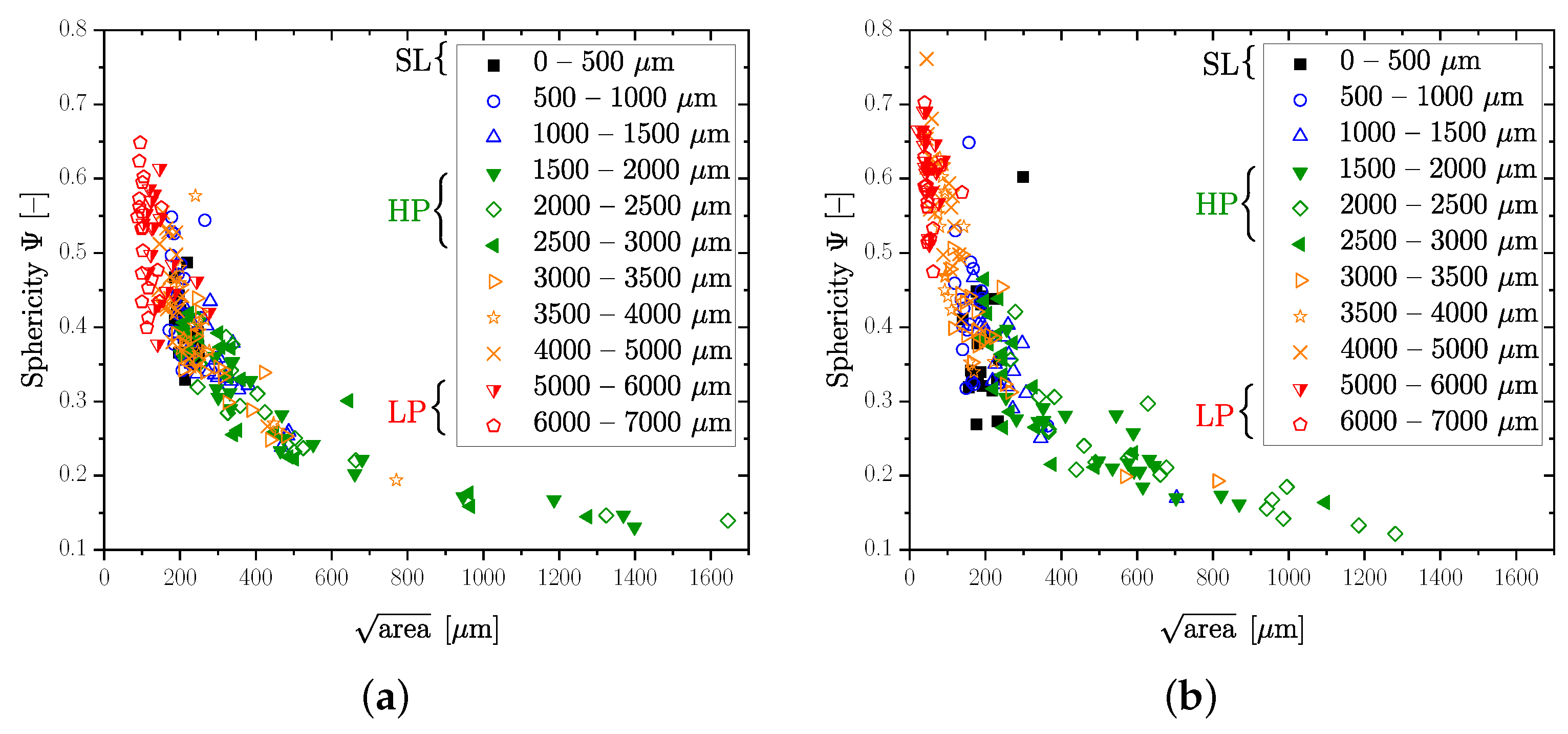

**Figure 8.**Sphericity over the projected $\sqrt{area}$ perpendicular to the load direction of the investigated positions evaluated by $\mathsf{\mu}$CT analysis. (

**a**) CT results of thick-walled specimen Pos. A and C. (

**b**) CT results of thick-walled specimen Pos. B.

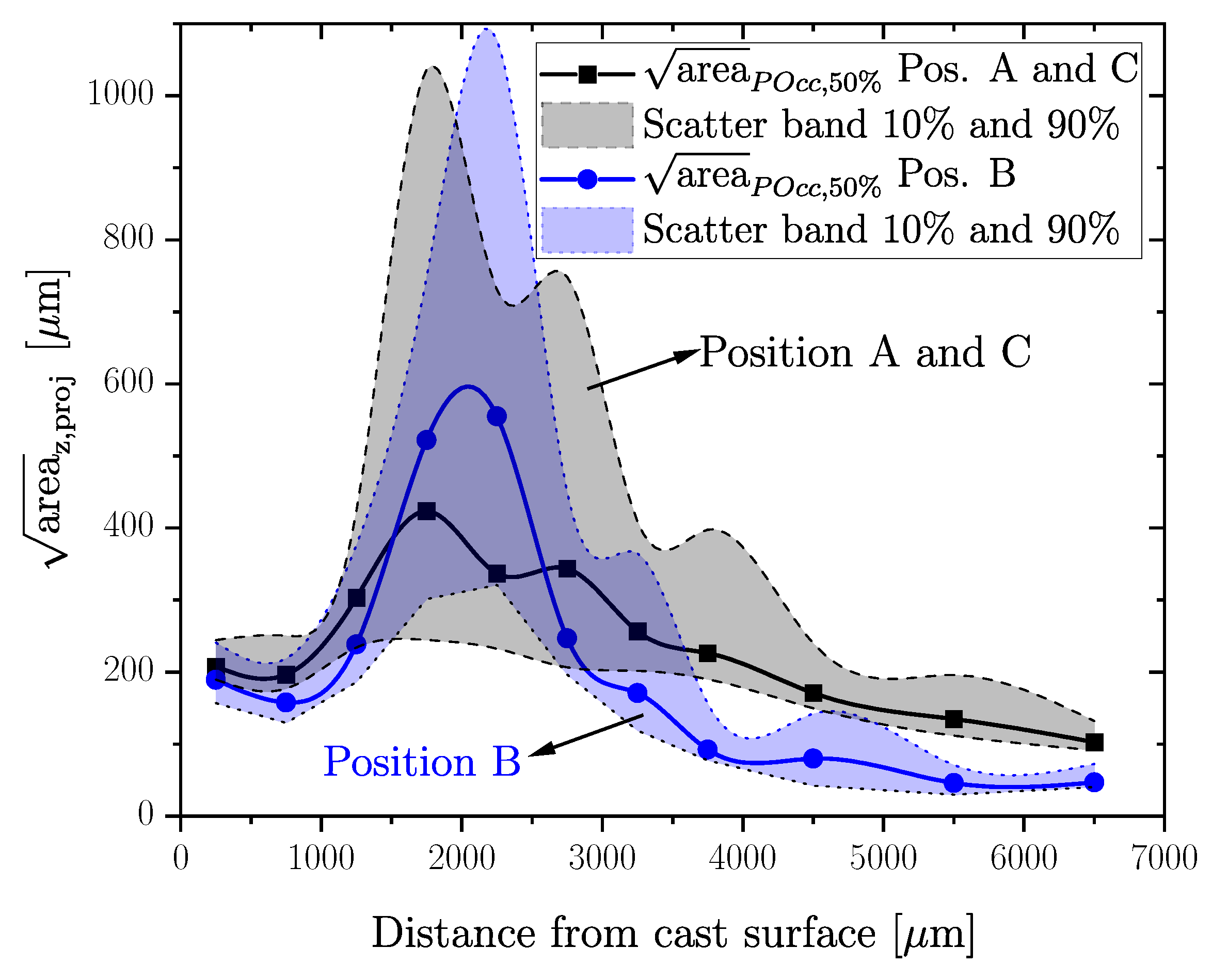

**Figure 9.**Distribution of the porosity size in a cross section of the thick-walled specimen geometry for extracting Positions A to C.

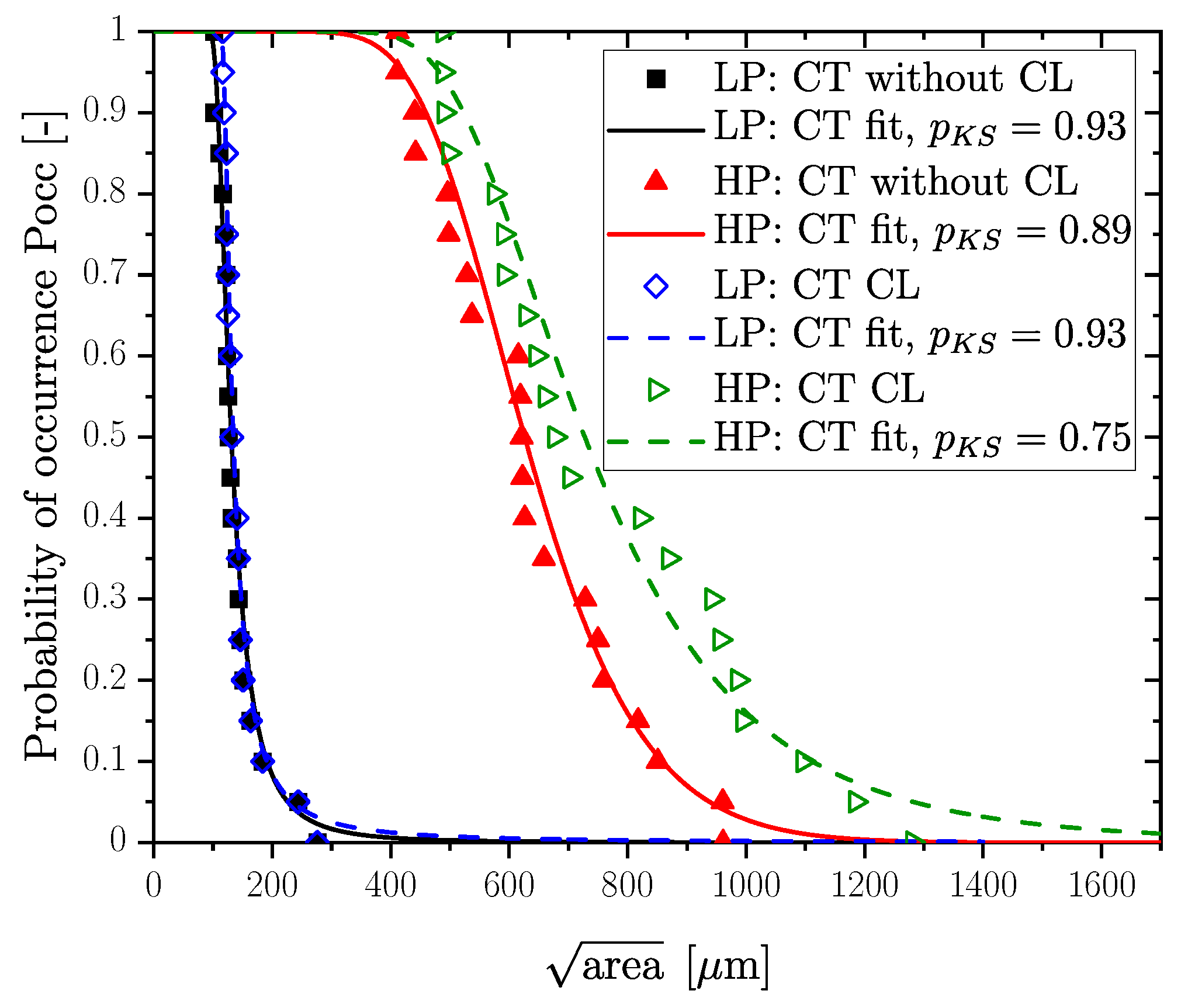

**Figure 10.**CDF of $\sqrt{area}$ perpendicular to the load direction for all layers of the thick-walled specimen.

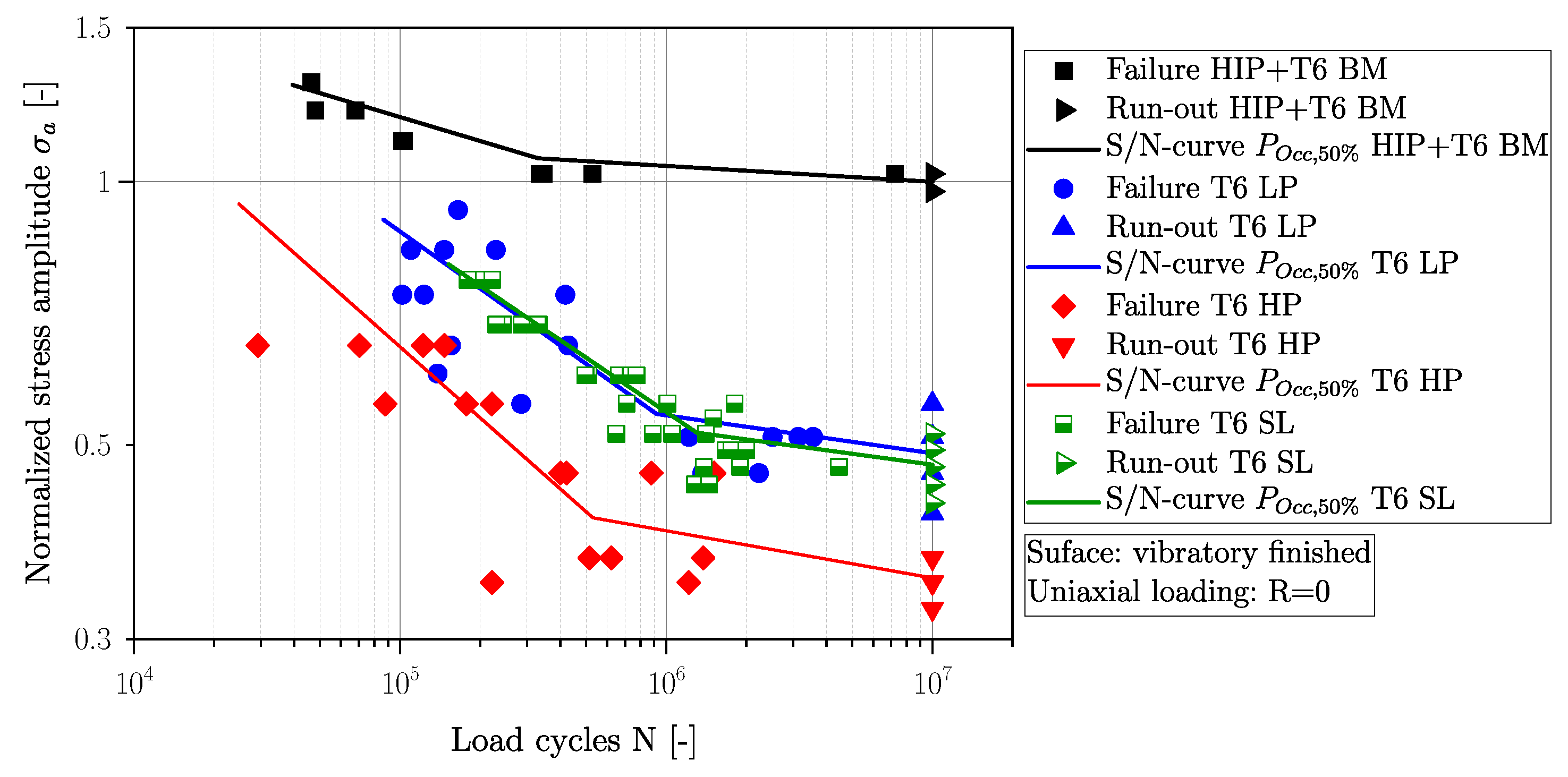

**Figure 11.**Comparison of normalized S/N-curves for ${P}_{Occ}=50\%$ experimentally determined within the framework of this study.

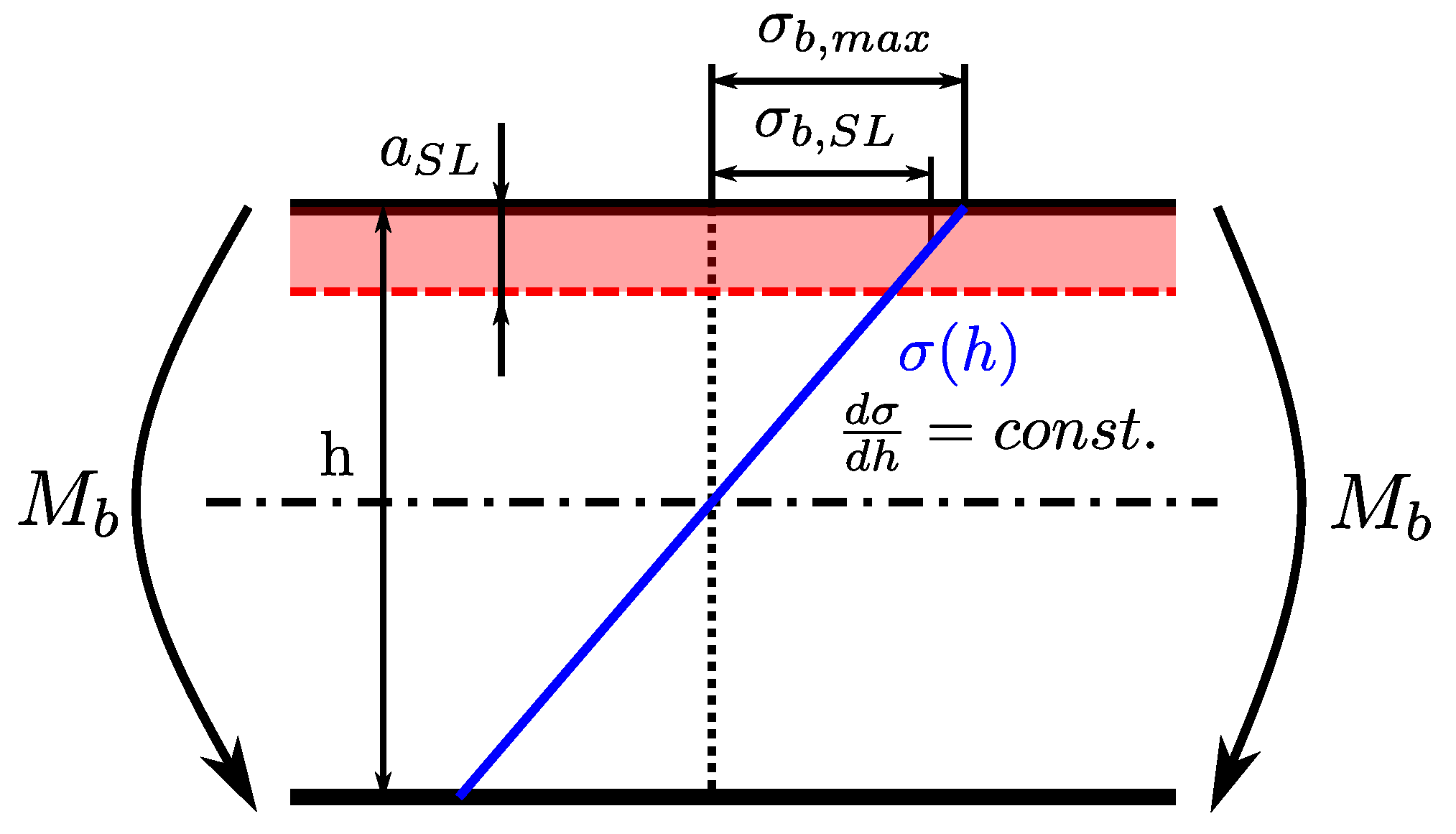

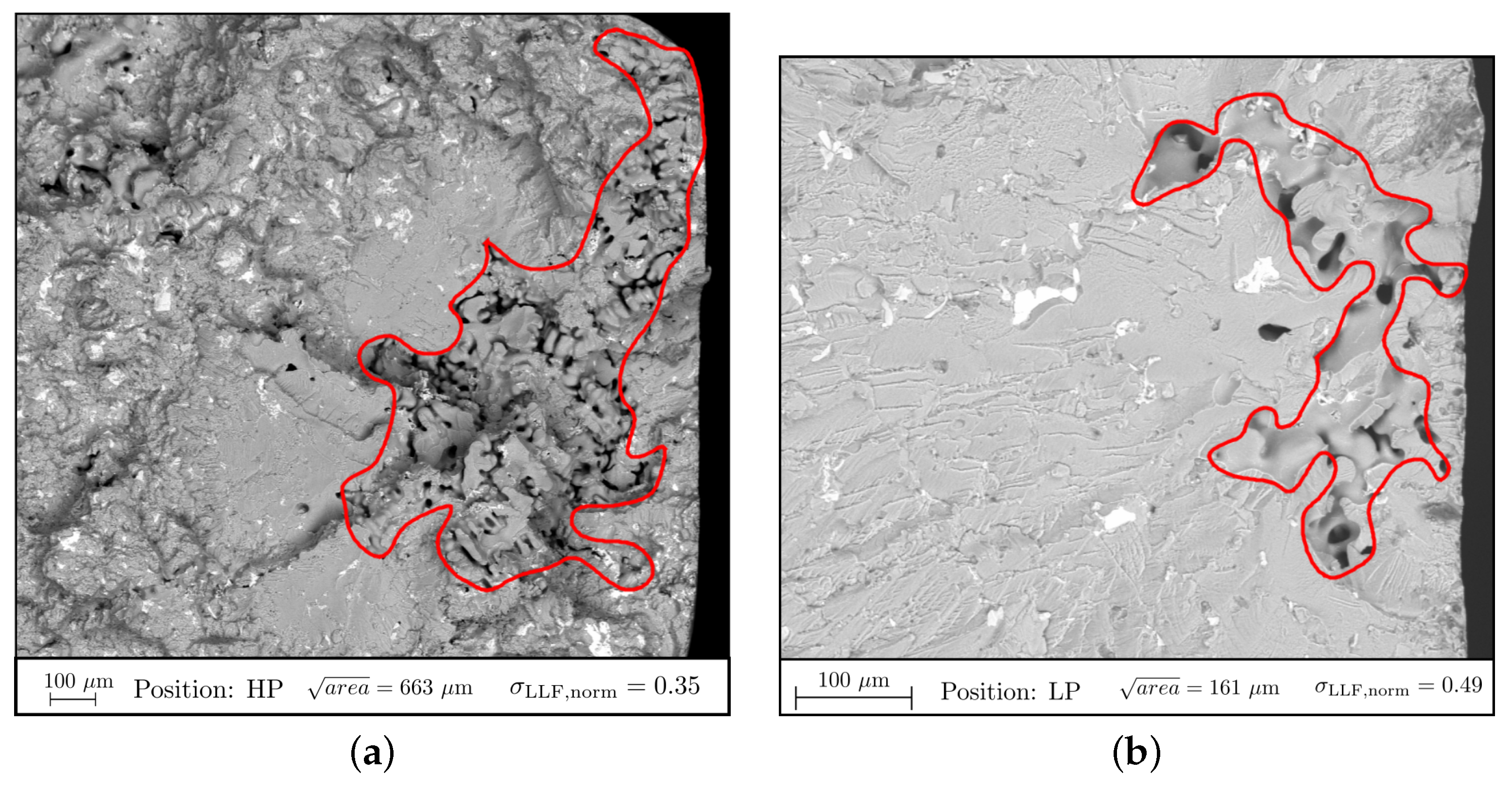

**Figure 13.**SEM fracture surface analysis in the HP and LP specimens. (

**a**) Fracture initiating defect in the HP specimen. (

**b**) Fracture initiating defect at specimen LP.

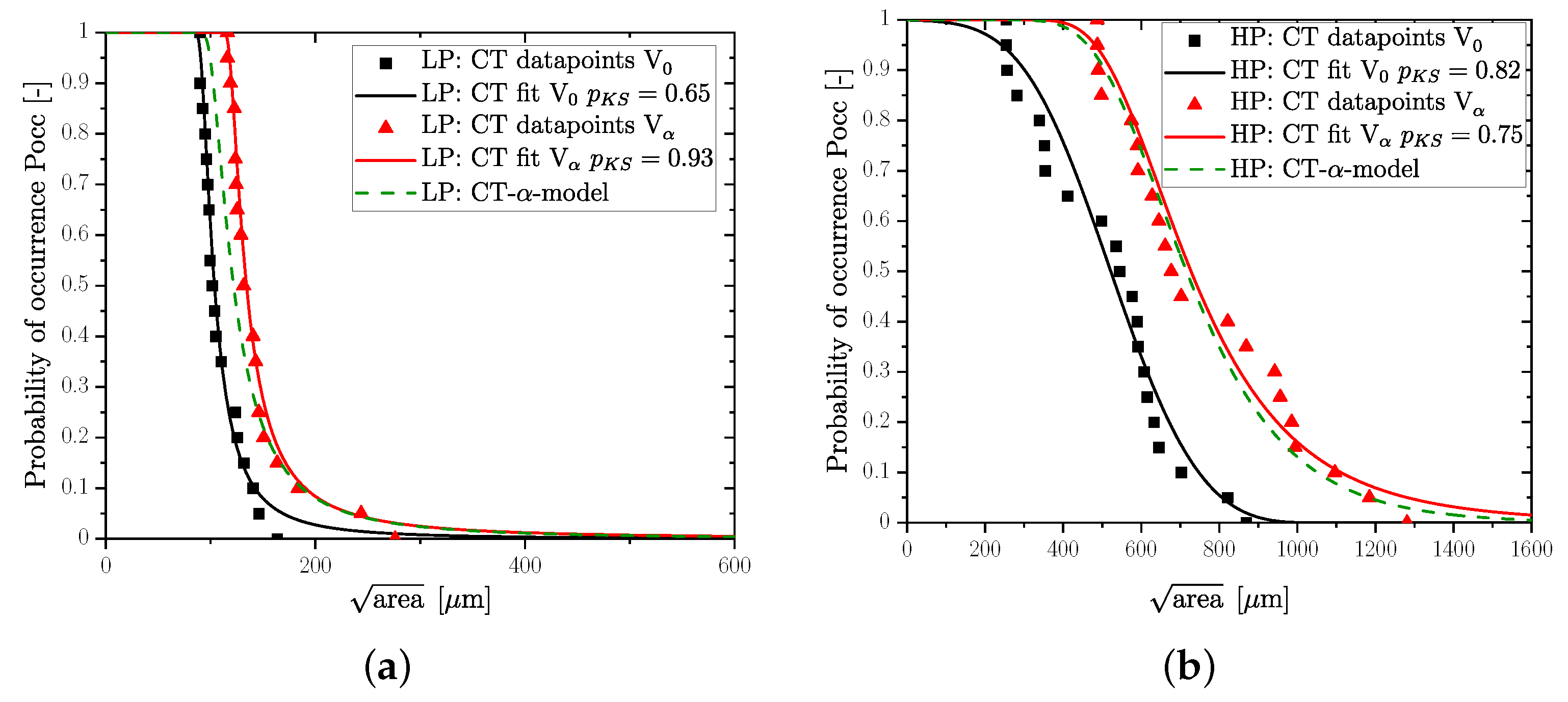

**Figure 15.**Relation between measured and calculated cumulative defect distributions. (

**a**) Cumulative defect distributions of LP samples. (

**b**) Cumulative defect distributions of HP samples.

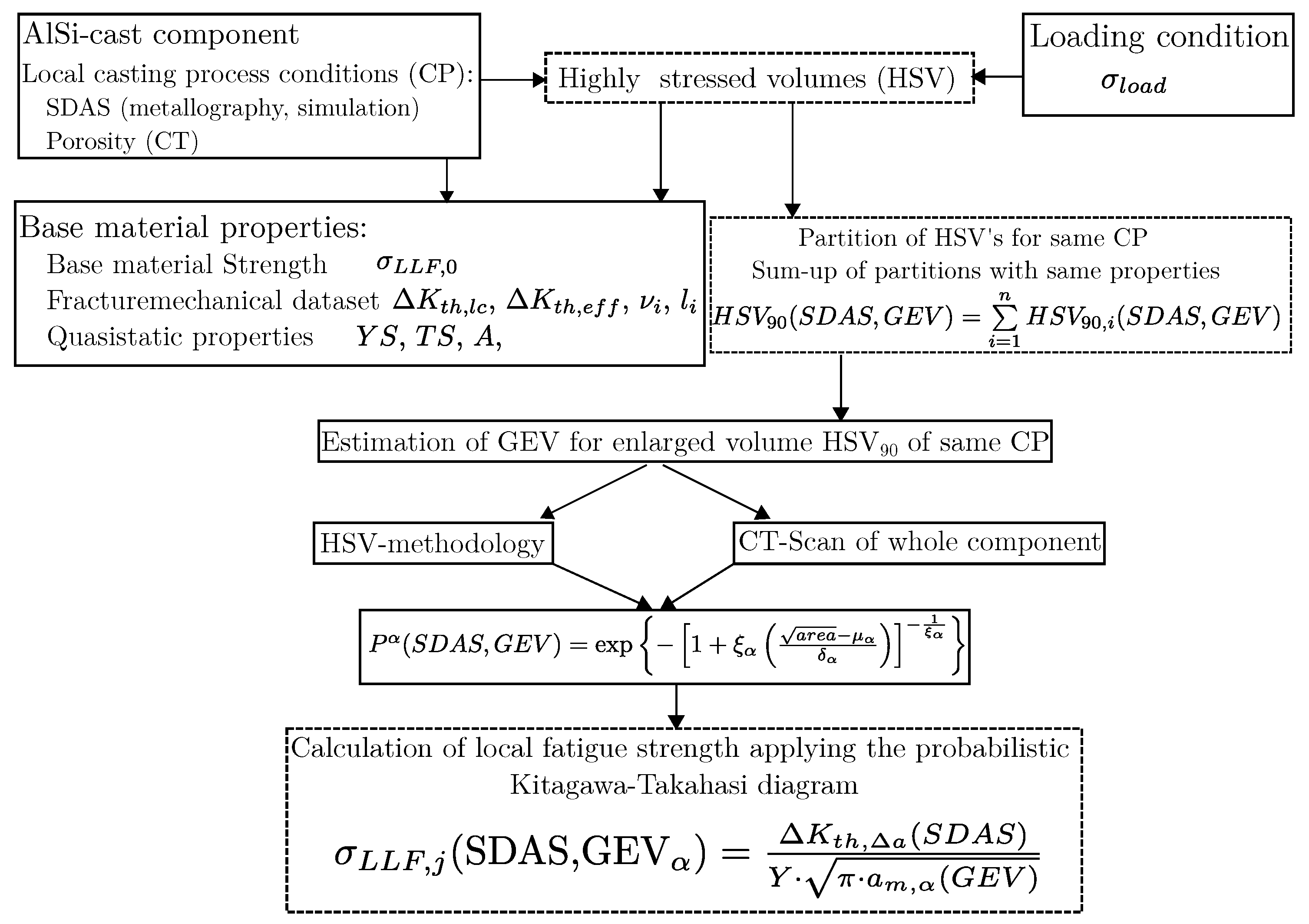

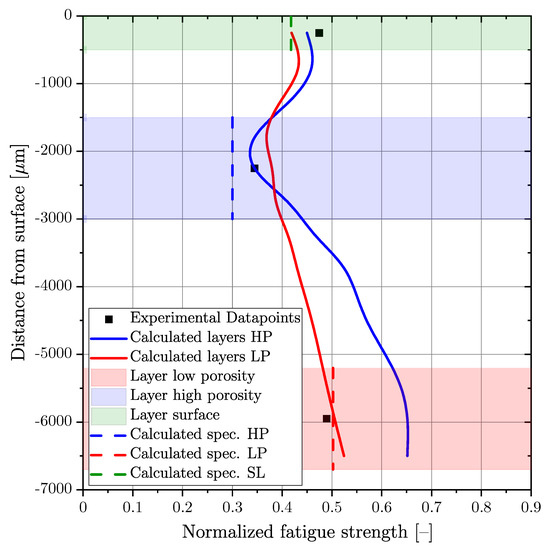

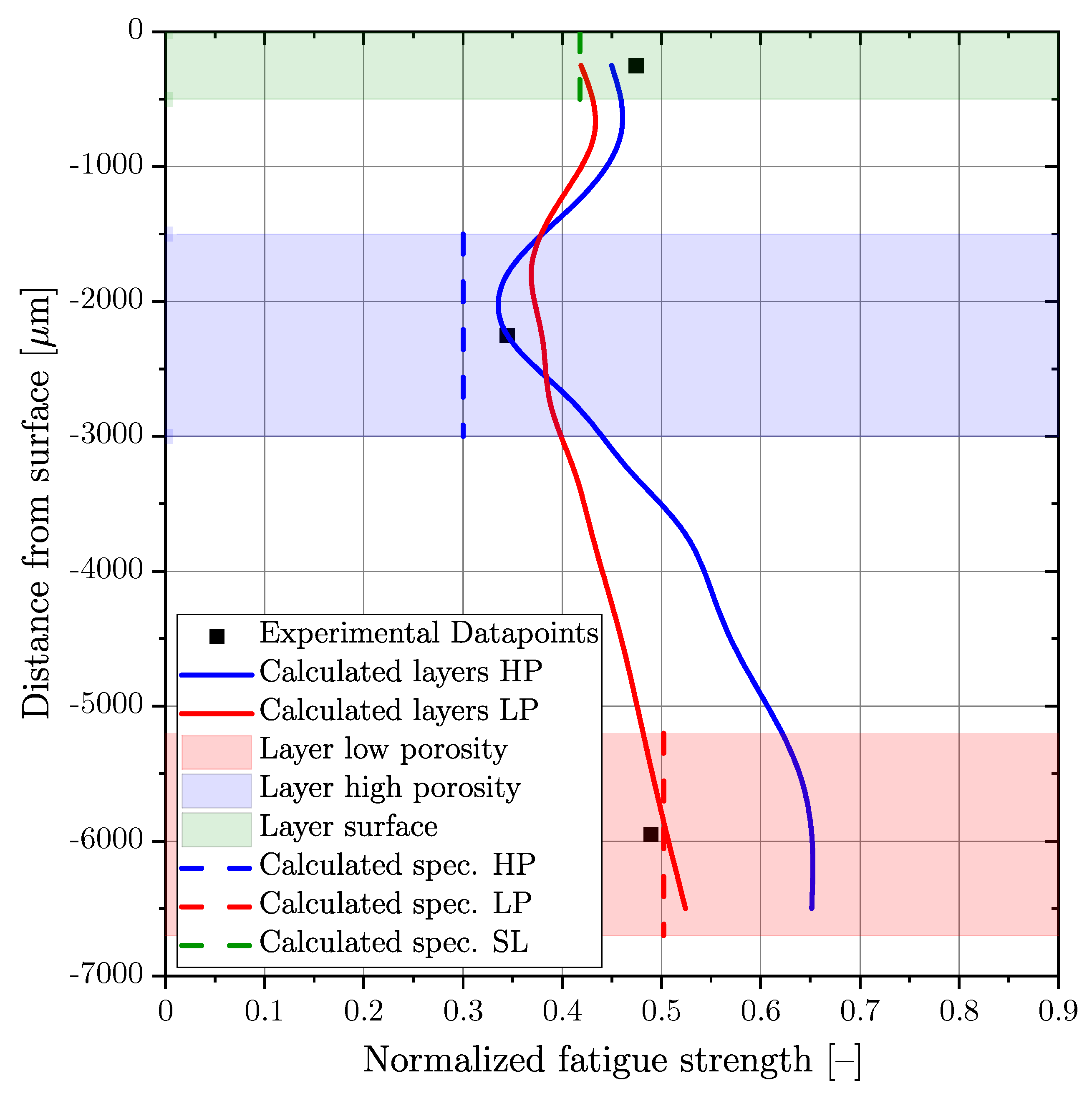

**Figure 17.**Calculated course of the fatigue strength over the cross section of the thick-walled cast specimen.

Alloy | Si [%] | Cu [%] | Fe [%] | Mn [%] | Mg [%] | Ti [%] | Al [-] |
---|---|---|---|---|---|---|---|

Standard [64] | 7.5–8.5 | 2.0–3.5 | max. 0.8 | 0.15–0.65 | 0.05–0.55 | max. 0.25 | balance |

Experiment | 7.96 | 3.13 | 0.43 | 0.32 | 0.25 | 0.13 | balance |

HT | E [GPa] | TS [MPa] | YS0.1 [%] | A [%] |
---|---|---|---|---|

T6 | 73.6 | 272 | 258 | 0.19 |

HIP + T6 | 74.7 | 319 | 244 | 1.78 |

Parameter | Value |
---|---|

Voltage [kV] | 111 |

Intensity of current [µA] | 142 |

Number of images [-] | 785 |

FDD [mm] | 1000 |

FOD [mm] | 75 |

Exposure time [ms] | 1000 |

Voxel size [µm] | 15 |

Pos. | Clustered | ${\sqrt{\mathit{area}}}_{{\mathit{P}}_{\mathit{Occ}}=50\%}$ [µm] | ${\sqrt{\mathit{area}}}_{{\mathit{P}}_{\mathit{Occ}}=10\%}$ [µm] | ${\sqrt{\mathit{area}}}_{{\mathit{P}}_{\mathit{Occ}}=90\%}$ [µm] |
---|---|---|---|---|

LP | no | 131 | 191 | 108 |

LP | yes | 134 | 190 | 120 |

HP | no | 626 | 858 | 459 |

HP | yes | 728 | 1117 | 523 |

Position | HT | Loading Type | ${\mathit{k}}_{1}$ [-] | ${\mathit{\sigma}}_{\mathit{LLF},50\%,\mathit{norm}}$ [-] | ${\mathit{N}}_{\mathit{T}}$ [-] | ${\mathit{T}}_{\mathit{S}}$ [-] |
---|---|---|---|---|---|---|

LP | T6 | tension | 4.6 | 0.49 | 920,000 | 1:1.3 |

HP | T6 | tension | 3.7 | 0.35 | 530,000 | 1:1.19 |

SL | T6 | bending | 4.8 | 0.47 | 1,300,000 | 1:1.24 |

BM | HIP + T6 | tension | 1.01 | 1.00 | 330,000 | 1:1.06 |

Pos. | Investigation | ${\sqrt{\mathit{area}}}_{{\mathit{P}}_{\mathit{Occ}}=50\%}$ [µm] | ${\sqrt{\mathit{area}}}_{{\mathit{P}}_{\mathit{Occ}}=10\%}$ [µm] | ${\sqrt{\mathit{area}}}_{{\mathit{P}}_{\mathit{Occ}}=90\%}$ [µm] |
---|---|---|---|---|

LP | Frac. | 173 | 275 | 101 |

LP | CT | 134 | 190 | 120 |

HP | Frac. | 740 | 977 | 512 |

HP | CT | 728 | 1117 | 523 |

**Table 7.**Comparison of statistically evaluated $\sqrt{area}$-parameters for 50% probability of occurrence considering the effect of HSV.

Pos. | $\sqrt{\mathit{area}}\left({\mathit{V}}_{0}\right)$ [µm] | $\sqrt{\mathit{area}}\left({\mathit{V}}_{\mathit{\alpha},\mathit{exp}.}\right)$ [µm] | $\sqrt{\mathit{area}}\left({\mathit{V}}_{\mathit{\alpha},\mathit{calc}.}\right)$ [µm] | $\mathit{\Delta}$ [µm] | $\mathit{\Delta}$ [%] |
---|---|---|---|---|---|

LP | 104 | 134 | 122 | −12 | −9.8 |

HP | 522 | 728 | 716 | −11 | −1.7 |

Pos. | Model [-] | Experiment [-] | $\mathsf{\Delta}$ [%] |
---|---|---|---|

SL | 0.42 | 0.47 | 11.9 |

HP | 0.3 | 0.34 | 12.9 |

LP | 0.5 | 0.49 | −2.6 |
