Multi-Physics Analysis of Machining Ti-6Al-4V Alloy: Experimental Characterization and a New Material Behavior Modeling
Abstract
:1. Introduction
2. Mechanisms of Machining Ti-6Al-4V
2.1. Experimental Tests
2.2. Analysis of the Cutting Process

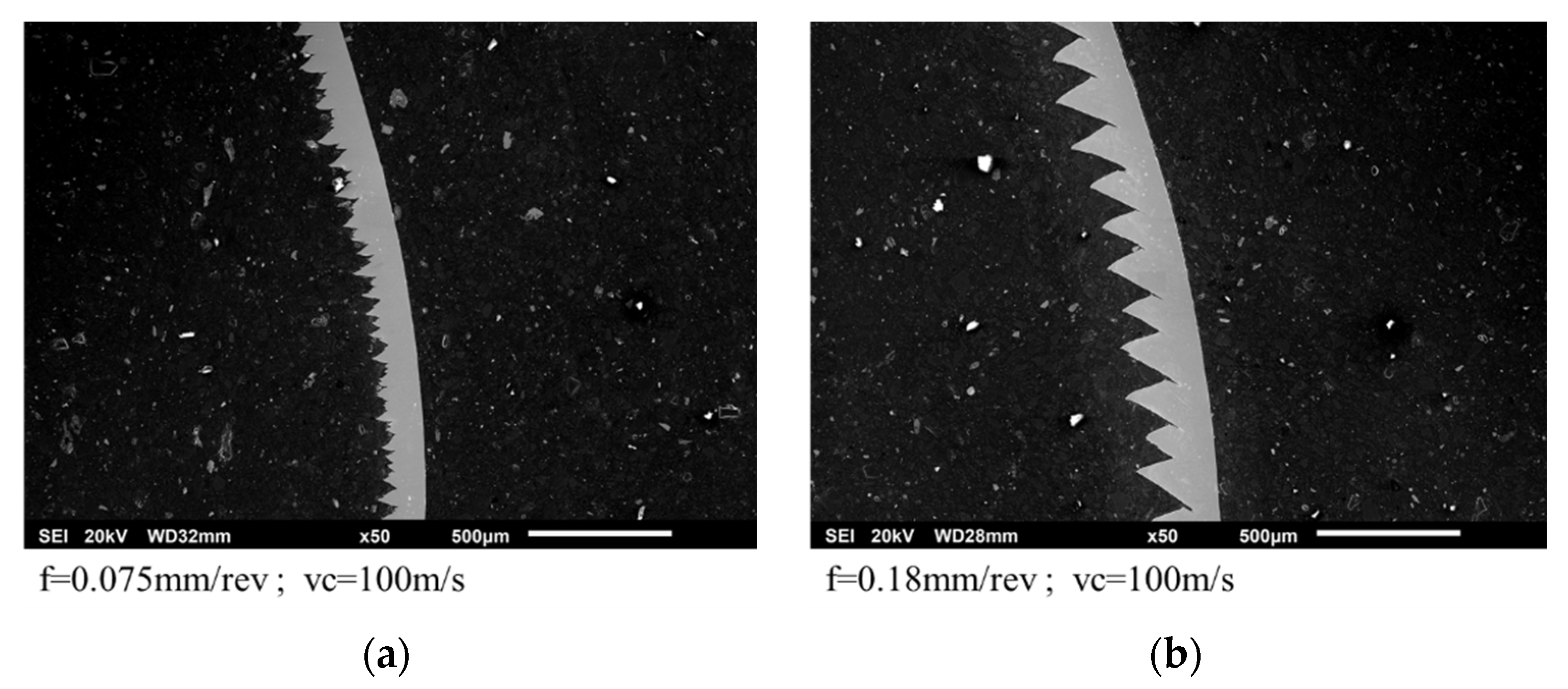

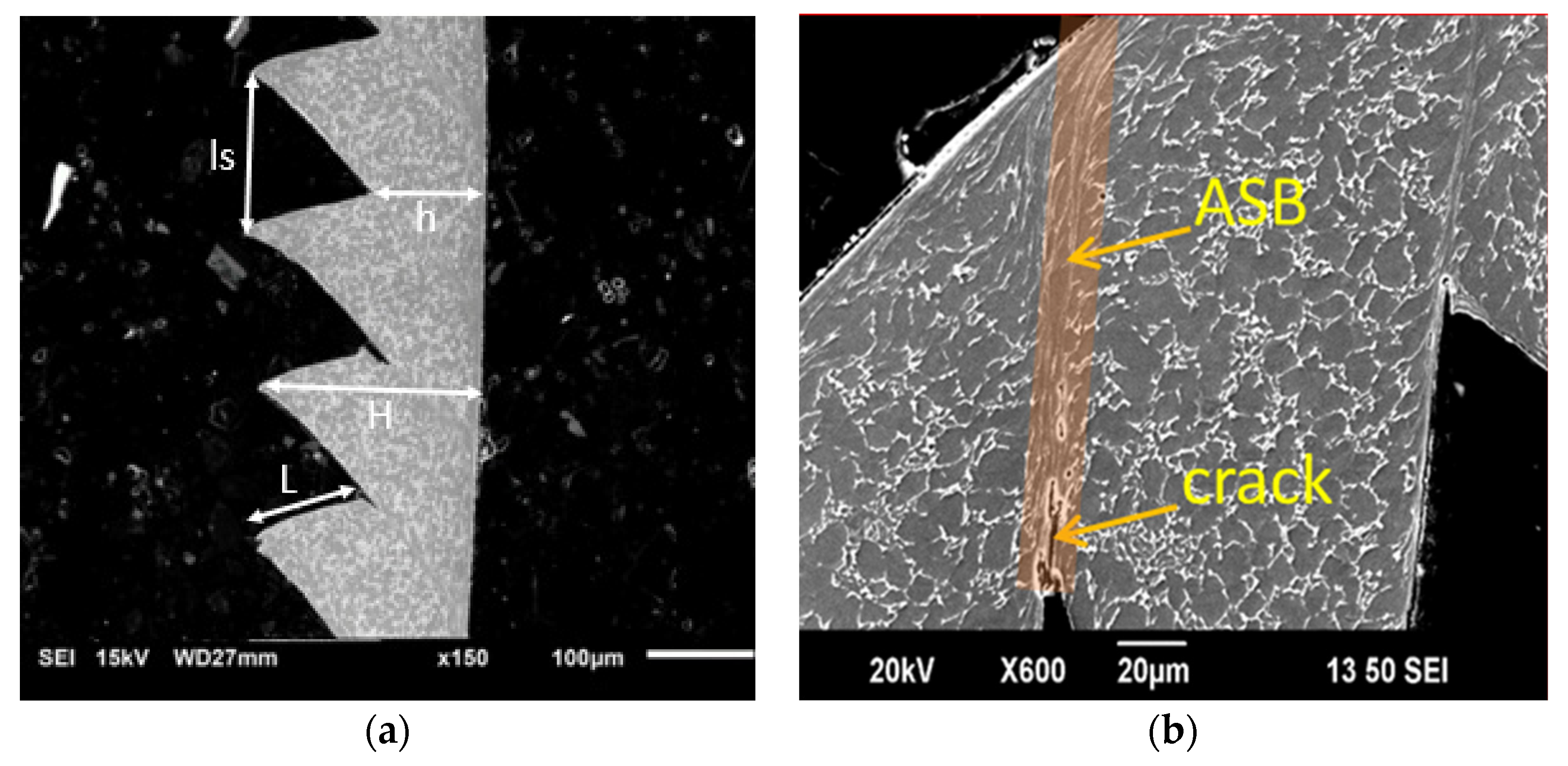

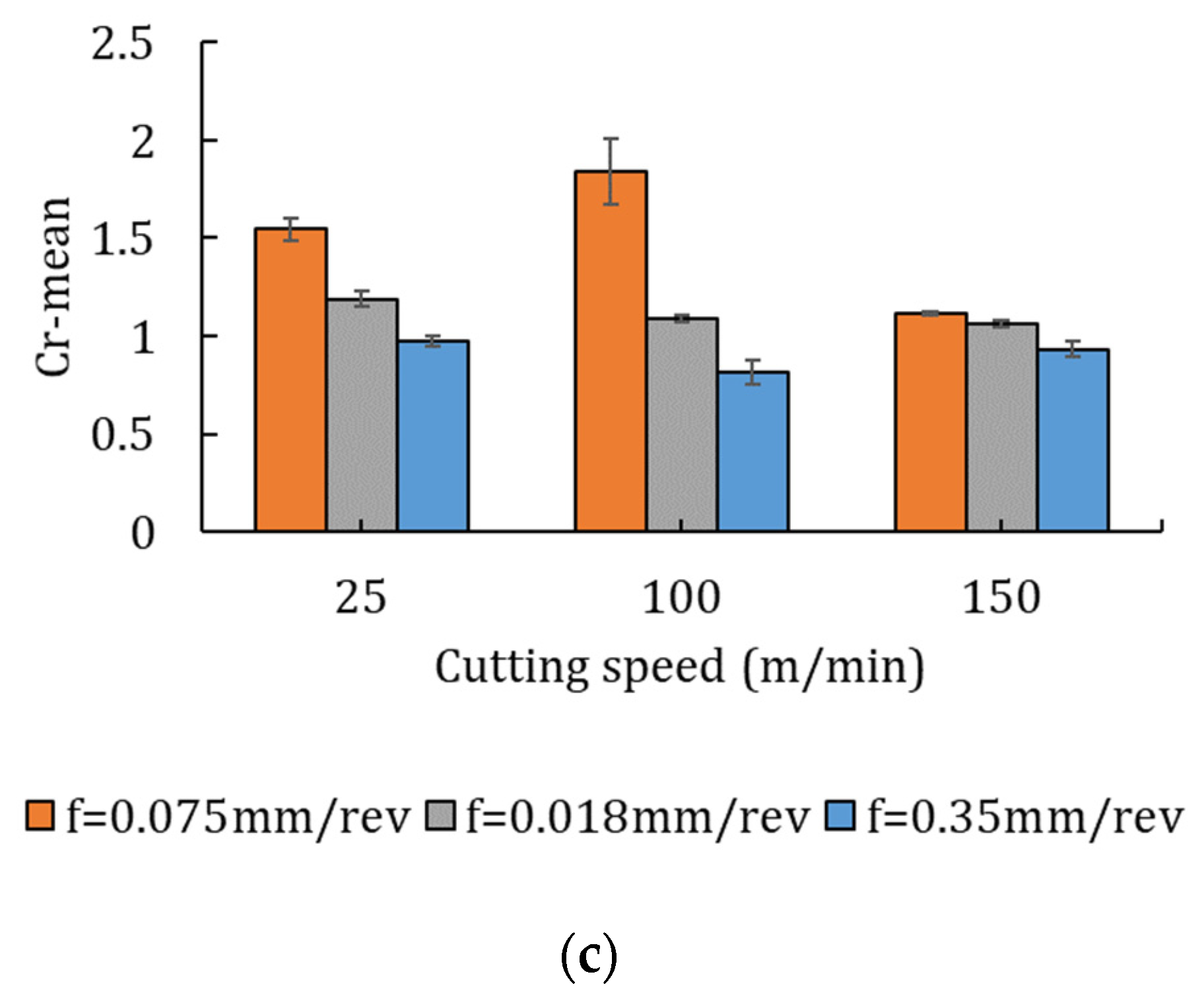

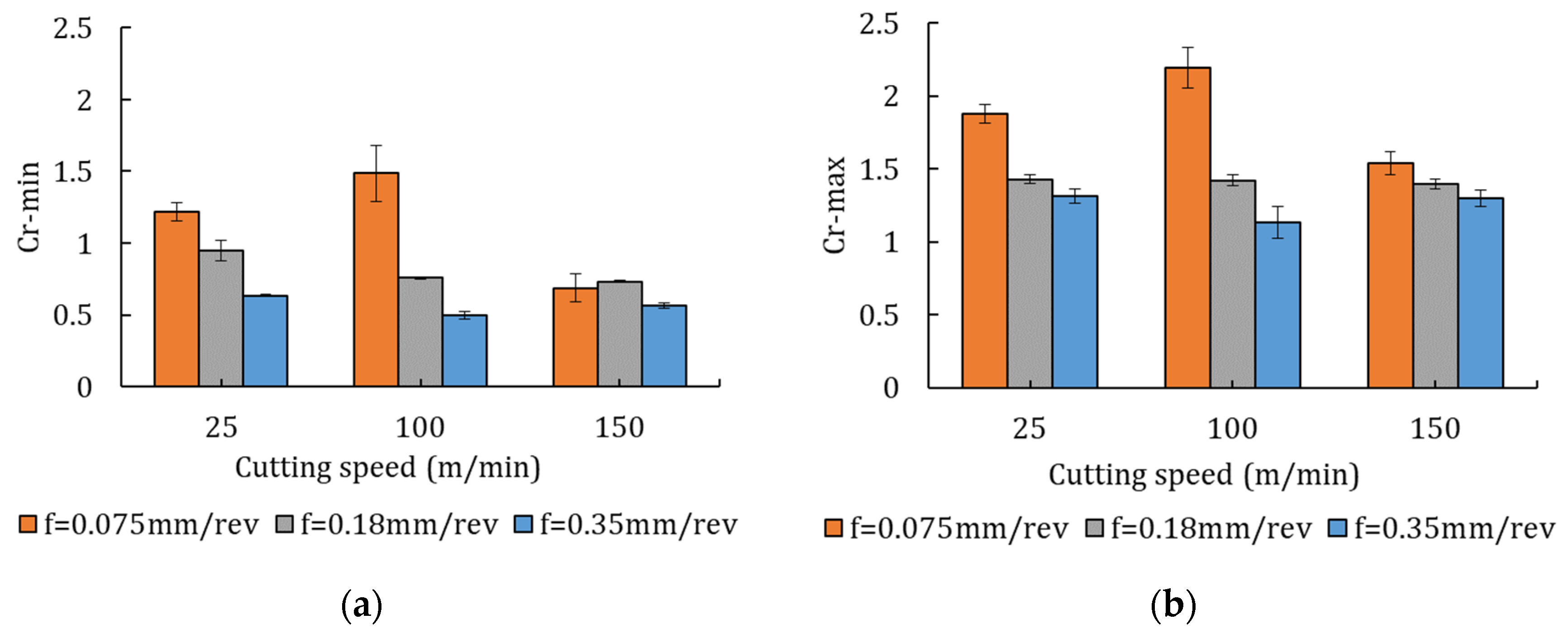

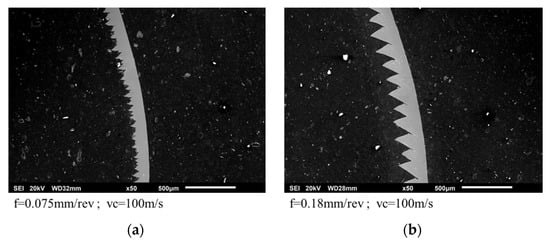

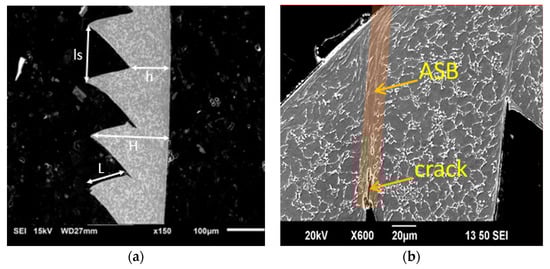

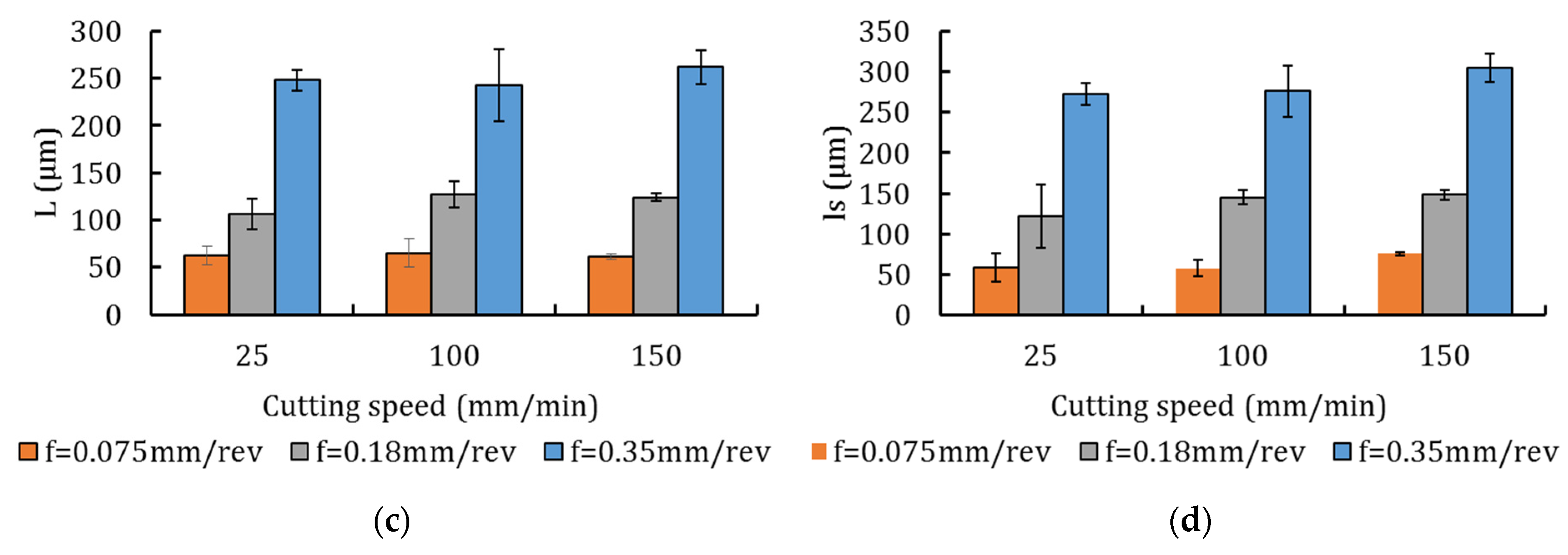

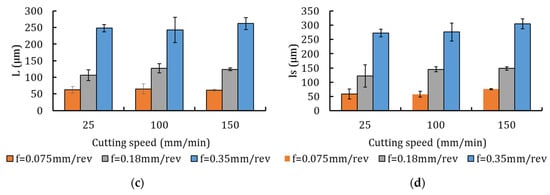

2.2.1. Qualitative vs. Quantitative Analysis of Chips

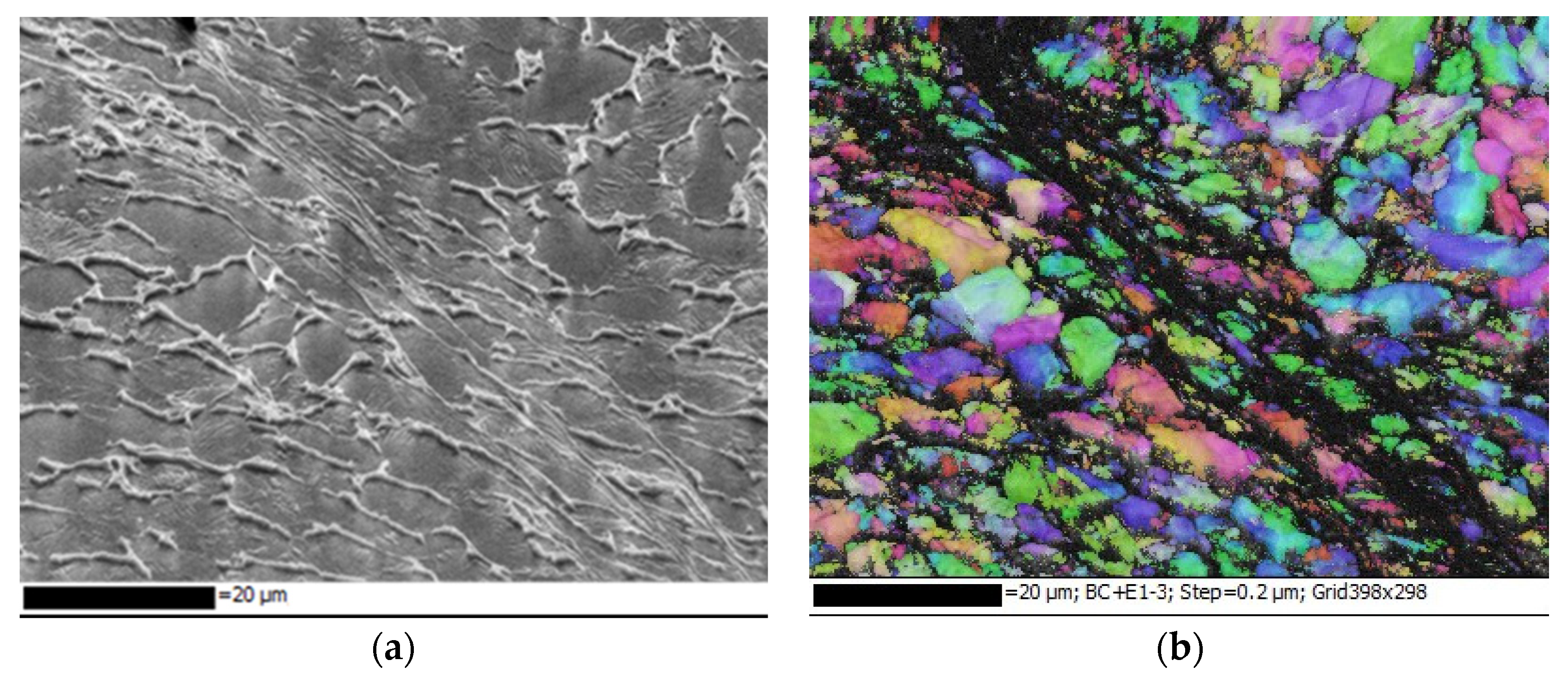

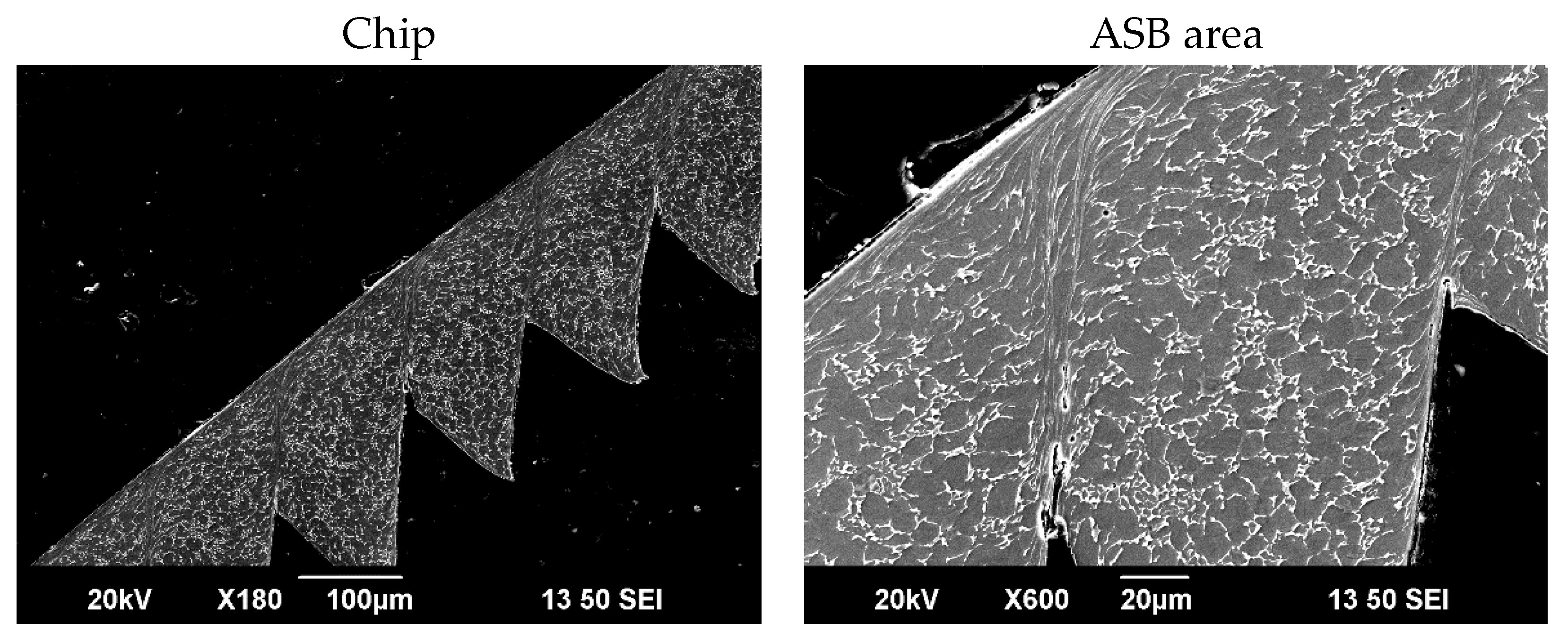

2.2.2. Microstructural Analysis of Chips
3. Multi-Physics Modelling of the Ti-6Al-4V Behavior in Machining

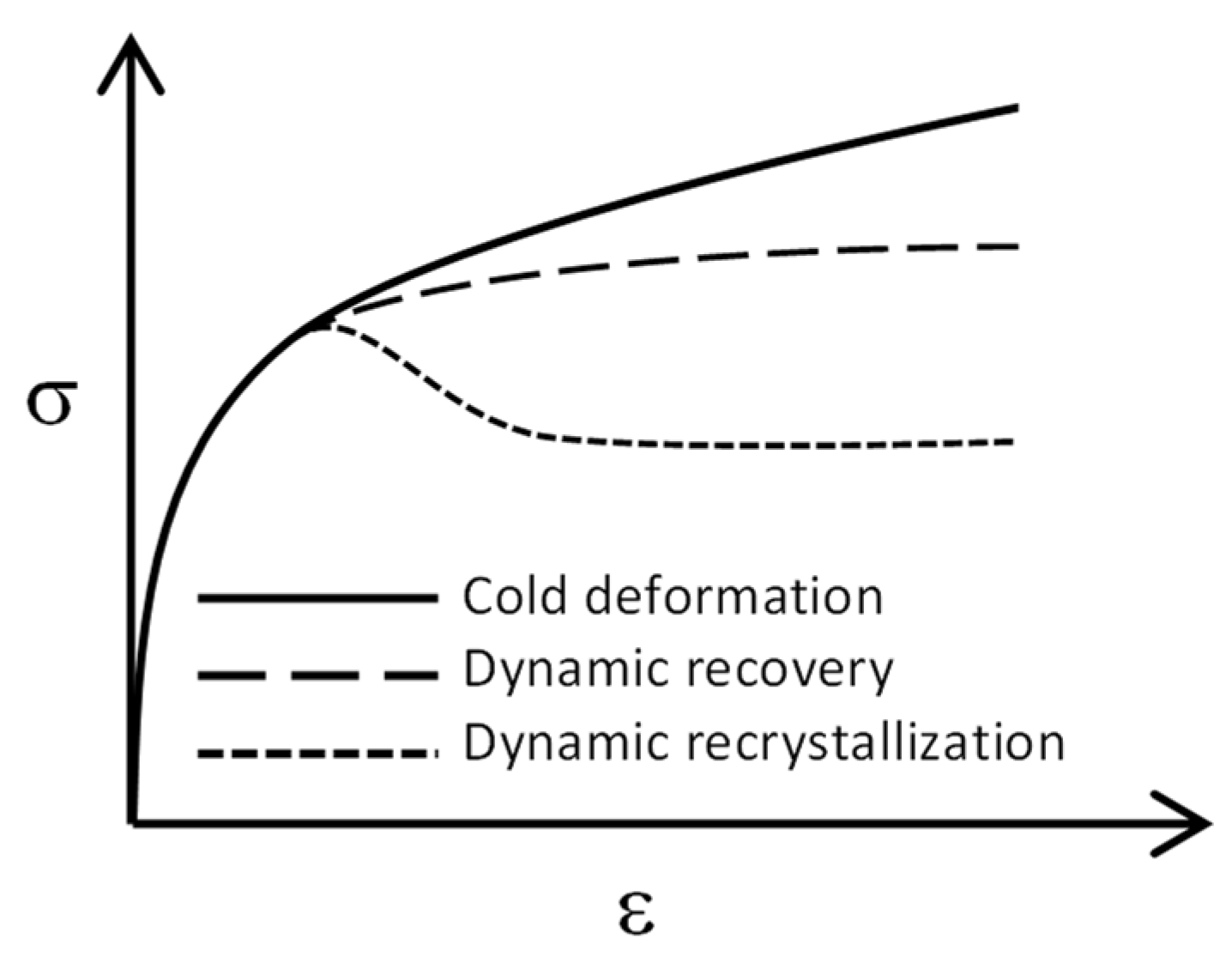

3.1. Microstructure Dependent Flow Stress Model

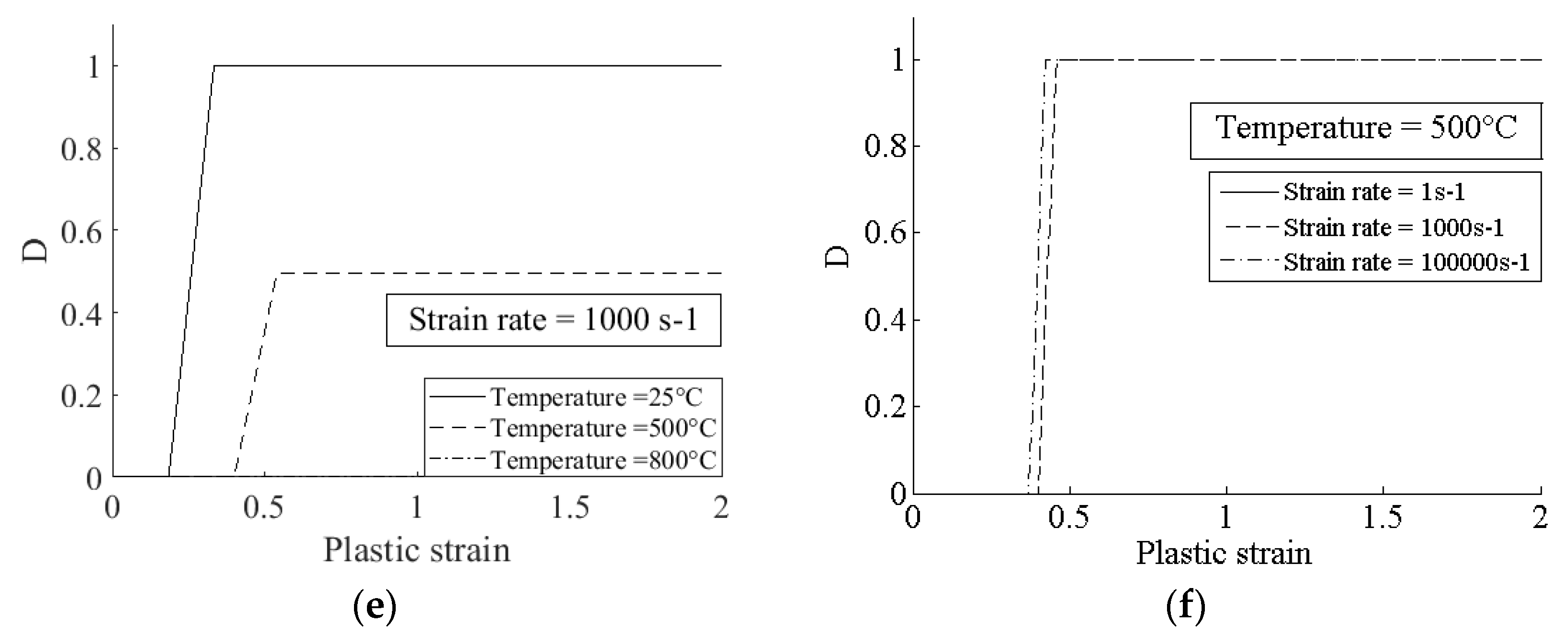

3.2. Microstructure Dependent Damage Model
3.3. Application of the Coupled Microstructure-Damage Model
3.4. Grain Size Evolution

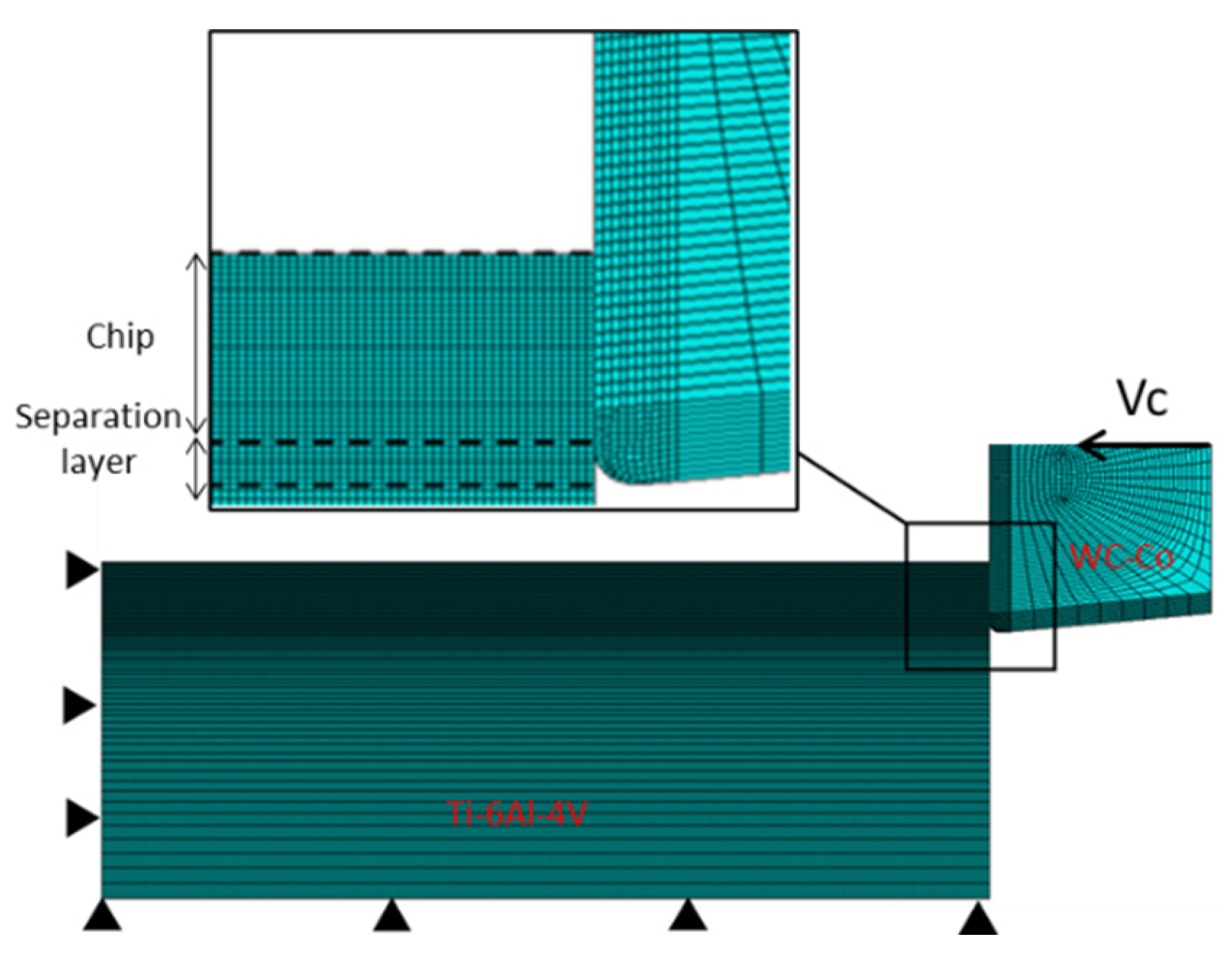

4. Application for Machining Simulations

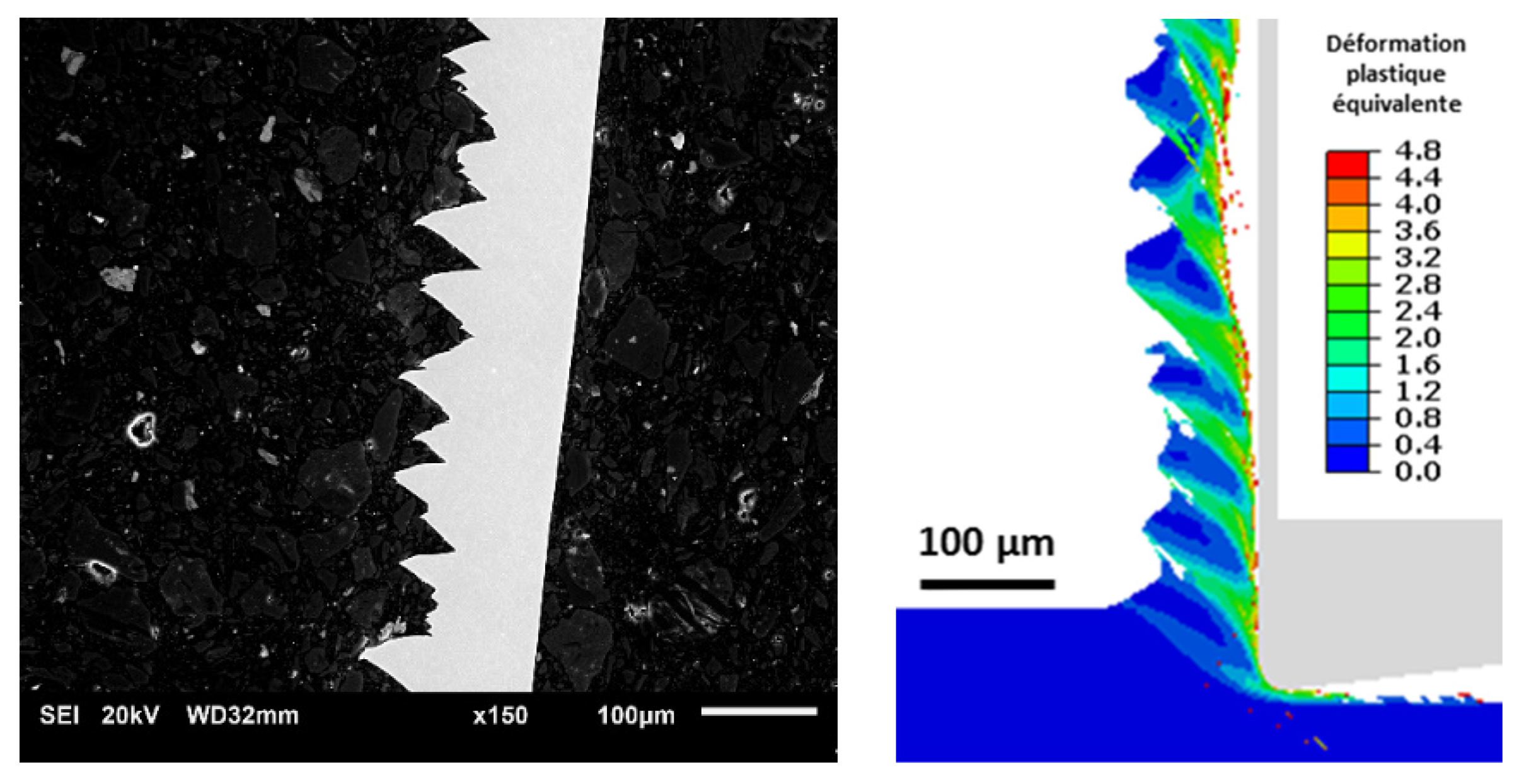

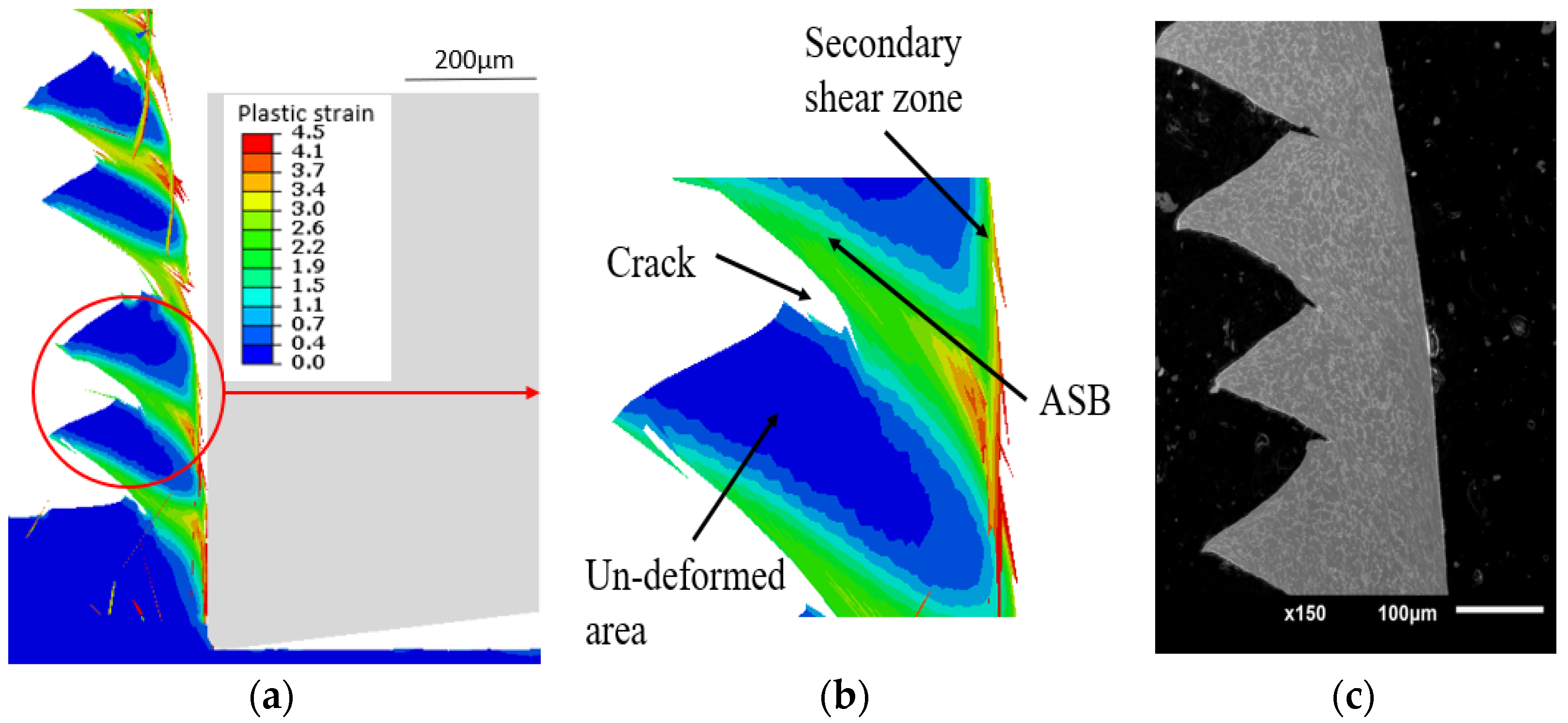

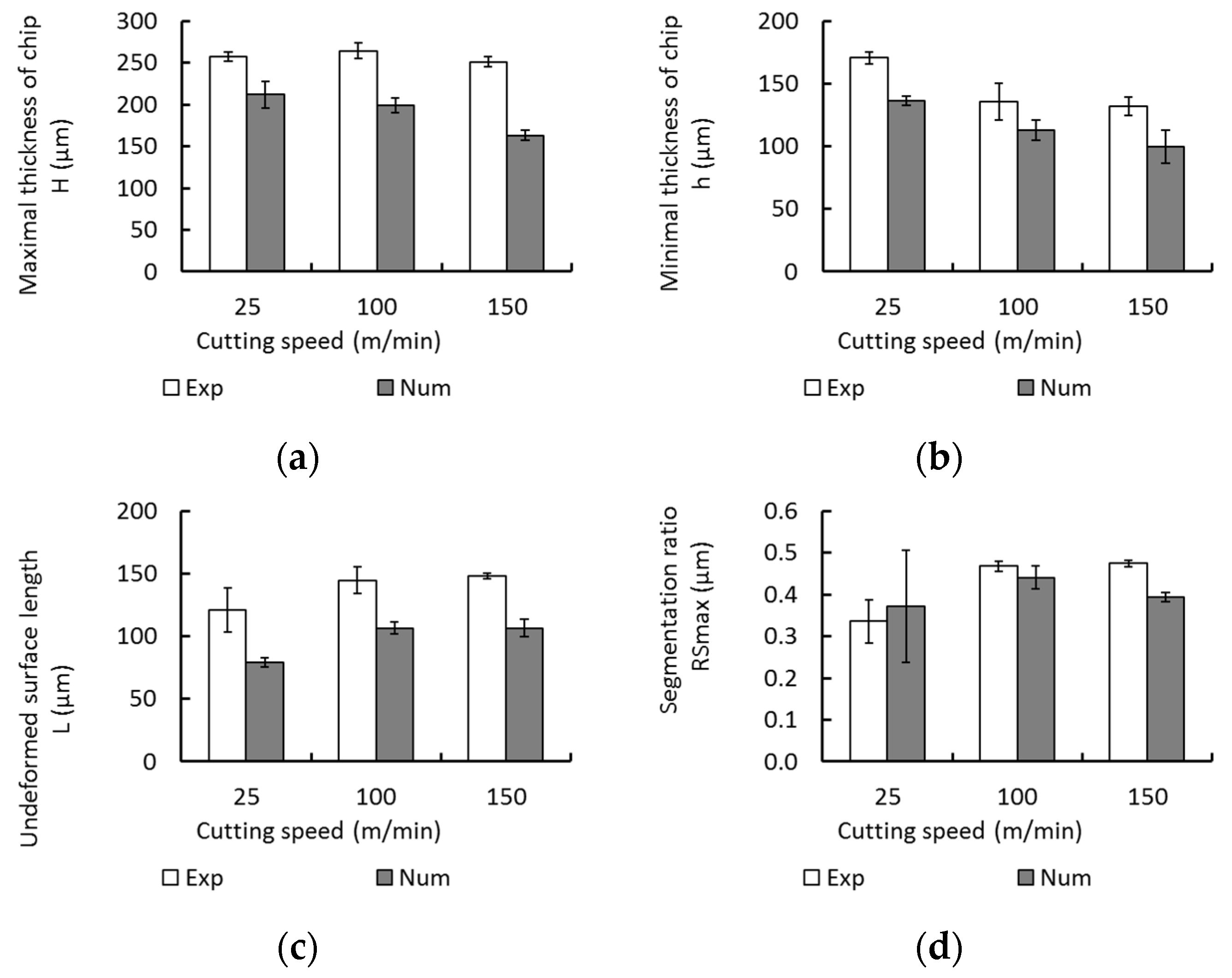

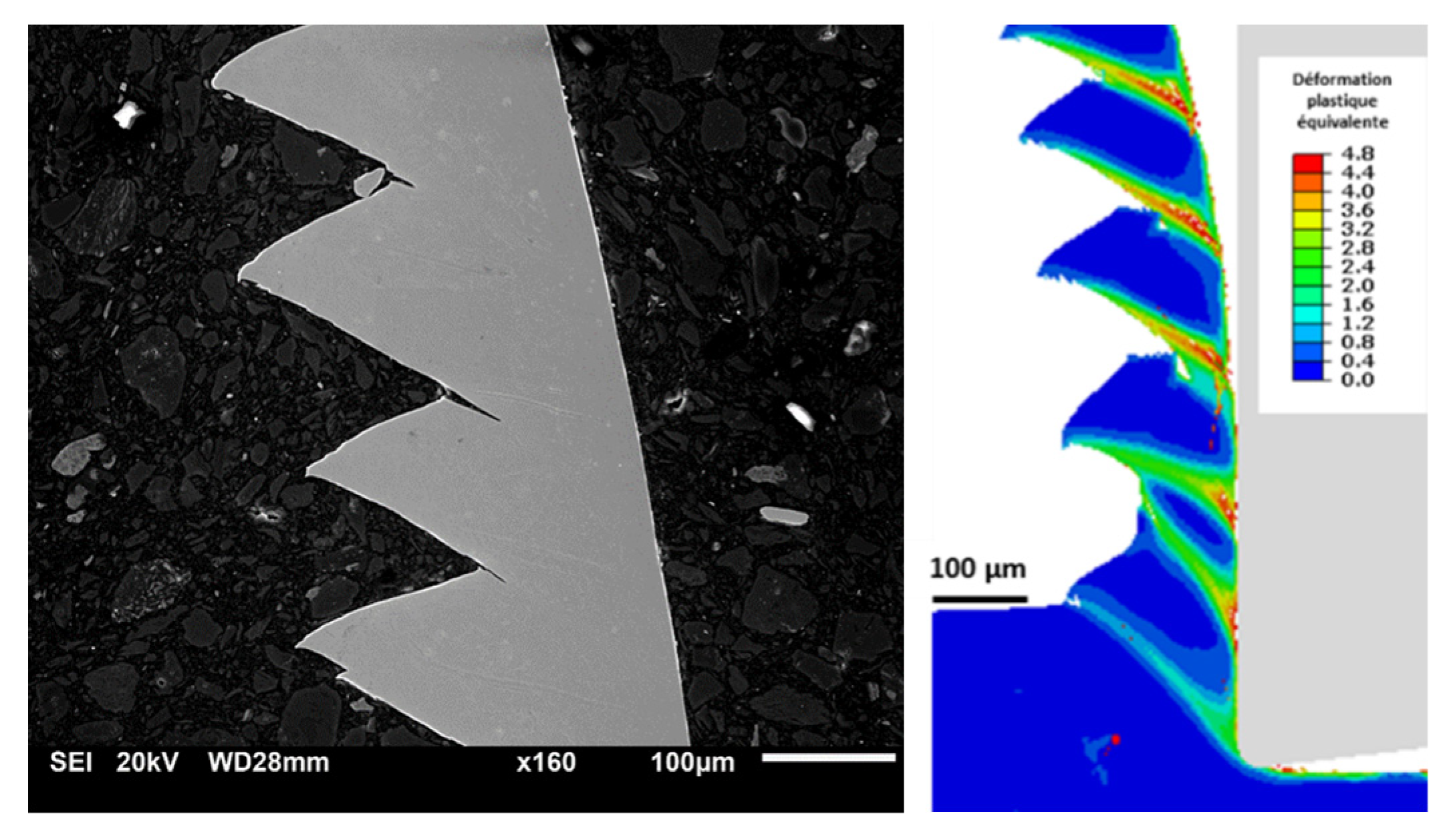

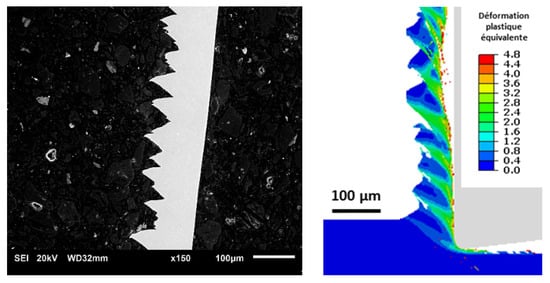

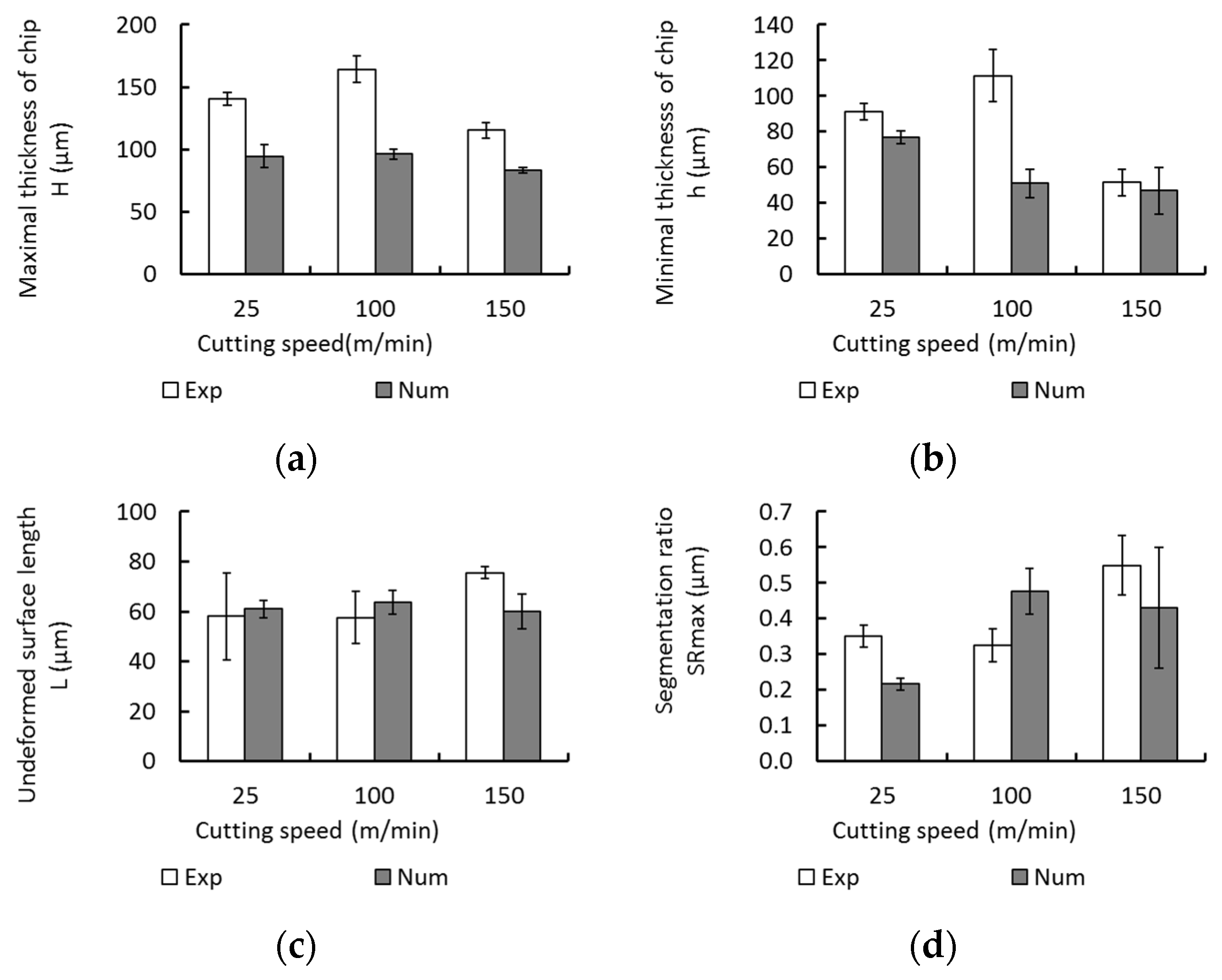

4.1. Chip Morphology

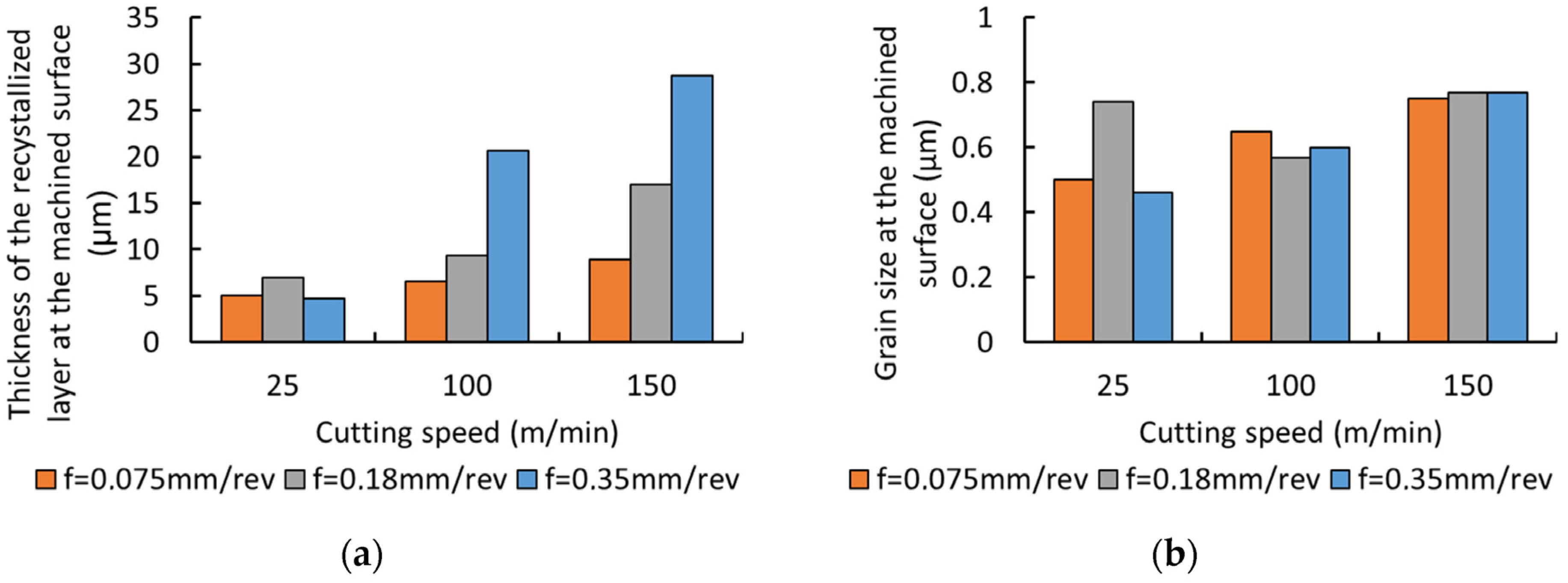

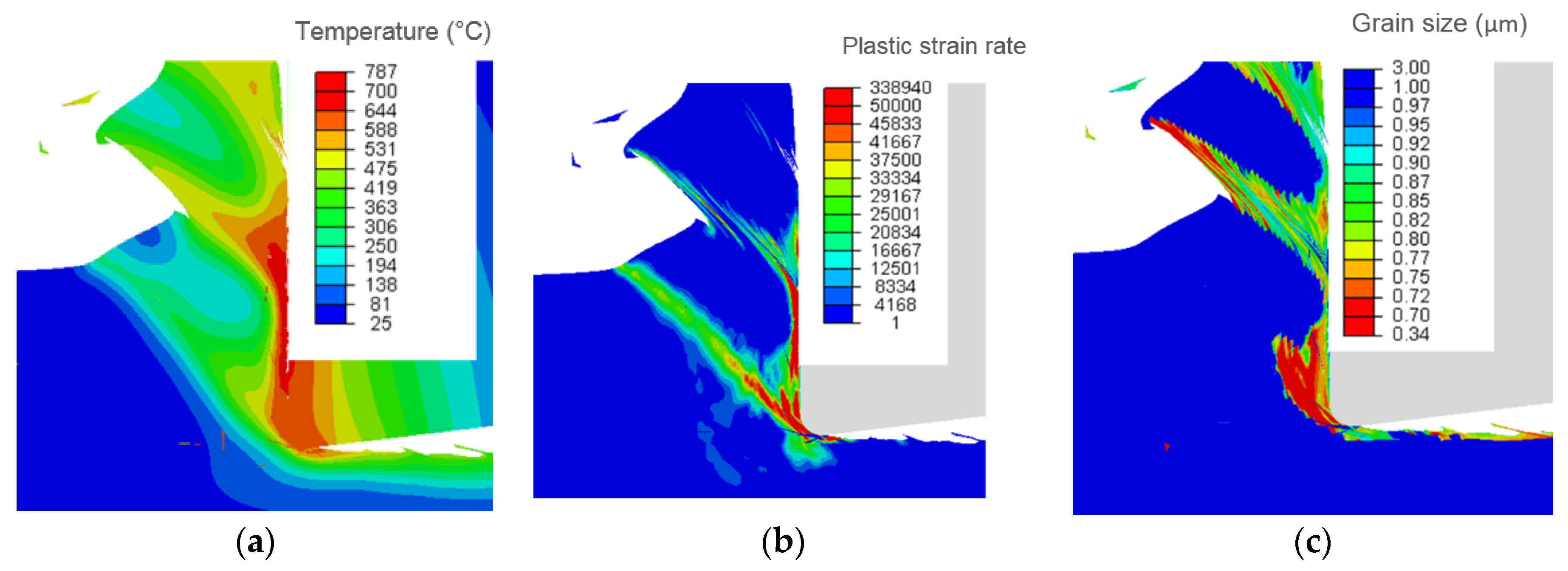

4.2. Microstructure Evolution in the Chip

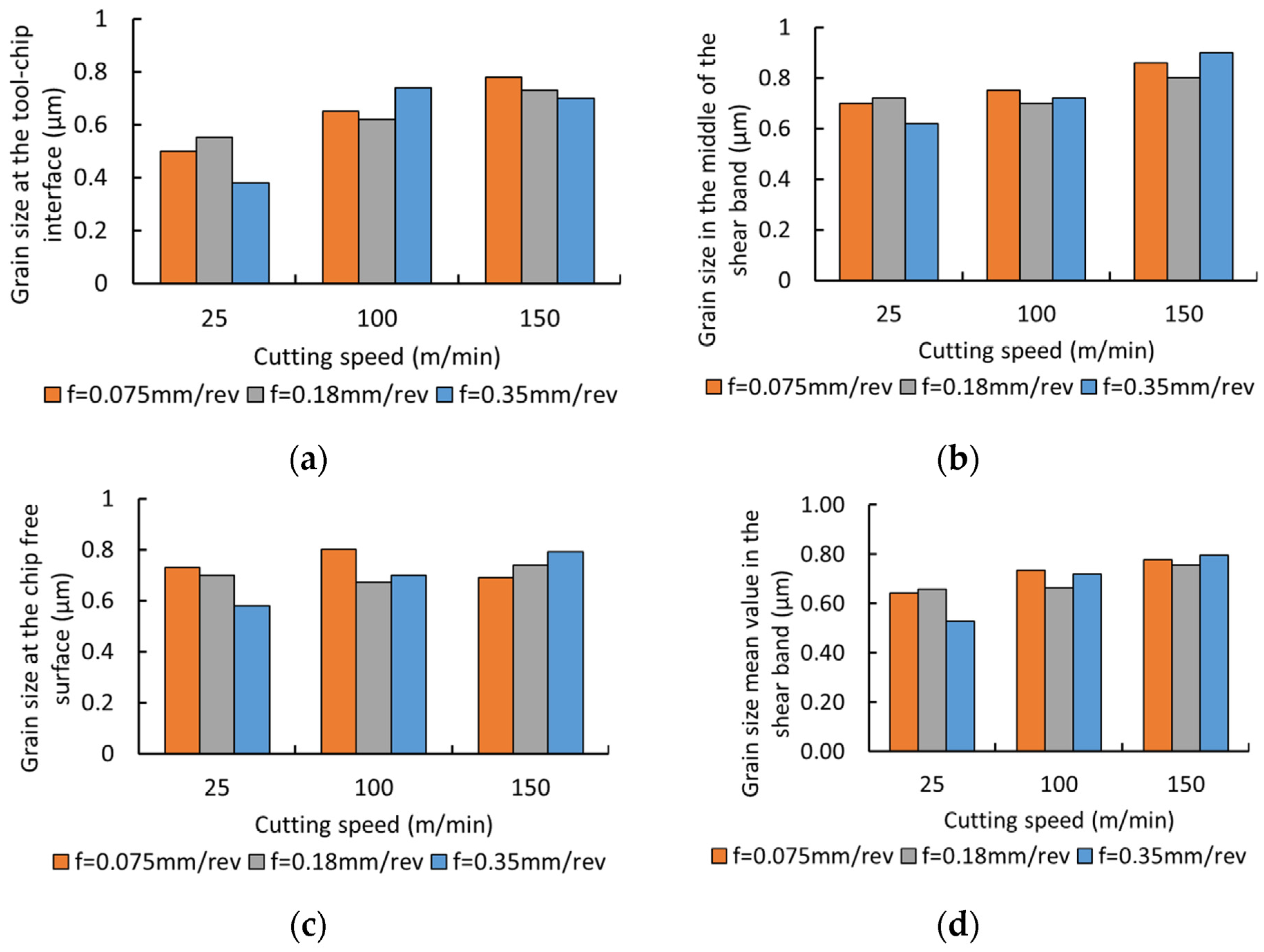

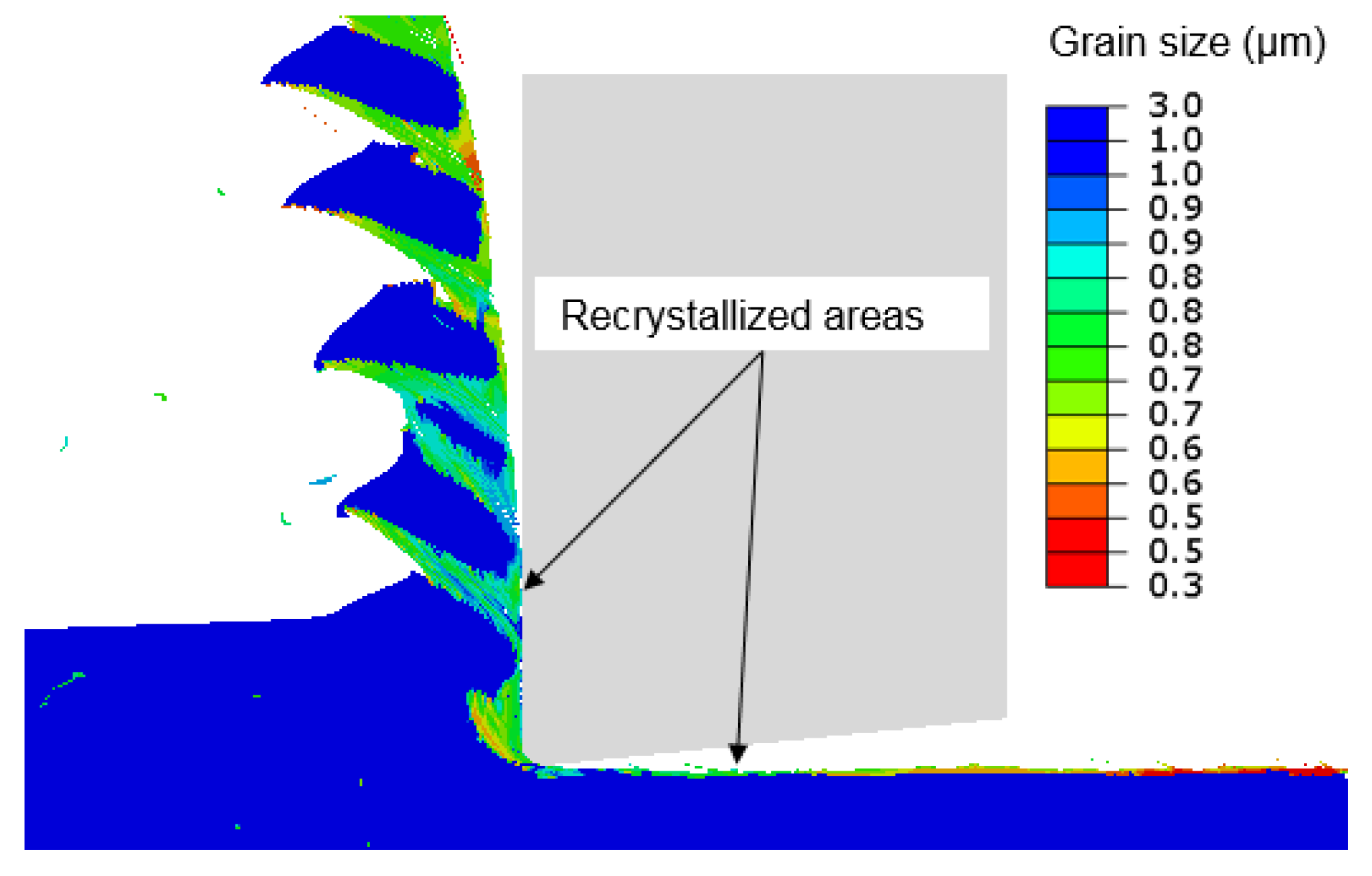

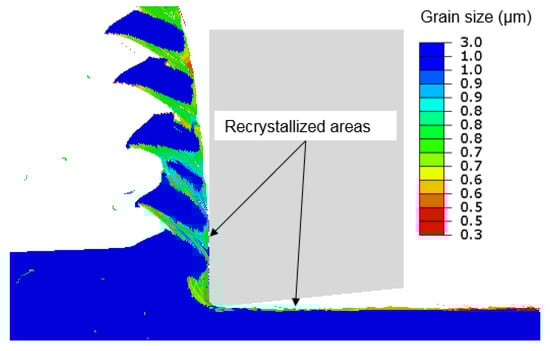

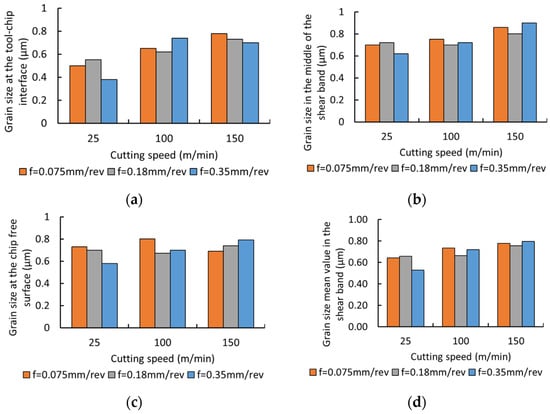

4.2.1. Grain Size Evolution

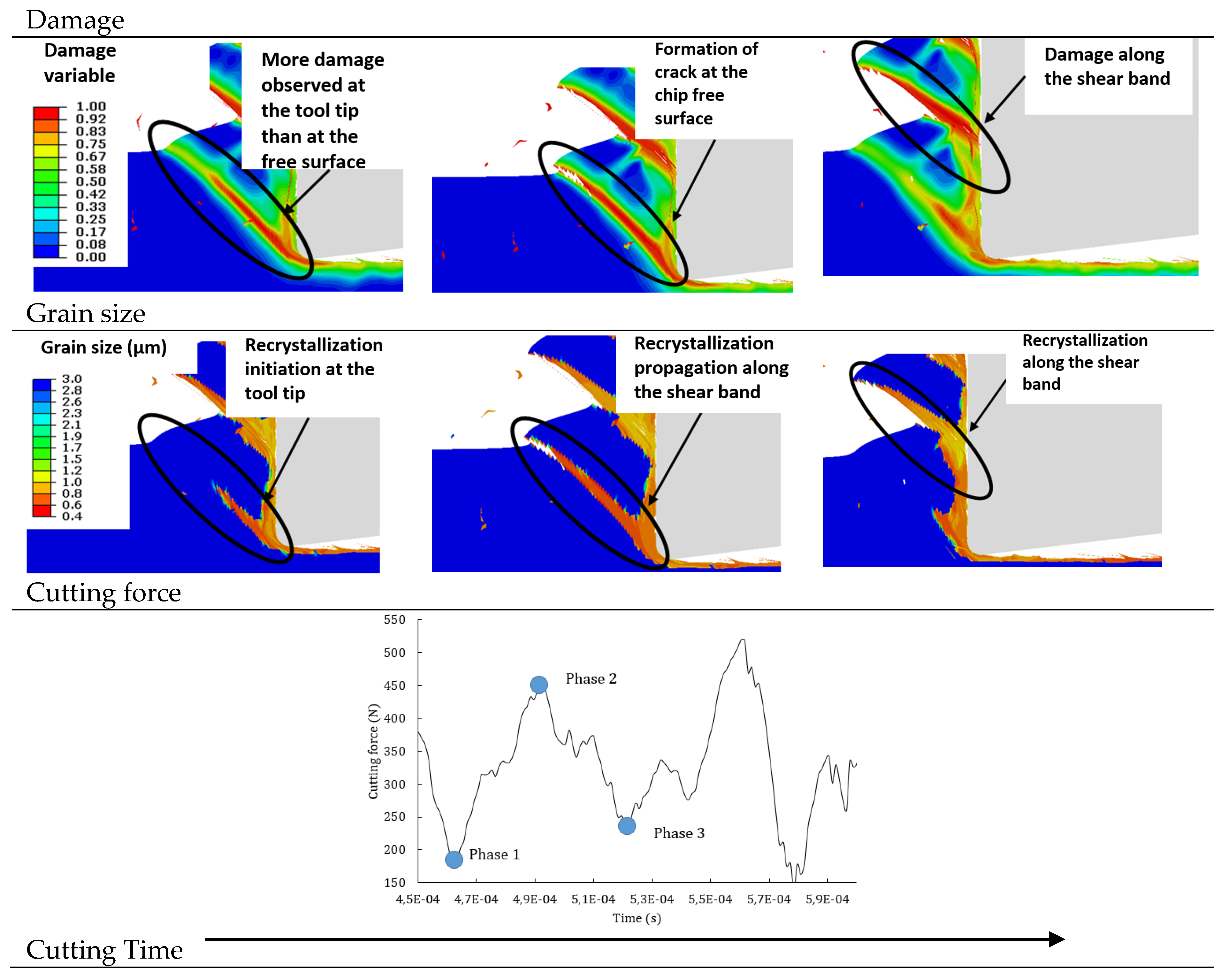

4.2.2. Link with Chip Segmentation
5. Conclusions

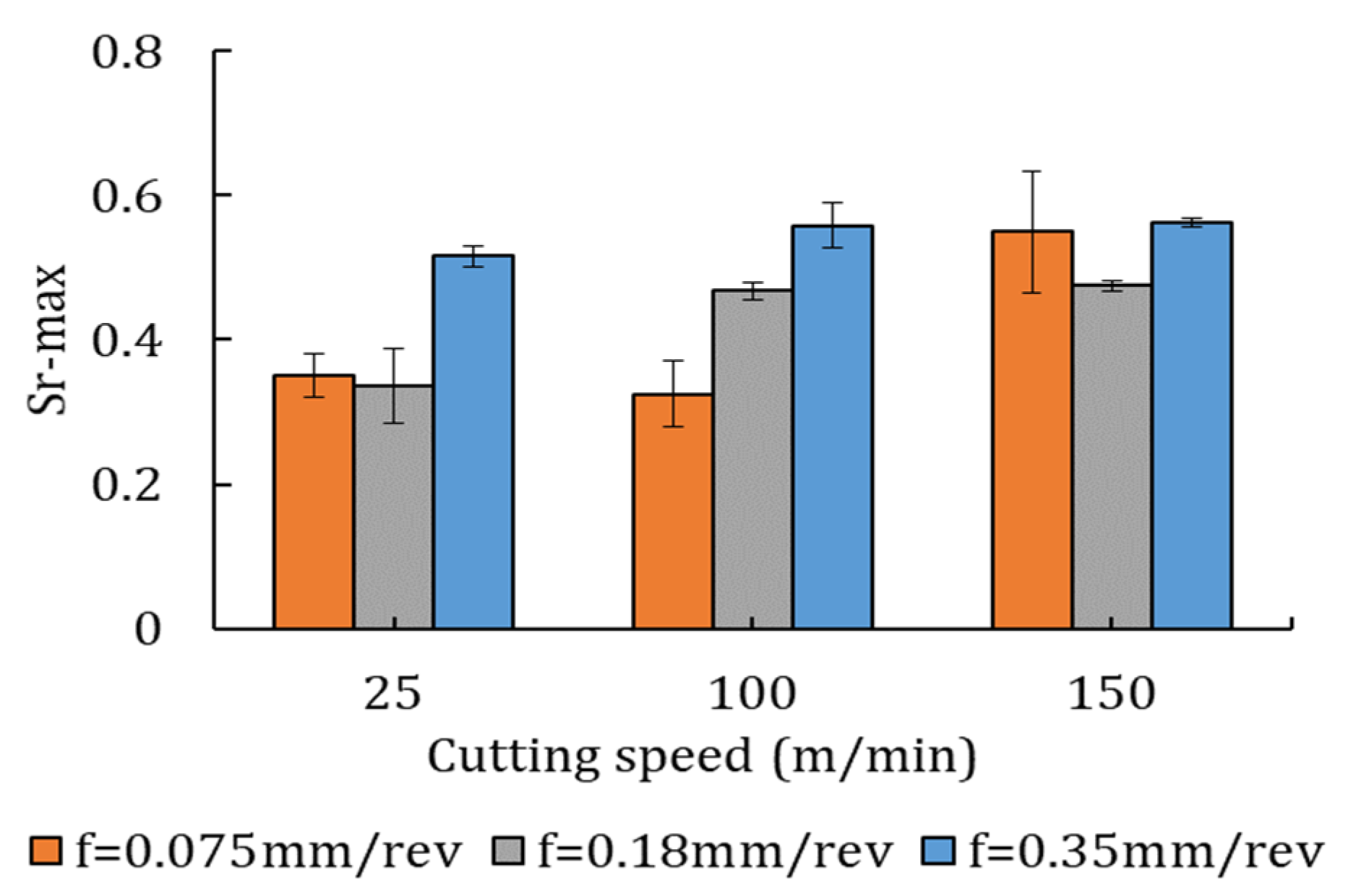

- The characterization of chips morphology shows a classical result for refractory alloys, such as Ti-6Al-4V: increasing feed and cutting speed intensify chip segmentation;

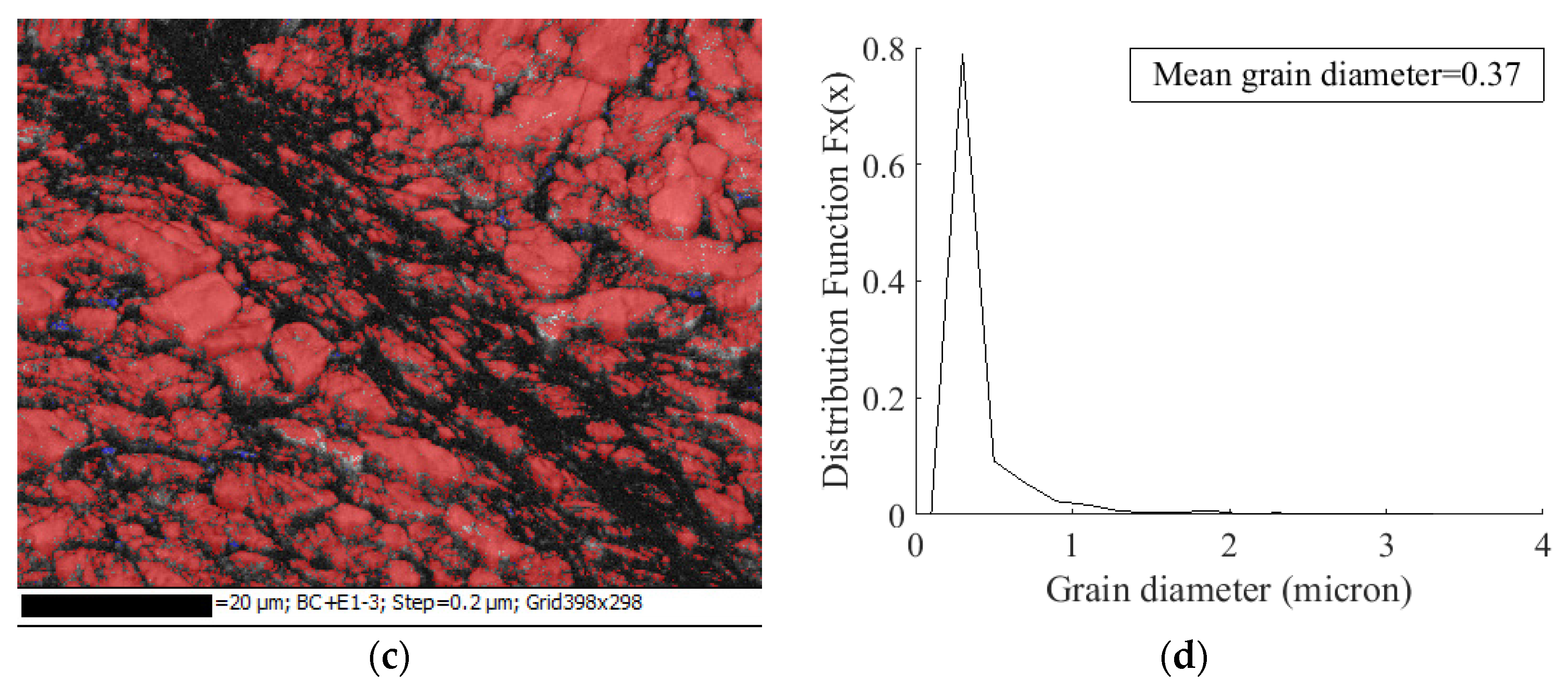

- The microstructure analysis of the ASB revealed the grains refinement and its interaction with damage;
- The proposed physical behavior model of Ti-6Al-4V considers this interaction. The simulated uniaxial tension showed how combined temperature/strain rate affects damage and DRX and, in turn, the stress/strain response (flow stress);
- The application of the material behavior model for FE simulation of machining Ti-6Al-4V showed the transition between unstable (aperiodic) and stable chip segmentation (periodic);

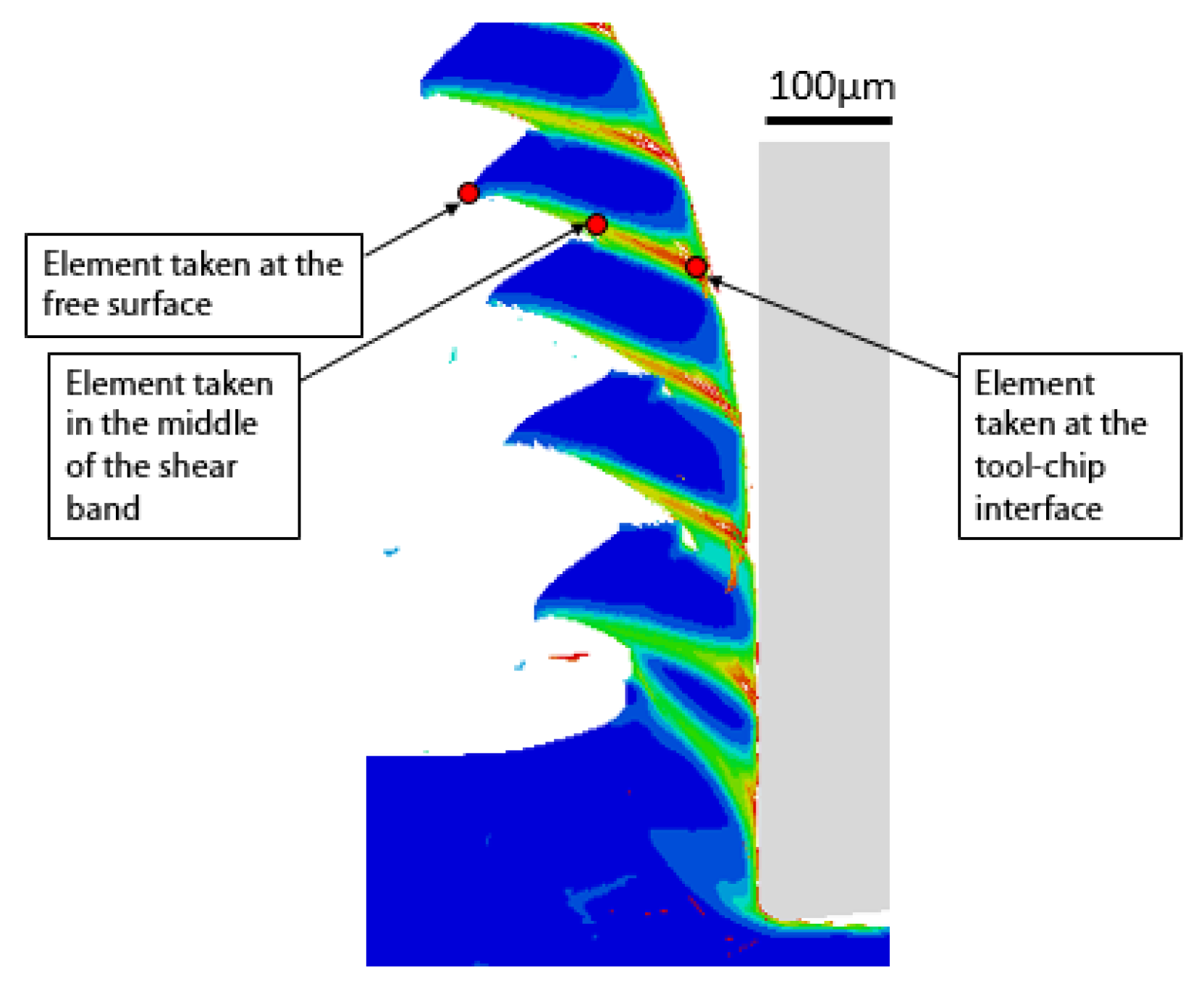

- In the ASB, giving rise to the chip segmentation, the DRX and damage were predicted, with fracture occurring from the chip-free surface propagating along with the ASB, while the DRX occurs in the ASB from the tool–chip interface;
- Finally, the material behavior model, implemented for FE simulation of machining, gives more insight into the mechanism of chip formation, particularly the interaction between DRX and damage. However, including a FE re-meshing of the cutting zone allows better results by correctly capturing the action at the tool tip and therefore what happens at the generated surface.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
Basic parameters | |
Young modulus | |
Material density | |
Thermal expansion | |
Thermal conductivity | |
Specific Heat | |
Variables | |
Equivalent plastic strain | |
Equivalent plastic strain rate | |
Temperature | |
von Mises stress | |
damage variable | |
JC parameters | |
Initial yield stress | |
Hardening modulus | |
Strain rate dependency | |
Thermal softening | |
Strain hardening | |
Reference Temperature | |
Melting Temperature | |
Damage parameters | |
, , , , | Johnson–Cook damage initiation |
Damage initiation criteria | |
Fracture energy | |
Plastic displacement at damage initiation | |
Plastic displacement at fracture | |
JMAK model parameters | |
Recrystallized volume fraction | |
Dynamic recrystallization activation energy | |
Boltzmann constant | |
Critical equivalent plastic strain | |
, , , , | Critical strain |
, , , , | Recrystallized volume fraction |
, , , , | Grain size |
TANH model parameters | |
, , , | TANH model |
Contact/friction parameters | |
Sliding stress | |
Normal stress | |
Coefficient of friction | |
Sliding velocity | |
Heat transfer coefficient | |
Heat partition coefficient | |
Friction heat ratio | |
Friction heat | |
Friction heat to the tool | |
Friction heat to the work material | |
Interface work material temperature | |
Interface tool temperature | |
Cutting parameters | |
, | Cutting speed and feed |
Chip geometrical parameters | |

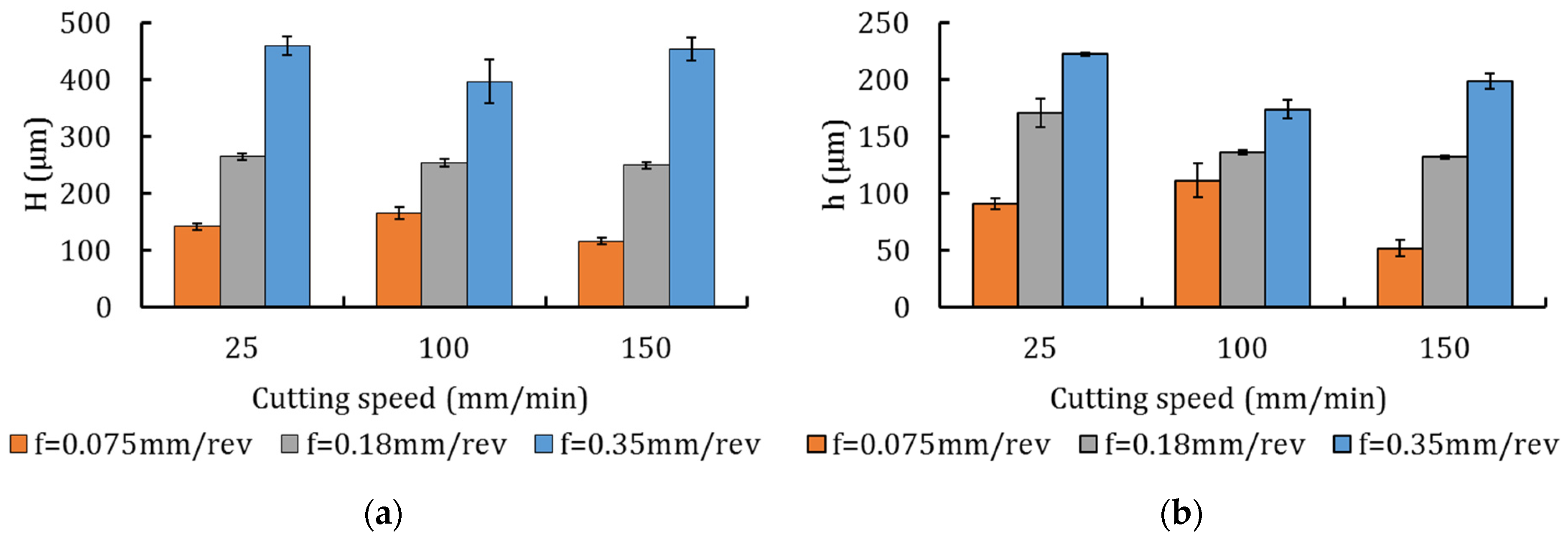

, | Max. and min. chip thickness |
Chip surface length | |
Chip segments peak to peak distance | |
Chip compression ratio | |
Segmentation ratio maximal value |
References
- Sun, S.; Brandt, M.; Dargusch, M.S. Characteristics of Cutting Forces and Chip Formation in Machining of Titanium Alloys. Int. J. Mach. Tools Manuf. 2009, 49, 561–568. [Google Scholar] [CrossRef]
- Ginting, A.; Nouari, M. Surface Integrity of Dry Machined Titanium Alloys. Int. J. Mach. Tools Manuf. 2009, 49, 325–332. [Google Scholar] [CrossRef]
- Ulutan, D.; Ozel, T. Machining Induced Surface Integrity in Titanium and Nickel Alloys: A Review. Int. J. Mach. Tools Manuf. 2011, 51, 250–280. [Google Scholar] [CrossRef]
- Donachie, M.J. Titanium: A Technical Guide; ASM International: Materials Park, OH, USA, 2000; ISBN 0-87170-686-5. [Google Scholar]
- Su, G.; Liu, Z.; Li, L.; Wang, B. Influences of Chip Serration on Micro-Topography of Machined Surface in High-Speed Cutting. Int. J. Mach. Tools Manuf. 2015, 89, 202–207. [Google Scholar] [CrossRef]
- Nakayama, K.; Arai, M.; Kanda, T. Machining Characteristics of Hard Materials. CIRP Ann.-Manuf. Technol. 1988, 37, 89–92. [Google Scholar] [CrossRef]
- Umbrello, D. Finite Element Simulation of Conventional and High Speed Machining of Ti6Al4V Alloy. J. Mater. Process. Technol. 2008, 196, 79–87. [Google Scholar] [CrossRef]
- Aurich, J.C.; Bil, H. 3D Finite Element Modelling of Segmented Chip Formation. CIRP Ann. Manuf. Technol. 2006, 55, 47–50. [Google Scholar] [CrossRef]
- Cheng, W.; Outeiro, J.; Costes, J.-P.; M’Saoubi, R.; Karaouni, H.; Astakhov, V. A Constitutive Model for Ti6Al4V Considering the State of Stress and Strain Rate Effects. Mech. Mater. 2019, 137, 103103. [Google Scholar] [CrossRef] [Green Version]
- Xu, X.; Outeiro, J.; Zhang, J.; Xu, B.; Zhao, W.; Astakhov, V. Machining Simulation of Ti6Al4V Using Coupled Eulerian-Lagrangian Approach and a Constitutive Model Considering the State of Stress. Simul. Model. Pract. Theory 2021, 110, 102312. [Google Scholar] [CrossRef]
- Calamaz, M. Approche Expérimentale et Numérique de l’Usinage à Sec de l’Alliage Aéronautique TA6V. Ph.D. Thesis, Institut Supérieur d’Ingénierie de la Conception, Bordeaux, France, 2008. [Google Scholar]
- Zhen-Bin, H.; Komanduri, R. On a Thermomechanical Model of Shear Instability in Machining. CIRP Ann. Manuf. Technol. 1995, 44, 69–73. [Google Scholar] [CrossRef]
- Davies, M.A.; Burns, T.J.; Evans, C.J. On the Dynamics of Chip Formation in Machining Hard Metals. CIRP Ann. Manuf. Technol. 1997, 46, 25–30. [Google Scholar] [CrossRef]
- Xue, Q.; Meyers, M.A.; Nesterenko, V.F. Self-Organization of Shear Bands in Titanium and Ti–6Al–4V Alloy. Acta Mater. 2002, 50, 575–596. [Google Scholar] [CrossRef]
- Grebe, H.A.; Pak, H.-R.; Meyers, M.A. Adiabatic Shear Localization in Titanium and Ti-6 Pct Al-4 Pct V Alloy. Metall. Trans. A 1985, 16, 761–775. [Google Scholar] [CrossRef]
- Wan, Z.P.; Zhu, Y.E.; Liu, H.W.; Tang, Y. Microstructure Evolution of Adiabatic Shear Bands and Mechanisms of Saw-Tooth Chip Formation in Machining Ti6Al4V. Mater. Sci. Eng. A 2012, 531, 155–163. [Google Scholar] [CrossRef]
- Rhim, S.-H.; Oh, S.-I. Prediction of Serrated Chip Formation in Metal Cutting Process with New Flow Stress Model for AISI 1045 Steel. J. Mater. Process. Technol. 2006, 171, 417–422. [Google Scholar] [CrossRef]
- Calamaz, M.; Coupard, D.; Girot, F. A New Material Model for 2D Numerical Simulation of Serrated Chip Formation When Machining Titanium Alloy Ti–6Al–4V. Int. J. Mach. Tools Manuf. 2008, 48, 275–288. [Google Scholar] [CrossRef] [Green Version]
- Chen, G.; Ge, J.; Lu, L.; Liu, J.; Ren, C. Mechanism of Ultra-High-Speed Cutting of Ti-6Al-4V Alloy Considering Time-Dependent Microstructure and Mechanical Behaviors. Int. J. Adv. Manuf. Technol. 2021, 113, 193–213. [Google Scholar] [CrossRef]
- Liu, R.; Melkote, S.; Pucha, R.; Morehouse, J.; Man, X.; Marusich, T. An Enhanced Constitutive Material Model for Machining of Ti–6Al–4V Alloy. J. Mater. Process. Technol. 2013, 213, 2238–2246. [Google Scholar] [CrossRef]
- Shang, X.; Cui, Z.; Fu, M.W. Dynamic Recrystallization Based Ductile Fracture Modeling in Hot Working of Metallic Materials. Int. J. Plast. 2017, 95, 105–122. [Google Scholar] [CrossRef]
- Ducobu, F.; Rivière-Lorphèvre, E.; Filippi, E. Material Constitutive Model and Chip Separation Criterion Influence on the Modeling of Ti6Al4V Machining with Experimental Validation in Strictly Orthogonal Cutting Condition. Int. J. Mech. Sci. 2016, 107, 136–149. [Google Scholar] [CrossRef]
- Atlati, S.; Haddag, B.; Nouari, M.; Zenasni, M. Analysis of a New Segmentation Intensity Ratio “SIR” to Characterize the Chip Segmentation Process in Machining Ductile Metals. Int. J. Mach. Tools Manuf. 2011, 51, 687–700. [Google Scholar] [CrossRef]
- Kouadri, S.; Necib, K.; Atlati, S.; Haddag, B.; Nouari, M. Quantification of the Chip Segmentation in Metal Machining: Application to Machining the Aeronautical Aluminium Alloy AA2024-T351 with Cemented Carbide Tools WC-Co. Int. J. Mach. Tools Manuf. 2013, 64, 102–113. [Google Scholar] [CrossRef]
- Astakhov, V.P.; Shvets, S. The Assessment of Plastic Deformation in Metal Cutting. J. Mater. Process. Technol. 2004, 146, 193–202. [Google Scholar] [CrossRef]
- Iqbal, S.A.; Mativenga, P.T.; Sheikh, M.A. A Comparative Study of the Tool–Chip Contact Length in Turning of Two Engineering Alloys for a Wide Range of Cutting Speeds. Int. J. Adv. Manuf. Technol. 2009, 42, 30. [Google Scholar] [CrossRef]
- Schulz, H.; Abele, E.; Sahm, A. Material Aspects of Chip Formation in HSC Machining. CIRP Ann. Manuf. Technol. 2001, 50, 45–48. [Google Scholar] [CrossRef]
- Joshi, S.; Tewari, A.; Joshi, S. Influence of Preheating on Chip Segmentation and Microstructure in Orthogonal Machining of Ti6Al4V. J. Manuf. Sci. Eng. 2013, 135, 61017. [Google Scholar] [CrossRef]
- Hua, J.; Shivpuri, R. Prediction of Chip Morphology and Segmentation during the Machining of Titanium Alloys. J. Mater. Process. Technol. 2004, 150, 124–133. [Google Scholar] [CrossRef]
- Arısoy, Y.M.; Özel, T. Prediction of Machining Induced Microstructure in Ti–6Al–4V Alloy Using 3-D FE-Based Simulations: Effects of Tool Micro-Geometry, Coating and Cutting Conditions. J. Mater. Process. Technol. 2015, 220, 1–26. [Google Scholar] [CrossRef]
- Pan, Z.; Liang, S.Y.; Garmestani, H.; Shih, D.S. Prediction of Machining-Induced Phase Transformation and Grain Growth of Ti-6Al-4 V Alloy. Int. J. Adv. Manuf. Technol. 2016, 87, 859–866. [Google Scholar] [CrossRef]
- Wang, B.; Liu, Z. Shear Localization Sensitivity Analysis for Johnson–Cook Constitutive Parameters on Serrated Chips in High Speed Machining of Ti6Al4V. Simul. Model. Pract. Theory 2015, 55, 63–76. [Google Scholar] [CrossRef]
- Sun, J.; Guo, Y.B. Material Flow Stress and Failure in Multiscale Machining Titanium Alloy Ti-6Al-4V. Int. J. Adv. Manuf. Technol. 2009, 41, 651–659. [Google Scholar] [CrossRef]
- Kolmogorov, V.L.; Smirnov, S.V. The Restoration of the Margin of Metal Plasticity after Cold Deformation. J. Mater. Process. Technol. 1998, 74, 83–88. [Google Scholar] [CrossRef]
- Smirnov, S.V. The Healing of Damage after the Plastic Deformation of Metals. Frat. Integrità Strutt. 2013, 7, 7–12. [Google Scholar] [CrossRef] [Green Version]
- Haddag, B.; Atlati, S.; Nouari, M.; Zenasni, M. Analysis of the Heat Transfer at the Tool–Workpiece Interface in Machining: Determination of Heat Generation and Heat Transfer Coefficients. Heat Mass Transf. 2015, 51, 1355–1370. [Google Scholar] [CrossRef]
- Komanduri, R.; Brown, R.H. On the Mechanics of Chip Segmentation in Machining. J. Eng. Ind. 1981, 103, 33–51. [Google Scholar] [CrossRef]
Al | V | C | Fe | H | W | O | Ti |
---|---|---|---|---|---|---|---|
6% | 4% | ≤0.08% | ≤0.3 | ≤0.0125 | ≤0.07 | ≤0.2 | Balance |
Test N° | (mm/rev) | |
---|---|---|
1 | 25 | 0.075 |
2 | 100 | |
3 | 150 | |
4 | 25 | 0.18 |
5 | 100 | |
6 | 150 | |
7 | 25 | 0.35 |
8 | 100 | |
9 | 150 |

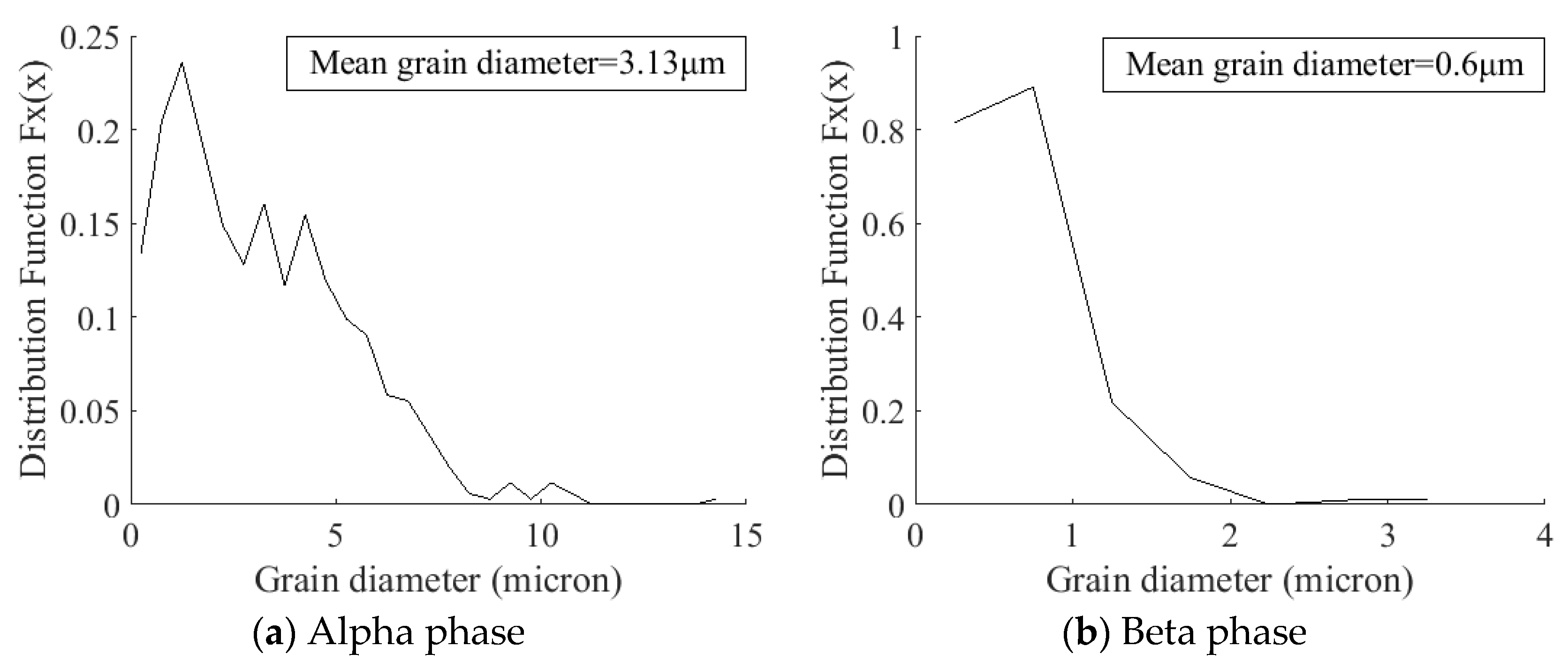

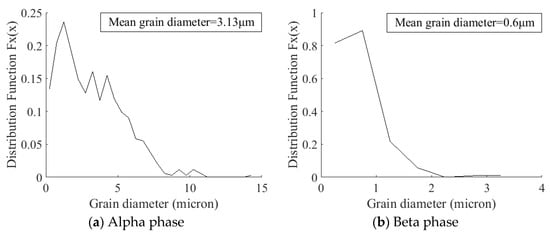

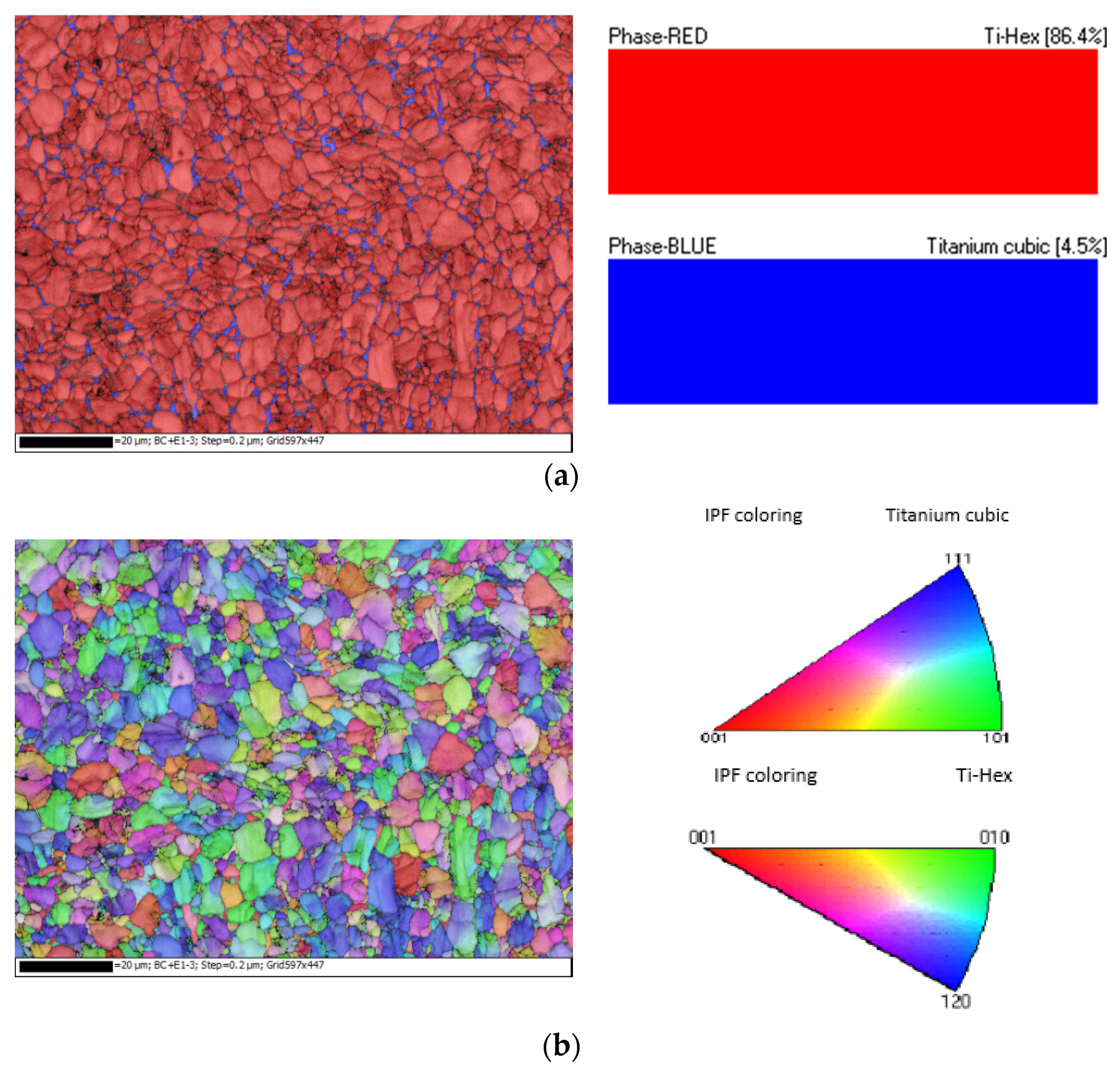

Average Value (μm) | Standard Deviation (μm) | Maximum Value (μm) | Minimum Value (μm) | Number of Indexed Grains | |
---|---|---|---|---|---|
Alpha phase | 3.13 | 2.2 | 14.2 | 0.2 | 686 |
Beta phase | 0.6 | 0.4 | 3.1 | 0.2 | 211 |
Mean Value (μm) | Standard Deviation (μm) | Max. Value (μm) | Min. Value (μm) | Number of Studied Grains (μm) | |
---|---|---|---|---|---|
Alpha phase | 0.37 | 0.31 | 3.36 | 0.22 | 663 |
(J·K−1·mol−1) | ||||||
---|---|---|---|---|---|---|
0.8 | 0 | 0.01 | 0.4 | 218 | 8.31 | 3 |
0.022 | 0 | 0.03 | 2 | 2 |
A (MPa) | B (MPa) | C | m | n | T0 (K°) | (s−1) | a | b | c | d |
---|---|---|---|---|---|---|---|---|---|---|
968 | 380 | 0.02 | 0.577 | 0.421 | 298 | 1 | 1.6 | 0.4 | 6 | 0.5 |
d1 | d2 | d3 | d4 | d5 |
---|---|---|---|---|
−0.09 | 0.25 | −0.5 | 0.014 | 3.87 |
a8 | n8 | m8 | d0 (μm) |
---|---|---|---|
3 | 0 | −0.03 | 3 |
E (GPa) | λ (W/mK) | α (K−1) | CP (J/kgK) | ρ (kg/m3) | |
---|---|---|---|---|---|
Ti-6Al-4V | 113.8 | 7.3 | 8.6 × 10−6 | 580 | 4430 |
WC–Co | 800 | 46 | 4.7 × 10−6 | 203 | 15,000 |
COF | τlim (MPa) | ht (mW/mm2 °C) | ||
---|---|---|---|---|
0.6 | no limit | 1 | 0.5 | 2000 |
