Tribological Wear Effects of Laser Texture Design on AISI 630 Stainless Steel under Lubricated Conditions

Abstract

Surface texturing is used in many applications to control the friction and wear behaviour of mechanical components. The benefits of texture design on the tribological behaviour of conformal surfaces are well known. However, there is a big dependency between the geometrical features of the texture and the texture’s performance. In this paper, the effect of laser texturing parameters on textured geometrical features is studied, as well as its role in the tribological behaviour of AISI 630 steel under lubrication and high-contact pressure conditions. The results show a linear impact of the energy density on the surface quality, whereas the scanning speed influences the homogeneity of the sample. Nevertheless, the surface integrity is also affected by the laser parameters, reducing the micro-hardness on the textured area by up to 33%. Friction coefficient average values and stability presented high variations depending on the sample parameters. Finally, the wear mechanisms were analysed, detecting abrasion for the disc and adhesion for the pin.

1. Introduction

Friction and wear are very complex phenomena due to their dependency on micro-geometrical aspects of the surface. Studied since the 18th century, the first attempt to establish friction models resulted in the three classical laws of friction, developed by Amontons and Coulomb [1,2]. In the middle of the 20th century, Bowden and Tabor developed a new model of friction, which states that friction and wear origins are the result of interaction between the surface’s asperities [3,4,5]. Currently, nanoscale and atomic interaction are also considered to characterize and create friction models [6,7,8].

Friction and wear behavior are highly related to the surfaces of the contact pair. These surfaces can be designed according to their future application. In fact, high-roughness surface designs can be useful for the reduction in friction as well as its increase. In this field, textured surfaces are presented as a suitable solution for friction behavior modification.

Textured surfaces have different behaviors compared with smooth surfaces. The textures reduce the contact area, allowing abrasive particles (from the environment or from wear debris) to become trapped. Similarly, they can act as lubricant reservoirs, improving the load-carrying capacity of the lubricant film due to a cavitation lift force [9,10,11,12,13,14]. However, texturing decreases the fatigue life of the textured components [15].

In the surface modification field, Laser Surface Texturing (LST) is a technique that has increased in popularity over the last few years. It consists of engraving by machining a pattern on the surface using a laser beam. It has been employed in many mechanical components, such hydrodynamic bearings, mechanical seals, piston rings, cylinders, and cutting-tools, etc. [9,16,17].

LST has many advantages compared with other texturing techniques, such as EBM [18], milling [19], EDM [20], ECM [21] or the geometrical features that can be achieved through additive manufacturing processes [22]. Laser machining is flexible, fast, precise, and reliable. Unlike conventional machining processes, it does not require cutting fluids, and no expendable material is necessary. Thus, LST can be considered as a sustainable manufacturing process, whose only disadvantage is the requirement of a high initial investment [23,24,25,26].

LST has been widely employed on the tribological optimization of conformal surfaces under lubrication [27,28]. The characteristics of such surfaces favor the development of a hydrodynamic lubrication regime due to the lower contact pressures [29].

Many authors have researched the influence of the micro-geometrical properties of the textured surface. Dimple-shaped textures, without sharp corners in the sliding direction, have been reported as good choices for reducing the friction coefficient of both hydrodynamic and boundary lubrications [30,31,32]. The density of the textures plays a crucial role. In high-density textures, the contact area decreases and the friction coefficient and wear increase, as a result of the dispersion of the fluid film. However, high-density textures trap more abrasive particles and store more lubricant, so an optimal texture density (depending on contact, sliding, and materials properties) can be found [33,34,35,36].

The size and depth of textures have also been studied. Deep textures lead to the formation of a vortex inside them, diminishing the film thickness and their load-carrying capacity. However, deep textures can store more abrasive particles. A very shallow texture pattern diminishes the overall effect of the textures [37,38,39,40], whereas deep textures lead to an increase in the stick–slip phenomenon, due to a decrease in the surface stiffness [41]. Thus, deep textures favor the stick–slip phenomenon, characterized by an oscillation of the friction coefficient between static and dynamic values in the steady-state regime [3]. Therefore, optimal texture size and depth depend on different factors, such as material, lubricant, and contact properties.

Additionally, the behavior of non-conformal contacts (bearing geometries that fail to conform to one another, i.e., ball and rolling elements in bearings, cams, and gears) is different from that of conformal contacts (bearing geometries that have a high degree of conformity, i.e., where one surface fits relatively snugly into the other). It has been reported that textures may act as a barrier to sliding if the contact area is smaller than the textures, leading to an increase in the interaction between the surfaces, and resulting in a stress concentration that can disperse the fluid film [42,43]. In addition, non-conformal contacts favor a boundary lubrication regime [29].

Surface texturing may impact the wettability of a surface, i.e., the capacity to retain liquids. This property depends on the micro geometrical, physical and chemical properties of the surface and the fluid. There are two models which characterize the influence of these factors on wettability: the Wenzel and the Cassie-Baxter models [44,45,46,47,48]. The surface modification induced by the texturing process is expected to modify the wettability of the surface and its behavior toward a lubricated sliding. Many authors have reported that laser texturing is able to change the behavior of a surface from hydrophobic to hydrophilic, and vice versa [49,50,51,52].

Finally, AISI 630 is one of the most popular and most commonly used stainless chromium-nickel alloy steels, with a copper additive and precipitation hardened with a martensitic structure. It is characterized by having a high corrosion resistance while maintaining high strength properties, including hardness. It can operate in the temperature range from −29 °C to 343 °C, while retaining relatively good properties. Due to its excellent properties in a wide range of temperatures, it is used in critical components in the aerospace industry (bushings, turbine blades, couplings, drive shafts, and landing gears, etc.). However, although it is used in applications in contact with other elements, the possible improvement of tribological performance by laser texturing has not been studied in the literature.

In this paper, a study of the influence of a laser is presented as a non-conventional machining method to texture AISI 630 stainless steel. Different energy densities have been applied for a constant texture geometry, characterizing its behavior with a tribological pin-on-disc test and the effect of the laser beam on the microstructure across micro-hardness and microscopy techniques.

2. Materials and Methods

The experimental methodology consists of three main phases, including specimen preparation, tribological pin-on-disc tests, and specimen characterization. All the tests were repeated at least 3 times.

2.1. Specimen Preparation

AISI 630 discs with 40 mm diameter and 5 mm thickness were cut using wire electro-discharge machining (WEDM) from a bar. The discs were grinded and polished by using #800 grit and #1200 grit SiC papers, until reaching an average roughness $R_a<0.8$ µm [53]. AISI 630 composition is shown in

Table 1. AISI 630 composition (wt%) [54].

C	Si	Mn	P	S	Cr	Ni	Cu	Nb + Ta	Fe
≤0.07	≤1	≤1	≤0.04	≤0.03	15–17.5	3–5	3–5	0.15–0.45	rest

.

Laser texturing was performed under room air atmosphere, using a commercial marking machine (ROFIN-SINAR Technologies Inc., Plymouth, MI, USA) based on the Ytterbium-fiber infrared laser system with an λ = 1070 ± 5 nm wavelength, and a pulse duration of τ = 100 ns. The texturing process was developed through bidirectional parallel lines with a 0.1 mm distance between the irradiated tracks, using a laser spot with 60 µm of focal diameter.

Seven different treatments were designed to texture the AISI 630 specimen’s surface, divided into two sets of laser parameters (

Table 2. Laser texturing parameters.

Ed (J/cm2)	5.89	11.79	14.68	35.37
Vs (mm/s)	10	50	100	200

). The first one studied the surface of the sample with a scanning speed (Vs) ranging from 10 to 200 mm/s at a fixed energy density of pulses (Ed) of 35.37 J/cm². The second set analysed the effect of Ed in a range between 5.89 and 35.37 J/cm² at a Vs = 10 mm/s. Energy density of pulses (Ed) was calculated with Equation (1).

$$\mathrm{Ed}\left[\frac{\mathrm{J}}{{\mathrm{cm}}^2}\right]=\frac{\mathrm{Et}\left[\mathrm{J}\right]}{{\mathrm{A}}_{\mathrm{spot}}\left[{\mathrm{cm}}^2\right]}=\frac{\frac{\mathrm{P}\left[\mathrm{W}\right]}{\mathrm{f}\left[\mathrm{Hz}\right]}}{{\mathrm{A}}_{\mathrm{spot}}\left[{\mathrm{cm}}^2\right]}$$

(1)

where Et is the pulse energy calculated from power (P) and frequency (f), and A_spot is the area of the laser spot.

Results were compared with an untextured sample.

Once textured, micro geometrical characteristics have been evaluated in terms of arithmetical mean roughness value (Ra), greatest height of the roughness profile (Rz), and mean peak width (RSm). From the extracted profiles, texture depth has also been measured. For this purpose, a Mahr Perthometer Concept PGK120 profilometer (Mahr technology, Göttingen, Germany) was used, following the UNE-EN ISO 4288:1999 standard [55]. Additionally, an Alicona Infinite Focus G5+ (Bruker, Germany) variable focus microscope was used to evaluate the surface roughness parameters, as the developed interfacial area ratio (Sdr) and the arithmetical mean height (Sa). Sdr is expressed as the percentage of the definition area’s additional surface area contributed to by the texture as compared with the planar definition area, whereas Sa is the extension of Ra to a surface. It expresses, as an absolute value, the difference in height of each point compared with the arithmetical mean of the surface.

2.2. Tribological Tests

Tribological test have been carried out on textured and non-textured AISI 630 discs with a MT/60/Ni pin-on-disc tribometer (Microtest, Madrid, Spain). The discs were the AISI 630 specimens, whereas tungsten carbide (WC-Co) balls, with a diameter of 3 mm, were used as pins. The tests were performed using a linear speed of 0.67 m/s and a normal load of 5 N, resulting in a contact pressure of 1.5 GPa calculated from the classical equations described as Equations (2)–(4) for hertzian contacts (2).

$$P_{max}=1.5·\left(\frac{L}{\pi a^2}\right)$$

(2)

where $P_{max}$ is the maximum pressure between the ball and the surface, $L$ is the load of the sliding test (N), and $a$ can be calculated following expression (2).

$$a=\sqrt[3]{\frac{3}{8}\sqrt[3]{LdC}}$$

(3)

where $d$ is the diameter of the ball used as a pin, and $C$ is calculated following expression (3).

$$C=\frac{1-{\nu }_1^2}{E_1}+\frac{1-{\nu }_2^2}{E_2}$$

(4)

where $\nu$ is the Poisson modulus and $E$ is the Young modulus for WC-Co and AISI 630, respectively.

The sliding length was 250 m. The evolution of the friction coefficient (CoF) was recorded online during the tests. All tests were carried out in the presence of lubricant, by adding at the start of the test 5 µL Renolin MR 3 VG 10, a mineral oil widely applied to lubricate mechanical contacts.

2.3. Tribological Wear Characterisation

In order to analyse the morphology, the depth of the textures, and the generated wear track, a cross section of the tested specimens was obtained by WEDM processes. After the WEDM cutting process, all the specimens were ground and polished with #800 grit, #1200 grit, and #4000 grit SiC papers, and the cross-section was observed through metallographic microscopy techniques, using an Epiphot 200 microscopy (Nikon, Japan). In addition, the appearance of microstructural modifications induced by the heat generated during the laser process were examined by a chemical etching of the cross sections by a Fry reagent.

Finally, surface micro-hardness was measured using a Shimadzu HMV micro-hardness tester (Shimadzu, Japan). The Vickers method was used with a load of 0.24 N and 10 s time. Six micro-hardness measurements were taken on each specimen at different distances from the textured area to the bulk material.

3. Results and Discussions

3.1. Surface Geometry Characterization

The combination of laser processing parameters successfully provided different texture characteristics. LST parameters have an impact on the laser track morphology and size. As is shown in Figure 1a, the depth of the irradiated track is highly influenced by the Ed, showing an exponential increase in the initial values. However, the effect of the Vs does not induce a linear trend, instead providing a peak value for 50 mm/s, as shown in Figure 1b.

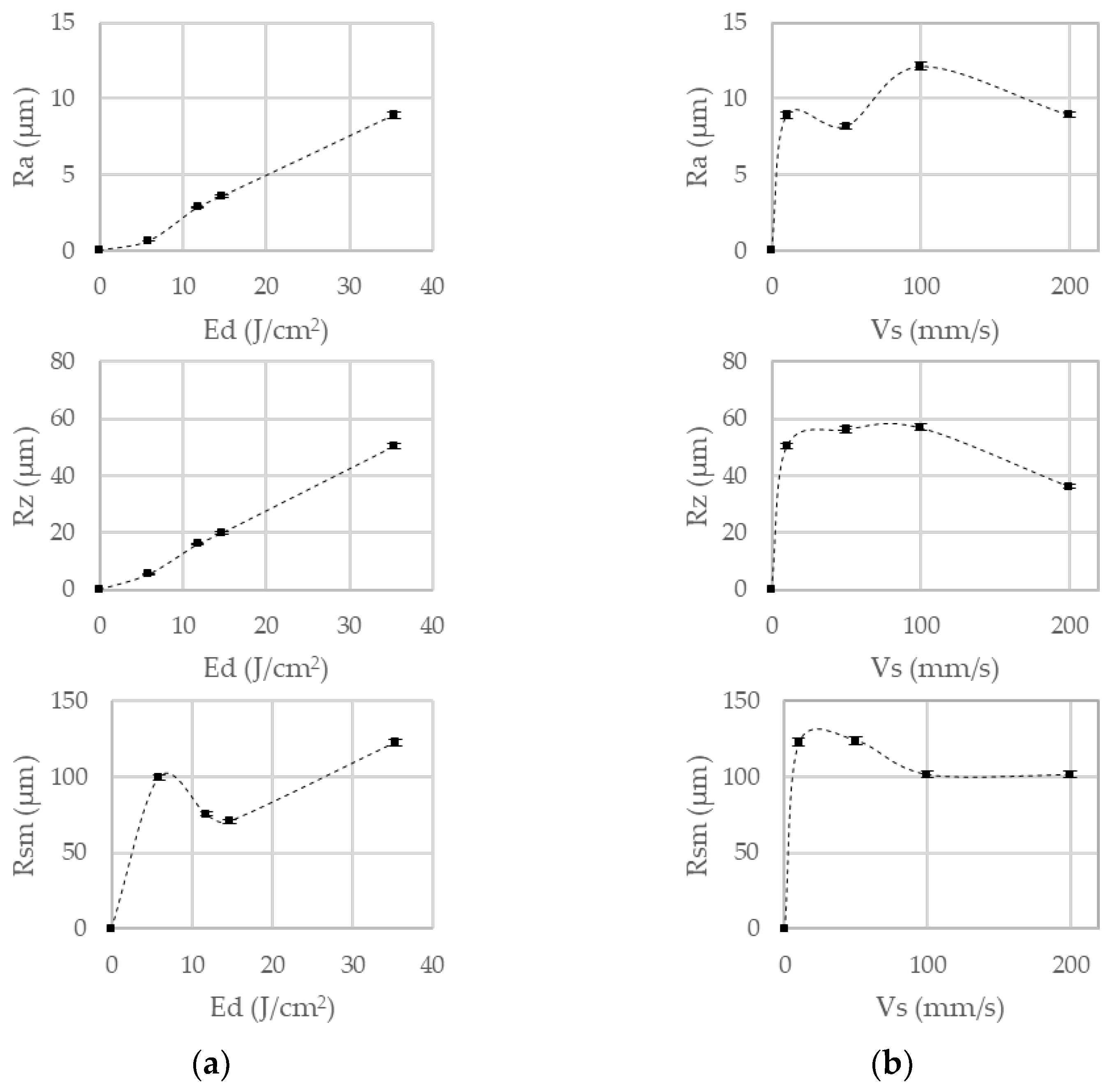

This surface modification may also be measured using roughness parameters. The parameters evaluated for the textured specimens are shown in Figure 2, where the standard deviation of the results is lower than 2%, which is difficult to be appreciated in the figure.

The use of specific combinations of laser processing parameters results in specific variations of the size and shape of the laser tracks. However, the highly complex phenomena that take place in the cooling process after the irradiation process, may cause small variations of the texture characteristics that affect the roughness behavior of the surface.

Ra and Rz follow a linear trend for the Ed increase due to the higher amount of energy received by the surface. This is caused by a higher material removal rate obtained with high Ed. As the scanning speed increases, under the same energy density, a fluctuation in roughness around 10 µm is observed, with a peak for 100 mm/s. For the RSm values, lower scanning speed values result in the increase in the width of the irradiated tracks. RSm decreases with medium values of Ed, which is related to narrower channels. This reduction may be produced by the burrs formed on the channel side. These burrs appear due to the solidification of the removed material at the edges, creating smooth peaks and valleys that reduce the average width of the textured pattern. However, Vs does not seem to have an impact on this parameter, obtaining RSm results within 20% range. As shown in the Figure 2b, the stabilization to 0.1 mm width of tracks was reached for laser treatments where the laser beam does not remain on the same area of the surface for long (Vs ≥ 100 mm/s).

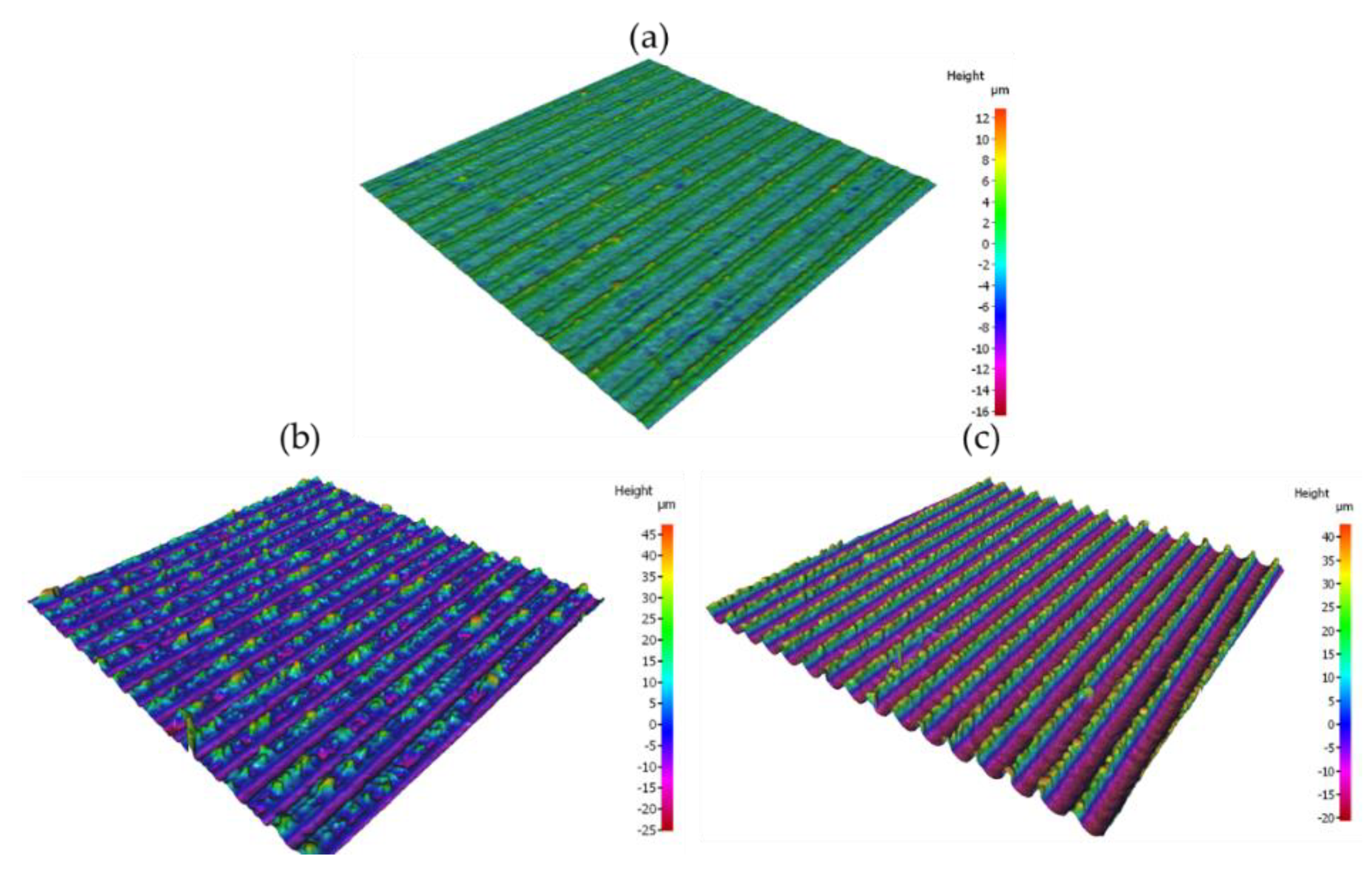

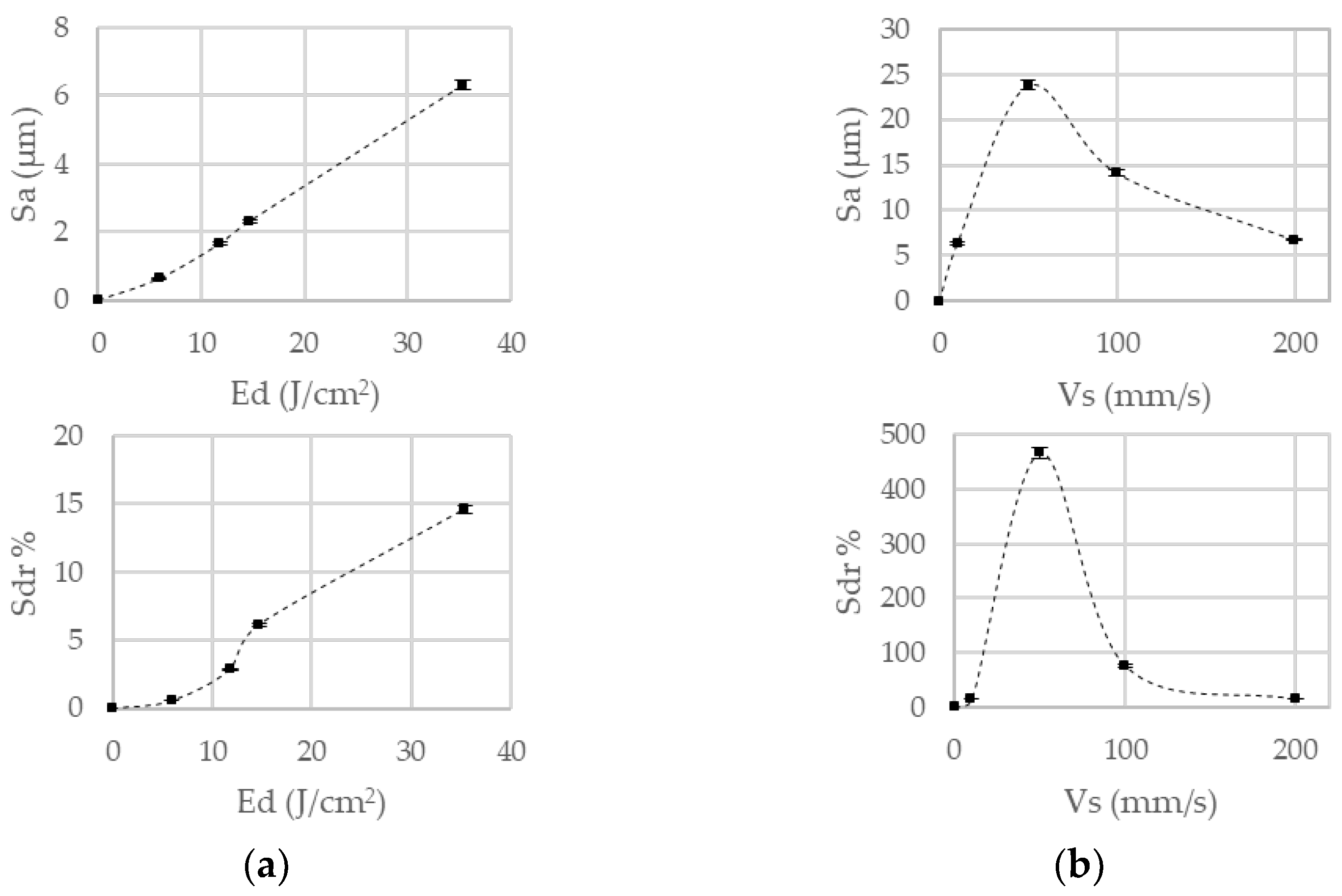

These profile data are homogeneous all over the textures as is shown for surface roughness parameters (Figure 3) and textures mapping (Figure 4).

As for profile roughness, both Sa and Sdr follow a linear trend, increasing with Ed. Nevertheless, the impact of Vs on Sa is considerable higher, increasing its value up to 23.77 µm. It is up to 75% higher than the maximum value obtained for Ed = 35.37 J/cm² and Vs = 10 mm/s. The results are consistent with the channel depth presented in Figure 1. Similarly, the superficial area is increased by these parameters which may impact the friction coefficient and wear rate. These results enhance the homogeneity of the texture samples, as a result of the selected pattern.

Scanning speed of the beam is highly related to the depth of the laser tracks, as are the Sa values. Under this consideration, the unexpected behavior of the low Sa and Sdr value from the 35.37 J/cm² and 10 mm/s specimen is mainly due to a phenomenon that affects the external area of the irradiated track. This effect is caused by the solidification of the vaporized debris on the surface, which in turn reduces the roughness of the textures [28,52], as shown in Figure 5.

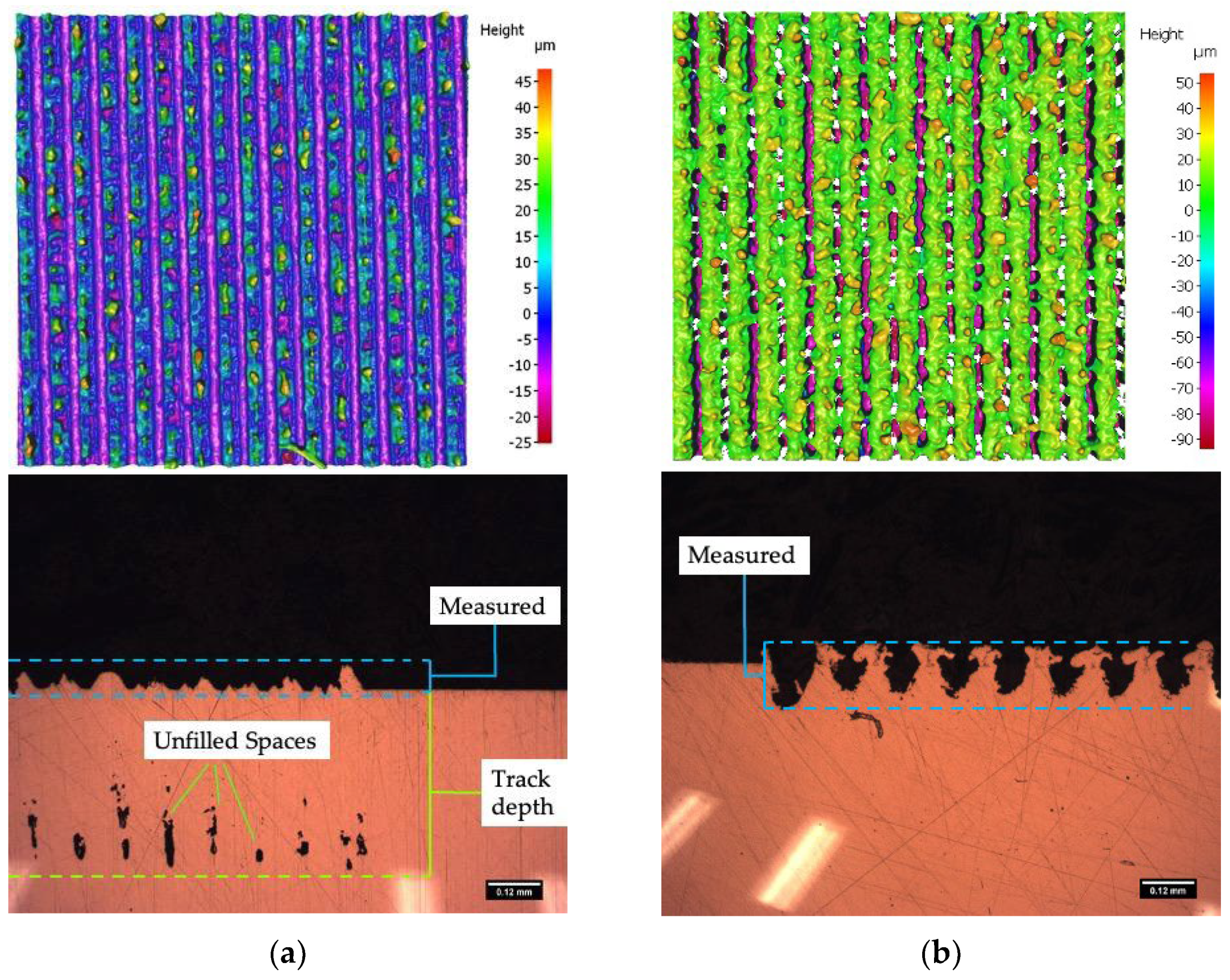

Since a low Vs implies the laser beam spending more time in the same spot, the depth of the channel for Vs = 10 mm/s is counterintuitive. Figure 5 shows the cross section of specimens at Vs = 10 mm/s and Vs = 50 mm/s. The low Vs sample shows an irregular surface, with poorly defined textures, and the presence of porosity in the lower part (Figure 5a). On the contrary, clearly defined textures with the expected shape (the hemispherical shape is due to the Gaussian profile of the laser beam) can be observed for the Vs = 50 mm/s sample (Figure 5b).

These features are related to the material removal mechanism. The high amount of energy received by the surface when using a high energy density and a low scanning speed causes a melting of the material, which flattens the surface. The surface melting occurs due to the characteristics of the laser used. The predominant material removal mechanism with the use of nanosecond lasers is the heating-melting-vaporisation of the material, rather than the laser ablation mechanism typical of ultra-short pulse width lasers [24,25,26,56]. The porosity on the bottom of the textures indicates that the laser beam has reached this depth but the melting phenomenon has filled the engraved textures, due to the condensation and solidification of evaporated metal in small drops.

3.2. Micro-Hardness

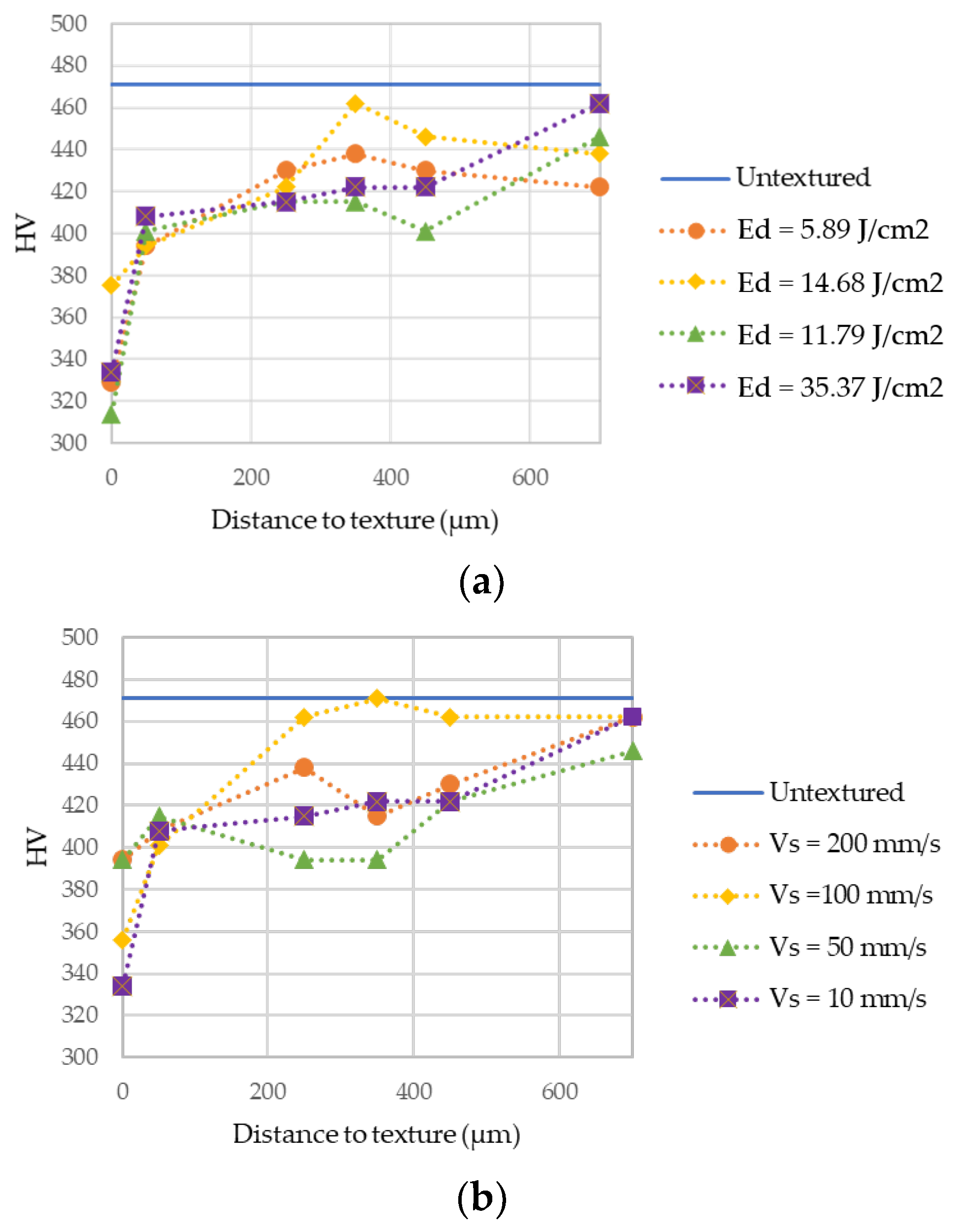

Figure 6 shows the different values of surface micro-hardness measurements. For every case, the micro-hardness at the peak of the textures is significantly lower. Micro-hardness is reduced up to 33% in the texture area. As the measurements separates from the surface, the micro-hardness tends to stabilise to the nominal value of the untextured AISI 630 (470 HV). Generally, 85% of the initial value is recovered at the bottom of the wear groove (40 µm).

This significant decrease indicates that the laser treatment is softening the irradiated zone. This outcome is contrary to previous studies which have found a hardness increase in zones close to the texture, due to a martensitic transformation [57]. The loss of this martensitic transformation can therefore increase the friction coefficient and the wear rate, reducing the tribological performance of the surface. In addition, the reduction in hardness of the textured zone may be mainly due to the cooling effect of the vaporized material in the laser irradiation process. The particles of material released by the laser pulses do not solidify uniformly, affecting the microstructure and generating voids and micro-porosity in the modified layer that reduce the hardness of the material. Thus, no significant differences were found in the effect of Ed or Vs.

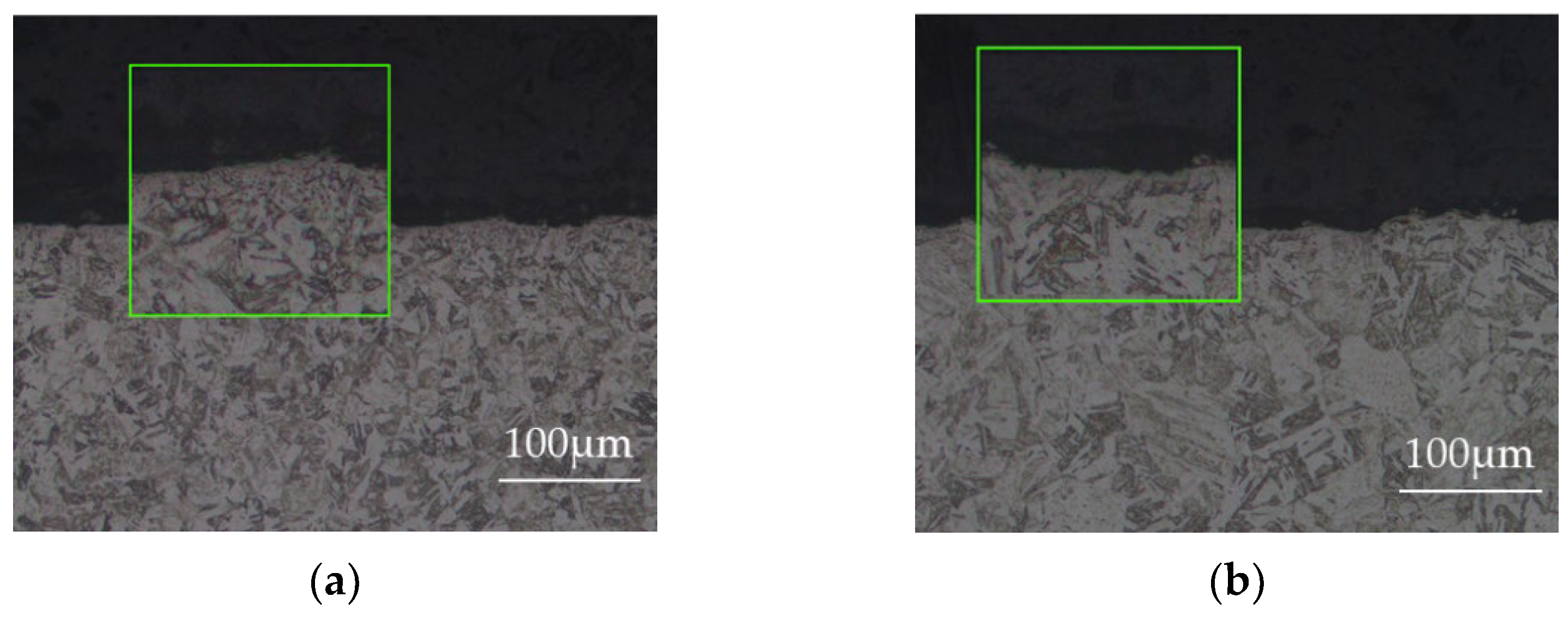

The initial microstructural condition of the 17-4 PH hardening steel is mainly constituted of martensite, corroborated after a chemical attack using a Fry reagent. Metallographic images were taken to ensure that no martensitic transformations have been reached. Since the Ed = 35.37 J/cm² and Vs = 10 mm/s specimen has been submitted to the most aggressive LST parameters, it was compared with the untextured sample (Figure 7). As can be observed, the small layer identified for the untextured sample disappeared in the textured specimen. This reduction may be caused by the same phenomenon as the burr previously described. The melting process may decrease the mechanical properties of the surface, inducing some differences compared with the bulk material.

3.3. Friction Coefficient and Wear Behavior

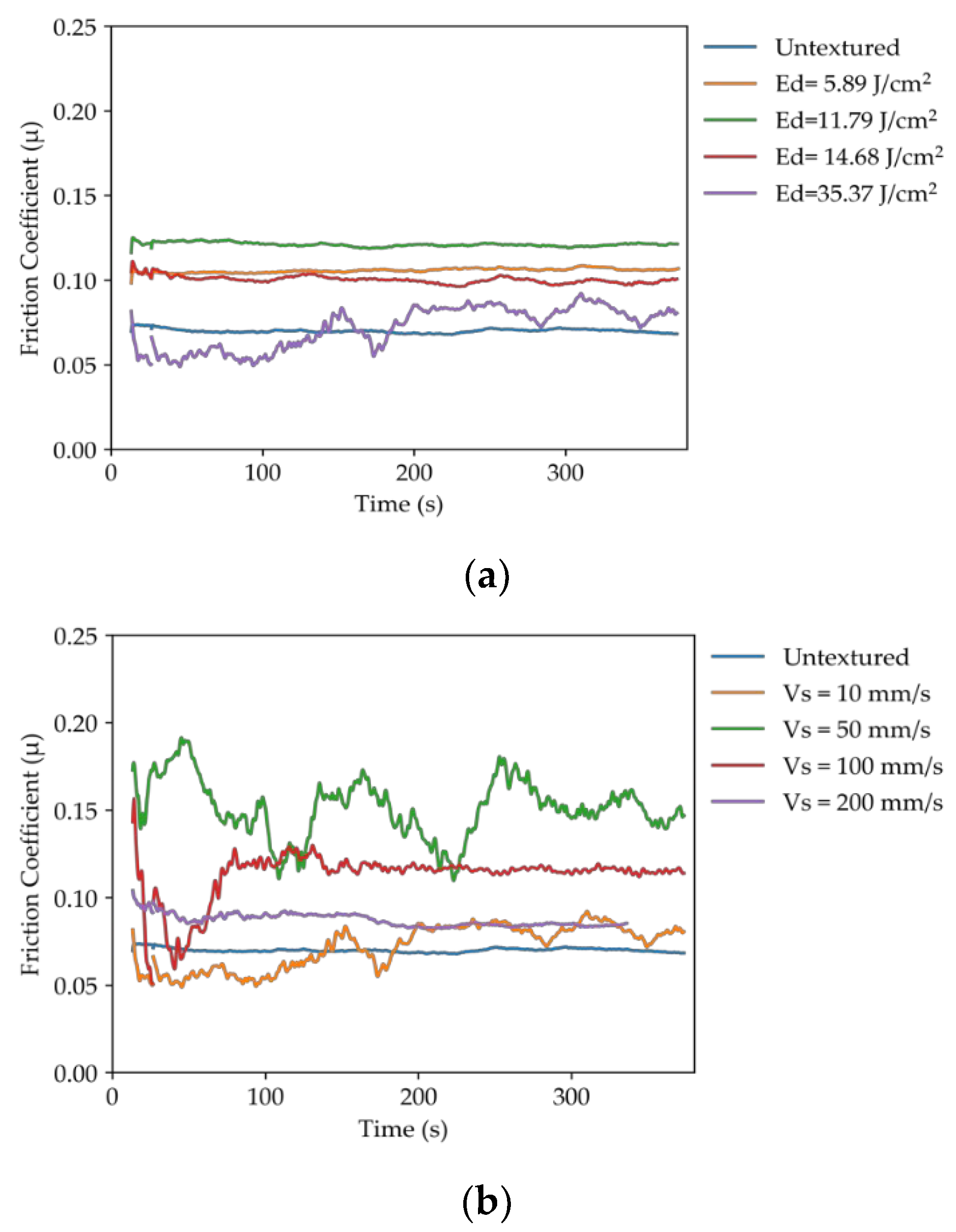

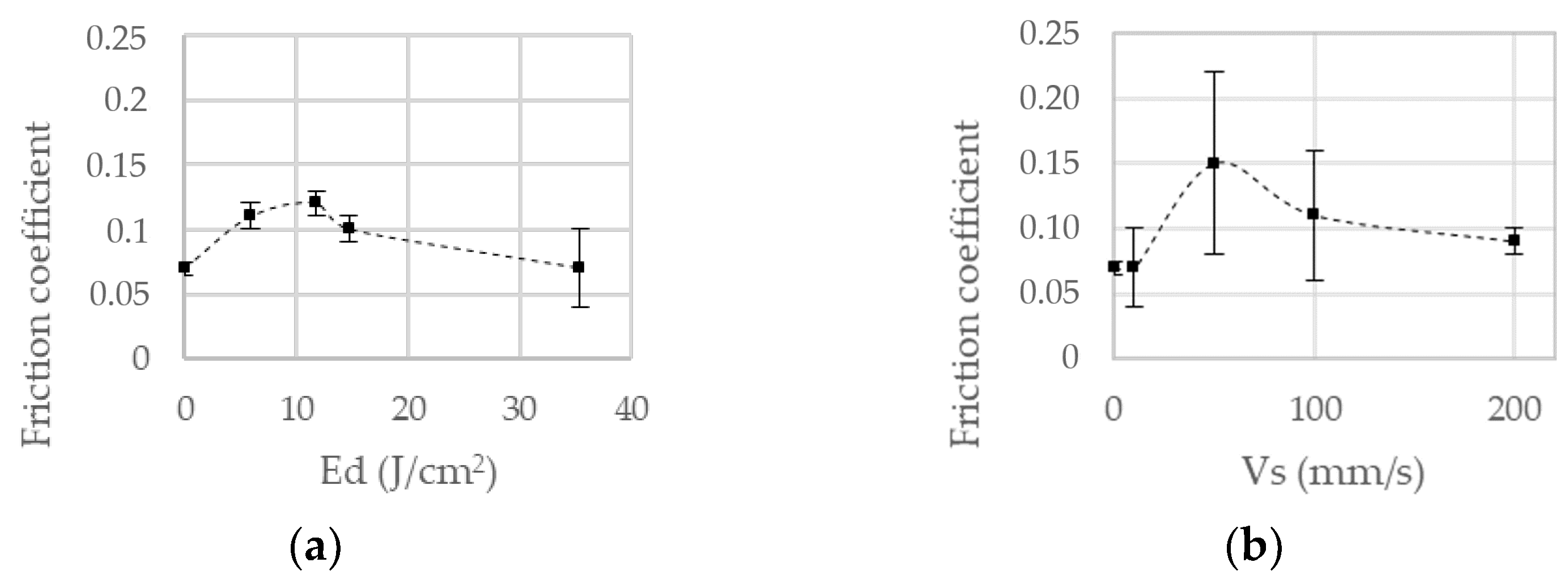

The evolution of the friction coefficient is shown in Figure 8. Similarly, Figure 9 shows the average values of the friction coefficient as a function of the LST parameters.

On the one hand, a stable behaviour for low Vs (10 mm/s) and medium and average Ed (<35.37 J/cm²) samples is found. This can be associated with the low roughness values achieved in their LST processes. Nevertheless, the friction coefficient is increased by up to 200% for the Ed = 35.37 J/cm² and Vs = 50 mm/s samples. As was mentioned previously, this sample presents the higher Sdr. This fact combined with the aforementioned material softening, drastically increases the friction coefficient and the wear track depth.

On the other hand, high Ed (35.37 J/cm²) samples present a non-stable behaviour. The laser processing parameter combination (Ed = 35.37 J/cm² and Vs = 50 mm/s) shows the highest Sa roughness value of the textured specimens, as shown in Figure 3b. Under these conditions, the dimensions and shape of the asperities (shown in Figure 5b) causes a higher volume of wear debris during the friction test. These frictional debris are deposited on the sliding track, causing fluctuations in the coefficient of friction values. Under these conditions, the stick–slip phenomenon is clearly manifested, since the friction coefficient oscillates constantly between the static and the dynamic friction coefficient values. In this case, it was proven that the channels do not act as lubricant reservoirs but as stress concentrators. The textures locally decrease the thickness of the fluid layer, acting as barriers [42,43,58]. The presence of textures with a similar dimension to the contact area diameter might be another cause of the friction increase. Therefore, in this case the higher asperities make the sliding processes difficult, leading to the stick–slip phenomena, except for the Ed = 35.37 J/cm² and Vs = 200 mm/s sample, whose behavior is similar to the untextured sample. The behavior of the 35.37 J/cm² and Vs = 10 mm/s sample is remarkable due to its reduced value up to 150 s. These sets of parameters decreased the friction coefficient compared with the untextured sample up to a limit, in which the abrasion of the channels diminished the reservoir effect.

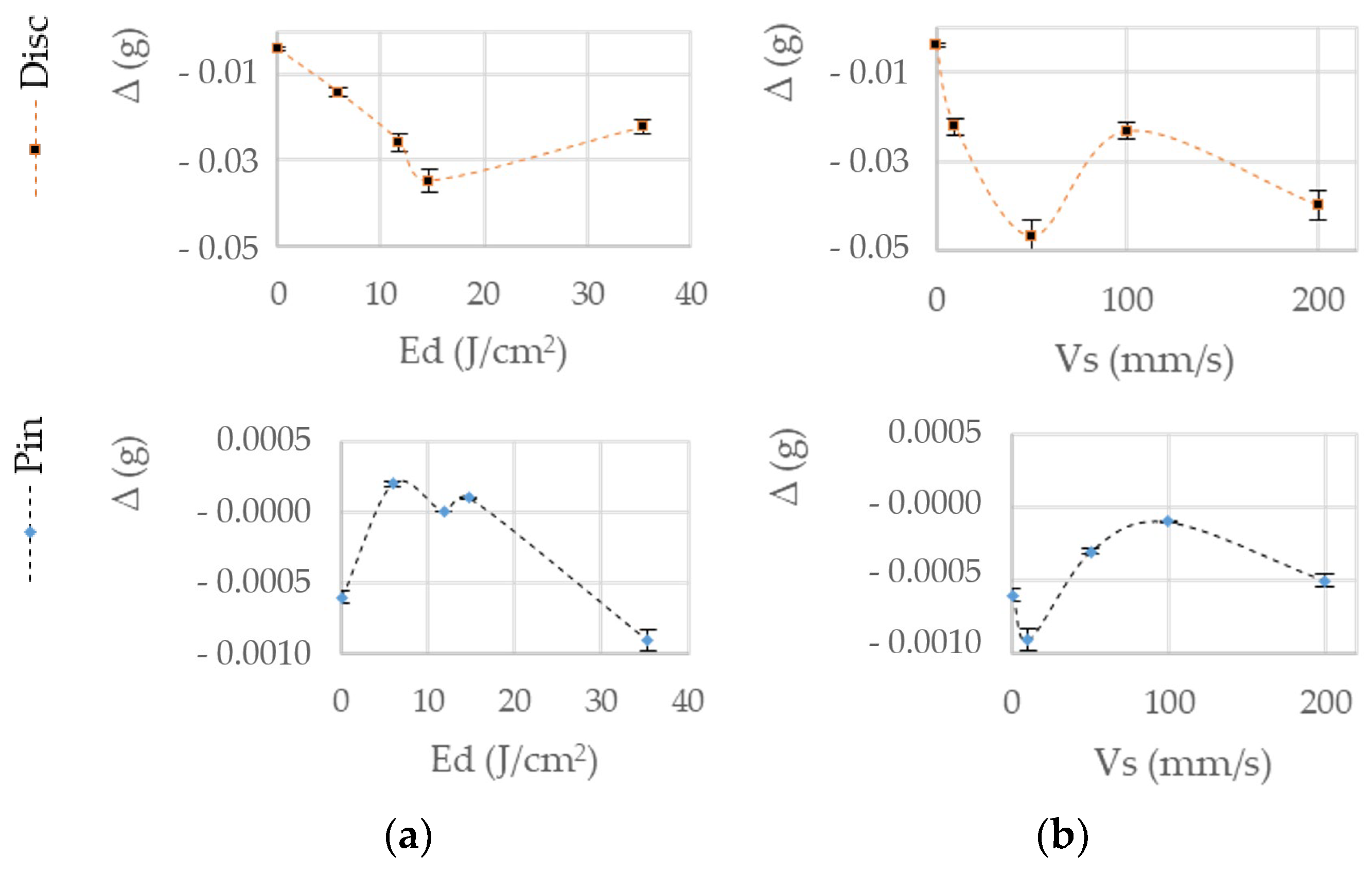

This assumption is verified with the wear rate study presented in Figure 10, where the differences among initial and final weights (in grams, g) are represented (evaluated with a scale with 10⁻⁴ g of resolution) vs. Ed.

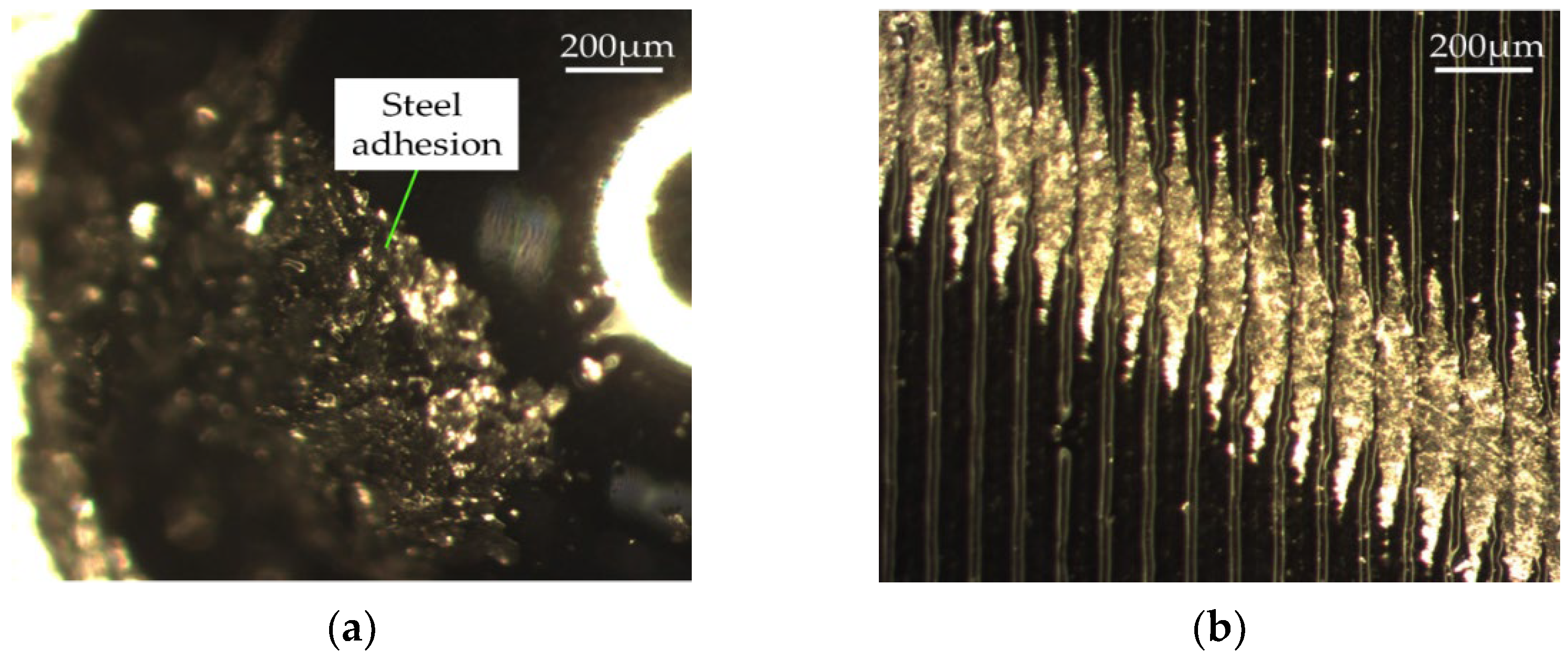

The main wear mechanism presented on the disc is abrasion (Figure 10b). Every sample, including the untextured one, reduces its weight after the friction tests. As expected, the maximum abrasion was found for 35.37 J/cm² and Vs = 50 mm/s where the friction coefficient and the native surface were more irregular. In contrast, the main wear mechanism for the pin is adhesion (Figure 11a). Part of the disc material adhered to the pin surface, increasing its weight. Both wear mechanisms are enhanced by the material softening explained in the hardness results. Additionally, the breakage of the peaks of the textures decreased the lubricant effect (Figure 11b), producing an increase in the friction coefficient values for high Ed parameters.

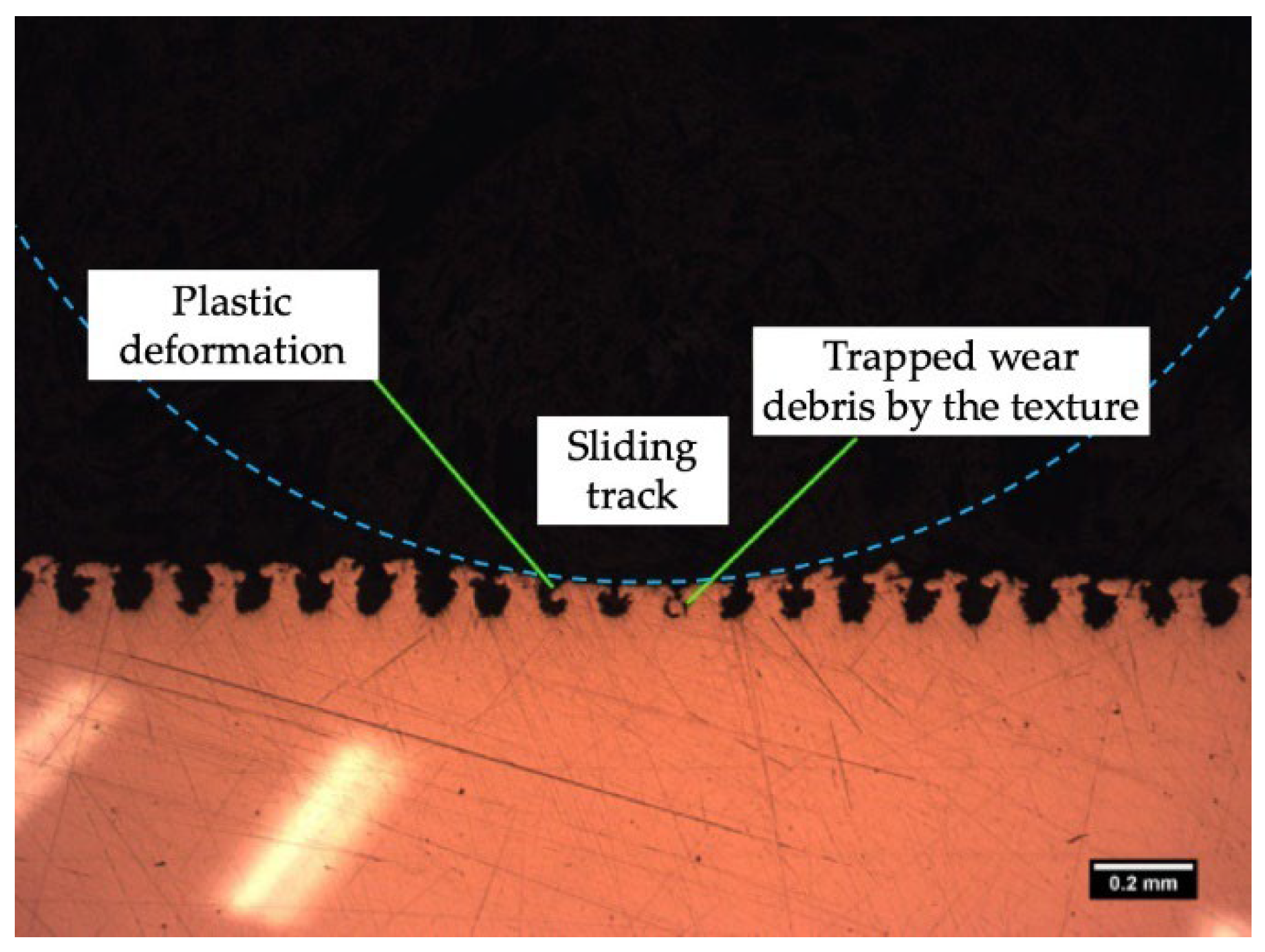

A specific effect was observed on medium scale tracks from laser treatments. The cross-section of a textured specimen (35.37 J/cm²–50 mm/s) subjected to the sliding test confirms that the development of medium scale textures can be used to trap the wear debris of the sliding process, as shown in Figure 12. This effect may help to reduce the third-body abrasive effect of sliding parts under friction conditions.

4. Conclusions

The present study has revealed that LST has a complex influence on the tribological behavior of surfaces. LST parameters modify the surface geometry of the textures. Ed linearly increases the depth of the channel, the Sa, and the Sdr. For the same parameters, Vs produces a peak value for 50 mm/s. However, profile roughness parameters present slight variations on the effect of LST parameters. Particularly, RSm has been found as an effective parameter to measure the width stability of the channel, which is affected by Ed due to the melting mechanism of LST. This melting mechanism also affects the real depth of the channels for low Vs (10 mm/s) producing pores on the bottom of the surface.

Surface integrity is modified by reducing the micro-hardness up to 33% on the heat-affected zone. Nevertheless, 85% of the bulk micro-hardness is recovered at 40 µm. This micro-hardness drop is due to a softening of the material. An increase in the instability of the friction coefficient was detected for high Ed, caused by the roughness increase and the softening of the material. Finally, the wear mechanisms were identified. Pin presented mainly steel adhesion and disc abrasion. The abrasion of the disc removed the effect of the channels, reducing its efficiency regarding lubricant retention.

To summarize, the integration of the surfaces depends on multiple factors and the formulation of mathematical models relating to the variables of interest may be a future work.
