Article

Modelling of the Steel High-Temperature Deformation Behaviour Using Artificial Neural Network

by
Alexander Churyumov
1,*,
Alena Kazakova
1 and
Tatiana Churyumova
2
1
Department of Physical Metallurgy of Non-Ferrous Metals, National University of Science and Technology “MISiS”, Leninskiy Prospekt 4, 119049 Moscow, Russia
2
Joint-Stock Company “Advanced Research Institute of Inorganic Materials named after Academician A.A. Bochvar”, Rogova Str. 5a, 123098 Moscow, Russia
*
Author to whom correspondence should be addressed.
Metals 2022, 12(3), 447; https://doi.org/10.3390/met12030447
Submission received: 31 January 2022 / Revised: 24 February 2022 / Accepted: 1 March 2022 / Published: 4 March 2022
(This article belongs to the Special Issue Application of Neural Networks in Processing of Metallic Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Hot forming is an essential part of the manufacturing of most steel products. The hot deformation behaviour is determined by temperature, strain rate, strain and chemical composition of the steel. To date, constitutive models are constructed for many steels; however, their specific chemical composition limits their application. In this paper, a novel artificial neural network (ANN) model was built to determine the steel flow stress with high accuracy in the wide range of the concentration of the elements in high-alloyed, corrosion-resistant steels. The additional compression tests for stainless Cr12Ni3Cu steel were carried out at the strain rates of 0.1–10 s−1 and the temperatures of 900–1200 °C using thermomechanical simulator Gleeble 3800. The ANN-based model showed high accuracy for both training (the error was 6.6%) and approvement (11.5%) datasets. The values of the effective activation energy for experimental (410 ± 16 kJ/mol) and predicted peak stress values (380 ± 29 kJ/mol) are in good agreement. The implementation of the constructed ANN-based model showed a significant influence of the Cr12Ni3Cu chemical composition variation within the grade on the flow stress at a steady state of the hot deformation.

1. Introduction

Despite the stable development of new metallurgical directions such as additive manufacturing [1,2], amorphous [3,4] and composite structuring [5,6] technologies, the majority of critical steel products in the nuclear industry in the coming decades will be manufactured using the traditional scheme, including steel melting and casting, hot and cold plastic deformation and mechanical and heat treatment [7,8,9]. However, the requirements for the microstructure and properties of the materials will be permanently increased. In this regard, the optimisation of the chemical composition and manufacturing technologies of the steels is required.
Hot deformation is one of the important manufacturing stages. The hot deformation behaviour is significantly influenced not only by the deformation conditions such as temperature, strain rate and strain but also by the chemical composition of the steel. The investigation and modelling of the hot deformation behaviour are necessary to optimise the forming technologies using finite element simulation [10,11]. Most of the constitutive models were constructed for materials with specific chemical compositions. At the last time, models were constructed for the low-carbon [12], reduced activation ferritic/martensitic [13] and 1.4542 stainless [14] steels. However, even minor deviations within the same grade can lead to significant changes in rheological properties. To date, there are no physical and mathematical models linking these characteristics directly with the chemical composition. The reason is a large number of alloying elements in industrial steel, which does not allow revealing the complex effect of alloying elements on hot deformation behaviour. Unfortunately, limited human capabilities do not allow for analysing big data of properties such complex objects as industrial steel. The problem may be solved by machine learning, implemented through artificial neural networks (ANN).
The ANN provides a way to predict functional dependences without preliminary known laws. Such a method shows a minimum calculation error; however, it requires a big set of experimental data. Liu et al. have shown a high accuracy ANN-based model for the determination of the 42CrMo steel hot flow behaviour compared to the Arrhenius-type model [15]. Similar results were obtained by other scholars for API 5CT-L80 [16], AISI-1045 [17], 9Cr-1Mo [18], 10Cr [19], 40Mn [20] and 33Cr23Ni8Mn3N [21] steels. K. Arun Babu et al. have constructed a dynamic recrystallisation model in super austenitic stainless steel [22] using an ANN-based approach. However, all the authors have used ANN-based modelling for the steels with a specific composition and have not used the ability of the ANN to find the dependences of the hot deformation behaviour on the alloying elements concentration.
The purpose of the investigation is the construction and approbation of the ANN-based model relating rheological properties with the chemical composition and hot deformation parameters of high-alloyed, corrosion-resistant steels.

2. Materials and Methods

2.1. ANN Construction

The database of the hot deformation rheological properties of the steels with different chemical compositions was collected to build the ANN-based model [23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59]. The ranges of the alloying elements concentrations and the deformation conditions in the database are presented in Table 1. The overall number of entries in the database was 7912. The dataset was randomly mixed and divided into three groups: the group for the training of the ANN (60% of the dataset), the cross-validation data (20%) and the testing entries (20%). The hyperbolic tangent function was used as a transfer function in all neurons. The strain, deformation temperature, strain rate and concentrations of the alloying elements were chosen as inputs variables and the flow stress as an output of the model. The architecture of the ANN is presented in Figure 1. The model’s training was made by the static backpropagation algorithm using NeuroSolution software. The number of neurons was proposed by the NeuroSolution. However, it fully follows the formula proposed by G. Lachtermacher and G. Fuller [60]:
0.11 P I + 1 ≤ N ≤ 0.11 P I + 1 ,
where I is the number of input parameters; P is the amount of data used for ANN training. The formulas and the coefficients for using the constructed ANN-based model are presented in the Supplementary Materials.

2.2. Additional Compression Tests for ANN-Based Model Approbation

The additional hot compression tests of the 13Cr3NiCu steel were carried out to approve the workability of the constructed model. This steel belongs to stainless and cavitation-resistant chromium steels. The level of Ni concentration is sufficient for forming a martensitic microstructure during the quenching even of massive products. The industrial technology of hot forming of the 13Cr3NiCu steel ingots consists of eight more hot deformation stages. Therefore, it is very important to precisely determine the steel’s hot deformation behaviour to optimise the forming technology.
The ingots of the steel were obtained by vacuum induction melting with raw materials of commercial purity. The nominal chemical composition of the alloy is presented in Table 2. Cast ingots with a diameter of 250 mm and a height of 500 mm were annealed for 8 h at the temperature of 1200 °C and then were pressed with the deformation rate of 0.01 mm/s to the strain of 60% at the temperature of 1200 °C. The samples for the compression test were cut in the pressing direction.
Axisymmetric compression tests were performed using a Gleeble 3800 thermomechanical simulator (Figure 2). The specimens with a diameter of 10 mm and a height of 15 mm were heated at a rate of 5 °C/s to the deformation temperature (900, 980, 1050, 1130 and 1200 °C), held for 2 min and compressed in a single hit to a true strain of 1.3 at a constant true strain rate of 0.1, 1 and 10 s−1. The true stress-strain curves were treated to consider the friction and adiabatic heating during the deformation [61,62]. The error of the stress determination using Gleeble is low because of the high accuracy temperature and strain rate control. Due to this fact, only one sample for each hot compression condition was used for obtaining the stress-strain curve. To approve the reproducibility of the compression tests, we repeat two more times the compression at the temperature of 1050 °C and the strain rate of 1s−1. As shown in Figure A1 (Appendix A), the reproducibility of Gleeble tests is high. The error is increased only at high strain values due to potential significant differences in friction conditions.
A Tescan-VEGA3 LMH scanning electron microscope (SEM) was used for the initial microstructural investigation. Thermodynamic calculations of high-temperature phase states were carried out using Thermocalc software with TCFe7 database.

3. Results

3.1. Results of ANN Modelling

Results of the calculations using the ANN-based model are presented in Figure 3. The accuracy of the model was determined using average relative error (ARE) and Pearson’s correlation coefficient (R) [63]:
A R E % = 100 N ∑ i = 1 N E i − P i E i
R = ∑ i = 1 N E i − E = P i − P − ∑ i = 1 N ( E i − E = ) 2 ∑ i = 1 N ( P i − P − ) 2
Here, E, P, E = and P − are the experimental, predicted stress and those mean values, correspondently. N is the number of entries in the dataset.
The ARE has a 6.6–7.3% value for all datasets. Such a low error and a high Pearson’s correlation coefficient value show the constructed model’s good accuracy. However, the presented results show the model’s accuracy only for the hot deformation curves used for the ANN teaching, and an additional independent check is required.

3.2. Initial Microstructure and Hot Deformation Behaviour of the 13Cr3NiCu Steel

Additional hot deformation tests were carried out to check the accuracy of the constructed ANN-based model. Figure 4a shows an initial microstructure of the investigated steel. The microstructure consists of lath martensite with an average grain size of 10 ± 2.6 μm. Accordingly thermodynamic calculations, the microstructure of the investigated steel at elevated temperatures may contain austenite (fcc), ferrite (bcc), carbide (M23C6) and liquid phases (Figure 4b). In the current investigation, the deformation of the steel was carried out in the austenitic region.
The typical true stress-true strain curves of the 12Cr3NiCu steel are shown in Figure 5a,b. The steel demonstrates a usual hot deformation response to the change of the testing conditions: the stress increases with a strain rate rise and decreases with a temperature increase. Moreover, the true stress achieves a maximum value on the curve at all deformation conditions. The softening after peak proceeds due to the dominance of the dynamic recovery and recrystallisation of the work hardening during the deformation. The stress-strain curves reach a steady state at temperatures higher than 1050 °C. At lower temperatures, the process of dynamic recrystallisation does not finish despite a large strain value of 1.3.

3.3. Approbation of the ANN-Based Model

A comparison between calculated and experimental stress–strain curves for the 12Cr3NiCu steel is shown in Figure 6a–c. The ARE of the ANN-based model for the additional hot deformation test was 11.5%. The maximum values of ARE up to 40% were obtained at lower hot deformation temperatures (lower than 980 °C) and the high strain value. However, in the range of the temperatures of 1050–1200 °C, the ANN-based model shows very high accuracy for most of the deformation conditions, allowing the analysis of the influence of different factors on the true stress value.
The correlation between the experimental ( σ p e x p ) and predicted ( σ p p r ) peak stress was checked by constitutive modelling using the Zener-Hollomon parameter [64]:
Z = ε ˙ e Q R T ,
where ε ˙ is the strain rate (s−1), T is the temperature (K) and Q is the apparent effective activation energy (J/mol). The relationship between the hot deformation response and Z may be described by the following sets of equations:
Z = A 3 s i n h α σ p n 2   f o r   a l l   σ p
Z = A 1 σ p n 1 ,   i f   α σ p   <   0.8
Z = A 2 e β σ p ,   i f   α σ p   >   1.2
The stress multiplier α can be described as follows:
α ≈ β n 1
The material constants A1, A2, A3, n1, n2, β, α and Q were determined using the least square method. The comparison of the constitutive models is shown in Figure 6d. The values of the effective activation energy for experimental and predicted stresses are in good correspondence within the confidence interval, which shows a high accuracy of the constructed model for the prediction of the hot deformation behaviour.

4. Discussion

The difference between experimental and calculated stress–strain curves for low deformation temperatures and high strain values is larger than the experimental error of the Gleeble testing. However, for industrial hot deformation processes, high temperatures and strain below 1 are usually used. The error of the constructed ANN-based model in such conditions is significantly lower, and its accuracy is enough for the prediction of the flow stress and optimisation of the hot deformation technology.
The constructed model was used to determine the possible influence of chemical composition variations of the 12Cr3NiCu steel within the grade (Table 3) on the stress value. As shown in Figure 7, the true stress value may be significantly influenced by changing the alloying elements’ concentration. Increasing the Ni and Cr concentrations from low to high limit leads to a rise of the flow stress on 20–30 MPa dependently on the deformation temperature. Copper influences more intensively on the stress and may change its value on 90 MPa at a deformation temperature of 1150 °C. A similar result was previously obtained experimentally by Li et al. [65]: adding copper to 304L stainless steel significantly decreased the true stress due to increasing the stacking fault energy and, consequently, inhibiting the dynamic recrystallisation. Previously, the significant influence of the minor variations of the 25CrMo steel chemical composition on the hot fracture behaviour was shown by Zheng et al. [66]. The changes in the mechanical properties of the hot-deformed low-carbon microalloyed steels with the change of the chemical composition within the steel grade were also shown in [67]. However, information about the significant influence of the minor chemical composition changes on the hot deformation behaviour was not shown for high-alloyed, corrosion-resistant steel.
Even concentration of the one element may change the deformation response of the steel. However, during the steel melting process, all the concentrations may achieve the grade limits, which significantly changes the flow stress. Pair influences of the different alloying elements on the flow stress of the 12Cr3NiCu steel at a steady state during the deformation at a strain rate of 1 s−1 and a temperature of 1130 °C are shown in Figure 8. As seen, maximum differences in true stress in pairs Cr–Ni, Cr–Cu and Ni–Cu are 30 (±20% of average experimental stress value in Figure 8b), 33 (±22%) and 57 MPa (±38%), correspondently, which may sufficiently influence the hot deformation in the industrial conditions.
The presented approach of the ANN-based model construction and approvement may be useful for modelling the hot deformation behaviour not only for different groups of steels but also for other metallic material such as magnesium, aluminium and titanium alloy due to a large number of published experimental data and the increased computational possibility of the computers. Besides, the constructed models may be applied not only to optimise the industrial processes but also let to find the dependencies between high-temperature response and the microstructure by coupling the developed approach with the thermodynamic calculations.

5. Conclusions

  • An artificial neural network model for predicting flow stress of the high-alloyed, corrosion-resistant steel during the hot deformation was constructed. The model shows high accuracy for the training and testing datasets. An average relative error is in the range of 6.6–7.3%.
  • The other series of hot compression tests of the 12Cr3NiCu steel was carried out to approve the predictability of the constructed ANN-based model. The comparison of the experimental and predicted stress–strain curves shows a high model accuracy at temperatures higher than 1050 °C at all investigated strain rates.
  • The constitutive models for predicted and experimental peak stress values were constructed using the Zener–Hollomon parameter. Obtained values of the effective activation energy for experimental (410 ± 16 kJ/mol) and predicted data (380 ± 29 kJ/mol) are in good agreement that allow the use of constructed ANN-based model for analysis of the steel’s hot deformation behaviour.
  • The approbation of the constructed model shows that the hot deformation behaviour may be significantly influenced by the fluctuation of the chemical composition within the grade of the steel. Usage of the ANN-based model allows for optimisation of the industrial hot deformation technology depending on the real chemical composition of the steel.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/met12030447/s1. Table S1. The values of the neuron’s biases in the hidden layers. Table S2. The values of the synapses between j-th neuron in the first hidden layer and i-th input parameter (w1h). Table S3. The synapse values between k-th neuron in the second hidden layer and j-th neuron in the first hidden layer (w2h).

Author Contributions

Conceptualization, A.C.; methodology, A.C.; validation, A.C. and T.C.; investigation, A.K.; resources, A.C.; data curation, T.C.; writing—original draft preparation, A.C.; supervision, A.C.; project administration, A.C.; funding acquisition, A.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation (project №18-79-10153-P).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Metals 12 00447 g0a1 550

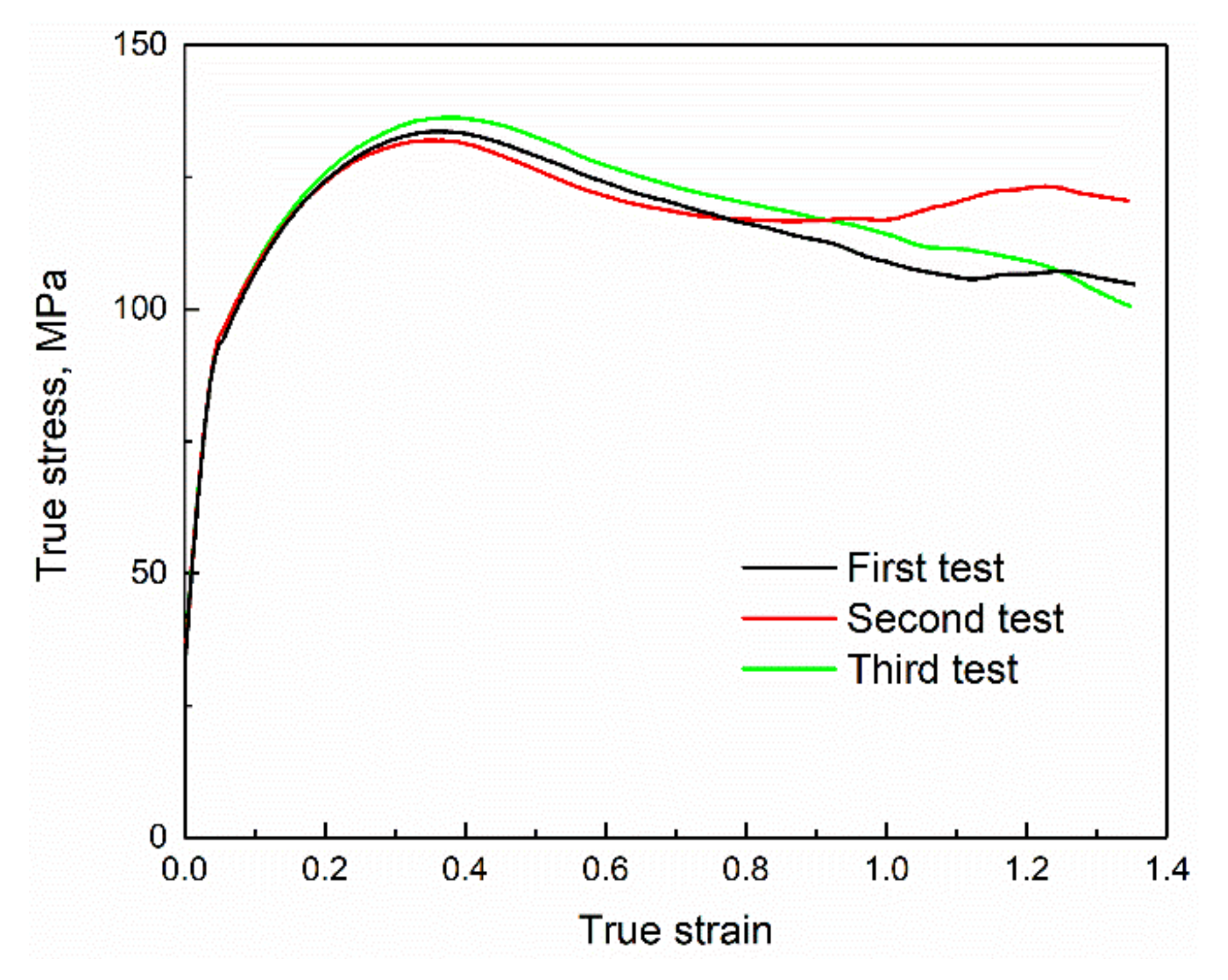

Figure A1. The comparison of the stress–strain curves of three samples test at the temperature of 1050 °C and the strain rate of 1 s−1.
Figure A1. The comparison of the stress–strain curves of three samples test at the temperature of 1050 °C and the strain rate of 1 s−1.
Metals 12 00447 g0a1

References

  1. Eftink, B.P.; Vega, D.A.; El Atwani, O.; Sprouster, D.J.; Yoo, Y.S.J.; Steckley, T.E.; Aydogan, E.; Cady, C.M.; Al-Sheikhly, M.; Lienert, T.J.; et al. Tensile properties and microstructure of additively manufactured Grade 91 steel for nuclear applications. J. Nucl. Mater. 2021, 544, 152723. [Google Scholar] [CrossRef]
  2. Moskvina, V.A.; Melnikov, E.V.; Astafurov, S.V.; Panchenko, M.Y.; Reunova, K.A.; Kolubaev, E.A.; Astafurova, E.G. Stable high-nickel austenitic steel produced by electron beam additive manufacturing using dual wire-feed system. Mater. Lett. 2021, 305, 130863. [Google Scholar] [CrossRef]
  3. Alsmadi, Z.Y.; Bourham, M.A. An assessment of protective coating dry cask canisters with structurally amorphous metals (SAMs) for enhanced radiation shielding. Nucl. Eng. Des. 2022, 388, 111647. [Google Scholar] [CrossRef]
  4. Alshahrani, B.; Olarinoye, I.O.; Mutuwong, C.; Sriwunkum, C.; Yakout, H.A.; Tekin, H.O.; Al-Buriahi, M.S. Amorphous alloys with high Fe content for radiation shielding applications. Radiat. Phys. Chem. 2021, 183, 109386. [Google Scholar] [CrossRef]
  5. Seils, S.; Kauffmann, A.; Delis, W.; Boll, T.; Heilmaier, M. Microstructure and mechanical properties of high-Mn-ODS steels. Mater. Sci. Eng. A 2021, 825, 141859. [Google Scholar] [CrossRef]
  6. Doñate-Buendia, C.; Kürnsteiner, P.; Stern, F.; Wilms, M.B.; Streubel, R.; Kusoglu, I.M.; Tenkamp, J.; Bruder, E.; Pirch, N.; Barcikowski, S.; et al. Microstructure formation and mechanical properties of ODS steels built by laser additive manufacturing of nanoparticle coated iron-chromium powders. Acta Mater. 2021, 206, 116566. [Google Scholar] [CrossRef]
  7. Francis, R.; Byrne, G. Duplex stainless steels—Alloys for the 21st century. Metals 2021, 11, 836. [Google Scholar] [CrossRef]
  8. Li, X.; Gao, F.; Jiao, J.; Cao, G.; Wang, Y.; Liu, Z. Influences of cooling rates on delta ferrite of nuclear power 316H austenitic stainless steel. Mater. Charact. 2021, 174, 111029. [Google Scholar] [CrossRef]
  9. Griffin, P.W.; Hammond, G.P. The prospects for ‘green steel’ making in a net-zero economy: A UK perspective. Glob. Transit. 2021, 3, 72–86. [Google Scholar] [CrossRef]
  10. Teker, E.; Danish, M.; Gupta, M.K.; Kuntoğlu, M.; Korkmaz, M.E. Hot Deformation Behavior and Strain Rate Sensitivity of 33MnCrB5 Boron Steel Using Material Constitutive Equations. Trans. Indian Inst. Met. 2022, 75, 717–726. [Google Scholar] [CrossRef]
  11. Renault, C.; Churyumov, A.Y.; Pozdniakov, A.V.; Churyumova, T.A. Microstructure and hot deformation behavior of FeMnAlCMo steel. J. Mater. Res. Technol. 2020, 9, 4440–4449. [Google Scholar] [CrossRef]
  12. Li, C.; Zhang, L.; Li, F.; Zhang, C.; Mao, P. Constitutive Modeling of Flow Behavior and Processing Maps of a Low-Carbon Steel. J. Mater. Eng. Perform. 2022, 31, 895–906. [Google Scholar] [CrossRef]
  13. Liu, G.; Mao, C.; Ding, R.; Yu, L.; Liu, C.; Liu, Y. The kinetics of dynamic recrystallization and construction of constitutive modeling of RAFM steel in the hot deformation process. J. Nucl. Mater. 2021, 557, 153285. [Google Scholar] [CrossRef]
  14. Motlagh, Z.S.; Tolaminejad, B.; Momeni, A. Prediction of Hot Deformation Flow Curves of 1.4542 Stainless Steel. Met. Mater. Int. 2021, 27, 2512–2529. [Google Scholar] [CrossRef]
  15. Liu, H.; Cheng, Z.; Yu, W.; Wang, G.; Zhou, J.; Cai, Q. Deformation behavior and constitutive equation of 42crmo steel at high temperature. Metals 2021, 11, 1614. [Google Scholar] [CrossRef]
  16. Ahmadi, H.; Rezaei Ashtiani, H.R.; Heidari, M. A comparative study of phenomenological, physically-based and artificial neural network models to predict the Hot flow behavior of API 5CT-L80 steel. Mater. Today Commun. 2020, 25, 101528. [Google Scholar] [CrossRef]
  17. Murugesan, M.; Sajjad, M.; Jung, D.W. Hybrid machine learning optimization approach to predict hot deformation behavior of medium carbon steel material. Metals 2019, 9, 1315. [Google Scholar] [CrossRef] [Green Version]
  18. Kumar, S.; Karmakar, A.; Nath, S.K. Construction of hot deformation processing maps for 9Cr-1Mo steel through conventional and ANN approach. Mater. Today Commun. 2021, 26, 101903. [Google Scholar] [CrossRef]
  19. Shokry, A.; Gowid, S.; Kharmanda, G.; Mahdi, E. Constitutive models for the prediction of the hot deformation behavior of the 10%Cr steel alloy. Materials 2019, 12, 2873. [Google Scholar] [CrossRef] [Green Version]
  20. Huang, W.; Lei, L.; Fang, G. Comparison Between Four Flow Stress Models Characterizing the Constitutive Behavior of Hot Deformation of 40Mn Steel. J. Mater. Eng. Perform. 2021, 30, 9149–9164. [Google Scholar] [CrossRef]
  21. Cai, Z.; Ji, H.; Pei, W.; Wang, B.; Huang, X.; Li, Y. Constitutive equation and model validation for 33Cr23Ni8Mn3N heat-resistant steel during hot compression. Results Phys. 2019, 15, 102633. [Google Scholar] [CrossRef]
  22. Arun Babu, K.; Prithiv, T.S.; Gupta, A.; Mandal, S. Modeling and simulation of dynamic recrystallization in super austenitic stainless steel employing combined cellular automaton, artificial neural network and finite element method. Comput. Mater. Sci. 2021, 195, 110482. [Google Scholar] [CrossRef]
  23. Wang, W.T.; Guo, X.Z.; Huang, B.; Tao, J.; Li, H.G.; Pei, W.J. The flow behaviors of CLAM steel at high temperature. Mater. Sci. Eng. A 2014, 599, 134–140. [Google Scholar] [CrossRef]
  24. Churyumov, A.Y.; Medvedeva, S.V.; Mamzurina, O.I.; Kazakova, A.A.; Churyumova, T.A. United Approach to Modelling of the Hot Deformation Behavior, Fracture, and Microstructure Evolution of Austenitic Stainless AISI 316Ti Steel. Appl. Sci. 2021, 11, 3204. [Google Scholar] [CrossRef]
  25. Qiao, G.Y.; Xiao, F.R.; Zhang, X.B.; Cao, Y.B.; Liao, B. Effects of contents of Nb and C on hot deformation behaviors of high Nb X80 pipeline steels. Trans. Nonferrous Met. Soc. China 2009, 19, 1395–1399. [Google Scholar] [CrossRef]
  26. Rajput, S.K.; Chaudhari, G.P.; Nath, S.K. Characterization of hot deformation behavior of a low carbon steel using processing maps, constitutive equations and Zener-Hollomon parameter. J. Mater. Process. Technol. 2016, 237, 113–125. [Google Scholar] [CrossRef]
  27. Li, H.Y.; Wei, D.D.; Hu, J.D.; Li, Y.H.; Chen, S.L. Constitutive modeling for hot deformation behavior of T24 ferritic steel. Comput. Mater. Sci. 2012, 53, 425–430. [Google Scholar] [CrossRef]
  28. Li, H.Y.; Hu, J.D.; Wei, D.D.; Wang, X.F.; Li, Y.H. Artificial neural network and constitutive equations to predict the hot deformation behavior of modified 2.25Cr-1Mo steel. Mater. Des. 2012, 42, 192–197. [Google Scholar] [CrossRef]
  29. Wang, J.; Xiao, H.; Xie, H.; Xu, X.; Gao, Y. Study on hot deformation behavior of carbon structural steel with flow stress. Mater. Sci. Eng. A 2012, 539, 294–300. [Google Scholar] [CrossRef]
  30. Wei, H.L.; Liu, G.Q.; Zhao, H.T.; Zhang, M.H. Effect of carbon content on hot deformation behaviors of vanadium microalloyed steels. Mater. Sci. Eng. A 2014, 596, 112–120. [Google Scholar] [CrossRef]
  31. Mirzadeh, H.; Parsa, M.H.; Ohadi, D. Hot deformation behavior of austenitic stainless steel for a wide range of initial grain size. Mater. Sci. Eng. A 2013, 569, 54–60. [Google Scholar] [CrossRef]
  32. Saadatkia, S.; Mirzadeh, H.; Cabrera, J.M. Hot deformation behavior, dynamic recrystallization, and physically-based constitutive modeling of plain carbon steels. Mater. Sci. Eng. A 2015, 636, 196–202. [Google Scholar] [CrossRef] [Green Version]
  33. Abbasi, S.M.; Shokuhfar, A. Prediction of hot deformation behaviour of 10Cr-10Ni-5Mo-2Cu steel. Mater. Lett. 2007, 61, 2523–2526. [Google Scholar] [CrossRef]
  34. Momeni, A.; Dehghani, K. Characterization of hot deformation behavior of 410 martensitic stainless steel using constitutive equations and processing maps. Mater. Sci. Eng. A 2010, 527, 5467–5473. [Google Scholar] [CrossRef]
  35. Chen, J.; Liu, Y.; Liu, C.; Zhou, X.; Li, H. Study on microstructural evolution and constitutive modeling for hot deformation behavior of a low-carbon RAFM steel. J. Mater. Res. 2017, 32, 1376–1385. [Google Scholar] [CrossRef]
  36. Cao, Y.; Di, H.; Misra, R.D.K.; Yi, X.; Zhang, J.; Ma, T. On the hot deformation behavior of AISI 420 stainless steel based on constitutive analysis and CSL model. Mater. Sci. Eng. A 2014, 593, 111–119. [Google Scholar] [CrossRef]
  37. Churyumov, A.Y. Deformation and Fracture of 13CrMoNbV Ferritic-Martensitic Steel at Elevated Temperature. Phys. Met. Metallogr. 2019, 120, 1228–1232. [Google Scholar] [CrossRef]
  38. Cao, Y.B.; Xiao, F.R.; Qiao, G.Y.; Zhang, X.B.; Liao, B. Quantitative research on effects of Nb on hot deformation behaviors of high-Nb microalloyed steels. Mater. Sci. Eng. A 2011, 530, 277–284. [Google Scholar] [CrossRef]
  39. Gao, F.; Yu, F.X.; Liu, F.T.; Liu, Z.Y. Hot Deformation Behavior and Flow Stress Prediction of Ultra Purified 17% Cr Ferritc Stainless Steel Stabilized with Nb and Ti. J. Iron Steel Res. Int. 2015, 22, 827–836. [Google Scholar] [CrossRef]
  40. Zeng, Z.; Chen, L.; Zhu, F.; Liu, X. Dynamic recrystallization behavior of a heat-resistant martensitic stainless steel 403Nb during hot deformation. J. Mater. Sci. Technol. 2011, 27, 913–919. [Google Scholar] [CrossRef]
  41. Mehtonen, S.V.; Karjalainen, L.P.; Porter, D.A. Hot deformation behavior and microstructure evolution of a stabilized high-Cr ferritic stainless steel. Mater. Sci. Eng. A 2013, 571, 1–12. [Google Scholar] [CrossRef]
  42. Churyumov, A.Y.; Khomutov, M.G.; Solonin, A.N.; Pozdniakov, A.V.; Churyumova, T.A.; Minyaylo, B.F. Hot deformation behaviour and fracture of 10CrMoWNb ferritic-martensitic steel. Mater. Des. 2015, 74, 44–54. [Google Scholar] [CrossRef]
  43. Haj, M.; Mansouri, H.; Vafaei, R.; Ebrahimi, G.R.; Kanani, A. Hot compression deformation behavior of AISI 321 austenitic stainless steel. Int. J. Miner. Metall. Mater. 2013, 20, 529–534. [Google Scholar] [CrossRef]
  44. Voyzelle, B.; Boyd, J.D. High-temperature deformation behaviour of Fe3Al. Mater. Sci. Eng. A 1998, 258, 243–248. [Google Scholar] [CrossRef]
  45. Churyumov, A.Y.; Pozdnyakov, A.V.; Churyumova, T.A.; Cheverikin, V.V. Hot plastic deformation of heat-resistant austenitic aisi 310s steel. Part 1. simulation of flow stress and dynamic recrystallization. Chernye Met. 2020, 2020, 48–55. [Google Scholar]
  46. Ghadar, S.; Momeni, A.; Tolaminejad, B.; Soltanalinezhad, M. A comparative study on the hot deformation behavior of 410 stainless and K100 tool steels. Mater. Sci. Eng. A 2019, 760, 394–406. [Google Scholar] [CrossRef]
  47. Xiao, X.; Liu, G.Q.; Hu, B.F.; Zheng, X.; Wang, L.N.; Chen, S.J.; Ullah, A. A comparative study on Arrhenius-type constitutive equations and artificial neural network model to predict high-temperature deformation behaviour in 12Cr3WV steel. Comput. Mater. Sci. 2012, 62, 227–234. [Google Scholar] [CrossRef]
  48. Shaikh, A.; Churyumov, A.; Pozdniakov, A.; Churyumova, T. Simulation of the hot deformation and fracture behavior of reduced activation ferritic/martensitic 13CrMoNbV Steel. Appl. Sci. 2020, 10, 530. [Google Scholar] [CrossRef] [Green Version]
  49. Mehtonen, S.V.; Karjalainen, L.P.; Porter, D.A. Modeling of the high temperature flow behavior of stabilized 12–27wt% Cr ferritic stainless steels. Mater. Sci. Eng. A 2014, 607, 44–52. [Google Scholar] [CrossRef]
  50. Dub, V.; Churyumov, A.; Rodin, A.; Belikov, S.; Barbolin, A. Prediction of grain size evolution for low alloyed steels. Results Phys. 2018, 8, 584–586. [Google Scholar] [CrossRef]
  51. Zhao, C.; Zhang, J.; Yang, B.; Li, Y.F.; Huang, J.F.; Lian, Y. Hot Deformation Characteristics and Processing Map of 1Cr12Ni2Mo2WVNb Martensitic Stainless Steel. Steel Res. Int. 2020, 91, 2000020. [Google Scholar] [CrossRef]
  52. Yang, Y.; Li, T.R.; Jia, T.; Wang, Z.D.; Misra, R.D.K. Dynamic Recrystallization and Flow Behavior in Low Carbon Nb–Ti Microalloyed Steel. Steel Res. Int. 2018, 89, 1700395. [Google Scholar] [CrossRef]
  53. Momeni, A.; Dehghani, K.; Keshmiri, H.; Ebrahimi, G.R. Hot deformation behavior and microstructural evolution of a superaustenitic stainless steel. Mater. Sci. Eng. A 2010, 527, 1605–1611. [Google Scholar] [CrossRef]
  54. Ren, F.; Chen, F.; Chen, J.; Tang, X. Hot deformation behavior and processing maps of AISI 420 martensitic stainless steel. J. Manuf. Process. 2018, 31, 640–649. [Google Scholar] [CrossRef]
  55. Ren, F.C.; Chen, J.; Chen, F. Constitutive modeling of hot deformation behavior of X20Cr13 martensitic stainless steel with strain effect. Trans. Nonferrous Met. Soc. China 2014, 24, 1407–1413. [Google Scholar] [CrossRef]
  56. Liu, N.; Liu, Z.D.; He, X.K.; Yang, Z.Q.; Ma, L.T. Hot Deformation Behavior of SA508GR. 4N Steel for Nuclear Reactor Pressure Vessels. J. Iron Steel Res. Int. 2016, 23, 1342–1348. [Google Scholar] [CrossRef]
  57. Jang, M.H.; Kang, J.Y.; Jang, J.H.; Lee, T.H.; Lee, C. Hot deformation behavior and microstructural evolution of alumina-forming austenitic heat-resistant steels during hot compression. Mater. Charact. 2017, 123, 207–217. [Google Scholar] [CrossRef]
  58. Yang, P.R.; Cai, M.H.; Wu, C.F.; Su, J.H.; Guo, X.P. Strain-rate dependent hot deformation behavior and mechanism of interphase- precipitated Ti-Mo-xNb steels: Physical modeling and characterization. Mater. Sci. Eng. A 2018, 729, 230–240. [Google Scholar] [CrossRef]
  59. Singh, K.; Rajput, S.K.; Mehta, Y. Modeling of the hot deformation behavior of a high phosphorus steel using artificial neural networks. Mater. Discov. 2016, 6, 1–8. [Google Scholar] [CrossRef]
  60. Lachtermacher, G.; Fuller, J.D. Back propagation in time-series forecasting. J. Forecast. 1995, 14, 381–393. [Google Scholar] [CrossRef]
  61. Wan, Z.; Hu, L.; Sun, Y.; Wang, T.; Li, Z. Hot deformation behavior and processing workability of a Ni-based alloy. J. Alloys Compd. 2018, 769, 367–375. [Google Scholar] [CrossRef]
  62. Churyumov, A.Y.; Khomutov, M.G.; Tsar’Kov, A.A.; Pozdnyakov, A.V.; Solonin, A.N.; Efimov, V.M.; Mukhanov, E.L. Study of the structure and mechanical properties of corrosion-resistant steel with a high concentration of boron at elevated temperatures. Phys. Met. Metallogr. 2014, 115, 809–813. [Google Scholar] [CrossRef]
  63. Mandal, S.; Sivaprasad, P.V.; Venugopal, S.; Murthy, K.P.N. Artificial neural network modeling to evaluate and predict the deformation behavior of stainless steel type AISI 304L during hot torsion. Appl. Soft Comput. J. 2009, 9, 237–244. [Google Scholar] [CrossRef]
  64. Zener, C.; Hollomon, J.H. Effect of strain rate upon plastic flow of steel. J. Appl. Phys. 1944, 15, 22–32. [Google Scholar] [CrossRef]
  65. Li, J.; Zhao, G.; Ma, L.; Chen, H.; Li, H.; Zhang, W. Effect of copper element on hot behavior of 304L stainless steel. Mater. Tehnol. 2018, 52, 529–536. [Google Scholar] [CrossRef]
  66. Zheng, Y.; Shen, W.; Zhu, L.; Guo, Z.; Wang, Q.; Feng, J.; Li, Y.; Cao, R.; Wu, J. Effects of composition and strain rate on hot ductility of Cr-Mo-alloy steel in the two-phase region. High Temp. Mater. Process. 2021, 40, 228–240. [Google Scholar] [CrossRef]
  67. Zaitsev, A.; Arutyunyan, N. Low-carbon Ti-Mo microalloyed hot rolled steels: Special features of the formation of the structural state and mechanical properties. Metals 2021, 11, 1584. [Google Scholar] [CrossRef]
Metals 12 00447 g001 550

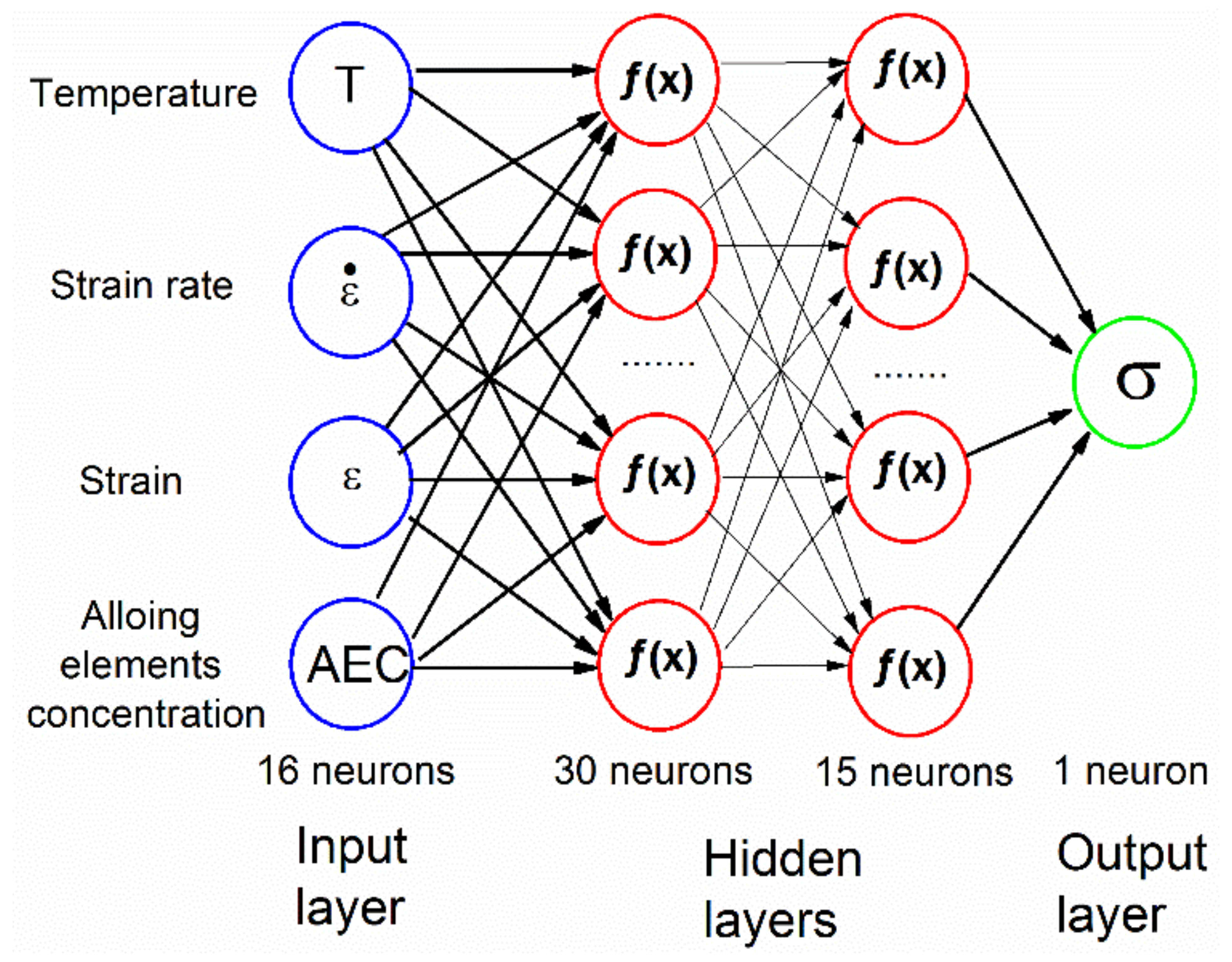

Figure 1. The structure of the constructed ANN.
Figure 1. The structure of the constructed ANN.
Metals 12 00447 g001
Metals 12 00447 g002 550

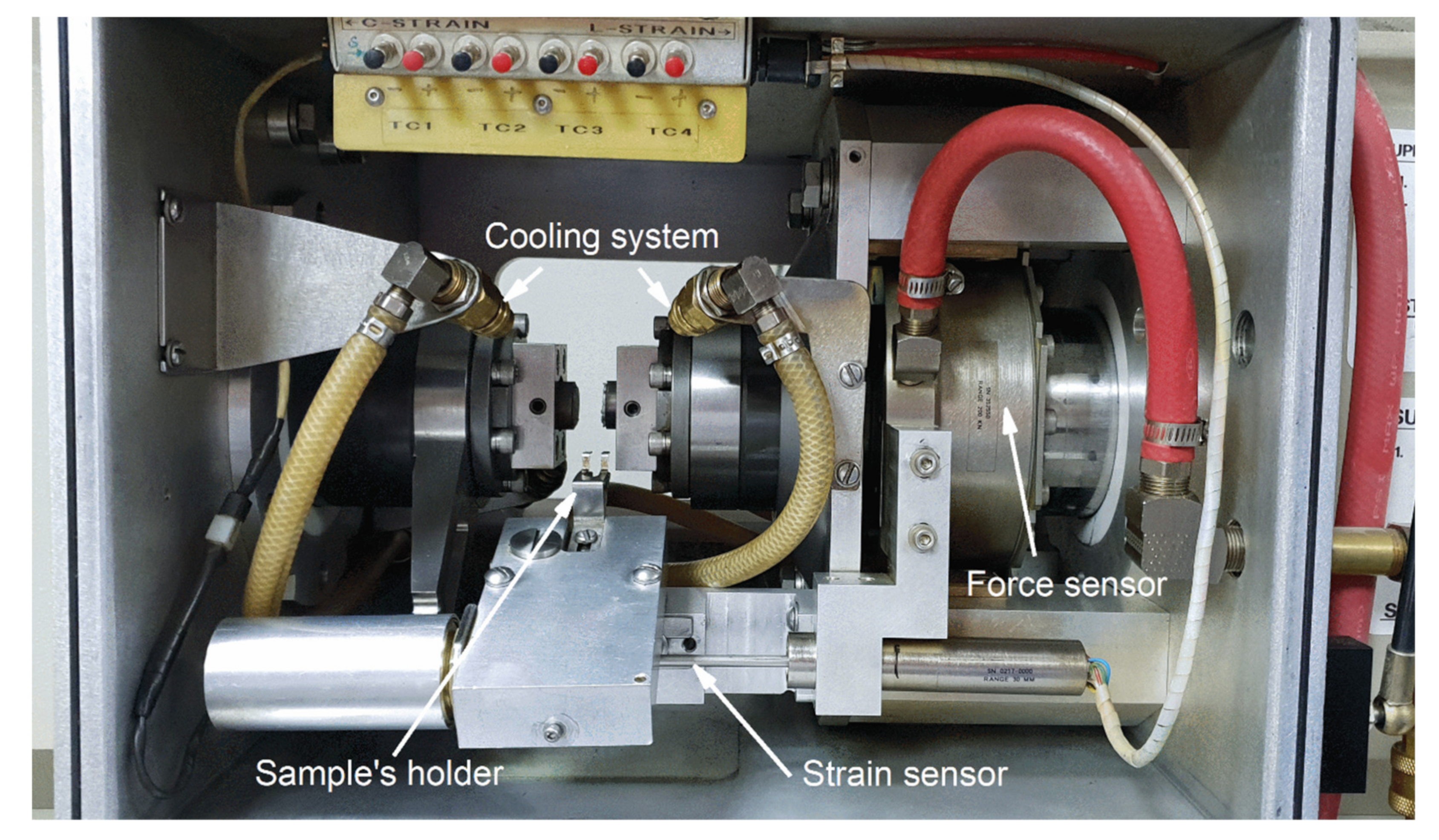

Figure 2. The image of the camera of the Gleeble 3800 system.
Figure 2. The image of the camera of the Gleeble 3800 system.
Metals 12 00447 g002
Metals 12 00447 g003 550

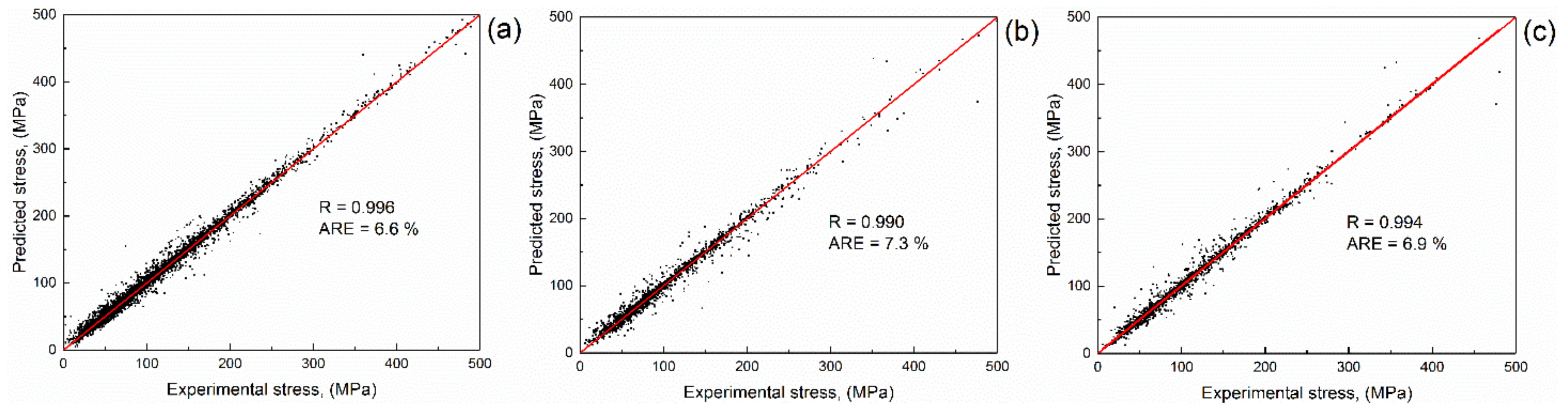

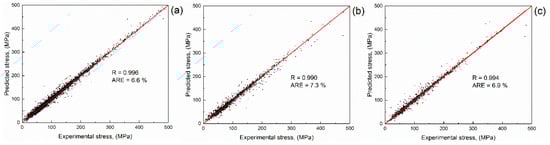

Figure 3. A comparison between predicted using ANN-based model and experimental stress values for (a) training, (b) cross-validation and (c) testing datasets.
Figure 3. A comparison between predicted using ANN-based model and experimental stress values for (a) training, (b) cross-validation and (c) testing datasets.
Metals 12 00447 g003
Metals 12 00447 g004 550

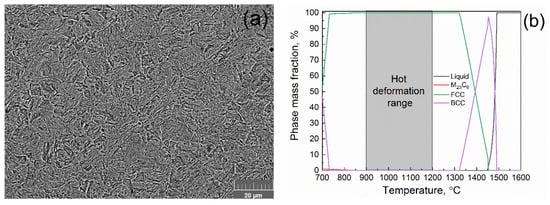

Figure 4. Initial microstructure (a) and high-temperature phase composition (b) of 12Cr3NiCu steel.
Figure 4. Initial microstructure (a) and high-temperature phase composition (b) of 12Cr3NiCu steel.
Metals 12 00447 g004
Metals 12 00447 g005 550
Figure 5. Hot compression curves for the 12Cr3NiCu steel at a strain rate of 0.1 s−1 (a) and at a temperature of 1050 °C (b). The image of the samples before and after compression (inset on (b)).
Figure 5. Hot compression curves for the 12Cr3NiCu steel at a strain rate of 0.1 s−1 (a) and at a temperature of 1050 °C (b). The image of the samples before and after compression (inset on (b)).
Metals 12 00447 g005
Metals 12 00447 g006 550

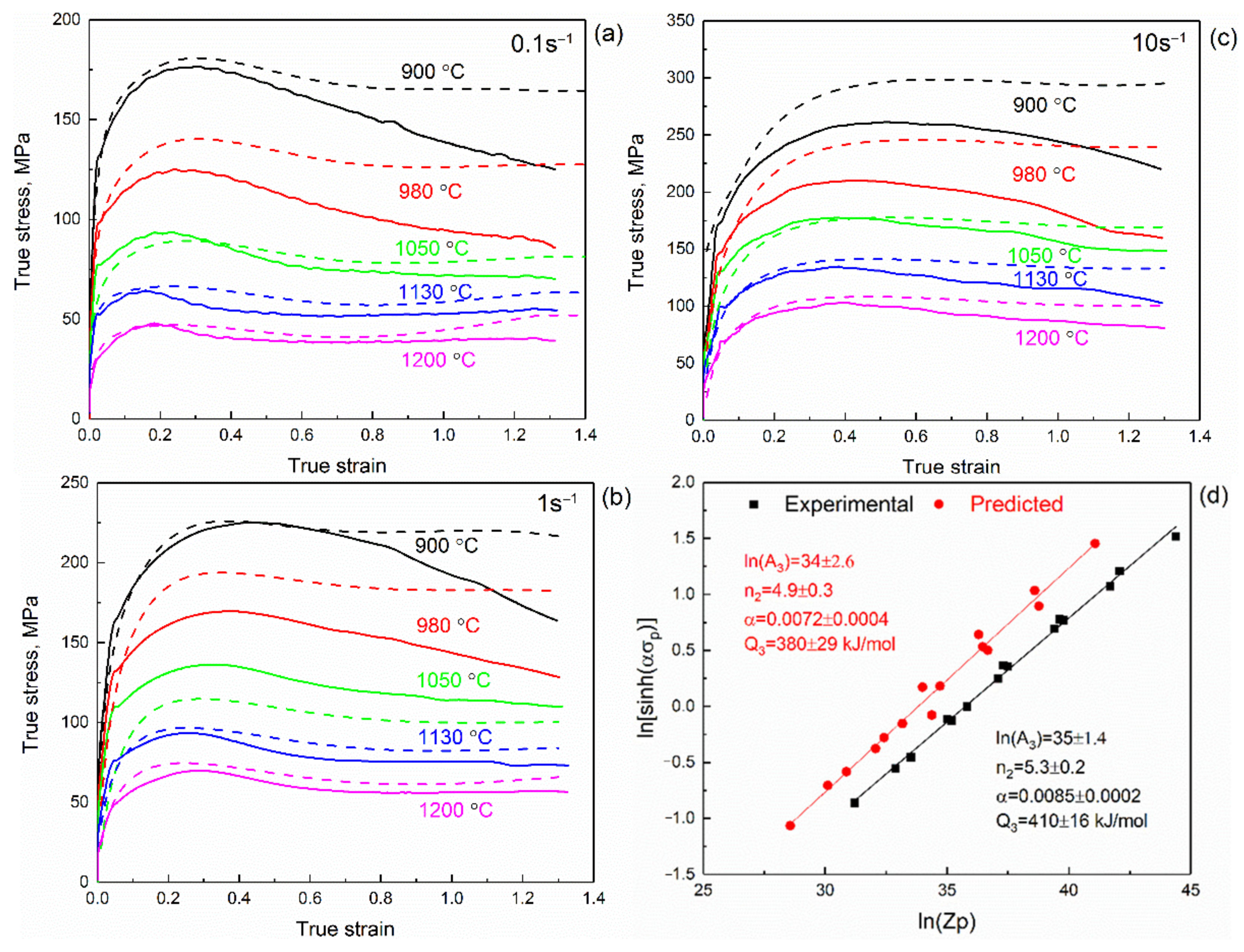

Figure 6. A comparison of the experimental and predicted hot deformation curves for the 12Cr3NiCu steel at a strain rate of 0.1 s−1 (a), 1 s−1 (b) and 10 s−1 (c). The ln s i n h α σ p vs. ln(Zp) (d).
Figure 6. A comparison of the experimental and predicted hot deformation curves for the 12Cr3NiCu steel at a strain rate of 0.1 s−1 (a), 1 s−1 (b) and 10 s−1 (c). The ln s i n h α σ p vs. ln(Zp) (d).
Metals 12 00447 g006
Metals 12 00447 g007 550

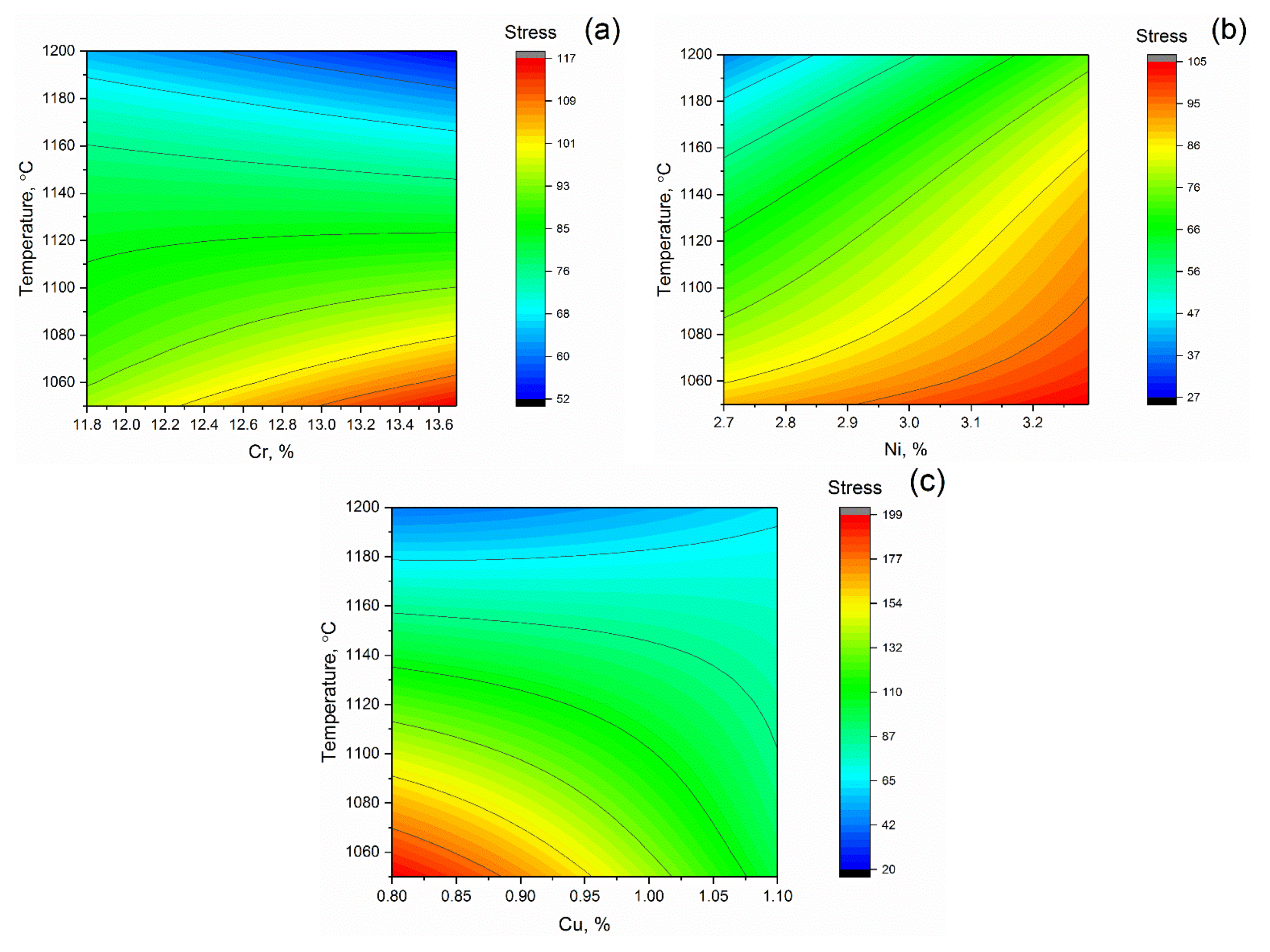

Figure 7. Calculated values of the 12Cr3NiCu steel true stress at steady state (a strain of 1) at a strain rate of 1 s−1 at different temperatures and concentrations of Cr (a), Ni (b) and Cu (c).
Figure 7. Calculated values of the 12Cr3NiCu steel true stress at steady state (a strain of 1) at a strain rate of 1 s−1 at different temperatures and concentrations of Cr (a), Ni (b) and Cu (c).
Metals 12 00447 g007
Metals 12 00447 g008a 550Metals 12 00447 g008b 550

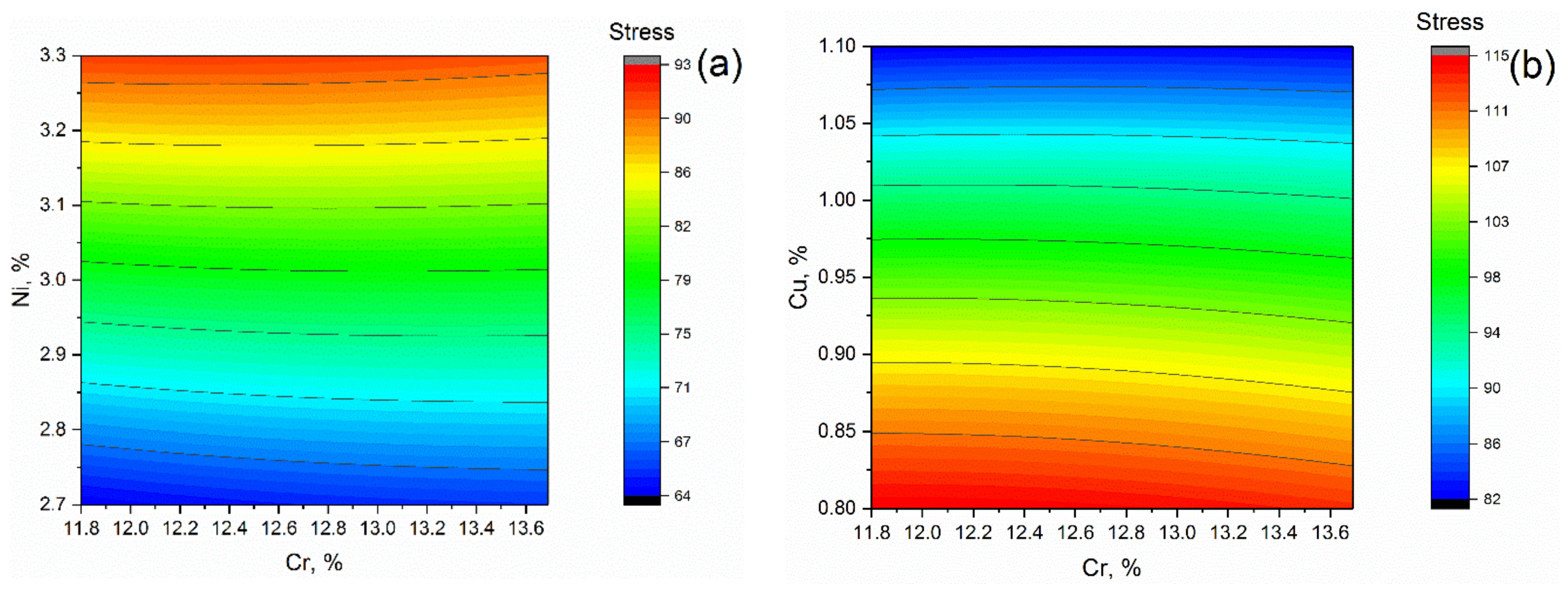

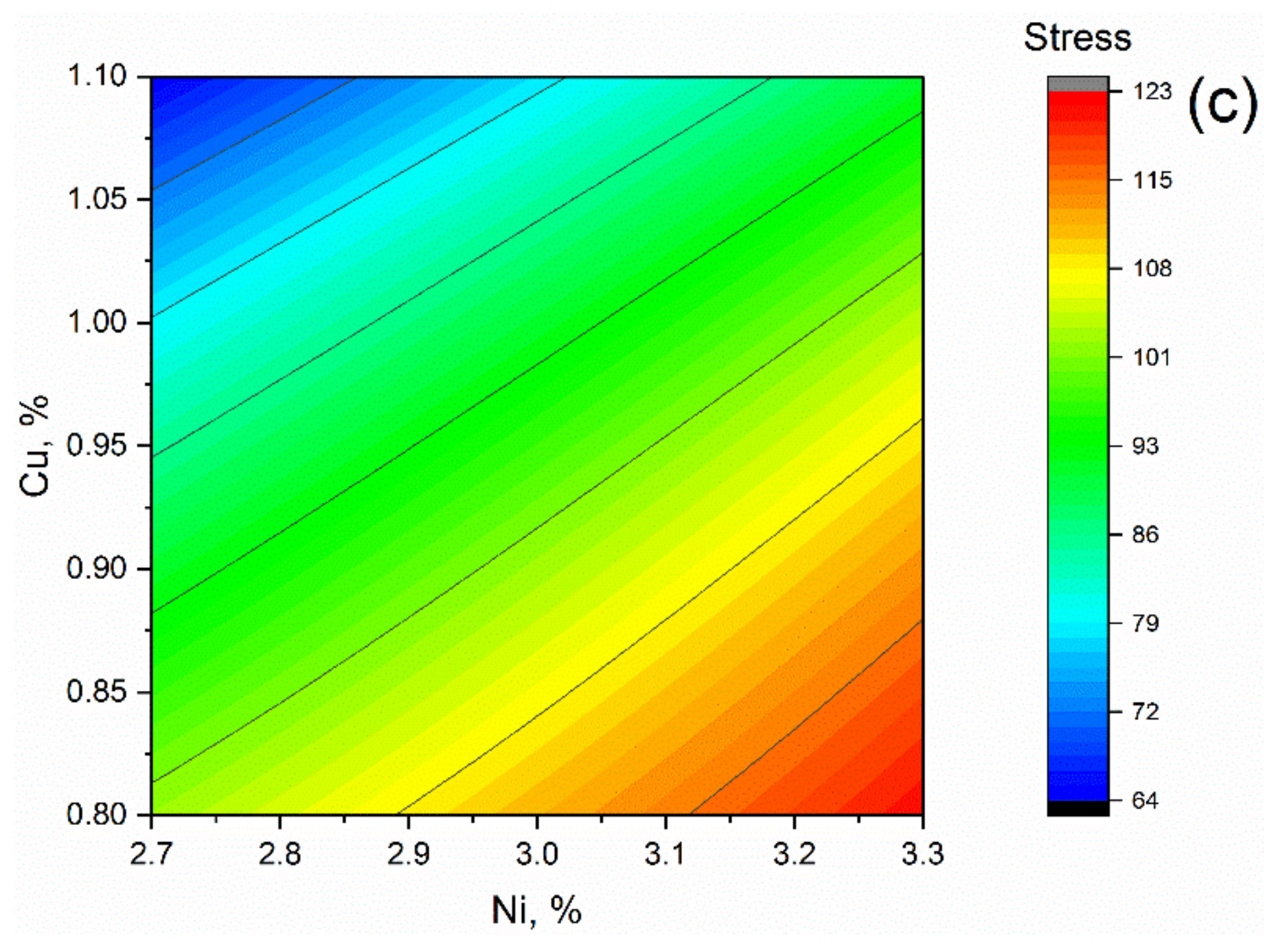

Figure 8. Dependence of the 12Cr3NiCu steel true stress at steady state (a strain of 1) on Cr and Ni (a), Cr and Cu (b) and Ni and Cu (c) concentrations at a strain rate of 1 s−1 and a temperature of 1130 °C.
Figure 8. Dependence of the 12Cr3NiCu steel true stress at steady state (a strain of 1) on Cr and Ni (a), Cr and Cu (b) and Ni and Cu (c) concentrations at a strain rate of 1 s−1 and a temperature of 1130 °C.
Metals 12 00447 g008aMetals 12 00447 g008b
Table
Table 1. The ranges of the alloying elements concentration, deformation temperatures, strain rates and strains in the database (wt. %).
Table 1. The ranges of the alloying elements concentration, deformation temperatures, strain rates and strains in the database (wt. %).
CSiMnCrNiCuMoVN
0–0.190–2.20–2.060–280–330–1.960–5.060–1.250–0.041
TaWNbAlTemperature, °CStrain rate, s−1Strain
0–0.0970–2.370–1.10–2.6700–125010−4–500–1.3
Table
Table 2. Chemical composition of the 13Cr3NiCu steel (wt. %).
Table 2. Chemical composition of the 13Cr3NiCu steel (wt. %).
CSiMnCrNiCuFe
0.050.20.412.23.11.1Balance
Table
Table 3. Variation of the concentration of the alloying elements within the 13Cr3NiCu steel grade (wt. %).
Table 3. Variation of the concentration of the alloying elements within the 13Cr3NiCu steel grade (wt. %).
CSiMnCrNiCuFe
≤0.06≤0.3≤0.611.8–13.72.7–3.30.8–1.1Balance
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Churyumov, A.; Kazakova, A.; Churyumova, T. Modelling of the Steel High-Temperature Deformation Behaviour Using Artificial Neural Network. Metals 2022, 12, 447. https://doi.org/10.3390/met12030447

AMA Style

Churyumov A, Kazakova A, Churyumova T. Modelling of the Steel High-Temperature Deformation Behaviour Using Artificial Neural Network. Metals. 2022; 12(3):447. https://doi.org/10.3390/met12030447

Chicago/Turabian Style

Churyumov, Alexander, Alena Kazakova, and Tatiana Churyumova. 2022. "Modelling of the Steel High-Temperature Deformation Behaviour Using Artificial Neural Network" Metals 12, no. 3: 447. https://doi.org/10.3390/met12030447

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
