Article

Investigation on Laser Welding of Al Ribbon to Cu Sheet: Weldability, Microstructure, and Mechanical and Electrical Properties

1
Department of Materials Science and Engineering, Inha University, Incheon 22212, Korea
2
Busan Machinery Research Center, Korea Institute of Machinery and Materials, Busan 46744, Korea
3
Laser and Electron Beam Application Department, Korea Institute of Machinery and Materials, Daejeon 34103, Korea
*
Authors to whom correspondence should be addressed.
Won-Sang Shin and Dae-Won Cho contributed equally to this work.
Academic Editor: Tomasz Kik
Metals 2021, 11(5), 831; https://doi.org/10.3390/met11050831
Received: 16 April 2021 / Revised: 11 May 2021 / Accepted: 17 May 2021 / Published: 19 May 2021
(This article belongs to the Special Issue Numerical Simulation of Metals Welding Process)

Abstract

The pulsed laser welding of Al ribbon to Cu sheet was investigated for the electrical interconnections in power electronic modules. The various experimental conditions with the different laser powers, scan speeds, and heat inputs were employed for obtaining the defect-free Al/Cu joints. During the Al/Cu laser welding, the intermetallic compounds were formed in the welding zone. An electron probe microanalyzer and transmission electron microscopy confirmed the phases of intermetallic compounds, which were found to be Al4Cu9, Al2Cu, AlCu, etc. The computational fluid dynamics simulation revealed that the Marangoni effect induced the circulation of the molten pool, resulting in the mixture of Al and Cu and the formation of swirl-like structures at the Al/Cu joints. The tensile shear strengths and electrical resistances of the Al/Cu joints were measured, and they showed a strong correlation with the welding area. A decrease in mechanical strength and an increase in electrical resistance were measured with increasing the welding area of Al/Cu joints. Moreover, the process window for the defect-free Al/Cu joints was developed, and the experimental conditions for Al/Cu laser braze-welding were examined to minimize the intermetallic compounds formation at the Al/Cu joints.
Keywords: laser welding; aluminum; copper; ribbon bonding; intermetallic compounds laser welding; aluminum; copper; ribbon bonding; intermetallic compounds

1. Introduction

Electrical interconnections are crucial for packaging power electronic modules. The solid electrical interconnections with excellent mechanical and electrical properties are essential for preventing an electrical failure of power electronic modules. Resistance spot welding, brazing, soldering, and ultrasonic welding (USW) have been employed for the electrical interconnections. For both brazing and soldering, marginal deformation and residual stress are developed at the joints due to the low-temperature processes [1]. The filler alloys are essential for both processes to achieve the solid electrical contacts; thus, the joints are consisted of different metals in contact with one another. As a result, the joints can be susceptible to galvanic corrosion in the corrosive environments [2,3]. Moreover, only limited filler materials can be used in the specific joints because the affinity between base metals and filler materials should be considered [1]. USW is conducting with a low welding temperature and a short welding time, resulting in a relatively small deformation at the joints. Therefore, it is replacing the conventional bonding methods, especially for soft materials (e.g., Al, Cu, Ag, Au, and Ni) [4,5,6]. However, in the case of the USW process for Cu, the Sn or Ni coating on Cu surface is necessary to prevent the deterioration of weldability owing to its tenacious surface oxide, which slows down the process and worsens the economic aspects for industrial applications [7,8]. Laser welding is a promising candidate for the electrical connections in power electronic modules owing to its characteristics of easy control, high precision, and remote processing. Its small heat-affected zone and deformation are expected to minimize damage at the electrical contacts [9,10,11]. In addition, no extra surface preparation is necessary for the laser welding.
The welding of dissimilar materials has been important in industrial applications. Moreover, it is becoming an essential technique in power electronic modules because a number of dissimilar joints are necessary for wire or ribbon bonding for the electrical connections, as shown in Figure 1 [12,13]. Among various combination of electrical contacts, Al and Cu are often considered as the crucial materials for the electrical connections because of their high electrical conductivity [14]. A dissimilar welding of Al and Cu, however, promotes the formation of intermetallic compounds (IMCs), and concomitantly affects the mechanical and electrical properties of Al/Cu joints. In general, the presence of IMCs inside Al/Cu joints is detrimental to ductility and electrical resistance which promote an easy crack initiation and hampers electrical conductivity through weldment [15,16]. Therefore, the formation of IMCs should be avoided in order to obtain a robust Al/Cu joint. Several studies have investigated the laser beam welding of Al and Cu sheets. A continuous-wave (CW) laser was employed for the Al/Cu joints [17,18,19,20,21,22,23]. A number of cracks were observed in the welding zone due to the large heat input and significant IMCs formation [18,19]. A spatial oscillation of the CW laser beam has been shown to improve the welding quality of Al/Cu joints. Fewer pores and cracks with smaller IMCs sizes were observed in the welding zone in comparison with those of the rectilinear CW laser beam [18,19,20]. A CW single mode fiber laser was utilized for the lap joining of Al and Cu sheets, and the solid Al/Cu joints were obtained at a high welding speed (i.e., 50 m/min) by suppressing the IMCs formation [22]. Mai et al. [23] used a pulsed laser to achieve the dissimilar Al/Cu welding. They revealed that the Al/Cu weldability was strongly dependent on laser process parameters, and succeeded to attain the crack-free Al/Cu joints at the scan speed of less than 100 mm/min.
For the electrical interconnections, ribbon bonding has advantages over wire bonding, especially for power electronic modules that operate at a high frequency [24]. A high ratio of width to thickness of ribbon reduces the inductance and skin-effect loss, resulting in a lower high-frequency impedance than that of wire bonding [4]. To the best of our knowledge, only a few studies have investigated the dissimilar laser welding for ribbon bonding [25,26,27]. In this study, the pulsed laser welding of Al ribbon to Cu sheet was conducted under different experimental conditions to develop the process window for the solid Al/Cu joints. Moreover, the experimental conditions for laser braze-welding were investigated to minimize the IMCs formation at the Al/Cu joints. The microstructure of Al/Cu joints was analyzed using an electron probe microanalyzer (EPMA), scanning electron microscopy (SEM) and transmission electron microscopy (TEM). The mechanical properties—such as microhardness and tensile shear strength along with electrical resistance of the Al/Cu joints—were examined. Moreover, this study performed the numerical simulation to describe the molten pool flow for the Al/Cu laser welding and verified the formation mechanism of swirl-like structures at the Al/Cu joints.

2. Materials and Methods

2.1. Materials and Experimental Setup for Laser Welding of Al/Cu

The commercial-Cu sheet (purity: 99.99%, Nilaco Co., Tokyo, Japan) and Al ribbon (purity: 99.9%, Nilaco Co., Tokyo, Japan) were prepared in the dimensions, 20 × 30 × 1 and 2 × 45 × 0.2 mm3, respectively, followed by cleaning ultrasonically in acetone for 2 min. To make an overlap joint with an overlap length of 7 mm, a firmly clamped Al ribbon was placed on the center of surface in the width and 7 mm in depth from the edge of Cu sheet as shown in Figure 2a. Figure 2b shows an experimental setup for the laser system equipped with a quasi-CW fiber laser (YLS-600/6000-QCW-AC, IPG Photonics, Oxford, United States). Laser parameters, a central wavelength of λ = 1070 nm, a pulse duration of Tp = 3 ms, a repetition frequency of fp = 100 Hz, and a beam diameter of 200 μm with super-Gaussian energy distribution were used, from which the laser beam quality factors (M2) were 11.7 and 12.1 for the horizontal direction and vertical direction, respectively. The Al/Cu specimens were placed on a computer-controlled motion system (Series O-M, Fanuc, Yamanashi, Japan) tilted 5° to the normal direction of the laser head to prevent the damage of the laser system from reflected beam. A charge-coupled device camera was coaxially mounted on the laser head to find welding position on the specimens. The laser welding was performed using laser power range from 1800 to 3000 W varied in scan speed from 10 to 40 mm/s. The resultant heat input, dividing the laser power to the scan speed, was obtained in the range of 62.5 to 250 J/mm. The details of experimental conditions are listed in Table 1. The laser welding of Al ribbon to Cu sheet was only achieved for the experimental conditions of the named specimens. During the laser welding, Ar gas was used as the shielding gas with a flow rate of 20 L/min.

2.2. Metallographic Characterization

In order to analyze the cross section of Al/Cu joint, welded region on the specimen were cut into a half vertically (i.e., perpendicular to laser scan direction) using a low speed cutting wheel. Then, the specimens were fine-polished using 1 and 0.04 μm colloidal silica suspensions. The cross-sectional macrostructure and microstructure of the Al/Cu joints were characterized utilizing an optical microscopy (OM; ECLIPS MA 200, Nikon, Tokyo, Japan) and SEM (SU5000, Hitachi, Tokyo, Japan). Further quantitative analysis of the cross-section of the Al/Cu joints was carried out using an EPMA (JXA-8500F, JEOL, Tokyo, Japan). The elemental distribution maps of Al and Cu were obtained at an acceleration voltage of 15 kV, a current of 50 nA, a step size of 4.9 µm, and a dwell time of 12 ms. To investigate the IMCs formed inside the weldment, the EPMA line scans, at an acceleration voltage of 15 kV and the dwell time of 800 ms, were conducted at the center of Al/Cu joints, and the measured relative atomic percentages of Al to Cu were used to identify the phases of IMCs. The TEM (Tecnai F20 G20, FEI, Lausanne, Switzerland) analysis was also performed to identify the phase of IMCs at the acceleration voltage of 200 kV. The TEM specimens were prepared at the center of Al/Cu joints by a typical lift-out technique using a focused ion beam microscope (FIB; Hitachi-NX5000, Hitachi, Tokyo, Japan). To determine the welding area in Al/Cu joints—hereinafter, assumed to be equivalent to the area of weldment—an image analysis program (iSolution DT x64, IMT i-Solution, Riverton, United States) was employed to find interface between IMCs and base metals where significant contrast change was observed in the SEM micrographs. The welding area was measured three times at the center of the Al/Cu joints with 30 μm apart for each measurement along the laser welding direction.

2.3. Numerical Simulation Modeling

The computational fluid dynamics (CFD) simulation was conducted to analyze the heat transfer and fluid flow in the molten pool during the laser welding of Al ribbon to Cu sheet. The governing equations for the CFD simulation of molten pool flow included the momentum conservation equation (Navier–Stokes equations), mass conservation equation, energy conservation equation, and volume of fluid equation [28,29,30,31]. Those equations were provided by a commercial software package, Flow-3D (Flow Science, Inc., Santa Fe, NM, USA). The material properties and variables used in the simulation are listed in Table 2. The mesh size was 0.02 mm/mesh, and the laser welding started at 10 mm along the x-direction, as shown in Figure 3.
Momentum conservation equation
V t + V V = P ρ + ν 2 V + f b
Mass conservation equation
V = 0
Energy conservation equation
h t + V h = 1 ρ ( k T )
where
h = ρ s C s T ( T T s ) h = h ( T s ) + h s l T T s T l T s ( T s < T T l ) h = h ( T l ) + ρ l C l ( T T l ) ( T s < T T l )
Volume of fluid equation
F t + ( V F ) = 0

2.3.1. Boundary Conditions

The laser heat source equations were included in the energy boundary condition [32]. The upper boundary region included the heat input from laser heat flux and the heat loss from convection, radiation, and evaporation. The upper boundary condition was applied as
k T n = q l a s e r q c o n v q r a d i q e v a p
Moreover, the pressure boundary for the free surface was applied as
P = γ R c

2.3.2. Laser Heat Source Model

The laser heat efficiency (ηlaser), laser power (PL), and laser beam radius (σr) were considered to develop a super-Gaussian laser heat source model (qlaser), as shown in Equation (8). The laser heat flux is applied to the top surface of the materials.
q l a s e r = η l a s e r P L π σ r 2

2.3.3. Surface Tension Model

The keyhole mode was not generated during the laser welding due to a relatively low laser energy density. Therefore, the keyhole model was not considered in this study. However, the Marangoni flow driven by the surface tension gradient caused the molten pool flow (i.e., swirling) at the Al/Cu joints. Thus, a surface tension model (γ(T)), function of temperature) was developed by considering the surface tension gradient (A), melting point (Ts), and surface tension at the melting point ( γ m 0 ) [28,29,30,31].
γ T = γ m 0 + A T T s

2.4. Mechanical and Electrical Properties

The microhardnesses of the base metals and Al/Cu joints were measured using a nanoindentation test (Nanoindenter G200, KLA, Milpitas, CA, United States) with a Berkovich tip (U9701A-002, Keysight, Santa Rosa, CA, United States). The microhardness measurements were conducted at the cross-sectional area of the Al/Cu joint perpendicular to the laser welding direction. The measurements were performed at an interval of 3 μm with a load of 0.1 gf holding for 10 s and a loading time of 15 s. All the microhardness measurements were performed three times to obtain the average microhardness. The mechanical strength of the Al/Cu joints was measured by the tensile shear tests (5848 series, INSTRON, Norwood, MA, United States) at a crosshead speed of 3 mm/min. All the tensile shear tests were repeated five times, and the average tensile shear strengths were obtained. A four-point probe meter (RM3545, HIOKI, Nagano, Japan) with two probes for carrying the current and two probes for sensing the voltage was used to measure the electrical resistance of the Al/Cu joints [33]. The measured electrical resistance was considered to be R = Rcu + Rweld + RAl, as shown in Figure 4. It was assumed that the electrical resistances of Al and Cu were not influenced by the laser welding process but affected only by the electrical resistance of the weldment. All the electrical resistance measurements were performed five times, and the average electrical resistances were obtained.

3. Results and Discussion

Figure 5 shows the cross-sectional OM image of the Al/Cu joints in parallel to the laser welding direction at a laser power of 2300 W and a scan speed of 20 mm/s (i.e., a specimen of 23/20). A mixture of Al and Cu can be observed in the welding zone (dark gray and black areas with red arrows), which is the intermetallic compounds. The formation of Al/Cu IMCs is known to cause the deterioration of mechanical and electrical properties of the Al/Cu joints. Therefore, the IMCs formation should be minimized to obtain the solid electrical connections. In this study, the minimization of IMCs formation is considered as the primary requirement for the laser welding of Al ribbon to Cu sheet.

3.1. Microstructures

Figure 6 shows the cross-sectional SEM images of the Al/Cu joints, and corresponding EPMA element mapping of Al and Cu for the (a) 23/20, (b) 25/28.6, (c) 25/15.4, and (d) 27/20. For every sample, the mixture of Al and Cu (i.e., IMCs) induced the swirl-like structures in the welding zones, and those can be identified in the SEM images and elemental distribution maps. In the case of the 23/20 and 25/28.6, in Figure 6a,b, shallow welding depths in the Cu sheet were observed with no weld defects. The deepest welding depth was approximately 25 μm for both 23/20 and 25/28.6, which can be considered as the laser braze-welded Al/Cu joints [21]. Similar results were obtained for the 23/28.6 and 25/40. Small Al and Cu diffusions were observed in the elemental distribution maps, thus, the simple swirl-like structures with small welding zones were developed for the 23/20 and 25/28.6. On the contrary, significantly deep welding depths in the Cu sheet with 200 and 175 μm were observed for the 25/15.4 (Figure 6c) and 27/20 (Figure 6d), respectively. Moreover, relatively complex swirl-like structures and large welding zones were developed with multiple cracks and voids compared with those of the 23/20 and 25/28.6. The significant difference in the melting temperatures and thermal expansion coefficients of Al and Cu can induce the residual thermal stresses at the Al/Cu joints during the solidification [23,34]. For the 25/15.4 and 27/20, an application of excessive heat input during the Al/Cu laser welding process induced the turbulent mixture of Al and Cu, resulting in the formation of complex swirl-like structures with large welding zones [33]. Accordingly, the great residual stress may be created at the Al/Cu joint, causing the development of cracks and voids at the welding zones. Similar results were obtained for the 29/20 and 29/40.
Figure 7 shows the EPMA line scan analysis for Al and Cu elements in the welding zones of (a) 23/20 and (b) 25/15.4. The atomic percentages of Al and Cu were confirmed along the line scans, and these values were used to estimate the possible phases of IMCs. In the case of the 23/20, relatively simple Al and Cu atomic percentage profiles were obtained owing to a low mixture of Al and Cu. The EPMA analysis revealed that AlCu2, Al8Cu, and AlCu8 were formed at the welding zone during the Al/Cu laser welding. On the contrary, in the case of the 25/15.4, a large fluctuation of Al and Cu atomic percentage profiles was detected along the line scan owing to a turbulent mixture of Al and Cu. Various IMCs were developed in the welding zone, which were confirmed as Al2Cu3, Al3Cu2, AlCu3, Al3Cu, AlCu, and Al8Cu. Table 3 lists the developed IMCs phases for the 23/20, 25/28.6, 25/15.4, and 27/20. More various types of IMCs were likely to be developed in the welding zone with increasing the heat input during laser welding.
Further IMCs identification was performed using the TEM analysis at two locations in the swirl-like structure of 25/28.6, as shown in Figure 8a. Figure 8b shows the TEM bright-field image at the location (1) in Figure 8a. The microstructure was consisted of the Al primary phase and Al2Cu eutectic phase. The selected area electron diffraction (SAED) pattern on the right inset in Figure 8b was taken at the primary phase, and it was analyzed as an Al-rich face-centered cubic (FCC) structure with a lattice parameter of a = 4.046 Å at the zone axis of [ 01 1 ¯ ]. Similarly, the left inset in Figure 8b was identified as the θ-tetragonal Al2Cu with the lattice parameters of a = 6.057 Å and c = 4.824 Å at the zone axis of [ 00 1 ¯ ] [35,36]. Figure 8c shows the TEM bright-field image at the location (2) in Figure 8a. The SAED pattern was analyzed at the black precipitate (marked with the red circle), confirmed the simple cubic Al4Cu9 with a lattice parameter of a = 8.72 Å at the zone axis of [ 1 ¯ 2 5 ¯ ] [35]. It is noteworthy that Al2Cu and Al4Cu9 are the brittle IMCs in the Al-Cu binary system [36,37]. The EMPA and TEM analyses revealed that the Al/Cu joints were consisted of various types of the Al/Cu IMCs, which were likely to form cracks in the welding zone [38].

3.2. Numerical Simulation Results

Four different numerical simulations were conducted to examine the molten pool behavior during the laser welding of Al ribbon to Cu sheet in terms of the heat input, surface tension, and surface tension gradient. The simulation conditions are listed in Table 4.
Figure 9 shows the numerical simulation results with the temperature profile and molten pool flow as a function of the welding time for four different cases. Figure 9a (Case 1) shows the simulation result for the 23/20. The molten pool flow dominantly occurred in Al, and only a marginal weld penetration was observed in the Cu sheet. This result well coincides with the SEM and EPMA analyses (Figure 6a), which show the laser braze-welding with a low mixture of Al and Cu owing to a relatively low heat input (i.e., 115 J/mm). Figure 9b (Case 2) describes the simulation result for the 25/15.4. At the welding time of 0.012 s, the outward molten pool flow was observed at the top surface of Al due to the negative surface tension gradient. Moreover, the counter-clockwise circulation occurred from the Al ribbon to the Cu sheet, leading to a deep weld penetration in the Cu sheet. In the case of the 25/15.4, a relatively large heat input of 162.5 J/mm caused the rigorous molten pool flow, resulting in the turbulent mixture of Al and Cu and the formation of various IMCs, as shown in Figure 6c and Figure 7b. Figure 9c (Case 3) shows the simulation result with the positive surface tension gradient for the 25/15.4. The circulation of the molten pool occurred through the center of the weld pool. As a result, a bumpy surface of the molten pool was developed. This simulation result was not accorded with the experimental result. As shown in the cross-sectional SEM images (Figure 6), the smooth surface of Al/Cu joints was obtained due to the wetting of molten materials during the laser welding process. Figure 9d (Case 4) describes the simulation result with no surface tension and surface tension gradient for the 25/15.4. It showed a significantly different result from the experimental result. The molten pool flowed downward due to gravity and rose at the weld toe. Moreover, no wetting of molten materials was observed. Consequently, the numerical simulation results revealed that the heat input, surface tension, and surface tension gradient were crucial factors determining the molten pool behavior. The applied heat input affected the size of the molten pool and weld penetration in the Cu sheet. The larger size of the molten pool with deeper weld penetration was achieved with increasing the heat input. Moreover, the surface tension gradient induced the Marangoni flow at the molten pool. This fluid flow caused a mixing of Al and Cu, resulting in the development of swirl-like structures and IMCs at the Al/Cu joints.

3.3. Microhardness and Tensile Shear Strength

Figure 10 shows the measured microhardness as a function of the distance for the 23/20. The average microhardnesses of Cu and Al were found to be 2.3 and 2.0 GPa, respectively. These values significantly increased to 12.7 GPa at the Al/Cu joint because of the formation of the IMCs. Hug et al. [38] also reported similar results: the microhardness values of the base metals (approximately 1 GPa) increased to 7 GPa at the IMCs, which were consisted of Al2Cu, AlCu, Al3Cu4, and Al4Cu9. Figure 11 shows the tensile shear strengths for the different Al/Cu joints. The error bars in the Figure 11 represent the range of the measured tensile shear strengths. In the cases of the 23/20, 23/28.6, 25/20, 25/28.6, 25/40, 27/28.6, and 27/40, an equivalent tensile shear strength (approximately 33.1 MPa) was obtained, and it was comparable to the tensile strength of the Al ribbon. This was because the fractures occurred at the Al ribbons instead of the Al/Cu joints by the tensile shear tests. Figure 12a shows the result of tensile shear tests for the 23/20, verifying that the fracture occurred at the Al ribbons. However, relatively lower tensile shear strengths were measured for the 25/15.4, 27/20, 29/20, and 29/40. For example, the average tensile shear strengths were found to be 21.5 and 16.0 MPa for the 27/20 and 29/20, respectively. A significant decrease in the tensile shear strength was attributed to an application of large heat input or high laser power, which induced the formation of large IMCs region with cracks and voids (Figure 6). During the tensile shear tests, the crack initiation and propagation were likely to begin at the brittle IMCs and existing cracks and voids in the welding zones. As a result, the fractures occurred at the Al/Cu joints, as shown in Figure 12b. Moreover, those specimens showed significantly large variations in the tensile shear strength values. For example, the range of tensile shear strength was 1.0 MPa for the 25/40, and it increased to 8.5 MPa for the 27/20. This was because non-uniform welding quality was achieved even for the same experimental conditions due to the different formations of cracks and voids.
Figure 13 shows the stress–strain curves obtained by the tensile shear tests for the 23/20, 25/15.4, 29/40, 27/20, and 29/20. Every Al/Cu joint showed similar elastic behaviors, while a large difference was observed in terms of the tensile shear strength and elongation. In the case of the 23/20, the tensile shear strength and elongation were found to be 33.5 MPa and 54.7%, respectively. Similar stress–strain curves were obtained for the 23/28.6, 25/20, 25/28.6, 25/40, 27/28.6, and 27/40. However, significant decreases in the tensile shear strength and elongation were observed for the 25/15.4, 29/40, 27/20, and 29/20 in comparison with those of the 23/20. For the 27/20, the measured tensile shear strength was 21.9 MPa, and the elongation was 6.3%. Solchenbach et al. [19] also reported that the existence of IMCs with cracks and voids at the Al/Cu joints caused a significant decrease in the tensile shear strength.

3.4. Correlation between the Welding Area and Electrical and Mechanical Properties

Figure 14a shows the measured welding area and electrical resistance for the various Al/Cu joints. The error bars in the Figure 14 represent the range of the welding area and electrical resistance obtained by three times and five times of measurements, respectively. At the same scan speed, larger welding areas were created with an increase in the laser power. For example, at a scan speed of 20 mm/s, the welding area was found to be 0.140 mm2 with a laser power of 2300 W. This value increased to 0.165, 0.233, and 0.248 mm2 as the laser power increased to 2500, 2700, and 2900 W. Moreover, smaller welding areas were formed with an increase in the scan speed at the same laser power. At the laser power of 2500 W, the welding area decreased from 0.208 mm2 to 0.165, 0.146, and 0.129 mm2 as the scan speed increased from 15.4 mm2 to 20, 28.6, and 40 mm/s. These results indicate that the welding area was strongly dependent on both the laser power and scan speed. In addition, a direct correlation was found between the welding area and electrical resistance, as shown in Figure 14a. The electrical resistance showed a similar trend to that of the welding area. The larger welding area of the Al/Cu joints showed the higher electrical resistance. It is known that the Al/Cu IMCs has higher electrical resistance than that of the base metals [15]. In this study, it was assumed that the electrical properties of Al and Cu were not changed during the laser welding process. Therefore, high electrical resistances with large welding areas were attributed to an extensive IMCs formation. In addition, an existence of cracks and voids at the welding area may also influence on the increase in electrical resistances. Figure 14b shows the measured welding area and tensile shear strength of the different Al/Cu joints. A strong correlation between the welding area and mechanical strength was found. The specimens with relatively small welding areas showed excellent tensile shear strength (i.e., 23/20, 23/28.6, 25/20, 25/28.6, 25/40, 27/28.6, and 27/40). For those specimens, the fracture occurred at the Al ribbons instead of the Al/Cu joints by the tensile shear tests (Figure 12a). On the other hand, in the case of the 25/15.4, 27/20, 29/20, and 29/40, relatively large heat input and high laser power caused the formation of large welding area with cracks and voids, resulting in relatively low tensile shear strengths with the fracture occurrence at the Al/Cu joints (Figure 12b). The results of the tensile shear strength, electrical resistance, and welding area are listed in Table 5. The formation of IMCs caused the deterioration of electrical conductivity and the brittle behavior of the Al/Cu joints [16,39,40]. Therefore, the Al/Cu joints with a minimum welding area were crucial to minimize the IMCs-induced side effects.

3.5. Development of Process Window

The process window was developed for the dissimilar Al/Cu laser welding in terms of laser power, scan speed, and heat input, as shown in Figure 15. The numbers near each data point in the Figure 15 indicate the calculated heat input for the corresponding experimental conditions. Moreover, the red polygon in the Figure 15 represents the process window for the Al/Cu laser welding. The solid Al/Cu joints with a defect-free weld and good mechanical strength were considered as the process window for the dissimilar Al/Cu laser welding. The Al/Cu joints with cracks and voids were excluded from the process window (i.e., specimens of 25/15.4, 27/20, 29/20, and 29/40). The experimental conditions for the process window were found to be in the range of 2300 to 2700 W for the laser power and 20 to 40 mm/s for the scan speed. Moreover, the heat input should range from 62.5 to 125 J/mm. Even when the applied heat input ranged within the process window, if the applied laser power was lower than 2300 W, the Al/Cu laser welding failed because of the non-melting of the Cu sheet (marked with the blue-dotted circles for corresponding data points). On the contrary, the laser power greater than 2700 W with the applied heat input ranged within the process window led to the puckering at the weld, resulting in the formation of cracks and voids at the welding zone (marked with a blue circle for the corresponding data point). Moreover, the laser braze-welded Al/Cu joints were marked with the green-dotted boxes, and those were expected to be the optimum experimental laser welding conditions for the Al/Cu joints.

4. Conclusions

In this study, the laser welding availability of Al ribbon (thickness: 0.2 mm) to Cu sheet (thickness: 1 mm) was investigated for the electrical connections. A pulsed fiber laser was used to achieve the solid Al/Cu joints with different laser powers and scan speeds. The results can be summarized as follows.
1. Microstructure: The Al/Cu intermetallic compounds were observed in the cross-sectional SEM images and elemental distribution maps. Multiple cracks and voids were detected in the Al/Cu joints of 25/15.4, 27/20, 29/20, and 29/40 owing to the application of high laser power or large heat input, while no weld defects were observed for the Al/Cu joints of 23/20, 23/28.6, 25/20, 25/28.6, 25/40, 27/28.6, and 27/40. The EPMA and TEM analyses identified the developed intermetallic compounds at the Al/Cu joints, which were confirmed to be Al4Cu9, Al2Cu, AlCu, etc. The numerical simulation confirmed that the large heat input caused the surface tension gradient-induced Marangoni flow at the molten pool, resulting in the turbulent mixture of Al and Cu. Therefore, the complex swirl-like structures with various IMCs were developed at the Al/Cu joints.
2. Correlation between the welding area and electrical and mechanical properties: Larger welding areas of the Al/Cu joints were observed with increasing the laser power or decreasing the scan speed. Strong correlations were found between the electrical and mechanical properties and the welding area. Larger electrical resistances were measured with an increase in the welding area, while smaller mechanical strengths were obtained with increasing the welding area. This was because the welding area corresponded to the region of Al/Cu intermetallic compounds, which have poor ductility and low mechanical strength with high electrical resistivity.
3. Process window: The process window was developed for the dissimilar Al/Cu laser welding. To achieve the solid Al/Cu joints with no weld defects, the experimental conditions were found to be in the range of 2300–2700 W for the laser power, 20–40 mm/s for the scan speed, and 62.5–125 J/mm for the heat input, simultaneously. Moreover, laser braze-welded Al/Cu joints with the excellent mechanical and electrical properties were achieved.

Author Contributions

Data curation, D.J. and J.O.K.; formal analysis, D.-W.C.; resources, J.O.K.; writing—original draft preparation, W.-S.S.; writing—review and editing, C.P.; supervision, Y.-J.K.; project administration, H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Research Council of Science and Technology, Korea (project no. NK232A, 2021), the Korea Evaluation Institute of Industrial Technology, Korea (project no. 20015063, 2021–2023), and the Inha University research fund.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to an ongoing study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schwartz, M.M.; Aircraft, S. Introduction to Brazing and Soldering. ASM Int. 2018, 6. [Google Scholar] [CrossRef]
  2. Vianco, P.T. Corrosion issues in solder joint design and service. Weld. J. 1999, 78, 39–46. [Google Scholar]
  3. Shi, Y.; Li, J.; Zhang, G.; Huang, J.; Gu, Y. Corrosion Behavior of Aluminum-Steel Weld-Brazing Joint. J. Mater. Eng. Perform. 2016, 25, 1916–1923. [Google Scholar] [CrossRef]
  4. Harman, G.G. Wire Bonding in Microelectronics: Materials, Processes, Reliability and Yield, 3rd ed.; McGraw-Hill Education: New York, NY, USA, 2010; ISBN 9780071642651. [Google Scholar]
  5. Aonuma, M.; Nakata, K. Dissimilar metal joining of ZK60 magnesium alloy and titanium by friction stir welding. Mater. Sci. Eng. B Solid State Mater. Adv. Technol. 2012, 177, 543–548. [Google Scholar] [CrossRef]
  6. Sasaki, T.; Watanabe, T.; Hosokawa, Y.; Yanagisawa, A. Analysis for relative motion in ultrasonic welding of aluminium sheet. Sci. Technol. Weld. Jt. 2012, 18, 19–24. [Google Scholar] [CrossRef]
  7. Maeda, M.; Sato, T.; Inoue, N.; Yagi, D.; Takahashi, Y. Anomalous microstructure formed at the interface between copper ribbon and tin-deposited copper plate by ultrasonic bonding. Microelectron. Reliab. 2011, 51, 130–136. [Google Scholar] [CrossRef]
  8. Maeda, M.; Yagi, D.; Takahashi, Y. Interfacial microstructure between copper ribbon and nickel-coated copper plate formed by ultrasonic bonding. Q. J. Jpn. Weld. Soc. 2013, 31, 188–191. [Google Scholar] [CrossRef]
  9. Sun, Z.; Ion, J.C. Laser welding of dissimilar metal combinations. J. Mater. Sci. 1995, 30, 4205–4214. [Google Scholar] [CrossRef]
  10. Yan, S.; Hong, Z.; Watanabe, T.; Jingguo, T. CW/PW dual-beam YAG laser welding of steel/aluminum alloy sheets. Opt. Lasers Eng. 2010, 48, 732–736. [Google Scholar] [CrossRef]
  11. Mehlmann, B.; Gehlen, E.; Olowinsky, A.; Gillner, A. Laser micro welding for ribbon bonding. Phys. Procedia 2014, 56, 776–781. [Google Scholar] [CrossRef]
  12. Nwanoro, K.C.; Lu, H.; Yin, C.; Bailey, C. An analysis of the reliability and design optimization of aluminium ribbon bonds in power electronics modules using computer simulation method. Microelectron. Reliab. 2018, 87, 1–14. [Google Scholar] [CrossRef]
  13. Li, H.; Cao, B.; Yang, J.W.; Liu, J. Modeling of resistance heat assisted ultrasonic welding of Cu-Al joint. J. Mater. Process. Technol. 2018, 256, 121–130. [Google Scholar] [CrossRef]
  14. Davis, J.R. Copper and Copper Alloys. In ASM Speciality Handbook; ASM International: Almere, The Netherlands, 2001; ISBN 2001022956. [Google Scholar]
  15. Rabkin, D.M.; Ryabov, V.R.; Lozovskaya, A.V.; Dovzhenko, V.A. Preparation and properties of copper-aluminum intermetallic compounds. Sov. Powder Metall. Met. Ceram. 1970, 9, 695–700. [Google Scholar] [CrossRef]
  16. Chen, C.Y.; Chen, H.L.; Hwang, W.S. Influence of interfacial structure development on the fracture mechanism and bond strength of aluminum/copper bimetal plate. Mater. Trans. 2006, 47, 1232–1239. [Google Scholar] [CrossRef]
  17. Schmidt, P.A.; Schweier, M.; Zaeh, M.F. Joining of lithium-ion batteries using laser beam welding: Electrical losses of welded aluminum and copper joints. J. Laser Appl. 2012, 915. [Google Scholar] [CrossRef]
  18. Smith, S.; Blackburn, J.; Gittos, M.; De Bono, P.; Hilton, P. Welding of dissimilar metallic materials using a scanned laser beam. J. Laser Appl. 2013, 493. [Google Scholar] [CrossRef]
  19. Solchenbach, T.; Plapper, P. Mechanical characteristics of laser braze-welded aluminium-copper connections. Opt. Laser Technol. 2013, 54, 249–256. [Google Scholar] [CrossRef]
  20. Kraetzsch, M.; Standfuss, J.; Klotzbach, A.; Kaspar, J.; Brenner, B.; Beyer, E. Laser Beam Welding with High-Frequency Beam Oscillation: Welding of Dissimilar Materials with Brilliant Fiber Lasers. Phys. Procedia 2011, 12, 142–149. [Google Scholar] [CrossRef]
  21. Solchenbach, T.; Plapper, P.; Cai, W. Electrical performance of laser braze-welded aluminum-copper interconnects. J. Manuf. Process. 2014, 16, 183–189. [Google Scholar] [CrossRef]
  22. Lee, S.J.; Nakamura, H.; Kawahito, Y.; Katayama, S. Effect of welding speed on microstructural and mechanical properties of laser lap weld joints in dissimilar Al and Cu sheets. Sci. Technol. Weld. Jt. 2014, 19, 111–118. [Google Scholar] [CrossRef]
  23. Mai, T.A.; Spowage, A.C. Characterisation of dissimilar joints in laser welding of steel-kovar, copper-steel and copper-aluminium. Mater. Sci. Eng. A 2004, 374, 224–233. [Google Scholar] [CrossRef]
  24. Zhang, G.; Takahashi, Y.; Heng, Z.; Takashima, K.; Misawa, K. Ultrasonic weldability of al ribbon to cu sheet and the dissimilar joint formation mode. Mater. Trans. 2015, 56, 1842–1851. [Google Scholar] [CrossRef]
  25. Zhu, B.; Zhen, L.; Xia, H.; Su, J.; Niu, S.; Wu, L.; Tan, C.; Chen, B. Effect of the scanning path on the nanosecond pulse laser welded Al/Cu lapped joint. Opt. Laser Technol. 2021, 139, 106945. [Google Scholar] [CrossRef]
  26. Kumar, A.; Gupta, M.P.; Banerjee, J.; Neogy, S.; Keskar, N.; Bhatt, R.B.; Behere, P.G.; Biswas, D.J. Micro-Welding of Stainless Steel and Copper Foils Using a Nano-Second Pulsed Fiber Laser. Lasers Manuf. Mater. Process. 2019, 6, 158–172. [Google Scholar] [CrossRef]
  27. Trinh, L.N.; Lee, D. The Characteristics of Laser Welding of a Thin Aluminum Tab and Steel Battery Case for Lithium-Ion Battery. Metals 2020, 10, 842. [Google Scholar] [CrossRef]
  28. Cho, D.W.; Park, J.H.; Moon, H.S. A study on molten pool behavior in the one pulse one drop GMAW process using computational fluid dynamics. Int. J. Heat Mass Transf. 2019, 139, 848–859. [Google Scholar] [CrossRef]
  29. Cho, W.I.; Na, S.J.; Cho, M.H.; Lee, J.S. Numerical study of alloying element distribution in CO2 laser-GMA hybrid welding. Comput. Mater. Sci. 2010, 49, 792–800. [Google Scholar] [CrossRef]
  30. Cho, D.W.; Kiran, D.V.; Na, S.J. Analysis of molten pool behavior by flux-wall guided metal transfer in low-current submerged arc welding process. Int. J. Heat Mass Transf. 2017, 110, 104–112. [Google Scholar] [CrossRef]
  31. Cho, W.-I.; Na, S.-J. Impact of Wavelengths of CO2, Disk, and Green Lasers on Fusion Zone Shape in Laser Welding of Steel. J. Weld. Jt. 2020, 38, 235–240. [Google Scholar] [CrossRef]
  32. Sim, A.; Chun, E.J.; Cho, D.W. Numerical Simulation of Surface Softening Behavior for Laser Heat Treated Cu-Bearing Medium Carbon Steel. Met. Mater. Int. 2020, 26, 1207–1217. [Google Scholar] [CrossRef]
  33. Jarwitz, M.; Fetzer, F.; Weber, R.; Graf, T. Weld seam geometry and electrical resistance of laser-welded, aluminum-copper dissimilar joints produced with spatial beam oscillation. Metals 2018, 8, 510. [Google Scholar] [CrossRef]
  34. Weigl, M.; Albert, F.; Schmidt, M. Enhancing the ductility of laser-welde copper-aluminum connections by using adapted filler materia. Phys. Procedia 2011, 12, 335–341. [Google Scholar] [CrossRef]
  35. Chen, J.; Lai, Y.S.; Wang, Y.W.; Kao, C.R. Investigation of growth behavior of Al-Cu intermetallic compounds in Cu wire bonding. Microelectron. Reliab. 2011, 51, 125–129. [Google Scholar] [CrossRef]
  36. Chen, H.; Yang, L.; Long, J. First-principles investigation of the elastic, Vickers hardness and thermodynamic properties of Al-Cu intermetallic compounds. Superlattices Microstruct. 2015, 79, 156–165. [Google Scholar] [CrossRef]
  37. Liu, H.J.; Shen, J.J.; Zhou, L.; Zhao, Y.Q.; Liu, C.; Kuang, L.Y. Microstructural characterisation and mechanical properties of friction stir welded joints of aluminium alloy to copper. Sci. Technol. Weld. Jt. 2011, 16, 92–99. [Google Scholar] [CrossRef]
  38. Hug, E.; Bellido, N. Brittleness study of intermetallic (Cu, Al) layers in copper-clad aluminium thin wires. Mater. Sci. Eng. A 2011, 528, 7103–7106. [Google Scholar] [CrossRef]
  39. Braunović, M.; Alexandrov, N. Intermetallic Compounds At Aluminum-To-Copper Electrical Interfaces: Effect of Temperature And Electric Current. IEEE Trans. Compon. Packag. Manuf. Technol. Part A 1994, 17, 78–85. [Google Scholar] [CrossRef]
  40. Lee, W.B.; Bang, K.S.; Jung, S.B. Effects of intermetallic compound on the electrical and mechanical properties of friction welded Cu/Al bimetallic joints during annealing. J. Alloys Compd. 2005, 390, 212–219. [Google Scholar] [CrossRef]

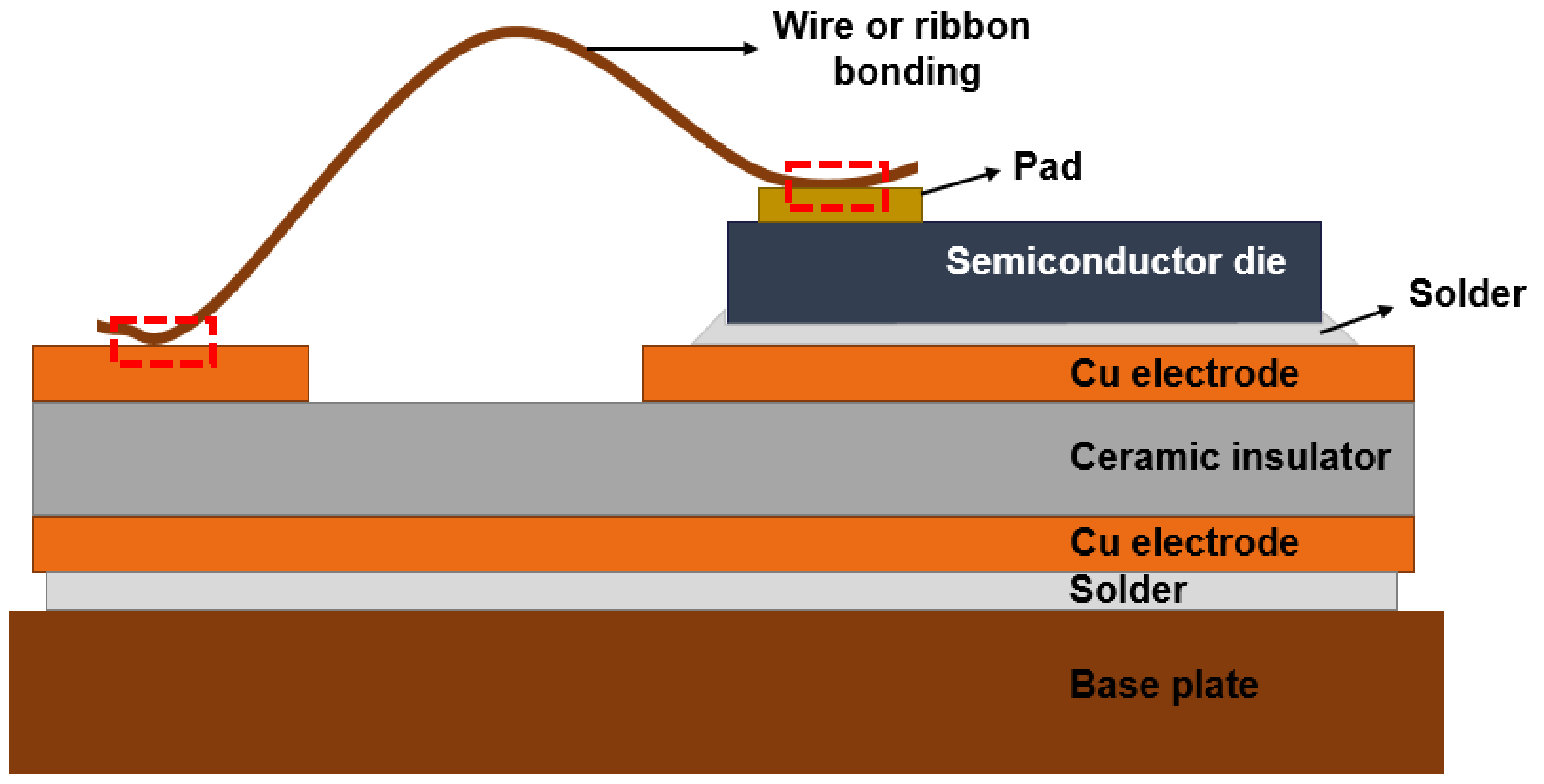

Figure 1. Schematic diagram of the insulated gate bipolar transistors (IGBT) power module. Red-dotted box indicated the electrical connections.
Figure 1. Schematic diagram of the insulated gate bipolar transistors (IGBT) power module. Red-dotted box indicated the electrical connections.
Metals 11 00831 g001

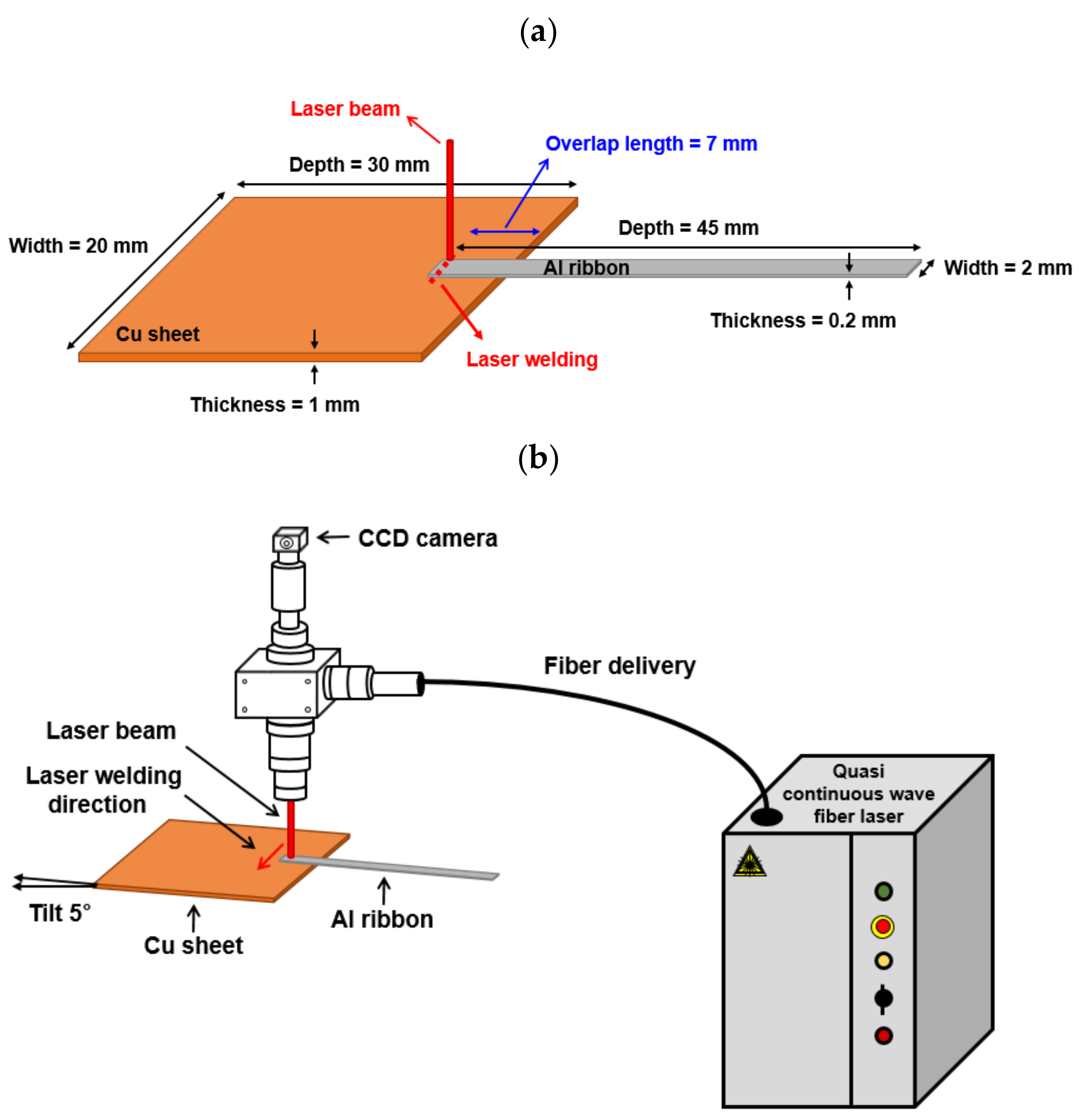

Figure 2. Experimental setups for the (a) Al/Cu overlap joint and (b) laser welding process.
Figure 2. Experimental setups for the (a) Al/Cu overlap joint and (b) laser welding process.
Metals 11 00831 g002

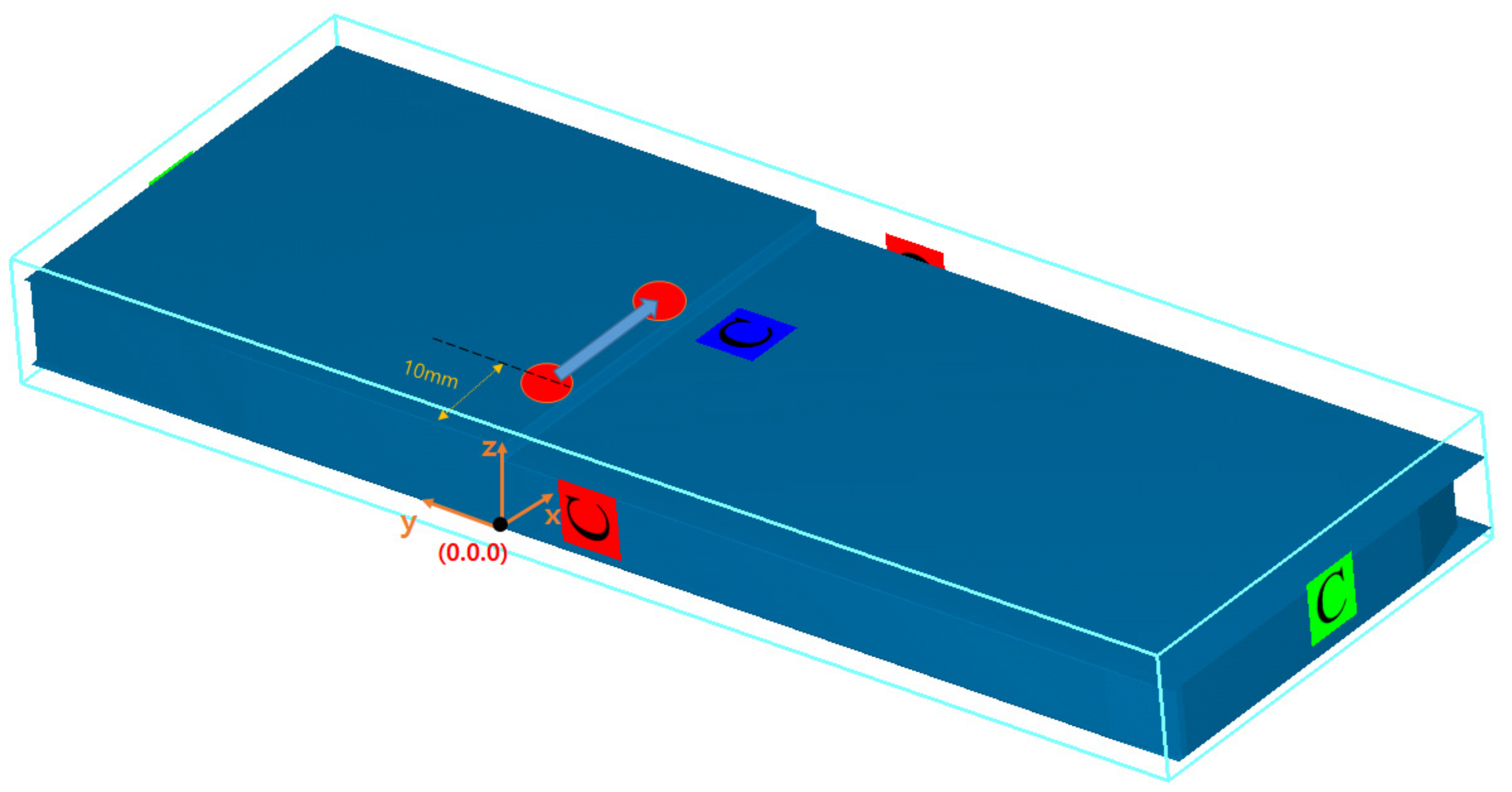

Figure 3. Schematic diagram of the numerical simulation domain and boundary conditions.
Figure 3. Schematic diagram of the numerical simulation domain and boundary conditions.
Metals 11 00831 g003

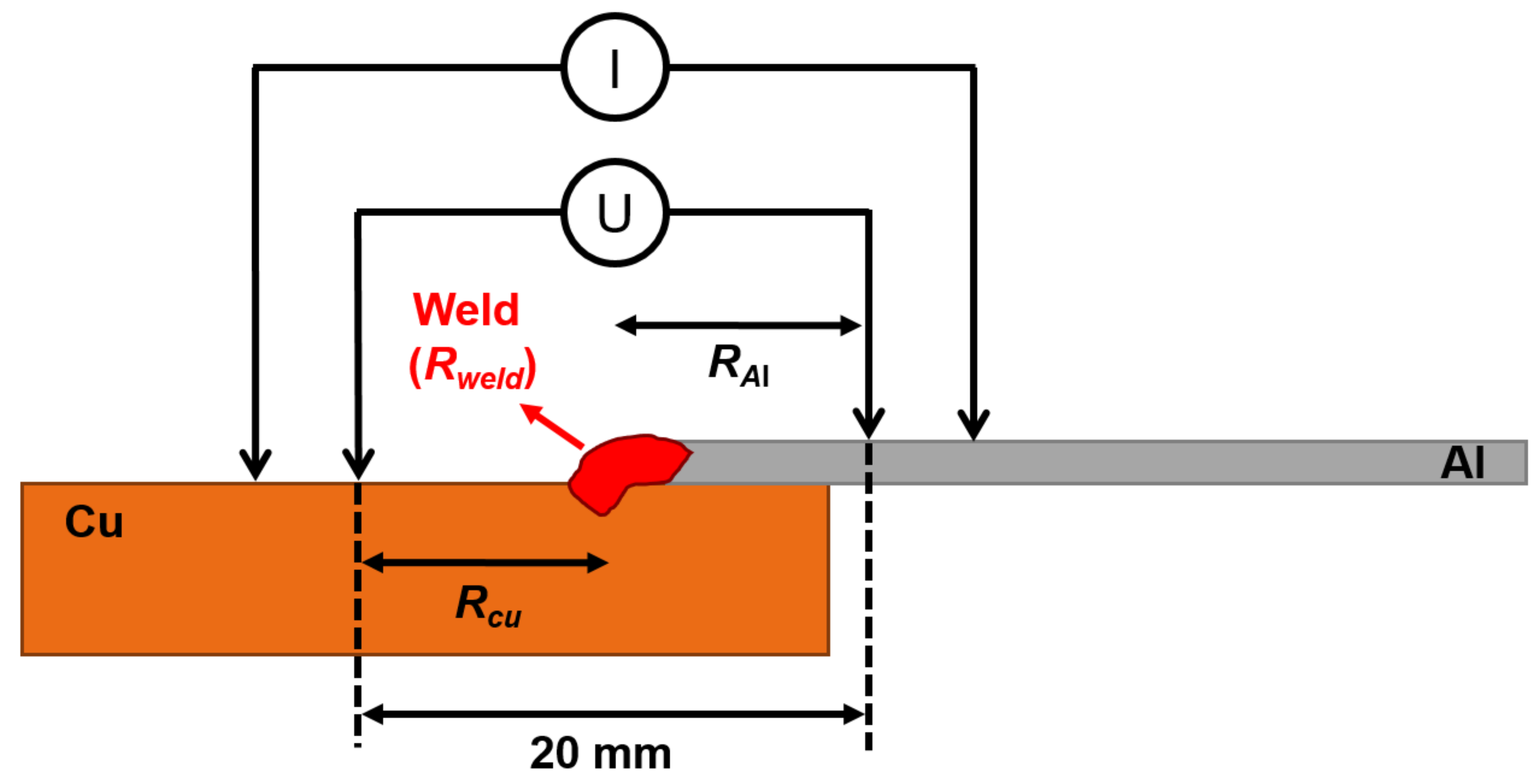

Figure 4. Experimental setup for the four-point electrical resistance measurement.
Figure 4. Experimental setup for the four-point electrical resistance measurement.
Metals 11 00831 g004

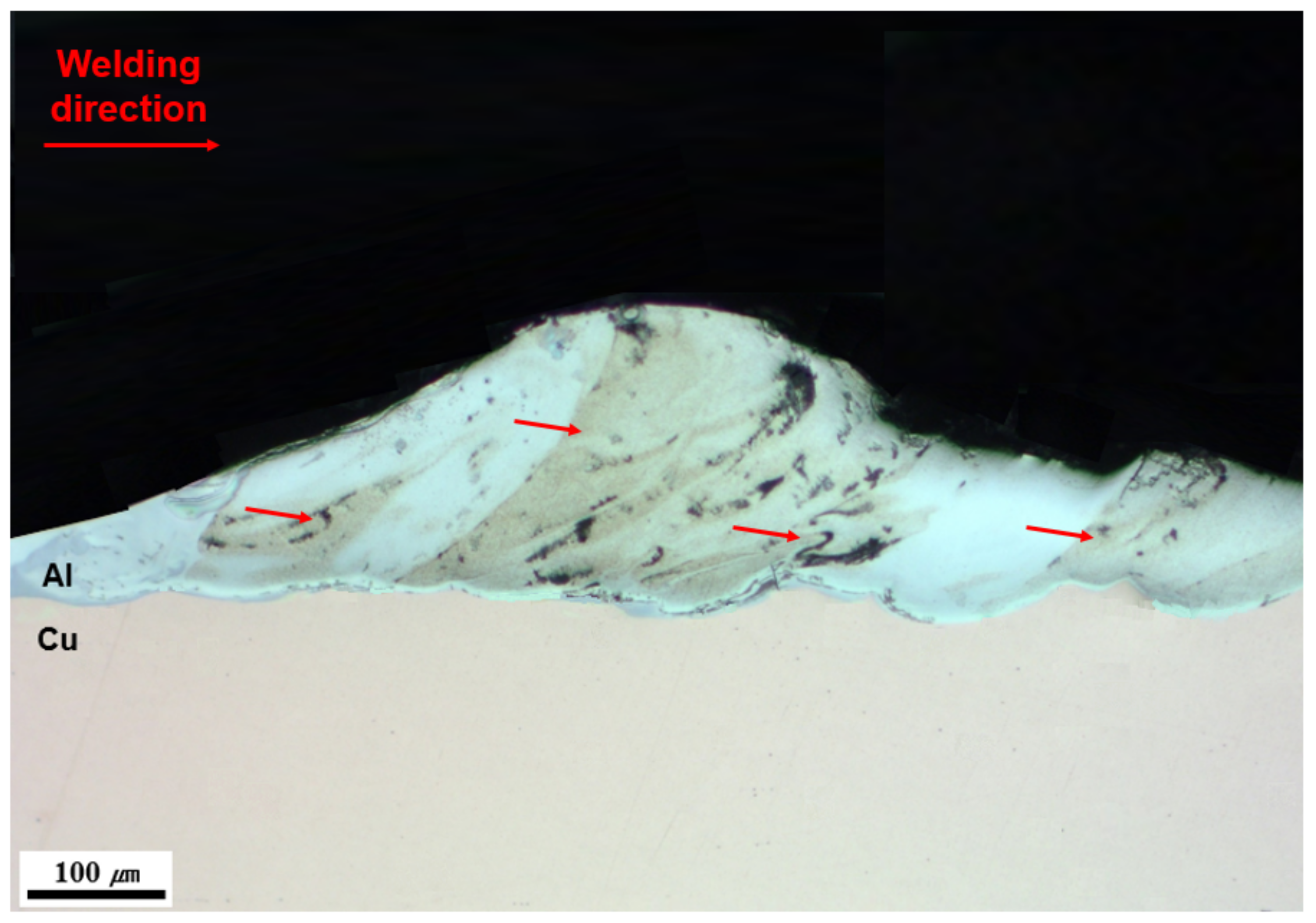

Figure 5. Cross-sectional OM image of the Al/Cu joints in parallel to the laser welding direction. The laser power and scan speed were set at 2300 W and 20 mm/s, respectively.
Figure 5. Cross-sectional OM image of the Al/Cu joints in parallel to the laser welding direction. The laser power and scan speed were set at 2300 W and 20 mm/s, respectively.
Metals 11 00831 g005

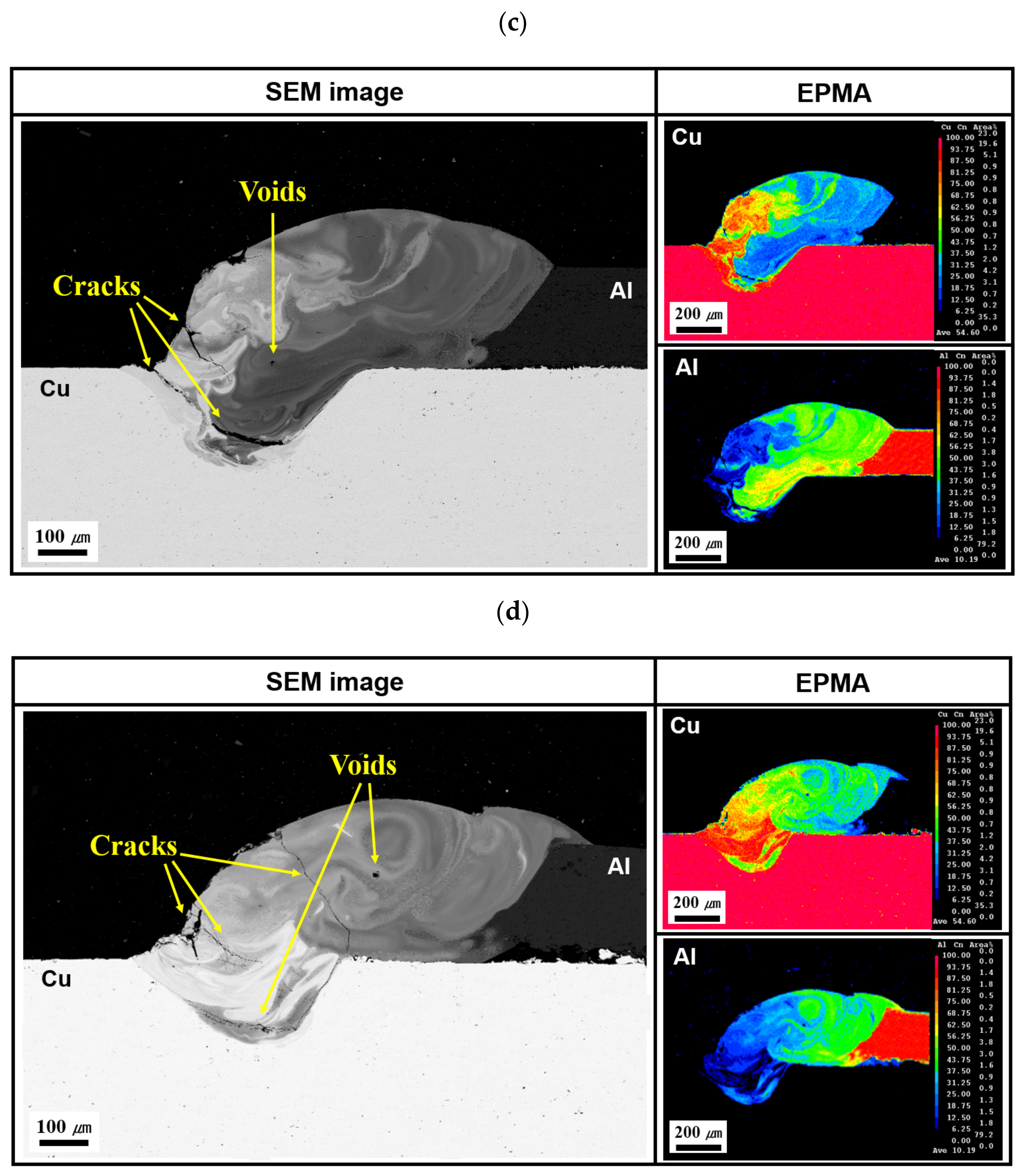

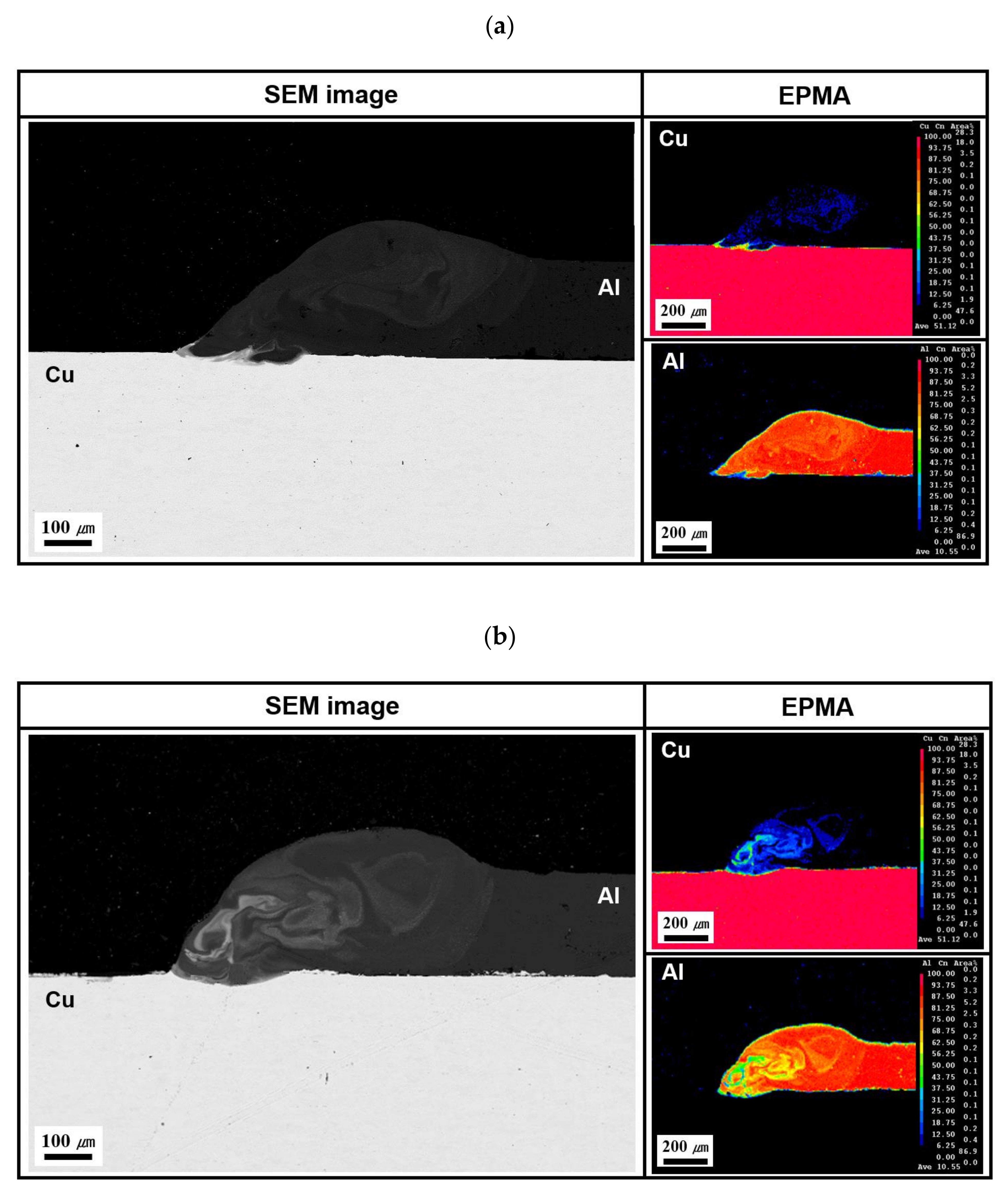

Figure 6. Cross-sectional SEM image and elemental distribution mapping of Al and Cu elements for the (a) 23/20, (b) 25/28.6, (c) 25/15.4, and (d) 27/20.
Figure 6. Cross-sectional SEM image and elemental distribution mapping of Al and Cu elements for the (a) 23/20, (b) 25/28.6, (c) 25/15.4, and (d) 27/20.
Metals 11 00831 g006aMetals 11 00831 g006b

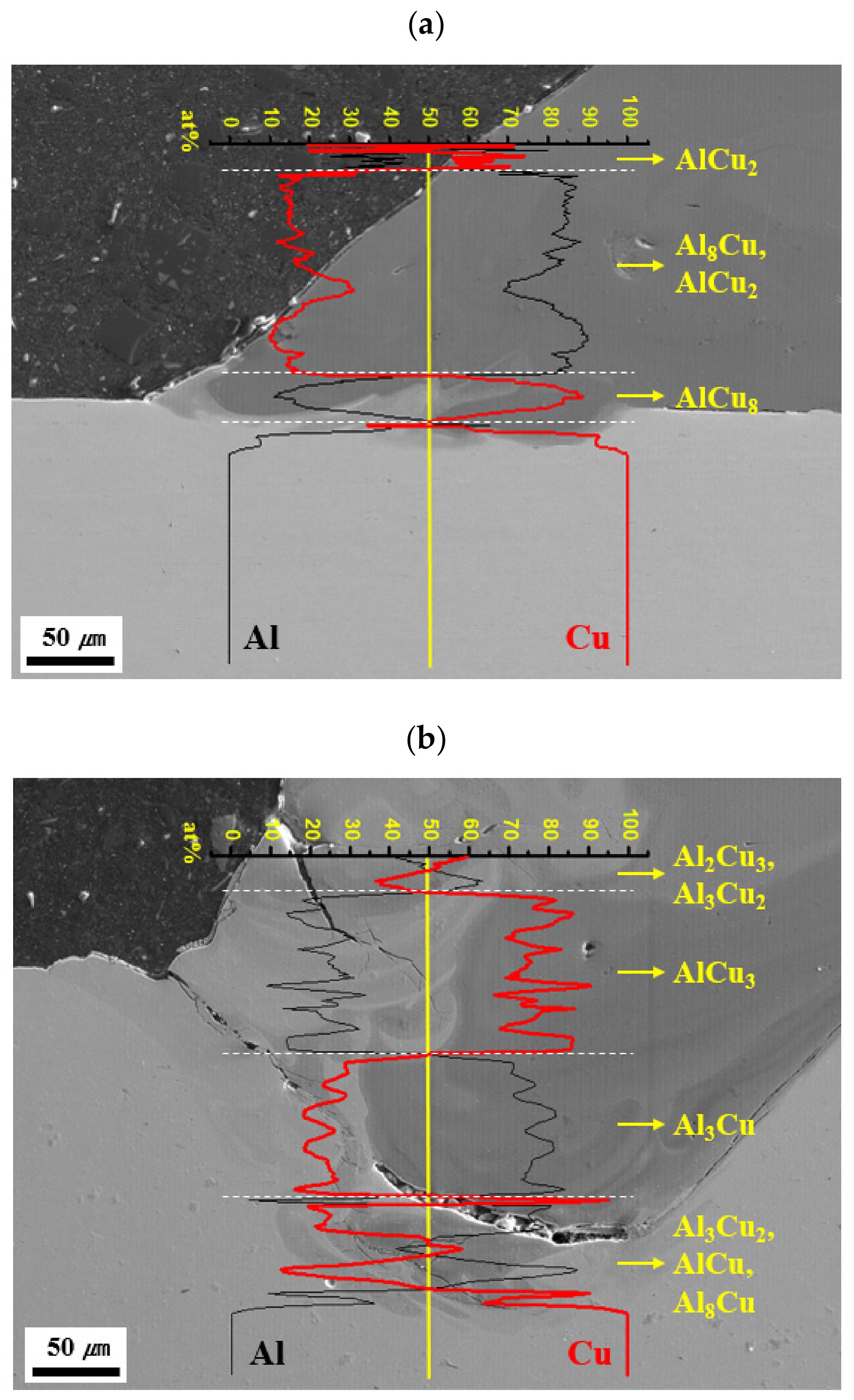

Figure 7. EPMA line scan analysis and identification of the IMCs for the (a) 23/20 and (b) 25/15.4.
Figure 7. EPMA line scan analysis and identification of the IMCs for the (a) 23/20 and (b) 25/15.4.
Metals 11 00831 g007

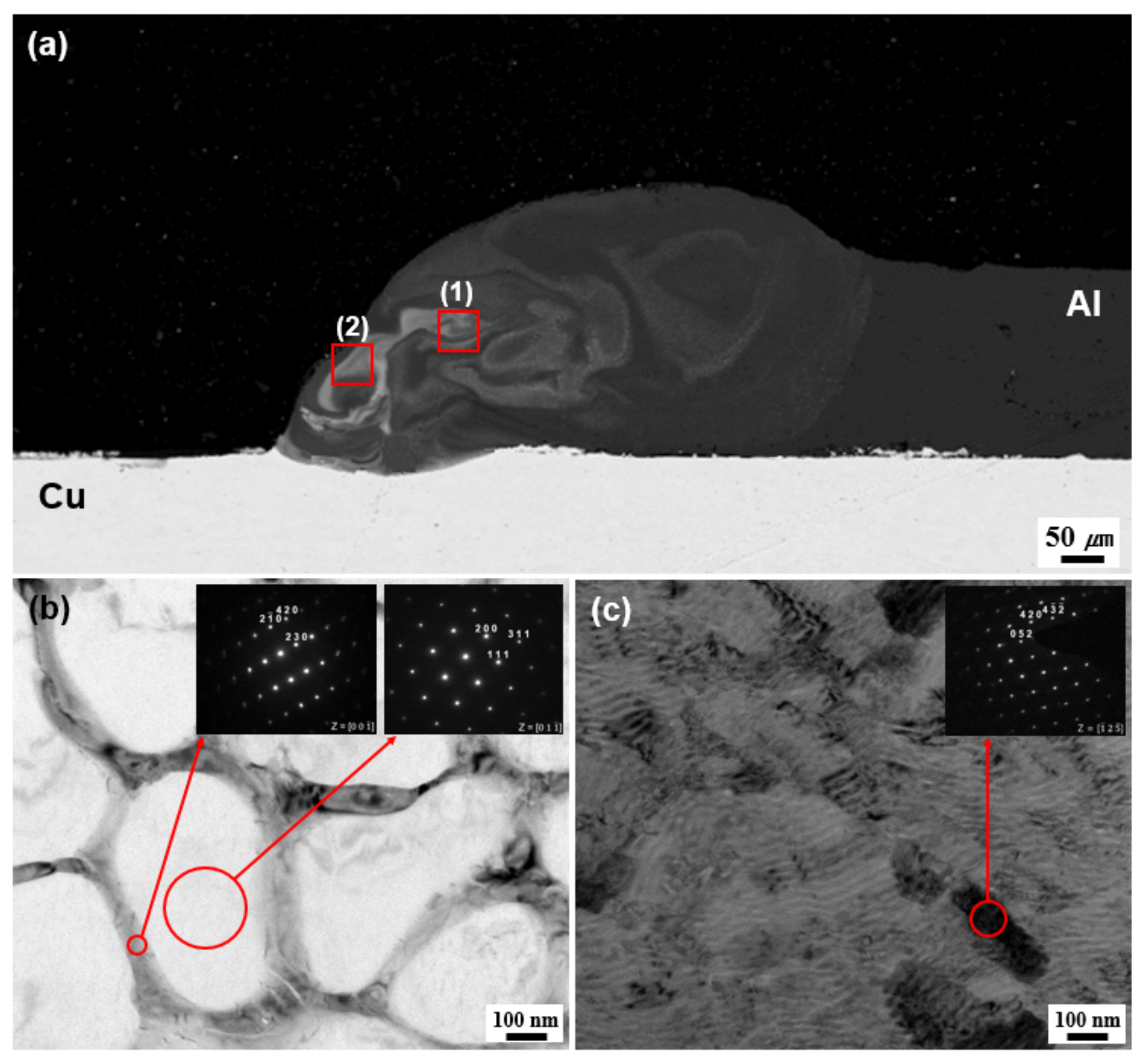

Figure 8. TEM analysis for the 25/28.6. (a) Indicating the location of TEM analysis in SEM image of the welding zone. (b) TEM bright-field image and SAED pattern insets, examined at the location (1) in figure (a), confirmed Al-rich phase (white globular shape) and Al2Cu eutectic phase (gray region), and (c) TEM bright-field image and SAED pattern inset of Al4Cu9, examined at the location (2) in figure (a).
Figure 8. TEM analysis for the 25/28.6. (a) Indicating the location of TEM analysis in SEM image of the welding zone. (b) TEM bright-field image and SAED pattern insets, examined at the location (1) in figure (a), confirmed Al-rich phase (white globular shape) and Al2Cu eutectic phase (gray region), and (c) TEM bright-field image and SAED pattern inset of Al4Cu9, examined at the location (2) in figure (a).
Metals 11 00831 g008

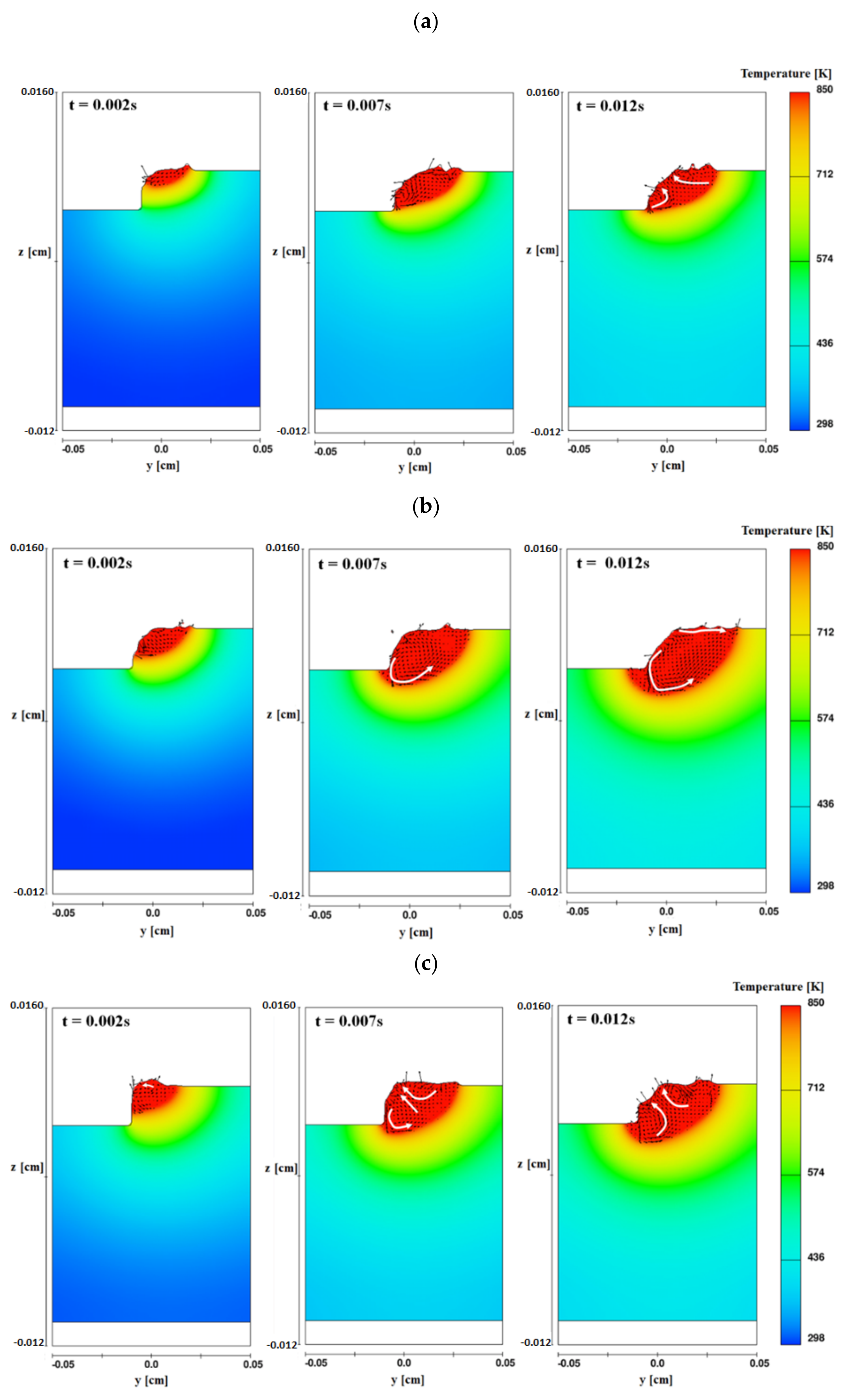

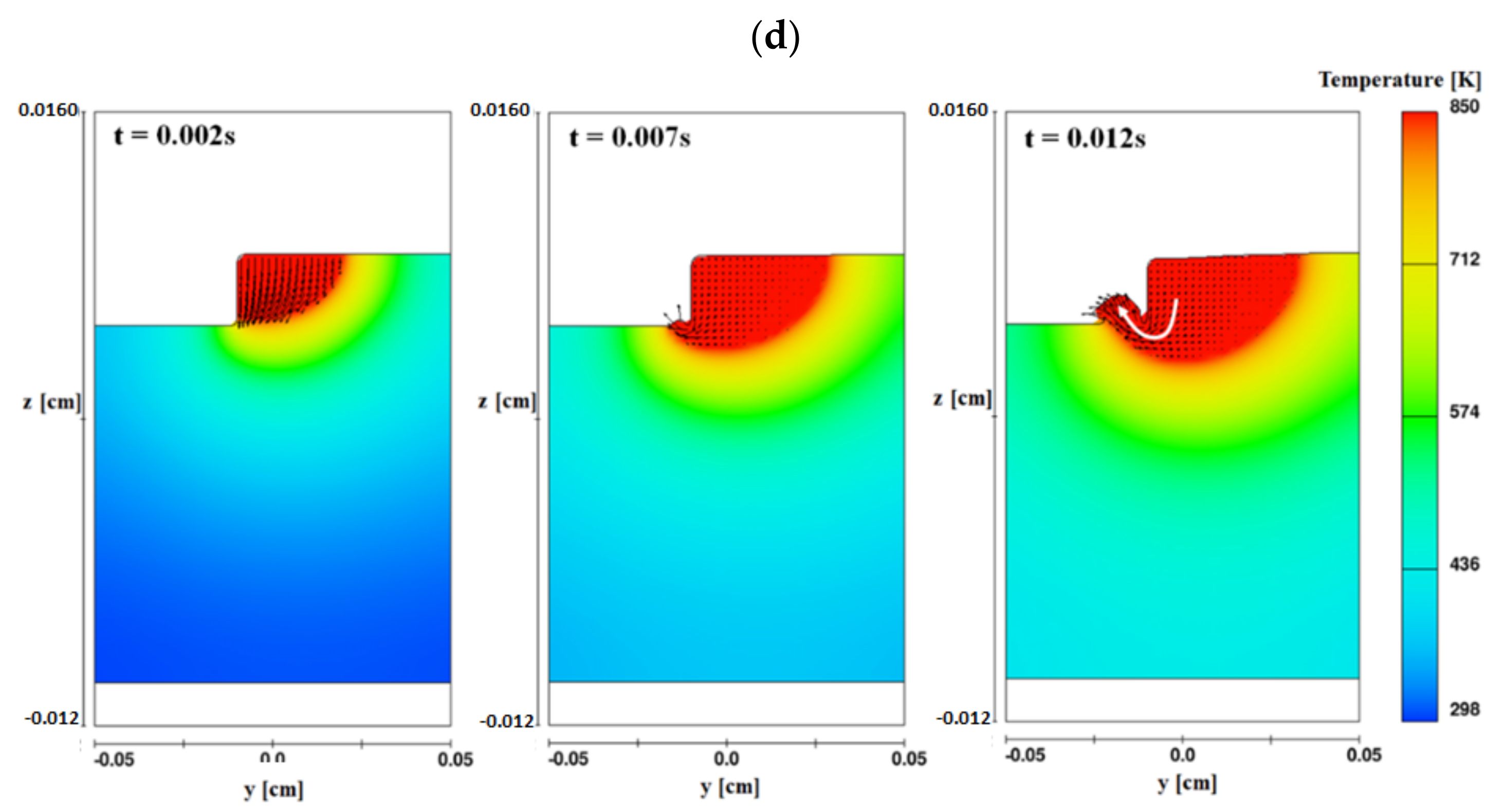

Figure 9. Temperature profiles and molten pool flow on transverse cross-section (y–z plane at x = 1.23 cm): (a) Negative surface tension gradient for the 23/20 (Case 1), (b) negative surface tension gradient for the 25/15.4 (Case 2), (c) positive surface tension gradient for the 25/15.4 (Case 3), and (d) without surface tension for the 25/15.4 (Case 4).
Figure 9. Temperature profiles and molten pool flow on transverse cross-section (y–z plane at x = 1.23 cm): (a) Negative surface tension gradient for the 23/20 (Case 1), (b) negative surface tension gradient for the 25/15.4 (Case 2), (c) positive surface tension gradient for the 25/15.4 (Case 3), and (d) without surface tension for the 25/15.4 (Case 4).
Metals 11 00831 g009aMetals 11 00831 g009b

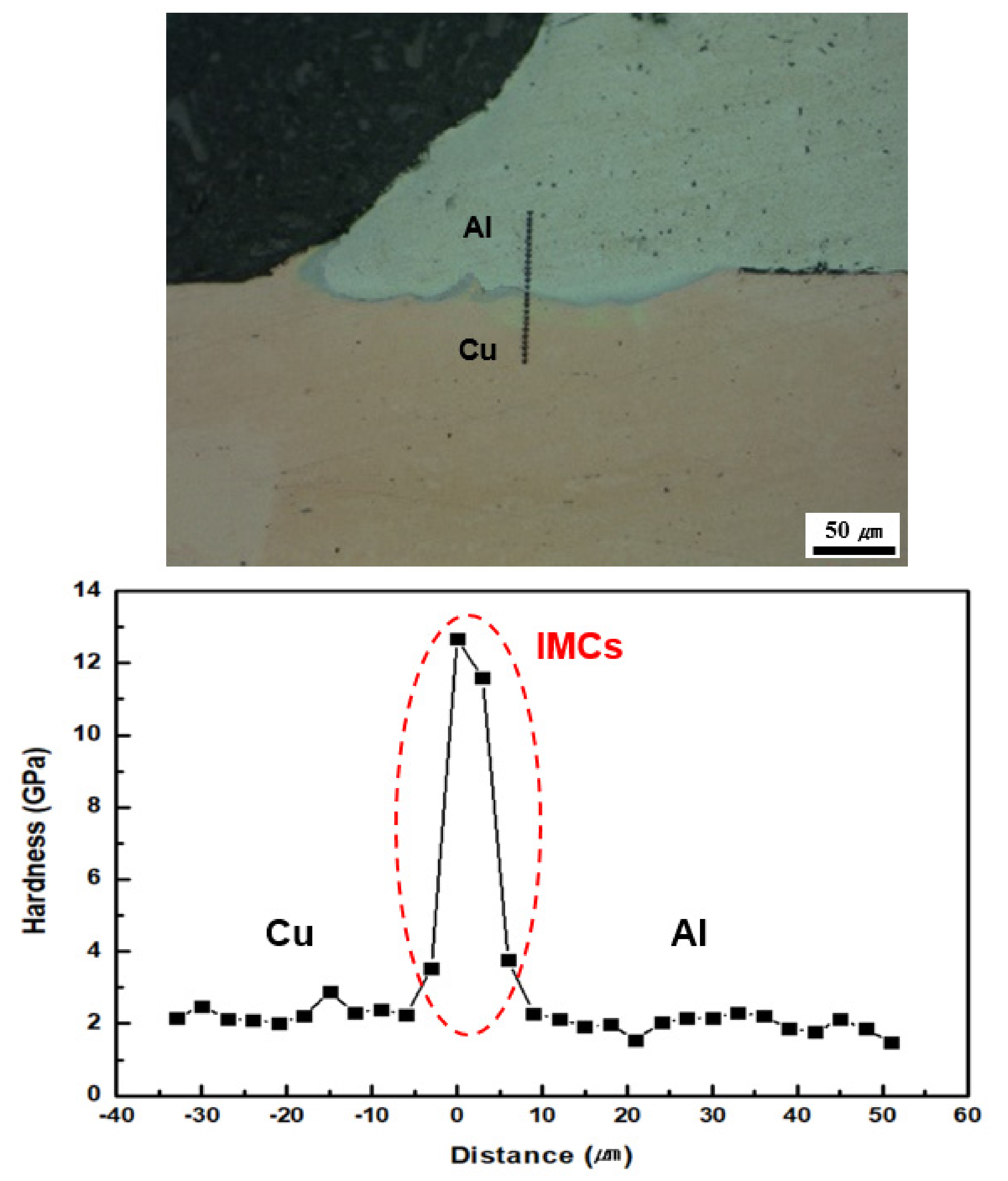

Figure 10. Measured microhardness as a function of the distance for the 23/20.
Figure 10. Measured microhardness as a function of the distance for the 23/20.
Metals 11 00831 g010

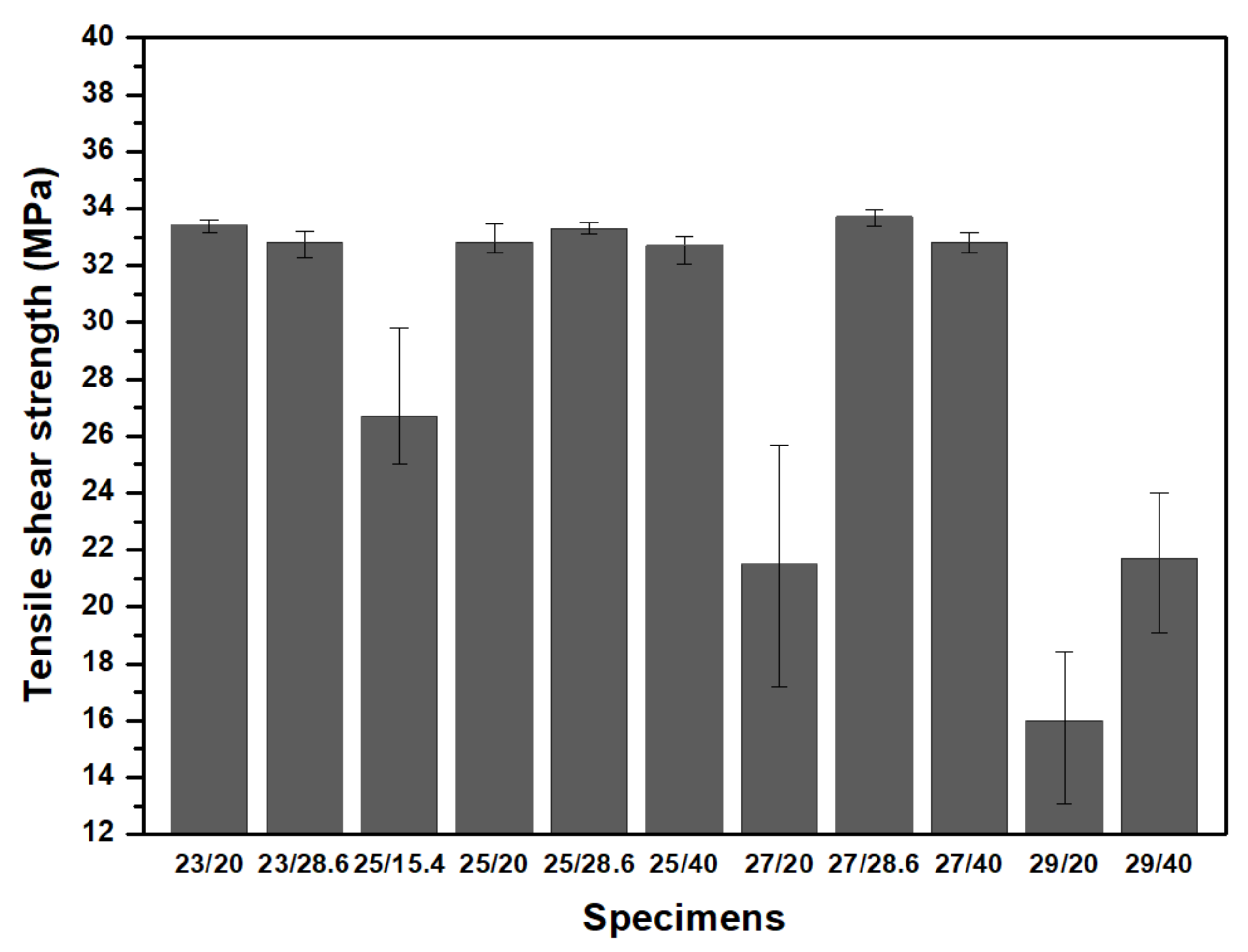

Figure 11. Measured tensile shear strength for the different Al/Cu joints.
Figure 11. Measured tensile shear strength for the different Al/Cu joints.
Metals 11 00831 g011

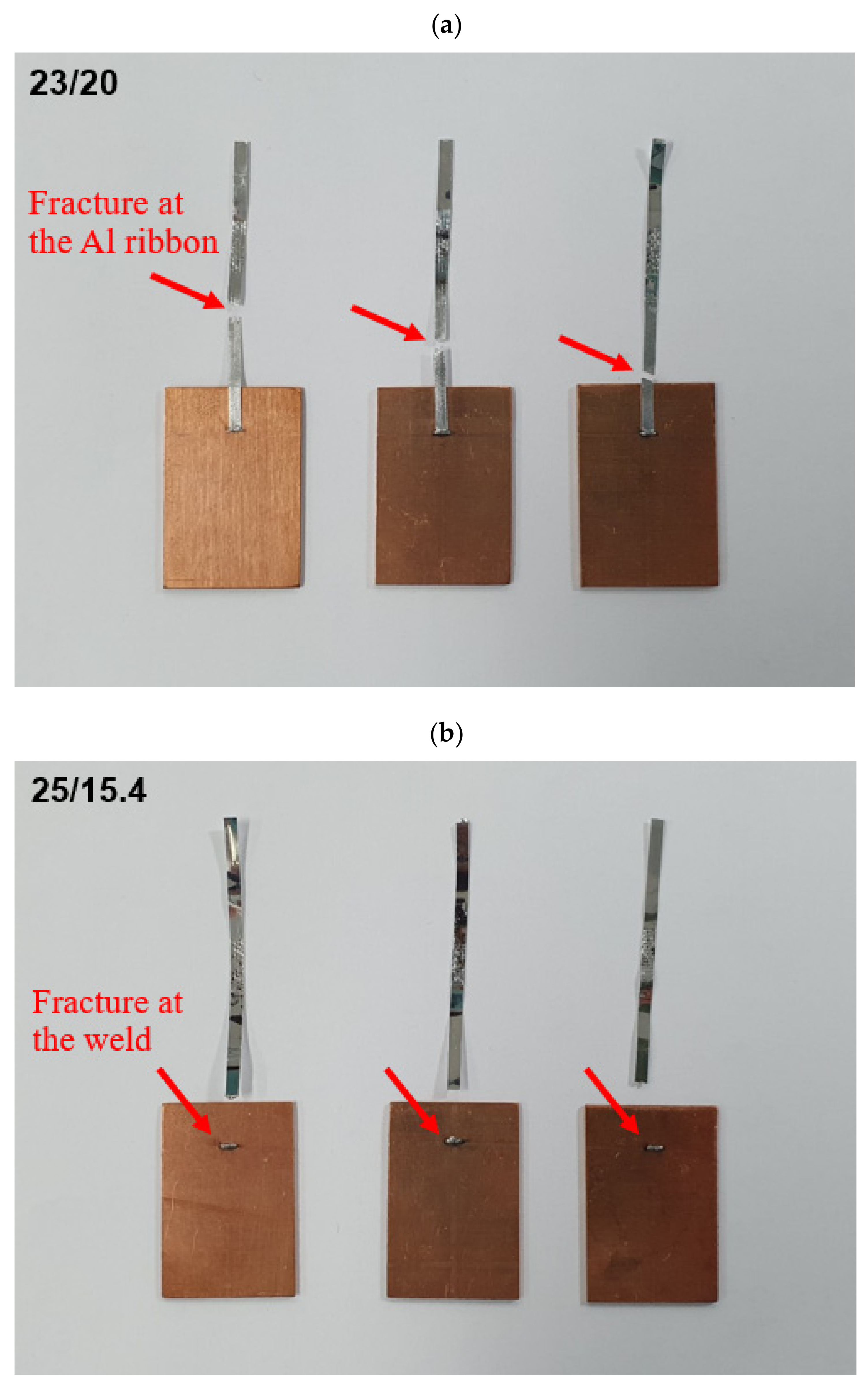

Figure 12. Results of the tensile shear tests for the (a) 23/20: fracture at the Al ribbon and (b) 25/15.4: fracture at the weld.
Figure 12. Results of the tensile shear tests for the (a) 23/20: fracture at the Al ribbon and (b) 25/15.4: fracture at the weld.
Metals 11 00831 g012

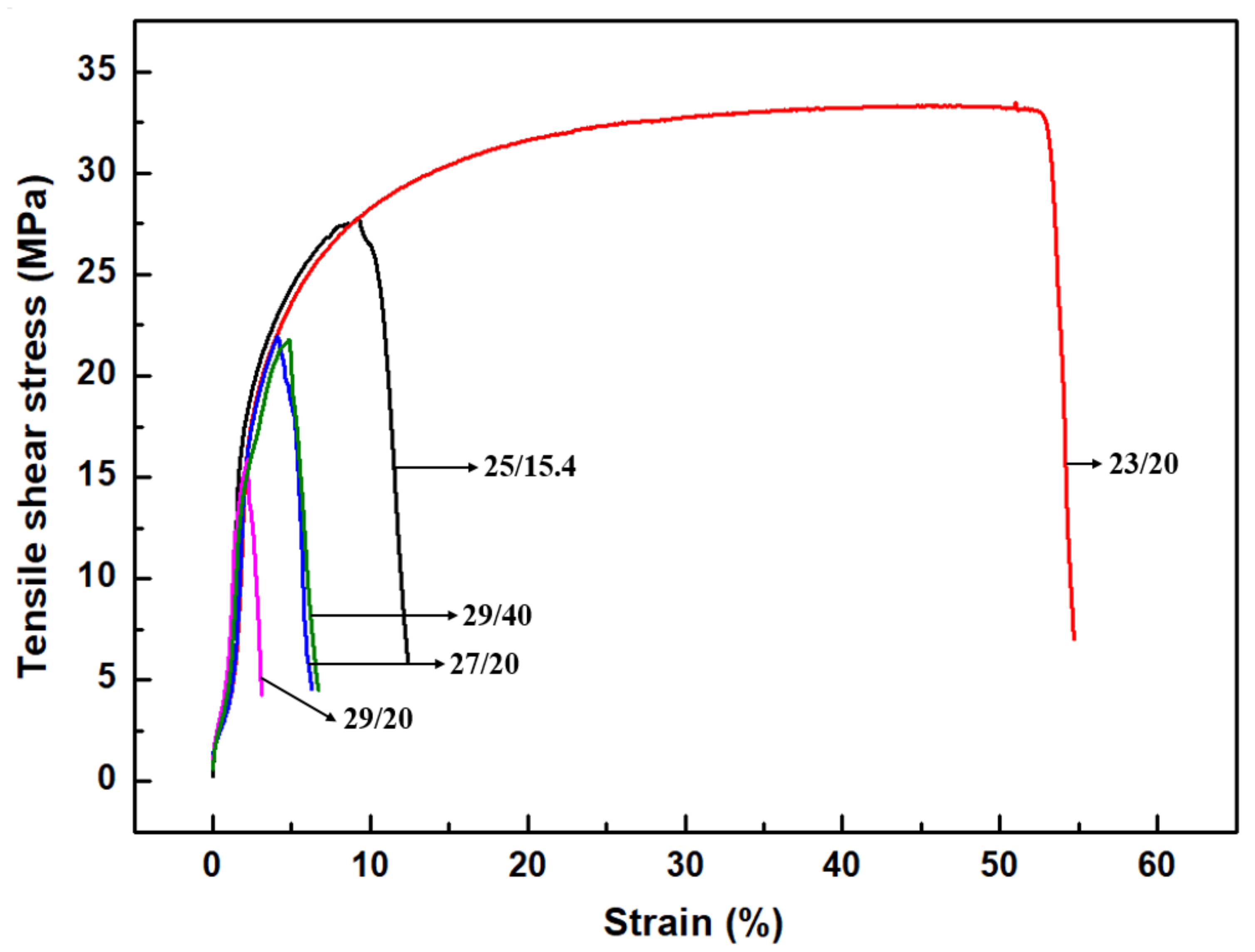

Figure 13. Stress–strain curves obtained by the tensile shear tests.
Figure 13. Stress–strain curves obtained by the tensile shear tests.
Metals 11 00831 g013

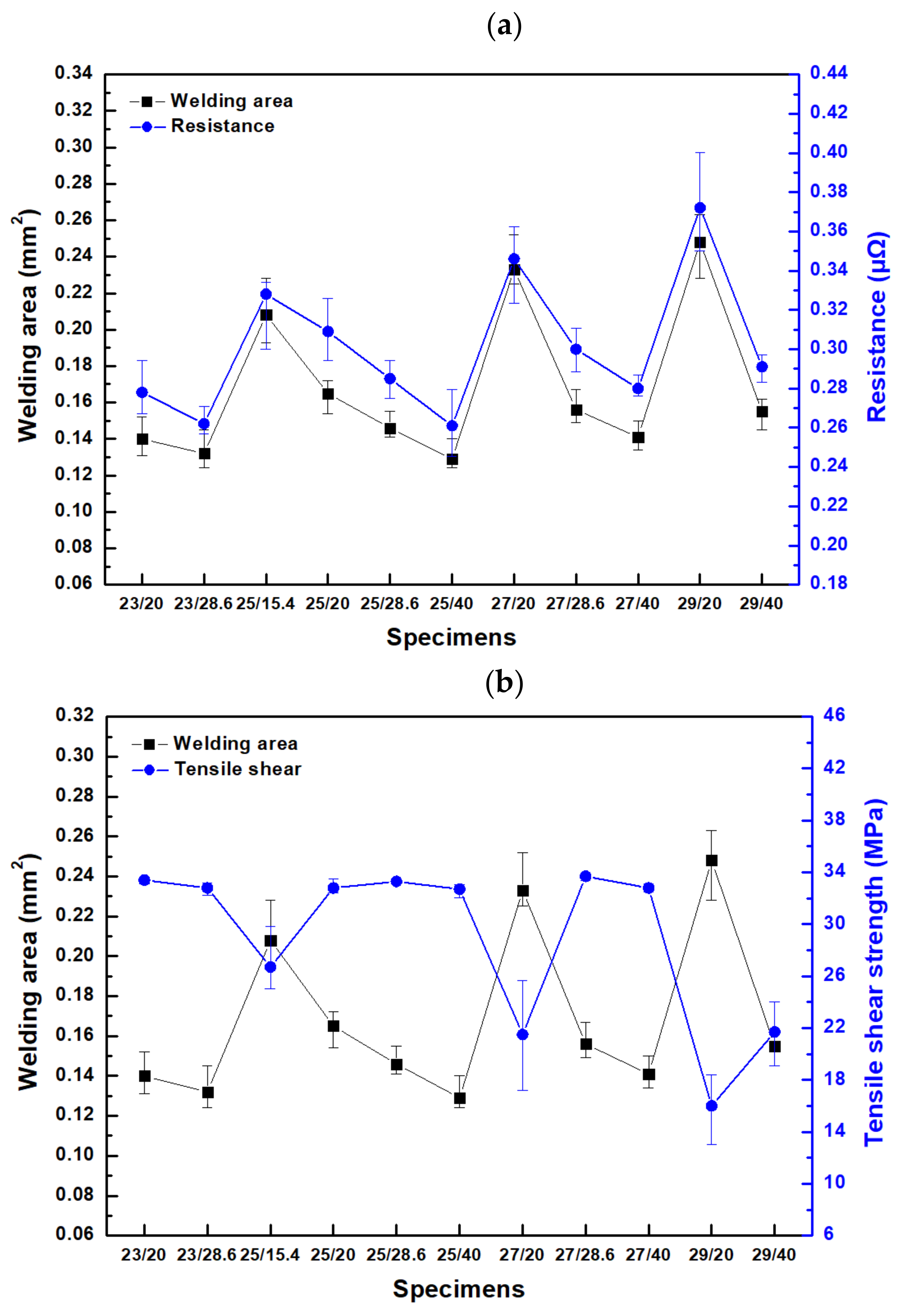

Figure 14. Correlation between (a) the welding area and electrical resistance and (b) the welding area and tensile shear strength for the different Al/Cu joints.
Figure 14. Correlation between (a) the welding area and electrical resistance and (b) the welding area and tensile shear strength for the different Al/Cu joints.
Metals 11 00831 g014

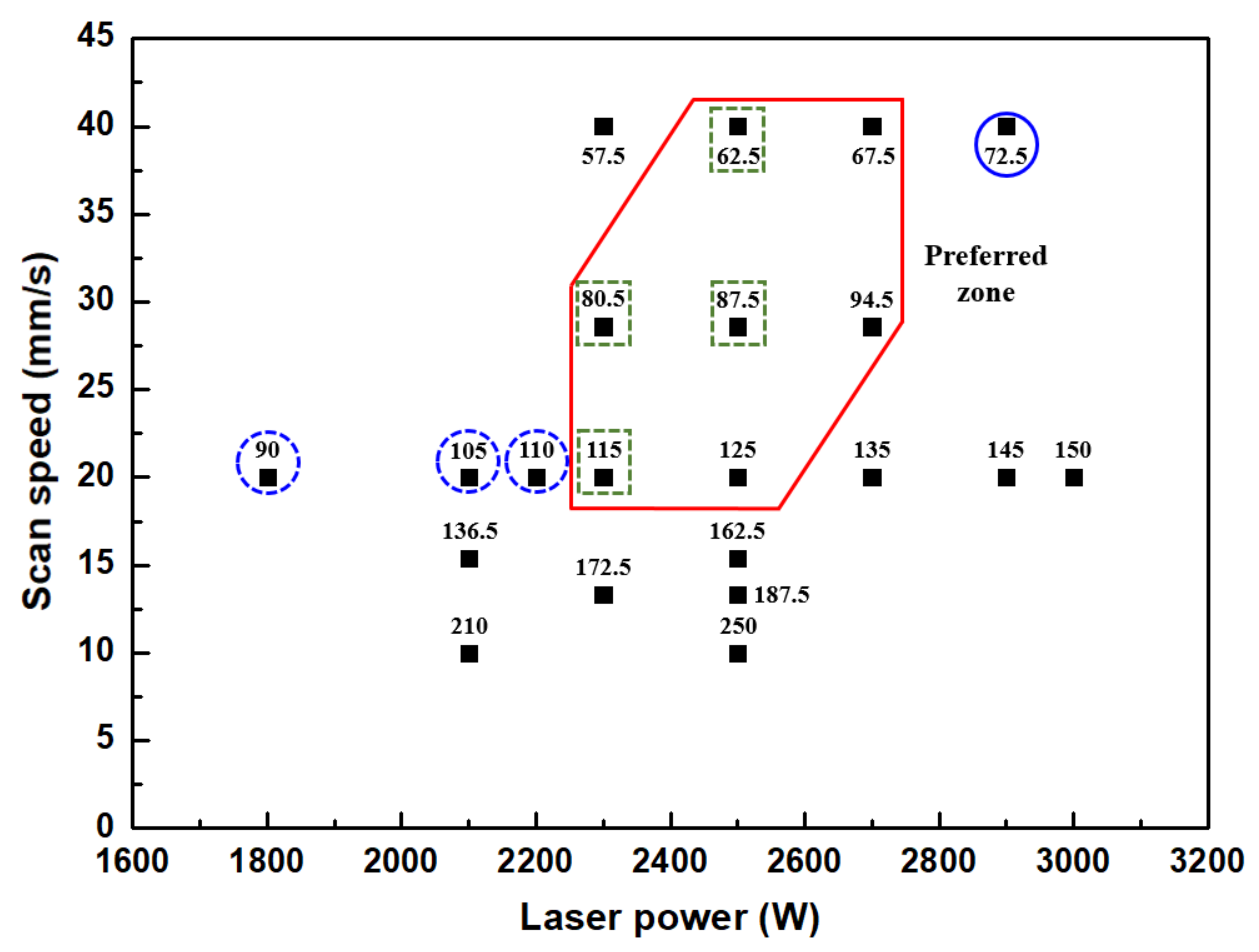

Figure 15. Developed process window for the dissimilar Al/Cu laser welding.
Figure 15. Developed process window for the dissimilar Al/Cu laser welding.
Metals 11 00831 g015
Table 1. Experimental conditions for the laser welding of Al ribbon to Cu sheet. The Al/Cu joints were only achieved for the experimental conditions of the named specimens.
Table 1. Experimental conditions for the laser welding of Al ribbon to Cu sheet. The Al/Cu joints were only achieved for the experimental conditions of the named specimens.
NumberSpecimenLaser Power (W)Scan Speed (mm/s)Heat Input (J/mm)
1-18002090
2-210010210
3-210015.4136.5
4-210020105
5-220020110
6-230010172.5
7-230013.3172.5
823/20230020115
923/28.6230028.680.5
10-250010250
11-250013.3187.5
1225/15.4250015.4162.5
1325/20250020125
1425/28.6250028.687.5
1525/4025004062.5
1627/20270020135
1727/28.6270028.694.5
1827/4027004067.5
1929/20290020145
2029/4029004072.5
21-300020150
Table 2. Nomenclatures and material properties used in the numerical simulation.
Table 2. Nomenclatures and material properties used in the numerical simulation.
SymbolNomenclatureSymbolNomenclature
ρ Density (2.8 g/cm3)PPressure on the free surface boundary
V Velocity vector R c Radius of the surface curvature
ν Kinematic viscosity (0.013 gm/cm/s) γ ( T ) Surface tension
f b Body force γ m 0 Surface tension at the melting temperature, 1000 dyne/cm
h Enthalpy T Material temperature
h s . Enthalpy source of droplet η l a s e r Laser heat efficiency, 0.075
k Thermal conductivity
Al: 1.87 × 107 erg/s/cm/L
Cu: 3.37 × 107 erg/s/cm/L
P L Laser power (W)
C p Specific heat
1.093 × 107 erg/gm/L
A Surface tension gradient
Negative: −0.3 dyne/cm/T
Positive: 0.3 dyne/cm/T
h s Enthalpy of solid σ r Laser beam radius
h s l Enthalpy between solid and liquid
3.89 × 109 cm2 /s2
q l a s e r Heat input from laser
T s Solidus temperature, 850 K q c o n v Heat loss from convection
T l Liquidus temperature, 775 K q r a d i Heat loss from radiation
n Normal vector to free surface q e v a p Heat loss from evaporation
Table 3. Formed intermetallic compounds during the dissimilar Al/Cu laser welding.
Table 3. Formed intermetallic compounds during the dissimilar Al/Cu laser welding.
SpecimenIntermetallic Compounds
23/20AlCu2, Al8Cu, AlCu8
25/28.6Al2Cu, Al4Cu9, Al13Cu, Al9Cu11
25/15.4Al2Cu3, Al3Cu2, AlCu3, Al3Cu, AlCu, Al8Cu
27/20Al2Cu3, AlCu2, AlCu3, AlCu7, AlCu
Table 4. Details of the numerical simulation.
Table 4. Details of the numerical simulation.
CaseLaser Power (W)Scan Speed (mm/s)Surface Tension at Melting Temperature (dyne/cm)Surface Tension Gradient (dyne/cm/K)
12300201000−0.2
2250015.41000−0.2
3250015.410000.2
4250015.4--
Table 5. Results of the tensile shear strength, electrical resistance, and welding area for the different Al/Cu joints.
Table 5. Results of the tensile shear strength, electrical resistance, and welding area for the different Al/Cu joints.
SpecimensTensile Shear Strength (MPa)Electrical
Resistance (μΩ)
Welding Area (mm2)
23/2033.40.2780.140
23/28.632.80.2620.132
25/15.426.70.3280.208
25/2032.80.3090.165
25/28.633.30.2850.146
25/4032.70.2610.129
27/2021.50.3460.233
27/28.633.70.3000.156
27/4032.80.2800.141
29/20160.3720.248
29/4021.70.2910.155
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
