Influence of Ag Addition on Thermal Stability and Thermophysical Properties of Ti-Zr-Ni Quasicrystals

Abstract

We study the effects of Ag addition on thermal stability and thermophysical properties of Ti-Zr-Ni icosahedral quasicrystals. The Ag addition results in increasing the coherence length and thermal stability of the icosahedral phase (i-phase) of the as-cast Ti_35.2Zr_43.8Ni₂₁ alloy, which are maximized at around 4 at.% Ag addition. Differential scanning calorimetry (DSC) and electrostatic levitation (ESL) experiments reveal that the addition suppresses the i-phase decomposition on heating and cooling. We find that considerable amount of the i-phase remains in the samples processed by radiational cooling in ESL as the Ag concentration increases. These results demonstrate that Ag addition stabilizes the i-phase of the Ti_35.2Zr_43.8Ni₂₁ alloy. No anomalous effect of Ag addition is found on density and viscosity of the Ti_35.2Zr_43.8Ni₂₁ liquid.

1. Introduction

Small additions of elements onto matrix materials often have a dramatic influence on physical, chemical, and mechanical properties [1,2]. Since understanding such a mechanism is a pivotal issue for fundamental science and applications, a considerable amount of effort has been devoted to studying how small additions alter the physical and chemical properties of materials in the viewpoint of structure [3,4,5], thermodynamics [6,7], and kinetics [8,9]. For example, small additions of Pd [10,11,12], Al [4], and Nb [3,13] to matrix alloys facilitate the formation of icosahedral short range order (ISRO) or icosahedral medium range order (IMRO) clusters in their liquid, which yields the enhanced glass forming or quasicrystal forming ability of the materials with a larger critical thickness and slower critical cooling rates [14,15,16]. Since the icosahedral ordering is incompatible with the well-defined long-range periodic order that characterizes crystals, the prevalence of those orderings in liquids can increase the nucleation barrier for crystal formation (i.e., improving glass forming ability (GFA)), but lower it for quasicrystal formation. This is also true even in the case of simple binary Cu-Zr alloys. That is, minute compositional change strongly impacts the GFA by changing the number of ISRO or IMRO in the liquid [17,18,19,20]. As for another example, Ag addition significantly affects glass forming [21,22,23,24,25] and quasicrystal forming abilities [7,26,27]. Recently, we showed that a small Ag addition to the Ti-Zr-Ni alloy significantly reduces the crystal–liquid interfacial free energy and this is attributed to the formation of IMRO by pairing with Zr atoms in the liquid, based on electrostatic levitation experiments and ab-initio molecular dynamic (MD) simulation [7].

In the present work, we investigate the effects of Ag addition on the thermal stability and thermophysical properties of Ti-Zr-Ni quasicrystals using electrostatic levitation (ESL), differential scanning calorimetry (DSC), and X-ray diffraction (XRD). A composition of Ti_35.2Zr_43.8Ni₂₁ was selected, which exhibits single i-phase in the as-cast condition, and upon cooling and heating, thermal stability and formability of the i-phase were investigated as a function of Ag concentration. We here find that Ag addition improves the thermal stability and formation of Ti_35.2Zr_43.8Ni₂₁ quasicrystals. Density and viscosity measurements are carried out to investigate the effect of Ag addition on thermophysical properties of Ti_35.2Zr_43.8Ni₂₁ liquid.

2. Materials and Methods

Ti-Zr-Ni-Ag alloys (Ti 99.995%, Zr 99.95%, Ni 99.995%, Ag 99.99%, Alfa Aesar, Haverhill, MA, USA) were prepared by arc-melting under a high-purity Ar (99.9999%) atmosphere. A zirconium sphere as an oxygen getter was used to reduce remaining oxygen in the arc-melting chamber prior to melting of the samples. Mass loss of the samples was less than 0.2% of the initial mass after arc-melting. Structural and thermal characterizations of the alloys were performed by XRD (smartLAB, Rigaku, Tokyo, Japan), using CuKα₁ radiation (λ = 1.5402 Å) and DSC (Labsys evo, Setaram, Lyon, France), respectively. For XRD analysis, the instrumental line broadening was evaluated using a standard reference material of lanthanum hexaboride (LaB6, No.: SRM660c produced by NIST, Gaithersburg, MD, USA) and the corresponding instrumental width was subtracted from the width of the XRD peaks. Undercooling and crystallization behaviors of the alloys were studied using the ESL apparatus at the Korea Research Institute of Standards and Science (KRISS) [28]. The samples (approximately 40 ± 3 mg) were levitated between two electrodes and melted by two CO₂ lasers (a 50 W laser and a 100 W laser/Universal) under ultra-high vacuum (UHV) conditions of ~10⁻⁷ Torr. The temperature of samples was monitored with three infrared pyrometers with Si (0.9 μm/CHINO, Tokyo, Japan) and InGaAs (1.55 μm/CHINO and 1.6 μm/Sensortherm, Sulzbach, Germany) detectors. After multiple thermal cycles of samples in the ESL, the mass loss was 1.5% lower than the initial mass due to evaporation at high temperatures. An ultraviolet (UV) imaging method was used to calculate the volume of levitated samples for density evaluation of the alloy liquids [29,30]. For volume calibration, a tungsten-carbide sphere (a diameter of 2.2 mm/Industrial Tectonis Inc) was used to obtain a pixel-to-meter conversion factor. Viscosity of the alloy liquids was measured with the oscillation droplet method [20]. For the statistic of experimental results, the XRD and ESL experiments were conducted three to five times at each composition and 2 times for the DSC experiment. Details of the ESL capability and measurement uncertainty are well described in our previous works [28,30,31].

3. Results and Discussion

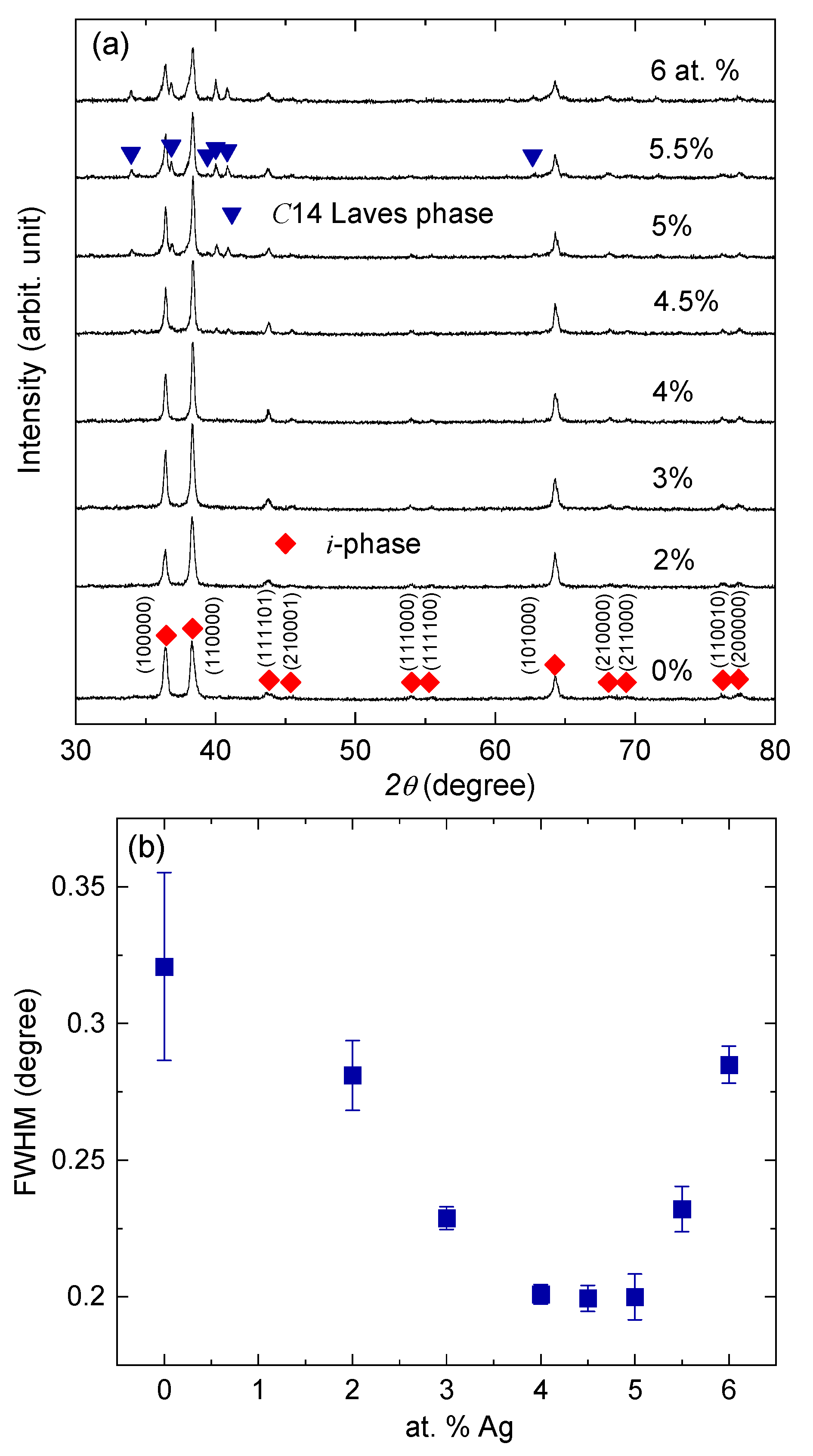

Figure 1a shows the XRD patterns of as-cast (Ti_35.2Zr_43.8Ni₂₁)_100−xAg_x (0 ≤ x ≤ 6 at.%) alloys. Since the discovery of the as-cast Ti-Zr-Ni quasicrystal [32], single i-phase has been found in the wide composition range of Ti_33-45Zr_46-34Ni₂₁, based on XRD and back-scattered scanning electron microscope (SEM) observations [32,33,34]. Thus, the diffraction peaks of Ti_35.2Zr_43.8Ni₂₁ are indexed by the i-phase in Figure 1a and the calculated quasi-lattice constant is 5.220 ± 0.005 Å. The crystallinity of the i-phase increases up to 4 at.% Ag addition. For the 4.5 at.% Ag addition, the i-phase is destabilized with broadened peak widths, and C14 Laves phase (HCP, a = 5.276 Å, c = 8.645 Å, c/a = 1.639) appears as a minority on the XRD profile. Figure 1b shows the full width at half maximum (FWHM) calculated from the (100000) reflection as a function of Ag concentration. From the FWHM, the coherence length is estimated to be 43.9 nm at 4.5 at.% Ag addition, by using the Scherrer’s equation [35]. This value is about 67% larger than that of the i-phase with no Ag addition and the effect is slightly better than that of Pd addition on the Ti_41.5Zr_41.5Ni₁₇ alloy, which increases the coherence length of the i-phase by 65% [11].

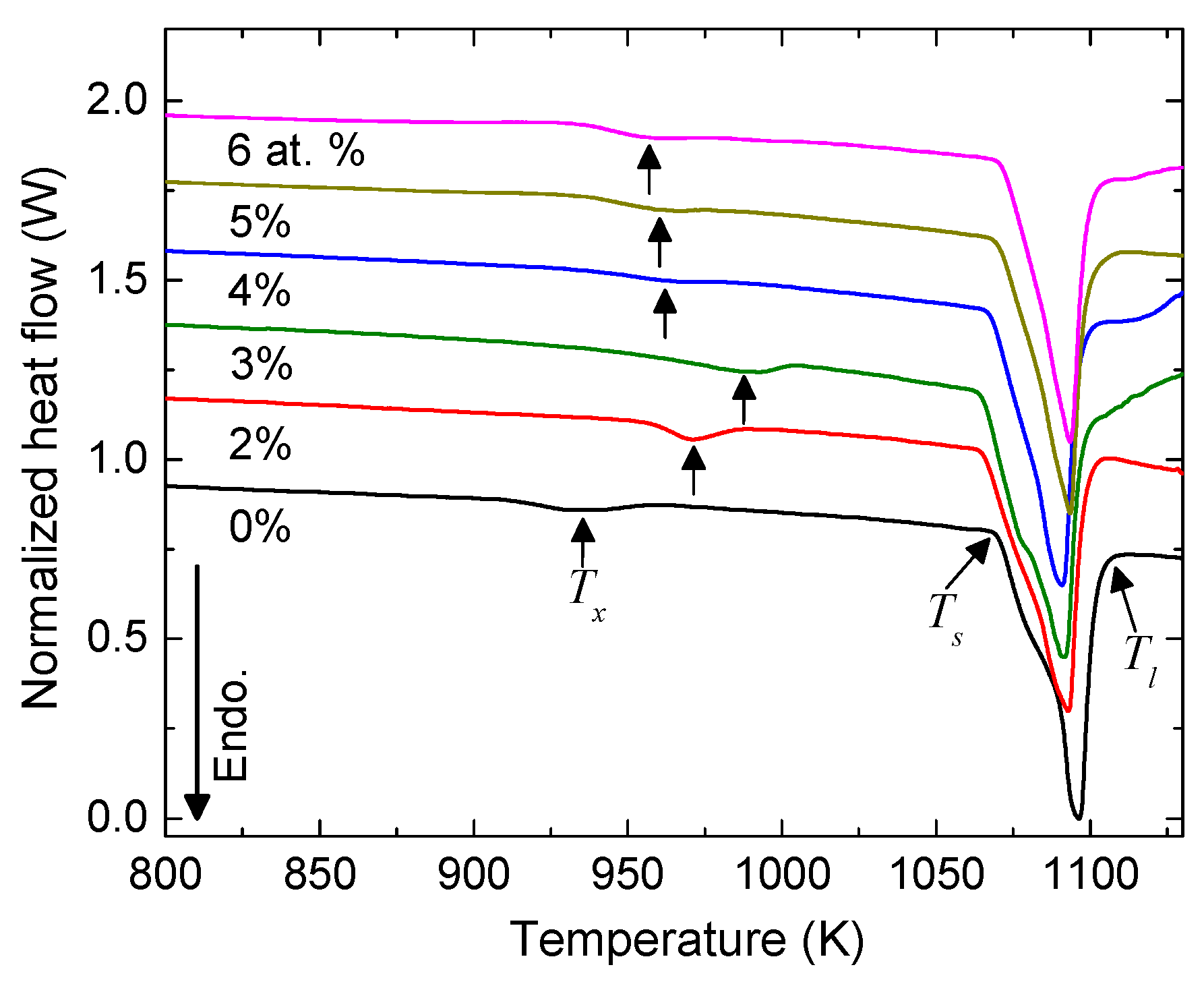

We investigate the effect of Ag addition on the thermal stability of the Ti_35.2Zr_43.8Ni₂₁ alloy using DSC. Figure 2 shows the DSC curves of as-cast (Ti_35.2Zr_43.8Ni₂₁)_100−xAg_x alloys. All the curves exhibit two endothermic reactions. For the alloy with no Ag addition, the first endothermic event at 936 K indicates that the i-phase transforms into a mixture of the C14 Laves and β(Ti/Zr, BCC) phases upon heating, which means that the i-phase is stable only at low temperatures, as reported in the previous study [36]. The second endothermic event at 1070 K corresponds to melting (T_s) of the mixture phase of the C14 Laves and β(Ti/Zr) phases, based on the Ti-Zr-Ni phase diagram [33,34]. The temperature (T_x) for the i-phase decomposition varies significantly with Ag concentration, while minute change for the solidus (T_s) and liquidus (T_l) temperatures is observed. It implies that the Ag addition affects the thermal stability of the crystal phase of Ti_35.2Zr_43.8Ni₂₁, but not that of the liquid phase, significantly. The highest T_x is shown at 3 at.% Ag addition, which differs from the behavior of the FWHM of the i-phase in Figure 1b. The values of T_x are tabulated in

Table 1. Peak temperatures (T_x) on the first endothermic event. The measurement was conducted 2 times and then the temperature difference is less than 2 K at each composition.

at.% Ag	0	2	3	4	5	6
Tx (K)	936	971	992	967	963	960

.

In order to further investigate the thermal stability of the i-phase, we conducted annealing experiments of the as-cast (Ti_35.2Zr_43.8Ni₂₁)_100−xAg_x alloys in DSC. All the samples were heated up to 936 K in the DSC experiment to compare the phase transformation kinetics with Ag concentration. Figure 3 shows XRD patterns of the annealed samples cooled to room temperature. For the sample with no Ag addition, the i-phase is completely decomposed into the C14 Laves (a = 5.231 Å, c = 8.558 Å, c/a = 1.636) and α(Ti/Zr, HCP) solid solution (a = 3.141 Å, c = 4.989 Å, c/a = 1.588, HCP) phases with a small fraction of (Zr/Ti)₂Ni (tetragonal) phase. However, for the sample with 2 at.% Ag addition, the i-phase remains as a primary phase with a smaller fraction of the C14 Laves phase. A similar behavior is found in the sample with 3 at.% Ag addition. The sample with 4 at.% Ag addition exhibits a larger fraction of the C14 Laves and α(Ti/Zr) phases and a smaller fraction of the i-phase. Accordingly, it could be concluded that small Ag addition enhances the thermal stability of the i-phase of as-cast (Ti_35.2Zr_43.8Ni₂₁)_100−xAg_x alloys up to 3 at.% Ag addition.

It has been reported that the Ti-Zr-Ni i-phase to crystalline phase transition is suppressed at high cooling rates in ESL [34]. In order to investigate the effect of Ag addition on the kinetics of the phase transition of Ti_35.2Zr_43.8Ni₂₁ upon cooling in ESL, therefore, we conducted undercooling experiments. Figure 4a shows the cooling curves of (Ti_35.2Zr_43.8Ni₂₁)_100−xAg_x alloy liquids in the ESL. Since heterogeneous nucleation sites are minimized under the containerless condition, the liquids are easily supercooled below their respective liquidus temperatures T_l, when the heating laser is turned off. At the deeper supercooling, the liquid solidifies to a crystal phase showing a recalescence, i.e., a steep temperature rise by rapid release of latent heat on crystallization, which is identified with the i-phase [37]. A following subsequent temperature rise indicates that the i-phase decomposes into a mixture of the C14 Laves and β(Ti/Zr) phases, based on previous studies [33,34,36]. The β-phase transforms into α(Ti/Zr) phase during cooling, which corresponds to a slope change of the cooling curve near 800 K (arrows in Figure 4a) [34,38]. This solidification behavior varies with the addition of Ag. The step recalescence and the slope change become weaker as the Ag concentration increases, and above 4 at.% Ag addition, we observe a single recalescence event. In addition, during the post-recalescence the plateau temperature decreases as the Ag concentration increases and is minimized at 4 at.% Ag addition. Note that the recalescence occurs in the temperature range of the C14 Laves and β-phases, as shown in the DSC scans (Figure 2). In other words, the i-phase formed from the liquid is metastable in this temperature range. Accordingly, these behaviors imply that the Ag addition facilitates the formation of the metastable i-phase and also suppresses the formation of the mixture phase on cooling.

The improved formability of the i-phase is confirmed with XRD measurements of the samples processed in the ESL, as shown in Figure 4b; while no i-phase remains in the sample with no Ag addition, the sample with 4.5 at.% Ag addition still contains i-phase that is about 20% of the volume fraction. More than this concentration, the volume fraction of i-phase decreases again in the samples. Note that the correlation between the stability of the i-phase and Ag concentration is slightly different on cooling (Figure 4) and heating (Figure 2 and Figure 3). This may be due to a different kinetic effect on the phase transformation or a different cooling-rate dependence on the thermal stability of the i-phase, C14 Laves, and β-phases in Ti_35.2Zr_43.8Ni₂₁. We reported that upon solidification of the Ti₃₇Zr₄₂Ni₂₁ liquid, the cooling rate to suppress the i-phase to crystalline phase transformation should be higher than 100 K/s [34]. The i-phase of Ti-Zr-Ni alloys could not survive by radiational cooling in ESL [33,34,37]. In this ESL experiment, the presented cooling rate is approximately 10 K/s, as shown in Figure 4a, and thus this demonstrates that the Ag addition effectively stabilizes the i-phase upon solidification of Ti_35.2Zr_43.8Ni₂₁ liquid.

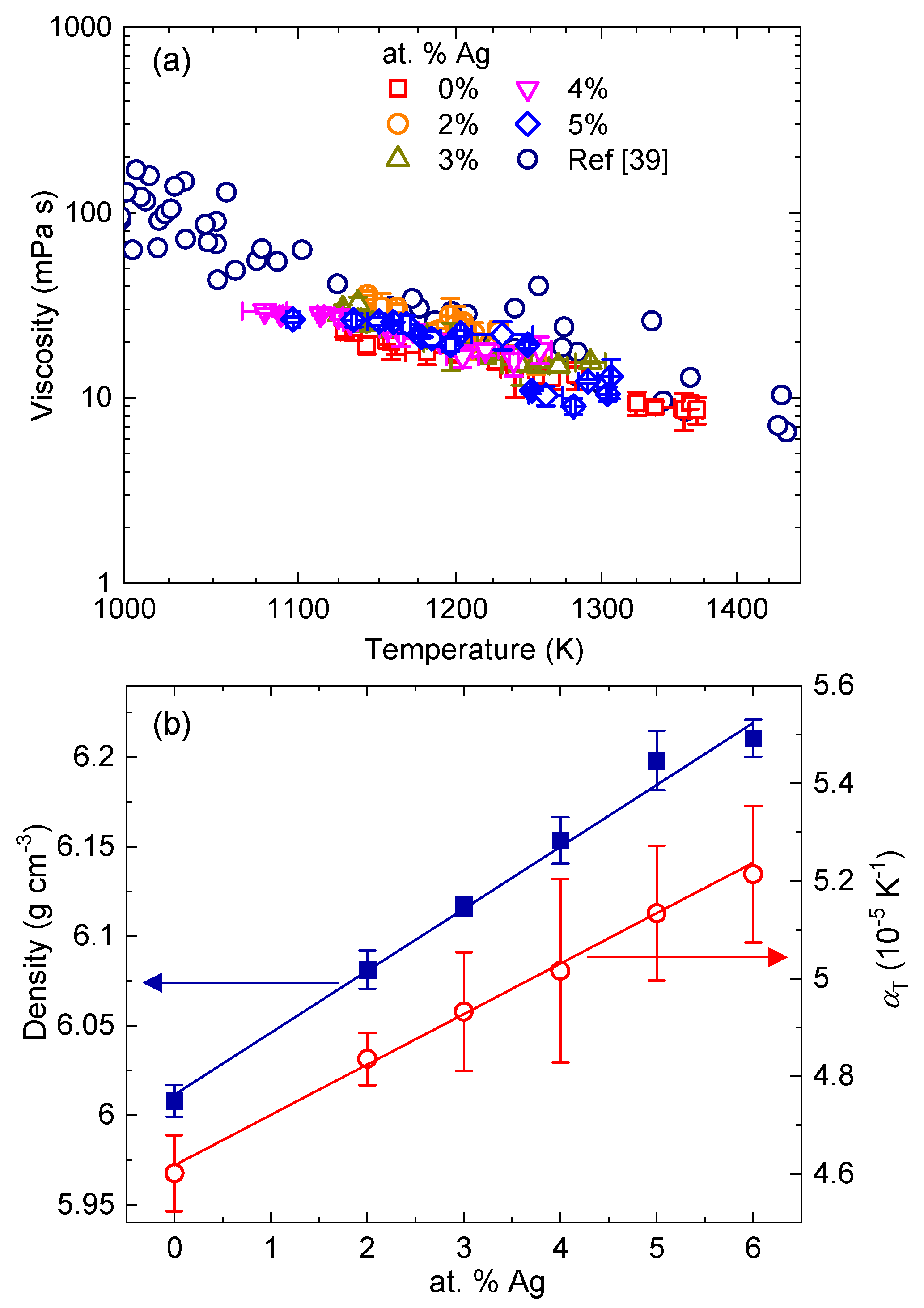

We further investigate the effect of Ag addition from thermophysical properties of Ti_35.2Zr_43.8Ni₂₁ liquid. Figure 5 shows the viscosity, density, and thermal expansion coefficient of (Ti_35.2Zr_43.8Ni₂₁)_100−xAg_x alloy liquids. The thermal expansion coefficient α_T (= V⁻¹ dV/dT, V = sample volume) was calculated from the measured volume-temperature data. The result of the viscosity measurement shows no significant dependence of Ag concentration in the stable and supercooled regions and the results are similar with that of a Ti_39.5Zr_39.5Ni₂₁ liquid [39] (Figure 5a). The density increases linearly with Ag concentration at their respective T_l due to the higher density of Ag than that of the matrix material [40]. The thermal expansion coefficient also increases linearly as a function of Ag concentration (Figure 5b). A similar behavior was also found in Zr-Hf and Zr-Ti alloy liquids [41]; both the density and thermal expansion exhibit a linear or a non-linear change with the concentration of Hf or Ti. This implies that the interatomic interactions in the Ti_35.2Zr_43.8Ni₂₁ liquid vary linearly with Ag concentration and affect both the density and thermal expansion in terms of extended ISRO or IMRO, as expected in our previous work [7]. This evaluation requires further studies in a wider composition range of Ag concentration.

4. Conclusions

In summary, we have studied the effect of Ag addition on the formation and thermal stability of Ti_35.2Zr_43.8Ni₂₁ icosahedral quasicrystals using DSC, XRD, and ESL. The small Ag addition increases the coherence length and thermal stability of the i-phase upon heating and suppresses the i-phase decomposition on cooling. We find that the i-phase remains in the ESL-processed samples on radiational cooling, as the Ag concentration increases, indicating the effective stabilization of the i-phase of the Ti_35.2Zr_43.8Ni₂₁ alloy with Ag addition. The density and thermal expansion coefficient of Ti_35.2Zr_43.8Ni₂₁ liquid increases as a function of Ag concentration, but no significant change in the liquid viscosity. The present results show that the addition of Ag indeed carries significant effect on the stability of the Ti_35.2Zr_43.8Ni₂₁ quasicrystals.
