Application of the Progressive Forming Method in Simulation and Experimental Study of Rectangular Fins in a Heat Exchanger

School of mechanical engineering, Kyungnam University, 7 Kyungnamdaehak-ro, Masanhappo-gu, Changwon-si, Gyeongsangnam-do 51767, Korea
Metals 2020, 10(3), 395; https://doi.org/10.3390/met10030395
Received: 6 March 2020 / Accepted: 16 March 2020 / Published: 19 March 2020
(This article belongs to the Special Issue Application of FEM-Simulation in Metal Forming)

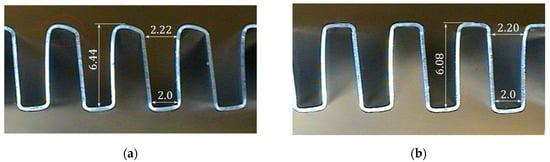

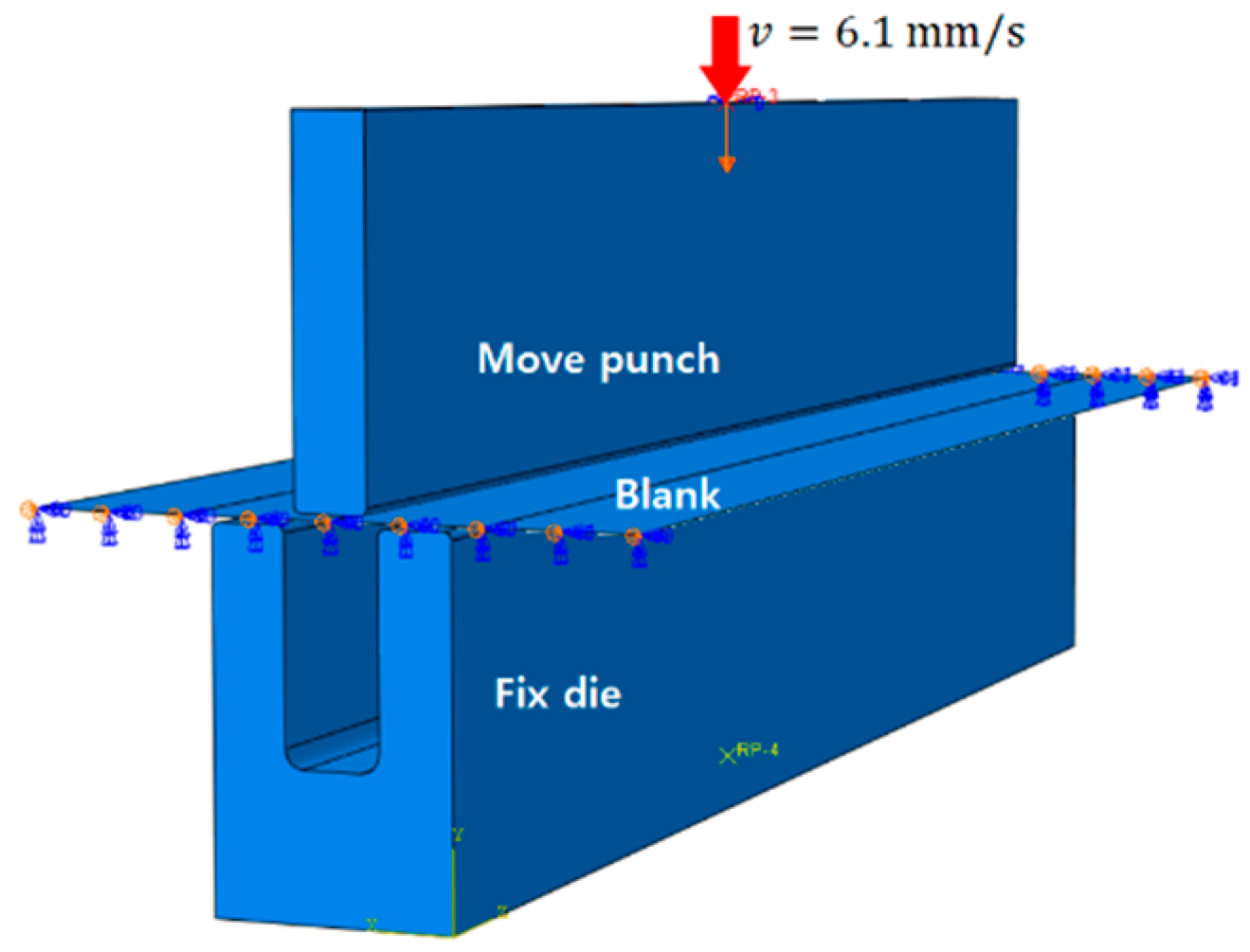

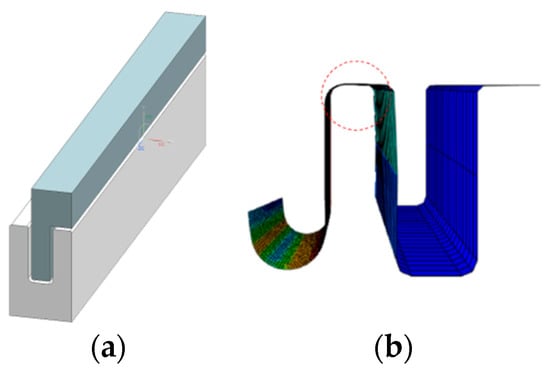

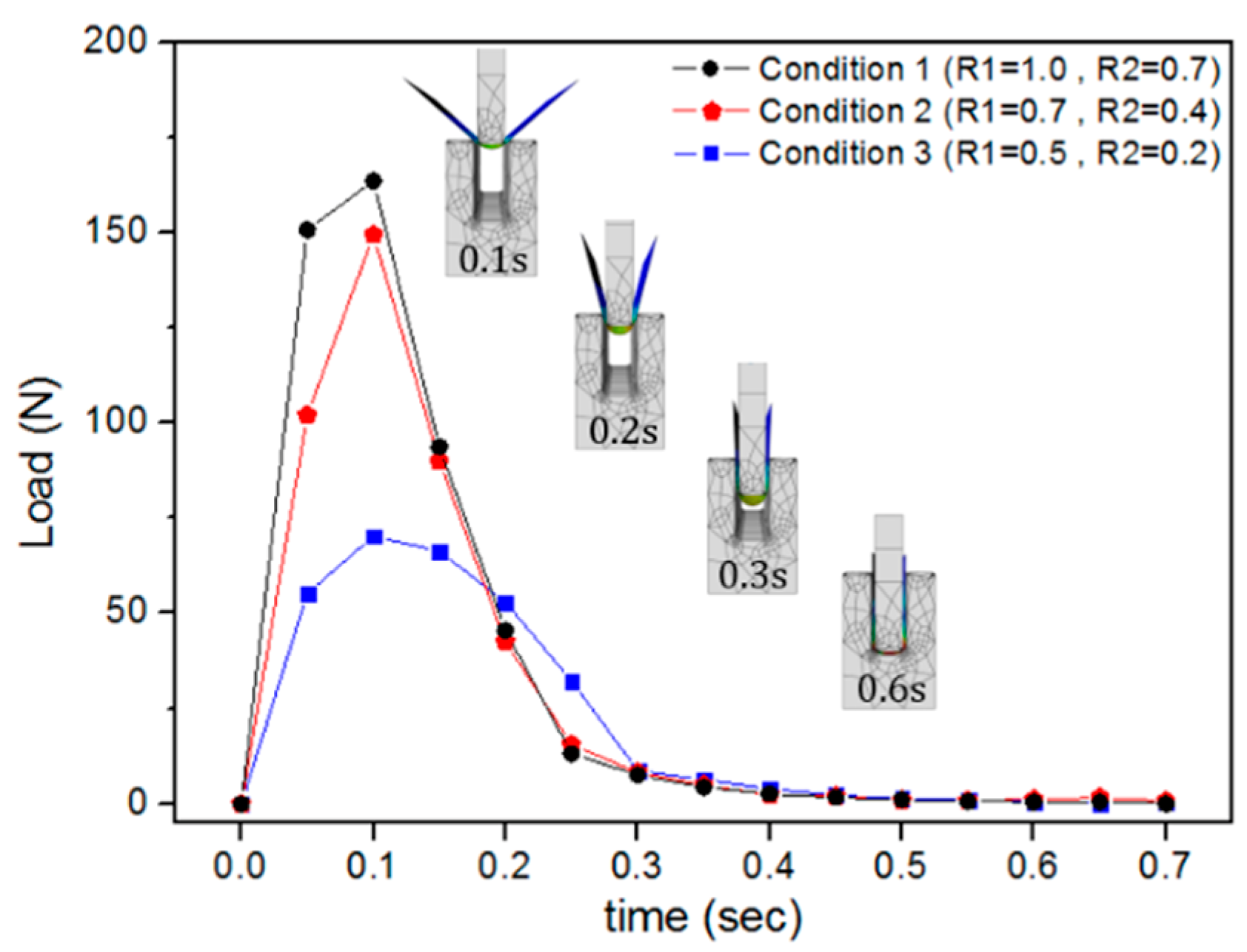

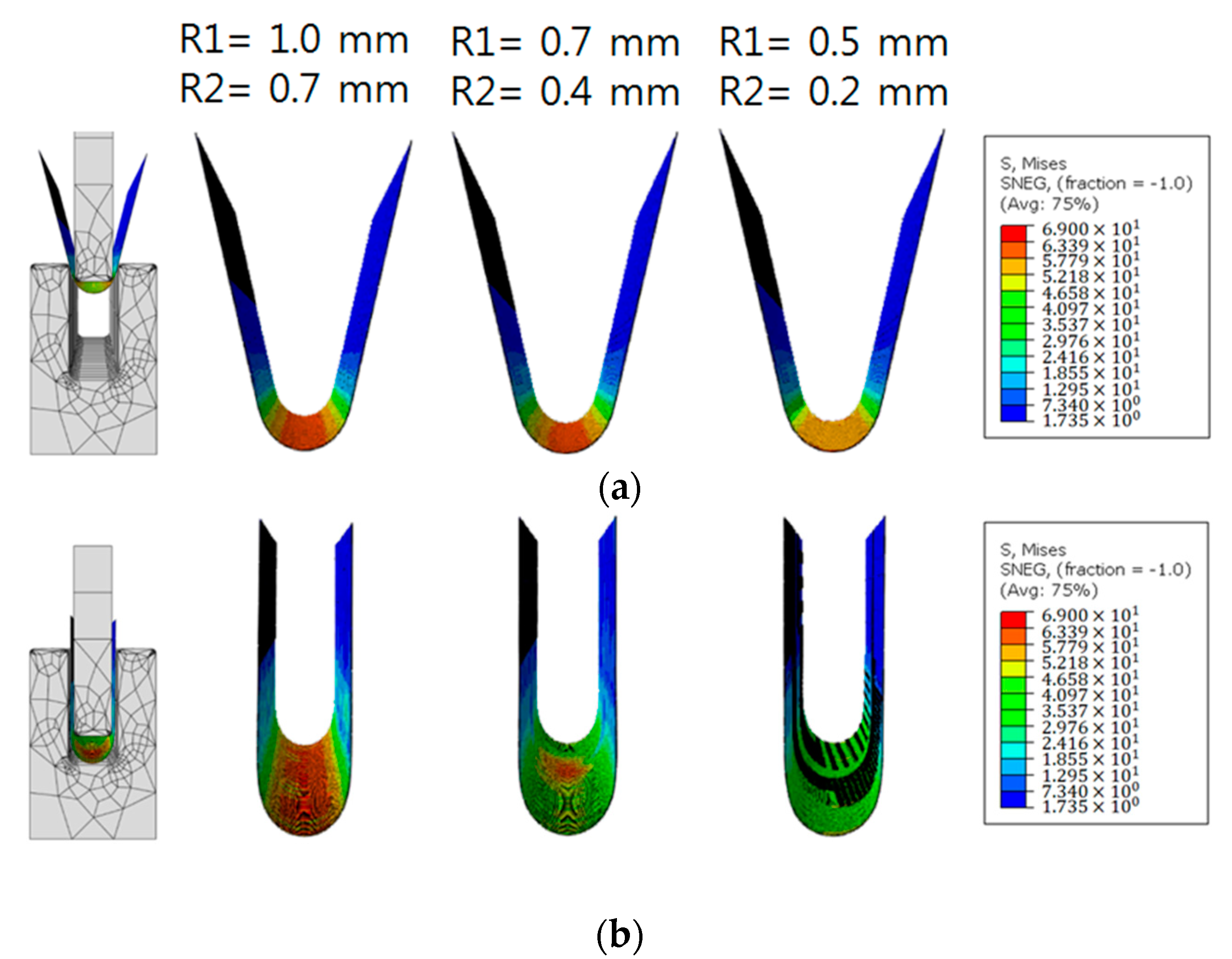

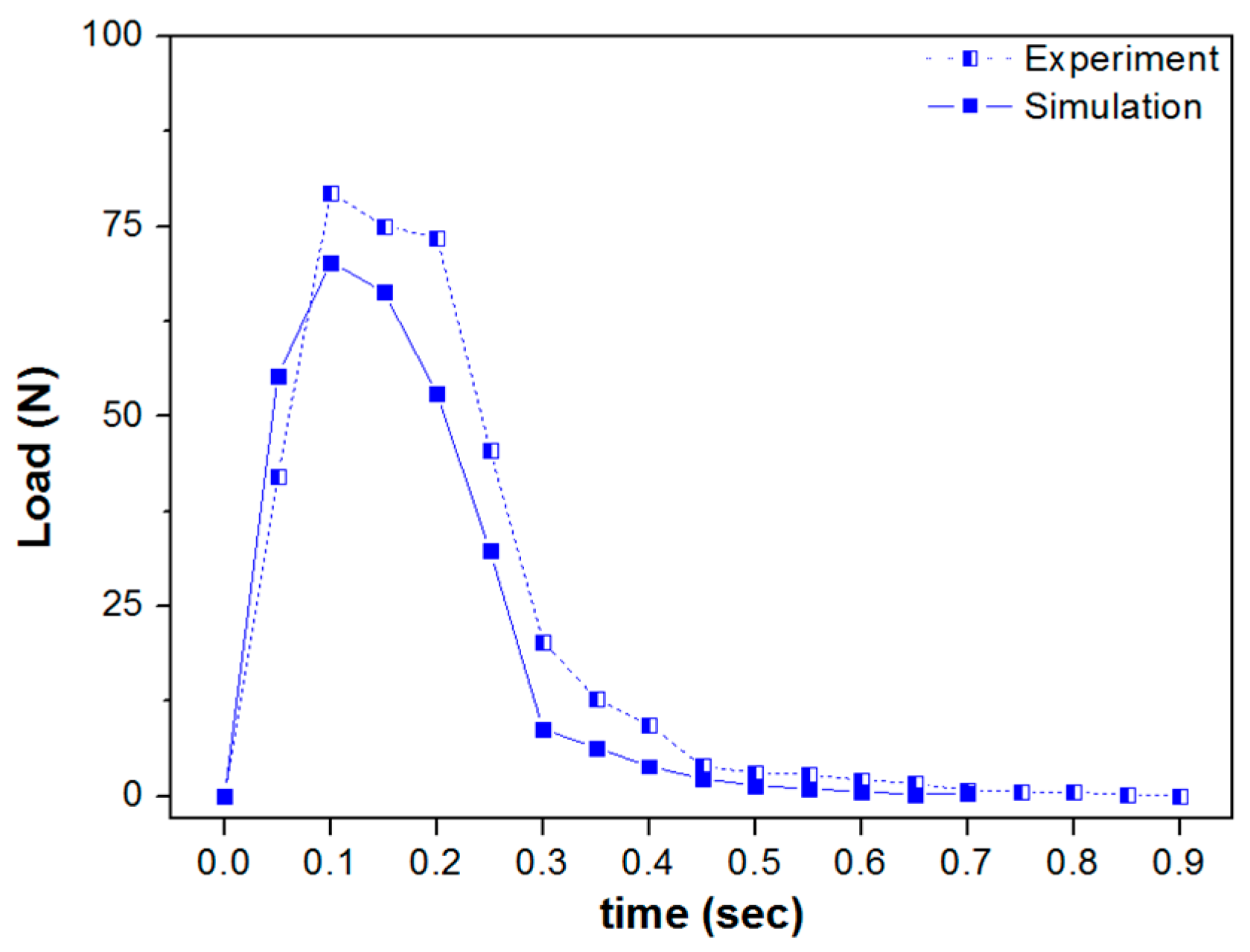

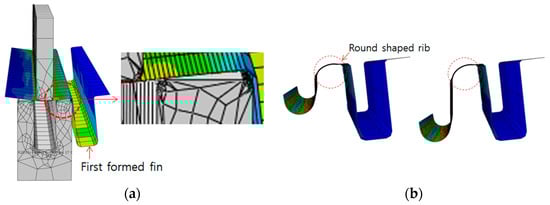

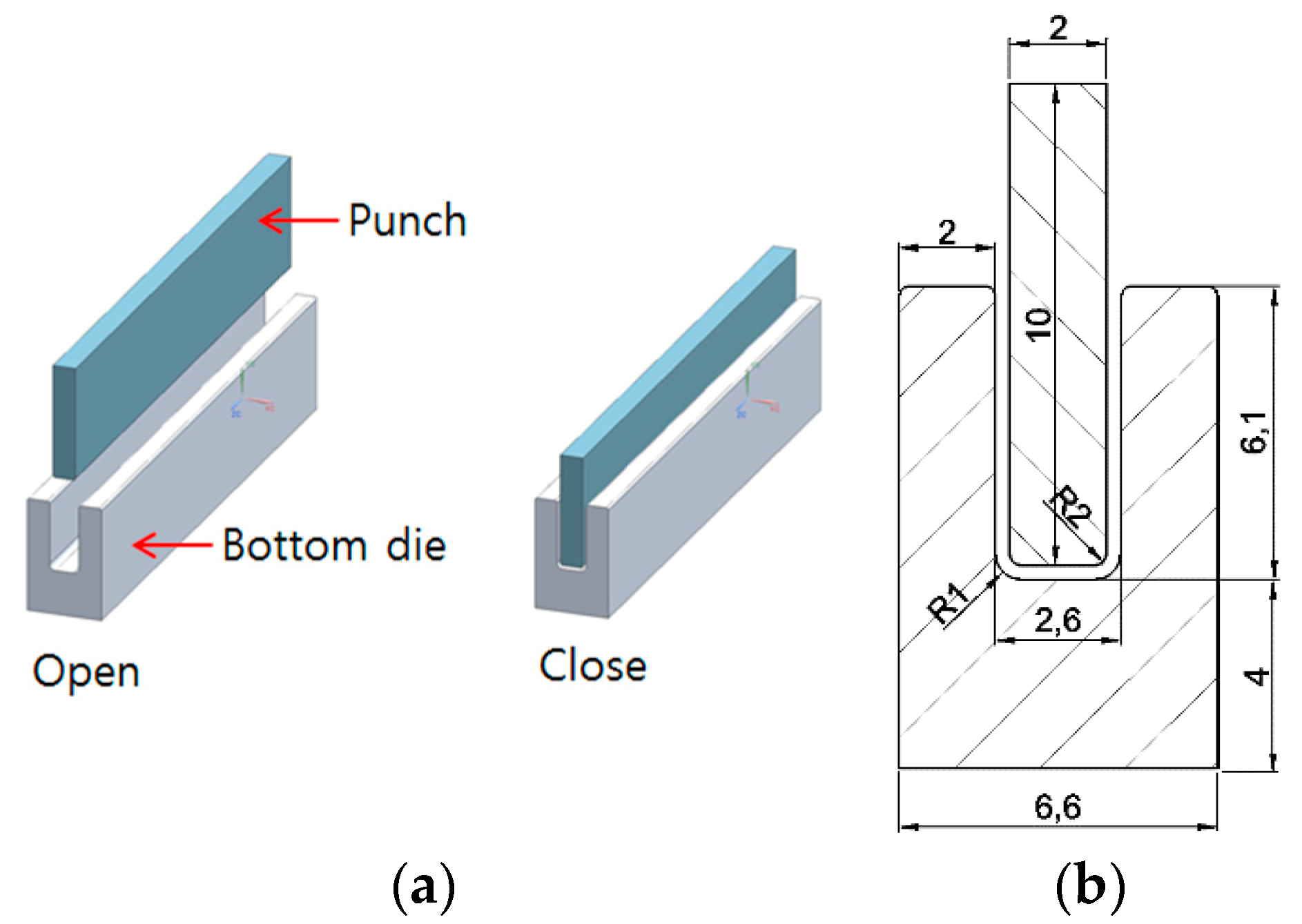

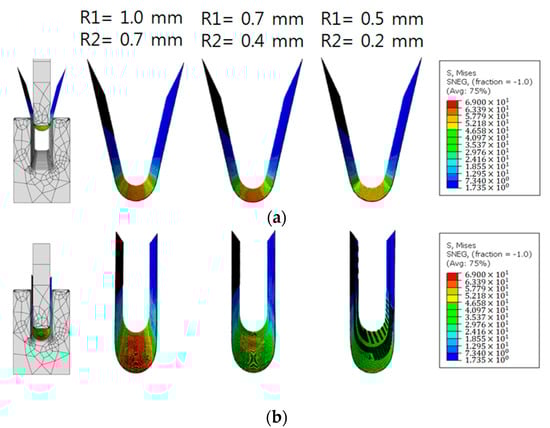

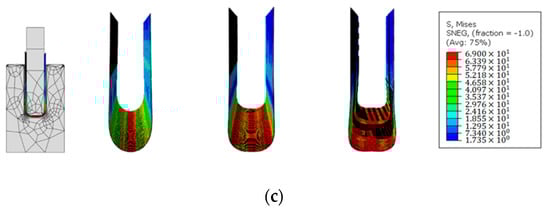

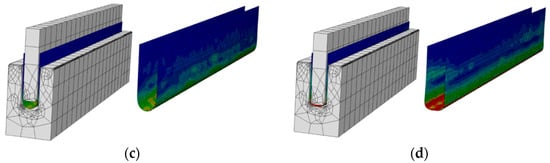

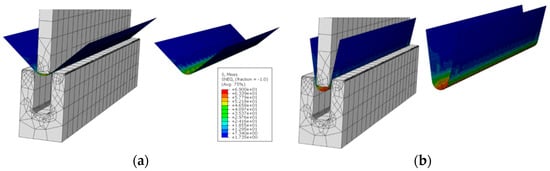

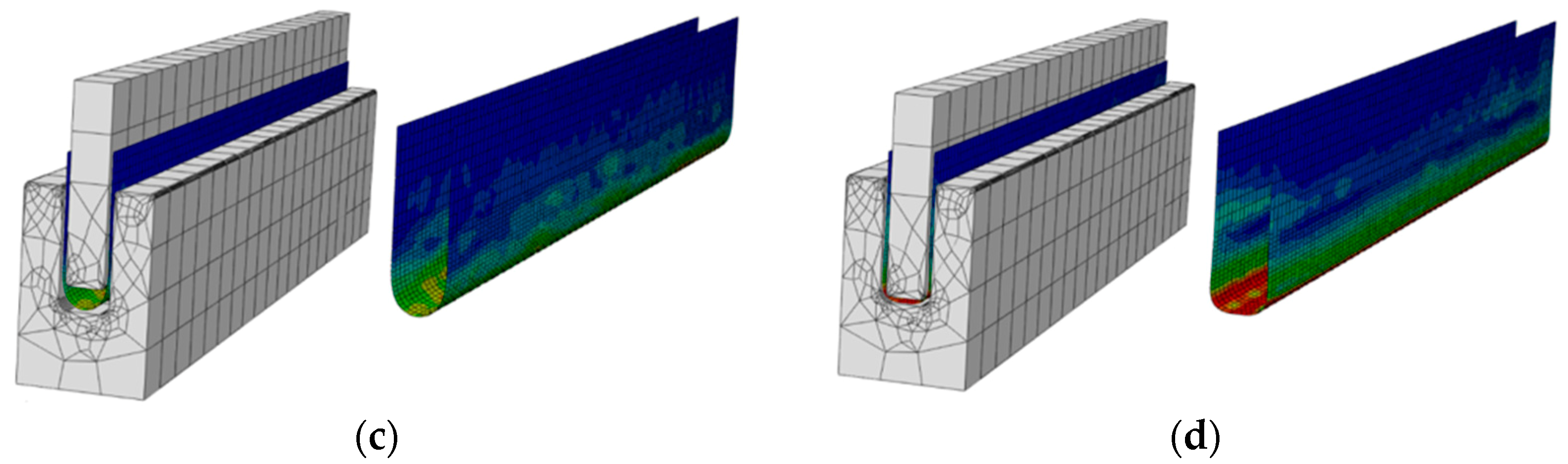

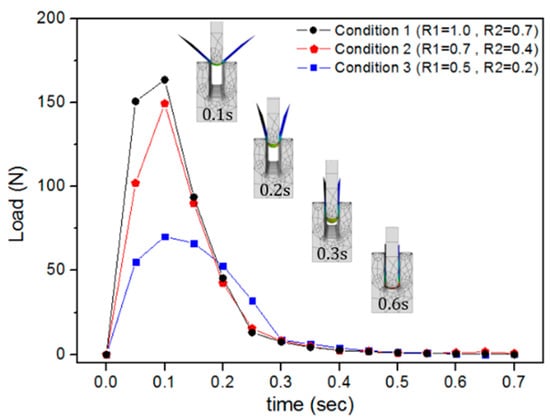

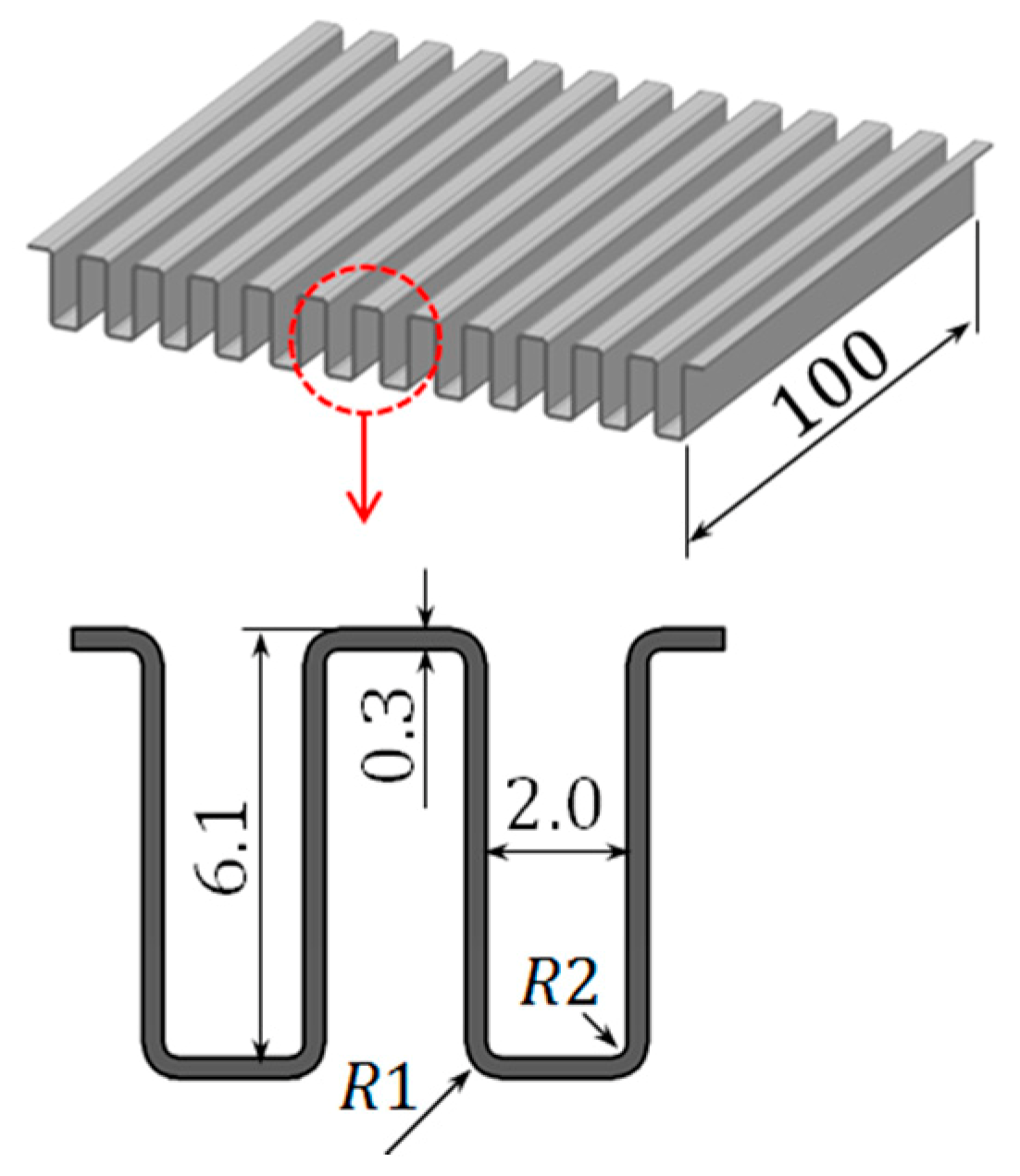

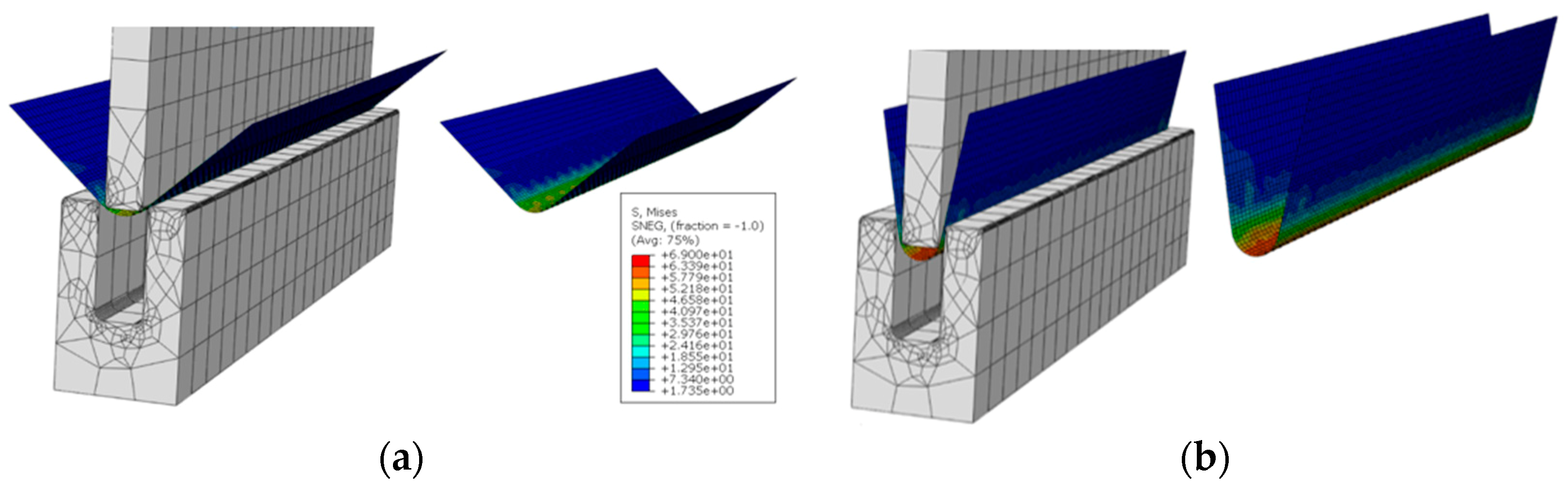

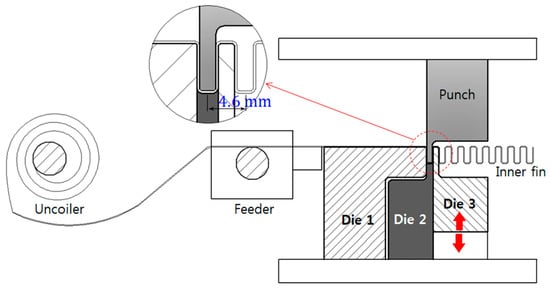

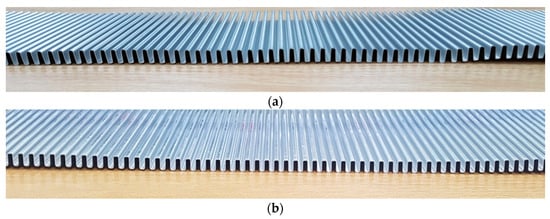

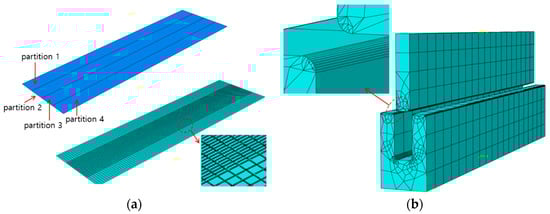

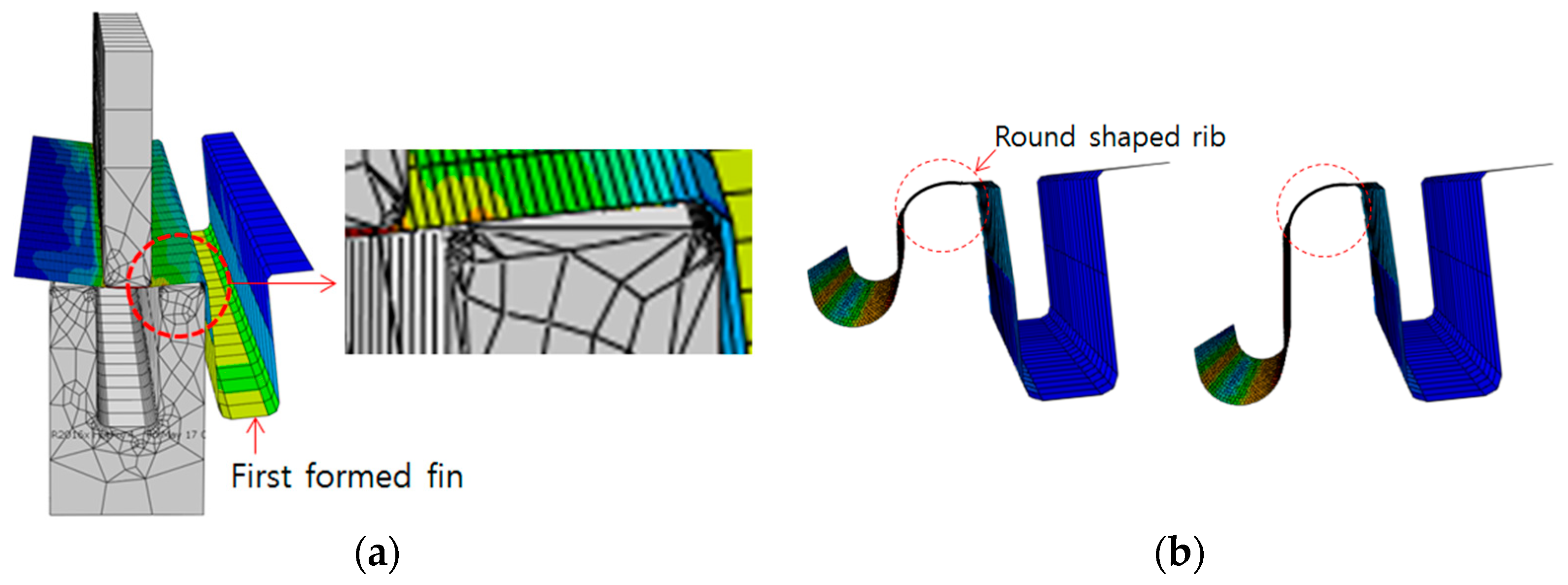

A progressive forming method is applied where stamping is continuously executed to produce the rectangular fins of the plate fin heat exchanger. This process produced the fins one-by-one instead of by bundles. In order to produce a fin having a depth of more than 6.0 mm, the forming load and effective stress according to the size of the edge radii of punch and die are predicted by forming simulation. Furthermore, the process of forming the second, as well as the third, fins is predicted. As the edge radii of the die and those of the punch became smaller, the effective stresses generated during deformation became smaller. The forming load during deformation also became smaller. The sizes of the edge radii of die and punch were set to 0.5 mm and 0.2 mm, respectively. When the second fin was formed, overforming occurred at the ribs. The punch was therefore modified so that the rib could be compressed at the same time the fin was formed. With the designed process, the inner fins close to the target size could be manufactured. The resulting fins had right-angled ribs, although the fin width was a slightly opened isosceles trapezoid due to the spring-back. View Full-Text
Keywords: progressive forming; forming simulation; inner fin; effective stress; heat exchanger progressive forming; forming simulation; inner fin; effective stress; heat exchanger
