Thermal and Mass Spectroscopic Analysis of BF and BOF Sludges: Study of Their Behavior under Air and Inert Atmosphere

Abstract

Differential thermal analysis (DTA), thermogravimetry (TG), and mass spectrometry (MS) were used to study the thermal behavior of the blast furnace (BF) and basic oxygen furnace (BOF) sludges generated from the iron-making industry. The results indicated that under air atmosphere the two types of sludge are different in their thermal behavior. In BF sludge, the exothermic carbon gasification (CO/CO₂) reaction dominated the process, while in BOF sludge, the significant reaction occurred at 755 °C and was associated with a slight mass gain owing to the partial oxidation of Fe₃O₄ to Fe₂O₃. Under inert atmosphere, the thermal behavior of both BF and BOF sludges were dominated by a reduction reaction. In BF sludge, the endothermic reactions ranged from 785 to 1115 °C due to the reduction of iron oxides as follows: Fe₂O₃ → Fe₃O₄ → FeO → Fe. A total mass loss of about 27.78% was observed in the TG curve. While in BOF sludge, the endothermic peaks corresponded to magnetite reduction to iron (Fe). The overall mass loss of the BOF was approximately 16.92%. The mass spectrum of gases evolution for both BF and BOF sludges revealed that CO/CO₂ gases were released from the sludges.

1. Introduction

Basic oxygen furnace (BOF) and blast furnace (BF) sludges are fine wastes produced from the iron and steel industry [1,2]. BF sludge is a by-product generated from the treatment of flue gas during pig iron production in blast furnaces [1,2], while BOF sludge is generated in converter-based steel mills [3]. BF sludge consists of fine-grained materials containing substantial quantities of valuable elements (iron oxides and coke), in addition to minor heavy metals such as zinc, lead, and cadmium [4,5]. The mineralogical composition of BF and BOF sludges consist mostly of iron oxide (hematite, Fe₂O₃, and magnetite, Fe₃O₄) and coke. The sludges also contain calcium carbonate, calcium magnesium carbonate, iron carbonate, and silica oxide phases [6].

BF and BOF sludges are generated at the SSAB Raahe plant in Finland during the production of liquid steel through the BF-BOF manufacture line. The approximate quantity of BF sludge and BOF sludge created at the plant is about 60,000 ton per year/dry basis [7]. Up to 500,000 tons of BF sludge has been generated each year in the European steel industry in the past several decades [5,8]. In some cases, the sludge contains toxic cyanide (CN) and mercury (Hg) compounds [9,10]. Landfill is the conventional method of sludge disposal. Numerous methods have been proposed for sludge utilization. The comprehensive characterization of the sludge is a crucial step in defining the most suitable recycling strategy [8].

This paper is part of a project which focuses on the characterization and exploitation of BF and BOF sludges. The aim of this work is to put together a detailed examination on the thermal behavior of BOF and BF sludges. Differential thermal analysis (DTA), thermogravimetry (TG), and mass spectroscopy (MS) were used to determine the thermal behavior of the sludge under air and inert atmosphere. The thermal reactions and mass loss during these reactions were determined by DTA-TG. The gases which evolved from the sludge during experiments were detected with MS.

2. Materials and Methods

2.1. Sample Preparation

Representative BF and BOF sludge samples were received from the SSAB Raahe plant, Raahe, Finland.

The sludge was dried according to the BS EN 1097-5:2008 standard. The sample was dried in a lab drying oven at 105 °C. The moisture content of the sludge was determined in order to measure the water found on the particle surface and in the pores.

For the thermal analysis under reducing conditions, the BOF sludge was mixed with a graphite reducing agent. The percentage of graphite added was enough to reduce the iron oxide (Fe₃O₄) contained in the BOF sludge into metallic iron. The percentage of graphite was calculated based on the stoichiometric equations. The BF sludge contains coke, which functions as self-reducing agent.

2.2. Analysis Methods

The chemical composition of the BF and BOF sludges were measured using X-ray Fluorescence (XRF). About 8 g of the sludge was mixed with 2.6 g of binder (Boreox). A Panalytical Axios Max wavelength-dispersive spectrometer XRF model was used for the analysis. Carbon and sulfur contents for BF and BOF sludges were determined using a LECO CS-200. A Perkin Elmer Aanalyst 400 flame atomic absorption spectrometer (AAS) was used to measure the zinc concentrations.

The mineralogical compositions of the sludges were identified using X-ray diffraction (XRD). The XRD model used was a Rigaku SmartLab 9 kW. The measurement conditions were 40 kV and 135 mA. The scanning rate was 0.02° in the 2θ range of 4 to 90°. PDXL 2.6 software with an ICDD PDF-4 database was used for mineral identifications.

Differential thermal analysis (DTA) and thermogravimetry (TG) connected to mass spectroscopy (MS) were used to study the thermal behavior of the sludge samples. A Netzsch STA409 PC Luxx instrument was used for the thermal experiments. The experiments were carried out under air atmosphere and inert/reducing (argon) conditions. A small amount of the sample (around 30.84 mg) was weighed and put into a platinum crucible. The tests were carried out in the temperature range of 20–1400 °C, at a heating rate of 20 °C/min. At least two duplicate measurements were carried out for each experiment.

3. Results

3.1. Sludge Characterization

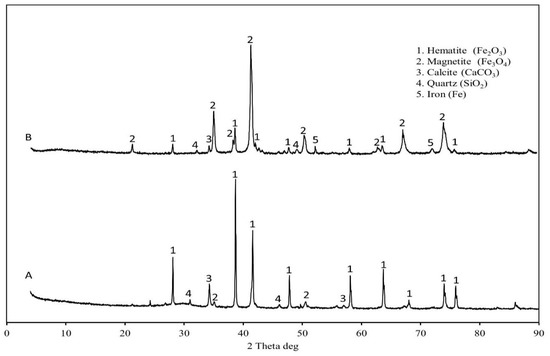

Figure 1 displays the XRD patterns of the BF and BOF sludges. The main crystalline phase of BF sludge was hematite (Fe₂O₃) (Figure 1A). Calcite (CaCO₃), quartz (SiO₂), and minor amounts of magnetite (Fe₃O₄) were also found in the BF sludge. Hematite was present in the iron ore pellets which had been fed into the blast furnace. On the other hand, the BOF sludge was dominated by magnetite (Fe₃O₄) (Figure 1B). The XRD pattern also revealed that BOF sludge contained minor amounts of hematite (Fe₂O₃), quartz (SiO₂), calcite (CaCO₃), and metallic iron (Fe). Zinc phases were not detected due to their low concentration as well as the XRD peaks overlapping with magnetite [8].

Table 1. Detailed chemical composition of BF and BOF sludges.

Component	BOFS	BFS	Analysis Technique
	Major Element (wt. %)
Fe2O3	80.79	58.57	XRF
C	0.36	22.05	Leco
CaO	4.25	9.53	XRF
SiO2	2.04	9.05	XRF
MgO	1.10	2.54	XRF
Al2O3	0.18	3.58	XRF
SO3	0.06	1.46	Leco
ZnO	1.36	0.98	AAS
	Minor Element (ppm)
NaO	3965	4258	XRF
PbO	137	876	XRF
K2O	2089	3740	XRF
MnO	9470	1375	XRF
P2O5	1581	1523	XRF
TiO2	909	2126	XRF
Ni	102	150	XRF
Cu	20	67	XRF
V2O5	3684	1699	XRF
Rb	104	143	XRF
Sr	84	115	XRF
As	50	119	XRF
Ga	26	35	XRF
Ba	130	184	XRF
Cs	53	90	XRF
Zr	19	20	XRF
Sb	38	38	XRF
Ce	7	35	XRF
Nd	11	27	XRF
Bi	14	30	XRF

lists the major and minor elements of BF and BOF sludges. The moisture content in both BF and BOF sludges was about 32.5%. The major elements of the BF sludge were iron oxide and carbon. The concentrations of Fe₂O₃ and C were 58.57 and 22.05 wt.%, respectively. The iron and fine coke were carried away by the air blown through the blast furnace into the top gas [2]. BF sludge also contained 9.05 wt.% SiO₂ and 9.53 wt.% CaO (Table 1). The Zn, Pb, and alkaline elements were found in low concentrations of <1 wt.%. These elements appeared due to the impurities found in the iron oxides and in the coke ash.

On the other hand, the BOF sludge was predominantly made up of iron oxide. The concentration of Fe₂O₃ was 80.79 wt.%. The BOF sludge also contained a small amount of calcium and silica. The CaO and SiO₂ contents were 4.25 wt.% and 2.04 wt.%, respectively. The BOF contained considerable amounts of ZnO (1.36 wt.%). The Pb and alkaline element contents of BOF were lower, at <1 wt.%.

Table 1 presents the distribution of trace elements in BF and BOF sludges. Vanadium was found in high concentrations in both BOF and BF sludges. The vanadium contents in BOF and BF were 3684 and 1699 ppm, respectively. Rb, Ba, Sr, As, Cs Zr, Sn, and Sb exhibited relatively low concentrations.

3.2. Thermal Analysis

3.2.1. Under Air Atmosphere

The thermal behavior of BF and BOF sludges as a function of temperature under both normal air atmosphere and without adding graphite was studied.

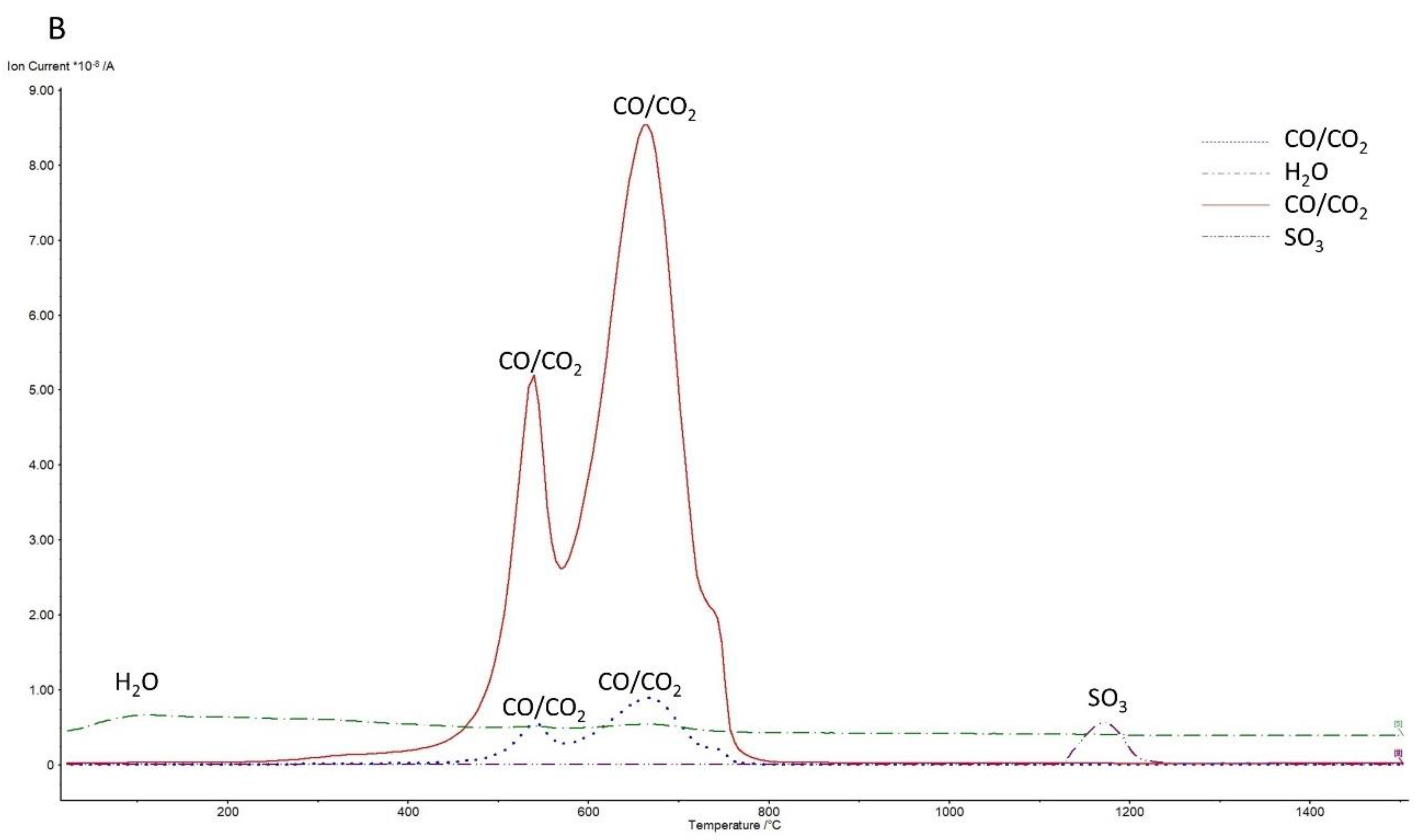

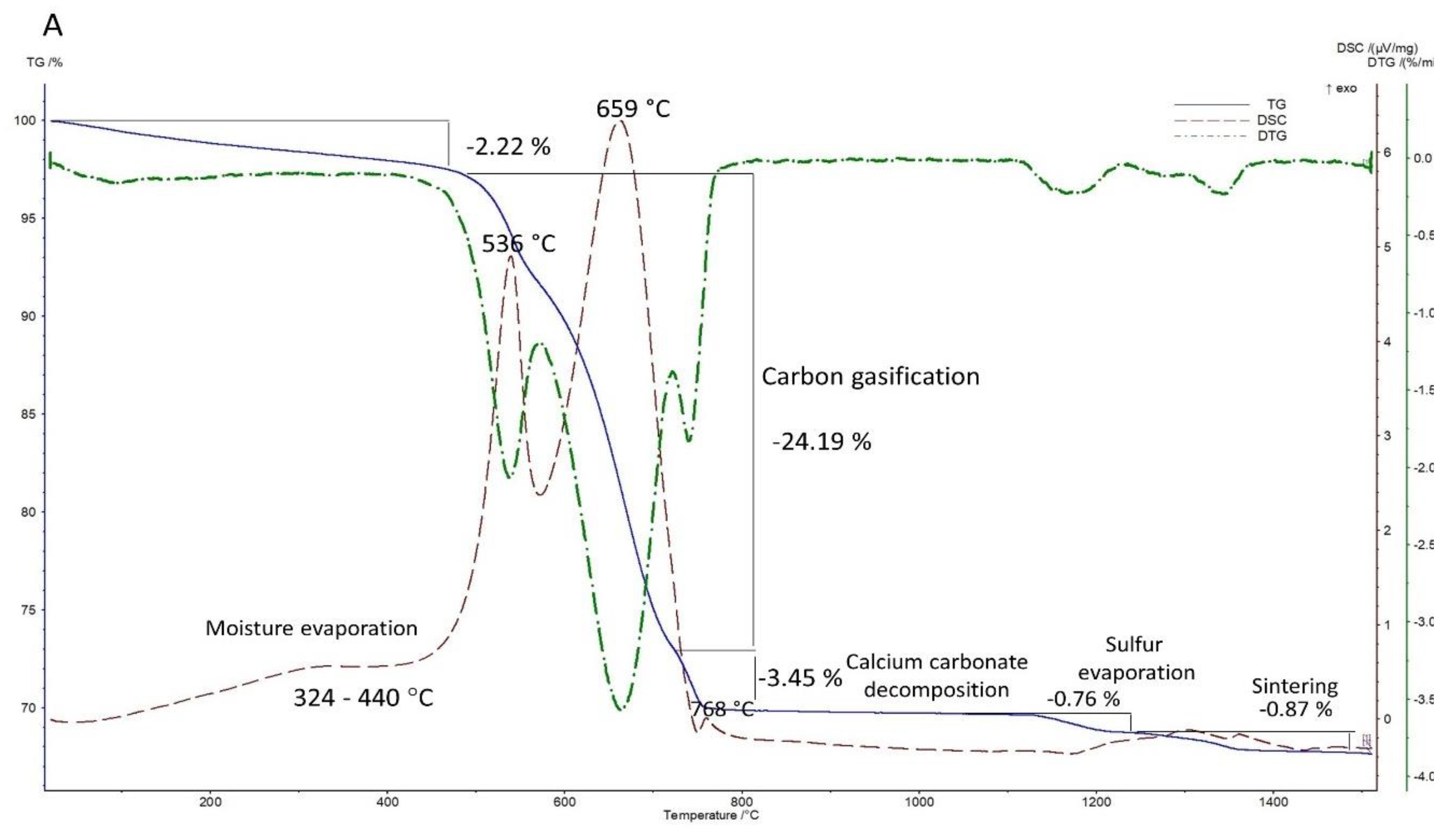

Figure 2 shows TG/DTA/DTG curves of the BF sludge as studied in air atmosphere. The process starts with moisture evaporation in the beginning, as indicated by a slight mass loss and an H₂O curve of the evolved gases (Figure 2B). The wide-ranging endothermic reaction of between 324 and 440 °C is due to the elaboration of the combined water and dihydroxylation [11]. Nearly 2.22% of the BF sludge mass loss was due to the evaporation of water.

Shortly after the initial stage, at 536–659 °C, the exothermic reaction of carbon gasification and formation of CO and CO₂ dominated the process. The two exothermic peaks at 536 and 659 °C resulted from the carbon oxidation reactions (CO and CO₂). The reactions occurred as in Equations (1)–(2) [12,13,14]:

At 536 °C, carbon is ignited, and CO₂ formation begins according to reaction (1):

C+O_{2 (g)} → CO_{2 (g)} + 394 kJ

(1)

At about 659 °C, CO formation takes place according to Equation (2):

2C+O_{2 (g)} → 2CO_(g) + 221 kJ

(2)

The exothermic carbon gasification reaction coincided with the CO/CO₂ mass spectroscopy (Figure 2B). The TG curve shows a weight loss of about 24.19%. This mass loss is in accordance with the carbon concentration of the BFS. The small peak at 768 °C was related to the liming of calcium carbonate (CaCO₃), which is associated with a 3.45% weight loss. At a temperature of 1173 °C the sulfur evolved from the BF sludge, owing to the decomposition of sulfur bearing compounds, as verified by the S spectrum curve. The sample contained about 1.46% SO₃. A mass loss was observed at 1300 °C owing to the sample sintering and the release of gases.

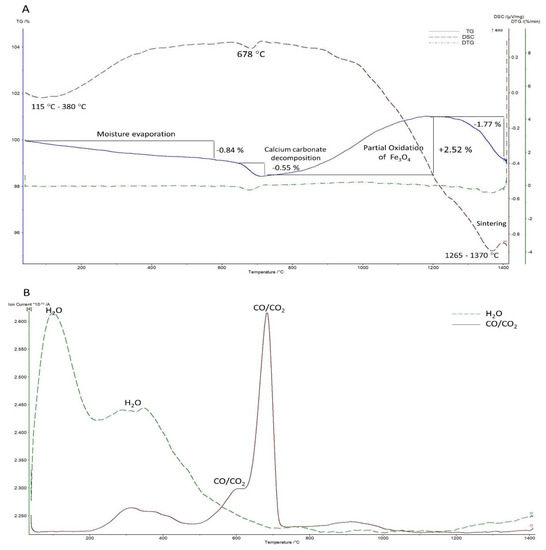

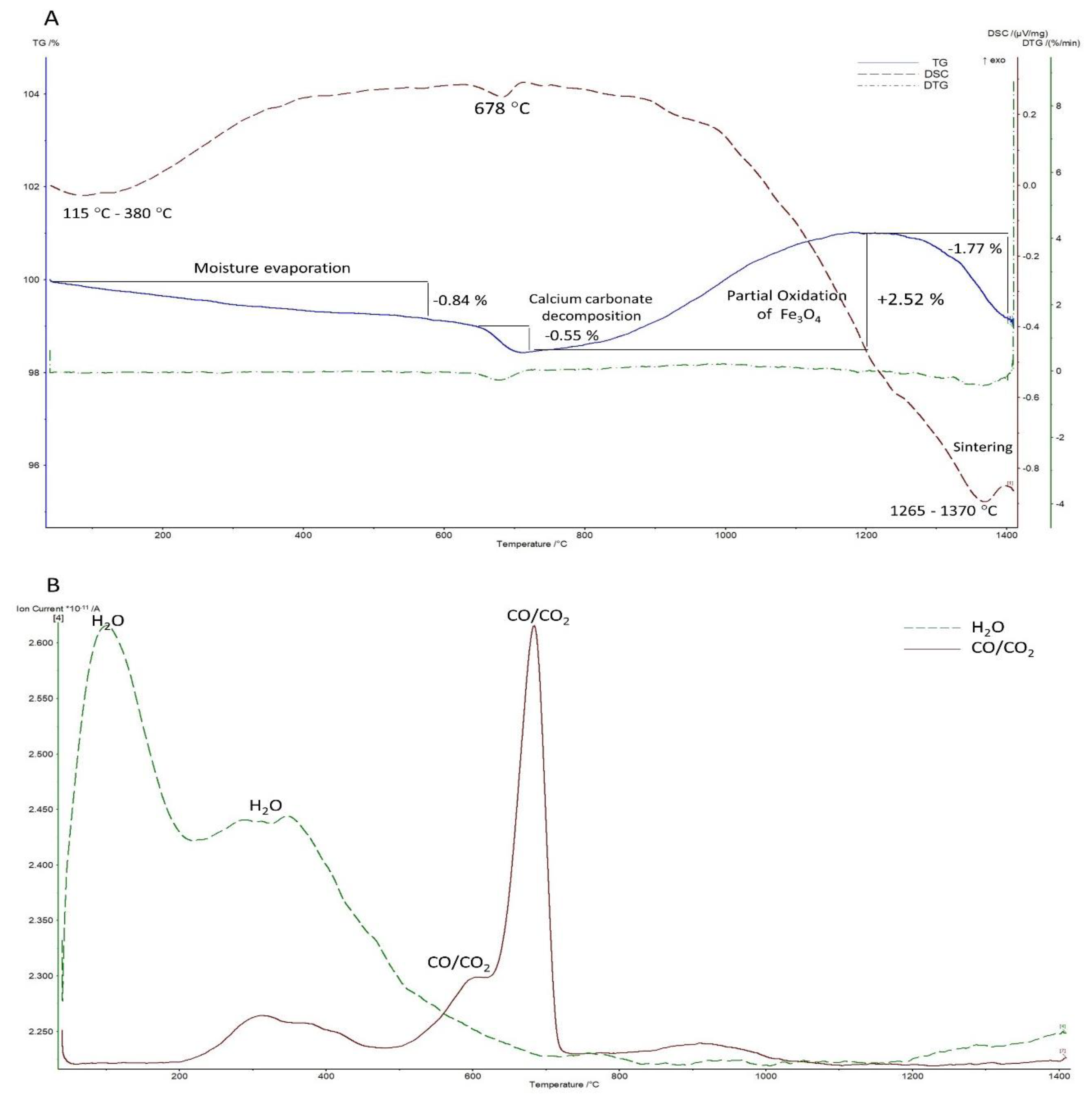

Figure 3 displays TG/DTA/DTG curves of BOF sludge studied in air atmosphere. The thermal behavior of BOF sludge under air atmosphere was significantly different from that of BF sludge. TG-DTA curves show three weak reactions associated with small mass loss (Figure 3A).

The TG curve shows a small and gradual mass loss at 115–380 °C, which reflects the moisture evaporated from the BOF, as verified by the H₂O spectrum curve (Figure 3B). About 0.84% mass loss was owed to the evolution of water. A small weight loss occurred at 678 °C, owing to the residual carbonate dissociation in the sludge, as confirmed by the CO₂ spectra (Figure 3B). Further, this reaction may be due to the carbon gasification (CO and CO₂). A mass gain was detected in the TG curve above 755 °C (+2.52%). This is due to the oxidation of contained iron oxide to a higher oxidation state, indicated by partial conversion of Fe₃O₄ to Fe₂O₃. This mass gain did not occur when the sample was heated in an inert atmosphere.

The reaction occurred at high temperatures of between 1265 and 1370 °C owing to the sample sintering. The mass spectrum of the gas evolution pattern specifies that H₂O and CO₂ were the major gases evolved.

3.2.2. Under Inert/Reducing Atmosphere (Argon Atmosphere)

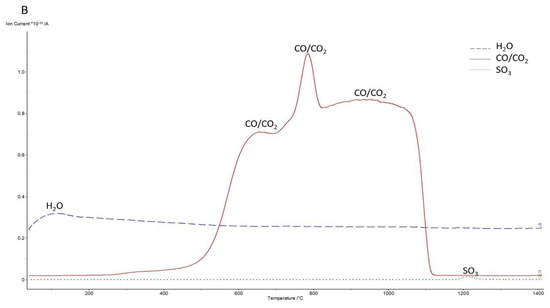

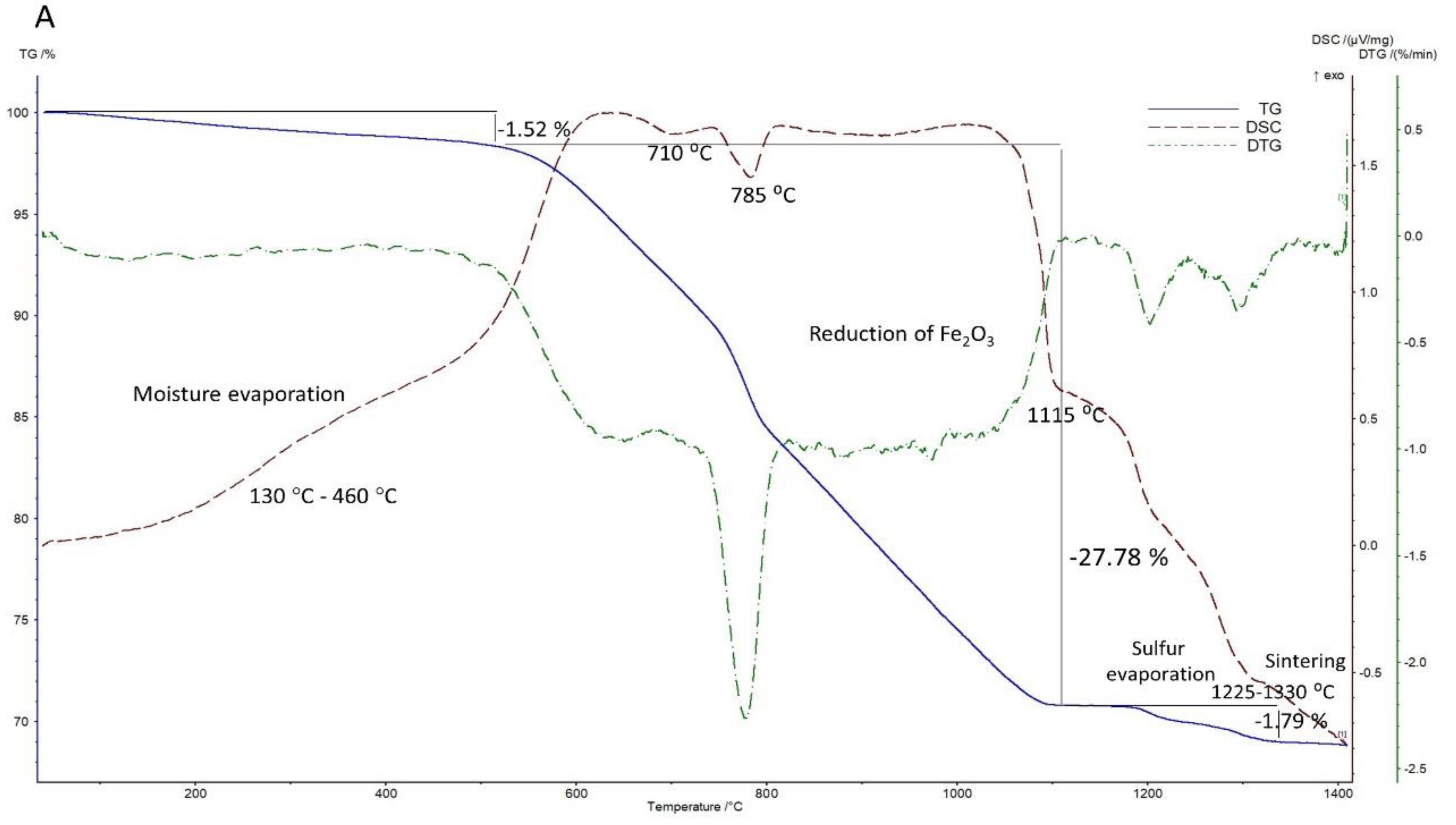

Figure 4 shows a TG/DTA/DTG diagram of BF sludge under an argon atmosphere. Under inert atmosphere the reduction of the iron oxide and formation of CO dominated the reaction. This is confirmed by the endothermic peaks which are synchronized with the appearance of the CO/CO₂ gas peak in the mass spectra.

The broad endothermic peak at the early stage of heating, between 130 and 460 °C, is attributable to the elimination of moisture from the sample. About 1.52% mass loss was measured due to the evaporation of water. The endothermic reactions from 710 °C to 1115 °C are related to the reduction of hematite to metallic iron.

In the beginning, the hematite (Fe₂O₃) reduced to magnetite (Fe₃O₄), which was then reduced to wustite (FeO) and finally to metallic iron (Fe). Equations (3)–(5) present the reduction reactions:

3Fe₂O_3(s) +CO_(g) = 2Fe₃O_{4 (s)} +CO_2(g)

(3)

Fe₃O_4(s) + CO_(g) = 3FeO_(s)+ CO_2(g)

(4)

FeO_(s) + CO_(g) = Fe_(s) +CO_2(g)

(5)

The mass spectrum of gas evolution during the reaction indicates that CO/CO₂ were the major gases evolved in this temperature range (Figure 4B). CO was formed owing to the reaction between solid carbon and oxygen contained in the sludge. The nitrogen atmosphere prevented the oxidation of iron oxide. The weight loss is a result of oxygen released from Fe₂O₃ to form CO₂ [14,15]. The mass spectrum shows that the reduction of Fe³⁺ to Fe⁰ was connected with an oxygen mass loss at temperatures ranging from 710 to 1115 °C (Figure 4B). The total mass loss of the BF sludge was about 27.78% due to the iron oxides reduction and coke oxidation.

At the same time, the peak at 710 °C can be related to the calcination of calcium carbonate [12]. The zinc contained in the BF sludge evaporated at 785 °C [16,17]. This is consistent with the results obtained by Ökvist et al. [13]. At a temperature of 1225 °C the sulfur evaporated from the BF sludge, as verified by the S spectrum curve. The reaction at 1330 °C, associated with mass loss, was due to the sample sintering.

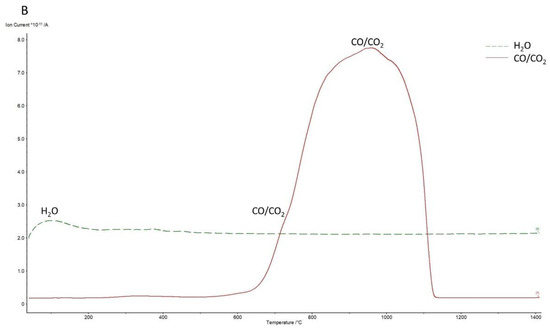

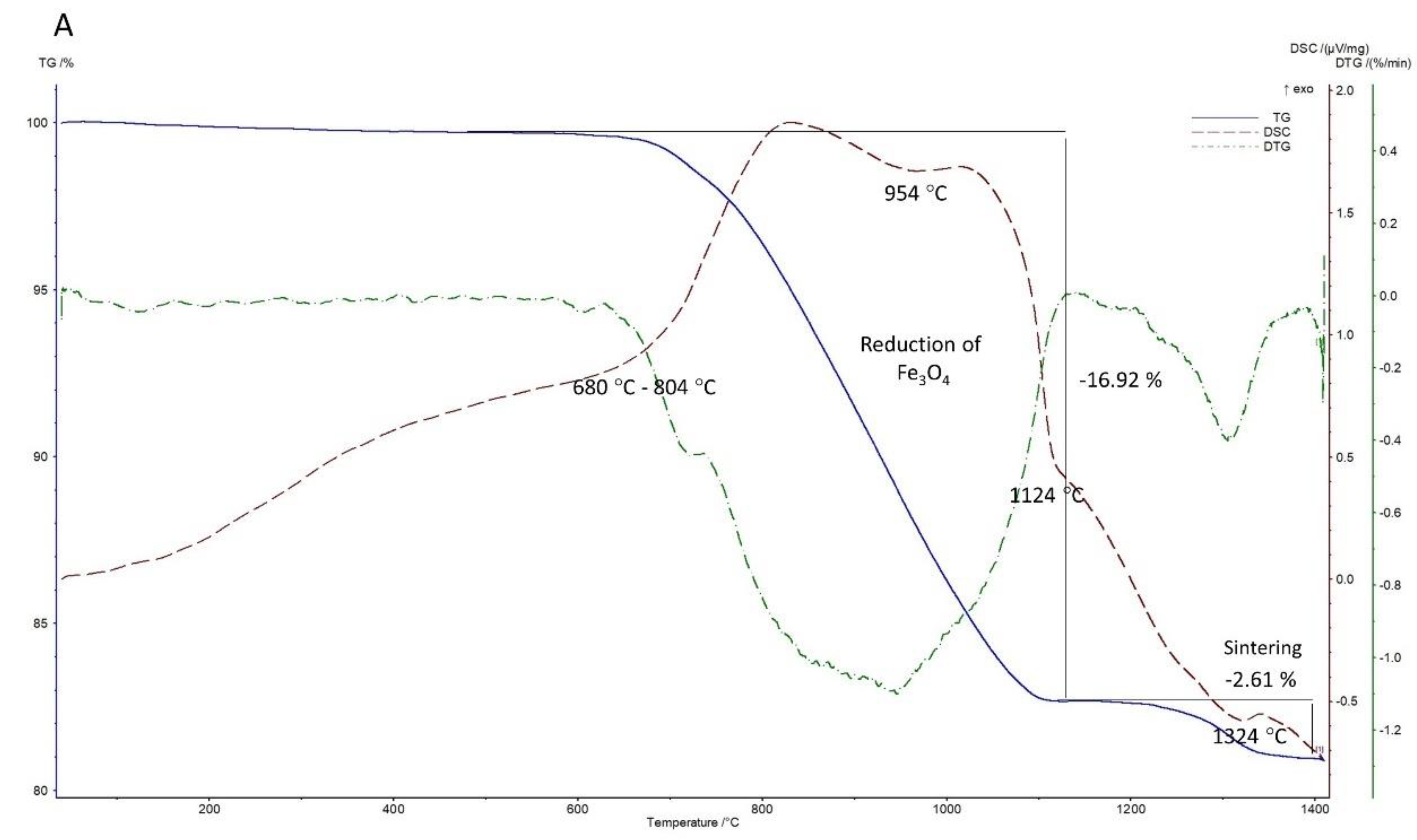

Figure 5 shows a TG/DTA/DTG diagram of BOF sludge under argon atmosphere. Similar to BF sludge, the thermal behavior of BOF sludge was dominated by a reduction reaction. About 0.32% of weight loss was due to moisture evaporation from the BOF sludge in the early heating process.

The endothermic reaction at 680 °C can be attributed to the liming of carbonates [12]. The endothermic reactions from 800 to 1124 °C were related to the reduction of iron oxides. XRD results indicate that the BOF sludge was composed mainly of magnetite (Figure 1B). The reaction begins with the reduction of magnetite (Fe₃O₄) to wustite (FeO) and then to metallic iron (Fe). The mass spectrum of gas evolution during the reaction indicates that the main gases detected were CO/CO₂. The total weight loss of BOF sludge was nearly 16.92%, owing to the reduction of magnetite to iron metal.

The endothermic reaction at 800 °C was also related to ZnO reduction with the BOF sludge containing 1.36% ZnO [14]. The mass spectrometry did not detect the Zn gas released from this reaction due to zinc deposited on the reaction tube. Mikhail and Turcotte [18] observed that zinc had been precipitated on the reaction tube after the sample was heated to 1000 °C. The reaction at the high temperature of 1324 °C, associated with mass loss, was a result of the sample sintering.

4. Conclusions

The thermal behavior of BF and BOF sludges were examined by TG/DTA/MS. The results showed some differences in the behavior of the two sludge samples. The results are valuable in exploring the high-temperature behavior of valuable and hazardous elements in the sludges.

In the case of BF sludge, under air atmosphere the process was dominated by an exothermic carbon oxidation reaction, owing to the high carbon content of the BF sludge. At a temperature of 1173 °C, the mass spectrum confirmed the evolution of sulfur from the sample. Under an inert atmosphere, a sequence of endothermic reactions from 785 to 1115 °C corresponded to the reduction of iron oxides as follows: Fe₂O₃ → Fe₃O₄ → FeO → Fe. A total mass loss of about 27.78% was observed in the TG curve.

In the case of BOF sludge, the thermal behavior of BOF sludge under air atmosphere was characterized by a mass gain at 755 °C. BOF sludge was dominated by magnetite (Fe₃O₄), which partially oxidized to Fe₂O₃. Under inert atmosphere, endothermic peaks from 800 to 1124 °C were related to the reduction of magnetite (Fe₃O₄) to wustite (FeO) and metallic iron (Fe). The total weight loss of the BOF sludge was approximately 16.92%.

The mass spectrum of gas evolution for both BF and BOF sludges under inert atmosphere showed that the main gases released during the reaction were CO/CO₂ gases.

Based on the composition and thermal behavior of the sludges, pellets are the best and most suitable way to recycle the sludges for re-use in the iron and steel industry.
