Next Article in Journal
From Ni–P Metastable Alloy Nanoparticles to Bulk Submicrometer Grain-Sized MMCs with Tunable Mechanical and Magnetic Properties
Next Article in Special Issue
Thermal Fatigue Properties of H13 Hot-Work Tool Steels Processed by Selective Laser Melting
Previous Article in Journal
Impact of Local Cathode Electrical Cut-Off on Bath–Metal Two-Phase Flow in an Aluminum Reduction Cell
Previous Article in Special Issue
Corrosion Behaviors of Selective Laser Melted Aluminum Alloys: A Review
Open AccessArticle

Acoustic Properties of 316L Stainless Steel Lattice Structures Fabricated via Selective Laser Melting

Key Laboratory of Superlight Materials and Surface Technology, Ministry of Education, College of Material Science and Chemical Engineering, Harbin Engineering University, Harbin 150001, China
*
Author to whom correspondence should be addressed.
Metals 2020, 10(1), 111; https://doi.org/10.3390/met10010111
Received: 28 November 2019 / Revised: 26 December 2019 / Accepted: 9 January 2020 / Published: 11 January 2020
(This article belongs to the Special Issue Additive Manufacturing of Metals with Lasers)

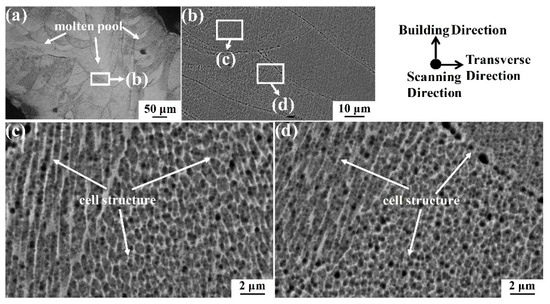

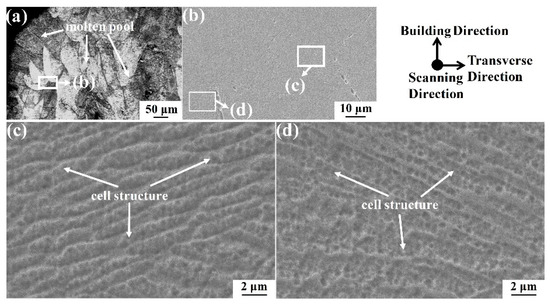

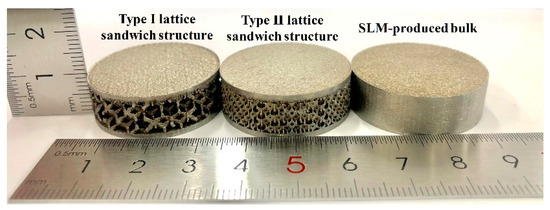

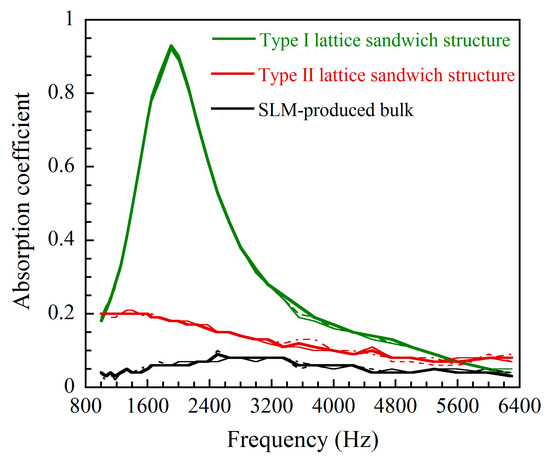

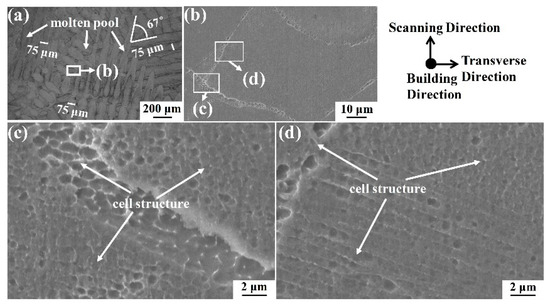

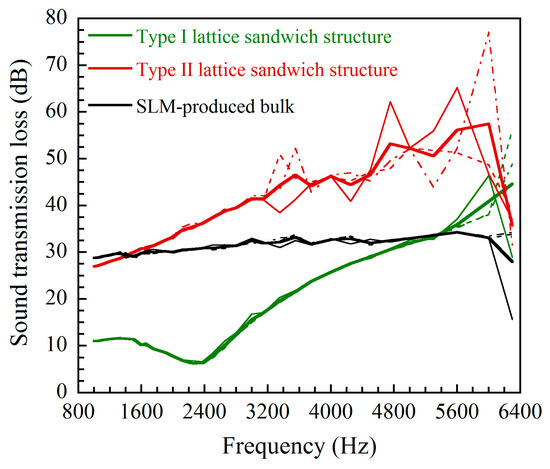

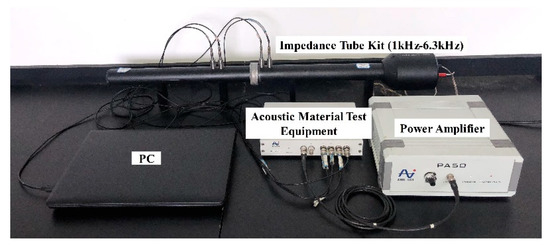

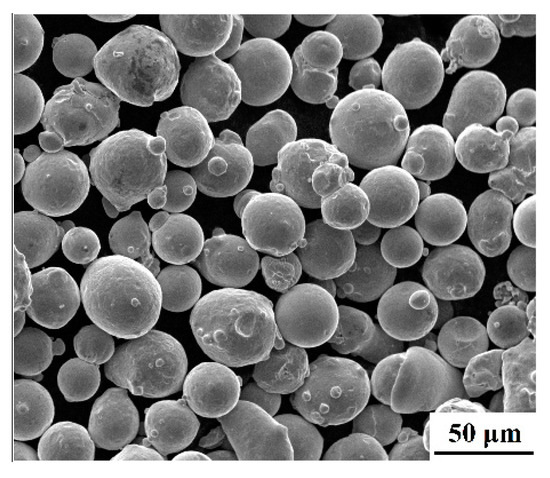

A bulk specimen and two different lattice sandwich structures composed of 316L stainless steel were fabricated via selective laser melting. This study analysed the acoustic properties, including sound insulation and sound absorption, of the three kinds of structures, which were produced via selective laser melting under the same process parameters. The results showed that the difference in the unit structures, rather than microstructural difference, was the main reason for the difference in acoustic properties between the samples. Under the same process parameters, the microstructure of the different structures had the same cell structure. However, the sound absorption properties of the lattice sandwich structures were better than those of the bulk sample in the measured frequency range of 1–6.3 kHz. The lattice sandwich structure with 2.5 × 2.5 × 2.5 mm3 unit structures exhibited excellent sound insulation properties in the frequency range of 1–5 kHz. View Full-Text
Keywords: selective laser melting; 316L stainless steel; lattice structure; sound insulation properties; sound absorption properties selective laser melting; 316L stainless steel; lattice structure; sound insulation properties; sound absorption properties
Show Figures

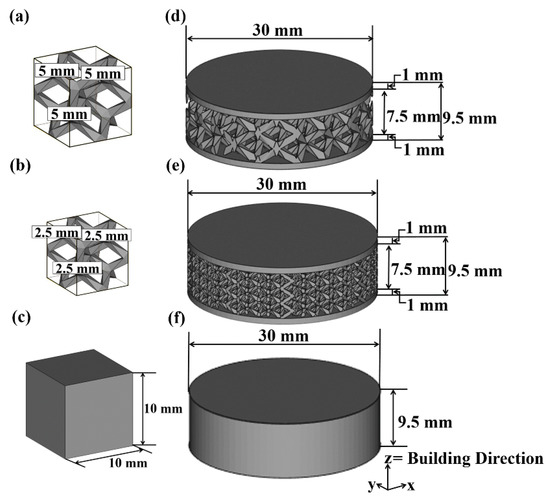

Figure 1

MDPI and ACS Style

Sun, X.; Jiang, F.; Wang, J. Acoustic Properties of 316L Stainless Steel Lattice Structures Fabricated via Selective Laser Melting. Metals 2020, 10, 111.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
