Tribology of Natural Fibers Composite Materials: An Overview

Abstract

In the framework of green materials, in recent years, natural fiber composites attracted great attention of academia and industry. Their mechanical and tribological characteristics, such as high strength, elasticity, friction, and wear resistance, make them suitable for a wide range of industrial applications in which issues regarding a large amount of disposal are to be considered since their environmental friendliness gives them an advantage over conventional synthetic materials. Based on the recent and relevant investigations found in the scientific literature, an overview focused on the tribological characteristics of composite materials reinforced with different types of natural fibers is presented. The aim is to introduce the reader to the issues, exploring the actual knowledge of the friction and wear characteristics of the composites under the influence of different operating parameters, as well as the chemical treatment of fibers. The main experimental tribological techniques and the main used apparatus are also discussed, with the aim of highlighting the most appropriate future research directions to achieve a complete framework on the tribological behavior of many possible natural fiber composite materials.

1. Introduction

One of the main reasons for material failure and equipment damage is recognized to be tribological phenomena in terms of friction and wear [1]. The impact of tribological contacts on energy consumption is approximately 23% relative to global consumption; 20% of this energy consumption [2] is spent avoiding friction and 3% is used in the reproduction of damaged equipment and spare parts due to wear. Holmberg et al. [3] also investigated the economic and environmental effect of tribological phenomena related to the mining industry. It was found that friction and wear in the process of mineral mining cause annual losses of 210,000 million Euros, where 40% is spent to overcome friction. On the other hand, worldwide annual CO₂ emission due to friction and wear in the mining industry reached 970 million tons, which is 2.7% of world emissions [3]. By tribological research and insights, losses caused by wear and friction of two solid bodies in relative motion can be significantly reduced. The increase of efficiency, productivity, reliability, safety, and the reduction of breakdowns of technical systems are major advantages of tribological investigations [4].

Nowadays, scientists are focused on the development of new “green” materials that are economical and environmentally friendly, which will meet the required properties of synthetic materials also from a tribological point of view. In this scenario, composite, and in particular natural fiber composite, materials are attracting attention both for academia and industry.

Of course, natural materials were well known in ancient times when people survived using resources from nature. The first tools in history, arrows, knives, spoons, etc., were made by natural materials, wood, and stones. For thousands of years, natural materials were used to secure human existence. It is not known when composite materials were used for the first time, but some of the earliest records of their use date from the old Egyptian civilization. Additionally, the use of composites by Inca and Mayan civilizations has been recorded [5]. Wood and straw fibers were used in Ancient Greece to provide higher stability of traditional mortars [6]. To reduce cracks and enhance bonding, in Indo-Muslim architecture jute and straw fibers were used [7]. The last century was marked by industrial revolutions, technical progress, especially in energy and military sectors and, as a result, materials such as wood, stone, and plants did not have a primary role, and synthetic materials were produced en masse with a high growth level.

The impact of synthetic materials on the environment and the greenhouse effect are widely known. The negative behavior of these materials has been investigated [8,9,10]. The consciousness of environmental protection and more and more rigorous political regulations forced both industry and academia to think about new alternative materials that will meet all necessary properties. Except for their application in the construction industry, which has never stopped, natural fiber-reinforced composites (NFRCs) are again in focus. Numerous engineering fields increasingly employ NFRCs in their processes, intending to reach high business performances and ensure their competitiveness. Nowadays, the application of NFRCs is growing rapidly in the automotive industry, construction, packing, furniture, airplane industry, and so forth [11].

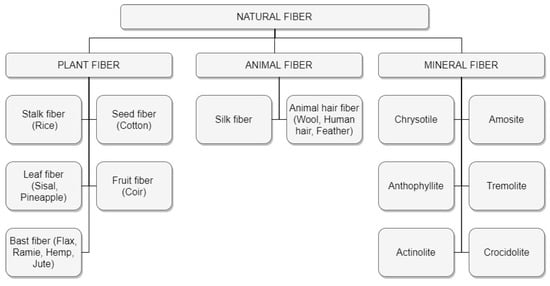

In general, NFRCs should be made by several kinds of natural fillers, such as plant fiber, animal fiber, and mineral fiber. On the basis of [12] a schematic representation can be found in Figure 1.

While maintaining the high stiffness-to-weight and high specific strengths found in synthetic fiber-reinforced composite materials (SFRCs), NFRCs also have the beneficial properties of non-abrasiveness, low material cost, recyclability, biodegradability, and CO₂ neutrality [13,14,15,16]. However, some types of natural fibers as reinforcement have certain drawbacks. Poor resistance to moisture, the formation of aggregates during processing, and incompatibility with the hydrophobic polymer matrix are some of the issues with a negative impact of the tribo-mechanical properties of composites [17].

These disadvantages have a high impact on the tribological properties of composite materials reinforced with natural fibers, such as friction and wear. As such, friction and wear tests of NFRCs are crucial for the efficiency of tribological systems. To ensure working conditions identical to the real application of tribological pairs, it is necessary to perform simulations of the investigated system. In this process, selecting geometry, relative motion, and imposed loads (contact pressure) are the most important for proper simulation of wear conditions [4]. Usually, for sliding contacts three types of geometry are employed in tribo testing: line contact, where the most common tribosystem is cylinder-on-disk; point contact, with ball-on-disk as a representative; and conforming contact, such as flat-on-flat. With the aim to give a useful organic overview on the state of the art of the scientific literature on natural fiber-reinforced composite materials, the authors will focus on investigations found in the relevant literature on the behavior of such materials regarding sliding friction and wear tests. Fiber-matrix proportion, fiber treatment, orientation into the composite, fiber type, etc., will be considered.

2. Tribology in NFRCs

The selection of suitable contact materials and lubricants, if any, is crucial for the efficiency and reliability of a mechanical systems. Tribologists are usually focused on the contact between two bodies [18]. Without physical contact, friction and wear cannot occur [19]. Popov et al. [19] concluded that the normal contact is a basic prerequisite for all other phenomena in tribology science, defining two the most important relationships of the normal contact theory:

• The dynamic properties of the system and stiffness of the contact are determined by the relationship between the normal body displacement and the normal force; and
• In the contact area, stresses occur.

From a geometric point of view, due to the relative motion of two contact surfaces, two basic types of macro contact can be defined: conformal and non-conformal [20]; according to [21,22] the difference between them is in the stress-strain extent.

Throughout history, from Da Vinci, Amontons, Euler, to Hertz, Reynolds and Archard, the phenomenon of contact has been studied, accompanied by friction. It is known the friction leads to energy dissipation. In micro contacts, the presence of friction can cause micro fractures and surface wear [18]. Moreover, many studies proved that thermal regimes and stress states have an influence on the variation of tribological properties during the exploitation of mechanical systems [23,24,25,26,27]. It is widely known that heat conducted by frictional work during the wear processes increases the interface temperature of contacting bodies. It was confirmed by Lim and Ashby [28] that increased interface temperature can change the mechanical properties of the sliding surfaces. In the paper of Amiri and Khonsari [29] they recorded that the changing of mechanical properties caused by increasing interface temperature drastically influence the tribological behavior of contact pairs.

With particular reference to the tribological behavior of NFRCs materials, studies conducted on this topic show that natural fibers, because of their good mechanical properties, as collected in

Table 1. Mechanical properties of some natural fibers compared with Aramid and E-glass fibers [38,39].

Fiber	Tensile Strength (MPa)	Young’s Modulus (GPa)	Elongation at Break (%)	Density (g/cm3)
Abaca	400	12	3–10	1.50
Alfa	350	22	5.80	0.89
Bagasse	290	17	–	1.25
Bamboo	140–230	11–17	–	0.60–1.10
Banana	500	12	5.90	1.35
Coir	175	4–6	30	1.20
Cotton	287–597	5.50–12.60	7–8	1.50–1.60
Curaua	500–1150	11.80	3.70–4.30	1.40
Date palm	97–196	2.50–5.40	2.0–4.50	1.0–1.20
Flax	345–1035	27.60	2.70–3.20	1.50
Hemp	690	70	1.60	1.48
Henequen	500 ± 70	13.20 ± 3.10	4.80 ± 1.10	1.20
Isora	500–600	–	5–6	1.20–1.30
Jute	393–773	26.50	1.50–1.80	1.30
Kenaf	930	53	1.60	–
Nettle	650	38	1.70	–
Oil palm	248	3.20	25	0.70–1.55
Piassava	134–143	1.07–4.59	21.90–7.80	1.40
Pineapple	1.44	400–627	14.50	0.80–1.60
Ramie	560	24.50	2.50	1.50
Sisal	511–635	9.40–22.0	2.0–2.50	1.50
Aramid	2700–4500	130	3.30–3.70	1.45
E–glass	3400	72	–	2.50

, mixed with the matrix contribute to the improvement of tribo-mechanical characteristics [30,31,32,33,34,35,36]. The wear resistance is also largely dependent on the distribution of the fibers in the matrix, not only natural, within the material relative to the direction of contact of the contact pair. Liang et al. [37] investigated the influence of fiber orientation within the composite on the tribological behavior of the material.

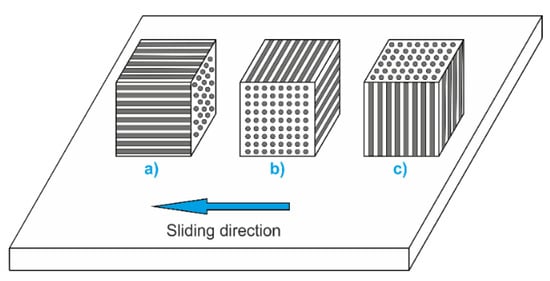

As schematically shown in Figure 2 and clarified by many authors [40,41,42,43,44,45], with respect to the sliding direction, three fiber orientations within composites should be defined in a tribological contact: (a) Parallel orientation (P-O), (b) anti-parallel orientation (AP-O) and (c) normal orientation (N-O).

The presented fiber orientations and their influence on the tribological properties of the NFRCs will be discussed in Section 3.

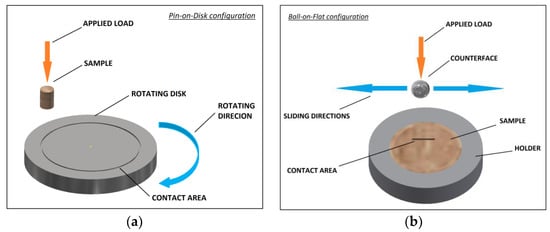

Simulation of the tribo-contacts in a particular machine, evaluation of the influence of the lubricants for a particular application, investigation on the causes of the friction, etc., are some of the purposes of tribo-testing laboratory techniques. It is widely known that the tribometers represent the most commonly used devices to measure friction and wear [46]. To avoid measurement errors and simulate real systems, it is necessary to carefully select the tribometer and set up experimental conditions, as well as the post-processing of measured data [47]. From the analysis of literature on the NFRCs tribo-contact emerges the most used common tests apparatus, like pin-on-flat, flat-on-flat, pin-on-rotating disk, ball-on-flat, ball-on-disk, etc.

The typical application of the apparatus implies sliding wear of various NFRC’s materials with the contact between specimen and its counterface. As one of the most used apparatus [46], and commonly used to investigate the tribological behavior of NFRCs [48], the Pin/Ball-on-Disk configuration, illustrated in Figure 3a operates by closing the pin/ball against a rotating disk and applying on the pin/ball a normal load. Contact can occur on the disk’s flat surface or on the circumference of the disk. Depending on the type of tests, the dimensions of the pin/ball and disk may vary according with the desired mean contact pressure. In reciprocating tribometers, presented in Figure 3b, the pin/ball moves along the horizontal stroke following a linear trajectory coupled with a flat surface. The parameters to set such as frequency, time, normal load, stroke, lubricant type, and temperature, if any, provide both the measurement of the kinetic friction coefficient and the possibility to investigate the specimen’s wear phenomena [49].

3. Friction and Wear of NFRCs

Under dry and wet sliding conditions the friction and wear of natural fiber composite materials have been investigated by several scientists [30,50,51,52,53,54,55,56,57,58]. Tribological properties of NFRCs are influenced by numerous factors, such as operating conditions, type of matrix, fiber contents, orientation, and chemical treatments. Investigations were found in the literature on polymeric composites reinforced with kenaf, jute, oil palm, and coconut (coir) fibers. Even if more NFRCs are be created, they should be investigated for deeper understanding of their tribo-mechanical properties. An overview based on the analysis of the scientific literature on different NFRCs is presented below.

3.1. Kenaf Fiber NFRCs

Kenaf (Hibiscus cannabinus L.) is a 4000 year old annual plant which requires a warm environment for effective growth. In the beginning, kenaf was used for the production of rope, sackcloth, and paper [54,59]. The favorable tribo-mechanical characteristics of kenaf fiber as reinforcement material of polymer composites allow wide application. The application of kenaf fibers nowadays extends from the textile industry, through the automotive and construction industries, to the electronic industry [30,54,55,60,61]. The automotive industry delivers strict requirements in terms of material properties used in production processes, such as cost, lightweight, safety and crashworthiness, and recycling and life-cycle consideration. Advantages of kenaf plant compared with other lignocellulosic fiber plants are its adaptivity to environmental conditions, short plantation cycle, and lower level of chemical treatment of pesticides and herbicides [62,63]. The chemical composition of the most employed natural fibers is presented in

Table 2. Chemical composition of some major natural fibers [64,65].

Fiber	Cellulose (wt%)	Hemicellulose (wt%)	Ligning (wt%)	Pectin (wt%)	Waxes (wt%)
Abaca	62.5	21	12	0.8	3
Alfa	45.4	38.5	14.9	-	2
Bagasse	37	21	22	10	-
Banana	62.5	12.5	7.5	4	-
Bamboo	34.5	20.5	26	-	-
Coir	46	0.3	45	4	-
Cotton	89	4	0.75	6	0.6
Curaua	73.6	5	7.5	-	-
Flax	70.5	16.5	2.5	0.9	-
Hemp	81	20	4	0.9	0.8
Henequen	60	28	8	-	0.5
Isora	74	-	23	-	1.09
Jute	67	16	9	0.2	0.5
Kapok	13.16	-	-	-	-
Kenaf	53.5	21	17	2	-
Nettle	86	10	-	-	4
Oil palm (EFB)	36–65	22–30	18–25	-	-
Phormium	67	30	11	-	-
Piassava	28.6	25.8	45	-	-
Pineapple	80.5	17.5	8.3	4	-
Ramie	72	14	0.8	1.95	-
Sisal	60	11.5	8	1.2	-

.

To determine fibers with the best mechanical characteristics necessary for the production and functionality of the automotive friction brake systems, Ashafi’e et al. [66] used an analytical method based on a weighted decision matrix (WDM) to categorize natural fibers, such as jute, kenaf, ramie, and asbestos fibers. Kenaf was identified as the most suitable material which meets the requirements to be employed as a reinforcement of these automotive composite components.

Fiber orientation in the matrix is recognized as having a strong influence on wear behavior [30,54,55]. In [57] the tribological application of kenaf/epoxy composite (KEC) under wet contact conditions was investigated. The authors used a block-on-disk (BOD) configuration to test samples against a stainless steel disc counterface. Water was used as a wear debris cleaner from the rubbing area and to dissipate the heat generated by friction. In the matrix, fibers were oriented in three standard configurations: (i) normal orientation (N-O), (ii) parallel orientation (P-O), and (iii) anti-parallel orientation (AP-O), with respect to the sliding direction. The specific wear rate (W_s) of KEC is calculated by Equation (1):

$$W_s=\frac{\Delta m}{L · \rho · F},$$

(1)

where W_s is the specific wear rate (mm³/Nm), Δm is the weight loss (g), L is the sliding distance (m), ρ is the density (g/mm³), and F is the applied load (N). The authors concluded that the samples with fibers oriented in N-O exhibited significant wear resistance by about 35–57% compared with P-O and AP-O fibers. It was noticed that in N-O, when a 150 N applied load was employed, there is a strong adhesion of the end of the fibers and the matrix which influences no pulling out, debonding, and/or peel. In other words, kenaf fibers oriented in N-O provide strong support of epoxy composites due to their resistance to the rubbing process. Higher friction coefficients were reported in KEC tested in N-O and AP-O. In general, the COF values vary from 0.03 to 0.045 and because of presence of water as a debris cleaner, essentially, it leads to low friction between contact materials.

In [67], using an ASTM B 611 machine, under the applied loads of 5–20 N, at a rotation speed of the disk of 100 rpm for 300 s duration, the authors investigated the three-body abrasive wear of KEC considering three standard fiber orientations. The tests were conducted using a dry sand/steel wheel apparatus with small, intermediate, and large sand particles. The tests were also conducted on neat epoxy (NE) to compare the tribological behavior with the KEC. Reduction in the wear rate by about 50–75% was found with the N-O fiber orientation and significantly lower than NE. In general, a low friction coefficient value (≈0.05–0.12) was noticed. Due to the homogeneity of the asperities in contact, the lower value of the friction coefficient in the NE was determined.

Narish et al. [68] investigated kenaf fibers in polyurethane (PU), tested on abrasive wear behavior, in all three standard fiber orientations. For P-O and applied loads of 50–60 N, W_s was below the value of 10 × 10⁻⁸ mm³/Nm, while W_s exhibited the lowest rate with ranges between 2 × 10⁻⁸ and 5.25 × 10⁻⁸ mm³/Nm when the fibers were in AP-O and N-O, respectively. The authors reported kenaf fiber/polyurethane provided better wear performances compared to neat PU. On the friction properties of kenaf/polyurethane (0.2–0.65) no significant effects of fiber orientation were found.

Regarding the influence of imposed load on the tribological characteristics of kenaf fiber composites, with a not highly significant effect, the applied load was found to influence their behavior. In the same study [67], the authors also investigated the wear rate versus the applied load during tests. Two values of applied load were employed, 5 N and 20 N. The wear rate of epoxy reinforced AP-O and P-O kenaf fibers using intermediate and large sand particles, showed a higher wear under lower applied load while, for the same applied load and sand particles, the wear rate of NE and KEC showed a lower value than when small particles were used.

The specific wear rate was also determined according to the Archard wear model (2) [58], and investigated by Nordin et al. [56] by using an Abrasion Resistance Tester (TR-600) to highlight the difference of the tribological behavior of kenaf polyester composite (KPC) with respect to kenaf epoxy composite (KEC).

$$Q=\frac{KWL}{H},$$

(2)

In Equation (2) Q is the total volume of wear debris produced, K is a dimensionless constant, W is the total normal load, L is the sliding distance, and H is the hardness of the softest contact surface. The comparison of sliding (abrasive) distance vs. the specimen’s mass loss and vs. the specimen’s specific wear rate, respectively, with different applied loads (5–20–30 N) and a constant sliding velocity of 14 m/s were investigated. In [56], the authors concluded that for both materials, for high applied loads, increasing the sliding distance, the mass loss increases significantly, up to about 12 and 14 g for KPC and KEC, respectively. For low applied load, the mass loss for both KPC and KEC is almost negligible (about 2 g). Experimental results show two phases of specific wear rate behavior. The first, initial phase, where the specific wear rate suddenly decreases from 6 × 10⁻² to less than 1 × 10⁻² mm³/Nm, the authors explained this as normal behavior of the investigated NFRC materials. They indicated this phenomenon is caused by the initial running-in of the tribosystem. Increasing the sliding distance establishes the second phase. A specific wear rate decreases until it achieves a constant value. This phenomenon is due to the formation of a smoother surface after the running-in is complete.

Regarding the effect of fibers’ chemical treatments on the tribology of NFRCs based on kenaf, to improve their (but also of many types of NFRCs) mechanical properties various chemical methods like silane treatment, acetylation, grafting, etc., should be used [69]. Chemical modification of kenaf fibers was investigated in [59] using NaOH: at different concentrations at room temperature for 3 h the kenaf fibers were soaked into 3%, 6%, and 9% NaOH. The authors found that the modified fibers provided better mechanical properties than untreated fibers. In [35] an analysis and comparison of tribological properties of kenaf/epoxy and oil palm/epoxy composites under dry sliding conditions was conducted. Both oil palm and kenaf fibers were soaked in natrium hydroxide (NaOH) at a maintained temperature of 26 ± 2° for 48 h. Composite samples were made in a fiber ratio of 30 wt%, 50 wt%, and 70 wt% mixed with epoxy. Wear tests were conducted according to the ASTM G99-05 standard using a pin-on-disc configuration against a polished steel disc with a 49.05 N applied load, a disk angular velocity of 1000 RPM, with different controlled temperatures of 23, 50, 100, and 150 °C. At high temperature, the hardening degradation of material was noticed, which causes a higher specific wear rate (about 250 × 10⁻⁵ and 200 × 10⁻⁵ mm³/Nm) of kenaf fiber/epoxy and oil palm fiber/epoxy composites, respectively. A lower specific wear rate of oil palm fiber/epoxy than the kenaf fiber/epoxy composite was recorded. Considering the fiber composition, the authors concluded that, by increasing the weight ratio of the kenaf fiber within the composite, the wear performances increase. In contrast, the wear performances decrease with an increasing weight ratio of oil palm fiber.

3.2. Jute Fiber NFRCs

From the bast fiber category, jute (Corchorus olitorius and Corchorus capsularis L.) is composed of cellulose and lignin. Commonly used in the textile and construction industries, jute fibers are, nowadays, in high expansion and their application has extended to household items, the automotive industry, and other industries that allow the use of natural materials such as jute. Considering the fiber orientation and fiber content, as presented in

Table 3. Compressive properties of jute composites [70].

Sample	Fiber Orientation [°]	Fiber Content [wt %]	Modulus [Gpa]	Maximum Stress [Mpa]	Maximum Strain [mm/mm]
Matrix	-	0	2.5 ± 0.04	111.4 ± 4.05	0.305 ± 0.070
Raw	0	56	2.3 ± 0.3	52.4 ± 1.0	0.041 ± 0.008
	30	53	1.8 ± 0.3	53.8 ± 6.1	0.045 ± 0.007
	45	56	1.3 ± 0.1	57.4 ± 2.4	0.056 ± 0.005
Acetone-washed	0	54	1.8 ± 0.3	66.8 ± 13.2	0.040 ± 0.010
	30	53	1.7 ± 0.5	70.9 ± 7.6	0.050 ± 0.010
	45	55	2.1 ± 0.5	84.1 ± 1.7	0.060 ± 0.010
Detergent-washed	0	48	1.7 ± 0.4	60.5 ± 4.2	0.050 ± 0.005
	30	51	1.8 ± 0.4	64.8 ± 5.3	0.052 ± 0.016
	45	46	1.6 ± 0.5	63.0 ± 7.1	0.045 ± 0.005

, Acha et al. [70] reported the compressive properties of unsaturated polyester reinforced with raw, acetone-washed, and detergent-washed jute fibers.

Considering the effect of fiber orientation on the material wear performances, respect to the sliding directions, Alshammari et al. [44] investigated jute/epoxy composites using block-on-ring (NFRC vs. stainless steel) configuration under dry contact conditions. The AP-O fibers showed a better film generating on the contact surface and a high shear resistance, allowing the authors to conclude that the AP-O fibers within epoxy matrix exerted a high friction coefficient (0.72 ± 0.13). However, for N-O, due to high material removal from the surface, a low level of friction force during tests was noted and the average friction coefficient was about 0.4 ± 0.11.

Unsaturated polyester was used in [71] as the composite matrix reinforced with the jute fibers. By using the pin-on-disk configuration, friction and wear tests were conducted. An increase in the fiber volume fraction to 33% caused a friction coefficient increase by about 14% when the jute fibers are in the N-O orientation, with respect to the sliding direction, while the wear rate is decreased by about 95%. When oriented in the P-O and AP-O, no significant change of friction coefficient was noticed and the wear rate decreased by about 72%.

Regarding the effect of the applied load, the three different types of jute/polypropylene composites (JPPCs) at different applied loads in order to compare the measured wear rates were investigated [72]. Two-body abrasion tests were conducted on untreated, solution-treated, melt-mixed JPPCs, and pure PP with applied loads of 1, 3, 5, and 7 N against the rotating wheel, on which 400 grit abrasive paper was employed. More material was removed from the NFRC at ther 7 N load due to deeper grooving in the sample, which allows one to conclude that the wear rate increases with the increase of the applied load.

Respecting the sliding distance (0–3000 m), at the different applied loads (10, 20, 30 N) and sliding velocities (1, 2, 3 m/s), in the research by Yallew et al. [31], the high variability of the friction coefficient, from about 0.3–0.6 of the JPPCs occurs. The decrease in the friction coefficient occurs when an applied load increases during sliding. This can be because of the formation of thermal gradients due to non-uniform temperature dissemination. The thermal stresses debilitate the fiber characteristics and matrix which causes filaments to be slack and easily shearable. Pulling out and fiber separations during sliding bring down the coefficient of friction.

Dwivedi and Chand [73] reported the effect of the applied load and fiber orientation of the jute/polyester composite and discovered a positive behavior of the friction coefficient in all orientations when the applied load was in a growing trend. In general, with the increase of the applied load from 20 to 60 N, the friction coefficient decreased from about 1.1 to 0.55.

Focusing on the effect of fiber chemical treatment, in [74] the authors investigated the tribological behavior of jute/hazelnut shells and jute/graphite composite. The chemical treatment of jute, as shown in Figure 4, two SEM images (obtained in Czech University of Life Sciences Prague, Faculty of Engineering, Department of Material Science and Manufacturing Technology, Prague, Czech) of treated and untreated jute fiber, and hazelnut, subjected to soaking in 12% and 25% of NaOH, respectively. Then, jute fibers were treated in the 1 M HCl steam for 30 min, and KH550 silane coupling agent was used with additional stirring with hazelnut shells for 2 h. During the initial baseline period of the tests, conducted by a JF160 CHASE friction test machine, samples containing jute fibers (14.6% vol.) showed the lower value of the friction coefficient (µ = 0.614) in comparison with samples without jute (µ = 0.708).

By using a particular abrasion tester (SUGA) the effect of the MA-g-PP coupling agent on the wear performances of jute/polypropylene composite was investigated in [72]. Caused by the improved fiber-matrix adhesion, which resulted by the addition of MA-g-PP, the abrasion resistance increased. The abrasive wear sensitivity on the fiber-matrix adhesion was identified in [33]. The authors investigated abrasive wear performances of jute/polylactide composite treated with five different substances: (i) untreated surface, (ii) alkalization, (iii) permanganate treatment, (iv) peroxide treatment, (v) silane 1 (3-amino propyl trimethoxy silane), and (vi) silane 2 (trimethoxy methyl silane) treatment. Abrasive wear tests for each of the differently-treated samples was conducted using a pin-on-disk configuration. On the disk was installed 600 grit abrasive paper. Experimental research showed that the surface treatment increased the interfacial adhesion, which has strong impact on the wear resistance of jute/polylactide composite. The authors showed that the sample treated with silane 2 in comparison with the others treatment substances exhibited the best abrasive wear resistance, with about 50% less weight loss than others.

3.3. Oil Palm Fiber NFRCs

Cultivated in 42 countries on 11 million hectares worldwide, the oil palm provides the highest yielding edible oil in the world [50]. Oil palm trees can be utilized as a source of fibers in the manufacturing of composites for wide applications. It is known that the extracted empty fruit bunch (EFB) of the oil palm plant is one of the largest sources of oil palm fibers, up to 73% of fiber yield [75,76,77,78,79]. EFB consists of approximately 22% of the total palm oil industry waste [75,80]. In the review paper, Shinoj et al. [76] reported that EFB waste can be a useful gradient for biocomposites. No relevant investigations were found in the literature regarding investigations of fiber orientation influence on the tribological behavior of the corresponding NFRC materials. The influence of the applied load on wear and frictional properties was investigated in [51]. The authors focused on the frictional and wear behavior of the polyester composite reinforced with treated and untreated oil palm fibers. Against a polished stainless steel counterface, the composite samples were tested utilizing a block-on-ring configuration under dry contact conditions. Applying different load ranges, from 30 N to 100 N, they concluded that when the values of the applied loads are of intermediate values between 50 N and 70 N, the specific wear rate exhibits a lower value of about 1.2 × 10⁻⁵ mm³/Nm in comparison with low and high applied load values of 30 N and 100 N, where the W_s is about 2 × 10⁻⁵ mm³/Nm. This behavior should be attributed to the gap due to the debonding of the fiber at an intermediate applied load. The authors reported a significant influence of a high applied load on the friction coefficient of oil palm/polyester composite. With the increase of the applied load, the friction coefficient increased. A significant effect of the applied load on wear behavior is studied in [81]. On the same sample materials as in [51], Yousif and El-Tayeb reported a positive abrasive wear resistance with the increase in the applied load. They investigated three-body abrasive wear behavior under different operating parameters. However, due to debonding and pulling out the fibers caused by the negative adhesion properties of untreated oil palm fibers, the high applied load caused an increased wear rate.

Regarding the tribological behavior of polymer composites reinforced with natural fibers, such as the effects of fiber chemical treatments on it, several papers were published [36,51,75,81]. Using a block-on-ring configuration, Yousif and El-Tayeb [51] investigated the tribological behavior of alkali-treated (6% NaOH) and untreated oil palm/polyester composites. Under dry sliding contact conditions friction and wear tests were performed considering variable operating parameters. Due to the enhanced adhesion between the oil palm fibers and polyester resin, the treated oil palm/polyester composite reached a greater wear resistance of about 11% than the untreated composite samples tested under the same conditions. Moreover, in [81] the three-body abrasive wear was investigated using treated and untreated oil palm/polyester composites. A 6% NaOH solution was used to modify the oil palm fiber surface. Both treated and untreated composites showed better tribological properties than neat polyester, but, because of low-composite porosity, NaOH-treated samples provided lower abrasive wear rate than polyester reinforced with chemically untreated oil palm fibers.

3.4. Coir Fiber NFRCs

Obtained from the husk of the coconut palm tree, the coir fiber, the cheapest fiber in the world [53], is used for producing a wide variety of furniture materials, ropes, sacking, boats, and rugs [52]. Considering the coir fiber-based composites, the high lignin content of coir fibers causes good fiber water resistance, relatively waterproof and be chemically modified [82,83,84]. Good mechanical properties, such as elongation, allow tribological applications of composites reinforced with coir fibers [85]. Oriented in two different directions, parallel and normal to the sliding, in [86] brown and white coir fibers were investigated as a reinforcement of the epoxy matrix. The abrasive wear rate of the composites was considered. The authors reported the epoxy reinforced with normal-oriented coir fibers demonstrated increased wear resistance by about 5% in comparison with resin without fillers. To the best knowledge of the authors, no more relevant studies were found in the literature focusing on the influence of coir fiber orientations on the tribological performances of polymeric composite materials. To ensure better tribo-mechanical properties, materials, named hybrid composites, are of interest to both industry and academia. In [87], Kumar et al. used coconut coir, banana, and glass fibers as reinforcements of unsaturated polyester to investigate abrasive wear behavior under different operating parameters. Combining the fibers, four types of composite samples were made, coir/polyester, banana/polyester, coir/banana/polyester, and coir/banana/glass/polyester. With an applied load of 5–20 N, abrasive wear tests were conducted under dry contact conditions. It was reported that a higher wear rate of coir/polyester and banana/polyester occurs when the applied load increases than the other two sample types. This is due to improved composite strength caused by the presence of a hybrid combination.

Due to fast film transfer generated on the counterface, which causes the so-called back film transfer, at a higher applied load, the wear rate investigated in [88] showed better characteristics in comparison when the lower normal loads are applied. Ibrahem [89] reported that the coir fiber as a reinforcement in polyester resin behaves as a scratching tool on the contact area when increased an applied load from 4 N to 6 N, which affects the decrease of the friction coefficient from 0.75 to 0.55 and from 0.62 to 0.43, respectively.

Interfacial interaction improvement and roughening of the surface could be achieved by chemical treatment in the material preparation process. Employing two types of coir fibers (white and brown) as a reinforcement of epoxy resin and chemically treated with a 6% NaOH solution, Valášek et al. [86] reported a significant improvement of tensile strength while abrasive wear resistance was not affected by NaOH treatment. However, the composite prepared of coir fibers treated by ferric nitrate Fe(NO₃)₃ and ammonium chloride NH₄Cl salts and mixed with epoxy resin provided better abrasive wear resistance than pure epoxy composite at various sliding velocity and applied loads [90].

3.5. Friction and Wear Behavior of Natural Fiber-Based vs. Synthetic Fiber-Based Composites

Synthetic materials are widely used as fillers in various composites. Good mechanical properties, such as strength, stiffness, flexibility, and fire resistance, are some of advantages of the synthetic fibers and they are used as reinforcements to improve the tribological behavior of neat polymers [45,91,92,93,94,95]. However, the high cost and their impact on environmental pollution diminishes their advantage to be the leading fillers of polymer composites. To be environmentally friendly, to reduce the production cost, weight, and to improve the tribological properties, the synthetic fiber-based composites are being replaced by natural fiber composite materials. In recent years, the comparative analysis of the composite materials reinforced with natural and synthetic fibers, which can be found in

Table 4. Specific wear rate and friction coefficient of NFRCs and SFRCs under different operating parameters.

		Operating Parameters
Fiber	Matrix	Applied Load (N)	Sliding Velocity (m/s)	Sliding Distance (km)	Wear Rate (mm3/Nm × 10−⁵)	COF	Source
Kenaf	Epoxy	30–100	1.10–3.90	0–5	0.15–2	0.52–0.68	[30]
Oil palm	Polyester	30–100	1.70–3.90	0–5	35–60	0.60–0.92	[36]
Cotton	Polyester	20–80	2.22	4	0.10–6	0.60–1	[96]
Sugarcane	Polyester	20–80	2.50	4.50	5000–10,000	0.02–0.25	[45]
Glass	Polyester	30–100	2.80–3.90	0–14	0.20–0.60	0.40–0.60	[97]
Carbon	Polyethylene	4	1000–2500 1	–	–	≈0.16	[92]
Organoclay cloisite	Polyethylene	30	0.682	0.0682	≈8–10	≈0.09–0.11	[93]

¹ Sliding velocity unit is reported in [rpm].

, and their tribological behavior have been under investigation by many researchers [45,91].

To explore the tribo-potential of natural fibers as fillers of the thermoset polymers, in [49] is investigated adhesive wear resistance of sugarcane fiber/polyester composite (SCFP) and compared with glass fiber/polyester composite (GFP) samples. To be comparable, the tests were conducted under the same operating conditions. The strong variety in friction coefficient and wear rate was found, which depends on the fiber length into the composites. For the SCFP samples with 1, 5, and 10 mm fiber length it is reported that the wear rate decreased with the increasing length of fibers from 1 to 5 mm. Employing the 10 mm fiber length, the wear rate increased. The wear rate decreased by 20–50% and the friction coefficient reduced to the lowest level (0.015) at high applied load when employing the 5 mm fiber length. However, an increased wear rate of 40–70% was recorded when the fiber length was 10 mm.

In [91] the authors investigated the abrasive wear behavior of oil palm fiber/polyester composite (OPFP) in comparison with chopped strand mat glass fiber/polyester (CGFP). Against different grades of SiC abrasive paper (400, 1000, and 1500) the samples were tested at a rotation speed of 50–100 rpm and applied loads of 5–20 N for a 3 min duration. Better tribological behavior was shown by OPFP, while CGFP contributes better mechanical characteristics.

The superiority of NFRCs to synthetic fiber-based composites is proved in [36] where the epoxy is used as a resin reinforced with jute fibers and glass fibers. The erosion wear tests were conducted according to ASTM G76-07 under the operating parameters presented in

Table 5. Experimental conditions for the erosion test [36].

Operating Parameters
Erodent	Silica sand
Erodent size (µm)	200 ± 50
Erodent shape	Angular
Hardness of silica particles (HV)	1420 ± 50
Impingement angle (α°)	30, 45, 60, 90
Impact velocity (m/s)	48
Erodent feed rate (gm/min)	2 ± 0.5
Test temperature (°C)	27
Nozzle to sample distance (mm)	10

.

Taking into account the impingement angle, the authors concluded the jute/epoxy composite exhibited better weight loss resistance than glass/epoxy when the impingement angle was 90° and 30° for a brittle and ductile erosion, respectively. They reported the jute composites to provide the best erosion resistance of all the composites.

Table 6. Relevant tribological investigations of the NFRCs.

Publication	Fiber	Matrix	Method	Aim
C.W. Chin, B.F. Yousif (2009). Potential of kenaf fibres as reinforcement for tribological applications. Paper: Wear [30]	Kenaf	Liquid epoxy (DER 331)	A block-on-disk (BOD) configuration was used to study surface specimens (10 mm × 10 mm × 20 mm) against a stainless steel counterface. At applied load (30–100 N), sliding distance (0–5 km), at room temperature (28 °C) and at different sliding velocity (1.1–3.9 m/s) the tests were conducted.	Investigation on the wear and friction performances of the epoxy at different wt% of kenaf fiber at different fiber orientation.
Umar Nirmal, B.F. Yousif, Dirk Rilling, P.V. Brevern (2010). Effect of betelnut fibres treatment and contact conditions on adhesive wear and frictional performance of polyester composites. Paper: Wear [32]	Betelnut	Polyester	At a sliding speed of 2.8 m/s at a load of 5–200 N, using a block-on-disk configuration, the tests were conducted under dry and wet conditions at a sliding distance of 0–6.72 km. At a temperature of 40 °C for 24 h, after the test, all samples were dried in the oven.	The wear and friction performances under wet and dry contact conditions controlled by fiber orientation.
B.F. Yousif, E.N.S.M. Tayeb (2007). The effect of oil palm fibers as reinforcement on tribological performance of polyester composite. Paper: Surface Review and Letters [36]	Oil palm	Polyester	In ambient conditions, friction-wear tests were conducted with different experimental parameters. The sliding distances of 0–5 km, sliding speed of 1.7, 2.8, and 3.9 m/s, and applied loads of 30, 50, 70, and 100 N are set up. Oil palm/polyester composite was tested against polished stainless steel counterface using pin-on-disk configuration.	Influence of oil palm fibers within the polyester on friction and wear characteristics in comparison with neat polyester.
F.Z. Alshammari, K.H. Saleh, B.F. Yousif, A. Alajmi, A. Shalwan, J.G. Alotaibi (2018). The Influence of Fibre Orientation on Tribological Performance of Jute Fibre Reinforced Epoxy Composites Considering Different Mat Orientations. Paper: Tribology in Industry [44]	Jute	Epoxy	Considering three different fiber orientations with respect to sliding direction, the tests were conducted at 3 m/s sliding velocity with 30 N of applied load using block-on-ring (BOR) configuration for a sliding period of 60 min which is about 10 km sliding distance.	Analysis of the fiber orientation influence on frictional and wear performances of jute/epoxy composite.
Nor Amalina Nordin, Fauziah Md Yussof, Salmiah Kasolang, Zuraidah Salleh and Mohamad Ali Ahmad (2013). Wear Rate of Natural Fibre: Long Kenaf Composite; The Malaysian International Tribology Conference 2013 [56]	Kenaf	Epoxy and Polyester	At room temperature, the wear tests were conducted at a constant sliding speed of 1.4 m/s under dry conditions. An abrasion resistance tester (TR-600) is used with applied loads of 5–30 N.	Study of the specific wear rate behavior of kenaf/polyester and kenaf/epoxy composites.
Ashafi’e Mustafa, Mohd Fadzli Bin Abdollah, Fairuz Fazillah Shuhimi, Nurhidayah Ismail, Hilmi Amiruddin, Noritsugu Umehara (2015). Selection and verification of kenaf fibres as an alternative friction material using Weighted Decision Matrix method. Paper: Materials & Design [66]	Kenaf, jute, ramie	-	Weighted decision matrix (WDM) approach.	Verification of kenaf fiber as a suitable filler of composite in the automotive industry.
Vlastimil Matějka, Zhezhen Fu, Jana Kukutschová, Shicheng Qi, Shengling Jiang, Xiaoa Zhang, Rongping Yun, Miroslav Vaculík, Marie Heliová, Yafei Lu (2013). Jute fibers and powderized hazelnut shells as natural fillers in non-asbestos organic non-metallic friction composites. Paper: Materials & Design [74]	Jute fibers and hazelnut shells	Phenolic resin	Friction-wear chase test was performed based on SAEJ661 (Society of Automotive Engineers standard procedure).	Research on the non-asbestos organic friction composites filled by jute fibers and powdered hazelnut shells.
Petr Valášek, Alessandro Ruggiero, Miroslav Müller (2017). Experimental description of strength and tribological characteristic of EFB oil palm fibres/epoxy composites with technologically undemanding preparation. Paper: Composites Part B: Engineering [75]	Oil palm	Epoxy	Chemically treated and non-treated fibers are tested with two-body abrasion tests using a rotating cylindrical drum. The drum was covered with cloth of the P120 and Al203 grain size. The chemically treated fibers were soaked into a 6% solution of NaOH.	Study of the tribo-mechanical properties of treated and non-treated oil palm fibers with different experimental parameters.
Gupta, M K, Srivastava, R K (2016). Tribological and dynamic mechanical analysis of epoxy based hybrid sisal/jute composite. Paper: Indian Journal of Engineering and Materials Sciences [98]	Sisal and jute	Epoxy	Based on the ASTM G99-95 standard, a wear test is performed. With a normal load of 10–30 N, sliding speed of 1–3 m/s, using pin-on-disk configuration (ground hardened steel disk), with sliding distance 1000–3000 m, test has conducted.	Tribo-mechanical analysis considering alkali treatment of fibers.
Vijay Chaudhary, Pramendra Kumar Bajpai, Sachin Maheshwari (2018). An Investigation on Wear and Dynamic Mechanical behavior of Jute/Hemp/Flax Reinforced Composites and Its Hybrids for Tribological Applications. Paper: Fibers and Polymers [99]	Jute, hemp and flax	Epoxy	With a Pin-On-Disk tribometer wear test is conducted. The test conditions were set up on 1–5 m/s sliding speed, 10–50 N applied load and 1000–2000 m sliding distance.	Investigation on friction and wear improvement of natural fiber-reinforced composites in comparison to neat epoxy polymer.
A.M. Eleiche, G.M. Amin (1986). The effect of unidirectional cotton fibre reinforcement on the friction and wear characteristics of polyester. Paper: Wear [100]	Cotton	Polyester	At an ambient temperature of about 22 °C, the tests were performing with pin-on-disk configuration under dry conditions. The specimens were tested against stainless steel disk under a normal load of 50 N. Using the Lancaster method, computed velocity below and above the pressure-velocity limit of pure polyester, equivalent to 10 and 32 cm s−1 sliding speed.	Study of the wear rate and friction coefficient of cotton/polyester composite against stainless steel.
C.H. Chandra Rao, S. Madhusudan, G. Raghavendra, E. Venkateswara Rao (2012). Investigation in to Wear behavior of coir Fiber Reinforced Epoxy Composites with the Taguchi Method. Paper: International Journal of Engineering Research and Applications [101]	Coir	Epoxy	With a different running speed, the two-body abrasion wear tests were conducted using pin-on-disk configuration. The waterproof silicon carbide abrasive papers of 320 grit were used against polished samples with 32 mm length and 10 mm diameter.	Study of the wear resistance of treated and untreated coir dust/epoxy composites.

summarizes the relevant investigations on the tribological characteristics of the NFRCs found in the scientific literature.

4. Conclusions

To obtain suitable ecofriendly materials, in recent years, natural fiber-reinforced composites were considered as a valid alternative to classical synthetic fiber-based composites. To create them, many kinds of natural fibers should be used in different matrices, such as kenaf, jute, oil palm, coir, and many others plant fibers, animal fibers, or mineral fibers. Of course, using them in mechanical applications or in general in industry it is necessary to test them and to characterize their mechanical and tribological behavior. In particular, the tribological characterization of NFRCs represents a novel research field in which a relatively low number of papers are present in the literature. This manuscript intends, in the limitations of the lack in literature data, to give an overview of the scientific results on this topic, based on relevant and recent scientific literature, with the aim to give to the readers a framework of this scientific issues in which new insights should be detected. In particular, the authors focused on the influence of fiber orientation, fiber chemical treatments, and operative conditions (imposed loads and sliding velocities) on some NFRCs’ friction and wear behavior.

Moreover, results are discussed regarding the chemical treatments used to improve the frictional and wear characteristics of the investigated materials allowing to conclude, in the limitation of the considered NFRCs, better wear performances when chemical fiber treatment is used.

In general, the addition of natural fibers to polymer matrices improve the wear performances of NFRCs in comparison with the wear properties of neat polymer materials. As a general conclusion of this overview it should be reported that, even if a set of standardized tribological testing procedures for such kind of materials should be desirable, for immediate comparison of the experimental results obtained in the different investigations, to date, on the basis of literature, the tribo-mechanical characteristics of natural fibers and their composites have shown that some kinds of natural fibers have the potential to replace synthetic materials in the realization of fiber-reinforced composite materials. Of course, further investigations are required to complete the characterization of NFRCs by taking into account the possible combinations of matrices/natural fibers and percentage/orientation of fibers in the matrix. In particular, the key research gap for future investigations in the framework of tribology should be highlighted in the following main directions:

• Definition of suitable friction and wear measurement protocols accounting for the orientation of fibers in the matrix with respect to the sliding motion, characteristic of each adopted tribological test;
• Investigations on the effects of fiber treatment, fiber orientation, and fiber volume fraction, at various loads and temperatures, on tribological properties of NFRCs; and
• Tribological characterization of novel combinations of green matrix/fiber type both in dry and lubricated conditions.

However, theoretical and numerical investigations on the contact phenomena in NFRCs accounting for multi-scale approaches for the complete understanding and modelling of wear phenomena are mandatory.
