Experimental Measurements of Journal Bearing Friction Using Mineral, Synthetic, and Bio-Based Lubricants

Pantelis G. Nikolakopoulos
* and
Dimitrios A. Bompos
Machine Design Laboratory, Mechanical Engineering and Aeronautics Department, University of Patras, Patras 26504, Greece
Author to whom correspondence should be addressed.
Lubricants 2015, 3(2), 155-163;
Submission received: 24 November 2014 / Revised: 17 February 2015 / Accepted: 25 February 2015 / Published: 3 April 2015
(This article belongs to the Special Issue Friction and Lubrication of Bearings)


The environmental impact of many industrial and naval applications is becoming increasingly important. Journal bearings are crucial components related with the reliable, safe and environmentally friendly operation of rotating machinery in many applications, e.g., in hydroplants, ships, power generation stations. The maintenance activities in certain cases also have considerable environmental impact. Fortunately, it is relatively easy to reduce the impact by changing the way lubricants are being used. Selecting the proper lubricant is important to sharply reduce long-term costs. The best-fit product selection can mean longer lubricant life, reduced machine wear, reduced incipient power losses and improved safety. Suitable basestocks and additives reduce environmental impact. In this paper, three types of lubricants are used in order to examine their effects on the tribological behavior of journal bearings. A mineral oil, a synthetic oil and a bio-based lubricant are experimentally and analytically examined for several configurations of load and journal rotational velocity. The friction forces and the hydrodynamic friction coefficients are calculated and compared. This investigation can assist the correct choice of lubricant in journal bearings with minimized environmental footprint.

Graphical Abstract

1. Introduction

Nowadays, environmental issues are of great importance. Current lubricants are formulated from mineral oil and frequently different types of additives are used that are not environmentally friendly [1], and their production process produces some environmentally hazardous chemical components. Therefore, the scientific world is now looking for alternative lubricants that are more environmentally friendly. Some bio-based lubricants have attracted attention due to their good friction and wear characteristics. On the other side, ecotribology deals with energy consumption minimization as well as environmental effects of the specific lubricant that will be used to minimize energy consumption [2]. Additives in commercial lube oils contain sulfur and phosphorous-based components, which are dangerous to the environment.
Therefore, research has been done in order to produce mixed molybdenum-based sulfur-free and phosphorus-free additives for use in a commercial lubricant [3].
There has been an enormous amount of research conducted on using vegetable oil as a lubricant [4,5,6,7]. Vegetable oil has a positive impact in use as a lubricant and has high viscosity index, a high flash point, high biodegradability, and a reduced friction coefficient.
In addition, the fluctuations and uncertainty in the crude oil market, increasing crude oil prices, and issues related to environment make bio-based lubricants more valuable. However, vegetable oil has some drawbacks, such as low oxidation stability, low thermal stability, and a comparatively high wear rate. Bowden and Tabor [8] stated that the wear rate is high due to chemical attack on the surface by the fatty acids present in bio-based lubricants. Biodegradability is the main concern in ecotribology, because 40% of the lubricant can be lost to the environment [9].
Various techniques have been carried out to overcome the potential problems produced by vegetable oil, such as blending with other diluents such as polyalphaolefin [10,11] and oleates; chemical modification such as esterification and transesterification [5].
While the problem of torque measurement has been extensively examined in the case of hydrodynamic bearings [12,13,14] the case of journal bearings using biolubricants has not been yet covered. Furthermore less work has been done in the use of environmental lubricants in the tribology of machine elements and few are the comparisons between the mineral, synthetic and bio-based lubricants.
The experimental work presented here is divided into three sections. In the pretest section, a comparison of bulk properties such as density and viscosity of different lubricant base oils is presented. In the tribological test section, the performance of these lubricants was evaluated in a journal bearing apparatus at 21 °C–32 °C. In the last section, the main conclusions are summarized and discussed.

2. Experimental Setup

A journal bearing system (see Figure 1), with rotor and bearing diameters D = 52.9 mm and D = 53.1 mm respectively and radial clearance C = 150 μm was used in order to test the prepared mixture. The bearing length was 30 mm. The rotor could be rotated from 0 to 2590 rounds per minute (rpm) driven by a 5 hp AC electric motor with mechanically variable belt transmission. The lubricants are pumped to the journal bearing by a gear oil pump. The bearing is made of bronze and is loaded with a static load (W) using the mechanism shown in Figure 1.

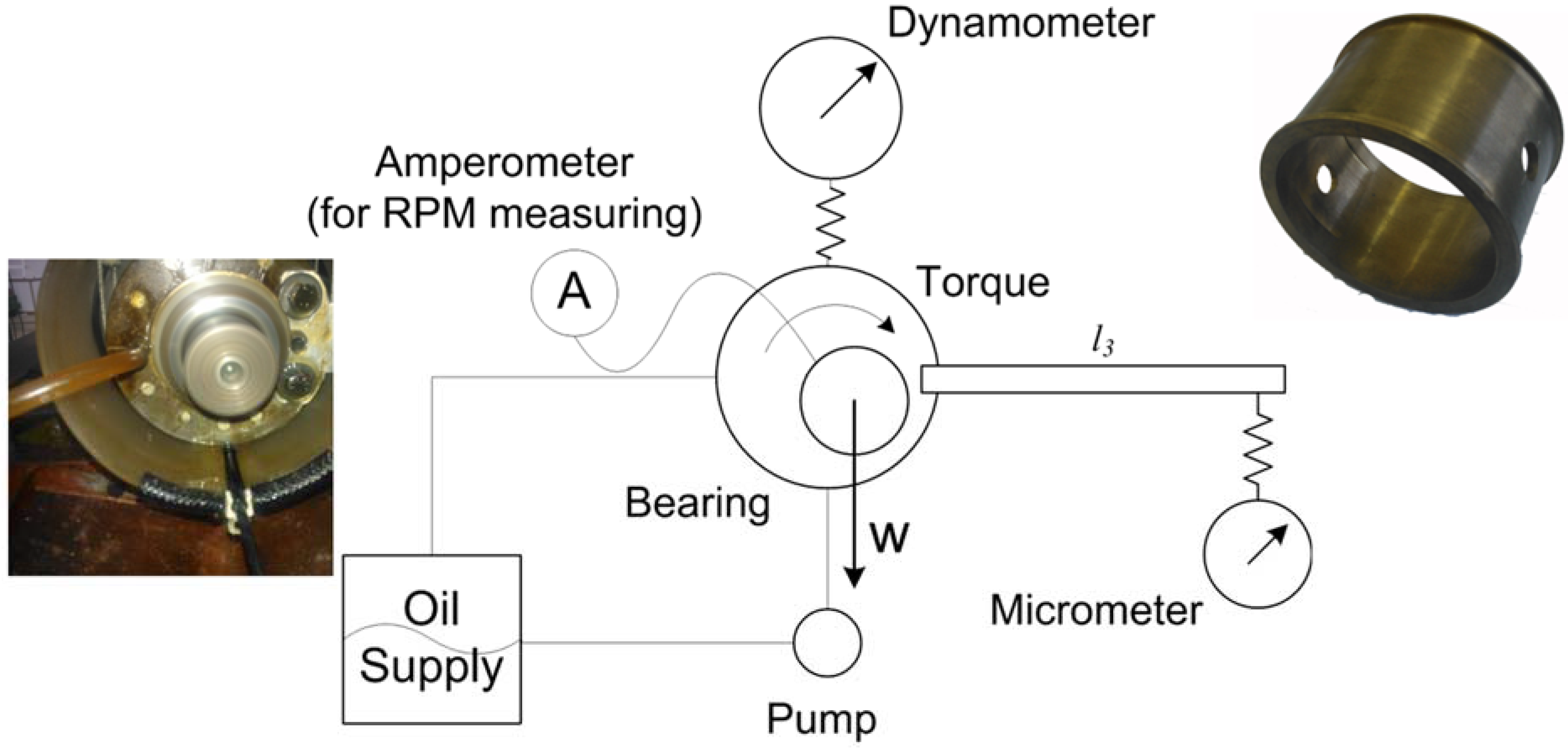

Figure 1. The experimental setup.
Figure 1. The experimental setup.
Lubricants 03 00155 g001
For the purposes of the experiments three different lubricants were used. One AWS 100 biolubricant, an SAE-10W40 synthetic oil and an SAE-30 lubricant. The temperatures of operation in all cases were between 32 °C and 21 °C. The properties of the lubricants used are listed in Table 1.
The biolubricant complies with DIN 51524 part 2 and 3, while the SAE-10W40 complies with API SL/CF, ACEA A3-02B, B4-04, B3-03.
Table 1. The properties of the lubricants used in the experiments.
Table 1. The properties of the lubricants used in the experiments.
Density (kg/m3) @40 C850865878
Viscosity (Pa s) @40 C0.0850.0790.075
Flash Point (°C)220230229

3. Friction Evaluation

The efficiency of the bearing may be determined by the amount of friction it produces and the load it can sustain. The coefficient of friction is the ratio of the friction force between the journal and the bearing. Lower coefficient of friction means less friction, which contributes to higher efficiency. In order to evaluate how the efficiency of the bearing is affected by the lubricant, the friction coefficient is described as a function of the journal velocity and the mean pressure on the bearing. The friction, as seen in Figure 1 creates a measurable amount of torque. This torque is given by
T = F l 3
where l 3 in our case is the length of the bracket that connects the bushing with the spring and F is the amount of force measured on the spring with the micrometer. The frictional force F f then is:
F f = F l 3 R b
where Rb is the bearing radius. With the load known the friction coefficient f can then be calculated as:
f = F f W
while the mean pressure P m on the bushing is calculated as follows:
P m = W 2 R b L
where L is the bearing length.

4. Measurements

The results of the experiments for the friction coefficient as a function of the developed pressure in the bearing shows significant differences between the three lubricants used in these experiments. The friction produced when the biolubricant is used is shown in Figure 2 as a function of the mean pressure on the bearing.

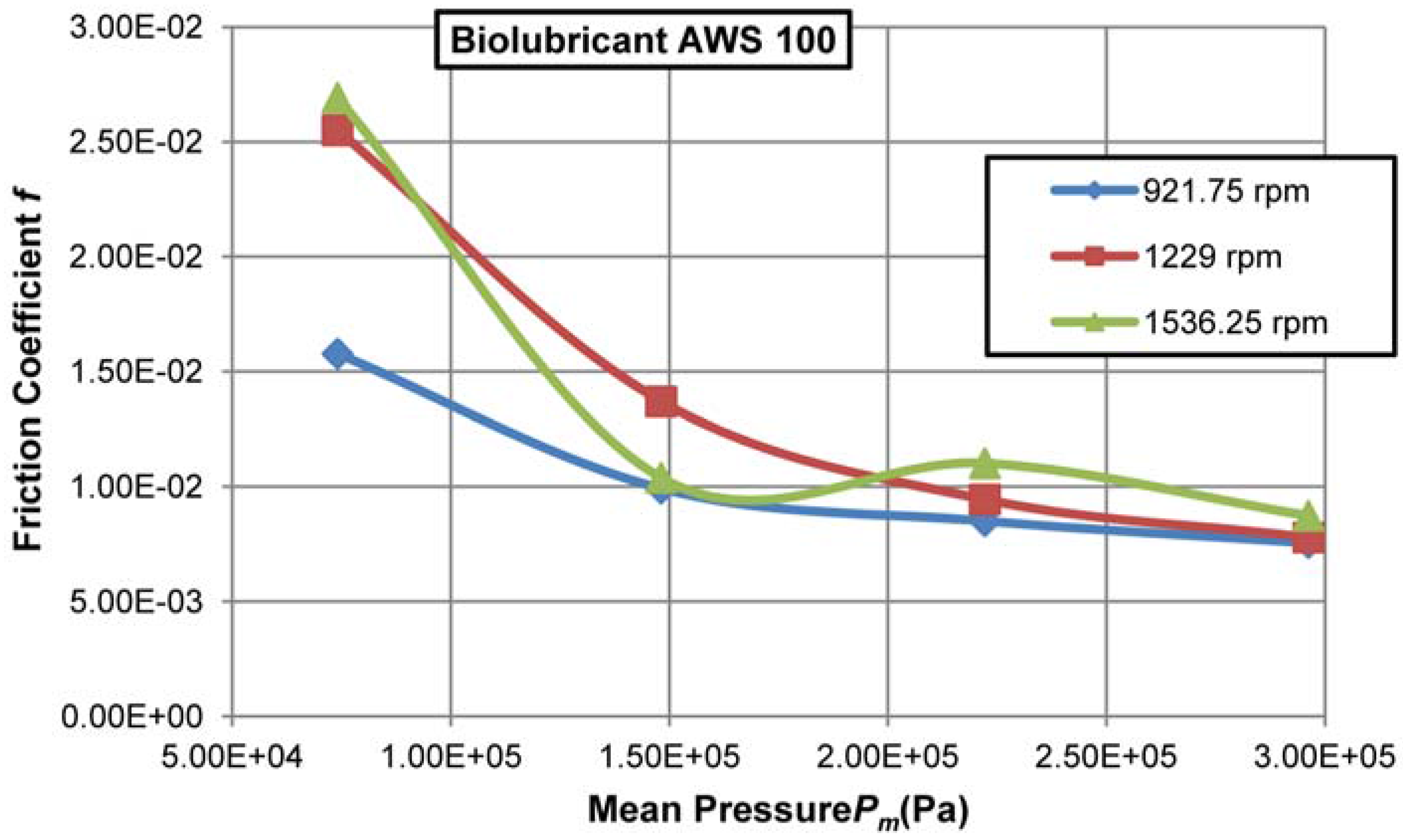

Figure 2. The friction coefficient as a function of mean pressure on the bearing in the biolubricant case for 921, 1229 and 1536 rpm.
Figure 2. The friction coefficient as a function of mean pressure on the bearing in the biolubricant case for 921, 1229 and 1536 rpm.
Lubricants 03 00155 g002
It is evident that the friction coefficient drops at higher values of mean pressure, i.e., in higher loads. Considering the effect of the rotational velocity on the produced friction, the three cases examined show some differentiation especially between 921 and 1229 rpm. The most effective case is found at 921 rpm with the maximum applied load on the bearing. The role of the journal velocity is more pronounced in lower loads where an increase of 41% is observed in the higher speed setting.
In the case of the SAE-10W40 there is improvement of the measured friction coefficient as shown in Figure 3. The most pronounced difference between the three cases of rotational velocity values is seen between the 1536 and 1229 rpm. In the latter case the friction coefficient is increased. This observation can be attributed to the role of additives in this specific lubricant as well as the specific geometrical conditions of the bearing. The most pronounced difference is found at the lower load region. The change of viscosity under the influence of temperature is the most probable cause of changes in the behavior of the lubricant. The temperature was monitored and did not exhibit significant rise in the duration of the experiment with a maximum value of 32 °C. Also, some artifact points due to false reading in the measurements procedure could appear. Laboratory experimentation remains the only practical method available for the accurate identification of friction coefficients for arbitrary material pairs. However, accurate and repeatable friction coefficient measurement remains challenging due to the dependence of friction coefficients on the material, surface, environment, and measuring equipment. When reporting friction coefficients, as with any measured quantity, it is also necessary to provide a quantitative statement regarding the quality of the reported value so that those who need to use the data can have an indication of its reliability. The dispersion of values that could reasonably be attributed to the measurement uncertainty [15] can be calculated as follows:
u c ( y ) = i = 1 N ( f x i ) 2 u 2 ( x i ) + 2 i = 1 N 1 j = i + 1 N f x i f x j u ( x i , x j )
where u c ( y ) is the combined standard uncertainty of output estimate, u 2 ( x i ) is the estimated variance associated with input estimate xi that estimates input quantity x i , u ( x i , x j ) is the estimated covariance associated with two input estimates xi and x j that estimate input quantities x i , x j and f x i is the partial derivative with respect to input quantity x i of functional relationship f between measurement y and input quantities x i on which y depends.

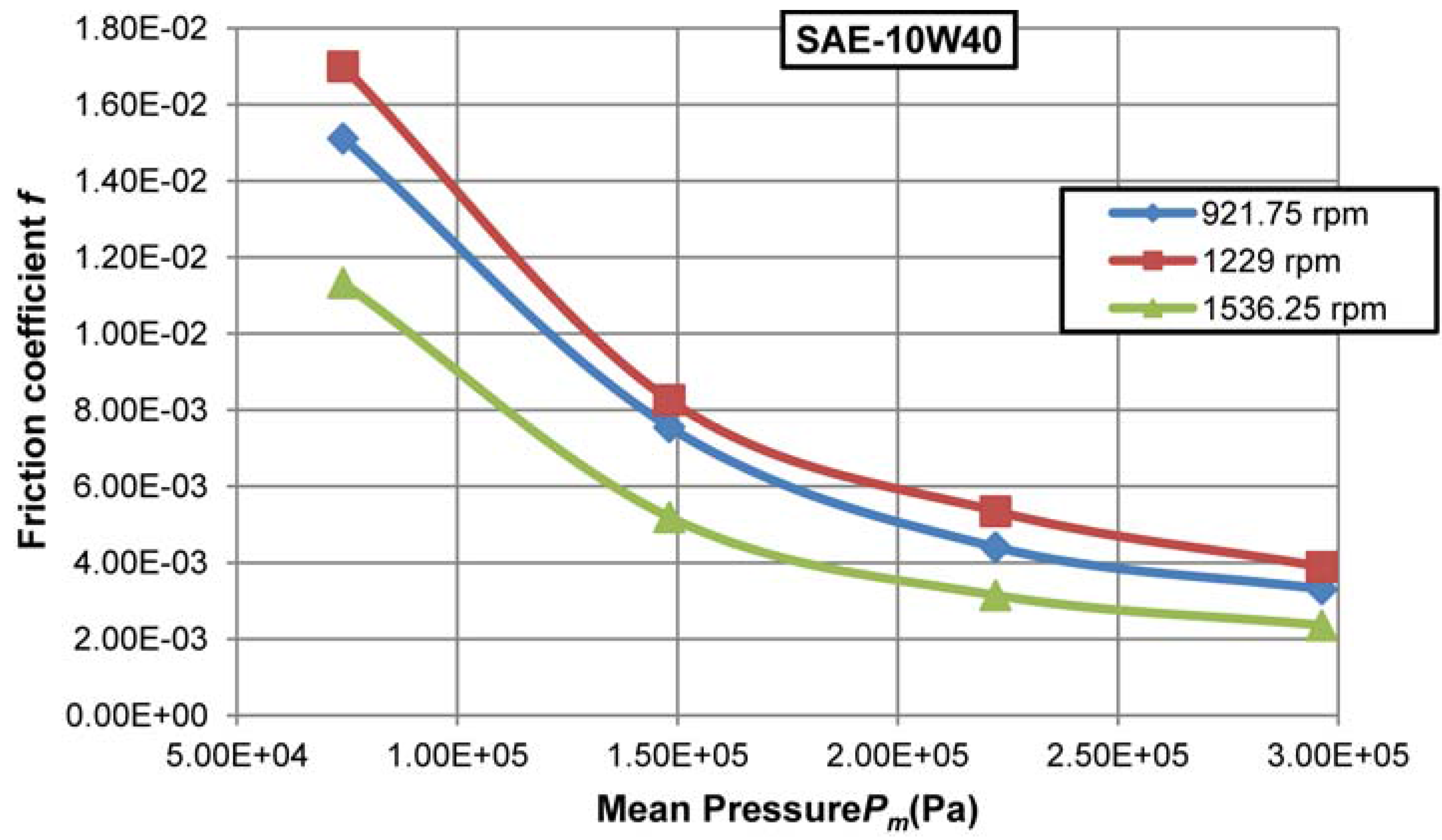

Figure 3. The friction coefficient as a function of mean pressure on the bearing in the case of synthetic oil SAE-10W40 for 921, 1229 and 1536 rpm.
Figure 3. The friction coefficient as a function of mean pressure on the bearing in the case of synthetic oil SAE-10W40 for 921, 1229 and 1536 rpm.
Lubricants 03 00155 g003
In Figure 4 the friction coefficient behavior for different loads on the bearing is depicted in the case of the SAE-30 lubricant. The main effect of rotational velocity on the friction coefficient is less pronounced in this case. The best performance is achieved in the higher load region where the friction coefficient is identical for the three cases of rotational velocity examined. The effect of the rotational velocity is seen in the case of lower load where a difference of 15% is observed between the cases of 1229 and 1536 rpm.

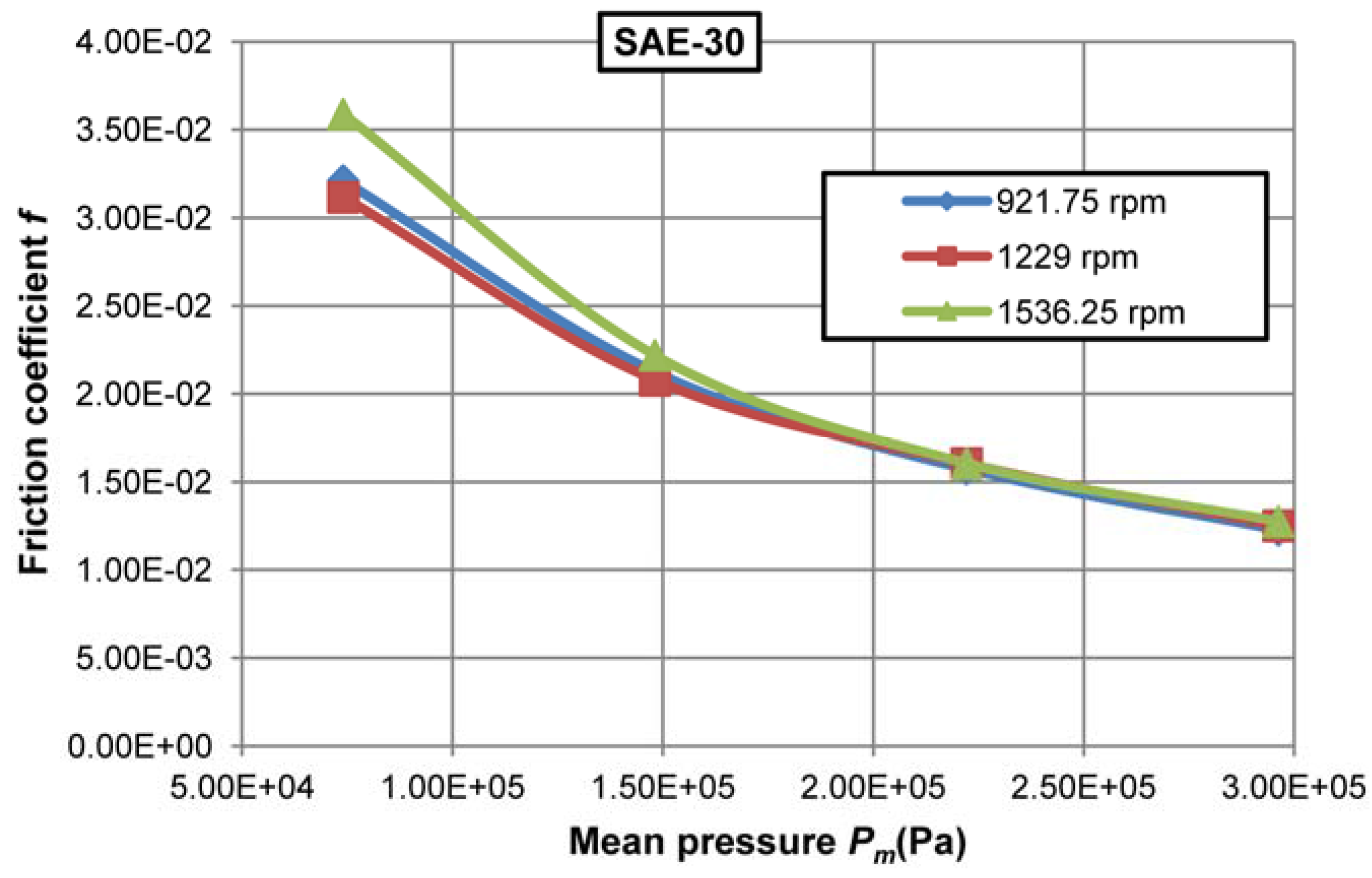

Figure 4. The friction coefficient as a function of mean pressure on the bearing in the case of SAE-30 for 921, 1229 and 1536 rpm.
Figure 4. The friction coefficient as a function of mean pressure on the bearing in the case of SAE-30 for 921, 1229 and 1536 rpm.
Lubricants 03 00155 g004
A comparison of the efficiency achieved by the three lubricants is attempted in Figure 5 where the friction coefficient of the three lubricants is compared for a rotational velocity of 921.75 rpm. It is evident that the synthetic SAE-10W40 offers the best performance in all examined cases but the biolubricant offers considerable improvement. For instance, in the case of W = 117.29 Nt the biolubricant exhibits a 50% decrease of the friction coefficient in comparison to the friction coefficient achieved when SAE-30 is used.

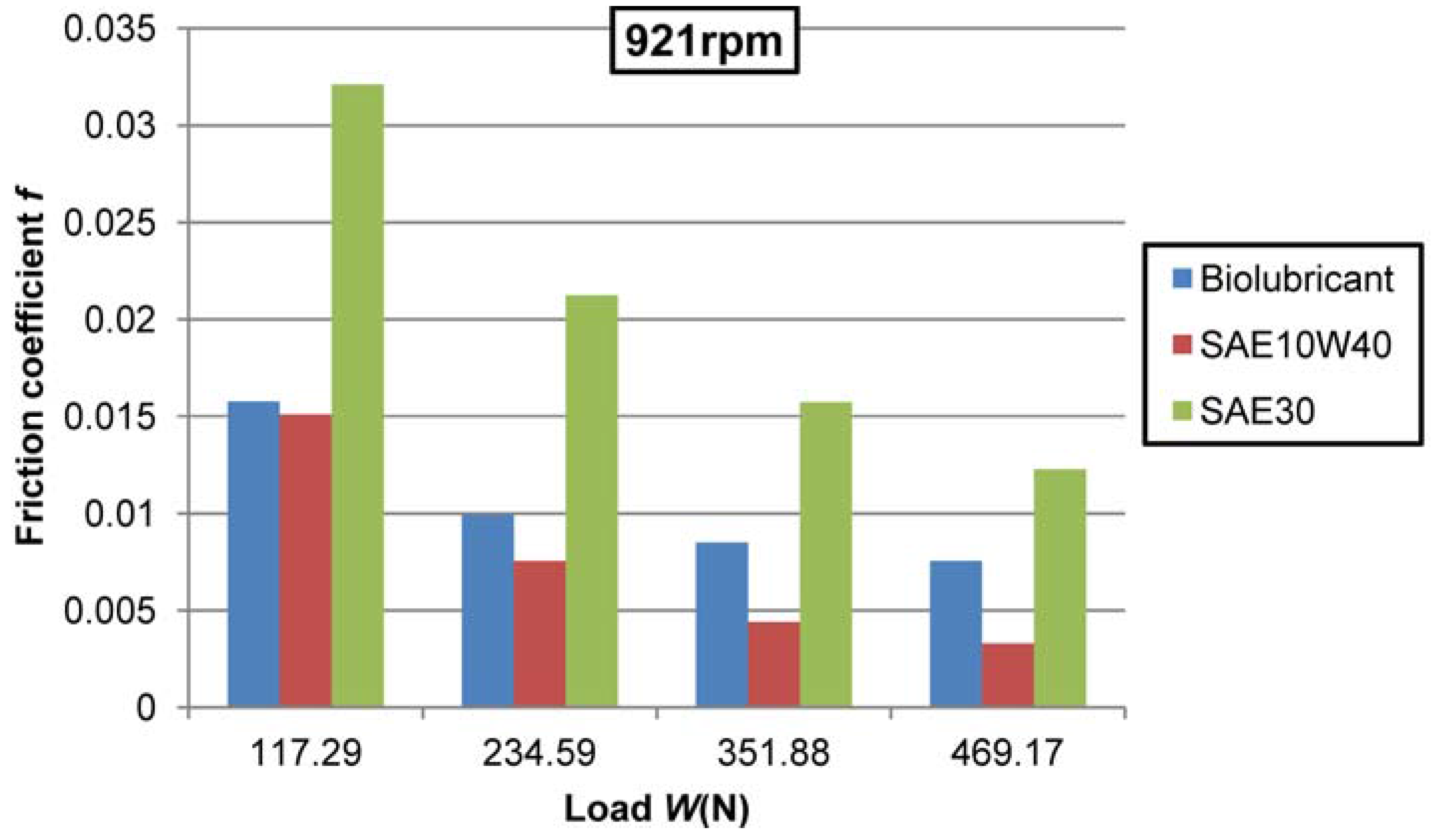

Figure 5. The friction coefficient for 921 rpm in all three cases of lubricants.
Figure 5. The friction coefficient for 921 rpm in all three cases of lubricants.
Lubricants 03 00155 g005
The same trend appears in the way torque varies with the applied load. In Figure 6 the friction torque measured is presented for journal rotational velocity of 921 rpm. The highest torque is generated by the SAE-30 lubricant in all loads.

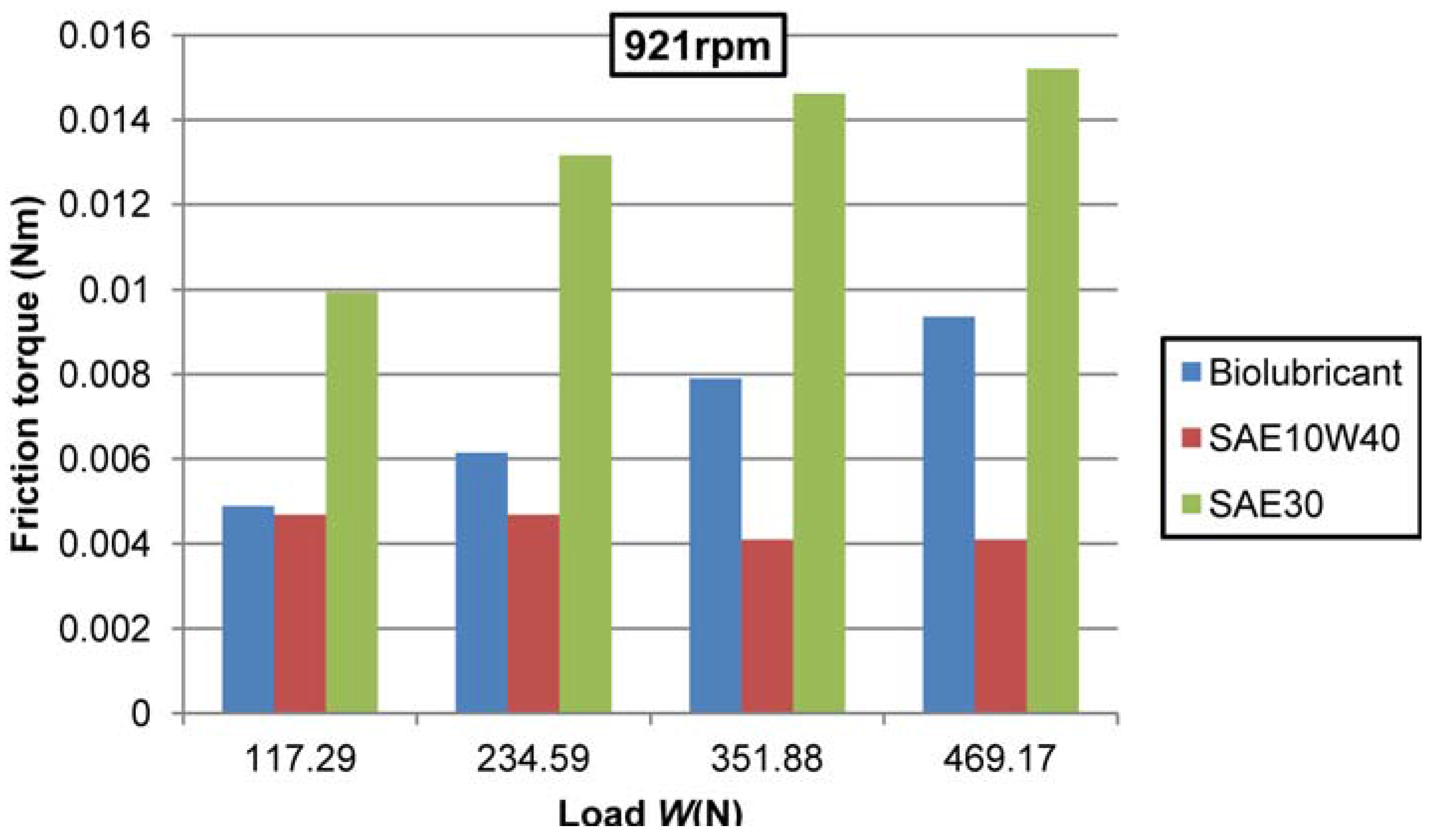

Figure 6. Friction torque comparison at 921 rpm.
Figure 6. Friction torque comparison at 921 rpm.
Lubricants 03 00155 g006
The effect of journal velocity is less pronounced than that of the load in all three cases of lubricant used. In Figure 7 the friction coefficient is presented for W = 351.8 Nt for all three lubricants.

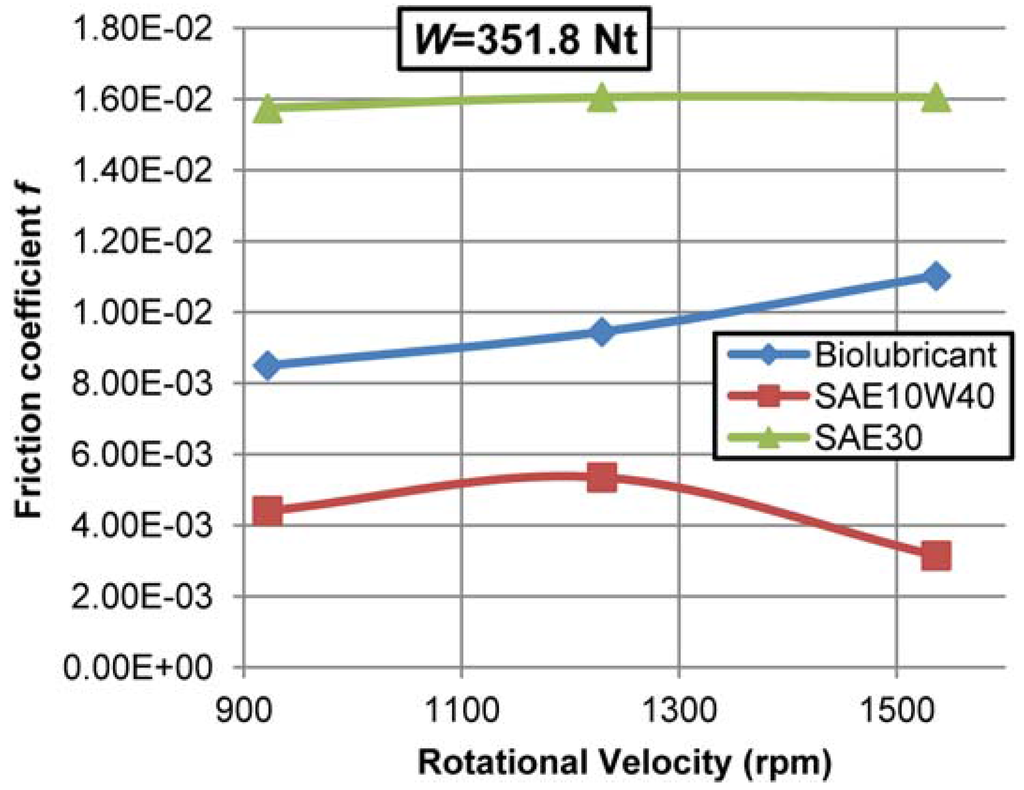

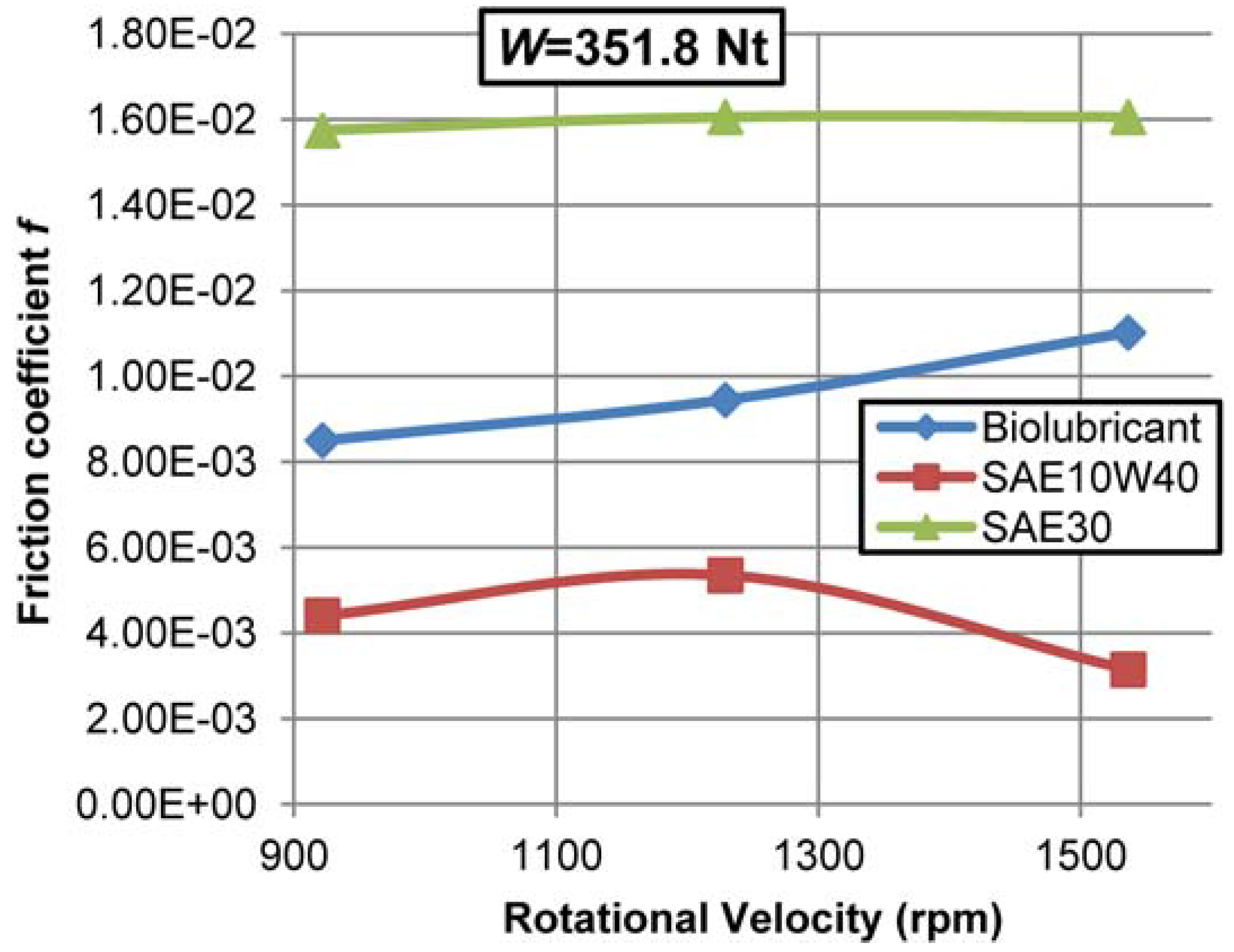

Figure 7. The friction coefficient of the bearing for a load of 351.8 Nt.
Figure 7. The friction coefficient of the bearing for a load of 351.8 Nt.
Lubricants 03 00155 g007
As seen in Figure 7 the rotational velocity of the journal does not seem to change the friction coefficient for the specific load in all three cases of lubricant used in the experiments. The most efficient lubricant is the SAE-10W40 followed by the biolubricant. The smaller difference between the biolubricant and the SAE-10W40 is observed in the case of 921 rpm where the friction coefficient of the biolubricant is 92% higher. The SAE-30 seems to be the least efficient of all three lubricants examined.

5. Conclusions

The use of the synthetic lubricant yields the best possible performance among the three lubricants examined in this work. These benefits in terms of friction coefficient are significant, such as in the case of 1536 rpm and 351.8 Nt where the friction coefficient presents a fourfold decrease. The biolubricant also exhibits a decrease of the friction coefficient in comparison to the SAE-30 oil. The performance benefits though for both the synthetic SAE-10W40 and the ISO AWS-100 biolubricant depend on the specific operating conditions of the journal bearing. Additionally the effect of temperature on the performance of the biolubricant may prove to be significant.


This work was supported by Grant Ε039 from the Research Committee of the University of Patras (Programme K. Karatheodori).

Author Contributions

The experiments were conceived, designed and performed by Pantelis G. Nikolakopoulos. The experimental data processing was done by Dimitrios A. Bompos.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Cisson, M.C.; Rausina, G.A.; Stonebraker, P.M. Human health and environmental hazard characterisation of lubricating oil additives. Lubr. Sci. 1996, 8, 145–177. [Google Scholar] [CrossRef]
  2. Bartz, W.J. Ecotribology: Environmentally acceptable tribological practices. Tribol. Int. 2006, 39, 728–733. [Google Scholar] [CrossRef]
  3. Yan, L.; Yue, W.; Wang, C.; Wei, D.; Xu, B. Comparing tribological behaviors of sulfur-and phosphorus-free organomolybdenum additive with ZDDP and MoDTC. Tribol. Int. 2012, 53, 150–158. [Google Scholar] [CrossRef]
  4. Garcés Mancheño, R.; Martínez-Force, E.; Salas, J.J. Vegetable oil basestocks for lubricants. Grasas Aceites 2011, 62, 21–28. [Google Scholar] [CrossRef] [Green Version]
  5. Salih, N.; Salimon, J.; Yousif, E. The physicochemical and tribological properties of oleic acid based triester biolubricants. Ind. Crops Prod. 2011, 34, 1089–1096. [Google Scholar] [CrossRef]
  6. Syahrullail, S.; Zubil, B.; Azwadi, C.; Ridzuan, M. Experimental evaluation of palm oil as lubricant in cold forward extrusion process. Int. J. Mech. Sci. 2011, 53, 549–555. [Google Scholar] [CrossRef]
  7. Arumugam, S.; Sriram, G. Effect of bio-lubricant and biodiesel-contaminated lubricant on tribological behavior of cylinder Liner-Piston ring combination. Tribol. Trans. 2012, 55, 438–445. [Google Scholar] [CrossRef]
  8. Bowden, F.; Tabor, D. The Friction and Lubrication of Solids’; Oxford University Press: London, UK, 2001. [Google Scholar]
  9. Castro, W.; Perez, J.M.; Erhan, S.Z.; Caputo, F. A study of the oxidation and wear properties of vegetable oils: Soybean oil without additives. J. Am. Oil Chem. Soc. 2006, 83, 47–52. [Google Scholar] [CrossRef]
  10. Suzuki, A.; Ulfiati, R.; Masuko, M. Evaluation of antioxidants in rapeseed oils for railway application. Tribol. Int. 2009, 42, 987–994. [Google Scholar] [CrossRef]
  11. Odi-Owei, S. Tribological properties of some vegetable oils and fats. Lubr. Eng. 1989, 45, 685–690. [Google Scholar]
  12. Bouyer, J.; Fillon, M. Behaviour of a hydrodynamic journal bearing: Torque measurement during start-up. In Presented at 10th International Conference of Tribology, Bucharest, Romania, 8–10 November 2007.
  13. Bouyer, J.; Fillon, M. Experimental measurement of the friction torque on hydrodynamic plain journal bearings during start-up. Tribol. Int. 2011, 44, 772–781. [Google Scholar] [CrossRef]
  14. Adatepe, H.; Bıyıklıoglu, A.; Sofuoglu, H. An experimental investigation on frictional behavior of statically loaded micro-grooved journal bearing. Tribol. Int. 2011, 44, 1942–1948. [Google Scholar] [CrossRef]
  15. Bipm, I.; IFCC, I.; IUPAC, O.; OIML, I. Guide to the Expression of Uncertainty in Measurement; ISO: Geneva, Switzerland, 1993. [Google Scholar]
