# Rough Surface Contact Modelling—A Review

## Abstract

**:**

## 1. Introduction

^{2/3}, where W is the applied load. However, in practice, a rough surface has a distribution of asperity heights, and a more detailed analysis by Greenwood and Williamson [17] of rough, non-adhering surfaces as a collection of asperities of varying height, with spherical tips, deforming elastically, found a linear relationship between the real contact area and load. This initial analysis by Greenwood and Williamson has since been refined and extended by many other researchers [18,19,20,21,22,23,24,25,26,27]. The analysis of Greenwood and Williamson [17] was substantially aided by earlier useful insights from Archard and others [28,29,30,31,32,33]. In particular, in reference [30], Archard showed that if there is one level of “protuberances”, of radius R

_{2}, superimposed on a spherical tip of radius R

_{1}(with R

_{2}<< R

_{1}), then elastic deformation leads to the real area of contact being proportional to W

^{8/9}(and that if a further level of “protuberances” are added, of radius R

_{3}, with R

_{3}<< R

_{2}, then the real contact area is proportional to W

^{26/27}). Archard’s work [30] showed that the real area of contact can be almost proportional to the load even when there is elastic contact only, for multi-asperity contact. It should also be mentioned that Archard’s concept of protuberances on protuberances on protuberances clearly has a link to fractals, where multiple length scales are important, but at the time of Archard’s work, fractals were not yet known about, as they were only introduced in the 1970s [34]. The consensus of these various studies is that, in the elastic contact case, the real contact area is approximately proportional to the applied load, and therefore Amontons’ first law of friction follows. Persson [8] has reported that the real contact area is also approximately proportional to the applied load even when there is adhesive interaction between surfaces.

## 2. The Friction and Load Carrying Capacity of Lubricated Rough-Surface Contact

_{TOTAL}, this can be split between the load carried by the asperities W

_{asp}and the load carried by the fluid film W

_{fluid}as:

_{TOTAL}, of the contact can be written as

_{asp}is the friction coefficient of the asperities (i.e., when λ = 0) and μ

_{fluid}is the friction coefficient of the fluid (i.e., when λ > 3). The friction coefficient, f, of the contact can then be written as f = F

_{TOTAL}/W

_{TOTAL}, which is equal to

_{asp}/W

_{TOTAL}, which can be regarded as the proportion of mixed/boundary lubrication. Clearly, it is expected that X = 1 when λ = 0 and X is approximately zero when λ > 3. It is of great interest, for the modelling of mixed/boundary friction, to know how X varies with λ, and it is also of experimental interest to measure this variation.

^{−2}.

## 3. The Statistics of Rough Surfaces

_{o}, m

_{2}, and m

_{4}, where m

_{o}is related to the RMS roughness of the surface (σ), m

_{2}is related to the RMS surface gradient, and m

_{4}is related to the RMS radius of the curvature of the rough peaks.

_{o}(the RMS roughness), m

_{2}(the RMS surface slope) and m

_{4}(the RMS of the radius of the curvature of the asperities). As the size of the measuring stylus decreases, the curvature of the asperities, and their slope, increase (i.e., the asperity radius of the curvature decreases) although the RMS roughness stays relatively constant [57].

_{o}is a constant. If β = 0, then C(β) = σ

^{2}as required.

^{2}for a wide range of surfaces spanning length scales differing by eight orders of magnitude. The factor β

_{o}that appears in the equations above can be regarded as the length scale of the measurement stylus, and so the values of m

_{o}, m

_{2}and m

_{4}will vary depending on the value of β

_{o}. It could be argued that in calculating the moments of the spectral density, rather than integrating between 0 and ∞, one should instead integrate between 2π/L

_{1}and 2π/L

_{2}, where L

_{1}is the size of the sample (typically a few mm) and L

_{2}is the size of the stylus (typically a few μm). It should be pointed out that the higher moments of the spectral density function do not exist for the spectral density function of Equation (9) (if the integral limits are 0 and ∞). The relationships between m

_{o}, m

_{2}, m

_{4}and the spectral density function are

## 4. Rough-Surface contact Models

#### 4.1. Bowden and Tabor’s Model

^{2}). If a critical shear stress, τ

_{s}, was needed to shear the asperity junctions, then the frictional force would be (τ

_{s}W/H), and so friction is proportional to normal load. A useful retrospective look-back at this work was published by Tabor in 1996 [64].

#### 4.2. Archard’s Work

_{1}, contacting a smooth surface under a load W, there will be a single circular area, A

_{1}, of radius b, where

_{1}) was covered in smaller asperities, the radii of which were R

_{2}(where R

_{2}<< R

_{1}), which were evenly distributed over the larger asperity with a number m per unit area. The annulus load above was assumed to be unchanged, with the load δW supported by q “protuberances” (with q = 2πrmδr) and that the load w

_{2}on each one being given by

_{2}of each of these contacts is

_{2}is the constant of proportionality appropriate to a sphere of radius R

_{2}, and the area of contact within the annulus is qa

_{2}, such that the total contact area, A

_{2}, is

^{8/9}, whilst the area of a single asperity is proportional to W

^{2/3}. Archard [30] showed in the same paper, using a similar analysis to that above, that the addition of a third level of asperities (with radius R

_{3}, where R

_{3}<< R

_{2}<< R

_{1}) results in a total contact area that is proportional to W

^{26/27}.

#### 4.3. The Greenwood–Williamson and Greenwood–Tripp Models

^{1/2}, and the Hertzian load, P, is P = 4E*R

^{1/2}δ

^{3/2}/3 (where E* is the effective combined elastic modulus of the surfaces). Therefore, the total (real) contact area, A

_{r}, is given by:

_{r}) is directly proportional to the load (P), and in addition, the number of contact points (N) is also directly proportional to the load. Greenwood and Williamson [17] pointed out that an exponential distribution of summit heights is a good approximation to a Gaussian distribution for the important range from z = σ to z = 3σ.

_{n}(λ) for the case where 2n is an integer (which applies to the interesting cases of n = 3/2 and n = 5/2):

#### 4.4. Bush, Gibson, Thomas Model

_{o}, m

_{2}and m

_{4}in their work, and found a linear relationship between the load and the real contact area. They also found that the real contact area, A

_{r}, was related to λ by

#### 4.5. Models Due to Persson

_{o}is a constant. Persson [75] commented that earlier theories, based on elastic contact, predicted that p(u)~u

^{−a}exp(−bu

^{2}), where a = 1 for the Bush, Gibson and Thomas model [19], and a = 5/2 for the Greenwood and Williamson model [17]. Persson [75] also stated that the functional variation of pressure with the separation of Equation (34) was in better agreement with experimental data than the variation of pressure with separation from the Greenwood and Williamson [17] or Bush, Gibson and Thomas [19] models. It should be mentioned that Persson’s models [22,23,75] are not thought to be widely used by the average tribologist for the calculation of mixed/boundary friction, as they are generally seen as being difficult to apply, and no simple equations are available for the prediction of the variation of the real contact area and load carried as a function of surface separation (such a relationship is most likely the reason why the Greenwood and Williamson [17] and Greenwood and Tripp [21] models are still so widely used).

#### 4.6. Recent Work on Rough-Surface Contact Models

## 5. The Impact of Lubricant Additives

_{2}, graphite, glycerol mono-oleate, and oleyl amide are well-known examples.

## 6. Experimental Data on Rough-Surface Friction

_{o}was the friction coefficient measured at λ = 0, and f

_{EHD}was the friction coefficient measured at large values of λ, then the value of X was defined to be (f − f

_{EHD})/(f

_{o}− f

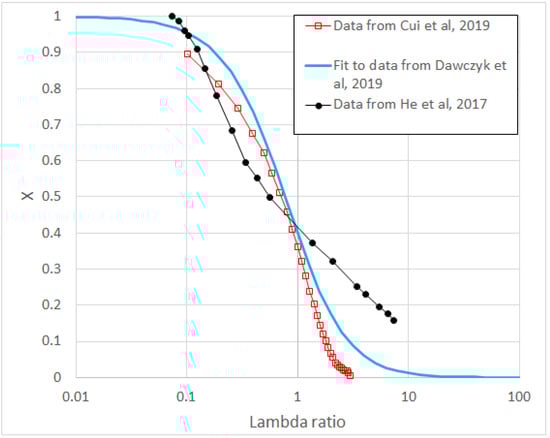

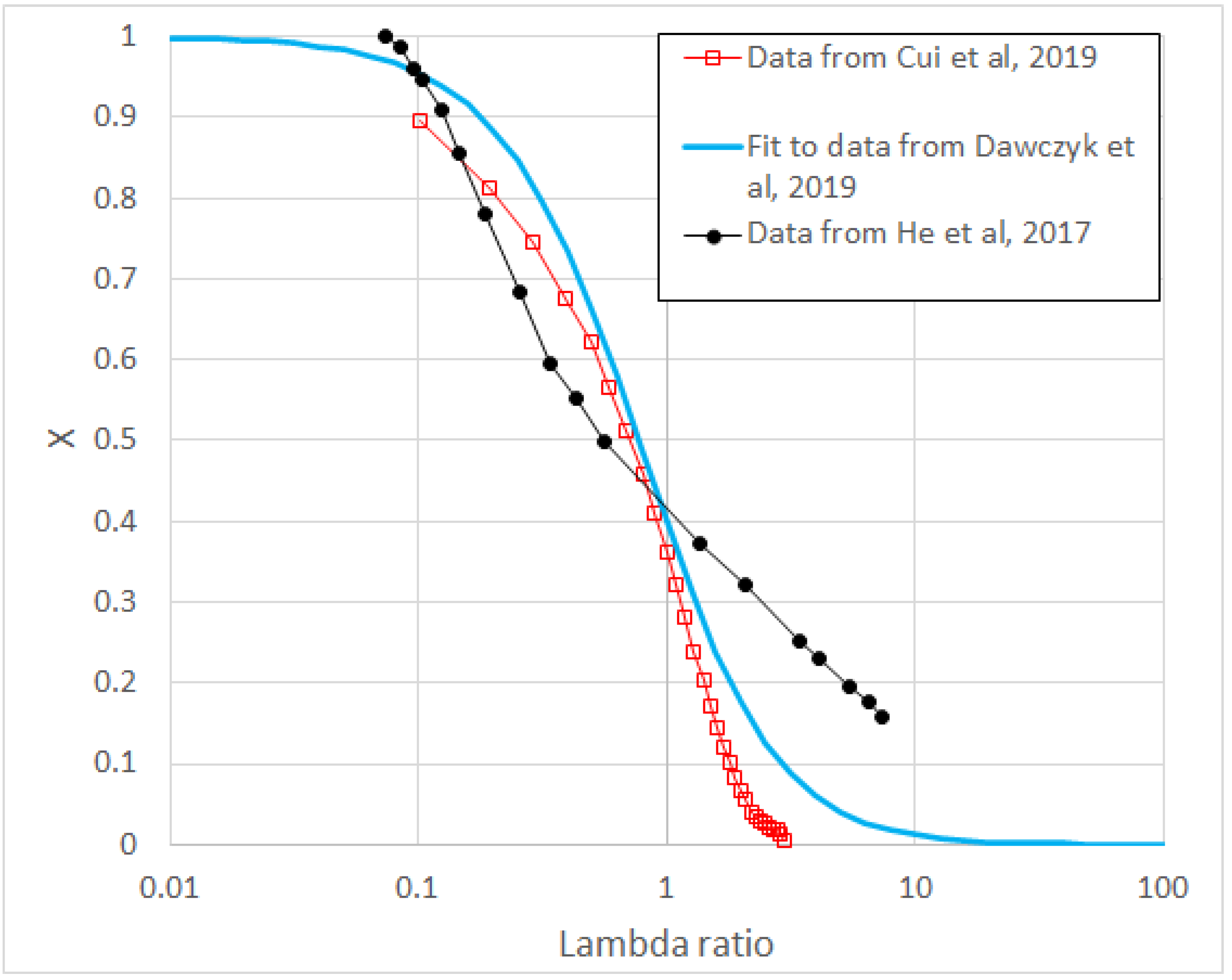

_{EHD}), where f was the measured friction coefficient at a particular value of λ. Figure 1 shows measured data from reference [126]. It was pointed out that if the correct value of surface roughness was used to calculate λ, then all of the lubricants would be found to fit onto a universal curve. It should be pointed out that although the RMS roughness of the MTM ball and disk were only about 4 nm each, when lubricants containing ZDDP anti-wear additives were used, relatively thick tribo-films were formed (between 100–200 nm), and the RMS surface roughness at the top of the tribo-films was significantly higher, at around 40 nm. λ was estimated by calculating the elastohydrodynamic oil film thickness in the contact (the radius of the curvature of the ball, the elastic moduli, the loads, speeds, temperatures were known, and the viscosity and pressure–viscosity coefficient of the lubricant were calculated).

## 7. Application of Rough-Surface Models to the Prediction of Mixed/Boundary Friction

## 8. Discussion

## 9. Conclusions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Dowson, D. History of Tribology; Longman: London, UK, 1979. [Google Scholar]
- Hutchings, I.M. Leonardo da Vinci’s Studies of Friction. Wear
**2016**, 360–361, 51–66. [Google Scholar] [CrossRef] [Green Version] - Betancourt-Parra, S. Leonardo da Vinci’s Tribological Intuitions. Tribol. Int.
**2021**, 153, 106664. [Google Scholar] [CrossRef] - Sawyer, W.G. Leondardo da Vinci on Wear. Biotribology
**2021**, 26, 100160. [Google Scholar] [CrossRef] - Amontons, G. De la Resistance Cause’e Dans les Machines (About Resistance and Force in Machines), Mem l’Acedemie R A. 1699, 257–282. Available online: https://link.springer.com/content/pdf/10.1007/s40544-015-0074-6.pdf (accessed on 10 March 2022).
- Coulomb, C.A. Theorie des Machines Simples; Bachelier: Paris, French, 1821. [Google Scholar]
- Popova, E.; Popov, V.L. The Research Works of Coulomb and Amontons and Generalized Laws of Friction. Friction
**2015**, 3, 183–190. [Google Scholar] [CrossRef] [Green Version] - Persson, B.N.J.; Sivebæk, I.M.; Samoilov, V.N.; Zhao, K.; Volokitin, A.I.; Zhang, Z. On the Origin of Amonton’s Friction Law. J. Phys. Condens. Matter
**2008**, 20, 395006. [Google Scholar] [CrossRef] - Gao, J.; Luedtke, W.D.; Gourdon, D.; Ruths, M.; Israelachvili, J.N.; Landman, U. Frictional Forces and Amonton’s Law: From the Molecular to the Microscopic Scale. J. Phys. Chem. B
**2004**, 108, 3410–3425. [Google Scholar] [CrossRef] - Weber, B.A. Sliding Friction: From Microscopic Contacts to Amontons’ Law. Ph.D. Thesis, University of Amsterdam, Amsterdam, The Netherlands, 2017. [Google Scholar]
- Blau, P.J. The Significance and Use of the Friction Coefficient. Tribol. Int.
**2001**, 34, 585–591. [Google Scholar] [CrossRef] - Urbakh, M.; Klafter, J.; Gourdon, D.; Israelachvili, J. The Nonlinear Nature of Friction. Nature
**2004**, 430, 525–528. [Google Scholar] [CrossRef] - Euler, L. Sur La Friction des Corps Solides. Mem. Acad. Sci.
**1750**, 4, 122–132. [Google Scholar] - Leslie, L. An Experimental Inquiry into the Nature and Propagation of Heat; Bell & Bradfute: Edinburgh, UK, 1804. [Google Scholar]
- Bowden, F.P.; Tabor, D. The Friction and Lubrication of Solids; Oxford Classics Series; Clarendon Press: Oxford, UK, 2001. [Google Scholar]
- Hertz, H. Ueber die Berűhrung fester elastischer Kőrper. J. Reine Angew. Math.
**1881**, 92, 156–171. [Google Scholar] - Greenwood, J.A.; Williamson, J.B.P. Contact of Nominally Flat Surfaces. Proc. R. Soc. Lond. A Math.
**1966**, 295, 300–319. [Google Scholar] - Whitehouse, D.J.; Archard, J.F. The Properties of Random Surfaces of Significance in Their Contact. Proc. R. Soc. Lond. A Math.
**1970**, 316, 97–121. [Google Scholar] - Bush, A.W.; Gibson, R.D.; Thomas, T.R. The Elastic Contact of a Rough Surface. Wear
**1975**, 35, 87–111. [Google Scholar] [CrossRef] - Greenwood, J.A.; Tripp, J.H. The Elastic Contact of Rough Spheres. J. Appl. Mech.
**1967**, 34, 153–159. [Google Scholar] [CrossRef] - Greenwood, J.A.; Tripp, J.H. The Contact of Two Nominally Flat Rough Surfaces. Proc. Inst. Mech. Eng.
**1970**, 185, 1970. [Google Scholar] [CrossRef] - Persson, B.N.J. Elastoplastic Contact between Randomly Rough Surfaces. Phys. Rev. Lett.
**2001**, 87, 116101. [Google Scholar] [CrossRef] [Green Version] - Persson, B.N.J. Contact Mechanics for Randomly Rough Surfaces. Surf. Sci. Rep.
**2006**, 61, 201–227. [Google Scholar] [CrossRef] [Green Version] - Joe, J.; Scaraggi, M.; Barber, J. Effect of fine-scale roughness on the tractions between contacting bodies. Tribol. Int.
**2017**, 111, 52–56. [Google Scholar] [CrossRef] - Greenwood, J.A.; Wu, J.J. Surface Roughness and Contact: An Apology. Meccanica
**2001**, 36, 617–630. [Google Scholar] [CrossRef] - Barber, J.R. Multiscale Surfaces and Amontons’ Law of Friction. Tribol. Lett.
**2013**, 49, 539–543. [Google Scholar] [CrossRef] - Afferrante, L.; Carbone, G.; Demelio, G. Interacting and Coalescing Hertzian Aperities: A New Multiasperity Model. Wear
**2012**, 278–279, 28–33. [Google Scholar] [CrossRef] - Archard, J.F. Contact and Rubbing of Flat Surfaces. J. Appl. Phys.
**1957**, 24, 981. [Google Scholar] [CrossRef] - Archard, J.F.; Hirst, W. An Examination of a Mild Wear Process. Proc. R. Soc. Lond. A Math.
**1957**, 238, 515–528. [Google Scholar] - Archard, J.F. Elastic Deformation and the Laws of Friction. Proc. R. Soc. Lond. A Math.
**1957**, 243, 190–205. [Google Scholar] - Archard, J.F. Single Contacts and Multiple Encounters. J. Appl. Phys.
**1961**, 32, 1420. [Google Scholar] [CrossRef] - Dyson, J.; Hirst, W. The True Contact Area between Solids. Proc. Phys. Soc. B
**1954**, 67, 309–312. [Google Scholar] [CrossRef] - Lincoln, B. Elastic Deformation and the Laws of Friction. Nature
**1953**, 172, 169–170. [Google Scholar] [CrossRef] - Mandelbrot, B.R. The Fractal Geometry of Nature; W.H. Freeman and Company: New York, NY, USA, 1977. [Google Scholar]
- Blau, P.J. On the Nature of Running-In. Tribol. Int.
**2008**, 38, 1007–1012. [Google Scholar] [CrossRef] - McCool, J.I. Comparison of Models for the Contact of Rough Surfaces. Wear
**1986**, 107, 37–60. [Google Scholar] [CrossRef] - Bhushan, B. Contact Mechanics of Rough Surfaces in Tribology: Multiple Asperity Contacts. Tribol. Lett.
**1998**, 4, 1–35. [Google Scholar] [CrossRef] - Liu, G.; Wang, Q.J.; Lin, C. A Survey of Current Models for Simulating the Contact between Rough Surfaces. Tribol. Trans.
**1999**, 42, 581–591. [Google Scholar] [CrossRef] - Adams, G.G.; Nosonovsky, M. Contact Modelling—Forces. Tribol. Int.
**2000**, 33, 431–442. [Google Scholar] [CrossRef] - Vakis, A.; Yastrebov, V.; Scheibert, J.; Nicola, L.; Dini, D.; Minfray, C.; Almqvist, A.; Paggi, M.; Lee, S.; Limbert, G.; et al. Modelling and Simulation in Tribology Across Scales: An Overview. Tribol. Int.
**2018**, 125, 169–199. [Google Scholar] [CrossRef] - Williams, J.A. Engineering Tribology; Oxford University Press: Oxford, UK, 1994. [Google Scholar]
- Stachowiak, G.W.; Batchelor, A.W. Engineering Tribology; Tribology Series, 24; Elsevier: Amsterdam, The Netherlands, 1993. [Google Scholar]
- Halling, J. (Ed.) Principles of Tribology; The MacMillan Press Ltd.: London, UK, 1979. [Google Scholar]
- Olver, A.V.; Spikes, H.A. Prediction of Traction in Elastohydrodynamic Lubrication. Proc. Inst. Mech. Eng. Part J J. Eng. Tribol.
**1998**, 212, 321–332. [Google Scholar] [CrossRef] - Thomas, T.R. Rough Surfaces, 2nd ed.; Imperial College Press: London, UK, 1999. [Google Scholar]
- Whitehouse, D. Surfaces and Their Measurement; Taylor & Francis, Books, Inc.: New York, NY, USA, 2002. [Google Scholar]
- Nayak, P.R. Random Process Model of Rough Surfaces. J. Lubr. Technol. (ASME)
**1971**, 93, 398–407. [Google Scholar] [CrossRef] - Nayak, P.R. Some Aspects of Surface Roughness Measurement. Wear
**1973**, 26, 165–174. [Google Scholar] [CrossRef] - Nayak, P.R. Random Process Model of Rough Surfaces in Plastic Contact. Wear
**1973**, 26, 305–333. [Google Scholar] [CrossRef] - Greenwood, J.A. A Note on Nayak’s Third Paper. Wear
**2007**, 262, 225–227. [Google Scholar] [CrossRef] - Greenwood, J.A. A Unified Theory of Surface Roughness. Proc. R. Soc. Lond. A Math. Phys. Sci.
**1984**, 393, 133–157. [Google Scholar] - Greenwood, J.A. Problems with Surface Roughness, 57–76 of Fundamentals of Friction: Macroscopic and Microscopic Processes; Singer, I.L., Pollock, H.M., Eds.; Springer: Amsterdam, The Netherlands, 1992. [Google Scholar]
- Longuet-Higgins, M.S. The Statistical Analysis of a Random Moving Surface. Philos. Trans. R. Soc.
**1957**, 249, 321–387. [Google Scholar] - Longuet-Higgins, M.S. Statistical Properties of an Isotropic Random Surface. Philos. Trans. R. Soc.
**1957**, 250, 157–174. [Google Scholar] - Greenwood, J.A. Contact of Rough Surfaces: The Greenwood and Williamson/Tripp, Fuller and Tabor Theories, Encyclopedia of Tribology; Wang, Q.J., Chung, Y.-W., Eds.; Springer: Boston, MA, USA, 2013. [Google Scholar]
- Longuet-Higgins, M.S. The Statistical Distribution of the Curvature of a Random Gaussian Surface. Math. Proc. Camb. Philos. Soc.
**1958**, 54, 439–453. [Google Scholar] [CrossRef] - Sayles, R.S.; Thomas, T.R. Measurements of the Statistical Microgeometry of Engineering Surfaces. J. Lubr. Technol.
**1979**, 101, 409–417. [Google Scholar] [CrossRef] - Sayles, R.S.; Thomas, T.R. Surface Topography as a Nonstationary Random Process. Nature
**1978**, 271, 431–434. [Google Scholar] [CrossRef] - Thomas, T.R.; Sayles, R.S. Some Problems in the Tribology of Rough Surfaces. Tribol. Int.
**1978**, 11, 163–168. [Google Scholar] [CrossRef] - Sayles, R.S. Basic Principles of Rough Surface Contact Analysis Using Numerical Methods. Tribol. Int.
**1996**, 29, 639–650. [Google Scholar] [CrossRef] - Peklenik, J. New Developments in Surface Characterization and Measurements by Means of Random Process Analysis. Proc. Inst. Mech. Eng. Conf. Proc.
**1967**, 182, 108–126. [Google Scholar] [CrossRef] - Gujrati, A.; Khanal, S.R.; Pastewka, L.; Jacobs, T.D.B. Combining TEM, AFM, and Profilometry for Quantitative Topography Characterization across All Scales. ACS Appl. Mater. Interfaces
**2018**, 10, 26169–29178. [Google Scholar] [CrossRef] [Green Version] - Desaguliers, J.T. A Course of Experimental Philosophy; W. Innys Publisher, 1734; Volume 1, Available online: https://books.google.co.uk/books/about/A_Course_of_Experimental_Philosophy.html?id=P5MPAAAAQAAJ&redir_esc=y (accessed on 10 March 2022).
- Tabor, D. Indentation Hardness: Fifty Years on a Personal View. Philos. Mag. A
**1996**, 74, 1207–1212. [Google Scholar] [CrossRef] - Archard, J.F. The Temperature of Rubbing Surfaces. Wear
**1958**, 2, 438–455. [Google Scholar] [CrossRef] - Archard, J.F. Elastohydrodynamic Lubrication of Real Surfaces. Tribology
**1973**, 6, 8–14. [Google Scholar] [CrossRef] - Archard, J.F. Surface Topography and Tribology. Tribology
**1974**, 7, 213–220. [Google Scholar] [CrossRef] - Archard, J.F. Friction between Metal Surfaces. Wear
**1986**, 113, 3–16. [Google Scholar] [CrossRef] - Jedynak, R. Exact and Approximate Solutions of the Infinite Integrals of the Asperity Height Distribution for the Greenwood-Williamson and the Greenwood-TriAsperity Contact Models. Tribol. Int.
**2019**, 130, 206–215. [Google Scholar] [CrossRef] - Abramowitz, M.; Stegun, I.A. (Eds.) Handbook of Mathematical Functions; Dover Publications, Inc.: New York, NY, USA, 1972. [Google Scholar]
- Jackson, R.L.; Green, I. On the Modeling of Elastic Contact between Rough Surfaces. Tribol. Trans.
**2011**, 54, 300–314. [Google Scholar] [CrossRef] - Venner, C.H.; Couhier, F.A.A.; Lubrecht; Greenwood, J.A. Amplitude Reduction of Waviness in Transient EHL Line Contacts. Tribol. Ser.
**1997**, 32, 103–112. [Google Scholar] - Zhang, Y.; Biboulet, N.; Venner, C.H.; Lubrecht, A.A. Prediction of the Stribeck Curve under Full-Film Elastohydrodynamic Lubrication. Tribol. Int.
**2020**, 149, 105569. [Google Scholar] [CrossRef] [Green Version] - Xu, Y.; Jackson, R.L. Statistical Models of Nearly Complete Elastic Rough Surface Contact—Comparison with Numerical Solutions. Tribol. Int.
**2017**, 105, 274–291. [Google Scholar] [CrossRef] - Persson, B.N.J. Relationship between Interfacial Separation and Load: A General Theory of Contact Mechanics. Phys. Rev. Lett.
**2007**, 99, 125502. [Google Scholar] [CrossRef] [Green Version] - McCool, J.I. Elastic Contact of Coated Rough Surfaces. Proc. Leeds-Lyon Symp. Mech. Coat.
**1990**, 17, 157–165. [Google Scholar] - Cole, S.J.; Sayles, R.S. A Numerical Model for the Contact of Layered Elastic Bodies with Real Rough Surfaces. ASME J. Tribol.
**1992**, 114, 335–340. [Google Scholar] [CrossRef] - Pasaribu, H.R.; Schipper, D.J. Deterministic Friction Model of a Rough Surface Sliding against a Flat Layered Surface. Tribol. Lett.
**2004**, 17, 967–976. [Google Scholar] [CrossRef] - Waddad, Y.; Magnier, V.; Dufrénoy, P.; De Saxcé, G. A New Contact Model for Multilayered Solids with Rough Surfaces. Tribol. Lett.
**2017**, 65, 155. [Google Scholar] [CrossRef] [Green Version] - Finkin, E.F. Applicability of Greenwood-Williamson Theory to Film Covered Surfaces. Wear
**1970**, 15, 291–293. [Google Scholar] [CrossRef] - Blencoe, K.A.; Williams, J.A. Friction of Sliding Surfaces Carrying Boundary Films. Tribol. Lett.
**1997**, 3, 121–123. [Google Scholar] [CrossRef] - Williams, J.A. The Behaviour of Sliding Contacts between Non-Conformal Rough Surfaces Protected by ‘Smart’ Films. Tribol. Lett.
**2004**, 17, 765–778. [Google Scholar] [CrossRef] - Chang, L.; Zhang, H.; Lococo, J. Effects of Boundary Films on the Frictional Behaviour of Rough-Surface Contacts in Incipient Sliding. Proc. Inst. Mech. Part J J. Eng. Tribol.
**2006**, 220, 385–394. [Google Scholar] [CrossRef] - Vakis, A.I.; Polycarpou, A.A. An Advanced Rough Surface Continuum-Based Contact and Sliding Model in the Presence of Molecularly Thin Lubricant. Tribol. Lett.
**2013**, 49, 227–238. [Google Scholar] [CrossRef] - Hu, J.; Wei, C. Research on the Friction Behaviours of Two Rough Surfaces Covered with Boundary Film. Tribol. Lett.
**2014**, 53, 487–496. [Google Scholar] [CrossRef] - McCool, J.I. Non-Gaussian Effects in Microcontact. Int. J. Mach. Tools Manuf.
**1992**, 32, 115–123. [Google Scholar] [CrossRef] - Chilamakuri, S.K.; Bhushan, B. Contact Analysis of Non-Gaussian Random Surfaces. Proc. Inst. Mech. Part J J. Eng. Tribol.
**1998**, 212, 19–32. [Google Scholar] [CrossRef] - McCool, J.I. Extending the Capability of the Greenwood Williamson Microcontact Model. ASME J. Tribol.
**2000**, 122, 496–502. [Google Scholar] [CrossRef] - Kim, T.W.; Bhushan, B.; Cho, Y.J. The Contact Behaviour of Elastic/Plastic Non-Gaussian Rough Surfaces. Tribol. Lett.
**2006**, 22, 1. [Google Scholar] [CrossRef] - Leighton, M.; Morris, N.; Gore, M.; Rahmani, R.; Rahnejat, H.; King, P.D. Boundary Interactions of Rough Non-Gaussian Surfaces. Proc. Inst. Mech. Part J J. Eng. Tribol.
**2016**, 230, 1359–1370. [Google Scholar] [CrossRef] [Green Version] - Tomota, T.; Kondoh, Y.; Ohmori, T. Modeling Solid Contact between Smooth and Rough Surfaces with Non-Gaussian Distributions. Tribol. Trans.
**2018**, 62, 580–591. [Google Scholar] [CrossRef] - Majumdar, A.; Bhushan, B. Role of Fractal Geometry in Roughness Characterization and Contact Mechanics of Surfaces. ASME J. Tribol.
**1991**, 112, 205–261. [Google Scholar] [CrossRef] - Majumdar, A.; Bhushan, B. Fractal Model of Elastic-Plastic Contact between Rough Surfaces. ASME J. Tribol.
**1991**, 113, 1–11. [Google Scholar] [CrossRef] - Yan, W.; Komvopoulos, K. Contact Analysis of Elastic-Plastic Fractal Surfaces. J. Appl. Phys.
**1998**, 84, 3617. [Google Scholar] [CrossRef] - Ciavarella, M.; Demelio, G.; Barber, J.R.; Jang, Y.H. Elastic Contact of the Weierstrass Profile. Proc. R. Soc. Lond. A
**2000**, 456, 387–405. [Google Scholar] [CrossRef] [Green Version] - Ciavarella, M.; Demelio, G. Elastic Multiscale Contact of Rough Surfaces: Archard’s Model Revisited and Comparisons with Modern Fractal Models. ASME J. Appl. Mech.
**2001**, 68, 496–498. [Google Scholar] [CrossRef] [Green Version] - Jackson, R.L.; Streator, J.L. A Multi-Scale Model for Contact between Rough Surfaces. Wear
**2006**, 261, 1337–1347. [Google Scholar] [CrossRef] - Kogut, L.; Jackson, R.L. A Comparison of Contact Modeling Utilizing Statistical and Fractal Approaches. ASME J. Tribol.
**2006**, 128, 213–217. [Google Scholar] [CrossRef] - Nosonovsky, M.; Bhushan, B. Multiscale Friction Mechanisms and Hierarchical Surfaces in Nano- and Bio-Tribology. Mater. Sci. Eng. R
**2007**, 58, 162–193. [Google Scholar] [CrossRef] - Jackson, R.L. An Analytical Solution to an Archard-Type Fractal Rough Surface Contact Model. Tribol. Trans.
**2010**, 53, 543–553. [Google Scholar] [CrossRef] - Goedecke, A.; Jackson, R.L.; Mock, R. A Fractal Expansion of a Three-Dimensional Elastic-Plastic Multi-Scale Rough Surface Contact Model. Tribol. Int.
**2013**, 59, 230–239. [Google Scholar] [CrossRef] - Miao, X.; Huang, X. A Complete Contact Model of a Fractal Rough Surface. Wear
**2014**, 309, 146–151. [Google Scholar] [CrossRef] - Green, I. Exact Spectral Moments and Differentiability of the Weierstrass-Mandelbrot Fractal Function. Tribology
**2020**, 142, 041501. [Google Scholar] [CrossRef] - Yuan, Y.; Gan, L.; Liu, K.; Yang, X. Elastoplastic Contact Mechanics Model of Rough Surface Based on Fractal Theory. Chin. J. Mech. Eng.
**2017**, 30, 207–215. [Google Scholar] [CrossRef] - Webster, M.N.; Sayles, R.S. A Numerical Model for the Elastic Frictionless Contact of Real Rough Surfaces. ASME J. Tribol.
**1986**, 108, 314–320. [Google Scholar] [CrossRef] - Stanley, H.M.; Kato, T. An FFT-Based Method for Rough Surface Contact. ASME J. Tribol.
**1997**, 119, 481–485. [Google Scholar] [CrossRef] - Hu, Y.Z.; Barber, G.C.; Zhu, D. Numerical Analysis for the Elastic Contact of Real Rough Surfaces. Tribol. Trans.
**1999**, 42, 443–452. [Google Scholar] [CrossRef] - Borri-Brunetto, M.; Chiaia, B.; Ciavarella, M. Incipient Sliding of Rough Surfaces in Contact: A Multiscale Numerical Analysis. Comput. Methods Appl. Mech. Engrg.
**2001**, 190, 6053–6073.zs. [Google Scholar] [CrossRef] [Green Version] - Wang, Z.J.; Wang, W.Z.; Hu, Y.Z.; Wang, H. A Numerical Elastic-Plastic Contact Model for Rough Surfaces. Tribol. Trans.
**2010**, 53, 224–238. [Google Scholar] [CrossRef] - Ren, N. Advanced Modeling of Mixed Lubrication and Its Mechanical and Biomedical Applications. Ph.D. Thesis, Northwestern University, Evanston, IL, USA, 2009. [Google Scholar]
- Ghaednia, H.; Wang, X.; Saha, S.; Xu, Y.; Sharma, A.; Jackson, R.L. A Review of Elastic-Plastic Contact Mechanics. ASME Appl. Mech. Rev.
**2017**, 69, 060804. [Google Scholar] [CrossRef] [Green Version] - Yastrebov, V.A.; Durand, J.; Proudhon, H.; Cailletaud, G. Rough Surface Contact Analysis by Means of the Finite Element Method and of a New Reduced Model. Comptes Rendus Mécanique
**2011**, 339, 473–490. [Google Scholar] [CrossRef] - Yastrebov, V.A.; Anciaux, G.; Molinari, J.F. Contact between Representative Rough Surfaces. Phys. Rev. E
**2012**, 86, 035601. [Google Scholar] [CrossRef] [Green Version] - Putignano, C.; Afferrante, L.; Carbone, G.; Demelio, G. A New Efficient Numerical Method for Contact Mechanics of Rough Surfaces. Int. J. Solids Struct.
**2012**, 49, 338–343. [Google Scholar] [CrossRef] [Green Version] - Tysoe, W.T.; Spencer, N.D. Contact-Mechanics Challenge. Tribol. Lubr. Technol.
**2015**, 71, 96. [Google Scholar] - McGhee, A.J.; Pitenis, A.A.; Bennett, A.I.; Harris, K.L.; Schulze, K.D.; Urueña, J.M.; Ifju, P.G.; Angelini, T.E.; Müser, M.H.; Sawyer, W.G. Contact and Deformation of Randomly Rough Surfaces with Varying Root-Mean-Square Gradient. Tribol. Lett.
**2017**, 65, 157. [Google Scholar] [CrossRef] - Wu, J.-J. Numerical Simulation on the Adhesive Contact between Rough Surfaces with Bi-Conjugate Gradient Stabilized Method. Tribol. Lett.
**2017**, 65, 151. [Google Scholar] [CrossRef] - Bennett, A.I.; Harris, K.L.; Schulze, K.; Urueña, J.M.; McGhee, A.J.; Pitenis, A.A.; Müser, M.H.; Angelini, T.E.; Sawyer, W.G. Contact Measurements of Randomly Rough Surfaces. Tribol. Lett.
**2017**, 65, 134. [Google Scholar] [CrossRef] - Bennett, A.I.; Rohde, S.; Harris, K.L.; Schulze, K.D.; Urueña, J.M.; Pitenis, A.A.; Ifju, P.G.; Angelini, T.E.; Müser, M.H.; Sawyer, W.G. Deformation Measurements of Randomly Rough Surfaces. Tribol. Lett.
**2017**, 65, 123. [Google Scholar] [CrossRef] - Müser, M.H.; Dapp, W.B.; Bugnicourt, R.; Sainsot, P.; Lesaffre, N.; Lubrecht, T.A.; Persson, B.N.; Harris, K.; Bennett, A.; Schulze, K.; et al. Meeting the Contact-Mechanics Challenge. Tribol. Lett.
**2017**, 65, 118. [Google Scholar] [CrossRef] [Green Version] - Wang, A.; Müser, M.H. Gauging Persson Theory on Adhesion. Tribol. Lett.
**2017**, 65, 103. [Google Scholar] [CrossRef] - Afferrante, L.; Bottiglione, F.; Putignano, C.; Persson, B.N.J.; Carbone, G. Elastic Contact Mechanics of Randomly Rough Surfaces: An Assessment of Advanced Asperity Models and Persson’s Theory. Tribol. Lett.
**2018**, 66, 75. [Google Scholar] [CrossRef] - Bugnicourt, R.; Sainsot, P.; Dureisseix, D.; Gauthier, C.; Lubrecht, A.A. FFT-Based Methods for Solving a Rough Adhesive Contact: Description and Convergence Study. Tribol. Lett.
**2018**, 66, 29. [Google Scholar] [CrossRef] - Taylor, R.I. Tribology and Energy Efficiency: From Molecules to Lubricated Contacts to Complete Machines. Faraday Trans.
**2012**, 156, 361–382. [Google Scholar] [CrossRef] - Spikes, H. The History and Mechanisms of ZDDP. Tribol. Lett.
**2004**, 17, 469–489. [Google Scholar] [CrossRef] - Dawczyk, J.; Morgan, N.; Russo, J.; Spikes, H. Film Thickness and Friction of ZDDP Tribofilms. Tribol. Lett.
**2019**, 67, 34. [Google Scholar] [CrossRef] [Green Version] - Spikes, H. Friction Modifier Additives. Tribol. Lett.
**2015**, 60, 5. [Google Scholar] [CrossRef] [Green Version] - Bec, S.; Tonck, A.; Georges, J.M.; Coy, R.C.; Bell, J.C.; Roper, G.W. Relationship between Mechanical Properties and Structures of Zinc Dithiophosphate Anti-Wear Films. Proc. R. Soc. Lond. A
**1999**, 455, 4181–4203. [Google Scholar] [CrossRef] - Briscoe, B.J.; Scruton, B.; Willis, F.R. The Shear Strength of Thin Lubricant Films. Proc. R. Soc. A
**1973**, 333, 99–114. [Google Scholar] - Timsit, R.S.; Pelow, C.V. Shear Strength and Tribological Properties of Stearic Acid Films—Part I: On Glass and Aluminium-Coated Glass. Tribology
**1992**, 114, 150–158. [Google Scholar] [CrossRef] - Vazirisereshk, M.R.; Martini, A.; Strubbe, D.A.; Baykara, M.Z. Solid Lubrication with MoS
_{2}: A Review. Lubricants**2019**, 7, 57. [Google Scholar] [CrossRef] [Green Version] - Zhang, J.; Spikes, H. On the Mechanism of ZDDP Antiwear Film Formation. Tribol. Lett.
**2016**, 63, 24. [Google Scholar] [CrossRef] [Green Version] - Shahnazar, S.; Bagheri, S.; Hamid, S.B.A. Enhancing Lubricant Properties by Nanoparticle Additives. Int. J. Hydrogen Energy
**2016**, 41, 3153–3170. [Google Scholar] [CrossRef] - Dai, W.; Kheireddin, B.; Gao, H.; Liang, H. Roles of Nanoparticles in Oil Lubrication. Tribol. Int.
**2016**, 102, 88–98. [Google Scholar] [CrossRef] - Wang, B.; Qiu, F.; Barber, G.C.; Zou, Q.; Wang, J.; Guo, S.; Yuan, Y.; Jiang, Q. Role of Nano-Sized Materials as Lubricant Additives in Friction and Wear Reduction: A Review. Wear
**2022**, 490–491, 204206. [Google Scholar] [CrossRef] - Kanazawa, Y.; Sayles, R.S.; Kadiric, A. Film Formation and Friction in Grease Lubricated Rolling-Sliding Non-Conformal Contacts. Tribol. Int.
**2017**, 105, 505–518. [Google Scholar] [CrossRef] - He, T.; Zhu, D.; Wang, J.; Wang, Q.J. Experimental and Numerical Investigations of the Stribeck Curve for Lubricated Counterformal Contacts. ASME J. Tribol.
**2017**, 139, 021505. [Google Scholar] [CrossRef] - Cui, H.; Wang, Q.; Lian, Z.; Li, L. Theoretical Model and Experimental Research on Friction and Torque Characteristics of Hydro-Viscous Drive in Mixed Friction Stage. Chin. J. Mech. Eng.
**2019**, 32, 80. [Google Scholar] [CrossRef] [Green Version] - Taylor, R.I.; Sherrington, I. A Simplified Approach to the Prediction of Mixed and Boundary Friction. Tribol. Int. 2022; paper submitted. [Google Scholar]
- Stribeck, R. Die Wesentlichen Eigenschaften der Gleit-und Rollenlager. VDI-Z
**1902**, 46, 1341–1348, 1432–1438, 1463–1470. [Google Scholar] - McKee, S.A. The Effect of Running-In on Journal Bearing Performance. ASME Trans.
**1927**, 49, 1335. [Google Scholar] - Hersey, M.D. Theory of Lubrication; John Wiley & Sons, Inc.: New York, NY, USA, 1936. [Google Scholar]
- Lenning, R.L. The Transition from Boundary to Mixed Friction. Lubr. Eng.
**1960**, 16, 575–582. [Google Scholar] - Bair, S.; Winer, W.O. Regimes of Traction in Concentrated Contact Lubrication. ASME J. Lubr. Technol.
**1982**, 104, 382–391. [Google Scholar] [CrossRef] - Evans, C.R.; Johnson, K.L. The Influence of Surface Roughness on Elastohydrodynamic Traction. Proc. Inst. Mech. Part C J. Mech. Eng. Sci.
**1987**, 201, 145–150. [Google Scholar] [CrossRef] - Schipper, D.J. Transitions in the Lubrication of Concentrated Contacts. Ph.D. Thesis, University of Twente, Enschede, The Netherlands, 1988. [Google Scholar]
- Schipper, D.J.; Vroegop, P.H.; de Gee, A.W.J. Prediction of Lubrication Regimes of Concentrated Contacts. Lubr. Sci.
**1991**, 3, 191–200. [Google Scholar] [CrossRef] [Green Version] - Cho, S.W.; Choi, S.M.; Bae, C.S. Frictional Modes of Barrel Shaped Piston Rings under Flooded Lubrication. Tribol. Int.
**2000**, 33, 545–551. [Google Scholar] [CrossRef] - Persson, B.N.J.; Scaraggi, M. On the Transition from Boundary Lubrication to Hydrodynamic Lubrication in Soft Contacts. J. Phys. Condens. Matter
**2009**, 21, 185002. [Google Scholar] [CrossRef] - Xie, Z.; Rao, Z.; Ta, N.; Liu, L. Investigations on Transitions of Lubrication States for Water Lubricated Bearing. Part I: Determination of Frictrion Coefficients and Film Thickness Ratios. Ind. Lubr. Tribol.
**2016**, 68, 404–415. [Google Scholar] [CrossRef] - Xie, Z.; Rao, Z.; Ta, N.; Liu, L. Investigations on Transitions of Lubrication States for Water Lubricated Bearing. Part II: Further Insight into the Film Thickness Ratio Lambda. Ind. Lubr. Tribol.
**2016**, 68, 416–429. [Google Scholar] [CrossRef] - Chong, W.W.; Hamdan, F.; Wong, S.H.K.J.; Yusup, S. Modelling Transitions in Regimes of Lubrication for Rough Surface Contact. Lubricants
**2019**, 7, 77. [Google Scholar] [CrossRef] [Green Version] - Hansen, J.; Bjorling, M.; Larsson, R. Mapping of the Lubrication Regimes in Rough Surface EHL Contacts. Tribol. Int.
**2019**, 131, 637–651. [Google Scholar] [CrossRef] - Xie, Z.; Zhu, W. Theoretical and Experimental Exploration on the Micro Asperity Contact Load Ratios and Lubrication Regimes Transition for Water-Lubricated Stern Tube Bearing. Tribol. Int.
**2021**, 164, 107105. [Google Scholar] [CrossRef] - Coy, R.C. Practical Applications of Lubrication Models in Engines. Tribol. Int.
**1998**, 31, 563–571. [Google Scholar] [CrossRef] - Patir, N.; Cheng, H.S. An Average Flow Model for Determining Effects of Three-Dimensional Roughness on Partial Hydrodynamic Lubrication. J. Tribol.
**1978**, 100, 12–17. [Google Scholar] [CrossRef] - Patir, N.; Cheng, H.S. Application of Average Flow Model to Lubrication between Rough Sliding Surfaces. J. Tribol.
**1979**, 101, 220–229. [Google Scholar] [CrossRef] - Liu, Z.; Neville, A.; Reuben, R.L. Analyzing Elastic-Plastic Real Rough Surface Contact in Running In. Tribol. Trans.
**2001**, 44, 428–436. [Google Scholar] [CrossRef] - Zhang, J.F.; Moslehy, A.; Rice, S.L. A Model for Friction in Quasi-Steady-State Sliding Part I: Derivation. Wear
**1991**, 149, 1–12. [Google Scholar] [CrossRef] - Zhang, J.F.; Moslehy, A.; Rice, S.L. A Model for Friction in Quasi-Steady-State Sliding Part II: Numerical Results and Discussion. Wear
**1991**, 149, 13–25. [Google Scholar] [CrossRef] - Wong, S.K.; Kapoor, A.; Williams, J.A. Shakedown Limits on Coated and Engineered Surfaces. Wear
**1997**, 203–204, 162–170. [Google Scholar] [CrossRef] - Williams, J.A.; Dyson, I.N.; Kapoor, A. Repeated Loading, Residual Stresses, Shakedown, and Tribology. J. Mater. Res.
**1999**, 14, 1548–1559. [Google Scholar] [CrossRef] - Williams, J.A. The Influence of Repeated Loading, Residual Stresses and Shakedown on the Behaviour of Tribological Contacts. Tribol. Int.
**2005**, 38, 786–797. [Google Scholar] [CrossRef] - Rosenkranz, A.; Marian, M.; Profito, F.J.; Aragon, N.; Shah, R. The Use of Artificial Intelligence in Tribology—A Perspective. Lubricants
**2020**, 9, 2. [Google Scholar] [CrossRef] - Marian, M.; Tremmel, S. Current Trends and Applications of Machine Learning in Tribology—A Review. Lubricants
**2021**, 9, 86. [Google Scholar] [CrossRef] - Aghababaei, R.; Brink, T.; Molinari, J.F. Asperity-Level Origins of Transition from Mild to Severe Wear. Phys. Rev. Lett.
**2018**, 120, 186105. [Google Scholar] [CrossRef] [Green Version] - Han, J.; Zou, Q. Evolution of Contact Characteristics during a Scuffing Process. Tribol. Trans.
**2013**, 56, 58–64. [Google Scholar] [CrossRef] - Roper, G.W.; Bell, J.C. Review and Evaluation of Lubricated Wear in Simulated Valve Train Contact Conditions. SAE Pap.
**1995**, 104, 1478–1494. [Google Scholar] - Bell, J.C.; Willemse, P.J. Mid-Life Scuffing Failure in Automotive Cam-Follower Contacts. Proc. Inst. Mech. Part J J. Eng. Tribol.
**1998**, 212, 259–269. [Google Scholar] [CrossRef] - Patir, N. A Numerical Procedure for Random Generation of Rough Surfaces. Wear
**1978**, 47, 263–277. [Google Scholar] [CrossRef] - Leighton, M.; Morris, N.; Rahmani, R.; Rahnejat, H. Surface Specific Asperity Model for Prediction of Friction in Boundary and Mixed Regimes of Lubrication. Meccanica
**2017**, 52, 21–33. [Google Scholar] [CrossRef] [Green Version]

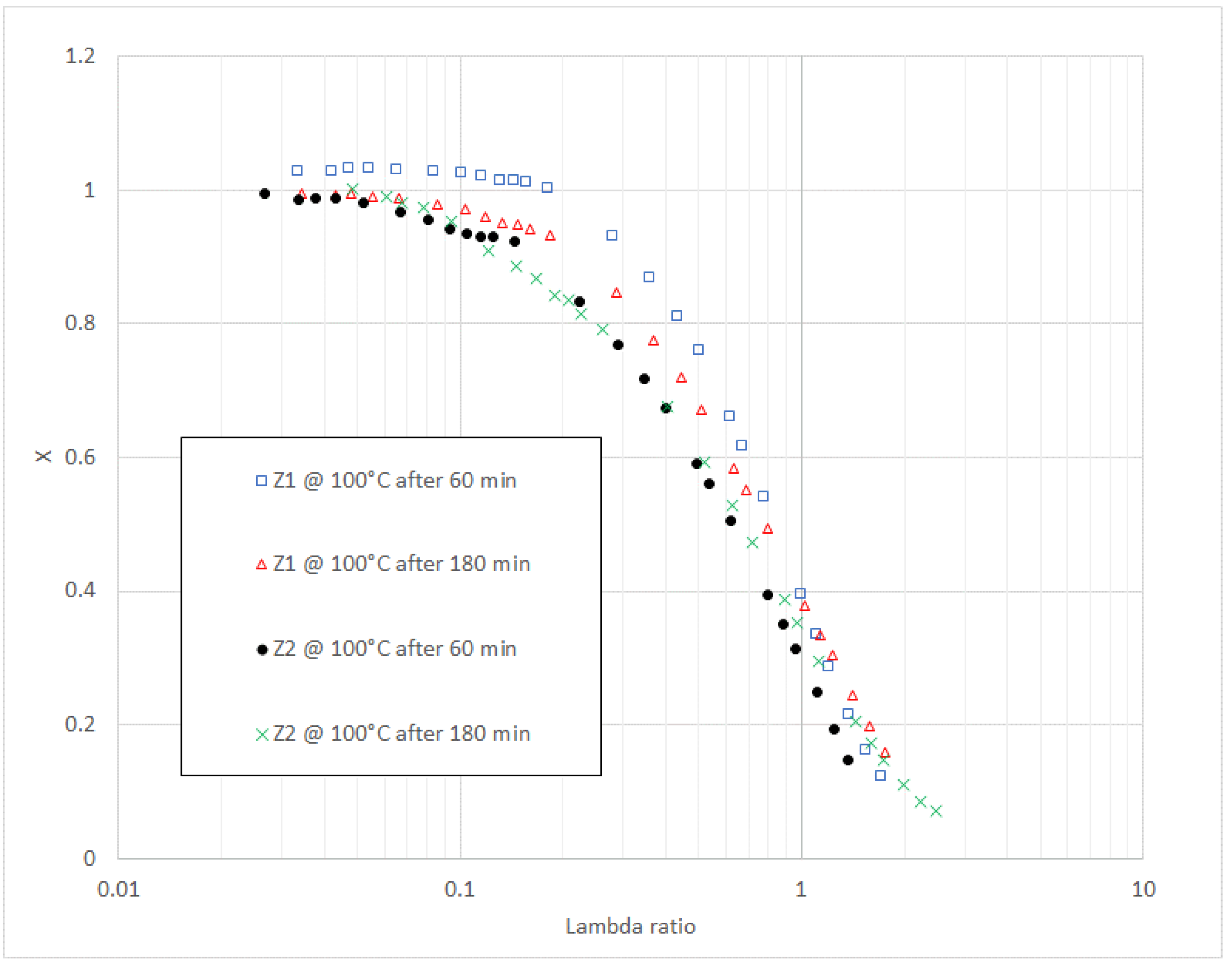

**Figure 1.**Graph showing the measured value of X (the proportion of mixed/boundary friction) versus λ for two ZDDP-containing lubricants, as measured in the Mini-Traction Machine (the specific operating conditions are reported in [121]).

λ | F_{0}(λ) | F_{1/2}(λ) | F_{1}(λ) | F_{3/2}(λ) | F_{2}(λ) | F_{5/2}(λ) |
---|---|---|---|---|---|---|

0.0 | 0.50000 | 0.41109 | 0.39894 | 0.43002 | 0.50000 | 0.61664 |

0.5 | 0.30854 | 0.22534 | 0.19780 | 0.19520 | 0.20964 | 0.24024 |

1.0 | 0.15865 | 0.10415 | 0.08332 | 0.07567 | 0.07534 | 0.08056 |

1.5 | 0.06681 | 0.03988 | 0.02931 | 0.02464 | 0.02285 | 0.02286 |

2.0 | 0.02275 | 0.01248 | 0.00849 | 0.00665 | 0.00577 | 0.00542 |

2.5 | 0.00621 | 0.00316 | 0.00200 | 0.00147 | 0.00120 | 0.00106 |

3.0 | 0.00135 | 0.00064 | 0.00038 | 0.00026 | 0.00020 | 0.00017 |

3.5 | 0.00023 | 0.00010 | 0.00006 | 0.00004 | 0.00003 | 0.00002 |

4.0 | 0.00003 | 0.00001 | 0.00001 | 0.00000 | 0.00000 | 0.00000 |

X | ||||||
---|---|---|---|---|---|---|

λ | $X=\frac{1}{{\left(1+{\lambda}^{k}\right)}^{a}}$ k = 3/2, a ≈ 4/3 | exp(−λ) | Linear fit (Equation (38)) | Olver and Spikes [44] (Equation (36)) | Greenwood-Tripp [21] | Bush, Gibson, Thomas [19] |

3 | 0.0879 | 0.0498 | 0 | 0.0625 | 0.00028 | 0.0027 |

2 | 0.167 | 0.135 | 0.333 | 0.111 | 0.0088 | 0.0455 |

1 | 0.397 | 0.368 | 0.667 | 0.25 | 0.131 | 0.317 |

0.5 | 0.668 | 0.607 | 0.833 | 0.444 | 0.390 | 0.617 |

0.2 | 0.892 | 0.819 | 0.933 | 0.694 | 0.698 | 0.895 |

0.1 | 0.959 | 0.905 | 0.967 | 0.826 | 0.838 | 0.920 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Taylor, R.I.
Rough Surface Contact Modelling—A Review. *Lubricants* **2022**, *10*, 98.
https://doi.org/10.3390/lubricants10050098

**AMA Style**

Taylor RI.
Rough Surface Contact Modelling—A Review. *Lubricants*. 2022; 10(5):98.
https://doi.org/10.3390/lubricants10050098

**Chicago/Turabian Style**

Taylor, Robert Ian.
2022. "Rough Surface Contact Modelling—A Review" *Lubricants* 10, no. 5: 98.
https://doi.org/10.3390/lubricants10050098
