Hybrid Operating Room System for the Treatment of Thoracic and Abdominal Aortic Aneurysms: Evaluation of the Radiation Dose Received by Patients

by
Yoshihiro Haga
1,2,
Koichi Chida
1,3,*,
Masahiro Sota
1,2,
Yuji Kaga
2,
Mitsuya Abe
2,
Yohei Inaba
1,3,
Masatoshi Suzuki
1,3,
Taiichiro Meguro
4 and
Masayuki Zuguchi
1
1
Course of Radiological Technology, Health Sciences, Tohoku University Graduate School of Medicine, 2-1 Seiryo, Aoba, Sendai, Miyagi 980-8575, Japan
2
Department of Radiology, Sendai Kousei Hospital, 4-15 Hirosemachi, Aoba, Sendai 980-0873, Japan
3
Department of Radiation Disaster Medicine, International Research Institute of Disaster Science, Tohoku University, 468-1 Aramaki Aza-Aoba, Aoba, Sendai, Miyagi 980-0845, Japan
4
Department of Cardiovascular Medicine, Sendai Kousei Hospital, 4-15 Hirose-machi, Aoba, Sendai 980-0873, Japan
*
Author to whom correspondence should be addressed.
Diagnostics 2020, 10(10), 846; https://doi.org/10.3390/diagnostics10100846
Submission received: 23 September 2020 / Revised: 9 October 2020 / Accepted: 10 October 2020 / Published: 19 October 2020
(This article belongs to the Special Issue Assessment of Radiation Dose in X-ray and CT Exams)
Browse Figures
Review Reports Versions Notes

Abstract

:
In recent years, endovascular treatment of aortic aneurysms has attracted considerable attention as a promising alternative to traditional surgery. Hybrid operating room systems (HORSs) are increasingly being used to perform endovascular procedures. The clinical benefits of endovascular treatments using HORSs are very clear, and these procedures are increasing in number. In procedures such as thoracic endovascular aortic repair (TEVAR) and endovascular aortic repair (EVAR), wires and catheters are used to deliver and deploy the stent graft in the thoracic/abdominal aorta under fluoroscopic control, including DSA. Thus, the radiation dose to the patient is an important issue. We determined radiation dose indicators (the dose–area product (DAP) and air karma (AK) parameters) associated with endovascular treatments (EVAR and TEVAR) using a HORS. As a result, the mean ± standard deviation (SD) DAPs of TEVAR and EVAR were 323.7 ± 161.0 and 371.3 ± 186.0 Gy × cm2, respectively. The mean ± SD AKs of TEVAR and EVAR were 0.92 ± 0.44 and 1.11 ± 0.54 Gy, respectively. The mean ± SD fluoroscopy times of TEVAR and EVAR were 13.4 ± 7.1 and 23.2 ± 11.7 min, respectively. Patient radiation dose results in this study of endovascular treatments using HORSs showed no deterministic radiation effects, such as skin injuries. However, radiation exposure during TEVAR and EVAR cannot be ignored. The radiation dose should be evaluated in HORSs during endovascular treatments. Reducing/optimizing the radiation dose to the patient in HORSs is important.

1. Introduction

In recent years, endovascular treatment of aortic aneurysms has attracted considerable attention as a promising alternative to traditional surgery [1]. Endovascular treatment reduces the risk of complications and shortens hospital stays [2]. In thoracic endovascular aortic repair (TEVAR) and endovascular aortic repair (EVAR), wires and catheters are used to deliver stent grafts to and deploy the grafts in the thoracic/abdominal aorta under fluoroscopic control (including digital subtraction angiography (DSA)). The procedures are often complex, associated with a long fluoroscopy time (FT) and many cine acquisitions, thus delivering high radiation doses to both the interventional radiology (IVR) staff [3,4,5] and patient [6]. The quality control of fluoroscopic X-ray devices [7,8] and management of exposure doses are important issues. Appropriate stent graft placement requires very precise manipulation. Mobile C-arms can often overheat, and exhibit image degradation [9]. Thus, the X-ray fluoroscopic device must feature both a large capacity and high X-ray output. Hybrid operating room systems (HORSs) are increasingly being used to perform endovascular procedures. A HORS combines state-of-the-art imaging with the use of a high-capacity angiographic system, affording optimal patient care. The fact that the operating room is sterile enables vascular surgeons to combine complex endovascular procedures with open surgery [10]. Major clinical benefits are already apparent, and HORSs are increasing in popularity.
The radiation doses delivered to small groups of patients undergoing endovascular treatment of thoracic and abdominal aortic aneurysms were quantified previously. We here attempted to optimize the radiation doses delivered during HORS-mediated treatment of patients with thoracic and abdominal aortic aneurysms. Direct methods of assessing radiation exposure [11,12,13,14] are cumbersome; thus, we used indirect methods (the dose–area product (DAP) and air karma (AK) parameters) to assess skin radiation doses [15,16,17,18,19,20,21,22,23,24,25,26,27,28]. We determined the DAP and AK radiation dose indicators associated with EVAR and TEVAR delivered via a HORS.

2. Materials and Methods

The present study was conducted in a HORS at Sendai Kousei Hospital (Japan). We evaluated the radiation dose indicators (DAP and AK) and related factors (i.e., FT) in 256 consecutive patients undergoing endovascular treatment from 2010 to 2012. The study was approved by the ethics committee of Sendai Kousei Hospital (Permission code: 30-19; 28 May 2018). All procedures were performed using a digital X-ray system (INFX-8000H, Toshiba, Otawara, Japan; Figure 1). We evaluated single-plane images obtained using a large field-of-view (12 × 16 in). Digital cine images were acquired at 10 frames/s during all procedures. Pulsed fluoroscopy (7.5 pulses/s) featuring flat panel detection (FPD) using an anti-scatter grid were also performed. During the X-ray procedures, including DSA, digital angiography (DA), and fluoroscopy, TEVAR was performed using a 40–50° left anterior oblique view, whereas EVAR was performed using various viewing angles. The X-ray source was placed approximately 100 cm from the FPD. The X-ray details and contrast conditions used during TEVAR and EVAR are shown in Table 1.
The DAP, AK, FT, and number of DA or DSA procedures performed were recorded for all patients. AK was measured at a point 15 cm toward the focal spot commencing at the isocenter of the C-arm type fluoroscope (the interventional reference point) in line with the standards of the International Electrotechnical Commission (IEC). The radiation dose indicators (DAP and AK) were calibrated by the manufacturer.
The data of the patients treated via TEVAR and EVAR are summarized in Table 2. The choice of a TEVAR stent graft (a total of 84 cases) was determined by reference to individual anatomies and included Zenith TX2 (34 cases; Cook, Japan), Tag (44 cases; Gore, Japan), and Valiant (6 cases; Medtronic, Japan) stents. The choice of an EVAR stent graft (in a total of 172 cases) was also determined by reference to individual anatomies and included Zenith (29 cases; Cook), Excluder (58 cases; Gore), Talent (7 cases; Medtronic), Endurant (53 cases; Medtronic), and Powerlink (25 cases; Cosmotec, Japan) stents.

2.1. Features of the HORS

The HORS is a hybrid device consisting of an angiographic X-ray device and an operating room (Figure 1). The HORS affords more advantages than do mobile C-arm systems. For example, the X-ray tube has a large capacity, the X-ray generator has a high output, and the FPD is large (12 × 16 in). Remote operation (control) of the X-ray equipment is possible. Such remote operation (control) reduces the exposure of radiology staff (such as radiographers) to radiation. Additionally, the operating table tilts. Surgery involving the brachiocephalic, common carotid, and subclavian arteries, which originate from the aortic arch, requires a head-down position to prevent a cerebral arterial air embolism. The HORS can easily be converted to an emergency surgery setting if complications develop during a procedure.

2.2. Statistics

Scatter plots were created and Pearson correlation coefficients between continuous variables were calculated. The Student’s t-test was used to compare data between the TEVAR and EVAR groups. Fisher’s exact test was employed to compare the male-to-female ratios. Statistical significance was defined as p < 0.05.

3. Results

3.1. Radiation Doses Associated with TEVAR and EVAR

The data are summarized in Table 3. The two groups did not differ significantly except in terms of age.
The mean ± standard deviation (SD) DAPs of TEVAR and EVAR were 323.7 ± 161.0 and 371.3 ± 186.0 Gy × cm2, respectively. The mean ± SD AKs of TEVAR and EVAR were 0.92 ± 0.44 and 1.11 ± 0.54 Gy, respectively. The DAP and AK of EVAR were approximately 1.2-fold higher than those of TEVAR. The mean ± SD FTs of TEVAR and EVAR were 13.4 ± 7.1 and 23.2 ± 11.7 min; the FT of TEVAR was typically somewhat shorter. The mean ± SD number of acquisitions (DAs and DSAs) for TEVAR and EVAR were 18.7 ± 9.8 and 29.8 ± 11.0 respectively. Figure 2 and Figure 3 show the correlations between the radiation dose and related factors in TEVAR or EVAR, respectively. Significant correlations were apparent between the AKs and FTs (TEVAR: r = 0.678, p < 0.001; EVAR: r = 0.616, p < 0.001). The correlation for TEVAR was superior to that for EVAR. More than 2 Gy was involved in 15 (6%) patients (2 TEVAR and 13 EVAR). Nevertheless, no radiation skin injury was observed in this study.

3.2. TEVAR and EVAR (Literature Review) [1,2,9,10,15,16,17,18,19,22,26,27,28]

Only limited data are available on the radiation doses associated with TEVAR and EVAR in the context of HORSs. To measure exposure during stent grafting, we considered DAP, AK, and FT. Table 4 shows the median (mean ± SD) DAP, AK, and FT for TEVAR (eight studies) delivered using a HORS. The FT ranged from 11.8 to 82.7 min (mean: 9.7–111.3 min). The FTs of two reports (Panuccio [15] and Mohapatra [17]) were longer, possibly because the cited authors treated many difficult cases and performed elaborate procedures (e.g., implantation of fenestrated stent grafts). The AKs for TEVAR ranged from 0.8 to 6.3 mGy, with 0.8 mGy (our study) being the lowest ever reported.
Table 5 shows the median (mean ± SD) DAP, AK, and FT for EVAR (16 studies) delivered using a HORS. The FT ranged from 13.1 to 89.0 min. The AK ranged from 0.56 to 1.26 Gy. Our FT and AK values were within these ranges.
Figure 4 shows the correlations between the radiation dose (AK and DAP) and FT during the endovascular treatment of aortic aneurysms in all reports that employed HORSs to this end. The scatter plots were constructed using mean values when possible and medians otherwise. With the exception of the EVAR for DAP and FT, correlations were evident between the radiation dose (DAP and AK) and FT. It is difficult to compare DAPs across reports, as the DAP differs according to the hospital and X-ray equipment employed. In particular, the DAPs of EVAR are influenced by changes in the field-of-view depending on the treatment applied.

4. Discussion

Radiation protection of patients and physicians in X-ray examination is important [29,30,31,32,33,34,35,36,37,38,39,40,41]. Radiation exposure in HORSs is of considerable interest. In the present study, we used clinical radiation-related data (DAP, AK, and FT) to define the exposure trends during stent grafting in HORSs. A total of 15 (6%) patients (2 TEVAR and 13 EVAR patients) were exposed to >2 Gy. However, no radiation skin injury was observed. Abdominal aortic operations were associated with higher radiation doses and FTs than thoracic aortic operations. The numbers of exposures, and their durations, were directly related to the radiation dose. Prolongation of fluoroscopy by 10 min in TEVAR or EVAR increased the AKs by approximately 0.78 or 0.72 Gy, respectively. Therefore, it is important to monitor the FT during both TEVAR and EVAR.
The dose levels in our study are shown in Table 4 and Table 5. Moreover, the FTs associated with AKs >2 Gy were approximately 20 min for TEVAR and 35 min for EVAR (Figure 4). These were significantly shorter than those associated with various IVRs. If these values are significantly exceeded, surgery may need to be re-planned. To allow DNA recovery following radiation injury, surgery can be performed in two or three stages. TEVAR was associated with lower FTs but higher radiation doses compared with EVAR. The oblique C-arm angulation is rather extreme when aortic neck vessels are viewed perpendicularly. In such circumstances, the radiation dose is increased, because the X-rays need to travel for longer distances through tissue (in other words, the kV/mA is increased to compensate for the lack of penetration in the tissue). Furthermore, difficult procedures, such as fenestrated stent graft implantation, tended to be associated with higher FTs and radiation doses.
The more DAs and DSAs that are employed, the higher the radiation doses. Thus, using fluoroscopy instead of DA and/or DSA can reduce the doses associated with TEVAR and EVAR.
Virtual 3D-CT pre-operative planning was very helpful when choosing an interventional strategy. The combination of 3D-CT and fluoroscopy, as is possible in a HORS, greatly facilitates surgery.
Endovascular treatment of aortic aneurysms performed in a HORS is thus safe and effective. Varu [22] found that EVAR in a HORS reduced the total operative time by >30 min, thus reducing/optimizing the radiation dose using HORS.
In our study, we provide suggested diagnostic reference levels (DRLs; ICRP—recommended; i.e., radiation doses) for TEVAR and EVAR performed in a HORS.
Generally, correlations between the number of acquisitions and radiation dose indicators were low (Figure 2 and Figure 3). Therefore, the number of acquisitions is not a useful parameter for radiation dose.
Other important considerations must be addressed in terms of reducing radiation exposure. One is image quality, deterioration of which may increase the risk of a high radiation dose. Image quality assessment is possible using phantoms. We always adjust image quality and exposure dose using a quality-control phantom. Furthermore, all IVR staff require periodic training in radiation safety, reducing doses to both patients and physicians.
Physician behavior can also reduce the radiation dose, such as the use of the shortest fluoroscopy time possible [42]. The ICRP [43] also recommends that physicians, ‘‘Keep beam-on time to an absolute minimum—the golden rule for control of dose to patient.’’
In summary, the clinical benefits of endovascular treatments using HORSs are very clear, and these procedures are increasing in number. In procedures such as EVAR and TEVAR, wires and catheters are used to deliver and deploy the stent graft in the thoracic/abdominal aorta under fluoroscopic control, including DSA. Thus, the radiation dose to the patient is an important issue. Thus, we determined radiation doses associated with endovascular treatments (EVAR and TEVAR) using HORS. Patient radiation dose results in this study of endovascular treatments using HORS showed no deterministic radiation effects, such as skin injuries. The radiation dose should be evaluated in HORS during endovascular treatments. Reducing/optimizing the radiation dose to the physician and patient in HORSs is important. Generally, the methods for reducing/optimizing the radiation dose in HORSs will be the same as those typical for interventional radiology X-ray systems.

5. Conclusions

We explored the radiation dose indicators (i.e., AK and DAP) delivered during TEVAR and EVAR performed in a HORS. We aimed to maximize patient safety. Radiation exposure during TEVAR and EVAR cannot be ignored. The FT, DAP, and AK during endovascular treatment of aortic aneurysm all increase with procedural complexity. In our study, some patients were exposed to >2 Gy (AK dose). An AK ≤2 Gy does not trigger a skin disorder, so the AK should optimally not exceed 2 Gy. All surgeons, radiologists, cardiologists, nurses, and radiographers must make efforts to minimize radiation exposure during TEVAR and EVAR. We show that the use of HORS during endovascular treatment of aortic aneurysms usefully reduces radiation exposure.

Author Contributions

Conceptualization, Y.H. and K.C.; methodology, Y.H. and K.C.; software, Y.H. and M.S. (Masahiro Sota); validation, K.C., T.M., and M.Z.; formal analysis, Y.H.; investigation, Y.H., Y.K., and M.A.; resources, K.C.; data curation, Y.H. and M.S. (Masatoshi Suzuki); writing—original draft preparation, Y.H.; writing—review and editing, Y.H. and K.C.; visualization, Y.H. and Y.I.; supervision, K.C.; project administration, K.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We thank Hiroki Ishii, Tohoku university hospital, Japan, for his invaluable assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Blaszak, M.A.; Majewska, N.; Juszkat, R.; Majewski, W. Dose-area product to patients during stent-graft treatment of thoracic and abdominal aortic aneurysms. Health Phys. 2009, 97, 206–211. [Google Scholar] [CrossRef] [PubMed]
  2. McNally, M.M.; Scali, S.T.; Feezor, R.J.; Neal, D.; Huber, T.S.; Beck, A.W. Three-dimensional fusion computed tomography decreases radiation exposure, procedure time, and contrast use during fenestrated endovascular aortic repair. J. Vasc. Surg. 2015, 61, 309–316. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Chida, K.; Kaga, Y.; Haga, Y.; Kataoka, N.; Kumasaka, E.; Meguro, T.; Zuguchi, M. Occupational Dose in Interventional Radiology Procedures. Am. J. Roentgenol. 2013, 200, 138–141. [Google Scholar] [CrossRef] [PubMed]
  4. Attigah, N.; Oikonomou, K.; Hinz, U.; Knoch, T.; Demirel, S.; Verhoeven, E.; Böckler, D. Radiation exposure to eye lens and operator hands during endovascular procedures in hybrid operating rooms. J. Vasc. Surg. 2016, 63, 198–203. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Kim, K.P.; Miller, D.L.; Balter, S.; Kleinerman, R.A.; Linet, M.S.; Kwon, D.; Simon, S.L. Occupational radiation doses to operators performing cardiac catheterization procedures. Health Phys. 2008, 94, 211–227. [Google Scholar] [CrossRef] [PubMed]
  6. Inaba, Y.; Chida, K.; Kobayashi, R.; Haga, Y.; Zuguchi, M. Radiation dose of cardiac IVR x-ray systems: A comparison of present and past. Acta Cardiol. 2015, 70, 299–306. [Google Scholar] [CrossRef]
  7. Haga, Y.; Chida, K.; Inaba, Y.; Kaga, Y.; Meguro, T.; Zuguchi, M. A Rotatable Quality Control Phantom for Evaluating the Performance of Flat Panel Detectors in Imaging Moving Objects. J. Digit. Imaging 2015, 29, 38–42. [Google Scholar] [CrossRef] [Green Version]
  8. Chida, K.; Kaga, Y.; Haga, Y.; Takeda, K.; Zuguchi, M. Quality Control Phantom for Flat Panel Detector X-ray Systems. Health Phys. 2013, 104, 97–101. [Google Scholar] [CrossRef]
  9. Hertault, A.; Maurel, B.; Sobocinski, J.; Gonzalez, T.M.; Le Roux, M.; Azzaoui, R.; Midulla, M.; Haulon, S. Impact of Hybrid Rooms with Image Fusion on Radiation Exposure during Endovascular Aortic Repair. Eur. J. Vasc. Endovasc. Surg. 2014, 48, 382–390. [Google Scholar] [CrossRef] [Green Version]
  10. Haak, R.V.D.; Hamans, B.; Zuurmond, K.; Verhoeven, B.; Koning, O.H. Significant Radiation Dose Reduction in the Hybrid Operating Room Using a Novel X-ray Imaging Technology. Eur. J. Vasc. Endovasc. Surg. 2015, 50, 480–486. [Google Scholar] [CrossRef] [Green Version]
  11. Chida, K.; Inaba, Y.; Masuyama, H.; Yanagawa, I.; Mori, I.; Saito, H.; Maruoka, S.; Zuguchi, M. Evaluating the performance of a MOSFET dosimeter at diagnostic X-ray energies for interventional radiology. Radiol. Phys. Technol. 2009, 2, 58–61. [Google Scholar] [CrossRef] [PubMed]
  12. Chida, K.; Kato, M.; Inaba, Y.; Kobayashi, R.; Nakamura, M.; Abe, Y.; Zuguchi, M. Real-time patient radiation dosimeter for use in interventional radiology. Phys. Medica 2016, 32, 1475–1478. [Google Scholar] [CrossRef] [PubMed]
  13. Kuhelj, D.; Zdesar, U.; Jevtić, V.; Škrk, D.; Omahen, G.; Zontar, D.; Surlan, M.; Glusic, M.; Popović, P.; Kocijančič, I.J.; et al. Risk of deterministic effects during endovascular aortic stent graft implantation. Br. J. Radiol. 2010, 83, 958–963. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Weiss, D.J.; Pipinos, I.I.; Longo, G.M.; Lynch, T.G.; Rutar, F.J.; Johanning, J.M. Direct and Indirect Measurement of Patient Radiation Exposure during Endovascular Aortic Aneurysm Repair. Ann. Vasc. Surg. 2008, 22, 723–729. [Google Scholar] [CrossRef]
  15. Panuccio, G.; Greenberg, R.K.; Wunderle, K.; Mastracci, T.M.; Eagleton, M.G.; Davros, W. Comparison of indirect radiation dose estimates with directly measured radiation dose for patients and opetators during complex endovascular procedures. J Vasc. Surg. 2011, 53, 885–894. [Google Scholar] [CrossRef] [Green Version]
  16. Zoli, S.; Trabattoni, P.; Dainese, L.; Annoni, A.D.; Saccu, C.; Fumagalli, M.; Spirito, R.; Biglioli, P. Cumulative radiation exposure during thoracic endovascular aneurysm repair and subsequent follow-up. Eur. J. Cardio-Thorac. Surg. 2012, 42, 254–260. [Google Scholar] [CrossRef] [Green Version]
  17. Mohapatra, A.; Greenberg, R.K.; Mastracci, T.M.; Eagleton, M.J.; Thornsberry, B. Radiation exposure to operating room personnel and patients during endovascular procedures. J. Vasc. Surg. 2013, 58, 702–709. [Google Scholar] [CrossRef] [Green Version]
  18. Kirkwood, M.L.; Arbique, G.M.; Guild, J.B.; Timaran, C.; Chung, J.; Anderson, J.A.; Valentine, R.J. Surgeon education decreases radiation dose in complex endovascular procedures and improves patient safety. J. Vasc. Surg. 2013, 58, 715–721. [Google Scholar] [CrossRef] [Green Version]
  19. Majewska, N.; Stanisic, M.G.; Blaszak, M.A.; Juszkat, R.; Frankiewicz, M.; Krasiński, Z.; Makalowski, M.; Majewski, W. Clinical factors increasing radiation doses to patients undergoing long-lasting procedures: Abdominal stent-graft implantation. Med. Sci. Monit. 2011, 17, MT97–MT103. [Google Scholar] [CrossRef] [Green Version]
  20. Weerakkody, R.A.; Walsh, S.; Cousins, C.; Goldstone, K.E.; Tang, T.Y.; Gaunt, M.E. Radiation exposure during endovascular aneurysm repair. BJS 2008, 95, 699–702. [Google Scholar] [CrossRef]
  21. De Ruiter, Q.M.B.; Reitsma, J.B.; Moll, F.L.; Van Herwaarden, J.A. Meta-analysis of Cumulative Radiation Duration and Dose During EVAR Using Mobile, Fixed, or Fixed/3D Fusion C-Arms. J. Endovasc. Ther. 2016, 23, 944–956. [Google Scholar] [CrossRef] [PubMed]
  22. Varu, V.; Greenberg, J.; Lee, J. Improved Efficiency and Safety for EVAR with Utilization of a Hybrid Room. Eur. J. Vasc. Endovasc. Surg. 2013, 46, 675–679. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Monastiriotis, S.; Comito, M.; Labropoulos, N. Radiation exposure in endovascular repair of abdominal and thoracic aortic aneurysms. J. Vasc. Surg. 2015, 62, 753–761. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Dauer, L.T.; Thornton, R.H.; Hay, J.L.; Balter, R.; Williamson, M.J.; Germain, J.S. Fears, Feelings, and Facts: Interactively Communicating Benefits and Risks of Medical Radiation with Patients. Am. J. Roentgenol. 2011, 196, 756–761. [Google Scholar] [CrossRef] [Green Version]
  25. Rolls, A.; Rosen, S.; Constantinou, J.; Davis, M.; Cole, J.; Desai, M.; Stoyanov, D.; Mastracci, T. Introduction of a Team Based Approach to Radiation Dose Reduction in the Enhancement of the Overall Radiation Safety Profile of FEVAR. Eur. J. Vasc. Endovasc. Surg. 2016, 52, 451–457. [Google Scholar] [CrossRef] [Green Version]
  26. Tacher, V.; Lin, M.; Desgranges, P.; Deux, J.-F.; Grünhagen, T.; Becquemin, J.-P.; Luciani, A.; Rahmouni, A.; Kobeiter, H. Image Guidance for Endovascular Repair of Complex Aortic Aneurysms: Comparison of Two-dimensional and Three-dimensional Angiography and Image Fusion. J. Vasc. Interv. Radiol. 2013, 24, 1698–1706. [Google Scholar] [CrossRef] [Green Version]
  27. Panuccio, G.; Bisdas, T.; Berekoven, B.; Torsello, G.; Austermann, M. Performance of Bridging Stent Grafts in Fenestrated and Branched Aortic Endografting. Eur. J. Vasc. Endovasc. Surg. 2015, 50, 60–70. [Google Scholar] [CrossRef] [Green Version]
  28. Sailer, A.M.; Schurink, G.W.H.; Bol, M.E.; De Haan, M.W.; Van Zwam, W.H.; Wildberger, J.E.; Jeukens, C. Occupational Radiation Exposure During Endovascular Aortic Repair. Cardiovasc. Interv. Radiol. 2014, 38, 827–832. [Google Scholar] [CrossRef]
  29. Chida, K.; Saito, H.; Zuguchi, M.; Shirotori, K.; Kumagai, S.; Nakayama, H.; Matsubara, K.; Kohzuki, M. Does Digital Acquisition Reduce Patients’ Skin Dose in Cardiac Interventional Procedures? An Experimental Study. Am. J. Roentgenol. 2004, 183, 1111–1114. [Google Scholar] [CrossRef]
  30. Chida, K.; Saito, H.; Otani, H.; Kohzuki, M.; Takahashi, S.; Yamada, S.; Shirato, K.; Zuguchi, M. Relationship Between Fluoroscopic Time, Dose–Area Product, Body Weight, and Maximum Radiation Skin Dose in Cardiac Interventional Procedures. Am. J. Roentgenol. 2006, 186, 774–778. [Google Scholar] [CrossRef]
  31. Chida, K.; Kagaya, Y.; Saito, H.; Takai, Y.; Takahashi, S.; Yamada, S.; Kohzuki, M.; Zuguchi, M. Total Entrance Skin Dose: An Effective Indicator of Maximum Radiation Dose to the Skin During Percutaneous Coronary Intervention. Am. J. Roentgenol. 2007, 189, 224–227. [Google Scholar] [CrossRef]
  32. Chida, K.; Inaba, Y.; Saito, H.; Ishibashi, T.; Takahashi, S.; Kohzuki, M.; Zuguchi, M. Radiation Dose of Interventional Radiology System Using a Flat-Panel Detector. Am. J. Roentgenol. 2009, 193, 1680–1685. [Google Scholar] [CrossRef]
  33. Chida, K.; Ohno, T.; Kakizaki, S.; Takegawa, M.; Yuuki, H.; Nakada, M.; Takahashi, S.; Zuguchi, M. Radiation Dose to the Pediatric Cardiac Catheterization and Intervention Patient. Am. J. Roentgenol. 2010, 195, 1175–1179. [Google Scholar] [CrossRef] [PubMed]
  34. Haga, Y.; Chida, K.; Kaga, Y.; Sota, M.; Meguro, T.; Zuguchi, M. Occupational eye dose in interventional cardiology procedures. Sci. Rep. 2017, 7, 569. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Chida, K.; Inaba, Y.; Morishima, Y.; Taura, M.; Ebata, A.; Yanagawa, I.; Takeda, K.; Zuguchi, M. Comparison of dose at an interventional reference point between the displayed estimated value and measured value. Radiol. Phys. Technol. 2011, 4, 189–193. [Google Scholar] [CrossRef] [PubMed]
  36. Morishima, Y.; Chida, K.; Watanabe, H. Estimation of the Dose of Radiation Received by Patient and Physician During a Videofluoroscopic Swallowing Study. Dysphagia 2016, 31, 574–578. [Google Scholar] [CrossRef] [PubMed]
  37. Inaba, Y.; Nakamura, M.; Chida, K.; Zuguchi, M. Effectiveness of a novel real-time dosimeter in interventional radiology: A comparison of new and old radiation sensors. Radiol. Phys. Technol. 2018, 11, 445–450. [Google Scholar] [CrossRef] [PubMed]
  38. Inaba, Y.; Nakamura, M.; Zuguchi, M.; Chida, K. Development of Novel Real-Time Radiation Systems Using 4-Channel Sensors. Sensors 2020, 20, 2741. [Google Scholar] [CrossRef]
  39. Kato, M.; Chida, K.; Nakamura, M.; Toyoshima, H.; Terata, K.; Abe, Y. New real-time patient radiation dosimeter for use in radiofrequency catheter ablation. J. Radiat. Res. 2019, 60, 215–220. [Google Scholar] [CrossRef] [Green Version]
  40. Kawauchi, S.; Chida, K.; Moritake, T.; Matsumaru, Y.; Hamada, Y.; Sakuma, H.; Yoda, S.; Sun, L.; Sato, M.; Tsuruta, W. Estimation of patient lens dose associated with c-arm cone-beam computed tomography usage during interventional neuroradiology. Radiat. Prot. Dosim. 2018, 184, 138–147. [Google Scholar] [CrossRef]
  41. Nemoto, M.; Chida, K. Reducing the Breast Cancer Risk and Radiation Dose of Radiography for Scoliosis in Children: A Phantom Study. Diagnostics 2020, 10, 753. [Google Scholar] [CrossRef] [PubMed]
  42. Chida, K.; Kato, M.; Kagaya, Y.; Zuguchi, M.; Saito, H.; Ishibashi, T.; Takahashi, S.; Yamada, S.; Takai, Y. Radiation dose and radiation protection for patients and physicians during interventional procedure. J. Radiat. Res. 2010, 51, 97–105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Valentin, J. Abstract: Avoidance of radiation injuries from medical interventional procedures, ICRP Publication 85. Ann. ICRP 2000, 30, 7. [Google Scholar] [CrossRef]
Diagnostics 10 00846 g001 550
Figure 1. Photograph of the hybrid operating room system (HORS).
Figure 1. Photograph of the hybrid operating room system (HORS).
Diagnostics 10 00846 g001
Diagnostics 10 00846 g002a 550Diagnostics 10 00846 g002b 550
Figure 2. Relationships between the radiation doses during TEVAR and other factors. (a) The relationship between air karma (AK) and fluoroscopy time (FT). (b) The relationship between AK and the number of acquisitions (DA and DSA). (c) The relationship between DAP and FT. (d) The relationship between DAP and the number of acquisition (DA and DSA).
Figure 2. Relationships between the radiation doses during TEVAR and other factors. (a) The relationship between air karma (AK) and fluoroscopy time (FT). (b) The relationship between AK and the number of acquisitions (DA and DSA). (c) The relationship between DAP and FT. (d) The relationship between DAP and the number of acquisition (DA and DSA).
Diagnostics 10 00846 g002aDiagnostics 10 00846 g002b
Diagnostics 10 00846 g003 550

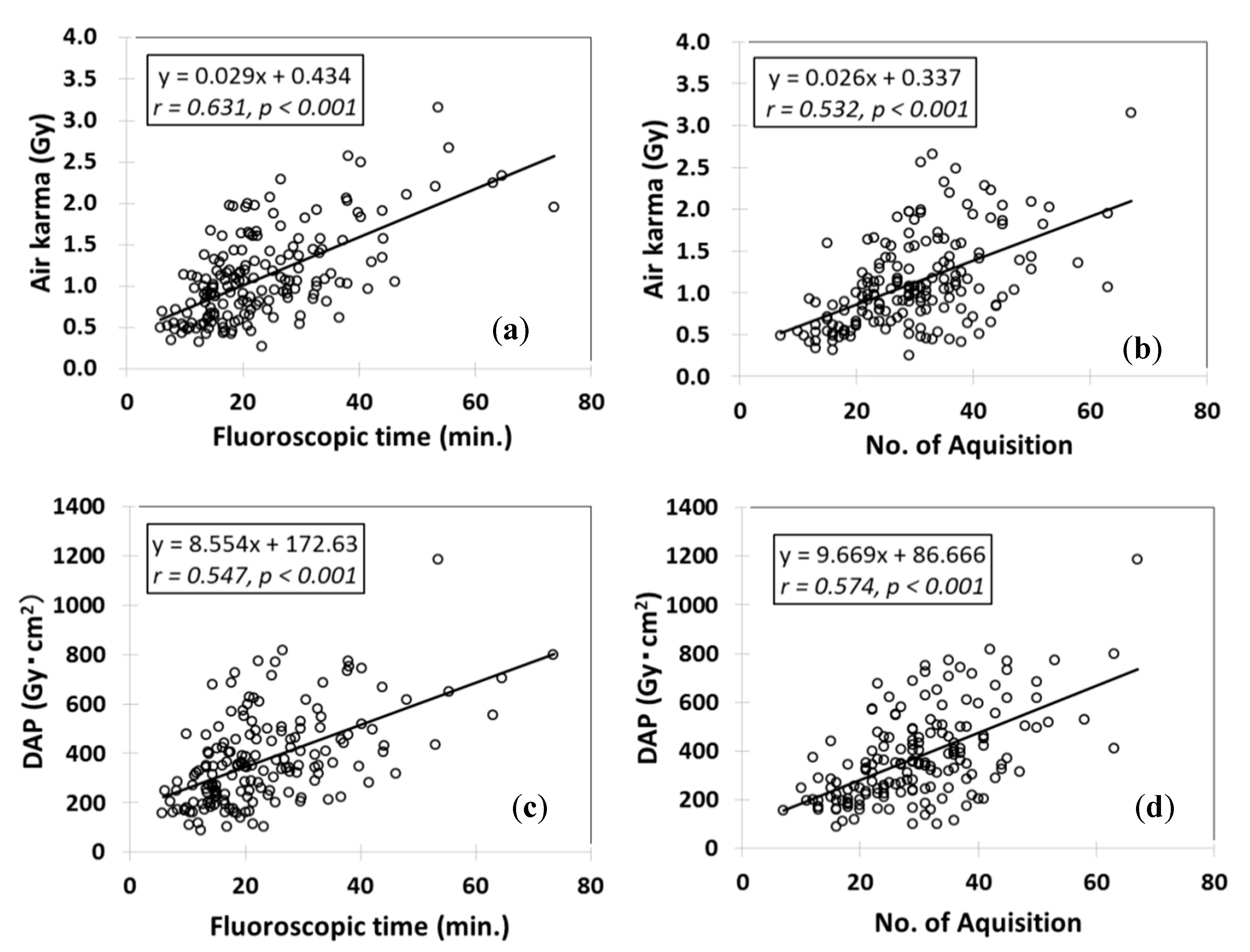

Figure 3. Relationships between the radiation doses during EVAR and other factors. (a) The relationship between air karma (AK) and fluoroscopy time (FT). (b) The relationship between AK and the number of acquisitions (DA and DSA). (c) The relationship between DAP and FT. (d) The relationship between DAP and the number of acquisition (DA and DSA).
Figure 3. Relationships between the radiation doses during EVAR and other factors. (a) The relationship between air karma (AK) and fluoroscopy time (FT). (b) The relationship between AK and the number of acquisitions (DA and DSA). (c) The relationship between DAP and FT. (d) The relationship between DAP and the number of acquisition (DA and DSA).
Diagnostics 10 00846 g003
Diagnostics 10 00846 g004 550

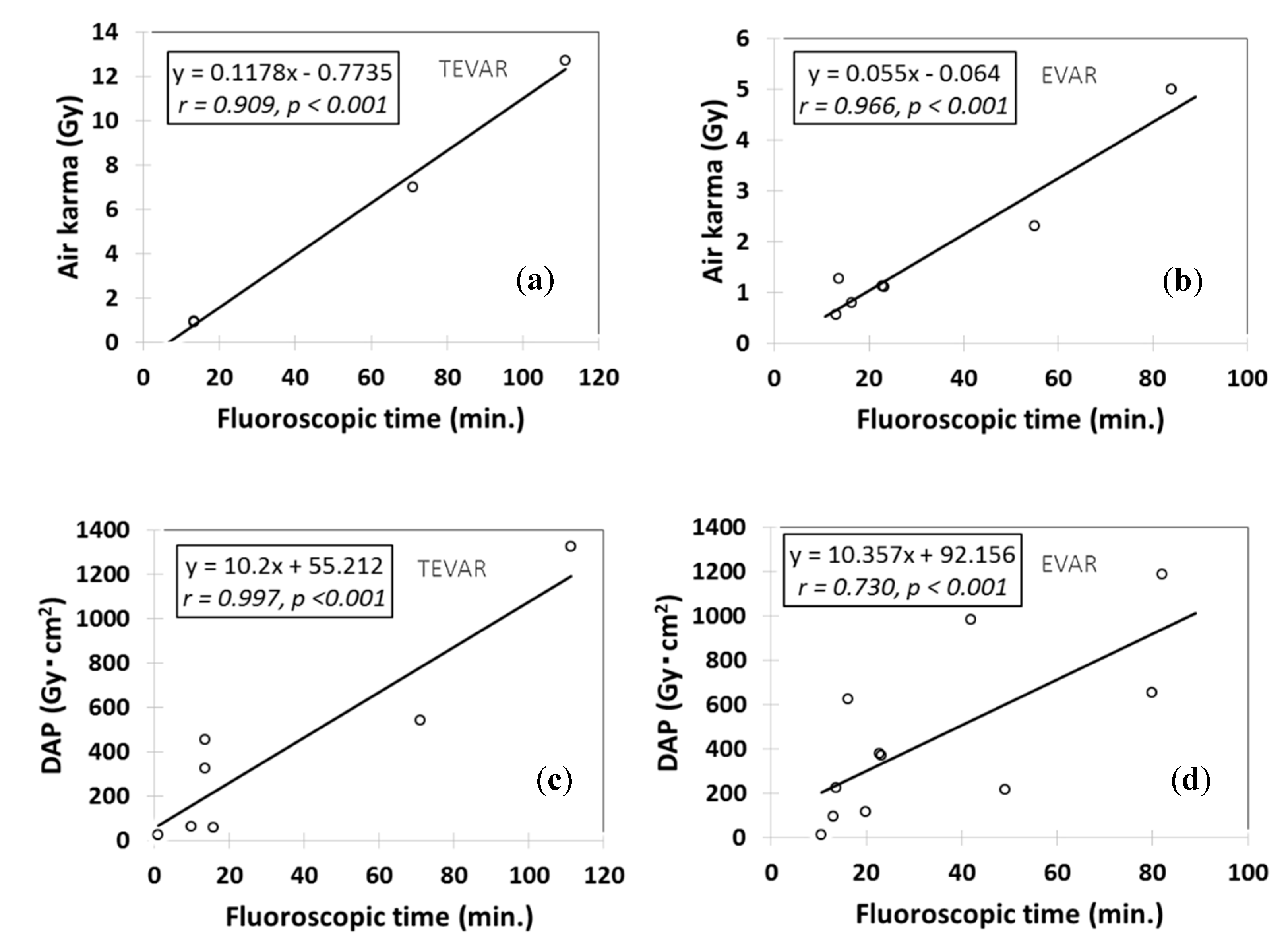

Figure 4. Relationships between the radiation doses (AKs and DAPs) and FT during endovascular treatment of aortic aneurysms in HORSs, as calculated from data from all relevant published reports. (a) The relationship between air karma (AK) and fluoroscopy time (FT) during TEVAR. (b) The relationship between AK and FT during EVAR. (c) The relationship between DAP and FT during TEVAR. (d) The relationship between DAP and FT during EVAR.

Figure 4. Relationships between the radiation doses (AKs and DAPs) and FT during endovascular treatment of aortic aneurysms in HORSs, as calculated from data from all relevant published reports. (a) The relationship between air karma (AK) and fluoroscopy time (FT) during TEVAR. (b) The relationship between AK and FT during EVAR. (c) The relationship between DAP and FT during TEVAR. (d) The relationship between DAP and FT during EVAR.
Diagnostics 10 00846 g004
Table
Table 1. The standard X-ray and contrast conditions used during endovascular treatment of aortic aneurysms in our hospital.
Table 1. The standard X-ray and contrast conditions used during endovascular treatment of aortic aneurysms in our hospital.
X-ray Conditions FluoroscopyD AD S A
Typical tube voltage (kV)808080
Typical tube current (mA)50400125
Typical pulse widths (ms)6845
Pulse rate (p/s) 7.51010
Additional filter0.2mm Cu0.3mm Cu1.5mm Al
Contrast Conditions
Injection method —Manual injectionAutomatic injection
Flow rate (mL/sec) —≈ 0.2 10
Injection volume (mL)—≈ 5 20
Contrast agent—Iopamidol Iopamidol
Iodine content (mg/mL)—370370
Cu: Copper, Al: Aluminum
Table
Table 2. Summary of data from the TEVAR and EVAR patients. The aneurysms were located in all four zones (thus zones 1–4) in TEVAR patients, but only one type of infrarenal abdominal aortic aneurysm was treated via EVAR.
Table 2. Summary of data from the TEVAR and EVAR patients. The aneurysms were located in all four zones (thus zones 1–4) in TEVAR patients, but only one type of infrarenal abdominal aortic aneurysm was treated via EVAR.
Aneurysm Types of TEVARNo. of Cases
n = 84		Ratio (%)
Zone 02732%
Zone 11113%
Zone 21518%
Zones 3–43137%
Aneurysm types of EVARn = 172
infrarenal AAA 172100%
Table
Table 3. A summary of our results: patient data and radiation doses.
Table 3. A summary of our results: patient data and radiation doses.
TEVAREVARp-Value
(TEVAR vs. EVAR)
No. of Cases84172
Age (years)69.8 ± 10.873.8 ± 9.4 p < 0.01
Male-to-female ratio72:12147:25n. s.
Height (cm)163.2 ± 8.8162.3 ± 7.9n. s.
Weight (kg)64.4 ± 10.562.1 ± 10.2n. s.
FT (min.)13.4 ± 7.1 23.2 ± 11.7p < 0.01
AK (Gy)0.92 ± 0.441.11 ± 0.54p < 0.01
DAP (Gy·cm2)323.7 ± 161.0371.3 ± 186.0p < 0.05
No. of acquisitions18.7 ± 9.8 29.8 ± 11.0p < 0.01
No. of stents 1.81 ± 0.652.49 ± 0.81p < 0.01
Table
Table 4. Overview of reports describing the endovascular treatment of thoracic aortic aneurysms (TEVAR) in HORSs.
Table 4. Overview of reports describing the endovascular treatment of thoracic aortic aneurysms (TEVAR) in HORSs.
Study of TEVARNo. of CasesMedian FT (min.)Median AK (Gy)Median DAP (Gy·cm2)
Blaszak M A. [1], 20093911.8 (13.4 ± 8.3)0.87 (0.94 ± 0.56)385.9 (452.3 ± 275.4)
Hertault A. [9], 2014140.9 (—)—26.0 (—)
Panuccio G. [15], 20114682.7 (111.3 ± 55.1)6.30 (12.7 ± 4.4)696.6 (1327.0 ± 469.9)
Zoli S. [16], 20124812.3 (15.7 ± 11.4)—41.3 (56.7 ± 45.2)
Mohapatra A. [17], 201339— (71.1)— (7.0)— (540.9)
Kirkwood M.L. [18], 201325—0.9 (—)—
Sailer A.M. [28], 201511— (9.7 ± 7.3)—— (62.0 ± 46.0)
Our study8412.1 (13.4 ± 7.1)0.80 (0.92 ± 0.44)299.7 (323.7 ± 161.0)
(Mean ± SD).
Table
Table 5. Overview of reports describing the endovascular treatment of abdominal aortic aneurysms (EVAR) in HORSs.
Table 5. Overview of reports describing the endovascular treatment of abdominal aortic aneurysms (EVAR) in HORSs.
Study of EVARNo. of CasesMedian FT (min.)Median AK (Gy)Median DAP (Gy·cm2)
Blaszak M.A. [1], 20093919.6 (22.8 ± 14.2)1.11 (1.12 ± 0.70)354.9 (380.9 ± 285.3)
Hertault A. [9], 20144410.6 (—)—12.2 (—)
Van den Haak R.F. [10], 201518— (13.6 ± 8.6)1.26 (—)224.4 (—)
19— (13.1 ± 6.1)0.56 (—)95.8 (—)
McNally M.M. [2], 201541— (84.0 ± 36.0)— (5.00 ± 0.28)—
31— (55.0 ± 21.0)— (2.30 ± 1.30)—
Kirkwood M.L. [18], 201322—1.00 (—)—
Majewska N. [19], 20119213 (16.3)0.63 (0.80)456 (626)
Varu VN. [22], 201351— (24.9 ± 12.4)——
Tacher V. [26], 20139— (82.0 ± 46.0)—— (1188.0 ± 1067.0)
14— (42.0 ± 22.0)—— (984.0 ± 581.0)
14— (80.0 ± 36.0)—— (656.0 ± 457.0)
Panuccio G. [27], 2015150— (89.0 ± 33.0)—— (60.7 ± 84.9)
Sailer A.M. [28], 201522— (19.8 ± 8.4)—— (116.0 ± 122.0)
11— (49.1± 21.8)—— (217.0 ± 159.0)
Our study17220.5 (23.2 ± 11.7)1.02 (1.11 ± 0.54)345.3 (371.3 ± 186.0)
(Mean ± SD).
