# Dynamic Handling Characterization and Set-Up Optimization for a Formula SAE Race Car via Multi-Body Simulation

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Basis of Multi-Body Dynamics

**q**is the vector of the system generalized coordinates. It is assumed that the number of equations is equal to the number of unknown variables. By taking first derivative of Equation (1), the velocity kinematic constraint equations are obtained as

**q**, and $\dot{q}$ the vector of generalized velocities. By differentiating Equation (2), one obtains the acceleration kinematic equations:

**M**being the mass matrix,

**Q**the vector containing the external forces and $\mathit{\lambda}$ the vector of Lagrangian multipliers. By adding the m Equations (3), Equation (4), which is a system of n equations (n: number of dofs) in n + m variables, can be solved as

## 3. Full-Vehicle Modeling via Multi-Body Approach

## 4. Dynamic Handling Characterization and Baseline Vehicle Set-Up

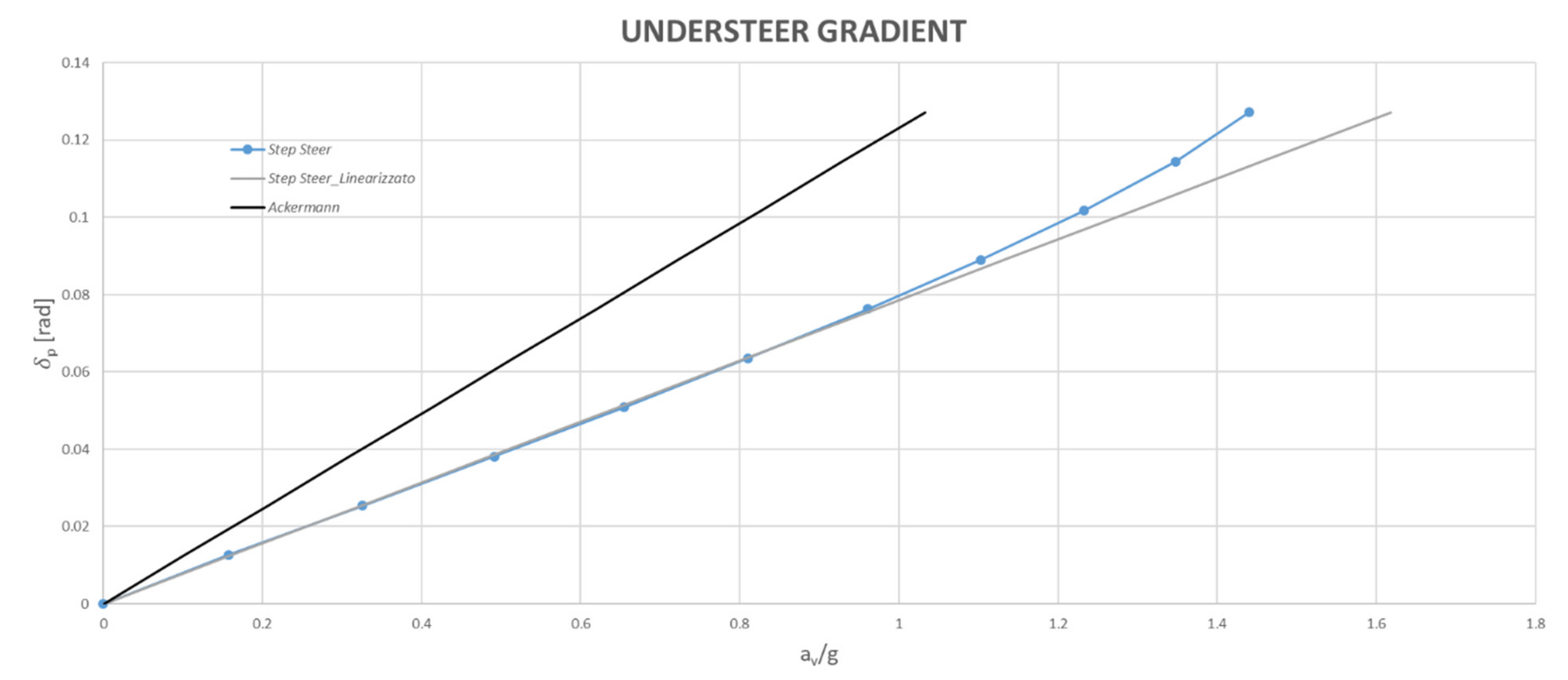

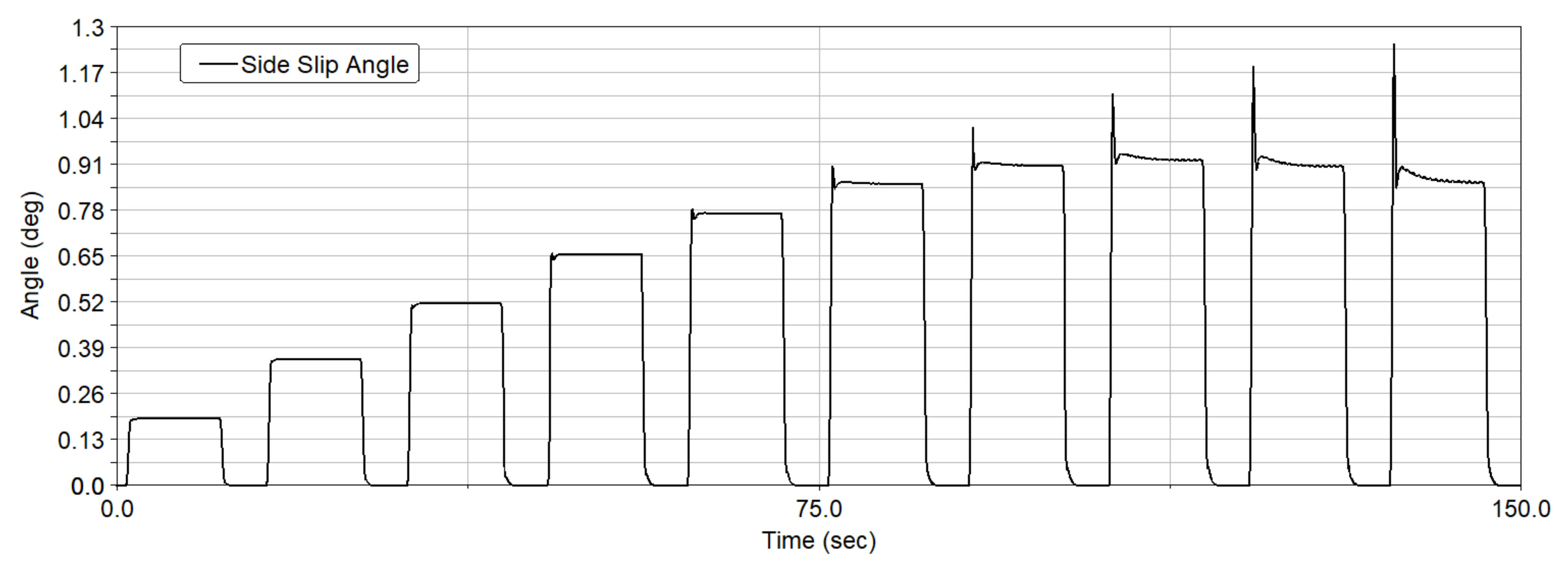

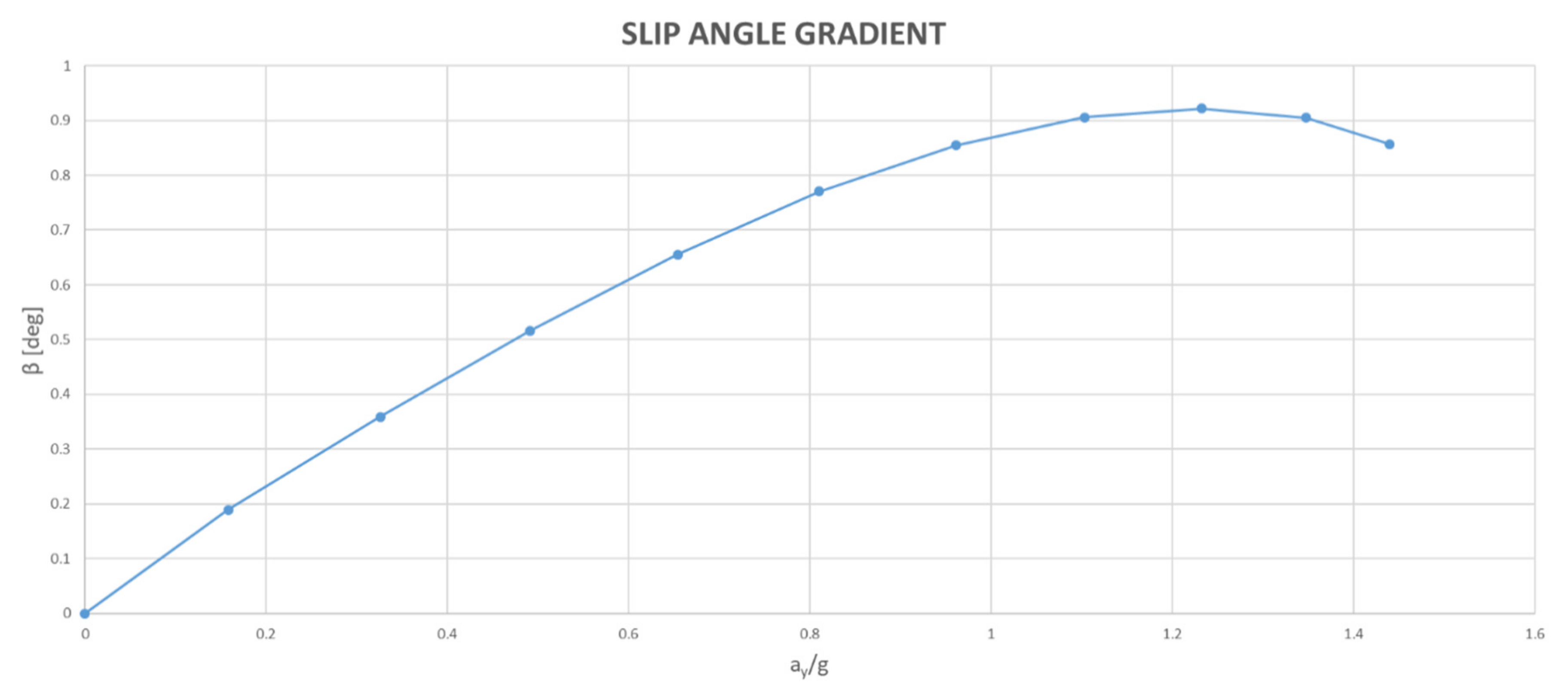

- ${\delta}_{p}$ is the front tire steer angle;
- $l$ is the vehicle wheelbase;
- $R$ is the cornering radius;
- ${a}_{y}$ is the lateral acceleration;
- $g$ is the gravity acceleration.

## 5. Set-Up Optimization

#### 5.1. Tilt Test

#### 5.2. Brake Test

- Clutch—the driver inserts the clutch on and increases the engine rev:
- ⚬
- Throttle: step-like control, with a duration of $3\mathrm{s}$, up to $100\%$;
- ⚬
- Braking: constant control, null value;
- ⚬
- Gear: constant control, first gear;
- ⚬
- Clutch: constant control, unitary value;
- ⚬
- Conditions: stop when $rp{m}_{engine}\gg 6450\mathrm{rpm}$.

- Release—the driver releases the clutch at the right engine rev:
- ⚬
- Throttle: constant control, relative null value;
- ⚬
- Braking: constant control, null value;
- ⚬
- Gear: constant control, first gear;
- ⚬
- Clutch: step-like control, duration $0.1\mathrm{s}$, up to $0\%$;
- ⚬
- Conditions: terminate when $time=0.1\mathrm{s}$.

- Acceleration_1Gear—the driver releases the clutch and accelerates:
- ⚬
- Throttle: relative step like control, duration of 0.5 s, up to 100%;
- ⚬
- Braking: constant control, null value;
- ⚬
- Gear: constant control, first gear;
- ⚬
- Clutch: constant control, null value;
- ⚬
- Conditions: terminate when $velocity>65.7\mathrm{km}/\mathrm{h}$.

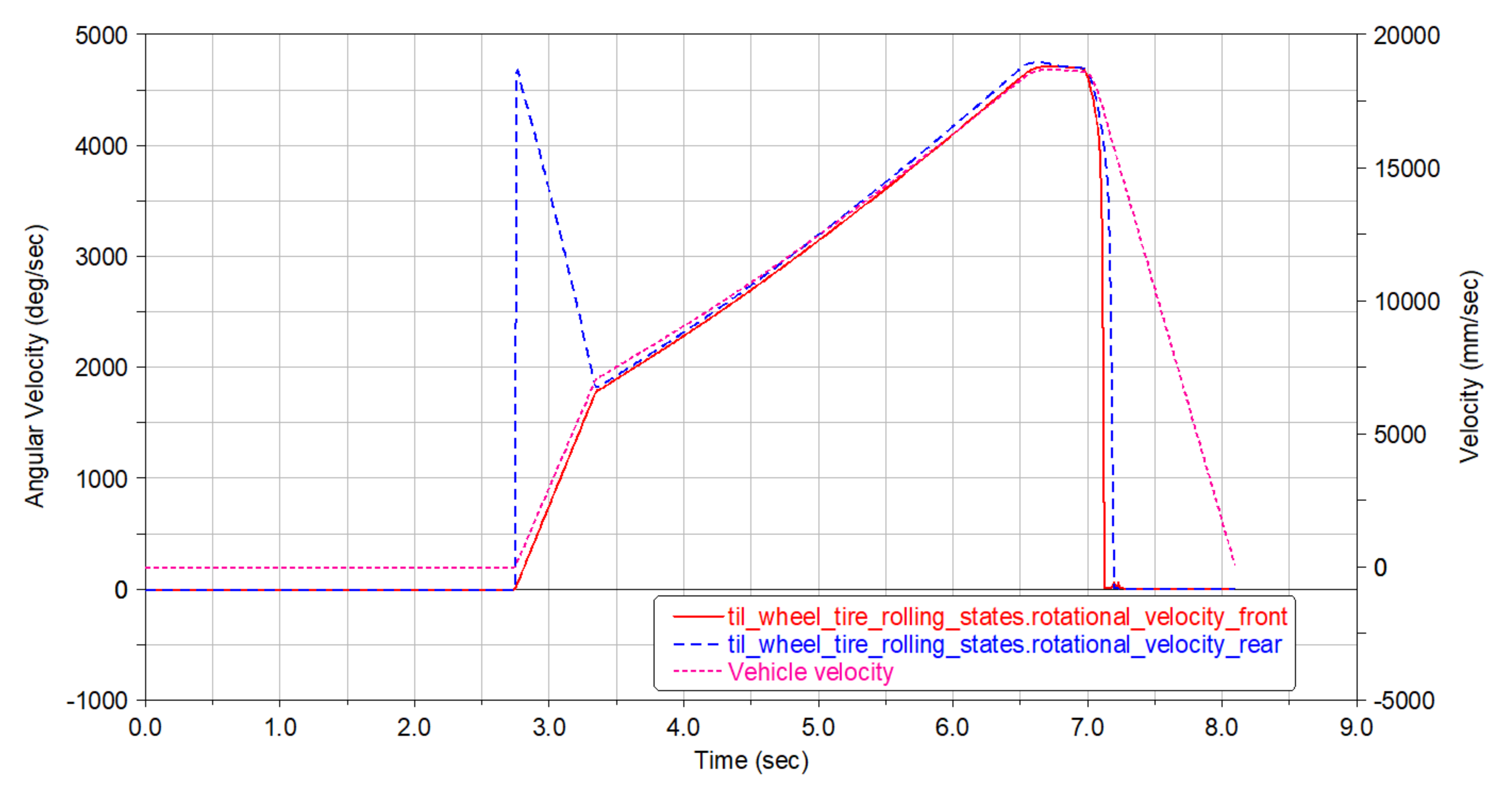

- Braking—the driver performs emergency braking:
- ⚬
- Throttle: step-like control, duration of 0.5 s, up to 0%;
- ⚬
- Braking: step-like control, starts at $0.5\mathrm{s}$, duration of $0.2\mathrm{s}$, up to $100\%$;
- ⚬
- Gear: constant control, first gear;
- ⚬
- Clutch: step-like control, duration of $0.5\mathrm{s}$, up to unitary value;
- ⚬
- Conditions: terminate when $velocity<0.36\mathrm{km}/\mathrm{h}$.

- Increasing inflation pressure to reduce the tire contact patch;
- Increase the camber angle to reduce the tire contact patch;
- Increase brake balance to compensate for weight shift during braking.

- Front/rear inflation pressure: $\mathrm{100,000}\mathrm{Pa}$
- Front/rear camber angle: $-0.043\mathrm{rad}\left(-2.5\xb0\right)$
- Front braking balance: $74\%$

#### 5.3. Acceleration Event

- Clutch—the driver inserts the clutch on and increases the engine rev:
- ⚬
- Throttle: step-like control, duration $3\mathrm{s}$, up to $100\%$;
- ⚬
- Braking: constant control, null value;
- ⚬
- Gear: constant control, first gear;
- ⚬
- Clutch: constant control, unitary value;
- ⚬
- Conditions: terminate when $rp{m}_{engine}\gg 6450\mathrm{rpm}$.

- Release—the driver releases the clutch:
- ⚬
- Throttle: constant control, relative null value;
- ⚬
- Braking: constant control, null value;
- ⚬
- Gear: constant control, first gear;
- ⚬
- Clutch: step-like control, duration $0.1\mathrm{s}$, up to $0\%$;
- ⚬
- Conditions: terminate when $time=0.1\mathrm{s}$.

- Acceleration_1Gear—the driver accelerates up to 100%:
- ⚬
- Throttle: relative step-like control, duration of $0.5\mathrm{s}$, up to 100%;
- ⚬
- Braking: constant control, null value;
- ⚬
- Gear: constant control, first gear;
- ⚬
- Clutch: constant control, null value;
- ⚬
- Conditions: terminate when $rp{m}_{engine}\gg 4000\mathrm{rpm}$.

- Acceleration—the driver keeps accelerating:
- ⚬
- Throttle: constant control, up to $100\%$;
- ⚬
- Braking: constant control, null value;
- ⚬
- Gear: machine-type control;
- ⚬
- Clutch: machine-type control;
- ⚬
- Conditions: terminate when $distance\gg 75\mathrm{m}$.

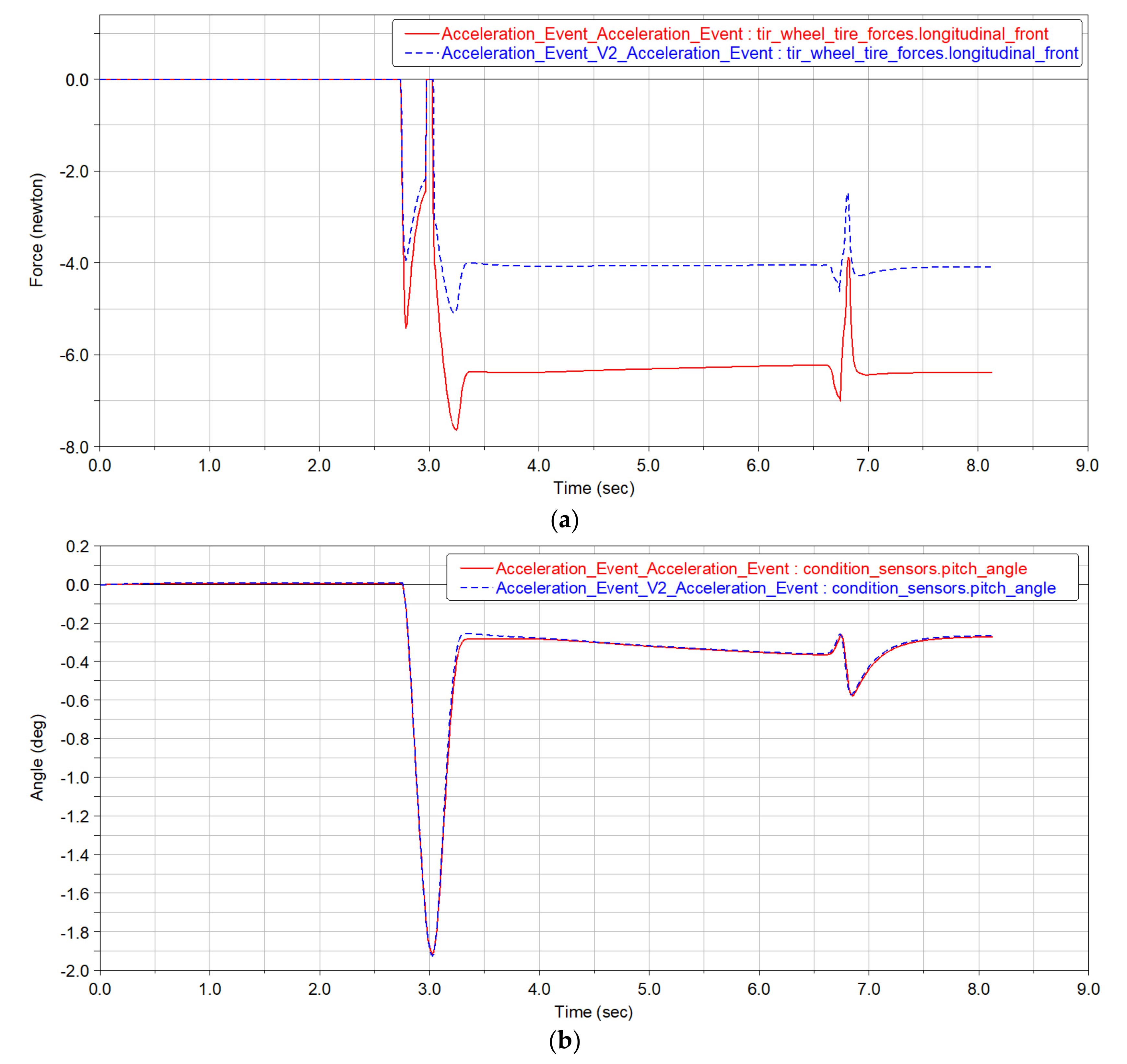

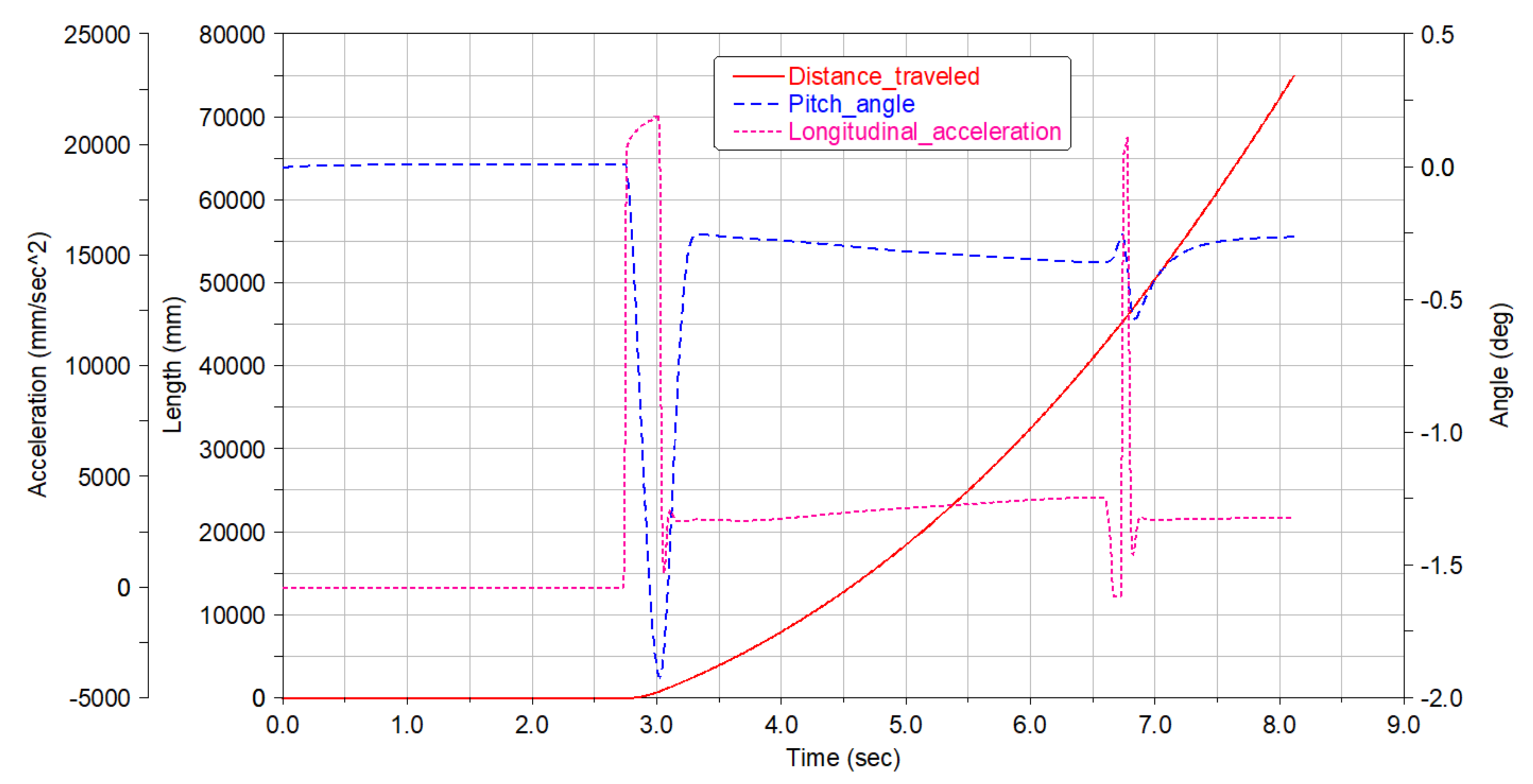

- Inflation pressure higher for the front tires to reduce the contact patch;
- Camber angle larger for the front tires to reduce the contact patch;
- Softer anti-roll spring stiffness to the rear to increase the elastic-type weight shift on the rear drive tires.

- Front inflation pressure: $\mathrm{100,000}\mathrm{Pa}$
- Front camber angle: $-0.043\mathrm{rad}\left(-2.5\xb0\right)$
- Rear spring stiffness: $\mathrm{43,800}\mathrm{N}/\mathrm{m}\left(250\mathrm{lb}/\mathrm{in}\right)$

#### 5.4. Skidpad Event

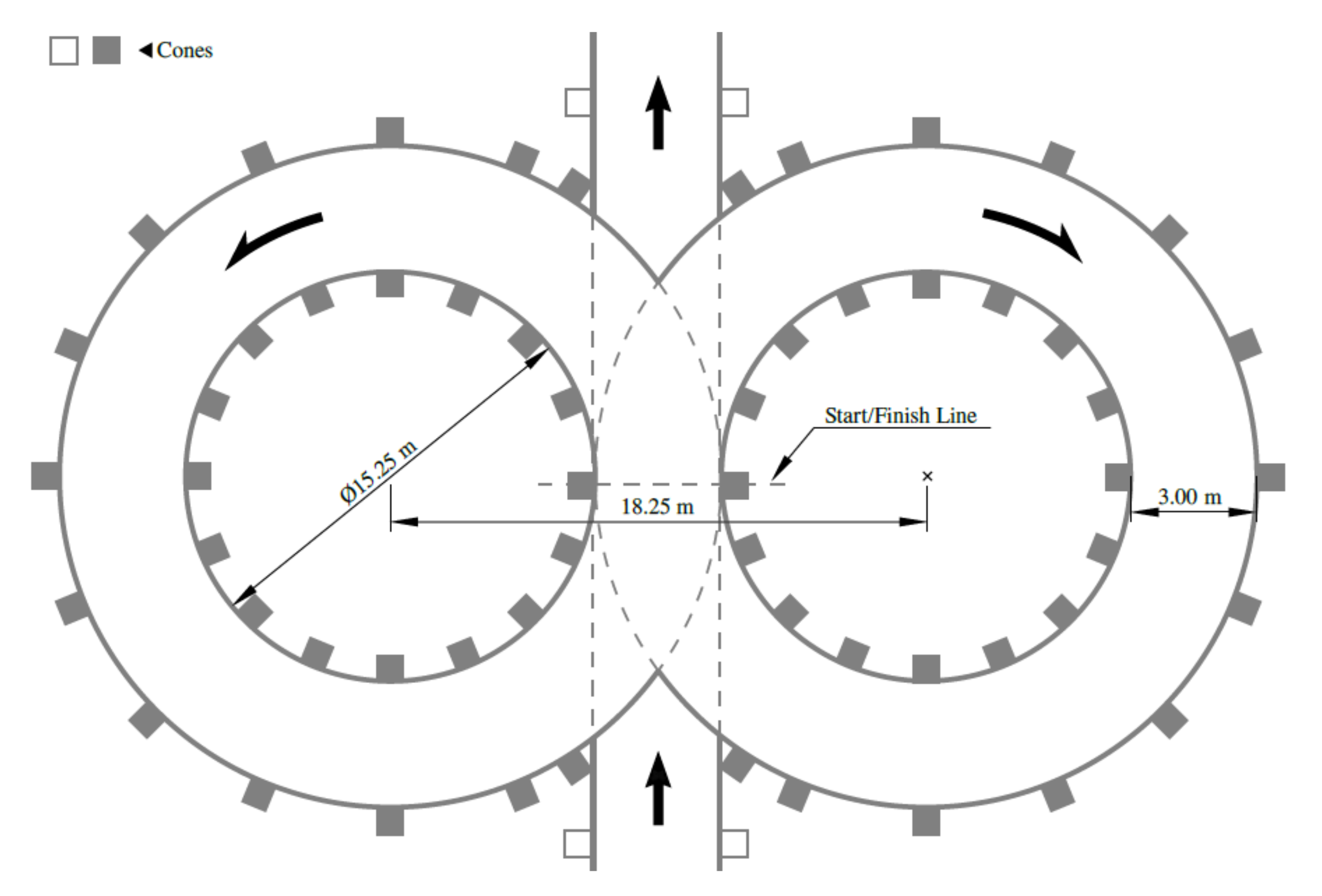

- Skidpad—the driver tracks the optimal trajectory:
- ⚬
- Steering: machine-type control based on a predefined trajectory in the form of a point set or “path map”;
- ⚬
- Throttle/Braking: machine-type control to maintain the initial speed constant;
- ⚬
- Gear: relative constant control, null value;
- ⚬
- Clutch: relative constant control, null value;
- ⚬
- Conditions: terminate when $distance\gg 210\mathrm{m}$

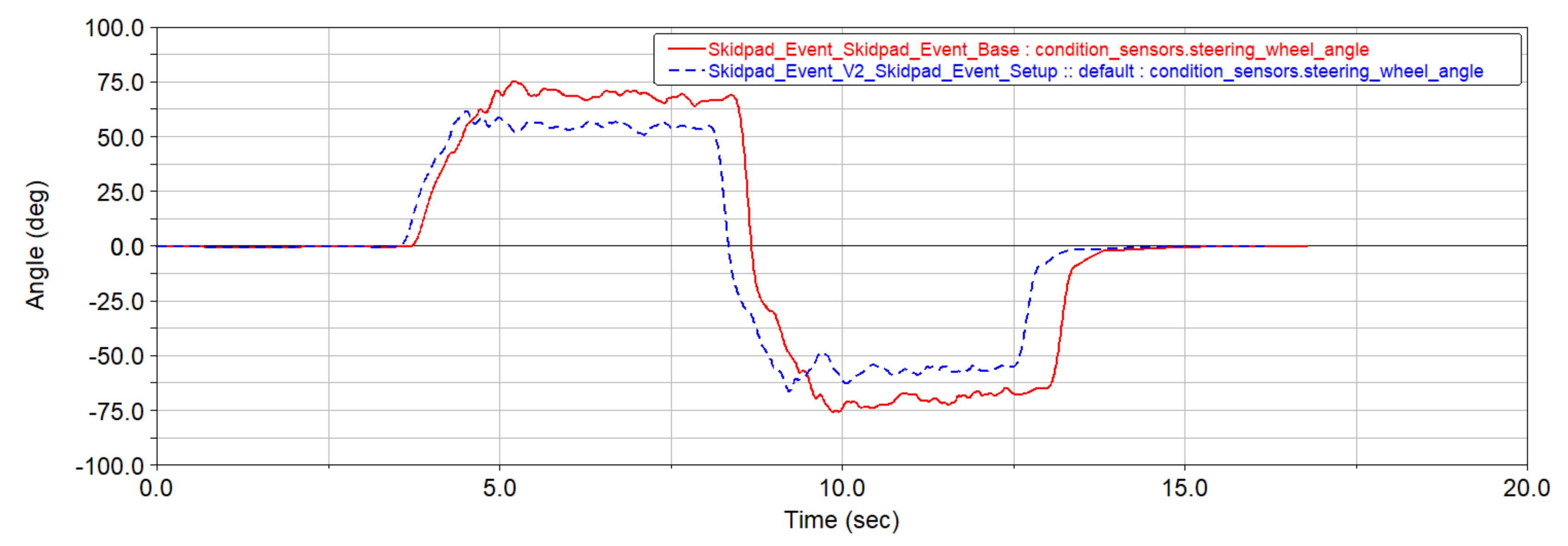

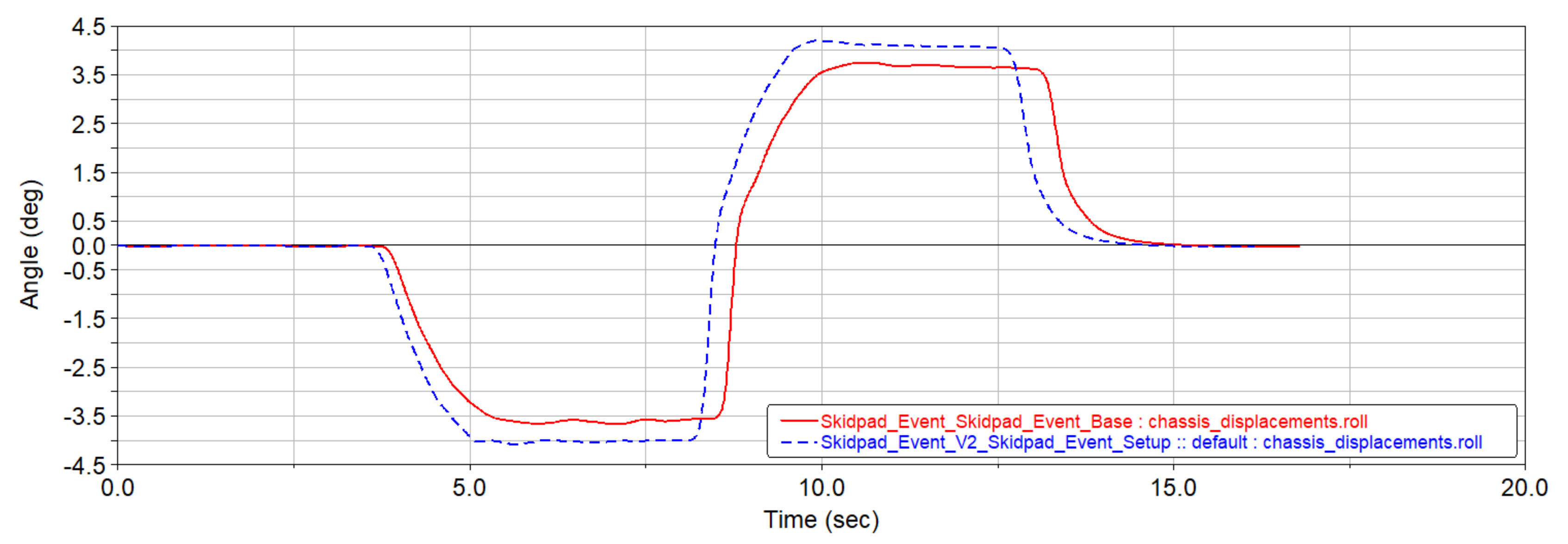

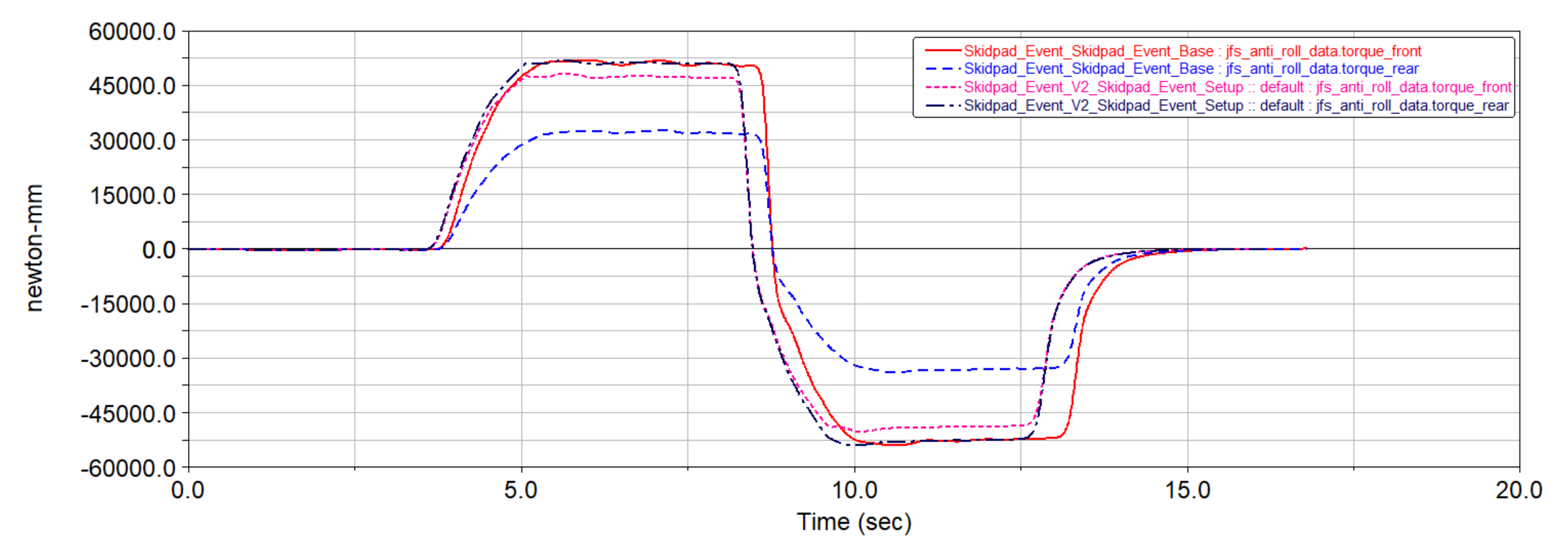

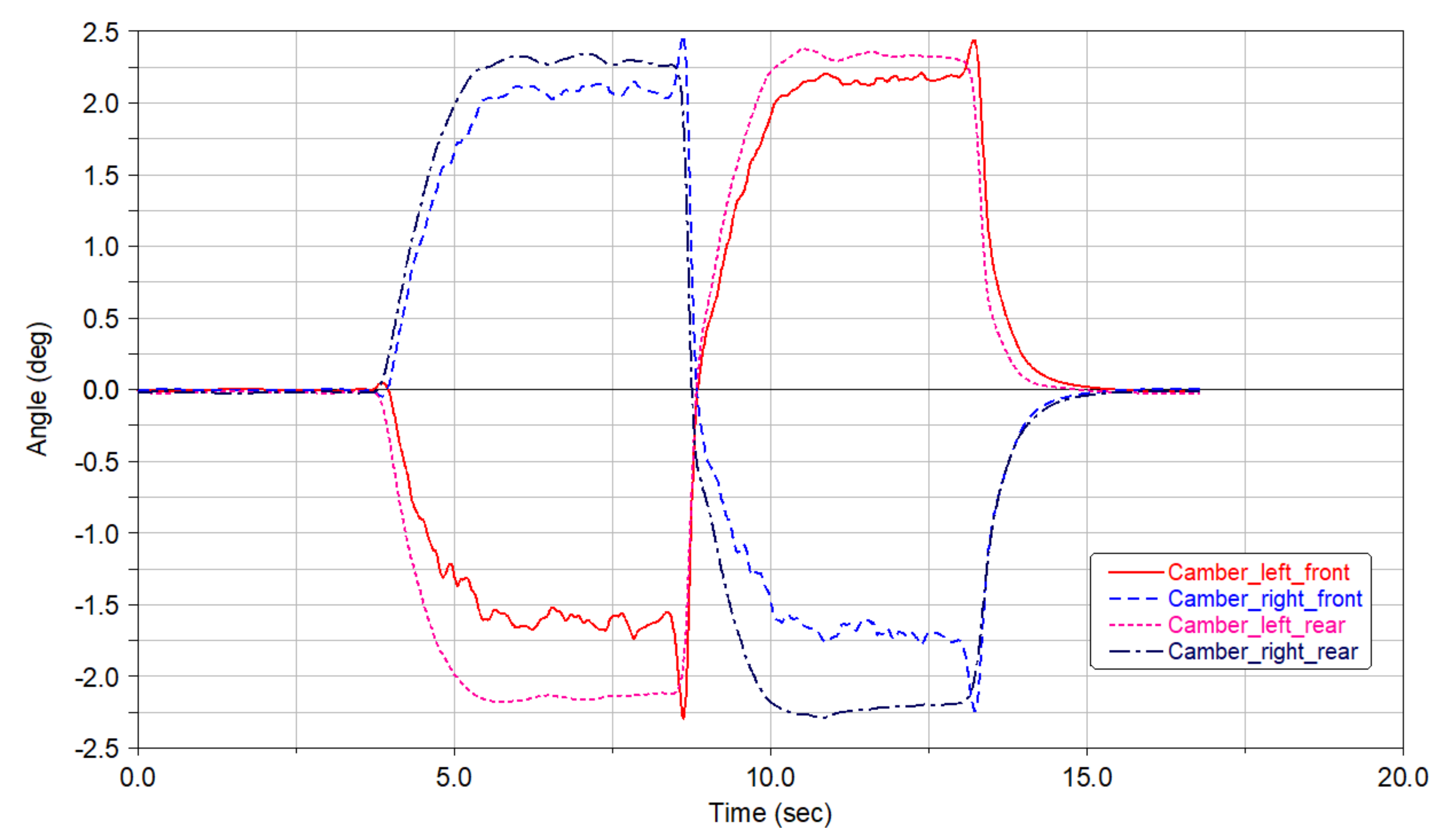

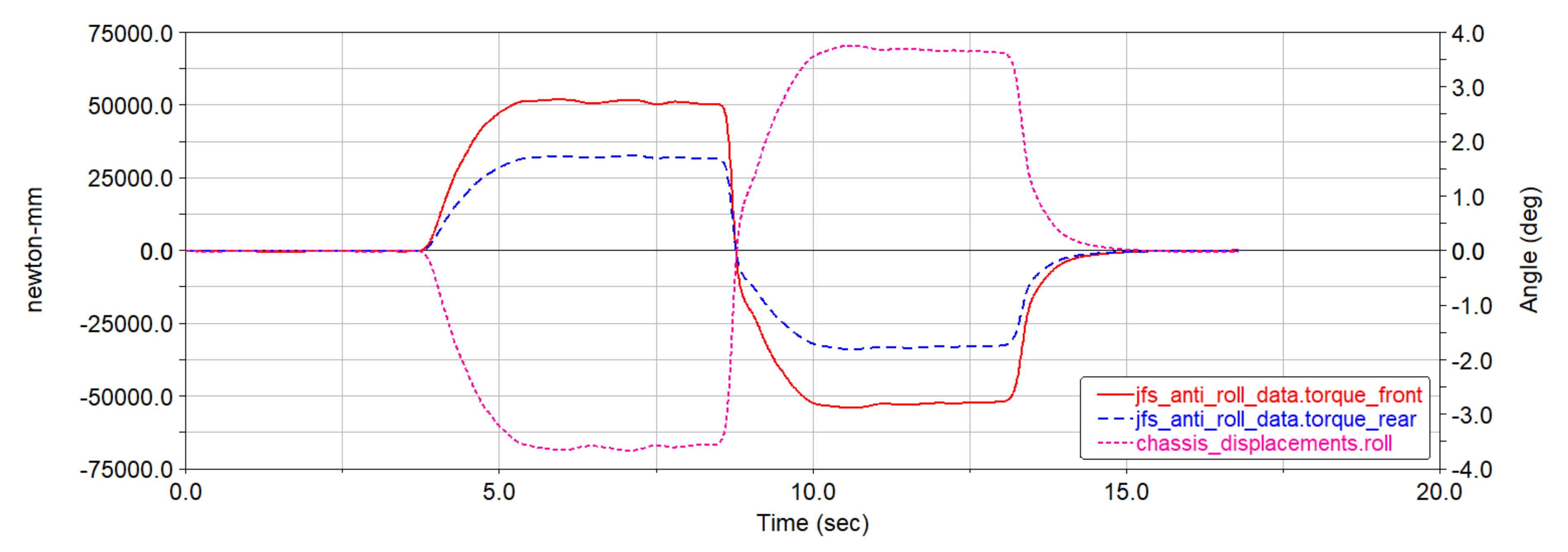

- Front/rear camber angle: $-0.043\mathrm{rad}\left(-2.5\xb0\right)$
- Front anti-roll bar height: $0.065\mathrm{m}$
- Rear anti-roll bar height: $0.035\mathrm{m}$

#### 5.5. Discussion and Lessons Learnt

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

Vehicle aggregate mass (kg) and Inertia tensor (kg mm^{2}) | 275.0 | I_{XX}: 5.7183132261 × 10^{7}I _{YY}: 8.607411095 × 10^{8}I _{ZZ}: 8.5355796004 × 10^{8}I _{XY}: 7.5633943553 × 10^{−10}I _{ZX}: 1.0636880734 × 10^{8}I _{YZ}: 0.0 |

Center of aggregate mass location (x, y, z mm) | 1547.5, 0.0, 249.9646 | |

Wheelbase (mm) | 1550 | |

Front suspension | Rear suspension | |

Width (mm) | $1150$ | $1100$ |

Kingpin angle (°) | $6.13$ | $5.68$ |

Scrub Radius (mm) | $28.7$ | $30.6$ |

Spindle length (mm) | $52.4$ | $53.4$ |

Caster angle (°) | $5.75$ | $5.32$ |

Mechanical trail (mm) | $25.2$ | $23.4$ |

Anti-roll bar diameter (mm) and length (mm) | 8 200 | 8 130 |

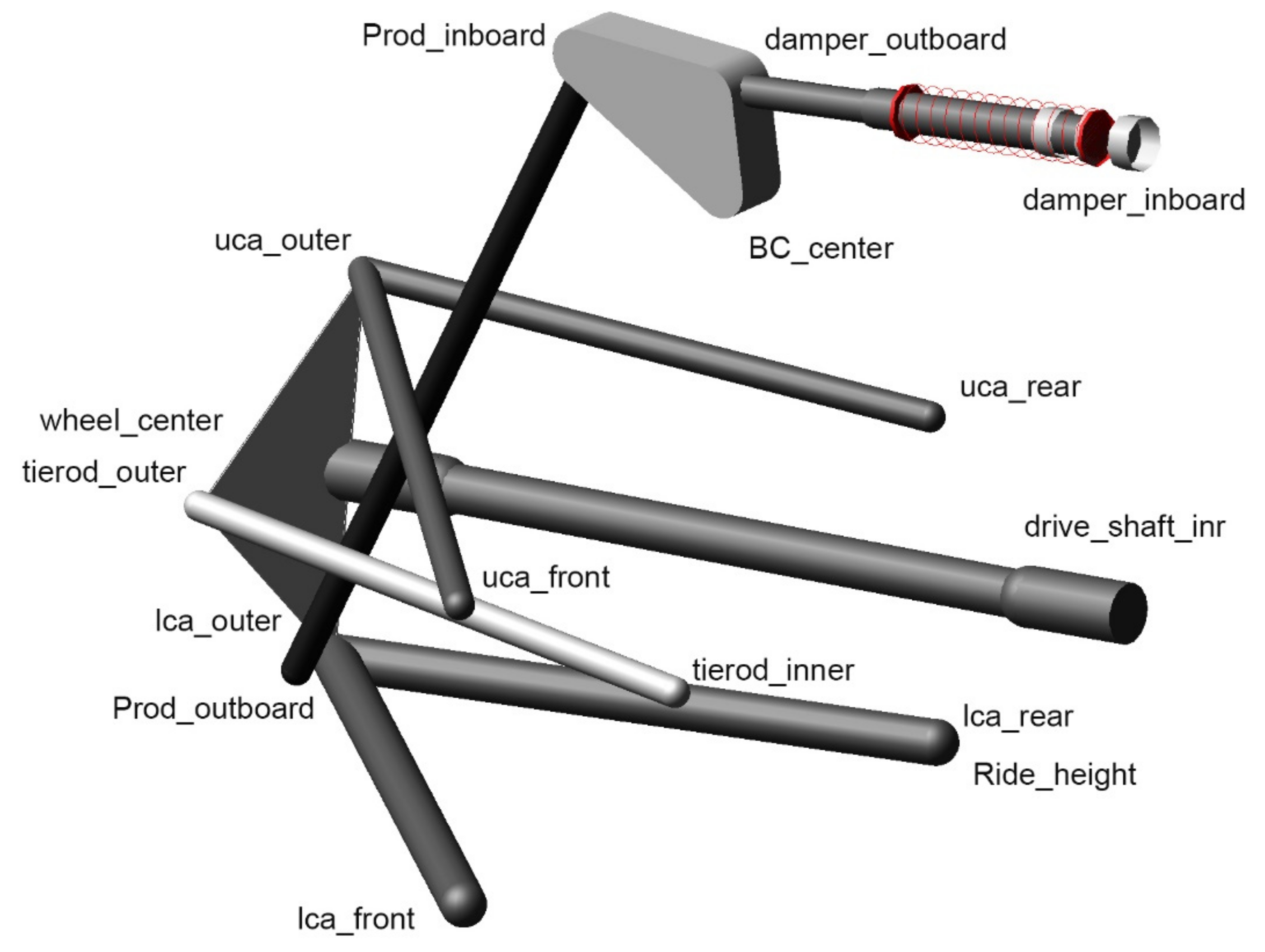

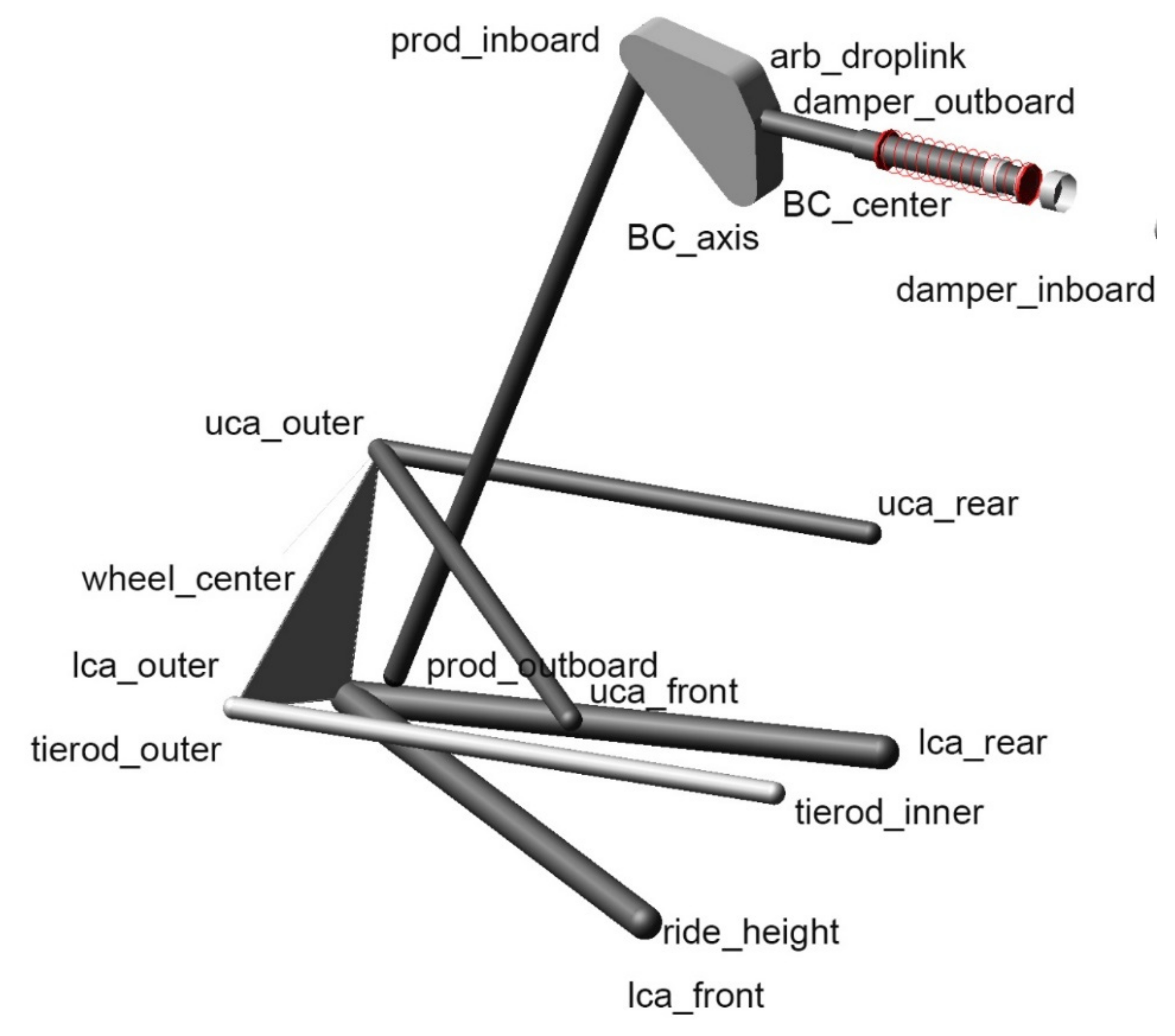

**Table A2.**Hardpoint locations of the front right suspension expressed in the model global reference system.

Hardpoint | Loc_x | Loc_y | Loc_z |

arb_droplink | 763.5 | 253.807 | 609.29 |

BC_axis | 750 | 245 | 555 |

BC_center | 763.5 | 245 | 555 |

damper_inboard | 763.5 | 58.6 | 600 |

damper_outboard | 763.5 | 245.1 | 592 |

lca_front | 641.5 | 245 | 151 |

lca_outer | 763.5 | 529 | 161 |

lca_rear | 867.5 | 245 | 158 |

prod_inboard | 763.5 | 310 | 617.3 |

prod_outboard | 763.5 | 496.6 | 182.7 |

ride_height | 641.5 | 245 | 151 |

tierod_inner | 772.5 | 250 | 172.5 |

tierod_outer | 689.3 | 551.7 | 180.2 |

uca_front | 578.9 | 245 | 302 |

uca_outer | 778.5 | 513 | 310 |

uca_rear | 863.1 | 245 | 294 |

wheel_center | 772.5 | 575 | 232.45 |

**Table A3.**Hardpoint locations of the rear right suspension expressed in the model global reference system.

Hardpoint | Loc_x (mm) | Loc_y (mm) | Loc_z (mm) |
---|---|---|---|

BC_axis | 2200 | 259.99 | 399 |

BC_center | 2288.73 | 259.99 | 399 |

damper_inboard | 2288.73 | 74 | 443.8 |

damper_outboard | 2288.73 | 262.39 | 437.93 |

drive_shaft_inr | 2322.5 | 150 | 228.6 |

lca_front | 2082.5 | 259.99 | 152 |

lca_outer | 2313.5 | 504 | 155 |

lca_rear | 2392.5 | 260.01 | 131 |

prod_inboard | 2288.73 | 328.39 | 444.22 |

prod_outboard | 2288.73 | 504 | 156.59 |

ride_height | 2392.5 | 260.01 | 131 |

tierod_inner | 2226.97 | 260 | 200 |

tierod_outer | 2257 | 523.02 | 232.45 |

uca_front | 2092.5 | 259.99 | 276 |

uca_outer | 2328.5 | 488 | 316 |

uca_rear | 2402.5 | 260 | 266 |

wheel_center | 2322.5 | 550 | 232.45 |

**Table A4.**Hardpoint locations of the rear/left antiroll bar system expressed in the model global reference frame.

Front Antiroll System | |||

Hardpoint | Loc_x (mm) | Loc_y (mm) | Loc_z (mm) |

droplink/left | 763.5 | −253.807 | 609.29 |

droplink/right | 763.5 | 253.807 | 609.29 |

arb_bend | 763.5 | 0 | 580 |

arb_center | 963.5 | 0 | 580 |

Rear Antiroll System | |||

Hardpoint | Loc_x (mm) | Loc_y (mm) | Loc_z (mm) |

droplink/left | 2288.73 | -259.779 | 419 |

droplink/right | 2288.73 | 259.779 | 419 |

arb_bend | 2288.73 | 0 | 423.797 |

arb_center | 2418.73 | 0 | 423.797 |

## References

- Mihailidis, A.; Samaras, Z.; Nerantzis, I.; Fontaras, G.; Karaoglanidis, G. The design of a Formula Student race car: A case study. Proc. Inst. Mech. Eng. Part D
**2009**, 223, 805. [Google Scholar] [CrossRef] - Gaffney, E.F.; Salinas, A.R. Introduction to formula SAE suspension and frame design. SAE Pap.
**1997**, 971584. [Google Scholar] [CrossRef] - Schiavinotto, G.; Meneghetti, G.; Veneri, M.; Massaro, M. Enhancing the Performance of an FSAE Car. In Proceedings of the 21st International Conference on Advanced Vehicle Technologies, Anaheim, CA, USA, 18–21 August 2019. [Google Scholar]
- Rahnejat, H. Multi-body dynamics: Historical evolution and application. Proc. Inst. Mech. Eng. Part C
**2000**, 214, 149–173. [Google Scholar] [CrossRef] [Green Version] - Lange, P.; Probst, A.; Srinivas, A.; GonzalesPeytavi, G.; Rachuy, C.; Schattel, A.; Schwarting, V.; Clemens, J.; Nakath, D.; Echim, M.; et al. Virtual Reality for Simulating Autonomous Deep-Space Navigation and Mining. In Proceedings of the 24th International Conference on Artificial Reality and Tele-existence (ICAT-EGVE), Bremen, Germany, 8–10 December 2014. [Google Scholar]
- Rohmer, E.; Reina, G.; Yoshida, K. Dynamic Simulation-Based Action Planner for a Reconfigurable Hybrid Leg–Wheel Planetary Exploration Rover. Adv. Robot.
**2010**, 24, 1219–1238. [Google Scholar] [CrossRef] - Sabatini, M.; Gasbarri, P.; Palmerini, G.; Monti, R. Operational modal analysis via image based technique of very flexible space structures. In Proceedings of the 63rd International Astronautical Congress, Naples, Italy, 1–5 October 2012. [Google Scholar]
- Reina, G.; Foglia, M. On the mobility of all-terrain rovers. Ind. Robot.
**2013**, 40, 121–131. [Google Scholar] [CrossRef] - Davis, D.T.; Brutzman, D. The Autonomous Unmanned Vehicle Workbench: Mission Planning, Mission Rehearsal, and Mission Replay Tool for Physics-Based X3D Visualization. In Proceedings of the Symposium on Unmanned Untethered Submersible Technology, Autonomous Undersea Systems Institute (AUSI), Durham, NH, USA, 21–24 August 2005. [Google Scholar]
- Luecke, G.; Kieu, D.; Gilbert, S.; Gilmore, B.; Meusel, C.; Hunt, T.; Kelly, N. Listening to the voice of the customer using an immersive combine simulator: Innovative techniques for product development. Int. J. Heavy Veh. Syst.
**2020**, 27, 303–324. [Google Scholar] - Dimastrogiovanni, M.; Reina, G.; Burzoni, A. An improved active drag reduction system for formula race cars. Proc. Inst. Mech. Eng. Part D
**2020**, 234, 1460–1471. [Google Scholar] [CrossRef] - Rohde, M.; Toschlog, M. Toward the Fusion of Serious Simulation and Video Games. In Proceedings of the 2009 Spring Simulation Multiconference, San Diego, CA, USA, 22–27 March 2009. [Google Scholar]
- Rossmann, J.; Sommer, B. The Virtual Testbed: Latest Virtual Reality Technologies for Space Robotic Applications. In Proceedings of the International Symposium on Artificial Intelligence, Robotics and Automation in Space, Pasadena, CA, USA, 19–21 October 2020; pp. 133–138. [Google Scholar]
- Ni, J.; Chen, S.Z.; Feng, D.; Wang, X.J.; Hao, J.X. Research on crosswind stability of FSAE racing car with rear wing at different attack angles. Appl. Mech. Mater.
**2012**, 152, 737–742. [Google Scholar] [CrossRef] - De Paula Eduardo, G. Formula SAE Suspension Design; No. 2005-01-3994; SAE: Warrendale, PA, USA, 2005. [Google Scholar]
- Robertson, D.; George, J. Delagrammatikas. The Suspension System of the 2009 Cooper Union FSAE Vehicle: A Comprehensive Design Review; No. 2010-01-0311; SAE: Warrendale, PA, USA, 2010. [Google Scholar]
- Ni, J.; Chen, S.; Wu, Z. The Suspension Optimization of FSAE Racing Car Based on Virtual Prototyping Technology. In Proceedings of the FISITA 2012 World Automotive Congress; Lecture Notes in Electrical Engineering 196; Springer: Berlin/Heidelberg, Germany, 2013. [Google Scholar]
- De Jalon, J.G.; Bayo, E. Kinematic and Dynamic Simulation of Multibody Systems; Springer: New York, NY, USA, 1994. [Google Scholar]
- Blundell, M.; Harty, D. The Multibody Systems Approach to Vehicle Dynamics; Elsevier Science: London, UK, 2004. [Google Scholar]
- Adams Development Team. MSC Adams/Car Manual. MSC SOFTWARE. 2019.
- Adams Development Team. MSC Adams/Tire Manual. MSC SOFTWARE. 2019.
- Milliken Research Associates, Inc. FSAE Tire Test Consortium. Available online: www.millikenresearch.com/fsaettc.html (accessed on 15 April 2020).
- Guiggiani, M. The Science of Vehicle Dynamics: Handling, Braking, and Ride of Road and Race Cars; Springer: Berlin/Heidelberg, Germany, 2014. [Google Scholar]

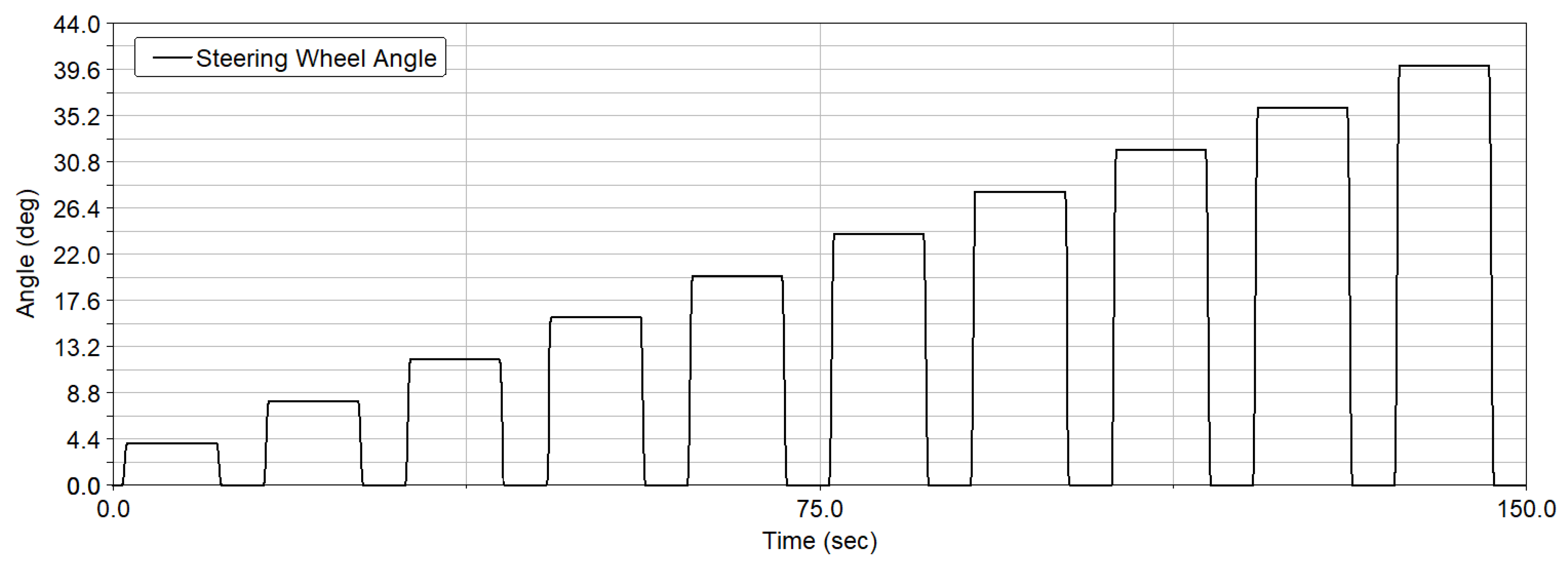

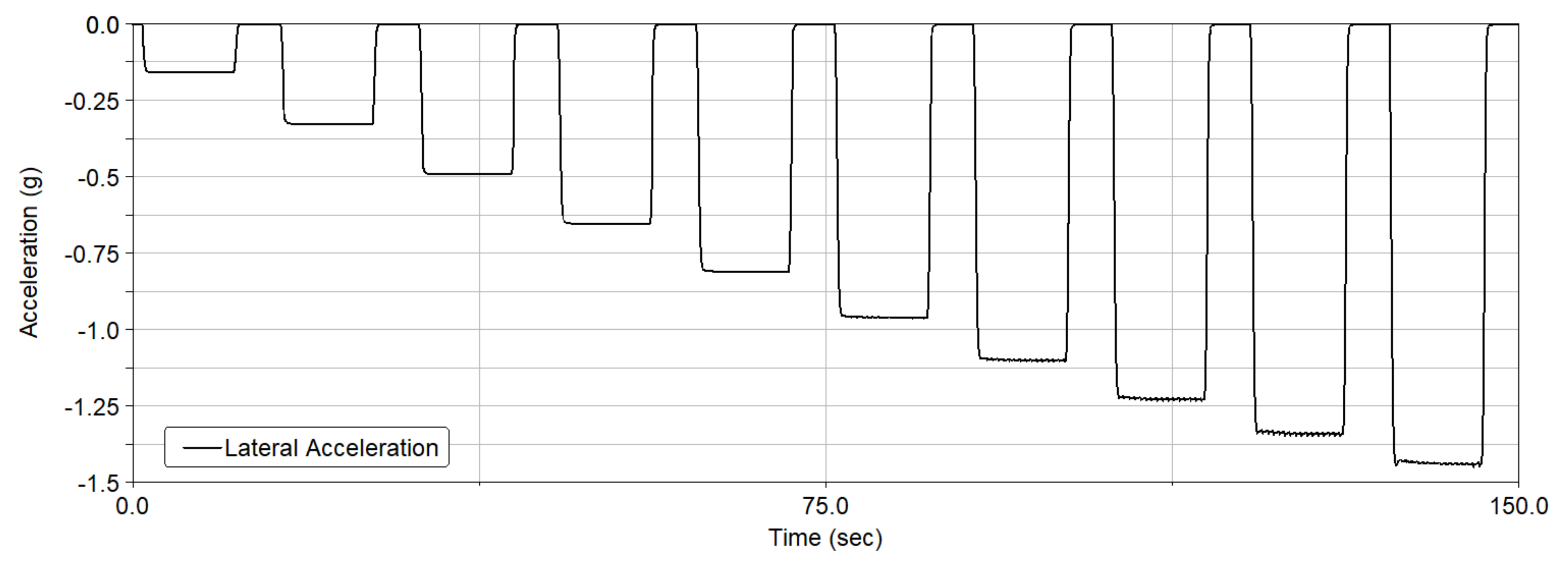

**Figure 4.**Skid-pad virtual test via successive step-steer maneuvers, vehicle output-lateral acceleration.

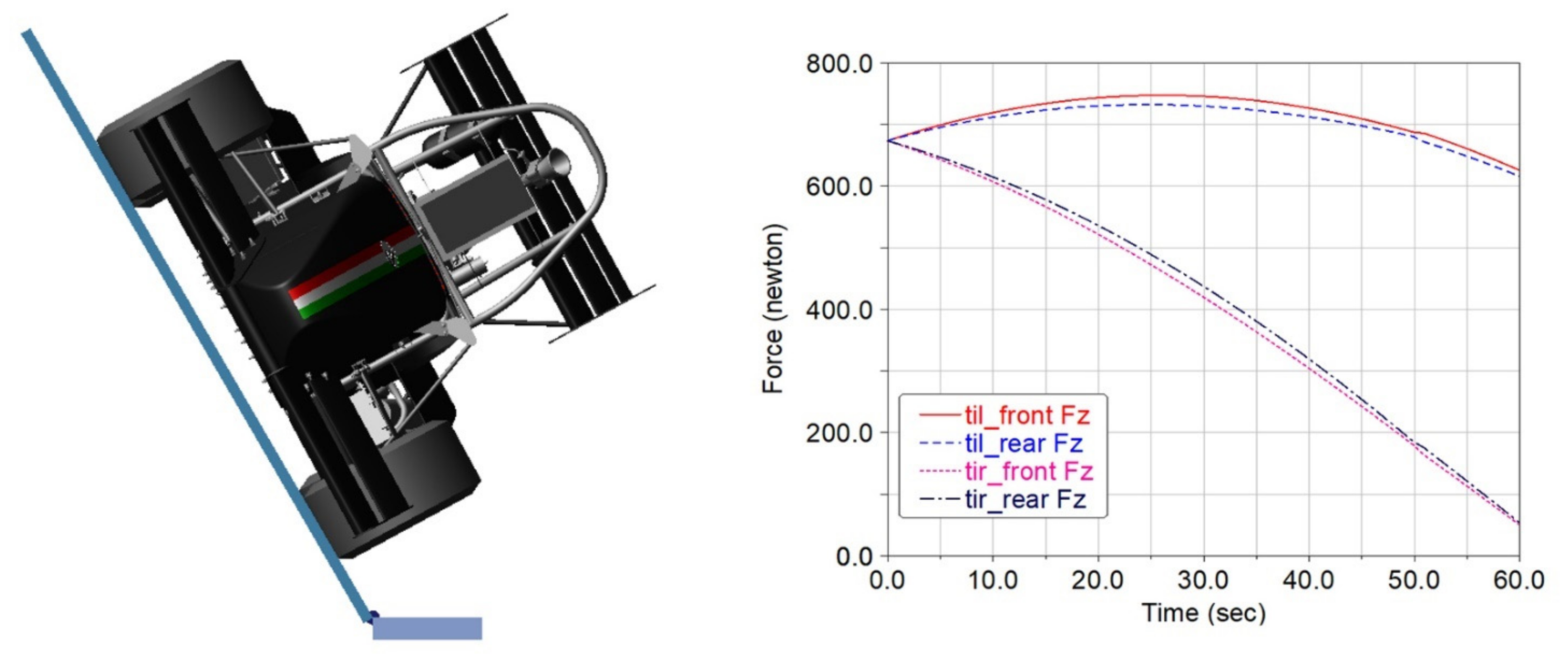

**Figure 8.**Tilt test—best set-up; til/tir: left/right tire. Please note that since the test is performed at a constant tilt rate of 0.017 rad/s (1°/s), the labels along the x-axis correspond to the platform tilt angle in degree units.

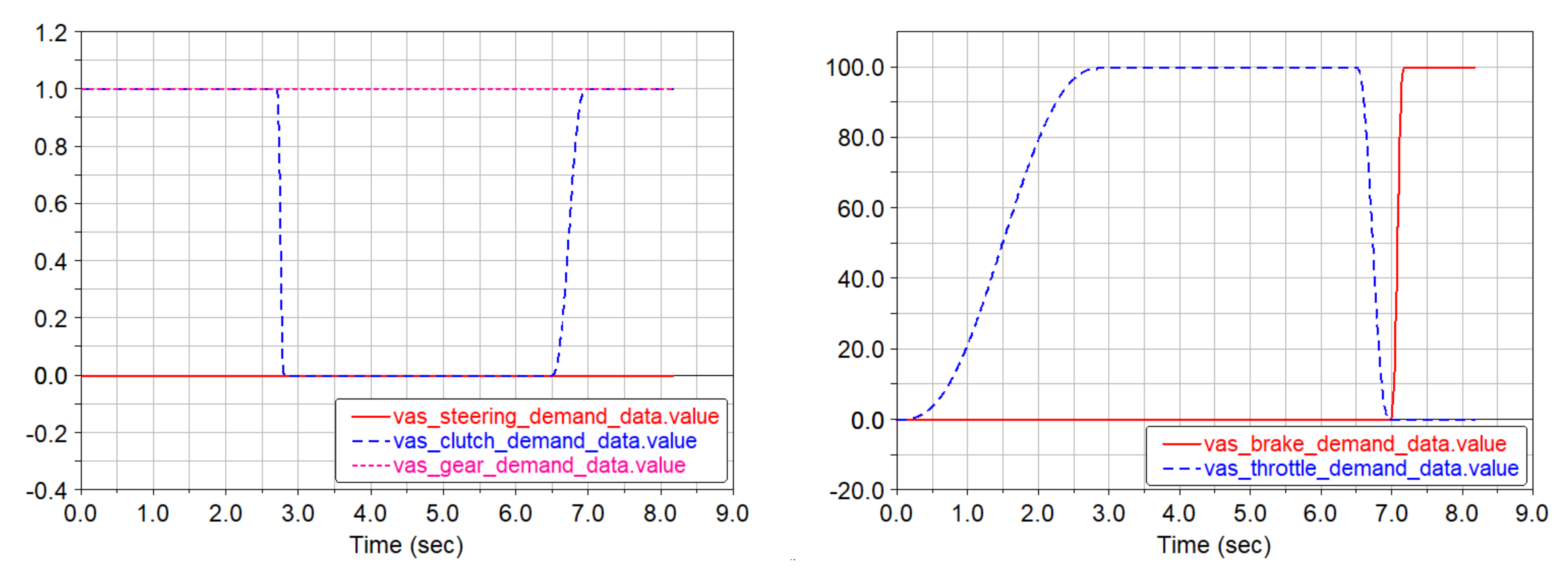

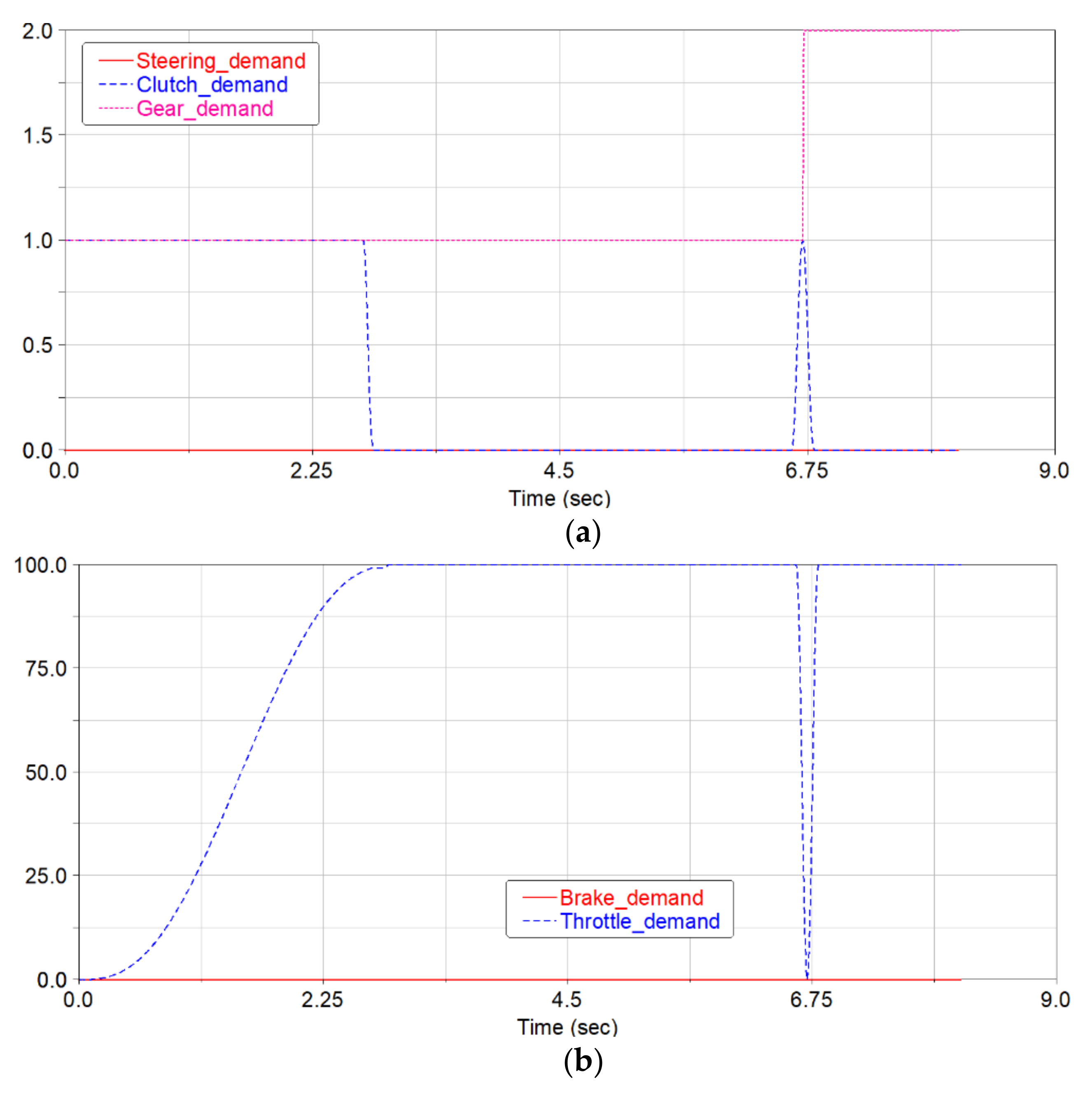

**Figure 12.**Acceleration Event-Driver input. (

**a**): the y-axis shows the steering demand (°), the gear ratio, and the clutch demand that varies in the window [0 1]. (

**b**): brake and throttle demand ranging between 0 and 100%.

Parameter | Value |
---|---|

$l$ | $1.55\mathrm{m}$ |

${\delta}_{v}$ | $0.170\mathrm{rad}$ |

${\delta}_{p}$ | $0.031\mathrm{rad}$ |

${\tau}_{s}$ | $0.182$ |

Baseline Set-Up | Front | Rear |
---|---|---|

Tire pressure | $\mathrm{70,000}\mathrm{Pa}$ | $\mathrm{70,000}\mathrm{Pa}$ |

Camber angle | $0\mathrm{rad}$ | $0\mathrm{rad}$ |

Toe-in | $0\mathrm{rad}$ | $0\mathrm{rad}$ |

Anti-roll rocker height | $0.050\mathrm{m}$ | $0.050\mathrm{m}$ |

Suspension spring stiffness | $\mathrm{61,294.4}\mathrm{N}/\mathrm{m}\left(350\mathrm{lb}/\mathrm{in}\right)$ | $\mathrm{61,294.4}\mathrm{N}/\mathrm{m}\left(350\mathrm{lb}/\mathrm{in}\right)$ |

Suspension damper configuration | $C13R13\left(0-5/0-5\right)$ | $C13R13\left(0-5/0-5\right)$ |

Brake balance | $62\%$ | $38\%$ |

Baseline Set-Up | Front | Rear |

Tire pressure | $\mathrm{70,000}\mathrm{Pa}$ | $\mathrm{70,000}\mathrm{Pa}$ |

Camber angle | $0\mathrm{rad}$ | $0\mathrm{rad}$ |

Toe-in | $0\mathrm{rad}$ | $0\mathrm{rad}$ |

Anti-roll rocker height | $0.050\mathrm{m}$ | $0.050\mathrm{m}$ |

Spring stiffness | $\mathrm{61,294.4}\mathrm{N}/\mathrm{m}\left(350\mathrm{lb}/\mathrm{in}\right)$ | $\mathrm{61,294.4}\mathrm{N}/\mathrm{m}\left(350\mathrm{lb}/\mathrm{in}\right)$ |

Damper configuration | $\mathrm{C}13\mathrm{R}13\left(0-5/0-5\right)$ | $\mathrm{C}13\mathrm{R}13\left(0-5/0-5\right)$ |

Brake balance | $62\%$ | $38\%$ |

Set-Up Tilt Test | Front | Rear |

Anti-roll rocker height | $0.060\mathrm{m}$ | $0.050\mathrm{m}$ |

Set-Up Brake Test | Front | Rear |

Tire pressure | $\mathrm{100,000}\mathrm{Pa}$ | $\mathrm{100,000}\mathrm{Pa}$ |

Camber angle | $-0.043\mathrm{rad}\left(-2.5\xb0\right)$ | $-0.043\mathrm{rad}\left(-2.5\xb0\right)$ |

Brake balance | $74\%$ | $26\%$ |

Set-Up Acceleration Event | Front | Rear |

Tire pressure | $\mathrm{100,000}\mathrm{Pa}$ | $\mathrm{70,000}\mathrm{Pa}$ |

Camber angle | $-0.043\mathrm{rad}\left(-2.5\xb0\right)$ | $0\mathrm{rad}$ |

Spring stiffness | $\mathrm{61,294.4}\mathrm{N}/\mathrm{m}\left(350\mathrm{lb}/\mathrm{in}\right)$ | $\mathrm{43,800}\mathrm{N}/\mathrm{m}\left(250\mathrm{lb}/\mathrm{in}\right)$ |

Set-Up Skidpad Event | Front | Rear |

Camber angle | $-0.043\mathrm{rad}\left(-2.5\xb0\right)$ | $-0.043\mathrm{rad}\left(-2.5\xb0\right)$ |

Anti-roll rocker height | $0.065\mathrm{m}$ | $0.035\mathrm{m}$ |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Balena, M.; Mantriota, G.; Reina, G.
Dynamic Handling Characterization and Set-Up Optimization for a Formula SAE Race Car via Multi-Body Simulation. *Machines* **2021**, *9*, 126.
https://doi.org/10.3390/machines9060126

**AMA Style**

Balena M, Mantriota G, Reina G.
Dynamic Handling Characterization and Set-Up Optimization for a Formula SAE Race Car via Multi-Body Simulation. *Machines*. 2021; 9(6):126.
https://doi.org/10.3390/machines9060126

**Chicago/Turabian Style**

Balena, Matteo, Giacomo Mantriota, and Giulio Reina.
2021. "Dynamic Handling Characterization and Set-Up Optimization for a Formula SAE Race Car via Multi-Body Simulation" *Machines* 9, no. 6: 126.
https://doi.org/10.3390/machines9060126
