Two Hydrothermal Events at the Shuiyindong Carlin-Type Gold Deposit in Southwestern China: Insight from Sm–Nd Dating of Fluorite and Calcite

1
State Key Laboratory of Ore Deposit Geochemistry, Institute of Geochemistry, Chinese Academy of Sciences, Guiyang 550081, China
2
No.105 Geological Team, Guizhou Bureau of Geology and Mineral Exploration & Development, Guiyang 550018, China
3
Guangxi Key Laboratory of Exploration for Hidden Metallic Ore Deposits, College of Earth Sciences, Guilin University of Technology, Guilin 541006, China
4
University of Chinese Academy of Sciences, Beijing 100039, China
5
College of Resources and Environmental Engineering, Guizhou Institute of Technology, Guiyang 550003, China
*
Authors to whom correspondence should be addressed.
Minerals 2019, 9(4), 230; https://doi.org/10.3390/min9040230
Received: 8 March 2019 / Revised: 4 April 2019 / Accepted: 4 April 2019 / Published: 12 April 2019
(This article belongs to the Special Issue Nanomineralogy)
  |
PDF [3680 KB, uploaded 23 April 2019]
  |

Abstract

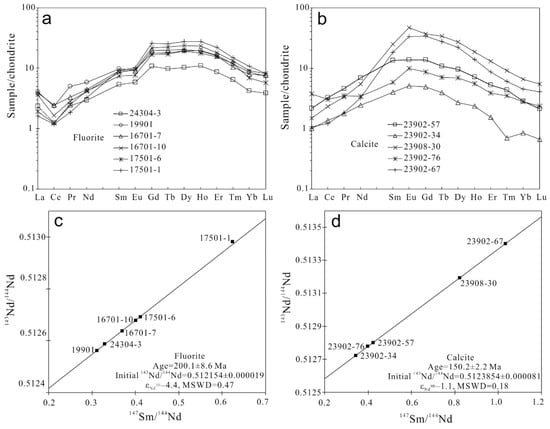

The Shuiyindong Gold Mine hosts one of the largest and highest-grade, strata-bound Carlin-type gold deposits discovered to date in Southwestern China. The outcrop stratigraphy and drill core data of the deposit reveal Middle–Upper Permian and Lower Triassic formations. The ore is mainly hosted in Upper Permian bioclastic limestone near the axis of an anticline. The gold is mainly hosted in arsenian pyrite and arsenopyrite, mainly existing in the form of crystal lattice gold, submicroscopic particles and nanoparticles. Fluorite commonly occurs at the vicinity of an unconformity between the Middle–Upper Permian formations, which is proposed to be the structural conduit that fed the ore fluids. Calcite commonly fills fractures at the periphery of decarbonated rocks, which contain high grade orebodies. This study aimed to verify the occurrence of two distinct hydrothermal events at the Shuiyindong, based on Sm–Nd isotope dating of the fluorite and calcite. For this purpose, rare-earth element (REE) concentrations, Sm/Nd isotope ratios, and Sm–Nd isochron ages of the fluorite and calcite were determined. The fluorite and calcite contain relatively high total concentrations of REE (12.3–25.6 μg/g and 5.71–31.7 μg/g, respectively), exhibit variable Sm/Nd ratios (0.52–1.03 and 0.57–1.71, respectively), and yield Sm–Nd isochron ages of 200.1 ± 8.6 Ma and 150.2 ± 2.2 Ma, with slightly different initial ε Nd ( t ) values of −4.4 and −1.1, respectively. These two groups of Sm–Nd isochron ages suggest two episodes of hydrothermal events at the Shuiyindong gold deposit. The age of the calcite probably represents the late stage of the gold mineralization period. The initial ε Nd ( t ) values of the fluorite and calcite indicate that the Nd was probably derived from mixtures of basaltic volcanic tuff and bioclastic limestone from the Permian formations. View Full-Text
Keywords: Sm–Nd dating; Shuiyindong; Carlin-type gold deposit; Southwestern China Sm–Nd dating; Shuiyindong; Carlin-type gold deposit; Southwestern China
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
