Fingerprinting Paranesti Rubies through Oxygen Isotopes
1
PANGEA Research Centre, School of Biological, Earth and Environmental Sciences, University of NSW, 2052 Sydney, Australia
2
Centre for Microscopy Characterisation and Analysis, The University of Western Australia, 6009 Perth, Australia
3
Faculty of Geology and Geoenvironment, National and Kapodistrian University of Athens, 157 84 Athens, Greece
4
Université de Lorraine, IRD and CRPG UMR 7358 CNRS-UL, BP 20, 15 rue Notre-Dame-des-Pauvres, 54501 Vandœuvre-lès-Nancy, France
5
Isotope Geosciences Unit, S.U.E.R.C., Rankine Avenue, East Kilbride, Glasgow G75 0QF, UK
*
Author to whom correspondence should be addressed.
Received: 1 December 2018 / Accepted: 30 January 2019 / Published: 3 February 2019

Abstract

:
In this study, the oxygen isotope (δ18O) composition of pink to red gem-quality rubies from Paranesti, Greece was investigated using in-situ secondary ionization mass spectrometry (SIMS) and laser-fluorination techniques. Paranesti rubies have a narrow range of δ18O values between ~0 and +1‰ and represent one of only a few cases worldwide where δ18O signatures can be used to distinguish them from other localities. SIMS analyses from this study and previous work by the authors suggests that the rubies formed under metamorphic/metasomatic conditions involving deeply penetrating meteoric waters along major crustal structures associated with the Nestos Shear Zone. SIMS analyses also revealed slight variations in δ18O composition for two outcrops located just ~500 m apart: PAR-1 with a mean value of 1.0‰ ± 0.42‰ and PAR-5 with a mean value of 0.14‰ ± 0.24‰. This work adds to the growing use of in-situ methods to determine the origin of gem-quality corundum and re-confirms its usefulness in geographic “fingerprinting”.
Keywords:
rubies; corundum; in-situ oxygen isotopes; Paranesti Greece; Nestos Shear Zone; Secondary ion mass spectrometry (SIMS)

1. Introduction

1.1. Oxygen Isotopic Studies in Corundums

Oxygen is an abundant element in the Earth’s crust, mantle and fluids. Oxygen consists of three naturally-occurring stable isotopes: 16O (99.76%), 17O (0.04%) and 18O (0.2%). δ18O expressed as Vienna standard mean ocean water (VSMOW) in per mil is the standard for the oxygen isotopic composition which is a measure of the ratio of the stable isotopes oxygen-18 (18O) and oxygen-16 (16O). There are numerous applications of oxygen isotope geochemistry including paleoclimatology, urban forensics, geological genesis and many more [1,2,3]. Oxygen isotope fractionation is a function of the initial Rayleigh evaporation-precipitation cycle, temperature of the system and degree of water-rock interaction and therefore great care must be taken when interpreting oxygen isotope values [4,5,6,7].
Although worldwide corundum oxygen isotope values have been found in a wide range from -27‰ (Khitostrov, Russia) to +23‰ (Mong Hsu, Myanmar), most are in the range of +3‰ to +21‰ [8,9,10]. This criterion has often been used to determine the geological origin of coloured corundum and especially the gem corundums, rubies and sapphires. δ18O has been particularly useful in determining the likely primary geological origin of placer corundums where the primary origin is uncertain [11]. As isotopic fractionation is a function of both temperature and geological processes, oxygen isotope data need to be treated with some degree of caution Thus, there are very few examples where oxygen isotopes have been used to “fingerprint” the geographic location [12].

1.2. Geological Setting and Sample Background

The Paranesti rubies are found within the Nestos Shear Zone (NSZ) of the Rhodope Mountain Complex (RMC) in north-eastern Greece (Figure 1). The tectonic and polymetamorphic record of this Northern Aegean region (including the RMC) reflects the Middle Jurassic to Neogene northeast dipping subduction and convergence of the African-Eurasian plates which resulted in the closure of the Tethys Ocean [13,14]. The NSZ is thought to be a one of the syn-metamorphic thrusts in the RMC that are responsible for regional metamorphic inversion, placing higher amphibolite-facies intermediate terranes onto upper-greenschist to lower amphibolite-facies rocks of the lower terrane [15,16].
Based on an earlier systematic study on Paranesti [18], the ruby-bearing occurrences were found to be hosted in pargasite schist with a mafic/ultramafic protolith. The surrounding non-corundum-bearing chlorite schist was found to mainly be comprised of clinochlore. The ruby-bearing occurrence found on the hillside is referred to as PAR-1 (Figure 2a) and the road-side occurrence is termed PAR-5 (Figure 2b). Not all of the pargasite boudins nor the pegmatite intrusion found within the vicinity of the two sites contained corundum (Figure 2c,d).
A summary of the main findings from this previous study is listed in Table 1. Detailed LA-ICP-MS trace element analyses showed that the rubies are of metamorphic origin (Figure 3a) with minor partial metasomatic influences (Figure 3b). The high R2 value based on the Fe/Mg vs Ga/Mg elemental discrimination diagram shows both PAR-1 and PAR-5 rubies to contain highly consistent trace element compositions (Figure 3a).

2. Materials and Methods

Two different oxygen isotopic analytical methods have been used in this study in order to verify the oxygen isotope values of the Paranesti rubies. The rubies were mechanically extracted from the pargasite host matrix and carefully cleaned prior to being sent for analysis. In many samples, the ruby crystals occur in clusters of platy crystals where the grain sizes generally range between 0.5–1.5 cm (Figure 4a–c). Importantly, in the previous study [18] the ruby grains were generally found to be free of inclusions and thus amenable to in-situ analysis.

2.1. Laser-Fluorination Method (2009)

In 2009, a reconnaissance study was conducted, whereby five individual grains, one each from different corundum localities/geological environments in Greece, were studied for their δ18O composition. These included two colourless to blue sapphires in desilicified pegmatite from Naxos, one pink marble-hosted ruby from Kimi and one purple marble-hosted ruby from Xanthi. One medium red intensity ruby in pargasite schist from Paranesti (PAR-1) was also included. Oxygen isotope analyses were performed using a modification of the laser-fluorination technique described by Sharp [21] that was similar to that applied by Giuliani et al. in 2005 [11].
The method involves the complete reaction of ~1 mg of ground corundum. This powder is then heated by a CO2 laser, with ClF3 as the fluorine reagent. The released oxygen is passed through an in-line Hg-diffusion pump before conversion to CO2 on platinized graphite. The yield is then measured by a capacitance manometer. The gas-handling vacuum line is connected to the inlet system of a dedicated VG PRISM 3 dual inlet isotope-ratio mass spectrometer. All oxygen isotope ratios are reported in δ18O (‰) relative to Vienna standard mean ocean water (VSMOW). The secondary standard used for the laser-fluorination method was an internal quartz standard, NBS28 quartz that gave an average δ18O value of 9.6‰. Oxygen yields differing significantly from the theoretical value of 14.07 µmol. per mg were taken as likely evidence of analytical artefact. Precision and accuracy on the internal quartz standard are ± 0.1‰ (1σ). Duplicate and triplicate analyses of sapphire and ruby suggested that this is appropriate for such materials.

2.2. Secondary Ion Mass Spectrometry (SIMS) Method (2017)

The 2017 analyses were performed exclusively on a range of coloured ruby grains from the two distinct Paranesti locations described in the previous study [13]. Unlike the 2009 analyses, these analyses were made using secondary ionisation mass spectrometry (SIMS) to analyse different areas of selected ruby grains in-situ to measure oxygen isotope ratios with less than one per mil (‰) level precision. Oxygen isotope ratios (18O/16O) in ruby were determined using a Cameca IMS 1280 multi-collector ion microprobe within the Centre for Microscopy, Characterisation and Analysis (CMCA), University of Western Australia (UWA). The materials examined in 2017 included 3 ruby grains from 3 different samples (57 analyses) from PAR-1 and 5 ruby grains from 5 different samples (44 analyses) from PAR-5. Each analysis point is shown in Figure 5a,b.
The sample mounts were carefully cleaned with detergent, distilled water and ethanol in an ultrasonic bath and then coated with gold (30 nm in thickness) prior to SIMS O isotope analyses. For oxygen isotopic analyses, secondary ions were sputtered from the sample by bombarding its surface with a Gaussian Cs+ beam and a total impact energy of 20 keV. The surface of the sample was rastered with a 2.5 nA primary beam over a 15 × 15 µm area. An electron gun was used to ensure charge compensation during the analyses. Secondary ions were admitted in the double focusing mass spectrometer within a 100 µm entrance slit and focused in the centre of a 4000 µm field aperture (×100 magnification). They were energy filtered using a 30 eV band pass with a 5 eV gap toward the high-energy side. 16O and 18O were collected simultaneously in multicollection mode in Faraday Cup detectors fitted with 1010 Ω and 1011 Ω, respectively. Each analysis includes a pre-sputtering over a 20 × 20 µm area during 30 s and the automatic centring of the secondary ions in the field aperture, contrast aperture and entrance slit and consisted of 20 four-second cycles which give an average internal precision of ~0.16‰ (2 SE).
External reproducibility during the analytical sessions was evaluated by repeating analyses in one single fragment of PAR-1. External reproducibility in this fragment was 0.3 and 0.4 per mil (2SD) during the two analytical sessions. In total, three large fragments of PAR-1 were analysed for their oxygen isotope composition, altogether yielding an average value of 0.9 ± 0.6 per mil (2SD, n = 57, Table 2). Raw oxygen isotope ratios were corrected for instrumental mass fractionation using the δ18O composition of PAR-1, which oxygen isotope composition was obtained by laser fluorination method (from the 2009 study). Uncertainty on each δ18O spot has been calculated by propagating the errors on instrumental mass fractionation determination, which include the standard deviation of the mean oxygen isotope ratio measured on the primary standard during the session and internal error on each sample data point. Corrected δ18O (quoted with respect to Vienna Standard Mean Ocean Water or VSMOW) are presented in Supplementary Material Table S1.

3. Results

3.1. Laser-Fluorination Results

Using the laser-fluorination method, the oxygen isotope ratio for the pargasite schist hosted PAR-1 ruby was found to be δ18O 1.0‰. This analytical run also included a number of rubies and sapphires from different geological environments. Sapphires from desilicified pegmatites were found to range from 4.8‰ to 5.0‰ and rubies from marble-hosted deposits were found to range from 20‰ to 22‰ (Table 3).

3.2. Secondary Ionisation Mass Spectrometry (SIMS) Results

The oxygen isotope ratios δ18O (VSMOW) are presented in Table 2. PAR-5 results show values of −0.31‰ to 0.85‰ (0.14 ± 0.24), on average slightly lower compared to PAR-1 results 0.44‰ to 1.68‰ (1.00 ± 0.42) even though the two occurrences are only 500 m apart.

4. Discussion

4.1. Corundum Oxygen Isotopes as An Identifier for Geological Origin

A framework on the interpretation of the geological origin of gem corundums using the δ18O ratio proposed by Giuliani et al is now widely adopted [11]. Based on this framework, rubies and pink sapphires can be classified into 5 categories based on their δ18O value range.
  • Mafic gneiss hosted from 2.9‰ to 3.8‰;
  • Mafic-ultramafic rocks (amphibolite, serpentinite) from 3.2‰ to 6.8‰;
  • Desilicated pegmatites from 4.2‰ to 7.5‰;
  • Shear zones cross-cutting ultramafic lenses and pegmatites within sillimanite gneisses 11.9‰–13.1‰;
  • Marble-hosted rubies 16.3‰–23‰. This framework has been further validated by numerous subsequent corundum oxygen isotope studies [22,23,24,25].
The reconnaissance 2009 laser fluorination results on the sapphires and rubies from different geological environments very closely fits the oxygen isotope value ranges from the model of Giuliani et al. where over 200 corundum samples were analysed under the same method [1]. That is the marble-hosted value from 20‰ to 22‰ is within the range of 16.3‰ to 23‰ and the sapphires from the desilicified pegmatites with a value from 4.8‰ to 5‰ fits within the framework range from 4.2‰ to 7.5‰. Therefore, the δ18O results obtained using the laser-fluorination method in 2009 are further validated as accurate measurements.

4.2. PAR-1 vs. PAR-5 Variations

The oxygen isotope values obtained using SIMS indicates that the Paranesti rubies have a narrow defined band of oxygen isotope signatures with a mean on +1‰ (ranging from −0.31‰ to 1.31‰). This is lower than any ratios based on the existing framework for rubies. There are further distinctive constrained values between PAR-1 (+0.65‰ to 1.31‰) and PAR-5 (−0.31‰ to 0.85‰). There is a slight overlap of the individual highest value in PAR-5 to the lowest value in PAR-1. The average for PAR-1 is +1‰ whilst the average for PAR-5 is +0.14‰.
There may be some differences between core-rim oxygen isotope values observed in the PAR-5 SIMS results where the core average (−0.02) is lower than the rim average (0.29). However, this is within the range of uncertainty when the errors are taken into account. This narrow range within individual localities and between the two localities that are 500 m apart is in stark contrast to the findings of Bindeman et al (2010) [7] who found variation within single 10 cm samples of up to 3‰ and variation within single ruby grains of up to 1.5‰. It also does not rule-out variances due to partitioning in individual crystals during growth. Therefore, a detailed cathodoluminescence analysis to determine the homogeneity or heterogeneity of the sample grains is suggested for future studies. As the traditional laser fluorination method consumes the entire grain, such subtle zoning would not be seen using this technique. Thus, the greater spatial resolution of the SIMS technique enables us to analyse discrete isotopic domains (i.e., rims, cores, sectors) within single corundum crystals.

4.3. Global Low to Ultra-Low Oxygen Isotope Corundum Comparison

δ18O (SMOW) values for gem corundums below 1‰ are very rare and not shown on the original systematic framework by Giuliani et al 2005 [11]. Other than the Paranesti rubies shown above, the only negative value for corundums are from Karelia in north-western Russia and sapphire from a secondary deposit in Madagascar. Table 4 lists the global low to ultra-low oxygen isotope analyses for corundums.
The Madagascar sapphire deposit of Ilakaka with δ18O of −0.3‰ to 16.5‰ is a consolidated placer formed in a sandstone environment. The geological origin of the different ranges of isotopic values found for the sapphires corresponds to at least five different geological environments [26]. The low δ18O delta values for some sapphires correspond up to an unknown geological sapphire type.
The PAR-1 result of +1.0‰ is lower than most known primary corundum oxygen isotope values other than the unique ultra-low values of corundums from Karelia [28,30] and one instance of ruby from the Soamiakatra area of Madagascar [26]. The Karelia corundum formed under unique circumstances (see discussion below) and can be easily distinguished from the Paranesti rubies. The Madagascar rubies show much higher average δ18O values and the minimum value obtained corresponds to the maximum value from Paranesti. Therefore, oxygen isotope analysis is a valuable tool that can be used to fingerprint the Paranesti rubies Figure 6 from other worldwide occurrences.

4.4. Possible Causes for Low Oxygen Isotope Corundum Formation

There are several current hypotheses on how corundums can form with low δ18O isotope ratios. These range from hydrothermal alteration of deeply penetrating surface meteoric waters to isotope separation by thermal diffusion during endogenous fluid flow [31,32].

4.4.1. Kinetic Isotope Fractionation

Kinetic isotope fractionation occurs when rapid thermal decomposition of hydrous phases results in isotope disproportionation into a high-δ18O residue and a low-δ18O fluid [33,34]. However, the high-δ18O residue material should also be found within proximity of the studied samples for this hypothesis to apply. The water-rock interaction is kinetically restricted in supracrustal rocks and isotope fractionation factors are large at low temperatures, favouring higher-δ18O solids [35]. In contrast, isotopic exchange is more rapid within a hydrothermal system. As the Paranesti rubies formed under amphibolite-facies conditions above 600 °C [18], significant kinetic isotope fractionation is highly unlikely and therefore rules out this hypothesis.

4.4.2. Thermal Diffusion

For thermal diffusion, the oxygen in a temperature gradient is redistributed with low δ18O at the hotter end and high δ18O at the colder end of melt or hydrous solution [31]. Akimova (2015) [32] has proposed a model of cascading thermo-diffusion within shear zones to explain the Karelian ultra-low δ18O corundums. This scenario would require several individual thermal cells to align in the correct position simultaneously with a similar convection rate and timing. Given that only two locations have shown ruby-bearing pargasite schist with other very similar pargasite boudins nearby being ruby absent, this model appears to be less likely than the hydrothermal scenario.

4.4.3. Other Ultra-Low δ18O Protoliths

Ultra-low δ18O protoliths could potentially provide the low δ18O during corundum syn-metamorphic formation [35]. However, a source for the ultra-low δ18O protolith would be needed under this scenario such as a low δ18O mantle reservoir or previously surface-exposed and then rapidly buried metamorphic rocks. Neither were observed at Paranesti. As oxygen isotope analyses were not performed on the whole-rock and associated mineral phases for the Paranesti occurrences, this hypothesis cannot be ruled out.

4.4.4. Hydrothermal Alteration Model

This hypothesis involves the conservation of the initial isotopic ratios of the protolith in the corundum-bearing rocks and then isotopic exchange between these rocks and meteoric waters before metamorphism [10]. Wang et al. [18] demonstrated that the rubies from Paranesti were syn-metamorphic and were largely free of inclusions. However, as shown by Bindeman et al (2010) [7], this does not preclude preservation of the initial ratios within the protolith for the Paranesti occurrence. Therefore, it is unlikely that the low isotopic ratios observed within the Paranesti rubies were due to preservation of the initial ratios within the protolith.
For granulite facies metamorphism, Wilson and Banksi (1983) [36] proposed three processes that could produce a low oxygen isotope value. These are (1) pre-granulite reaction between heated seawater and hot basic intrusives or an initial protolith such as a palaeosol for the sapphirine–spinel–(cordierite) assemblages; (2) syn-granulite depletion in 18O related to dehydration during granulite metamorphism and removal of the resultant products of partial melting with a depletion in 18O by up to 2‰ or 3‰ for the restite; and (3) post-granulite facies metamorphism with recrystallization under the effect of biotite and/or amphibole-metasomatism with depletion in δ18O up to 4‰. Based on the previous study [18], the Paranesti rubies were found to have formed under amphibolite facies conditions and there is no evidence that they ever reached granulite facies within the specified zone. However, there are other locations within the Rhodope Mountain Complex (RMC) where regional metamorphism reached granulite facies conditions, though these are some distance away from Paranesti and no rubies are known from these locations.
The glacial meltwater influence during formation of corundums was proposed to explain the ultra-low δ18O isotopic ratios observed for corundums from Karelia in north-western Russia [10,12,27]. However, there is no evidence suggesting the existence of glaciers in the Mediterranean region based on the reconstruction of the tectonic evolution of the East Mediterranean region since the late Cretaceous [37]. Could the RMC be a higher mountain with glaciers that have melted during ruby genesis? There is no evidence in the literature to suggest such and this would only be a remote possibility. Therefore, it is unlikely that a glacial meltwater source played a role during ruby formation at Paranesti. However, it is likely that meteoric water (but not glacial melt) interaction caused by downward flow of surface waters along deep crustal fractures/structures during the formation of the corundum would contribute in producing low δ18O values for the Paranesti rubies.

5. Conclusions

The in-situ SIMS oxygen isotope analyses on the Paranesti rubies is the first time that a primary (and exclusively) ruby occurrence was found to have ~+1‰ for its δ18O-isotope composition. Based on the low δ18O value and the local geology, it is most likely that the Paranesti rubies formed under metamorphic/metasomatic conditions involving deeply penetrating meteoric waters along major crustal structures related to the Nestos Shear Zone. PAR-5 is potentially closer to the source of the hydrothermal influence during ruby formation compared to PAR-1 and thus has a lower δ18O. Importantly, this study shows that in-situ gem corundum oxygen isotope analysis using the SIMS method may be used to determine the likely geographic origin for corundums lacking any provenance details. Importantly, with the SIMS method being only minimally destructive, with the analysis spot (15 × 15 µm) amenable to repolishing, a wider adoption of this technique has important applications/implications for the international gem and jewellery industry. A future area of research would be to apply this methodology for more gem mineral varieties other than corundum and emeralds. The aim of such future work would be to determine if in-situ SIMS oxygen isotope analysis can be used to both better understand gem formation and to see if it can be used to clearly separate the same gem mineral from different geographic locations.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-163X/9/2/91/s1, Table S1: Secondary Ionisation Mass Spectrometry (SIMS) Results.

Author Contributions

K.K.W. wrote the manuscript and interpreted the results of the analyses. I.T.G. collected the samples, provided technical input, funding and supervised the project. L.M. provided technical input and ran the SIMS analyses. P.V. collected the samples and provided geological expertise on the Paranesti region. G.G. and A.F. coordinated the laser fluorination analyses and provided technical input. A.L. and S.J.H. provided technical input.

Funding

This research received no external funding.

Acknowledgments

The authors would like to thank Joanne Wilde, formerly of the School of Biological, Earth and Environmental Sciences, UNSW Sydney, for making the polished mounts required for SIMS analysis. The authors acknowledge the facilities and the scientific and technical assistance of the Australian Microscopy & Microanalysis Research Facility at the Centre for Microscopy, Characterisation & Analysis, The University of Western Australia, a facility funded by the University, State and Commonwealth Governments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hoefs, J. Stable Isotope Geochemistry; Springer: Berlin/Heidelberg, Germany, 1997; ISBN 9783662033791. [Google Scholar]
  2. Bowen, G.J.; Wassenaar, L.I.; Hobson, K.A. Global application of stable hydrogen and oxygen isotopes to wildlife forensics. Oecologia 2005, 143, 337–348. [Google Scholar] [CrossRef] [PubMed]
  3. Miller, K.G.; Fairbanks, R.G.; Mountain, G.S. Tertiary oxygen isotope synthesis, sea level history and continental margin erosion. Paleoceanography 1987, 2, 1–19. [Google Scholar] [CrossRef]
  4. Criss, R.E.; Taylor, H.P., Jr. Meteoric-hydrothermal systems. Rev. Mineral. 1986, 16, 373–424. [Google Scholar]
  5. Valley, J.W. Stable Isotope Thermometry at High Temperatures. Rev. Mineral. Geochem. 2001, 43, 365–413. [Google Scholar] [CrossRef]
  6. Bindeman, I. Oxygen Isotopes in Mantle and Crustal Magmas as Revealed by Single Crystal Analysis. Rev. Mineral. Geochem. 2008, 69, 445–478. [Google Scholar] [CrossRef]
  7. Bindeman, I.N.; Schmitt, A.K.; Evans, D.A.D. Limits of hydrosphere-lithosphere interaction: Origin of the lowest-known δ18O silicate rock on Earth in the Paleoproterozoic Karelian rift. Geology 2010, 38, 631–634. [Google Scholar] [CrossRef]
  8. Giuliani, G.; Ohnenstetter, D.; Garnier, V.; Fallick, A.E.; Rakotondrazafy, M.; Schwarz, D. The geology and genesis of gem corundum deposits. In Geology of Gem Deposits; Groat, L.A., Ed.; Mineralogical Association of Canada: Québec, QC, Canada, 2007; Volume 37, pp. 23–78. ISBN 9780921294375. [Google Scholar]
  9. Yui, T.-F.; Khin, Z.; Limtrakun, P. Oxygen isotope composition of the Denchai sapphire, Thailand: A clue to its enigmatic origin. Lithos 2003, 67, 153–161. [Google Scholar] [CrossRef]
  10. Krylov, D.P.; Glebovitsky, V.A. Oxygen isotopic composition and nature of fluid during the formation of high-Al corundum-bearing rocks of Mt. Dyadina, northern Karelia. Doklady Earth Sci. 2007, 413, 210–212. [Google Scholar] [CrossRef]
  11. Giuliani, G.; Fallick, A.E.; Garnier, V.; France-Lanord, C.; Ohnenstetter, D.; Schwarz, D. Oxygen isotope composition as a tracer for the origins of rubies and sapphires. Geology 2005, 33, 249. [Google Scholar] [CrossRef]
  12. Vysotskiy, S.V.; Ignat’ev, A.V.; Levitskii, V.I.; Nechaev, V.P.; Velivetskaya, T.A.; Yakovenko, V.V. Geochemistry of stable oxygen and hydrogen isotopes in minerals and corundum-bearing rocks in northern Karelia as an indicator of their unusual genesis. Geochem. Int. 2014, 52, 773–782. [Google Scholar] [CrossRef]
  13. Bonev, N.; Burg, J.-P.; Ivanov, Z. Mesozoic–Tertiary structural evolution of an extensional gneiss dome—The Kesebir–Kardamos dome, eastern Rhodope (Bulgaria–Greece). Int. J. Earth Sci. 2006, 95, 318–340. [Google Scholar] [CrossRef]
  14. Krenn, K.; Bauer, C.; Proyer, A.; Mposkos, E.; Hoinkes, G. Fluid entrapment and reequilibration during subduction and exhumation: A case study from the high-grade Nestos shear zone, Central Rhodope, Greece. Lithos 2008, 104, 33–53. [Google Scholar] [CrossRef]
  15. Barr, S.R.; Temperley, S.; Tarney, J. Lateral growth of the continental crust through deep level subduction–accretion: A re-evaluation of central Greek Rhodope. Lithos 1999, 46, 69–94. [Google Scholar] [CrossRef]
  16. Nagel, T.J.; Schmidt, S.; Janák, M.; Froitzheim, N.; Jahn-Awe, S.; Georgiev, N. The exposed base of a collapsing wedge: The Nestos Shear Zone (Rhodope Metamorphic Province, Greece): The Nestos Shear Zone. Tectonics 2011, 30. [Google Scholar] [CrossRef]
  17. Moulas, E.; Schenker, F.L.; Burg, J.-P.; Kostopoulos, D. Metamorphic conditions and structural evolution of the Kesebir-Kardamos dome: Rhodope metamorphic complex (Greece-Bulgaria). Int. J. Earth Sci. 2017, 106, 2667–2685. [Google Scholar] [CrossRef]
  18. Wang, K.K.; Graham, I.T.; Lay, A.; Harris, S.J.; Cohen, D.R.; Voudouris, P.; Belousova, E.; Giuliani, G.; Fallick, A.E.; Greig, A. The Origin of a New Pargasite-Schist Hosted Ruby Deposit from Paranesti, Northern Greece. Can. Mineral. 2017, 55, 535–560. [Google Scholar] [CrossRef]
  19. Sutherland, F.; Zaw, K.; Meffre, S.; Yui, T.-F.; Thu, K. Advances in Trace Element “Fingerprinting” of Gem Corundum, Ruby and Sapphire, Mogok Area, Myanmar. Minerals 2014, 5, 61–79. [Google Scholar] [CrossRef][Green Version]
  20. Giuliani, G.; Ohnenstetter, D.; Fallick, A.E. The geology and genesis of gem corundum deposits. In Geology of Gem Deposits. Series: Mineralogical Association of Canada Short Course Series, 44; Groat, L.A., Ed.; Mineralogical Association of Canada: Québec, QC, Canada, 2014; pp. 35–112. ISBN 9780921294542. [Google Scholar]
  21. Sharp, Z.D. In situ laser microprobe techniques for stable isotope analysis. Chem. Geol. 1992, 101, 3–19. [Google Scholar] [CrossRef]
  22. Garnier, V.; Giuliani, G.; Ohnenstetter, D.; Fallick, A.E.; Dubessy, J.; Banks, D.; Vinh, H.Q.; Lhomme, T.; Maluski, H.; Pêcher, A.; et al. Marble-hosted ruby deposits from Central and Southeast Asia: Towards a new genetic model. Ore Geol. Rev. 2008, 34, 169–191. [Google Scholar] [CrossRef]
  23. Zaw, K.; Sutherland, L.; Yui, T.-F.; Meffre, S.; Thu, K. Vanadium-rich ruby and sapphire within Mogok Gemfield, Myanmar: Implications for gem color and genesis. Miner. Deposita 2015, 50, 25–39. [Google Scholar] [CrossRef]
  24. Graham, I.; Sutherland, L.; Zaw, K.; Nechaev, V.; Khanchuk, A. Advances in our understanding of the gem corundum deposits of the West Pacific continental margins intraplate basaltic fields. Ore Geol. Rev. 2008, 34, 200–215. [Google Scholar] [CrossRef]
  25. Sutherland, F.L.; Duroc-Danner, J.M.; Meffre, S. Age and origin of gem corundum and zircon megacrysts from the Mercaderes–Rio Mayo area, South-west Colombia, South America. Ore Geol. Rev. 2008, 34, 155–168. [Google Scholar] [CrossRef]
  26. Giuliani, G.; Fallick, A.; Rakotondrazafy, M.; Ohnenstetter, D.; Andriamamonjy, A.; Ralantoarison, T.; Rakotosamizanany, S.; Razanatseheno, M.; Offant, Y.; Garnier, V.; et al. Oxygen isotope systematics of gem corundum deposits in Madagascar: Relevance for their geological origin. Miner. Deposita 2007, 42, 251–270. [Google Scholar] [CrossRef]
  27. Vysotskiy, S.V.; Nechaev, V.P.; Kissin, A.Y.; Yakovenko, V.V.; Ignat’ev, A.V.; Velivetskaya, T.A.; Sutherland, F.L.; Agoshkov, A.I. Oxygen isotopic composition as an indicator of ruby and sapphire origin: A review of Russian occurrences. Ore Geol. Rev. 2015, 68, 164–170. [Google Scholar] [CrossRef]
  28. Bindeman, I.N.; Serebryakov, N.S. Geology, Petrology and O and H isotope geochemistry of remarkably 18O depleted Paleoproterozoic rocks of the Belomorian Belt, Karelia, Russia, attributed to global glaciation 2.4 Ga. Earth Planet. Sci. Lett. 2011, 306, 163–174. [Google Scholar] [CrossRef]
  29. Yui, T.-F.; Wu, C.-M.; Limtrakun, P.; Sricharn, W.; Boonsoong, A. Oxygen isotope studies on placer sapphire and ruby in the Chanthaburi-Trat alkali basaltic gemfield, Thailand. Lithos 2006, 86, 197–211. [Google Scholar] [CrossRef]
  30. Krylov, D.P. Anomalous 18O/16O ratios in the corundum-bearing rocks of Khitostrov, northern Karelia. Doklady Earth Sci. 2008, 419, 453–456. [Google Scholar] [CrossRef]
  31. Bindeman, I.N.; Lundstrom, C.C.; Bopp, C.; Huang, F. Stable isotope fractionation by thermal diffusion through partially molten wet and dry silicate rocks. Earth Planet. Sci. Lett. 2013, 365, 51–62. [Google Scholar] [CrossRef]
  32. Akimova, E.Y.; Lokhov, K.I. Ultralight Oxygen in Corundum-Bearing Rocks of North Karelia, Russia, as a Result of Isotope Separation by Thermal Diffusion (Soret Effect) in Endogenous Fluid Flow. J. Mater. Sci. Chem. Eng. 2015, 3, 42–47. [Google Scholar] [CrossRef]
  33. Clayton, R.N.; Mayeda, T.K. Kinetic Isotope Effects in Oxygen in the Laboratory Dehydration of Magnesian Minerals. J. Phys. Chem. 2009, 113, 2212–2217. [Google Scholar] [CrossRef]
  34. Mendybayev, R.A.; Richter, F.M.; Spicuzza, M.J.; Davis, A.M. Oxygen isotope fractionation during evaporation of Mg- and Si- rich CMAS-liquid in vacuum. Lunar Planet. Inst. Sci. Conf. Abstr. 2010, 41, 2725. [Google Scholar]
  35. Bindeman, I.N.; Serebryakov, N.S.; Schmitt, A.K.; Vazquez, J.A.; Guan, Y.; Azimov, P.Y.; Astafiev, B.Y.; Palandri, J.; Dobrzhinetskaya, L. Field and microanalytical isotopic investigation of ultradepleted in 18O Paleoproterozoic “Slushball Earth” rocks from Karelia, Russia. Geosphere 2014, 10, 308–339. [Google Scholar] [CrossRef]
  36. Wilson, A.F.; Baksi, A.K. Widespread 18O depletion in some precambrian granulites of Australia. Precambrian Res. 1983, 23, 33–56. [Google Scholar] [CrossRef]
  37. Menant, A.; Jolivet, L.; Vrielynck, B. Kinematic reconstructions and magmatic evolution illuminating crustal and mantle dynamics of the eastern Mediterranean region since the late Cretaceous. Tectonophysics 2016, 675, 103–140. [Google Scholar] [CrossRef][Green Version]

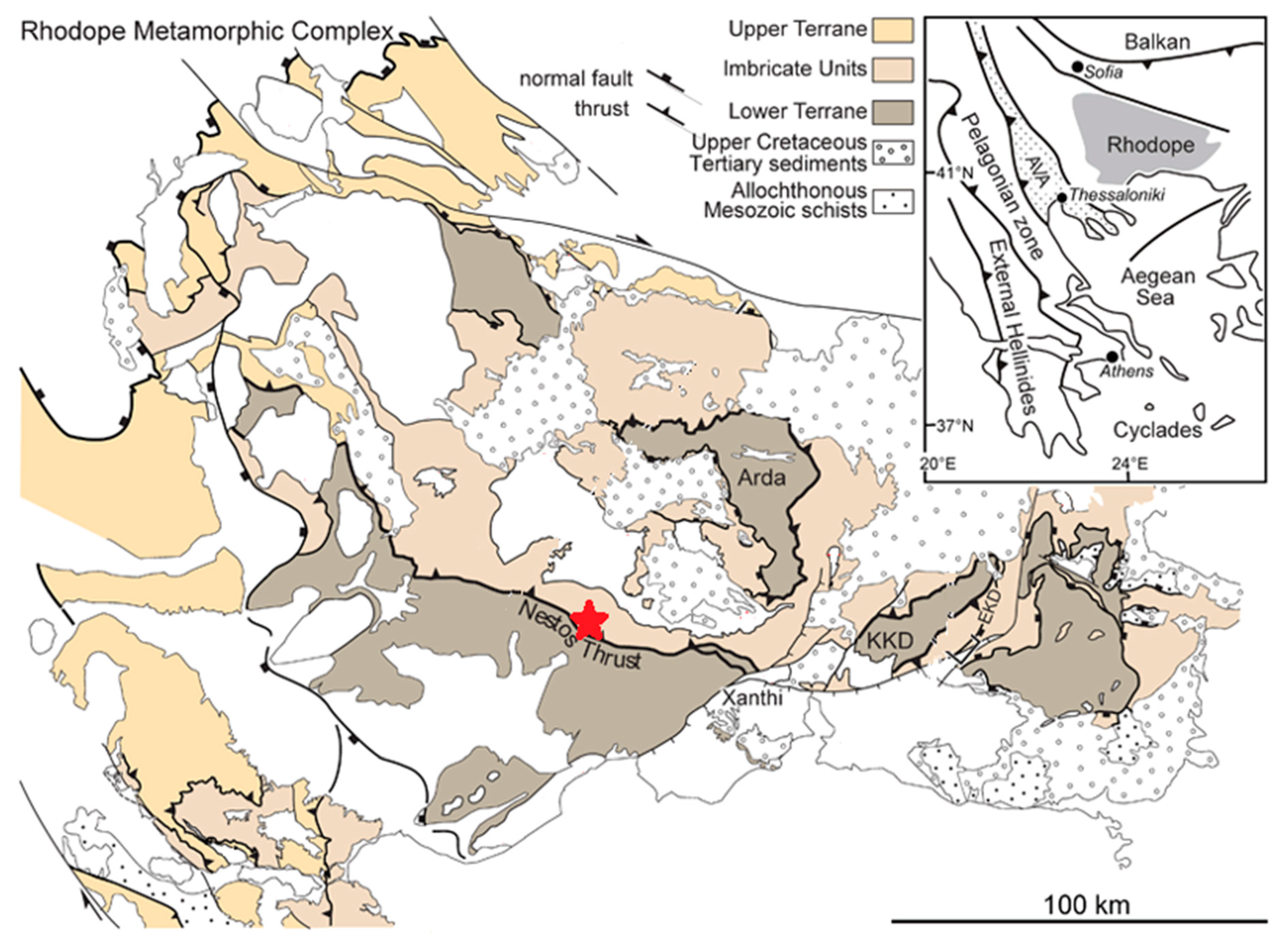

Figure 1. Geological map of the Rhodope Mountain Complex, with Paranesti located within the Nestos Shear Zone (red star) (Adapted from Moulas et al, 2017 [17]).
Figure 1. Geological map of the Rhodope Mountain Complex, with Paranesti located within the Nestos Shear Zone (red star) (Adapted from Moulas et al, 2017 [17]).
Minerals 09 00091 g001

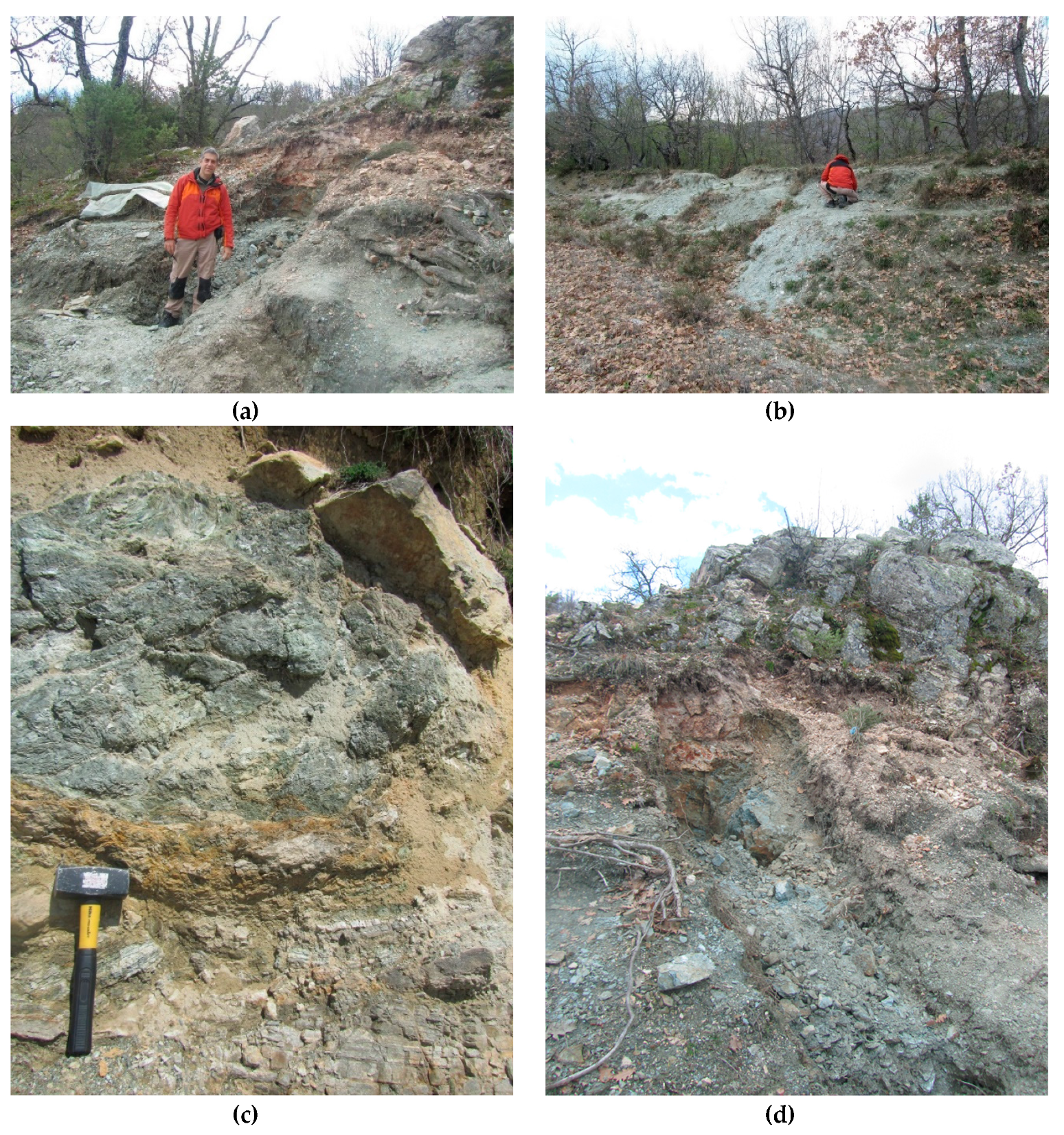

Figure 2. Locality diagram of the ruby occurrences. (a) PAR-1 location on top of the hill. (b) PAR-5 location on the roadside. (c) Pargasite schist boudin found approx. 500 m north of PAR-5 without any corundum. (d) Pegmatite on top of the ruby-bearing pargasite schist at PAR-1.
Figure 2. Locality diagram of the ruby occurrences. (a) PAR-1 location on top of the hill. (b) PAR-5 location on the roadside. (c) Pargasite schist boudin found approx. 500 m north of PAR-5 without any corundum. (d) Pegmatite on top of the ruby-bearing pargasite schist at PAR-1.
Minerals 09 00091 g002

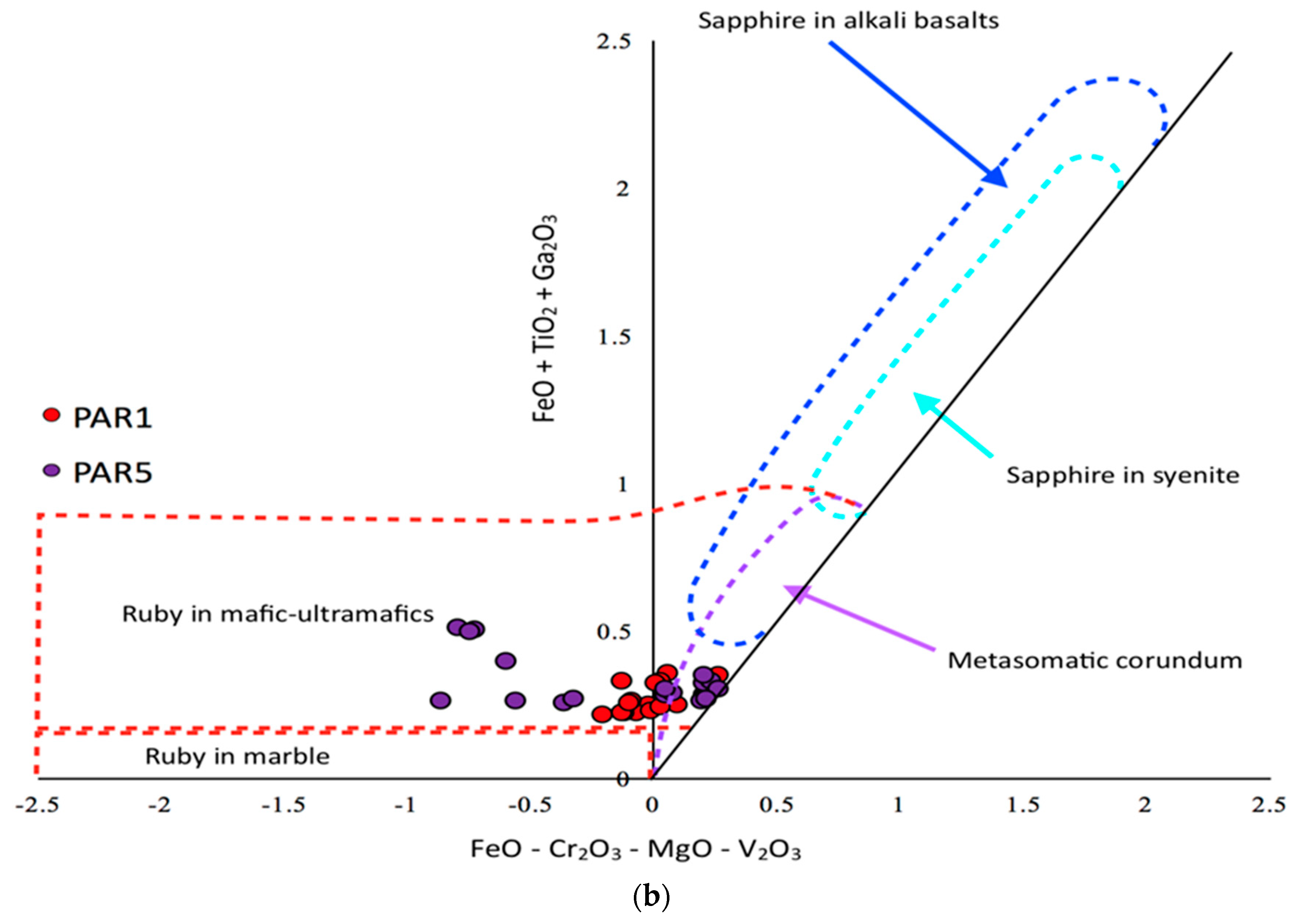

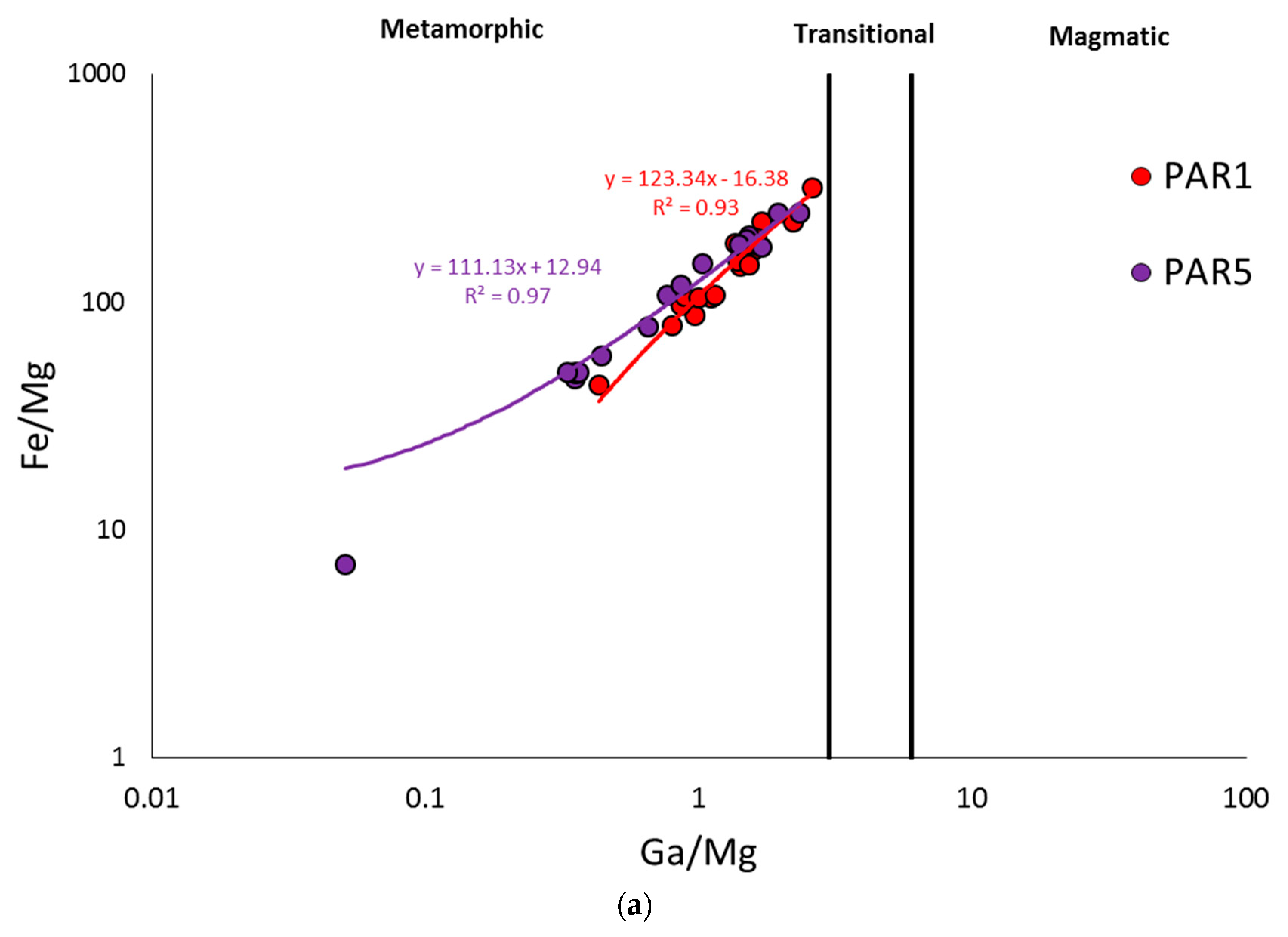

Figure 3. Trace element discrimination diagrams showing the fields for magmatic, metamorphic and metasomatic corundums, along with the plots for the Paranesti rubies. (a) FeMg vs. GaMg elemental diagram showing the metamorphic vs magmatic fields and SD lines with Paranesti ruby plots. Adapted with permission from Sutherland et al. 2014 [19]. (b) FeO + TiO2 + Ga2O3 vs. FeO-Cr2O3-MgO-V2O3 elemental diagram showing a metasomatic origin as well as a mafic-ultramafic influence on the Paranesti rubies. Adapted with permission from Giuliani et al. 2014 [20].
Figure 3. Trace element discrimination diagrams showing the fields for magmatic, metamorphic and metasomatic corundums, along with the plots for the Paranesti rubies. (a) FeMg vs. GaMg elemental diagram showing the metamorphic vs magmatic fields and SD lines with Paranesti ruby plots. Adapted with permission from Sutherland et al. 2014 [19]. (b) FeO + TiO2 + Ga2O3 vs. FeO-Cr2O3-MgO-V2O3 elemental diagram showing a metasomatic origin as well as a mafic-ultramafic influence on the Paranesti rubies. Adapted with permission from Giuliani et al. 2014 [20].
Minerals 09 00091 g003aMinerals 09 00091 g003b

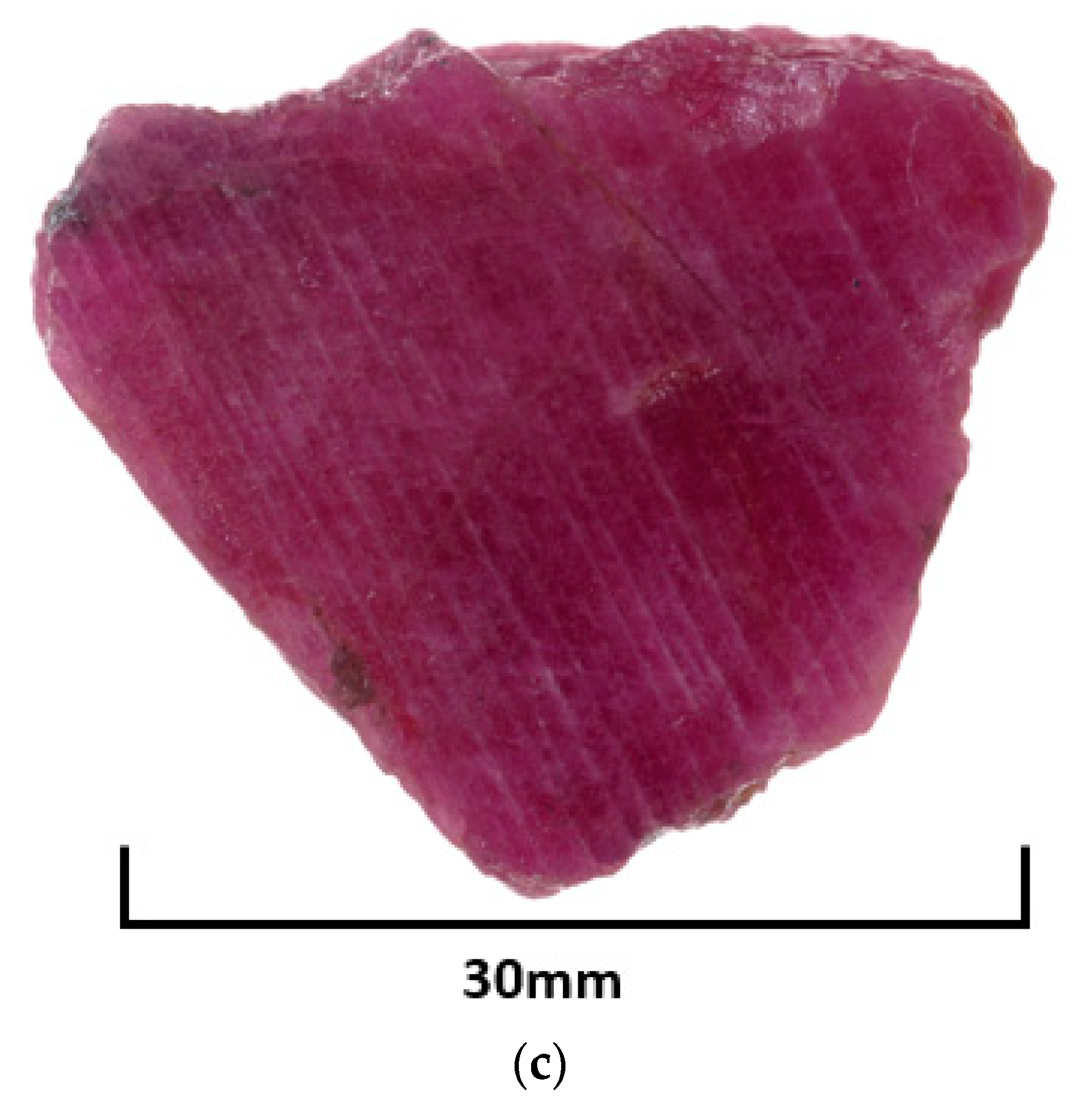

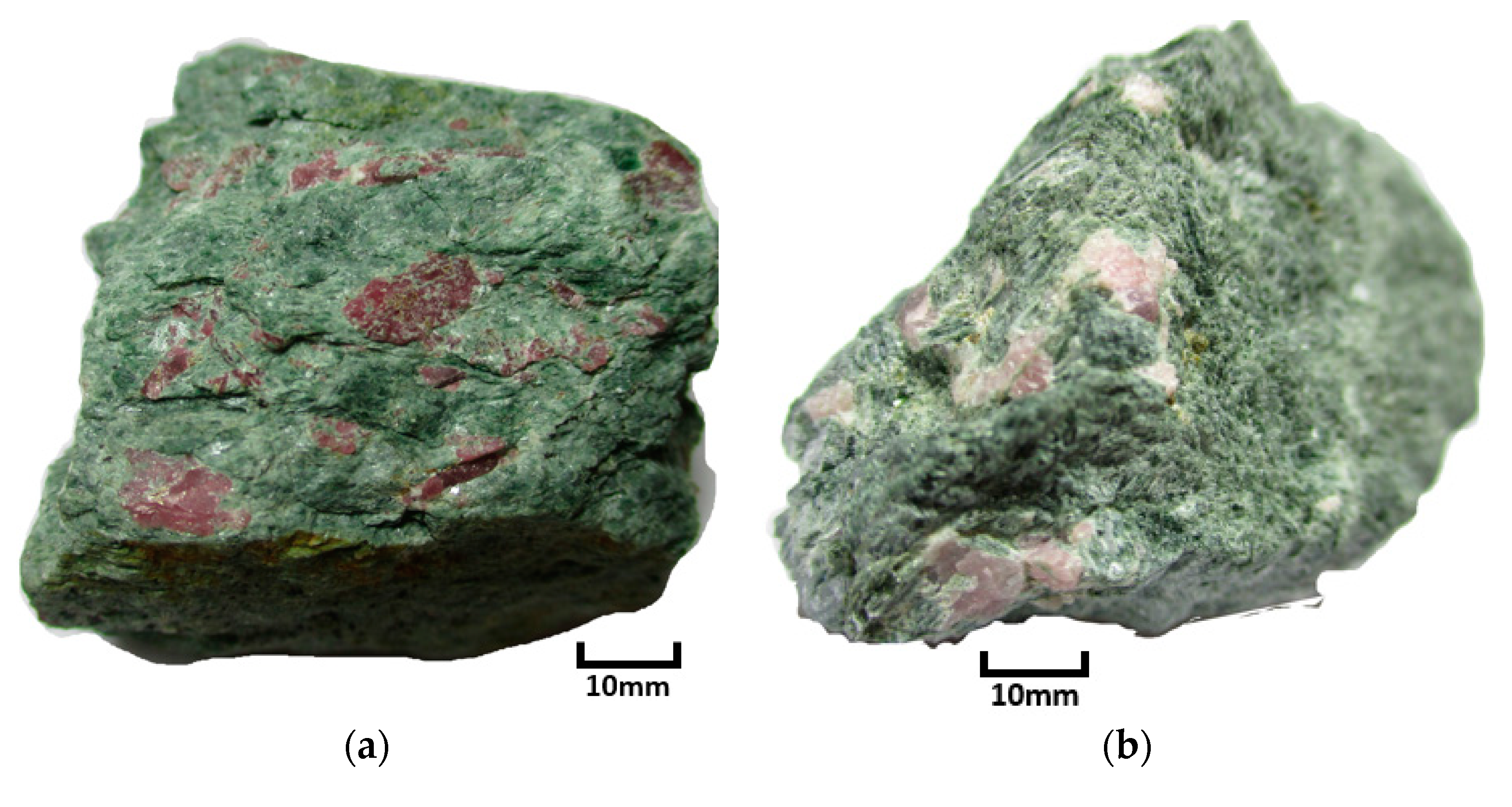

Figure 4. Images of ruby samples from Paranesti. (a) Dark red ruby samples from PAR-1 in pargasite schist host rock 0.5–1.0 cm; (b) Cluster of pale ruby samples from PAR-5 in pargasite schist host rock 0.5–1.5 cm; (c) Clean PAR-1 ruby sample free from inclusions used for the 2009 Oxygen Isotope analysis.
Figure 4. Images of ruby samples from Paranesti. (a) Dark red ruby samples from PAR-1 in pargasite schist host rock 0.5–1.0 cm; (b) Cluster of pale ruby samples from PAR-5 in pargasite schist host rock 0.5–1.5 cm; (c) Clean PAR-1 ruby sample free from inclusions used for the 2009 Oxygen Isotope analysis.
Minerals 09 00091 g004aMinerals 09 00091 g004b
Figure 5. (a) SIMS in-situ analysis spot location individually marked on the ruby grain–PAR-5 Grain A; (b) SIMS in-situ analysis spot location individually marked on the ruby grain–PAR-5 Grain C.
Figure 5. (a) SIMS in-situ analysis spot location individually marked on the ruby grain–PAR-5 Grain A; (b) SIMS in-situ analysis spot location individually marked on the ruby grain–PAR-5 Grain C.
Minerals 09 00091 g005

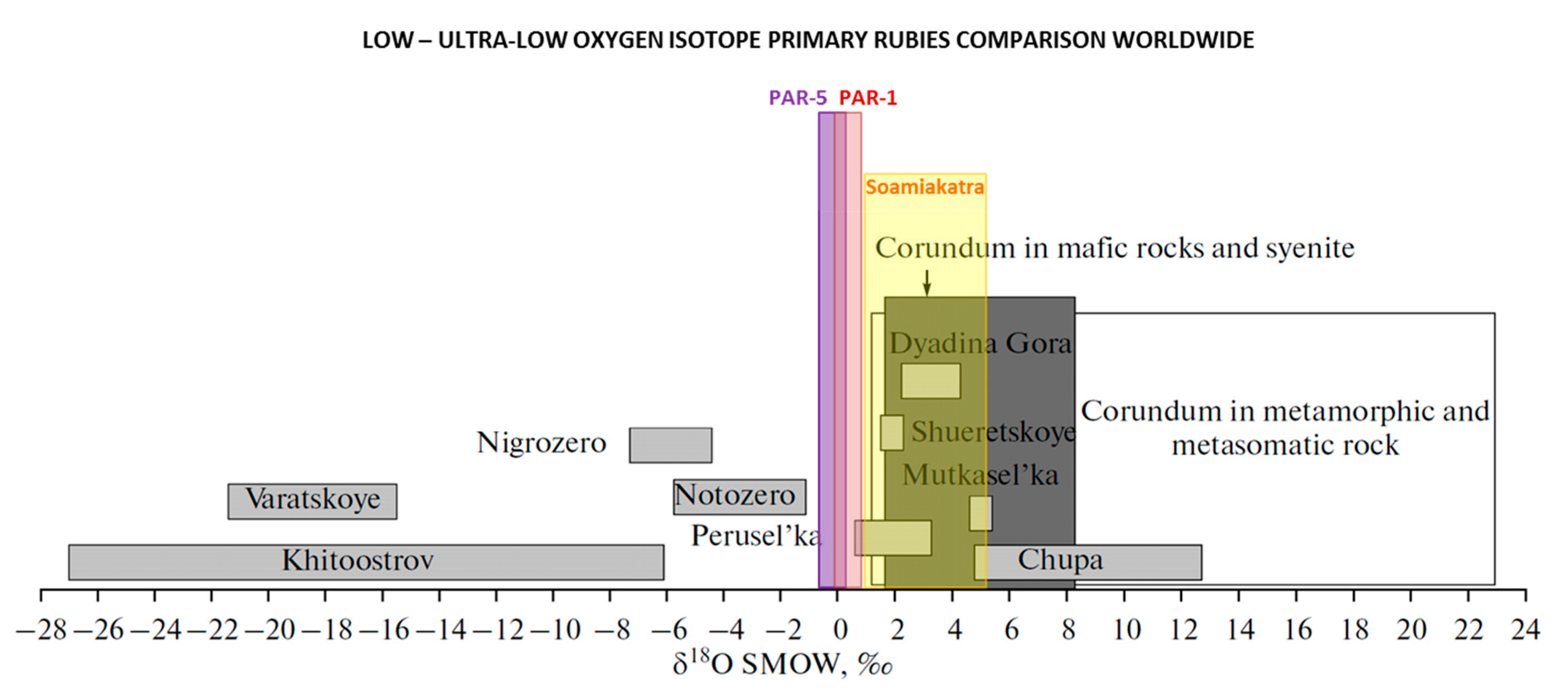

Figure 6. Oxygen isotopic comparison of rubies from Paranesti occurrences compared with low δ18O corundums from Karelia in northwestern Russia and Soamiakatra in Madagascar.

Figure 6. Oxygen isotopic comparison of rubies from Paranesti occurrences compared with low δ18O corundums from Karelia in northwestern Russia and Soamiakatra in Madagascar.
Minerals 09 00091 g006
Table 1. Summary of prior Paranesti ruby results (Wang et al. 2017 [18]).
Table 1. Summary of prior Paranesti ruby results (Wang et al. 2017 [18]).
AttributesPAR-1PAR-5
Physical Characteristics
SiteHillside surface outcropRoadside surface outcrop—500 m east of PAR1
Grain-size10 mm–20 mm5 mm–10 mm
ColourDeeper red than PAR-5 (generally)Medium red
InclusionsSpinelsNone
Microscope viewMore fractured, finer-grained-
Host rockPargasite schistPargasite schist
EMPA Analyses (wt. %)
Cr2O30.11–1.68 0.13–0.29
FeO0.19–0.73 0.18–0.36
TiO20–0.01 0–0.06
Ga2O30–0.04 0–0.04
LA-ICP-MS: Trace Element Analysis (ppm)
Cr360–28564–8627
Fe1572–26641833–3822
V1–32–5
Mg7–428–376
Ti6–18410–190
Ga14-2313–29
Si781–2456837–2123
Ca769–2119653–1903
Table 2. Oxygen isotope results from 2017 using the SIMS method.
Table 2. Oxygen isotope results from 2017 using the SIMS method.
Grainδ18O Minδ18O Maxδ18O MeanNumber of Analyses
PAR-1a0.641.621.00 ± 0.4231
PAR-1b0.441.170.67 ± 0.3713
PAR-1c0.771.681.27 ± 0.4713
PAR-1 Total0.441.681.00 ± 0.4257
PAR-5central−0.040.510.2712
PAR-5a−0.140.850.2510
PAR-5b−0.310.420.038
PAR-5c−0.220.16−0.069
PAR-5d0.080.270.175
PAR-5 Total−0.310.850.14 ± 0.2444
Combined PAR-1 and PAR-5−0.311.310.6093
Table 3. Oxygen isotope results from the 2009 reconnaissance using the laser-fluorination method, n = 1.
Table 3. Oxygen isotope results from the 2009 reconnaissance using the laser-fluorination method, n = 1.
SampleLocationSample TypeDeposit Typeδ18O
NAX2Naxos, GreeceColourless sapphireDesilicified pegmatite4.80
NAX3Naxos, GreeceColourless to blue sapphireDesilicified pegmatite5.05
PAR-1Paranesti, GreeceRed rubyPargasite schist1.00
KIM2Kimi, GreecePink rubyMarble-hosted20.50
XanthiXanthi, GreecePurple-pink rubyMarble-hosted22.09
Table 4. Global comparison of corundums with low oxygen isotope values.
Table 4. Global comparison of corundums with low oxygen isotope values.
CountryDistrictδ18O‰
(Min)
δ18O‰
(Max)
Host RockPrimary vs. SecondaryCorundum Type
Greece 1
Greece 1
Paranesti-1 *
Paranesti-5 *
0.65
−0.31
1.31
0.85
Pargasite schist
Pargasite schist
Primary
Primary
Ruby
Ruby
Madagascar 2Soamiakatra *1.254.70Pyroxenitic enclaves in basaltPrimaryRuby
Madagascar 2Ilakaka *−0.3016.5Placer in sandstoneSecondarySapphire
Madagascar 2Andilamena *0.503.9Placer in basaltSecondaryRuby
Russia 3,4,7Khitostrov ^−26.3 −17.7plagiogneissPrimaryCorundum
Russia 4,7Khitostrov *−26-Crn-St-Gt-Bi-Prg-Pl rocks with coarse grained CrnPrimaryCorundum
Russia 7Khitostrov *−18.6-Ky-Crn-Pl, leucocraticPrimaryCorundum
Russia 3Varastskoye ^−19.2−11.3plagiogneissPrimaryCorundum
Russia 4Varastskoye #−17.3-Crn-Cam rock, coarse grainedPrimaryCorundum
Varastskoye #−19.2-Crn and Crn-St-Pl substituting KyPrimaryCorundum
Russia 4Dyadina #0.49-Inclusion of Cam-Crn in giant GtInclusionCorundum
Russia 4Dyadina #0.10-Crn-Cam rock, coarse grainedPrimaryCorundum
Russia 5Dyadina *0.40.8Corundum amphibolitePrimaryCorundum
Russia 4Kulezhma #0.31-Cam-Crn rockPrimaryCorundum
Russia 4Pulonga #0.67-Crn-Gt-Ged rockPrimaryCorundum
Russia 4Perusel’ka *0.263.45Crn-Cam rock, coarse grainedPrimaryCorundum
Russia 5Perusel’ka #0.6-Corundum-kyanite amphibolitePrimaryCorundum
Russia 5Perusel’ka #1.5-Corundum amphibolitePrimaryCorundum
Russia 5Notozero *−1.7−1.5Ged-Gt rocks with Crn and StPrimaryCorundum
Russia 4Mironova Guba ^(2.34)-Cam-Crn rockPrimaryCorundum
Thailand 6Bo Rai *1.304.20Placer in basaltSecondaryRuby
* Individual grain analysis ^ Whole-rock analysis # Only one analysis result, no range. Bi—biotite, Cam—Ca-amphibole, Crn—corundum, Ged—gedrite amphibole, Gt—garnet, Ky—kyanite, Pl—plagioclase, Prg—pargasitic amphibole, St—staurolite. 1 Wang et al. (2017) [18]; 2 Giuliani et al. (2007) [26]; 3 Vysotskiy et al. (2015) [27]; 4 Bindeman and Serebryakov (2011) [28]; 5 Vysotskiy et al. (2014) [12]; 6 Yui et al. (2006) [29]; 7 Bindeman et al. (2010) [7].
