Minerals 2018, 8(9), 409; doi:10.3390/min8090409

Review
The Lengenbach Quarry in Switzerland: Classic Locality for Rare Thallium Sulfosalts
1
Lengenbach Research Association (Forschungsgemeinschaft Lengenbach, FGL), Gemeinde Binn, Dorfstr. 11, 3996 Binn, Switzerland
2
Swiss Seismological Service, ETH Zurich, Sonneggstr. 5, 8092 Zurich, Switzerland
*
Correspondence: [email protected]
Anniversary publication—60 years of continuous mineral search at Lengenbach and 15 years of FGL.
Received: 11 July 2018 / Accepted: 6 September 2018 / Published: 14 September 2018

Abstract

:
The Lengenbach quarry is a world-famous mineral locality, especially known for its rare and well-crystallized Tl, Pb, Ag, and Cu bearing sulfosalts. As of June 2018, it is the type locality for 44 different mineral species, making it one of the most prolific localities worldwide. A total of 33 thallium mineral species have been identified, 23 of which are type minerals. A brief description of several thallium species of special interest follows a concise and general overview of the thallium mineralization.
Keywords:
Lengenbach; Binn valley; thallium; sulfosalts; hutchinsonite; fangite; richardsollyite; sartorite; routhierite-stalderite; chabournéite-dalnegroite

1. Introduction

The Lengenbach quarry in the Binn valley, Valais, Switzerland (Figure 1 and Figure 2) is located in Triassic meta-dolomites of the Penninic zone in the Swiss Alps. Metal extraction for economic purposes never occurred in the quarry, but specimen extraction has been continuously carried out since 1958. The quarry is currently operated by the Forschungsgemeinschaft Lengenbach (FGL, literally: Lengenbach Research Association), financed by a group of idealistic collectors and by the local community of Binn. The purpose of the research association is to promote scientific research on the unique minerals of the Lengenbach deposit and of other dolomite localities in the Binn valley. An intermittent, measured specimen extraction during the snow-free summer months shall guarantee the potential for scientific investigations on the one hand and deliver dolomite material for a publicly accessible dump, serving as an attraction to equally eager tourists and mineral collectors, on the other hand.
This brief review gives a glimpse at the current status of the mineralogical research with regard to the thallium mineralization at the locality. For further information about history, geology, and mineral extracting work we recommend References [1,2].

2. Geochemical Setting and Formation of the Lengenbach Locality

The Lengenbach ore body is located within the Penninic Monte Leone nappe, at the Northern front and subvertical hinge zone of a large fold. The stratabound mineralization occurs in the stratigraphically uppermost part of the 240 m thick dolomite sequence.
The formation of the highly complex mineralization in the Lengenbach deposit is not yet completely understood. While Graeser [3] suggested a late introduction of As, Tl, and Cu into a pre-existing Fe-Pb-Zn mineralization during Alpine metamorphism from the underlying gneissic basement, Hofmann and Knill [4] proposed a pre-Alpine origin of those elements and a subsequent isochemical Alpine metamorphism, under upper greenschist to lower amphibolite facies.
According to Hofmann and Knill [4], the distinct mineral associations in the different parts of the Lengenbach dolomite can be understood as a result of slow crystallization processes in two different redox environments. One is based on graphite and/or pyrite–pyrrhotite, leading to zerovalent arsenic. The other, which was essential for the rare sulfosalts’ formation, is controlled by baryte (sulfate)–pyrite (sulfide), leading to trivalent arsenic. Accordingly, the As(III)-rich zone in the central part of the quarry shows an enrichment in baryte and hosts the coveted Tl-Pb-Ag-Cu bearing sulfosalts.
Graeser [3] as well as Hofmann and Knill [4] have each proposed a zonation scheme for the different types of mineral assemblages. While the former considers in essence only mineralogical and spatial criteria, the later rely on geochemistry and there is no obvious link between the two zonations. However, it is clear that the Tl-rich zone is restricted to the central part of the quarry. While on a broad scale the different bedding-parallel zones containing the different assemblages strike subvertically in an east–west direction (Figure 1), on the more local scale, they can be subdivided into ribbons and ellipsoidal lenses that thicken, to a maximum thickness of 0.5 m, and pinch out.
The FGL has been working for a few years on three such ribbons in the Tl-rich central zone (Figure 3). They are spaced approximately 1 m apart, measure a maximum of 4 m × 2 m and are designated, from north to south as ribbons 1, 1/2, and 2. Structurally, they are ellipsoidal in shape, with a sharp contact to the surrounding, mineral-poor dolomite. The contrast is essentially a mineralogical-geochemical, not a lithological contrast. Thanks to their high realgar contents, all three ribbons are easily identified in situ. But while ribbon 1 is very rich in thallium species, the very brittle and orpiment-rich dolomite of ribbon 1/2 is poorer in Tl while the realgar-richest ribbon 2 is almost bare of any thallium-species. Table 1 summarizes all species found in ribbon 1; 18 species containing thallium as one of main constituents are marked in bold characters.

3. Overview of Thallium Minerals at Lengenbach

As of June 2018, the Lengenbach quarry hosts 160 different mineral species, with sulfides and sulfosalts being the major group representing 57% of these species (Table 2 and Figure 4). Forty-four minerals are so called type minerals as they have been found and described for the first time from this locality. Twenty-three of them are thallium minerals. Table 3 lists all known Lengenbach thallium minerals as of today.
From the 73 valid mineral species containing essential thallium worldwide (according to mindat.org [36]), the striking number of 33 species (45.2%) could be found at Lengenbach.

4. On Some Special Thallium Minerals from the Lengenbach Quarry

We focus here on a few thallium species of special interest, as a discussion of all thallium sulfosalts would be beyond the scope of this brief note.

4.1. Hutchinsonite—The First of Its Kind

The first thallium mineral from Lengenbach, hutchinsonite, TlPbAs5S9, was found in 1903, when the English expert of Lengenbach minerals, Richard Harrison Solly (1851–1925), during one of his many trips to this remote Binn valley, recognized that the red to greyish-black, often flattened orthorhombic crystals probably were belonging to a new species. He briefly described it in 1904 [37], without giving it a name. In 1905, his colleague at the British Museum, G.T. Prior was able to reveal the presence of 20 wt % Tl in hutchinsonite. This was of “especial interest”, as Solly [17] wrote in his following detailed description, in which he named the mineral after Arthur Hutchinson (1866–1937). Prior’s discovery of thallium in hutchinsonite was important enough to result in a short note in Nature [38], as it was only the third mineral worldwide (after crookesite and lorándite) to contain thallium as an essential constituent.
Hutchinsonite is the most common thallium species in the deposit and represents the type structure of a family of complex sulfosalts. Its crystals are commonly transparent and prismatic, due to an elongation parallel to the c axis (see Figure 5, Figure 6 and Figure 7), or, rarely, more or less isometric. Hutchinsonite may contain antimony that contributes the crystals to be darker and opaque. The two varieties, prismatic Sb-free and more isometric Sb-bearing hutchinsonites, may be closely associated. The crystals reach 2 mm in size.

4.2. Fangite—The Thallium-Richest

Well-developed crystals of fangite, Tl3AsS4, could recently be identified for the first time [13]—to our knowledge, the first microscopically visible crystals of this species worldwide. They are small, deep red, and very shiny (Figure 8). With more than 75 wt % Tl, fangite is the thallium-richest mineral discovered at Lengenbach up to now.
A morphological study of the small crystals [26] showed them to display different combinations of crystal forms, irrespective of the fact that the prismatic habit is always approximately the same (Figure 9).

4.3. Richardsollyite—Honoring a Pioneer

In 2015, the FGL extracted two specimens with an unknown mineral from the very Tl-rich dolomite ribbon 1 (Figure 3) in the center of the quarry. Its chemistry, as first determined by Energy Dispersive X-ray Spectroscopy (EDXS) measurements in two independent institutes, showed the presence of Tl, Pb, As, and S in a simple, yet unknown ratio of 1:1:1:3. Also the powder X-ray diagram did not match with any known listed natural or synthetic chemical compound in the relevant databases. One year later, Meisser et al. [5] could describe this mineral as a new species with the name richardsollyite (Figure 10), TlPbAsS3, honoring the aforementioned pioneer of Lengenbach investigations at the dawn of the twentieth century, R.H. Solly. The crystal structure of richardsollyite is new in nature, being previously known only in some synthetic alkali sulfosalts [5].

4.4. The New “Sartorites”—From a Species to a Group

Sartorite, PbAs2S4, was first described by vom Rath as “scleroclase” in 1864 [40], and shortly after renamed by Dana [41] to honor Wolfgang Sartorius von Waltershausen (1809–1876), a professor of mineralogy in Göttingen, Germany. In 1919, Smith and Solly [42] recognized that sartorite has—despite its simple chemical formula—a quite unique and complex crystal structure: “sartorite appears to rank with the telluride of gold, calaverite, in the peculiarity of its atomic arrangement, since in certain at least of his crystals there exist simultaneously two or even three incongruent space-lattices, which may be supposed derivable from one another by a slight shear.” It is quite remarkable that they were able, with the limited methods of their time—in essence only crystal-morphological investigations—to recognize the so-called complex and incommensurate nature of both the calaverite and, partly, sartorite structures.
After the introduction of X-ray investigations in crystallography, several different monoclinic super cells (superstructures) were described [43,44,45,46]. Berlepsch et al. [46] pointed to the crystallographic consequences of the complex correlated atomic substitution by which substantial amounts of thallium are incorporated into the sartorite structure. They found a so-called 9-fold superstructure for a sartorite with up to 6.5 wt % Tl and discussed this as a “lock-in” structure with a commensurate lattice, for a species that they regarded as usually incommensurate.
The true nature of sartorite was finally resolved by Topa et al. [9,11,19]. Based on a systematic combination of electron microprobe measurements and crystal structure determinations they showed that “sartorite” actually represents a group of different mineral species with distinct crystal structures and distinct chemical compositions. According to their different superstructures, the new “sartorites” were named by adding a Greek prefix, which corresponds to an integral multiple of the basic “sartorite” substructure with 4.2 Å (Table 4).
These species are not visually distinguishable. The crystals are lead-grey with a metallic luster. Well-developed crystals show a prismatic habit with more or less distinct striation parallel to the longitudinal axis (Figure 11). Their length reaches several centimeters.

4.5. The Routhierite-Stalderite Group—Complex Substitutions

The routhierite-stalderite series is a group of thallium arsenio-sulfosalts with, in addition, monovalent (Me1: Cu+, Ag+) and bivalent metal ions (Me2: Hg2+, Zn2+, Fe2+) and the generic formula TlMe1+Me22+As2S6. Accordingly, six different combinations, and thus six distinct mineral species are theoretically possible in this group (Table 5, Figure 12). Five could indeed be found in nature: arsiccioite, routhierite, stalderite, ralphcannonite, and ferrostalderite. The latter four occur in the Lengenbach quarry, the type-locality for the latter three. Routhierite and arsiccioite are red to dark-red in color, the other three are dark grey with a metallic luster, but they all show the same pseudo-cubic to prismatic morphology (≤1 mm).
In the frame of a series of EDXS analyses on Lengenbach samples from the mineralogical collection of the Eidgenössiche Technische Hochschule (ETH) collection in Zurich, we recently identified what to our knowledge are the first completely idiomorphic crystals of routhierite worldwide (Figure 13).
Arsiccioite has not yet been found at Lengenbach. However, a single EDXS analysis of a minute crystal indicated a possible dominance of silver and iron, and thus, the possible existence of the last unreported member of this group in the quarry.

4.6. Chabournéite-Dalnegroite—And Possibly More

Dalnegroite was described as a new mineral species from Lengenbach in 2009 [8]. It is considered the As-analogue of chabournéite. The latter was also recently identified in one single specimen showing what appears to be the first distinct crystals for the species: They are very similar to the dalnegroite crystals and also show a strong similarity to lengenbachite crystals, which may imply that the two rare species may have been mistaken for lengenbachite in the past (Figure 14). Both dalnegroite and chabournéite are Pb-bearing species. In ribbon 1/2, however, the FGL has recently found a few samples of a Pb-free dalnegroite (Figure 15), the equivalent of the Pb-free chabournéite from Jas Roux, France [47,48]. The Pb-free species may well be distinct minerals (Figure 16). Their study needs to be refined and completed.

5. Summary and Perspective

Since 1958 an uninterrupted prospection for and extraction of mineral specimens has been performed in the Lengenbach quarry. Three working collectives have been successively in charge of these purely non-profit operations, aimed at providing interesting specimens to both science and collector communities. The Arbeitsgemeinschaft Lengenbach (AGL, literally: Lengenbach Working Association) was active from 1958 to 1997 and extracted 28,422 specimens in total. It was followed by the Interessengemeinschaft Lengenbach (IGL, literally: Lengenbach Interest Association), active from 1998 to 2002. The IGL produced 2424 specimens. The Forschungsgemeinschaft Lengenbach (FGL), which was founded in 2003 and celebrates its 15th anniversary in 2018, has been extremely successful. The association could ensure the collaboration of several experts as Preferred Associated Scientists, who performed countless investigations to increase our knowledge of the Lengenbach mineralogy, and to contribute with many publications and the description of several new mineral species to further enhance Lengenbach’s reputation as an eldorado for rare and complex sulfosalts. In these 15 years, 43 new mineral species have been described from the Lengenbach quarry, including 17 new type minerals.
As a consequence of the specimen extraction performed since 2014 in the Tl-rich dolomite ribbon 1, the number of thallium-bearing mineral samples extracted in the quarry has significantly increased recently, as it was already the case in the late eighties and early nineties when the AGL also worked in this zone (Figure 17). The FGL plans to continue the mineral prospection and extraction during the next two or three years in this fascinating part of the deposit. Consequently, there is a good chance to find additional rare thallium sulfosalts and—who knows—eventually also new mineral species.

Author Contributions

Both authors (T.R. and P.R.) contributed to varying degrees to all the different aspects of the work that led to this article. This includes conception, investigations, formal analyses, validation, draft preparation, review and editing, as well as administration.

Funding

This research received no external funding.

Acknowledgments

We would like to thank the “Verein Freunde Lengenbach” association, for its yearly financial contribution, and their members for their active support to the operational work in the quarry during their summer holidays. Special thanks go to FGL’s Scientific Head, Nicolas Meisser (Lausanne, Switzerland) and to our Preferred Associated Scientists who are always willing to investigate interesting mineral samples from the quarry, and without whom the incredible mineralogical success of the Lengenbach as worldwide-renowned sulfosalt locality would not have been possible: Fabrizio Nestola (Padua, Italy), Jakub Plášil (Prague, Czech Republic), Dan Topa (Vienna, Austria). Thanks also go to three anonymous reviewers who substantially helped improve this work. We are also grateful to the Minerals editors for their thorough and thoughtful editing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Graeser, S.; Cannon, R.; Drechsler, E.; Roth, P.; Raber, T. Faszination Lengenbach—Abbau, Forschung, Mineralien; KristalloGrafik Verlag: Achberg, Germany, 2008; p. 192. (In German) [Google Scholar]
  2. Roth, P.; Raber, T.; Drechsler, E.; Cannon, R. The Lengenbach Quarry, Binn Valley, Switzerland. Mineral. Rec. 2014, 45, 157–196. [Google Scholar]
  3. Graeser, S. Die Mineralfunde im Dolomit des Binnatales. Schweiz. Mineral. Petrogr. Mitt. 1965, 45, 597–795. (In German) [Google Scholar]
  4. Hofmann, B.A.; Knill, M.D. Geochemistry and genesis of the Lengenbach Pb-Zn-As-Tl-Ba-mineralisation, Binn Valley, Switzerland. Miner. Depos. 1996, 31, 319–339. [Google Scholar] [CrossRef]
  5. Meisser, N.; Roth, P.; Nestola, F.; Biagioni, C.; Bindi, L.; Robyr, M. Richardsollyite, TlPbAsS3, a new sulfosalt from the Lengenbach quarry, Binn Valley, Switzerland. Eur. J. Mineral. 2017, 29, 679–688. [Google Scholar] [CrossRef]
  6. Hofmann, B.; Graeser, S.; Imhof, T.; Sicher, V.; Stalder, H.A. Mineralogie der Grube Lengenbach, Binntal, Wallis. Jahrb. Naturhist. Mus. Bern 1993, 11, 3–90. (In German) [Google Scholar]
  7. Roth, P. Chabournéit, eine weitere interessante Neuentdeckung. Schweizer Strahler 2017, 51, 36–38, (In German and French). [Google Scholar]
  8. Nestola, F.; Guastoni, A.; Bindi, L.; Secco, L. Dalnegroite, Tl5−xPb2x(As,Sb)21−xS34, a new thallium sulphosalt from Lengenbach quarry, Binntal. Mineral. Mag. 2009, 73, 1027–1032. [Google Scholar] [CrossRef]
  9. Topa, D.; Stoeger, B.; Makovicky, E.; Stanley, C. Dekatriasartorite, IMA 2017-071. In IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 40. 2017, p. 1579. Available online: http://nrmima.nrm.se/CNMNC40%28MM%29.pdf (accessed on 11 July 2018).
  10. Graeser, S.; Schwander, H. Edenharterite (TlPbAs3S6): A new mineral from Lengenbach, Binntal (Switzerland). Eur. J. Mineral. 1992, 4, 1265–1270. [Google Scholar] [CrossRef]
  11. Topa, D.; Makovicky, E.; Stoeger, B.; Stanley, C. Heptasartorite, Tl7Pb22As55S108, enneasartorite, Tl6Pb32As70S140 and hendekasartorite, Tl2Pb48As82S172, three members of the anion-omission series of ‘sartorites’ from the Lengenbach quarry at Binntal, Wallis, Switzerland. Eur. J. Mineral. 2017, 29, 701–712. [Google Scholar] [CrossRef]
  12. Graeser, S.; Schwander, H.; Wulf, R.; Edenharter, A. Erniggliite, (Tl2SnAs2S6), a new mineral from Lengenbach, Binntal (Switzerland): Description and crystal structure determination based from data synchrotron radiation. Schweiz. Mineral. Petrogr. Mitt. 1992, 72, 293–305. [Google Scholar]
  13. Roth, P. Fangit: Neue Mineralart für die Schweiz und die ersten Kristalle. Schweizer Strahler 2017, 51, 35–37, (In German and French). [Google Scholar]
  14. Biagioni, C.; Bindi, L.; Nestola, F.; Cannon, R.; Roth, P.; Raber, T. Ferrostalderite, CuFe2TlAs2S6, a new mineral from Lengenbach, Switzerland: Occurrence, crystal structure, and emphasis on the role of iron in sulfosalts. Mineral. Mag. 2016, 80, 175–186. [Google Scholar] [CrossRef]
  15. Graeser, S.; Topa, D.; Balić-Žunić, T.; Makovicky, E. Gabrielite, Tl2AgCu2As3S7, a new species of thallium sulfosalt from Lengenbach, Binntal, Switzerland. Can. Mineral. 2006, 44, 135–140. [Google Scholar] [CrossRef]
  16. Solly, R.H.; Smith, G.F. Hatchite, a new (anorthic) mineral from the Binnenthal. Mineral. Mag. 1912, 16, 287–289. [Google Scholar] [CrossRef]
  17. Solly, R.H. Some new minerals from the Binnenthal, Switzerland. Mineral. Mag. 1905, 14, 72–82. [Google Scholar] [CrossRef]
  18. Burri, G.; Graeser, S.; Marumo, F.; Nowacki, W. Imhofit, ein neues Thallium-Arsensulfosalz aus dem Lengenbach (Binnatal, Kt. Wallis). Chimia 1965, 19, 499–500. (In German) [Google Scholar]
  19. Topa, D.; Stoeger, B.; Makovicky, E.; Stanley, C. Incomsartorite, IMA 2016-035. In IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 33. 2016, p. 1136. Available online: http://nrmima.nrm.se/CNMNCNewsletter33-2016.pdf (accessed on 11 July 2018).
  20. Graeser, S.; Edenharter, A. Jentschite (TlPbAs2SbS6)—A new sulphosalt mineral from Lengenbach, Binntal (Switzerland). Mineral. Mag. 1997, 61, 131–137. [Google Scholar] [CrossRef]
  21. Graeser, S. Ein Vorkommen von Lorandit (TlAsS2) in der Schweiz. Contrib. Mineral. Petrol. 1967, 16, 45–50. (In German) [Google Scholar] [CrossRef]
  22. Raber, T. Neufunde von der Grube Lengenbach im Binntal: Parapierrotit. Schweizer Strahler 2016, 50, 24–25, (In German and French). [Google Scholar]
  23. Bindi, L.; Nestola, F.; Makovicky, E.; Guastoni, A.; De Battisti, L. Tl-bearing sulfosalts from the Lengenbach quarry, Binn valley, Switzerland: Philrothite, TlAs3S5. Mineral. Mag. 2014, 78, 1–9. [Google Scholar] [CrossRef]
  24. Roth, P. Neufunde von der Grube Lengenbach im Binntal: Picotpaulit—Eine weitere Thallium-haltige Seltenheit. Schweizer Strahler 2015, 49, 30–31, (In German and French). [Google Scholar]
  25. Bindi, L.; Nestola, F.; Guastoni, A.; Peruzzo, L.; Ecker, M.; Carampin, R. Raberite, Tl5Ag4As6SbS15, a new Tl-bearing sulfosalt from Lengenbach quarry, Binn valley, Switzerland: Description and crystal structure. Mineral. Mag. 2012, 76, 1153–1163. [Google Scholar] [CrossRef]
  26. Roth, P. FGL (Forschungsgemeinschaft Lengenbach). Available online: http://www.fglb.clubdesk.ch (accessed on 5 May 2018).
  27. Bindi, L.; Biagioni, C.; Raber, T.; Roth, P.; Nestola, F. Ralphcannonite, AgZn2TlAs2S6, a new mineral of the routhierite isotypic series from Lengenbach, Binn valley, Switzerland. Mineral. Mag. 2015, 79, 1089–1098. [Google Scholar] [CrossRef]
  28. Baumhauer, H. Über den Rathit, ein neues Mineral aus dem Binnenthaler Dolomit. Z. Kristallogr. 1896, 26, 593–602. (In German) [Google Scholar]
  29. Roth, P. Neufunde von der Grube Lengenbach im Binntal: Die Mineralien der Routhierit-Stalderit-Gruppe. Schweizer Strahler 2016, 50, 28–31, (In German and French). [Google Scholar]
  30. Graeser, G.; Berlepsch, P.; Makovicky, E.; Balić-Zŭnić, T. Sicherite, TlAg2(As,Sb)3S6, a new sulfosalt mineral from Lengenbach (Binntal, Switzerland): Description and structure determination. Amer. Mineral. 2001, 86, 1087–1093. [Google Scholar] [CrossRef]
  31. Graeser, S.; Topa, D.; Effenberger, H.; Makovicky, E.; Paar, W.H. Spaltiite, IMA 2014-012. In IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 20. 2014, p. 557. Available online: https://www.degruyter.com/downloadpdf/j/minmag.2014.78.issue-3/minmag.2014.078.3.05/minmag.2014.078.3.05.pdf (accessed on 11 July 2018).
  32. Graeser, S.; Schwander, H.; Wulf, R.; Edenharter, A. Stalderite TlCu(Zn,Fe,Hg)2As2S6—A new mineral related to routhierite: Description and crystal structure determination. Schweiz. Mineral. Petrogr. Mitt. 1995, 75, 337–345. [Google Scholar]
  33. Cannon, R. Mineral-Neufunde aus dem Dolomit am Lengenbach, Binntal (Wallis)/Schweiz. Aufschluss 2005, 56, 375–390. (In German) [Google Scholar]
  34. Nowacki, W. Über einige Mineralfunde aus dem Lengenbach (Binnatal, Kt. Wallis). Eclogae Geol. Helv. 1965, 58, 403–406. (In German) [Google Scholar]
  35. Raber, T.; Roth, P. Neufunde von der Grube Lengenbach im Binntal: Weissbergit, ein Thallium-Antimon-Sulfosalz. Schweizer Strahler 2014, 48, 18–19, (In German and French). [Google Scholar]
  36. Mindat.org. Available online: http://www.mindat.org (accessed on 5 May 2018).
  37. Solly, R.H. On some minerals from the Binnenthal, Switzerland. Proc. Cambridge Phil. Soc. 1904, (read October 1903). 12, 277. [Google Scholar] [CrossRef]
  38. Prior, G.T. A new thallium mineral. Nature 1905, 71, 534. [Google Scholar] [CrossRef]
  39. Favreau, G. The FACES Software, version 4.2; A User-Friendly Tool for Crystal Modeling; Yearly Symposium, Cleveland Mineralogical Society: Cleveland, OH, USA, 2003. [Google Scholar]
  40. Rath, G.vom. IV. Mineralogische Mitteilungen: Über den Dufrénoysit und zwei andere im rhombischen Systeme krystallisirende Schwefelverbindungen (Skleroklas und Jordanit) aus dem Binnenthale. Pogg. Ann. 1864, 122, 371–400. (In German) [Google Scholar]
  41. Dana, J.D. System of Mineralogy, 5th ed.; John Wiley & Sons: Hoboken, NJ, USA, 1868; p. 88. [Google Scholar]
  42. Smith, G.F.; Solly, R.H. On sartorite and the problem of its crystal-form. Mineral. Mag. 1919, 18, 259–316. [Google Scholar]
  43. Bannister, F.A.; Pabst, A.; Vaux, G. The Crystallography of Sartorite. Mineral. Mag. 1939, 25, 264–270. [Google Scholar] [CrossRef]
  44. Nowacki, W.; Bürki, H.; Iitaka, Y.; Kunz, V. Structural investigations on sulfosalts from the Lengenbach, Binn Valley (Ct. Wallis). Part 2. Schweiz. Mineral. Petrogr. Mitt. 1961, 41, 103–116. [Google Scholar]
  45. Pring, A.; Williams, T.B.; Withers, R. Structural modulation in sartorite: An electron microscope study. Am. Mineral. 1993, 78, 619–626. [Google Scholar]
  46. Berlepsch, P.; Armbruster, T.; Makovicky, E.; Topa, D. Another step toward understanding the true nature of sartorite: Determination and refinement of a ninefold superstructure. Am. Mineral. 2003, 88, 450–461. [Google Scholar] [CrossRef]
  47. Johan, Z.; Mantienne, J.; Picot, P. La chabournéite, un nouveau minéral thallifère. Bull. Minéral. 1981, 104, 10–15. (In French) [Google Scholar]
  48. Orlandi, P.; Biagioni, C.; Moëlo, Y.; Bonaccorsi, E.; Paar, W.H. Lead-Antimony sulfosalts from Tuscany (Italy). XIII. Protochabournéite, Tl2Pb(Sb9-8As1-2)Σ10S17, from the Monte Arsiccio Mine: occurrence, crystal structure and relationship with Chabournéite. Can. Mineral. 2013, 51, 475–494. [Google Scholar] [CrossRef]
Figure 1. The upper part of the Lengenbach quarry in the Binn valley, view to the east.
Figure 1. The upper part of the Lengenbach quarry in the Binn valley, view to the east.
Minerals 08 00409 g001

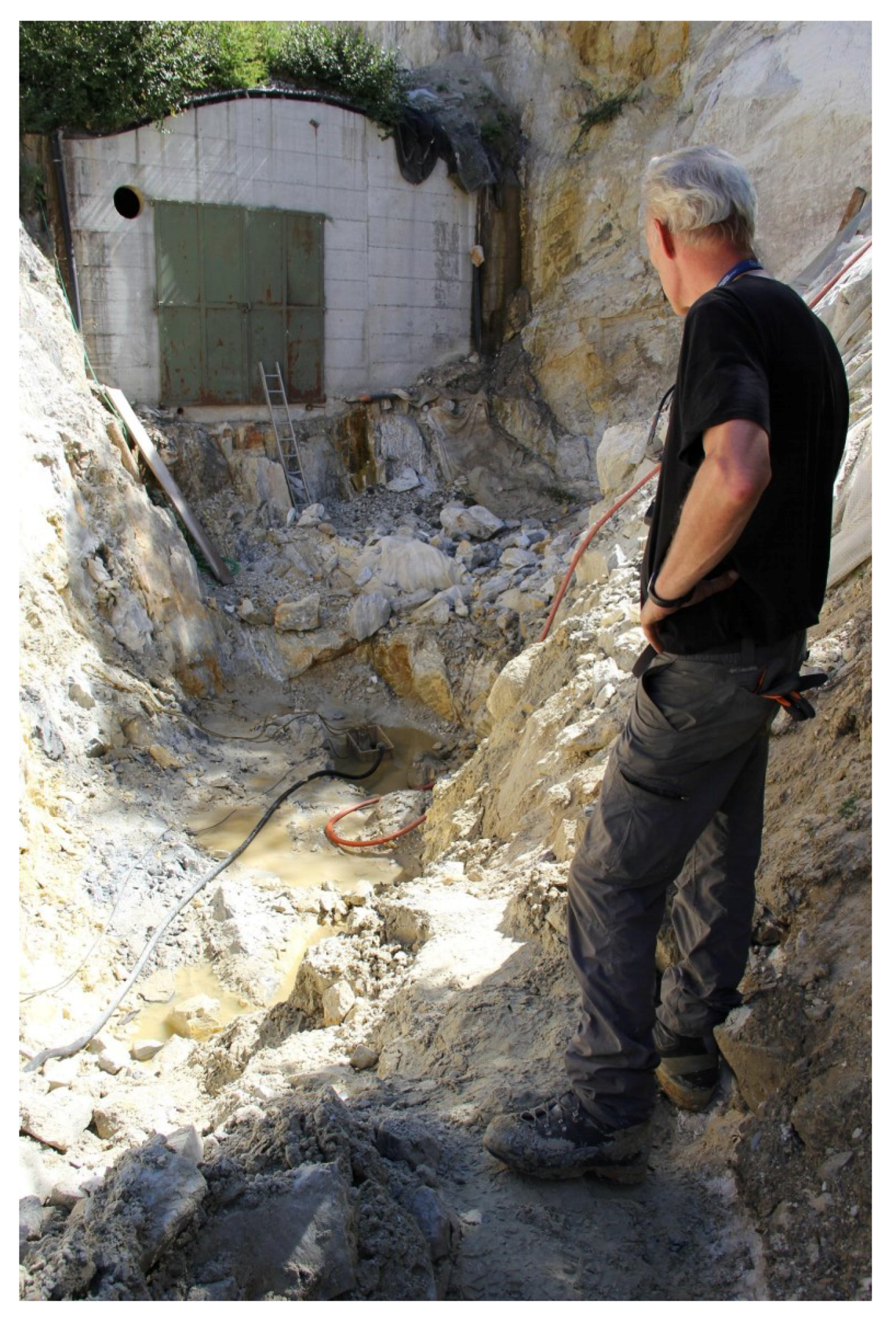

Figure 2. Ralph Cannon, technical head of the Forschungsgemeinschaft Lengenbach (FGL) research association, at the entrance of the quarry in front of the concrete hall, where the current mineral-extraction activities are carried out at the lowest dolomite level.
Figure 2. Ralph Cannon, technical head of the Forschungsgemeinschaft Lengenbach (FGL) research association, at the entrance of the quarry in front of the concrete hall, where the current mineral-extraction activities are carried out at the lowest dolomite level.
Minerals 08 00409 g002

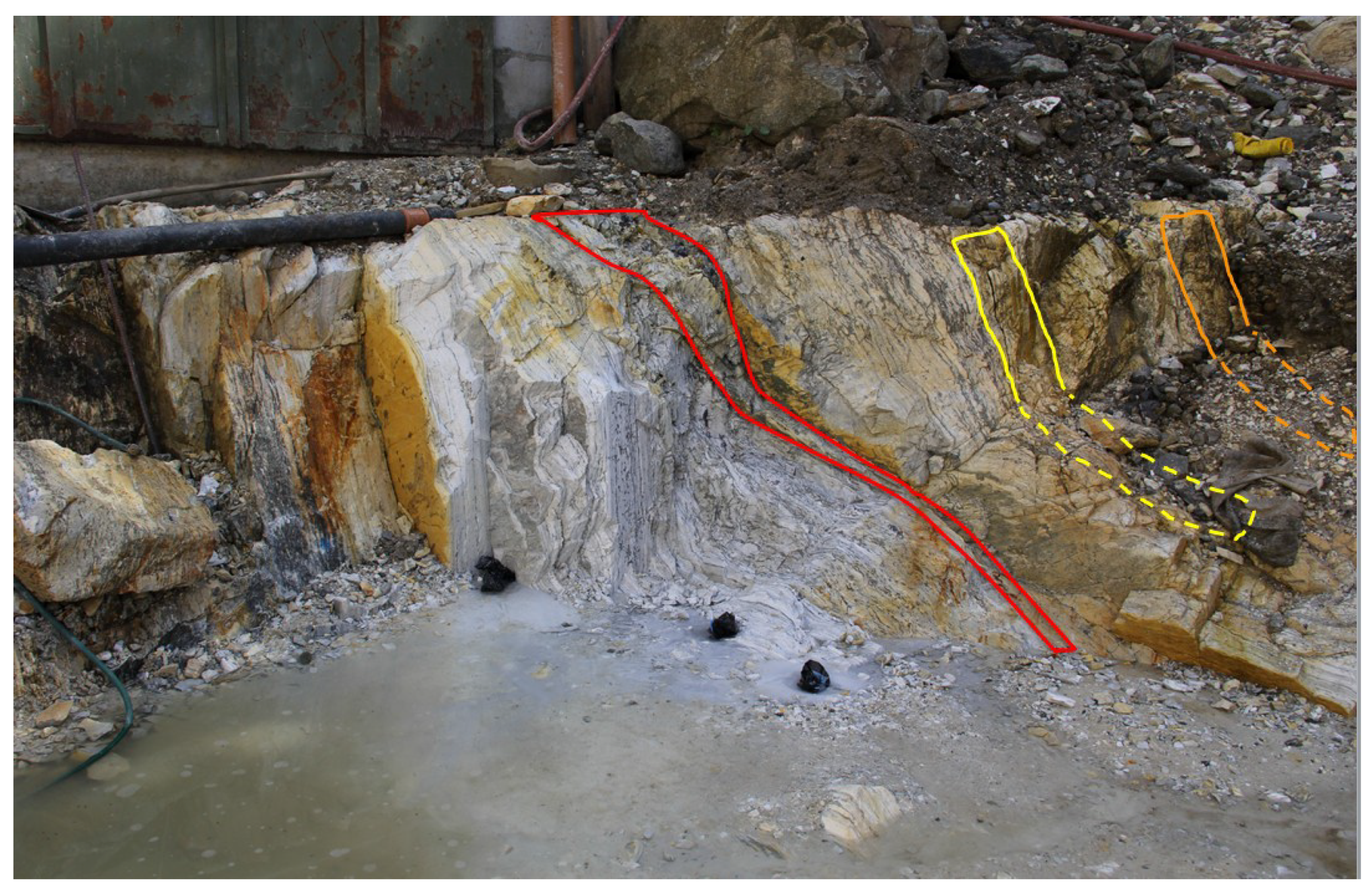

Figure 3. Three realgar-rich ribbons in the central dolomite zone in the lower part of the quarry. Ribbon 1 (red) is very rich in thallium species, ribbon 1/2 (yellow) contains much orpiment in a brittle dolomite and is poorer in thallium, ribbon 2 (orange) is the realgar-richest ribbon, but almost bare of any thallium species. The maximum ribbon thickness is about 0.5 m. Dashed lines show the expected extension of the ribbons below the debris.
Figure 3. Three realgar-rich ribbons in the central dolomite zone in the lower part of the quarry. Ribbon 1 (red) is very rich in thallium species, ribbon 1/2 (yellow) contains much orpiment in a brittle dolomite and is poorer in thallium, ribbon 2 (orange) is the realgar-richest ribbon, but almost bare of any thallium species. The maximum ribbon thickness is about 0.5 m. Dashed lines show the expected extension of the ribbons below the debris.
Minerals 08 00409 g003

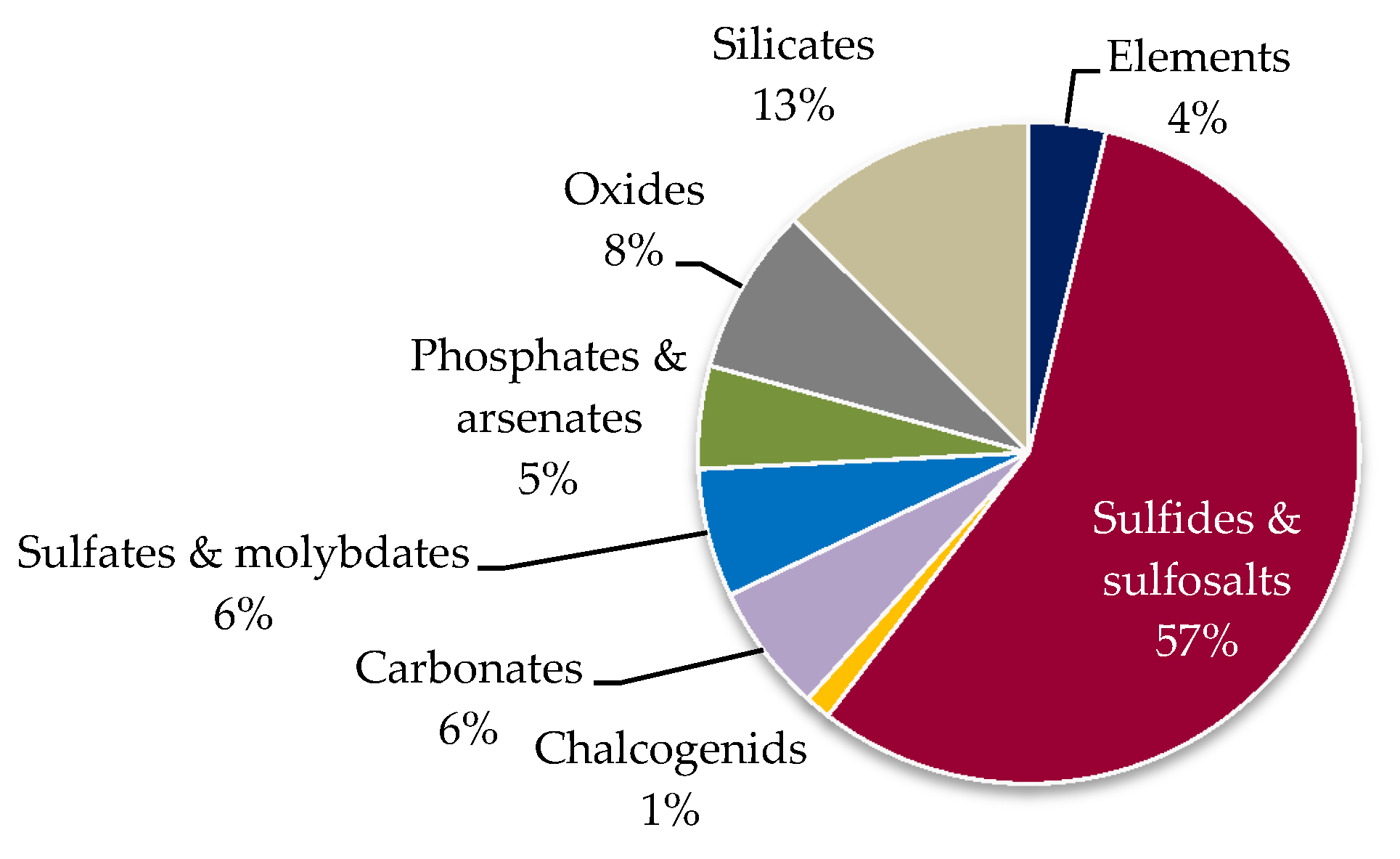

Figure 4. Distribution of mineral classes at Lengenbach.
Figure 4. Distribution of mineral classes at Lengenbach.
Minerals 08 00409 g004

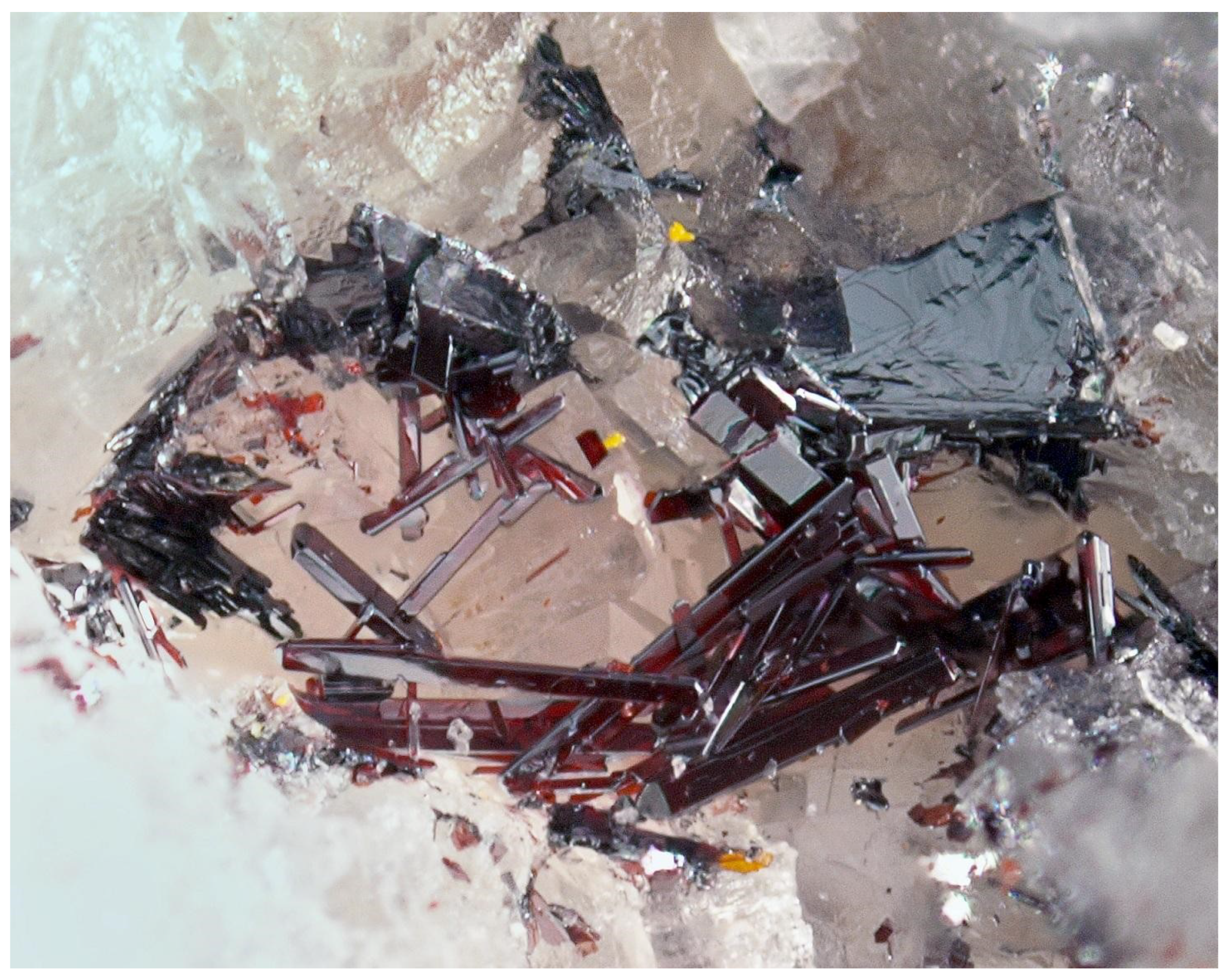

Figure 5. Dark wine-red, transparent, lath-like hutchinsonite crystals on dolomite. Field of view 1.4 mm. Photo: Edgar Müller.
Figure 5. Dark wine-red, transparent, lath-like hutchinsonite crystals on dolomite. Field of view 1.4 mm. Photo: Edgar Müller.
Minerals 08 00409 g005

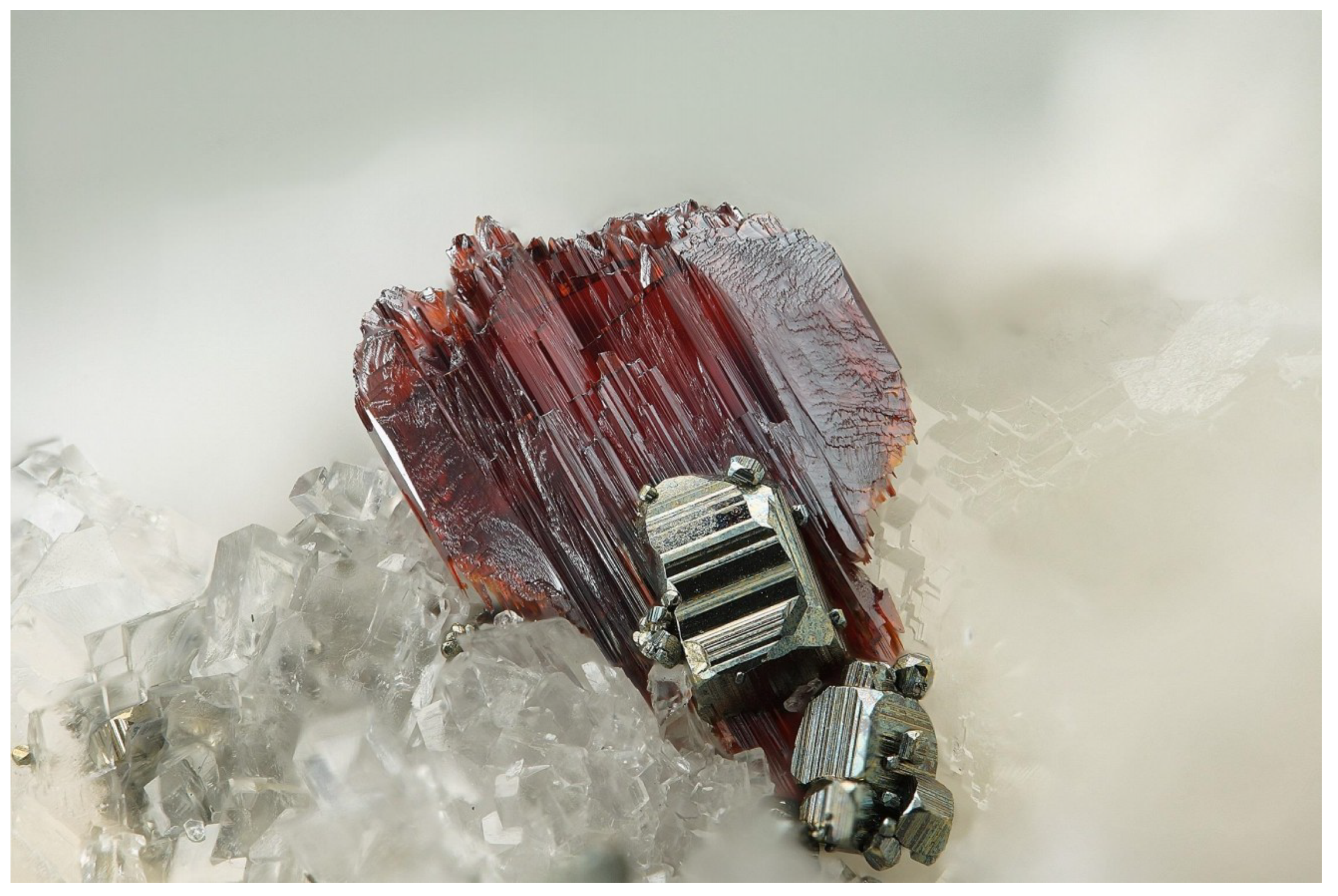

Figure 6. Translucent aggregate of parallel-oriented, red, flattened hutchinsonite crystals with pyrite on dolomite. Field of view: 2.5 mm. Photo: Stephan Wolfsried.
Figure 6. Translucent aggregate of parallel-oriented, red, flattened hutchinsonite crystals with pyrite on dolomite. Field of view: 2.5 mm. Photo: Stephan Wolfsried.
Minerals 08 00409 g006
Figure 7. Prismatic dark-red to grey crystals of hutchinsonite. Field of view: 1.5 mm. Photo: Stephan Wolfsried.
Figure 7. Prismatic dark-red to grey crystals of hutchinsonite. Field of view: 1.5 mm. Photo: Stephan Wolfsried.
Minerals 08 00409 g007

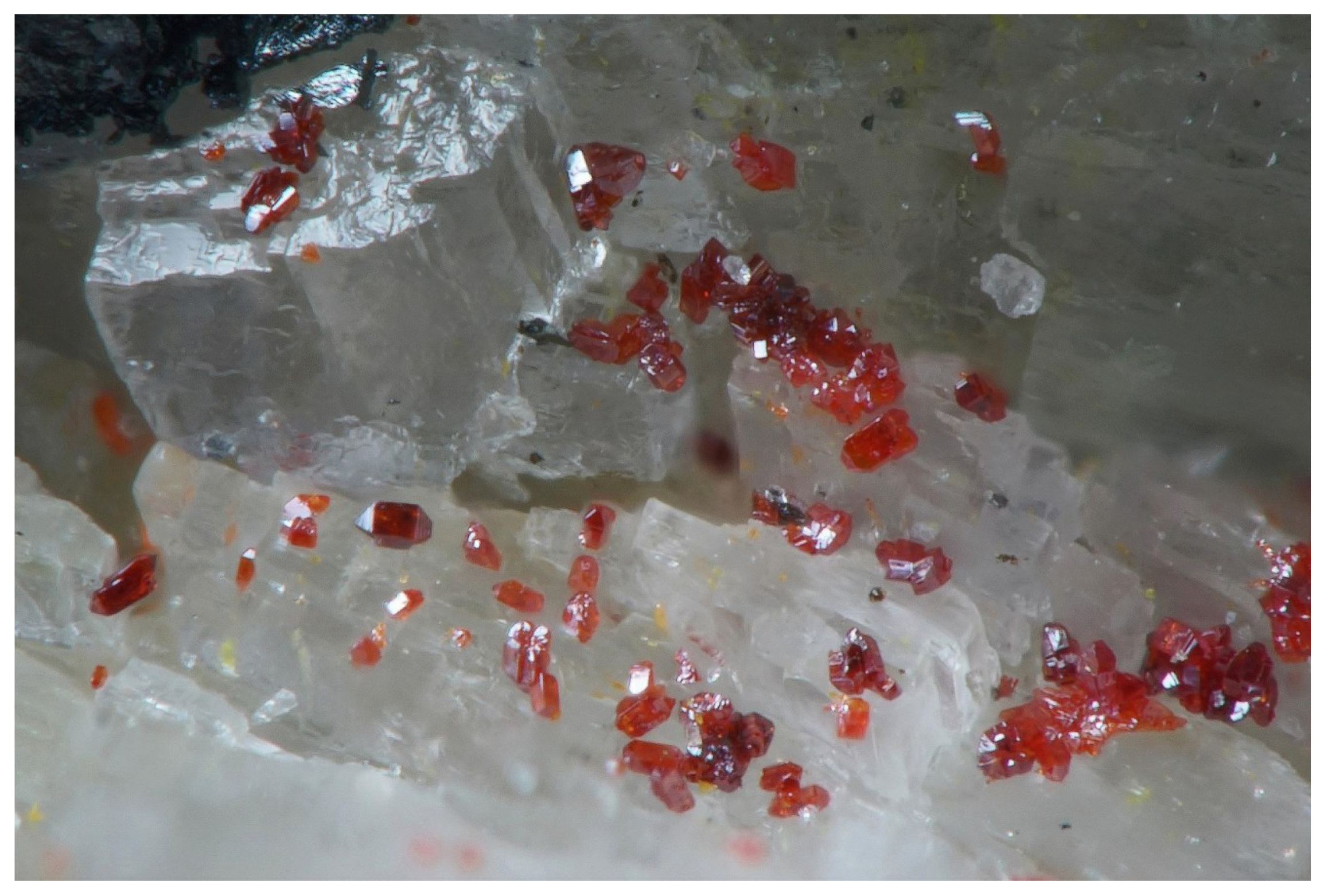

Figure 8. Tiny, prismatic, lustrous, red fangite crystals on dolomite. Field of view: 0.75 mm. Photo: Mischa Crumbach.
Figure 8. Tiny, prismatic, lustrous, red fangite crystals on dolomite. Field of view: 0.75 mm. Photo: Mischa Crumbach.
Minerals 08 00409 g008
Figure 9. Fangite crystals showing different combinations of forms but similar habits. A distinct color is assigned to each crystal form. The Miller indices of the different forms are given without brackets FACES drawings [39].
Figure 9. Fangite crystals showing different combinations of forms but similar habits. A distinct color is assigned to each crystal form. The Miller indices of the different forms are given without brackets FACES drawings [39].
Minerals 08 00409 g009

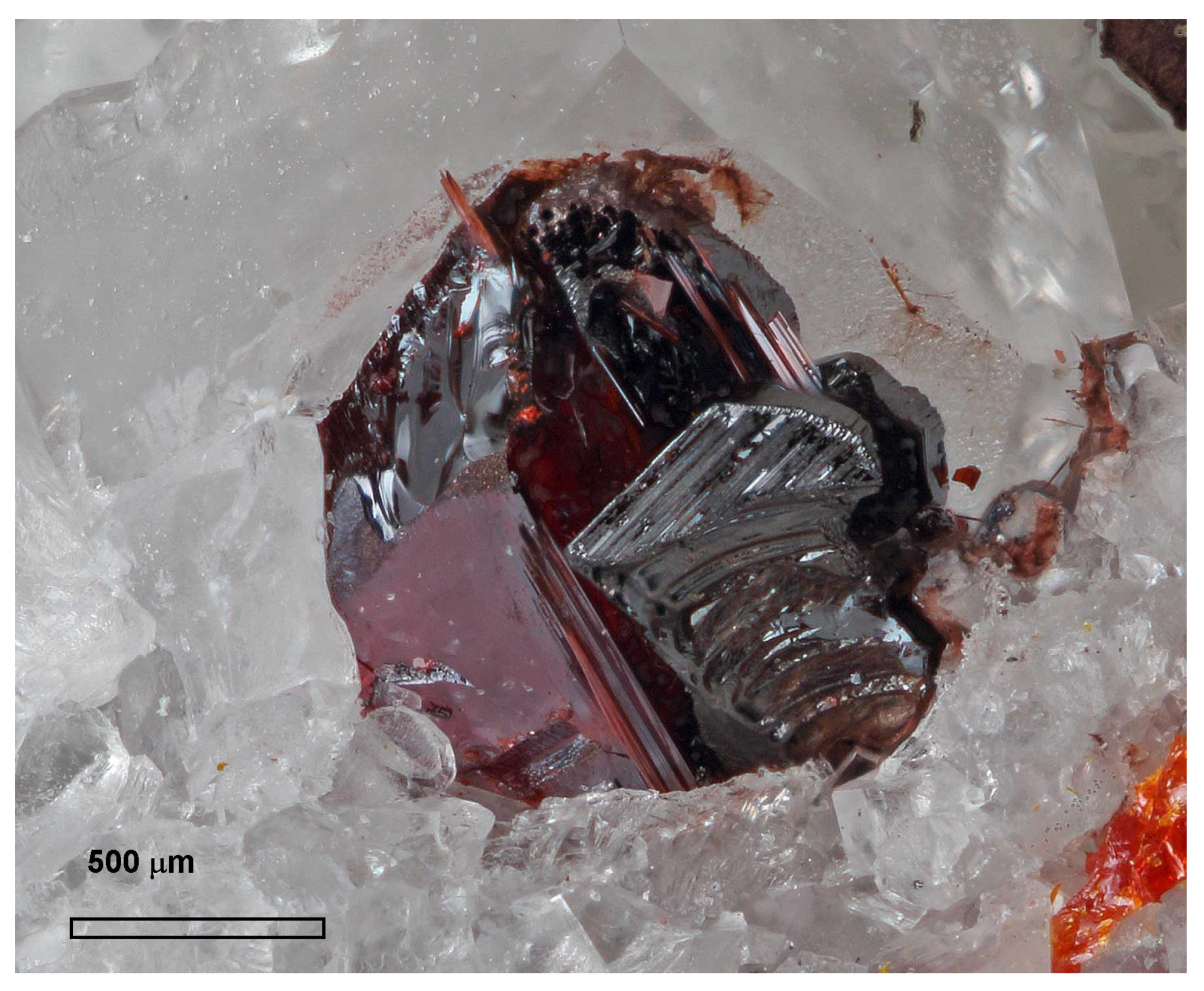

Figure 10. Holotype specimen of richardsollyite (dark grey) with hutchinsonite (dark red) and realgar. Field of view: 3.5 mm. Mineralogical Collection of the Musée cantonal de géologie (MGL no. 080126), photo: Stefan Ansermet.
Figure 10. Holotype specimen of richardsollyite (dark grey) with hutchinsonite (dark red) and realgar. Field of view: 3.5 mm. Mineralogical Collection of the Musée cantonal de géologie (MGL no. 080126), photo: Stefan Ansermet.
Minerals 08 00409 g010

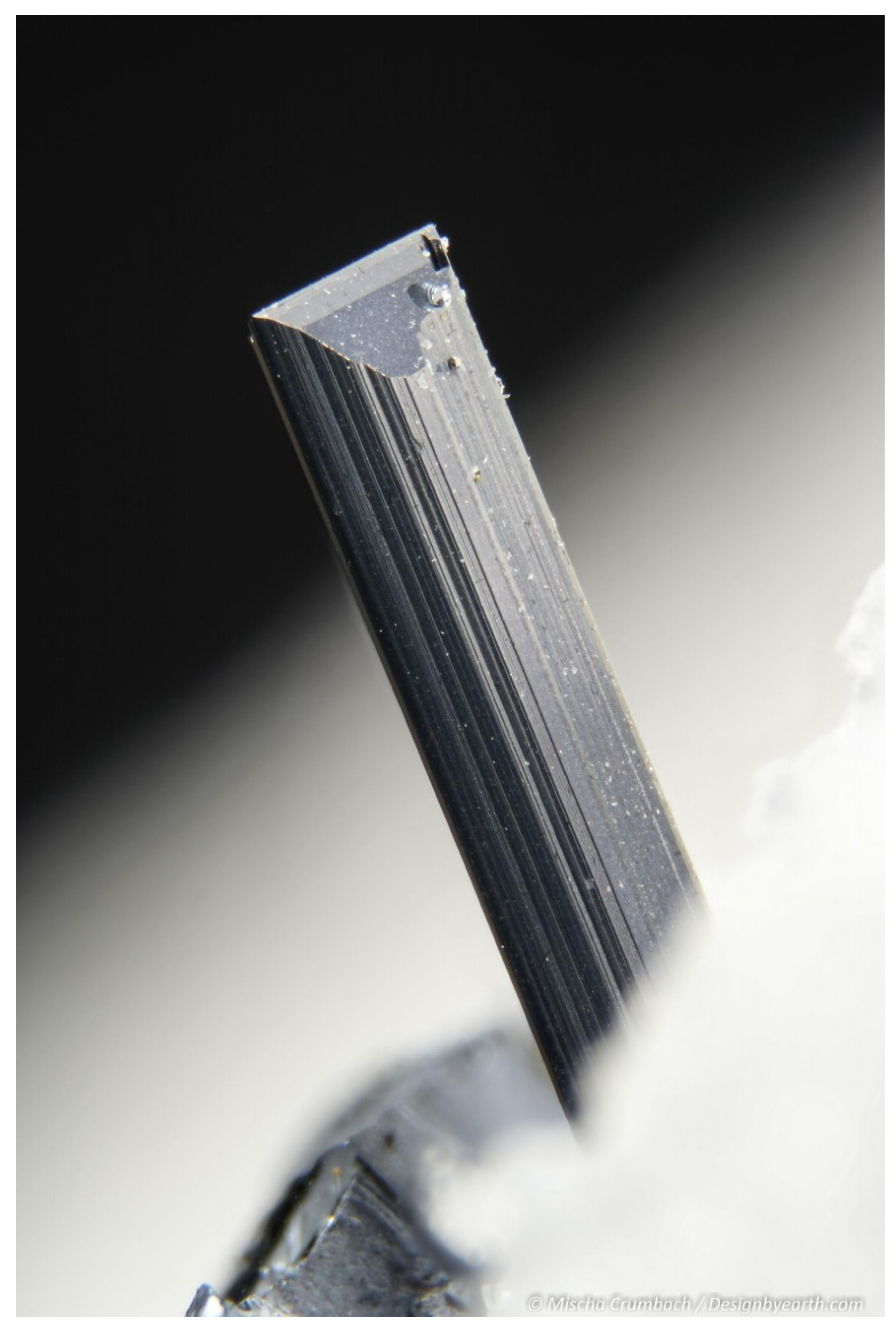

Figure 11. Lead-grey, metallic, prismatic crystal of dekatriasartorite. Field of view 4.8 mm. Photo: Mischa Crumbach.
Figure 11. Lead-grey, metallic, prismatic crystal of dekatriasartorite. Field of view 4.8 mm. Photo: Mischa Crumbach.
Minerals 08 00409 g011

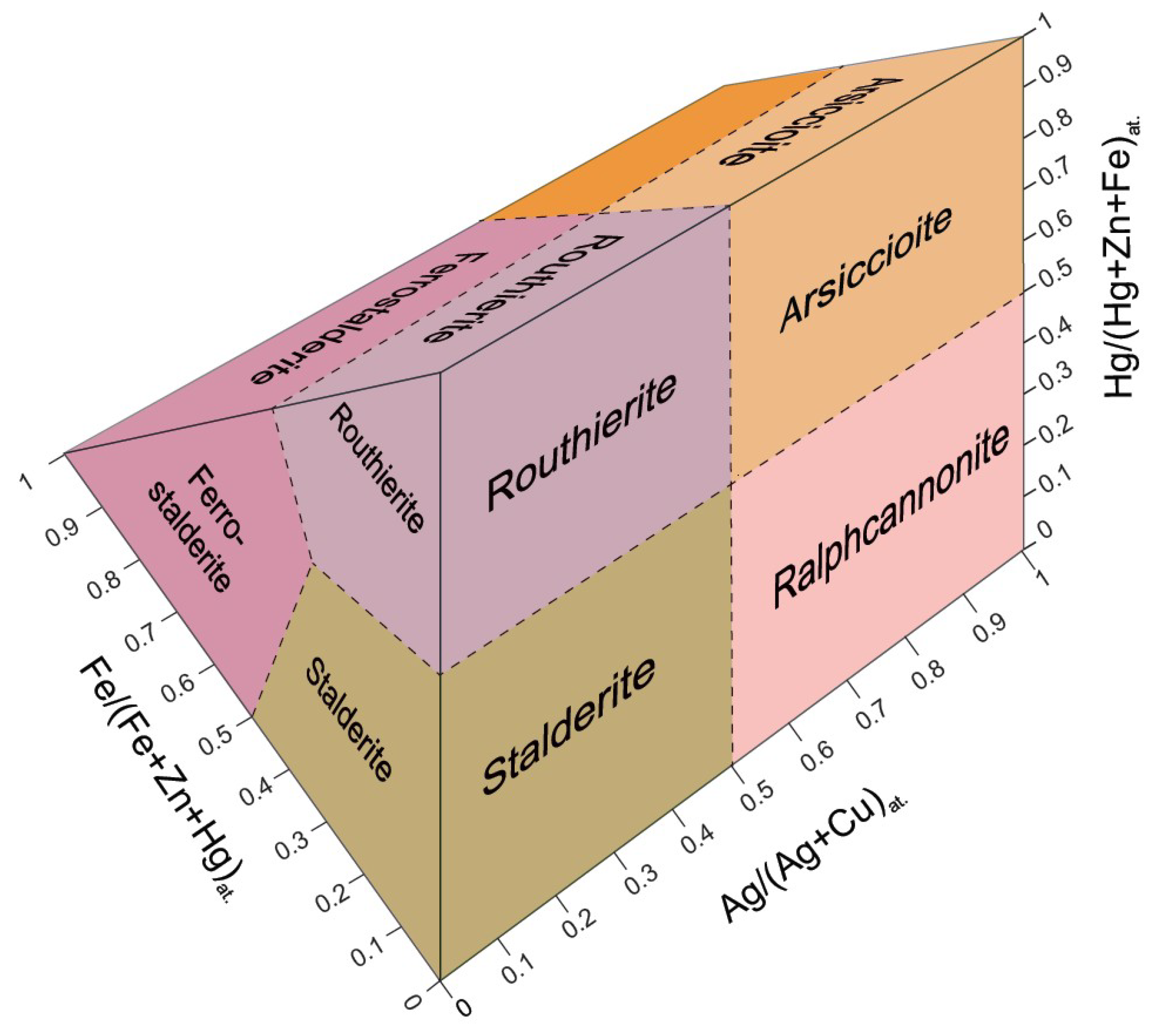

Figure 12. The minerals of the routhierite-stalderite group in a block diagram. The six distinct species are the result of the six possible combinations of monovalent (Ag+, Cu+) and bivalent metal ions (Zn2+, Hg2+, Fe2+). Modified after Reference [27].
Figure 12. The minerals of the routhierite-stalderite group in a block diagram. The six distinct species are the result of the six possible combinations of monovalent (Ag+, Cu+) and bivalent metal ions (Zn2+, Hg2+, Fe2+). Modified after Reference [27].
Minerals 08 00409 g012

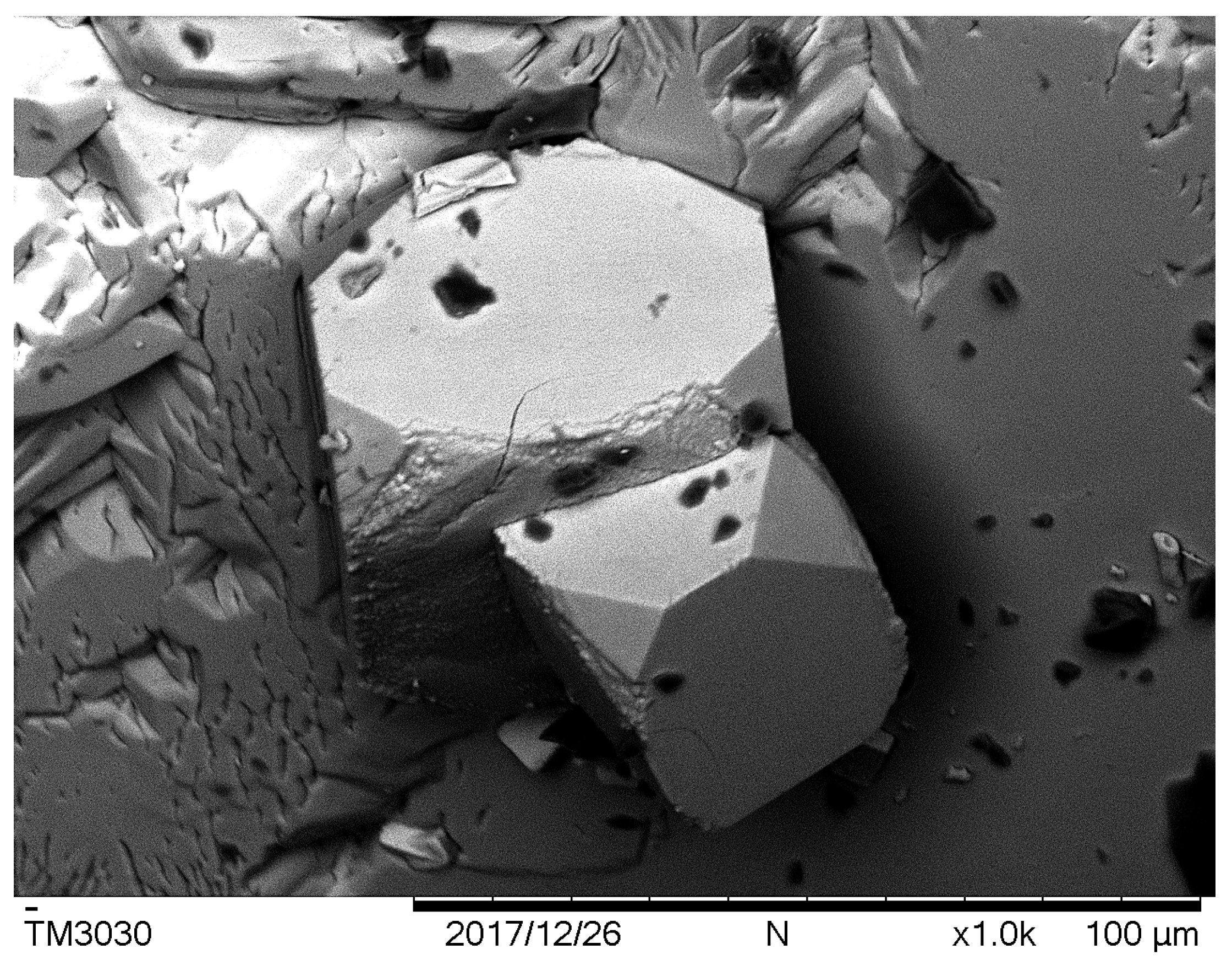

Figure 13. Idiomorphic, pseudo-cubic crystals of routhierite from the mineralogical collection of the Eidgenössiche Technische Hochschule ETH in Zurich.
Figure 13. Idiomorphic, pseudo-cubic crystals of routhierite from the mineralogical collection of the Eidgenössiche Technische Hochschule ETH in Zurich.
Minerals 08 00409 g013

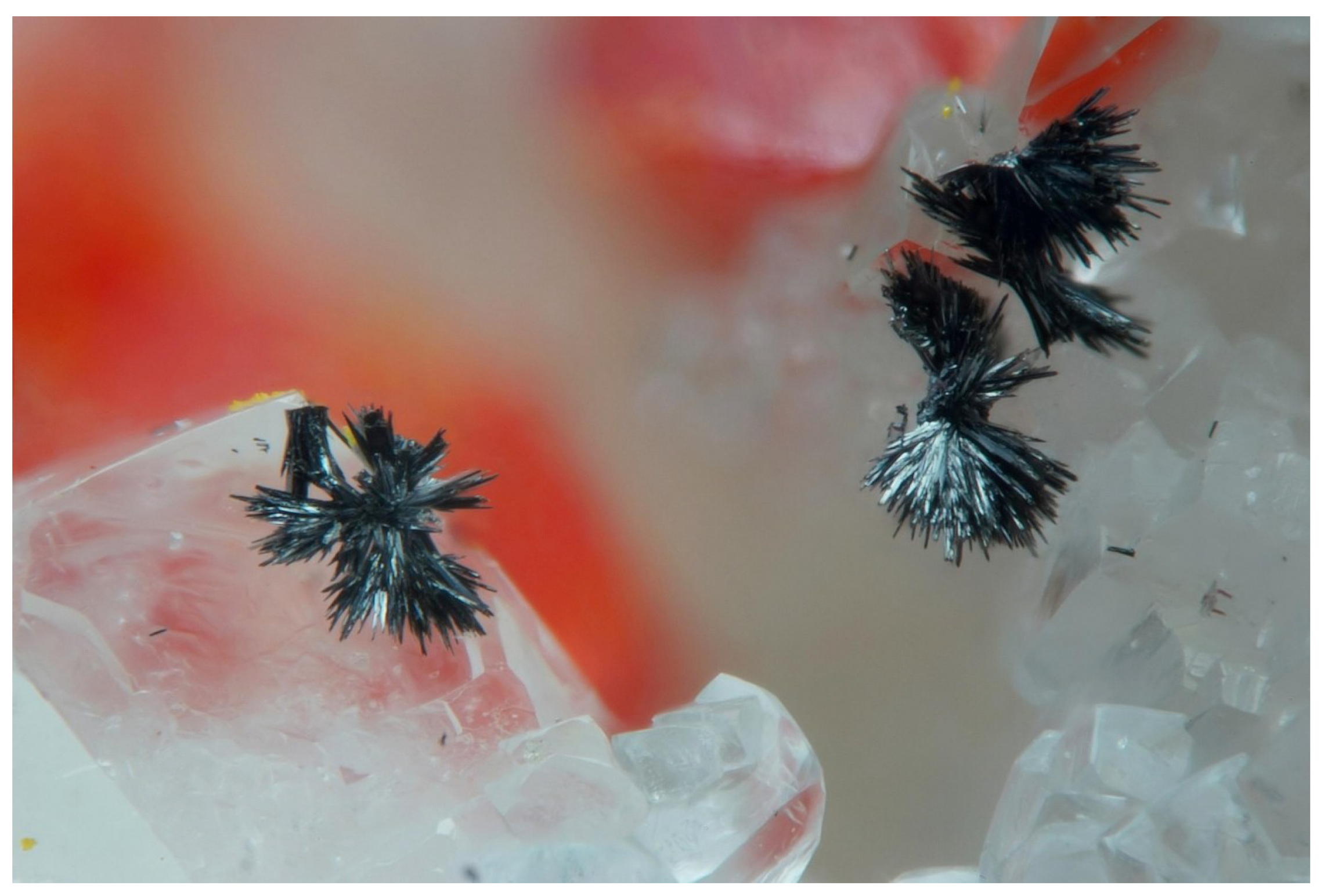

Figure 14. Black, stellar aggregates of chabournéite on dolomite. Field of view 1.2 mm. Photo: M. Crumbach.
Figure 14. Black, stellar aggregates of chabournéite on dolomite. Field of view 1.2 mm. Photo: M. Crumbach.
Minerals 08 00409 g014

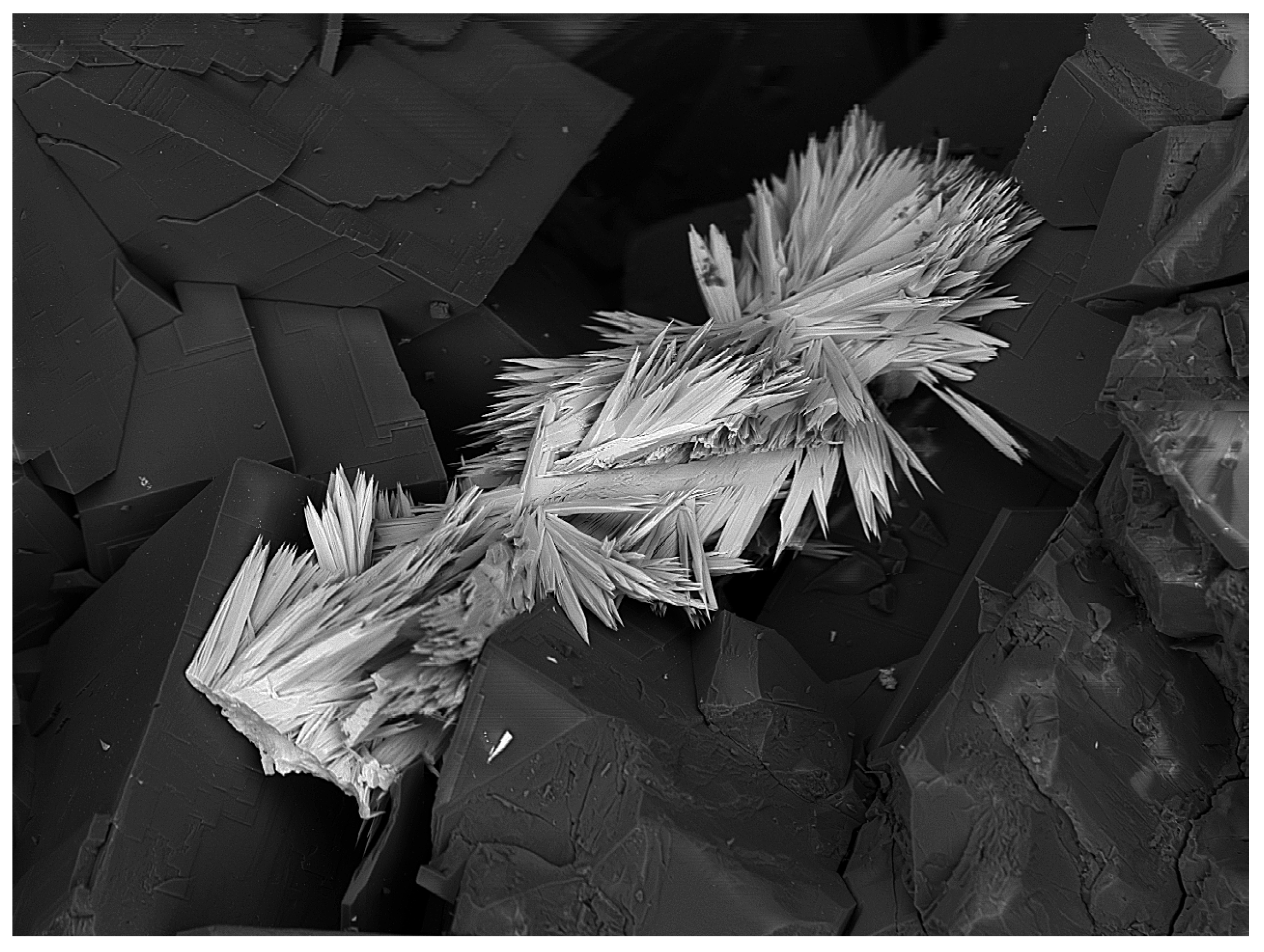

Figure 15. Aggregate of small acicular crystals of “Pb-free dalnegroite” from ribbon 1. Field of view 0.6 mm.
Figure 15. Aggregate of small acicular crystals of “Pb-free dalnegroite” from ribbon 1. Field of view 0.6 mm.
Minerals 08 00409 g015

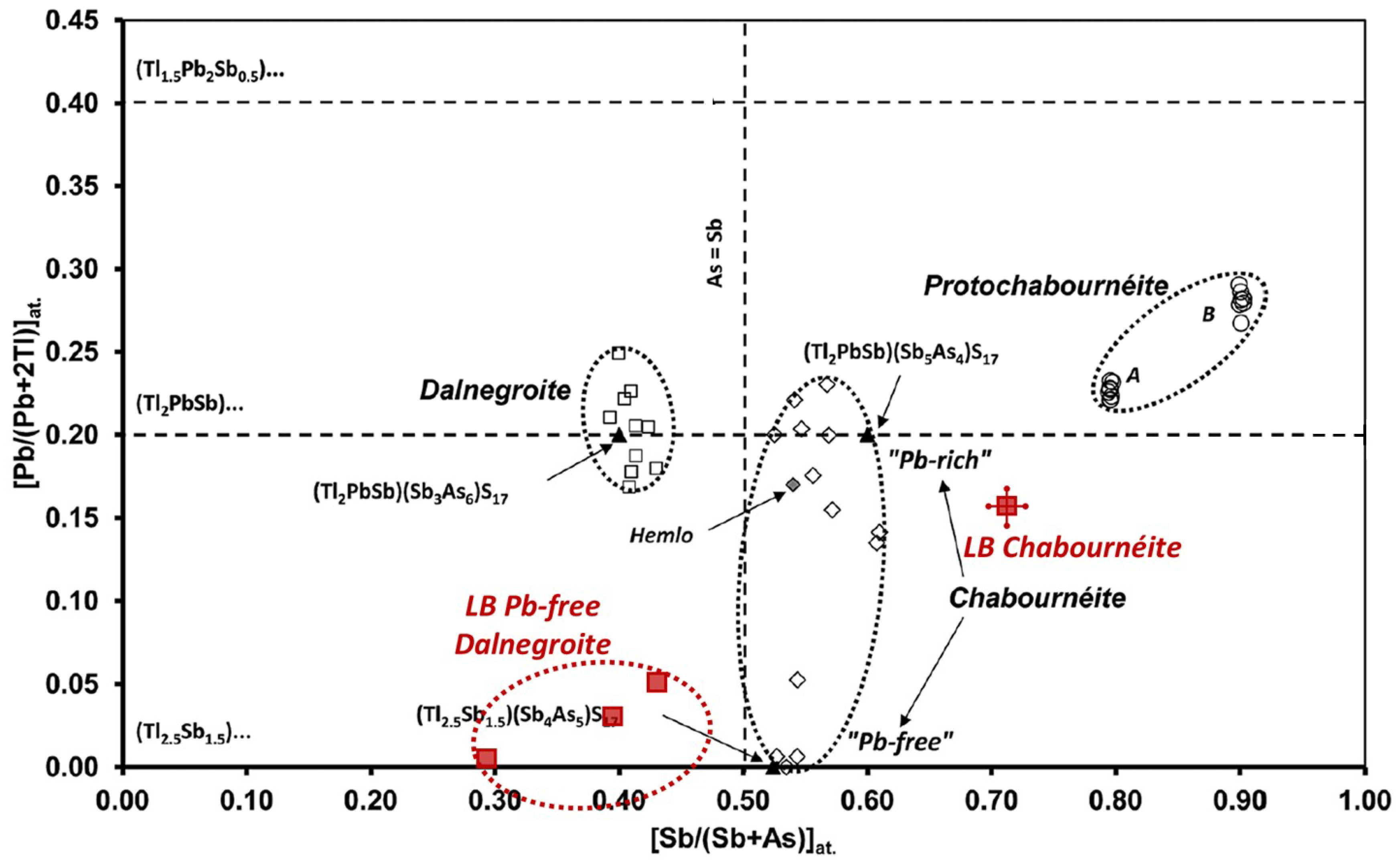

Figure 16. Diagram of Jas Roux and Abuta (France, resp. Japan, open diamonds) chabournéite, Monte Arsiccio (Italy, open circles) protochabournéite and Lengenbach (open squares) dalnegroite, modified after Reference [48], with copyright permission from Mineralogical Association of Canada, 2013. Dalnegroites are located in the As-dominated left part of the diagram, chabournéites and protochabournéites in the right part with Sb-dominance. The Pb content increases along the y-axis. The new Lengenbach samples (analyzed by EDXS) are shown as red squares. Lengenbach chabournéite is located in the Pb-rich part of the diagram (the cross gives the ± 1 sigma of all measurements), showing a higher Sb content than the samples from Jas Roux. The nearly Pb-free dalnegroite seems to be clearly isolated from the holotype material of this species (open squares).
Figure 16. Diagram of Jas Roux and Abuta (France, resp. Japan, open diamonds) chabournéite, Monte Arsiccio (Italy, open circles) protochabournéite and Lengenbach (open squares) dalnegroite, modified after Reference [48], with copyright permission from Mineralogical Association of Canada, 2013. Dalnegroites are located in the As-dominated left part of the diagram, chabournéites and protochabournéites in the right part with Sb-dominance. The Pb content increases along the y-axis. The new Lengenbach samples (analyzed by EDXS) are shown as red squares. Lengenbach chabournéite is located in the Pb-rich part of the diagram (the cross gives the ± 1 sigma of all measurements), showing a higher Sb content than the samples from Jas Roux. The nearly Pb-free dalnegroite seems to be clearly isolated from the holotype material of this species (open squares).
Minerals 08 00409 g016

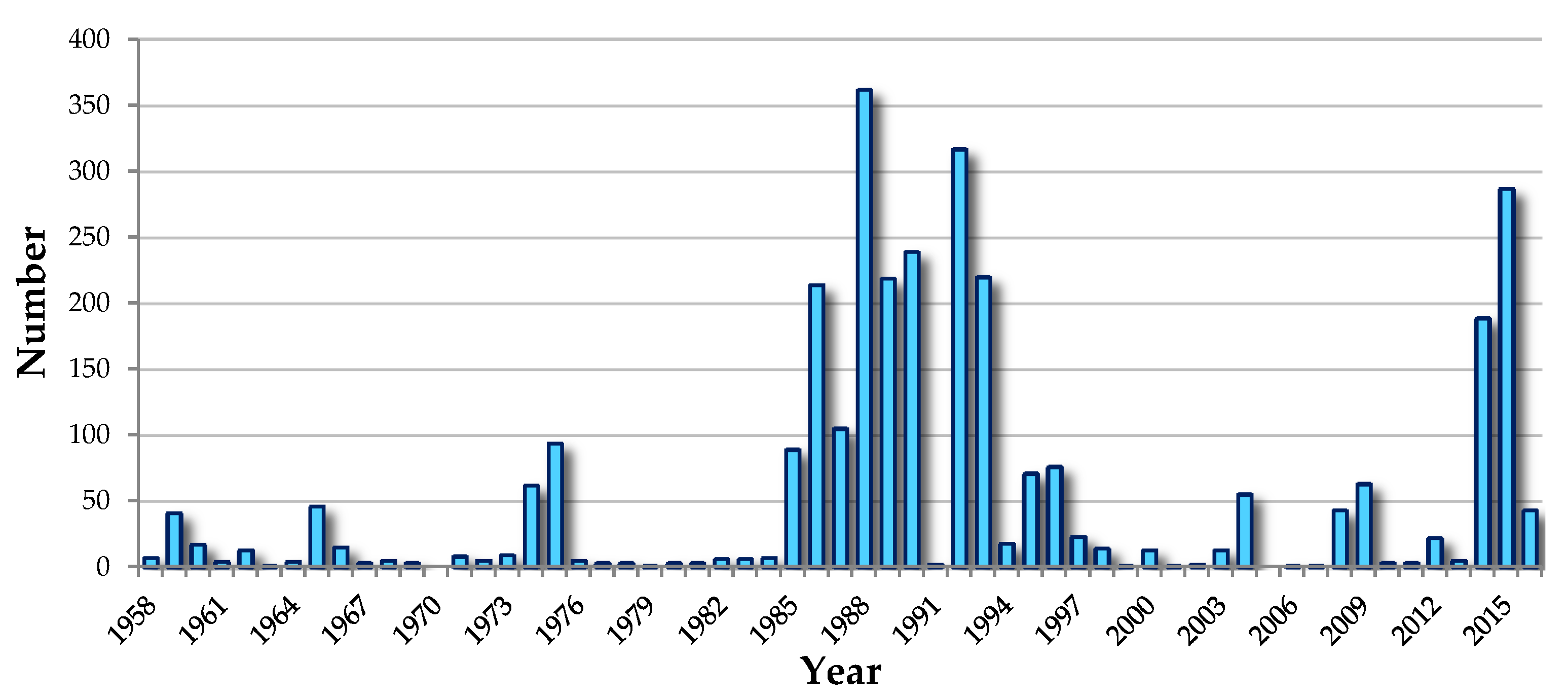

Figure 17. Number of thallium bearing samples officially cataloged by the three working associations, since 1958.
Figure 17. Number of thallium bearing samples officially cataloged by the three working associations, since 1958.
Minerals 08 00409 g017
Table 1. Species constituting the mineral assemblage of ribbon 1 in the Lengenbach quarry. Tl minerals are marked in bold, modified after reference [5].
Table 1. Species constituting the mineral assemblage of ribbon 1 in the Lengenbach quarry. Tl minerals are marked in bold, modified after reference [5].
“Adularia” and “hyalophane”HutchinsoniteRathite
AktashiteHydrocerussiteRealgar
ArgentobaumhaueriteIncomsartoriteRichardsollyite
ArgentodufrénoysiteImhofiteRouthierite
ArgentoliveingiteJentschiteRutile
ArsenicJordaniteSartorite
BaryteKaoliniteSeligmannite
BaumhaueriteLengenbachiteSilver
BernarditeLiveingiteSinnerite
Canfieldite (Te-rich)MarriteSmithite
CerussiteMuscoviteSphalerite
CoffiniteNowackiiteStalderite
CovelliteOrpimentTennantite
DolomitePararealgarThalcusite
DraviteParapierrotiteThorite
DufrénoysitePicotpauliteTochilinite
EdenharteriteProustiteTrechmannite
ErniggliitePyriteUraninite
FerrostalderiteQuadratiteWallisite
GalenaQuartzWurtzite
HatchiteRalphcannoniteXanthoconite
Table 2. Mineralogical overview of the Lengenbach quarry.
Table 2. Mineralogical overview of the Lengenbach quarry.
CategoryNumber
Mineral species *160
 Elements6
 Sulfides and sulfosalts91
 Chalcogenides2
 Carbonates10
 Sulfates and molybdates10
 Phosphates and arsenates8
 Oxides13
 Silicates20
Type minerals44
Thallium minerals33
* IMA (International Mineralogical Association) approved.
Table 3. Thallium minerals at Lengenbach.
Table 3. Thallium minerals at Lengenbach.
Mineral SpeciesChemical FormulaYear of First Description from LengenbachReference for the Occurrence at Lengenbach
BernarditeTl(As,Sb)5S81992Graeser (in Hofmann et al.) [6]
ChabournéiteTl4Pb2(Sb,As)20S342017Roth [7]
Dalnegroite *Tl4Pb2(As,Sb)20S342009Nestola et al. [8]
Dekatriasartorite *TlPb58As97S2042017Topa et al. [9]
Edenharterite *TlPbAs3S61992Graeser & Schwander [10]
Enneasartorite *Tl6Pb32As70S1402017Topa et al. [11]
Erniggliite *Tl2SnAs2S61992Graeser et al. [12]
FangiteTl3AsS42017Roth [13]
Ferrostalderite *CuFe2TlAs2S62016Biagioni et al. [14]
Gabrielite *Tl2AgCu2As3S72006Graeser et al. [15]
Hatchite *AgTlPbAs2S51912Solly & Smith [16]
Hendekasartorite *Tl2Pb48As82S1722017Topa et al. [11]
Heptasartorite *Tl7Pb22As55S1082017Topa et al. [11]
Hutchinsonite *TlPbAs5S91905Solly [17]
Imhofite *Tl5.6As15S25.31965Burri et al. [18]
Incomsartorite *Tl6Pb144As246S5162016Topa et al. [19]
Jentschite *TlPbAs2SbS61997Graeser & Edenharter [20]
LoránditeTlAsS21967Graeser [21]
ParapierrotiteTl(Sb,As)5S82016Raber [22]
Philrothite *TlAs3S52014Bindi et al. [23]
PicotpauliteTlFe2S32015Roth [24]
Raberite *Tl5Ag4As6SbS152012Bindi et al. [25]
RaguiniteTlFeS22017Roth [26]
Ralphcannonite *AgZn2TlAs2S62015Bindi et al. [27]
Rathite *Ag2Pb12-xTlx/2As18+x/2S401896Baumhauer [28]
Richardsollyite *TlPbAsS32017Meisser et al. [5]
RouthieriteCuHg2TlAs2S62016Roth [29]
Sicherite *TlAg2(As,Sb)3S62001Graeser et al. [30]
Spaltiite *Tl2Cu2As2S52014Graeser et al. [31]
Stalderite *CuZn2TlAs2S61995Graeser et al. [32]
ThalcusiteTl2Cu3FeS42005Cannon [33]
Wallisite *CuTlPbAs2S51965Nowacki [34]
WeissbergiteTlSbS22014Raber & Roth [35]
* Type minerals from the Lengenbach quarry.
Table 4. The new sartorite minerals.
Table 4. The new sartorite minerals.
Mineral NameChemical FormulaSuperstructure of the Sartorite Subcell (4.2 Å)
Heptasartorite [11]Tl7Pb22As55S1087-fold
Enneasartorite [11]Tl6Pb32As70S1409-fold
Hendekasartorite [11]Tl2Pb48As82S17211-fold
Incomsartorite [19]Tl6Pb144As246S51611-fold (incommensurate)
Dekatriasartorite [9]TlPb58As97S20413-fold
Table 5. Routhierite-stalderite group minerals.
Table 5. Routhierite-stalderite group minerals.
Mineral SpeciesChemical Formula
RouthieriteTlCuHg2As2S6
StalderiteTlCuZn2As2S6
FerrostalderiteTlCuFe2As2S6
RalphcannoniteTlAgZn2As2S6
ArsiccioiteTlAgHg2As2S6
UnknownTlAgFe2As2S6

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Minerals EISSN 2075-163X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
