Rare Inclusions of Coexisting Silicate Glass and Cu-PGM Sulfides in Pt-Fe Nuggets, Northwest Ecuador: Fractionation, Decompression Exsolutions, and Partial Melting

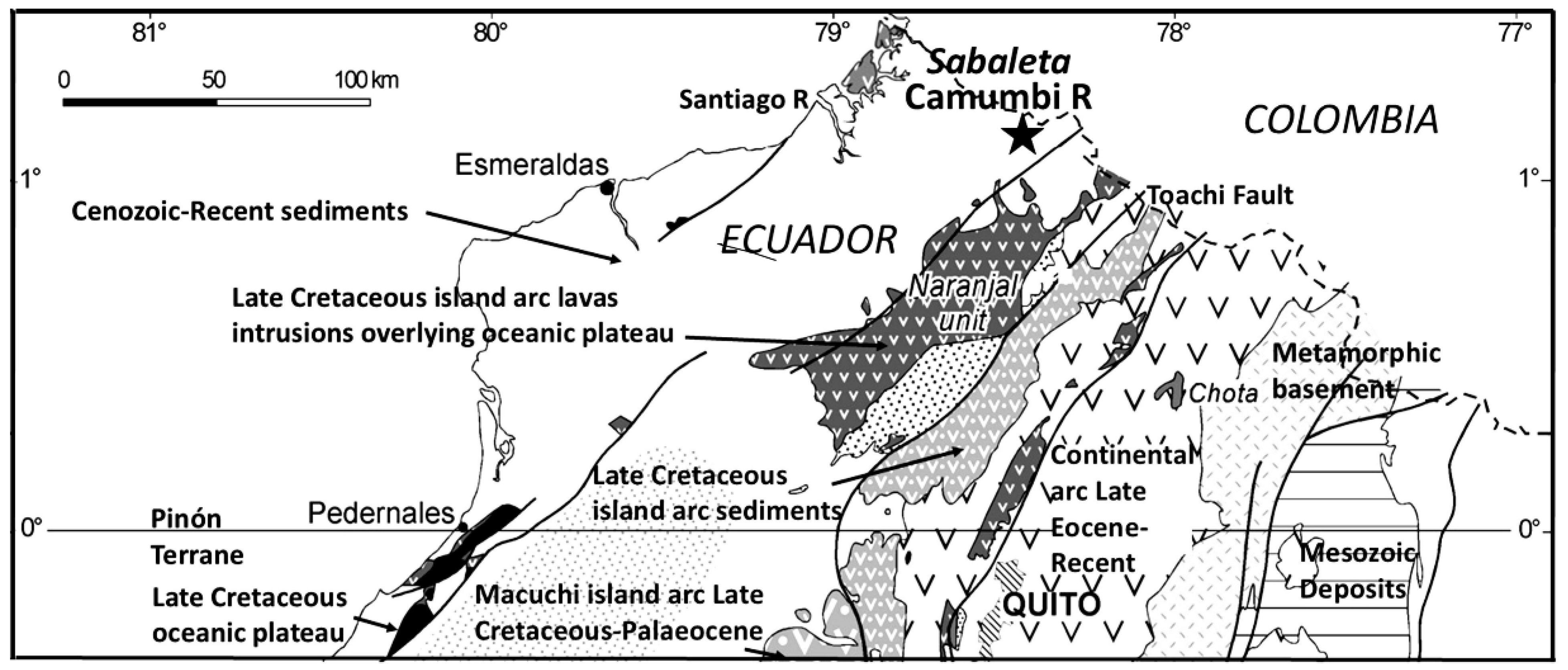

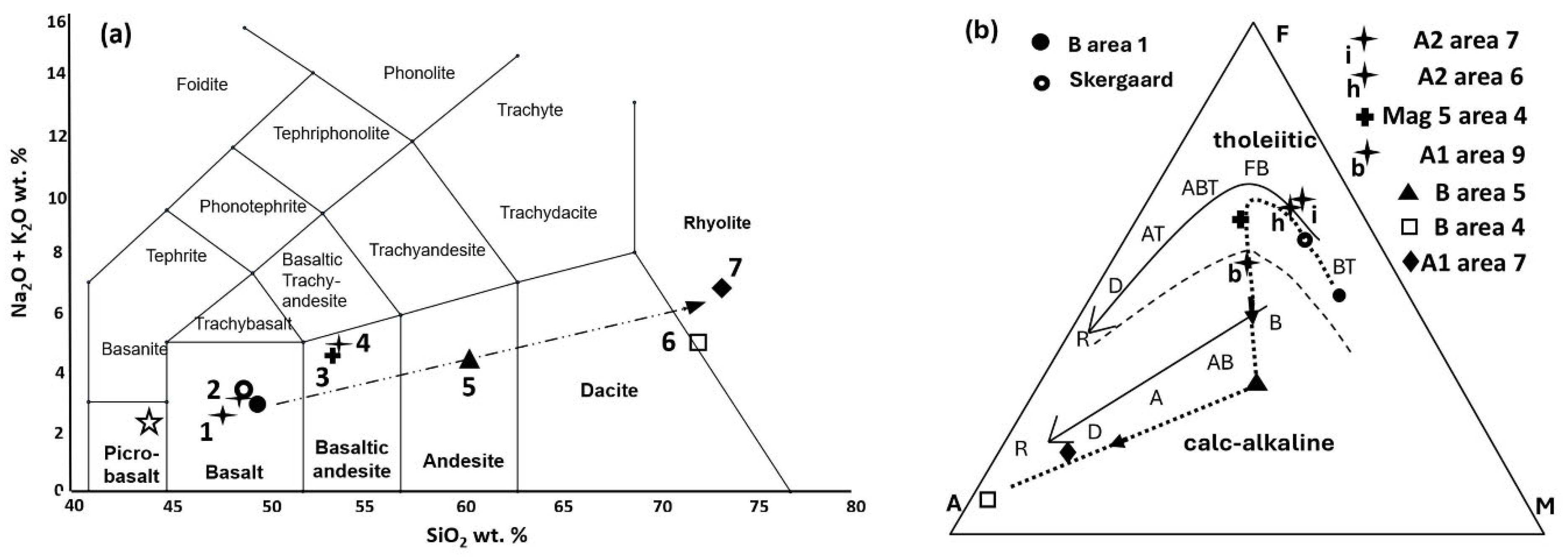

Pt-Fe alloys with abundant inclusions are from the Camumbi River placer deposit, Ecuador. They are derived from unknown Alaskan–Uralian-type intrusion(s) within the Late Cretaceous Naranjal accreted terrane. Compositions of our previously documented chilled silicate glass inclusions are increasingly fractioned from hydrous ferrobasalt to rhyolite in terms of TAS (total alkalis vs. silica). Their liquid lines of descent change from tholeiitic to the calc-alkaline magma series. Here, we document seven exceptional rare composite inclusion parageneses of Cu–PGM (platinum-group mineral) sulfides, each coexisting with and exsolved from related coexisting, fractionated silicate glass (melt). Differentiation is dominated by fractional crystallization in PGM bulk compositions from tholeiitic silicate melts at the highest T (temperature): ~1018 °C. Silicate glass inclusions following the lower T calc-alkaline trend coexist with sulfide PGM parageneses that were likely differentiated, in terms of Pt-Rh-Pd and BMs (base metals), by incongruent melting due to decompression and S-degassing at ~983–830 °C. S-saturated sulfide melts become S-undersaturated below 845 °C. The calculated temperatures are for silicate glass. Pt-rich braggite shows increasing fractionation towards Pd-rich vysotskite within one inclusion paragenesis. A late braggite–vysotskite fractionation trend shows decreasing minor base metals (BMs). Thiospinels are dominated by cuprorhodsite. Minor thiospinels indicate Fe and then strong Ni enrichment at the lowest T. Decompression exsolutions, deflation, and the partial melting of some sulfide inclusion parageneses support rapid ascent to higher crustal levels within a deep-sourced cumulate intrusion.
