Neoproterozoic Mafic Magmatism in Nagercoil Block, Southern India and Its Implications on the Gondwana Collisional Orogeny

by
S. Sajna
1,2,
J. K. Tomson
1,*,
J. Amal Dev
1,
Nilanjana Sorcar
1 and
T. Vijaya Kumar
3
1
Solid Earth Research Group, National Centre for Earth Science Studies, Thiruvananthapuram 695011, India
2
Department of Marine Geology and Geophysics, Cochin University of Science and Technology (CUSAT), Kochi 682022, India
3
Council of Scientific and Industrial Research-National Geophysical Research Institute, Hyderabad 500007, India
*
Author to whom correspondence should be addressed.
Minerals 2022, 12(12), 1509; https://doi.org/10.3390/min12121509
Received: 31 October 2022 / Revised: 21 November 2022 / Accepted: 23 November 2022 / Published: 26 November 2022
(This article belongs to the Special Issue Tectonic Evolution of Orogens: Metamorphic Petrology, Structural Geology, Geochronology and Geochemistry)
Browse Figures
Versions Notes

Abstract

:
The Nagercoil block situated at the southernmost tip of India occupies a key position in the East Gondwana collisional tectonic models. The Nagercoil block is dominated by Orosirian I-type charnockite massifs that host numerous gabbroic emplacements. Our present understanding about the crustal architecture of the Nagercoil block is derived mostly from these charnockites, while detailed studies on gabbros are lacking. We present new petrology, geochemistry, and zircon U-Pb/Hf isotopic data of gabbros from the Nagercoil block to understand their petrogenesis and tectonic significance. The results reveal that these are formed by the partial melting of a subduction-modified lithospheric mantle source in a continental arc setting. Zircon U-Pb geochronology results reveal that the gabbros were emplaced between 561 and 531 Ma. Hafnium isotopic studies on zircons argue for a mid-Mesoproterozoic melting source with near-juvenile magmatic signatures. The Hf-TDM ages together with the available data from the terrane point to the involvement of the adjacent Achankovil unit as a possible melting source contributor. The genetic link between the Achankovil unit and Sri Lanka together with the remarkable similarity in ages and isotopic characteristics of mafic rocks from both these terranes point to their coeval formation during the East African Orogeny associated with the final stages of the Gondwana supercontinent assembly.

Graphical Abstract

1. Introduction

The Precambrian granulitic terrane of southern India or the Southern Granulite Terrane (SGT) occupies a central position in the Gondwana supercontinent reconstruction models (Figure 1). This vast granulitic terrane has a crustal evolutionary history ranging from the early Archean to Cambrian with imprints of multiple magmatic, metamorphic, and deformation episodes [1,2,3,4,5,6,7]. In this protracted history, the Neoproterozoic assembly of SGT and its counterparts is known for high geotherm prevalence associated with intense crustal reworking and melting during the Himalayan-scale collision orogen referred to as the East African Orogen (EAO; 650–480 Ma; [5] and references therein). This collisional orogeny culminated in widespread HT-UHT metamorphism and the associated magmatism that affected vast tracts of the Precambrian crust in erstwhile Gondwana supercontinent fragments such as India, Sri Lanka, Madagascar, Antarctica, and Africa. Mafic magmatic rocks in these collisional belts are helpful for understanding crust–mantle processes responsible for their generation and their tectonic settings during the orogeny.
In SGT, though the mafic emplacements are reported in close spatial association with the HT-UHT granulites from all crustal blocks, less attention has been given to understanding their petrological, geochemical, and geochronological properties in detail. Collecting such information is vital to probe the genetic link between magmatism and metamorphism in the terrane and unravel its evolutionary history. The present study focuses on the mafic rocks reported from the southern tip of the SGT known as the Nagercoil block (Figure 2). We present new whole-rock geochemistry, mineral chemistry, and zircon U-Pb/Hf isotopic data of these rocks to understand their age and petrogenesis and to correlate with similar rocks from adjacent terranes within the SGT as well as from other Gondwanan fragments.

2. Geology of the Study Area

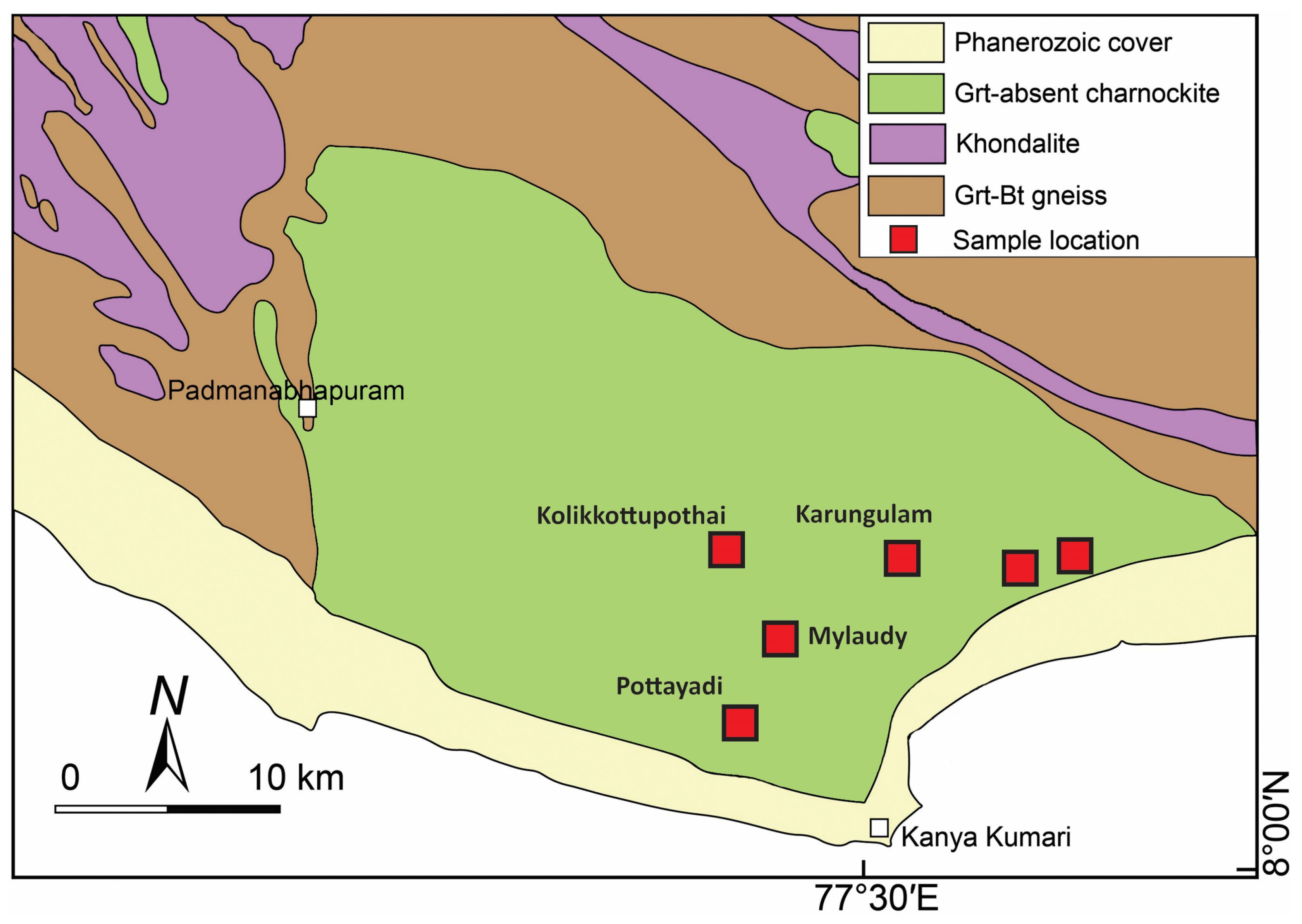

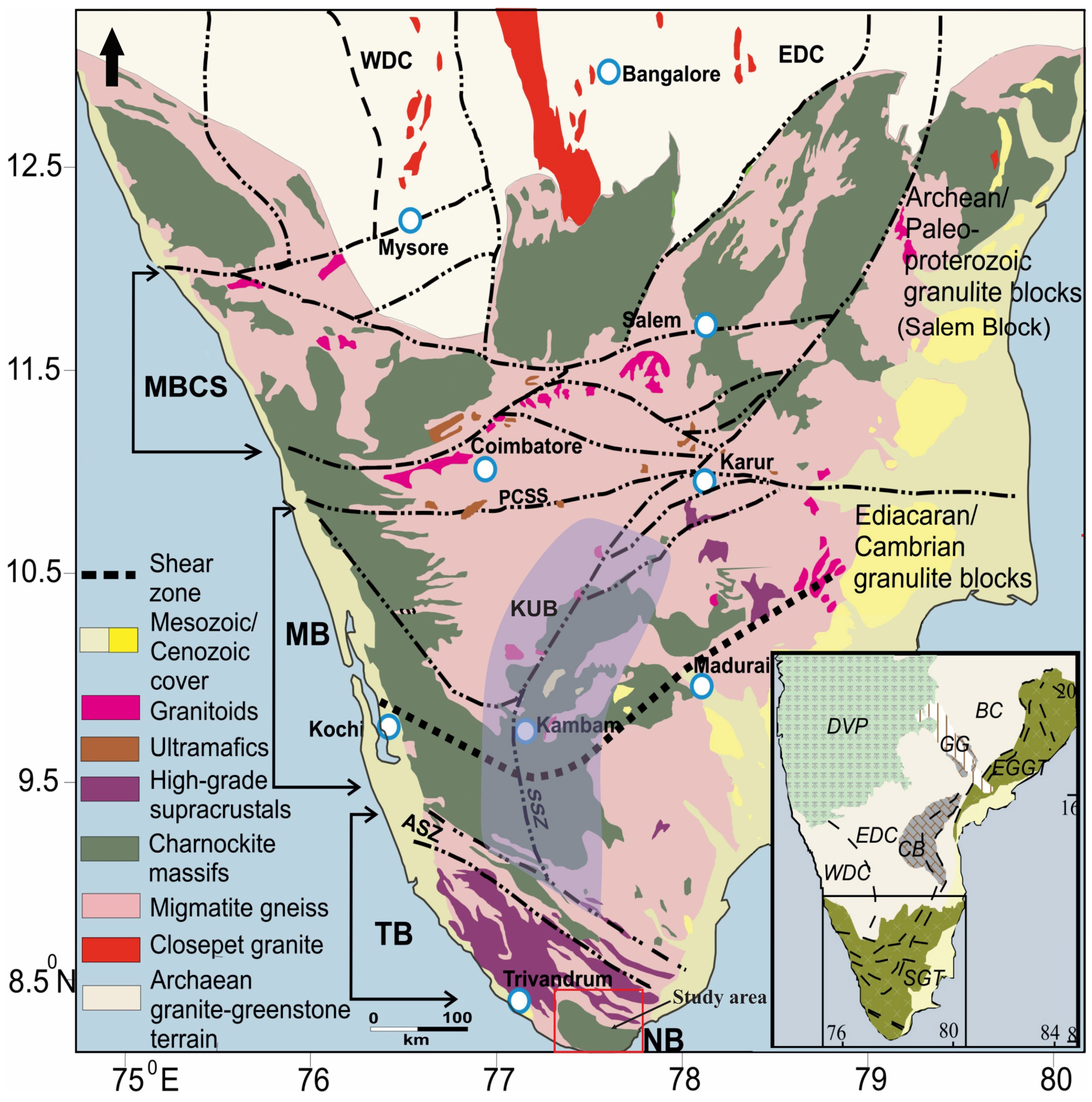

SGT is a collage of polydeformed crustal blocks (from north to south named Salem, Madurai, Trivandrum, and Nagercoil blocks) that are separated by crustal-scale shear zones (Figure 1) [1,2,4,6,8,9,10]. SGT is limited to the north by the Archaean granite-greenstone terranes of the Dharwar craton [11,12], separated by the E–W trending crustal-scale shear zone known as the Moyar Bhavani Cauvery Shear System (MBCS) [4,13]. The Salem block comprises late Archaean to early Proterozoic metamorphic and Mesoarchean to Neoarchean magmatic rocks [7,8,9,14,15,16]. The Madurai block, south of Salem, hosts charnockite massifs, granitoids, migmatites, metapelites, quartzites, calc silicates, and alkaline intrusives with emplacement and metamorphic ages ranging from Archean to Neoproterozoic [4,17]. Two major shear zones dissect the Madurai block, namely the Karur-Kambam-Teni-Painavu-Trissur shear zone (KKPTSZ) [9] and Suruli shear zone (SSZ) [18]. This crustal block is also known for the preservation of Ediacaran-Cambrian UHT metamorphic rocks with P-T estimates up to 1100 °C and 12 kbar with clockwise/anticlockwise P-T evolution [3,19,20,21,22,23]. The Madurai block is separated from the southern Trivandrum and Nagercoil blocks by the Achankovil shear zone (ASZ) [24,25], which is marked by a distinct younger whole-rock Nd model age (1.5–1.2 Ga) [17,26,27,28] and U-Pb zircon age (1.5–0.95 Ga) [2,29,30].
In the earlier literature, the Trivandrum-Nagercoil blocks and Achankovil shear zone were considered a large supracrustal belt named the Kerala Khondalite Belt (KKB) [31,32]. The Trivandrum block is dominated by granitoid leucogneisses and garnetiferous metasediments, whereas massive charnockites and metamorphosed mafic rocks dominate the Nagercoil block. Both these blocks share similar Rb-Sr, Sm-Nd whole-rock, as well as U-Pb zircon ages [2,9,17,26,28,33,34,35,36,37], all indicating their contiguity. U-Pb zircon data for the charnockite protoliths from these domains report Paleoproterozoic (ca., 1.85 Ga) emplacement ages with Orosirian juvenile magmatic signatures [2,36,37]. The well-preserved, protracted Ediacaran-Cambrian metamorphism is exposed by in situ chemical and isotopic analysis of monazite and zircon from different lithologies across these domains [35,38].

3. Field Relation and Petrography

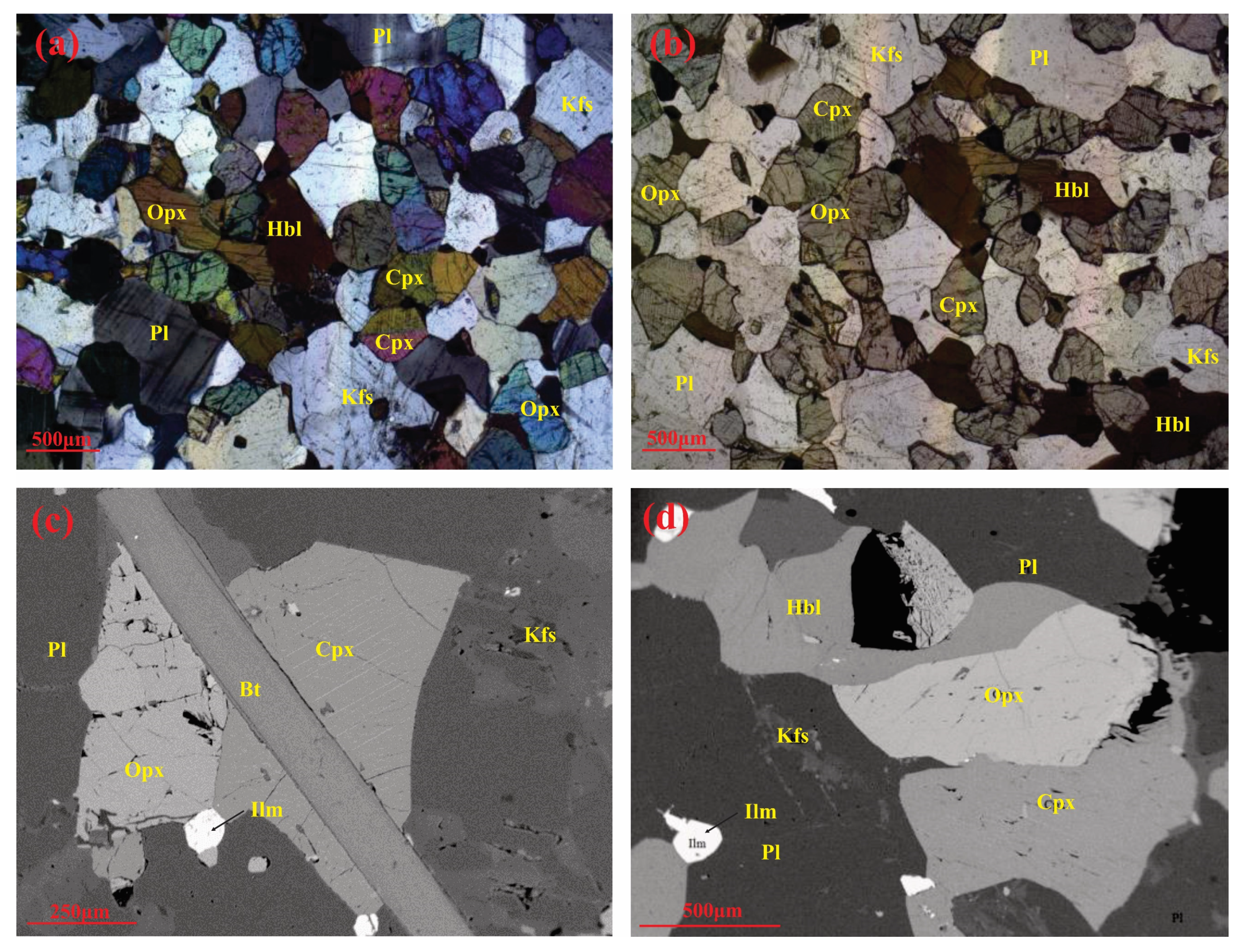

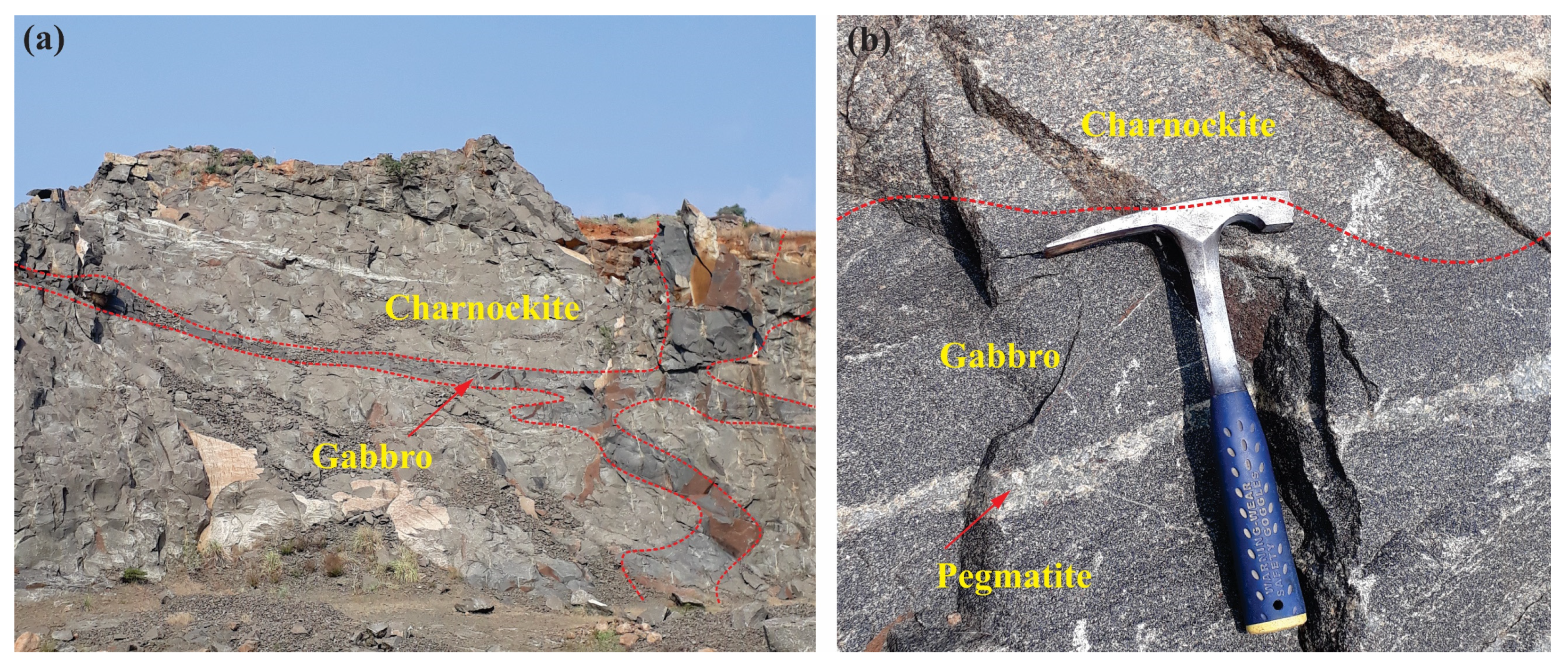

For the present study, seven gabbro samples from different parts of the Nagercoil block were collected (Figure 2). These rocks form meter-scale-thick intrusions/enclaves within charnockites with widths up to two meters, occasionally forming pinch and swell structures (Figure 3a). Chilled margin contacts exist between the charnockite and mafic rocks (Figure 3b). Occasionally, coarse-grained pegmatoidal charnockites are also noticed parallel to these mafic bands. Field occurrence suggests that the rocks were subjected to a later-stage deformation after their emplacement into the host charnockite. Under the microscope, the samples exhibit interlocking grains with orthopyroxene, clinopyroxene, hornblende, plagioclase, and opaques (mostly ilmenite) (Figure 4a,b) and a minor amount of quartz. Biotite (up to 2%) is found only in two samples and is found as long, slender, and pale-yellow grains, occasionally cross-cutting orthopyroxene and clinopyroxene. At places, clinopyroxenes show an exsolution pattern typical of low Ca varieties (Figure 4c). Crystals and blebs of K-feldspar within plagioclase are also observed in the matrix (Figure 4d). Accessory phases mainly constitute zircon and apatite.

4. Major and Trace Element Geochemistry

The major element concentration of six samples was analysed using a Bruker Pioneer S8 Tiger WD-XRF at NCESS following the analytical protocol described in [22]. For trace element determination, these sample powders were dissolved in a reagent grade HF: HNO3 acid mixture in Savillex screw-top vessels. These solutions were analysed using an Agilent 7800 Quadruple ICP-MS at the LAM-ICPMS facility at the National Geophysical Research Institute, Hyderabad. 103Rh was used as the internal standard for sample analysis. During the analytical session, standards G-2, JG-2, GA, and AGV-2 were repeatedly analysed to ensure drift correction and calibration. Major and trace element plots were prepared using GCDkit 5.0 [39] by utilising the chondrite values from [40] and primitive mantle values from [41]. Geochemical data of the samples are presented in Supplementary material 1.

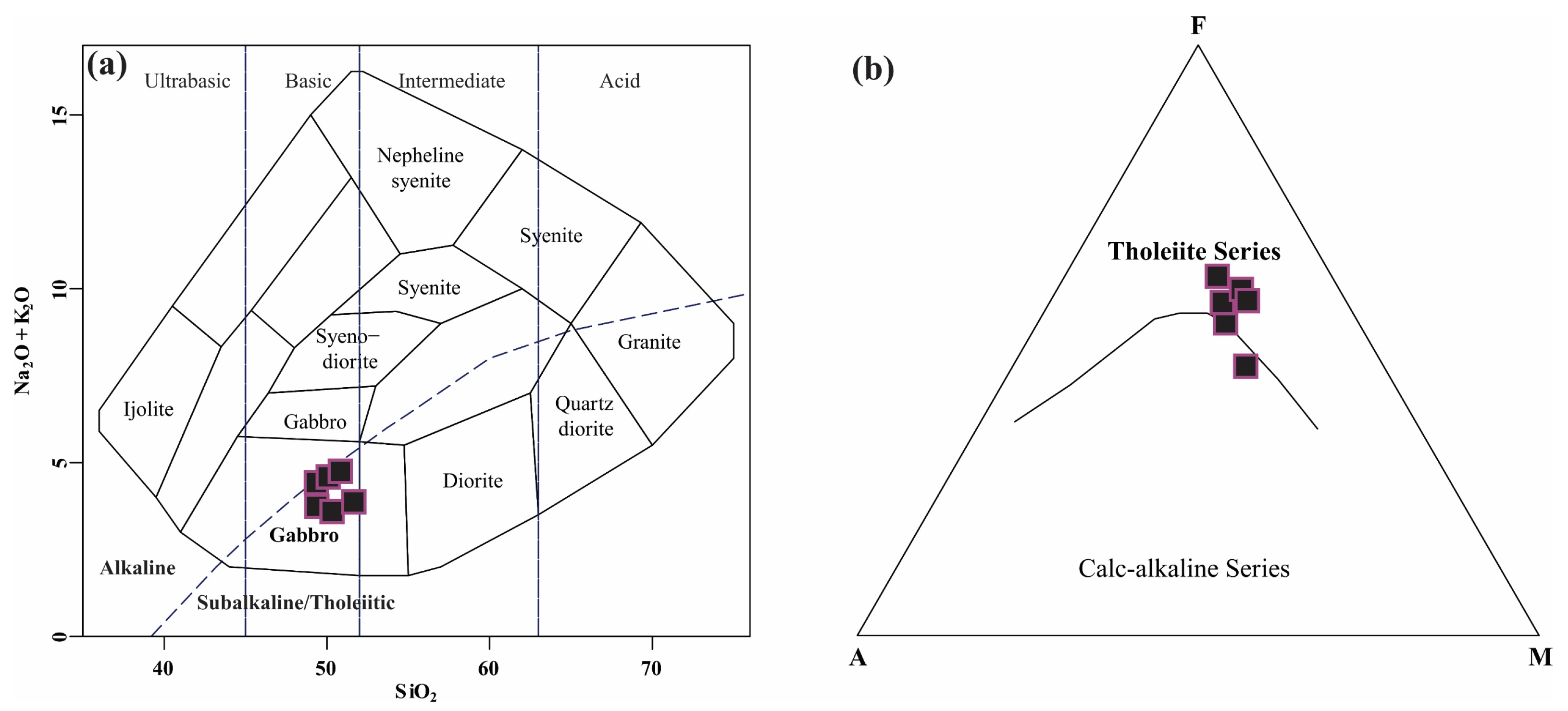

The samples are characterised by low SiO2 (48.16–51.73wt %), TiO2 (0.82–1.61wt %), Al2O3 (13.61–16.47 wt%), MnO (0.15–0.22 wt%), CaO (9.03–9.79 wt%), moderate and varying FeOT (10.11–16.23 wt%), MgO (4.9–7.66 wt%), and Na2O (2.69–3.47wt %) and low amounts of K2O (0.64–1.13 wt%) and P2O5 (0.17–0.36 wt%). The Mg number is low and varies from 39 to 60. Moreover, these samples display low Ni (44.91–114.3 ppm) and Cr (114.6–250.2 ppm), moderate V (175.7–364 ppm), and a limited amount of Sc (40.35–53.59 ppm). In the TAS diagram (the silica versus total alkali) (Figure 5a) [42], the samples fall within the gabbro field, whereas the tholeiitic nature of the studied samples is demonstrated in the AFM diagram (Figure 5b) [43]. Chondrite-normalised REE patterns of the samples are characterised by LREE enrichment (SmN/LaN = 0.80–0.36) and near-flat to slightly fractionated HREE (LuN/GdN = 0.84–0.40) with slightly negative Eu (Eu/Eu* = 1.03–0.74) and weakly positive Ce anomalies (Ce/Ce* = 1.05–0.98) (Figure 6a). The primitive mantle-normalised multi-element variation diagram shows relative enrichment of large ion lithophile elements (LILEs) and weakly negative anomalies of high-field-strength elements (HFSEs), including Nb, Zr, and Ti (Figure 6b).

5. Mineral Chemistry

Three representative samples were analysed for mineral chemistry using CAMECA SX-100 EPMA at the Department of Geology and Geophysics, Indian Institute of Technology, Kharagpur. The instrument was operated at an accelerating voltage of 15 kV, 20 nA beam current, and 1–2 μm beam diameter. Natural silicate and oxide standards were used for calibration, and raw data were corrected using the ZAF program. EPMA data of different mineral phases are provided in Supplementary material 2.
Pyroxenes: Pyroxene from the samples show a near-homogeneous chemical composition across different samples. Orthopyroxenes are characterised by low Al2O3 (1.45–0.47 wt%) with XMg ranging between 0.59 and 0.47. Similar to orthopyroxenes, clinopyroxenes from the studied samples have low Al2O3 contents (2.71–1.82 wt%) with XMg ranging between 0.69 and 0.58. In the pyroxene classification diagram, most of the clinopyroxenes fall within the diopside-augite field, whereas orthopyroxenes show intermediate composition between enstatite and ferrosilite (Figure 7a).
Amphiboles: Amphiboles from the samples are characterised by high Al2O3 contents varying between 10.77 and 0.987 wt%. The high Ca and (Na + K) contents (1.95–1.89 pfu and 0.90–0.78 pfu, respectively) classify them as calcic amphiboles. In the amphibole classification diagram (Figure 7b), the studied calcic amphiboles fall within the field of magnesiohastingsite with an XMg value ranging between 0.65 and 0.59.
Feldspar: Feldspar is dominantly plagioclase and is high in Na with an average composition of An40-49 Ab49-58 Or2-4. K-feldspar is also identified in two samples with an average composition of Or96-97 Ab3-4 An0 (Figure 7c).
Biotite: Biotite is restricted to two samples with near-homogeneous composition and is characterised by high TiO2 contents (up to 4.84 wt%) with XMg values ranging between 0.64 and 0.68.

6. Zircon U-Pb Ages, Trace Element, and Hf Isotopes

Zircons from the samples were separated using the conventional Wilfley table-magnetic separation technique. Separated grains were manually handpicked, mounted on a standard epoxy disc of 25 mm diameter, and polished to expose their internal structure. The grains were further examined by cathodoluminescence (CL) and Backscatter Electron (BSE) imaging using a TESCAN Vega4 scanning electron microscope at NGRI, Hyderabad. U-Pb isotope and trace element analyses of zircons were performed at the Isotope Geochemistry Facility (IGF), NCESS, using a Teledyne CETAC, Nd: YAG (213 nm) solid-stated state laser coupled with an Agilent 7800 quadrupole ICPMS. The analytical protocol was according to [21]. For U-Pb analysis, the 91500 zircon [44] was used as the primary standard, whereas Plesovice [45] and BB11 zircon [46] were monitored for quality checks. Data reduction and the calculation of ratios and ages were performed offline using Iolite 4.4 [47] and the calculated isotopic ratios and elemental concentrations were processed using Isoplot 4.15 [48]. For in situ trace element determination, NIST 610 [49] was used as the primary reference standard for time-drift correction and quality monitoring, with 29Si (IS value = 14.98%) as the internal standard. Ti-in-zircon crystallisation temperatures [50] were calculated using αSiO2 = 1 and αTiO2 = 0.6. The hafnium isotopic composition of zircons was analysed at the Isotope Geochemistry Facility (IGF), NCESS using a Teledyne CETAC, Nd: YAG (213 nm) solid-state laser coupled with a Nu Plasma 3 Multicollector ICPMS. Zircons analysed for U-Pb dating were reanalysed, and spots were positioned close to the previous crater due to spatial limitations. The analytical protocol was according to [22]. 91500 zircon [44] was used as the primary standard, whereas Plesovice [45] was monitored for quality check. Data reduction and ratios were calculated offline using the Hf isotope package in Iolite 4.4 [47]. The 176Lu decay constant of 1.865 × 10−11·yr−1 [51] was used to calculate initial Hf isotopic ratios (176Hf/177Hf). The initial epsilon Hf and two-stage-depleted mantle model ages (TDM) were calculated using chondritic uniform reservoir (CHUR) ratios of 176Hf/177Hf = 0.0332 and 176Lu/177Hf = 0.282772 [52], and depleted mantle ratios of 176Hf/177Hf = 0.283251 [53] and 176Lu/177Hf = 0.0384 [54]. All uncertainties were reported in 2σ confidence levels. The zircon U-Pb, trace element, Ti-in-zircon temperatures, and Hf isotope data are presented in: Supplementary material 3, 4, and 5.

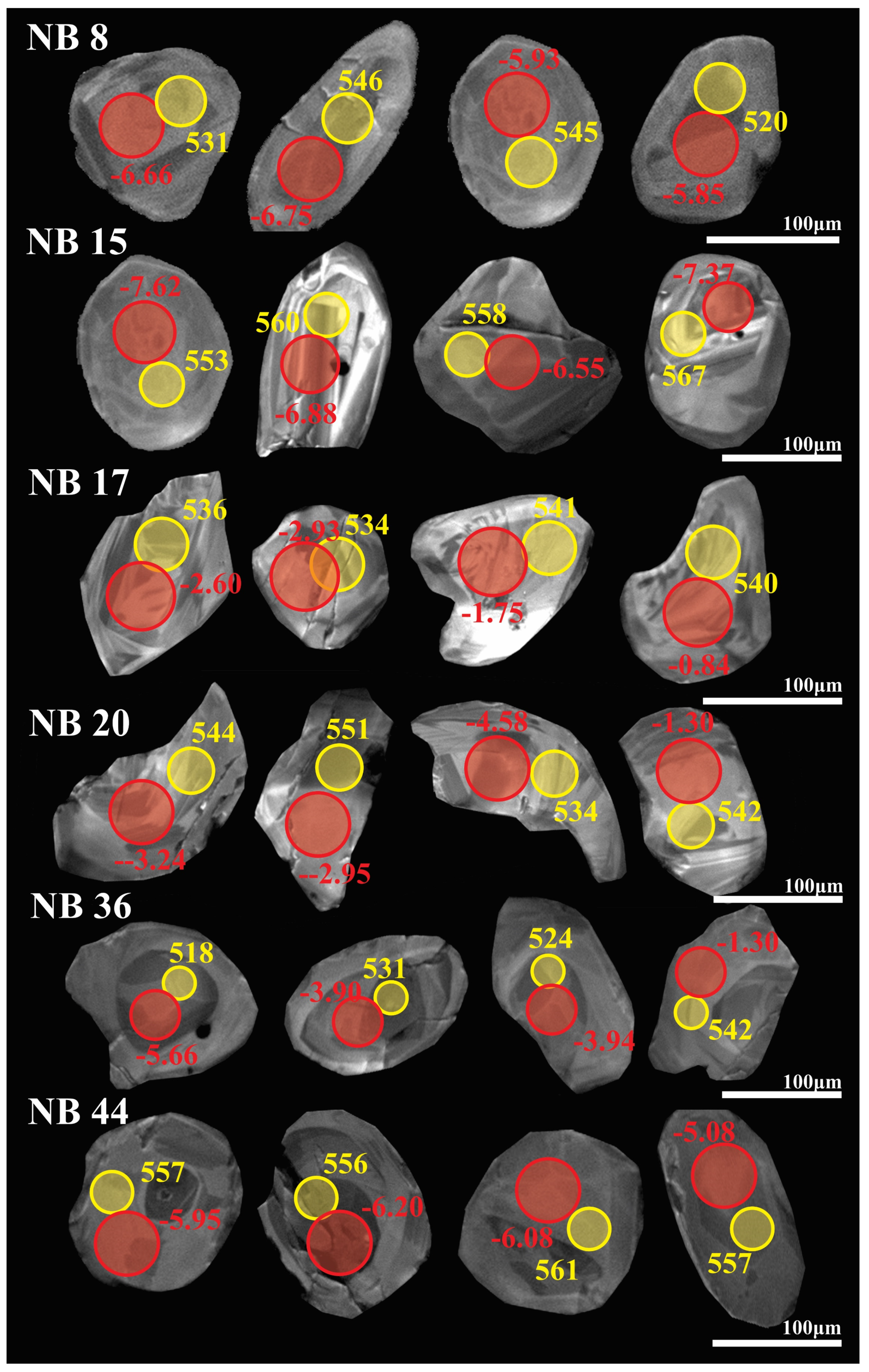

Zircons from the samples are spherical, oval, or irregular-shaped grains ranging from 80 to 200 μm with an aspect ratio of 2:3. In CL images, they display structureless fir tree zoning or sector zoning and rarely chaotic textures with the local appearance of flow domains. Among these, some zircons show core-rim textures in which either the core or rim is homogeneous. Occasionally, the outer and inner domains also preserve well-developed oscillatory zoning with skinny bands (Figure 8).
Sample NB8: Twenty-one spots were analysed from the sample, which shows a Th/U distribution between 0.26 and 0.38. 206Pb/238U ages of the sample range between 520 and 554 Ma with nineteen grains defining a weighted mean 206Pb/238U age of 529 ± 4 Ma (MSWD = 3.3). Additionally, thirteen grains represent a coherent concordia population at 531 ± 4 Ma (MSWD = 1.4), which is in agreement with the weighted mean age (Figure 9a). Chondrite-normalised REE patterns of zircons display strongly positive Ce (Ce/Ce* = 79.5–5.2) and weakly negative Eu (Eu/Eu* = 1.1–0.09) anomalies together with LREE depletion and HREE enrichment (Figure 10a). The Ti concentration in zircons ranges between 23.9 and 2.8 ppm, estimating Ti-in-zircon temperatures between 894 and 678 °C. The Hf isotopic composition of zircons shows initial 176Hf/177Hf values between 0.282311 and 0.282191 with εHf(t) ranging between −4.64 and −9.26 (Figure 11a), whereas TDM ages of the samples are between 1.47 and 1.30 Ga (Figure 11b).
Sample NB15: Twenty spots analysed from the samples display 206Pb/238U ages between 546 and 583 Ma with Th/U ratios ranging between 0.24 and 0.31. Nineteen spots among these define a weighted mean 206Pb/238U age of 558 ± 4 Ma (MSWD = 3.3), which is supplemented by a concordia age of 557 ± 3 Ma (MSWD = 1.5) defined by sixteen spots (Figure 9b). Chondrite-normalised REE patterns of zircons from the sample display LREE depletion and HREE enrichment with strongly positive Ce (Ce/Ce* = 22.8–5.5) and weakly negative Eu (Eu/Eu* = 0.78–0.16) anomalies (Figure 10b). The Ti concentration in zircons ranges between 13.5 and 4.0 ppm, estimating Ti-in-zircon temperatures between 828 and 709 °C. The Hf isotopic composition of zircons shows initial 176Hf/177Hf values between 0.282274 and 0.282174 with εHf(t) ranging between −5.60 and −8.86 (Figure 11a), whereas TDM ages of the samples are between 1.49 and 1.35 Ga (Figure 11b).
Sample NB17: Thirty spots analysed from the samples show Th/U ratios between 0.21 and 1.04 and 206Pb/238U ages between 507 and 566 Ma. Among these, twenty-four spots from the sample define a weighted mean 206Pb/238U age of 531 ± 4 Ma (MSWD = 2.5), whereas twenty-two grains define a concordia population at 532 ± 3 Ma (MSWD = 2.2) (Figure 9c). Chondrite-normalised REE patterns of zircons display LREE depletion and HREE enrichment with strongly positive Ce (Ce/Ce* = 106–3.2) and weakly negative Eu (Eu/Eu* = 1.5–0.29) anomalies (Figure 10c). The Ti concentration in zircons ranges between 19.8 and 2.8 ppm, estimating Ti-in-zircon temperatures between 872 and 679 °C. The Hf isotopic composition of zircons shows initial 176Hf/177Hf values between 0.282412 and 0.282344 with εHf(t) ranging between −0.84 and −3.37 (Figure 11a), whereas TDM ages of the samples are between 1.26 and 1.16 Ga (Figure 11b).
Sample NB20: Seventeen spots analysed from the samples demonstrate the 206Pb/238U age spread between 5024 and 581 Ma with Th/U ratios between 0.27 and 0.41. Fourteen spots among these define a weighted mean 206Pb/238U age of 544 ± 7 Ma (MSWD = 3.9), which is supported by a concordia age population at 543 ± 5 Ma (MSWD = 0.18) defined by eleven spots (Figure 9d). Chondrite-normalised REE patterns of zircons show LREE depletion and HREE enrichment with strongly positive Ce (Ce/Ce* = 34.9–3.5) and weakly negative Eu (Eu/Eu* = 0.73–0.11) anomalies (Figure 10d). The Ti concentration in zircons ranges between 46.2 and 4.0 ppm, estimating Ti-in-zircon temperatures between 982 and 710 °C. The Hf isotopic composition of zircons shows initial 176Hf/177Hf values between 0.282369 and 0.282242 with εHf(t) ranging between −2.16 and −6.20 (Figure 11a), whereas TDM ages of the samples are between 1.39 and 1.22 Ga (Figure 11b).
Sample NB36: Sixteen spots analysed from the samples show Th/U ratios between 0.21 and 1.04 and the 206Pb/238U age spread between 511 and 581 Ma. Fifteen spots from these define a weighted mean 206Pb/238U age of 531 ± 6 Ma (MSWD = 3.3), while fourteen grains define a concordia age at 533 ± 5 Ma (MSWD = 1.8) (Figure 9e). Chondrite-normalised REE patterns of zircons display LREE depletion and HREE enrichment with strongly positive Ce (Ce/Ce* = 19.5–3.5) and weakly negative Eu (Eu/Eu* = 1.2–0.18) anomalies (Figure 10e). Ti-in-zircon temperature estimates range between 891 and 710 °C, which corresponds to a Ti concentration of 23.4 to 4.0 ppm. The Hf isotopic composition of zircons shows initial 176Hf/177Hf values between 0.282398 and 0.282242 with εHf(t) ranging between −1.30 and −7.12 (Figure 11a), whereas TDM ages of the samples are between 1.40 and 1.18 Ga (Figure 11b).
Sample NB44: Thirty-seven spots analysed from the samples exhibit Th/U ratios between 0.25 and 0.46 and 206Pb/238U ages between 540 and 574 Ma. Thirty-three spots from this group define a weighted mean 206Pb/238U age of 559 ± 3 Ma (MSWD = 3.9), which is supplemented with a concordia age population at 561 ± 2 Ma (MSWD = 0.47), defined by twenty-nine spots (Figure 9f). Zircon-chondrite-normalised REE patterns display LREE depletion and HREE enrichment with strongly positive Ce (Ce/Ce* = 44–8.9) and weakly negative Eu (Eu/Eu* = 0.84–0.10) anomalies (Figure 10f). Ti-in-zircon temperatures are estimated between 909 and 721 °C as defined by Ti concentrations between 27 and 4.6 ppm. The Hf isotopic composition of zircons shows initial 176Hf/177Hf values between 0.282282 and 0.282235 with εHf(t) ranging between −5.08 and −6.74 (Figure 11a), whereas TDM ages of the samples are between 1.40 and 1.34 Ga (Figure 11b).

7. Discussion

7.1. Petrogenesis of Mafic Rocks in Nagercoil Block

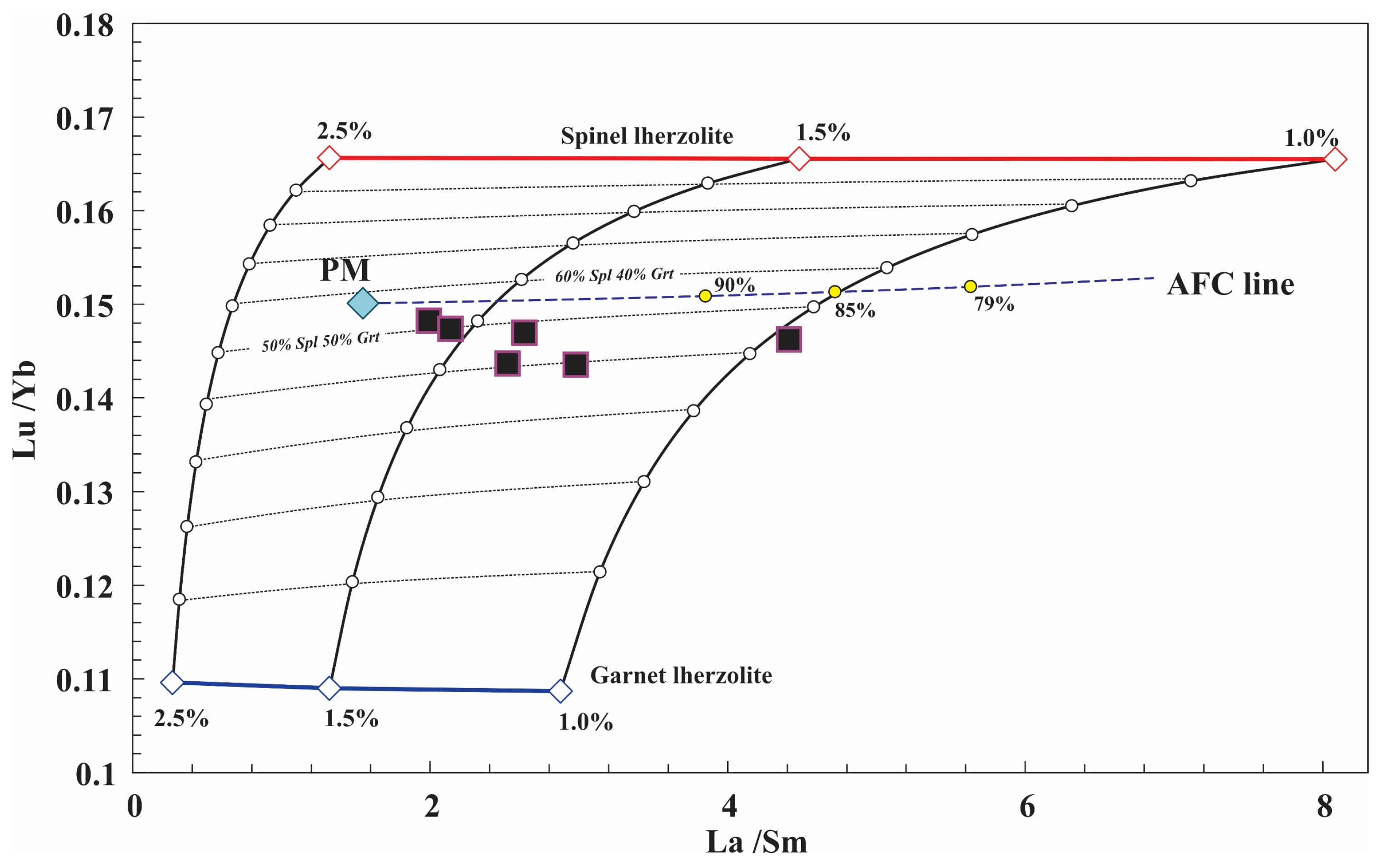

The studied gabbros are characterised by their tholeiitic affinity with strong enrichment of LILE/LREE and depletion in HREE elements. These geochemical characteristics, together with negative anomalies for Zr, Hf, and Ti and high LILE-to-HFSE ratio, are suggestive of their origin in an arc-related environment, possibly by the involvement of subduction of a modified enriched mantle source [55,56]. The arc affinity of the samples is further validated by the La/Yb vs. Nb/La (Figure 12a) [57] and TiO2 vs. Al2O3 diagram [58], where the gabbros fall within the arc field (Figure 12b). The FeO*/MgO vs. TiO2 values of the samples indicate that they were primarily derived from the arc front [59] (Figure 12c). Furthermore, the low Nb/La (0.14–0.61) ratios of these gabbros are partly similar to those from the lithospheric mantle (0.3–0.4) rather than asthenospheric mantle (>1), suggesting that they were likely originated from a depleted lithospheric mantle [60]. This is further demonstrated by their positive Nb and Ta anomalies [59] together with high La/Nb (7.24–1.63) and La/Ta (44.36–14.24) and low Zr/Ba (0.24–0.14) ratios [61,62]. However, a significant variation in trace element pair ratios such as Nb/U (30.87–7.05), Ta/U (3.54–1.20), and Ce/Pb (6.27–1.97) from MORB is also noticed for the samples. This is further demonstrated in the Nb/Yb vs. Th/Yb diagram [63] where the gabbros fall away from the MORB-IOB array (Figure 12d), which suggests that the composition of gabbros does not directly reflect the composition of the primary melt, rather a modified melt composition [64]. The overall trend of the sample pointing toward the volcanic arc array in the Nb/Yb vs. Th/Yb diagram suggests the influence of subduction-related processes in their generation.
Even though the subduction-modified primary melt composition is proposed for the generation of these rocks, the extremely low Nb/Ta (<9) implies the presence of a possible contaminant in modifying their parental composition. This is further demonstrated by the wide variation in K2O/P2O5 (6.71–2.06) and TiO2/P2O5 ratios (7.00–2.28) in the sample, suggesting the incorporation of the silicic crustal component with granitic composition [65]. A close correlation with the ratios of incompatible elements such as Zr/Sm (7.52–3.98), Sm/La (0.50–0.23), TiO2/Zr (0.07–0.03), and Th/Yb (0.48–0.25) in gabbros with the average composition of host charnockite [17] validates the involvement of basement charnockites in modifying the parental melt composition of these gabbros. To assess the extent of crustal contamination and source composition, we used assimilation and fractional crystallisation (AFC) modelling using the La/Sm vs. Lu/Yb bivariant plot (Figure 13). AFC modelling was carried out using the ‘PetroGram’ excel spreadsheet [66] where non-modal fractional melting was performed using spinel- and garnet lherzolite compositions as end members (compositions are from [67,68]). Primitive mantle (PM) values from [41] were used as the primary melt composition for constructing the AFC line, and the average composition of charnockites from the Nagercoil block [17] was used as the contaminant. The modelled output reveals that the gabbros in the Nagercoil block can be generated by ~1% to 1.5% partial melting of a mantle source composed of a ~50/50 contribution from spinel and garnet lherzolite with an AFC up to ~87%. This argument of the spinel-garnet lherzolite contribution in primary melt generation is further supported by their Ce/Y values (<2.5) that are in agreement with the primary melt generation from the spinel-garnet stability field [69].

7.2. Neoproterozoic Mafic Magmatism in Nagercoil Block and Its Tectonic Significance

Zircon grains from the gabbros are characterised by structureless fir tree to sector zoning with poorly developed core-rim structures, which is commonly found in zircons from mafic rocks [70]. The magmatic origin of these rocks is further demonstrated by their low Th/U ratios, which is also typical of zircons crystallising from mafic magmas [71]. U-Pb dating of zircons from the samples yield well-defined concordia and a coherent weighted mean population bracketed between 561 and 531 Ma. These ages can be interpreted as the timing of mafic emplacements in the terrane. These ages also closely follow the timing of granulite facies metamorphism recorded in the terrane [34,35,36,37,38]. The intrusive relationship of these gabbros with the host charnockites and the similarity in the timing of their emplacement and metamorphism in the terrane suggest synchronous emplacement of these rocks with the regional-scale metamorphic event.

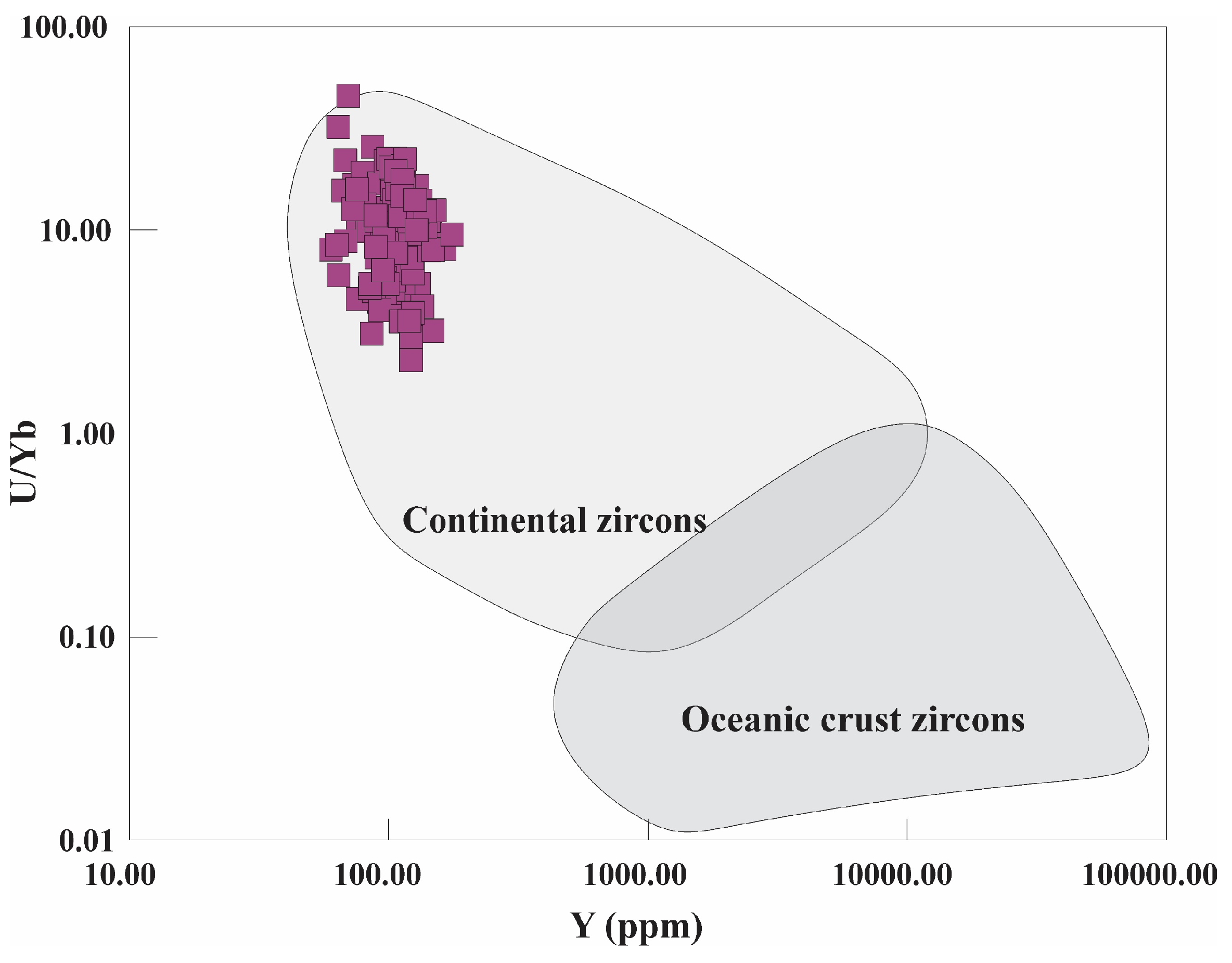

Trace element signatures of zircons from gabbros are characterised by LREE depletion and HREE enrichment along with prominent negative europium and positive cerium anomalies, all indicative of their igneous origin [72]. The formation of zircons in mafic rocks is rare owing to their low Zr and free SiO2 concentrations. In such a scenario, zircon formation is mainly assisted by metasomatism with Zr supplied from subduction zone fluids and is expected to retain zircons from the slab residue as inherited grains [73]. In the present study, high-Hf and low-Zr/Hf-ratio zircons represent their growth in a fractionated melt [74], whereas prominent positive Ce and negative Eu anomalies indicate coeval plagioclase crystallisation. The involvement of fractional crystallisation in the zircon formation is further demonstrated by the negative correlations between Ti and Hf concentrations. Trace element signatures zircons can also be used to identify the tectonic setting for their formation. Zircons from the gabbros are characterised by their high U/Yb (>1) ratio, which indicates their arc affinity [75], whereas, in the Y vs. U/Yb zircon discrimination diagram ([76], Figure 14), all samples fall within the continental zircons field. These inferences of zircon formation during fractional crystallisation in a continental arc environment are consistent with the observations based on whole-rock geochemistry. Hafnium isotopic signatures of zircons show initial 176Hf/177Hf ratios ranging between 0.282412 and 0.282174 with εHf(t) ranging between −0.84 and −9.26, whereas TDM ages fall between 1.49 and 1.16 Ga. The tight population of initial 176Hf/177Hf ratios and a narrow TDM age range suggest the formation of these gabbros from a near-uniform mid-Mesoproterozoic (Ectasian) isotopic reservoir. These TDM ages are consistent with the previous studies on gabbros from the area [34]. However, they are younger than the Paleoproterozoic Hf-TDM [2,77] and Nd-TDM ages [17,31] reported from charnockites and orthogneisses in the region. The negative to near-positive εHf(t) of the zircons suggests low-degree reworking of the mid-Mesoproterozoic source for the generation of parental melt.

7.3. Geodynamic Significance

The Nagercoil block preserves three major crustal growth/metamorphic episodes: (1) 1.9 to 2.0 Ga I-type charnockite emplacement with juvenile magmatic signatures [2,34,36,37]; (2) 0.55 Ga granulite facies metamorphism [35,36,38]; (3) 0.55 mafic emplacement [34]. Traditionally, the Nagercoil block has been treated as an exotic tectonic unit with African ancestry. It resided with the Congo-Tanzania-Bangweulu continent that subsequently became amalgamated into India during the Ediacaran-Cambrian Gondwana supercontinent amalgamation [36]. This argument was strictly based on the lack of a 1.9–2.0 Ga magmatic/metamorphic record elsewhere in the south Indian shield. Alternatively, the Nagercoil block was also proposed as a Paleoproterozoic magmatic arc generated with the subduction-collision of crustal fragments within the Columbia supercontinent [37], which is further validated by the increased recognition of 1.9 Ga magmatic/metamorphic episodes from other parts of SGT [22,56]. As contrasting models have been proposed for the tectonic evolution of the Nagercoil block, the present study attempts to address the issue based on the new data generated for gabbros along with available results published so far from the terrane.

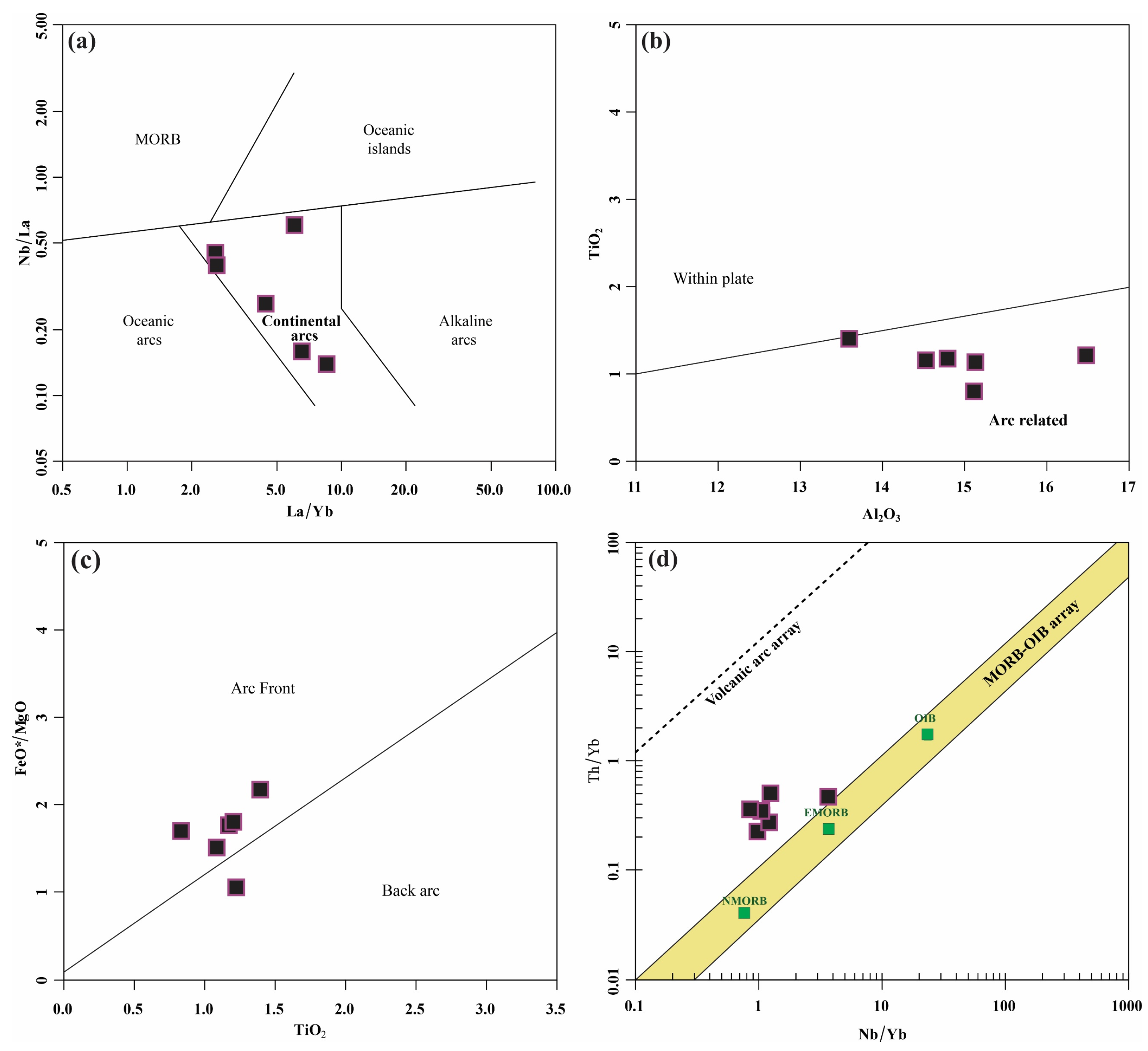

Based on the new geochemical and zircon U-Pb/trace element fingerprinting of the samples, it can be interpreted that the parental melts of these gabbros were generated by the partial melting of the subduction-modified lithospheric mantle source, emplaced and subsequently metamorphosed to granulite facies conditions between 561 and 531 Ma. The present tectonic models proposed for the emplacement of gabbros in the adjacent Trivandrum block argues for a collision between Madurai and Nagercoil blocks during the East African collisional orogeny resulting in subduction, slab breakoff, and asthenospheric upwelling processes along the Achankovil shear zone during the late Neoproterozoic period [6,59]. However, a similar model cannot be envisaged for the samples from Nagercoil, considering the Hf-TDM model ages of these gabbros. Hf-TDM model ages of the samples range from 1.16 to 1.48 Ga, pointing to a mid-Mesoproterozoic melting source. Available Hf-TDM and Nd-TDM model ages from Madurai and Nagercoil blocks are dominantly Paleoproterozoic [2,17,22,34,37,78], except for the eastern part of central Madurai and southeastern part of Madurai and Trivandrum blocks [2,17,30,31]. Among these, rocks from the eastern part of the central Madurai block are reported with Cryogenian emplacement ages and negative εHf(t) signatures (moderately reworked). In contrast, the Tonian rocks from SE Madurai and Trivandrum blocks (roughly equivalent to the Achankovil unit [31]) are characterised by positive to near-positive εHf(t) signatures (juvenile to less reworked) [2,30,79,80]. These domains also fall within the youngest Nd-model aged terrane in the SGT, with Nd-TDM ages ranging between 2000 and 1200 Ma [17]. Considering the source age and εHf(t) values of studied gabbros, a mid-Mesoproterozoic melting source with a juvenile to less reworked signature is required for their formation. These requirements agree with the isotopic characteristic of the Achankovil unit [31]. Hence, Neoproterozoic subduction along the ASZ is unlikely as this could generate gabbros either with juvenile isotopic signatures or with moderately to strongly reworked isotopic signatures with Paleoproterozoic melting source age. A similar argument can also be proposed for the emplacement of gabbros in the Trivandrum block, considering their similarities in geochemistry and emplacement age. However, the idea remains ambiguous due to the lack of zircon Hf isotopic data from gabbros in the Trivandrum block.
As these gabbros are interpreted to be formed by the melting of a mid-Mesoproterozoic source, possibly contributed from the southeastern Achankovil unit, the formation of these rocks in the Nagercoil block can be explained in connection with the tectonic evolution of the Achankovil unit. The Achankovil unit represents a younger Nd-model-age terrane reported with Tonian U-Pb ages and juvenile Hf isotopic signatures [2,17,30,31]. Based on the age and isotopic signatures, the Achankovil unit has been previously correlated with the Wanni Complex of Sri Lanka [26,31], although recent studies suggest a linkage between the Wanni Complex and eastern Madurai block [4,34,78,81,82]. In this context, the correlation of the Achankovil unit with its Sri Lankan counterpart remains enigmatic. An alternative is the Vijayan complex of Sri Lanka, a Grenville age magmatic suit predominantly emplaced between 1100 and 1000 Ma with mid- to early-Mesoproterozoic Hf and Nd model ages [77]. However, the formation of the Vijayan complex is correlated with the formation of the Rodinia supercontinent [77]. Hence, a scenario can be assumed where the mid-Mesoproterozoic subduction-modified melting source responsible for the formation of gabbros in Nagercoil (and Trivandrum block) could have been contributed by the active subduction process operated along the southeastern margin of accreted India and Sri Lanka that resulted in the formation of the Vijayan complex and Achankovil unit during Rodinia assembly. This argument is further supported by the age and isotopic characteristics of gabbros reported from the Highland Complex of Sri Lanka, which are proposed to be formed by subduction-collision tectonics operated between Highland and Vijayan complexes during the mid-Neoproterozoic [83].

7.4. Gabbros from Nagercoil Block: An Alternate Heat Source for Neoproterozoic Regional-Scale High-T Metamorphism

SGT (mainly Madurai and Trivandrum blocks) is known for the proliferous preservation of Neoproterozoic high- to ultrahigh-temperature metamorphic rocks with a generalised clockwise P-T trajectory [3,22,84]. These HT-UHT metapelites are prominently distributed along the Suruli shear zone in the Madurai block (also known as the Kambam UHT belt) [4,19,21,22,23] and Trivandrum/Achankovil shear zones [35,85,86,87], which are ascribed to be formed during the collisional orogen prevalent during the final stage of the Gondwana supercontinent assembly [3,5,19,22]. The presence of Neoproterozoic HT-UHT metamorphism is not only restricted to SGT but also spread throughout other Gondwanan fragments, including Antarctica [88], Sri Lanka [89], and Madagascar [90]. In such collisional orogens, the formation of regional-scale UHT metamorphic rocks can be designated to develop different tectonic scenarios [91]. In SGT and other Gondwanan terranes, the heat source models for UHT rock formation have been poorly explored. Recent studies from the Madurai block suggest that the UHT metamorphism in the terrane resulted from crustal thickening and HPE enrichment, based on 1-D numerical modelling [3]. However, an alternate model has been proposed, suggesting coeval mafic magmatism as the possible heat source for regional-scale UHT metamorphism [23].
Other than Madurai, the Trivandrum block proximal to the Nagercoil block is also reported for HT-UHT metapelites with metamorphic conditions reaching up to P-T values of 5–9.5 kbar and 700–1040 °C [27,81,86,87,92]. Numerical modelling studies [93] suggest that granulite formation in the Trivandrum block exclusively by HPE enrichment is unlikely without adding heat from an external source. Considering these aspects, the coeval mafic emplacements reported from the Nagercoil block [34] and Trivandrum block [59] can be proposed as an alternative heat source for HT-UHT granulite formation in the area. This assumption cogitates the fact that voluminous, syn-metamorphic mafic or ultramafic emplacements reported in regional-scale granulite terranes can be considered a primary heat source for HT-UHT granulite formation [94,95,96,97]. This argument is further supported by the close spatial association as well as coeval emplacement ages of mafic granulites with regional-scale HT-UHT granulites across different Gondwana fragments including the Madurai block (our data, under review), Sri Lanka [83,98], and Antarctica [99], characterising Neoproterozoic mafic emplacement as a pervasive event recorded across east Gondwana fragments.

8. Conclusions

Petrology, geochemistry, and U-Pb/Hf geochronology of gabbros from the Nagercoil block, south India provide a detailed understanding about their age, petrogenesis, and tectonic significance. The gabbros were formed by the partial melting of a subduction-modified lithospheric mantle source with a 50/50 contribution from spinel/garnet lherzolite in a continental arc setting. LA-ICPMS U-Pb zircon ages constrain their emplacement between 561 and 531 Ma. LA-MC-ICPMS zircon hafnium isotopic studies reveal near-juvenile magmatic signatures with mid-Mesoproterozoic Hf-TDM model ages. These results provide pristine evidence for the genetic linkage between gabbros and the Achankovil unit of south India, where the latter is perceived as the contributor of melting source. The age, geochemistry, and isotopic characteristics of the gabbros enable correlation with similar rock types from Sri Lanka, suggesting their coeval evolution. The study also suggests mafic magmatism as an alternative heat source for regional-scale HT-UHT metamorphism pervasive across Gondwanan terranes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/min12121509/s1, Supplementary material 1: Whole rock geochemical data of gabbros; Supplementary material 2: Representive mineral chemistry data of gabbros; Supplementary material 3: U-Pb zircon data of gabbros; Supplementary material 4: Zircon REE data; Supplementary material 5: Zircon Hf isotope data.

Author Contributions

Conceptualization: S.S. and J.K.T.; methodology: S.S., J.K.T., J.A.D., N.S. and T.V.K.; formal analysis: S.S., J.K.T., J.A.D., N.S. and T.V.K.; investigation: S.S., J.K.T., J.A.D., N.S. and T.V.K.; resources: S.S., J.K.T., J.A.D., N.S. and T.V.K.; writing—review and editing: S.S., J.K.T., J.A.D. and N.S.; visualization: S.S., J.K.T., J.A.D. and N.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank the Director, NCESS, for encouragement and support. K. Eldhose, N. Nishanth, G. Lekshmi, Sarath Kumar S, and Sribin C are acknowledged for support during fieldwork, sample preparation, and analysis. Sajna S gratefully acknowledges PhD research funding through the CSIR research fellowship program. B. Mishra and Saptarshi at IIT, Kharagpur are thanked for EPMA analysis at the National EPMA Facility, IIT Kharagpur. TVK acknowledges the financial support from an in-house project MLP-6406-28(EVB) and thanks the Director, CSIR-NGRI for his continuous support and encouragement.

Conflicts of Interest

The authors declare no conflict of interest.
