Noble Metal Speciations in Hydrothermal Sulphides

Abstract

A significant part of the primary gold reserves in the world is contained in sulphide ores, many types of which are refractory in gold processing. The deposits of refractory sulphide ores will be the main potential source of gold production in the future. The refractory gold and silver in sulphide ores can be associated with micro- and nano-sized inclusions of Au and Ag minerals as well as isomorphous, adsorbed and other species of noble metals (NM) not thoroughly investigated. For gold and gold-bearing deposits of the Urals, distribution and forms of NM were studied in base metal sulphides by laser ablation-inductively coupled plasma mass spectrometry and by neutron activation analysis. Composition of arsenopyrite and As-pyrite, proper Au and Ag minerals were identified using electron probe microanalysis. The ratio of various forms of invisible gold—which includes nanoparticles and chemically bound gold—in sulphides is discussed. Observations were also performed on about 120 synthetic crystals of NM-doped sphalerite and greenockite. In VMS ores with increasing metamorphism, C_Au and C_Ag in the major sulphides (sphalerite, chalcopyrite, pyrite) generally decrease. A portion of invisible gold also decreases—from ~65–85% to ~35–60% of the total Au. As a result of recrystallisation of ores, the invisible gold is enlarged and passes into the visible state as native gold, Au-Ag tellurides and sulphides. In the gold deposits of the Urals, the portion of invisible gold is usually <30% of the bulk Au.

1. Introduction

Considering the “visible” gold occurrence in gold deposits, it has long been noted that the association of native gold with sulphides is the most sustainable (e.g., [1,2]). However, gold invisible to optical methods also commonly associates with sulphides, notably pyrite [3,4,5]. The presence of invisible gold is established by chemical and assay analyses of bulk samples as well as by sensitive and relatively local LA-ICPMS analysis (e.g., [6,7,8]). Such invisible gold can be extracted from sulphides by repeated heating (up to 850 °C; cf. during metamorphism of sulphide ore [9]), resulting in enlargement of gold particles [3,10]. The mechanism of this process was unclear, and Bürg [11] introduced the concept of “self-cleaning of the crystal lattice” of pyrite.

The form in which gold occurs in sulphides of the Fe-As-S system, which are key minerals within the deposits of Au, Cu ± Au, Fe, Mo, U, Zn attracted enormous attention in the last quarter of the 20th century. From an experimental point of view, the limits of invisible gold in sulphides are defined over a wide temperature range [6,8,12,13,14,15,16,17,18]. It is also determined experimentally that sulphide heating, as an analogue of metamorphic transformation, leads to release of chemically bound gold from the crystal lattice of host minerals (such as pyrite, arsenopyrite) and to the formation of elemental microparticles (for example, see the review of the problem in [15] and also the experimental data review in [19]).

The behaviour of gold is most representatively characterised for high-temperature sulphide systems: gold-copper-porphyry and gold-copper (and Fe-Cu-Au, Fe-Au, subtypes) skarn deposits. Deposits of the copper–porphyry family represent some of the greatest gold concentrations in the Earth crust. In addition, these deposits are possibly the sources of gold for epithermal and other related deposits. Experimental data show that bornite and chalcopyrite, formed under high-temperature conditions (about 600–700 °C) typical for deep zones of copper–porphyry deposits, may contain about 1000 ppm of gold. Saturation of these minerals with gold, however, occurs only at much lower (200–300 °C) temperatures, corresponding to low-temperature minerlisation stages [20]. Thus, these deposits reveal a wide range of sulphides with different contents of gold, varying from its disseminated form to the larger “visible” native gold [20,21]. In addition, during the formation of these deposits, the processes of extraction and redistribution of gold and copper occur within immiscible sulphide melt and gas fluid at different levels (or alteration zones) of the unified systems, resulting in different Cu/Au ratios both in the gold-copper-porphyry and skarn systems.

In other high-temperature sulphide systems—magmatic (or orthomagmatic) ones—the behaviour of platinum-group elements (PGE) is important because of their high cost and scarcity on the global metal market. The authors partially summarised information about PGE in sulphides of magmatic and hydrothermal systems in papers (for pyrite [22] and pyrrhotite [23]). For hydrothermal deposits of the Urals, data were published in [24,25,26,27,28]. A much more complete review of the data is given in [29], devoted to magmatic sulphides.

In the ores of gold and gold-bearing deposits, Au occurs as: (1) own Au-Ag solid solution (rarer with Cu, Pd and Hg), i.e., native gold (with Ag content up to 50 wt% and fineness of 500–1000‰ in mole fractions Au_1–0.35Ag_0–0.65) and native silver (with an Ag content higher than 50 wt% and fineness of 0–500‰, in mole fractions Ag_1–0.65Au_0–0.35), compounds with Te or with other chalcogens (S, Se) and metalloids (As, Sb, Bi), and (2) the invisible (or fine dispersed) state. Invisible Au cannot be identified by conventional optical microscopes or scanning electronic techniques, being scattered in the host sulphides as nano-scale particles (“nanoparticles”) and/or in chemically bound state. Visible segregations of native gold (called “nuggets” when becoming millimetre-sized and larger) and as discrete Au minerals can be effectively extracted from the ore. In fairly common cases, where Au is present in invisible form, processing results in the loss of most gold to tailings. In many gold-bearing volcanogenic massive sulphide (VMS) deposits, the proportion of invisible gold can be very high. For example, in the Uchaly VMS deposit in the South Urals, it reaches 85% [15].

The mineral balance of the NM forms in ore sulphides is essential for evaluating the NM recovery, i.e., their output into technological products and concentrates and, as for Au, the possibility of its leaching by the cyanide solution (the most cheap and effective method for extraction of fine-grained gold).

In many cases, the direct correlation between the concentrations of As and invisible Au in hydrothermal pyrite is observed (e.g., [30]; see [15] for discussion). However, As-poor pyrites can also demonstrate high gold concentrations. For example, the colloform pyrites in the large Agua Rica Cu (+Mo, Au) porphyry deposit, Argentina, are As-poor (<30 ppm) but rich in Au (up to 6.7 ppm) and Ag (up to 136 ppm) ([31]). No correlation between Au and As in pyrite occurs in the ores of the shear-hosted gold-vein system of the Fairview mine, South Africa [32], VMS La Zarza, Migollas and Sotiel deposits, the Iberian Pyrite Belt [33], multistage sedimentary-metamorphic (orogenic) sediment-hosted Sukhoi Log gold deposit, South Siberia ([6]), “orogenic” gold deposits of the northern margin of the North China Craton, China [8], intrusion-related lode gold deposits of the Xiaoqinling–Dabie Orogenic Belt, China [34], and sediment-hosted (siltstone, shale and limestone) Qiuling gold deposit in the West Qinling orogenic belt, China ([35]). There is no correlation between As and Au in pyrites from most of the Au-bearing deposits of the Urals: the VMS deposits [15,36,37], the Novogodnee-Monto Fe-Au-skarn deposit [38], the Petropavlovsk gold-porphyry deposit [39,40] and the Svetlinsk Au-Te deposit [41,42]. Binary diagrams show the low correlation between Au and As for pyrite of the Zn-Pb-Se-Bi-Au-rich VMS Falun deposit, Sweden ([43]).

Understanding of the chemical state of Au in sulphide ores reached a new level when it became possible to study Au-bearing minerals synthesised at the contrasting TP conditions using different experimental techniques [13,44,45] and analytical methods [12,16,17,46,47,48,49,50,51,52]. The chemical state of Au in sulphides, i.e., its position in the host mineral structure, valence state and local atomic environment, can be determined using spectroscopic methods [19]. The spectroscopic studies of the sulphides rich in Au were performed using X-ray photoelectron spectroscopy (XPS, see [16,46,47] and references cited), Mössbauer spectroscopy [12,48,49] and X-ray absorption near-edge structure (XANES) spectroscopy [16,17,50,51,52].

The main problems preventing the determination of the chemical state of Au are: (1) relatively low concentrations of Au in natural sulphides, and hence the inability to use the mentioned physical (spectroscopic) methods for gold identification, and (2) limitations existing for the synthesis methods: (i) it is difficult to recreate the entire T/f S₂ range of natural sulphide formation, (ii) the variability of the composition and thin zoning of sulphide grains with respect to the main components, especially for arsenopyrite and As-pyrite, and (iii) the presence of a large number of other trace elements in addition to gold in the natural sulphides, which partly calls into question the complete analogy of synthetic and natural mineral grains.

In comparison with other precious metals in hydrothermal deposits, gold is the most important, so it is the focus of this study. Gold is among the rarest elements in the Earth’s crust [53] and reserves of its largest deposits do not exceed first thousands of tons, however, the high economic and social-political significance of this metal requires sustainable reproduction and increase of gold natural resources. The increase in metal prices during the last 20 years favours the growth of gold supply and exploration in the world, but, taking into account an exhaustion of brown field resources and traditionally mined types of mineralisation, the further development of the resource base needs to be supported with new ideas based on a comprehensive level of knowledge. A forecasting geological model is one of the major requirements of successful exploration [54].

The purpose of this paper is to review the distribution and forms of NM in contrasting types of mineralisation on the example of one of the largest ore belts in the world. Distribution and structural-chemical state of Au and Ag in sulphides through the ore deposits from late-magmatic to low-temperature hydrothermal are considered as indicators of the conditions of mineralisation and metamorphism of ores (e.g., [9,15]). Thus, NM forms are regarded as one of the key aspects of the general model of the evolution of ore-forming systems related to fluid activity (from high- to low-temperature).

The research results contribute to fundamental knowledge on NM forms of occurrence in ores and minerals, and concentration levels of NM in sulphides. Our data can be useful in the analysis of the distribution of NM in the Earth’s crust and will add data into the experimental database to support the thermodynamic models. Moreover, the data obtained on the contents and forms of NM accumulation in base metal sulphides are an important practical result of the work. They will help to develop ore processing.

The present research is based on studies of NM distribution and speciation in gold and gold-bearing deposits of the Urals. The gold deposits include Au-sulphide-quartz (mesothermal intrusion-related, “traditional” type for the Urals) Berezovsk, Au-telluride mesothermal Svetlinsk and Au-sulphide-realgar Carlin-style Vorontsovka (both are large but are seen as unconventional for the Urals types [55]) (

Table 1. Main endogenous Au- and Cu-bearing deposits of the Urals.

Geodynamic Environments		Ore Deposit Type	Ore-Bearing Magmatic Complexes	Main Ore Elements	Examples of Ore Deposits
Oceanic spreading O1–2		Co-Ni-sulphide	Ultramafic, tholeiite-basalt	Co, Ni (As, Au)	Ivanovka, Dergamysh
Island arc (O3-D1)	primitive	Cu VMS (Dombarovsk)	Tholeiite-basalt	Cu (Zn, Co)	Mauk, Letnee, Buribai, Koktau
		Cu-Zn VMS (Uralian)	Sodium rhyolite-basalt	Cu, Zn (Au)	Gai, Safyanovka, Yubileynoe, Priorskoe
			Sodium basalt-rhyolite	Zn, Cu (Au, Ag, Se, Te)	Uchaly, Novo-Uchaly, Sibai, Uzelga, Degtyarsk, Podolsk
		Cu-barite-Cu-Zn VMS (Baimak)	Potassium-sodium andesite-dacite	Cu, Zn, Au, Ba (Pb, Ag)	Bakr-Tau, Balta-Tau, Maiskoe, Tash-Tau, Uvarjazh, Galka
		Cu-titanomagnetite-apatite	Gabbro-norite	Cu, Fe (Au, Pd, Pt, Ti, V, P)	Volkovskoe
	mature	Cu-porphyry	Andesite-diorite	Cu	Tominskoe
		Au-porphyry	Plagiogranite	Au, Cu	Yubileinoe (Au)
		Au-epithermal	Andesite-diorite	Au, Cu (Pb, Zn, Se, Te)	Bereznyakovskoe
		Cu-skarn (porphyry)	Rhyolite-basalt, gabbro-diorite	Cu, Fe (Au)	Gumeshki
		Au-polymetallic	Andesite-dacite	Au, Ag (Pb, Zn)	Murtykty
Arc-continent collision and active margin of continent (D3-C1)		Skarn-magnetite	Sodium andesite-basalt, gabbro-diorite	Fe (Cu, Au)	Sokolovskoe, Sarbay
			Potassium-sodium andesite-basalt, gabbro-diorite-granite	Fe (Cu, Co, Au)	Vysokogorsk, Goroblagodat
		Cu-magnetite skarn		Cu, Fe (Au, Co)	Tur’insk group
		Au-sulphide-realgar		Au, Ag (Hg, Sb,Tl)	Vorontsovka
		Au-magnetite-skarn	Potassium-sodium andesite-basalt, gabbro-diorite	Fe, Au (Cu, Mo, Co, Ag)	Novogodnee-Monto
		Au-porphyry		Au (Ag, Te, W)	Petropavlovsk
		Au-skarn (porhyry)	Diorite-granodiorite	Au, Cu	Varvarinskoe
		Cu-porphyry (Mo)		Cu (Mo, Au, Re)	Mikheevskoe
		Cu-porphyry		Cu (Mo, Au)	Benkala
The main collision (C/P)		Au-sulphide-quartz	Tonalite-granodiorite	Au(Cu,Pb,Zn,Ag)	Berezovsk
				Au (As)	Kochkar’
		Au-telluride	Gabbro-diabase, plagiogranite	Au (Te, Ag)	Svetlinsk

Bold—deposits under consideration.

). Other types include VMS deposits (Cu-dominated Gai and Zn-dominated Uchaly, Uzelga, Galka) and the skarn-porphyry family (Novogodnee-Monto Au-magnetite-skarn and Petropavlovsk Au-porphyry deposits). The mentioned gold and gold-bearing deposits together provide about 95% of the production of Au of the Urals. The paper proposes an application of the modern achievements in the field of the analytical techniques for advancing the theoretical basis of the NM behaviour in hydrothermal ore mineralising systems with emphasises on economically significant genetic types of ore deposits.

2. Geological Framework

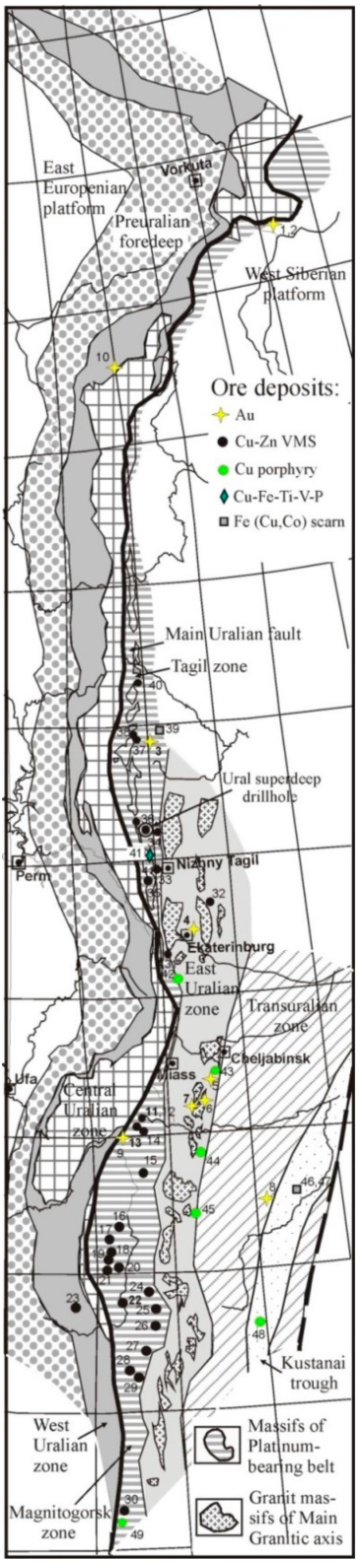

The Urals is the largest single ore belt in the world, and it contains 5.0 Bt non-ferrous metal ore (80 Mt of Cu + Zn), 4,900 t Au and 41,000 t Ag reserves in endogenous ore deposits. The bulk of Uralian gold is produced from sulphide ores containing large gold deposits (Berezovsk, Kochkar, Svetlinsk, etc., [55]) and giant Cu-Zn-Au-Ag VMS deposits [56,57], with reserves of 50–500 t Au for each deposit of both types. Most gold-bearing (VMS, etc.) deposits and some gold deposits are located on the eastern slope of the Urals (Figure 1), within the Main Greenstone Belt of the Urals—the Tagil-Magnitogorsk synclinorium zone [56,58,59]. Major large gold deposits occur inside of the East Uralian anticlinorium zone [55,60].

The Urals is the oldest (275 years, from 1745) gold-mining province of Russia [55]. The four largest gold deposits and nine gold-bearing deposits of the Urals contribute about 45% (2220 t Au) of proven gold reserves, adding to the past production of this province (4900 t Au).

2.1. Gold Deposits

The objects of this study are the large gold deposits of different genetic types [59]: Vorontsovka (Au-As-Sb-Hg-Tl, Carlin-style), Berezovsk (Au, mesothermal intrusion-related), Svetlinsk (Au-telluride mesothermal) and Petropavlovsk (Au-porphyry) (Table 1 and

Table 2. Characteristics of studied gold deposits.

Deposit, Region	Svetlinsk, South Urals	Berezovsk, Middle Urals	Vorontsovka, North Urals	Petropavlovsk, Polar Urals
Host rocks	Metamorphosed volcaniclastic (D-C)	Volcaniclastic (O-S), gabbro, serpentinite, granite	Volcaniclastic (S2-D1)	Volcaniclastic (S2-D1)
Geochemical type	Au-Te	Au, Ag (W, Bi)	Au-As-Sb-Hg-Tl	Au (Ag, Te, Bi, W)
Ore bodies	Vein-disseminated zones; veins	Suits of veins usually occurred inside of dykes	Vein-disseminated zones; rare veinlets	Stockwork, vein-disseminated zones
Wall rock alteration	Quartz-biotite (with amphibole), quartz ± biotite-sericite	Beresite, listvenite	Propylitic, quartz-sericite, argillic, jasperoid	Silicification, albitisation, chloritisation, sericitisation
Stage of mineral formation	Quartz-pyrite→ Au-Te-polymetalic→ Quartz-carbonate-sulphide	Ankerite-quartz → Pyrite-quartz → Polymetalic → Carbonate	Arsenopyrite-pyrite → Pyrite-realgar → Sulphosalt- polymetalic → Polymetalic	Pyrite-magnetite → Pyrite (± chalcopyrite, sphalerite, pyrrhotite) → Gold–telluride → Quartz–carbonate
Au reserves (CAu)	~135 t (1.8–2.8 g/t)	490 t (2.4 g/t)	~101 t (2.8 g/t)	26 t (1.4 g/t)

). The Vorontsovka deposit (101 t Au) is located in the Tagil zone, while the Berezovsk (~490 t Au) and Svetlinsk (~135 t Au) deposits are located in the East Uralian zone (Figure 1).

Specific features of the Vorontsovka deposit [62,63] are as follows: thinly disseminated sulphide mineralisation in carbonate-clastic sequence; quartz-sericite, argillic (clay-quartz-carbonate) and jasperoid types of alteration; abundance of As and Fe sulphides (pyrite, arsenopyrite, realgar); correlation of Au (r > 0.5) with Ag, As, Hg, Co, Ni, Pb and Ba in the ores; geochemical types of mineralisation: As-Hg-Tl-Sb (the early stage) and Ag-Pb-Zn-Cu-Sb (the late stage); Au/Ag ratio ≥ 1 in ore. Our genetic model for the Vorontsovka gold deposit suggests that the gold mineralisation is coeval with the formation of the Auerbakh volcano-plutonic complex. Low-sulphide gold-bearing assemblages were deposited at lower temperatures on the periphery of the skarn zones (Table 1 and

Table 3. Arsenopyrite-bearing mineral assemblages of the Vorontsovka gold deposit.

№	Mineral Ore Type	Ore Mineral Assemblage	t, °C	P, kbar	log f S2
I	impregnated gold-polymetallic	arsenopyrite-sulphosalts- polymetallic	400–270	0.6–0.2	−7 to −9
II	finely disseminated gold-pyrite-realgar	arsenic-löllingite- arsenopyrite	370–250	0.2–0.15	−12 to −17

).

Quartz-sulphide veins of the Berezovsk deposit (about 55% of total gold reserves) contain 90–95 vol% of quartz, 5–10 vol% of sulphides and average 18–20 g/t Au [64]. Impregnated sulphide ores—hydrothermal-altered granitoid dykes (“beresite”)—contain 1–2 vol% of pyrite and 0.1–5 g/t Au (commonly 0.2–1.3 g/t) (Table 1 and Table 2).

The Svetlinsk deposit is represented by the system of sulphide-quartz veins, veinlets and large lens-shaped vein-disseminated zones of quartz-pyrite (± pyrrhotite) mineralisation. The deposit is located within the strongly metamorphosed (up to amphibolitic facies) volcano-sedimentary series: metabasite, terrigenous/volcaniclastic sediments and marble (D-C). The average gold content is not high (2–3 g/t). Native gold in sulphide-quartz veins is closely associated with tellurides [65,66].

The Petropavlovsk deposit is located in the Silurian-Devonian island-arc volcanic complexes of the Polar Urals [40]. It tends to the apical part of a large polyphase (with dominating diorite) pluton and is closely related to porphyritic diorite. The ore body is a large isometric stockwork composed of gold-sulphide (low-sulphide) stringer-disseminated ore associated with albitisation zones, intersected by moderately Au-rich, late quartz veins [39,40]. Gold, finely dispersed in pyrite (<0.1 mm), predominates in the ore bodies and is associated with Ag, W, Mo, Cu, As, Te and Bi in geochemical haloes. The Novogodnee-Monto iron-gold-skarn deposit (7 t by-product Au reserves) is located on the east flank of the Petropavlovsk deposit, 0.5 km away. They both probably represent a single ore-magmatic system of porphyry type [40], and their features are compiled in Table 1, Table 2 and

Table 4. Mineral assemblages and physicochemical parameters of mineral-forming fluids of the Petropavlovsk gold field.

Ore Deposit	Mineral Assemblage (and Gold Mineralisation)	Thom, °C	Salt Composition	Csalt, wt%-eq. NaCl
Novogodnee-Monto Fe-Au-skarn	Chalcopyrite-pyrite-quartz, early stage	430–300	(Na, Mg)Cl	10–12.9
	Pyrite-chalcopyrite-quartz (with Au)	315–270	(Na, K)Cl	4.5–12.2
	Chalcopyrite-pyrite-magnetite (with Co and Au)	230–215	NaCl	3.4–9.2
	Pyrite-chalcopyrite-telluride (with Au)	210–180	NaCl	10.5–13.9
	Polysulphide-quartz-carbonate	170–140	(Na, K)Cl	6.0–8.0
Petropavlovsk Au-porphyry	Chalcopyrite-pyrite-magnetite (with Au)	250 *	no data
	Polysulphide-quartz (with Au)	260–245	no phase transitions were observed
	Pyrite-chalcopyrite-telluride (with Au)	200	(Na, K)Cl	11
	Polysulphide-quartz-carbonate (with Au)	160–150	(Na, K)Cl	14

* Co geothermometer (coexisting pyrite and chalcopyrite).

.

2.2. VMS Deposits

VMS deposits of the Urals began to play a major role in its gold industry in the middle of the 20th Century. The VMS deposits belong to Uralian (or Cu-Zn-pyritic) type (the major one for the Urals), which can be divided into two subtypes: Cu>>Zn and Zn>>Cu, and two minor types: copper (Dombarovsk type) and gold-barite-copper-zinc or Au-polymetallic (Baimak type). Among the Uralian type, ten deposits contain >100 t Au and/or >1000 t Ag—the largest, Gai, Uchaly, Novo-Uchaly and Uzelga, together amount to 1000 t Au and ~13,200 t Ag [57,67,68]. According to the modern genetic model, the formation of these deposits was related to a shallow chamber of acidic magma formed as a result of the differentiation of mantle-derived basalt [69,70].

The study of modes in which gold occurs in sulphides (including invisible gold) covers two large, slightly metamorphosed volcanogenic massive sulphide deposits: Uchaly and Uzelga, as well as the giant intensively deformed Gai VMS deposit (Figure 1, Figure 2 and Figure 3; Table 1 and

Table 5. Characteristics of the studied VMS deposits.

Deposit, Region	Gai	Uchaly, Novo-Uchaly	Uzelga	Galka, North Urals
	South Urals
Host rocks	Bimodal-mafic (with minor chert)	Bimodal-felsic (with minor chert)	Bimodal-felsic (with minor chert, limestone, andesite and dacite)	Bimodal-felsic (with minor andesite and dacite)
Geological age	Emsian	Mid-Eifelian	Late Eifelian–Early Givetian	Late Ordovician–Early Llandoverian
Geochemical type	Zn-Cu (Au, Ag)	Cu-Zn (Au, Ag)	Cu-Zn (Au, Ag)	Zn-(Cu-Pb-Ag-Au)
Metamorphic grade (t, °C)	Greenschist, 250–450	Prehnite-pumpellyite, 150–350 (locally up to 400)	Prehnite-pumpellyite, 180–350 (locally up to 450)	Zeolite, 100–200
Dominant ore-host structures	Steeply dipping to vertical, pseudomonoclinal shear-related structures	Steeply dipping to vertical; limb of large anticlinal fold	Gentle doms and trenchs	Gentle doms and trenchs
Ore bodies	Platelike, podiform	Lensoid, antiform	Lensoid	Stockwork, vein-disseminated zones; (minor lensoid)
Wall rock alteration	Albitisation, silicification, chloritisation, sericitisation (±pyrophyllite)	Silicification, sericitisation, albitisation, chloritisation	Silicification, sericitisation, carbonation, albitisation, chloritisation	Argillic, silicification, sericitisation
Ore reserves	450 Mt *	230.4 (116 + 114.4) Mt *	80.7 Mt *	4.3 Mt
Cu + Pb + Zn, wt%	2.2	4.3 (4.8 and 3.6)	4.2	3.3
Au reserves	520 t *	344 (180 + 164) t *	136.6 t *	6 t
CAu, g/t	1.2	1.5	1.7	1.35
Ag reserves	6,300 t *	4,381 t *	2,495 t *	200 t
CAg, g/t	14	19	31	46.5

* including past production.

). Massive sulphide ores predominate in these deposits with a subordinate contribution of disseminated ores (commonly 5–15 vol%). Au and Ag are relatively uniformly distributed in massive sulphide ores (av. values are 0.5–1.5 g/t Au, 5–50 g/t Ag), but local enrichment occurs (up to 10–90 g/t Au and up to 1000–3000 g/t Ag). The specific feature of Uchaly and Uzelga deposits (Zn-dominated subtype) is the uplifted levels of Au, Ag, Pb, Se, Te, Sb, As, Sn and Cd comparing to most of the other VMS districts of the Urals [71,72].

During 60 years, two hundred million tonnes of ore have been mined from the Gai deposit (Cu-dominated subtype), and ~45% of initial reserves contained about 10 million tonnes of non-ferrous metals (Cu:Pb:Zn = 1:0.03:0.49), 520 t Au and 6300 t Ag (Au/Ag = 0.08). The annual output of the underground mine reached 5 Mt of Cu and Cu-Zn ore (>70 Kt Cu) [9,73,74]. The deposit consists of a package of steeply dipping sheet-like bodies, from 40 up to 1300 m down the dip, with a thickness of the large lodes up to 150 m in bulges. Together, the ore bodies comprise a lineal mineral zone (thickness ~300 m, up to 800 m). The ore zone extends for 3.7 km along the strike and more than 1.7 km down the dip, remaining not contoured at a depth. The deposit was affected by regional metamorphism (greenschist facies), strike-slip deformations and folding. Therefore, ore structures and textures observed are mostly epigenetic (e.g., [9,74,75]). Massive, breccia-like, impregnated and stringer-impregnated structures are dominant. Gneissose, foliated and banded structures often occur in the outer parts of massive sulphide lodes and are found within narrow zones controlled by later steeply dipping normal and strike-slip faults [57,74].

The Uchaly deposit also demonstrates one of the largest potentials if the Novo-Uchaly deposit located directly to the south of the Uchaly deposit is considered as its separate ore body. Therefore, the total reserves of metals contained in the two ore bodies—the northern one, Uchaly, and the southern one, Novo-Uchaly—will amount to 9.96 million tonnes Cu + Pb + Zn, with Cu:Pb:Zn = 1:0.17:3.12, 344 t Au and 4381 t Ag (Au/Ag = 0.08) [15,36,76]. The Uchaly lode comprises a single subvertical thick (up to 180 m in bulges) lens of solid Cu–Zn ore, approximately 1.2 km in the lateral direction and 1.3 km along the dip. The Novo-Uchaly lode (1250 m × 900 m) reaches 186 m thick and comprises a steeply dipping VMS lens, crumpled into an anticlinal fold. The deposit was affected by regional metamorphism (subgreenschist facies). The ore body reveals complex lenticular contours complicated by pinch and swell areas. The primary ores—brecciated and rhythmically foliated—are preserved only as relics. Gneissose and folded varieties of ore occur along the contacts of the ore body and in zones of postmineral faults.

The total reserves of the Uzelga deposit range 81 million tonnes of ore, containing 3.43 million tonnes Cu + Pb + Zn (Cu:Pb:Zn = 1:0.22:1.90), 137 t Au and 2495 t Ag (Au/Ag = 0.05) [9,67,68]. Paleovolcanic structures are mostly gentle and weakly deformed [69,76]. Bodies of VMS solid ores occur at two hypsometric levels, 130–380 m from day surface (body Nos. 1, 5, 6, 9) and 420–640 m (body Nos. 2–4, 7, 8), with ~300 m between the levels [25,77]. Ore bodies are represented by thick lenses, sometimes by irregular ellipsoidal and isometric ones with obtuse terminations (ore body 4) or ball-shaped ones (ore body 3). Ores are commonly slightly recrystallised: cryptograined and hypidiomorphic-granular textures predominate in ores [78,79]. There are spherolitic and radial fabrics in kidney aggregates. Rhythmic zonality of pyrite is often marked by bands or fine inclusions of chalcopyrite, sphalerite, tennantite, tetrahedrite or a member of the tetrahedrite-tennantite series (further “fahlore”). Cataclastic texture often occurs in pyrite grains. Framboidal, metaglobular pyrite is sometimes found.

The Galka deposit is small (Table 5) and comprises gentle VMS lenses (max. 2000 m × 350 m; thickness up to 30 m) of veinlet-impregnated Au–pyrite–polymetal ores [80,81]. Locally semi-massive and massive sulphide ore forms thin (up to 1 m) lenses in interlayers of carboniferous fineclastic sedimentary rocks. The abundant veinlet-impregnated ores are hosted by argillic (illite/smectite–sericite–quartz and kaolinite) alteration, formed after cement of rhyodacitic breccia [82]. The ores are almost unaffected by any metamorphism, so colloform structures, and fine-grained textures of ores, are widespread, and sulphides carry a high proportion of invisible gold [15].

During processing, most of the total amount of trace elements is not extracted (Au, Ag, Pt, Pd, Pb, Se, Te, Sb, As, Bi, Sn, Co, Ni and Hg), and many of them (Pb, Se, Te, Sb, As, Co, Ni and Hg) become pollutants (together with sulphur dioxide and Fe) [72,83]. The increasing volume of processed VMS ores has aggravated the problem of gold recovery: while copper and zinc are taken in concentrates almost completely (75–85%), integrated gold recovery into the copper and zinc concentrates ranges from 20% (Uchaly) up to 50% (Gai). The loss of gold into the pyritic concentrate and tailings exceeds 15 tonnes (up to 20 t) annually, which is three times more than Au recovery from massive sulphide ores of the Urals. Therefore, tailing dumps of ore-processing plants can be compared with large gold deposits: for example, the Gai (110 t Au in the tailing dump) and Uchaly (90 t Au) concentrating mills.

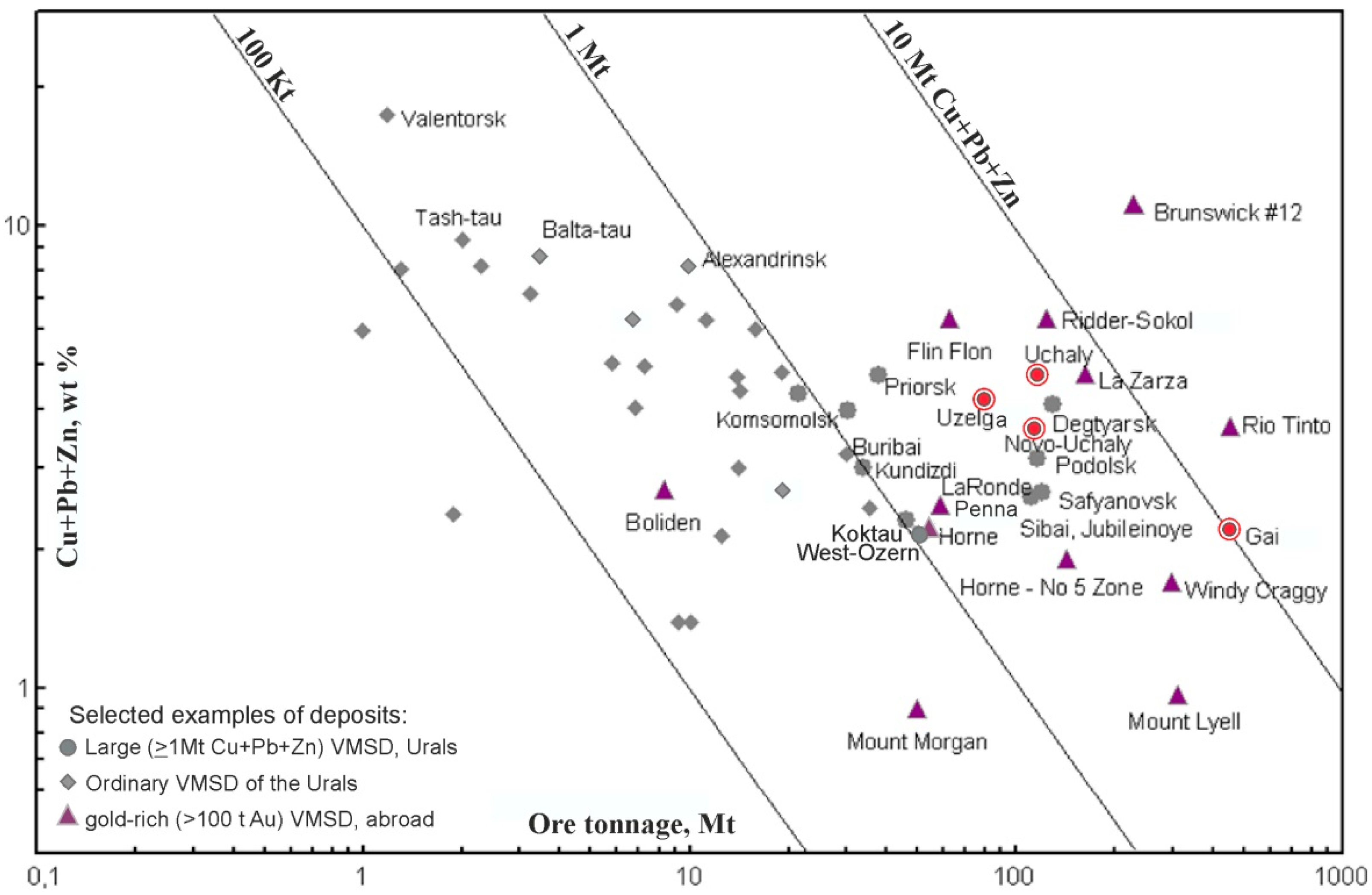

Figure 2. Parameters of VMS deposits of the Urals in terms of ore and base metal tonnage and their comparison with large, Au-rich VMS deposits of the world (>100 t Au); red circles—deposits under consideration. Parameters for other deposits were selected from the review in [84].

Figure 2. Parameters of VMS deposits of the Urals in terms of ore and base metal tonnage and their comparison with large, Au-rich VMS deposits of the world (>100 t Au); red circles—deposits under consideration. Parameters for other deposits were selected from the review in [84].

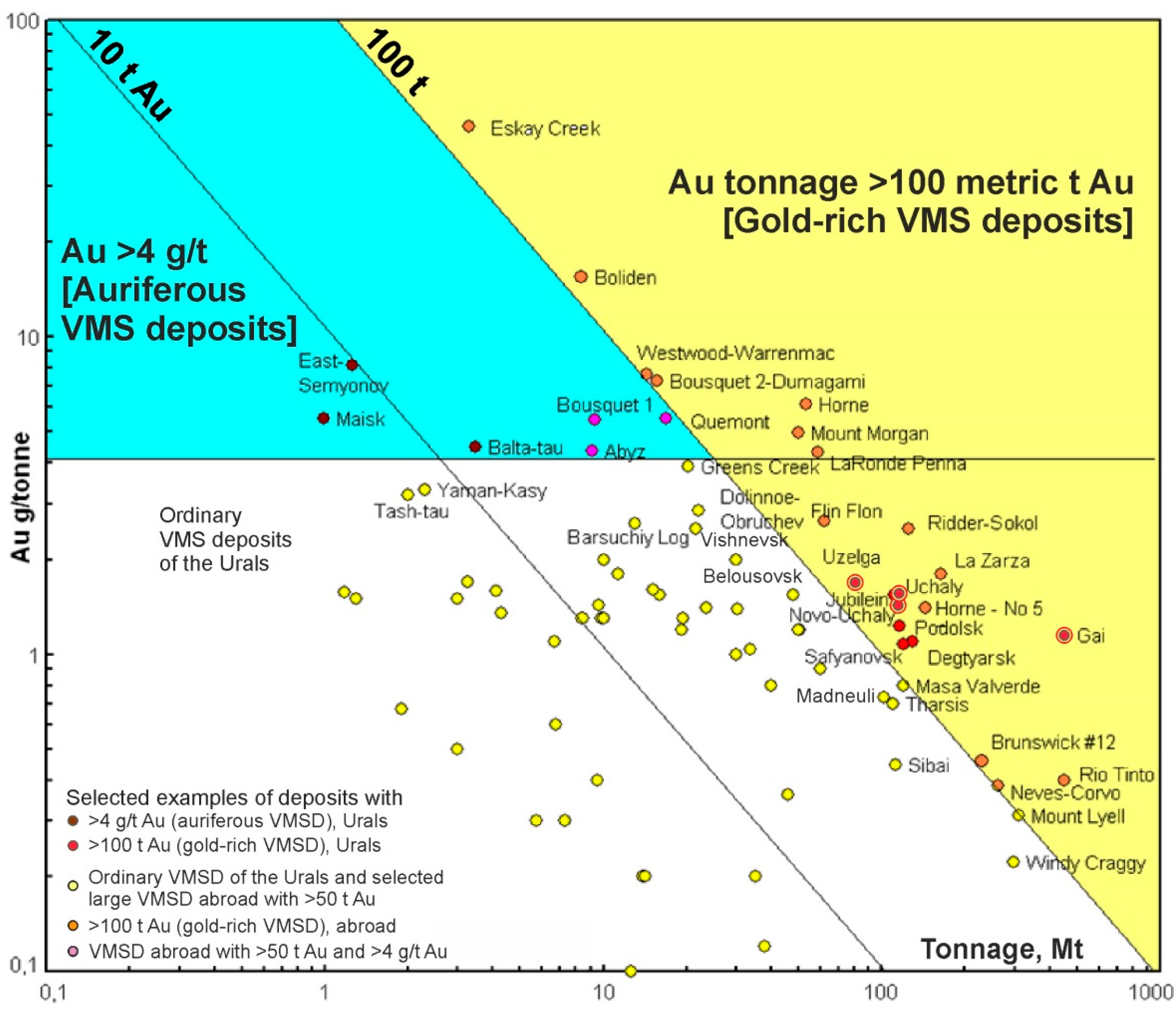

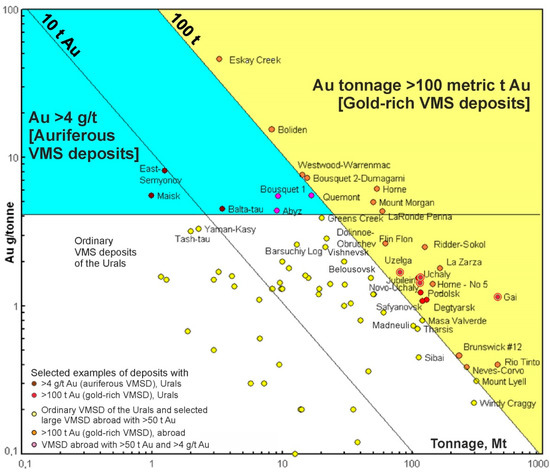

Figure 3. Parameters of VMS deposits of the Urals, in terms of ore and gold tonnage, and their comparison with major Au-bearing VMS deposits of the world; red circles with a red ring—deposits under consideration. Design and parameters for other deposits were adapted from the review in [84].

Figure 3. Parameters of VMS deposits of the Urals, in terms of ore and gold tonnage, and their comparison with major Au-bearing VMS deposits of the world; red circles with a red ring—deposits under consideration. Design and parameters for other deposits were adapted from the review in [84].

3. Materials and Methods

The study was based on mapping and sampling of drill core and open pits. Collections of ores include 100–300 samples for each deposit, and 150–500 polished sections were studied for each deposit. Mineralogical observations, electron probe microanalyses (EPMA) and a study using the scanning electron microscope (SEM) with an EDS were carried out for polished sections as well as for sulphide and heavy concentrates prepared from ores and, in some cases, from tailings. Manually selected sulphide monomineral fractions and sulphides from heavy concentrates by separating dozens of samples for each deposit were studied.

EPMA: The analyses were performed in IGEM RAS on the JXA-8200 Jeol, JEOL Ltd., Tokyo, Japan, electron microprobe equipped with five WD spectrometers and one ED spectrometer. The major constituents were determined at an accelerating voltage of 20 kV, current intensity on the Faraday cup of 20 nA, 10 s counting time and beam diameter of 1 μm. Conditions of analysis are provided in Appendix A

Table A1. Standards used for routine mineral analysis by EPMA (I = 20 nA).

Element	X-ray	Crystal	Standard	Time		Detection Limit, 3 σ(wt%)
				Peak	Back
Py, Apy
As	Lα	TAP	GaAs	30	15	0.05
Fe	Kα	LIF	Pyrite	10	5	0.06
S	Kα	PETH	Pyrite	10	5	0.02
Ni	Kα	LIF	NiSbS	10	5	0.04
Cu	Kα	LIF	CuFeS2	10	5	0.07
Sb	Lα	PETH	NiSbS	10	5	0.05
Co	Kα	LIF	Co	30	15	0.06
			CCp
As	Lα	TAP	GaAs	30	15	0.05
Cu	Kα	LIF	CuFeS2	10	5	0.06
S	Kα	PETH	CuFeS2	10	5	0.02
Zn	Kα	LIF	ZnS	10	5	0.08
Fe	Kα	LIF	CuFeS2	10	5	0.06
Cd	Lα	PETH	CdS	10	5	0.05
Ni	Kα	LIF	Ni	10	5	0.06
Mn	Kα	LIF	Mn	10	5	0.06
Co	Kα	LIF	Co	30	15	0.06
Sp
Cd	Lα	PETJ	CdS	30	15	0.11
Fe	Kα	LIF	Pyrite	20	10	0.05
S	Kα	PETH	ZnS	10	5	0.02
Zn	Kα	LIF	ZnS	10	5	0.1
In	Lα	PETJ	InSb	10	5	0.08
Mn	Kα	LIF	Mn	20	10	0.04
Ag	Lα	PETH	Ag	10	5	0.04
Cu	Kα	LIF	CuFeS2	20	10	0.06
Hg	Mα	PETH	HgS	20	10	0.06
Sn	Lα	PETH	Sn	20	10	0.04
Tnt
Sb	Lα	PETJ	Sb2S3	10	5	0.10
As	Lα	TAP	GaAs	10	5	0.10
Zn	Kα	LIF	ZnS	10	5	0.09
S	Kα	PETH	CuFeS2	10	5	0.02
Ag	Lα	PETJ	Ag	10	5	0.16
Se	Lα	TAP	CdSe	10	5	0.07
Cu	Kα	LIF	Cu	10	5	0.08
Hg	Mα	PETH	HgS	10	5	0.09
Te	Lα	PETJ	Te	10	5	0.11
Fe	Kα	LIF	CuFeS2	10	5	0.06
Bi	Mα	PETH	Bi2Te3	10	5	0.09
Cd	Lβ	PETJ	CdSe	10	5	0.20
Pb	Mα	PETH	PbS	10	5	0.09
Gn
Pb	Mα	PETJ	PbS	20	10	0.22
Se	Lα	TAP	CdSe	10	5	0.09
Cu	Kα	LIF	CuFeS2	20	10	0.09
S	Kα	PETH	PbS	10	5	0.02
Sb	Lα	PETJ	Sb2S3	20	10	0.09
As	Lα	TAP	GaAs	20	10	0.09
Fe	Kα	LIF	CuFeS2	20	10	0.06
Ag	Lα	PETH	Ag	10	5	0.06
Bi	Mβ	PETH	Bi	30	15	0.10

. The AuMα line was chosen for Au analysis in arsenopyrite and pyrite (with 100–200 s counting time for PGE and Au) because it was established that the signal/background ratio of M series lines is better than that of L series lines [18]. These operating conditions and correctly selected background points made it possible to decrease the detection limit (3σ) down to 45 ppm for line AuMα.

SEM/EDS: The JSM-5610LV electron microscope (JEOL Ltd., Tokyo, Japan) equipped with an X-Max 100 energy dispersive spectrometer (IGEM RAS) was used for the studies.

INAA: For instrumental neutron activation analysis, sulphide separates of 20 to 50 mg weight were handpicked under a binocular microscope. The purity of separation was tested with the help of the X-ray powder diffraction technique. The fraction of a sulphide examined in a sample analysed was more than 90%. The grains of sulphides selected for analysis were sealed in polyethylene film. For activation, the polyethylene packages were wrapped in filter paper and aluminium foil. Samples, standardised by the State Geological Survey of the USSR (State Standard Samples 3593–86; 3594; 3595; RUS 1 ÷ 4) and the United States (USGS: BHVO-1; Mag-1; QLO-1; RGM-1, SCo-1, SDC-1, SGR-1), were prepared for irradiation in the same manner. The samples were activated for 15 to 17 h in the IRT reactor at the Moscow Engineering Physical Institute with a neutron flux of 1 × 10¹³ s cm⁻². Measurements of induced activity were carried out in IGEM RAS with a gamma spectrometer: the analyser was the 919+GEM45190 ORTEC (AMETEK ORTEC, Oak Ridge, TN, USA)(HPGe coaxial detector; the range of energy measured was from 100 to 1800 KeV, with a resolution of 1.8 KeV at the line of 1332 KeV). The nuclide and the gamma line used for the analyses (KeV) were: ¹⁹⁸Au (412), ¹²²Sb (564), ¹²⁴Sb (602 and 1691), ⁶⁰Co (1332), ⁷⁶As (559), ¹¹⁰MAg (657), ⁵⁹Fe (1099), ⁶⁵Zn (1115), ¹¹⁵Cd (336 and 528). The measurements were conducted in two stages: in 7 to 10 days after activation, As, Cd and Au concentration were detected, and in 25 to 30 days after activation, Fe, Co, Zn, Ag and Sb were analysed (see details in [12]). INAA examined the contents of NM, base metals and some rare elements in the bulk samples, ultra-heavy concentrates and hand-made mineral concentrates.

LA-ICPMS: The high-sensitivity mass-spectrometer laser ablation method (LA-ICPMS, ThermoXSeries, NewWave 213 device, AMETEK, Berwyn, PA, USA) was chosen as a key analytical method for trace element analysis of sulphides, including determination of noble metals [39]. Primary determination of major components was carried out on EPMA. For the LA-ICPMS method, sulphide reference material MASS-1 [85] was used as an external calibration standard together with in-house pyrrhotite-based standard Fe_0.9S (20 ppm PGE, gold and silver, synthesised at IGEM RAS using the method from [86]) and calibrated in the LabMaTer at the Université du Québec à Chicoutimi (Chicoutimi, QC, Canada) for to the concentration of Au against a standard prepared by J.H.G. Laflamme. The analysis of sulphide grains was realised using spot and profile ablation. The diameter of the laser beam was 30–60 μm. The laser pulse frequency was 10 Hz, and the energy at the sample surface was 7–8 J/cm². The detection limit for most elements was 0.02–0.05 ppm. Investigations were carried out in IGEM RAS, and a part of LA-ICPMS control analyses was also done in the LabMaTer at the Université du Québec à Chicoutimi. We used the thermochemical method to determine the ionic form of gold according to [87,88,89].

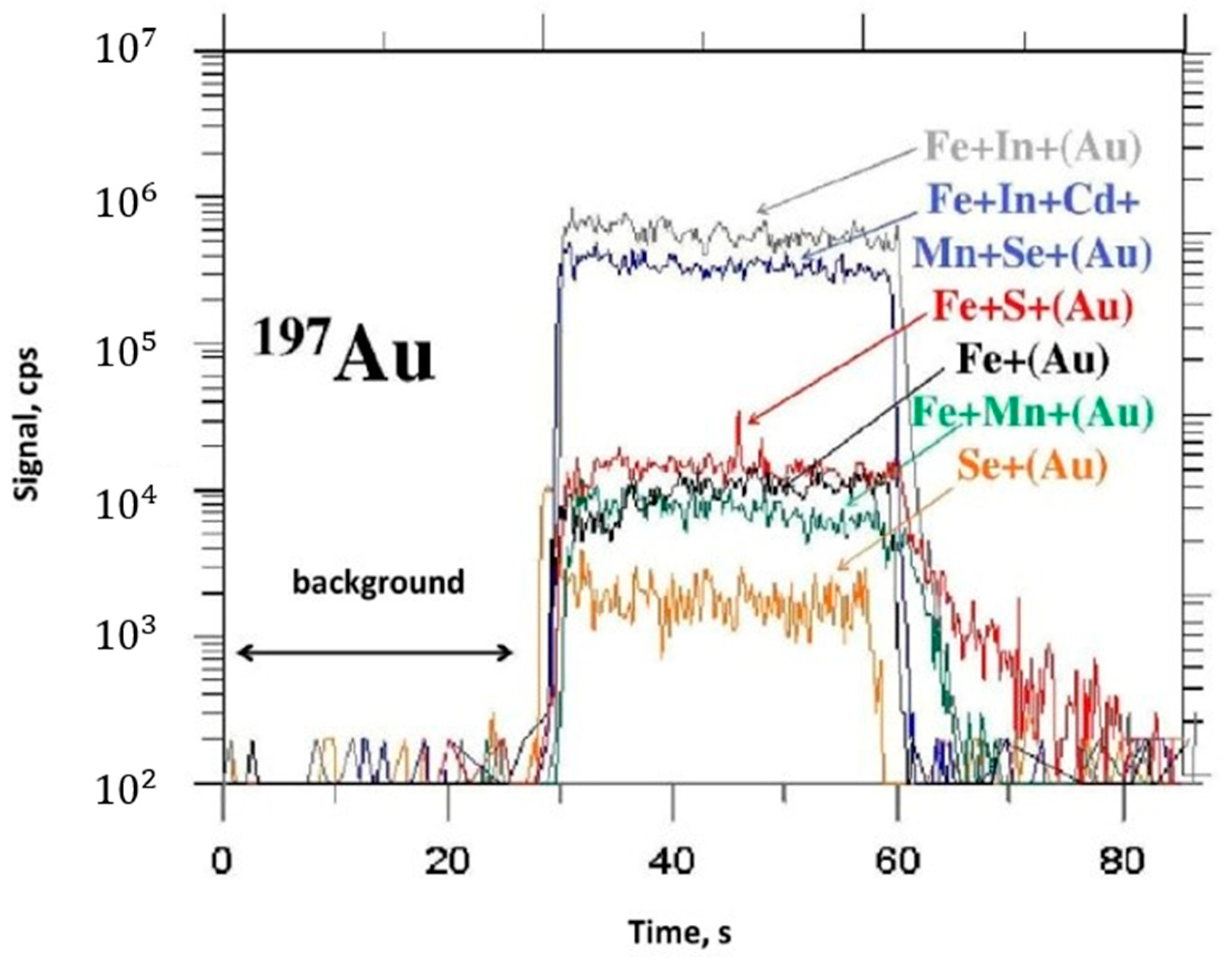

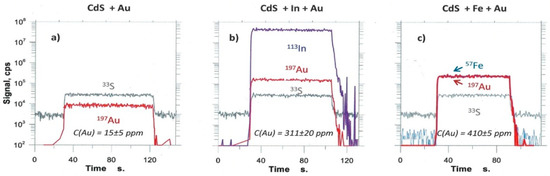

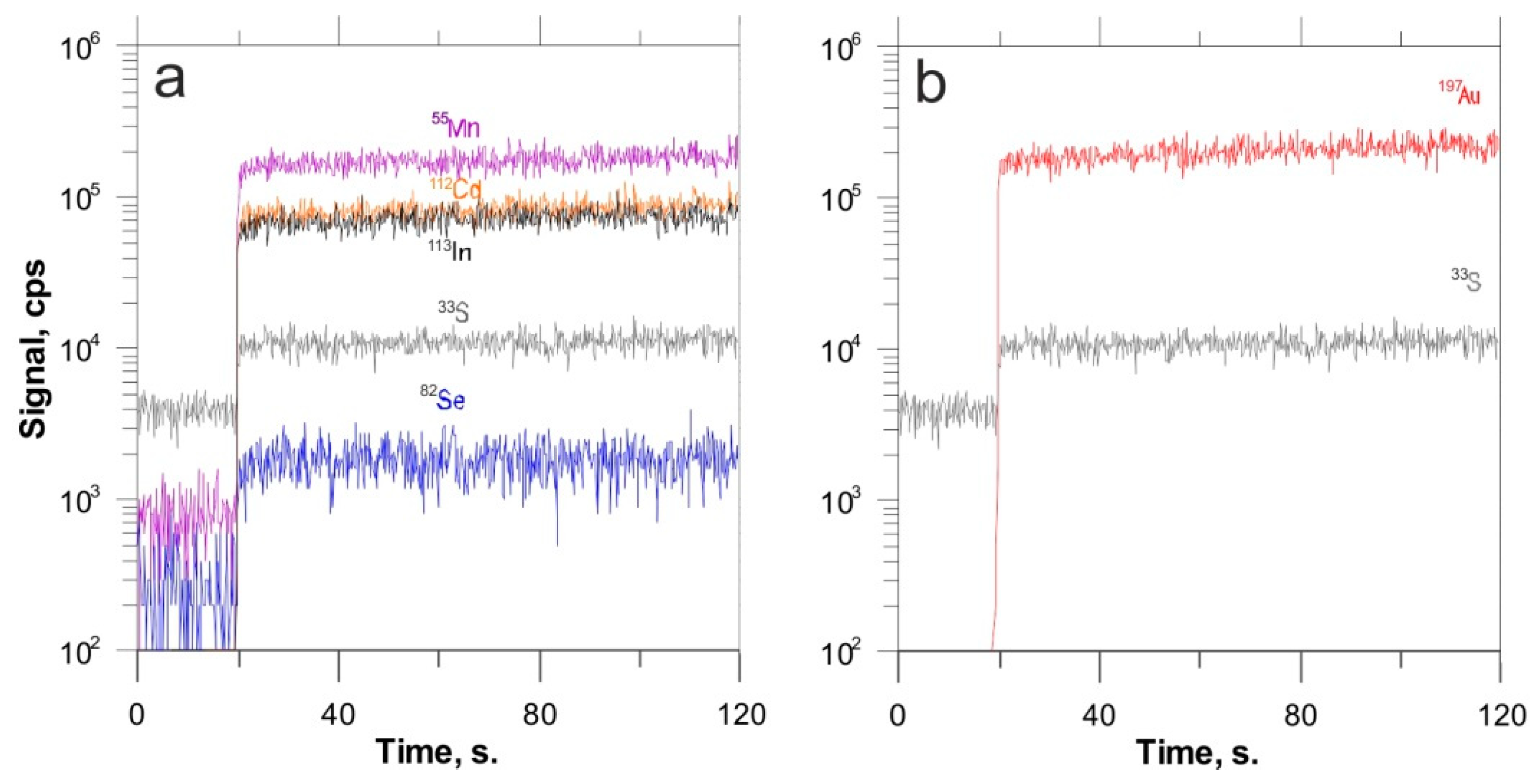

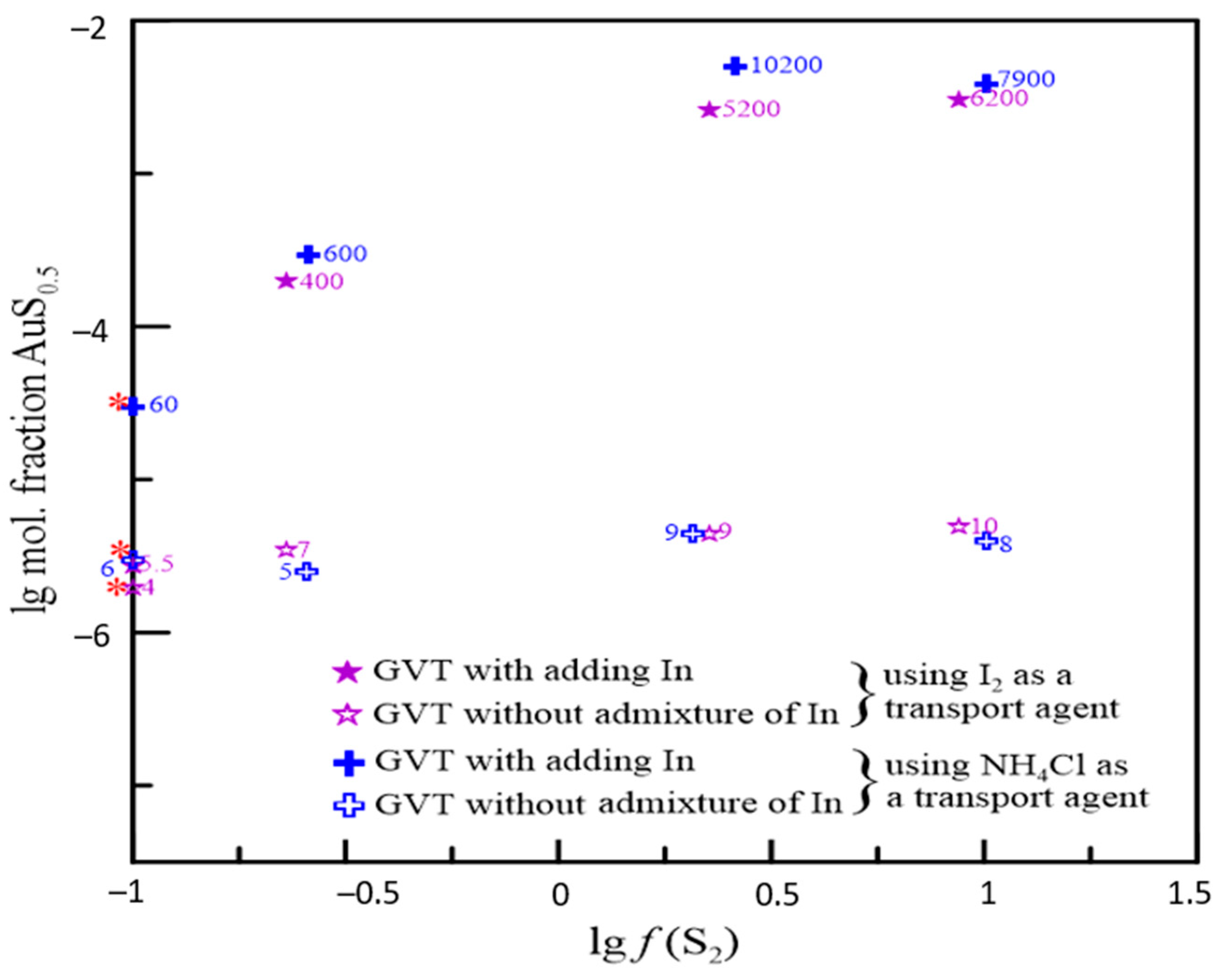

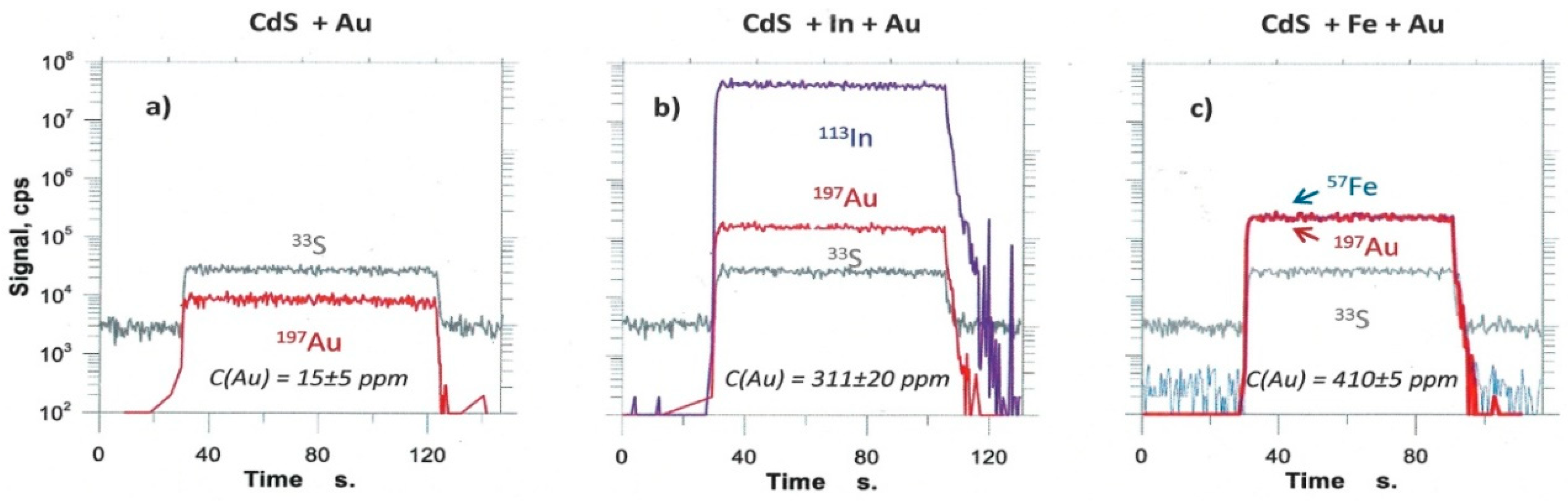

To study the form of invisible Au in sulphides, we and our colleagues synthesised the Au-bearing chalcogenides using different methods (hydrothermal and gas transport methods and salt flux technique [44,45,90]) at contrasting T/f S₂ conditions and addressed the Au local environment using XAS [16,91,92]. High Au, Pt, Pd and other metals’ contents intentionally introduced into the synthetic phases allowed using the spectroscopic methods to determine the structural-chemical state of the NM in sulphides using first-principles quantum chemical calculations and Bader charge analysis (e.g., [19]).

The microanalyses of natural sulphides for all deposits under consideration were accompanied by studies on conditions of ore formation based on fluid inclusion data and mineral geothermometry, and they are partly implied but not discussed in detail in this paper. The regime of volatiles was also briefly discussed.

4. Noble Metal Distribution and Speciations

4.1. Gold Deposits

4.1.1. The Vorontsovka Gold Deposit

The Vorontsovka deposit is mainly comprised of vein-disseminated zones with rare gold-quartz veinlets. Ore contains pyrite, arsenopyrite, chalcopyrite, sphalerite, galena, hessite Ag₂Te, coloradoite HgTe, alabandine MnS, native gold (fineness 910–998 for early and 680–690 for late generations) (

Table 6. Mineral forms of Au and Ag in the large gold deposits of the Urals, modified after [93].

Vorontsovka	Berezovsk	Svetlinsk	Petropavlovsk
Hessite Ag2Te, native gold, küstelite, Ag-tetrahedrite, freibergite (Ag,Cu)12Sb4S13	Native silver, native gold, freibergite (Ag,Cu)12Sb4S13, matildite AgBiS2, hessite Ag2Te, acanthite Ag2S	Native gold, calaverite AuTe2, aurostibite AuSb2, montbrayite (Au,Sb)2Te3, krennerite (Au,Ag)Te2, sylvanite AuAgTe4, petzite Ag3AuTe2, volynskite AgBiTe2, maldonite Au2Bi, hessite Ag2Te, γ-hessite Ag1.9Te, acanthite Ag2S	Native gold, hessite Ag2Te, petzite Ag3AuTe2, calaverite AuTe2, sylvanite AuAgTe4

; Figure 4) and various As-Sb mineralisation: native As, realgar AsS, orpiment As₂S₃, tennantite, tennantite-tetrahedrite, aktashite Cu₆Hg₃As₄S₁₂, cinnabar HgS, alabandine MnS, clerite MnSb₂S₄, routhierite TlHgAsS₃, pierrotite Tl₂(Sb,As)₁₀S₁₇, stibnite Sb₂S₃, zinkenite Pb₉Sb₂₂S₄₂, chalcostibite CuSbS₂, boulangerite Pb₅Sb₄S₁₁, jamesonite Pb₄FeSb₆S₁₄, bournonite PbCuSbS₃, plagionite Pb₅Sb₈S₁₇ and geocronite Pb₁₄(Sb,As)₆S₂₃ [63]. There are four groups of mineral assemblages in the ore bodies. The later assemblages often overprint the early ones: (1) VMS-like (with low Au content), (2) gold-pyrite-arsenopyrite (gold fineness 910–998), (3) magnetite and epidote-garnet skarn and skarnoid (with low gold content) and (4) gold-pyrite-realgar (gold fineness 680–690) [63].

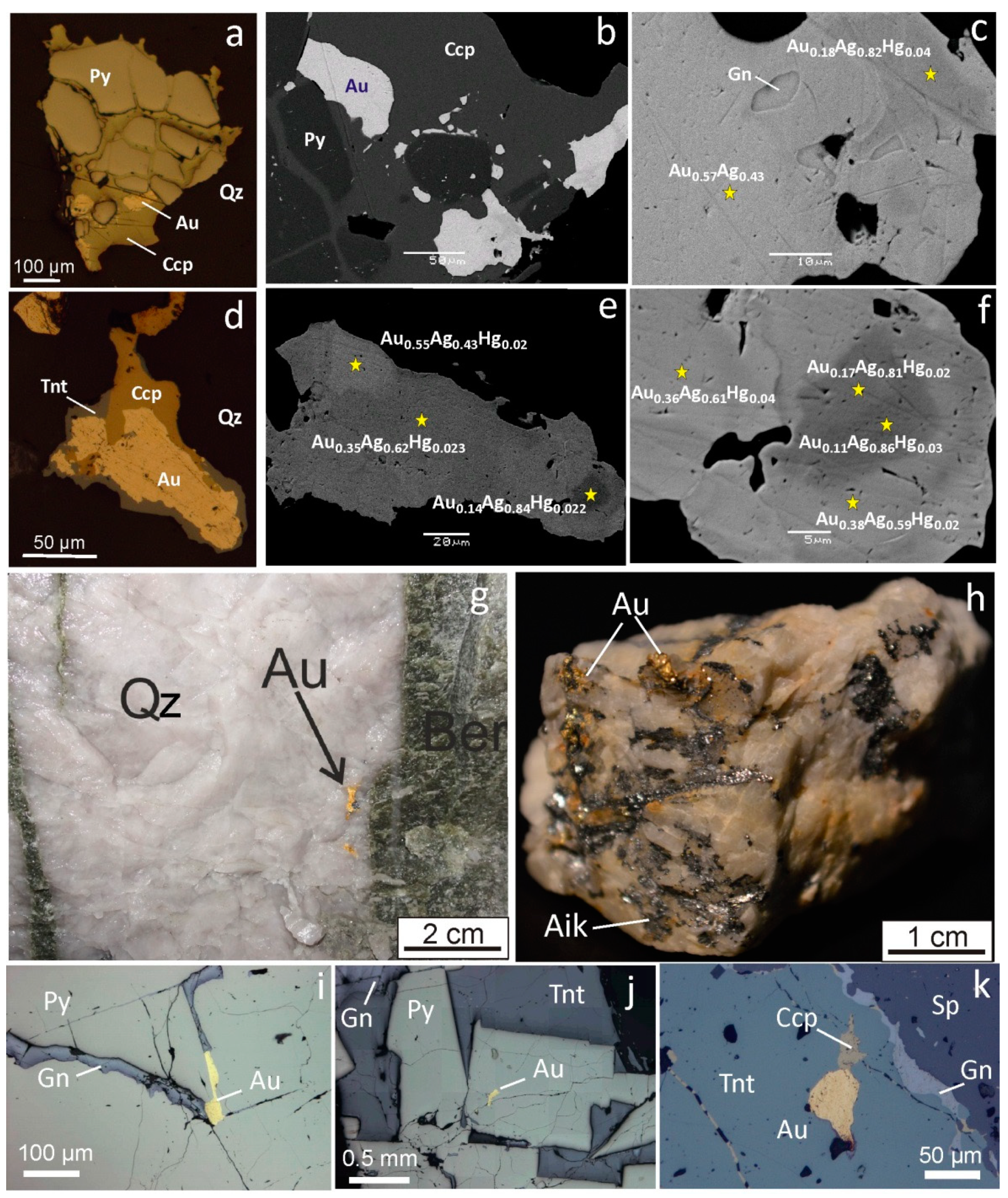

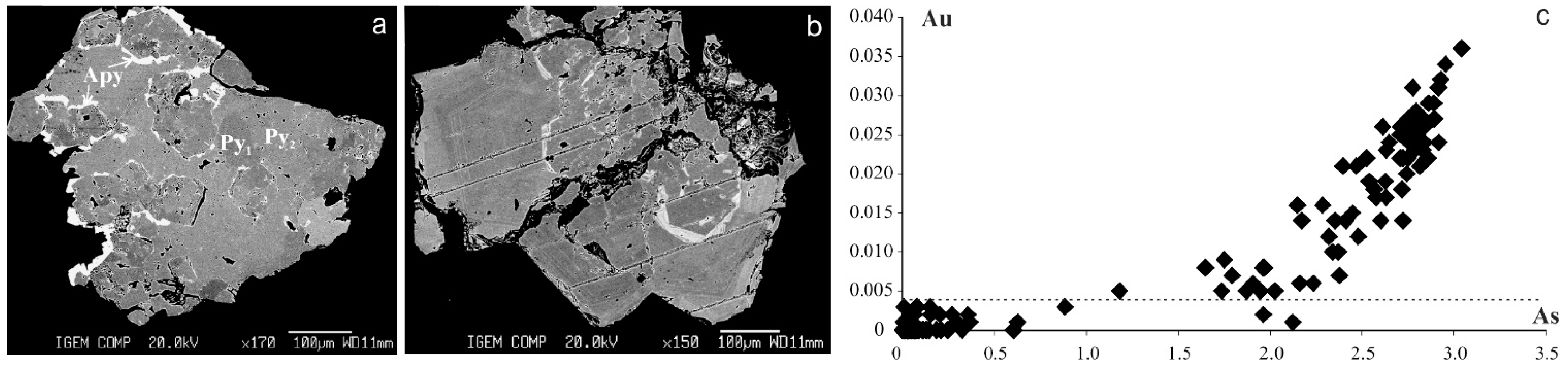

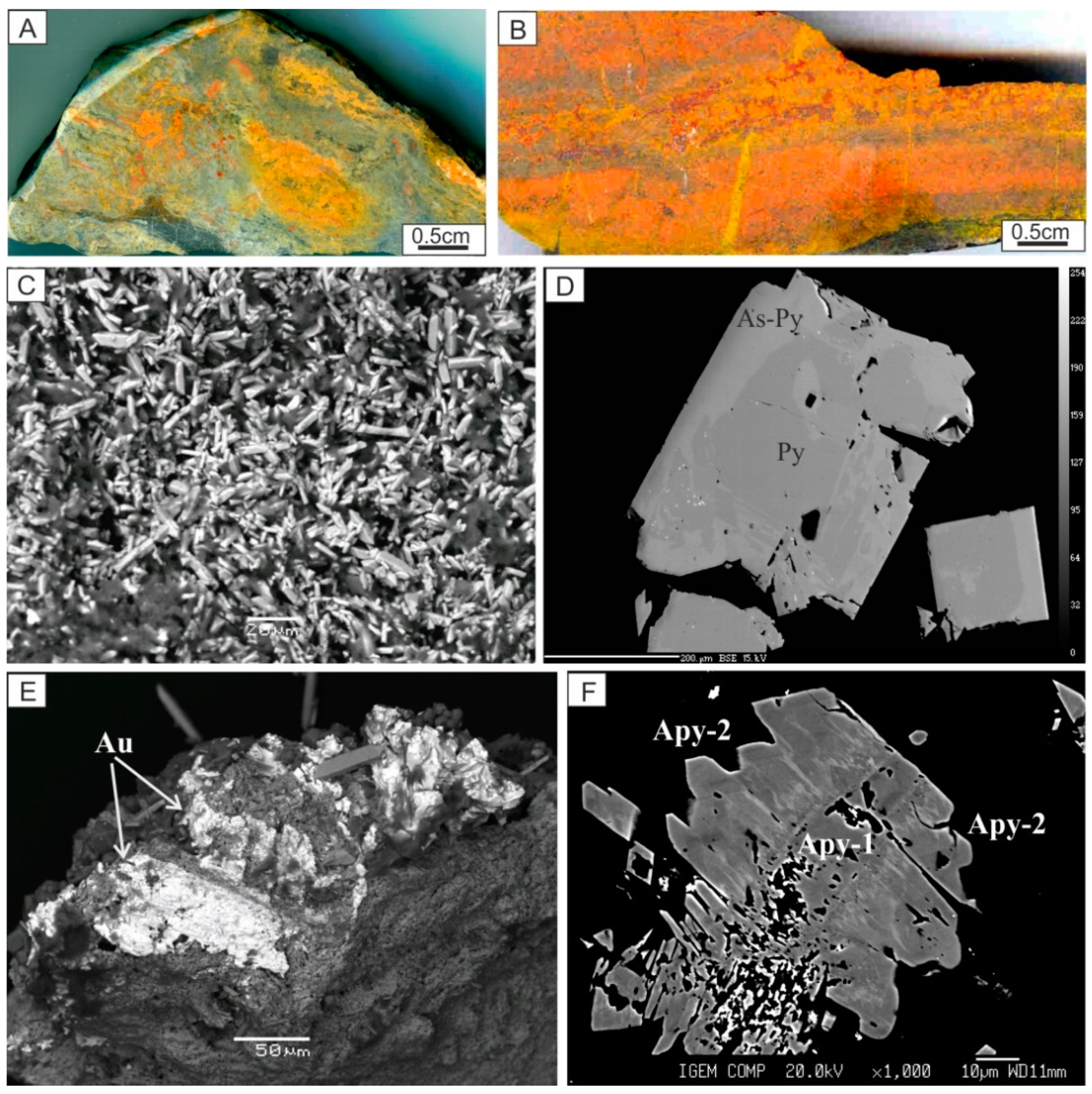

Invisible gold in arsenopyrite and As-pyrite: The study of gold modes in arsenopyrite is particularly important and relevant. This mineral is widespread in the dominant—in terms of gold reserves—black-shale-hosted gold deposits. This particular mineral demonstrates peak concentrations of invisible gold, as well as a exceptionally high resistance to endogenous and exogenous epigenetic processes. Simultaneously, arsenopyrite is “refractory” in hydrometallurgy processing ([51]; cf., [94]). One of the most relevant for the study of invisible gold is the Carlin deposit type [7,50,51,95,96,97], where gold-bearing arsenopyrite is the predominant host mineral for gold in the ore (i.e., Au-concentrator, along with As-pyrite) with up to sub-wt% level of Au content. In this paper, we conducted a comparative study of the distribution of gold in ‘Carlin’ and ‘pre-Carlin’ arsenopyrites on the example of the Vorontsovka gold deposit in the Urals [18,63,80] (Figure 5). Studied arsenopyrite-bearing mineral assemblages were crystallised at the contrast TPX conditions (Table 3).

With more detail, we studied arsenopyrite from the arsenopyrite-sulphosalt-polymetallic assemblage of the skarn group (Apy-1) and arsenopyrite from the later As-löllingite-arsenopyrite assemblage (Apy-2) by INAA and EPMA [80]. Moreover, As-rich arsenopyrite (Apy-2) grows orthogonally on the elongated prismatic relics of the S-rich arsenopyrite (Apy-1) that appears to be the earlier arsenopyrite from the previous mineralisation stage (Figure 5d).

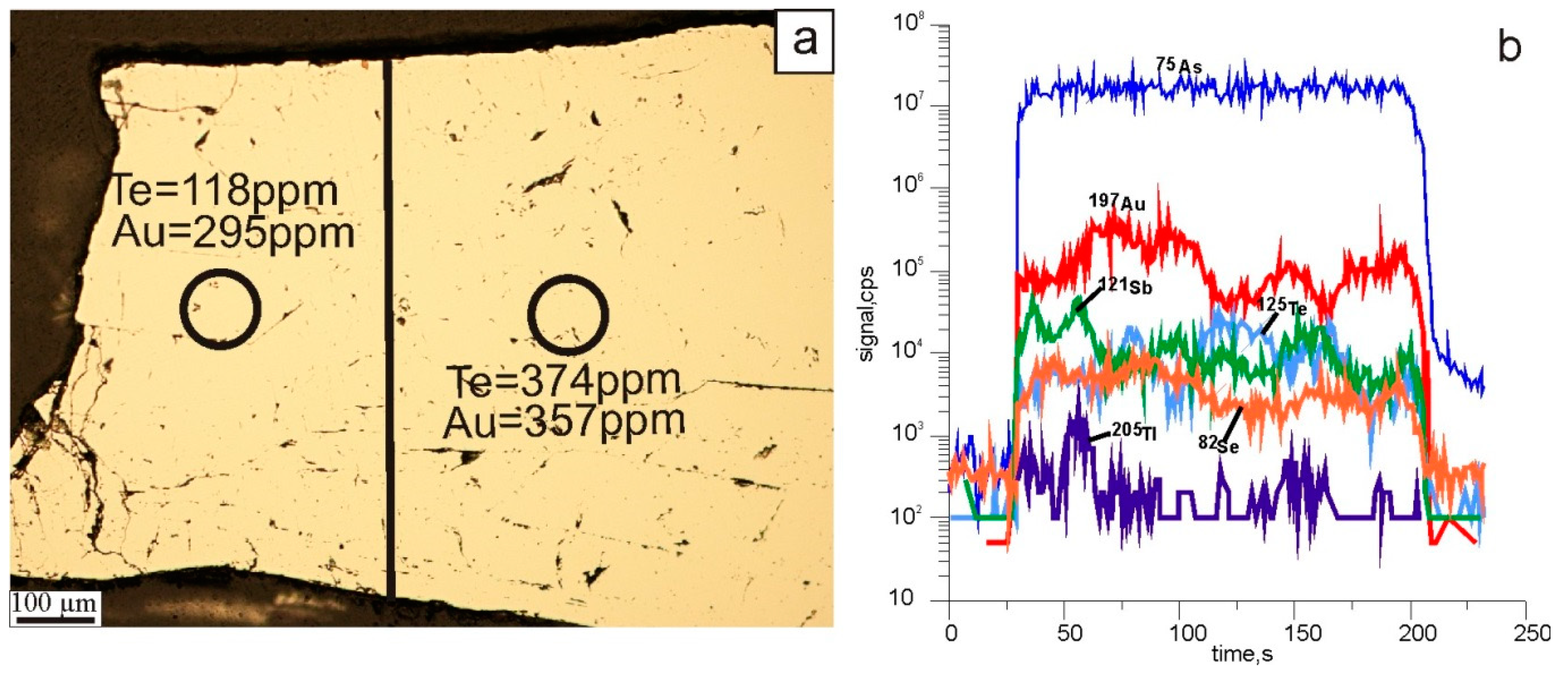

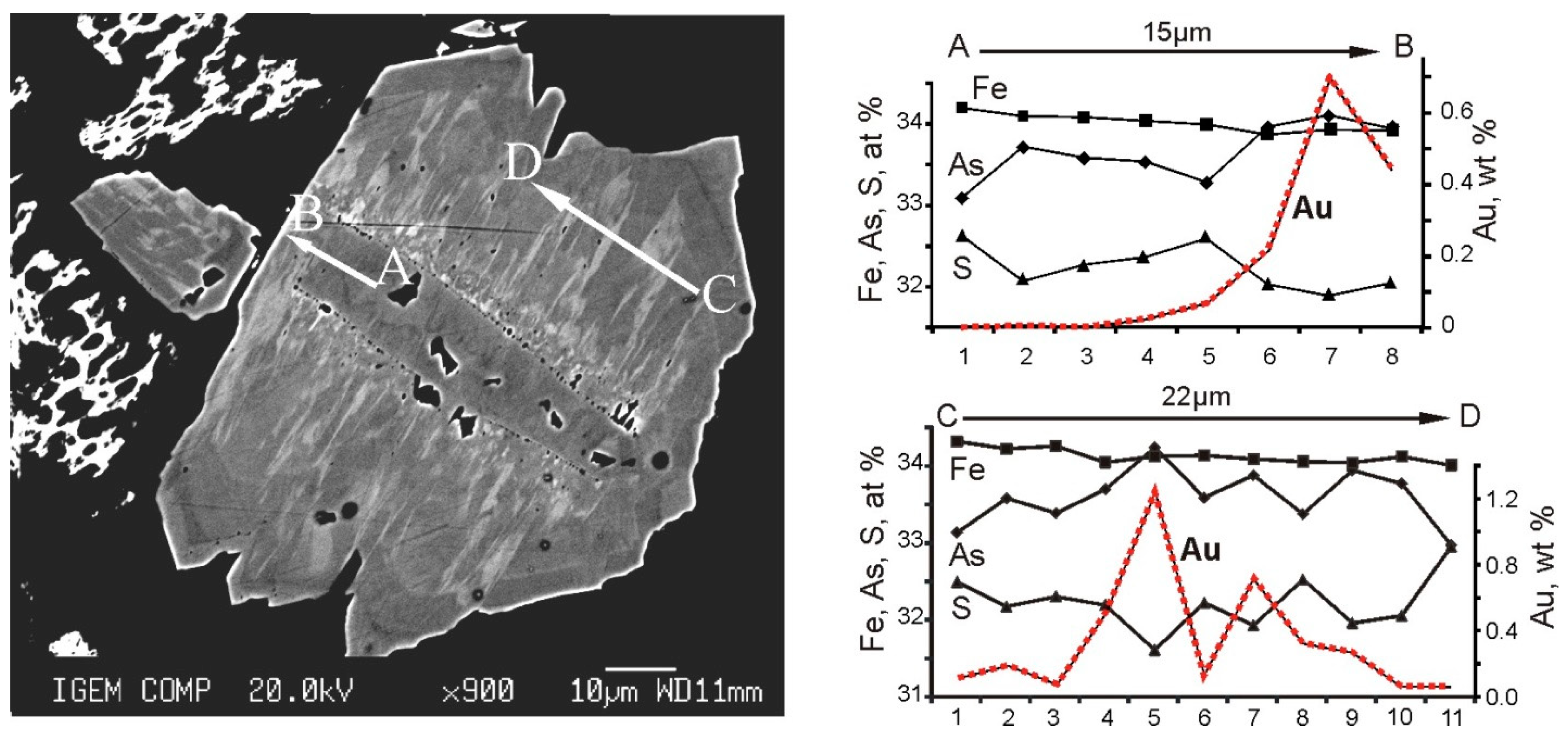

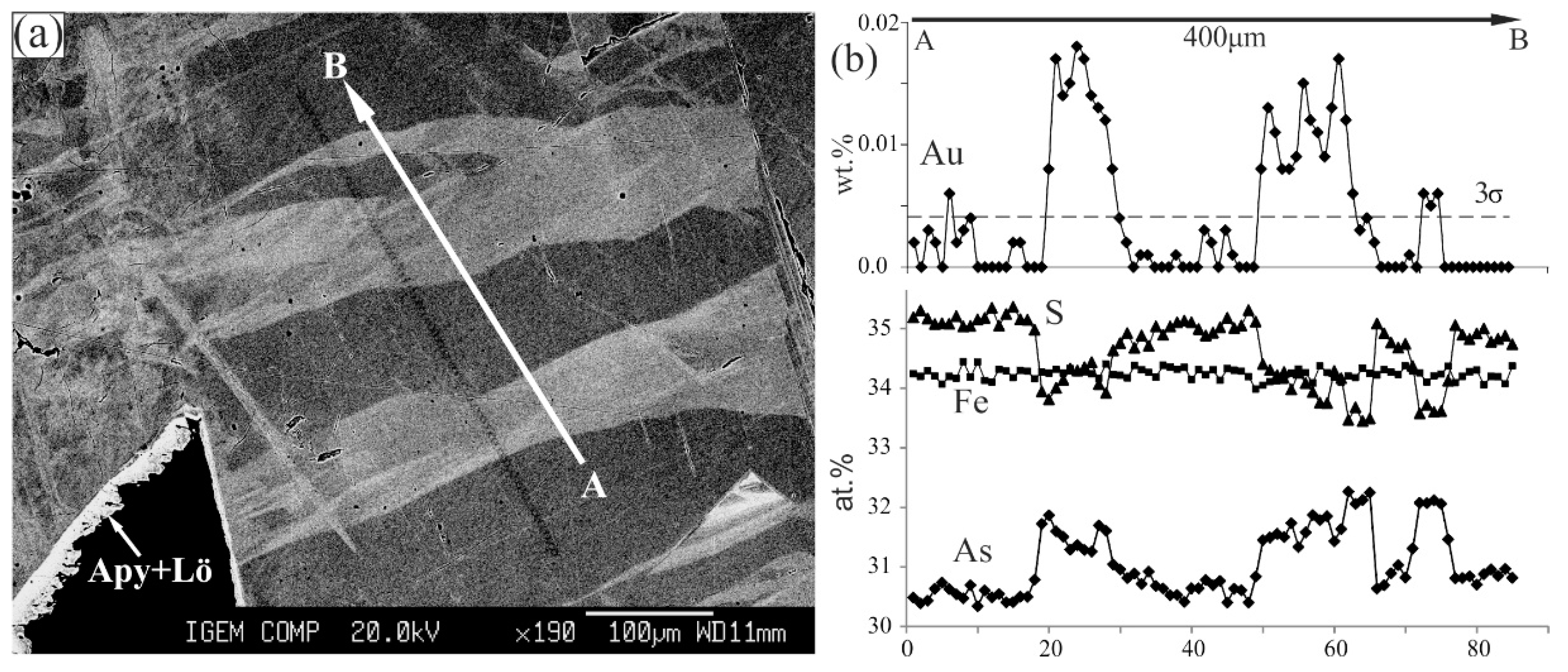

Both arsenopyrite generations are characterised by zonal structure (Figure 5, Figure 6, Figure 7 and Figure 8). Apy-1 contains ~28.9 at% As and As/S is 0.89 ± 0.04, while C_Au varies from the detection limit to 0.25 wt%. C_Au increases to 170 ppm in the lighter zones of the S-rich arsenopyrite (Figure 7). In contrast, the outer high-arsenic rim of this arsenopyrite crystal (the lightest in BSE zones on the Figure 7a,b) contains no gold (Au < 45 ppm, EPMA).

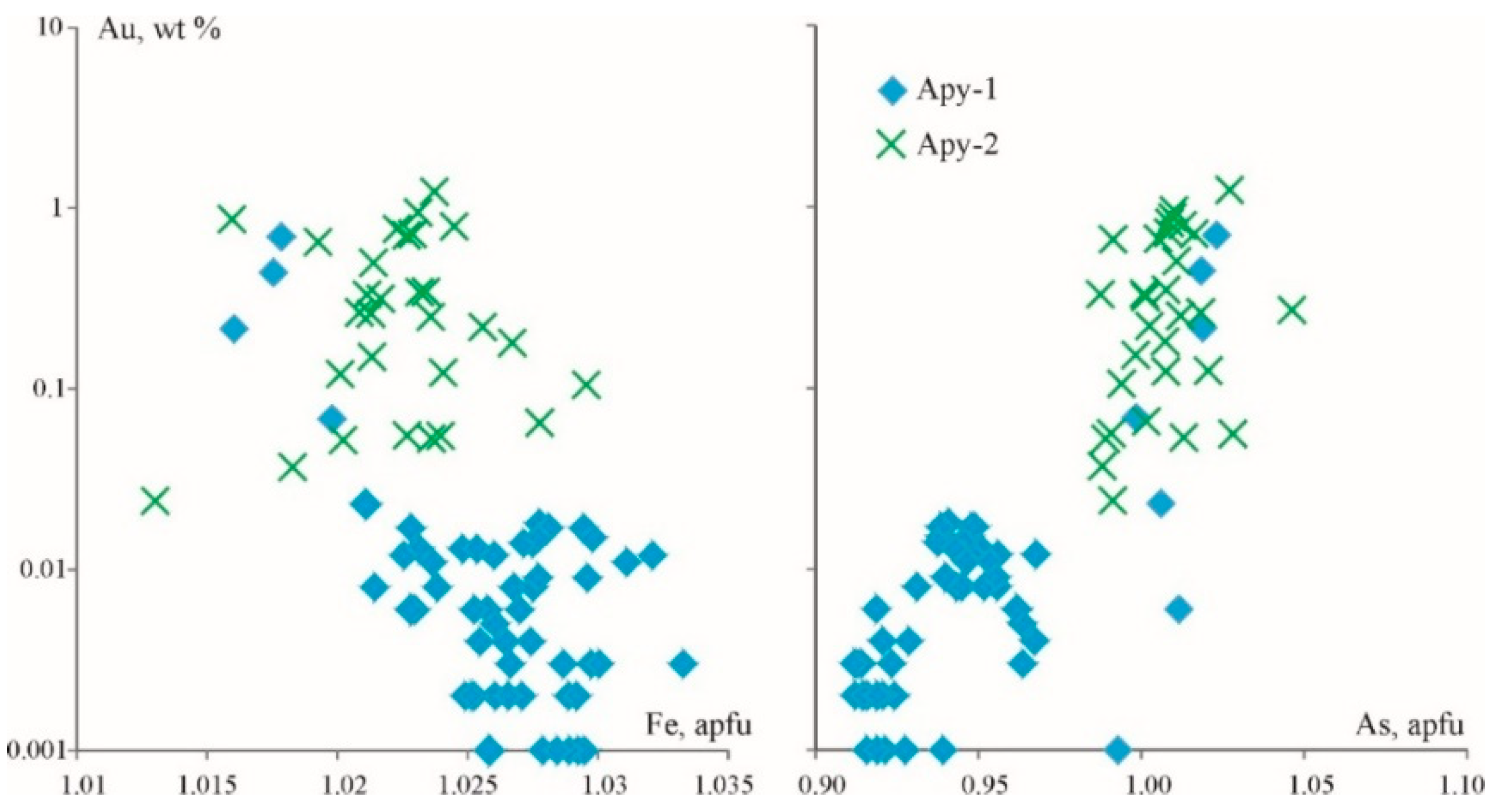

Apy-2 has the average ratio As/S = 1.04 ± 0.03, and the Au content in Apy-2 varies from the detection limit to 1.23 wt% (Figure 8). The average gold content is 5–6 ppm. Typomorphic impurities for this arsenopyrite are Te (up to 1.2 wt%, mainly 400–500 ppm) and Tl (up to 43 ppm), and the Au content fluctuations correlate with the thallium variations. Gold distribution in the late arsenopyrite demonstrates a absence of positive Au–As correlation (Figure 8).

Early ore assemblages of the Vorontsovka gold deposit were formed at 510–240 °C (including magnetite skarn and later arsenopyrite-sulphosalt-polymetallic assemblage), whereas late Carlin-style gold-(Fe, As, Hg)-sulphide-quartz mineralisation was deposited at decreasing temperatures from ~350 to 100 °C [63,80,98]. In general, crystallisation of the arsenopyrite-bearing mineral assemblages occurs as temperature and, especially, f S₂ (from 10^-7 to 10^-17) decrease [63,80].

According to INAA data, pyrite from the sample Vr10–17 of the gold-skarn ore of the Vorontsovka deposit contains: As 4.3 wt%, Co 215 ppm, Sb 259 ppm, Ag 104 ppm and Au 2777 ppm. In this sample, a precision study of the relationship between the contents of Au and the main components of pyrite was performed by the EPMA method under conditions similar to those described in [18]. The correlation coefficient of As and Au in the pyrite crystal is 0.91 (N = 143). Figure 9 clearly shows two groups of impurity contents in the pyrite: one group has low As contents and close to Au detection limit (≤0.004 wt%). In contrast, the second group ranges from ~2 wt% As and with increasing its concentration, the Au impurity increases linearly to 0.036 wt%.

4.1.2. The Berezovsk Gold Deposit

The dominant opaque minerals commonly filling the fractures in quartz are pyrite, tetrahedrite, aikinite, galena and chalcopyrite. The sulphide contents range from 2 to 10 vol%. Major Au mineral is native gold (Table 3; Figure 4), bearing 85–100 wt% of its total balance. Early dust-like (<10 μm) gold-I grains are included in pyrite, and gold fineness ranges 863–984. The size of later gold-II grains is larger (commonly 0.05–0.5 mm, up to 1 mm, and rarely more). Gold fineness ranges 729–904 [64]. The contents of Au and Ag in sulphides are as follows: pyrite 0.18–73.5 ppm Au and <0.2–92 ppm Ag; galena 0.15–2.96 ppm Au, 0.1–2.51 ppm Ag, INAA; pyrite 0.01–21.8 ppm Au and galena 0.05–0.3 ppm Au, LA-ICPMS; chalcopyrite 0.06–0.32 wt% Au, 0.07–0.18 wt% Ag, EPMA.

In most pyrite crystals, the main impurity elements are Co (0.09–4180; geometric mean (geom. mean) 16 ppm), Ni (1.2–244; geom. mean 21 ppm) and As (14–1486; geom. mean 388 ppm), and their distribution is zonal with an increase in the amount of Co and Ni and a decrease of As from the margin to the centre of the grain (Figure 10). Less common impurities are: Cu (1–560; geom. mean 14 ppm), Zn (0.5–113; geom. mean 4.3 ppm), Pb (0.1–1090; geom. mean 2.4 ppm) and Bi (0.01–84; geom. mean 0.3 ppm). Rare impurities are Mn (0.7–14 ppm), Ga (0.06–0.2 ppm), Ge (0.3–1.2 ppm), Ag (0.03–40 ppm), Cd (0.01–1.8 ppm), Sn (0.05–0.7 ppm), Sb (0.03–15 ppm), Te (0.5–10 ppm) and Hg (0.4–6 ppm). In this pyrite, C_Au ranges 0.08–0.1 ppm and Au occurs as single peaks of the Ag-Pb-Cu-Sb group.

Au-bearing pyrite (C_Au varies from 1 to 22 ppm) was found in two adjacent ladder veins of the Pervopavlovsk dyke [99]. An inhomogeneity was revealed in the pyrite (Figure 11a,c) in the form of irregular dark areas on the BSE images, in which small (from less than 1 to 10 × 1 microns) inclusions of bright (in reflected electrons) Sn-containing mineral phases, presumably stannite, were detected.

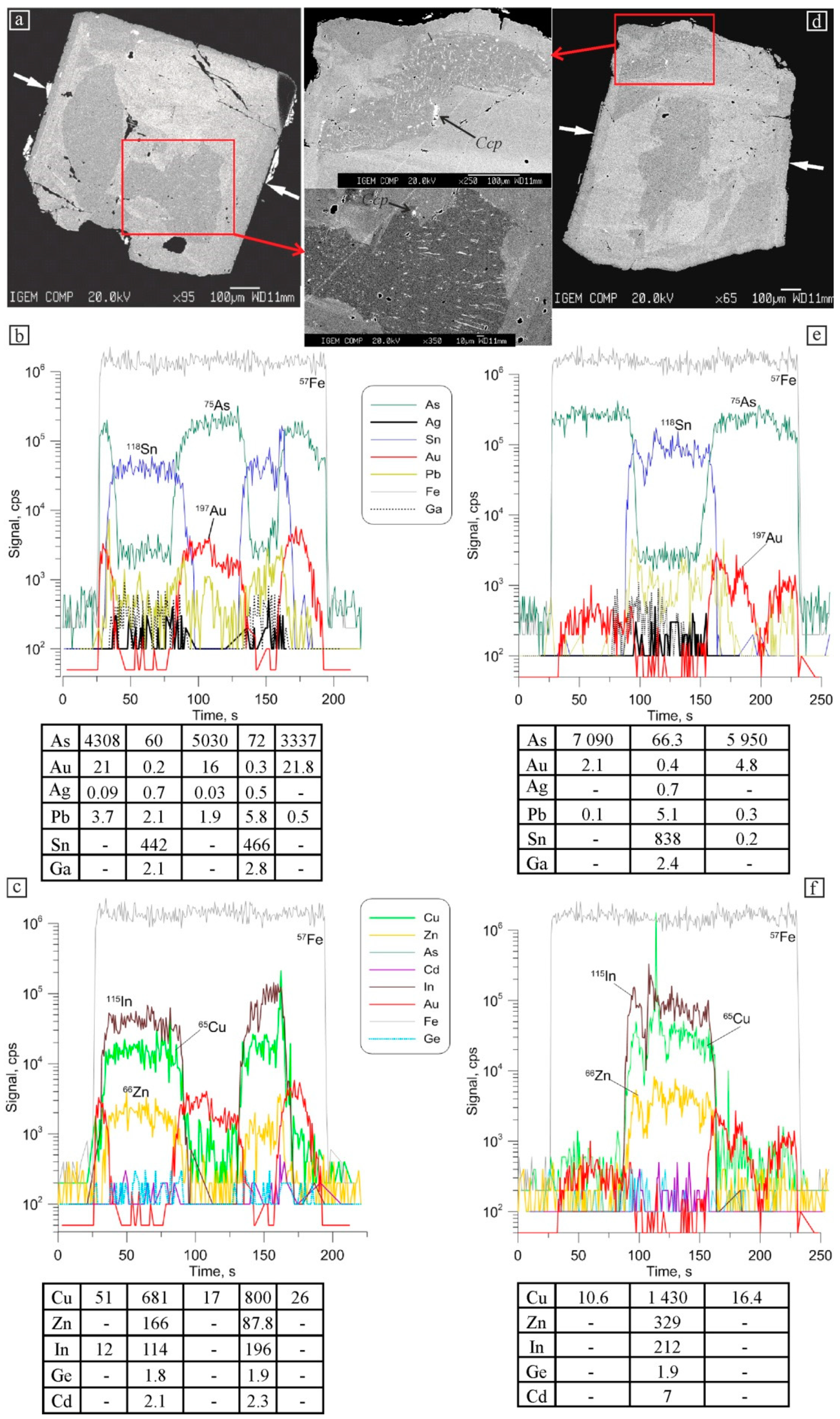

Profile analysis of the pyrite grains (Figure 11) revealed that light in BSE parts of the grains are enriched in As and Au, and the dark ones in BSE—Sn, Cu, Zn, Pb, Cd, In, Ag, Ga, Ge. The high C_Au are only partially consistent with the regions of C_As peaks, since the invisible gold was found only in pyrite crystals containing sub-millimetre domains with small inclusions (from less than 1 to 10 × 1 microns) of stannite. These areas are Au-poor and rich in Sn, Ag, Bi, Cd, Cu, Ga, In, Pb and Zn (Figure 12). The Au-bearing variety of pyrite is characterised by a low content of Co (<0.16 ppm) and Ni (<0.3 ppm) and increased As (51–8277, geom. mean 1325 ppm). The point-like increased contents of Ni and Co on the element maps is probably associated with relict inclusions of the pyrite-2. The “synchronous” increased contents of impurity elements (Ag, Cu, Pb, Zn, Bi, Sb, Co, Ni) at the grain edges probably reflects the presence of thin film of their sulphides and sulphosalts on the surface of the pyrite grain.

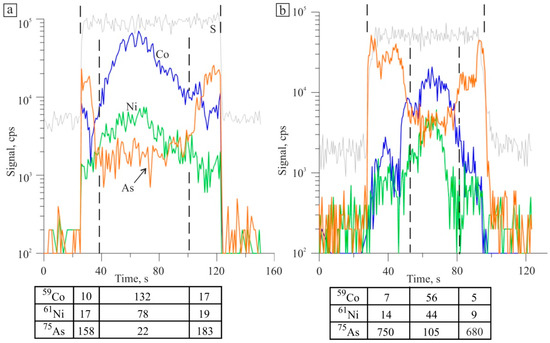

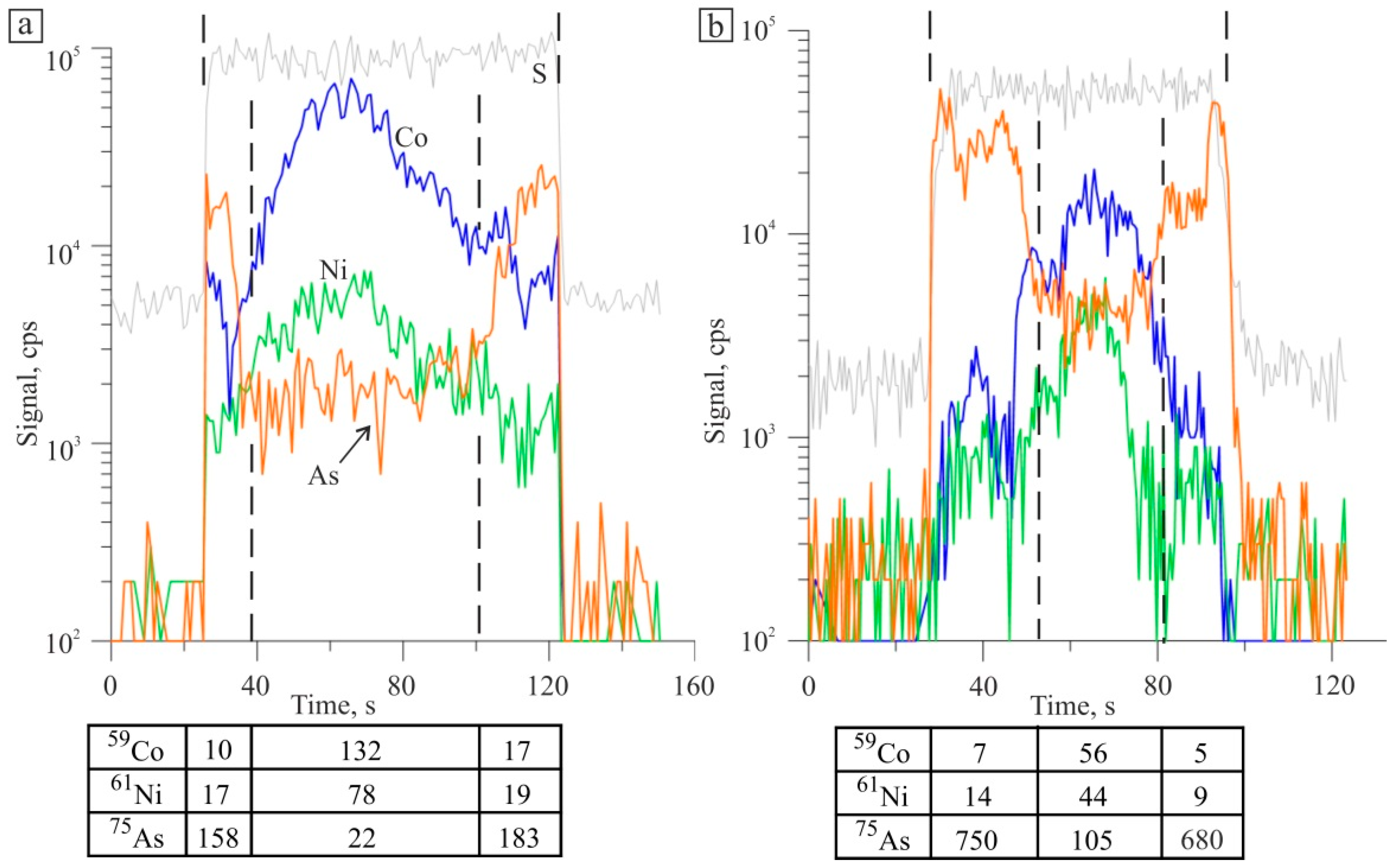

Figure 10. Graphic images of two probing profiles for the pyrite crystals from the sulphide-quartz veins of the Ilyinskaya dyke, the Berezovsk deposit. Here, and in the Figure 11 and Figure 13, the y-axis is signal (counts per second) and x-axis is time (in seconds). Profiles length: (a) 482 μm, (b) 330 μm. Average content of elements (ppm) in the profile intervals in the table below each figure is indicated (here and in Figure 11 and Figure 13).

Figure 10. Graphic images of two probing profiles for the pyrite crystals from the sulphide-quartz veins of the Ilyinskaya dyke, the Berezovsk deposit. Here, and in the Figure 11 and Figure 13, the y-axis is signal (counts per second) and x-axis is time (in seconds). Profiles length: (a) 482 μm, (b) 330 μm. Average content of elements (ppm) in the profile intervals in the table below each figure is indicated (here and in Figure 11 and Figure 13).

Figure 11. Graphic images of the two probing profiles for the pyrite crystals from the sulphide-quarts veins of the Pervopavlovsk dyke, the Berezovsk deposit. BSE images (a,c), cursors indicate the location of the probing profiles, LA-ICPMS profile length (b,d–f): left—842 μm, right—330 μm. Frames in (a,c) indicate the areas with stannite (small, elongated) and chalcopyrite (Ccp) inclusions, see the insets.

Figure 11. Graphic images of the two probing profiles for the pyrite crystals from the sulphide-quarts veins of the Pervopavlovsk dyke, the Berezovsk deposit. BSE images (a,c), cursors indicate the location of the probing profiles, LA-ICPMS profile length (b,d–f): left—842 μm, right—330 μm. Frames in (a,c) indicate the areas with stannite (small, elongated) and chalcopyrite (Ccp) inclusions, see the insets.

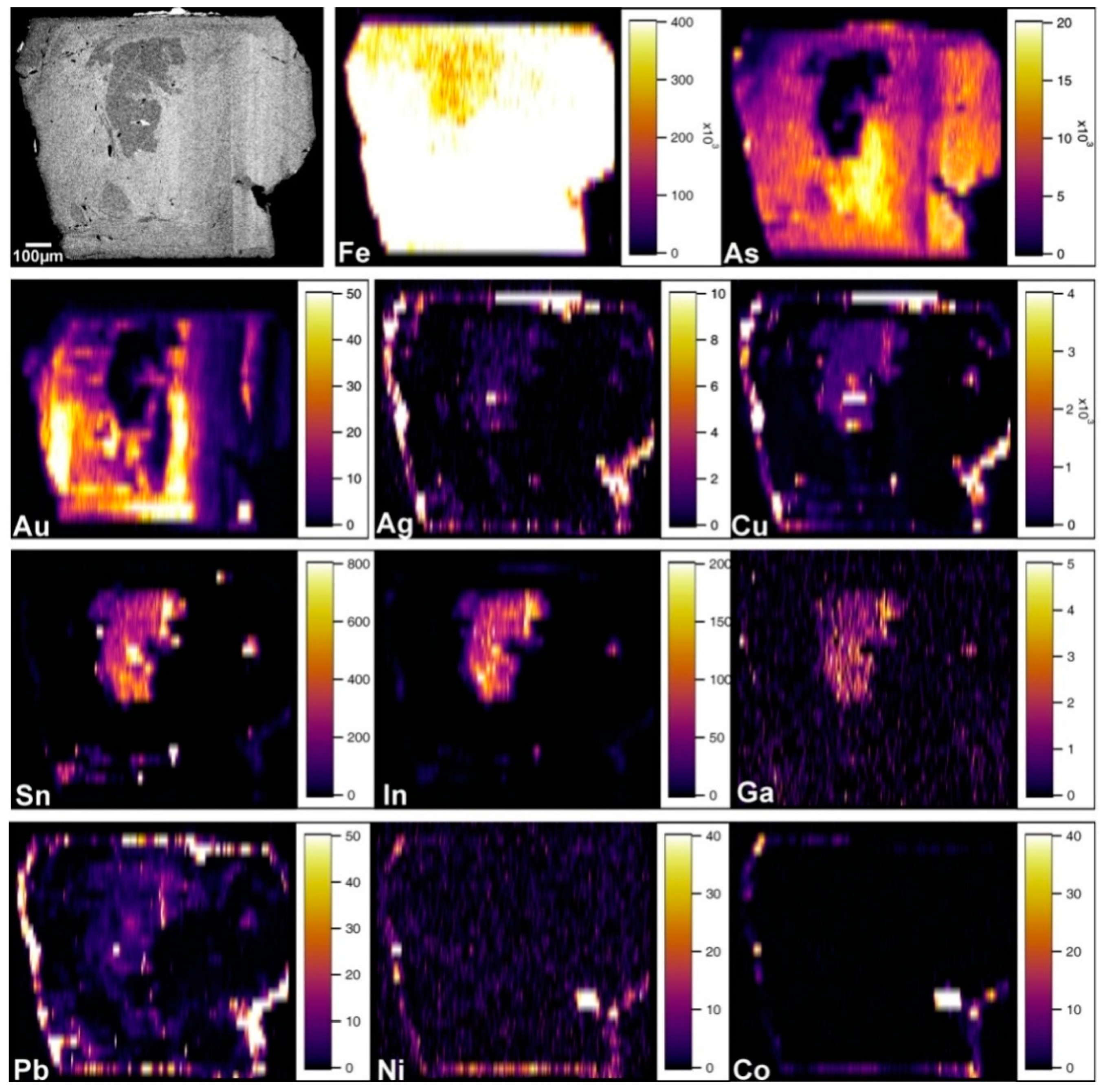

Figure 12. The pyrite crystal BSE image (top left) and the element distribution maps; semi-quantitative analysis, scales in ppm.

Figure 12. The pyrite crystal BSE image (top left) and the element distribution maps; semi-quantitative analysis, scales in ppm.

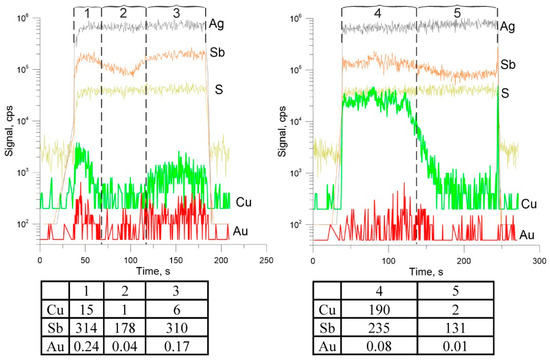

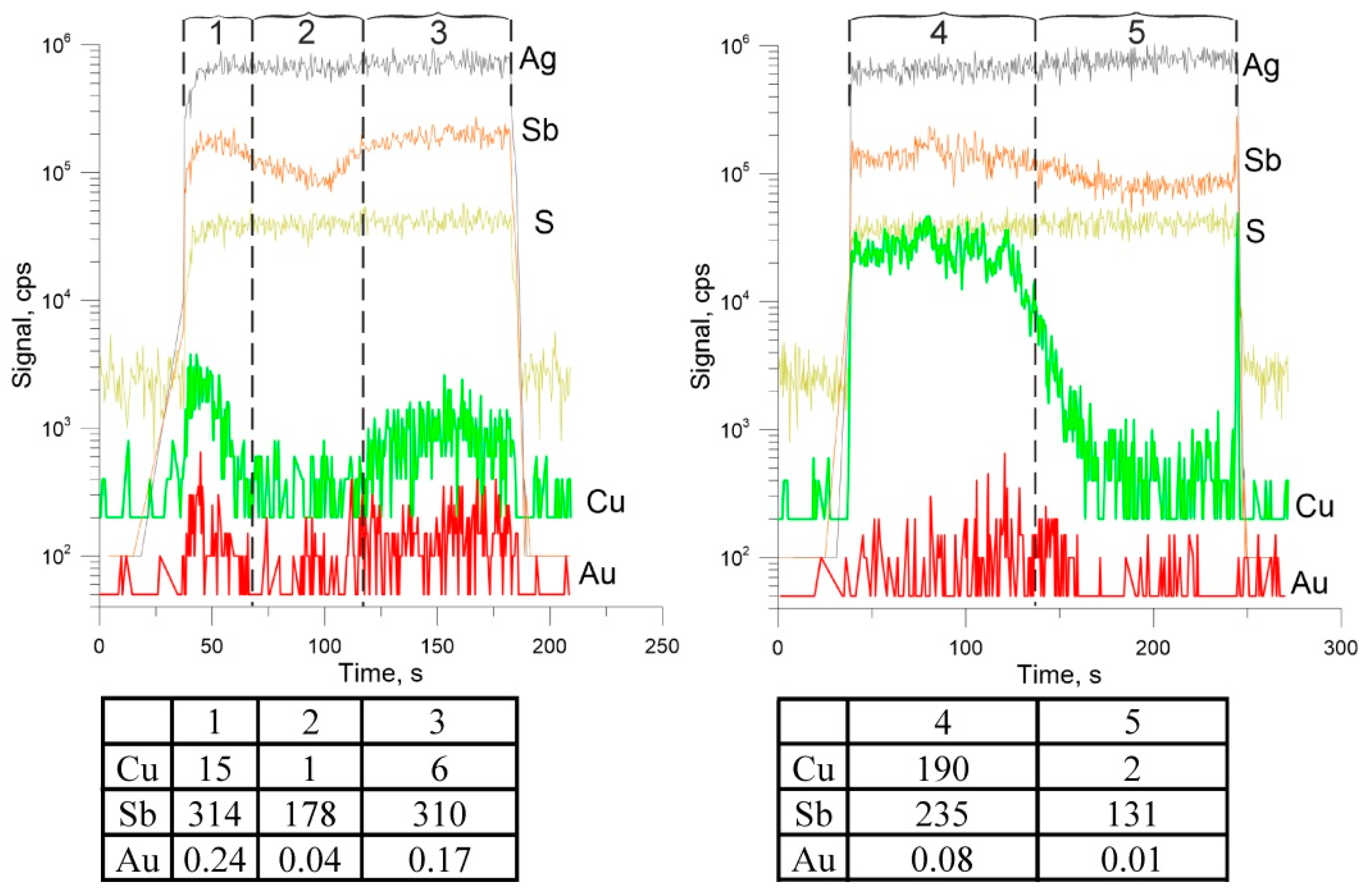

Figure 13. Graphic images of the two probing profiles for the galena crystals from quarts veins of the gumbeites from the Shartash massive, the Berezovsk ore field. Profile length: left—1031 μm, right—728 μm.

Figure 13. Graphic images of the two probing profiles for the galena crystals from quarts veins of the gumbeites from the Shartash massive, the Berezovsk ore field. Profile length: left—1031 μm, right—728 μm.

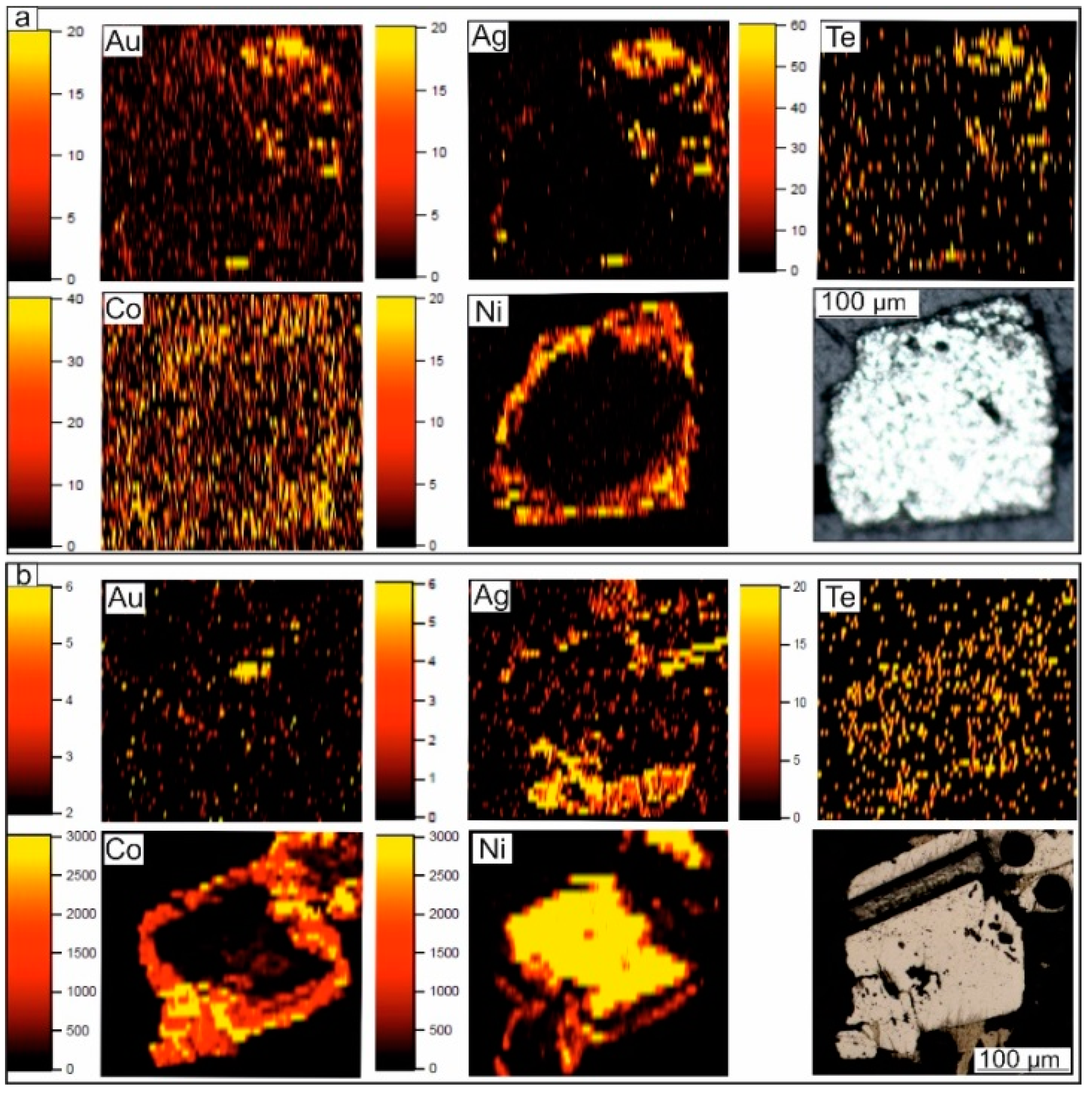

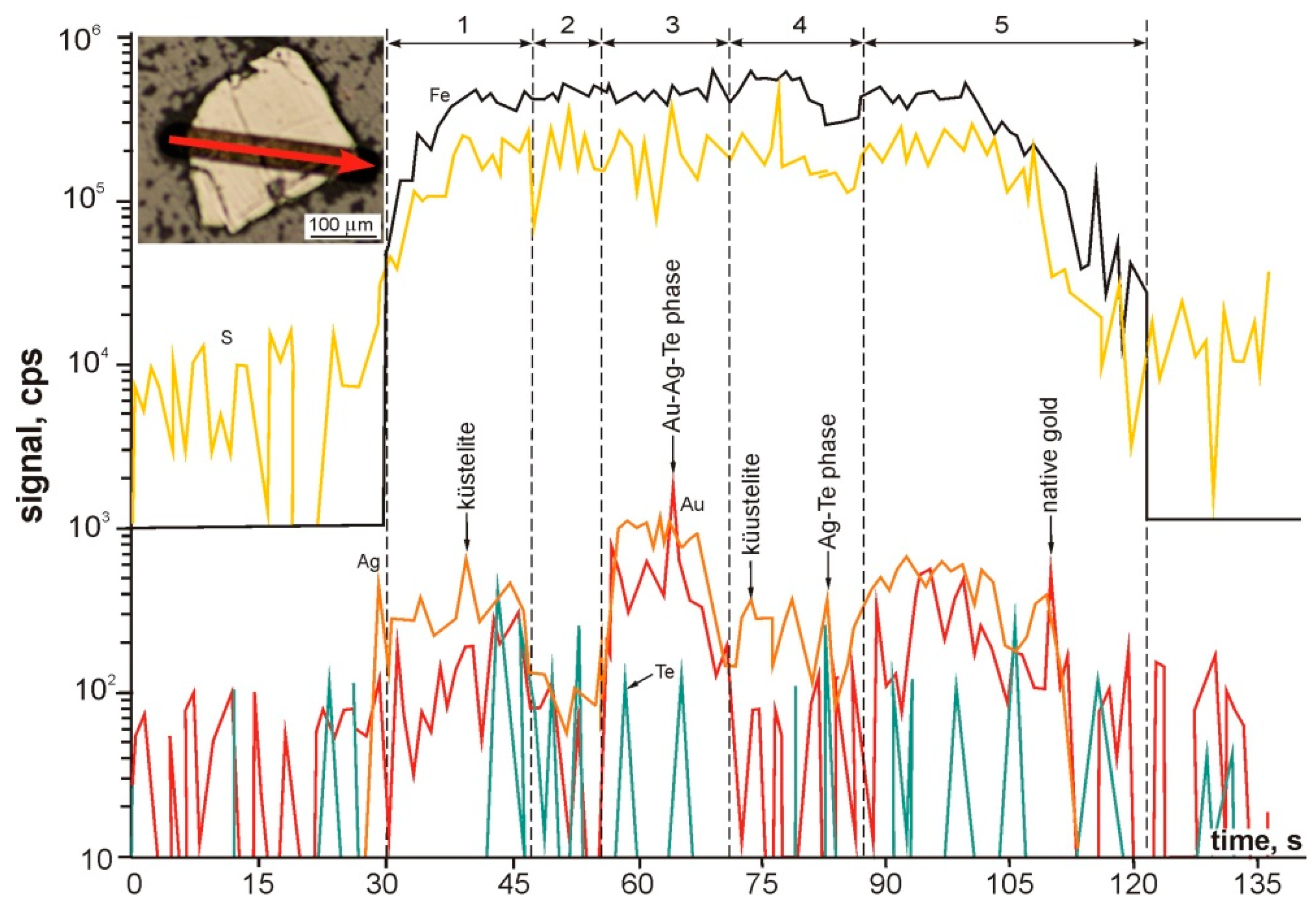

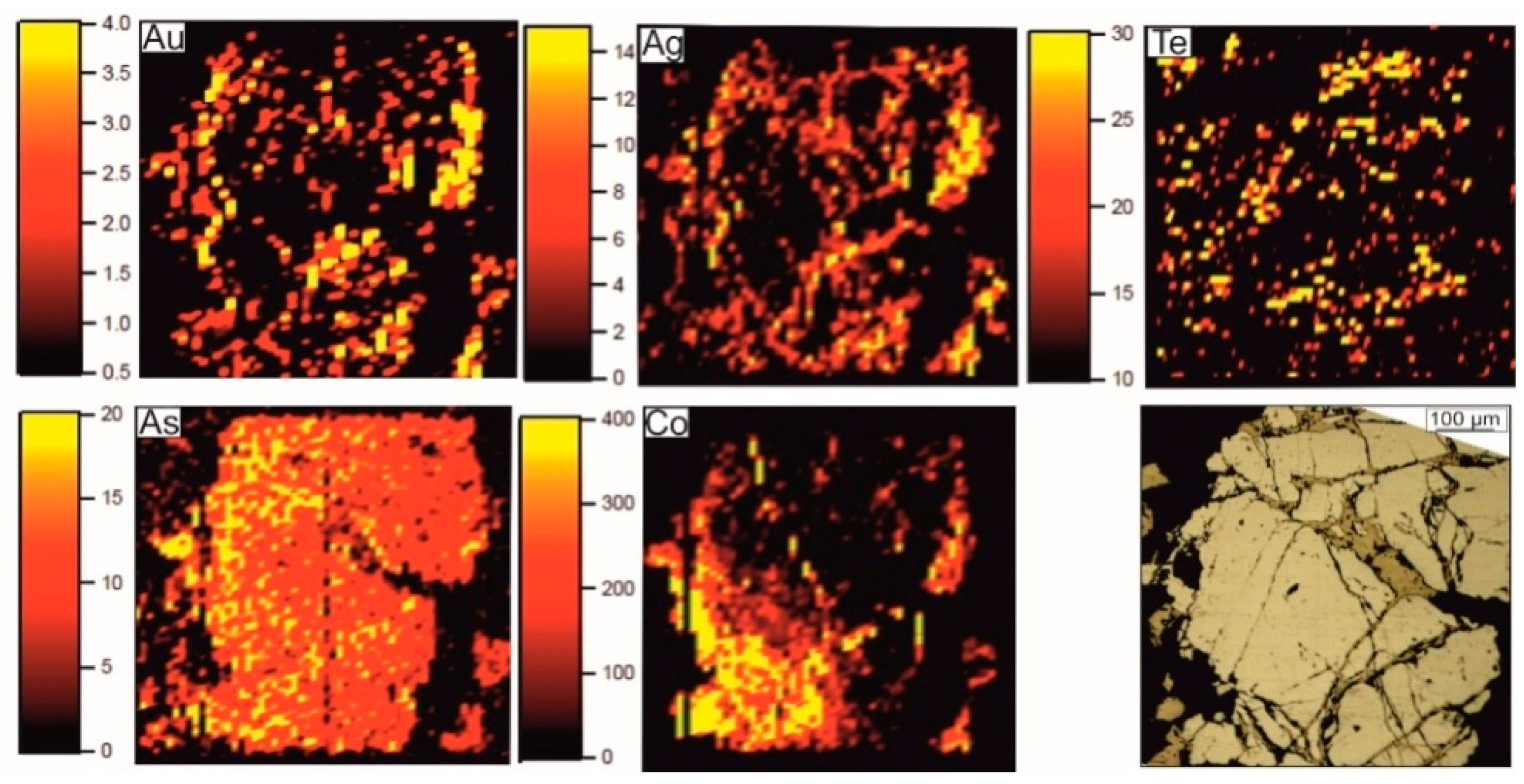

The LA-ICPMS method revealed an inhomogeneous distribution of Au (0.01–0.04 ppm) in galena from the sulphide-quartz veins of the gumbeite alteration (quartz + orthoclase + dolomite-ankerite ± scheelite) of the Shartash granite massif, south of the Berezovsk deposit, with an increase in the crystal periphery to 0.59 ppm (Figure 13). Together with Au, the Cu (up to 241 ppm, geom. mean 22 ppm) and Sb (up to 680 ppm) contents increase to the grain edges, which may be due to fine inclusions of bournonite CuPbSbS₃, possibly Au-containing. This pattern is traced in all the grains of the mineral (the total number of ablation test points is 33). The distribution of other elements’ impurities is homogeneous within single grain with arithmetic mean values (in ppm): Zn—2.5, As—11, Se—4.6, Ag—927, Cd—130, Sn—0.4, Te—150, Tl—2.8 and Bi—2154. Their contents have minor variations in galena from different veins.

4.1.3. The Svetlinsk Gold-Telluride Deposit

The Svetlinsk gold-telluride deposit contains the gold ores, which can be divided into two types (except for ore in regolith): (1) disseminated pyrite-pyrrhotite in the host rocks (C_Au up to 1 g/t), and (2) sulphide-quartz veins and veinlets, superimposed on the disseminated mineralisation (average C_Au = 0.8–2.5 g/t). Sulphides are typically about 3–5 vol% (sometimes up to 20 vol%) of the bulk gold-bearing ore. Native gold (fineness 618–964; single value 485) in sulphide-quartz veins forms inclusions in pyrite, tetrahedrite and quartz, as well as is closely associated with tellurides: melonite NiTe₂, frohbergite FeTe₂, altaite PbTe, tellurantimony Sb₂Te₃, Ag- and Au-Ag-tellurides (Table 2, Figure 14) [41]. The bulk ore analyses revealed that vein-disseminated gold ores (Au~2–4 ppm) contained (in ppm) 5–17 Sb, 4–7.3 Te and 2.5–4 Se. For the Svetlinsk deposit, native (Au_0.48–0.96Ag_0.02–0.49) and telluride (calaverite AuTe₂, montbrayite ((Au,Sb)₂Te₃), sylvanite AuAgTe₄, krennerite (Au,Ag)Te₂, petzite Ag₃AuTe₂, hessite Ag₂Te and γ-hessite Ag_1,9Te) forms of manifestation prevail among the Au and Ag minerals (Table 3).

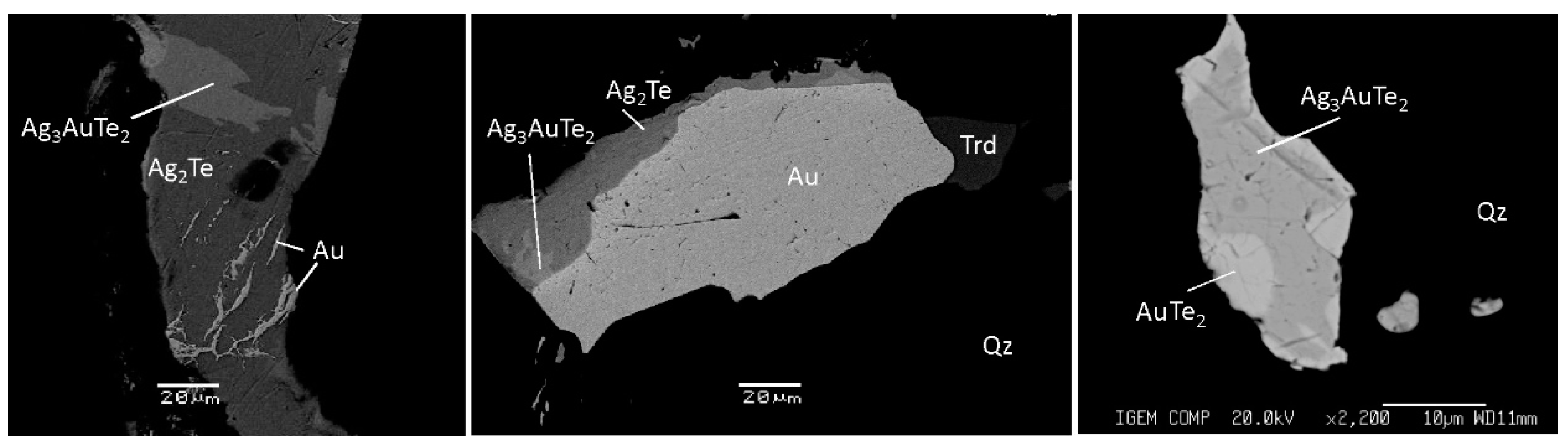

Many Te minerals are important carriers of Au in sulphide-bearing ore [67,100]. The minerals found in the deposit contain up to 1 wt% Au (altaite—up to 0.6 wt%, tellurantimony—from 0.3 to 1 wt%, and tetradymite—up to 0.2 wt%, EPMA). EPMA revealed the presence of Ag in the sulphides of early associations of the quartz-sulphide veins (wt%): chalcopyrite 0.02–0.48, pyrite up to 0.05 and pyrrhotite up to 0.02.

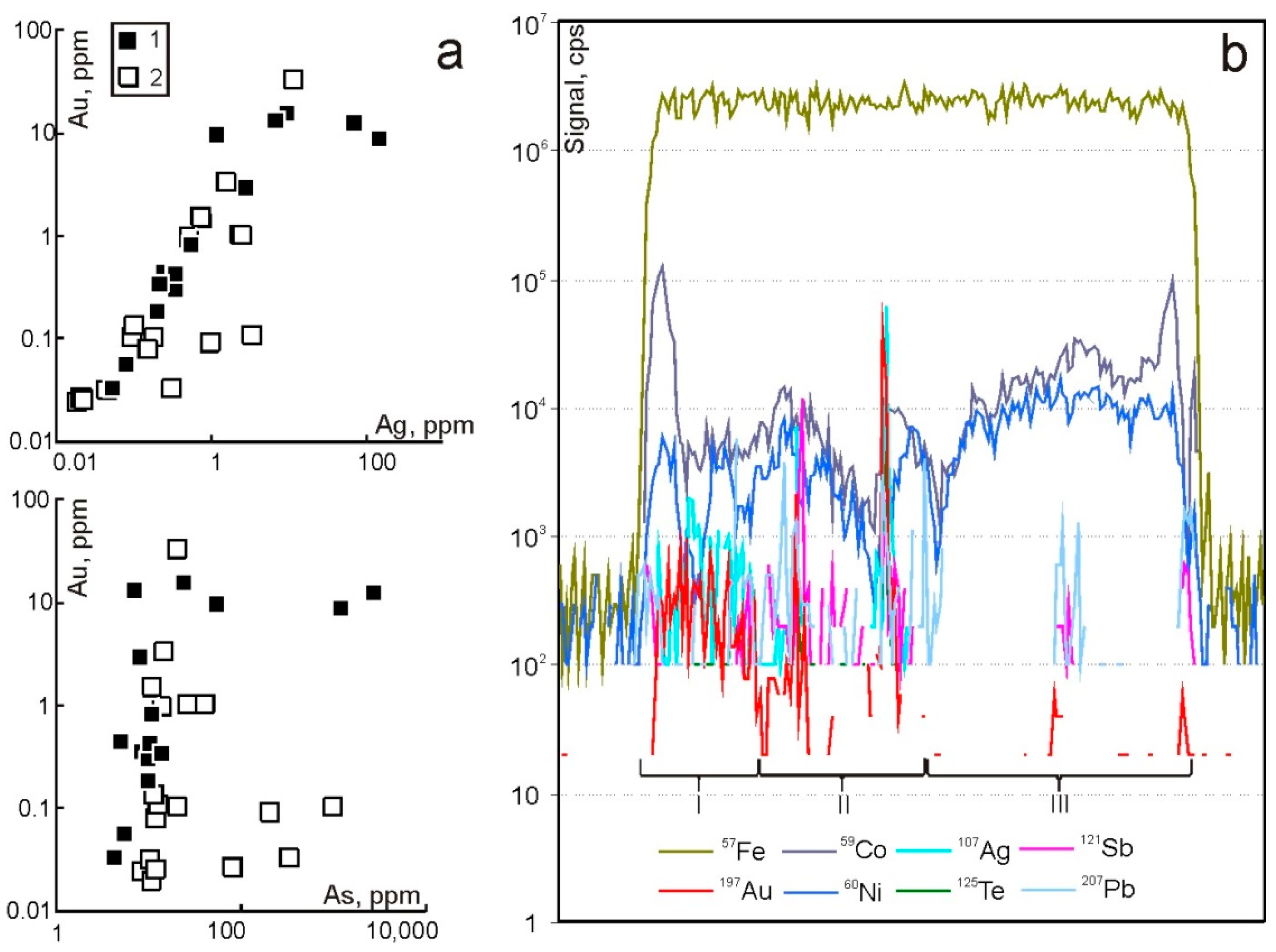

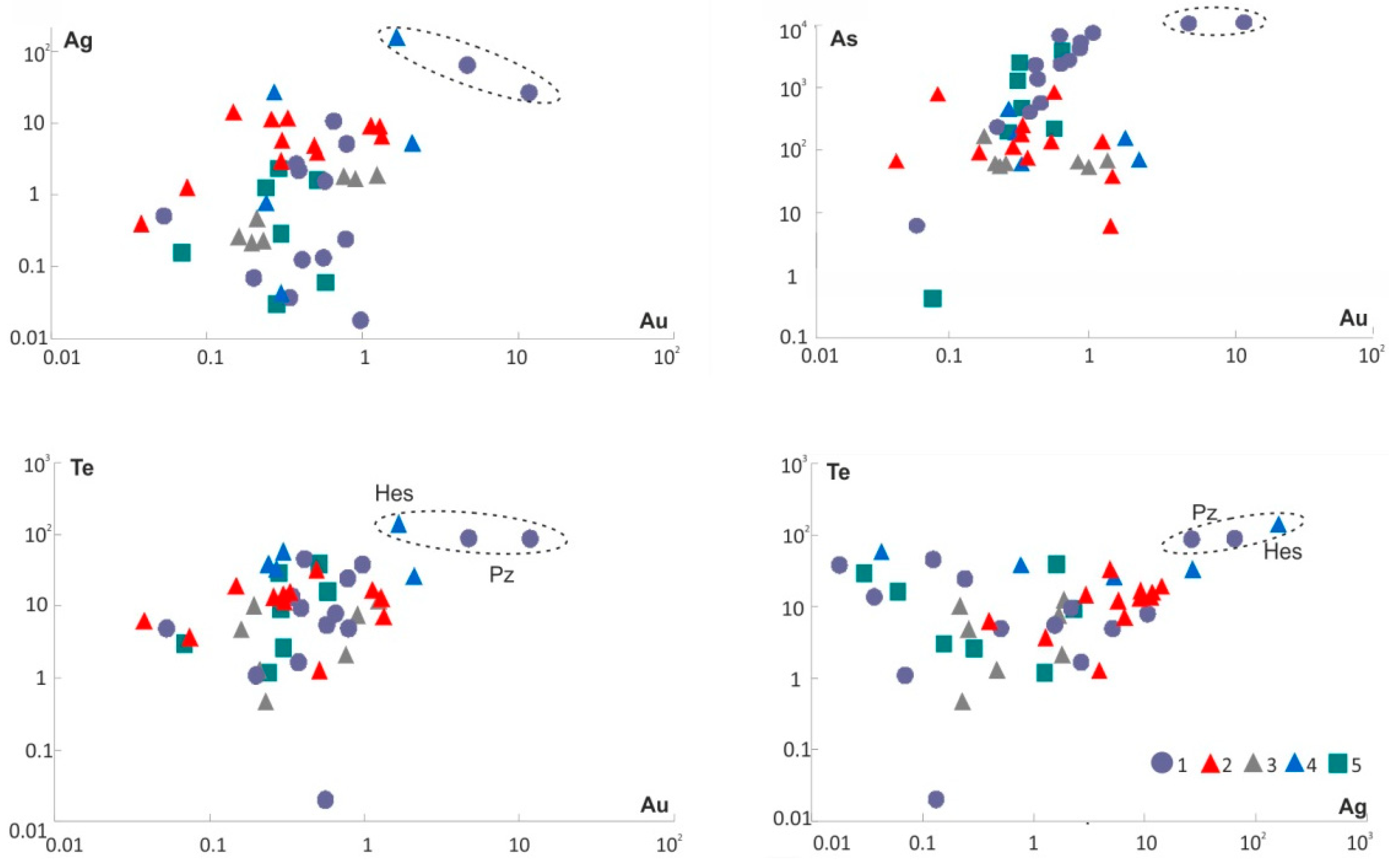

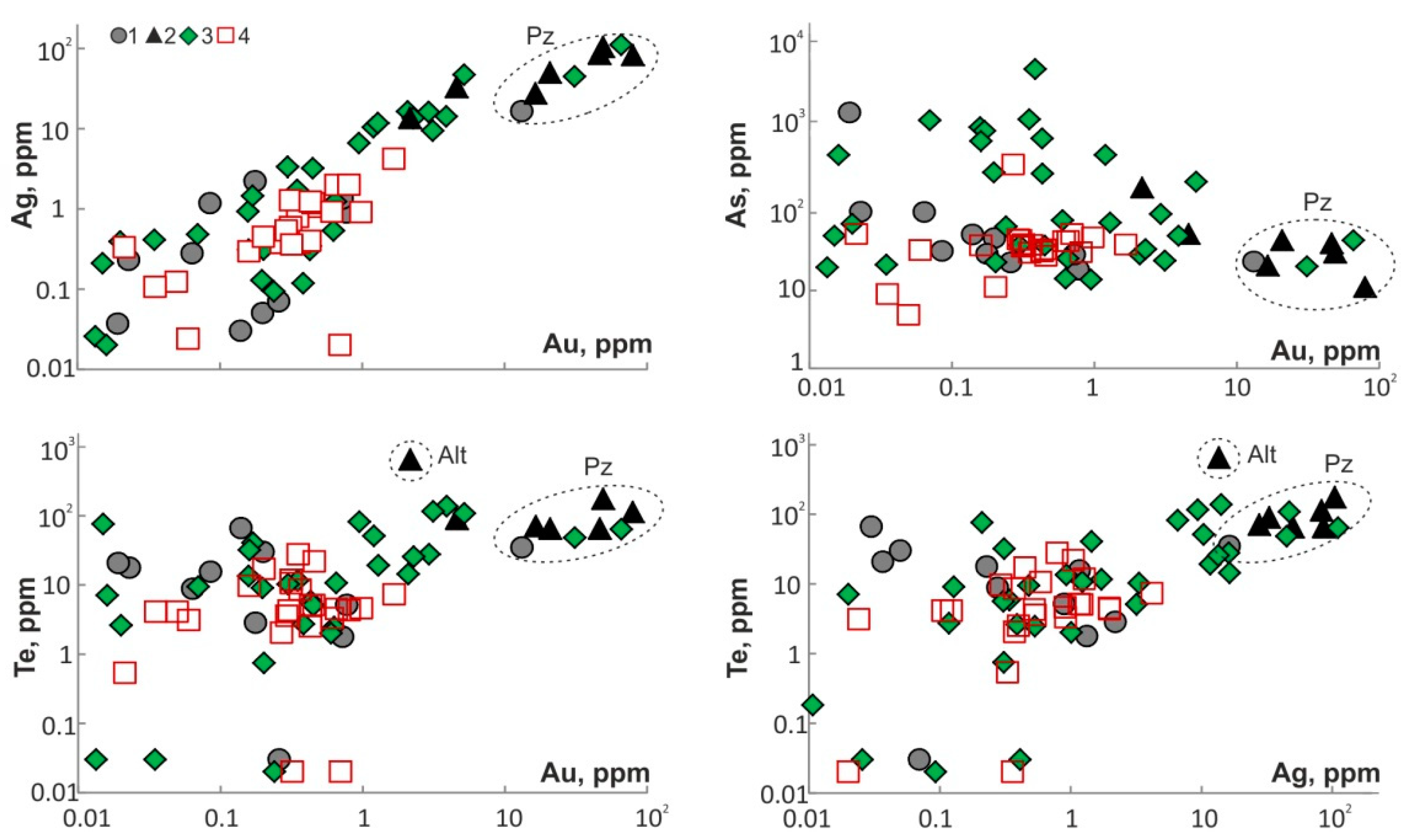

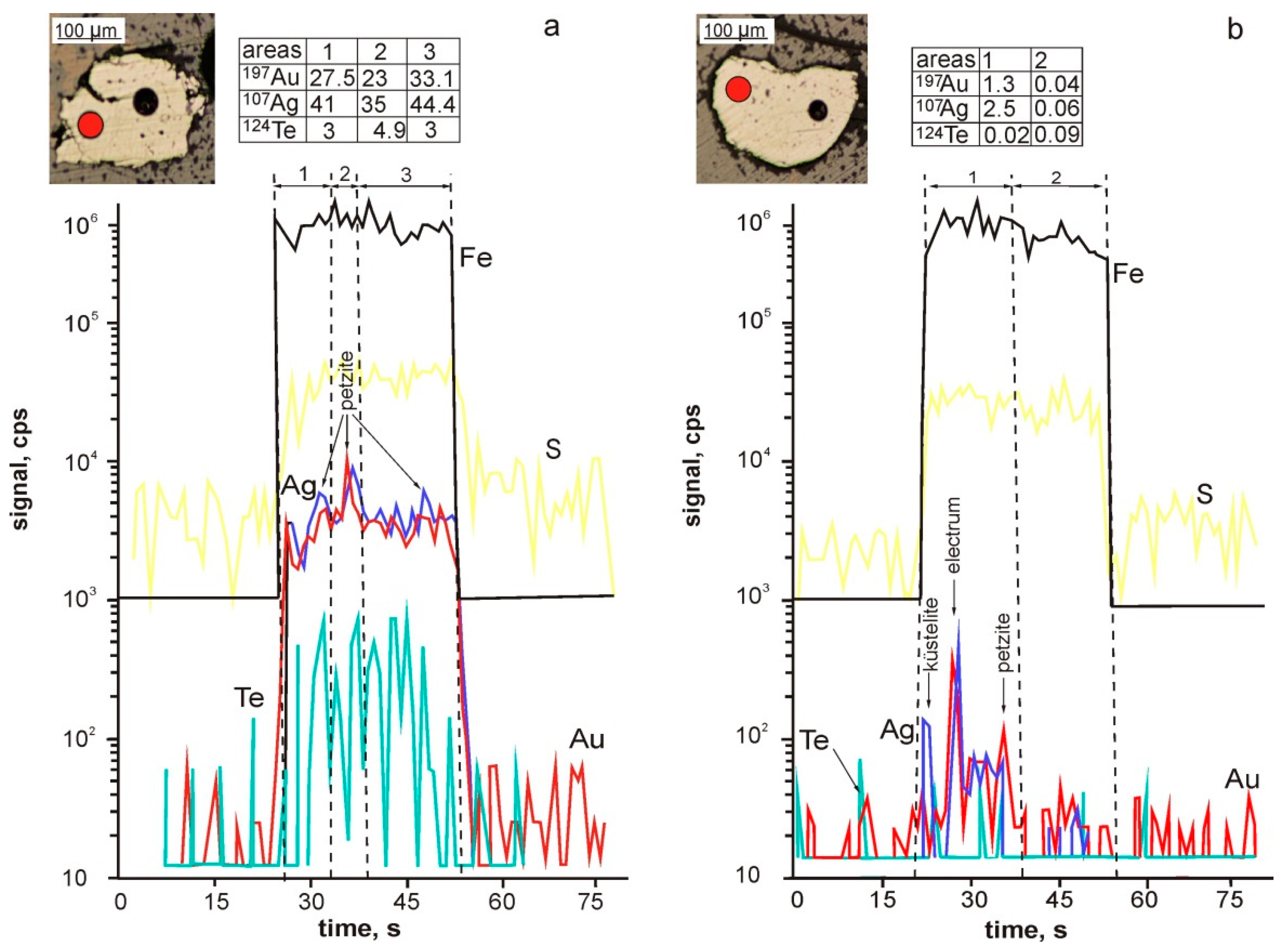

The LA-ICPMS data have been obtained for pyrite and chalcopyrite from the disseminated pyrite-pyrrhotite mineralisation (Py I) and from the gold-sulphide-telluride-quartz veins (Py II). Py I is enriched in Au, Ag, Pd, Sb, Bi and Te and contains (ppm): Au 0.1–33.8, Ag 0.1–146, Pt 0.01–0.03, Pd up to 0.1, In up to 4.2, Te 2.2–192, Sb 0.1–50.8, Co 11.7–833 (for 1 sample—6088), Ni 2.5–648 (1 sample—2382), Ga 0.1–47, Ge 0.1–5.3, Se 2.2–71, Bi 0.1–5.3; Py II: Au 0.01–3.4, Ag 0.1–3.4, Pt 0.01–0.09, Pd up to 0.03, In is below the detection limit, Te 1.9–152, Sb 0.1–8.7, Co 0.05–1019 (2 samples—1.2 wt%), Ni 1.8–587.4 (2 samples—0.1 wt%), Ga 0.1–3.4, Ge 0.2–0.5, Se 3.5–52 and Bi up to 0.6 (Figure 15b). Vein-chalcopyrite contains (ppm): 0.1–0.2 Au, 0.9–441 Ag, 1.4–2.5 Pd, 11.8–41 In, 3.3–11 Te, 0.3–130 Sb, 0.6–1.0 Ga and 38–63 Se.

At Au ≤ 10 ppm, the direct correlation between the contents of Au and Ag (Figure 15a), as well as that of Au and Ag with Te was found for early pyrite. This data may indicate the presence of nano-scale inclusions of petzite Ag₃AuTe₂ and hessite Ag₂Te in pyrite. At higher concentrations (Au > 10 ppm), the gold nanoparticles probably occur in both pyrite varieties. At Au from 0.01 to 0.1 ppm, Au–As correlation possibly suggests structurally bound Au in pyrite. The lower Au and Ag concentrations in the late pyrite are probably related to the deposition of their own mineral forms at this mineral formation stage. In contrast, for the early pyrite, an incorporation of Au into the pyrite structure can be suggested. Cu-rich pyrite (I and II) and Ni-rich Py II contain a detectable value of Pd.

4.1.4. The Petropavlovsk Gold-Porphyry Deposit

Pyrite from the skarn-magnetite assemblage contains peak concentrations of Co up to 17,141 ppm, Ni 3738 ppm and elevated As content of 1944 ppm according to LA-ICPMS data (see

Table 7. Contents of trace elements in pyrite (ppm) of different assemblages of the Petropavlovsk gold-porphyry deposit according to LA-ICPMS data.

n	Concentration	Co	Ni	As	Se	Ag	Au	Sn	Te	Bi
Pyrite-1 (skarn-magnetite assemblage)
25	min	3.4	8	18	1.6	0.03	0.02	0.03	0.03	0.03
	max	17,141	3738	1944	42	16	13	0.4	66	3
	geom. mean	250	52	55	15	0.3	0.2	0.14	8	0.4
Pyrite-2 (gold-sulphide assemblage)
15	min	2	4.5	11	2	14	2	0.03	65	0.03
	max	75	37	211	26	105	80	0.4	650	116
	geom. mean	18	10	40	11	47	18	0.1	120	0.34
Pyrite-3 (gold-telluride assemblage)
70	min	0.2	0.02	9.6	3.2	0.02	0.03	0.02	0.02	0.03
	max	2234	3791	7048	223	111	66	4.4	137	5
	geom. mean	17	12	56	13	1.3	0.6	0.1	6	0.5
Pyrite-4 (quartz-carbonate assemblage)
30	min	0.07	3	5	1.4	0.02	0.02	0.02	0.02	0.02
	max	737	70	417	40	4.2	1.7	1.6	28	2.3
	geom. mean	27	21	37	14	0.5	0.3	0.3	4	0.3

n—number of analysis points.

and

Table 8. Occurrence forms of main and trace elements and their mineral inclusions in pyrite of different assemblages at the Petropavlovsk gold-porphyry deposit.

Mineral	Main Trace Elements	Minor Elements (<50 ppm)	Mineral Inclusions
			Common	Rare	Submicroscopic *
Py-1	Cu, Co, As, Ni, Zn, Te	Sn, Bi, Se, Ag, Au, Pb	Sp, Mt	Hem, Rt
Py-2	Pb, Te, Bi, Au, Co, Zn, As, Ag	Se, Ni, Sn, Cu	Ccp, Sp	Mt, Po	Au
Py-3	Ni, As, Zn, Se, Ag, Sn, Cu, Au, Te, Pb	Bi	Ccp, Gn, Hs, Pz, Alt, Cal, Syl, Au, Sp	Po	Ks, Cal, Pz, Hs
Py-4	Co, Ni	Se, Ag, Au, Sn, Te, Bi, Zn, Pb, Cu	Ccp

* Here and in Tables 11, 13, 15 and 17 minerals are indicated as probable forms of concentration of a group of chemical elements in submicroscopic and nano-scale inclusions, assumed by their co-occurrence of “synchronous” peaks of impurity elements in host base metal sulphide. Mineral abbreviations (italics) here and in Tables 11, 13, 15 and 17: Ccp—chalcopyrite, Sp—sphalerite, Mt—magnetite, Gn—galena, Hs—hessite, Pz—petzite, Cal—calaverite, Syl—sylvanite, Au—native gold, electrum, Hem—hematite, Po—pyrrhotite, Rt—rutile, Alt—altaite, Ks—küstelite, Fhl—fahlore, Cbt—cobaltite, Em—empressite.

). Pyrite from the gold-sulphide assemblage contains maximum Te up to 650 ppm, Au 80 ppm, Bi 116 ppm and elevated Ag 105 ppm and Pb (up to 838 ppm). The peak contents of Pb up to 4.80 wt%, Zn 8.6 wt%, 0.7 wt%, Ni 0.38 wt%, Se 223 ppm, Ag up to 111 ppm, Sb 10.5 ppm and Sn 4.4 ppm, as well as increased Te up to 137 ppm, Au 66 ppm and Bi 5 ppm are found in pyrite from the gold-telluride assemblage. The presence of high “spot” occurrences of Pb and Zn in some samples is commonly associated with tiny inclusions of galena and sphalerite. The contents of most impurity elements (Au, Ag, Te, Sb, As, Co, Bi) decrease—usually an order of magnitude—in the pyrite of the latest quartz-carbonate assemblage.

According to LA-ICPMS data, a positive linear relationship between the Au and Ag contents in pyrite is observed for the gold-bearing ore: correlation coefficient (r) is 0.99 for the skarn-magnetite assemblage, for gold-sulphide, r = 0.89, for gold-telluride, r = 0.9, and for quartz-carbonate, r = 0.84 (Figure 16). Positive correlation of these elements corresponds to the occurrence of invisible gold, mainly represented by submicroscopic and nano-sized native gold (electrum).

A negative correlation is observed for Te with Au and Ag in pyrite for the gold-sulphide assemblage (−0.4 and −0.44, respectively) and a positive correlation for Ag/Te (0.46) and Au/Te (0.4) for the gold-telluride assemblage. The presence of a positive connection between Ag and Te can be explained by the occurrence of submicroscopic and nano-scale inclusions of Ag telluride (hessite) and Au-Ag telluride (petzite) in the pyrite of the last assemblage.

There is a correlation between Co and Ni for the gold-sulphide assemblage (r = 0.46). A positive correlation is also observed between Co and As for the following assemblages: skarn-magnetite (r = 0.98) and quartz-carbonate (r = 0.5), and it commonly corresponds to small cobaltite inclusions. A significant correlation between Au and As, but negative (r = –0.6), is observed for the pyrite of the gold-sulphide assemblage. Correlation Au/As is absent for other assemblages.

The examples of the spot analyses of two grains of anhedral and subhedral pyrites (gold-sulphide and gold-telluride assemblages, correspondingly) are demonstrated in Figure 17. Gold concentration ranges from 0.3 to 31 ppm (anhedral pyrite) and from 0.06 to 1 ppm for the subhedral pyrite crystal (profile ablation). The contents of silver and tellurium are from 0.6 to 45 ppm and from 0.3 to 8.3 ppm, respectively (sample PP 308/2). Nano-sized petzite inclusions probably occur in the pyrite from the gold-sulphide assemblage (Figure 17a).

Tiny isolations of petzite are often observed microscopically in close intergrowths with native gold, native silver and galena in this assemblage. Inclusions in another anhedral pyrite grain (from the gold-telluride assemblage, PP 309/5) are unevenly distributed. They are present in both areas and probably represented by küstelite, electrum and petzite (see Figure 17b).

An on-site study of the same pyrite grain (“mapping” mode of LA-ICPMS analysis) shows that increased concentration of Au, Ag and Te corresponds to one of its marginal parts. Dense clusters of bright points with their increased contents (Figure 18a) create an irregular, “fine-spotted” picture of their distribution, indicating the possible occurrence of nano-sized inclusions of Au-Ag tellurides (mainly petzite?) here. Elevated contents of Ni and Co belong to the edge zone of the pyrite crystal. Analysis reveals average contents (excluding peak areas): Au 0.6 ppm, Ag 2 ppm, Te 1.2 ppm, Co 3.4 ppm, Ni 16 ppm and As 23 ppm (Figure 18a).

Laser ablation of another pyrite grain (Figure 18b) demonstrates a different picture of the distribution of impurity elements with maxima, ppm: Au 0.43, Ag 0.34, Te 6, Co 118, Ni 117 and As 318. Gold contents do not correlate with Te and Ag, and Te and Ag peaks belong to only one of the crystal margins, which is possibly also associated with the abundance of nano-sized inclusions of silver tellurides (hessite?) here. Elevated Co contents belong to the entire edge zone, and Ni, on the contrary, belongs to the central part of the pyrite crystal. Figure 19 shows an example of a LA-ICPMS profile across an idiomorphic pyrite grain from the gold-sulphide assemblage (PP 309/10), which also showed a generally uneven distribution of impurity elements in pyrite. We divided the ablation time-profile into 5 areas: Au, Ag and Te are evenly distributed in all zones. The elements form peaks probably due to submicron inclusions of native gold, küstelite and hessite (

Table 9. Average concentration of Au, Ag and Te (ppm) in the zones of the pyrite grain.

Chemical Element	Zones
	1	2	3	4	5
197Au	0.52	0.06	2.7	0.03	1
107Ag	2.5	0.6	8.6	1.14	2.4
124Te	0.88	0.7	0.23	0.19	0.3

Note: Peak concentrations are excluded from calculation of average values.

).

Figure 17. Composition of pyrite from the gold-telluride assemblage obtained by the LA-ICPMS method for the Petropavlovsk deposit: (a) tiny inclusions of native gold and petzite are evenly distributed, the gold-sulphide assemblage, sample PP 308/2. (b) A few peaks are probably related with inclusions of native gold or küstelite and petzite, the gold-telluride assemblage, sample PP 309/5. Note (here and in Figure 19): the graphs show the main (Fe, S) and some minor (Au, Ag, Te) elements in pyrite.

Figure 17. Composition of pyrite from the gold-telluride assemblage obtained by the LA-ICPMS method for the Petropavlovsk deposit: (a) tiny inclusions of native gold and petzite are evenly distributed, the gold-sulphide assemblage, sample PP 308/2. (b) A few peaks are probably related with inclusions of native gold or küstelite and petzite, the gold-telluride assemblage, sample PP 309/5. Note (here and in Figure 19): the graphs show the main (Fe, S) and some minor (Au, Ag, Te) elements in pyrite.

Figure 18. LA-ICPMS distribution maps of impurity elements in pyrite crystals from the gold-telluride assemblage of the Petropavlovsk gold-porphyry deposit: sample PP 309/5 (a) and sample PP 1444/71 (b), scales in ppm.

Figure 18. LA-ICPMS distribution maps of impurity elements in pyrite crystals from the gold-telluride assemblage of the Petropavlovsk gold-porphyry deposit: sample PP 309/5 (a) and sample PP 1444/71 (b), scales in ppm.

Figure 19. Composition of pyrite of the gold-sulphide assemblage from the Petropavlovsk deposit, LA-ICPMS profile (sample PP 309/10). Submicron inclusions of native gold, küstelite and hessite are probable. For average content of elements in the profile intervals, see Table 9.

Figure 19. Composition of pyrite of the gold-sulphide assemblage from the Petropavlovsk deposit, LA-ICPMS profile (sample PP 309/10). Submicron inclusions of native gold, küstelite and hessite are probable. For average content of elements in the profile intervals, see Table 9.

Chalcopyrite: Elevated concentrations of Co (143 ppm), Ni (242 ppm), As (80 ppm), Se (194 ppm), Sb (20.4 ppm) and Sn (4 ppm) are found in chalcopyrite-1 and Te (up to 4200 ppm), and those of Au (up to 25 ppm), Ag (up to 7600 ppm) and Bi (11 ppm) in chalcopyrite-2 (

Table 10. The limits and average values of the contents of trace elements (ppm) in chalcopyrite of different assemblages of the Petropavlovsk gold-porphyry deposit according to LA-ICPMS data.

n	Concentration	Co	Ni	As	Se	Ag	Au	Sn	Te	Bi
Chalcopyrite-1 (gold-sulphide assemblage)
2	min	0.02	0.03	4	14	0.7	0.01	0.07	0.02	6
	max	143	272	80	194	63	2.5	4	68	8
	geom. mean	0.4	15	30	43	7	0.3	1	0.8	7
Chalcopyrite-2 (gold-telluride assemblage)
21	min	0.08	0.03	26	28	870	6	1	870	0.05
	max	0.14	57	44	32	7600	25	1.8	4200	11
	geom. mean	0.11	1.3	33.8	30	2571	12.3	1.4	1912	0.3

and

Table 11. Occurrence forms of main and trace elements and their mineral inclusions in chalcopyrite of different assemblages of the Petropavlovsk gold-porphyry deposit.

Mineral	Main trace Elements	Minor Elements (<50 ppm)	Mineral Inclusions
			Main	Rare	Submicroscopic
Ccp-1	Co, Ni, As, Se, Sn, Ag, Te	Bi, Au	Sp, Py		Cbt, Fhl
Ccp-2	Ag, Au, Te, Bi Ni	As, Se, Sn	Sp	Hs, Au	Alt, Pz, Au, Hs, Cal

). It is probably associated with the capture of nano-scale inclusions of cobaltite (Co, As, Ni), fahlore (Cu, Ag, As, Sb), altaite (Pb, Te), as well as petzite (Ag₃AuTe₂), calaverite (AuTe₂), native gold, native silver and hessite (Ag₂Te).

Galena: Elevated concentrations of Co (up to 1060 ppm), Ni (670 ppm), As (93 ppm), Se (407 ppm), Sb (8.6 ppm) and Sn (0.8 ppm) are recorded in galena-1, and those of Te (up to 1770 ppm), Au (980 ppm), Ag (2050 ppm) and Bi (62 ppm) in galena-2 (

Table 12. The limits and average values of the contents of trace elements in galena (ppm) of different assemblages of the Petropavlovsk gold-porphyry deposit according to LA-ICPMS data.

n	Concentration	Co	Ni	As	Se	Ag	Au	Sn	Te	Bi
37	Galena-1 (gold-sulphide assemblage)
	min	0.02	0.02	0.8	1.2	0.7	0.09	0.03	0.03	0.01
	max	1060	670	93	407	42	5	0.8	730	2.7
	geom. mean	0.6	3	10	19	7	0.6	0.3	11.4	0.2
6	Galena-2 (gold-telluride assemblage)
	min	0.13	3.1	2.5	2.4	23	13	0.13	56	0.01
	max	1030	252	73	58	2050	980	0.4	1770	62
	geom. mean	200	70	31	16	263	74	0.2	252	1

and

Table 13. Occurrence forms of main and trace elements and their mineral inclusions in galena of different assemblages of the Petropavlovsk gold-porphyry deposit.

Mineral	Main Trace Elements	Minor Elements (<50 ppm)	Mineral Inclusions
			Common	Rare	Submicroscopic
Gn-1	Co, Ni, As, Se, Sn, Te	Ag, Au, Bi	Sp, Py, Ccp		Hs, Em
Gn-2	Ag, Au, Te, Bi, Co, Ni, As, Se	Sn	Alt	Pz, Au, Hs

).

Generally, the gold content in the sulphides of the deposit is maximum in galena (980 ppm), followed by pyrite (80 ppm) and chalcopyrite (25 ppm). According to the LA-ICPMS method, the pyrite of the early ore assemblages of the Petropavlovsk deposit is characterised by high contents of Co, Te, Au, Ag and Bi, increased Ni, As and Se and noticeable Sb and Sn. For the pyrite of later assemblages, elevated Zn, Pb, As, Ni, Se, Sb and Sn are found. The maximum Au was established in pyrite from the gold-telluride assemblage (up to 80 ppm). Minimal Au concentration was established in the pyrite of the latest quartz-carbonate assemblage (up to 1.7 ppm). Detectable admixtures of tellurium characterise the pyrite of all mineral assemblages. Proper mineral forms of the trace elements are presented, including Te compounds with Au (± Ag) in late mineral assemblages.

According to the LA-ICPMS analyses, gold in sulphides of the deposit is present mainly in the invisible form (from 0.02 to 80 ppm). It mainly associates with pyrite-2. At least part of such gold probably occurs as nano-scale inclusions of native gold (close in composition to AuAg) as well as Au- and Au-Ag-tellurides [39].

The data obtained suggest that the gold was evenly distributed in pyrite crystals in the early assemblages of the Petropavlovsk deposit. Gold was further enlarged and partly redeposited in pyrite defects at the final stages of mineralisation.

A close relationship is observed between Au and Ag (correlation coefficient r > 0.7), as well as between Ag and Te (r = 0.46) for the gold-telluride assemblage. It can be explained that these elements are present in the deposit in the form of tiny inclusions of native gold, hessite and petzite. Au–As correlation is not traced in pyrite. The uneven distribution of Au, Ag and Te over the area of pyrite grains with “spots” of their peak concentrations probably indicates the presence of clusters of nano-sized inclusions of Au-Ag tellurides.

The concentrations of trace elements in galena and chalcopyrite (as well as in pyrite) change with the evolution of ore formation. The contents of Ni, Co, As, Se and Sb are maximum in the main gold stage. The concentrations of Au, Ag, Te and Bi increase at the end of this stage. In general, the gold content in the sulphides of the deposit reaches highs in galena (up to 980 ppm). Next are pyrite (49 ppm) and chalcopyrite (25 ppm).

4.1.5. The Novogodnee-Monto Iron-Gold-Skarn Deposit

Pyrite of the magnetite-pyrite assemblage is characterised by impurity concentrations peaking in As (11,050 ppm), Co (up to 3530 ppm), Ni (774 ppm), Au (12 ppm) and elevated of Te (up to 89 ppm) (

Table 14. The trace element contents (ppm) in pyrite of different assemblages of the Novogodnee-Monto deposit according to LA-ICPMS data.

n	Concentration	Co	Ni	As	Sb	Ag	Au	Sn	Te	Bi
Pyrite-1 (magnetite-pyrite assemblage)
14	min	144	3.3	6	0.06	0.02	0.05	0.08	0.02	0.02
	max	3530	774	11,050	15	64	12	0.3	89	4.5
	geom. mean	1938	34	1625	0.7	0.8	0.6	0.2	7	0.15
Pyrite-2 (polymetallic assemblage)
12	min	0.8	0.02	0.6	0.05	0.16	0.04	0.09	1.3	0.02
	max	922	2	5287	60	14	1.3	0.4	33	5
	geom. mean	288	79	735	13	6	0.44	0.2	11	0.8
Pyrite-3 (gold-sulphide-magnetite assemblage in skarns)
7	min	14	5	53	0.05	0.2	0.16	0.13	0.5	0.03
	max	592	18	4168	0.3	2	1.2	0.3	12	0.6
	geom. mean	90	11	70	0.2	0.6	0.4	0.2	3.5	0.1
Pyrite-4 (gold-sulphide and gold-telluride assemblage)
5	min	146	11	60	0.08	0.04	0.3	0.12	26	0.03
	max	707	416	455	0.65	159	2	0.3	141	15
	geom. mean	378	57	142	0.2	4	0.6	0.23	50	0.51
Pyrite-5 (quartz-carbonate assemblage)
7	min	0.8	0.3	0.6	0.02	0.03	0.07	0.2	1.2	0.02
	max	920	251	3830	98	2.3	0.6	0.36	39	0.8
	geom. mean	177	14	284	0.4	0.3	0.3	0.2	7.7	0.1

). Pyrite of the polymetallic assemblage contains the maximum concentrations of Zn (3130 ppm) and Sn (0.4 ppm). Pyrite from the gold-sulphide and gold-telluride assemblages is characterised by the highest values of Cu (4520 ppm), Ag (159 ppm), Te (141 ppm) and Bi (15 ppm). Pyrite from the quartz-carbonate assemblage contains the maxima of Sb (98 ppm) and Se (363 ppm). It is possible that high concentrations of some elements are associated with the capture of nano-scale inclusions of chalcopyrite, sphalerite, hessite (Ag₂Te), petzite (Ag₃AuTe₂), empressite (AgTe) and cobaltite (Co, As, Ni) (

Table 15. Occurrence forms of main and trace elements and their mineral inclusions in pyrite of different assemblages at the Novogodnee-Monto deposit.

Mineral	Main Trace Elements *		Minor Elements (<50 ppm)	Minerals Inclusions
	Maximum, ppm	High Values, ppm		Main	Rare	Submicroscopic
Py-1	Co, Ni, As, Au, Zn, Cu	Ag, Te	Sb, Sn, Bi	Mt, Ccp	Cbt	Cbt, As
Py-2	Sb, Sn	Co, As, Cu	Ni, Ag, Au, Te, Bi, Zn	Ccp, Sp, Gn	Hem, Cbt, Apy, Po
Py-3		Co, As	Ni, Sb, Sn, Au, Ag, Te, Bi, Cu, Zn	Ccp	Cbt, Ag
Py-4	Ag, Te, Bi	Co, Ni, As, Cu	Au, Sb, Sn, Zn	Pt, Hs, Alt	Au, Ag	Pz, Clc, Gt, Ccp, Dg
Py-5	Sb	Co, Ni, As, Cu	Ag, Au, Sn, Te, Bi, Zn	Bn, Cv, Clc, Gt, Dg, Cu

Designation here and in Table 17: Apy—arsenopyrite, Ag—native silver, Bn—bornite, Cv—covellite, Clc—chalcocite, Gt—goethite, Dg—digenite.

). It is confirmed by synchronous peaks of individual chemical elements on the profiles of laser ablation or in the form of bright point “inclusions” on bitmaps during analysis in the mapping mode [39,101].

According to the LA-ICPMS data, a positive relationship occurs between Au and Ag in magnetite-pyrite (0.6) and gold-sulphide-magnetite (0.9) assemblages (Figure 20). A positive correlation is observed between Au and Te in pyrite of the magnetite-pyrite (0.8) and quartz-carbonate assemblages (0.6). A stronger correlation between Ag and Te is found in pyrite of magnetite-pyrite (0.78) and gold-telluride (0.9) assemblages. A notable relationship between Au and As is observed only for the magnetite-pyrite assemblage (0.7). A positive correlation between the Co and Ni is revealed in pyrite for magnetite-pyrite (0.7) and polymetallic (0.7) assemblages. The negative correlation between the Co and Ni is observed in pyrite for the gold-sulphide-magnetite assemblage (−0.6). A positive correlation between Co and As is also found in pyrite for magnetite-pyrite (0.5) and gold-telluride (0.5) assemblages.

The profile ablation of pyrite grains from the polymetallic assemblage by the LA-ICPMS method showed an uneven distribution of the majority of impurity elements in pyrite, with average contents (geom. mean., excluding peak areas): 1.3 ppm Au, 9 ppm Ag, 13.1 ppm Te, 177 ppm Co, 132 ppm Ni and 6 ppm As (Figure 21). Confined to the marginal parts of the pyrite grain, high Au concentrations correlate with elevated Ag contents but do not correlate with Te. An on-site study of the same pyrite grain in mapping mode shows close for Au and Ag areas of the increased concentrations, gravitated to the edge parts of the pyrite grain, while Te-maxima are localised separately. The increased contents of As and Co belong to the marginal zones of the pyrite grain.

Chalcopyrite: Peak concentrations of As (up to 3230 ppm), Pb (up to 1050 ppm), Co (up to 887 ppm), Se (up to 109 ppm), Ag (up to 88 ppm), Au (up to 13 ppm), Ni (up to 9 ppm) and Sn (up to 2 ppm) are found in chalcopyrite-1 (

Table 16. The trace element contents (ppm) in chalcopyrite of different assemblages of the Novogodnee-Monto deposit according to LA-ICPMS data.

n	Concentration	Co	Ni	As	Sb	Ag	Au	Sn	Te	Bi
22	Chalcopyrite-1 (polymetallic assemblage)
	min	0.02	0.02	2.8	0.04	0.2	0.02	0.06	0.07	0.02
	max	887	8.8	3230	37	88	13	2.14	9.1	0.4
	geom. mean	1.3	0.31	73	0.8	2.34	0.22	0.15	0.5	0.04
Chalcopyrite-2 (gold-sulphide-magnetite assemblage in skarns)
4	min	0.02	0.1	0.9	0.03	0.03	0.06	0.2	5.7	1.03
	max	50	5.7	23	3.5	11.3	1	0.6	15	3
	geom. mean	1.3	2	5	0.75	1.7	0.4	0.4	9	1.8

and

Table 17. Occurrence forms of main and trace elements and their mineral inclusions in chalcopyrite of different assemblages at the Novogodnee-Monto deposit.

Mineral	Main Trace Elements		Minor Elements (<50 ppm)	Mineral Inclusions
	Maximum, ppm	High Values, ppm		Main	Rare	Submicroscopic
Ccp-1	Co, Ni, As, Sb, Ag, Au, Sn		Te, Bi	Po, Sp, Gn		Cal, Alt, Au, Hs, Pz
Ccp-2	Te, Bi	Co	Ni, As, Sb, Ag, Au, Sn		Au

). Maxima of Zn (up to 145 ppm), Sb (up to 37 ppm), Te (up to 15 ppm) and Bi (up to 3 ppm) occur in chalcopyrite-2. The peaks of Pb, As, Zn, Te, Ag and Au on the LA-ICPMS profiles are probably related to the capture of small inclusions of galena, arsenopyrite, sphalerite, altaite, calaverite, native gold, hessite and petzite, which were found microscopically.

Native gold in the ore is associated mainly with pyrite impregnations. It is characterised by high fineness (893) in the gold-sulphide-magnetite assemblage in skarns. The Au contents in pyrite are significantly reduced in the later gold-telluride assemblage. Native gold from this assemblage has a size from 2–5 to 10–20 μm and fineness from 750 to 893. The size of the segregations and fineness of gold increase (up to 40–50 μm and up to 893, respectively) in contact with the late dyke. Pyrrhotite appears in the gold-pyrite-magnetite assemblage. The gold concentrations in pyrite of the early magnetite-pyrite assemblage belong to the limits of possible uniformly distributed gold (for a pyrite crystal with a size of 0.5 mm, the maximum value of uniformly distributed gold detected by the method in [102] is about 12.3 ppm). These researchers evaluated the structural gold contribution as 1–10% of the bulk uniformly distributed gold. The peak Te contents (up to 141 ppm) were established in the pyrite of the gold-telluride assemblage, in some cases probably due to submicron inclusions of calaverite AuTe₂.

In general, gold of the early assemblages was evenly distributed in pyrite crystals at the Novogodnee-Monto deposit, and that at the Petropavlovsk deposit. Later, at the final stages of mineral formation, invisible gold (submicron native gold isolations, nano-scale domains and isomorphic gold in pyrite) was enlarged and redeposited in pyrite defects.

It is possible that high concentrations of some elements are associated with the capture of nano-scale inclusions of chalcopyrite, sphalerite, hessite (Ag₂Te), petzite (Ag₃AuTe₂), muthmannite (AuAgTe₂), sylvanite ((Au,Ag)₂Te₄), krennerite (Au₃AgTe₈), empressite (AgTe) and cobaltite ((Co,Ni)AsS) during alalysis. It is confirmed by the appearance of synchronous peaks of individual chemical elements on the laser ablation profiles or in the form of bright dot-like “inclusions” on bitmaps during analysis in the mapping mode [40]. It is also confirmed by strong (r > 0.7) bonds between Au and Te (0.8), Au and As (0.7), Co and Ni (0.7) and Ag and Te (0.8) for the magnetite-pyrite, Ag and Te for the gold-telluride (0.9), Au and Ag (0.9) for the gold-sulphide-magnetite and Co and Ni (0.7) for the polymetallic assemblages. The uneven distribution of Au, Ag and Te over the pyrite grain area with “spots” of their peak concentrations probably indicates, as in the Petropavlovsk deposit, the presence of dense clusters of nano-scale inclusions of Au-Ag tellurides, as well as cobaltite. Moreover, the Novogodnee-Monto deposit is characterised by increased concentrations of Au and Ag. These concentrations are consistent with each other, while Te is localised separately.

Concentrations of trace elements in chalcopyrite also change along with the ore formation. The contents of Ni, Co, As, Se, Au and Bi reach their maximum values in the earlier polymetallic assemblages. The concentrations of Te, Sn, Ag, Zn, Sb and Pb increase for chalcopyrite of the gold-sulphide-magnetite assemblage in skarn. In general, the gold concentration in chalcopyrite is slightly lower (geom. mean 0.22 ppm) than in pyrite (geom. mean 0.6 ppm). The gold concentration in magnetite does not exceed tenths of a ppm (up to 0.2 ppm, geom. mean 0.11 ppm).

4.2. The VMS Deposits of the Urals

Pyrite is the dominant mineral of the VMS ores (40–90 vol%). Chalcopyrite and sphalerite are the major economic minerals (1–10, up to 30 vol%), and fahlore (mainly tennantite) is a common mineral (0.1–1 vol%). Occurrence of some minerals is locally significant: bornite for Gai, pyrrhotite (up to 20 vol%) and fahlore for Uzelga (up to 10 vol%), galena for Uchaly and Uzelga (up to 2 vol%), magnetite for Uchaly and arsenopyrite for Uchaly and Gai (up to 1 vol%) deposits. The ore samples which are anomalous in terms of gold concentration commonly contain Ag-bearing fahlore, Ag-bearing galena (±Ag-bearing bornite) with subordinated sulphosalts of silver (pyrargyrite, freibergite, stephanite, polybasite, pyrostilpnite, argentotetrahedrite, pearceite, proustite), tellurides (altaite, hessite, stützite, empressite, petzite, krennerite, sylvanite, montbrayite, muthmannite), sulphotellurides (tetradymite), Au-Ag-sulphides (petrovskaite, uytenbogaardtite, acanthite) and native elements (native gold, native silver, native tellurium) [9,15,71,103] (

Table 18. Mineral forms of Au and Ag in the largest VMS deposits of the Urals, modified after [93].

Highly Metamorphosed	Weakly Metamorphosed		Non-Metamorphosed
Gai	Uchaly	Uzelga	Galka
Hessite Ag2Te, native gold (710–980), native silver (100–0), calaverite AuTe2, sylvanite AuAgTe4, krennerite (Au,Ag)Te2, petzite Ag3AuTe2, montbrayite (Au,Sb)2Te3, muthmannite AuAgTe2, acanthite Ag2S, Ag-betekhtenite (Ag,Cu,Fe)21Pb2S15	Hessite Ag2Te, empressite AgTe, electrum (340–690), freibergite Ag12Sb4S13, petrovskaite AuAg(S,Se), acanthite Ag2S, pearceite [Ag9CuS4][(Ag,Cu)6(As,Sb)2S7], polybasite [(Ag,Cu)6(Sb,As)2S7][Ag9CuS4], ytenbogaardtite AuAg3S2	Hessite Ag2Te, stützite Ag5Te3, native gold (770–870), native silver, acanthite Ag2S, sylvanite AuAgTe4, petzite Ag3AuTe2	Native gold (700–1000), electrum (250–700), acanthite Ag2S, freibergite Ag12Sb4S13, argentotetrahedrite, pyrargyrite Ag3SbS3, stephanite Ag5SbS4, proustite Ag3AsS3, polybasite [(Ag,Cu)6(Sb,As)2S7][Ag9CuS4], petrovskaite AuAg(S,Se), ytenbogaardtite AuAg3S2, kurilite Ag8Te3Se

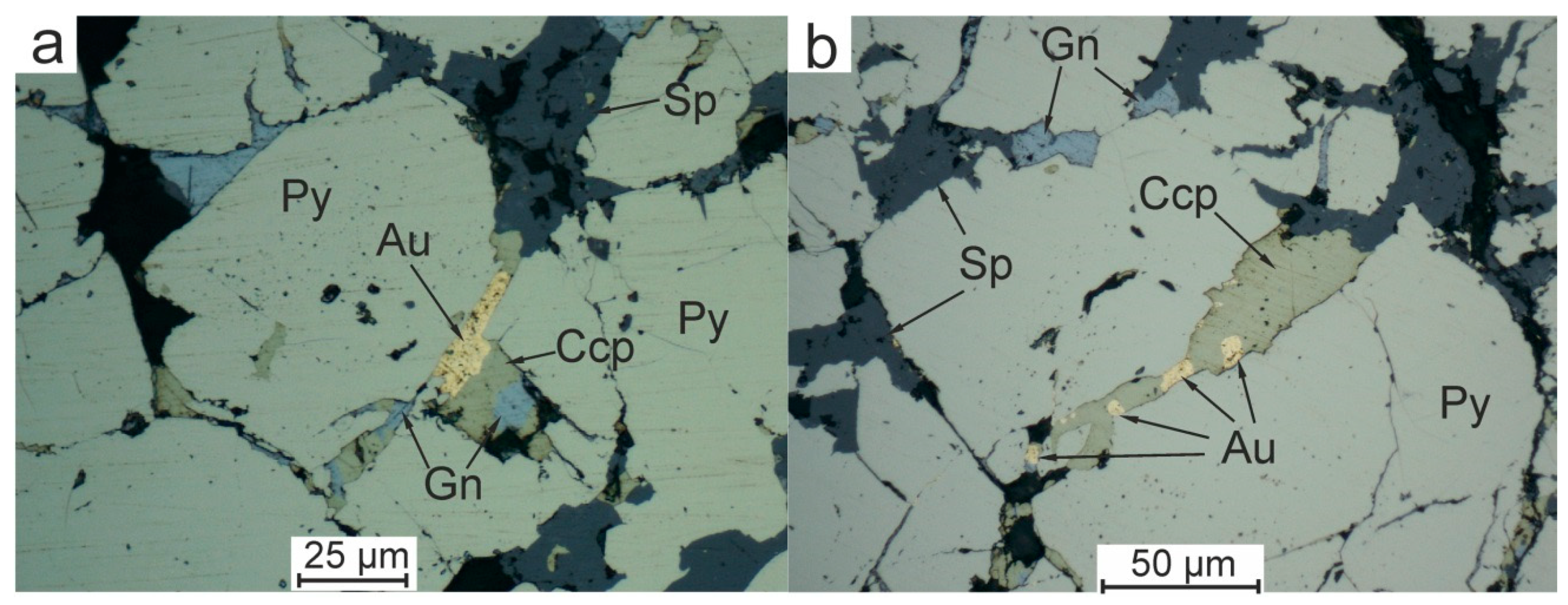

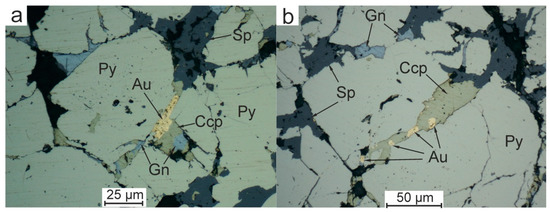

, Figure 22).

We will consider the mineral composition of ores and the behaviour of precious metals in their minerals on the example of the largest deposits of the Urals: Gai (Cu-dominant subtype), Uchaly and Uzelga (Zn-dominant subtype).

4.2.1. The Gai Deposit

In the Gai deposit, pyrite is the dominant mineral of ores (50–95 vol%), and it contains ~3.8 ppm Au and ~8 ppm Ag (

Table 19. Contents of Au, Ag and some impurities in pyrite of VMS deposits according to LA-ICP-MS data (ppm).

Deposit	n	Ci	Au	Ag	Se	Te	As
Gai	17	min	1.4	3.8 (8)	7	11 (8)	25
		max	31	47.5	267	115	1901
		geom. mean	3.8	8	61	24	226
k (Au)				0.27	−0.05	0.2	0.64
Uzelga	67	min	0.01	0.3	2 (66)	1 (19)	0.2 (66)
		max	20	204	657	197	5599
		geom. mean	0.5	15	83	22	114
k (Au)				0.57	0.02	0.96	−0.13
Galka	27	min	0.01	2.2	0.5 (13)	0.8 (10)	14 (26)
		max	9	934	32	392	15,486
		geom. mean	1.2	57	3.5	19	450
k (Au)				0.17	0.49	0.23	0.13
Uchaly	79	min	0.01	0.01	3	3 (42)	34
		max	29	326	1800	2500	5370
		geom. mean	1.6	13	54	54	1311
k (Au)				0.67	−0.26	−0.11	0.3

Here and in Table 21 and Table 22, the number of values below the detection limit is shown in parentheses; k (Au)—pair correlation coefficient; n—number of analysis points.

and

Table 20. Summary data on contents of Au and Ag in ore minerals of VMS deposits according to LA-ICP-MS analysis.

Deposit	n	Minerals	Au, ppm			Ag, ppm
			Min	Max	geom. mean	Min	Max	geom. mean
Gai	17	pyrite	1.4	31	3.8	3.8	47.5	8
	11	chalcopyrite	0.01	1.2	0.06	0.19	18	1.2
	4	sphalerite	0.01	0.03	0.016	2.4	5.5	3.2
	10	bornite	0.01	0.99	0.04	5.3	1250	223
	16	fahlore	0.01	1.4	0.05	132	432	285
Uzelga	67	pyrite	0.01	20	0.5	0.3	204	15
	17	chalcopyrite	0.01	19	0.2	0.3	511	7.4
	14	sphalerite	0.01	11	0.4	1.3	207	21.5
Galka	27	pyrite	0.01	9	1.2	2.2	934	57
	4	chalcopyrite	1.2	3.7	1.9	32	127	76
	21	sphalerite	0.01	32	0.64	1.2	167	51
	5	marcasite	0.02	5	0.6	7	60	22
	1	galena	0.05			153
Uchaly	79	pyrite	0.01	29	1.6	0.01	326	13
	3	chalcopyrite	1	6	3	0.04	0.15	0.07

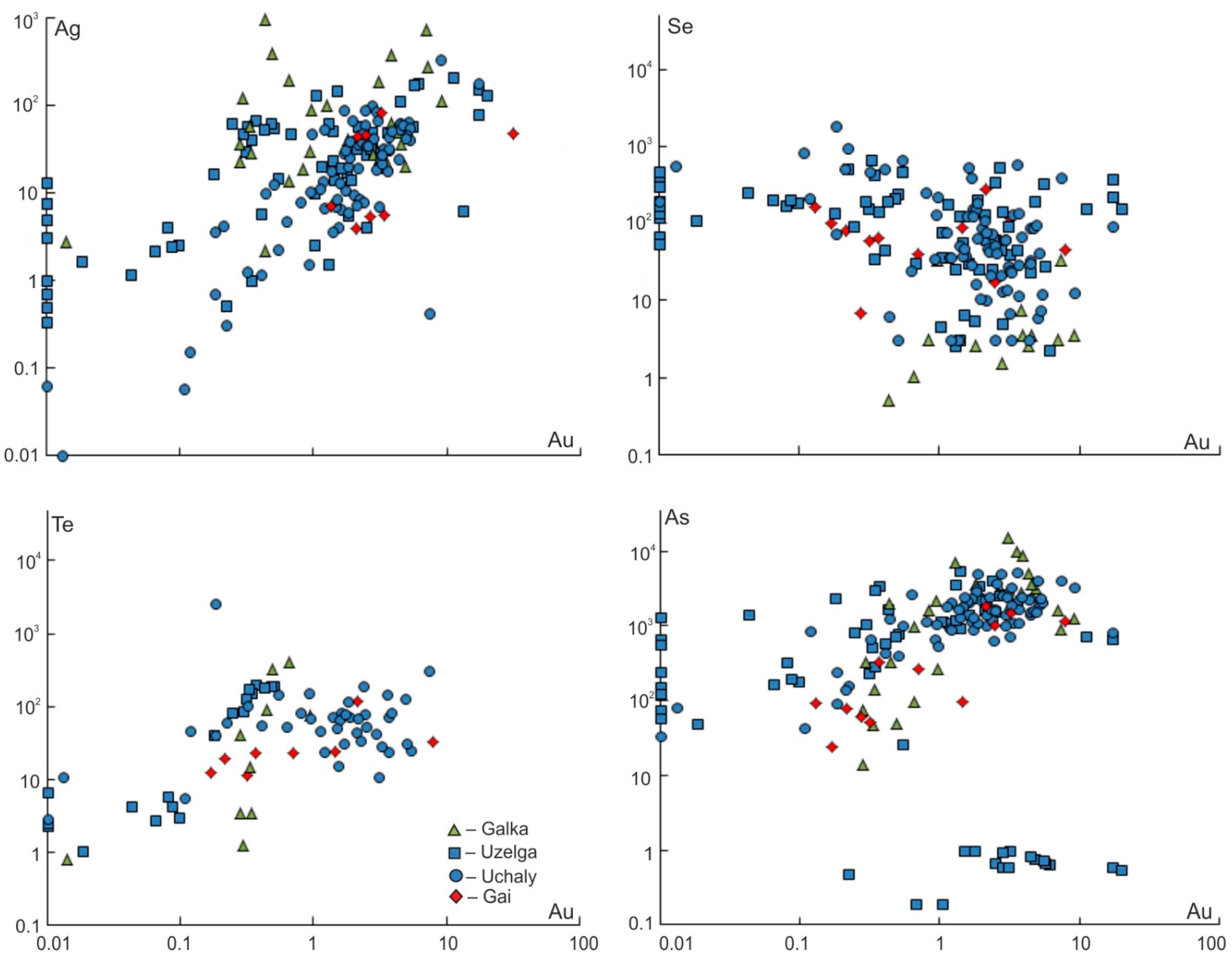

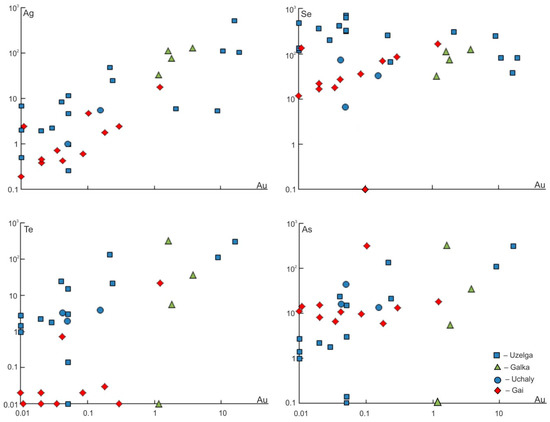

; Figure 23). Chalcopyrite with ~0.06 ppm Au (

Table 21. Contents of Au, Ag and some impurities in chalcopyrite of VMS deposits according to LA-ICP-MS data (ppm).

Deposit	n	Ci	Au	Ag	Se	Te	As
Gai	11	min	0.01	0.19	0.01 (10)	0.01 (10)	6
		max	1.2	18	167	22.05	312
		geom. mean	0.06	1.2	19	0.02	15
k (Au)				0.96	0.7	0.97	−0.05
Uzelga	17	min	0.01	0.3	39	0.01 (14)	9 (7)
		max	19	511	714	314	1530
		geom. mean	0.2	7.4	217	4.7	109
k (Au)				0.87	−0.52	0.9	−0.48
Galka	4	min	1.2	32	-	0.01	556
		max	3.7	127	-	326	4058
		geom. mean	1.9	76	-	5	1615
Uchaly	3	min	1	0.04	7	2	14
		max	6	0.15	73	4	45
		geom. mean	3	0.07	25	2.9	22

Dash—no data.

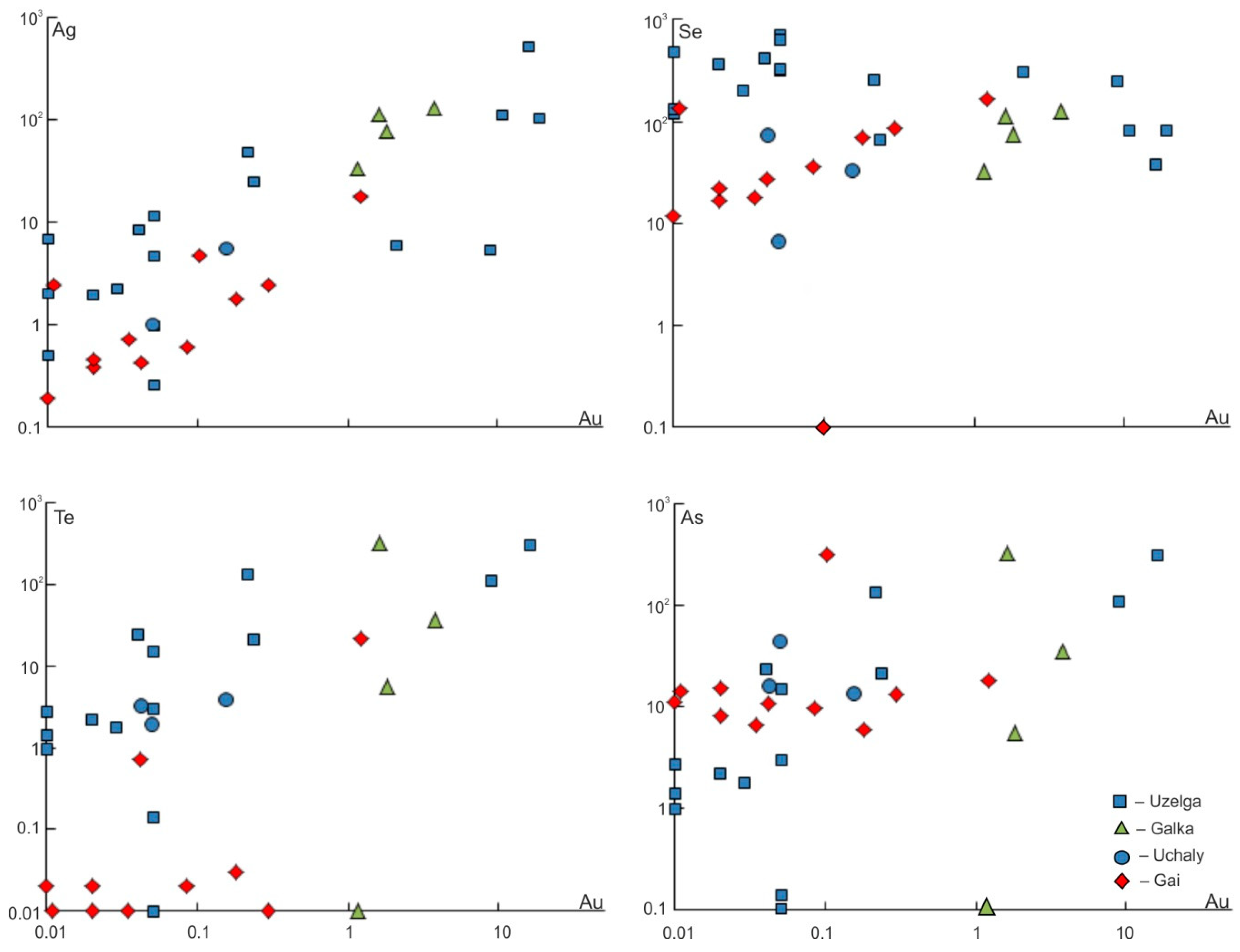

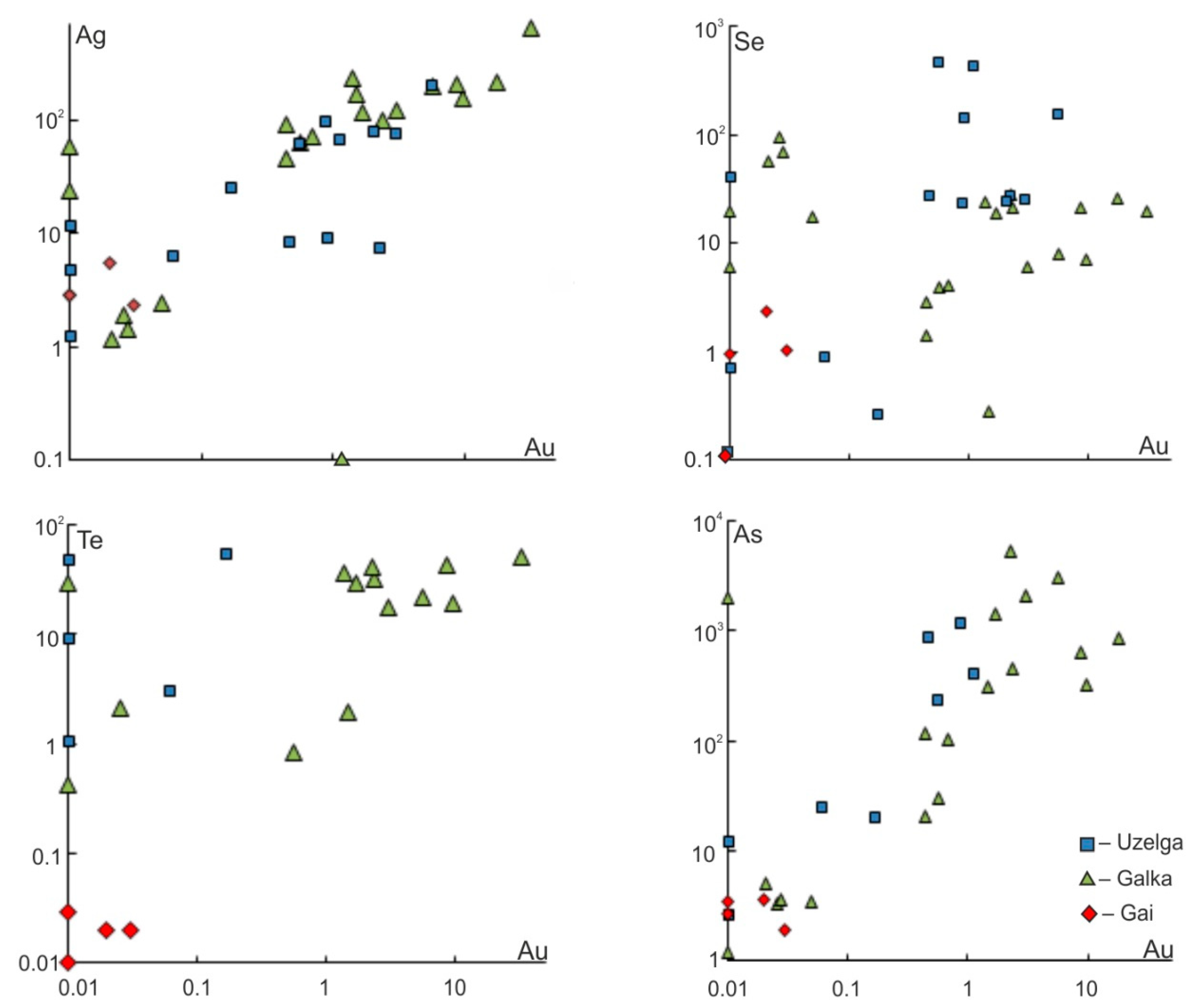

; Figure 24) and low Fe (0.12–2.8 wt%) sphalerite, with ~0.02 ppm Au (

Table 22. Contents of Au, Ag and some impurities in sphalerite of VMS deposits according to LA-ICP-MS data (ppm).

Deposit	n	Ci	Au	Ag	Se	Te	As
Gai	4	min	0.01	2.4	0.01	0.01	2
		max	0.03	5.5	2.3	0.03	3.6
		geom. mean	0.016	3.2	0.4	0.19	2.8
Uzelga	14	min	0.01	1.3	0.01	1.1 (9)	2.8 (8)
		max	11	207	470	1367	1195
		geom. mean	0.4	21.5	13	47	81
k (Au)				0.8	0.1	0.99	0.7
Galka	21	min	0.01	1.2	0.3 (22)	0.4 (15)	1.2 (20)
		max	32	167	94	258	5426
		geom. mean	0.64	51	11	15	139
k (Au)				0.89	−0.6	0.38	0.1

; Figure 25), are the major economic minerals (1–10 vol%, up to 50 vol%). Tennantite-tetrahedrite and bornite are common ore minerals (0.1–1 vol%). Fahlore (low-iron tennantite is the dominant variety) contains up to (wt%, EPMA) Te 2.18, Hg 1.07, Bi 0.98, Se 0.33 and Pt 0.26. Bornite, usually pseudomorphically replacing chalcopyrite, is Ag-rich (0.16–3.53 wt%, in most analyses >0.4 wt%, EPMA), the Ag content in bornite is 2–3 times higher than in coexisting tennantite [73], however according to LA-ICPMS data, C_Ag in these minerals are lower: ~0.02 wt% in bornite and ~0.03 wt% in fahlore (Table 20). Galena, marcasite, digenite, magnetite and arsenopyrite are notable in some places. Altaite, tellurobismuthite, coloradoite, V-As-germanite, Ag-betekhtenite, mawsonite, Ge-stannoidite, native gold, acanthite, hessite and Au-Ag tellurides are rare [9,74,75]. Among Te minerals, altaite is the most abundant and forms the impregnation of about 20 microns within chalcopyrite and tennantite in the late paragenesis, together with hessite, coloradoite and Au-Ag tellurides. Admixtures of up to (wt%, EPMA) Hg 0.76, Bi 0.69, Cu 0.47, Au 0.62 and Ag 0.07 were detected in altaite [9]. Hessite containing 0.26 wt% Au, 0.41 wt% Hg and 0.27 wt% Pb occurs as idiomorphic grains in intergrowth with native gold and galena. Coloradoite sometimes contains Ag (4.24 wt%). Sn-Ge sulphosalts, betekhtenite (0.95 wt% Ag) and digenite can be found only in bornite-bearing ores.

4.2.2. The Uzelga Deposit

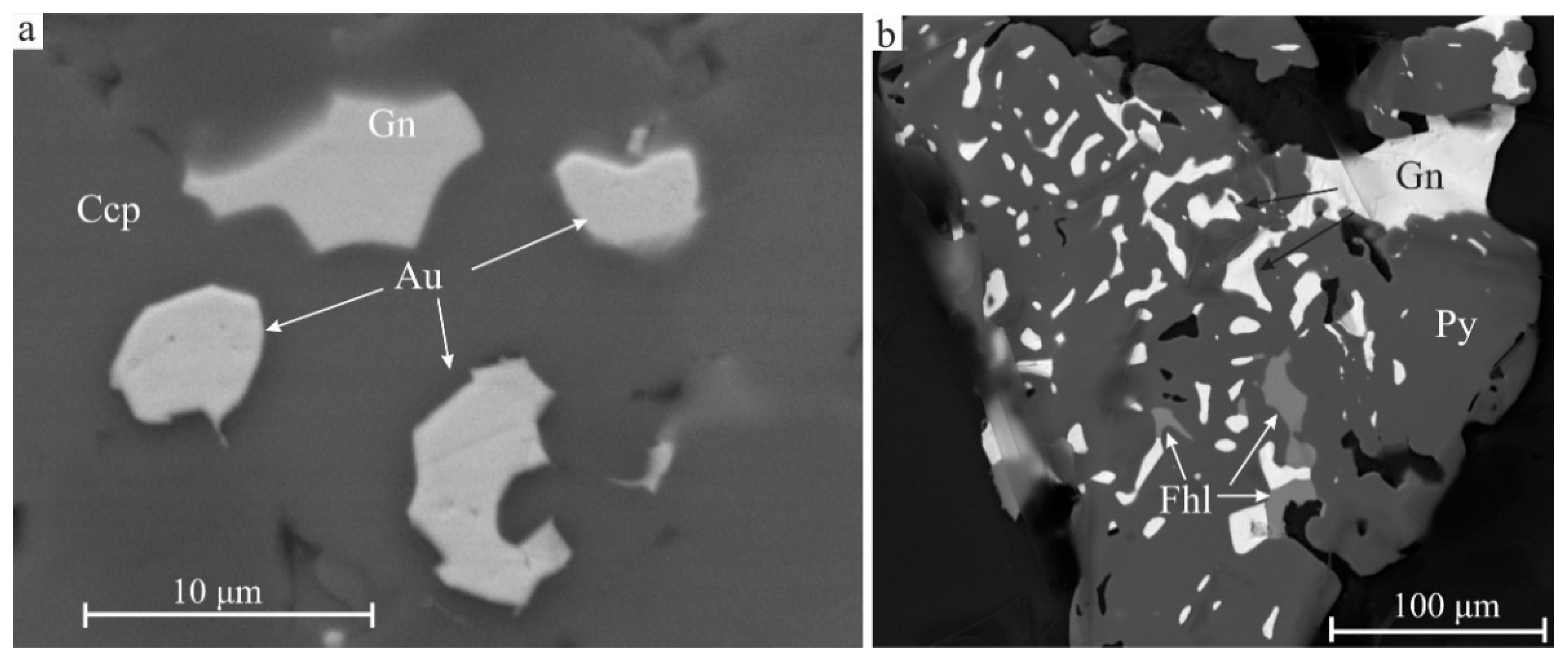

Pyrite is the dominant mineral of the ores (40–90 vol%). Chalcopyrite and sphalerite are the major economic minerals (1–10, up to 15 vol% for chalcopyrite and up to 60 vol% for sphalerite). Fahlore (usually tennantite) is a common mineral in the lower-level ore bodies and is a widespread one (0.5–5 vol%) (Table 20) in the upper ore level predominating above chalcopyrite. Galena also occurs widely but in smaller quantities (up to 0.5 vol%). Pyrrhotite is abundant in the axial zone of the southern part of the largest ore body of the deposit (body 4, see [77]). Hessite, altaite, coloradoite and other Te minerals [25,78] are rare. Gold occurs predominantly in pyrite and chalcopyrite (0.1–20 ppm Au in the mode of “invisible” gold) (Table 19 and Table 20; Figure 23). Au enrichment in reniform pyrite (5.5–19.6 ppm) also exists [25]. The euhedral pyrite associated with this variety is characterised by an order of magnitude lower concentrations of Au, Ag and As. Ag content in pyrite ranges 0.3–204 ppm. Gold contents in chalcopyrite average 1.5–3 ppm (total ranges 0.001–19 ppm Au and 0.5–511 ppm Ag) (Table 21; Figure 24).

Sphalerite that contains emulsion-like inclusions of chalcopyrite contains 1.8 to 11 ppm Au (Table 22; Figure 25). The gold content in pure grains of sphalerite is 0.02 to 5.5 ppm. Therefore, gold-bearing chalcopyrite inclusions in sphalerite are considered to be responsible for an essential part of bulk gold. Galena contains various combinations of Au 0.05–0.41 wt%, Ag 0.01–0.34 wt%, Se 0.1–0.2 wt% and Te 0.1–0.14 wt% (EPMA). Additionally, Au is present as a trace element in some tellurides, such as altaite (0.02–5.2 wt%) and hessite (0.02–0.63 wt%).

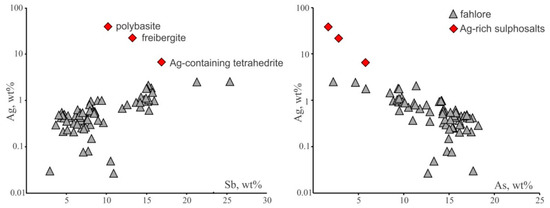

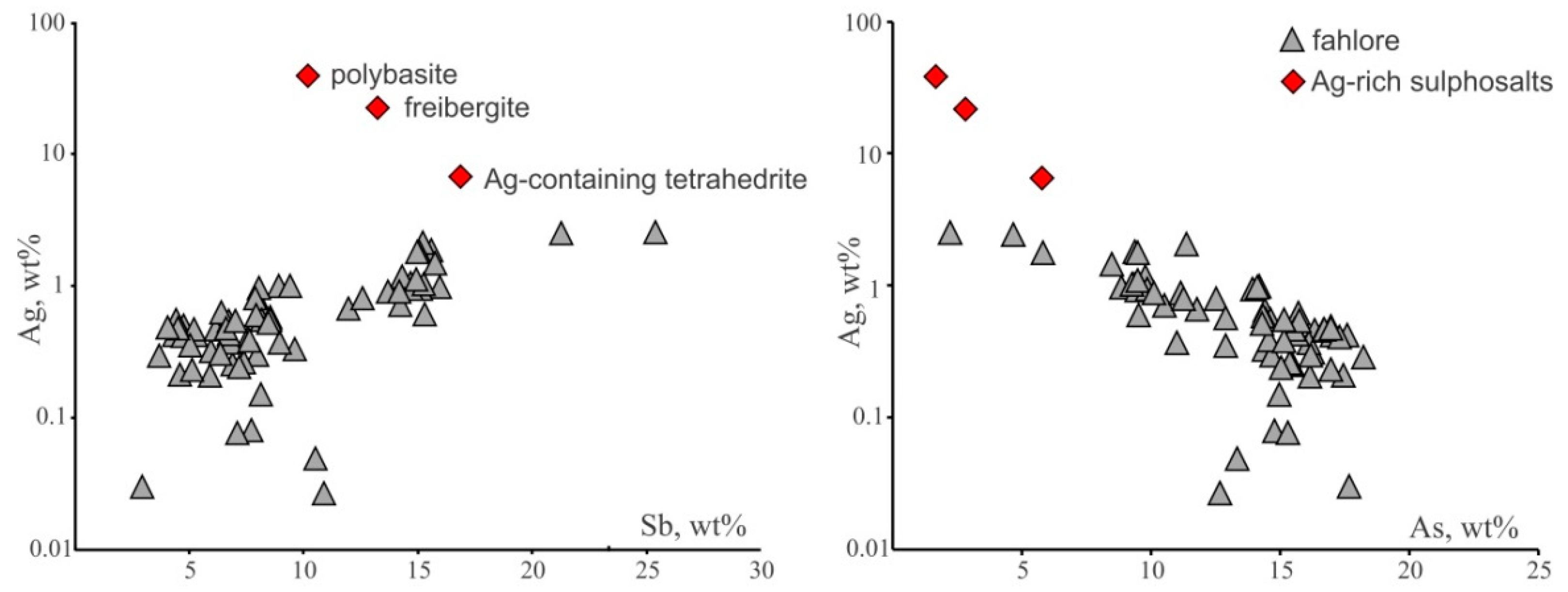

Fahlore is the main concentrator of Ag. Its dominant variety is a tennantite-(Zn). Tetrahedrite grains are commonly inhomogeneous with internal mosaic texture or regular growth-zoning. The Ag content in tennantite from the upper-level ores ranges from 0.1 to 0.6 wt% (average 0.4 wt%), whereas tennantite from the lower ore level commonly contains <0.2 wt% Ag. The largest concentration of Ag (0.2–0.5 wt%) and Hg (up to 1–2 wt%) in fahlore of the lower ore bodies (bodies 3 and 4) was found near contacts with mafic dykes and near the obtuse east end of the ore body 4.

4.2.3. The Uchaly Deposit

In the Uchaly deposit, the bulk of Au and Ag occurs in pyrite (Figure 23), with average contents ~1.6 ppm Au and ~13 ppm Ag (Table 19 and Table 20; Figure 23). Most of the gold (approximately 85%) is represented by dispersed and finely impregnated Au in pyrite, while free gold constitutes only 16% [15,88,89]. Gold occurs mainly in the zinc, copper and pyrite concentrates (4.0, 2.5 and 1.5 g/t, respectively). Contents of Au and trace elements in sulphides are the following (ppm): pyrite—Au 0.01–29.4, Ag 0.01–326, As 93–5370, Sb 1–990; chalcopyrite—Au 0.04–0.15, Ag < 2–5.7; tennantite—Au < 0.5, Ag 3000 (LA-ICPMS, Table 19, Table 20, Table 21 and Table 22; Figure 23, Figure 24 and Figure 25); sphalerite—Au 0.01–1.78, Ag 6–20 (INAA).

In the massive ores, visible gold was found in near-contact zones with a gabbro-diorite dyke (up to 20 m thick) or in areas that experienced local dynamometamorphism and tectonic flow. The gold aggregates (Figure 26a) have a fineness of 610–640 and 724–735 and are usually found in intergrowth with galena, chalcopyrite and tennantite-(Zn). As a rule, this mineral association cements recrystallised coarse-grained pyrite, often cataclased.

The mineral forms of silver (Table 18) are represented by Ag-containing tetrahedrite and tennantite (Figure 26b), and rarer electrum, silver tellurides (hessite, empressite), sulphides (acanthite, uytenbogaardtite, petrovskaite) and sulphosalts (freibergite, polybasite and pearceite; Figure 27). Silver impurity in pyrite (up to 400 ppm, EPMA) was also recorded. A strong positive correlation of silver and antimony was found for the fahlore (Figure 27).

4.2.4. The Galka Deposit

Along with the usually predominant pyrite, sphalerite, marcasite, chalcopyrite and less often galena, arsenopyrite, pyrrhotite, native gold, native silver, acanthite, freibergite, argentotetrahedrite, pyrargyrite, stephanite, proustite, polybasite and rare Au-Ag minerals petrovskaite, uytenbogaardtite and kurilite appear at the Galka deposit [15]. A special feature of pyrite of the Galka deposit is the increased content of As (0.027–0.878 wt%, avaverage 0.26 wt%, INAA; up to 1.5 wt%, average 0.05 wt%, LA-ICP-MS, Table 19) and Sb (7.4–873.4 ppm, average 184.2 ppm). The Sb content directly correlates with Au in pyrite (0.44–9.59 ppm, average 4.16 ppm), and Au is also directly related to Te (2.4–453.9 ppm, average 70.05 ppm) and Ag (2.15–711.7 ppm, average 137.0 ppm).

PGE shows extremely low concentrations in the sulphides of VMS ores (

Table 23. Contents of PGE in ore minerals of VMS deposits, LA-ICP-MS data, ppm.

Deposit	Minerals	Pt	Pd	Rh	Ru	Os	Ir
Gai	fahlore	-	-	12.6	0.062	0.005	0.01–0.07
	sphalerite	0.016	-	-	-	-	-
Uchaly	pyrite	-	0.03–0.2	0.04–0.26	-	-	-

), although ores and industrial products contain a noticeable amount of PGE [24,25,28]. In the common VMS ores (Au 0.2–3 ppm) of the Urals, essential parts (47–87%, Figure 28a and Figure 29) of gold are incorporated in the sulphides in the form of invisible gold. Thus, Au fails to tailings with pyrite and partly with other sulphides [15,72]. The fraction of native gold as an Au-concentrator ranges 13–90%, but this number decreases to 13–53% if the technological bulk probes enriched in Au (7.9–21.2 ppm) are excluded (Figure 28a). Native gold and other gold minerals occur in ore samples with bulk Au content higher than 3 g/t [37,67,104,105].

In the VMS deposits of the Urals, native gold forms grains and aggregates with size of about 1–50 μm and up to 150 μm. Larger grains are rare [103]. The fineness of gold ranges from 340 to 900 for slightly transformed deposits and from 500 to 980 for highly metamorphosed deposits (Figure 28b and Figure 30). Ag content varies from 11.88 to 39.45 wt%, and admixtures (wt%) of Pt up to 2.23, Pd up to 0.85, Te up to 1.17, Hg up to 0.89, Fe up to 0.5 and Se up to 0.49 are found. Hg-bearing native gold (8–11 wt% Hg) rarely occurs. According to the high-resolution transmission electron microscopy (HR-TEM) data, nano-sized particles of native gold (1–50 nm) occur in pyrite of the VMS ores [15].

Characterising native Au-Ag solid solution, we adhere to the terminology adopted in early publications [106,107]: native silver, Ag_1.0Au_0.0–Ag_0.94Au_0.06 (0–100‰); küstelite, Ag_0.94Au_0.06–Ag_0.85Au_0.15 (100–250‰); electrum, Ag_0.85Au_0.15–Ag_0.44Au_0.56 (250–700‰); high-fineness gold, Ag_0.44Au_0.56–Ag_0.0Au_1.0 (700–1000‰). Native gold with fineness ~780–860 is commonly dominated in VMS deposits of the Urals (Figure 30), but more low-fineness gold is found in some VMS deposits of the Urals, the Galka, for example (fineness ~640–720).

4.3. Experimental Results

4.3.1. Geochemistry of Au in Sulphides

An experimental study of concentration mechanisms of NM in base metal sulphides was conducted in the frame of the Russian Scientific Foundation grant No. 14–17-00693 “Distribution and structural-chemical state of noble metals in sulphides through the ore deposits from magmatic to hydrothermal as an indicator of the conditions of mineralisation” (2014–2018), led by the first author. As a result of work on the sources of synchrotron radiation measurement, X-ray absorption spectra (XANES/EXAFS) and interpretation of the resulting data, and using X-ray photoelectron spectroscopy, the position of gold in the structure of sulphides was revealed. Main results were published in a series of papers devoted to Au in covellite CuS [16,17], in Fe-S and Fe-As-S minerals [19,52], in sphalerite (e.g., [92]), Au, Ag, Pt and Pd in pyrite and pyrrhotite [91], Pt in pyrite [22] and pyrrhotite [23].

Gold can form a solid solution with Fe-S and Cu-Fe-S minerals. When pyrite is heated, chemically bound Au, even in the presence of liquid sulphur, is released as a metal, while in copper minerals, heating, on the contrary, promotes the transition of the metal into a “chemically bound” form. In general, results [17,19,22,52,91,92] suggest that Au and other NM (PGE, Ag) can occur in the chemically bound state in the Cu-Fe and Cu-Zn-Fe sulphide ores.

Below, we will focus on zinc sulphide and its close crystal-chemical “relative” greenockite. Both minerals—unlike pyrite and arsenopyrite (see, e.g., [19,52,91] and references within)—are much less studied experimentally (e.g., [108]). Zinc sulphide occurs in nature in two polytypes—sphalerite and würtzite—or their mixture. These phases have different chemical elements’ solubility limits. Both forms of ZnS are important in mineralogy as many minerals crystallise in the same structures. For example, there are würtzite and sphalerite forms of AgI (iodargyrite and miersite) and CdS (greenockite and hawleyite) [109]. Most of our gas vapour transport and salt flux experiments led to the formation of pure cubic sphalerite. The existence of minor amounts of würtzite in sphalerite crystals, probably arising due to the changes in the sulphur fugacity in the system, contributed to the formation of low-Au-saturated ZnS (<50 ppm Au) with inhomogeneity distribution of all the admixtures. However, we never obtained pure würtzite using the mentioned methods. To supplement missing data on Au solubility, we used synthetic crystals of greenockite as a model compound for the würtzite-type structure.

4.3.2. Noble Metal Speciations in Synthetic Sphalerite and Greenockite

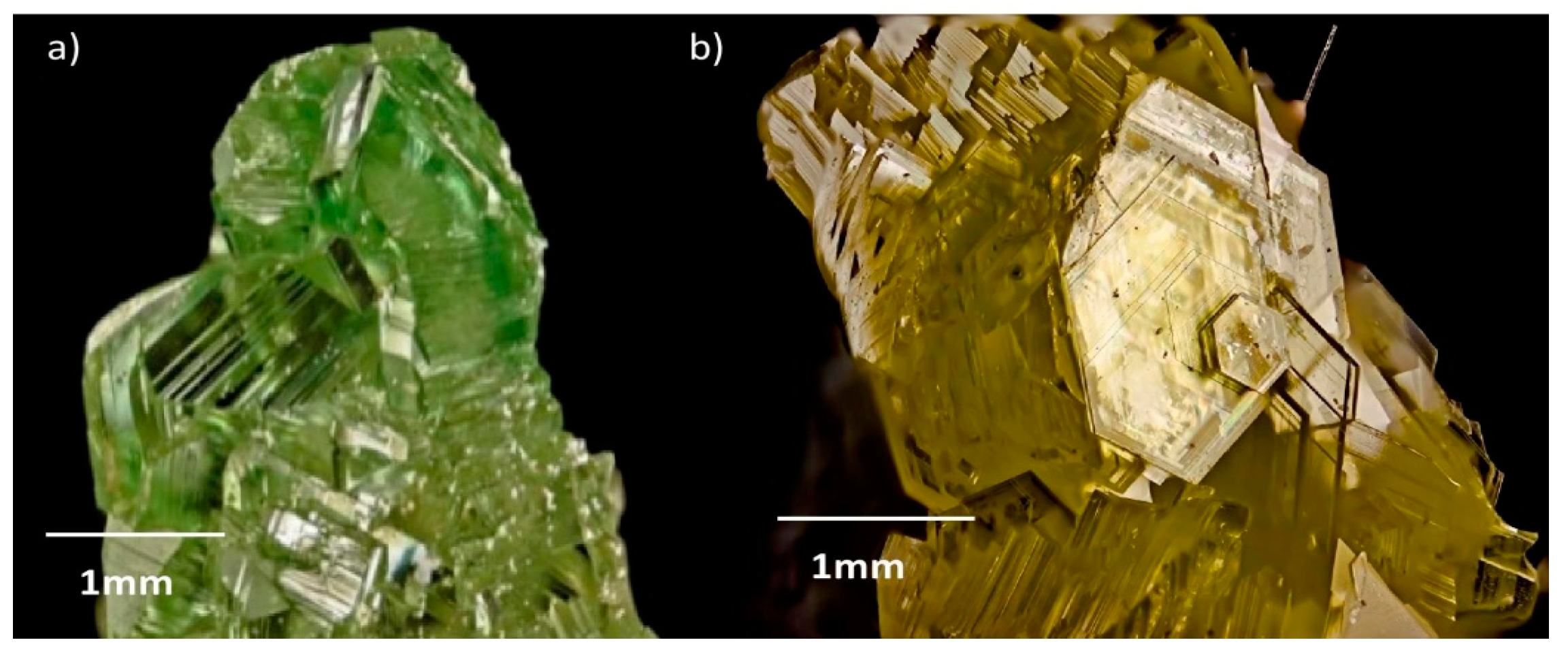

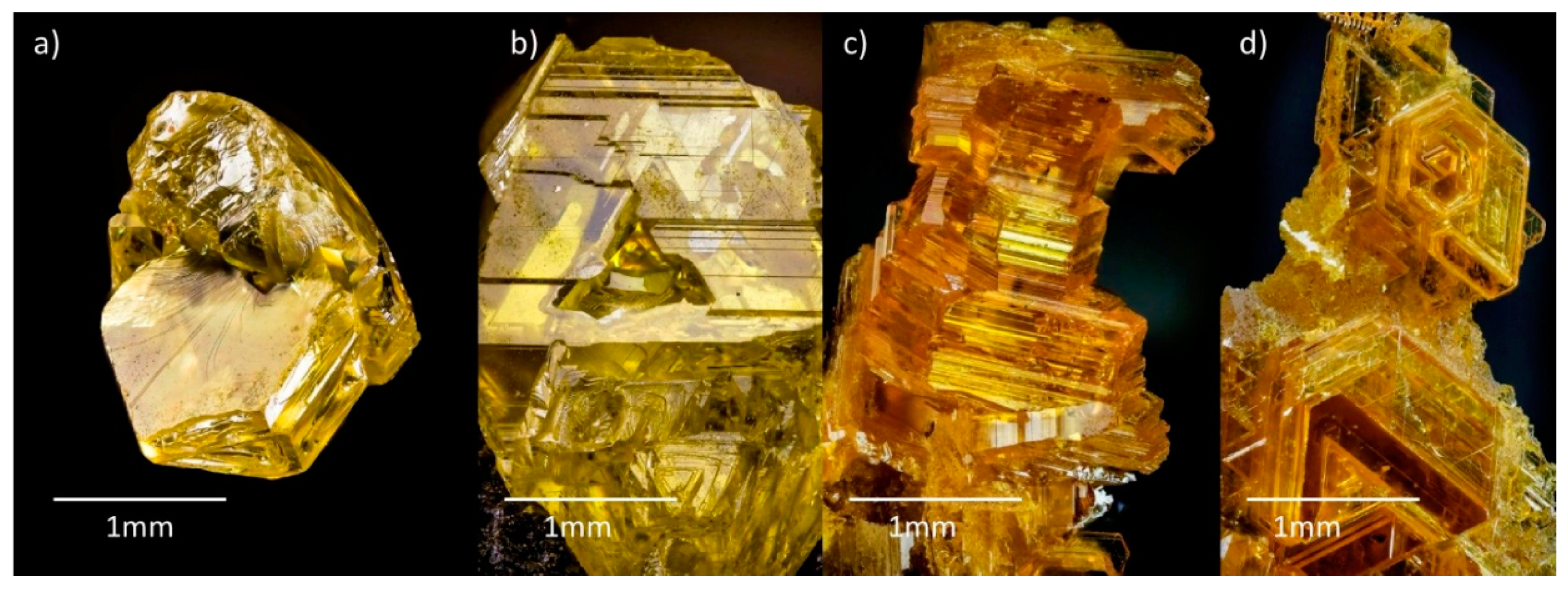

For synthesis experiments, the starting mixtures were pure ZnS (würtzite) or CdS, and several milligrams of In₂S₃, FeS and MnS for sphalerite or greenockite. The initial phases were powdered in the agate mortar and then loaded into silica glass ampoules (10–11 mm outer diameter, 8 mm inner diameter and ~110 mm length) together with Au metal wire and transport agent or salt mixture. We used mainly the eutectic mixture of NaCl/KCl in the salt flux experiments, and the amount of salt flux melt was approximately 50–65% of the ampoule volume. We used both I₂ and NH₄Cl as transport agents in chemical vapour transport experiments. The total quantity of the obtained crystals was higher when we used NH₄Cl compared to I₂. It is important to note that we control the activity of gold by the presence of pure metal wire inside the ampoule. Therefore, the concentration of gold in sphalerite represents the maximum possible value for the given parameters. In one series of chemical vapour transport experiments, a tiny piece of sulphur was added before sealing. Then, we performed a synthesis without adding any additional sulphur. To understand the influence of f S₂ on the concentration of gold in the final crystals, different amounts (from 0 to 0.035 g) of sulphur were added to the ampoules of the chemical vapour transport suite. The loaded ampoules were evacuated up to 10^-4 bar, sealed with an oxygen-gas burner and placed into a horizontal tube furnace that was then heated to the synthesis temperature over 2–3 h and then kept at this temperature during 16–30 days. The temperature gradient in the furnace was 50–100 °C, and the measured temperature at the hot end of the ampoules was 850 °C. At the end of the experiment, the ampoules were quenched in cold water. Sphalerite crystals were found in the cold end of the ampoules (Figure 31, Figure 32 and Figure 33). It is important to note that the attempts to synthesise Au-bearing sphalerite at the lower temperatures using other salt mixtures (e.g., CsCl/NaCl/KCl mixture at 645 and 555 °C at the hot and cold end of the ampoule respectively, and LiCl/RbCl mixture at 470 and 340 °C, respectively) led to the formation of tiny crystals of sphalerite with the gold content < 5 ppm. These crystals cannot be used for the XAFS study due to the difficulties in measuring low amounts of the impurities. Therefore, we did not use these samples in our further observations. Only high-temperature synthesis (≥850 °C in the hot end of the ampoule) led to the crystallisation of Au-rich crystals.

The synthesis of Ag-bearing sphalerite using the gas transport method and silver wire led to the formation of Ag-bearing sphalerite with heterogeneous distribution of the dopant in some cases. We also tried to grow crystals of Ag-bearing sphalerite at low temperatures in an eutectic mixture of LiCl/RbCl at 550 and 460 °C at the hot and cold ends of the ampoule, respectively. The products of the synthesis contained the needles of Ag₂S. According to the phase diagram, the optimal way of Ag-bearing sphalerite synthesis is conducted by the calculated amount of Ag₂S as a dopant source instead of Ag wire for such experiments.

The chemical composition of the final crystals was studied both by EPMA (for the major and minor elements) and by LA-ICPMS (for the trace elements). Experiments show that in simulated conditions, as in nature (e.g., [15]), sphalerite can incorporate more Au in the presence of admixtures of other elements. Natural sphalerite can contain Au, Ag, Cu, Tl, Hg, Fe, Mn, Cd, In, Ga, Ge, As, Bi, Pb, etc. [8]. Some of these chemical elements are presented in the form of mineral microinclusions (e.g., Pb, Bi, etc.), while others can substitute Zn²⁺ (e.g., Cd, Mn, Fe, etc.) in the crystal structure of sphalerite [8]. We prepared the sample with admixtures typical for the natural environments: Fe, Mn, Se, In and Cd, together with gold, which were added one by one, in pairs, or simultaneously. The elements are evenly distributed inside the sphalerite (Figure 34 and Figure 35; [110]). In the resulting crystals, we observed an extremely high concentration of gold (up to 3000 ppm) in comparison with the sample of the Fe-bearing sphalerite with Au (up to 250 ppm) (Figure 35, Figure 36, Figure 37, Figure 38 and Figure 39).

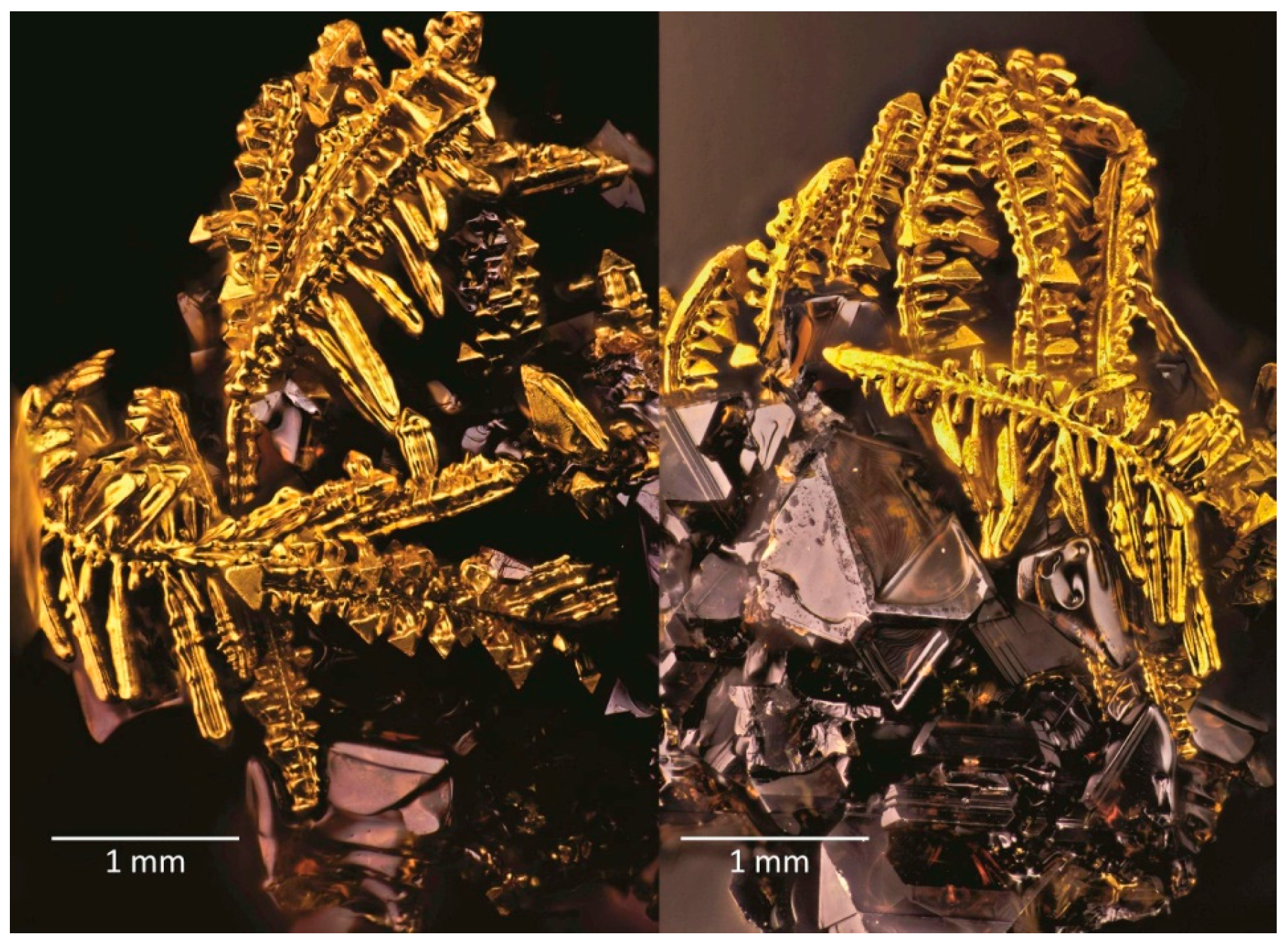

According to chemical analysis, the amount of Au increases instantly with the increase of the sulphur fugacity in cases when In was added to the system (Figure 36 and Figure 37, shaded symbols). In some synthesis experiments, adding more than 2.28 wt% In leads to the formation of intergrowths of sphalerite and sulphospinel phase of the approximate composition ZnIn₂S₄ (Figure 38a). In the absence of indium, C_Au does not exceed 10 ppm (Figure 37, non-shaded symbols). In the synthesis experiments, the close coalescence of sphalerite crystals with native gold dendrites (Figure 40) indirectly confirms that we are probably dealing with the maximum values of Au impurity that can enter the composition of sphalerite under these conditions.

Our experiments on solubility of Pt, Pd, Os and Ir in sphalerite show that these noble metals cannot penetrate into the structure of zinc sulphide, even in the low amounts.

The presence of In and/or Fe admixtures also affects the concentration of Au in synthetic crystals of greenockite (

Table 28. Chemical composition of greenockite crystals with admixtures of Fe, In and Au, synthesised using the gas transport method at 850 °C.

Sample	EPMA, wt% (±2σ)						LA-ICPMS Au, wt% (±2σ)
	Cd	S	Fe	In	Au	Total
5457	78.18 (0.07)	22.23 (0.17)	-	-	bdl	100.41 (0.24)	0.0015 (±0.0005)
5458	74.78 (0.22)	22.84 (0.29)	2.84 (0.04)	-	bdl	100.46 (0.55)	0.0410 (±0.0005)
5459	77.76 (0.62)	22.27 (0.23)	-	0.73 (0.03)	bdl	100.77 (0.88)	0.0311 (±0.0020)

bdl—below the detection limit.

; Figure 41 [111]). The concentration of Au in In- and Fe-doped greenockite is ten-fold higher in comparison with pure CdS. The distribution of Au, Ag, In, Cd, Se, Fe and Mn in sphalerite and greenockite is homogeneous according to the LA-ICPMS line mode spectra (Figure 34, Figure 35 and Figure 41).

5. Discussion

A significant part of the primary gold reserves in Russia and the world are sulphide ores ([112,113,114] and references cited therein). Many sulphide ores are classified as refractory by technologists. It is the deposits of refractory sulphide ores that are the main potential source of gold production. The refractory gold and silver in sulphide ores can be associated with micro- and nanoinclusions of gold and silver minerals as well as isomorphous, colloidal, surface and adsorbed species of NM. However, the forms of invisible gold and other NM are still insufficiently investigated.

A series of authors’ papers [9,15,24,25,39,63,67,80] were devoted to the problem of invisible and microscopic gold in sulphides. Based on the study of the VMS ores of the Urals (e.g., [15,25,67,115]), Rudny Altai [76,116] and modern hydrothermal systems of the ocean floor [76,117,118,119], it was concluded that gold was primarily manifested in an invisible form, mainly in iron and copper sulphides. Gold enlargement with its release in the form of its own minerals occurred during later epigenetic hydrothermal processes and metamorphism. Native gold and Au-Ag tellurides, sulphides and selenides are found as microinclusions in base metal sulphides, particularly in pyrite, marcasite, chalcopyrite, sphalerite and arsenopyrite sulphosalts [112]. The size and shape of gold particles and their 3D mineral associations within ore samples were established by X-ray tomography [120].

Invisible gold should include gold in the form of a solid solution or an isomorphous impurity that is part of the structure of the Au-Ag-bearing matrix minerals. Invisible gold also includes fullerenes, colloids, clusters and surface-bound gold < 1 nm [15,121,122].

In gold deposits of the Urals, the portion of invisible gold is usually small, for example, only 1–16% in the mesothermal Berezovsk deposit and ~20–30% of the bulk Au in the Vorontsovka Carlin-style gold deposit [9,63,105], but it can also be very high. The data of local analyses (LA-ICPMS, INAA, EPMA, SEM/EDS) allow us to estimate the portion of bound Au in pyrite ~60% of the bulk Au of ores from the Novogodnee-Monto gold-skarn deposit [40], and even more, ~80% of the bulk Au for the Petropavlovsk gold-porphyry deposit [39,40].

Based on the composition, pyrites of the Berezovsk deposit can be divided into two groups: (1) Au-bearing, and (2) virtually Au-free. Pyrite of the second group prevails; in this pyrite, Au occurs in the amount of 0.08–0.1 ppm in the mode of single peaks of the group of Ag-Pb-Cu-Sb, probably in the form of microinclusions of native gold in pyrite in intergrowths with galena and fahlore. The Au-bearing variety of pyrite of the first group may contain structurally bound Au (C_Au up to 73.5 ppm, INAA; 21.8 ppm, LA-ICPMS). It is generally accepted that all gold in the deposit is free, i.e., it is found exclusively in the form of native gold. The new data obtained indicate, although rarely, the presence of finely dispersed, possibly chemically bound gold in pyrite. Such pyrite could be formed during late, relatively low-temperature processes, later than “ordinary” pyrite with a zonal distribution of Co, Ni and As, which carries gold only in the form of native gold inclusions.

In galena from the sulphide-quartz veins of the Shartash granite massif, Berezovsk gold field, there are correlations in the Ag-As-Se-Bi-Sn series (r = 0.8–0.9) and in the Bi-Te (r = 0.84) and Bi-Tl (r = 0.7) pairs. Since the distribution of the elements is uniform, we can assume that they enter the galena isomorphic according to the schemes: (Ag,Tl,Cu)⁺ + (Bi,As,Sb,In)³⁺ ↔ 2Pb²⁺, (Sn)⁴⁺ + 2(Ag,Tl,Cu)⁺ ↔ 3Pb²⁺, (Se,Te)^2– ↔ S^2–. A high degree of correlation is observed in the Cu-Sb (r = 0.87), Cu-Ag (r = 0.72) and Ag-Sb (r = 0.89) pairs. The inhomogeneous joint distribution of Au with Cu and Sb may be related to the finely dispersed inclusions of bournonite CuPbSbS₃ since the latter is a characteristic common humbeite mineral, and its presence could contribute to the deposition of submicroscopic native gold.

In the Urals, about 25 million tons of VMS ores are processed per year, only 15–40% (for various plants) of the total gold is extracted and losses with pyrite concentrate and in the tailings of enrichment amount to 13–15 tonnes of Au per year [77].

For weakly metamorphosed VMS deposits, the following sequence of decrease in the invisible gold concentration in sulphides is observed: galena (up to 122 ppm, geom. mean 90.5 ppm)–chalcopyrite (40/9.6)–pyrite (10/1)–marcasite (5/0.6)–sphalerite (6/0.4). For highly metamorphosed VMS objects: pyrite (31/2.3)–chalcopyrite (8/0.65)–sphalerite (0.7/0.4)–arsenopyrite (0.7/0.2)–fahlore (3.3/0.12)–bornite (3.2/0.06)–pyrrhotite (0.1/0.05)–galena (0.1/0.04), and, in general, C_{invis. Au} is noticeably lower.

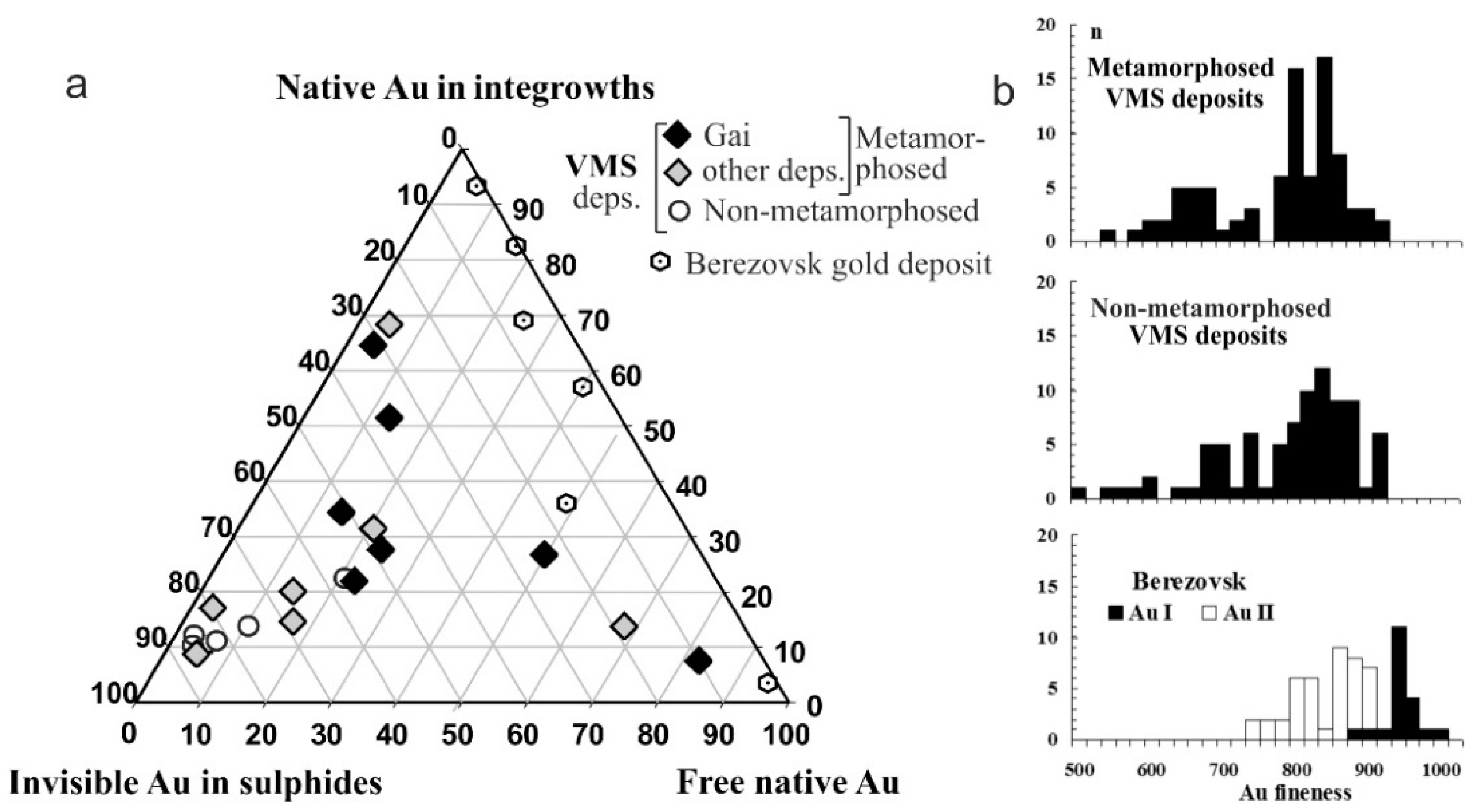

Estimates of the portion of invisible gold in VMS deposits in the Urals vary widely (within 30–90% of the total gold of ores) at a concentration of such fine gold from 0.8 to 5 g/t [9,72]. Higher values (~65–85% of the bulk Au of ores) are typical for the portion of invisible gold of weakly metamorphosed ores [15,36]. With increasing metamorphism [57], the contents of Au and Ag in the main ore-forming sulphides (sphalerite, chalcopyrite, pyrite) generally decrease [25,112]. In most cases, the portion of invisible gold also decreases (~35–60% of the total ore volume), so there is an inverse correlation between the proportion of invisible gold and the increase in the degree of metamorphism of ores [9,57,89]. As a result of the recrystallisation of ores, the invisible gold is enlarged and passes into the visible state [67,94].

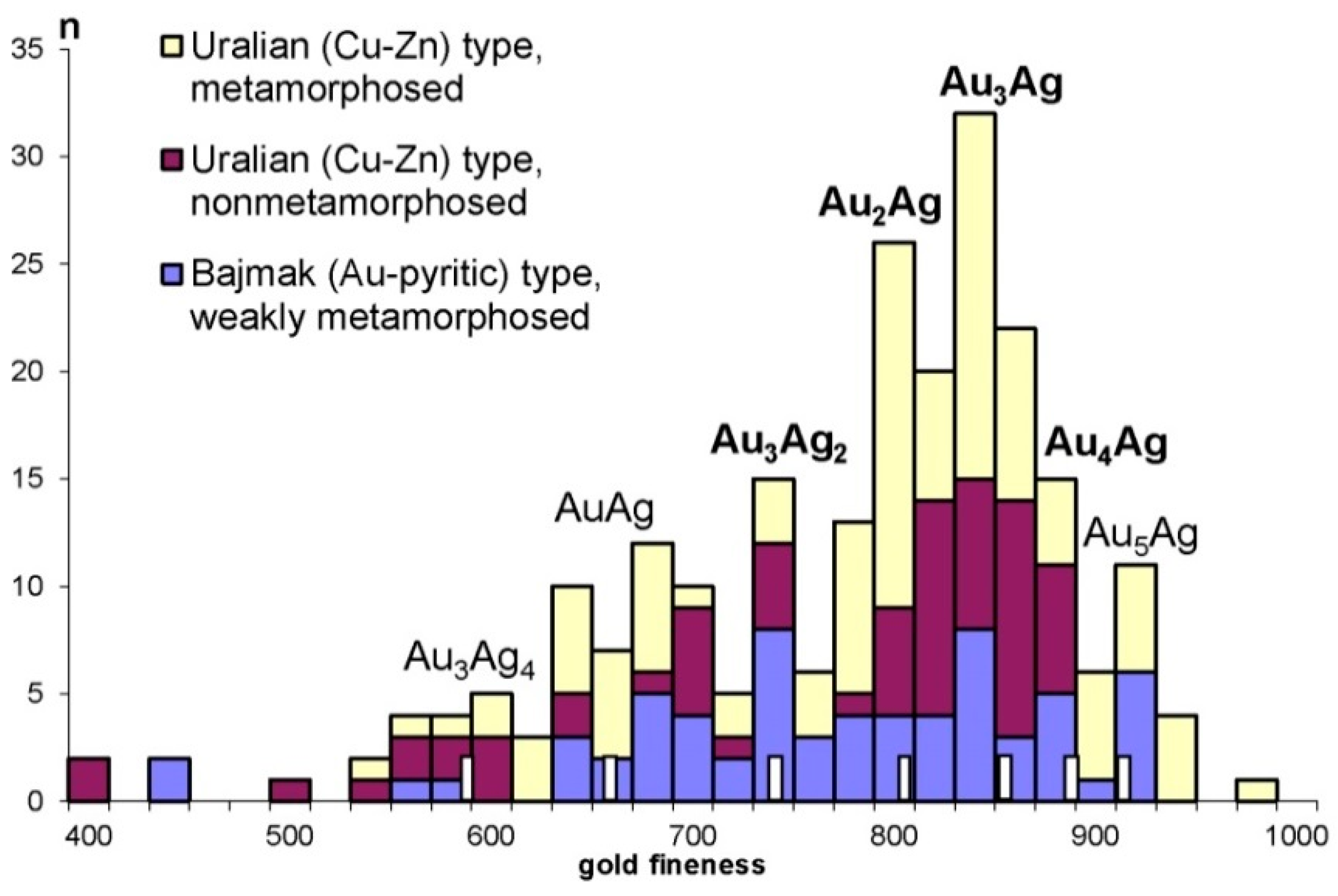

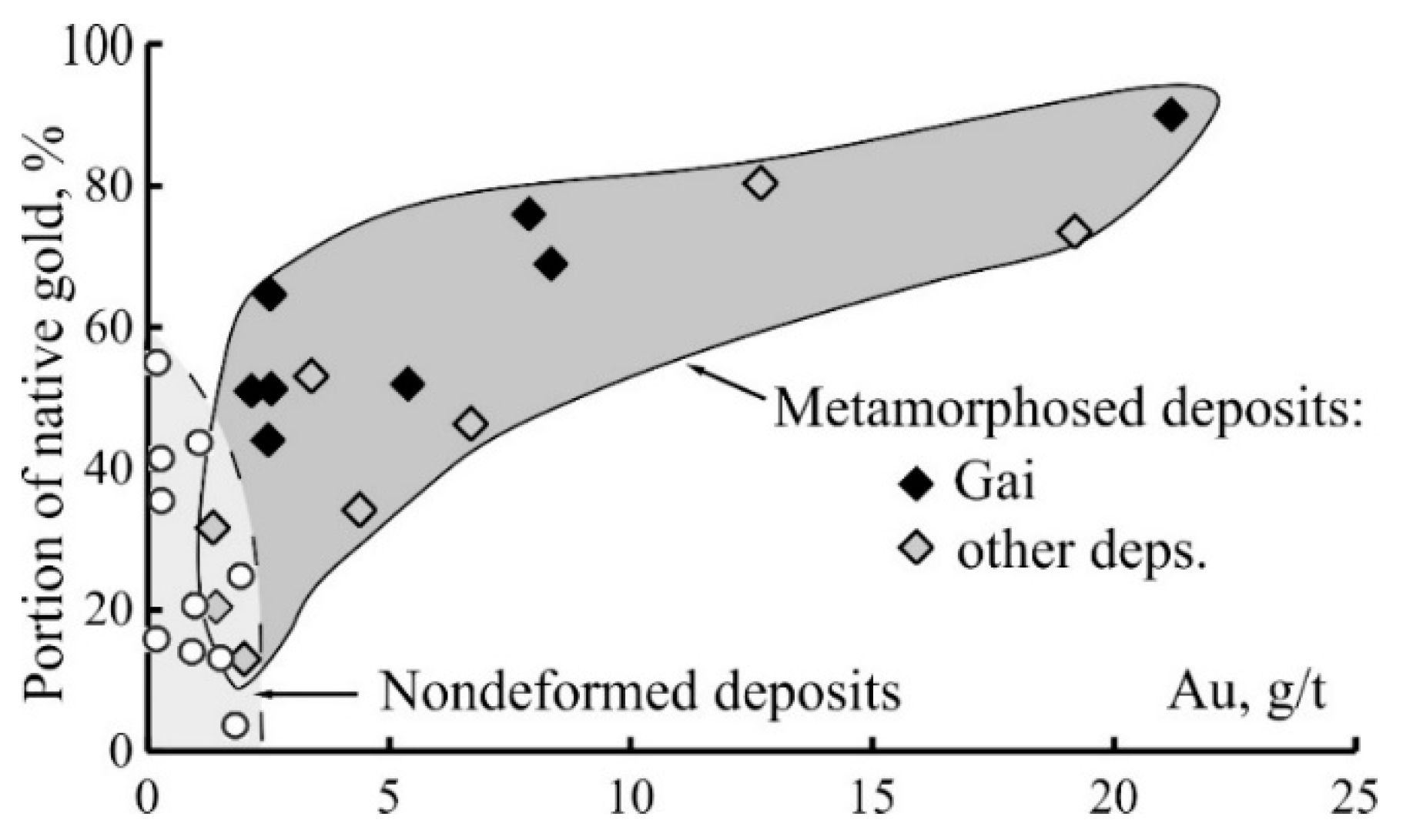

For the VMS deposits of the Urals, the Z-shaped variation of native gold composition (Figure 30) probably reflects the continuous-discrete character of the Au-Ag solid solution. The presence of possible miscibility gaps in this binary system was discussed in [106,123,124]. Independent mineral phases with contrasting compositions were clearly recorded in the Ag-rich zone [123]. In [124], species with Ag < 25 wt% are referred to the zone of stable solid solutions, but at least two phases (Au₃Ag and AuAg) are believed to be present in the Ag-depleted zone. According to [106], the existence of the Au₂Ag compound is the most probable in nature. Our data obviously confirm these assumptions, although the occurrence frequency of electrum (AuAg) in the VMS deposits of the Urals is lower than that of Au₃Ag and Au₂Ag.

However, only in the last two decades, with the broad involvement of the LA-ICPMS method and other spectroscopic methods ([6,7,14,17,19,92,119,120,121,125,126,127,128], etc.), did a breakthrough in studying the forms of noble metal occurrence in sulphides become possible. LA-ICPMS or EPMA correlation analysis of the concentrations in a particular mineral usually gives uncertain conclusions. However, these methods predominate in ore geology (see, e.g., [129] or [130]). X-ray absorption fine structure spectroscopy allows getting more definite results, especially for synthesised sulphides [17,19,52,92], but the beam-time is more expensive and data processing is complicated by concentration levels of NM impurities in studied sulphides (see [15] for a discussion).

Below, we will focus on our data on the noble metal speciation in synthetic sphalerite and greenockite.

5.1. Conditions Conducive to the Formation of Au-Saturated Sphalerite

Sphalerite is not considered as a significant source of Au production during the mining and processing of ore deposits [8]. However, a noticeable amount of gold can enter sphalerite in an invisible form [15,25,117], especially in relatively high-temperature conditions realised in medium- and high-temperature types of deposits. The typical contents for natural sphalerite are in the range of 0.1–10 ppm Au [8,15,117,131]. It can contain micro-inclusions of native gold, especially at the deposits that have undergone syn-metamorphic remobilisation [25,71]. Pure sphalerite, in contrast to bornite and chalcopyrite, is one of the weakest Au absorbers [128]. Using the phase composition correlation principle, Lipko and co-authors calculated the solubility of Au in pure and Fe-bearing sphalerite, and the latter is 3.5 times higher than in pure mineral [128]. Thus, the goal of the first experimental study was to find suitable conditions for the formation of Au-bearing sphalerite. Thus, we also addressed the evaluation of the exact chemical form of Au in synthesised specimens.

In general, the results of our experiments ([110], this study) clearly show that the concentration of Au is higher in sphalerite containing different impurity components than in its pure crystals. A similar pattern is observed in ore deposits ([15,25,37], etc.) and modern hydrothermal fields on the oceanic floor ([118,131,132], etc.). The entry of Au into sphalerite is favoured not so much by the low-temperature conditions of its crystallisation but by the supersaturated nature of the evolved magmatic fluids and the co-deposition with Au of other chemical elements, especially In, Cu and Mn.

For sphalerite, after a few series of synthesis experiments, we conclude that the main element that favours gold to “intrude” in the crystal structure of ZnS is indium [92,108,110]. Iron also affects the concentration of Au but to a lesser degree. We infer that it may be related to the valence state of the elements. Indium is a trivalent element and some recent works of our colleagues suggest that a minor fraction of iron in sphalerite is also trivalent (e.g., [133]). We propose that the same mechanism of coupled substitution as in the case of Cu [134,135] occurs in the Au-bearing-sphalerite: Au⁺ + In³⁺ ↔ 2Zn²⁺. Our recent XAFS results demonstrate that at high concentrations (0.03–0.2 wt% In), Au can exist in sphalerite in two forms: primarily as a nano-sized Au₂S (or AuInS₂) cluster and secondarly, in the form of a solid solution (e.g., (Zn,Au)InS₂); according to the spectroscopic study, all trivalent In in sphalerite substitutes Zn, without any Au-In clustering [92]. Unfortunately, we were not able to observe the Fe³⁺ in the sphalerite using synchrotron methods due to the extremely low concentration of this isotope.

The EPMA and LA-ICPMS data do not provide univocal information regarding the chemical state of Au and In in ZnS. However, the XAFS method is inadequate at concentrations below hundreds of ppm. Therefore, in contrast to arsenian pyrite and arsenopyrite, due to the low C_Au in natural sphalerite, it is generally impossible to study the chemical state of NM in the mineral by this method (cf., [134]). EPMA and LA-ICPMS data complement the existing results (Figure 38, Figure 39 and Figure 41;

Table 27. Concentration of Au in the samples of synthetic sphalerite doped by different admixtures, grown using the salt flux method (in eutectic melts of NaCl/KCl) at 850 °C.

Sample (color 1)	FeS, mol.%	EPMA, wt% ± 2σ								Total	Formula	LA-ICPMS, wt% ± 2σ
		Zn	S	Fe	Mn	Cd	Se	In	Au
1660 (blue)	3.70	64.15 (0.50)	33.72 (0.11)	2.15 (0.07)	0.12 (0.02)	0.50 (0.04)	0.25 (0.03)	0.17 (0.02)	0.20 (0.01)	101.26	Zn0.94Fe0.04S1.01	0.1892 (0.0112)
1661 (grey)	3.24	65.08 (0.43)	33.82 (0.49)	1.89 (0.06)	-	-	-	0.22 (0.03)	0.20 (0.01)	101.21	Zn0.95Fe0.03S1.01	0.2092 (0.0082)
1662 (black)	1.67	64.77 (1.61)	33.37 (0.85)	0.96 (0.01)	-	-	-	-	-	99.66	Zn0.96Fe0.02 Cu0.02S1.01	0.0077 (0.0046)
1663 (green)	4.20	64.17 (0.89)	33.51 (0.39)	2.44 (0.08)	0.50 (0.10)	-	-	-	-	100.62	Zn0.94Fe0.04S1.01	0.0094 (0.0012)
1665 2 (red)	4.33	63.29 (1.45)	33.33 (0.71)	2.48 (0.22)	-	-	-	-	-	99.10	Zn0.94Fe0.04S1.01	0.0096 (0.0046)
1666 (yellow)	-	67.09 (0.64)	33.19 (0.23)	-	-	-	0.94 (0.06)	-	-	101.22	Zn0.99SSe0.01	0.0014 (0.0007)

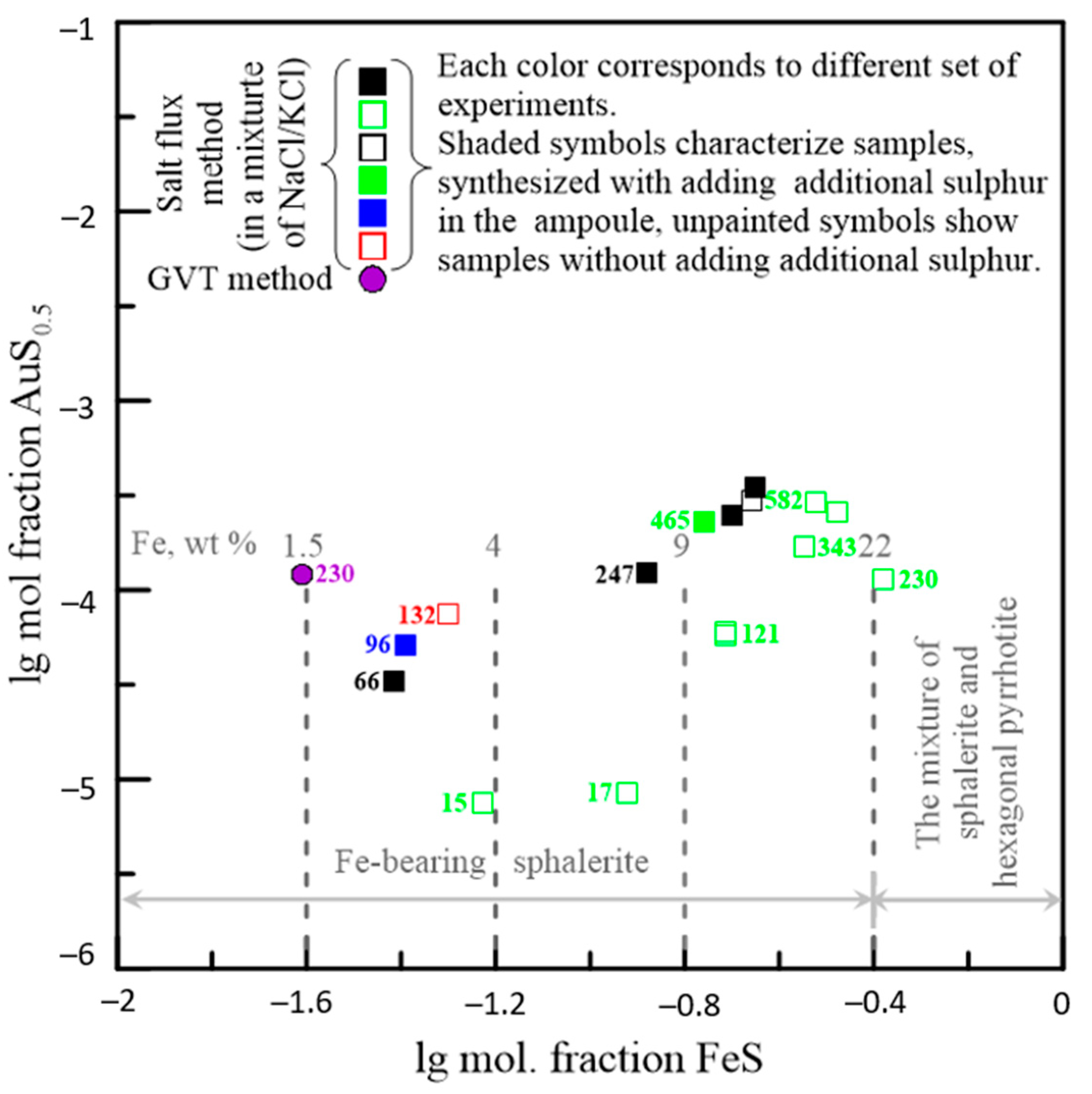

¹ Colour on graph (Figure 35); ² Synthesis with adding a few mg of additional sulphur in the ampoule.

and Table 28) since they do not contradict the conclusion that at least part of the gold in sphalerite exists in the form of solid solution [136]. This form may predominate at low concentrations of gold in sphalerite, especially in nature.

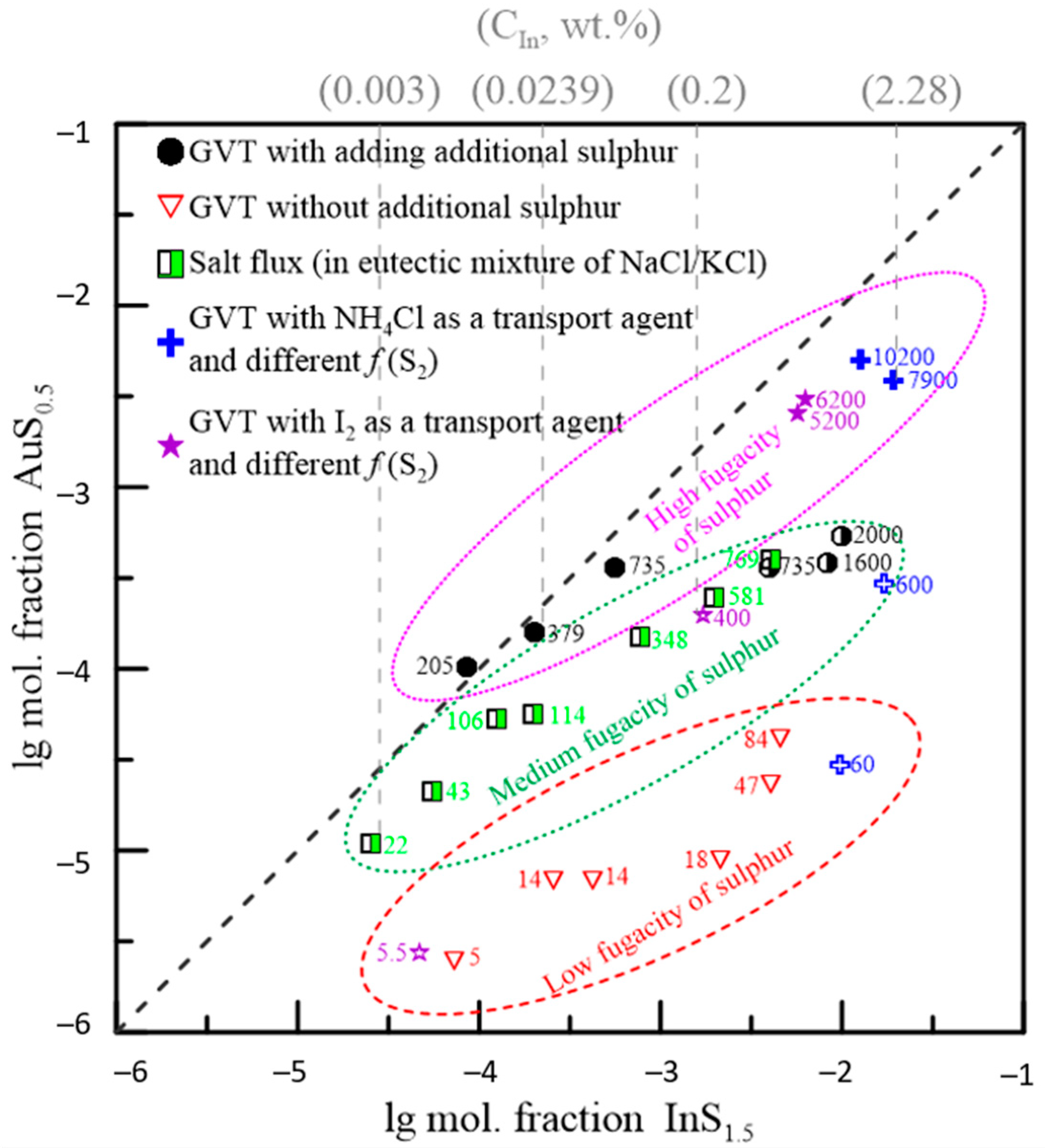

According to chemical analysis, the amount of Au increases instantly with the increase of the sulphur fugacity in cases when In was added to the system (Figure 38 and Figure 39). This fact proves the mechanism of vacancies formation in cation subcell leading to the accumulation of additional gold and the existence of the following isomorphous scheme: 3Zn²⁺ ↔ 2In³⁺ + □, described in [137]. In our synthesis experiments, adding more than 2.28 wt% indium leads to the formation of intergrowths of sphalerite and sulphospinel ZnIn₂S₄ phase (Figure 40. In the absence of indium or any other impurities, C_Au does not exceed 10 ppm (Figure 37 and Figure 39).

Divalent elements (notably Fe, Cd and Mn) commonly enter the sphalerite structure by isomorphic substitution of Zn (e.g., [129,138]). Other elements, for example, In, Cu and Ag, replace Zn in heterovalent coupled and/or multiple substitutions, such as: 2Zn²⁺ ↔ Cu⁺ + In³⁺, 2Zn²⁺ ↔ Cu⁺ + Fe³⁺ and 4Zn²⁺ ↔ 2Cu⁺ + Fe³⁺ + (Sn,Ge)⁴⁺ [8,129,139,140]. The latter mechanism may have played a fundamental role in the crystallisation of Au-bearing sphalerite from fluids of postmagmatic volcanic-arc systems, usually enriched in Au, other metals and metalloids (e.g., [141]).

Like natural samples of more chemically pure sphalerite, usually with minimal C_Au (e.g., [15,25]), pure synthetic sphalerite is usually unsaturated by Au compared to the specimens with admixtures ([128], this study). Tauson and co-authors [142] linked this phenomenon to the variation of the chemical bonding parameters due to incorporating of the additional metals in the structure (cf., [128]).

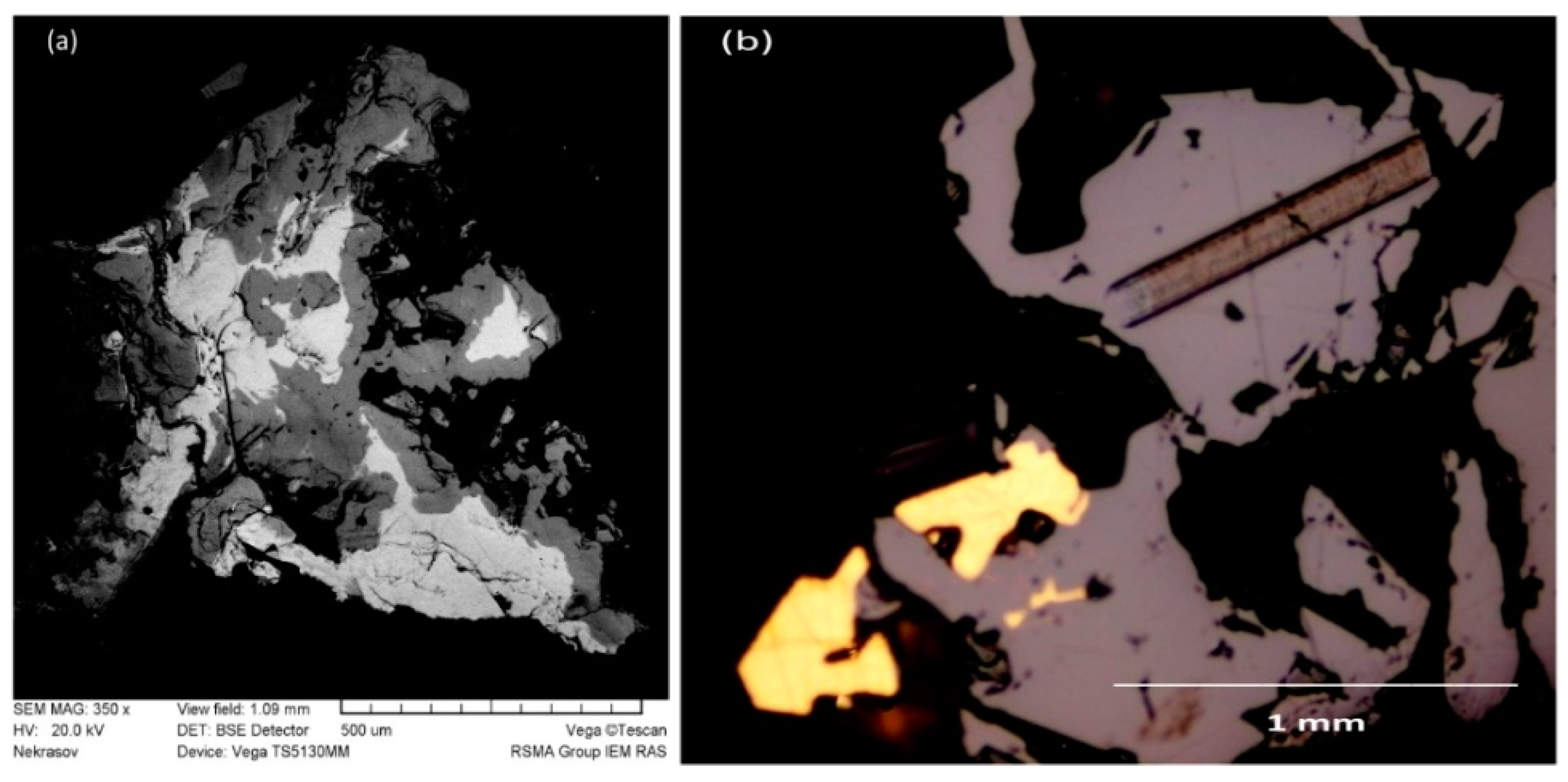

For synthetic crystals of Ag-bearing sphalerite doped by In (or without In), the XAFS data revealed that Ag exists in sphalerite mainly in the form of a solid solution according to the scheme 2Zn²⁺ ↔ Ag⁺ + In³⁺, also suggested for natural sphalerite; however, a part of Ag (<5%) exist in the Ag-bearing sphalerite in the sulphide form Ag₂S ([108]; cf., [130]). In the absence of In, XANES spectra show Ag mainly in the native element mode (formal oxidation state 0) and sulphide forms. At high sulphur fugacity in the experimental system, sulphide form Ag₂S predominates [108]. Presence of submicron inclusions of laforêtite AgInS₂ in Ag-, In-bearing sphalerite is probable. This mineral has the same sphalerite structure and may form a solid solution series in ZnS-AgInS₂ system. Occurrence of AuInS₂ in Au-, In-bearing sphalerite can also be assumed. Solid solution ZnS–AuInS₂ is also possible in nature.

Thus, gold and silver both prefer accumulation in In-bearing sphalerite as a solid solution. However, in the absence of In, their dominant forms are Au₂S, native Ag and Ag₂S, respectively. This fact corresponds to the low solubility of Au and Ag in sphalerite solid solution [128].

5.2. Correlation of As and Au Contents in Pyrite

The positive correlation of the As and Au contents in As-pyrite is noteworthy (Figure 9), which can be considered as evidence of an isomorphic substitution of the Fe position in the As-pyrite lattice (cf., [143,144]). In recent years, this has been interpreted as Au sorption on the growing faces of pyrite crystals [143,145,146]. For example, at sediment-hosted Carlin-type ore, invisible gold in arsenic disulphides represents Au deposited from the metal-bearing fluid by chemisorption at As-rich, Fe-deficient growth surfaces and incorporated into the sulphide crystals in the mode of metastable solid solution [96]. It corresponds to our data for the Vorontsovka Carlin-style deposit (Figure 9).

However, in other cases, there is a weak negative correlation of Au with As according to LA-ICPMS data for pyrite of the Geita Hill, Kumtor and Witwatersrand Carbon Leader Reef giant gold deposits [127]. A similar situation (there is no positive Au/As correlation in pyrite or it is very feeble) is observed for many deposits everywhere [6,8,31,32,33,34,35,43], as well as for many sulphide deposits of the Urals [36,37,38,39,40,41,42].

When analysing As-pyrite, two aspects should be considered: As and Au impurities in pyrite and their relationship. Thus, the maximum solubility of As in pyrite at 600 °C according to the experimental data of Clark [147] is 0.53 wt%, and As content reaches 9.3 wt% in natural pyrites [96,148], and some researchers detected up to 14 wt% As in pyrite (e.g., [149]). Moreover, most researchers note that the sum of the S and As contents in pyrite remains ~66.7 at%, and they interpret low As concentrations (up to ~1.2 wt% As) as a solid solution with local clustering of As atoms. However, at higher concentrations of As in pyrite (6–9 wt%), arsenopyrite domains were detected on the HRTEM images [150,151]. Another feature of the As-pyrites that should be noted is the inhomogeneity and, more often, zoning in the distribution of As, which can be caused by changes in the crystallographic orientation of the phase (different interplanar distances and changing parameters of the solid solution) and fluctuations in the contents of not only sulphur but also iron [18,152] as well as other impurities (see [15] for discussion). Perhaps this is consistent with the inhomogeneous type of conductivity in a single crystal [153].

In many cases, there is a linear positive dependence of the increase in the gold content in pyrite on the level of arsenic concentrations (e.g., [143]). Simultaneously, there are two clusters of Au content points in this dependence: in the range of 2–5 wt% As and 6 and above [149]. This fact, as well as in the case of the entry of only As impurities into pyrite [40], can probably be explained by a change in the structural form of the entry of Au into As-pyrite: at relatively low concentrations of As (2–5 wt%), gold enters the solid solution S₂²⁻AsS AsS³⁻, and at high concentrations of As, gold enters the pyrite and marcasite-structural (arsenopyrite) domains.

Unlike arsenic, the situation with tellurium in pyrite is quite different. Tellurium is also a common isomorphic impurity in pyrite, but its abnormally high contents are due to the occurrence of submicroscopic and nano-scale inclusions of Au-Ag tellurides (mainly hessite and petzite) in this mineral. For the Petropavlovsk gold-porphyry and Novogodnee-Monto Fe-Au-skarn deposits, similarly to in [143], a positive correlation of Au and Ag with Te in pyrite corresponds to the probable occurrence of tiny telluride grains in the smallest defects in the mineral (Figure 16 and Figure 20). It is also proven by the presence of synchronous peaks of Te, Au and Ag on the graphs during laser ablation by the profile sampling mode (Figure 17 and Figure 19) or bright points of their segregations on Te distribution pictures during mapping mode analysis (Figure 18a and Figure 21).

5.3. Forms of Gold in Arsenopyrite

Intensive debates about the forms of gold in arsenopyrite of 1988–1989 ([95,154,155], etc.) remain unsettled (see reviews in [19,51], cf., [156,157]). Gold in the chemically bound, structural form commonly reaches its maximum values in this mineral (e.g., [12,128,155]). Simultaneously, there are opposite opinions on the peculiarities of the chemical composition of Au-rich arsenopyrite. In most studies, the ratio As/S>1 is noted in the composition of Au-bearing arsenopyrite [63,96,97,154,158]. However, in other papers, sulphuric (deficient in As) arsenopyrite is richer in Au [12,156,159,160,161,162]. Some authors reported about As- and S-rich arsenopyrites both rich in gold.

For the Vorontsovka deposit, the data obtained for arsenopyrite crystals in Carlin-style gold-sulphide assemblage indicate the presence of an inverse correlation between the Au and Fe contents and a direct correlation for Au/As (Figure 42; cf., [96]). Besides, this dependence is manifested not only at the local level within a single crystal, but also in the whole deposit, because more arsenic Apy-2, according to the point analysis by the LA-ICPMS method, contains more gold (4–315 ppm, mean geom. 24.3 ppm, [63]). The LA-ICPMS profiles for pyrite showed that high Au concentrations commonly correlate with higher contents of As, Ag, Sb, Se or Tl (Figure 6, Figure 7 and Figure 8; cf., [63]).

In general, the set of data obtained for the samples of synthetic [18] and natural ([63], this study) arsenopyrites shows a weak positive correlation of Au contents with the As/S ratio and a clear negative correlation between Au and Fe. The higher Au contents are typical for the As-rich and close to stoichiometric late arsenopyrite generation, while in S-rich early arsenopyrite, the Au content normally does not exceed 0.02 wt%. However, overall, early generation arsenopyrite (Apy-1) also contains fairly high C_Au. Gold is mainly concentrated in the As-rich, low-thickness zones of its prismatic crystals (Figure 7 and Figure 8).

The incorporation of lattice-bound Au into arsenopyrite is resulted from the substitution of Fe by Au as both elements show negative correlation (cf., [5,157,160,161]). Au-bearing arsenopyrite is commonly thinly zonal. Unstable conditions with short-period oscillations of local disequilibrium and some fluctuations in the fluid component fugacities (f S₂, f Te₂, f O₂, f As₂) contributed to the crystallisation of the mineral with a less perfect structure, which in turn favoured the entry of gold into the composition of arsenopyrite. Auriferous zones of arsenopyrite can contain nm-sized gold particles: TEM study in FIB foils [162] identified two types of nm-sized gold particles—elongated, rod-like (or disc-shaped?) Au grains about 35 nm in length and 5 nm in thickness, and roundish gold (or disc-shaped?) grains about 10 nm in diameter.

5.4. Crystal-Chemical Basics of Noble Metal Speciation in Sulphides

Several concepts are employed to describe crystal chemistry and to build structural classification schemes of the sulphides. Since the aim of this review is not a detailed analysis of the crystal structures of sulphides, we will only briefly describe the structures of the considered minerals with some preliminary analysis of the possibilities of isomorphic substitution of cations with noble metals (mainly Au, Ag, Pd and Pt).

Table 29. Crystal chemical parameters of the main sulphides.

Mineral	Formula	Space Group	Lattice Constants (Å)	Structure Type	Me-Me Distance	Me-S Distance	CNMe	CPMe	Ref
Pyrite	FeS2	Pa-3	a = 5.416	NaCl	3.830	2.263	6	Octahedron	[165]
Marcasite	FeS2	Pnnm	a = 4.445 b = 5.425 c = 3.386	Rutile	3.386	2 × 2.239 4 × 2.252	6	Octahedron	[165]
Arsenopyrite	FeAsS	P21/c	a = 5.761 b = 5.684 c = 5.767 β = 111.7210°	Rutile	2.734	S: 2.229, 2.230, 2.233 As: 2.370, 2.409, 2.412	6	Octahedron	[166]
Lollengite	FeAs2	Pnnm	a = 5.300 b = 5.984 c = 2.882	Rutile	2.882	2 × 2.361 4 × 2.388	6	Octahedron	[167]
Galena	PbS	Fm-3m	a = 5.805	NaCl	4.105	2.903	6	Octahedron	[168]
Pyrrhotite	FenSn+1	P63/mmc	a = 3.446 c = 5.743	NiAs	2.871	2.453	6	Octahedron	[169]
Chalcopyrite	CuFeS2	I-42d	a = 5.277 c = 10.441	ZnS	3.712	Cu: 2.295 Fe: 2.259	4	Tetrahedron	[170]
Greenockite	CdS	P63mc	a = b = 4.136 c = 6.716	ZnO	4.121	3 × 2.527 1 × 2.532	4	Tetrahedron	[171]
Sphalerite	ZnS	F-43m	a = b = c = 5.410	ZnS	3.826	2.343	4	Tetrahedron	[172]
Würtzite	ZnS	P63mc	a = b = 3.823 c = 6.261	ZnO	3.823	3 × 2.342 1 × 2.347	4	Tetrahedron	[173]

lists the main crystallographic features of the studied minerals. With the exception of arsenopyrite FeAsS and chalcopyrite CuFeS₂, all the studied minerals are binary compounds. Pyrite and galena belong to the structure type of NaCl, marcasite and arsenopyrite to the structure type of TiO₂-rutile, sphalerite and chalcopyrite to the structure type of sphalerite, greenockite and würtzite to the structure type of ZnO and pyrrhotite to the structure type of NiAs.

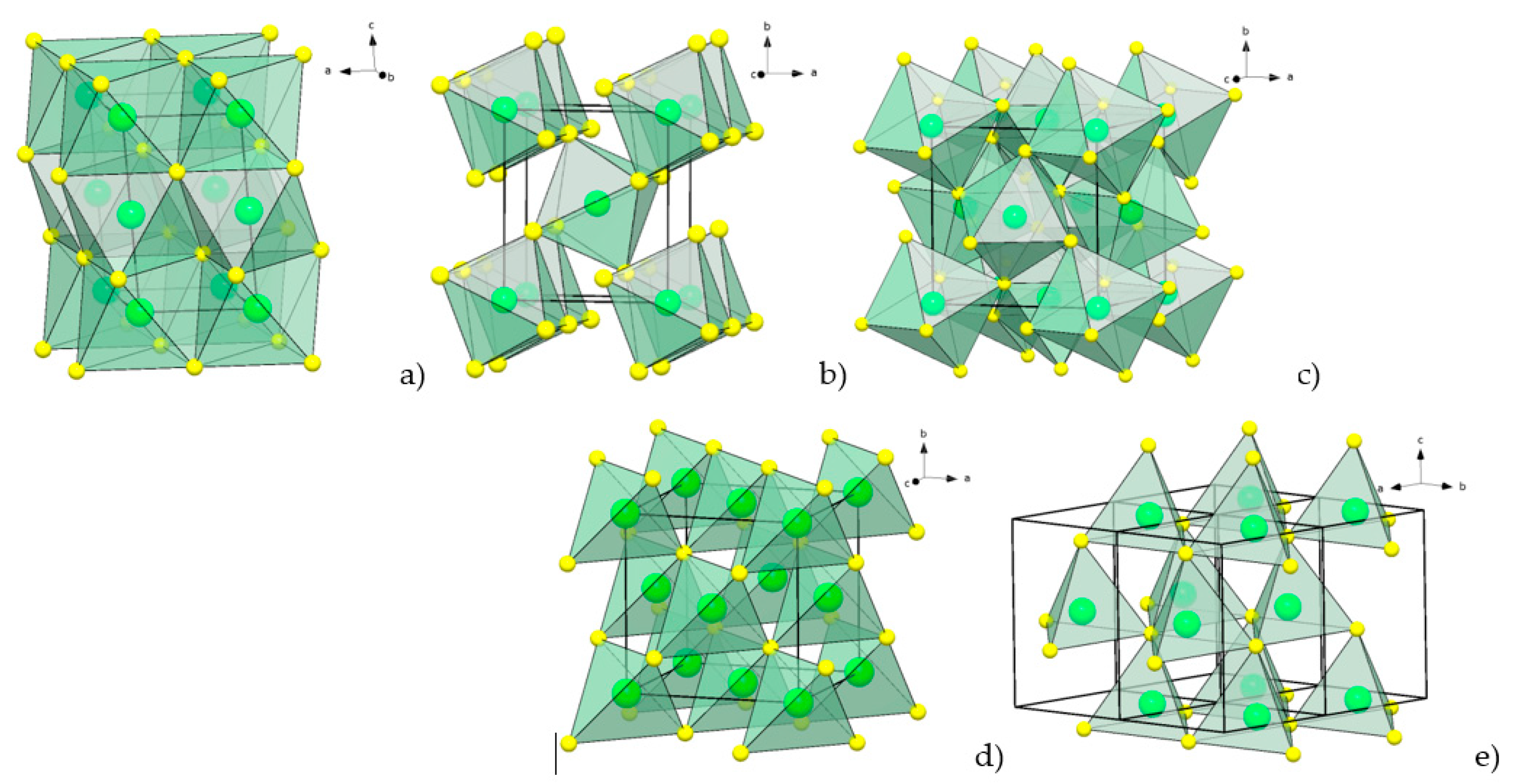

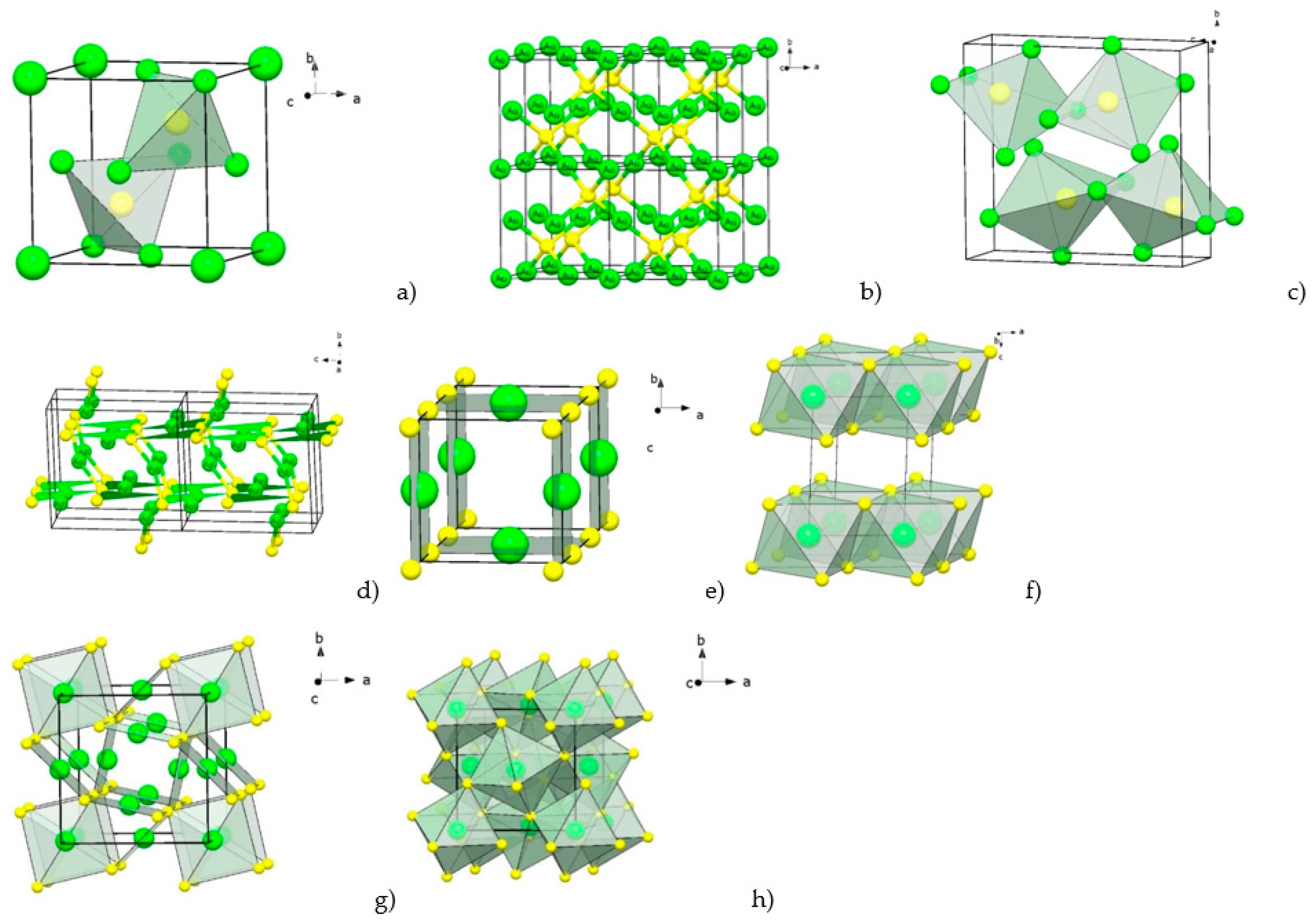

Principle schemes of the crystal structures of the considered minerals are shown in Figure 43.

The coordination of cations in the structures of sulphides depends on their size, charge and electron configuration [163,164].

Table 30. Coordination number and type of hybridisation of some metals.

CN	Type of Hybridisation	Elements
2	sp; p2	Cu+, Cu2+, Ag+, Au+
4tetr	sp3	Cu+, Ag+, Au+, Zn2+, Fe2+
4sq	dsp2	Pd2+, Pt2+, Cu2+, Fe3+
6	d2sp3	Pt4+, Fe2+

lists the hybridisation type and coordination numbers of the cations in the structures of sulphides. The coordination polyhedra of cations in the considered minerals are tetrahedra (sphalerite and ZnO structure types, CN = 4) and octahedra (rutile, NaCl and NiAs structure types, CN = 6).

Table 31. Crystal chemical parameters of some noble metal sulphides.

Mineral	Formula	Space Group	Lattice Constants (Å)	Structure Type	Me-Me Distance	Me-S Distance	CNMe	CPMe	Ref
n/a	Au2S	Pn-3m	5.0206	Cu2O	3.550	2.174	2	Dumbbell	[174]
Acanthite	α-Ag2S	P121/c1	a = 4.231 b = 6.930 c = 8.293 β = 110.71°	Ag2S	3.084	AgI: 2.475, 2.511 AgII: 2.547, 2.563, 2.699	AgI: 2 AgII: 3	AgI: dumbbell AgII: coplanar triangle	[175]
Cooperite	PtS	P42/mmc	a = 3.4701 c = 6.1092	PtS	3.470	2.311	4	Square	[176]
n/a	PtS2	P-3m1	a = 3.5432 c = 5.0388	CdI2	3.543	2.421	6	Octahedron	[177]
n/a	PdS	P42/m	a = 6.429 c = 6.611	PdS	PdI-PdI: 3.305 PdII-PdIII: 3.389 PdIII-PdIII: 2.337	PdI: 2.341 PdII: 2.318 PdIII: 2 × 2.337, 2.346	4	Square	[178]
n/a	PdS2	Pbca	a = 5.460 b = 5.541 c = 7.531	PdSe2	3.889	PdI: 2 × 2.298, 2 × 2.304, 2 × 3.312	6	Octahedron	[179]

lists the main structural characteristics of the sulphides of Au, Ag, Pd and Pt, and corresponding crystal structures are shown in Figure 44. Me-S chains are the main structural elements in the structures of Au₂S and Ag₂S. Me-S chains in the structure of Au₂S form a three-dimensional framework. The whole structure can be considered as an anti-cristobalite structure, i.e., a three-dimensional framework of anion-centered vertex-sharing SAu₄ tetrahedra. Ag in the structure of Ag₂S occupies two positions. AgI forms Ag-S chains along direction b of the unit cell. These chains are linked by AgII ions.

The coordination polyhedra of AgII is a coplanar triangle (Figure 44d). In terms of anion-centered polyhedra, the structure of α-Ag₂S is a set of layers composed of vertex-shared SAgI₂AgII₃ tetragonal pyramids. The layers are connected into a three-dimensional framework by AgI atoms. Two types of coordination polyhedra appear in the structures of Pt and Pd sulphides—a planar square in the PtS and PdS structures and an octahedron in the PtS₂ and PdS₂ structures (Figure 44e,g).

Speaking of isomorphic substitution, one must consider a difference in the sizes (ionic or atomic radii) and interatomic distances of host cations and their substitutes. The ionic radii of metals under question with coordination number 6 increases in the following order [180]: Pt < Pd < Ag <Au, which implies that Pt should be the most favourable and, probably, the most abundant admixture in the sulphides, while Au should be hypothetically the less probable isomorphic admixture. In addition, we have to compare Me-S and Me-Me (next nearest cation) distances in the structures of host sulphides and sulphides of the considered noble metals. Me-S distances in the sulphides listed in Table 29 vary between 2.231 Å (arsenopyrite) and 2.903 Å (galena), while Me-S distances in the sulphides of noble metals listed in Table 30 vary between 2.174 Å (Au₂S) and 2.699 Å (α-Ag₂S). It is worth noting that Me-Me distances are not correlated with the Me-S distance, i.e., Fe-S distance in pyrite equals ~2.26 Å, and the Fe-Fe distance equals ~3.83 Å, while Fe-S distance in arsenopyrite equals ~2.23 Å and Fe-Fe distance equals ~2.73 Å. However, in both base metal sulphides (except for galena) and noble metal sulphides (except for PdS₂), larger values of Me-Me distances correspond to smaller values of Me-S distances. The effect is not pronounced but can be detected.

X-ray absorption spectroscopy (XAS) investigations of minerals and their synthetic analogues showed that Au, Ag and Pt could form solid solutions with covellite [17], pyrite [19,22], arsenopyrite [18,19], pyrrhotite [23] and sphalerite [19,92]. However, the concentration of the admixtures is small. Thus, the measured maximum content of Au in natural and synthetic pyrite is ~300 and ~90 ppm accordingly. The concentration of Au in löllengite is about 800 ppm. The concentration of Ag in sphalerite is no more than 5 wt%. Synthetic pyrite hosts up to 7 wt% of Pt in the solid solution state. The measured concentrations of the considered admixtures in base metal sulphides correlate well with the ionic radii of the admixtures: the smaller the cation is, the higher its content in a host mineral. However, some experimental facts cannot be solely explained by the size factor. For example, the maximum content of Pt (the Pt²⁺-S distance equals 2.31 Å, Table 30) in the solid solution state in pyrite is 7 wt% and is only 0.5 wt% in pyrrhotite [23], while the Fe-S distance is ~2.26 Å in pyrite and ~2.52 Å in pyrrhotite. Besides, the formation of the solid solution depends on the conditions of synthesis: Au forms a solid solution with pyrite in hydrothermal experiments only, and in the pyrites obtained using the salt flux technique, Au forms metal particles.

6. Conclusions

(1) For VMS and Carlin-style deposits as well as for gold-porphyry systems, avalanche deposition of sulphides on geochemical barriers in shallow-depth conditions from moderate- and high-concentrated solutions contributed to the rapid growth of imperfect and thin-zoned crystals, providing the entry of NM in sulphides in finely dispersed form (in the invisible state). Admixtures of metals and metalloids supplied both the increased defectiveness of crystal structure of the minerals (making them chemically more capacious in relation to NM), and the entry of NM impurities into sulphides by the mechanism of heterovalent isomorphism.

(2) For weakly metamorphosed VMS deposits, the following sequence of decrease in invisible gold concentration in sulphides was revealed: galena–chalcopyrite–pyrite– marcasite–sphalerite, in entire agreement with the hydrothermal experiments on the solubility of Au in sulphides (galena–bornite–chalcopyrite–pyrrhotite–pyrite–sphalerite). For highly metamorphosed VMS lodes, such sequence is pyrite–chalcopyrite–sphalerite/arsenopyrite–fahlore–bornite–pyrrhotite–galena, and, in general, the concentration of C_{invis. gold} in sulphides is noticeably lower.

(3) In arsenopyrite crystals, the contents of invisible gold reach their maxima, and Fe is negatively correlated with Au. The ionic form of gold probably prevails in this mineral. Thin compositional zoning reflects short-period oscillations of local disequilibrium during crystal growth and some fluctuations in the fluid component fugacities (f S₂, f Te₂, f Se₂, f O₂, f As₂).

(4) Epigenetic hydrothermal and metamorphic processes, as well as the slower crystallisation of sulphides, favoured the nucleation of gold, coalescence of its clusters and enlargement of nano-sized NM isolations, and supported the formation of relatively large nuggets as a result of collective recrystallisation. Most Au deposits (except for Carlin-type and gold-porphyry deposits) originated at considerable depths, and the crystallisation of sulphides was in relatively stable conditions, providing the formation of more perfect sulphide crystals as well as co-crystallisation of proper NM minerals (except for the strongly scattered PGE), and a small fraction of NM remains in the sulphides in finely dispersed form (in the invisible state).

(5) Proper NM minerals are represented by groups of minerals that are similar, both for VMS and large gold deposits of the Urals: native gold (high-fineness gold and electrum), with sharply subordinated Ag-sulphosalts, Ag-, Au- and Au-Ag-tellurides, and to a lesser extent, native silver, Au-Ag-sulphides (petrovskaite, uytenbogaardtite, acanthite), Au-antimonide (aurostibite), Ag-sulphobismuthite (matildite) and Ag-selenotelluride (kurilite). In very sporadic cases, abundant NM-tellurides are comparable as host NM-minerals with native gold, in bulk ore composition (Svetlinsk deposit, etc.).

(6) Our experiments showed that admixture of In increases the solubility of Au in sphalerite up to 1 wt%. C_Au in sphalerite is higher (up to 1000 times) in samples synthesised at a higher (up to 10 bar) f S₂ in the system. Fe impurity also promotes the incorporation of Au in sphalerite (C_Au up to 0.01 wt%). In sphalerite synthesised under the same conditions without In, Fe, etc., C_Au does not exceed 0.001 wt% and does not depend on f S₂. EPMA and LA-ICP-MS analyses, revealing a homogeneous distribution of all studied elements, showed a clear positive correlation between the In, Fe and Au contents in sphalerite, as well as X-ray absorption spectroscopy confirmed the isomorphic entry of these elements according to the following scheme: Au⁺ + In³⁺ (Fe³⁺) ↔ 2 Zn²⁺. A positive effect of f S₂ on the solubility of Au indicates the formation of vacancies in the cation sublattice, proving the existence of the second isomorphic scheme: 3Zn²⁺ ↔ 2In^{3 +} + □. A part of Au doped in ZnS_In forms Au₂S clusters, according to the XAFS study. In general, the same pattern was noted for Ag in sphalerite, where Ag₂S and Ag⁰ forms oCCur. Greenockite samples were used as model crystals for the würtzite type of structure, and the results confirm the same behaviour of Au in the presence of In and Fe as in sphalerite. In the samples consisting of both ZnS polytypes, C_Au does not exceed 50 g/t, and the distribution of doped elements is inhomogeneous.
