Article

Biofilms and Biominerals in the Lateritic Weathering Crust as Exemplified by the Central Bauxite Deposit (Siberian Platform, Russia)

1
Institute of Geology of Ore Deposits, Petrography, Mineralogy, and Geochemistry, 119017 Moscow, Russia
2
National Research University “Moscow Power Engineering Institute”, 111250 Moscow, Russia
*
Author to whom correspondence should be addressed.
Minerals 2021, 11(11), 1184; https://doi.org/10.3390/min11111184
Received: 25 August 2021 / Revised: 13 October 2021 / Accepted: 22 October 2021 / Published: 26 October 2021

Abstract

:
The study of lateritic bauxite by electron microscopy revealed abundant products of interaction between organic matter and minerals. Abundant biomineral films of different genesis and composition were found, including Al, Fe, Al-Fe, Al-Si, Al-Fe-Si, sorbed rare and rare-earth elements (REE). The evolution of these films from amorphous to crystallized and the conversion into druse crystals of gibbsite, hematite, kaolinite etc. was traced. New data were obtained on mineralization of deposits of wood, roots, biofilms and bacteria in tropical conditions. Mono- and multilayer films were identified. Different composition biofilms occurred before and after seasonal monsoon rains. The mineral composition of the films is influenced by micro-local conditions and the introduction of chemical elements, including rare and rare-earth elements, with capillary water during the dry seasons. The products of biomineralization are microscopic in size, but are of universal and global importance to all weathered rocks and associated bauxite deposits.

1. Introduction

All processes of destruction of parent rocks and formation of supergene minerals occur in close interaction with living and dead organic matter. The formation of minerals through biomineral films are material traces of the work done by the biota in the process of bauxite formation. In nature, weathering crusts are the biggest accumulators of nano- and micro-sized mineral particles in amorphous, crypto- and micro-crystalline states. The study of weathering crust minerals is extremely difficult because of their small size and shape. In the process of lateritization, the parent and associated rocks containing an increased amount of certain chemical elements and minerals are concentrated and become economically profitable [1].
Bauxite is a rock composed of aluminum hydroxide minerals: gibbsite—Al(OH)3, boehmite—AlO(OH) and diaspore—AlO(OH). Bauxite contains impurities of Fe oxyhydroxides (FeO(OH) and hematite Fe2O3), titanium (rutile and anatase—TiO2) as well as kaolinite and quartz. Under favorable economic parameters, bauxite is an aluminium ore. Bauxite is the ultimate weathering product of aluminosilicate rocks of all composition and genesis. Preserved in situ, it is called lateritic bauxite [1]. When eroded, redeposited and concentrated in other areas of accumulation, bauxite is called sedimentary bauxite. Lateritic bauxites are formed in hot, alternately humid tropical climates, in conditions of relatively calm tectonic regime, and on smooth positive relief forms, in conditions of abundant water exchange and mass development of biota [2]. Lateritic bauxites crown the zonal profiles of the weathering crust. In the upper part of the profile under the soil layer, lateritic bauxites are affected by chemically active rainwater penetrating through the living foliage of the vegetation cover, soil, mortmass, and root system. Bauxite is subjected to powerful mechanical, biological, biochemical and biogeochemical processing. An amorphous mass is formed, saturated with biota, from which biofilms of various compositions are formed [1].
Biofilms are an aggregate of microbial cells, other particles, water and extracellular polymeric organic matter [1]. They form on any wet surface in the weathered rock strata, in cracks, pores, and caverns, penetrate deep after the filtered water, and are fixed at the top of the profile by evapotranspiration. Biofilms are especially abundant in the zone of biopedoturbation, where swarming organisms, supplying bauxite, are the most active biochemical substances [3].
In recent years, the products of biota’s impact on mineral matter have been intensively studied [1,4,5]. Using electron microscopes, unique photographs of biogenic minerals—hematite, goethite, and gibbsite—have been obtained, indicating the huge role of biomechanical, biological, and biochemical processes [6,7]. The genus Bacillus was revealed in some lateritic bauxites in present tropic regions [8]. Biomineral interactions and their role in mineral formation are among the most important issues in mineralogy in the 21st century. Organic matter of plant and/or bacterial origin in the Earth’s crust under supergenesis has two functions: destructive, contributing to the destruction and dissolution of the original minerals, and creative, due to the inclusion of mineralized organic residues in the supergenic new formation [9]. Our task is to study the evolution of mineral formation in the process of bauxite formation. The study of the products of natural biomineralization processes is important for understanding the conditions of their formation as well as for choosing the most rational method of bauxite enrichment. A detailed study of the morphology and composition of biofilms and minerals containing the rare and rare-earth elements present in bauxite ores will help technologists develop a scheme for the associated extraction of these elements during bauxite enrichment. The complex and varied nature of REE-bearing minerals in bauxite provides multiple targets for bioleaching, and although the majority of recoverable REE can be leached by organic and inorganic acids, there is the potential for enhanced recovery by bioleaching [10,11,12].

2. Short Geological Setting

At the Chadobets uplift on the Siberian Platform, lateritic bauxites crown a zonal weathering crust profile thickness of about 600 m. The uplift is a brachy-anticlinal fold, with two domes composed of Precambrian shales and a complex of alkaline ultrabasic rocks, including kimberlite pipes and carbonatites. On all these rocks, covering dozens of petrographic varieties, a lateritic weathering crust was formed in the Cretaceous-Paleogene. In the erosional depressions on the surface of the northern dome is the Central Deposit, composed of sedimentary bean-like fragments bauxite. The Central Deposit is located 120 km north-east of the Boguchany pier district center on the Angara River (Figure 1). The rubble contains pseudomorphic laterites throughout the bedrock. The lateritic bauxites over quartz-muscovite-feldspar schists are composed of gibbsite and contain up to 62% Al2O3. The lower zones are disintegrated parent rocks, passing upwards into clay zones composed of allophane, hydromica, montmorillonite, halloysite and kaolinite [10]. Supergene rocks preserve the relict textural and structural features of the parent rocks. Fragments of laterites on carbonatites are composed of Fe-Mn-ocher, with abundant nests of powdery supergenic monazite with a lantonoid content of up to 14.4%. Their denudation products were mixed in erosional depressions as sedimentary bauxites, with an average TiO2 content of 9.5% and TR2O3 up to 4% [10]. This explains the increased content of rare and rare-earth elements in biofilms, which are powerful sorbents [4]. Supergenic rocks preserve relict textural and structural features of the parent rocks well.

3. Materials and Methods

The main morphological and structural peculiarities were studied using scanning electron microscope (SEM) CamScan-4 (Cambridge, Britain), TESCAN VEGA IIXMU (Tescan, Czech), and transmitting (TEM) JEM 2100 (JEOL, Japan) microscopes. Microanalysis with TEM was performed using a device for X-ray energy-dispersive analysis: X-Max (Oxford Instruments, UK). More than 200 samples were studied. Bauxite samples were taken from different parts of the profile (depth 1–8.5 m) of the Central deposit. Biofilms were studied by electron microscope, and minerals were identified by morphological features formed by biofilms. With the help of EMF, their composition was determined; more than 1000 measurements were made. The chemical composition of individual minerals was constant within the margin of error (less than 5%). The preparations for TEM for the study were prepared from aqueous suspensions obtained by short-term ultrasound treatment, followed by evaporation of suspension droplets on the supporting film. Electron diffraction patterns and images were obtained from gibbsite particles oriented with the (001) plane parallel to the substrate.

4. Results and Discussion

Laterites are the products of the complex cumulative effects of a variety of physical, chemical and biochemical forces. At the same time, the role of flora cannot be discounted. Both fauna and flora, as well as surrounding microorganisms and their common metabolites, produce not only mechanical but also biogeochemical destruction. It is known that the roots of living vegetation are always surrounded by microorganisms [14]. This symbiosis is captured in the petrification of goethite and hematite by plant residues and the accompanying abundant bacteria (Figure 2a). Under SEM, we were able to establish a variety of forms of gibbsite in phytomorphosis. Most of the roots are replaced by dense gibbsite, but their caverns contain druses of gibbsite crystals, probably formed by bacterial colonies (Figure 2b). Root hairs are completely replaced by gibbsite crystals. The fossilization of plant roots is shown in Figure 3a. Goethite was formed, covered by a biofilm composed of Al, Si, V, Ti, Pd (Figure 3b–e).
In lateritic bauxites of the paleotropics on the Siberian Platform, gibbsite biomorphoses are widespread. Biofilms appear whenever the rock is moistened and are especially abundant during monsoon seasons. The chemical composition of the films is diverse and depends on the mineral composition of the area in general, the composition of the mineral to be covered by the film in particular, and on the changing composition of the filtered water. The films cover relicts of undissolved parent minerals and supergenic minerals. We found single-layer monomineral films—gibbsite (Figure 4a) and hematite (Figure 4b)—and bimineral films—gibbsite (Figure 5a) and gibbsite-hematite (Figure 5b).
At the time of their formation, biofilms have a smooth, shiny surface (Figure 4a). When they dry, they are covered by a network of cracks, recrystallize (well-crystallized) and become colonized by microorganisms, which quickly mineralize. According to EDS data, the chemical composition of the films (wt.%) is high in CO2 (76.46), Al2O3 (18.44) and FeO (4.70). The gibbsite formed from it consists of CO2 (26.29) and Al2O3 (73.71). Crystallization occurs gradually, and within the film single hexagonal plates appear; then, their number increases, and they form twin aggregates by (100) and (110). Short-column hexagonal prisms by (001) appear on the film surface (Figure 6a). Two crystallomorphological varieties of gibbsite are formed in the passages of digestive organisms: columnar forms on the products of the digestive tract and tabular forms of crystals on the walls. Complete crystallization ends in the formation of dense brushes of gibbsite crystals (Figure 6b). Films with Al-Fe composition crystallize sequentially: first gibbsite, then hematite (Figure 6c). The latter is in the form of biomorphosis by bacteria. Figure 6d shows a cross-section of the multilayer gibbsite film. The biomineral films are gradually transformed into crypto-, micro- and clear-crystalline gibbsite secretions.
The gibbsite was studied with a transmission microscope. Two types of diffraction patterns were obtained for single crystal gibbsite particles: type I (Figure 7a) and type II (Figure 7b). Type I composition is Al and Al0.93 Si0.05, and type II is Al0.94 Si0.05. In the patterns of the first type, relatively weak reflexes hk0 with h + k = 2n + 1 corresponding to a monoclinic structure (spatial group P21/n) were observed, while in the patterns of the second type, these reflexes caused by monoclinic distortion of perfect trigonal gibbsite structure were absent, with reflexes hk0 with h + k = 2n more blurred in comparison than these reflexes in electronograms of the first type [3]. The appearance in some electronograms of the first type of h00 reflexes with 0k0 odd values of h or k indices forbidden by the spatial group P21/n is likely connected with a local symmetry breaking of gibbsite crystals. In the patterns from textured gibbsite polycrystals, the hk0 reflexes with h + k = 2n + 1 were not observed [3,15,16,17]. A common feature of gibbsite is an irregular, often smooth shape of particles up to 2 microns in size. Only for gibbsite representing plant root phytomorphs, were particles showing hexagonal shaped fragments observed.
Siberian laterites retain their original chemical and mineral composition and perfect gibbsite crystal surfaces for tens of millions of years [10]. In addition, this gibbsite does not convert to aluminum monohydrates boehmite or diaspore, a fact of extreme importance in solving the debate on the thermodynamic stability of alumina hydrates in the Earth’s surface [15,16,17].
Tubular halloysite crystals formed from the biofilm are arranged radially, with the array in its plane and also perpendicular to the rock surface in the form of dense grouped brushes (Figure 8). The local pits contain randomly oriented crystals. The entire surface of Al-Si films and halloysite clusters is covered with red hematite biofilms. Regressive halloysite develops not only along the biofilms but also replaces the kaolinite at a depth of about 75 m. The replacement of alumina minerals by allophane and halloysite during climate change is widespread in nature and concerns even diaspore and corundum in Mongolia [10] and kaolinite in Central Africa [18]. In Siberia, drastic climate change began after the emergence in recent times of the highest mountain systems, such as the Himalayas and others [19].
Figure 9a shows a view of the parent quartz grain and defects in its crystal structure—tetragonal reflective pyramids. Biofilms have been found to develop most preferentially around crystalline quartz grains. The films completely cover its grains and, after drying, retain negative impressions with imprints of all its surface features (Figure 9b). They are biochemically active on quartz (Figure 10a), dissolving it; its volume decreases, and the film peels off and settles, turning into a shell of dense brush gibbsite. New biofilms and brushes of gibbsite emerge on the remaining relics until the quartz dissolves completely (Figure 10b). Biofilms are associated with quartz due to its piezoelectric properties [20].
We followed the evolution of biofilms into kaolinite. The original films have a smooth surface that cracks when drying and ageing, with film fragments curling first around the edges and then all over the surface. Fe and Ce are present in the biofilms (Figure 11a). The film structure is reflected in the shape of the resulting kaolinite, including vermicular kaolinite (Figure 11b). Many examples show consonant occurrence of pseudohexagonal plates of kaolinite inside biofilm and on its surface. At the same time, next to them there are ridges of plates oriented perpendicularly to films (Figure 12a). In some films, kaolinite plates are oriented randomly (Figure 12b); in others, the ordering reaches fantastic degrees, expressed in mass formation of “stone flowers” from kaolinite (Figure 12c).
As a result of the lateritization process under conditions of abundant water exchange and mass development of biota, biofilms consisting of C, Al, Si, Ti, Fe, La, Ce, Nd and Ba are formed. Clusters of spherical bodies containing, among others, rare-earth elements are formed along the films (Figure 13a, Table 1). Nd, La, Ba and Ce are present in biofilms, represented by differently oriented thin plates (Figure 13b, Table 1).

5. Conclusions

Electron microscopic study of minerals of bauxite-bearing lateritic profiles of Siberia allowed us to establish that all processes of destruction of parent rocks and formation of supergenic minerals occur in close interaction with living and dead organic matter. The entire thickness of the weathering crust is affected by the organic world, especially its upper part in the 0–1 m interval, where the influence of flora, macrofauna and microfauna and their total mortmass is most evident.
Phytomorphoses of goethite and gibbsite caused by mineralization in tropical conditions of wood deposits, roots, biofilms and bacteria under conditions of bauxite formation were recorded by electron microscope.
Abundant biomineral films of various genesis and composition were established: Al, Fe, Al-Fe, Al-Si and Al-Fe-Si. The evolution of biofilms from amorphous to crystallized, and subsequently turning into druses crystals of gibbsite, hematite, halloisite and kaolinite were traced. Mono- and multilayer films were identified. Multilayer films arise because of the variable humid tropical climate, due to the alternation of dry and wet seasons.
For gibbsite, represented by phytomorphoses on plant roots, particles with the manifestation of fragments of hexagonal shape were observed using TEM.
According to biogenic gibbsite, the pattern of stepwise dissolution of quartz was restored.
Sorption of rare and rare-earth elements by biofilms was established. The mineral composition of the films is influenced by microlocal conditions: the accumulation of chemical elements, including rare and rare earths, with capillary water in dry seasons. Biomineralization products have microscopic dimensions, but they have universal and global significance for all weathering rocks and associated bauxite deposits.
Thus, the peculiarities of biomineral films, including their crystallization, as established herein, confirm their indispensable participation in the processes of bauxite formation.

Author Contributions

Conceptualization, N.B. (Natalia Boeva), A.S.; methodology, N.B. (Nikolay Bortnikov); software, P.M.; formal analysis, M.M. and E.S.; investigation, all authors.; writing—original draft preparation, N.B. (Natalia Boeva); writing—review and editing, N.B. (Nikolay Bortnikov). All authors have read and agreed to the published version of the manuscript.

Funding

The research was carried out with the financial support of the project of the Russian Federation represented by the Ministry of Science and Higher Education of the Russian Federation No. 13.1902.21.0018 (agreement 075-15-2020-802), and the analytical studies were conducted in the Center for Collective Use IGEM ANALITIKA.

Acknowledgments

The authors are grateful to E.A. Zhegallo and L.V. Zaytseva for their work on SEM and A.P. Zhukhlistov for the work on TEM.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bardossy, G.; Aleva, G.J.J. Lateritic Bauxites (Development in Economic Geology); Elsevier Science: Amsterdam, The Netherlands, 1990; p. 624. [Google Scholar]
  2. Rozanov, A.Y. Bacterial Paleontology; PIN RAN: Moscow, Russia, 2002; p. 188. ISBN 5-201-15405-0. [Google Scholar]
  3. Slukin, A.D.; Bortnikov, N.S.; Zhegallo, E.A.; Zhukhlistov, A.P.; Boeva, N.M. Gibbsite and kaolinite in the biological pedoturbation zone of the lateritic profile: A different fate (exemplified by deposits of Siberia, India, Guinea, and Brazil). Dokl. Earth Sci. 2014, 458, 1220–1225. [Google Scholar] [CrossRef]
  4. Boeva, N.M.; Slukin, A.D.; Shipilova, E.S.; Makarova, M.A.; Balashov, F.V.; Zhegallo, E.A.; Zaytseva, L.V.; Bortnikov, N.S. Rare and Rare Earth Elements in Lateritized Bauxites of the Chadobets Uplift (Siberian Platform). Dokl. Earth Sci. 2021, 500, 720–727. [Google Scholar] [CrossRef]
  5. Bortnikov, N.S.; Novikov, V.M.; Soboleva, S.V.; Savko, A.D.; Boeva, N.; Zhegallo, E.A.; Bushueva, E.B. The role of organic matter in the formation of fireproof clay of the Latnenskoe deposit. Dokl. Earth Sci. 2012, 444, 634–638. [Google Scholar] [CrossRef]
  6. Bortnikov, N.S.; Novikov, V.M.; Zhukhlistov, A.P.; Boeva, N.; Soboleva, S.V.; Zhegallo, E.A. Biogenic nanomagnetite in cuirass of the bauxite-bearing crust of weathering in basalt from South Vietnam. Dokl. Earth Sci. 2013, 451, 754–757. [Google Scholar] [CrossRef]
  7. Slukin, A.D.; Bortnikov, N.S.; Zhegallo, E.A.; Zaytseva, L.V.; Zhukhlistov, A.P.; Mokhov, A.V.; Boeva, N.M. Biomineralization in Bauxitic Laterites of Modern and Paleotropics of Earth; Springer Science and Business Media LLC: Berlin, Germany, 2016; pp. 67–74. [Google Scholar]
  8. Heydeman, M.T.; Button, A.M.; Williams, H.D. Preliminary Investigation of Micro-Organisms Occurring in Some Open Blanket Lateritic Bauxites. In Proceedings of the 2nd International Seminar on Lateritisation Processes, Sao Paulo, Brazil, 4–12 July 1983; pp. 225–235. [Google Scholar]
  9. Bazylinski, D.A.; Frankel, R.B. Biologically Controlled Mineralization in Prokaryotes. Biomineralization 2003, 54, 217–248. [Google Scholar] [CrossRef]
  10. Slukin, A.D. Bauxite Deposits with Unusually High Concentrations of REE, Nb, Ti, and Th, Chadobets Uplift, Siberian Platform. Int. Geol. Rev. 1994, 36, 179–193. [Google Scholar] [CrossRef]
  11. Barnett, M.J.; Palumbo-Roe, B.; Deady, E.A.; Gregory, S.P. Comparison of Three Approaches for Bioleaching of Rare Earth Elements from Bauxite. Minerals 2020, 10, 649. [Google Scholar] [CrossRef]
  12. Mondillo, N.; Balassone, G.; Boni, M.; Chelle-Michou, C.; Cretella, S.; Mormone, A.; Putzolu, F.; Santoro, L.; Scognamiglio, G.; Tarallo, M. Rare Earth Elements (REE) in Al- and Fe-(Oxy)-Hydroxides in Bauxites of Provence and Languedoc (Southern France): Implications for the Potential Recovery of REEs as By-Products of Bauxite Mining. Minerals 2019, 9, 504. [Google Scholar] [CrossRef][Green Version]
  13. Google My Maps. Available online: https://www.google.ru/maps/d/viewer?mid=13KV_AQbedE2UGWstx2Tf1l2IUlk&hl=en_US&ll=56.52203793400918%2C97.2186387171875&z=7 (accessed on 10 October 2021).
  14. Huang, P.M. Clay mineral alteration in soils. In Encyclopedia of Soil Science; Chesworth, W., Ed.; Springer: Dordrecht, The Netherlands, 2008; pp. 1–13. ISBN 978-1-4020-3994. [Google Scholar]
  15. Kogure, T. Dehydration Sequence of Gibbsite by Electron-Beam Irradiation in a TEM. J. Am. Ceram. Soc. 2004, 82, 716–720. [Google Scholar] [CrossRef]
  16. Chesworth, W. The Stability of Gibbsite and Boehmite at the Surface of the Earth. Clays Clay Miner. 1972, 20, 369–374. [Google Scholar] [CrossRef]
  17. Peryea, F.J.; Kittrick, J.A. Relative solubilities of corundum, gibbsite, boehmite and diaspor at standart state conditions. Clays Clay Miner. 1988, 36, 391–396. [Google Scholar] [CrossRef]
  18. Hemingway, B.S.; Robie, R.A.; Apps, J.A. Revised values for thermodynamic properties of boehmite, AlO(OH), and related species and phases in the system Al-H-O. Am. Mineral. 1991, 76, 445–457. [Google Scholar]
  19. Beauvais, A. Geochemical balance of lateritization processes and climatic signatures in weathering profiles overlain by fer-ricretes in Central Africa. Geochim. Cosmochim. Acta 1999, 63, 3939–3957. [Google Scholar] [CrossRef]
  20. Slukin, A.D.; Boeva, N.M.; Zhegallo, E.A.; Bortnikov, N.S. Biogenic Dissolution of Quartz during Formation of Laterite Bauxites (According to the Results of Electron Microscopic Study). Dokl. Earth Sci. 2019, 486, 541–544. [Google Scholar] [CrossRef]
Figure 1. The location of the Central Deposit [13].
Figure 1. The location of the Central Deposit [13].
Minerals 11 01184 g001
Figure 2. SEM images: goethite biomorphosis by wood and bacteria (a), druses of gibbsite crystals in mineralized plant roots (b).
Figure 2. SEM images: goethite biomorphosis by wood and bacteria (a), druses of gibbsite crystals in mineralized plant roots (b).
Minerals 11 01184 g002

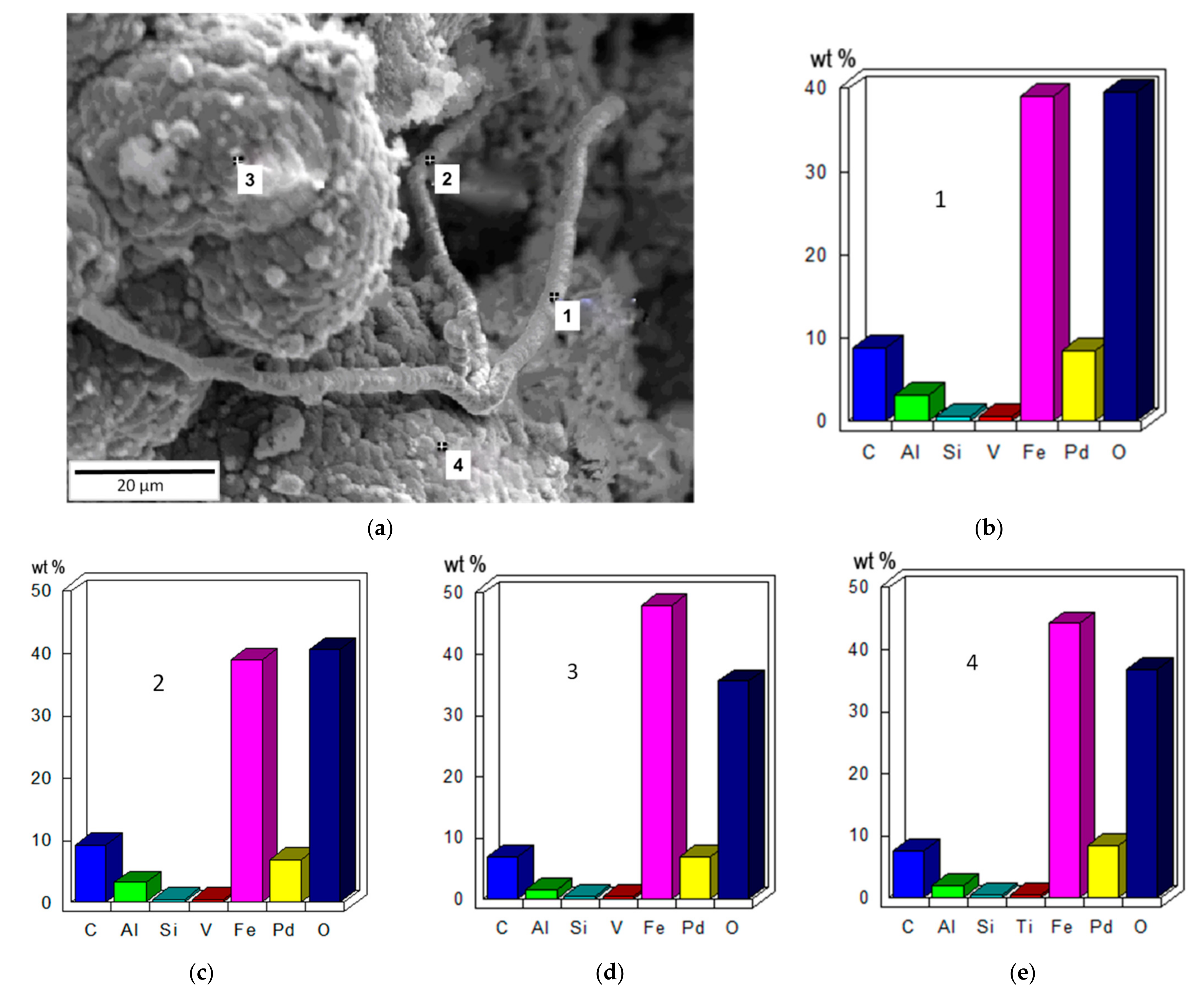

Figure 3. SEM image: goethite biomorphosis by wood and bacteria (a), energy-dispersive detector (EDS)microprobe data (wt.%) of biofilms (be).
Figure 3. SEM image: goethite biomorphosis by wood and bacteria (a), energy-dispersive detector (EDS)microprobe data (wt.%) of biofilms (be).
Minerals 11 01184 g003
Figure 4. SEM images: single-layer monomineral biofilms: gibbsite (a) and hematite (b).
Figure 4. SEM images: single-layer monomineral biofilms: gibbsite (a) and hematite (b).
Minerals 11 01184 g004
Figure 5. SEM images: gibbsite crystal bimineral film (a), gibbsite and hematite crystals (b). Gb: gibbsite, Hm: hematite.
Figure 5. SEM images: gibbsite crystal bimineral film (a), gibbsite and hematite crystals (b). Gb: gibbsite, Hm: hematite.
Minerals 11 01184 g005
Figure 6. SEM images: short columnar gibbsite crystals (a), brushed crystalline gibbsite (b), gibbsite and hematite (c), section of multilayer gibbsite film (d). Gb: gibbsite, Hm: hematite.
Figure 6. SEM images: short columnar gibbsite crystals (a), brushed crystalline gibbsite (b), gibbsite and hematite (c), section of multilayer gibbsite film (d). Gb: gibbsite, Hm: hematite.
Minerals 11 01184 g006
Figure 7. TEM images: gibbsite for biofilms type I (a), gibbsite by biomorphosis type II (b).
Figure 7. TEM images: gibbsite for biofilms type I (a), gibbsite by biomorphosis type II (b).
Minerals 11 01184 g007
Figure 8. SEM image: biofilm and tubular crystals of halloysite.
Figure 8. SEM image: biofilm and tubular crystals of halloysite.
Minerals 11 01184 g008
Figure 9. SEM images: the quartz surface of biofilm (a), negative casts of biofilms on the quartz surface (b). Q: quartz.
Figure 9. SEM images: the quartz surface of biofilm (a), negative casts of biofilms on the quartz surface (b). Q: quartz.
Minerals 11 01184 g009
Figure 10. SEM images: relic of quartz grain surrounded by a brush of biogenic gibbsite (a), part of the biofilm around dissolved quartz grains: inside, brush of gibbsite crystals; outside: brush of hematite biomorphs (b). Gb: gibbsite, Hm: hematite, Q: quartz.
Figure 10. SEM images: relic of quartz grain surrounded by a brush of biogenic gibbsite (a), part of the biofilm around dissolved quartz grains: inside, brush of gibbsite crystals; outside: brush of hematite biomorphs (b). Gb: gibbsite, Hm: hematite, Q: quartz.
Minerals 11 01184 g010
Figure 11. SEM images: Si-Al biomineral film (a), vermicular kaolinite over biomineral film (b).
Figure 11. SEM images: Si-Al biomineral film (a), vermicular kaolinite over biomineral film (b).
Minerals 11 01184 g011
Figure 12. SEM images: hexagonal plates of kaolinite on Si-Al biofilm (a), haphazardly oriented kaolinite (b), and kaolinite roses on Si-Al biofilm (c).
Figure 12. SEM images: hexagonal plates of kaolinite on Si-Al biofilm (a), haphazardly oriented kaolinite (b), and kaolinite roses on Si-Al biofilm (c).
Minerals 11 01184 g012
Figure 13. SEM image (1–12 spectrum): biofilm with spherical secretions (a), and plate-shaped biofilm (b).
Figure 13. SEM image (1–12 spectrum): biofilm with spherical secretions (a), and plate-shaped biofilm (b).
Minerals 11 01184 g013
Table 1. EDS microprobe data (wt.%) of biofilms shown in Figure 10.
Table 1. EDS microprobe data (wt.%) of biofilms shown in Figure 10.
SpectrumCAlSiTiFeCeNdLaBaOTotal
111.966.055.510.239.1617.75---49.34100.00
215.337.287.970.424.325.763.2--55.71100.00
319.134.492.210.6110.352.02---61.19100.00
412.898.269.573.514.724.06---56.99100.00
516.6910.941.460.5610.041.04---59.27100.00
611.1211.2612.760.435.602.36---56.47100.00
79.2311.8613.990.002.848.70---53.38100.00
812.0711.1612.870.003.102.69---58.10100.00
915.277.495.411.451.659.433.035.981.4648.82100.00
1016.138.466.051.191.528.842.544.88-50.38100.00
1116.339.286.360.25 10.033.254.96-49.54100.00
129.723.117.193.734.5515.064.199.272.3940.80100.00
