# Aesthetic Patterns with Symmetries of the Regular Polyhedron

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

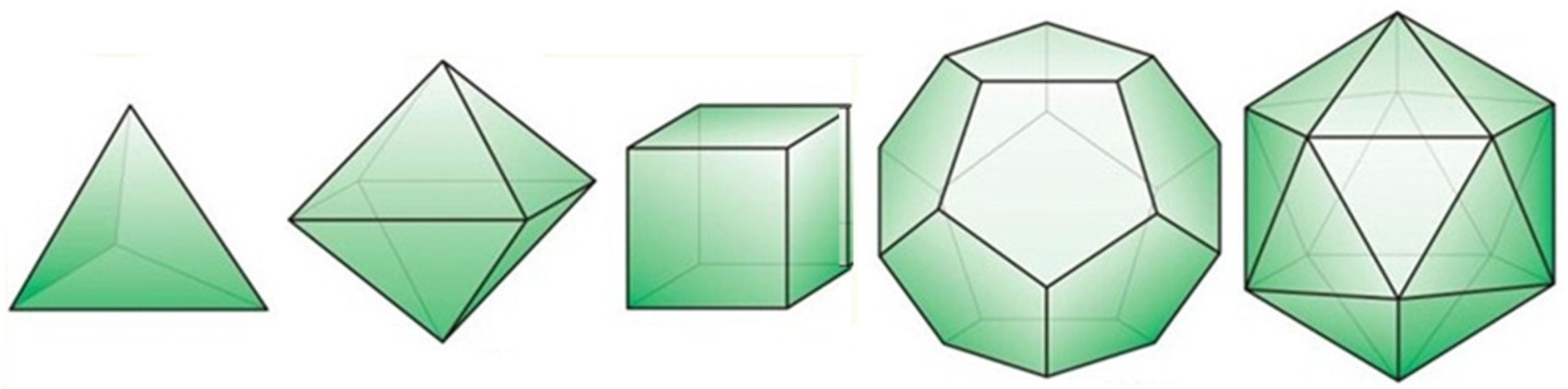

## 2. Symmetry Groups of Regular Polyhedra

- ■
- Tetrahedral group $[3,3]$:$${\Pi}_{[3,3]}^{\alpha}:\phantom{\rule{4pt}{0ex}}x+y=0,\phantom{\rule{4pt}{0ex}}{\Pi}_{[3,3]}^{\beta}:\phantom{\rule{4pt}{0ex}}y-z=0,\phantom{\rule{4pt}{0ex}}{\Pi}_{[3,3]}^{\gamma}:\phantom{\rule{4pt}{0ex}}x-y=0$$$${\alpha}_{[3,3]}=\left[\begin{array}{ccc}0& -1& 0\\ -1& 0& 0\\ 0& 0& 1\end{array}\right],\phantom{\rule{4pt}{0ex}}{\beta}_{[3,3]}=\left[\begin{array}{ccc}1& 0& 0\\ 0& 0& 1\\ 0& 1& 0\end{array}\right],\phantom{\rule{4pt}{0ex}}{\gamma}_{[3,3]}=\left[\begin{array}{ccc}0& 1& 0\\ 1& 0& 0\\ 0& 0& 1\end{array}\right]$$$${\u25b5}_{[3,3]}=\{{(x,y,z)}^{T}\in {S}^{2}|x+y\ge 0,\phantom{\rule{4pt}{0ex}}y-z\le 0,\phantom{\rule{4pt}{0ex}}x-y\le 0\}$$
- ■
- Octhedral group $[3,4]$:$${\Pi}_{[3,4]}^{\alpha}:\phantom{\rule{4pt}{0ex}}x-z=0,\phantom{\rule{4pt}{0ex}}{\Pi}_{[3,4]}^{\beta}:\phantom{\rule{4pt}{0ex}}x-y=0,\phantom{\rule{4pt}{0ex}}{\Pi}_{[3,4]}^{\gamma}:\phantom{\rule{4pt}{0ex}}y=0$$$${\alpha}_{[3,4]}=\left[\begin{array}{ccc}0& 0& 1\\ 0& 1& 0\\ 1& 0& 0\end{array}\right],\phantom{\rule{4pt}{0ex}}{\beta}_{[3,4]}=\left[\begin{array}{ccc}0& 1& 0\\ 1& 0& 0\\ 0& 0& 1\end{array}\right],\phantom{\rule{4pt}{0ex}}{\gamma}_{[3,4]}=\left[\begin{array}{ccc}1& 0& 0\\ 0& -1& 0\\ 0& 0& 1\end{array}\right]$$$${\u25b5}_{[3,4]}=\{{(x,y,z)}^{T}\in {S}^{2}|x-z\le 0,\phantom{\rule{4pt}{0ex}}x-y\ge 0,\phantom{\rule{4pt}{0ex}}y\ge 0\}$$
- ■
- Icosahedral group $[3,5]$:$${\Pi}_{[3,5]}^{\alpha}:\phantom{\rule{4pt}{0ex}}y=0,\phantom{\rule{4pt}{0ex}}{\Pi}_{[3,5]}^{\gamma}:\phantom{\rule{4pt}{0ex}}x=0,\phantom{\rule{4pt}{0ex}}\phantom{\rule{4pt}{0ex}}{\Pi}_{[3,5]}^{\beta}:\phantom{\rule{4pt}{0ex}}-\zeta x+y-z/\zeta =0,\phantom{\rule{4pt}{0ex}}\mathrm{where}\phantom{\rule{4pt}{0ex}}\zeta =\frac{1+\sqrt{5}}{2}$$$${\alpha}_{[3,5]}=\left[\begin{array}{ccc}1& 0& 0\\ 0& -1& 0\\ 0& 0& 1\end{array}\right],\phantom{\rule{4pt}{0ex}}{\beta}_{[3,5]}=\frac{1}{2}\left[\begin{array}{ccc}-1/\zeta & \zeta & -1\\ \zeta & 1& 1/\zeta \\ -1& 1/\zeta & \zeta \end{array}\right],\phantom{\rule{4pt}{0ex}}{\gamma}_{[3,5]}=\left[\begin{array}{ccc}-1& 0& 0\\ 0& 1& 0\\ 0& 0& 1\end{array}\right]$$$${\u25b5}_{[3,5]}=\{{(x,y,z)}^{T}\in {S}^{2}|y\ge 0,\phantom{\rule{4pt}{0ex}}x\le 0,\phantom{\rule{4pt}{0ex}}\zeta x-y+z/\zeta \ge 0\}$$

## 3. Transform Points of ${\mathbf{S}}^{\mathbf{2}}$ into Fundamental Region Symmetrically

**Lemma**

**1.**

**Proof.**

**Theorem**

**1.**

**Proof.**

## 4. Colorful Spherical Patterns with $[\mathit{p},\mathit{q}]$ Symmetry

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Coxeter, H.S.M. Regular Polytopes; Dover: New York, NY, USA, 1973. [Google Scholar]
- Mcmulle, P.; Schulte, E. Abstract Regular Polytopes; Cambridge University Press: Cambridge, UK, 2002. [Google Scholar]
- Conway, J.H.; Burgiel, H.; Goodman-Strauss, C. The Symmetries of Things; A K Peters Press: Natick, MA, USA, 2008. [Google Scholar]
- Armstrong, V.E. Groups and Symmetry; Springer: New York, NY, USA, 1987. [Google Scholar]
- Magnus, W. Noeuclidean Tessellation and Their Groups; Academic Press: New York, NY. USA, 1974. [Google Scholar]
- Rees, E.G. Notes on Geometry; Springer: Berlin/Heidelberg, Germany, 1983. [Google Scholar]
- Escher, M.C.; Ford, K.; Vermeulen, J.W. Escher on Escher: Exploring the Infinity; Harry N. Abrams: New York, NY, USA, 1989. [Google Scholar]
- Yen, J.; Séquin, C. Escher Sphere Construction Kit. In Proceedings of the 2001 Symposium on Interactive 3D Graphics, Research Triangle Park, NC, USA, 19–21 March 2001; pp. 95–98.
- Kaplan, C.S. Computer Graphics and Geometric Ornamental Design. Ph.D. Thesis, University of Washington, Washington, DC, USA, 2002. [Google Scholar]
- Field, M. Dynamics and Symmetry; Imperial College Press: London, UK, 2007. [Google Scholar]
- Humphreys, J.E.; Bollobas, B.; Fulton, W.; Katok, A.; Kirwan, F.; Sarnak, P.; Simon, B. Reflection Groups and Coxeter Groups; Cambridge University Press: Cambridge, UK, 1992. [Google Scholar]
- Field, M.; Golubitsky, M. Symmetry in Chaos; Oxford University Press: Oxford, UK, 1992. [Google Scholar]
- Reiter, C.A. Chaotic Attractors with the Symmetry of the Tetrahedron. Comput. Graph.
**1997**, 6, 841–884. [Google Scholar] [CrossRef] - Brisson, G.F.; Gartz, K.M.; McCune, B.J.; O’Brien, K.P.; Reiter, C.A. Symmetric Attractors in Three-dimensional Space. Chaos Soliton Fract.
**1996**, 7, 1033–1051. [Google Scholar] [CrossRef] - Lu, J.; Zou, Y.R.; Liu, Z.Y. Colorful Symmetric Images in Three-dimensional Space from Dynamical Systems. Fractals
**2012**, 20, 53–60. [Google Scholar] [CrossRef] - Benson, D.J.; Hitchin, N.J. Polynomial Invariant of Finite Groups; Cambridge University Press: Cambridge, UK, 1993. [Google Scholar]
- Chung, K.W.; Chan, H.S.Y. Spherical Symmetries from Dynamics. Comput. Math. Appl.
**1995**, 7, 67–81. [Google Scholar] [CrossRef] - Dumont, J.P.; Reiter, C.A. Chaotic Attractors Near Forbidden Symmetry. Chaos Soliton Fract.
**2000**, 11, 1287–1296. [Google Scholar] [CrossRef] - Jones, K.C.; Reiter, C.A. Chaotic Attractors with Cyclic Symmetry Revisited. Comput. Graph.
**2000**, 24, 271–282. [Google Scholar] [CrossRef] - Reiter, C.A. Chaotic Attractors with the Symmetry of the Dodecahedron. Vis. Comput.
**1999**, 4, 211–215. [Google Scholar] [CrossRef] - Dumont, J.P.; Heiss, F.J.; Jones, K.C.; Reiter, C.A.; Vislocky, L.M. N-dimensional Chaotic Sttractors with Crystallographic Symmetry. Chaos Soliton Fract.
**2001**, 4, 761–784. [Google Scholar] [CrossRef] - Coxeter, H.S.M.; Moser, W.O.J. Generators and Relations for Discrete Groups; Springer: New York, NY, USA, 1980. [Google Scholar]
- Lu, J.; Ye, Z.X.; Zou, Y.R. Colorful Patterns with Discrete Planar Symmetries from Dynamical Systems. Fractals
**2012**, 18, 35–43. [Google Scholar] [CrossRef] - Ouyang, P.C.; Fathauer, R.W. Beautiful Math, Part 2, Aesthetic Patterns Based on Fractal Tilings. IEEE Comput. Graph.
**2014**, 1, 68–75. [Google Scholar] [CrossRef] [PubMed] - Ouyang, P.C.; Chung, K.W. Beautiful Math, Part 3, Hyperbolic Aesthetic Patterns Based on Conformal Mappings. IEEE Comput. Graph.
**2014**, 2, 72–79. [Google Scholar] [CrossRef] [PubMed] - Ouyang, P.C.; Cheng, D.S.; Cao, Y.H.; Zhan, X.G. The Visualization of Hyperbolic Patterns from Invariant Mapping Method. Comput. Graph.
**2012**, 2, 92–100. [Google Scholar] [CrossRef]

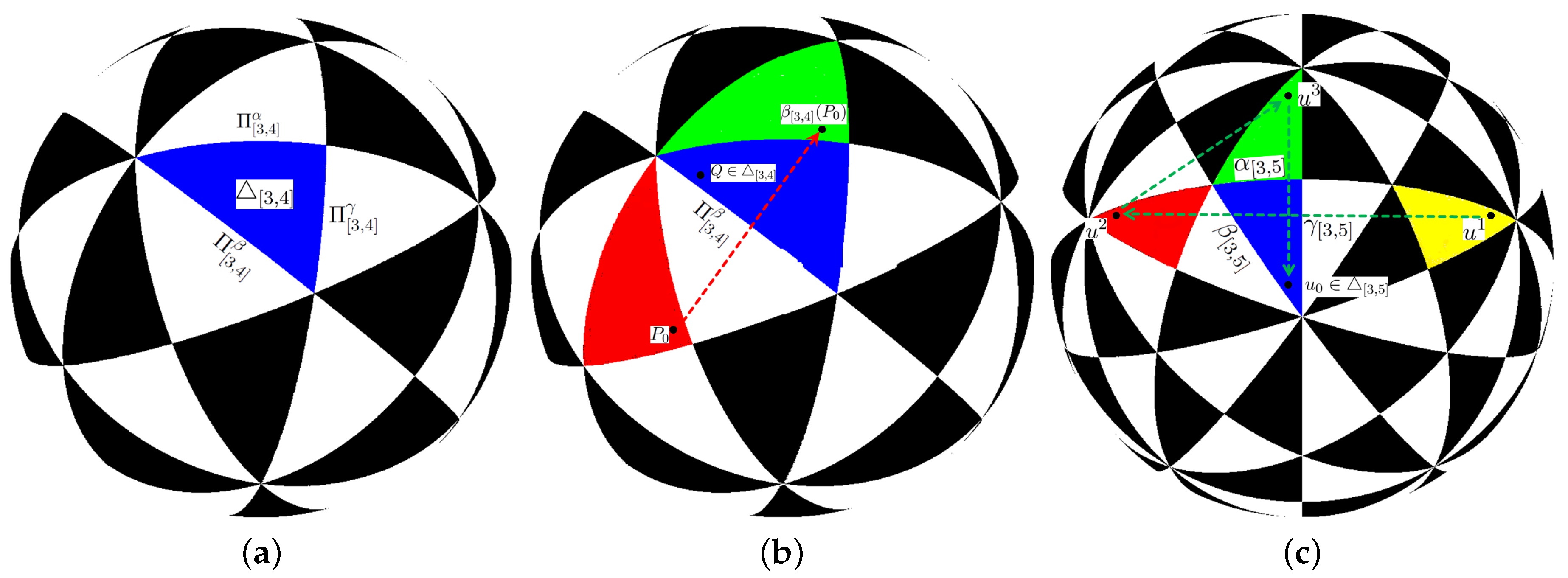

**Figure 2.**(

**a**) The blue spherical right triangle ${\u25b5}_{[3,4]}$ surrounded by planes ${\Pi}_{[3,4]}^{\alpha},\phantom{\rule{4pt}{0ex}}{\Pi}_{[3,4]}^{\beta}$, and ${\Pi}_{[3,4]}^{\gamma}$ forms a fundamental region associated with group $[3,4]$; (

**b**) Let $Q\in {\u25b5}_{[3,4]}$ and ${P}_{0}\notin {\u25b5}_{[3,4]}$ be two points on the different sides of ${\Pi}_{[3,4]}^{\beta}$. Then, ${\beta}_{[3,4]}\left({P}_{0}\right)$ and Q lie on the same side of ${\Pi}_{[3,4]}^{\beta}$, and the distance between them is smaller than ${P}_{0}$ and Q; and (

**c**) A schematic illustration that shows how Theorem 1 transforms ${u}^{1}\notin {\u25b5}_{[3,5]}$ into ${\u25b5}_{[3,5]}$ symmetrically. In this case, ${u}^{1}$ is first transformed by ${\gamma}_{[3,5]}$ so that ${u}^{2}={\gamma}_{[p,q]}\left({u}^{1}\right)$ goes into red tile. Then, ${u}^{2}$ is transformed by ${\beta}_{[3,5]}$ so that ${u}^{3}={\beta}_{[p,q]}\left({u}^{2}\right)$ goes into green tile. At last, ${u}^{3}$ is transformed by ${\alpha}_{[3,5]}$ so that ${u}_{0}={\alpha}_{[3,5]}\left({u}^{3}\right)\in {\u25b5}_{[3,5]}$.
