Graphical Classification in Multi-Centrality-Index Diagrams for Complex Chemical Networks
Electronic Systems Engineering, The University of Shiga Prefecture, 2500 Hassakacho, Hikone, Shiga 522-8533, Japan
*
Author to whom correspondence should be addressed.
Received: 22 October 2017 / Accepted: 5 December 2017 / Published: 9 December 2017

Abstract

:
Various sizes of chemical reaction network exist, from small graphs of linear networks with several inorganic species to huge complex networks composed of protein reactions or metabolic systems. Huge complex networks of organic substrates have been well studied using statistical properties such as degree distributions. However, when the size is relatively small, statistical data suffers from significant errors coming from irregular effects by species, and a macroscopic analysis is frequently unsuccessful. In this study, we demonstrate a graphical classification method for chemical networks that contain tens of species. Betweenness and closeness centrality indices of a graph can create a two-dimensional diagram with information of node distribution for a complex chemical network. This diagram successfully reveals systematic sharing of roles among species as a semi-statistical property in chemical reactions, and distinguishes it from the ones in random networks, which has no functional node distributions. This analytical approach is applicable for rapid and approximate understanding of complex chemical network systems such as plasma-enhanced reactions as well as visualization and classification of other graphs.
Keywords:
chemical reaction network; centrality index; statistical analysis; random graph

1. Introduction

Graph theory provides for us a graphical approach to a system containing various elements with connections between them [1,2]. Chemical reaction networks are one such system, and small and simple reaction systems are visualized in linear or small graphs with sufficient understanding of reaction procedures [3,4,5]. On the other hand, the networks of protein and metabolic systems in a biological cell are quite complicated due to their numbers of nodes (at least, more than 1000), so that not only visualization as a graph but also statistical properties such as degree distributions are representative for characterizing their complexity [6,7].
Recently, we performed graph visualization for plasma-enhanced chemical reactions [8,9]. In low-temperature reactive plasma, high-energy electrons trigger a number of simultaneous dissociations of mother molecules, and its chemistry is more complex than other chemical systems in artificial environments for chemical plants [10,11,12]. After definitions of a node (for one species) and an edge (for each reaction) for a display in a graph, centrality indices of nodes derived from the graph work as representatives of chemical roles in the system, such as agents, intermediates, and products. However, except for such microscopic points of view, approaches have not been accomplished for describing macroscopic properties of graphs for chemical reaction networks that contain several tens of species.
Such relatively small-sized chemical network systems create rich outputs despite limited numbers of nodes and edges in a graph. For instance, information processing in biochemical reactions revealed collective behaviors that can be interpreted using interactions among analogical spins, leading to similar features to electronic information processing or mechanical systems [13,14]. Another example of graphical network approaches for medium-sized chemical complexity was on numerical calculations of rate equations in plasma-enhanced chemical reactions, and the calculated results were visualized in reaction pathways in a graph to summarize complicated time evolutions of densities of species [15]. In comparison with the previous achievements based on numerical finite-difference methods [10,11,12,15], direct visualization of reactions based on graph theory is applied here, and we focus on graphical classification of nodes or species on statistical aspects that are missing in our previous studies [8,9].
In this study, for such systems as medium-sized chemical reaction networks, which are neither so small as several numbers of reactions nor too large with more than 1000 species, we demonstrate suitable macroscopic measures by graphical diagrams based on multi-centrality indices. Using such diagrams, semi-statistical properties with confirmation of systematic and global structures in the corresponding system can be deduced, even if the total number of nodes is limited to less than 100, as well as identifications of roles in each species, such as agents, intermediates and products. This method of classification of species in macroscopic points of view provides us with insight and understandings about predictions of global properties of chemical reactions for approximate designs of upcoming chemical reactors and rapid selection of mother chemicals for products when accurate computer aided designs are not available. In Section 2, using reactions in silane and methane plasmas, we show the diagrams with axes of betweenness and closeness centrality indices. Using such a diagram, we can understand both macroscopic and microscopic properties of graphs with tens of nodes. In Section 3, we compare these two examples with random graphs, and discuss the validities of this graphical characterization.

2. Analysis of Reaction Networks in Plasma Chemistry

As examples, we use two plasma-enhanced chemical networks reported in [10,11]. We performed some analyses of methane plasma [8] and silane plasma [9] using some centrality indices, but they did not include macroscopic measures of complex chemical networks. Here, we proceed to study them using the same reaction systems to obtain their macroscopic and microscopic properties simultaneously. Table A1 in Appendix A shows active species in silane plasma with temporary indicator numbers, where we use reaction sets in [11]. There are a wide variety of species that originate initially from two species: SiH4 and Ar. The number of species or nodes in the corresponding graph is 58, and that of reactions or edges is 222. The reason why we can observe such rich diversity is based on high-energy electrons whose energy spreads up to 20 eV with electron temperature of 1–5 eV; kinetic energy with 1–20 eV induces most of reactions of decomposition, dissociation and ionization [16]. Almost all reactions are bi-molecule, and we treat all reactions as irreversible ones.
To convert a chemical reaction into a graph, when we handle the following reaction,
A + B D + E ,
and use the names of species in reactions as node indicators, we set directed edges from node A to node D , from node A to node E , from node B to node D and from node B to node E , as shown in Figure 1a. When one performs graph representation for an underlying system of interest, elements of the system becomes nodes and interactions between elements are displayed as edges. For chemical reactions, as interpreted in [3], species becomes nodes, and not a simple co-existence but an agent-product relation is suitable for a directed edge, leading to a form of representation in Figure 1a. In general chemical reactions for inorganic molecules, since roles of agents, intermediates and products are fairly clear with energy consumption as driving forces, regular graphs or graphs with frequent cycles are less important, and monotone graphs or trees with several nodes are sufficient in many cases [3,4,5]. However, in reactions enhanced by energetic electrons in plasma, cycles appear with their various sizes with increasing values of clustering coefficients [8], which makes a role of each species more complicated.
After completion of an edge list for a graph, we calculate several centrality indices. In this study, we use betweenness centrality index C b and closeness centrality index C c . C b is defined as [2]:
C b ( i ) = j , k j k i g j k ( i ) g j k ,
where i , j and k are species/node indicator numbers and g j k is number of the shortest paths between nodes j and k . g j k ( i ) indicates number of g j k passing through node i . C c is defined as [2]:
C c ( i ) = 1 j d i j ,
where d i j is distance or edge numbers from node i to j along the shortest path. Since we consider directed graphs, no path may exist from node i to j ; in such a case, d i j is defined as number of all nodes. This fact indicates that, although C c represents one of the topological aspects, it includes a measure of agents in chemical reactions. In our previous studies [8,9], we calculated simplified PageRank values [17], which represent information on roles of species, i.e., in a microscopic point of view. In this study, we put more emphasis on analysis of topological and statistical properties of graphs, and C b and C c are suitable for this purpose.
Figure 1b shows the graph of reactions with species in silane plasma. Since the number of nodes is not large, we can identify an individual species. On the other hand, the number of edges is pretty large, and we cannot trace all of them. For complex networks with huge size, one can recognize neither of them, and they are mainly analyzed using statistical properties (i.e., Power-law tails in degree distributions [18]) from a macroscopic point of view, neglecting identification of microscopic roles of each species. In our case, however, the number of nodes is insufficient to obtain smooth statistical trends. Figure 2 shows the in-degree and out-degree distribution. Nodes scatter broadly in both sides of the dashed line that shows equal numbers of the in-degrees and the out-degrees, which indicates both agents, with larger values of the out-degree, and products are present in balance. When we carry out searches for global information in Figure 2, although it indicates that this degree distribution is not the Poisson one, we cannot clarify its statistical characteristic at this moment.
Here, we propose a diagram with C b and C c to analyze a macroscopic property of a graph and to obtain microscopic roles of species simultaneously, as shown in Figure 3 for the graph in Figure 1. In general, both C b and C c show centrality indices, and a node closer to the center has a higher value, and positive correlation is roughly expected between them. However, this diagram includes various types of information, as described below. For instance, nodes Si 4 H 9 and Si 5 H 11 are located in the periphery region of Figure 1. Both of them are in the low- C b area in Figure 3, but their positions in the diagram are different. Si 4 H 9 has three directed paths from other species and another to Si 4 H 10 . The degree, the total number of edges, is limited to 4 as shown in Figure 2, and we can recognize the edges and the nodes around Si 4 H 9 in Figure 1. Consequently, Si 4 H 9 is not a significant species that affects many reactions, and it is located in the low- C b area in Figure 3, while C c of Si 4 H 9 is in the middle range. Si 5 H 11 also has three directed paths from other species and one directed path to another species, Si 5 H 12 . It is in the low- C b area with very low C c . The difference of locations between Si 4 H 9 and Si 5 H 11 is destination of out-degree edges; Si 4 H 10 is more active in reactions than Si 5 H 12 in our model, and we can clarify such a point using this diagram. Note that both of them have the same statistical values of degrees, and they are in the same position in the degree distribution that is a conventional classification in theory of complex network [2].
From a macroscopic point of view, this diagram displays semi-statistical properties of the graph as a visual classification tool. The overall distribution of data points displayed here is fairly uniform along the log ( C b ) axis, and it covers the range in 4 orders of magnitude of C b . The Si x H y system, which includes main species coming from the mother gas, SiH 4 , is distributed throughout the entire range. The H system, which also originates from SiH 4 , scatters in all ranges. The Ar system is in a less important area as C b values. In the area with high-value C b , stable species such as SiH 4 and H 2 exist, and electrons are also one of the highest-value species both in C b and C c . SiH 3 , which is the most important precursor for Si thin film deposition using silane plasma, is also in this high-value region. In the case of the linear C b axis shown in the inset of Figure 3, data points are concentrated around 0, and a few of them scatter in the area of high C b , which is not a sufficient visualization of the graph. A logarithmic plot for C b is a key manner for graphs for reaction paths and visual classifications of chemical reactions, in particular, in plasma-enhanced chemistry.
Another fact that we can deduce from this diagram is rough estimation on differences coming from roles of species. Values of C c , which are shown along the vertical axis, become high when the out-degree of a given species is larger than its in-degree (see Figure 2 to confirm these correspondences). For instance, C c of SiH 4 is larger than that of H 2 : the ratio, in-degree/out-degree of SiH 4 , is 19/34, while that of H 2 is 33/19. Electrons have also unbalanced values: the ratio is 8/34. These facts indicate that species mainly working as agents (on the left-hand side of chemical reactions, such as A and B in Reaction (1), having larger out-degrees) are in the upper area of C c . Products in chemical reactions tend to be in the lower area.
Figure 4 shows another example of chemical reactions, CH 4 system in methane plasma. In [8], we treat species except ions, but here we include all species listed in Ref. [10], shown in Table A2 in Appendix A. The log ( C b ) C c diagram for the graph in Figure 4 is shown in Figure 5, which is quite similar to that in Figure 3; the area of log ( C b ) is quite wide in comparison with the width of the C c range. Also, most of the species that have been so far pointed out on their importance of roles are located in the higher- C b range. In a microscopic point of view, we can also find similar points to the case of silane plasma. For instance, CH 4 and CH 3 are in the similar locations to SiH 4 and SiH 3 in Figure 3, respectively. Our previous report [8] in which the centrality indices similar to PageRank [17] indicate importance of CH 3 , and the result here is consistent with the one in Ref. [8]. There are a few points that are different from the case of silane plasma, such as the location of electrons between Figure 3 and Figure 5, although such a feature may be a factor coming from each specific system.
Two results shown here indicate that complex reactions in plasma chemistry can be visualized in a log ( C b ) C c diagram, and both macroscopic and microscopic properties are derived from it. In particular, since plasma chemistry includes various levels of roles as well as wide range of contribution frequencies to reactions, the range of node distributions along the log ( C b ) axis is quite wide. C b , given by Equation (2), includes information as reaction connection between species, while C c indicates rather simple information about a location in a network.

3. Discussion

Figure 3 and Figure 5 show wide-range distributions of nodes on the log ( C b ) axis, but it might arise from simple randomness that also exists in random graphs. Here we compare such tendencies to those in arbitrary random graphs.
We fixed the numbers of nodes and edges to the ones in Figure 1, and created random graphs with directed edges in computation. Figure 6 shows three examples, and we cannot see any common points in allocation of roles for specific species. In all log ( C b ) C c diagrams shown in Figure 7, the values C b and C c for the nodes are around a certain area. In particular, the values of log ( C b ) is in a range with approximately one order of magnitude except for a few nodes. This is attributed to the fact that degrees of random graphs are in the Poisson distributions [18].
To compare spectra in the log ( C b ) scale, the data in Figure 3, Figure 5 and Figure 7 are summarized as histograms of cumulative probabilities or relative densities P in Figure 8. Values of the nodes in random graphs are localized around 10 2 , and almost no changes among these three plots. This is attributed to the fact that degrees of random graphs are in the Poisson distribution [18], and these graphs have certain averaged profiles of parameters with some deviations. On the other hand, the spectrum of silane plasma chemistry with the same numbers of the nodes and the edges is quite broad. The case of methane plasma chemistry shows similar tendencies. This comparison implies that networks of complex plasma chemistry include self-arranged systematic roles in the constituent species. The roles of agents and products are partially distinguished from scattering along the C c axis in the diagram. A wide range of log ( C b ) indicates a number of levels of intermediate roles from one species to another along successive sequential reactions, where the levels are from inevitable functions in reactions to less-frequent contributions for sub-products creations, etc.
The above descriptions are based on the data set on silane and methane plasma chemistry. If another sufficient set of reactions is available, one can perform similar data analysis on complex chemical networks. As shown here, approximate estimations of roles on species and global balance in the reaction system are beneficial for various purposes such as rapid analysis of robustness of a reaction system against impurity mixing. Another feasible and interesting contribution is selection of species for monitoring an industrial chemical reactor; behaviors of the limited number of the species detectable on the edge of reaction space can predict the ongoing entire system working on by comparing values of indices with the detected signals.
This kind of graph analysis using diagrams composed of multi-centrality indices is applicable for analyses of other networks. In particular, networks that include less than 100 nodes are suitable for this method to investigate both macroscopic topologies and microscopic identifications of nodes. This is also applicable for larger networks to clarify roles of nodes by specifying their positions in a rough distribution of node data in a diagram. For instance, other physical and chemical processes can be analyzed by this approach when they are described in rate equations, since chemical reactions are given in one type of rate equation and successfully interpreted in this study.

4. Conclusions

A diagram with axes of multi-centrality indices works to clarify both macroscopic structures of the graph and microscopic features such as roles of a species. Plasma-enhanced chemical reactions, in which tens of chemical reactions take place in parallel, are analyzed using a diagram based on C b and C c indices. The derived diagram indicates, from its macroscopic distribution of node values, that nodes have a wide variety of roles that are quite different from random classification. It also shows some roles of specific nodes by their locations, such as roles of products, agents, and intermediates. For plasma chemistry, this study provides us a measure for statistical properties for tens or hundreds of species in reaction systems, and for graph analysis, this analysis will become a practical and applicable method for understanding such medium-sized graphs.

Acknowledgments

One of the authors (Osamu Sakai) thanks Professor Tomoyuki Murakami at Seikei University, Professor Mark J. Kushner at University of Michigan, and Professor Tsuyoshi Akiyama at The University of Shiga Prefecture for their useful comments in this study. This study was partly supported by Grant-in-Aid for Scientific Research from the Japanese Ministry of Education, Culture, Sports, Science and Technology, Japan (JSPS KAKENHI Grant Number JP16K13711).

Author Contributions

Yasutaka Mizui performed main analysis shown here and wrote the paper by drawing figures. Tetsuya Kojima performed numerical calculation for random graphs. Shigeyuki Miyagi prepared for calculation environments and gave advices on analysis procedures including error corrections. Osamu Sakai conceived and designed the research activities, and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

The chemical reactions we analyze in this study are in two sets: silane (SiH4) and methane (CH4) plasma chemical reactions. All species treated in Figure 1, Figure 2 and Figure 3 are shown in Table A1, and those in Figure 4 and Figure 5 are in Table A2; they are listed in [10,11], respectively.
Table A1. List of species in silane plasma chemical reactions [11]. Except charge indicators “+” and “−”, other symbols like “*” and “v” mean various electronic and mechanical excitation levels of species. M indicates arbitrary species except ions.
Table A1. List of species in silane plasma chemical reactions [11]. Except charge indicators “+” and “−”, other symbols like “*” and “v” mean various electronic and mechanical excitation levels of species. M indicates arbitrary species except ions.
NumberSpeciesNumberSpecies
0Ar31Si2H6 **
1Ar *32Si2H6+
2Ar **33Si2H7+
3Ar+34Si3H4+
4ArH+35Si3H6+
5e36Si3H7
6H37Si3H8
7H *38Si4H10
8H+39Si4H2+
9H240Si4H6+
10H2(v(1))41Si4H8+
11H2(v(2))42Si4H9
12H2 *43Si5H10+
13H2+44Si5H11
14H3+45Si5H12
15M46Si5H4+
16Si47SiH
17Si+48SiH+
18Si2H+49SiH2
19Si2H250SiH2
20Si2H2+51SiH2+
21Si2H352SiH3
22Si2H3+53SiH3
23Si2H454SiH3+
24Si2H4+55SiH4
25Si2H556SiH4(v(1,3))
26Si2H5+57SiH4(v(2,4))
27Si2H6
28Si2H6(v(1,3))
29Si2H6(v(2,4))
30Si2H6 *
Table A2. List of species in methane plasma chemical reactions [10]. Except charge indicator “+”, other symbols like “*” mean various electronic and mechanical excitation levels of species. M indicates arbitrary species except ions.
Table A2. List of species in methane plasma chemical reactions [10]. Except charge indicator “+”, other symbols like “*” mean various electronic and mechanical excitation levels of species. M indicates arbitrary species except ions.
NumberSpeciesNumberSpecies
1CH421CH3+
2H22CH4+
3CH323C2H2+
4CH224C2H3+
5C2H6 *25C2H4+
6M26C2H5+
7CH27H2+
8C2H5 *28H3+
9C29e
10C2H4 *30C4H3
11C2H631C4H2
12C2H532CH5+
13C2H433C3H4+
14C2H334C3H5+
15C2H235C4H5+
16C2H36C4H8+
17C+37C3H6+
18CH+38C3H7+
19H239C4H7+
20CH2+40C4H9+

References

  1. Fox, J. Proceedings of the Symposium on Generalized Networks; Polytechnic Press: New York, NY, USA, 1966. [Google Scholar]
  2. Kolaczyk, E.D. Statistical Analysis of Network Data: Methods and Models; Springer: Berlin, Germany, 2009. [Google Scholar]
  3. Temkin, O.N.; Zeigarnik, A.V.; Bonchev, D. Chemical Reaction Networks; CRC Press: Boca Raton, FL, USA, 1996. [Google Scholar]
  4. Leenheer, P.D.; Angeli, D.; Sontag, E.D. Monotone chemical reaction networks. J. Math. Chem. 2007, 41, 295–314. [Google Scholar] [CrossRef]
  5. Gorban, A.N.; Yablonsky, G.S. Extended detailed balance for systems with irreversible reactions. Chem. Eng. Sci. 2011, 66, 5388–5399. [Google Scholar] [CrossRef]
  6. Jeong, H.; Tombor, B.; Albert, R.; Oltvai, Z.N.; Barabasi, A.-L. The large-scale organization of metabolic networks. Nature 2000, 407, 651–654. [Google Scholar] [PubMed]
  7. Albert, R.; Jeong, H.; Barabasi, A.-L. Error and attack tolerance of complex networks. Nature 2000, 406, 378–382. [Google Scholar] [CrossRef] [PubMed]
  8. Sakai, O.; Nobuto, K.; Miyagi, S.; Tachibana, K. Analysis of weblike network structures of directed graphs for chemical reactions in methane plasmas. AIP Adv. 2015, 5, 107140. [Google Scholar] [CrossRef]
  9. Mizui, Y.; Nobuto, K.; Miyagi, S.; Sakai, O. Complex reaction network in Silane Plasma chemistry. In Complex Networks VIII; Springer International Publishing: Cham, Switzerland, 2017; pp. 135–140. [Google Scholar]
  10. Tachibana, K.; Nishida, M.; Harima, H.; Urano, Y. Diagnostics and modelling of a methane plasma used in the chemical vapour deposition of amorphous carbon films. J. Phys. D 1984, 17, 1727–1742. [Google Scholar] [CrossRef]
  11. Kushner, M.J. A model for the discharge kinetics and plasma chemistry during plasma enhanced chemical vapor deposition of amorphous silicon. J. Appl. Phys. 1988, 63, 2532–2551. [Google Scholar] [CrossRef]
  12. Murakami, T.; Niemi, K.; Gans, T.; O’Connell, D.; Graham, W.G. Chemical kinetics and reactive species in atmospheric pressure helium-oxygen plasmas with humid-air impurities. Plasma Sources Sci. Technol. 2013, 22, 015003. [Google Scholar] [CrossRef]
  13. Agliari, E.; Barra, A.; Bartolucci, S.; Galluzzi, A.; Guerra, F.; Moauro, F. Parallel processing in immune networks. Phys. Rev. E 2013, 87, 42701. [Google Scholar] [CrossRef] [PubMed]
  14. Agliari, E.; Barra, A.; Schiavo, L.D.; Moro, A. Complete integrability of information processing by biochemical reactions. Sci. Rep. 2016, 6, 36314. [Google Scholar] [CrossRef] [PubMed]
  15. Bie, C.D.; Dijk, J.; Bogaerts, A. The dominant pathways for the conversion of methane into oxygenates and syngas in an atmospheric pressure dielectric barrier discharge. J. Phys. Chem. C 2015, 119, 22331–22350. [Google Scholar] [CrossRef]
  16. Lieberman, M.A.; Lichtenberg, A.J. Principles of Plasma Discharges and Material Processing; John Wiley and Sons: New York, NY, USA, 1994. [Google Scholar]
  17. Brin, S.; Page, L. The anatomy of a large-scale hypertextual web search engine. Comput. Netw. ISDN Syst. 1998, 30, 107–117. [Google Scholar] [CrossRef]
  18. Albert, R.; Barabasi, A.-L. Statistical mechanics of complex networks. Rev. Mod. Phys. 2002, 74, 47–97. [Google Scholar] [CrossRef]

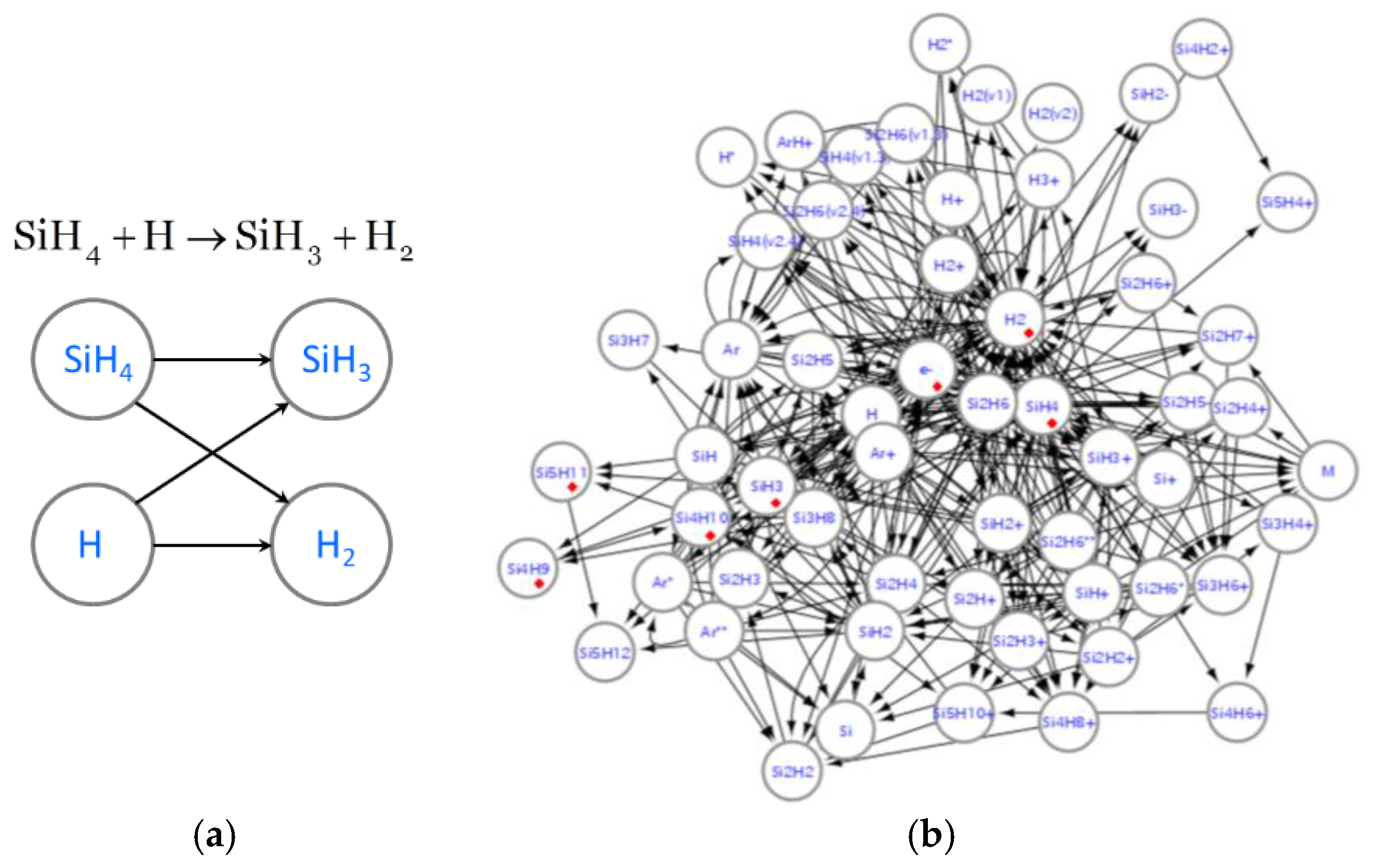

Figure 1. Graph for chemical reaction network in silane plasma. (a) Example of formation of nodes and edges for one typical reaction; and (b) whole structure of graph. Nodes represent species in chemical reactions, and edges start from agents and ends at products of each reaction. Chemical reactions are listed in Ref. [11]. Closed red diamonds indicate species displayed in Figure 2 and Figure 3.
Figure 1. Graph for chemical reaction network in silane plasma. (a) Example of formation of nodes and edges for one typical reaction; and (b) whole structure of graph. Nodes represent species in chemical reactions, and edges start from agents and ends at products of each reaction. Chemical reactions are listed in Ref. [11]. Closed red diamonds indicate species displayed in Figure 2 and Figure 3.
Symmetry 09 00309 g001
Figure 2. Distributions of in-degree and out-degree of species (or nodes) in silane plasma displayed in Figure 1. Inset dashed line indicates equal cases of in-degrees and out-degrees.
Figure 2. Distributions of in-degree and out-degree of species (or nodes) in silane plasma displayed in Figure 1. Inset dashed line indicates equal cases of in-degrees and out-degrees.
Symmetry 09 00309 g002

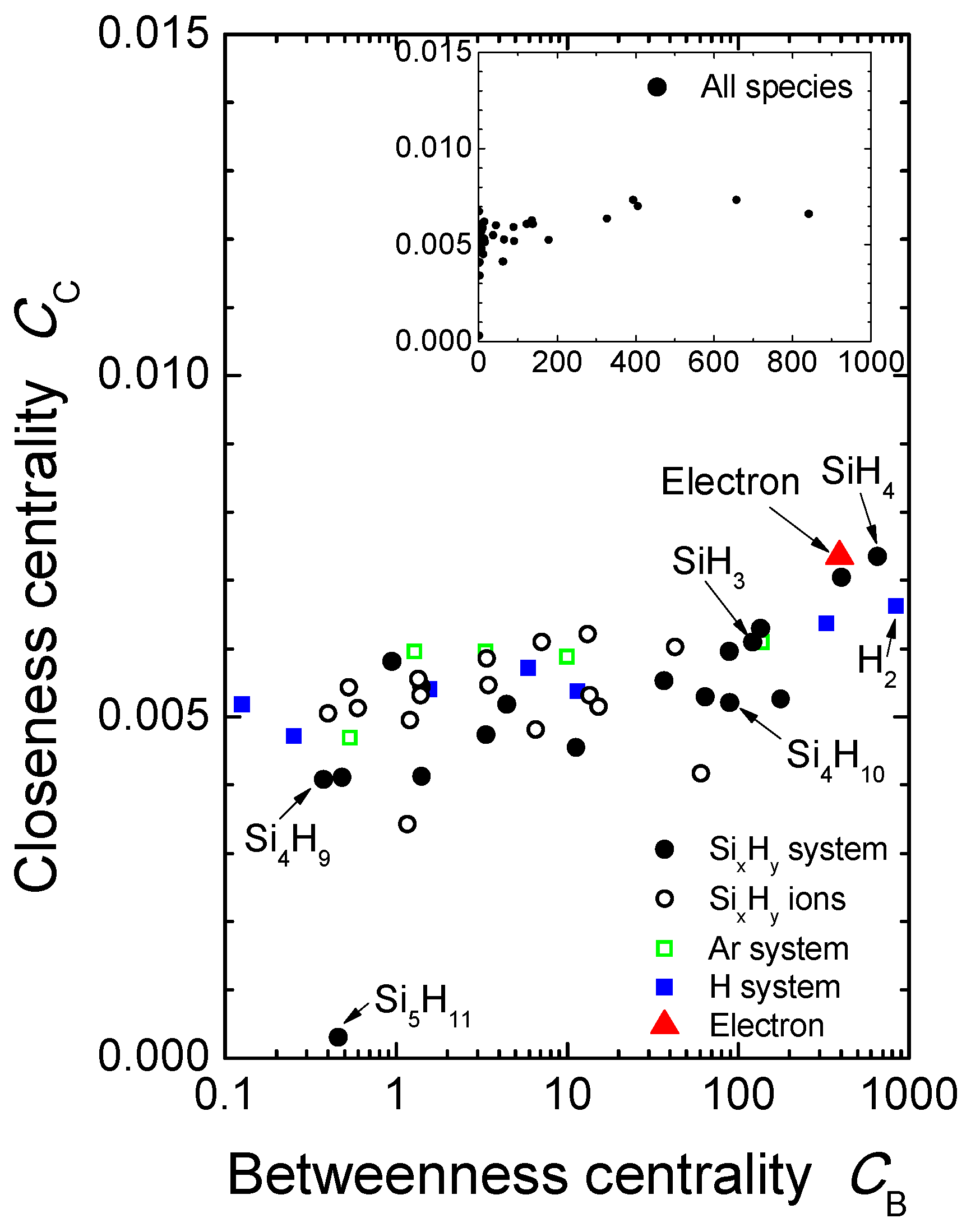

Figure 3. Diagram of betweenness-closeness centrality indices of reaction network in silane plasma displayed in Figure 1. Inset is diagram in linear scales.
Figure 3. Diagram of betweenness-closeness centrality indices of reaction network in silane plasma displayed in Figure 1. Inset is diagram in linear scales.
Symmetry 09 00309 g003

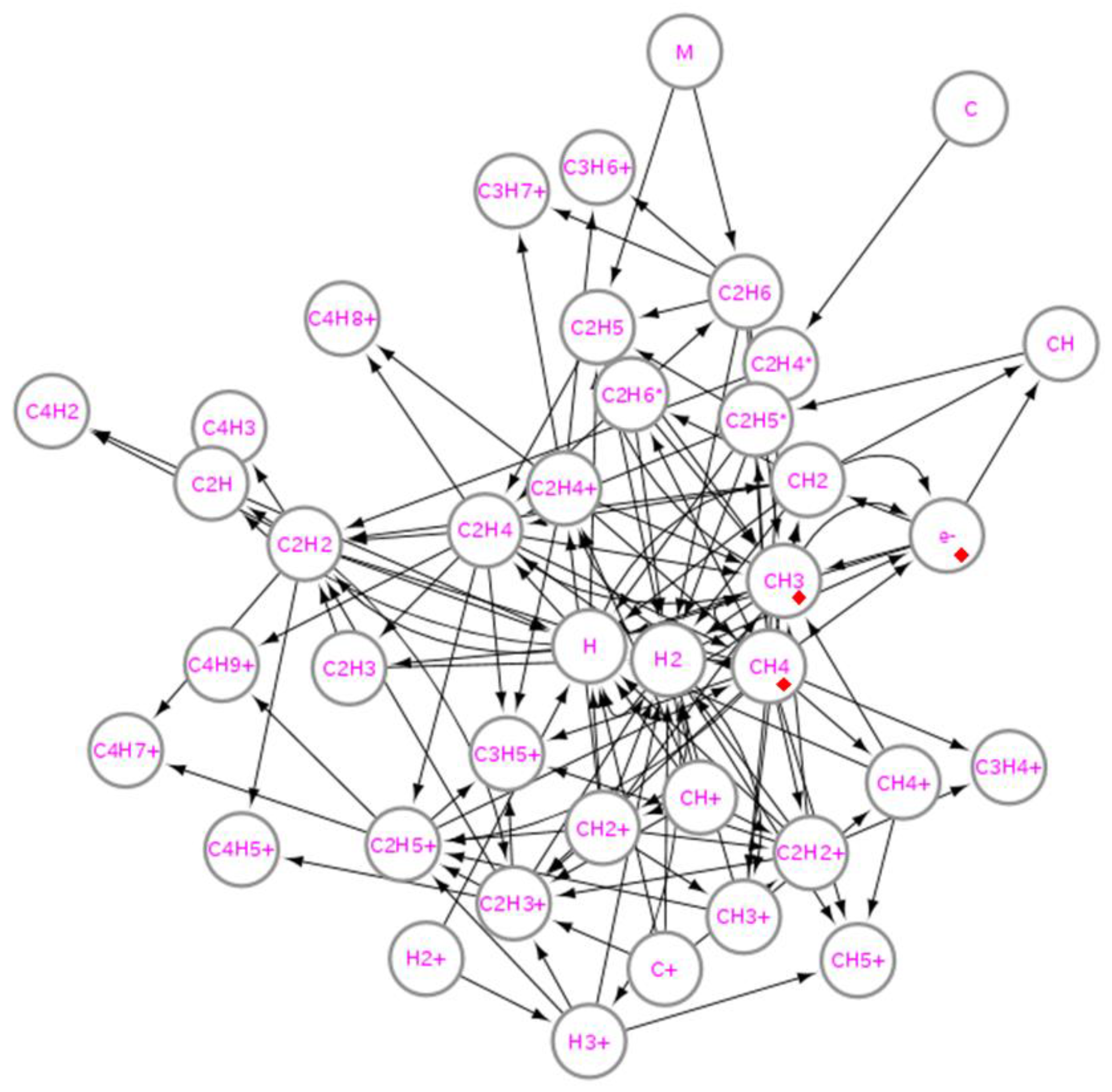

Figure 4. Graph for chemical reaction network in methane plasma. Nodes represent species in chemical reactions, and edges start from agents and ends at products of each reaction. Chemical reactions are listed in Ref. [10]. Closed red diamonds indicate species displayed in Figure 4.
Figure 4. Graph for chemical reaction network in methane plasma. Nodes represent species in chemical reactions, and edges start from agents and ends at products of each reaction. Chemical reactions are listed in Ref. [10]. Closed red diamonds indicate species displayed in Figure 4.
Symmetry 09 00309 g004
Figure 5. Diagram of betweenness-closeness centrality indices of reaction network in methane plasma displayed in Figure 3. Inset is diagram in linear scales.
Figure 5. Diagram of betweenness-closeness centrality indices of reaction network in methane plasma displayed in Figure 3. Inset is diagram in linear scales.
Symmetry 09 00309 g005

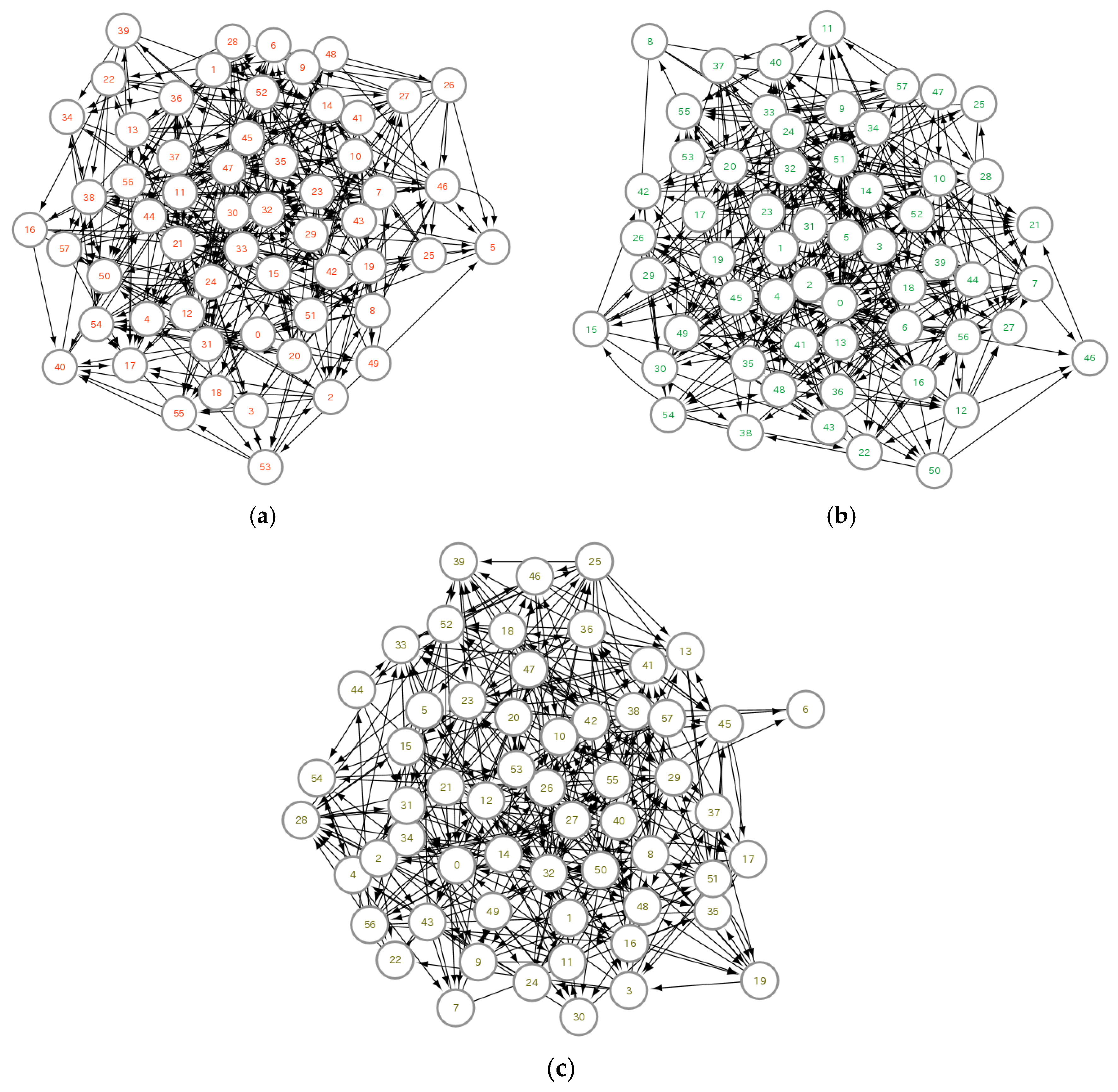

Figure 6. Random graphs created randomly in computation (ac).
Figure 6. Random graphs created randomly in computation (ac).
Symmetry 09 00309 g006

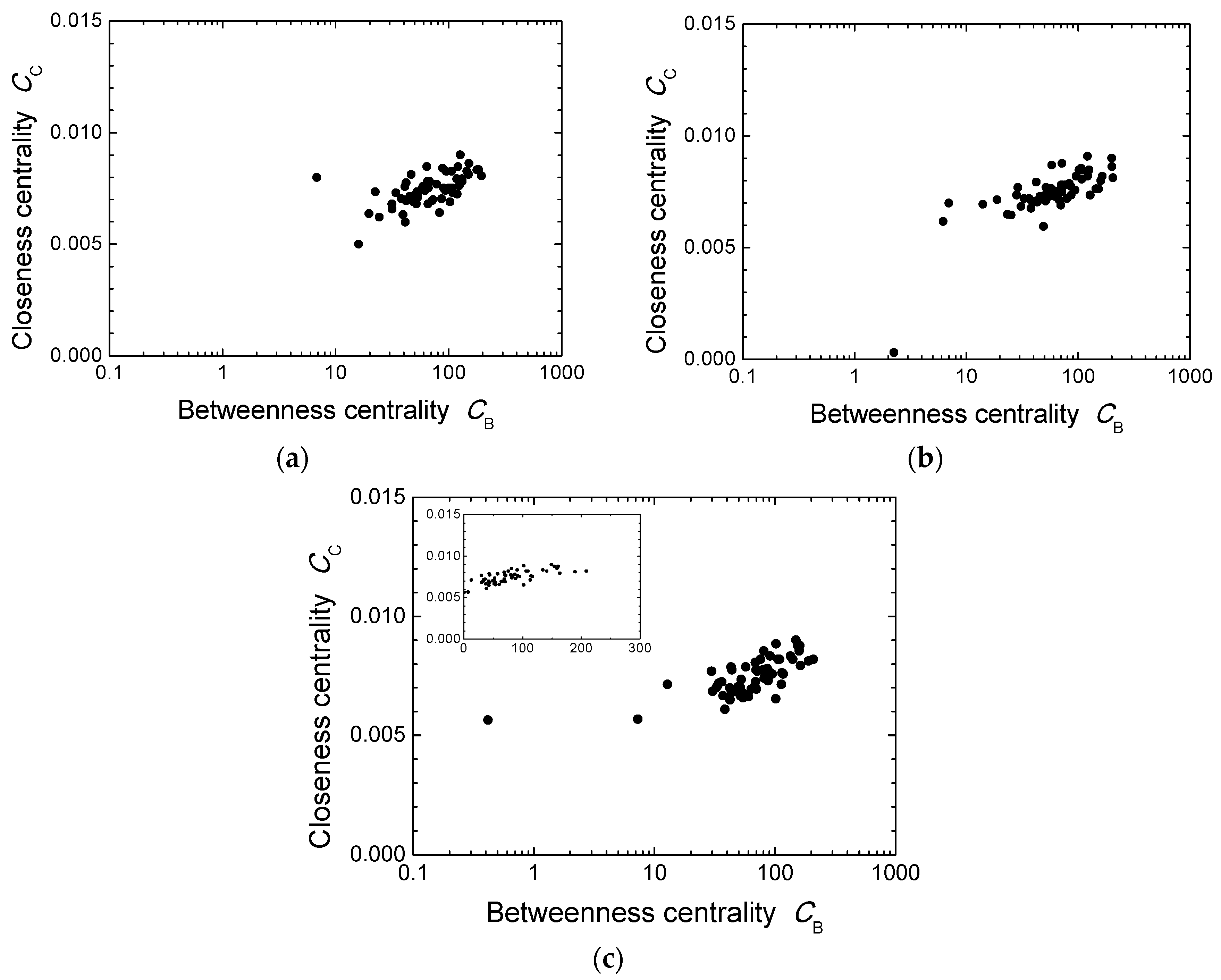

Figure 7. Diagrams of betweenness-closeness centrality indices. (ac) corresponds to (ac) in Figure 6, respectively. Inset is diagram in linear scales.
Figure 7. Diagrams of betweenness-closeness centrality indices. (ac) corresponds to (ac) in Figure 6, respectively. Inset is diagram in linear scales.
Symmetry 09 00309 g007
Figure 8. Histograms of cumulative probabilities or relative densities as function of betweenness centrality index. Data points are from Figure 3, Figure 5 and Figure 7.
Figure 8. Histograms of cumulative probabilities or relative densities as function of betweenness centrality index. Data points are from Figure 3, Figure 5 and Figure 7.
Symmetry 09 00309 g008
