Article

An Intelligent Optimization Design Method for Furniture Form Considering Multi-Dimensional User Affective Requirements

1
College of Furnishings and Industrial Design, Nanjing Forestry University, Nanjing 210037, China
2
Co-Innovation Center of Efficient Processing and Utilization of Forest Resources, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Symmetry 2025, 17(9), 1406; https://doi.org/10.3390/sym17091406
Submission received: 3 August 2025 / Revised: 25 August 2025 / Accepted: 27 August 2025 / Published: 29 August 2025
(This article belongs to the Special Issue Symmetry/Asymmetry in Computer-Aided Industrial Design)

Abstract

A pervasive cognitive asymmetry exists between designers and users, and contemporary furniture form design often struggles to accommodate and balance multi-dimensional user affective requirements. To address these challenges, this study proposes an intelligent optimization design method for furniture form that enhances the universality of user research and the balance of design decision-making. First, representative URs are extracted from online user review texts collected through web crawling. These URs are then classified into three-dimensional quality attributes using the refined Kano’s model, thereby identifying the key URs. Second, a decomposition table of furniture design characteristics (DCs) is constructed. Third, the multi-objective red-billed blue magpie optimizer (MORBMO) is employed to automatically generate a Pareto solution set that satisfies the multi-dimensional key URs, from which the final optimal solution is determined. The proposed method improves the objectivity and granularity of user research, assists furniture enterprises in prioritizing product development, and enhances user satisfaction across multiple affective dimensions. Furthermore, it provides enterprises with flexible choices among diverse alternatives, thereby mitigating the asymmetry inherent in furniture form design.

1. Introduction

In today’s highly competitive market environment, most product companies place great emphasis on satisfying consumer needs [1], including both functional and emotional demands. When consumers perceive that their needs are reflected in new products, their satisfaction levels tend to increase [2]. With the widespread adoption of modern mechanized and intelligent manufacturing technologies [3], the differences in quality, structure, and functionality among furniture products have gradually diminished. As a result, traditional approaches such as structural design [4], functional improvement [5], and ergonomic studies [6] are no longer sufficient to ensure a competitive advantage in the consumer market. Increasingly, scholars are turning their attention to optimizing furniture form [7] to meet users’ higher-level affective requirements. On the other hand, in the era of the experience economy, consumers, having met their basic material needs, now demand enhanced emotional experiences from products [8]. The sensory characteristics of a product play a critical role in consumer acceptance and decision-making [9]. Human beings predominantly acquire information from the external world through visual perception [10]. The explicit form of a product creates a first impression by stimulating visual senses, which in turn shapes users’ perceptual experiences and influences their purchasing behavior. Therefore, product manufacturers must consider leveraging form innovation to meet emotional demands, launch emotionally resonant products, enhance user satisfaction, and ultimately gain substantial market returns [11]. However, there are significant challenges. On one hand, current product form development is overly reliant on the experience and personal judgment of designers. Design departments often spend excessive time on repeated modifications, leading to inefficiency. On the other hand, cognitive asymmetries between designers and users often hinder products from meeting consumer expectations. These asymmetries arise from differences in knowledge, education, and product understanding. As a result, enterprises struggle to identify key affective requirements and translate them into design elements. The subjective nature of design intensifies this problem. It causes repeated trial-and-error cycles, which extend development time and increase costs. Therefore, design decision-making is critical to business strategy and performance [12,13]. To address these issues, this study proposes a consumer-centered approach. The method integrates Kansei engineering (KE), big data analytics, and artificial intelligence. KE provides a framework to link user perceptions with design elements. Big data extracts authentic consumer insights and reduces the cognitive gap between designers and users. Intelligent optimization techniques satisfy multi-dimensional emotional needs and improve the efficiency of product development.
KE is defined as a methodology that translates consumers’ feelings and impressions of a product into design elements [14]. This approach aligns with the current trend of consumer-centered product development and aims to provide product functions and design features that embody and respond to users’ affective perceptions [2]. However, traditional KE approaches still exhibit certain limitations.
First, the identification of key URs and the determination of their corresponding weights are foundational to bridging the gap between the user and design domains. They also play a critical role in setting priorities for product development. Currently, traditional KE methods collect Kansei-related terms through two main channels to identify URs: (1) prior research findings documented in the academic literature or professional publications [15], and (2) direct user interviews. These methods often fall short in terms of timeliness, objectivity, and efficiency. Online review data, by contrast, have become one of the most influential sources of information affecting consumer decisions. They provide a direct link between products and real user experiences [16]. While online reviews are commonly used in sentiment analysis and feature extraction research [17], they have been infrequently applied within KE frameworks. On the other hand, user requirements often exhibit qualitative characteristics. After gathering user needs, Kano’s model [18] is commonly used to analyze the implicit relationship between product attributes and consumer satisfaction. It enables the classification of quality attributes into four types: “attractive quality”, “one-dimensional quality”, “must-be quality”, and “indifferent quality”. However, Kano’s model only supports coarse-grained classification of URs and lacks the capacity to determine their relative importance or weights in a detailed manner. To date, there is limited research that leverages online review data to perform both fine-grained classification and weighting of user requirements within a KE framework.
Second, once the key URs have been identified, constructing a mapping model between URs and DCs to determine the optimal design solution is a core component of KE. In addition to traditional linear models—such as Multiple Linear Regression and Quantification Theory Type I—many advanced algorithms have been introduced in recent years to build nonlinear models, thanks to the rapid advancement of artificial intelligence technologies. These include BackPropagation Neural Networks (BPNNs), Support Vector Regression (SVR), and Long Short-Term Memory (LSTM) networks. By learning from user evaluation data, such models can predict the effectiveness of furniture features and help generate optimized design solutions that meet specific URs. While these studies have advanced the automation of furniture development and improved the precision of design decision-making, they predominantly focus on single-objective optimization, i.e., optimizing product forms for a single user requirement. The need to simultaneously address multiple dimensions of emotional user needs has not been adequately emphasized. In reality, engineering design problems are typically multi-objective in nature [19]. Human emotional responses to products are likewise multifaceted [20]. Specifically, users often present complex and diverse requirements, and in real-world scenarios—such as product usage or purchasing decisions—they expect products to satisfy multiple needs concurrently, rather than just a single aspect.
In summary, the asymmetry commonly observed in user research and optimization design processes often results in final products that fail to meet the genuine requirements of users. This, in turn, hinders furniture enterprises—despite significant resource investment—from gaining a competitive edge in the consumer market. In the design framework proposed by this study, user elements and furniture elements together form an integrated design system. User elements encompass actual URs from various sources and levels of granularity, while furniture elements include deconstructed DCs and form components. In this study, “symmetry” is defined as the internal equilibrium of a design system that integrates both elements, which is achieved through furniture forms that effectively fulfill users’ affective requirements. Specifically, at the user research level, large volumes of authentic online user reviews from diverse sources are employed to address cognitive and preference asymmetries between designers and users. At the optimization design level, multi-objective optimization is used to overcome the limitations of single-objective approaches, which often fail to balance and fulfill users’ multi-dimensional affective requirements. Thus, this study aims to explore the phenomena of symmetry and asymmetry in the field of morphological design and proposes an intelligent optimization design method for furniture forms that considers users’ multi-dimensional affective requirements.
Accordingly, this study identifies two key research questions (RQs) that require urgent attention. RQ1: how can authentic URs be extracted from widely sourced online consumer reviews, and how can the key requirements that contribute most to enhancing user satisfaction be identified? RQ2: once the key URs are determined, how can a multi-objective optimization approach be constructed to ensure that new product forms simultaneously accommodate these multi-dimensional affective requirements?
To address these RQs, this study proposes two main solutions:
(1) For RQ1, this study integrates online review data and the refined Kano’s model to develop a big-data-driven approach to user research. In the field of product form design, few researchers have applied this enhanced Kano’s model. The method begins by crawling massive amounts of online user reviews as data sources, which are then automatically processed using NLP techniques. Online review data are voluntarily generated by real consumers [21,22], and compared to traditional surveys or interviews, such publicly available data reduce the subjectivity and cost of user research. The improved Kano model overcomes the limitations of the traditional model by enabling fine-grained quality classification and importance weighting of URs. This provides valuable insights into the nuanced and dynamic needs of consumers and effectively bridges the cognitive gap between designers and users.
(2) For RQ2, an integrated design method combining MORBMO and VIKOR is introduced. Specifically, MORBMO is employed to solve the multi-objective optimization problem of furniture form design, thereby enabling product solutions to balance multiple affective requirements of users. The MORBMO algorithm [23] simulates the magpie’s food storage behavior to retain superior solutions and balances exploration and exploitation through food searching and attacking strategies, effectively avoiding local optima. In addition, the multi-criteria decision-making method VIKOR [24] is employed to assist the design team in selecting the optimal solution from the Pareto front. Compared to traditional design methods that generate only a single optimized solution for a single user requirement, the integrated approach of multi-objective optimization and multi-attribute decision-making offers greater flexibility and realism. It supports the development of multiple candidate solutions, each balancing different user demands, thereby ensuring the final product aligns with various consumer expectations. This not only reduces the trial-and-error cost for design teams but also helps companies gain a competitive edge in the market at a lower cost.
The structure of this paper is organized as follows: Section 2 presents a comprehensive review of the relevant theories and methods. Section 3 introduces the methodologies employed in this study. Section 4 validates the proposed model using a real-world case study. Section 5 discusses the results and implications of the case. Section 6 concludes this paper by summarizing its contributions and limitations.

2. Literature Review

2.1. Kansei Engineering

Kansei engineering is a methodology proposed by Nagamachi from the Faculty of Engineering at Hiroshima University in Japan in the late 20th century, aimed at addressing users’ affective requirements by exploring the relationship between users’ Kansei (affective impressions) and the physical characteristics of products. This approach opened up a new field within human factors engineering and aligned with the evolving trends in modern product design. Its effectiveness has been demonstrated through successful applications in companies such as Mazda, Samsung, and Matsushita Electric Works [14], and an increasing number of academic studies on KE have since been published. KE typically comprises three core stages: construction of the Kansei semantic space, construction of the design element space, and development of the correlation model. Traditional KE relies on statistical analysis methods to establish relationships between psychological and physical variables. For example, Kittidecha and Marasinghe [25] applied the Response Surface Methodology (RSM) to determine optimal design parameters of wine glass under different emotional demands. Smith and Fu [26] combined factor analysis and cluster analysis to construct a semantic space, and then used Quantification Theory Type I to build associations between representative Kansei factors and the design attributes of an automobile head-up display (HUD). In recent years, KE has actively incorporated various interdisciplinary methods to form novel methodological models, thus expanding its capabilities. For instance, Hartono et al. [27] applied Kano’s model to classify logistics service attributes in service design, and then used QFD to construct a correlation matrix between important attributes and modular systems. Zhou et al. [28] integrated fuzzy logic models based on Grey Relational Analysis (GRA) within the KE framework and achieved high prediction accuracy in the morphological design of electric recliner chairs. Woo et al. [29] employed natural language processing (NLP) to extract product review texts, used factor analysis and cluster analysis to identify perceptual impressions, and then applied an artificial intelligence technique—BPNN—to map semantic data to product design elements, thereby enabling an electric toothbrush design. Fu et al. [30] used game theory to identify key URs and then applied PSO-SVR to establish a predictive model linking these key URs to the morphology of Ming-style chairs. Cai et al. [31] employed a GWO-BPNN to model the mathematical relationship between wheelchair form elements and user emotions. Wang et al. [32] first used factor analysis to identify key Kansei factors and then combined eye-tracking data from users with expert evaluation to determine critical design features. Finally, they proposed an enhanced algorithm that integrates the Sparrow Search Algorithm (SSA), Long Short-Term Memory (LSTM) networks, and an attention mechanism (SSA-LSTM-Attention) to construct a correlation model between user emotion and design features, significantly enhancing the emotional experience of users in the intelligent cockpit of new energy vehicles (NEVICs). The methodological comparison between this study and previous research is presented in Table 1.

2.2. The Refined Kano’s Model

Kano’s model [18], proposed by Japanese scholar Noriaki Kano in 1984, is a two-dimensional quality classification model designed to analyze the relationship between customer requirements and satisfaction. This model overcomes the limitations of traditional one-dimensional quality analysis, which assumes that customer satisfaction always increases with the degree of quality fulfillment—a premise that does not always hold true [33]. Instead, the Kano model considers both the degree of quality and the corresponding level of customer satisfaction, classifying quality attributes into five categories: attractive quality, one-dimensional quality, must-be quality, indifferent quality, and reverse quality. The model has been widely applied across fields such as product design, service industries, and real estate. For instance, Yang et al. [34] applied Kano’s model in drone design to classify design elements, helping designers identify key influencing factors. Qu et al. [35] applied the fuzzy Kano’s model to classify a large number of user requirements, providing design direction for a smart blood pressure monitor.
However, the traditional Kano’s model does not incorporate attribute weighting and fails to reflect the relative importance of individual quality indicators within each category [36]. The extent to which quality attributes influence consumers is strongly associated with the level of importance that consumers assign to them [37]. To address this issue, Yang [36] proposed a refined version of Kano’s model by extending the original four quality types into eight subcategories: highly attractive and less attractive, high value-added and low value-added, critical and necessary, and potential and care-free. This refined model offers a higher level of granularity and includes attribute weights, thereby enabling businesses and designers to better understand and prioritize user needs. Chen et al. [38], for example, employed the refined Kano’s model to classify and evaluate the quality of pharmaceutical logistics services, providing strategic insights for suppliers. However, despite its potential, this refined model has been rarely applied in the field of product design and Kansei engineering to date.

2.3. Multi-Objective Red-Billed Blue Magpie Optimizer

The red-billed blue magpie optimizer (RBMO) is a novel metaheuristic algorithm proposed by Fu et al. [23] in 2024. Inspired by the intelligent behavior of birds, this algorithm mimics the way individuals in a red-billed blue magpie flock share information and collaborate to find optimal solutions. It effectively avoids getting trapped in local optima by combining small-group cooperation with global population-level searches. Its food-storing mechanism allows the algorithm to retain high-quality solutions, contributing to its stable performance in both benchmark tests and real-world engineering problems. For example, Sivabalan and Minu [39] employed RBMO to enhance the weight parameters of an MSTCNN classifier in order to improve the accuracy of automobile sales prediction. The multi-objective red-billed blue magpie optimizer (MORBMO) is a further extension of the RBMO, designed specifically to address multi-objective engineering optimization problems. For instance, Wang et al. [40] applied the MORBMO to optimize the configuration of photovoltaic energy storage systems in power grids, achieving significant improvements in overall grid performance.
In the field of industrial design, machine learning algorithms are commonly used to optimize product forms [29,41]. However, to date, few studies have applied metaheuristic algorithms like the MORBMO to the multi-objective optimization of furniture form. This gap in research undoubtedly limits the potential for further innovation and market competitiveness in the furniture industry.

3. Methods

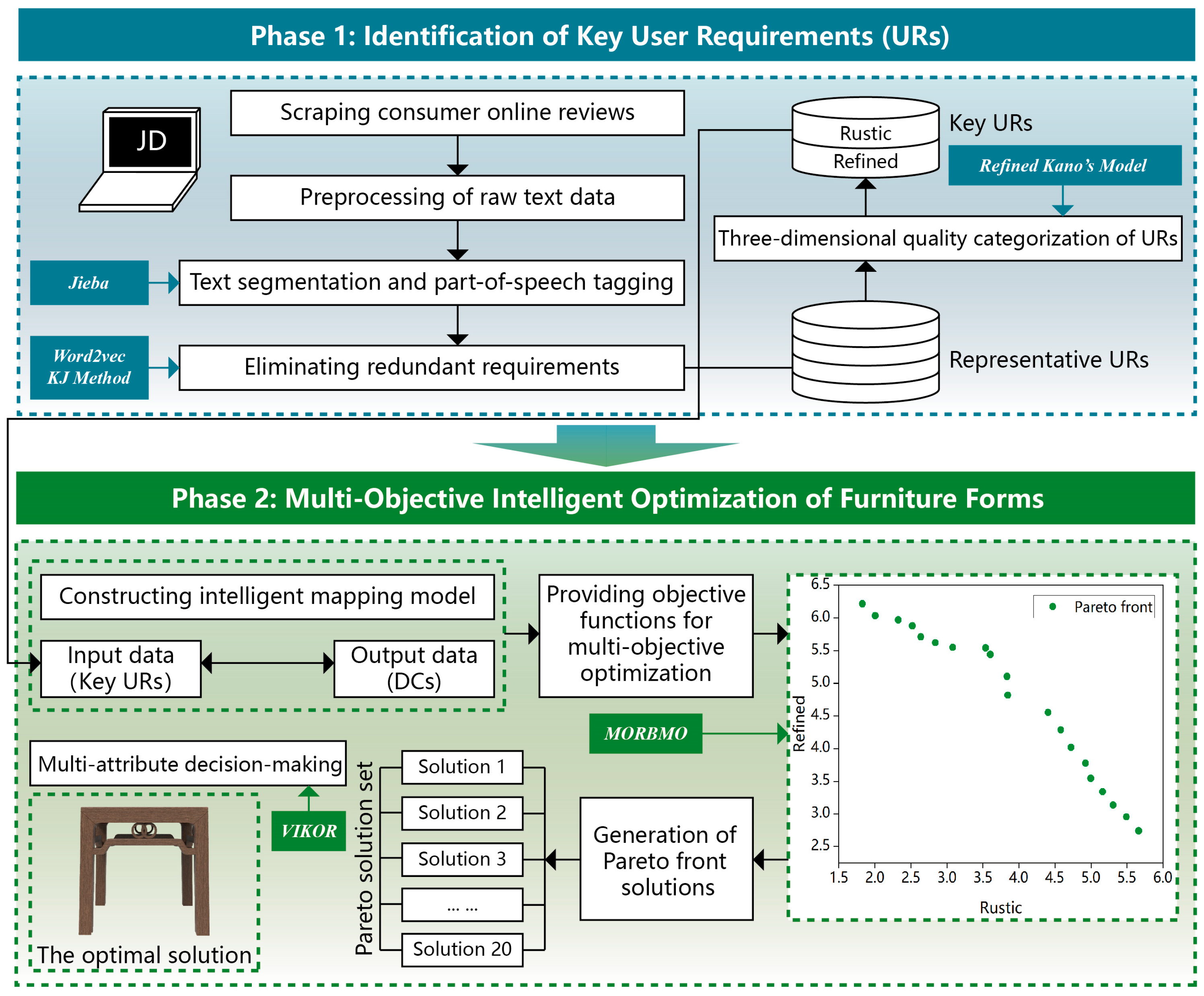

The framework of the intelligent optimization design method for furniture form proposed in this study is illustrated in Figure 1 and consists of the following stages:
Phase 1: Identification of key user requirements. Consumer online reviews are collected using the Octopus web crawler, and the textual data are preprocessed accordingly. The Jieba tool is employed for word segmentation and part-of-speech tagging to extract Kansei words that represent consumers’ affective requirements. Then, the semantic similarity between these requirements is calculated using cosine similarity based on the Word2Vec model. Finally, the refined Kano’s model is applied to perform fine-grained classification and weighting of the representative user requirements, resulting in the identification of key user requirements.
Phase 2: Multi-objective intelligent optimization of furniture form. A mapping model constructed using Support Vector Regression (SVR) provides the objective functions for multi-objective optimization. Subsequently, the MORBMO algorithm is used to generate a Pareto front of optimal solutions, and its performance is compared with two other multi-objective optimization algorithms—MOSSA and MOPSO. The final optimal solution is determined using the VIKOR method.

3.1. Determination of Key User Requirements (URs)

3.1.1. Data Acquisition and Preprocessing

User research begins with the acquisition and preprocessing of user review data. Online consumer reviews are collected using web scraping technology and saved in .txt files (UTF-8 format), which are easily processed by Python 3.7.0. After reading the raw dataset, text cleaning is conducted, including the removal of special characters and punctuation marks, elimination of overly short texts, and deletion of duplicate comments. The Jieba tool is used for word segmentation, stop word removal, and part-of-speech tagging. Adjectives are extracted from the texts to build an adjective corpus.

3.1.2. Screening of Representative URs Utilizing Word2vec and KJ Method

Semantic similarity of Kansei words in terms of emotional orientation is preferably assessed using cosine similarity, as it focuses more on the directional difference between vectors compared to Euclidean distance, which emphasizes magnitude. The Word2Vec model evaluates the semantic relationships between words by analyzing their vector representations, and cosine similarity is employed to compute the angular distance between word vectors in the semantic space. The similarity between two Kansei words and y is calculated using the cosine similarity formula, as shown in Equation (1):
S i m i l a r i t y ( θ , y ) = t = 1 q ( θ t × y t ) t = 1 q ( θ t ) 2 × t = 1 q ( y t ) 2 .
After calculating semantic similarities, a focus group uses the KJ method to manually cluster and organize the vocabulary, eliminating semantically redundant or highly similar words. These two methods complement each other to filter out the most representative user requirements. Through this process, the Kansei vocabulary dictionary is successfully constructed.

3.1.3. Classification and Weights Calculation for Representative URs Utilizing the Refined Kano’s Model

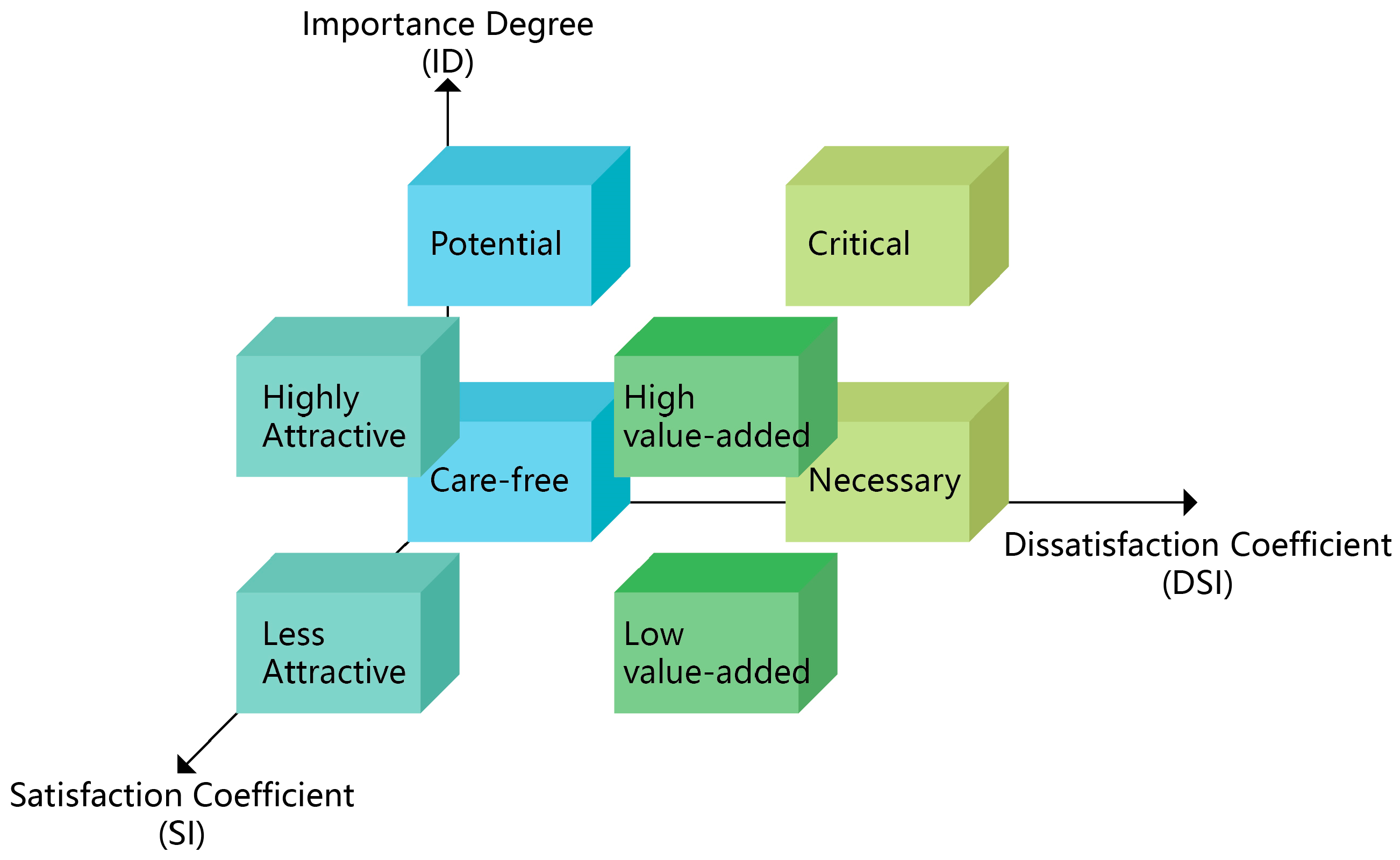

The refined Kano’s model is used to perform three-dimensional quality classification and importance weighting of representative URs. It assists designers in clarifying the hierarchical relationships among URs, identifying key requirements, and defining the direction for product development. The refined Kano questionnaire is shown in Figure 2. Building on the original Kano’s model, the refined Kano’s model introduces an importance evaluation system, addressing the traditional model’s limitation in precisely measuring quality attributes. The implementation steps of the refined Kano’s model proposed in this study are as follows:
Step 1: The quality classification module of the refined Kano’s model consists of a pair of bidirectional qualitative questions. After collecting the responses, the most frequent classification result is determined using the Kano evaluation table. The quality attributes include attractive quality, one-dimensional quality, must-be quality, indifferent quality, reverse quality, and questionable quality. The better–worse calculation divides the results into four quadrants. Satisfaction and dissatisfaction coefficients are calculated using Equations (2) and (3), respectively:
S I i = A i + O i A i + O i + M i + I i
D S I i = 1 M i + O i A i + O i + M i + I i ,
where Ai, Oi, Mi, and Ii represent the proportions of the i-th user requirement in each quality classification category.
Step 2: The importance evaluation module uses a 5-point Likert scale, ranging from not important, less important, moderately important, important, to very important. The average importance score for each requirement is computed using Equation (4).
I D i = X ¯ = 1 N j = 1 N X i j ,
where Xij represents the evaluation score given by the j-th user for the i-th user requirement, and N denotes the total number of users.
Step 3: By integrating the results from Steps 1 and 2, each user requirement is classified into a three-dimensional quality category, as shown in Table 2, which provides finer granularity compared to traditional two-dimensional classification. A visualization of the refined Kano’s model is presented in Figure 3.

3.2. Multi-Objective Optimization and Decision-Making for Furniture Form

3.2.1. Multi-Objective Optimization of Furniture Form Utilizing MORBMO

This novel metaheuristic algorithm performs the optimization task by simulating the biological behaviors of red-billed blue magpies, such as searching, chasing, attacking prey, and food storage.
(1) Population Initialization: candidate solutions are initialized using Equation (5).
X = x 1 , 1 x 1 , j x 1 , dim 1 x 1 , dim x 2 , 1 x 2 , j x 2 , dim x i , j x n 1 , 1 x n 1 , j x n 1 , dim x n , 1 x n , j x n , dim 1 x n , dim ,
where X represents the search agent positions generated by Equation (6), n denotes the population size, and dim is the dimensionality of the problem.
x i , j = ( u b l b ) × R a n d 1 + l b ,
where ub and lb refer to the upper and lower bounds of the problem, respectively, and Rand is a random number in the range [0, 1].
(2) Food Searching: In this phase, several red-billed blue magpies adopt different strategies to search for prey. Individuals in small groups use Equation (7), while those in larger groups utilize Equation (8) to complete the search task.
X i ( t + 1 ) = X i ( t ) + ( 1 p × m = 1 p X m ( t ) X r s ( t ) ) × R a n d 2
X i ( t + 1 ) = X i ( t ) + ( 1 q × m = 1 q X m ( t ) X r s ( t ) ) × R a n d 3 ,
where t denotes the current iteration number, p represents the number of individuals in the small group, and q refers to the number of individuals in the large group. X i ( t + 1 ) indicates the new position of the i-th search agent, Xi is the current position of the i-th individual, X m represents a randomly selected individual from the population, and X r s ( t ) refers to a randomly chosen search agent during the current iteration.
(3) Attacking Food: Once food is located, the red-billed blue magpies initiate their attack behavior. Small groups target smaller prey, as described in Equation (9), while larger groups attack larger prey, as shown in Equation (10).
X i ( t + 1 ) = X f o o d ( t ) + C F × ( 1 p × m = 1 p X m ( t ) X i ( t ) ) × R a n d n 1
X i ( t + 1 ) = X i ( t ) + ( 1 q × m = 1 q X m ( t ) X r s ( t ) ) × R a n d 3 ,
where X f o o d ( t ) denotes the position of the food, and Randn represents a random number drawn from a standard normal distribution (with a mean of 0 and a standard deviation of 1). C F = ( 1 ( t T ) ) ( 2 × t T ) .
(4) Storing Food: After attacking the food, the red-billed blue magpies store it for future use. This behavior is analogous to preserving solution information to help individuals locate the global optimum. The food storage mechanism is described in Equation (11).
X i ( t + 1 ) = X i ( t ) i f   f i t n e s s o l d i > f i t n e s s n e w i X i ( t + 1 ) e l s e ,
where f i t n e s s o l d i denotes the fitness value of the i-th individual before the update, and f i t n e s s n e w i represents the fitness value after the update.
In addition, this study introduces four metrics—inverted generational distance (IGD), generational distance (GD), hypervolume (HV), and spacing metric (Spacing)—to comprehensively evaluate the algorithm’s performance.
The IGD measures the extent to which the obtained solution set covers the reference Pareto front. A smaller IGD value indicates better convergence and diversity. For each solution in the reference Pareto front, the closest solution in the obtained set is identified, and the Euclidean distance is calculated.
I G D = i = 1 P * min x P d i s ( y , x ) P * ,
where dis(y, x) denotes the Euclidean distance between a point in the reference set P* and a point in the obtained solution set P.
The GD evaluates the proximity of the obtained solution set to the reference Pareto front (RPF). This metric calculates the average distance from each point in the obtained solution set to the RPF. A smaller GD value indicates better convergence; a GD value of zero means that all solutions lie exactly on the RPF.
G D = i = 1 P min x * P * d i s ( x , y ) 2 P .
The HV measures the volume of the objective space covered by the obtained solution set with respect to a reference point. This metric simultaneously assesses both the spread and quality of the solution set.
H V = V o l u m e i = 1 S v i ,
where S represents the number of non-dominated solutions, and vi denotes the hypervolume formed between the reference point and the i-th solution in the set. A larger HV value indicates better diversity and convergence of the solution set.
Spacing evaluates the uniformity of the distribution of solutions within the set. A smaller spacing value indicates a more evenly distributed solution set. This metric calculates the standard deviation of the distances between adjacent solutions.
S p a c i n g = 1 P 1 i = 1 P ( d ¯ d i ) 2 ,
where d ¯ represents the mean of all di values.

3.2.2. Multi-Criteria Decision-Making of Pareto Solutions Utilizing the VIKOR Method

(1) The decision matrix X is normalized, as all the criteria in this study are benefit-type indicators. The normalization process is carried out using Equation (16). Assuming there are n alternatives and m evaluation criteria, the normalized matrix X’ is obtained as shown in Equation (17).
x i j = x i j / i = 1 n x i j 2
X = x 11 x 12 x 1 m x 21 x 22 x 2 m x n 1 x n 2 x n m .
(2) Based on the normalized matrix X’ obtained in the previous step, the positive ideal solution and negative ideal solution are determined, as shown in Equation (18).
x i + = ( max x 11 , x 21 , , x n 1 , max x 12 , x 22 , , x n 2 , , max x 1 m , x 2 m , , x n m ) x i = ( min x 11 , x 21 , , x n 1 , min x 12 , x 22 , , x n 2 , , min x 1 m , x 2 m , , x n m ) .
(3) Using Equations (19) and (20), the group utility value Si and individual regret value Ri for each alternative are calculated.
S i = j = 1 m w j x j + x i j x j + x j
R i = max i w j x j + x i j x j + x j .
(4) Based on the group utility value Si and individual regret value Ri of each alternative, a compromise solution value Qi is determined using a weighted method, as shown in Equation (21).
Q i = v S i S S + S + ( 1 v ) R i R R + R
In Equation (21), v is the weight of the decision-making strategy, where v ∈ [0, 1]. When v = 0.5, it indicates a decision-making mechanism based on consensus. When v < 0.5, the decision favors the strategy that minimizes individual regret. When v > 0.5, the decision favors the strategy that maximizes group utility. In general, v is set to the neutral value (0.5).

4. Empirical Study

4.1. Determination of Key User Requirements

4.1.1. Data Acquisition and Preprocessing

The identification of key URs is essential for guiding subsequent product development strategies, as Kansei words directly reflects users’ affective requirements. JD.com, one of the largest e-commerce platforms in China, offers a vast variety of products and a large consumer base, while actively encouraging customers to share their opinions. The massive volume of user reviews available on this platform provides researchers with authentic, objective, and representative data for conducting user studies—offering a clear advantage over traditional sources such as literature reviews, user reports, or expert interviews.
Accordingly, this study takes Ming-style furniture as a research case. Fourteen representative products from different brands—selected based on high sales and review counts—were chosen as the data source. Using the BAZHUAYU web scraping tool, a total of 143,524 characters of raw user reviews were collected and saved in UTF-8 encoded.txt files. Subsequently, the raw text data underwent preprocessing using Python 3.7.0. First, special characters and punctuation marks were removed from the review texts. Then, invalid reviews were filtered out by removing entries that were too short (fewer than five characters) or duplicated.
After text cleaning, the Jieba package was used for Chinese word segmentation, stop word removal, and part-of-speech tagging. A stop word list developed by Harbin Institute of Technology was used to eliminate non-informative words, and adjectives within the reviews were finally tagged for further analysis.

4.1.2. Screening of Representative URs Utilizing Word2vec and KJ Method

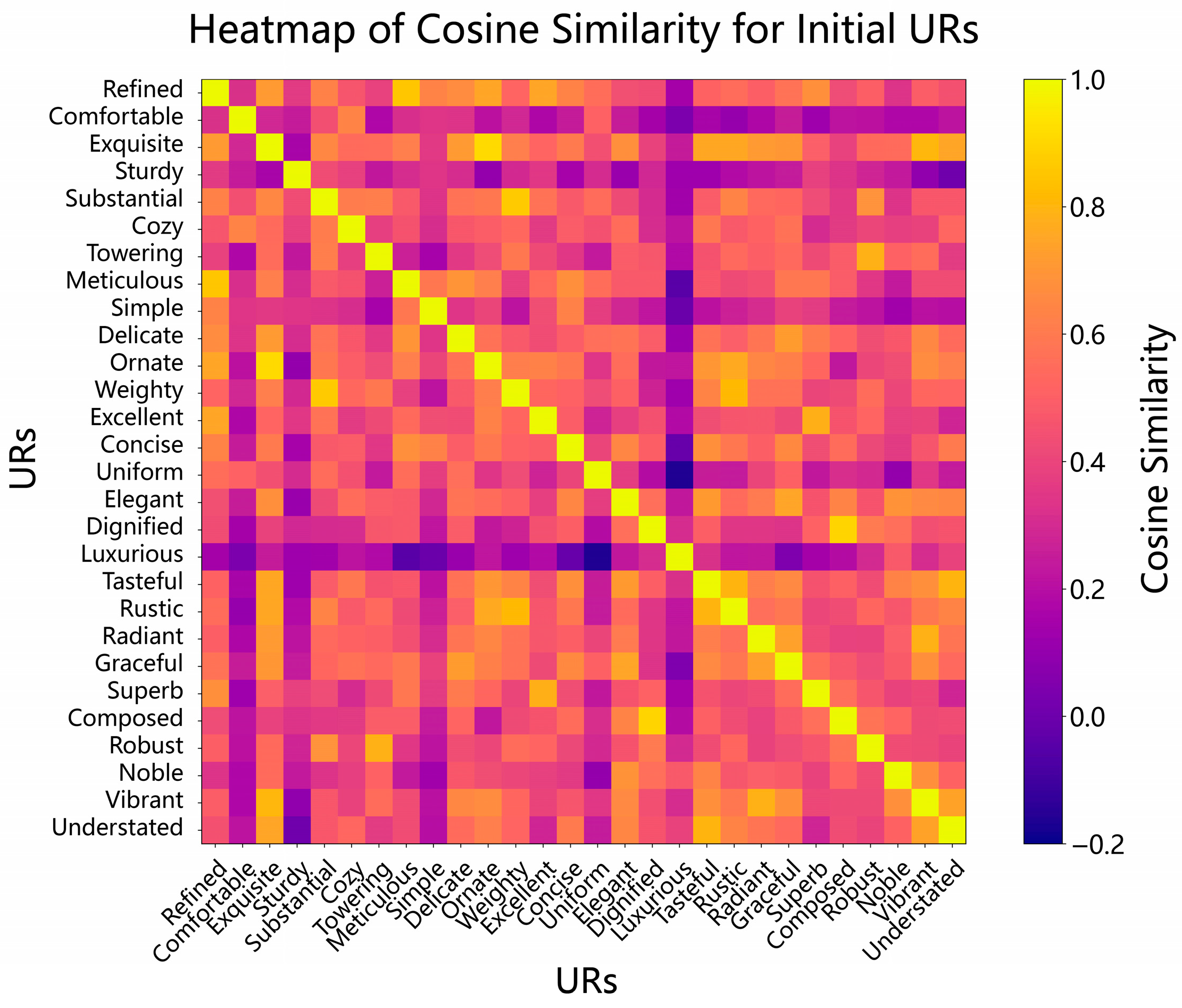

A combined approach of semantic similarity computation and focus group discussion was employed to filter out representative URs and avoid redundant entries with similar meanings. First, to enhance model performance, the study utilized the gensim package to load a pre-trained Word2Vec model based on a Chinese Wikipedia corpus. This model was used to obtain vector representations of 18 initial URs and to compute the cosine similarity between them. Next, a cosine similarity heatmap of these URs was generated using the matplotlib package, as shown in Figure 4. A similarity threshold of 0.7 was set, and pairwise comparisons were conducted to identify semantically redundant terms. Specifically, it was found that the similarity between “refined” and terms such as “exquisite”, “meticulous”, and “ornate” exceeded the threshold of 0.7, indicating that these requirements convey highly overlapping meanings. In addition, the similarity between “exquisite” and “delicate”, “ornate”, and “tasteful” was also above the threshold; between “substantial” and “weighty” above the threshold; between “towering” and “robust” above the threshold; between “meticulous” and “delicate” above the threshold; between “delicate” and “graceful” above the threshold; between “ornate” and “tasteful” and “rustic” above the threshold; between “weighty” and “rustic” above the threshold; between “excellent” and “superb” above the threshold; between “elegant” and “tasteful” and “graceful” above the threshold; between “dignified” and “composed” above the threshold; between “tasteful” and “rustic” and “understated” above the threshold; between “radiant” and “graceful” and “vibrant” above the threshold; and between “vibrant” and “understated” above the threshold. Subsequently, redundant requirements with high similarity were removed. Finally, a focus group applied the KJ method to manually classify and analyze the filtered URs, verifying and eliminating entries with overlapping meanings. Through this two-step screening process, a final set of 11 representative URs was retained: “refined”, “comfortable”, “sturdy”, “substantial”, “towering”, “simple”, “uniform”, “elegant”, “luxurious”, “rustic”, and “vibrant”. These representative URs collectively formed the Kansei dictionary.

4.1.3. Classification and Wights Calculation for Representative URs Utilizing the Refined Kano’s Model

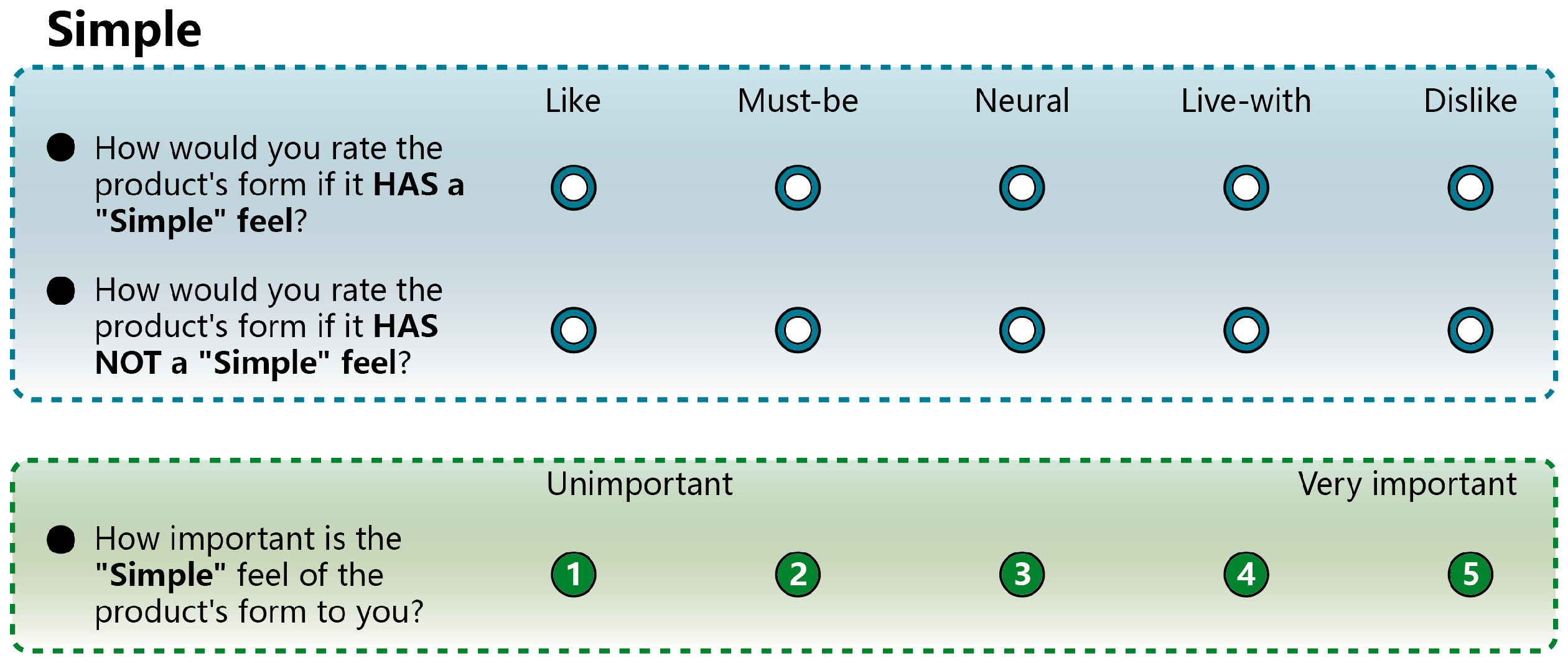

After obtaining the representative URs, the refined Kano’s model proposed in this study was applied to perform three-dimensional quality classification and weight calculation of the representative URs, in order to further identify the key URs. First, the refined Kano’s model questionnaire, as described in Section 3.1.3, was distributed to 88 participants with prior experience using Ming-style furniture. After collecting the responses, the data were verified for validity, and responses with excessively short completion times or illogical answers were removed. A total of 73 valid questionnaires were retained.

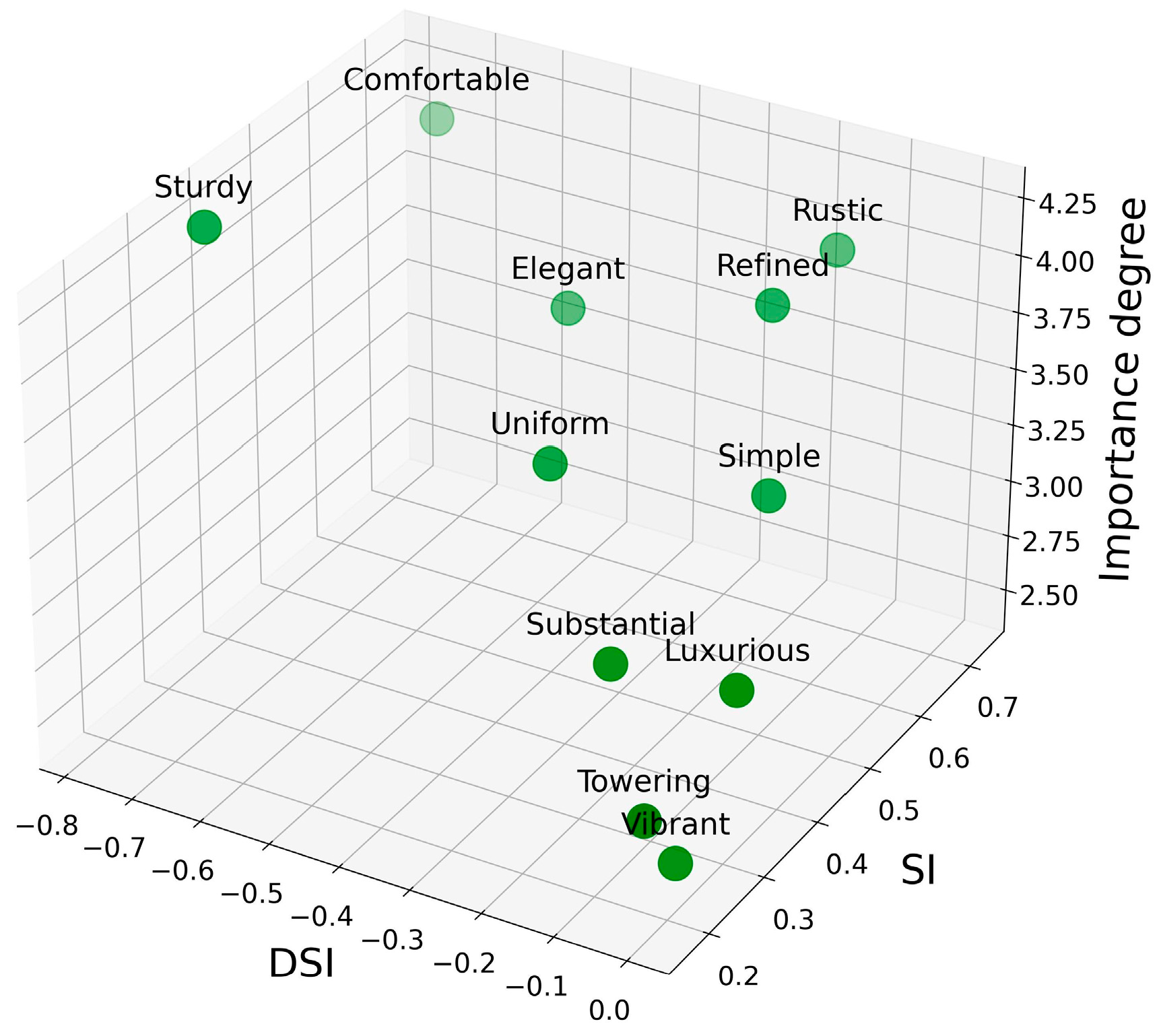

Using Equations (2) and (3), the Satisfaction Index (SI) and Dissatisfaction Index (DSI) for the 11 representative URs were calculated. Subsequently, Equation (4) was used to compute the perceived importance of each requirement. Reliability analysis showed a Cronbach’s Alpha coefficient of 0.743, indicating a good level of internal consistency for the Likert scale data. A three-dimensional scatter plot was then generated to visualize the representative URs based on their SI, DSI, and importance scores (see Figure 5).
A closer analysis of Figure 5 showed that “rustic” and “refined” not only had higher SI values and lower DSI values but also carried relatively high weights, 3.92 and 3.89, both significantly above the mean (3.465). This indicated that these two requirements were not only conducive to enhancing customer satisfaction but were also of critical importance. Accordingly, they were classified as highly attractive (HA) attributes within the attractive category. In other words, providing these two qualities in a product could effectively assist firms in attracting potential customers and improving user satisfaction, making them strategic quality attributes that products should possess. By contrast, although “simple” also had a higher SI and lower DSI value, its perceived importance (3.36) was below the mean, thus classifying it as a less attractive (LA) attribute, which could be discarded under cost constraints. “Comfortable” and “elegant” were high value-added (HV) quality attributes, which contributed considerably to customer satisfaction but showed relatively high DSI values. “Sturdy” was identified as a critical (C) attribute within must-be attributes. “Uniform” was categorized as a potential (P) attribute within indifferent attributes, suggesting potential to become attractive to consumers. Finally, “substantial”, “luxurious”, “towering”, and “vibrant” all had importance scores significantly below the mean and exerted little influence on customer satisfaction, thus falling under care-free (CF) attributes in the ondifferent category, which firms did not need to consider when resources were limited. As argued by Tan et al. [42], designers should prioritize attractive attributes first, followed by one-dimensional and must-be attributes, while indifferent attributes may be disregarded due to their negligible contribution to customer satisfaction.
Therefore, in order to guide firms in concentrating limited resources on critical issues and maximizing overall benefits, this study first identified HA attributes—namely “rustic” and “refined”—as the key user requirements (URs). These were regarded as strategic quality attributes for enhancing customer satisfaction and were subsequently applied in the product case development. The quality classifications of the representative URs are summarized in Table 3.

4.2. Morphological Decomposition of Furniture Forms

This section selects the square stool from Ming-style furniture as the analysis subject for design characteristics (DCs), as it not only represents a fundamental functional category of furniture but is also widely used in both commercial and residential spaces. With its strong connection to users and diverse range of styles, it serves as a highly representative example.

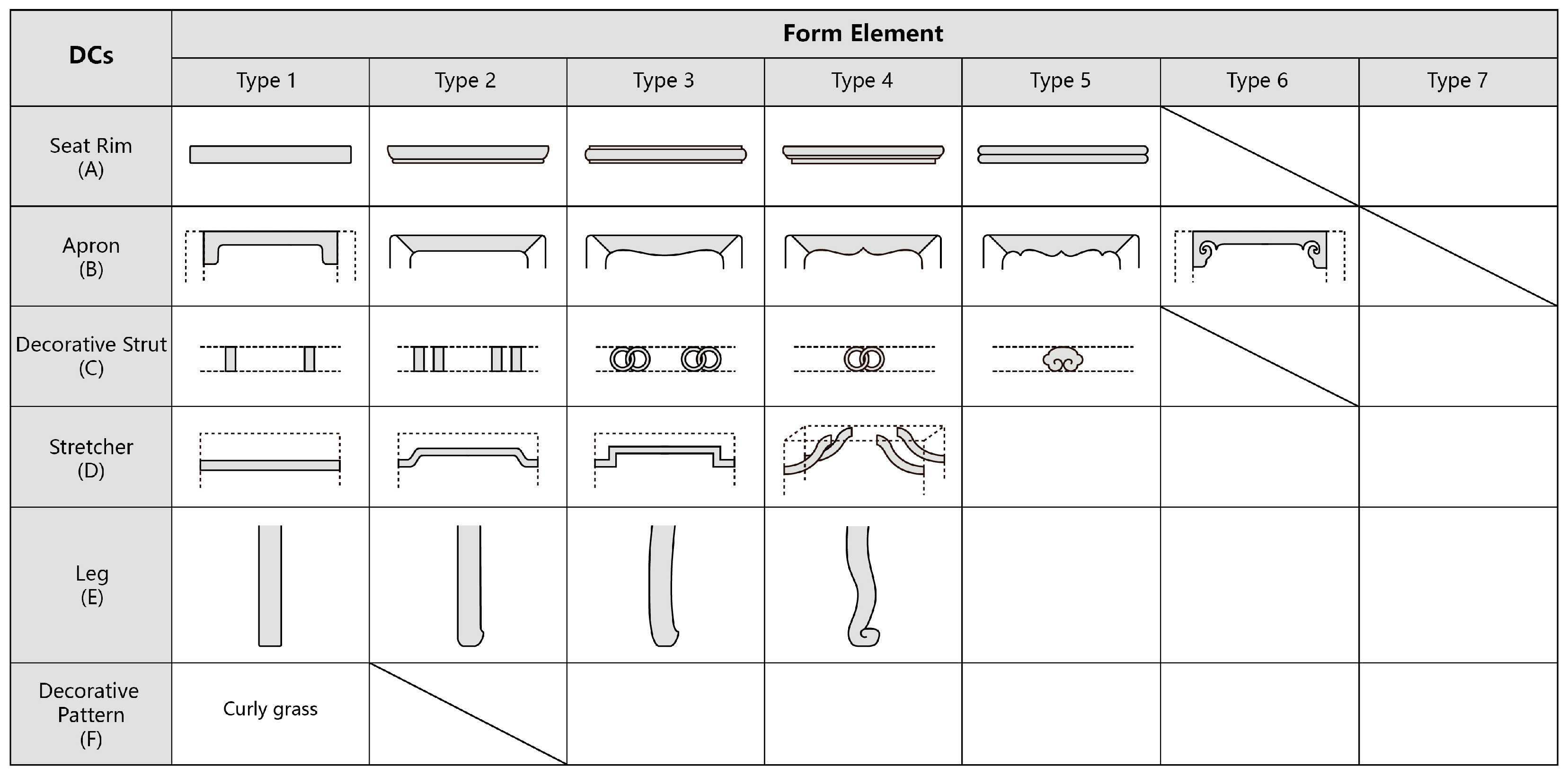

Through morphological analysis, the furniture was classified into six distinct DCs, each of which was systematically coded, as illustrated in Figure 6. These characteristics were identified as the seat rim (A), apron (B), decorative strut (C), stretcher (D), leg (E), and decorative pattern (F).
The seat rim, positioned along the perimeter of the square stool’s seat, secures the surface structurally and contributes to its aesthetic appeal through variations in linear form; in this study, it was further subdivided into six categories. The apron, situated directly beneath the seat rim and joined to the legs on all four sides, transfers structural loads from the rim to the legs. Functionally analogous to beams in architectural structures, it was categorized into seven types. The decorative strut, serving primarily ornamental purposes, extends downward to connect with the stretcher and consists of six types. The stretcher, a horizontal member linking the legs at their midsection, reinforces overall stability and appears in four common configurations. The leg, as a fundamental load-bearing element comparable to architectural columns, was classified into four categories. Finally, the decorative pattern, which has no structural function, is mainly applied to the apron’s surface, where it enriches the visual hierarchy and enhances artistic expression.
A total of 150 sample images were collected from books and websites, from which 80 high-resolution images with clear morphological differences and strong representativeness were selected as experimental samples. After selecting the samples, standardized image processing was conducted. First, irrelevant elements such as backgrounds and shadows were removed. Next, the color saturation of all images was reduced to −100 to achieve grayscale processing. Finally, the images were uniformly output as JPG files with dimensions of 100 × 100 mm, a resolution of 150 ppi, and a white background. These preprocessing steps eliminated confounding variables unrelated to the independent variables—such as color, size, background, and lighting—ensuring the validity of the experimental conditions. Following preprocessing, a 7-point Likert scale questionnaire was designed to collect users’ emotional evaluations of the 80 stool samples. After excluding responses with extremely short completion times or illogical patterns, a total of 70 valid questionnaires were retained. The morphological elements of the DCs were used as input characteristics, while the users’ affective evaluations served as output characteristics. In this way, a Kansei evaluation matrix under two requirement objectives was constructed, providing a foundational dataset for subsequent multi-objective optimization.

4.3. Multi-Objective Intelligent Optimization of Furniture Forms

4.3.1. Generation of Pareto Solutions

Based on Figure 6, the independent variables of the 80 samples were encoded using a discrete feature representation, ensuring that the data could be correctly recognized within the MATLAB R2017b environment. The resulting Kansei evaluation matrix is shown in Table A1 of Appendix A.
Both surrogate model training and multi-objective optimization were conducted in the MATLAB R2017b environment. First, the dataset was partitioned. The first six columns, corresponding to the DCs (categorical variables), were treated as input features, while the final two columns, representing user Kansei evaluation values (continuous variables), were used as output features. The sampling size was configured as follows: the first 90% of the dataset (seventy-two samples) was allocated to the training set, and the remaining 10% (eight samples) was used as the test set. Next, in order to optimize the hyperparameters of the Support Vector Regression (SVR) surrogate model, Particle Swarm Optimization (PSO) was applied to globally search for the optimal combination of two hyperparameters: the penalty factor and the kernel function parameter. The optimal hyperparameter combination for Objective 1 (“rustic”) was determined as (30.6259, 0.73224), and for Objective 2 (“refined”) as (16.7981, 0.68201).
After the optimal parameters were identified, the SVR model was trained and used to construct the objective functions for subsequent multi-objective optimization. With the objective functions established, the MORBMO algorithm was implemented for multi-objective optimization. The repository size was set to 20, meaning the algorithm outputs 20 solutions per run. The population size was set to 100, and the maximum number of iterations was 200. Table 4 provides the details of the hyperparameter settings and experimental environment configuration. The Pareto front solutions generated by the MORBMO algorithm are illustrated in Figure 7. The 20 solutions are evenly distributed across the two-dimensional space. All points on the Pareto front are optimal solutions, offering the design team a diverse set of alternatives rather than a single solution. By examining the overall trend of the Pareto front solutions, it was observed that an increase in the “rustic” value was accompanied by a decrease in the “refined” value, and vice versa. This finding indicates that the optimization of one requirement is typically associated with the deterioration of another, as different objectives are inherently in conflict and coupled through shared resources. In this study, both objectives shared the same set of input variable resources—namely, the six DCs illustrated in Figure 6. As a result, the optimization of one objective occupied resources that could otherwise have been allocated to the other. Traditional morphology-based optimization methods that focused solely on a single objective often led to products incapable of simultaneously satisfying multi-dimensional user affective requirements. By contrast, the Pareto front represents the essence of balance, as it enables simultaneous improvements across multiple objectives through holistic optimization, thereby maximizing overall benefits in engineering tasks.

4.3.2. Comparative Experiment on Algorithm Performance

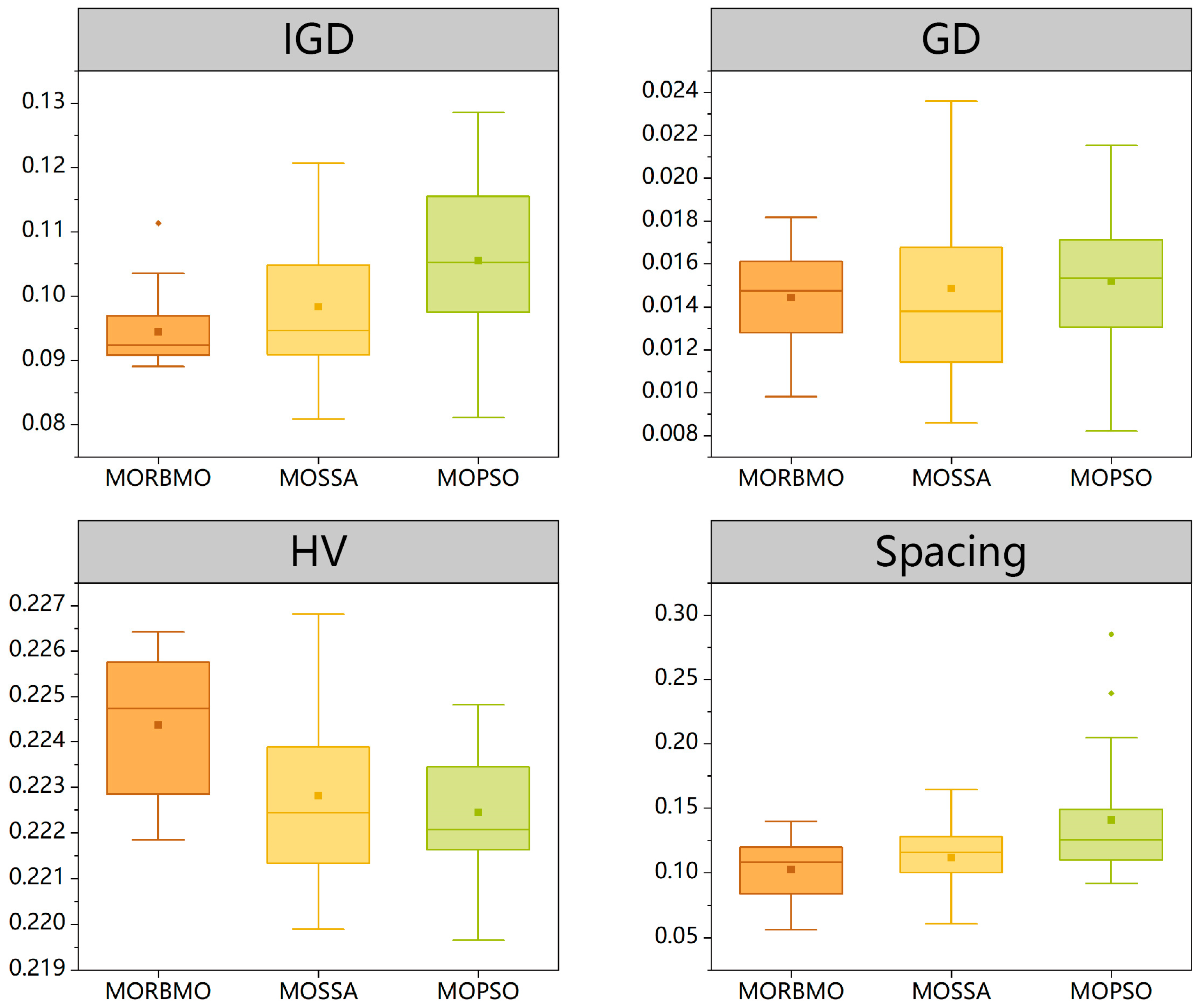

In addition to the MORBMO algorithm, two other classical optimization algorithms—Multi-Objective Sparrow Search Algorithm (MOSSA) [43] and Multi-Objective Particle Swarm Optimization (MOPSO) [44]—were employed for performance comparison. In the comparative experiments, all three algorithms were configured with identical parameter settings. Each algorithm was independently executed 20 times, and all the resulting solutions were subjected to non-dominated sorting to construct a reference Pareto front (RPF) [19]. To systematically and comprehensively evaluate the performance of the three algorithms, four indicators—IGD, GD, HV, and spacing—were introduced. The evaluation results are summarized in Table 5. Pairwise comparisons of the algorithms were conducted using the Wilcoxon rank sum test to assess performance differences [45]. For the IGD metric, MORBMO significantly outperformed MOPSO (p < 0.05), whereas no statistically significant difference was observed between MORBMO and MOSSA. For the GD metric, none of the algorithm pairs exhibited statistically significant differences. Regarding the HV metric, MORBMO performed significantly better than both MOSSA and MOPSO (p < 0.05), while the difference between MOSSA and MOPSO was not statistically significant. For the spacing metric, both MORBMO and MOSSA significantly outperformed MOPSO (p < 0.05), but no statistically significant difference was found between MORBMO and MOSSA. Furthermore, Figure 8 presents boxplots for a more intuitive comparison of the algorithms’ performance across the different metrics. Overall, the MORBMO algorithm demonstrated superior performance, with smaller standard deviations. Specifically, it achieved the lowest IGD and GD values, indicating that the solution set generated by MORBMO is closer to the theoretical optimal front. In addition, its significantly lower spacing value suggests better distribution uniformity and greater solution diversity. Finally, the MORBMO algorithm attained a comparatively higher HV value, which demonstrates that its solution set encompassed a larger and more extensive coverage of the objective space, thereby yielding a Pareto front with superior diversity.

4.3.3. Multi-Criteria Decision-Making for Pareto Solutions

The VIKOR method was applied to identify the optimal solution among the 20 Pareto front solutions presented in Figure 7. After normalizing the 20 solutions, the group utility values and individual regret values for each solution were calculated using Equations (19) and (20), respectively. The compromise values were then determined using Equation (21). Table 6 presents the overall decision results for all 20 solutions. For Solution 4, the group utility value (0.3739) and the individual regret value (0.2769) were both markedly lower than those of the other solutions, indicating that this solution not only performed well in terms of overall performance across the two objectives but also maintained satisfactory performance on individual criteria. When these two measures were combined, the resulting compromise value (0.0761) was the smallest among the 20 solutions. This demonstrates that Solution 4 simultaneously maximized the overall benefit and avoided severe underperformance on any single criterion and was therefore identified as the final optimal solution. The characteristic combination for Solution 4 is (A6, B2, C4, D2, E1, F2), and its output values for the two objectives are (3.5383, 5.5420).

4.4. Design Practice

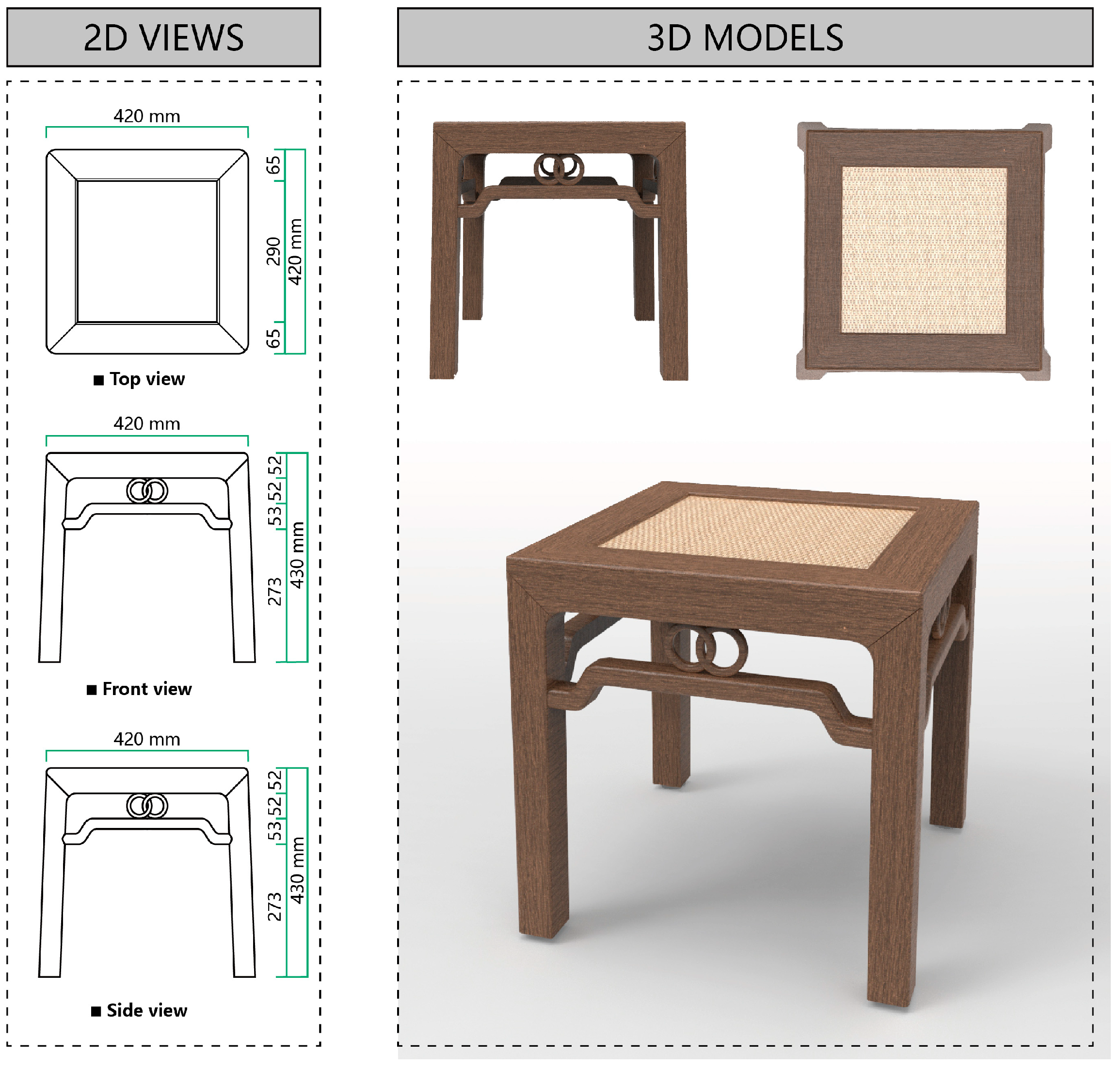

This section focuses on product line planning and development based on the final solution. After completing the conceptual design through hand-drawn sketches, the selected scheme underwent detailed design, modeling, and rendering. Modeling was carried out using AutoCAD 2019 in conjunction with Rhino 6. To ensure ergonomic suitability, the stool was designed with a seat height of 430 mm and a length and width of 420 mm. In addition, an experienced professional furniture designer oversaw the proportion of the contours and the curvature of the lines to enhance the overall harmony and elegance of the product form. The 3D model was then imported into KeyShot 2023 for rendering. The final product was successfully developed, as shown in Figure 9.
In terms of styling, the stool inherits the understated elegance and refined simplicity typical of Ming-style furniture. The form is clean and fluid, with the stool legs angled outward by 2 degrees. As a result, both the side and front views reveal a trapezoidal rather than rectangular silhouette, conveying a sense of stability. In terms of decoration, a decorative strut with a patterned element is added between the apron and the stretcher. This feature not only enhances the piece’s visual refinement but also serves a structural role in reinforcing the frame. Apart from this, no excessive ornamental carvings are used, allowing the piece to stand out through its proportion and linework alone. The main structure is crafted from black walnut heartwood, featuring a natural chocolate hue and a fine, elegant grain. A transparent water-based lacquer is applied to the wood surface, serving as a protective layer to minimize damage from wear and environmental factors while also adding a soft sheen that accentuates the wood’s natural texture. The seat surface is woven using a traditional cane technique, providing elasticity and enhanced seating comfort.

5. Discussion

On the one hand, in today’s user-centered consumer market, the extraction of key URs directly shapes the direction of new product development. In KE research, Kansei words serve as an important medium for expressing users’ affective requirements. Previous studies have often relied on sources such as magazines and journals, supplemented by the KJ method to mine Kansei words, and then employed multi-criteria decision analysis to determine the priority of URs. While such methods are classical and easy to implement, they are constrained by limited sample sizes, which restrict their ability to represent the overall characteristics of user groups and to capture the dynamic and quality-oriented nature of consumer preferences. To address this issue, this study proposed a big-data-driven refined Kano’s model for the three-dimensional classification of URs. Online user reviews were collected to capture authentic needs in a more objective and comprehensive way. Eleven representative requirements were then extracted using natural language processing techniques. These requirements were classified through the refined Kano’s model with greater granularity, and categories such as HA, LA, and HV attributes were identified. Two HA requirements—“rustic” and “refined”—emerged as the key URs. Under resource constraints, this approach enabled furniture enterprises to prioritize product development more effectively. The results showed that the refined Kano’s model reduced cognitive asymmetry between designers and users. It also revealed multi-layered requirements with higher depth and granularity, reflecting the model’s inherent symmetry and resolution.
On the other hand, earlier KE studies predominantly employed statistical models to establish associations; however, these approaches are inherently linear, with limited scalability and weak robustness to noise. Consequently, in recent years, machine learning algorithms have increasingly been introduced into the domain of furniture form design, achieving a series of promising outcomes. Such algorithms offer greater scalability, higher predictive accuracy, and the ability to model more complex nonlinear relationships. Nevertheless, their limitation lies in their narrow focus: they typically optimize only a single requirement, thereby neglecting or even worsening other objectives, and they generally yield only a single optimal solution. In contrast, real-world furniture design invariably involves multiple objectives that must be simultaneously considered and optimized. Compared with prior studies, this research innovatively employed the multi-objective optimization algorithm MORBMO to automatically generate a set of non-dominated solutions, thereby revealing the balance among conflicting objectives and covering diverse requirements. The results indicated that MORBMO achieved strong overall performance, producing a solution set with greater diversity and closer approximation to the RPF. Subsequently, the multi-criteria decision-making method VIKOR was applied to identify the final solution from the Pareto set. Among the alternatives, Solution 4 was distinguished by its relatively low group utility value (0.3739) and individual regret value (0.2769), as well as the smallest compromise value (0.0761), and was therefore determined to be the final optimal solution. This outcome highlights the methodological innovation of this study: rather than providing enterprises or researchers with a single prescriptive solution, the proposed approach offers a diverse set of alternatives. In summary, the integrated methodology proposed in this research—combining MORBMO and VIKOR—achieved both global balance and diversified choices in the optimization design process, thereby addressing the multi-dimensional expectations of the market and users. Such multi-dimensional trade-offs not only prevent “one-sided optimization” but also offer new insights for related studies in furniture form design.

6. Conclusions

In the era of emotional experience, product forms that align with users’ affective requirements can effectively stimulate purchasing and usage behaviors. However, key challenges remain in this field—namely, how to more comprehensively and objectively extract key URs to bridge the cognitive gap between designers and users, and how to develop innovative furniture that balances users’ multi-dimensional affective requirements. In response to the asymmetries observed in the field of form design, this study, grounded in KE, proposes an intelligent optimization method for furniture form design that takes into account users’ multi-dimensional affective requirements. This approach effectively restores symmetry between user-related factors and product-related factors within the design system. First, natural language processing techniques were employed to extract online user reviews. After identifying representative URs using Word2Vec and the KJ method, the refined Kano’s model was applied to perform three-dimensional quality classification and weight calculation, ultimately identifying “rustic” and “refined” as the two key URs. Next, morphological analysis was used to deconstruct the product into six DCs: seat rim (A), apron (B), decorative strut (C), stretcher (D), leg (E), and decorative pattern (F). A surrogate model was then built using SVR, and a set of Pareto-optimal solutions was generated using the proposed MORBMO algorithm. A comparative experiment on algorithm performance showed that the MORBMO algorithm outperformed other algorithms. Solution 4 was identified as the final optimal solution using the VIKOR method. Finally, the selected design was refined and evaluated. Compared with previous studies, this research makes the following three key contributions:
(1) This study proposes an intelligent optimization design method for furniture form that integrates big data and artificial intelligence technologies into the design domain. This approach enhances the universality and objectivity of user requirement data sources while improving design efficiency.
(2) A big-data-driven refined Kano’s model is introduced to enable both fine-grained classification of URs and the identification of key URs. This assists design teams in prioritizing product line planning based on URs.
(3) An automated solution generation model is constructed using the MORBMO algorithm, which outputs a set of solutions that satisfy users’ multi-dimensional affective requirements rather than a single optimal solution. The final solution is then selected using the VIKOR method. This combination of multi-objective optimization and multi-criteria decision-making provides design departments with more diverse and flexible pathways for new product development.
Admittedly, this study has the following three limitations that warrant further improvement in future work:
(1) This study applies morphological analysis to deconstruct product characteristics, which limits the granularity of the morphological breakdown. As a result, some design details may not have been fully considered. Future research will explore more nuanced and multi-layered morphological deconstruction, potentially using CAD tools to quantitatively describe product forms.
(2) This study focuses on a single visual design attribute—furniture form. Due to experimental constraints, it does not account for other multi-dimensional design features such as color, material, and surface finishing. However, in real-world purchasing and usage contexts, consumers perceive products through multiple senses, such as vision and touch. Future research will expand on this work by examining how multi-dimensional design attributes influence consumer preferences.
(3) This study employs the square stool from Ming-style furniture as a specific case to validate the feasibility of the proposed method. In fact, the method demonstrates both extensibility and generalizability. When applied to other product categories, it requires case-specific analysis to identify emerging market trends and accurately capture product characteristics. Future work may further extend this method and apply it to diverse product types, thereby broadening its practical significance.

Author Contributions

Conceptualization, L.F. and X.Y.; methodology, L.F.; software, X.Y. and L.Z.; validation, L.F.; formal analysis, L.F.; investigation, L.Z.; resources, J.L.; data curation, L.F.; writing—original draft preparation, L.F.; writing—review and editing, L.F. and X.Y.; visualization, X.Y.; supervision, J.L.; project administration, J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author(s).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
KEKansei Engineering
URsUser requirements
DCsDesign characteristics
MORBMOMulti-Objective Red-Billed Blue Magpie Optimizer
VIKORVIseKriterijumska Optimizacija I Kompromisno Resenje

Appendix A

Table A1. Kansei evaluation matrix.
Table A1. Kansei evaluation matrix.
Sample NumberDCsURs
ABCDEFRusticRefined
NO. 12265225.043.25
NO. 25731124.424.14
NO. 32262313.295.33
NO. 46213124.34.17
NO. 51161125.232.75
NO. 66253124.234.35
NO. 71662124.164.45
NO. 81265125.253.45
NO. 94462413.015.41
NO. 104262224.573.88
NO. 116741224.424.42
NO. 124462224.544.28
NO. 136261225.492.87
NO. 141712124.943.2
NO. 155711124.933.35
NO. 164562223.165.36
NO. 172462423.655.09
NO. 182465314.144.48
NO. 192264224.783.74
NO. 201262225.322.97
NO. 212161125.462.91
NO. 225762124.743.68
NO. 2363622253.48
NO. 241265125.332.97
NO. 252565423.994.62
NO. 262262324.464.03
NO. 276213124.324.26
NO. 286252223.94.99
NO. 292564423.864.72
NO. 306265224.913.2
NO. 316266125.093.12
NO. 326252123.834.94
NO. 332562223.974.51
NO. 343161124.813.42
NO. 354564424.044.62
NO. 363565313.675.1
NO. 374662123.814.97
NO. 382264324.523.87
NO. 391264124.613.54
NO. 401265225.392.58
NO. 414365224.83.59
NO. 421265324.724.14
NO. 436262224.523.94
NO. 444362224.624.04
NO. 456262124.593.52
NO. 464722124.524.07
NO. 472711124.973.13
NO. 482212224.553.88
NO. 492465224.524.23
NO. 501262124.713.61
NO. 512661124.254.45
NO. 522265224.673.84
NO. 531562413.095.23
NO. 542365224.514.13
NO. 554212124.673.93
NO. 561262124.933.23
NO. 572262224.933.52
NO. 582261224.93.42
NO. 592252223.944.75
NO. 602711125.262.93
NO. 614264224.773.91
NO. 622662124.593.91
NO. 636213224.284.13
NO. 642264313.125.35
NO. 656264225.013.04
NO. 662242224.164.52
NO. 675741124.224.28
NO. 685712124.433.86
NO. 696265225.253.09
NO. 7045124135.49
NO. 715722124.513.81
NO. 722711224.963.25
NO. 732211224.583.7
NO. 746722224.493.75
NO. 752365324.334.14
NO. 762222224.643.68
NO. 771261125.043.22
NO. 782562213.594.91
NO. 791262225.233.07
NO. 802565413.594.87

References

  1. Yang, C.X.; Liu, F.; Ye, J.N. A product form design method integrating Kansei engineering and diffusion model. Adv. Eng. Inform. 2023, 57, 14. [Google Scholar] [CrossRef]
  2. Nagamachi, M. Kansei engineering as a powerful consumer-oriented technology for product development. Appl. Ergon. 2002, 33, 289–294. [Google Scholar] [CrossRef] [PubMed]
  3. Yue, X.Y.; Xiong, X.Q.; Xu, X.T.; Zhang, M. Big data for furniture intelligent manufacturing: Conceptual framework, technologies, applications, and challenges. Int. J. Adv. Manuf. Technol. 2024, 132, 5231–5247. [Google Scholar] [CrossRef]
  4. Xu, X.T.; Zhang, M.; Yue, X.Y.; Xiong, X.Q. Design of furniture mortise-and-tenon joints: A review of mechanical properties and design recommendations. Wood Mater. Sci. Eng. 2025, 20, 1–15. [Google Scholar] [CrossRef]
  5. Miao, Y.F.; Gao, X.F.; Jiang, W.Y.; Xu, W. An evaluation model for interactive gaming furniture design based on parent-child behavior. PLoS ONE 2024, 19, 23. [Google Scholar] [CrossRef]
  6. Zhang, H.Y.; Shen, L.M. Thermal preference effects on physiological responses and bedding system insulation selection during good quality sleep in the transitional season. Build. Environ. 2024, 253, 12. [Google Scholar] [CrossRef]
  7. Hao, K.Q.; Guan, H.Y. Children’s Preferences for the Styling of Consultation Room Furniture Based on Scenic Beauty Estimation and Kansei Engineering. BioResources 2025, 20, 2711–2727. [Google Scholar] [CrossRef]
  8. Demirbilek, O.; Sener, B. Product design, semantics and emotional response. Ergonomics 2003, 46, 1346–1360. [Google Scholar] [CrossRef]
  9. Miao, Y.F.; Gao, X.F.; Miao, T.M.; Xu, W. A Study on the Visual and Tactile Perception of Oriented Strand Board Combined with Consumer-Preference Analysis. Coatings 2024, 14, 24. [Google Scholar] [CrossRef]
  10. Ilhan, A.E.; Togay, A. Pursuit of methodology for data input related to taste in design: Using eye tracking technology. Displays 2023, 76, 14. [Google Scholar] [CrossRef]
  11. Kwong, C.K.; Fung, K.Y.; Jiang, H.M.; Chan, K.Y.; Siu, K.W.M. A Modified Dynamic Evolving Neural-Fuzzy Approach to Modeling Customer Satisfaction for Affective Design. Sci. World J. 2013, 1, 636948. [Google Scholar] [CrossRef] [PubMed]
  12. Barnes, C.; Lillford, S. Affective design decision-making—Issues and opportunities. CoDesign 2007, 3, 135–146. [Google Scholar] [CrossRef]
  13. Wang, Y.H.; Yu, S.H.; Ma, N.; Wang, J.L.; Hu, Z.G.; Liu, Z.; He, J.B. Prediction of product design decision Making: An investigation of eye movements and EEG features. Adv. Eng. Inform. 2020, 45, 10. [Google Scholar] [CrossRef]
  14. Nagamachi, M. Kansei engineering: A new ergonomic consumer-oriented technology for product development. Int. J. Ind. Ergon. 1995, 15, 3–11. [Google Scholar] [CrossRef]
  15. Wang, N.; Kang, X.; Wang, Q.; Shi, C. Using grey-quality function deployment to construct an aesthetic product design matrix. Concurr. Eng. 2023, 31, 49–63. [Google Scholar] [CrossRef]
  16. Zhang, L.; Wu, L.R.; Mattila, A.S. Online Reviews: The Role of Information Load and Peripheral Factors. J. Travel Res. 2016, 55, 299–310. [Google Scholar] [CrossRef]
  17. Wang, Z.; Hu, S.J.; Liu, W.D. Product feature sentiment analysis based on GRU-CAP considering Chinese sarcasm recognition. Expert Syst. Appl. 2024, 241, 17. [Google Scholar] [CrossRef]
  18. Xu, Q.; Jiao, R.J.; Yang, X.; Helander, M.; Khalid, H.M.; Opperud, A. An analytical Kano model for customer need analysis. Des. Stud. 2009, 30, 87–110. [Google Scholar] [CrossRef]
  19. Tang, W.Y.; Xiang, Z.R.; Ding, T.C.; Zhao, X.; Zhang, Q.; Zou, R. Research on multi-objective optimisation of product form design based on kansei engineering. J. Eng. Des. 2024, 35, 1023–1048. [Google Scholar] [CrossRef]
  20. Li, Y.F.; Zhu, L.P. Extracting knowledge for product form design by using multiobjective optimisation and rough sets. J. Adv. Mech. Des. Syst. Manuf. 2020, 14, 16. [Google Scholar] [CrossRef]
  21. Decker, R.; Trusov, M. Estimating aggregate consumer preferences from online product reviews. Int. J. Res. Mark. 2010, 27, 293–307. [Google Scholar] [CrossRef]
  22. Xiao, S.S.; Wei, C.P.; Dong, M. Crowd intelligence: Analyzing online product reviews for preference measurement. Inf. Manag. 2016, 53, 169–182. [Google Scholar] [CrossRef]
  23. Fu, S.W.; Li, K.; Huang, H.S.; Ma, C.; Fan, Q.S.; Zhu, Y.W. Red-billed blue magpie optimizer: A novel metaheuristic algorithm for 2D/3D UAV path planning and engineering design problems. Artif. Intell. Rev. 2024, 57, 89. [Google Scholar] [CrossRef]
  24. Opricovic, S.; Tzeng, G.H. Compromise solution by MCDM methods: A comparative analysis of VIKOR and TOPSIS. Eur. J. Oper. Res. 2004, 156, 445–455. [Google Scholar] [CrossRef]
  25. Kittidecha, C.; Marasinghe, A.C. Application of Kansei Engineering and Box-Behnken response surface methodology for shape parameter design: A case study of wine glass. J. Adv. Mech. Des. Syst. Manuf. 2015, 9, 12. [Google Scholar] [CrossRef]
  26. Smith, S.; Fu, S.H. The relationships between automobile head-up display presentation images and drivers’ Kansei. Displays 2011, 32, 58–68. [Google Scholar] [CrossRef]
  27. Hartono, M.; Santoso, A.; Prayogo, D.N. How Kansei Engineering, Kano and QFD can improve logistics services. Int. J. Technol. 2017, 8, 1070–1081. [Google Scholar] [CrossRef]
  28. Zhou, C.M.; Jiang, L.S.; Kaner, J. Study on Imagery Modeling of Electric Recliner Chair: Based on Combined GRA and Kansei Engineering. Appl. Sci. 2023, 13, 20. [Google Scholar] [CrossRef]
  29. Woo, J.C.; Luo, F.; Lin, Z.H.; Chen, Y.T. Research on the Sensory Feeling of Product Design for Electric Toothbrush Based on Kansei Engineering and Back Propagation Neural Network. J. Internet Technol. 2022, 23, 863–871. [Google Scholar] [CrossRef]
  30. Fu, L.; Lei, Y.L.; Zhu, L.; Lv, J.F. An evaluation and design method for Ming-style furniture integrating Kansei engineering with particle swarm optimization-support vector regression. Adv. Eng. Inform. 2024, 62, 14. [Google Scholar] [CrossRef]
  31. Cai, W.L.; Wang, Z.Y.; Wang, Y.; Zhou, M.Y. Research on wheelchair form design based on Kansei engineering and GWO-BP neural network. Sci. Rep. 2025, 15, 25. [Google Scholar] [CrossRef]
  32. Wang, N.Y.; Shi, D.; Li, Z.R.; Chen, P.T.; Ren, X.P. Investigating emotional design of the intelligent cockpit based on visual sequence data and improved LSTM. Adv. Eng. Inform. 2024, 61, 24. [Google Scholar] [CrossRef]
  33. Matzler, K.; Hinterhuber, H.H. How to make product development projects more successful by integrating Kano’s model of customer satisfaction into quality function deployment. Technovation 1998, 18, 25–38. [Google Scholar] [CrossRef]
  34. Yang, H.; Huo, Y.X.; Jia, R.Y.; Sha, F.; Hu, N.Q.; Yu, L.L.; Wang, Y.R. Sustainable Recognition Methods of Modeling Design Features of Light and Micro Vehicle-Mounted UAV: Based on Support Vector Regression and Kano Model. Sustainability 2022, 14, 18. [Google Scholar] [CrossRef]
  35. Qu, M.; Ren, Z.X.; Wu, J. Design and evaluation of smart blood pressure monitor oriented to user needs. J. Eng. Des. 2024, 35, 290–319. [Google Scholar] [CrossRef]
  36. Yang, C.-C. The refined Kano’s model and its application. Total Qual. Manag. Bus. Excell. 2005, 16, 1127–1137. [Google Scholar] [CrossRef]
  37. Kristensen, K.; Kanji, G.K.; Dahlgaard, J.J. On measurement of customer satisfaction. Total Qual. Manag. 1992, 3, 123–128. [Google Scholar] [CrossRef]
  38. Chen, M.C.; Hsu, C.L.; Lee, L.H. Investigating pharmaceutical logistics service quality with refined Kano’s model. J. Retail. Consum. Serv. 2020, 57, 12. [Google Scholar] [CrossRef]
  39. Sivabalan, S.; Minu, R. Optimized multi-anchor space-aware temporal convolutional neural network for automobile sales prediction. Knowl. Based Syst. 2025, 311, 12. [Google Scholar] [CrossRef]
  40. Wang, Q.; Zhang, M.; Li, L.; Yan, W.; Liu, B.; Xia, Z.; Tseng, M.-L. Optimal capacity configuration of coupled photovoltaic and energy storage system: Multi-objective red-billed blue-magpie optimizer. J. Ind. Prod. Eng. 2025, 42, 1–21. [Google Scholar] [CrossRef]
  41. Kang, X.H.; Wan, H.Q.; Li, S.Y. Combining Kansei Engineering and SSA-XGBoost for new energy vehicle front-face form design. J. Eng. Des. 2025, 39. [Google Scholar] [CrossRef]
  42. Tan, K.C.; Pawitra, T.A. Integrating SERVQUAL and Kano’s model into QFD for service excellence development. Manag. Serv. Qual. An. Int. J. 2001, 11, 418–430. [Google Scholar] [CrossRef]
  43. Li, B.; Wang, H.L. Multi-objective sparrow search algorithm: A novel algorithm for solving complex multi-objective optimisation problems. Expert Syst. Appl. 2022, 210, 19. [Google Scholar] [CrossRef]
  44. Mostaghim, S.; Teich, J. Strategies for finding good local guides in multi-objective particle swarm optimization (MOPSO). In Proceedings of the 2003 IEEE Swarm Intelligence Symposium, SIS’03, Indianapolis, IN, USA, 26 April 2003; pp. 26–33. [Google Scholar]
  45. Shieh, M.D.; Li, Y.F.; Yang, C.C. Comparison of multi-objective evolutionary algorithms in hybrid Kansei engineering system for product form design. Adv. Eng. Inform. 2018, 36, 31–42. [Google Scholar] [CrossRef]
Figure 1. The framework of the intelligent optimization design method for furniture form.
Figure 1. The framework of the intelligent optimization design method for furniture form.
Symmetry 17 01406 g001
Figure 2. The refined Kano’s model questionnaire.
Figure 2. The refined Kano’s model questionnaire.
Symmetry 17 01406 g002
Figure 3. The refined Kano’s model.
Figure 3. The refined Kano’s model.
Symmetry 17 01406 g003
Figure 4. Heatmap of cosine similarity for initial URs.
Figure 4. Heatmap of cosine similarity for initial URs.
Symmetry 17 01406 g004
Figure 5. 3D scatter diagram of representative URs.
Figure 5. 3D scatter diagram of representative URs.
Symmetry 17 01406 g005
Figure 6. Morphological deconstruction table for Ming-style square stool.
Figure 6. Morphological deconstruction table for Ming-style square stool.
Symmetry 17 01406 g006
Figure 7. The Pareto front solutions generated by the MORBMO algorithm.
Figure 7. The Pareto front solutions generated by the MORBMO algorithm.
Symmetry 17 01406 g007
Figure 8. Boxplots of the four evaluation metrics.
Figure 8. Boxplots of the four evaluation metrics.
Symmetry 17 01406 g008
Figure 9. The final solution.
Figure 9. The final solution.
Symmetry 17 01406 g009
Table 1. The methodological comparison between this study and previous research.
Table 1. The methodological comparison between this study and previous research.
PublicationResearch FiledMain MethodsMain Contributions
This study (2025)Ming-style square stoolThe refined Kano’s model, MORBMOAn intelligent optimization design method that considers multi-dimensional user affective requirements was constructed
Kittidecha and Marasinghe [25] (2015)Wine glassRSM, Multiple Regression AnalysisA morphological design model was constructed to interpret user emotional responses
Smith and Fu [26] (2011)Automobile head-up displayFA, CA, QT1A statistical prediction model was created to link representative affective elements with product physical attributes
Hartono et al. [27] (2017)Logistics serviceKano’s model, QFDA composite model was proposed to enhance user emotional satisfaction
Zhou et al. [28] (2023)Electric recliner chairGRAA fuzzy logic model integrated with GRA was established
Woo et al. [29] (2022)Electric toothbrushBPNNIntelligent prediction of product form was achieved using machine learning algorithms
Fu et al. [30] (2024)Ming-style armchairGT, PSO-SVRAn evaluation and design method based on GT and PSO-SVR was constructed
Wang et al. [32] (2024)Intelligent cockpitSSA-LSTM-AttentionA product form prediction model based on an improved LSTM was constructed
RSM: Response Surface Methodology; FA: Factor Analysis; CA: Cluster Analysis; QT1: Quantification Theory Type I; QFD: Quality Function Deployment; GRA: Grey Relational Analysis; BPNN: Back Propagation Neural Network; GT: Game Theory; PSO-SVR: Particle Swarm Optimization–Support Vector Regression; SSA: Sparrow Search Algorithm; LSTM: Long Short-Term Memory.
Table 2. Three-dimensional quality category.
Table 2. Three-dimensional quality category.
Categories of Quality Attributes in Traditional Kano’s ModelCategories of Quality Attributes with High Importance in the Refined Kano’s ModelCategories of Quality Attributes with Low Importance in the Refined Kano’s Model
AttractiveHighly AttractiveLess Attractive
One-dimensionalHigh value-addedLow value-added
Must-beCriticalNecessary
IndifferentPotentialCare-free
Table 3. Quality attributes classification of representative URs.
Table 3. Quality attributes classification of representative URs.
Representative URsImportance
Degree
2-Dimensional Category in Traditional Kano’s Model3-Dimensional Category in the Refined Kano’s Model
Rustic3.92Attractive (A)Highly Attractive (HA)
Refined3.89Attractive (A)Highly Attractive (HA)
Simple3.36Attractive (A)Less Attractive (LA)
Comfortable4.11One-dimensional (O)High value-added (HV)
Elegant3.74One-dimensional (O)High value-added (HV)
Sturdy4.25Must-be (M)Critical (C)
Uniform3.51Indifferent (I)Potential (P)
Substantial3.07Indifferent (I)Care-free (CF)
Luxurious3.03Indifferent (I)Care-free (CF)
Towering2.81Indifferent (I)Care-free (CF)
Vibrant2.44Indifferent (I)Care-free (CF)
Mean3.465
Table 4. Parameters settings and experimental configuration.
Table 4. Parameters settings and experimental configuration.
Parameters Setting Environment Configuration
Sampling size of training set72Operating systemWindows 11
Sampling size of test set8CPUAMD Ryzen 9 6900HX
Population size100GPURTX 3060
Repository size20Memory capacity16 GB
Maximum number of generations200EnvironmentMatlab R2017b
Table 5. The evaluation results.
Table 5. The evaluation results.
Algorithm IGDGDHVSpacing
MORBMOMean9.4467 × 10−21.4438 × 10−22.2438 × 10−11.0261 × 10−1
Std5.6427 × 10−32.4039 × 10−31.4892 × 10−32.2994 × 10−2
MOSSAMean9.8337 × 10−21.4864 × 10−22.2282 × 10−11.1182 × 10−1
Std1.0218 × 10−24.4025 × 10−31.8205 × 10−32.3288 × 10−2
MOPSOMean1.0552 × 10−11.5187 × 10−22.2244 × 10−11.4073 × 10−1
Std1.4049 × 10−23.3289 × 10−31.4216 × 10−34.7837 × 10−2
Table 6. Decision-making results.
Table 6. Decision-making results.
NO.Group Utility Values (Si)Individual Regret Values (Ri)Compromise Values (Qi)Ranking
Solution 10.50000.50000.988720
Solution 20.50000.50000.988720
Solution 30.45820.40960.655011
Solution 40.37390.27690.07611
Solution 50.43230.33640.41588
Solution 60.47080.43530.752515
Solution 70.43840.31590.40047
Solution 80.45340.36800.557510
Solution 90.44710.35090.50049
Solution 100.37980.26820.08252
Solution 110.50290.47670.955718
Solution 120.49110.46910.895717
Solution 130.47100.38440.656912
Solution 140.47860.41350.741614
Solution 150.46670.39410.658413
Solution 160.41860.27770.25086
Solution 170.48920.44310.838616
Solution 180.43810.23690.24915
Solution 190.39790.23810.09583
Solution 200.40310.23940.11824
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fu, L.; Yang, X.; Zhu, L.; Lv, J. An Intelligent Optimization Design Method for Furniture Form Considering Multi-Dimensional User Affective Requirements. Symmetry 2025, 17, 1406. https://doi.org/10.3390/sym17091406

AMA Style

Fu L, Yang X, Zhu L, Lv J. An Intelligent Optimization Design Method for Furniture Form Considering Multi-Dimensional User Affective Requirements. Symmetry. 2025; 17(9):1406. https://doi.org/10.3390/sym17091406

Chicago/Turabian Style

Fu, Lei, Xinyan Yang, Ling Zhu, and Jiufang Lv. 2025. "An Intelligent Optimization Design Method for Furniture Form Considering Multi-Dimensional User Affective Requirements" Symmetry 17, no. 9: 1406. https://doi.org/10.3390/sym17091406

APA Style

Fu, L., Yang, X., Zhu, L., & Lv, J. (2025). An Intelligent Optimization Design Method for Furniture Form Considering Multi-Dimensional User Affective Requirements. Symmetry, 17(9), 1406. https://doi.org/10.3390/sym17091406

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
