Pion Production in an Extended Parity Doublet Model

Abstract

We study heavy-ion collisions with a focus on pion production using an extended parity doublet model implemented in the “DaeJeon Boltzmann–Uehling–Uhlenbeck” (DJBUU) code. We consider three different systems—¹⁰⁸Sn + ¹¹²Sn, ¹¹²Sn + ¹²⁴Sn, and ¹³²Sn + ¹²⁴Sn—at a beam energy of $E_{\mathrm{beam}}=270$ A MeV, with an impact parameter of 3 fm, and compare our results with the SπRIT data. Since one of the key features of the parity doublet model is the existence of a chiral-invariant mass $m_0$ that contributes to the nucleon mass, we investigate how pion production depends on the chiral-invariant mass in these heavy-ion collisions. We adopt the values of the chiral-invariant mass of 600, 700, and 800 MeV and find that the case with $m_0=800$ MeV best reproduces the experimental data. We also observe that a larger $m_0$ results in a higher maximum baryon density of nuclear matter produced during heavy-ion collisions.

1. Introduction

Chiral symmetry serves as a crucial link between quantum chromodynamics (QCD) and its low-energy effective theories. These effective theories have been successfully applied to describe low-energy phenomena, including pion–nucleon scattering, the masses of light mesons, and their decay processes. In this paper, we focus on how chiral symmetry influences the hadron mass. For an extensive review of chiral symmetry, see Refs. [1,2,3,4].

Understanding the origin of the hadron mass is a key problem in nuclear physics. As is well known, the current quark mass generated by the Higgs mechanism accounts for only about 2% of the nucleon mass. In nuclear physics, it is often proposed that the rest of the nucleon mass in the chiral limit can be explained by the quark–antiquark condensate in the QCD vacuum, which is responsible for spontaneous broken chiral symmetry. The parity doublet model (PDM) we study in this work postulates that the nucleon (hadron) mass includes an additional piece that is chirally invariant. This chiral-invariant mass ($m_0$) is the main focus of this work.

The PDM was introduced in Ref. [5] as an extended linear sigma model with the parity doubling of nucleons, and it was studied in detail in Ref. [6]. By analyzing the partial decay width of $N\left(1535\right)$ in free space, which is the chiral partner of the nucleon within the PDM framework, the chiral-invariant nucleon mass $m_0$ was determined to be $m_0=270$ MeV [5,6].

The PDM has been employed in numerous studies to explore the properties of dense matter, for example, in Refs. [7,8,9,10,11,12,13,14,15,16,17,18]. In dense matter, the saturation properties of nuclear matter can be used to constrain the value of $m_0$. In Ref. [8], it was shown that the value of $m_0$ must be in the range 300–800 MeV to properly describe empirical properties of symmetric nuclear matter. A liquid–gas phase transition at normal nuclear density and a chiral transition at higher density were studied with $m_0=790$ MeV [10]. In Ref. [13], the dilaton-implemented hidden local symmetry Lagrangian with baryon fields was constructed to investigate the properties of dense matter, and it was argued that the chiral-invariant mass is about 0.7–0.8-times the nucleon mass. An extended parity doublet model with a six-point interaction of the $\sigma$ meson was introduced to study asymmetric nuclear matter in Ref. [15]. The model effectively reproduces the properties of normal nuclear matter, with chiral-invariant mass ranging from 500 to 900 MeV. In Ref. [16], an extended SU(3) flavor parity doublet quark–hadron model with higher-order interaction terms of the scalar fields was established to study higher-order baryon number susceptibilities near both the chiral transition and the nuclear liquid–gas transition, where the chiral-invariant quark mass $m_{0q}=165$ MeV was introduced.

Subsequent efforts were made to further narrow down the value of the chiral-invariant mass. For example, in Ref. [19], the authors calculated the binding energies and charge radii of selected nuclei for fixed $m_0$ ($m_0=500, 600, 700, 800, 900$ MeV) and compared their results with experimental data. It turns out that $m_0=700$ MeV is preferred by the nuclear properties.

Neutron stars can also provide an additional constraint on the chiral-invariant masses. In Ref. [20], based on the tidal deformability determined from the observation of gravitational waves from the neutron star merger GW170817, it was found that the chiral-invariant masses are larger than approximately 600 MeV. Additionally, it was shown in Ref. [21] that the value of $m_0$ affects the nuclear equation of state at low density and has strong correlations with the radii of neutron stars. Using the constraint to the radius obtained by LIGO-Virgo and NICER, they found that $m_0$ is restricted as 600 MeV $\lesssim m_0\lesssim$ 900 MeV.

An effort was made to constrain the value of the chiral-invariant mass in Ref. [22], where the proton directed flow in ¹⁹⁷Au + ¹⁹⁷Au collisions at a beam energy of 400 MeV per nucleon in the laboratory frame, E_beam = 400 A MeV, was calculated using a transport code called DaeJeon Boltzmann–Uehling–Uhlenbeck (DJBUU) and the results were compared with the FOPI data. They observed that the proton directed flows for $m_0$ = 600, 700, and 800 MeV are all roughly consistent with the experimental data. However, for $m_0=900$ MeV, the flow deviates from the experimental data at high rapidity.

The pion production in heavy-ion collisions near the threshold energies can be also useful data to constrain the chiral-invariant mass. Pions are produced by the decay of $\Delta$ resonances, and the production of those $\Delta$ resonances is explained through their behavior in finite nuclear density. The definition of effective masses for baryons in finite density in the parity doublet model is much different from typical Walecka-type models and has a large dependence on the choice of the chiral-invariant mass. A recent comparison of various transport models can be found in Refs. [23,24], while heavy-ion simulations with a focus on pion and $\Delta$ resonance production were discussed in Ref. [25].

In this study, we investigate pion production within the extended parity doublet model [15] using the DJBUU transport model [22,23], with the aim of further constraining the value of $m_0$. For this study, we consider three systems—¹⁰⁸Sn + ¹¹²Sn, ¹¹²Sn + ¹²⁴Sn, and ¹³²Sn + ¹²⁴Sn—at a beam energy of $E_{\mathrm{beam}}=270$ A MeV and an impact parameter of $b=3$ fm. Our results are compared with the SπRIT data [26]. Following Ref. [22], we exclude the case with $m_0=900$ MeV and perform simulations for $m_0$ = 600, 700, and 800 MeV.

2. Extended Parity Doublet Model in DJBUU

The Daejeon Boltzmann–Uehling–Uhlenbeck (DJBUU) code [22,27] solves the relativistic BUU equation with a mean-field potential:

$$\begin{array}{c}\hfill \left[p^{\mu }{\partial }_{\mu }^x-\left(p_{\mu }{F}^{\mu \nu }-m_i^{*}{\partial }_x^{\nu }{m}_i^{*}\right){\partial }_{\nu }^p\right]{\displaystyle \frac{f_i\left(\mathbf{x},\mathbf{p};t\right)}{E}}={\mathcal{C}}_{coll}^i,\end{array}$$

(1)

where $f_i\left(\mathbf{x},\mathbf{p};t\right)$ is the phase-space density of particle i, and $F^{\mu \nu }\equiv {\partial }^{\mu }{V}^{\nu }-{\partial }^{\nu }{V}^{\mu }$ is the field strength tensor associated with the vector field V. Here, we briefly describe the distinctive features of DJBUU. As in many BUU type models, DJBUU adopts the test particle method. Typically, the profile function of a test particle is of Gaussian type; however, in DJBUU, it is defined as

$$g\left(\mathbf{u}\right)=g\left(u\right)={\mathcal{N}}_{m,n}{(1-{(u/a)}^m)}^n\mathrm{for}0<u/a<1$$

(2)

where $u=\left|\mathbf{u}\right|$, ${\mathcal{N}}_{m,n}$ is the normalization constant, and $m>1$ and $n>1$ are positive integers. For $|u/a|>1$, $g\left(u\right)=0$. We use this profile function rather than the conventional truncated Gaussian because it is exactly integrable and smoothly vanishes at a. That is, $g\left(a\right)=0$ and $g^{\prime }\left(a\right)=0$. The default values are $m=2$, $n=3$, and $a_x=4.2\mathrm{fm}$ for the position profile and $a_p=s\hslash /a_x$ for the momentum profile with $s\approx 0.6$.

Another distinctive feature of DJBUU is that it includes a model with chiral symmetry, in addition to a Walecka-type mean-field model. In the parity doublet model [5], the nucleon mass arises from both chiral symmetry breaking and a chiral-invariant mass term, the latter being independent of QCD chiral symmetry. To address the origin of the nucleon mass and the (partial) restoration of chiral symmetry in heavy-ion collisions, DJBUU includes an extended parity doublet model constructed in Ref. [15]. In the extended parity doublet model [15], vector mesons are introduced through the Hidden Local Symmetry (HLS) [28,29], and a six-point interaction of the $\sigma$ meson is included. The extended model was found to provide a reasonable description of normal nuclear matter when the chiral-invariant nucleon mass was chosen within the range of 500 to 900 MeV [15].

The Lagrangian density of the extended parity doublet model is given by

$$\begin{array}{cc}\hfill \mathcal{L}=& {\overline{\psi }}_{1}i/\partial {\psi }_1+{\overline{\psi }}_{2}i/\partial {\psi }_2+m_0({\overline{\psi }}_2{\gamma }_5{\psi }_1-{\overline{\psi }}_1{\gamma }_5{\psi }_2)\hfill \\ & +g_1{\overline{\psi }}_1(\sigma +i{\gamma }_5\overrightarrow{\tau }·\overrightarrow{\pi }){\psi }_1+g_2{\overline{\psi }}_2(\sigma -i{\gamma }_5\overrightarrow{\tau }·\overrightarrow{\pi }){\psi }_2\hfill \\ & -g_{\omega NN}{\overline{\psi }}_1{\gamma }_{\mu }{\omega }^{\mu }{\psi }_1-g_{\omega NN}{\overline{\psi }}_2{\gamma }_{\mu }{\omega }^{\mu }{\psi }_2-g_{\rho NN}{\overline{\psi }}_1{\gamma }_{\mu }{\overrightarrow{\rho }}^{\mu }·\overrightarrow{\tau }{\psi }_1-g_{\rho NN}{\overline{\psi }}_2{\gamma }_{\mu }{\overrightarrow{\rho }}^{\mu }·\overrightarrow{\tau }{\psi }_2\hfill \\ & -e{\overline{\psi }}_1{\gamma }^{\mu }{A}_{\mu }{\displaystyle \frac{1-{\tau }_3}{2}}{\psi }_1-e{\overline{\psi }}_2{\gamma }^{\mu }{A}_{\mu }{\displaystyle \frac{1-{\tau }_3}{2}}{\psi }_2+{\mathcal{L}}_M,\hfill \end{array}$$

(3)

where the baryon fields ${\psi }_1$ and ${\psi }_2$ transform as

$$\begin{array}{c}\hfill {\psi }_{1R}{\displaystyle \to }R{\psi }_{1R},{\psi }_{1L}{\displaystyle \to }L{\psi }_{1L},{\psi }_{2R}{\displaystyle \to }L{\psi }_{2R},{\psi }_{2L}{\displaystyle \to }R{\psi }_{2L}.\end{array}$$

(4)

Here, L and R denote the elements of $SU{\left(2\right)}_L$ and $SU{\left(2\right)}_R$ chiral symmetry group, respectively. The mesonic part of the Lagrangian is given by

$$\begin{array}{ccc}& & {\mathcal{L}}_M={\displaystyle \frac{1}{2}}{\partial }_{\mu }\sigma {\partial }^{\mu }\sigma +{\displaystyle \frac{1}{2}}{\partial }_{\mu }\overrightarrow{\pi }·{\partial }^{\mu }\overrightarrow{\pi }-{\displaystyle \frac{1}{4}}{\Omega }_{\mu \nu }{\Omega }^{\mu \nu }-{\displaystyle \frac{1}{4}}{\overrightarrow{R}}_{\mu \nu }·{\overrightarrow{R}}^{\mu \nu }-{\displaystyle \frac{1}{4}}{F}_{\mu \nu }{F}^{\mu \nu }\hfill \\ & & +{\displaystyle \frac{{\overline{\mu }}^2}{2}}{\displaystyle (}{\sigma }^2+{\overrightarrow{\pi }}^2{\displaystyle )}-{\displaystyle \frac{\lambda }{4}}{{\displaystyle (}{\sigma }^2+{\overrightarrow{\pi }}^2{\displaystyle )}}^2+{\displaystyle \frac{{\lambda }_6}{6}}{{\displaystyle (}{\sigma }^2+{\overrightarrow{\pi }}^2{\displaystyle )}}^3+\tilde{m}ϵ\sigma +{\displaystyle \frac{1}{2}}{m}_{\omega }^2{\omega }_{\mu }{\omega }^{\mu }+{\displaystyle \frac{1}{2}}{m}_{\rho }^2{\overrightarrow{\rho }}_{\mu }·{\overrightarrow{\rho }}^{\mu }.\hfill \end{array}$$

$$\begin{array}{ccc}\hfill {\Omega }_{\mu \nu }& =& {\partial }_{\mu }{\omega }_{\nu }-{\partial }_{\nu }{\omega }_{\mu },\hfill \\ \hfill {\overrightarrow{R}}_{\mu \nu }& =& {\partial }_{\mu }{\overrightarrow{\rho }}_{\nu }-{\partial }_{\nu }{\overrightarrow{\rho }}_{\mu },\hfill \\ \hfill F_{\mu \nu }& =& {\partial }_{\mu }{A}_{\nu }-{\partial }_{\nu }{A}_{\mu }.\hfill \end{array}$$

(5)

We then take the mean field approximation: $\sigma {\displaystyle \to }\langle \sigma \rangle$, ${\omega }_{\mu }{\displaystyle \to }{\delta }_{\mu 0}\langle {\omega }_{\mu }\rangle$, and ${\rho }_{i\mu }{\displaystyle \to }{\delta }_{i3}{\delta }_{\mu 0}\langle {\rho }_{\mu }^i\rangle$. We note that, in this model, the $\sigma$-field is the chiral partner of the pion field. The vacuum expectation value of the $\sigma$ field in free space is nonzero and equals the pion decay constant, but it decreases with increasing baryon number density due to (partial) chiral symmetry restoration.

After diagonalizing the baryon mass terms in Equation (3), we obtain the masses of the nucleon field N and its parity partner N*(1535):

$$m_{N,N^{*}}={\displaystyle \frac{1}{2}}\left(\sqrt{{(g_1+g_2)}^2{\langle \sigma \rangle }^2+4m_0^2}\mp (g_1-g_2)\langle \sigma \rangle \right),$$

(6)

where the term with a minus (plus) sign in front of $(g_1-g_2)$ corresponds to the nucleon ($N^{*}$) field, respectively. We use these masses in the relativistic BUU equation with a mean-field potential. We put an ‘*’ on the mass to indicate its in-medium value. In this work, we use Parameter set 1 in Ref. [19] (K = 240 MeV, $m_0=600,700,800$ MeV), which is also provided in

Table 1. Parameters used in this work with the compressibility $K=240$ MeV [19]. $m_0$ and $m_{\sigma }$ are in units of MeV. Here, $\tilde{m}ϵ=m_{\pi }^2{f}_{\pi }$.

${\mathit{m}}_0$	600	700	800
$g_1$	14.836	14.171	13.349
$g_2$	8.427	7.762	6.941
$g_{\omega NN}$	9.132	7.305	5.660
$g_{\rho NN}$	3.927	4.065	4.149
$\lambda$	39.367	24.584	22.578
$m_{\sigma }$	411.299	385.805	330.44
${\lambda }_6{f}_{\pi }^2$	15.344	13.540	8.683

. In addition, as in Ref. [19], we use the following nuclear matter properties to fix the parameters

$$\begin{array}{cc}\hfill {\displaystyle \frac{E}{A}}-m_N=-16\mathrm{MeV},& n_0=0.16{\mathrm{fm}}^{-3},\hfill \\ \hfill K=240,& E_{\mathrm{sym}}=31\mathrm{MeV}.\hfill \end{array}$$

(7)

The model was further extended to include the $\Delta$ baryons in Ref. [17] to investigate the transition from nuclear matter to strange matter.

3. Results

Using the DJBUU code and extended PDM model described in the previous section with the parameters given in Table 1, we study pion production in heavy-ion collisions to investigate the role of the chiral-invariant mass. For this study, we consider three different systems, ¹⁰⁸Sn + ¹¹²Sn, ¹¹²Sn + ¹²⁴Sn, and ¹³²Sn + ¹²⁴Sn, at a beam energy of $E_{\mathrm{beam}}=270$ A MeV with an impact parameter of 3 fm. We adopt the density- and isospin-dependent cross-section for the $\Delta$ production proposed in Refs. [30,31], where the in-medium cross-section is given by

$$\begin{array}{c}\hfill {\sigma }_{NN{\displaystyle \to }N\Delta }\left({\rho }_B\right)={\sigma }_{NN{\displaystyle \to }N\Delta }\left(0\right)e^{-C{\rho }_B/{\rho }_0}{\left({\displaystyle \frac{N}{Z}}\right)}_{sys}^{x^{\pm ,0}}.\end{array}$$

(8)

The isospin dependent parameters $x^{+}$, $x^0$, and $x^{-}$ correspond to the pp, np, and nn channels, respectively. We note that the baryon density-dependent cross-section was previously introduced in Ref. [30]. Also, in-medium inelastic nucleon–nucleon cross-sections with a scaling factor that depends on the effective masses of the scattering baryons were proposed in Refs. [32,33,34,35]. In this study, we employ the parameters from “Case 4” listed in Table 3 of Ref. [31], namely $C=2.5,x^{+}=0,x^0=0.5,\mathrm{and}{x}^{-}=2$.

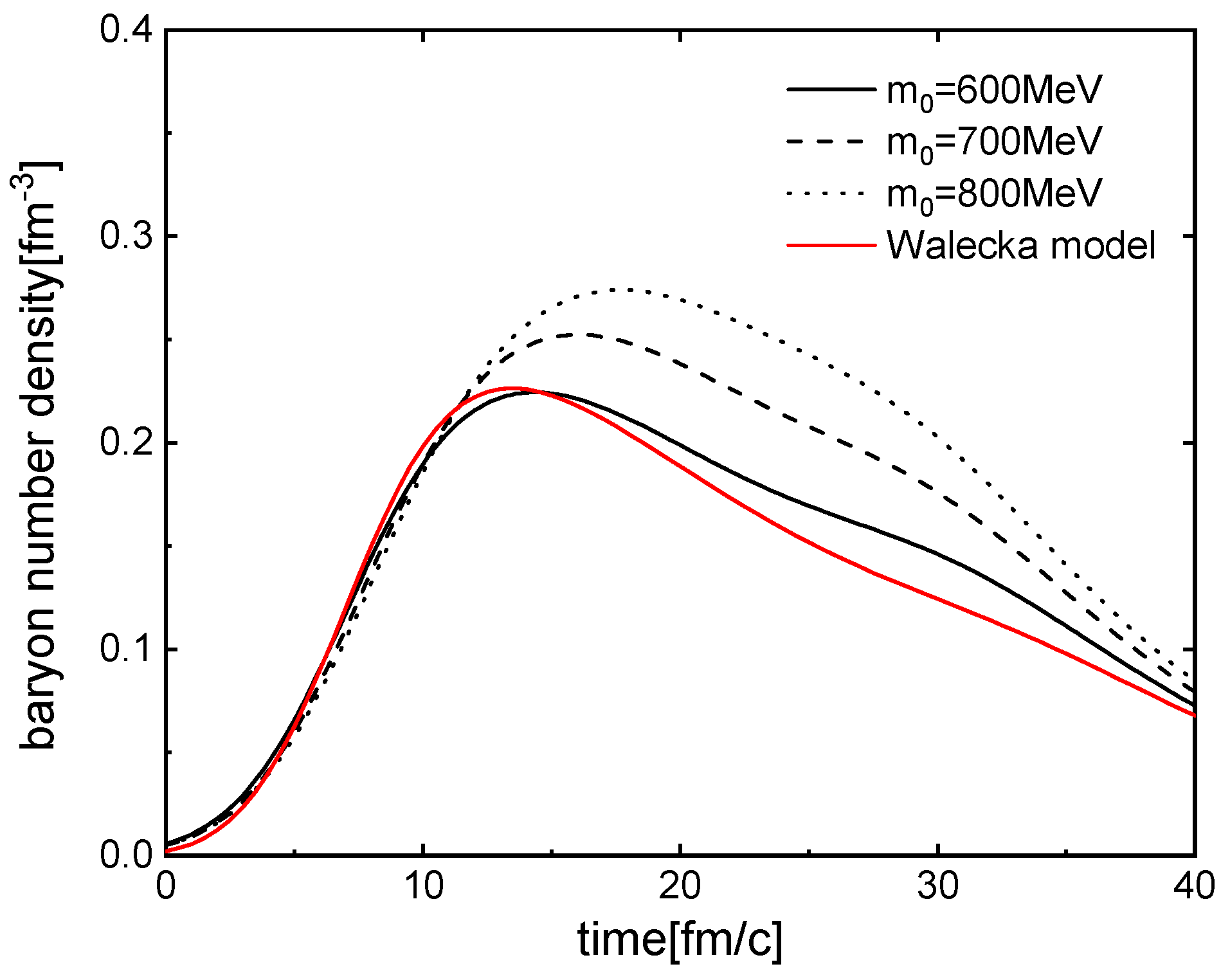

We first present in Figure 1 the baryon densities in ¹⁰⁸Sn + ¹¹²Sn collisions at $E_{\mathrm{beam}}=270$ A MeV with the impact parameter of 3 fm, for $m_0=600, 700,$ and 800 MeV to examine whether the density changes with the chiral-invariant mass. For comparison, we also show the baryon density calculated using the parameter set I of Table 1 of the extended Walecka model [36]. It can be seen from Figure 1 that a larger $m_0$ leads to a higher maximum baryon density. This behavior can be attributed to the reduction in the coupling constants $(g_1,g_2)$, associated with the attractive interaction, and $g_{\omega }$, associated with the repulsive interaction, as $m_0$ increases.

Our results, such as the nucleon effective masses and pion production yields, show a dependence on $m_0$. Identifying the exact origin of this dependence is not straightforward. However, part of it can be attributed to the $m_0$ dependence of the scalar and vector meson mean fields, as shown in Figure 10 of Ref. [22].

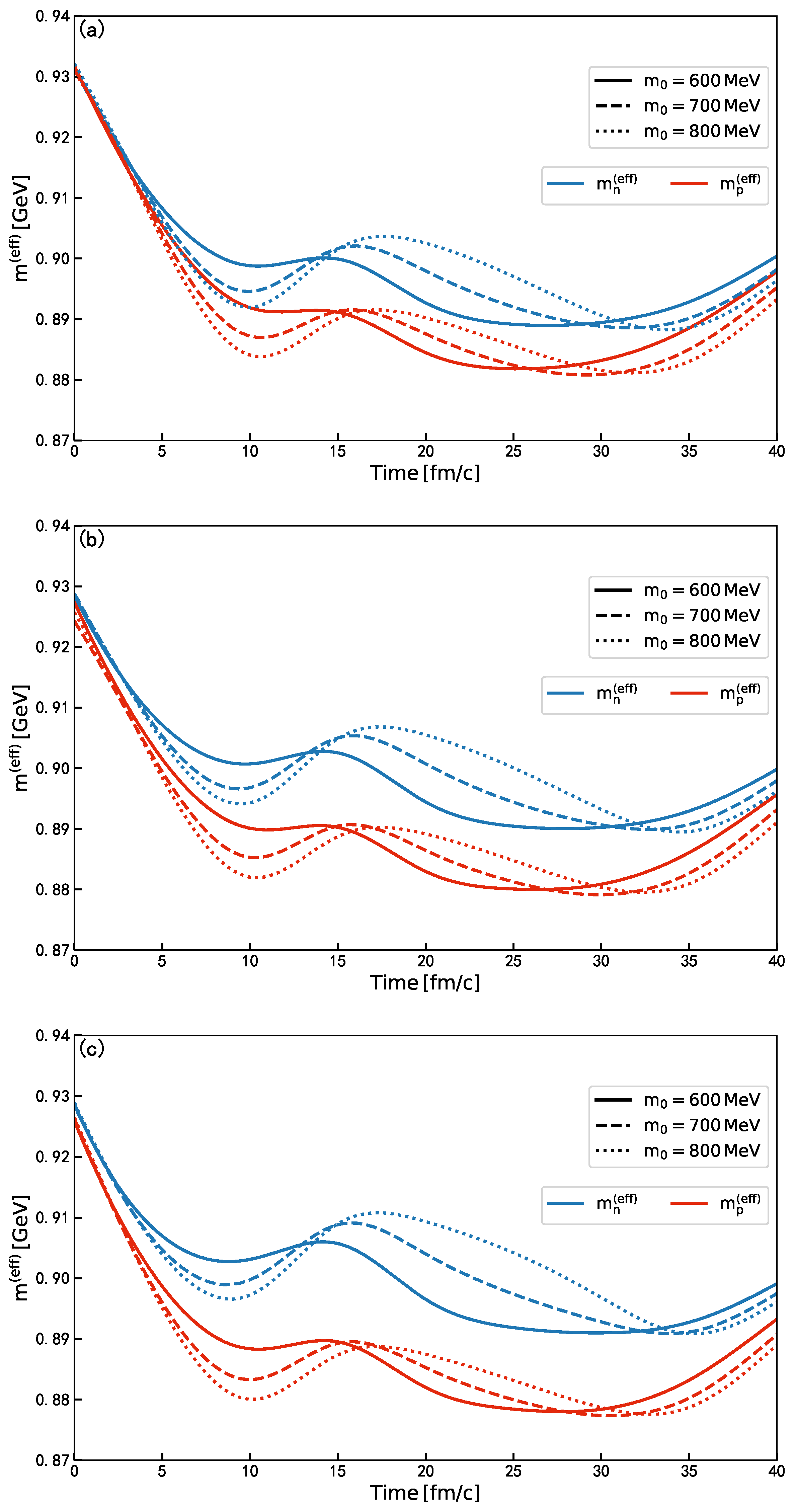

In Figure 2, we present the time evolution of the effective masses of protons and neutrons for $m_0=600,700,$ and 800 MeV in the ¹⁰⁸Sn + ¹¹²Sn, ¹¹²Sn + ¹²⁴Sn, and ¹³²Sn + ¹²⁴Sn systems. Here, the effective mass is defined as the nucleon’s energy at zero momentum:

$$\begin{array}{ccc}\hfill & \hfill & \hfill m_n^{\left(eff\right)}=m_N^{★}+g_{\omega NN}\langle \omega \rangle -g_{\rho NN}\langle \rho \rangle \\ \hfill & \hfill & \hfill m_p^{\left(eff\right)}=m_N^{★}+g_{\omega NN}\langle \omega \rangle +g_{\rho NN}\langle \rho \rangle .\end{array}$$

(9)

Figure 2 demonstrates that, within our model, the proton mass decreases more rapidly than the neutron mass across all three cases with varying values of the chiral-invariant mass. This is because the Sn + Sn systems are neutron-rich, which leads to a negative $\rho$-meson mean-field value. It is also observed that the nucleon masses initially decrease and subsequently exhibit oscillatory behavior over time. This behavior originates from the time evolution of the baryon number densities shown in Figure 1 and reflects the distinctive in-medium nucleon mass properties of the parity doublet model [17]. For example, Figure 2 of Ref. [17] shows that the in-medium nucleon mass decreases up to approximately 1.2 times the saturation density and subsequently increases. This behavior is discussed in detail around Equation (14) of Ref. [17].

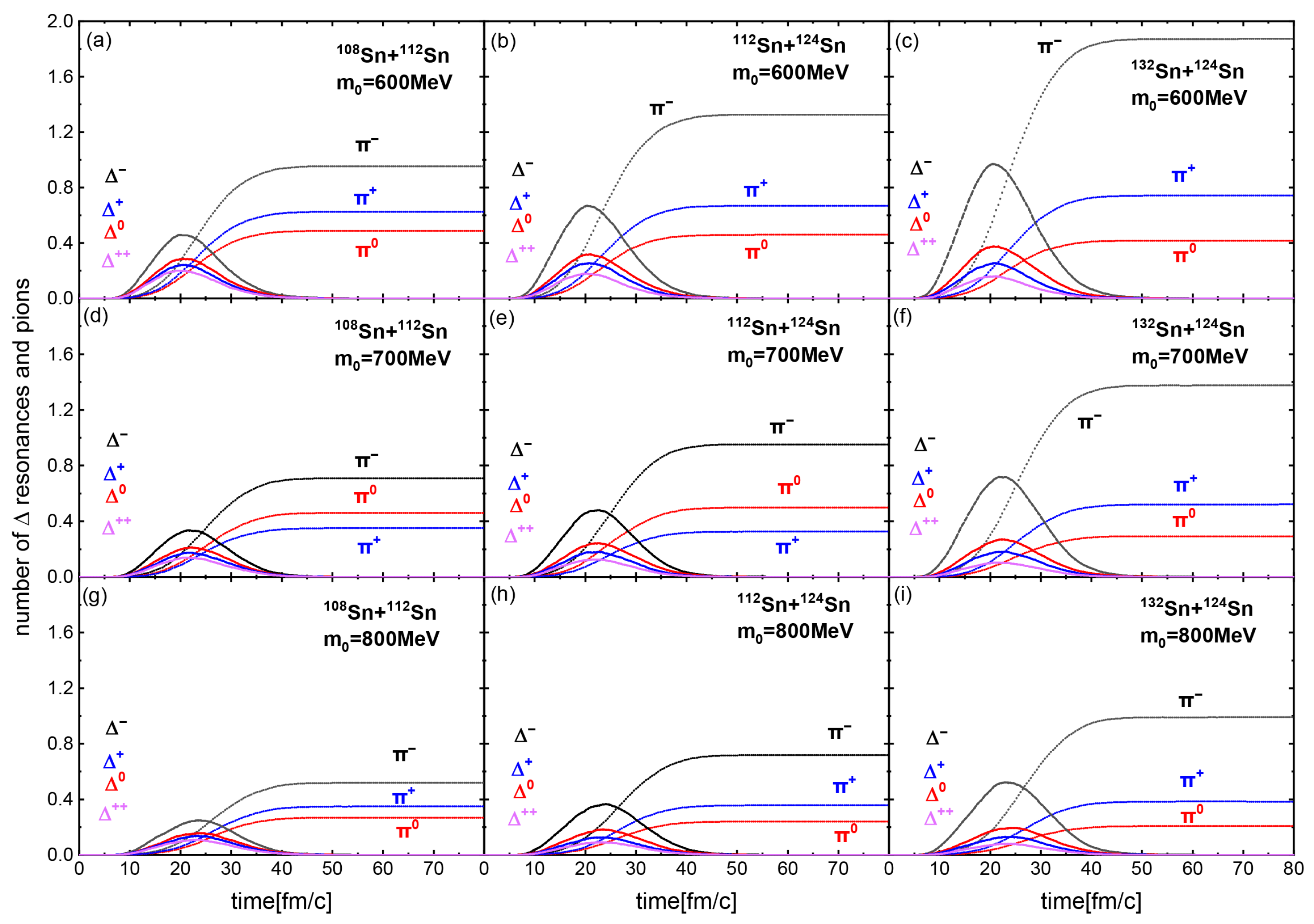

In Figure 3, we show the time evolution of the number of produced $\Delta$ resonances and pions for $m_0=600, 700,$ and 800 MeV in the ¹⁰⁸Sn + ¹¹²Sn, ¹¹²Sn + ¹²⁴Sn, and ¹³²Sn + ¹²⁴Sn systems. In each system, we observe that the number of produced particles decreases as $m_0$ increases. From Figure 1 and Figure 3, intuitively, one expects more $\Delta$ baryons are produced with a higher central density, but this is not the case in our study. As the $N/Z$ ratio of the system increases, more ${\pi }^{-}$ mesons are produced. This is because a higher neutron-to-proton ratio enhances the probability of production of ${\Delta }^{-}$ baryons through inelastic scatterings such as $n+n{\displaystyle \to }p+{\Delta }^{-}$, which predominantly decay into ${\pi }^{-}$.

In

Table 2. Pion multiplicities $Y\left({\pi }^{\pm }\right)$ and charged pion single-yield ratios SR(${\pi }^{-}/{\pi }^{+}$) of Sn + Sn collisions for $m_0=600,700,800$ MeV. The experimental data are from the SπRIT Experiment [26]. The values in parentheses denote the corresponding statistical uncertainties (error bars).

${\mathit{m}}_0$	132Sn + 124Sn			112Sn + 124Sn			108Sn + 112Sn
	$\mathit{Y}\left({\mathit{\pi }}^{-}\right)$	$\mathit{Y}\left({\mathit{\pi }}^{+}\right)$	SR	$\mathit{Y}\left({\mathit{\pi }}^{-}\right)$	$\mathit{Y}\left({\mathit{\pi }}^{+}\right)$	SR	$\mathit{Y}\left({\mathit{\pi }}^{-}\right)$	$\mathit{Y}\left({\mathit{\pi }}^{+}\right)$	SR
600	1.873	0.417	4.48	1.327	0.460	2.89	0.954	0.488	1.954
	(0.013)	(0.005)	(0.065)	(0.010)	(0.006)	(0.045)	(0.008)	(0.006)	(0.030)
700	1.375	0.293	4.696	0.952	0.326	2.919	0.709	0.351	2.019
	(0.011)	(0.005)	(0.087)	(0.010)	(0.005)	(0.054)	(0.007)	(0.005)	(0.034)
800	0.991	0.207	4.786	0.718	0.240	2.989	0.519	0.269	1.928
	(0.008)	(0.004)	(0.095)	(0.008)	(0.004)	(0.066)	(0.006)	(0.005)	(0.040)
Exp.	0.603	0.131	4.60	-	-	-	0.349	0.186	1.89
	(0.02)	(0.005)	(0.011)	-	-	-	(0.012)	(0.008)	(0.004)

, we list the pion yields and the charged pion yield ratios for ¹³²Sn + ¹²⁴Sn, ¹¹²Sn + ¹²⁴Sn, and ¹⁰⁸Sn + ¹¹²Sn compared with the SπRIT data [26].

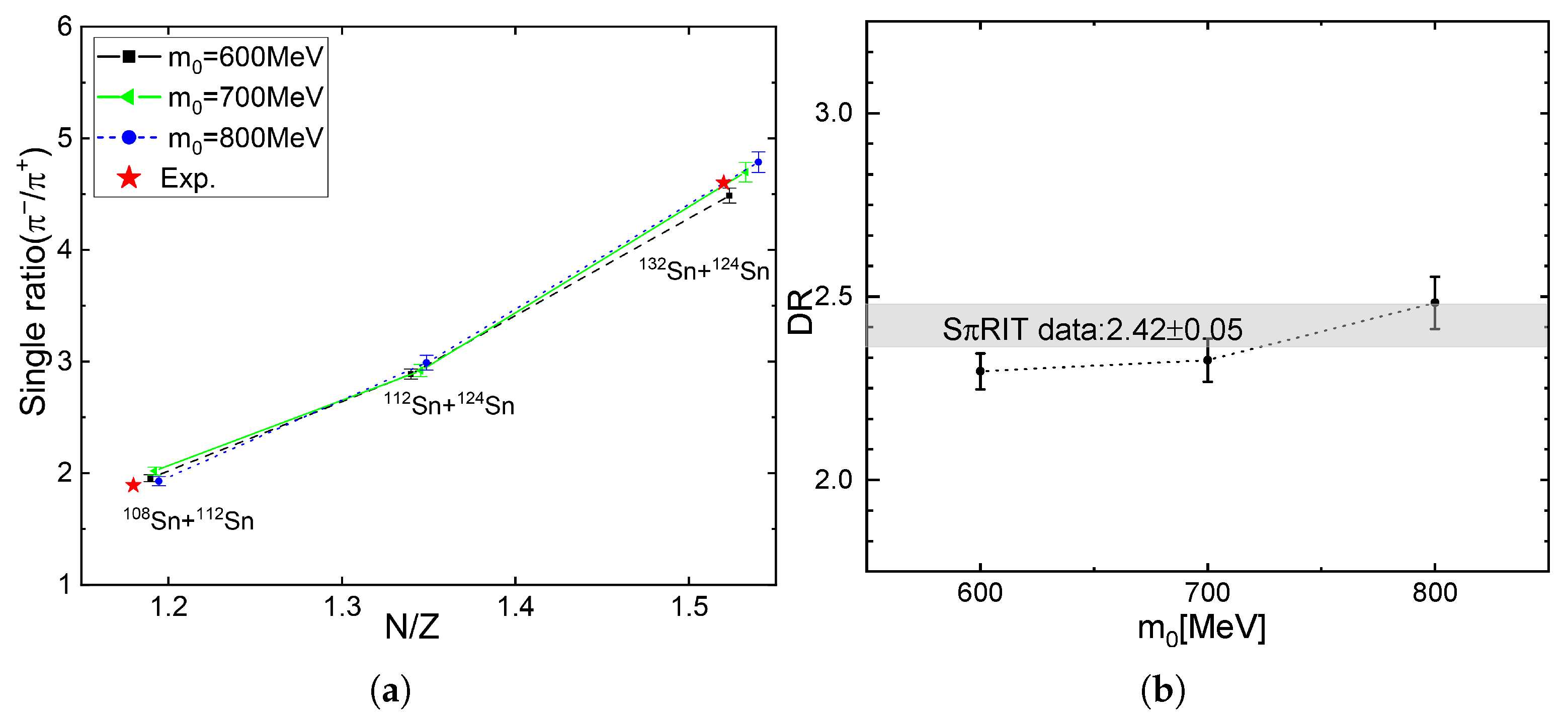

In Figure 4, the charged pion yield ratios as a function of N/Z, as well as the double-pion-yield ratio (DR) defined by [$Y\left({\pi }^{-}\right)/Y{\left({\pi }^{+}\right)}_{132+124}$]/[$Y\left({\pi }^{-}\right)/Y{\left({\pi }^{+}\right)}_{108+112}$] for three values of $m_0$, are displayed.

From Table 2 and Figure 4, we can see that the charged pion yield ratio for ¹³²Sn + ¹²⁴Sn lies within the error bars for three values of $m_0$, while for ¹⁰⁸Sn + ¹¹²Sn, the result with $m_0=700$ MeV falls outside the error bars. Similarly, for the DRs, the results with $m_0=600,700$ MeV fall slightly outside the error bars.

However, as in Table 2, although the multiplicity of the charged pion with $m_0=800$ MeV is closest to the experimental value, none of the three $m_0$ cases reproduce the experimental multiplicity. This can be improved by changing the parameters in the in-medium cross-section in Equation (8). Qualitatively, the ${\pi }^{-}/{\pi }^{+}$ yield ratio increases with decreasing pion multiplicity as expected, and the only exception of $m_0=800\mathrm{MeV}$ for Sn¹⁰⁸ + Sn¹¹² is likely due to statistics. On the other hand, the experimental data with a smaller pion multiplicity but a small ${\pi }^{-}/{\pi }^{+}$ yield ratio could be reproduced with $m_0=900\mathrm{MeV}$ but different isovector potentials, i.e., different $E_{\mathrm{sym}}$ and $m_{np}^{*}$.

From

Table 3. Pion multiplicities $Y\left({\pi }^{\pm }\right)$ and charged pion single-yield ratios SR(${\pi }^{-}/{\pi }^{+}$) of two Sn + Sn collisions for $m_0=600,700,800$ MeV and C = 3.0, 3.2.

C	${\mathit{m}}_0$	132Sn + 124Sn			108Sn + 112Sn
		$\mathit{Y}\left({\mathit{\pi }}^{-}\right)$	$\mathit{Y}\left({\mathit{\pi }}^{+}\right)$	SR	$\mathit{Y}\left({\mathit{\pi }}^{-}\right)$	$\mathit{Y}\left({\mathit{\pi }}^{+}\right)$	SR
3.0	600	1.328	0.269	4.937	0.633	0.394	1.606
		(0.030)	(0.016)	(0.322)	(0.017)	(0.018)	(0.086)
	700	0.915	0.174	5.258	0.482	0.222	2.171
		(0.027)	(0.016)	(0.058)	(0.010)	(0.012)	(0.126)
	800	0.719	0.124	5.798	0.349	0.173	2.017
		(0.027)	(0.013)	(0.65)	(0.015)	(0.011)	(0.156)
3.2	600	1.152	0.234	4.923	0.623	0.305	2.042
		(0.024)	(0.113)	(0.258)	(0.023)	(0.015)	(0.130)
	700	0.787	0.177	4.446	0.425	0.203	2.093
		(0.011)	(0.013)	(0.332)	(0.021)	(0.009)	(0.143)
	800	0.579	0.130	4.454	0.297	0.160	1.856
		(0.025)	(0.014)	(0.053)	(0.014)	(0.011)	(0.106)
Exp.	–	0.603	0.131	4.60	0.349	0.186	1.89
		(0.02)	(0.005)	(0.011)	(0.012)	(0.008)	(0.004)

, one can observe that varying the parameter C leads to noticeable changes in the pion multiplicities $Y\left({\pi }^{\pm }\right)$ and the charged pion single-yield ratios $\mathrm{SR}({\pi }^{-}/{\pi }^{+})$ for both reaction systems, ¹³²Sn + ¹²⁴Sn and ¹⁰⁸Sn + ¹¹²Sn. The results show that when $C=3.0$, the predicted values for the ¹⁰⁸Sn + ¹¹²Sn system are closer to the experimental data, whereas for $C=3.2$, the calculations for the neutron-rich ¹³²Sn + ¹²⁴Sn system exhibit a better agreement with experiment.

4. Summary

Using the extended parity doublet model [15] implemented in the DJBUU code, we studied pion production in the ¹⁰⁸Sn + ¹¹²Sn, ¹¹²Sn + ¹²⁴Sn, and ¹³²Sn + ¹²⁴Sn systems at a beam energy of $E_{\mathrm{beam}}=270$ A MeV with an impact parameter of 3 fm. We then compared our results with the SπRIT data [26]. The isospin-dependent in-medium cross-section [31] was employed in our calculations.

We used chiral-invariant mass values of 600, 700, and 800 MeV and found that the case with $m_0=800$ MeV best reproduces the experimental data [26], particularly the single- and double-pion-yield ratios. However, none of the three $m_0$ cases reproduces the experimental multiplicity, which may be improved by adjusting the parameters in the in-medium cross-section given in Equation (8). We also observed that a larger $m_0$ results in a higher maximum baryon density of nuclear matter produced during heavy-ion collisions, which is due to the reduction in the coupling constants $(g_1,g_2)$ and $g_{\omega NN}$, as $m_0$ increases.

As summarized in the Introduction, previous studies on dense matter, finite nuclei, and neutron stars have constrained the value of $m_0$ to lie within the range $600\mathrm{MeV}\lesssim m_0\lesssim 900\mathrm{MeV}$. Therefore, the value of the chiral-invariant mass constrained by pion production in heavy-ion collisions is consistent with these earlier findings.
