Delay Effects on Plant Stability and Symmetry-Breaking Pattern Formation in a Klausmeier-Gray-Scott Model of Semiarid Vegetation

Abstract

The Klausmeier–Gray–Scott model of vegetation dynamics consists of a system of two partial differential equations relating plant growth and soil water. It is capable of reproducing the characteristic spatial patterns of vegetation found in plant ecosystems under water limitations. Recently, a discrete delay was incorporated into this model to account for the lag between water infiltration into the soil and the following water uptake by plants. In this work, we consider a more ecologically realistic distributed delay to relate plant growth and soil water availability and analyse the effects of different delay types on the dynamics of both mean-field and spatial Klausmeier–Gray–Scott models. We consider distributed delays based on Gamma kernels and use the so-called linear chain trick to analyse the stability of the uniformly vegetated equilibrium. It is shown that the presence of delays can lead to the loss of stability in the constant equilibrium and to a reduction of the parameter region where steady-state vegetation patterns can arise through symmetry-breaking by diffusion-driven instability. However, these effects depend on the type of delay, and they are absent for distributed delays with weak kernels when vegetation mortality is low.

1. Introduction

Vegetation in dryland ecosystems may exhibit complex dynamics, with alternative stable states prone to critical transitions between them and spatial discontinuities, resulting in different types of characteristic vegetation patterns [1,2,3,4,5]. Abrupt transitions, the so-called catastrophic shifts, from stable vegetated states to alternative bare soil or desert states, may occur when a parameter in the system crosses a tipping point due to the presence of a positive amplifying feedback [1,6].

Different properties of vegetation patterns and spatial metrics have been suggested as indicators of approaching tipping points [6,7,8,9,10,11]. It has also been discussed how self-organising vegetation patterns might help evade tipping points and system collapse, thereby maintaining ecosystem functioning and enhancing drylands’ resilience to worsening environmental conditions [12,13].

Many diverse mathematical models have been proposed to simulate and help analyse pattern formation and vegetation dynamics in drylands, including discrete-space cellular automata models (e.g., [14,15,16]) and, most often, continuous-space models based on systems of reaction-diffusion partial differential equations (e.g., [3,17,18,19,20,21]). In these models, patterns may arise through symmetry-breaking by Turing instability, i.e, the amplification in time of small perturbations from the homogeneous vegetated stable state by diffusion-driven instability [22,23,24,25,26,27], leading to the emergence of non-homogeneous steady-state vegetation distributions that may exhibit different types of spatial symmetry.

The Klausmeier model [3] is a classical reference in dryland vegetation modelling. It can reproduce spatial patterns similar to those found in different semiarid ecosystems using a relatively simple system of two partial differential equations that relate plant biomass $\left(N\right)$ and soil water $\left(W\right)$ on a bidimensional slope. Water is added uniformly at a rate A and is lost due to evaporation at a rate $LW$. Plants take up water at a rate $RG\left(W\right)F\left(N\right)N$, where $G\left(W\right)$ and $F\left(N\right)$ correspond, respectively, to the functional response of plants to water and how the presence of vegetation increments water infiltration. Linear functions are assumed in the model for simplicity: $F\left(N\right)=N$ and $G\left(W\right)=W$. Water flows downhill in the X-direction at a speed V, and plant spreading is represented by a diffusion term with a diffusion coefficient D,

$$\left\{\begin{array}{ccc}\hfill {\displaystyle \frac{\partial W}{\partial T}}& =& A-LW-RW{N}^2+V{\displaystyle \frac{\partial W}{\partial X}},\hfill \\ \hfill {\displaystyle \frac{\partial N}{\partial T}}& =& JRW{N}^2-MN+D\left({\displaystyle \frac{{\partial }^2}{\partial X^2}}+{\displaystyle \frac{{\partial }^2}{\partial Y^2}}\right)N,\hfill \end{array}\right.$$

(1)

where M represents density-independent mortality and J is the yield of plant biomass from uptaken water.

This classical model was later analysed, modified, and extended in different aspects (e.g., [28,29,30,31,32,33,34,35,36,37]). In the case of flat terrains, the gradient term in (1) can be replaced with a second diffusion term with a different diffusion constant. The resulting model is known as the Klausmeier–Gray–Scott model since it is equivalent to a chemical reaction model previously proposed by Gray and Scott [38,39,40].

In nondimensionalized form, the model can be written in terms of only four parameters: a and m, representing water input and plant mortality, and two diffusion coefficients, $d_1$ and $d_2$, for water and plants. With new variables w and n, and transformed spatial and temporal variables, it reads

$$\left\{\begin{array}{ccc}\hfill w_t& =& a-w-w{n}^2+d_1\Delta \left(w\right),\hfill \\ \hfill n_t& =& w{n}^2-mn+d_2\Delta \left(n\right),\hfill \end{array}\right.$$

(2)

with adequate initial and boundary conditions on a given bounded region.

In a recent work [41], a discrete delay was introduced into this model to represent a lag in water infiltration,

$$\left\{\begin{array}{ccc}\hfill w_t& =& a-w-w{n}^2+d_1\Delta \left(w\right),\hfill \\ \hfill n_t& =& w(x,t-\tau )n(x,t-\tau )n-mn+d_2\Delta \left(n\right),\hfill \end{array}\right.$$

(3)

which can be interpreted as plant growth being dependent on the water taken up by the plant at a fixed previous $\tau$-lagged time. However, from a functional perspective, it seems more realistic to consider that plant growth would not be exclusively determined by water infiltrating instantly, either at the moment or in a certain previous time, but rather by water availability during a certain period. This could be represented by a weight function indicating how the importance for plant growth of previous water uptake changes with time, vanishing in the long term. Hence, in this paper, we consider a Klausmeier–Gray–Scott model with a distributed delay for soil water availability.

In the next section, we present the different models under study and analyse the stability of the vegetated equilibrium in both the full spatial models and the corresponding mean-field, non-spatial systems of ordinary differential equations. By considering distributed delays based on Gamma kernels and using the so-called linear chain trick [42,43], we will focus on the effects of the different delay types on the Turing space, i.e., the region of parameters where the onset of non-uniform steady-state patterned solutions is possible, with a more detailed analysis of the possibly more realistic case of a weak kernel of exponentially decaying lagging effects. The main conclusions are summarised and discussed in the last section.

We would like to emphasise the main contributions of this work: the introduction of a distributed delay in the dependence of plant growth on water uptake, which represents a more realistic situation than either instantaneous responses or fixed lag effects, and the results obtained in the next section showing how the type of delay may affect the stability of the homogeneous vegetated equilibrium in different ways. Specifically, there are no effects for an exponentially distributed delay at low mortality values, and the only effect on the onset of Turing instability is the shrinking of the Turing space.

2. Models and Results

2.1. Models without Delay

We first consider the stability properties of the original models without delay. While most results have already been discussed in the literature, we mainly summarise them without derivation. However, in different works, the analysis has usually been limited to certain ranges of the mortality parameter m or with slightly different nondimensionalized forms of the original model. For the sake of readability, we present the results for general values of mortality, along with schematic proofs to fix notations and to introduce expressions that are referred to below when analysing the models with delay.

2.1.1. Non-Spatial Model

The mean-field, non-spatial model corresponding to system (2) is given by the ordinary differential equation system

$$\left\{\begin{array}{ccc}\hfill w_t& =& a-w-w{n}^2,\hfill \\ \hfill n_t& =& w{n}^2-mn.\hfill \end{array}\right.$$

(4)

This system has one, two, or three equilibria, depending on whether $a<2m$, $a=2m$, or $a>2m$, which are also the spatially uniform equilibria of (2). When $a<2m$, the only equilibrium is $P_0=\left(a,0\right)$, the desert state, which is always stable. When $a>2m$, there are two more equilibria,

$$P_1=\left(\frac{a+\sqrt{a^2-4m^2}}{2},\frac{a-\sqrt{a^2-4m^2}}{2m}\right)$$

and

$$P_2=\left(\frac{a-\sqrt{a^2-4m^2}}{2},\frac{a+\sqrt{a^2-4m^2}}{2m}\right),$$

where $P_1$ is always unstable. These two vegetated equilibria coincide when $a=2m$ at the point $P_{12}=\left(m,1\right)$, which is unstable and where the system undergoes a fold bifurcation. Detailed stability analyses of these equilibria can be found in previous works (e.g., [36,37,41]).

We focus on the conditions for stability of $P_2$, the uniformly vegetated state, summarised in the next lemma.

Lemma 1.

Consider system (4) with $a>2m$. The vegetated equilibrium $P_2$ is stable if $m\le 2$ or if $m>2$ and $a>a_c$, where

$$a_c=\frac{m^2}{\sqrt{m-1}},$$

(5)

and it is unstable otherwise.

Proof.

The linearised system at the equilibrium $(w_{*},n_{*})$ is given by

$$\begin{array}{ccc}\hfill w_t& =& -\left(1+n_{*}^2\right)w\left(t\right)-2w_{*}{n}_{*}n\left(t\right),\hfill \\ \hfill n_t& =& n_{*}^{2}w\left(t\right)+\left(2n_{*}{w}_{*}-m\right)n\left(t\right).\hfill \end{array}$$

At the equilibrium $P_2$, one has

$$n_{*}=\frac{a+\sqrt{a^2-4m^2}}{2m}$$

(6)

and $w_{*}{n}_{*}=m$. Thus, the characteristic equation is

$$p\left(\lambda \right)={\lambda }^2+\left(1+n_{*}^2-m\right)\lambda +m\left(n_{*}^2-1\right)=0.$$

(7)

Since $n_{*}>1$, the only condition for all roots of (7) to have negative real parts is

$$1+n_{*}^2-m>0,$$

(8)

which is immediately satisfied when $m\le 2$, whereas for $m>2$, from (6), it is equivalent to $a>a_c$, as given in (5). □

The results of Lemma 1 are presented in Figure 1, showing the regions of stability and instability of $P_2$ in the $(m,a)$-parameter space.

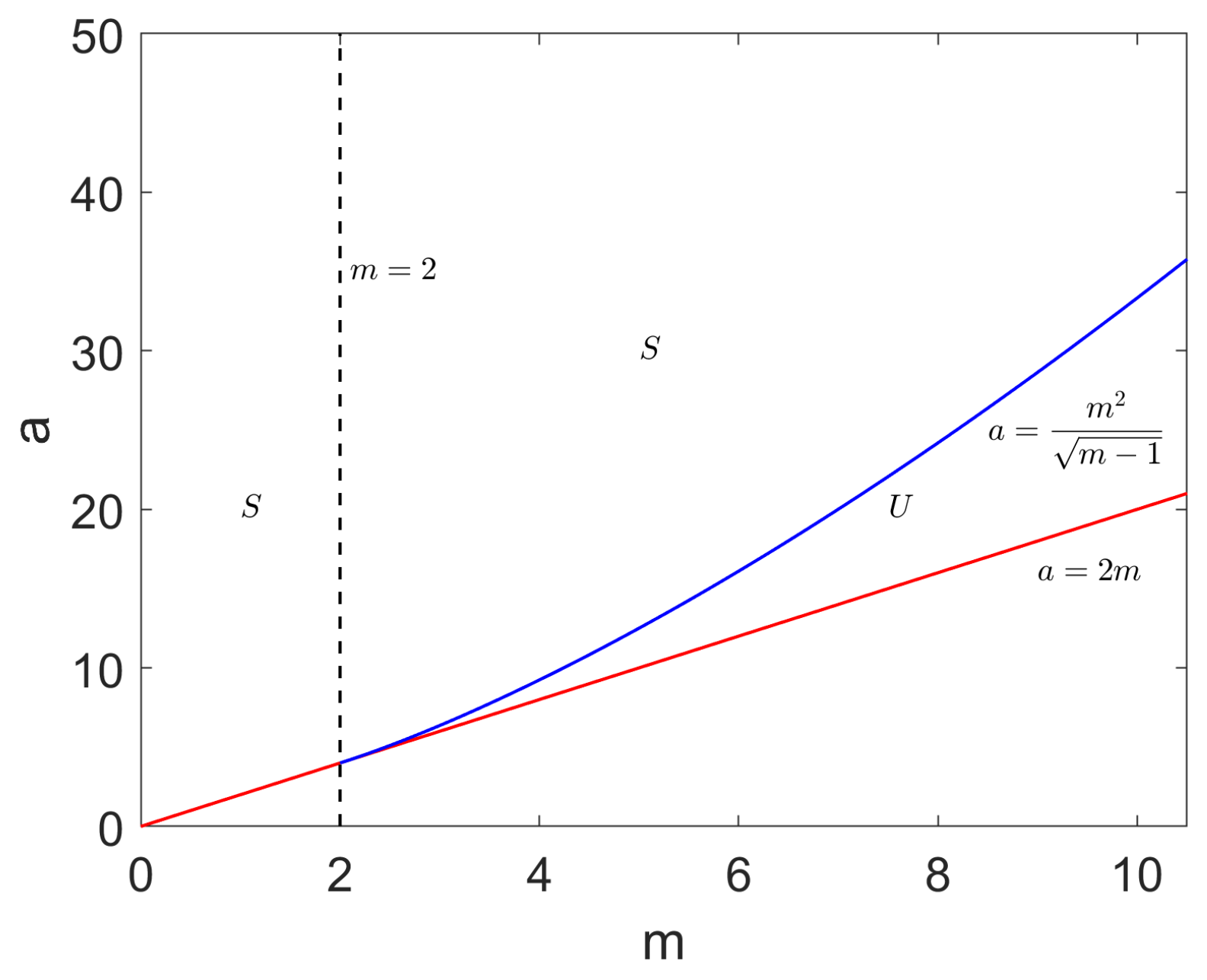

Figure 1. Regions of stability (S) and instability (U) for the vegetated equilibrium $P_2$ in the non-spatial model (4).

As recalled in the next lemma, there is a Hopf bifurcation at the critical value $a_c$ (see (Theorem 2.1 in [37])).

Lemma 2.

Consider system (4) with $a>2m$. For $m>2$, the system undergoes a Hopf bifurcation at $a=a_c$.

Figure 2 shows a phase portrait and a bifurcation diagram illustrating the results in Lemmas 1 and 2. For $m>2$, local perturbations of $P_2$ lead the system to either $P_2$ or to the desert state $P_0$, depending on whether a is greater or lower than the critical value $a_c$, respectively.

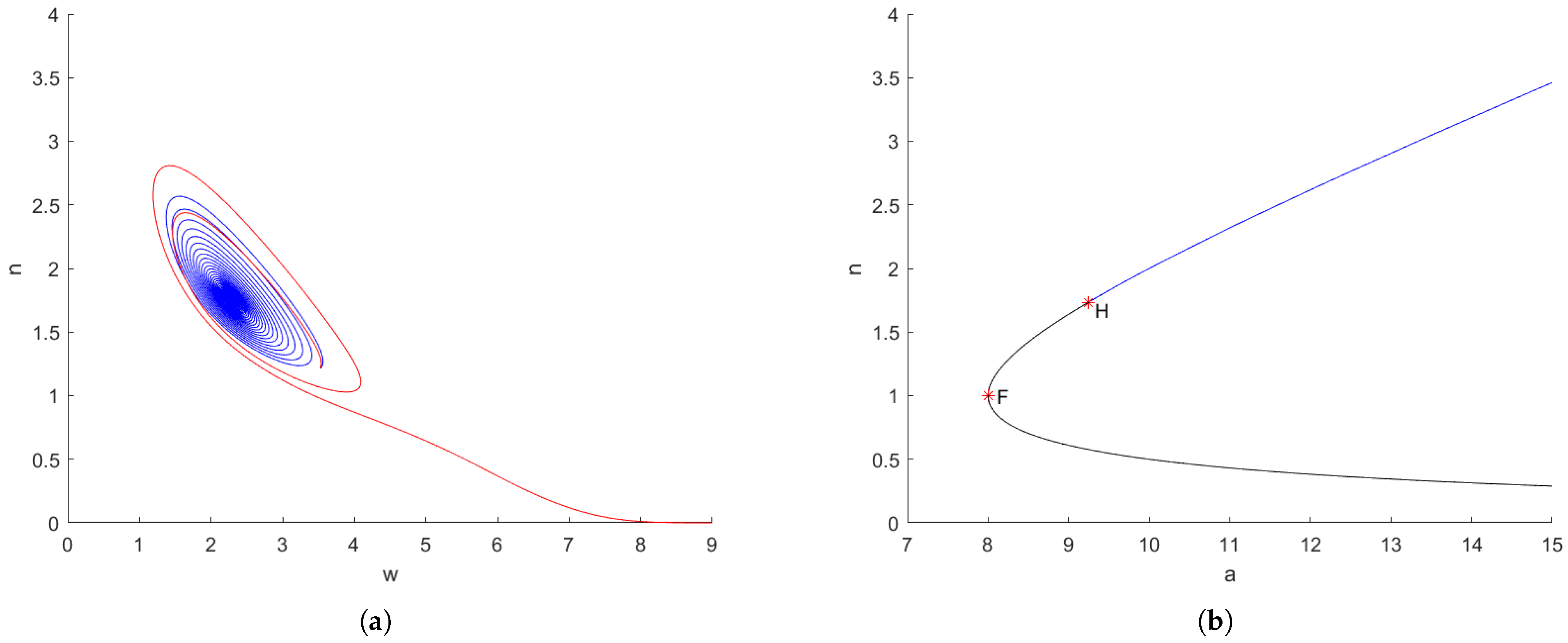

Figure 2. Phase portrait (a, left) and bifurcation diagram (b, right) of system (3) with $m=4$, where $a_c\approx 9.24$. (a) Evolution of the system from $w\left(0\right)=3.5$ and $n\left(0\right)=1.2$ with $a=9.3$ (blue) and $a=9.1$ (red). (b) Stable (blue) and unstable (grey) positive vegetation equilibria and bifurcation points (H: Hopf bifurcation at $a=a_c$; F: Fold bifurcation at $a=2m$).

2.1.2. Spatial Model

To analyse the spatial model (2), the problem has to be defined in a given domain with appropriate boundary conditions. For simplicity, we consider the one-dimensional case, with the domain being the interval $[0,\pi ]$ and Neumann no-flux boundary conditions,

$$w_x(0,t)=n_x(0,t)=w_x(\pi ,t)=n_x(\pi ,t)=0,t\ge 0.$$

(9)

However, the problem in a general domain $\Omega$, usually in $\mathbb{R}$ or ${\mathbb{R}}^2$, can be dealt with similarly by considering the corresponding spatial eigenvalue problem [25]. A stability analysis of (2) in a general domain for $m<2$ was presented in [36]. In a general interval $[0,l\pi ]$ for $m>2$, with a slightly different nondimensionalized form of (1), a stability analysis was presented in [37].

Linearising system (2) at the equilibrium $(w_{*},n_{*})$ and considering perturbations of the form ${\mathrm{e}}^{\lambda t}cos\left(k\pi \right)$, according to the Neumann boundary conditions, where k is the wavenumber, and writing ${\mu }_k=k^2$ one obtains the set of characteristics equations

$$p_k\left(\lambda \right)={\lambda }^2+S_k^1\lambda +S_k^2=0,$$

(10)

with $S_k^1=\left(d_1+d_2\right){\mu }_k+1+n_{*}^2-m$, and

$$S_k^2=d_1{d}_2{\mu }_k^2+\left(d_2\left(1+n_{*}^2\right)-d_{1}m\right){\mu }_k+m\left(n_{*}^2-1\right).$$

(11)

We focus on the conditions for Turing instability to occur, that is, the conditions for the uniformly vegetated equilibrium $P_2$ to be stable in the non-spatial model and unstable in the spatial one [25]. These conditions are given in the next lemma.

Lemma 3.

Consider system (2) with $a>2m$, and assume that the equilibrium $P_2$ is stable in the non-spatial system (4). Then, writing $r=d_1/d_2$, the spatially uniform equilibrium $P_2$ is unstable if and only if

$$r>r_c=\frac{3n_{*}^2-1+2n_{*}\sqrt{2(n_{*}^2-1)}}{m}$$

(12)

and there exists $k\ge 1$ such that

$$l^{-}\le k^2\le l^{+},$$

(13)

where

$$l^{\mp }=\frac{(rm-1-n_{*}^2)\mp \sqrt{{(rm-1-n_{*}^2)}^2-4rm(n_{*}^2-1)}}{2d_1}.$$

(14)

Proof.

For $k=0$, the characteristic Equation (10) reduces to that of the non-spatial problem (7). Thus, since we are assuming that $P_2$ is stable in (4), one has that $S_0^1$ and $S_0^2$ are both positive. Since $S_0^1>0$ implies that $S_k^1>0$ for all k, the system is unstable at $P_2$ if and only if $S_k^2$ is negative, and for this to happen, one must have

$$d_2\left(1+n_{*}^2\right)-d_{1}m<0,$$

that is,

$$r=\frac{d_1}{d_2}>\frac{1+n_{*}^2}{m},$$

(15)

and

$${\left(d_2\left(1+n_{*}^2\right)-d_{1}m\right)}^2-4d_1{d}_{2}m\left(n_{*}^2-1\right)>0,$$

or, equivalently,

$$m^{2}r-2m(3n_{*}^2-1)r-{(1+n_{*}^2)}^2>0,$$

(16)

which holds when r satisfies (12) or when

$$0\le r<\frac{3n_{*}^2-1-2n_{*}\sqrt{2(n_{*}^2-1)}}{m},$$

but in the latter case, condition (15) is not satisfied. Since $n_{*}>1$ for $P_2$, one has

$$\frac{3n_{*}^2-1-2n_{*}\sqrt{2(n_{*}^2-1)}}{m}<\frac{1+n_{*}^2}{m}<\frac{3n_{*}^2-1+2n_{*}\sqrt{2(n_{*}^2-1)}}{m},$$

and therefore both (15) and (16) are fulfilled if and only if condition (12) holds.

Besides condition (12), to ensure that $S_k^2$ is negative, since $\left\{{\mu }_k\right\}=\left\{k^2\right\}$ is a discrete sequence, it must also hold that some ${\mu }_k$ lies between the two positive roots of the second-order equation

$$d_1{d}_2{\mu }^2+\left(d_2\left(1+n_{*}^2\right)-d_{1}m\right)\mu +m\left(n_{*}^2-1\right)=0,$$

which are given by $l^{\mp }$ in (14). □

Remark 1.

If $rm-1-n_{*}^2$ is sufficiently small, there is no wavenumber satisfying (13), and the spatially homogeneous equilibrium is stable. Thus, as is well known [25], pattern formation by diffusion-driven instability requires the ratio r of diffusion coefficients to be sufficiently high. This is to be expected in real situations since water diffusion, with coefficient $d_1$, is expected to be higher than the spread of plants represented by their diffusion term, with coefficient $d_2$. When Turing instability occurs, the eigenfunctions corresponding to the set of wavenumbers satisfying (13) determine the spatially heterogeneous, patterned, steady-state solution.

2.2. Models with Distributed Delay

Now, in (2), we introduce a distributed delay in the product $wn$, corresponding to water uptake by unit plant biomass, to account for the dependence of plant growth on previously available water,

$$\left\{\begin{array}{ccc}\hfill w_t& =& a-w(x,t)-w(x,t)n{(x,t)}^2+d_1\Delta \left(w\right),\hfill \\ \hfill n_t& =& n(x,t){\int }_{-\infty }^t{g}_{\alpha }^p\left(t-s\right)w\left(x,s\right)n\left(x,s\right)ds-mn(x,t)+d_2\Delta \left(n\right),\hfill \end{array}\right.$$

(17)

where $g_{\alpha }^p$ is a Gamma-distributed kernel,

$$\begin{array}{c}\hfill g_{\alpha }^p\left(t\right)=\frac{\alpha }{\Gamma \left(p\right)}{\left(\alpha t\right)}^{p-1}{e}^{-\alpha t}.\end{array}$$

This kernel depends on two parameters, $p\in {\mathbb{Z}}^{+}$ and $\alpha >0$, where the average delay is $p/\alpha$ with variance $p/{\alpha }^2$. Thus, to represent a mean delay $\tau$, we can take $\alpha =p/\tau$, with variance $\tau /p$. In this way, increasing p concentrates the distribution more around $\tau$, approaching the model with discrete delay (3) as p tends to infinity (Figure 3).

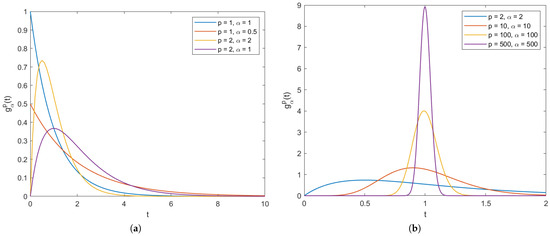

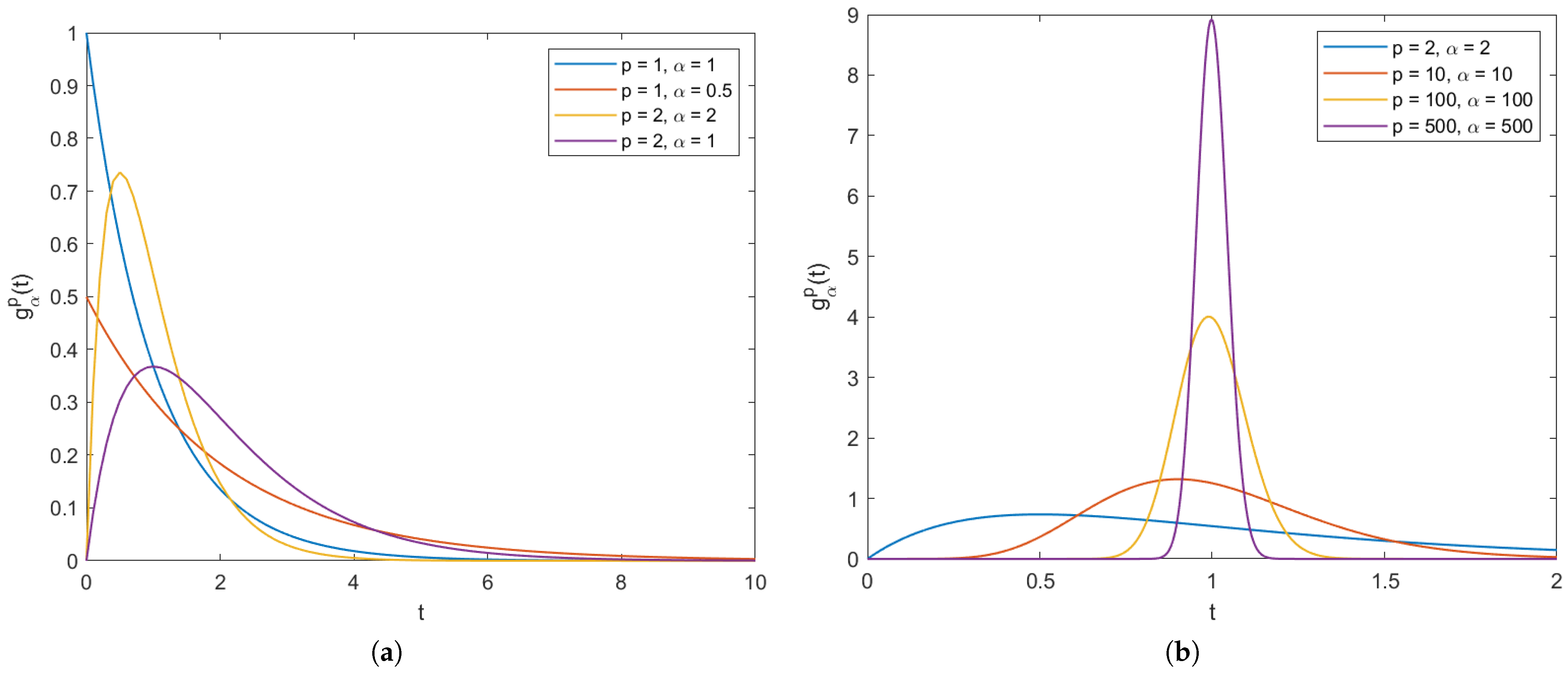

Figure 3. Gamma kernels with different parameter values. (a) Weak ($p=1$) and strong ($p=2$) kernels with different variances $p/{\alpha }^2$. (b) Gamma kernels with equal means and decreasing variances for increasing p values.

We analyse in more detail the case of a weak kernel, $p=1$, where the effect on plant growth of previous water uptake decays exponentially, as it is likely the most realistic case. However, we also discuss the differences with more concentrated weight distributions, strong kernels with $p>1$, with a specific analysis of the case $p=2$.

2.2.1. Non-Spatial Model with a Weak Kernel

It is clear that (17) and (2) have the same constant equilibria, as well as (4) and the non-spatial model corresponding to (17),

$$\left\{\begin{array}{ccc}\hfill w_t& =& a-w\left(t\right)-w\left(t\right)n{\left(t\right)}^2,\hfill \\ \hfill n_t& =& n\left(t\right){\int }_{-\infty }^t{g}_{\alpha }^p\left(t-s\right)w\left(s\right)n\left(s\right)ds-mn\left(t\right).\hfill \end{array}\right.$$

(18)

To analyse the stability of $P_2$, we use the so-called linear chain trick [42,43]. For $p=1$, we introduce one new variable,

$$z\left(t\right)={\int }_{-\infty }^t{g}_{\alpha }^1(t-s)w\left(s\right)n\left(s\right)ds,$$

and consider the extended system

$$\left\{\begin{array}{ccc}\hfill w_t& =& a-w\left(t\right)-w\left(t\right)n{\left(t\right)}^2,\hfill \\ \hfill n_t& =& n\left(t\right)z\left(t\right)-mn\left(t\right),\hfill \\ \hfill z_t& =& \alpha \left(w\left(t\right)n\left(t\right)-z\left(t\right)\right).\hfill \end{array}\right.$$

(19)

If $P=(w_{*},n_{*})$ is an equilibrium of (18), then $P=(w_{*},n_{*},w_{*}{n}_{*})$ is the corresponding equilibrium in (19), and we drop the third component in what follows. The next theorem states the conditions for the uniform equilibrium $P_2$ to be stable in (19).

Theorem 1.

Consider system (19) with $a>2m$. The vegetated equilibrium $P_2$ is stable independently of α if $m\le 2$ or if $m>2$ and $a>a_c^{\alpha }=m\sqrt{2m}$, and it is unstable if $m>2$ and $a<a_c$, as defined in (5).

When $m>2$ and $a_c<a<a_c^{\alpha }$, the stability depends on the value of α, being stable for $\alpha >{\alpha }_c$ and unstable for $\alpha <{\alpha }_c$, where

$${\alpha }_c=\frac{2m{n}_{*}^2-{\left(n_{*}^2+1\right)}^2}{1+n_{*}^2-m}.$$

(20)

Proof.

The linearised system of (19) at the equilibrium $P=(w_{*},n_{*},w_{*}{n}_{*})$ is given by

$$\left\{\begin{array}{ccc}\hfill w_t& =& -(1+n_{*}^2)w\left(t\right)-2w_{*}{n}_{*}n\left(t\right),\hfill \\ \hfill n_t& =& (w_{*}{n}_{*}-m)n\left(t\right)+n_{*}z\left(t\right),\hfill \\ \hfill z_t& =& \alpha n_{*}w\left(t\right)+\alpha w_{*}n\left(t\right)-\alpha z\left(t\right).\hfill \end{array}\right.$$

(21)

Thus, at $P_2$, where $w_{*}{n}_{*}=m$, one obtains the characteristic equation

$$p^{\alpha }\left(\lambda \right)={\lambda }^3+\left(1+n_{*}^2+\alpha \right){\lambda }^2+\alpha \left(1+n_{*}^2-m\right)\lambda +\alpha m\left(n_{*}^2-1\right)=0.$$

(22)

Note that writing $q^{\alpha }\left(\lambda \right)=\frac{1}{\alpha }{p}^{\alpha }\left(\lambda \right)$, one has ${lim}_{\alpha \to +\infty }{q}^{\alpha }\left(\lambda \right)=p\left(\lambda \right)$, as given in (7) for the non-spatial model without delay.

Since $n_{*}>1$ at $P_2$, the conditions for all the roots of (22) to have negative real parts are $1+n_{*}^2-m>0$, i.e., condition (8), which holds when $m\le 2$ or when $m>2$ and $a>a_c$, and

$$\left(1+n_{*}^2+\alpha \right)\alpha \left(1+n_{*}^2-m\right)-\alpha m\left(n_{*}^2-1\right)>0.$$

(23)

When $m\le 2$, condition (23) is satisfied independently of $\alpha$ since

$$\begin{array}{c}\hfill \left(1+n_{*}^2+\alpha \right)\left(1+n_{*}^2-m\right)-m\left(n_{*}^2-1\right)\ge \left(1+n_{*}^2+\alpha -m\right)\left(n_{*}^2-1\right)>0.\end{array}$$

For $m>2$, condition (23) might be dependent on $\alpha$. Since $\alpha >0$, it is equivalent to

$$\alpha >\frac{m\left(n_{*}^2-1\right)}{1+n_{*}^2-m}-\left(1+n_{*}^2\right)=\frac{2m{n}_{*}^2-{\left(1+n_{*}^2\right)}^2}{1+n_{*}^2-m},$$

(24)

that is, $\alpha >{\alpha }_c$, as defined in (20), which holds for any value of $\alpha$ if ${\alpha }_c\le 0$.

Taking into account the expression of $n_{*}$ in terms of a and m in $P_2$, (6), with some algebraic manipulation, it can be checked that ${\alpha }_c>0\iff a<a_c^{\alpha }=m\sqrt{2m}$. □

Figure 4 shows the region in the $(m,a)$-parameter space where the stability of $P_2$ depends on the value of $\alpha$, $C\left(\alpha \right)=\left\{(m,a)\right|m>2,a_c<a<a_c^{\alpha }\}$, as given in Theorem 1.

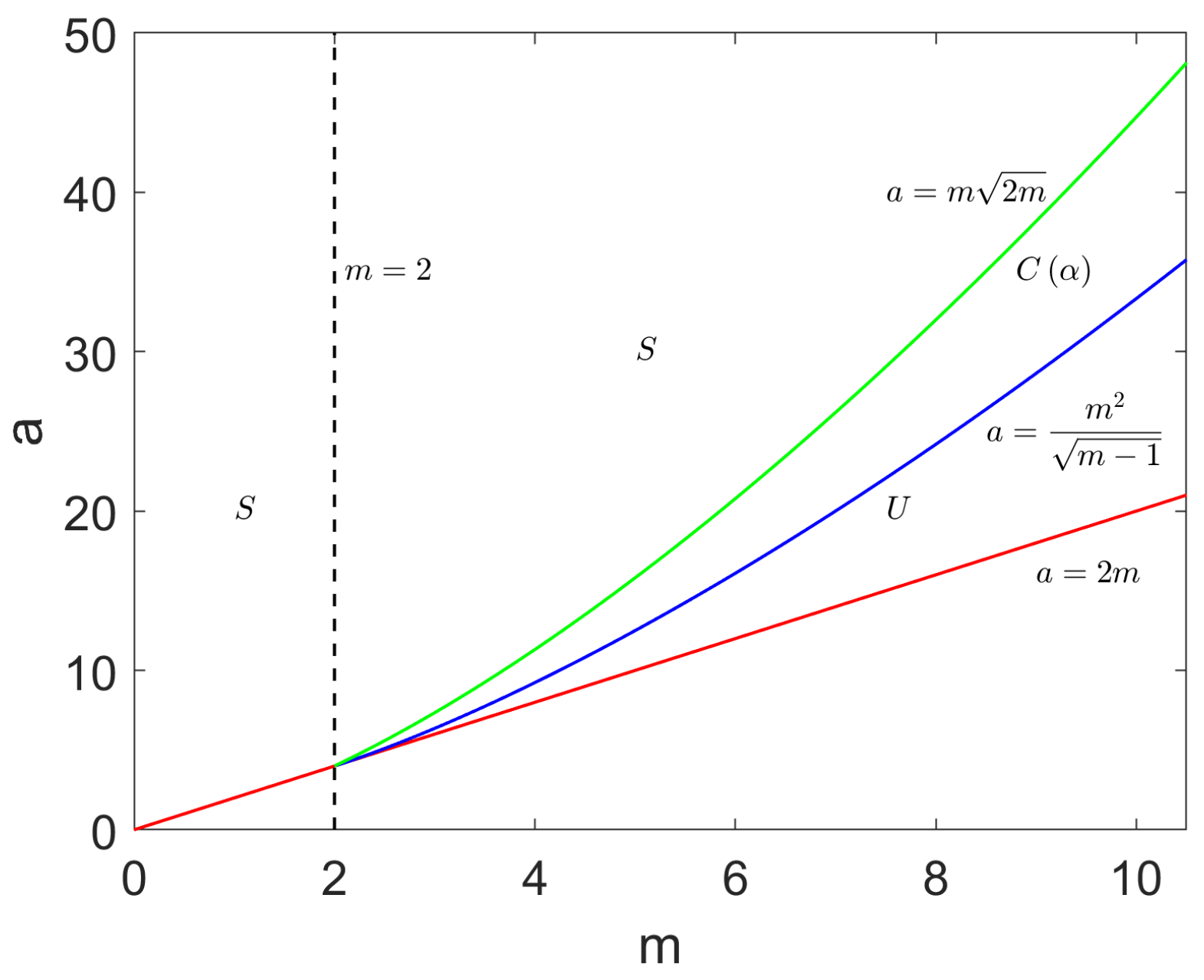

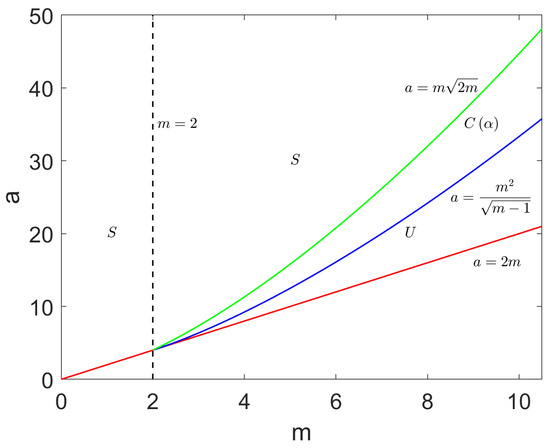

Figure 4. Regions of stability (S) and instability (U) for the vegetated equilibrium $P_2$ in the non-spatial model with distributed delay (18), with $p=1$. In the region $C\left(\alpha \right)$, the stability is conditional on the value of $\alpha$, as given in Theorem 1.

As shown in the next theorem, when the stability of $P_2$ depends on $\alpha$, there is a Hopf bifurcation at $\alpha ={\alpha }_c$.

Theorem 2.

Consider system (19) with $m>2$ and $a_c<a<a_c^{\alpha }$. The system undergoes a Hopf bifurcation at $\alpha ={\alpha }_c$.

Proof.

When $\alpha ={\alpha }_c$ the characteristic Equation (22) has one pair of conjugate pure imaginary roots, ${\lambda }_{1,2}=\pm i\sqrt{{\alpha }_c\left(1+n_{*}^2-m\right)}$, and one real negative root, ${\lambda }_3=-\left(1+n_{*}^2+{\alpha }_c\right)$. To check the transversality condition for a Hopf bifurcation to exist, write (22) in the form

$${\lambda }^3+\left(1+n_{*}^2\right){\lambda }^2+\alpha q\left(\lambda \right)=0,$$

(25)

where

$$\begin{array}{c}\hfill q\left(\lambda \right)={\lambda }^2+\left(n_{*}^2-m+1\right)\lambda +m\left(n_{*}^2-1\right).\end{array}$$

Differentiating with respect to $\alpha$ in (25), one has

$$\begin{array}{c}\hfill \left(3{\lambda }^2+\left(1+n_{*}^2\right)2\lambda +\alpha q^{\prime }\left(\lambda \right)\right)\frac{d\lambda }{d\alpha }=-q\left(\lambda \right),\end{array}$$

so

$$\begin{array}{c}\hfill {\left(\frac{d\lambda }{d\alpha }\right)}^{-1}=-\frac{3{\lambda }^2+\left(1+\alpha +n_{*}^2\right)2\lambda +\alpha \left(n_{*}^2-m+1\right)}{q\left(\lambda \right)}.\end{array}$$

(26)

For $\lambda ={\lambda }_1=i\sqrt{{\alpha }_c\left(n_{*}^2-m+1\right)}$, one has

$$q\left({\lambda }_1\right)=\left(n_{*}^2-m+1\right)\left(n^2+1+i\sqrt{2m{n}_{*}^2-{\left(n_{*}^2+1\right)}^2}\right),$$

and

$$\begin{array}{c}\hfill q\left({\lambda }_1\right)\left(n^2+1-i\sqrt{2m{n}_{*}^2-{\left(n_{*}^2+1\right)}^2}\right)=\left(n_{*}^2-m+1\right)2m{n}_{*}^2.\end{array}$$

(27)

Writing $s\left(\lambda \right)$ for the numerator of (26), for $\alpha ={\alpha }_c$, one has

$$\begin{array}{c}\hfill s\left({\lambda }_1\right)=2\left({\left(n_{*}^2+1\right)}^2-2m{n}_{*}^2\right)+i\frac{2m\left(n_{*}^2-1\right)}{n_{*}^2-m+1}\sqrt{2m{n}_{*}^2-{\left(n_{*}^2+1\right)}^2},\end{array}$$

so

$$\begin{array}{c}\hfill \Re \left(s\left({\lambda }_1\right)\left(n^2+1-i\sqrt{2m{n}_{*}^2-{\left(n_{*}^2+1\right)}^2}\right)\right)=\frac{2{\left({\left(n_{*}^2+1\right)}^2-2m{n}_{*}^2\right)}^2}{n_{*}^2-m+1}.\end{array}$$

(28)

Hence, from (26)–(28), one obtains

$$\begin{array}{c}\hfill \Re {\left({\left.\frac{d\lambda }{d\alpha }\right|}_{\alpha ={\alpha }_c}\right)}^{-1}=-\frac{{\left({\left(n_{*}^2+1\right)}^2-2m{n}_{*}^2\right)}^2}{m{n}_{*}^2{\left(n_{*}^2-m+1\right)}^2}<0.\end{array}$$

□

Figure 5 illustrates the results of Theorems 1 and 2. For the example in this figure, with $m=6$, one has $a_c\approx 16.10$ and $a_c^{\alpha }\approx 20.78$. Thus, $a_c<a=18<a_c^{\alpha }$, and the stability of $P_2$ depends on $\alpha$ being greater or lower than the critical value defined in Theorem 1, ${\alpha }_c\approx 11.09$. The equilibrium values at $P_2$ are $n_{*}\approx 2.62$ and $w_{*}\approx 2.29$, with the system converging to the equilibrium under small perturbations when $\alpha >{\alpha }_c$ (Figure 5a). For $\alpha <{\alpha }_c$, the equilibrium $P_2$ is unstable, and the system oscillates with increasing amplitudes for decreasing $\alpha$ values (Figure 5b,c), converging to the desert state $P_0$ for lower $\alpha$ values (Figure 5d), corresponding to larger mean delays.

Remark 2.

Considering the linearised system (21) at the corresponding equilibria, it is not difficult to see that $P_0$ is always stable and $P_1$ is always unstable, with no effect of the distributed delay on their stability.

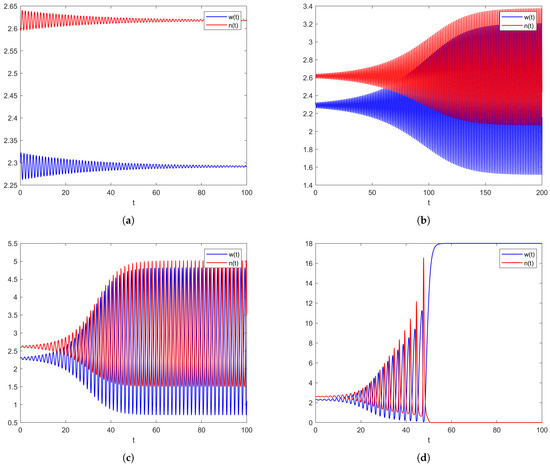

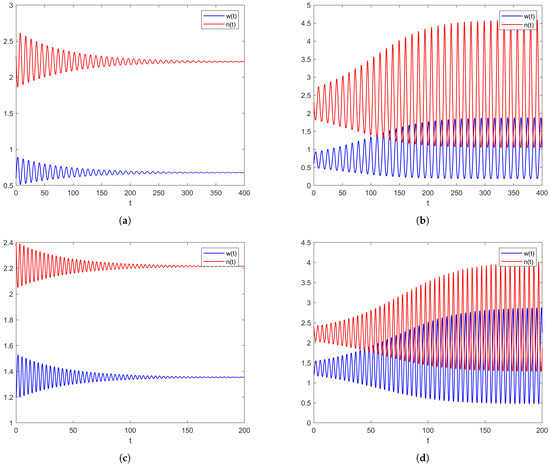

Figure 5. Evolution of the system with distributed delay (18) with $p=1$, from initial values close to the vegetated equilibrium $P_2$, with parameters $m=6$ and $a=18$, for decreasing values of $\alpha$. (a) $\alpha =1.1{\alpha }_c$. (b) $\alpha =0.9{\alpha }_c$. (c) $\alpha =0.6{\alpha }_c$. (d) $\alpha =0.4{\alpha }_c$.

2.2.2. Spatial Model with a Weak Kernel

Now, we introduce into (2) the new variable

$$z(x,t)={\int }_{-\infty }^t{g}_{\alpha }^1(t-s)w(x,s)n(x,s)ds,$$

and the linearised extended system at the equilibrium $P=(w_{*},n_{*},w_{*}{n}_{*})$ is given by

$$\left\{\begin{array}{ccc}\hfill w_t& =& -(1+n_{*}^2)w(x,t)-2w_{*}{n}_{*}n(x,t)+d_1\Delta \left(w\right),\hfill \\ \hfill n_t& =& (w_{*}{n}_{*}-m)n(x,t)+n_{*}z(x,t)+d_2\Delta \left(n\right),\hfill \\ \hfill z_t& =& \alpha n_{*}w(x,t)+\alpha w_{*}n(x,t)-\alpha z(x,t).\hfill \end{array}\right.$$

(29)

Considering perturbations as in the spatial model without delay, and with ${\mu }_k=k^2$, one obtains the set of characteristics equations

$$p_k^{\alpha }\left(\lambda \right)={\lambda }^3+l_k^1{\lambda }^2+l_k^2\lambda +l_k^3,$$

(30)

with

$$l_k^1=\left(d_1+d_2\right){\mu }_k+1+n_{*}^2+\alpha ,$$

(31)

$$l_k^2=d_1{d}_2{\mu }_k^2+d_2\left(1+n_{*}^2\right){\mu }_k+\alpha S_k^1,$$

(32)

and $l_k^3=\alpha S_k^2$, where $S_k^1$ and $S_k^2$ are the coefficients of the spatial model without delay (18). We note that by letting $q_k^{\alpha }\left(\lambda \right)=\frac{1}{\alpha }{p}_k^{\alpha }\left(\lambda \right)$, one has ${lim}_{\alpha \to +\infty }{q}_k^{\alpha }\left(\lambda \right)=p_k\left(\lambda \right)$, and the characteristic equation of the spatial model without delay is recovered.

As shown in the next theorem, when the non-spatial model with delay is stable, the conditions for Turing instability to occur are the same as in the spatial model without delay.

Theorem 3.

Consider system (17) with $a>2m$, and assume that the equilibrium $P_2$ is stable in the non-spatial system (18). Under these conditions, $P_2$ is unstable if and only if it is unstable in the spatial model without delay (2).

Proof.

First, we show that if $P_2$ is unstable in the model without delay (2), it is also unstable in (17). Since we are assuming that it is stable in the non-spatial model with delay (18), it holds that $S_0^1>0$. Hence, since $S_k^1$ is increasing with k, it also holds that $S_k^1>0$ for all k. Thus, for $P_2$ to be unstable in (2), $S_k^2$ has to be negative, which implies that $l_k^3=\alpha S_k^2$ is also negative. Therefore, $P_2$ is unstable in (17).

Assume now that $P_2$ is stable in both (18) and (2). Then, $S_k^1$ and $S_k^2$ are both positive, so all the coefficients in (30) are also positive. The only condition for stability that has to be checked is the positivity of $l_k^1{l}_k^2-l_k^3$, which can be written in the form

$$b_0\left({\mu }_k\right){\alpha }^2+b_1\left({\mu }_k\right)\alpha +b_2\left({\mu }_k\right),$$

(33)

where $b_0\left({\mu }_k\right)=S_k^1$,

$$\begin{array}{ccc}\hfill b_1\left({\mu }_k\right)& =& \left(\left(d_1+d_2\right){\mu }_k+n_{*}^2+1\right)S_k^1+d_1{d}_2{\mu }_k^2+d_2{\mu }_k\left(n_{*}^2+1\right)-S_k^2\hfill \\ & =& {\left(d_1+d_2\right)}^2{\mu }_k^2+\left(d_{1}m+(2+2n_{*}^2-m)\left(d_1+d_2\right)\right){\mu }_k+n_{*}^4+2\left(1-m\right)n_{*}^2+1,\hfill \end{array}$$

(34)

and

$$b_2\left({\mu }_k\right)=d_2{\mu }_k\left(\left(d_1+d_2\right){\mu }_k+n_{*}^2+1\right)\left(d_1{\mu }_k+n_{*}^2+1\right).$$

Thus, $b_0\left({\mu }_k\right)$ and $b_2\left({\mu }_k\right)$ are always positive, and $b_1\left({\mu }_k\right)$ is increasing with k, so it will be positive for any k if

$$b_1\left(0\right)=n_{*}^4+2\left(1-m\right)n_{*}^2+1>0.$$

(35)

It is easy to see that (35) is positive when $m\le 2$, and it can be shown, with some algebraic manipulation, that it is also positive when $m>2$ and $a>a_c^{\alpha }$ as defined in Theorem 1. Hence, since we are assuming that $P_2$ is stable in (18), the only remaining case where the positivity of (33) has to be checked is when $a_c<a<a_c^{\alpha }$ and $\alpha >{\alpha }_c$, as given in Theorem 1.

If $a<a_c^{\alpha }$, then $b_1\left({\mu }_k\right)<0$, and (33) can only be negative if

$$b_1{\left({\mu }_k\right)}^2-4b_0\left({\mu }_k\right)b_2\left({\mu }_k\right)>0,$$

so there are two real roots, ${\alpha }_1<{\alpha }_2$ and ${\alpha }_1<\alpha <{\alpha }_2$. However,

$${\alpha }_2=\frac{-b_1\left({\mu }_k\right)+\sqrt{b_1{\left({\mu }_k\right)}^2-4b_0\left({\mu }_k\right)b_2\left({\mu }_k\right)}}{2b_0\left({\mu }_k\right)},$$

and

$$\sqrt{b_1{\left({\mu }_k\right)}^2-4b_0\left({\mu }_k\right)b_2\left({\mu }_k\right)}<\left|b_1\left({\mu }_k\right)\right|=-b_1\left({\mu }_k\right),$$

so since $0<-b_1\left({\mu }_k\right)<-b_1\left(0\right)$ and $0<b_0\left(0\right)<b_0\left({\mu }_k\right)$,

$${\alpha }_2<\frac{-b_1\left({\mu }_k\right)-b_1\left({\mu }_k\right)}{2b_0\left({\mu }_k\right)}=-\frac{b_1\left({\mu }_k\right)}{b_0\left({\mu }_k\right)}<-\frac{b_1\left(0\right)}{b_0\left(0\right)}={\alpha }_c.$$

Hence, when $\alpha >{\alpha }_c$, (33) is also positive. Therefore, $P_2$ is stable in (17) if it is stable in (18) and (2). □

Remark 3.

Similarly to Theorem 2 for the non-spatial model with delay (18), it can be shown that for $m>2$ and $a_c<a<a_c^{\alpha }$, there is a Hopf bifurcation at $\alpha ={\alpha }_c$ in the spatial system (17), with oscillatory unstable and stable solutions for $\alpha <{\alpha }_c$ and $\alpha >{\alpha }_c$, respectively.

Figure 6 shows an example where the spatially homogeneous solution is stable in the model without delay since $r=d_1/d_2=1<r_c\approx 3.95$, so the instability condition (12) in Lemma 3 is not satisfied. For $m=2.95$, one obtains $a_c\approx 6.23$ and $a_c^{\alpha }\approx 7.16$, so $a_c<a=6.5<a_c^{\alpha }$, and ${\alpha }_c\approx 5.15$. The equilibrium $P_2$ is unstable for $\alpha <{\alpha }_c$ (Figure 6a) with mean delay $1/\alpha =0.4$ and stable for $\alpha >{\alpha }_c$ (Figure 6b) with mean delay $1/\alpha =0.125$.

Remark 4.

As shown in Theorem 3, when the homogeneous vegetated equilibrium is stable in the non-spatial system (18), spatially non-homogeneous steady-state solutions may arise from Turing bifurcations under the same conditions as in the system without delay. The presence of a delay does not affect these steady-state solutions, in the same way that the presence of a delay does not affect the homogeneous equilibria.

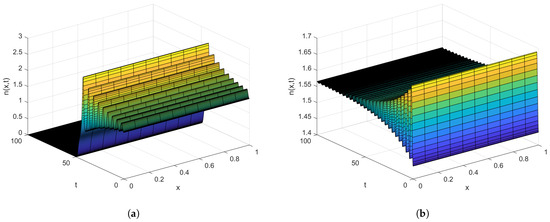

Figure 6. Evolution of the system with distributed delay (17) with $p=1$, from initial values close to the vegetated equilibrium $P_2$, with parameters $m=2.95$, $a=6.5$, and $d_1=d_2=0.1$ for two values of $\alpha$. (a) $\alpha =2.5$. (b) $\alpha =8$.

Figure 7 shows two examples of non-homogeneous solutions for $m\le 2$ (left panels), where the onset of Turing instability is not affected by the delay in system (17), and for $m>2$ and $a_c<a<a_c^{\alpha }$, where the Turing space is restricted by the condition $\alpha >{\alpha }_c$. In the first example, with $m=1$, $a=2.2$, $d_1=50$, and $d_2=0.1$, the limits given in (14) are $l^{-}\approx 0.03$ and $l^{+}\approx 9.90$, so the wavenumbers with positive eigenvalues are ${\mu }_k=k^2$ for $k=1\dots 3$. In the second example, with $m=2.5$, $a=5.25$, $d_1=50$, and $d_2=0.1$, the limits are $l^{-}\approx 0.02$ and $l^{+}\approx 24.92$, so the wavenumbers with unstable modes are ${\mu }_k=k^2$ for $k=1\dots 4$.

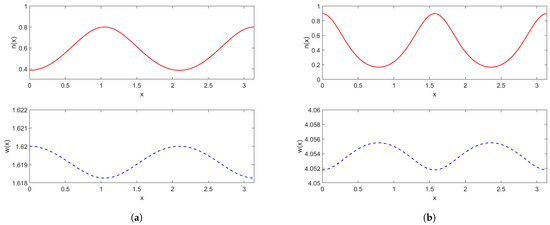

Figure 7. Spatially non-homogeneous steady-state solutions resulting from Turing bifurcations. (a, left panels) $m=1$, $a=2.2$, $d_1=50$, $d_2=0.1$. (b, right panels) $m=2.5$, $a=5.25$, $d_1=50$, $d_2=0.1$.

2.2.3. Models with Strong Kernels

Next, we discuss how the type of delay may differentially affect the stability of $P_2$. We provide a detailed analysis only for the model with $p=2$ since models with strong kernels are likely to be less realistic than an exponentially decaying kernel for modelling the dependence of plant growth on previous water uptake. Notwithstanding, a Gamma kernel with $p=2$ and a small mean delay might also represent a plausible modelling option, combining an essentially exponential-like decay with avoiding completely instantaneous responses (compare, for instance, the strong kernel with $p=2$ and $\alpha =2$ with the weak kernel with $p=1$ and $\alpha =1$ in Figure 3a).

Now, consider model (18) with $p=2$. Introducing the two new variables

$$z_i\left(t\right)={\int }_{-\infty }^t{g}_{\alpha }^i(t-s)w\left(s\right)n\left(s\right)ds,i=1,2,$$

(36)

we can write the extended system

$$\begin{array}{cc}\hfill \frac{dw\left(t\right)}{dt}& =a-w\left(t\right)-w\left(t\right)n{\left(t\right)}^2,\hfill \\ \hfill \frac{dn\left(t\right)}{dt}& =n\left(t\right)z_2\left(t\right)-mn\left(t\right),\hfill \\ \hfill \frac{d{z}_1\left(t\right)}{dt}& =\alpha \left(w\left(t\right)n\left(t\right)-z_1\left(t\right)\right),\hfill \\ \hfill \frac{d{z}_2\left(t\right)}{dt}& =\alpha \left(z_1\left(t\right)-z_2\left(t\right)\right).\hfill \end{array}$$

(37)

In this model, $z_2$ represents the effect of previous water uptake on plant growth, similar to z in model (29), but with a different weighted function, $g_{\alpha }^2$ instead of $g_{\alpha }^1$. Meanwhile, $z_1$ is an auxiliary variable.

The next theorem states the conditions for the uniform equilibrium $P_2$ to be stable in (37).

Theorem 4.

Consider system (37) with $a>2m$. The vegetated equilibrium $P_2$ is unstable if $m>2$ and $a<a_c$, as defined in (5). When $m\le 2$ or $m>2$ and $a>a_c$, the stability depends on the value of α, being stable for $\alpha >{\alpha }_{c,2}$ and unstable for $\alpha <{\alpha }_{c,2}$, where ${\alpha }_{c,2}$ is the only positive root of

$$\alpha (1+n_{*}^2-m)\left(2{(1+n_{*}^2+\alpha )}^2+\alpha m\right)-m(n_{*}^2-1){(1+n_{*}^2+2\alpha )}^2=0.$$

(38)

Proof.

From the linearised system at $P_2$, one obtains the characteristic equation $p^{\alpha ,2}=0$, where

$$p^{\alpha ,2}\left(\lambda \right)={(\lambda +\alpha )}^2\lambda \left(\lambda +1+n_{*}^2\right)-{\alpha }^{2}m\left(\lambda +1-n_{*}^2\right),$$

(39)

that is,

$$p^{\alpha ,2}\left(\lambda \right)={\lambda }^4+(1+n_{*}^2+2\alpha ){\lambda }^3+\left(2\alpha (1+n_{*}^2)+{\alpha }^2\right){\lambda }^2+{\alpha }^2\left(1+n_{*}^2-m\right)\lambda +m{\alpha }^2(n_{*}^2-1).$$

(40)

Since $n_{*}^2>1$ at $P_2$, all coefficients of $p^{\alpha ,2}$ are positive if $1+n_{*}^2-m>0$. This condition, as given in (8), determines the stability of $P_2$ in the corresponding model without delay. This condition fails, and the system is unstable for $m>2$ and $a<a_c$.

There is one more condition for all the roots of (39) to have negative real parts, which can be obtained using the Hurwitz criterion, $Q\left(\alpha \right)>0$, where

$$Q\left(\alpha \right)=\alpha (1+n_{*}^2-m)\left(2{(1+n_{*}^2+\alpha )}^2+\alpha m\right)-m(n_{*}^2-1){(1+n_{*}^2+2\alpha )}^2,$$

(41)

or, equivalently,

$$Q\left(\alpha \right)=A_0{\alpha }^3+A_1{\alpha }^2+A_2\alpha +A_3,$$

where $A_0=1+n_{*}^2-m$, $A_1=(1+n_{*}^2-m)\left(m+4(1+n_{*}^2)\right)-4m(n_{*}^2-1)$,

$$A_2=(1+n_{*}^2)\left(2(1+n_{*}^2-m)(1+n_{*}^2)-4m(n_{*}^2-1)\right),$$

and $A_3=-m{(1+n_{*}^2)}^2(n_{*}^2-1)$.

When $m\le 2$ or $m>2$ and $a>a_c$, condition (8) holds. Since $n_{*}>1$ at $P_2$, one has $A_0>0$ and $A_3<0$, which implies that $Q\left(\alpha \right)$ has at least one positive root. If $A_2<0$, there is only one sign change in the coefficients of $Q\left(\alpha \right)$, and, according to Descartes’ rule of signs, there is only one positive root. If $A_2>0$, then $4m(n_{*}^2-1)<2(1+n_{*}^2-m)(1+n_{*}^2)$, which implies

$$A_1>(1+n_{*}^2-m)\left(m+4(1+n_{*}^2)-2(1+n_{*}^2)\right)>0.$$

Thus, in this case, there is also only one sign change, and therefore $Q\left(\alpha \right)$ has only one positive root, which defines the critical value ${\alpha }_{c,2}$. □

We note that since $\alpha$ is a factor in the first term of (41) and the second term is negative, condition $Q\left(\alpha \right)>0$ may fail for any values of m and a when $\alpha$ is sufficiently small. Thus, unlike in the model with a weak kernel, the delay can make the vegetated equilibrium $P_2$ unstable in the whole range of the $(m,a)$-parameter space and, in particular, when $m\le 2$.

The next theorem shows the result corresponding to Theorem 2 for system (37).

Theorem 5.

Consider system (37) with $m\le 2$ or $m>2$ and $a>a_c$. The system undergoes a Hopf bifurcation at $\alpha ={\alpha }_{c,2}$.

Proof.

Let $\lambda =iw$, $w>0$, be a pure imaginary root of $p^{\alpha ,2}$. Then, separating the real and imaginary parts, one obtains

$$w^4-\alpha \left(2n_{*}^2+2+\alpha \right)w^2+{\alpha }^{2}m\left(n_{*}^2-1\right)=0$$

(42)

and

$$w\left(-\left(2\alpha +1+n_{*}^2\right)w^2+{\alpha }^2\left(1+n_{*}^2-m\right)\right)=0.$$

(43)

From (43), one has

$$w^2=\frac{{\alpha }^2\left(1+n_{*}^2-m\right)}{2\alpha +1+n_{*}^2}$$

(44)

and substituting this expression into (42) and simplifying, one obtains

$$\begin{array}{c}2\left(1+n_{*}^2-m\right){\alpha }^3+\left(4n_{*}^4+\left(8-7m\right)n_{*}^2-m\left(m-1\right)+4\right){\alpha }^2\hfill \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}+2\left(n_{*}^2+1\right)\left(n_{*}^4+\left(2-3m\right)n_{*}^2+m+1\right)\alpha -m\left(n_{*}^2-1\right){\left(n_{*}^2+1\right)}^2=0,\hfill \end{array}$$

(45)

which can be shown to be equivalent to $Q\left(\alpha \right)=0$, that is, $\alpha ={\alpha }_{c,2}$.

The transversality condition for a Hopf bifurcation to exist at $\alpha ={\alpha }_{c,2}$ can be checked similarly to the case $p=1$, although it involves more cumbersome computations.

Writing $p^{\alpha ,2}\left(\lambda \right)$ in the form

$$\begin{array}{c}\hfill p^{\alpha ,2}\left(\lambda \right)={\lambda }^4+\left(1+n_{*}^2+2\alpha \right){\lambda }^3+2\alpha \left(1+n_{*}^2\right){\lambda }^2+{\alpha }^{2}q\left(\lambda \right),\end{array}$$

with

$$\begin{array}{c}\hfill q\left(\lambda \right)={\lambda }^2+\left(1+n_{*}^2-m\right)\lambda +m\left(n_{*}^2-1\right),\end{array}$$

one obtains

$$\begin{array}{c}\hfill {\left(\frac{\partial \lambda }{\partial \alpha }\right)}^{-1}=-\frac{4{\lambda }^3+3\left(1+n_{*}^2+2\alpha \right){\lambda }^2+4\alpha \left(1+n_{*}^2\right)\lambda +{\alpha }^2{q}^{\prime }\left(\lambda \right)}{2{\lambda }^3+2\left(1+n_{*}^2\right){\lambda }^2+2\alpha q\left(\lambda \right)}.\end{array}$$

Substituting $q^{\prime }\left(\lambda \right)=2\lambda +\left(1+n_{*}^2-m\right)$ into this expression, and setting $\lambda =iw$ while evaluating at $\alpha ={\alpha }_{c,2}$, one obtains, after some rearrangements and simplifications and using (43) and the expression defining ${\alpha }_{c,2}$, that is, $Q\left({\alpha }_{c,2}\right)=0$, the following:

$$\begin{array}{ccc}\hfill {\left({\left.\frac{\partial \lambda }{\partial \alpha }\right|}_{\alpha ={\alpha }_{c,2}}\right)}^{-1}& =& -\frac{1}{2}\frac{R_1+i{I}_1}{R_2+i{I}_2}=-\frac{1}{2}\frac{R_1{R}_2+I_1{I}_2+i\left(I_1{R}_2-R_1{I}_2\right)}{R_2^2+I_2^2},\hfill \end{array}$$

where

$$\begin{array}{ccc}\hfill R_1& =& -3\left(1+n_{*}^2+2{\alpha }_{c,2}\right)w^2+{\alpha }_{c,2}^2\left(1+n_{*}^2-m\right)=-2{\alpha }_{c,2}^2\left(1+n_{*}^2-m\right),\hfill \\ \hfill I_1& =& \left(2{\alpha }_{c,2}\left(2\left(1+n_{*}^2\right)+{\alpha }_{c,2}\right)-4w^2\right)w\hfill \\ & =& 2{\alpha }_{c,2}\left(\frac{2n_{*}^4+\left(4+3{\alpha }_{c,2}\right)n_{*}^2+2{\alpha }_{c,2}^2+\left(3+2m\right){\alpha }_{c,2}+2}{2{\alpha }_{c,2}+1+n_{*}^2}\right)w,\hfill \\ \hfill R_2& =& {\alpha }_{c,2}m\left(n_{*}^2-1\right)-\left(1+n_{*}^2+\alpha \right)w^2\hfill \\ & =& {\alpha }_{c,2}^2\left(1+n_{*}^2-m\right)\left(\frac{2{\left(1+n_{*}^2+{\alpha }_{c,2}\right)}^2+{\alpha }_{c,2}m-\left(1+n_{*}^2+2{\alpha }_{c,2}\right)\left(1+n_{*}^2+\alpha \right)}{{\left(2{\alpha }_{c,2}+1+n_{*}^2\right)}^2}\right)\hfill \\ & =& \frac{{\alpha }_{c,2}^2\left(1+n_{*}^2-m\right)\left(\left(1+n_{*}^2+m\right){\alpha }_{c,2}+{\left(n_{*}^2+1\right)}^2\right)}{{\left(2{\alpha }_{c,2}+1+n_{*}^2\right)}^2},\hfill \\ \hfill I_2& =& \left({\alpha }_{c,2}\left(1+n_{*}^2-m\right)-w^2\right)w=\frac{{\alpha }_{c,2}\left(1+n_{*}^2-m\right)\left({\alpha }_{c,2}+1+n_{*}^2\right)}{2{\alpha }_{c,2}+1+n_{*}^2}w.\hfill \end{array}$$

Since

$$\begin{array}{ccc}& & R_1{R}_2+I_1{I}_2=-2\frac{{\alpha }_{c,2}^4{\left(1+n_{*}^2-m\right)}^2\left(\left(1+n_{*}^2+m\right){\alpha }_{c,2}+{\left(n_{*}^2+1\right)}^2\right)}{{\left(2{\alpha }_{c,2}+1+n_{*}^2\right)}^2}\hfill \\ & & +2{\alpha }_{c,2}^4\frac{\left(2n_{*}^4+\left(4+3{\alpha }_{c,2}\right)n_{*}^2+2{\alpha }_{c,2}^2+\left(3+2m\right){\alpha }_{c,2}+2\right){\left(1+n_{*}^2-m\right)}^2\left({\alpha }_{c,2}+1+n_{*}^2\right)}{{\left(2{\alpha }_{c,2}+1+n_{*}^2\right)}^3}\hfill \\ & & =\frac{2{\alpha }_{c,2}^4{\left(1+n_{*}^2-m\right)}^2}{{\left(2{\alpha }_{c,2}+1+n_{*}^2\right)}^3}\left(\left(2n_{*}^4+\left(4+3{\alpha }_{c,2}\right)n_{*}^2+2{\alpha }_{c,2}^2+\left(3+2m\right){\alpha }_{c,2}+2\right)\left({\alpha }_{c,2}+1+n_{*}^2\right)\right.\hfill \\ & & \left.-\left(2{\alpha }_{c,2}+1+n_{*}^2\right)\left(\left(1+n_{*}^2+m\right){\alpha }_{c,2}+{\left(n_{*}^2+1\right)}^2\right)\right)\hfill \\ & & =\frac{2{\alpha }_{c,2}^4{\left(1+n_{*}^2-m\right)}^2}{{\left(2{\alpha }_{c,2}+1+n_{*}^2\right)}^3}\left(n_{*}^6+\left(3+2{\alpha }_{c,2}\right)n_{*}^4+\left(3{\alpha }_{c,2}^2+\left(4+m\right){\alpha }_{c,2}+3\right)n_{*}^2\right.\hfill \\ & & \left.+2{\alpha }_{c,2}^3+3{\alpha }_{c,2}^2+\left(2+m\right){\alpha }_{c,2}+1\right)>0,\hfill \end{array}$$

it holds that

$$\begin{array}{c}\hfill \Re {\left({\left.\frac{\partial \lambda }{\partial \alpha }\right|}_{\alpha ={\alpha }_{c,2}}\right)}^{-1}<0.\end{array}$$

□

Figure 8 illustrates the results of Theorems 4 and 5, showing changes in the stability of $P_2$ through Hopf bifurcations at $\alpha ={\alpha }_{c,2}$, in parameter regions where $P_2$ is stable independently of $\alpha$, in the corresponding model with $p=1$. The top panels correspond to the region $m\le 2$ ($m=1.5$, $a=4$), with ${\alpha }_{c,2}\approx 0.83$. The lower panels correspond to the region $m>2$ and $a>a_c^{\alpha }\approx 7.35$ ($m=3$, $a=8$), with ${\alpha }_{c,2}\approx 3.62$. In both cases, the left panels correspond to $\alpha =1.1{\alpha }_{c,2}$, with the system converging to $P_2$ equilibrium values, while the right panels correspond to $\alpha =0.9{\alpha }_{c,2}$, with the system converging to periodic solutions. Lower $\alpha$ values, that is, larger mean delays, would drive the system to the desert state $P_0$, similar to the behaviour shown in Figure 5.

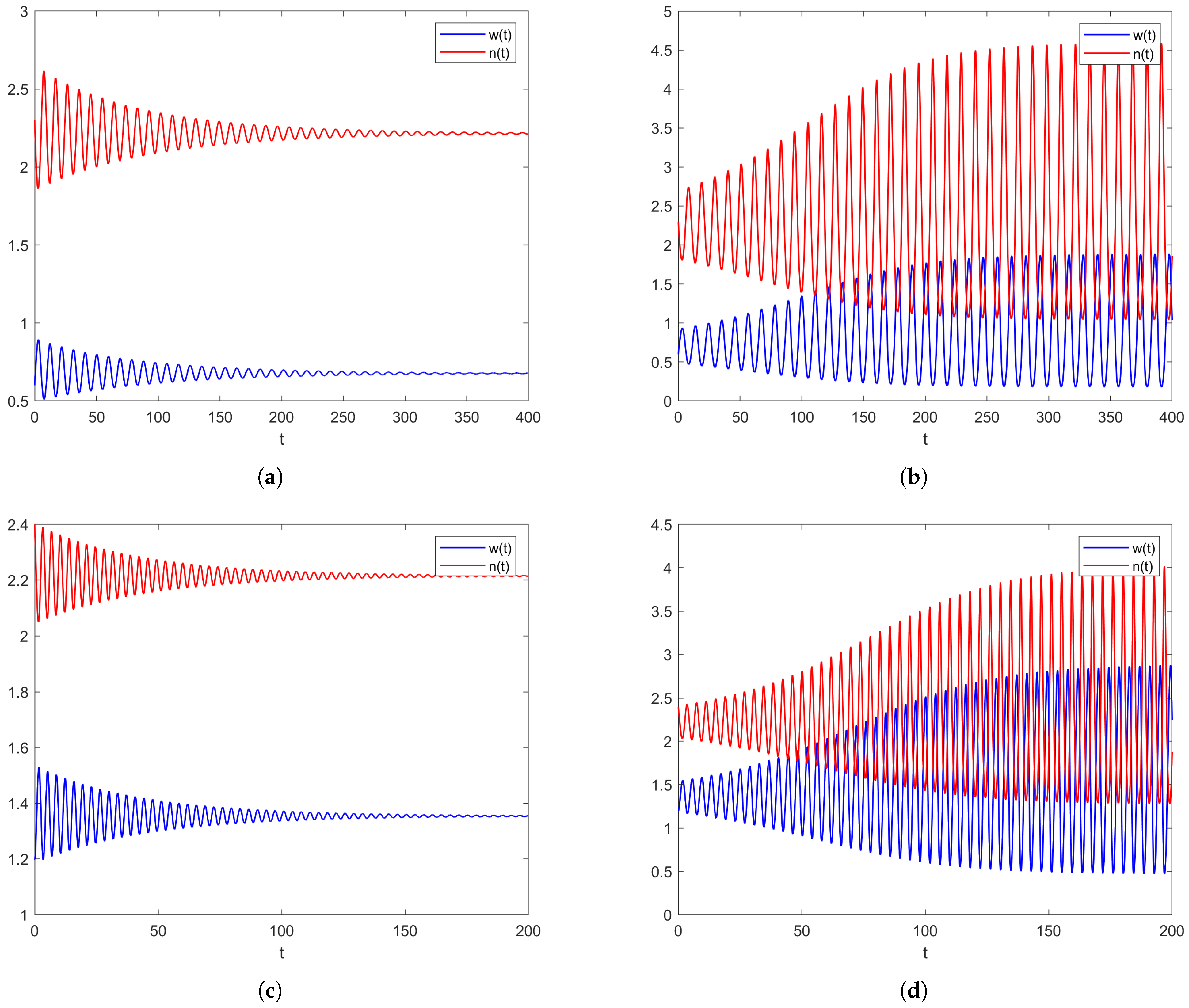

Figure 8. Evolution of the system with distributed delay (18) with $p=2$, from initial values close to the vegetated equilibrium $P_2$, with parameters in the region $m<2$ (top) and $m>2$ (bottom), for values of $\alpha$ greater (left) and lower (right) that the critical value ${\alpha }_{c,2}$. (a) $m=1.5$, $a=4$, $\alpha =1.1{\alpha }_{c,2}$. (b) $m=1.5$, $a=4$, $\alpha =0.9{\alpha }_{c,2}$. (c) $m=3$, $a=8$, $\alpha =1.1{\alpha }_{c,2}$. (d) $m=3$, $a=8$, $\alpha =0.9{\alpha }_{c,2}$.

The next theorem is analogous to Theorem 3 for the strong kernel case with $p=2$.

Theorem 6.

For $p=2$, consider system (17) with $a>2m$, and assume that the equilibrium $P_2$ is stable in the corresponding non-spatial system (18). Under these conditions, $P_2$ is unstable if and only if it is unstable in the spatial model without delay (2).

Proof.

Similar to the non-spatial case, introducing the new variables

$$z_i(x,t)={\int }_{-\infty }^t{g}_{\alpha }^i(t-s)w(x,s)n(x,s)ds,i=1,2,$$

(46)

we transform (17) into the extended system

$$\begin{array}{cc}\hfill \frac{dw\left(t\right)}{dt}& =a-w(x,t)-w(x,t)n{(x,t)}^2+d_1\Delta \left(w\right),\hfill \\ \hfill \frac{dn\left(t\right)}{dt}& =n(x,t)z_2(x,t)-mn(x,t)+d_2\Delta \left(n\right),\hfill \\ \hfill \frac{d{z}_1\left(t\right)}{dt}& =\alpha \left(w(x,t)n(x,t)-z_1(x,t)\right),\hfill \\ \hfill \frac{d{z}_2\left(t\right)}{dt}& =\alpha \left(z_1(x,t)-z_2(x,t)\right).\hfill \end{array}$$

(47)

From the linearised system at equilibrium, and considering perturbations as in the spatial models without delay and with distributed delay with a weak kernel, writing ${\mu }_k=k^2$, one obtains the set of characteristics equations

$$p_k^{\alpha ,2}\left(\lambda \right)={\lambda }^4+{\Phi }_k^1{\lambda }^3+{\Phi }_k^2{\lambda }^2+{\Phi }_k^3\lambda +{\Phi }_k^4,$$

(48)

where

$$\begin{array}{ccc}\hfill {\Phi }_k^1& =& (d_1+d_2){\mu }_k+1+n_{*}^2+2\alpha ,\hfill \\ \hfill {\Phi }_k^2& =& d_1{d}_2{\mu }_k^2+d_2\left(n_{*}^2+1\right){\mu }_k+2\alpha S_k^1+\alpha \left(2m+\alpha \right),\hfill \\ \hfill {\Phi }_k^3& =& 2\alpha d_2{\mu }_k\left(n_{*}^2+d_1{\mu }_k+1\right)+{\alpha }^2{S}_k^1,\hfill \end{array}$$

and ${\Phi }_k^4={\alpha }^2{S}_k^2$, with $S_k^1$ and $S_k^2$ being the coefficients of the characteristic equation for the spatial model without delay (10).

The arguments are now similar to those used in the proof of Theorem 3. If $P_2$ is stable in the non-spatial system (18) and unstable in the spatial model without delay (2), it must hold that $S_k^2$ is negative and, consequently, ${\Phi }_k^4<0$, so $P_2$ is also unstable in (47).

Assume now that $P_2$ is stable in both (18) and (2). Then, $S_k^1$ and $S_k^2$ are both positive, so all the coefficients in (48) are also positive. The only condition for stability that has to be checked is the positivity of ${\Phi }_k^1{\Phi }_k^2{\Phi }_k^3-{\left({\Phi }_k^3\right)}^2-{\left({\Phi }_k^1\right)}^2{\Phi }_k^4$, which can be written in the form

$${\Phi }_k^1{\Phi }_k^2{\Phi }_k^3-{\left({\Phi }_k^3\right)}^2-{\left({\Phi }_k^1\right)}^2{\Phi }_k^4=\alpha Q\left(\alpha \right)+C_0{\alpha }^4+C_1{\alpha }^3+C_2{\alpha }^2+C_3\alpha +C_4,$$

(49)

with $Q\left(\alpha \right)$ given in (41), and where $C_0=2\left(d_1+d_2\right){\mu }_k$,

$$\begin{array}{ccc}\hfill C_1& =& {\mu }_k\left(4{\left(d_1+d_2\right)}^2{\mu }_k+d_1\left(8n_{*}^2+8+m\right)+d_2\left(8+8n_{*}^2-3m\right)\right)\hfill \\ & =& {\mu }_k\left(4{\left(d_1+d_2\right)}^2{\mu }_k+d_1\left(8\left(n_{*}^2+1\right)+m\right)+d_2\left(5\left(1+n_{*}^2\right)+3\left(1+n_{*}^2-m\right)\right)\right),\hfill \\ \hfill C_2& =& {\mu }_k\left(2\left(d_1+d_2\right)\left(d_1^2+4d_1{d}_1+d_2^2\right){\mu }_k^2\right.\hfill \\ & & +\left(2d_1^2\left(3\left(1+n_{*}^2\right)+m\right)+2d_1{d}_2\left(10\left(1+n_{*}^2\right)+m\right)+8d_2^2\left(1+n_{*}^2\right)\right.\hfill \\ & & \left.+2d_2^2\left(1+n_{*}^2-m\right)\right){\mu }_k+2d_1\left(3+4n_{*}^2+n_{*}^4+2m\right)+2d_2\left(5+7n_{*}^2+2n_{*}^4+m\right)\hfill \\ & & +\left.2n_{*}^2\left(3d_2+2d_1\right)\left(1+n_{*}^2-m\right)\right),\hfill \\ \hfill C_3& =& {\mu }_k\left(4d_1{d}_2{\left(d_1+d_2\right)}^2{\mu }_k^3+\left(d_1+d_2\right)\left(d_1^{2}m+4d_2\left(3d_1+d_2\right)\left(1+n_{*}^2\right)\right){\mu }_k^2\right.\hfill \\ & & +\left(2d_2^2\left(4+7n_{*}^2+3n_{*}^4\right)+2d_1{d}_2\left(6+m+5n_{*}^4+11n_{*}^2\right)+d_1^{2}m\left(n_{*}^2+3\right)\right.\hfill \\ & & \left.+2d_2{n}_{*}^2\left(d_2+d_1\right)\left(1+n_{*}^2-m\right)\right){\mu }_k\hfill \\ & & \left.+\left(n_{*}^2+1\right)\left(d_2\left(n_{*}^4+5n_{*}^2+4+m\right)+d_1\left(3-n_{*}^2\right)m+3n_{*}^2{d}_2\left(1+n_{*}^2-m\right)\right)\right),\hfill \end{array}$$

and $C_4=2{\mu }_k^2{d}_2\left(\left(d_1+d_2\right){\mu }_k+1+n_{*}^2\right){\left(d_1{\mu }_k+n_{*}^2+1\right)}^2$.

Since $P_2$ is stable in the non-spatial model, it holds that $Q\left(\alpha \right)$ and $(1+n_{*}^2-m)$ are both positive, so all the terms on the right-hand side of (49), except perhaps $C_3$, are clearly positive. But for $C_3$, the only possibly non-positive terms is

$$d_2\left(n_{*}^4+5n_{*}^2+4+m\right)+d_1\left(3-n_{*}^2\right)m+3n_{*}^2{d}_2\left(1+n_{*}^2-m\right),$$

which is greater than

$$n_{*}^2{d}_2\left(1+n_{*}^2\right)+d_{1}m\left(3-n_{*}^2\right).$$

Since we are assuming that $P_2$ is stable in the spatial system without delay, from (15), it must hold that $d_2(1+n_{*}^2)\ge d_{1}m$, so

$$n_{*}^2{d}_2\left(1+n_{*}^2\right)+d_{1}m\left(3-n_{*}^2\right)\ge d_{1}m\left(n_{*}^2+3-n_{*}^2\right)>0.$$

□

Remark 5.

We do not pursue the analysis here, but it can be shown that for any $p\in {\mathbb{Z}}^{+}$, model (18) can be transformed into an extended model with $p+2$ equations by introducing p new variables, similar to what was done in (36) for $p=2$. Then, by linearising the extended model at $P_2$, we can obtain the characteristic equation $p^{\alpha ,p}\left(\lambda \right)=0$, where

$$p^{\alpha ,p}\left(\lambda \right)={(\lambda +\alpha )}^p\lambda \left(\lambda +1+n_{*}^2\right)-{\alpha }^{p}m\left(\lambda +1-n_{*}^2\right),$$

(50)

which coincides with $p^{\alpha }\left(\lambda \right)$ in (22) for $p=1$, and with $p^{\alpha ,2}$ in (39) for $p=2$. Also, by letting

$$q^{\alpha ,p}\left(\lambda \right)=\frac{1}{{\alpha }^p}{p}^{\alpha }\left(\lambda \right)$$

one has ${lim}_{\alpha \to +\infty }{q}^{\alpha ,p}\left(\lambda \right)=p\left(\lambda \right)$, and the characteristic equation (7) for the non-spatial model without delay is recovered.

For increasing p, there are new extra conditions for $P_2$ to be stable. Thus, by keeping the mean delay $\tau =p/\alpha$ and increasing p, the effect of the delay in plant growth becomes more concentrated around the mean delay, and the stability of $P_2$ may only be compromised. Under these conditions, since α is not a root of (50), $p^{\alpha ,p}\left(\lambda \right)=0$ is equivalent to

$$\lambda \left(\lambda +1+n_{*}^2\right)-m\left(\lambda +1-n_{*}^2\right){\left(1+\frac{\lambda \tau }{p}\right)}^{-p}=0,$$

(51)

and in the limit, as p tends to infinity, one obtains the characteristic equation of the model with discrete delay (3) [41],

$$\lambda \left(\lambda +1+n_{*}^2\right)-m\left(\lambda +1-n_{*}^2\right){\mathrm{e}}^{-\lambda \tau }=0.$$

(52)

3. Conclusions and Discussion

In this work, we have analysed the stability of the spatially uniform vegetated state in a Klausmeier–Gray–Scott model of dryland vegetation with a distributed delay in the effect of water availability on plant growth. Our focus was on the conditions for the onset of Turing instability, comparing them with the corresponding original model without delay.

For the models without delay, we have given clear conditions for symmetry-breaking pattern formation by diffusion-driven instability to occur (Lemma 3) for the whole range of model parameters. In previous works, where other aspects of the models were the focus of the analysis, similar conditions were not as clearly defined and were usually restricted to a certain range of the mortality parameter (e.g., Theorem 2.5 in [36] for $m<2$, and Theorem 2.2 in [37] for $m>2$).

Most previous works on Klausmeier-type models restricted the analysis to the case $m<2$, assumed to represent normal values for undisturbed natural conditions, but higher mortality values could be feasible and expected under harsh environmental conditions. Even under the assumed normal conditions, the upper limit seems to be somewhat arbitrary. For instance, the data presented in [19], referred to in [32] for the range $[0.05,2.0]$ for m assumed there, would give an upper limit of $2.5$ for that parameter, with values of m greater than 2 considered extreme but not unrealistic. Although m is usually referred to as mortality, it represents general biomass loss, which could also be the result of external disturbances, such as grazing. Grazing can significantly increase biomass loss (see, e.g., [44,45]) and, in general models where grazing is not specifically modelled, the effect of non-specific or local grazing is an increase in the biomass loss or mortality parameter [46]. General plant biomass loss is also directly related to respiration, and it is explicitly included as such in some vegetation models [47]. Plant respiration increases, through a power relation, with increasing temperature, and hence biomass loss due to respiration is expected to be much higher under future climate change scenarios than historically assumed [48,49].

We have introduced in this work a distributed delay in the product $wn$, which, in the original formulation of the Klausmeier model, corresponds to the product of the functional response of plants to water, $G\left(W\right)$, and the increase in infiltration due to the plants, $F\left(N\right)$. For simplicity, linear responses are usually assumed: $G\left(W\right)=W$ and $F\left(N\right)=N$. Thus, the product $wn$ in the scaled model represents water uptake by unit biomass, and the presence of a delay in this product is the consequence of the non-instantaneous effect of water uptake on plant growth. A Klausmeier–Gray–Scott model with a discrete delay in the same product $wn$ was considered in [41], based on the necessary lag for precipitation to infiltrate into the soil and be available as soil water for plant growth. There are more complex dryland vegetation models where surface and soil water are differentiated (e.g., [19,20,50,51]), so a discrete delay for water infiltration would seem appropriate. However, in Klausmeier-type models, there is no such distinction, and the loss of water, besides evaporation, is directly the result of water taken up by plants. Hence, a discrete delay representing infiltration lag does not seem realistic in these models.

The effect on growth of water taken up by plants is certainly not instantaneous, nor does it disappear immediately. Plant growth at a certain time depends on water availability at that moment and also at previous ones, with some decaying effect persisting over time. Hence, a distributed delay, most likely in the form of an exponentially decaying kernel, as considered in this work, seems much more realistic than both a discrete delay and no delay at all. Distributed delays with Gamma kernels, as used in this work, are versatile enough to represent different possibilities of plant growth dependence on previous water uptake. They range from exponential decays to more localized delays and, in particular, weak kernels and strong kernels with $p=2$ and a small mean delay represent exponential-like decays well, as would be expected in a base scenario where the effect of water taken up by plants on their rate of growth is constant.

We have shown that the presence of a distributed delay with a weak, exponential kernel does not affect vegetation stability at low mortality values (Theorem 1), in contrast with the effect of a discrete delay [41] or a distributed delay with a strong kernel (Theorem 4). Additionally, we have demonstrated that the only impact on diffusion-driven pattern formation is a shrinking of the Turing space, which occurs by reducing the parameter space where the spatially uniform vegetated state is stable in the non-spatial system (Theorems 3 and 6).

Generalised Klausmeier models with inertial effects, both on slopes and flat terrains, have also been proposed in the form of hyperbolic models [52,53,54]. These models consider non-Fickian diffusion to account for the finite speeds of propagation of disturbances. In this framework, similarly to some of our results, the occurrence of Turing instabilities is not affected by the hyperbolicity of the model, and there are no changes in bifurcation thresholds or in the wavenumbers of the stationary patterns. However, there may be changes in the transient dynamics, a question not addressed in our work.

The main contributions of this work are the introduction of an ecologically realistic form of delay in the classical Klausmeier–Gray–Scott model and the results showing how the effects on the stability of the homogeneous vegetated equilibrium and the onset of Turing instability depend on the type of delay, with it being absent in certain cases. In this paper, we focused on the conditions for Turing instability to occur. Once a patterned vegetation arises, it may evolve through different non-uniform steady-state solutions, helping to maintain vegetation beyond the limit point where a uniform vegetated state would experience a critical transition to the bare soil, desert state [12,13,35,36]. Future work will address the effect of different types of realistic delays on the stability and evolution of patterned vegetation in Klausmeier-type models.
