Searches for Resonant Scalar Boson Pair Production Using Run 2 LHC Proton-Proton Collision Data

Abstract

The discovery of the Higgs boson in 2012 provided confirmation of spontaneous electroweak symmetry breaking as the mechanism by which fundamental particles gain mass and thus completed the Standard Model of particle physics. Additionally, it opened a new approach to searching for potential new particles. Many beyond the Standard Model theories predict new heavy particles that couple to the Higgs boson, leading to a resonant production mode of Higgs boson pairs. Other theories extend the Higgs sector by introducing additional scalar bosons that differ from the observed Higgs boson only by mass. The ATLAS and CMS Collaborations have searched for evidence of such processes using $\sqrt{s}=13$ TeV Run 2 proton-proton collision data at the Large Hadron Collider. This review article summarizes the latest experimental results from searches for resonant production of pairs of Higgs bosons or additional Higgs-like scalar bosons at ATLAS and CMS.

1. Introduction

The 2012 discovery of the Higgs boson (H) [1,2] provided the final missing piece of the Standard Model (SM) of particle physics by confirming the mechanism of spontaneous electroweak symmetry breaking to generate masses for fundamental particles. As with the discovery of all new particles, the discovery of the Higgs boson has provided an important new means of searching for evidence of new Beyond the Standard Model (BSM) physics effects or additional heavy particles. Many BSM theories predict the existence of new heavy particles that couple strongly to H, leading to the potential resonant production of Higgs boson pairs ($HH$). The observation of such a resonant production would appear as an excess in $HH$ production over the SM prediction localized in the $HH$ invariant mass ($m_{HH}$) spectrum.

An overview of searches for resonant production of scalar bosons by the ATLAS and CMS Collaborations performed using $\sqrt{s}=13$ TeV Run 2 proton-proton ($pp$) collision data at the Large Hadron Collider (LHC) is presented here. The searches use either a partial Run 2 dataset or the full Run 2 dataset. A comprehensive review of the status of theoretical and experimental efforts related to searches for $HH$ production was previously presented in Reference [3]. The searches presented in this review include several updated results since the comprehensive review.

In the descriptions of all searches provided in this review, the term “lepton” refers to an electron (e) or a muon ($\mu$), unless otherwise specified. Furthermore, notation varies between analyses. Unless specified otherwise in an analysis-specific context, H refers to a SM Higgs boson or the observed Higgs boson with a mass of approximately 125 GeV, S refers to an additional scalar that has mass-dependent couplings similar to those of the Higgs boson, and X refers to a heavy scalar.

The searches in this review all use simulated signal samples. Except where specified, these simulated samples are generated assuming no interference with SM processes and assuming 100% branching fractions into SM decay products. Scalar resonances simulated with these assumptions are referred to as “generic scalars” in this text. Resonances are typically generated with a width that is smaller than detector resolution, and interference effects from SM $HH$ production are neglected.

2. Theoretical Models

A brief overview of several theoretical models that predict the resonant production of scalar bosons is presented here. It is not meant to be a comprehensive list of models, but covers the most relevant models for the experimental searches that are discussed. More details on each model presented here can be found in the respective references.

In all UV complete renormalizable models, couplings of charge-parity-even (CP-even) scalars ($H_i$) to vector bosons (V) are modified from those of the SM Higgs boson with the sum rule

$$\sum _{i=1}^3{c}^2\left(H_{i}VV\right)=1$$

(1)

imposed by unitarity constraints [4]. The coupling of the observed Higgs boson to vector bosons is consistent with the SM predictions, resulting in strongly suppressed couplings for the other scalars predicted by such models.

2.1. Resonant $HH$ Production

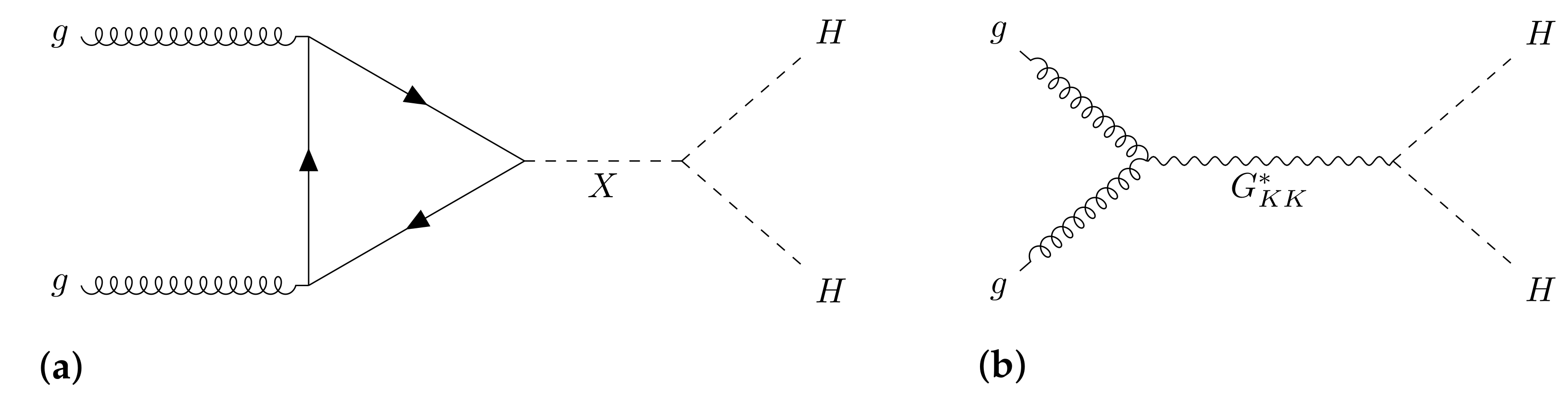

There are many BSM theories that predict new heavy particles that can potentially be created at the LHC and are expected to decay to $HH$. These new particles can either have a spin of 0 or 2.

2.1.1. Singlet Models

The simplest extension of the SM Higgs sector is the addition of a real gauge singlet scalar field [5,6,7,8,9]. In general, the singlet field mixes with the SM Higgs boson, resulting in couplings to SM particles. After electroweak symmetry breaking, such extensions result in two scalar bosons (H and X). Assuming $m_X>2m_H$ where $m_H\approx 125$ GeV, the mixing can allow for $X\to HH$ decays, resulting in the resonant production of a pair of on-shell H. Mixing between singlets and the SM doublet can result in significant interference effects in the resonant and SM $HH$ production modes [10]. Singlet benchmark models are discussed in detail in References [3,11,12,13].

2.1.2. 2HDM

One of the most common BSM extensions to the Higgs sector is the addition of second Higgs doublet, leading to a class of models referred to as Two-Higgs-Doublet Models (2HDMs) [14,15]. There are several types of 2HDMs, classified by the couplings of each Higgs doublet to fermions. In Type-I 2HDMs, one doublet couples to up- and down-type quarks as well as charged leptons while the other doublet does not couple to fermions. In Type-II 2HDMs, one doublet couples to up-type quarks, and the other couples to down-type quarks and charged leptons. In lepton-specific 2HDMs, one doublet couples to all quarks and the other couples to charged leptons. In flipped-type 2HDMs, one doublet couples to up-type quarks and charged leptons, and the other couples to down-type quarks. There are additionally Type-III 2HDMs in which both doublets couple to all fermions and may or may not allow tree-level flavor changing neutral currents.

All 2HDM extensions of the SM result in a total of five Higgs bosons. If there is no CP violation, these consist of two neutral CP-even scalars (H and X), a neutral CP-odd pseudoscalar (A), and two charged bosons ($H^{\pm }$). Typically, H is treated as the observed Higgs boson with $m_H\approx 125$ GeV, and X is more massive and is often used as a benchmark spin-0 resonance that decays to $HH$. If there is CP violation, the three neutral states mix to form mass eigenstates with indefinite CP quantum numbers, one of which is identified as the observed Higgs boson [16].

Two free parameters are used in 2HDMs: The ratio of the vacuum expectation values (vevs) of the two Higgs fields, denoted as $\tan \beta$, and, in the case of CP conservation, the mixing of the two neutral CP-even scalars, denoted as $\sin \alpha$.

2.1.3. MSSM

The simplest possible supersymmetric extension of the SM is the Minimal Supersymmetric Standard Model (MSSM) [17,18], which introduces the minimum possible number of new particles and interactions. In the MSSM, it is not possible for up-type and down-type fermions to couple to the same Higgs doublet, requiring it to be a Type-II 2HDM.

The habemus MSSM (hMSSM) [19,20] refers to the MSSM when the observed Higgs boson with $m_H\approx 125$ GeV is taken into account. As a result of this measurement, the MSSM breaking scale is expected to be greater than 1 TeV, and the dominant radiative corrections to the Higgs boson masses are fixed. The hMSSM is characterized by only two parameters, $\tan \beta$ and the mass of the pseudoscalar, $m_A$. Other variants of the MSSM that take the Higgs boson mass measurement into account exist but are beyond the scope of this review.

2.1.4. RS Model

The Randall–Sundrum (RS) model [21] describes warped extra dimensions as a proposed solution to the Hierarchy Problem. This is achieved through the introduction of a small spatial dimension along which SM particles cannot propagate [22,23], a scenario that is referred to as RS1. As a consequence, additional particles such as a spin-0 radion [24,25,26,27] or the first Kaluza–Klein (KK) excitation of a spin-2 graviton ($G_{\mathrm{KK}}$) [28,29] are predicted.

The RS model is described by three parameters: The ultraviolet cutoff ${\Lambda }_{\mathrm{R}}$, the size of the extra dimension l, and the warp factor constant $\kappa$. The warp factor of the theory is defined as ($e^{-\kappa l}$), which appears in the space-time metric. The graviton case has an additional dimensionless free parameter $\kappa /{\overline{M}}_{\mathrm{Pl}}$, where ${\overline{M}}_{\mathrm{Pl}}$ is the effective four-dimensional reduced Planck scale of $2\times {10}^{18}$ GeV. This parameter is sometimes denoted as c or $\tilde{k}$.

2.1.5. Resonant VBF $HH$ Production

Most resonant $HH$ production models and phenomenological studies assume heavy scalar production via gluon–gluon fusion (ggF). However, in many models containing extra scalars [30,31], vector boson fusion (VBF) is the dominant production mode. This predominantly occurs in models in which the 125 GeV Higgs boson does not fully align with fluctuations around the electroweak vacuum [32], with CP violation [33] or a significant nondoublet component of the electroweak vacuum [34]. In singlet extensions of the Higgs sector, VBF production becomes comparable to ggF production for heavy scalars with a TeV mass scale.

2.2. Resonant $SH$ and $SS$ Production

Numerous theories predict extensions to the Higgs sector that result in additional scalars with mass-dependent couplings to SM particles that are proportional to those of the Higgs boson. Three models are introduced here. An overview and phenomenological comparison of several additional models can be found in Reference [35].

2.2.1. NMSSM

The Next-to-Minimal Supersymmetric Standard Model (NMSSM) [36,37] is an extension of the MSSM that solves the $\mu$-problem [38] of the MSSM and also resolves the fine-tuning required by the Higgs boson. The NMSSM introduces a complex singlet superfield that results in an additional scalar and an additional pseudoscalar.

2.2.2. TRSM

The Two Real Singlet Model (TRSM) [39] extends the SM Higgs sector with two real singlets, which results in two new CP-even scalars. In the case that one or more of the additional singlet fields has a vev of 0, the model provides dark matter candidates. If the additional fields have nonzero vevs, the new scalars and the SM Higgs boson couple to each other as well as other SM particles. A sum rule applies to all couplings to SM particles, resulting in the additional scalars having the same mass-dependent branching ratios as the SM Higgs boson.

2.2.3. N2HDM

The Next-to-Minimal 2HDM (N2HDM) [40,41] is an extension of the CP-conserving 2HDM with an additional real singlet. In the broken phase, both doublets and the singlet acquire nonzero vevs, resulting in three CP-even scalars that couple to one another. Model parameters can be tuned to enhance various final states while remaining consistent with precision LHC measurements.

3. Overview of Experimental Searches for Resonant HH Production

The ATLAS and CMS Collaborations have both performed numerous searches for the resonant production of Higgs boson pairs using various spin-0 and spin-2 benchmark models and multiple final states.

Searches are performed for ggF and VBF resonance production modes. Heavy scalar bosons and Kaluza–Klein gravitons can both be produced via ggF, as shown in Figure 1. Scalar bosons are produced via a quark loop and Kaluza–Klein gravitons are produced directly through a coupling to gluons. Heavy scalar bosons can also be produced via VBF as shown in Figure 2. Similar to Higgs boson VBF production, these events are characterized by two jets with large pseudorapidity ($\eta$) from the scattered quarks and a rapidity gap with minimal radiation. Except where explicitly stated, all analyses discussed in this review search for the ggF production mode.

Multiple finals states are used in the searches presented here to make use of the wide variety of Higgs boson decay modes with large branching ratios or clean signatures. The $HH$ branching ratios are determined from the known branching ratios of the SM Higgs boson [13]. A summary of the branching ratios of the most important $HH$ decay modes is shown in Figure 3. Each final state has advantages and disadvantages that determine its sensitivity across kinematic regimes. For a universally optimal search, a combination of many final states is required.

4. Searches for HH Production in the $\mathit{b}\overline{\mathit{b}}\mathit{b}\overline{\mathit{b}}$ Channel

The Standard Model Higgs boson decays predominantly to $b\overline{b}$ with a branching ratio of $\mathcal{BR}\left(H\to b\overline{b}\right)\approx 58\%$. As a result, $HH\to b\overline{b}b\overline{b}$ is the dominant $HH$ decay mode with a branching ratio of $\mathcal{BR}(HH\to b\overline{b}b\overline{b})\approx 33\%$. This large branching ratio makes $b\overline{b}b\overline{b}$ an important search channel, especially for resonance masses above 1 TeV. The purely hadronic signature results in a large multijet background that is mitigated through the use of b-tagging methods to identify hadronic jets consistent with the decay of B-hadrons.

4.1. ATLAS $b\overline{b}b\overline{b}$ Searches

The ATLAS Collaboration has conducted two searches for resonant $HH$ production in the $b\overline{b}b\overline{b}$ final state using the full Run 2 dataset. This corresponds to 126–139 ${\mathrm{fb}}^{-1}$ of data collected between 2015 and 2018. The analyses are designed to search for resonances in the ggF and VBF production modes.

4.1.1. ATLAS ggF $b\overline{b}b\overline{b}$ Search

The first analysis [42] is a search for ggF resonant $HH$ production, and the results are interpreted in the context of spin-0 and spin-2 benchmark models. The heavy CP-even neutral scalar in a 2HDM is used as the spin-0 benchmark model and is generated with a narrow width that is much smaller than the detector resolution. The spin-2 benchmark model is a Kaluza–Klein graviton with $\kappa /{\overline{M}}_{\mathrm{Pl}}=1$ with a generated width ranging from 3% to 13% of the resonance mass.

Both resolved and boosted topologies are exploited to set limits on the two models in the mass range from 251 GeV to 3 TeV. The resolved channel is used to search for resonances in the mass range from 251 GeV to 1.5 TeV, and the boosted channel is used to search for resonances in the mass range from 900 GeV to 3 TeV. Both channels are statistically combined in the overlapping mass range.

In the resolved channel, pairs of H candidates are reconstructed from four anti-$k_t$ $R=0.4$ jets using a boosted decision tree (BDT). Events are split into $4b$ and $2b$ categories if they contain at least four b-tagged or exactly two b-tagged jets. In the $4b$ category, the four $p_{\mathrm{T}}$-leading b-tagged jets are used, and in the $2b$ category, the two b-tagged jets and the two $p_{\mathrm{T}}$-leading non-b-tagged jets are used.

Events are selected using a combination of triggers requiring one or two high-$E_{\mathrm{T}}$ b-tagged jets plus additional jets from 126 ${\mathrm{fb}}^{-1}$ of data collected between 2016 and 2018. An upper bound cut is applied on the pseudorapidity separation between the two H candidates to reduce the quantum chromodynamics (QCD) multijet background. Additionally, a cut is applied to reject any events that are kinematically consistent with the hadronic decay of a top quark.

Three regions are defined in the $m\left(H_1\right)-m\left(H_2\right)$ plane, where $m\left(H_1\right)$ and $m\left(H_2\right)$ denote the masses of the reconstructed Higgs boson candidates ordered in $p_{\mathrm{T}}$. The signal region (SR), control region (CR), and validation region (VR) are shown in Figure 4, superimposed over data in the $2b$ category.

Following the event selection, the “corrected $m\left(HH\right)$” is constructed as the final discriminating variable. This is performed by rescaling the four momenta of the two H candidates to obtain $m\left(H_1\right)=m\left(H_2\right)=125$ GeV.

The background after the selection cuts are applied is approximately 95% composed of QCD multijet events and is estimated using a data-driven method. Other background processes are ignored. A neutral network (NN) is used to estimate the background in the $4b$ SR from data in the $2b$ SR. The corrected $m\left(HH\right)$ distribution in the $4b$ SR is shown in Figure 5 for the background estimate, data, and several spin-0 signal hypotheses.

In the boosted channel, two anti-$k_t$ $R=1.0$ (large-R) jets are used to reconstruct the two H candidates. The channel uses 139 ${\mathrm{fb}}^{-1}$ of data collected between 2015 and 2018. Events are selected using a combination of triggers that require at least one high-$E_{\mathrm{T}}$ large-R jet.

Events are required to contain at least two large-R jets with a mass of $m_J>50$ GeV and have at least one ghost-associated [43] variable radius track jet. The two $p_{\mathrm{T}}$-leading large-R jets that satisfy the mass and track jet requirements are selected as the two H candidates. An upper bound cut is applied on the pseudorapidity separation between the two H candidates to reduce the QCD multijet background.

The events are split into three signal-enriched (high-tag) categories based on the number of b-tagged track jets associated with each of the H candidates. The $4b$ category requires each H candidate to have at least two associated b-tagged track jets. The $3b$ category requires one H candidate to have at least two associated b-tagged track jets and the other H candidate to have exactly one associated track jet. The $2b$ category requires each H candidate to have exactly one associated b-tagged track jet. Each high-tag category has an associated “low-tag” category that is used to estimate the background. Sketches of H candidates in the high-tag and low-tag categories are shown in Figure 6.

Similar to the resolved channel, the SR, CR, and VR are defined in the $m\left(H_1\right)-m\left(H_2\right)$ plane. The three regions are shown in Figure 7 superimposed over data from events from the 3b “low-tag” category, denoted as $2b$-$1f$.

The background after the selection cuts are applied is dominated by QCD multijet events with a $t\overline{t}$ contribution ranging from 10% to 30% of the background. Other processes contribute $\le 1\%$ of the background and therefore are neglected. The $t\overline{t}$ background is estimated using Monte Carlo (MC) simulation with data-driven corrections. The QCD multijet background is estimated using a data-driven technique.

A normalization fit in the CR data is used to simultaneously derive normalization factors for the QCD multijet and $t\overline{t}$ backgrounds in each b-tagging category. A kinematic reweighting procedure based on iterative splines is used to estimate the background in the SRs from the “low-tag” categories. The $m\left(HH\right)$ distributions in the $2b$ and $4b$ SRs are shown in Figure 8 for the background estimate, data, and several spin-0 signal hypotheses.

Systematic uncertainties are evaluated for both channels. The dominant source of uncertainty for both is the data-driven background estimate. Several components are evaluated to cover various aspects of the methods. Additionally, experimental uncertainties are evaluated for the detector modeling, especially of hadronic jets and the b-tagging methods. Finally, theoretical systematic uncertainties are evaluated on the renormalization and factorization scales and parton showering for the signal. These are also varied for the $t\overline{t}$ background simulation along with the PowHeg damping parameter, which regulates radiation at high transverse momentum.

A profile likelihood ratio test statistic is used to test the production cross-section times branching ratio for the signal models. The likelihood fit is conducted in bins of corrected $m\left(HH\right)$ for the resolved channel and $m\left(HH\right)$ for the boosted channel. Data are fit separately in the resolved and boosted channels. All categories are fit simultaneously in the boosted channel. In the boosted channel, the $2b$ category is only used for resonance masses of at least 2 TeV. No significant excess over the background prediction is observed.

Upper limits on the production cross-section times branching ratio are set at the 95% confidence level using the asymptotic ${\mathrm{CL}}_{\mathrm{s}}$ method [44]. The limits from both channels are combined statistically in the resonance mass range of 900 GeV to 1.5 TeV. The combined expected and observed limits are shown in Figure 9. The theoretical prediction for the bulk RS model with $\kappa /{\overline{M}}_{\mathrm{Pl}}=1$ is also shown. The model is excluded for masses between 298 and 1440 GeV.

4.1.2. ATLAS VBF $b\overline{b}b\overline{b}$ Search

The second analysis [45] is a search for VBF resonant $HH$ production, and the results are interpreted in the context of spin-0 resonance benchmark models. A Type II 2HDM [15] with a width of 10–20% of the resonance mass is used as the broad resonance benchmark mode. It is obtained by setting the ratio of the vacuum expectation values for the two Higgs doublet to $\tan \left(\beta \right)=2.0$ and $\sin (\beta -\alpha )=0.6$, where $\alpha$ is the mixing angle between the two CP-even Higgs bosons. It should be noted that this parameter choice has been excluded by a combination of Higgs boson measurements [46]. A generic scalar with a fixed width of 4 MeV is used as the narrow resonance benchmark model.

The analysis uses resolved reconstruction techniques and sets limits on both models in the mass range of 260 GeV to 1 TeV. Pairs of H candidates are reconstructed from b-tagged central anti-$k_t$ $R=0.4$ jets, and forward jets are used to select events with the VBF topology.

Events are selected using a combination of b-jet triggers requiring at least one or two b-tagged jets from 126 ${\mathrm{fb}}^{-1}$ of $\sqrt{s}=13$ TeV data collected between 2016 and 2018. Events are required to have exactly four b-tagged central jets and at least two forward jets. The two $p_{\mathrm{T}}$-leading forward jets with an opposite sign of $\eta$, referred toas VBF jets, are required to have a large pseudorapidity separation and have an invariant mass greater than 1 TeV.

The four central b-tagged jets are paired into the three possible combinations to construct the two H candidates. To be considered, each pairing is required to satisfy requirements on the $\Delta R$ between each pair of jets. If there is more than one pairing that satisfies the $\Delta R$ requirements, the pairing that results in invariant masses that are the most consistent with two H is used.

Background events are suppressed with requirements designed to select signal-like events. Requirements are placed on the $p_{\mathrm{T}}$ of the vector sum of the jets, the pseudorapidity between the H candidates, and a variable ($X_{Wt}$) designed to reject events that are kinematically consistent with the hadronic decay of a top quark.

Similar to the ggF analysis, three regions are defined in the $m_{2b}^{\mathrm{lead}}-m_{2b}^{\mathrm{subl}}$ plane, where $m_{2b}^{\mathrm{lead}}$ and $m_{2b}^{\mathrm{subl}}$ are the masses $p_{\mathrm{T}}$-leading and $p_{\mathrm{T}}$-subleading H candidates, respectively. The SR, VR, and sideband region (SB) are shown in Figure 10 superimposed over the multijet background estimate.

Following the event selection, the background consists of 95% QCD multijet events and 5% $t\overline{t}$ events. The SM $HH$ produced via ggF is also considered as a small source of background events. Other background sources are neglected. The $t\overline{t}$ and SM ggF $HH$ backgrounds are estimated using MC. The QCD multijet background is estimated using a data-driven technique.

The QCD multijet background is estimated using data in a region identical to the SR but with exactly two b-tagged central jets and at least two untagged central jets. Corrections are applied to account for kinematic differences due to the different b-tagged jet multiplicities, following the procedure described in Reference [47].

The QCD multijet and all-hadronic $t\overline{t}$ backgrounds are normalized with a simultaneous fit of the $X_{Wt}$ distributions to data in the SB. The non-all-hadronic $t\overline{t}$ and SM ggF $HH$ backgrounds are normalized to their SM predictions. The post-fit $m_{4b}$ distribution in the SR is shown in Figure 11 for the background estimate, data, and signal hypotheses for a narrow spin-0 resonance and SM VBF $HH$.

Systematic uncertainties are evaluated on the background estimate, theoretical predictions, and detector modeling. The QCD multijet background estimate is the source of the dominant systematic uncertainties. The experimental modeling of the jet energy scale and resolution also contribute significantly. The statistical uncertainty is larger than the combined systematic uncertainty.

A profile-likelihood ratio test statistic is used to test the production cross-section times branching ratio for the signal models. No significant excess over the background prediction is observed.

Upper limits are set at 95% confidence level using the asymptotic ${\mathrm{CL}}_{\mathrm{s}}$ method with $m_{4b}$ as the final discriminant. Figure 12 shows the limits for the narrow and broad spin-0 models in the resonance mass range from 260 GeV to 1 TeV.

4.2. CMS $b\overline{b}b\overline{b}$ Searches

The CMS Collaboration has conducted two searches for ggF resonant $HH$ production in the $b\overline{b}b\overline{b}$ final state using Run 2 LHC data. The analyses are designed to search for signal hypotheses with low masses and resolved topologies and with high masses and boosted topologies.

4.2.1. CMS Resolved $b\overline{b}b\overline{b}$ Search

The first analysis [48] is a search for ggF resonant $HH$ production with a resolved topology using a partial Run 2 dataset corresponding to 35.9 ${\mathrm{fb}}^{-1}$ of data collected in 2016.

The search is interpreted in the context of narrow spin-0 and spin-2 benchmark models. A bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and $\kappa l=35$ is used as the spin-0 benchmark model and a Kaluza–Klein graviton with $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.5$ and $\kappa l=35$ [49] is used as the spin-2 benchmark model. Both benchmark models are generated with a width of 1 MeV. Limits are set on both benchmark models in the mass range from 260 GeV to 1.2 TeV. The analysis is split into the low-mass region (LMR) for resonance masses less than 580 GeV and the medium-mass region (MMR) for resonance masses greater than 580 GeV.

Events are selected with a combination of two triggers that require at least four anti-$k_t$ $R=0.4$ jets, at least three of which are required to be b-tagged. After the trigger selection, events are required to contain at least four b-tagged jets. The selected jets are paired to form two H candidates. The candidates are randomly assigned the indices 1 and 2 and have masses $m_{H_1}$ and $m_{H_2}$. Both H candidates are required to meet mass criteria in the LMR and criteria on the $\Delta R$ separation of the constituent jets in the MMR. A variable $\mathcal{R}$ is defined to show the consistency of event kinematics with those of $HH$ events. If multiple pairs of H candidates are found in an event, the pair that minimizes ${\mathcal{R}}^2$ is used.

A multivariate regression technique is used to correct the b-tagged jets’ $p_{\mathrm{T}}$, following the procedures in References [50,51]. This improves the mass resolution of the reconstructed H candidates from 10–13% to 6–12% as well as the mass scale. An additional correction is applied to the b-tagged jet momenta to constrain the H candidate masses to be 125 GeV. The impact of the regression and constraint on the resonance mass, reconstructed from the two H candidates, for spin-2 resonances is shown in Figure 13.

Two regions are defined in the $m_{H_1}-m_{H_2}$ plane based on $\mathcal{R}$. The SR and SB are shown in Figure 14 superimposed over data from events in the MMR.

The signal and background are both estimated in the SR using parametric models, fit separately in the LMR and MMR. The signal parametric models are obtained using a Gaussian function in the MMR and the sum of two Gaussian functions in the LMR fit to the simulated distribution of the reconstructed resonance mass $m_X$. The background consists primarily of QCD multijet events with a 10–15% contribution from $t\overline{t}$, which has an $m_X$ shape similar to that of the QCD multijet background. The parametric model used to describe the background is fit to the $m_X$ distribution of data in control regions consisting of the SB as well as events in both the SR and SB in which one of the four jets used to reconstruct $m_X$ fails the b-tagging criteria. The LMR is split into LMR1 with $m_X\in [260,310]$ GeV and LMR2 with $m_X\in [310,580]$ GeV. The $m_X$ distributions for data in the SR and the background model for LMR1 and MMR are shown in Figure 15.

Systematic uncertainties are evaluated on the background estimate, the choice of PDF, and modeling of the detector response.

The production cross-section times branching ratio for the signal models is tested in bins of $m_X$. No significant excess over the background prediction is observed. The upper limits on the production cross-section times branching ratio are set on both models at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method. The limits are shown in Figure 16. The theoretical predictions for a bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and $\kappa l=35$ and for a Kaluza–Klein graviton with $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.5$ and $\kappa l=35$ are also shown. The bulk radion model is excluded in the mass ranges of $[260,280]$ GeV, $[300,450]$ GeV and $[480,1120]$ GeV. The Kaluza–Klein graviton model is excluded in the mass ranges of $[320,450]$ GeV and $[480,720]$ GeV.

4.2.2. CMS Boosted $b\overline{b}b\overline{b}$ Search

The second analysis [52] is a search for ggF resonant $HH$ production with a boosted topology using the full Run 2 dataset. This corresponds to 138 ${\mathrm{fb}}^{-1}$ of data collected between 2015 and 2018.

The search is interpreted in the context of narrow spin-0 and spin-2 benchmark models. A bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and $\kappa l=35$ is used as the spin-0 benchmark model, and a Kaluza–Klein graviton with $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.5$ and $\kappa l=35$ is used as the spin-2 benchmark model. Both benchmark models are generated with a width of 1 MeV. Limits are set on both benchmark models in the mass range from 1 to 3 TeV. The analysis is split into the fully-boosted category where both $H\to b\overline{b}$ are reconstructed with large-R jets and the semiresolved category where one $H\to b\overline{b}$ is reconstructed with a large-R jet and the other is reconstructed with two anti-$k_t$ $R=0.4$ jets.

Events are selected with a combination of triggers that require hadronic jets. The first trigger requires a high scalar sum of the $p_{\mathrm{T}}$ of all anti-$k_t$ $R=0.4$ jets in the event ($H_{\mathrm{T}}$). The second trigger requires a large $H_{\mathrm{T}}$ and a pair of jets with an invariant mass greater than 900 GeV and a small psuedorapidity separation. The third trigger requires an anti-$k_t$ $R=0.8$ jet with a mass of at least 30 GeV.

Events in the fully-boosted category are required to have at least two anti-$k_t$ $R=0.8$ jets, the $p_{\mathrm{T}}$-subleading of which is required to have a mass between 110 and 140 GeV. The DeepAK8 tagger [53] is used to identify large-R jets as coming from $H\to b\overline{b}$ decays. The tagger provides either loose or tight thresholds, leading to two signal regions, one in which both large-R jets pass the tight criteria and the other in which both jets pass at least the loose criteria and no more than one jet passes the tight criteria.

Events in the semiresolved category are required to have at least one anti-$k_t$ $R=0.8$ jet that passes the DeepAK8 tight threshold and at least two b-tagged anti-$k_t$ $R=0.4$ jets. Events are required to have at least one pair of b-tagged $R=0.4$ jets where both jets are $\Delta R>0.8$ from the $H\to b\overline{b}$ large-R jet and are within $\Delta R<1.5$ from each other. If multiple pairs of b-tagged $R=0.4$ jets satisfy this criteria, the pair with the largest sum of b-tagging scores is selected as the resolved $H\to b\overline{b}$ candidate. This is first tried with the $p_{\mathrm{T}}$-leading large-R jet and if no pairs are found, it is tried with the $p_{\mathrm{T}}$-subleading large-R jet. The large-R jet that leads to a successful pairing is identified as the boosted $H\to b\overline{b}$ candidate. If no pair is found, the event is rejected. The invariant mass of the selected pair of $R=0.4$ jets is required to be $90\mathrm{GeV}<m_{jj}<140$ GeV.

A modified “reduced” invariant mass of the $HH$ system, $m_{\mathrm{red}}$, is used in place of the direct invariant mass of the selected jets. The reduced mass is defined as

$$m_{\mathrm{red}}=m_{JJ}-m_{J_1}-m_{J_2}+2m_H$$

(2)

for the boosted category where $m_{JJ}$ is the invariant mass of the two $H\to b\overline{b}$ large-R jets and $m_{J_1}$ and $m_{J_2}$ are the masses of the individual large-R jets. For the semiresolved category, the reduced mass is defined as

$$m_{\mathrm{red}}=m_{Jjj}-m_J-m_{jj}+2m_H$$

(3)

for the boosted category where $m_{Jjj}$ is the invariant mass of the two $H\to b\overline{b}$ candidates, $m_J$ is the mass of the $H\to b\overline{b}$ large-R jet, and $m_{jj}$ is the invariant mass of the $H\to b\overline{b}$ $R=0.4$ jet pair. Events in both categories are required to have $m_{\mathrm{red}}>750$ GeV. Additionally, a maximum pseudorapidity separation requirement is imposed on the two $H\to b\overline{b}$ candidates.

The background consists almost entirely of QCD multijet and $t\overline{t}$ events, both of which are estimated using data-driven methods that also make use of simulation. The QCD multijet background estimate is based on the ratio of events whose $p_{\mathrm{T}}$-leading large-R jet passes the DeepAK8 tagging criteria to events whose whose $p_{\mathrm{T}}$-leading large-R jet fails the tagging criteria. The ratio is found using simulation and corrected using data outside the mass window requirement on the $p_{\mathrm{T}}$-subleading large-R jet or $R=0.4$ jet pair to predict the background as a function of $m_{\mathrm{red}}$. The $t\overline{t}$ background is estimated using simulation that is fit to data in dedicated control regions that shift the mass window requirements to contain the top quark mass peak. Slices of the $m_J-m_{\mathrm{red}}$ plane for data, the background estimate, and a signal hypothesis are shown in Figure 17.

Systematic uncertainties are evaluated on the background estimate, the choice of PDF, and modeling of the detector response. The dominant uncertainties come from the $t\overline{t}$ cross-section and the QCD multijet background estimate.

A two-dimensional likelihood fit is performed in the $m_J-m_{\mathrm{red}}$ plane. No significant excess over the background prediction is observed. The upper limits on the production cross-section times branching ratio are set on both models at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method. The limits are shown in Figure 18. The theoretical predictions for a bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and $\kappa l=35$ and for a Kaluza–Klein graviton with $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.5$ and $\kappa l=35$ are also shown. The bulk radion model is excluded in the mass range of $[1,2.6]$ TeV. The Kaluza–Klein graviton model is excluded in the mass range of $[1,1.2]$ TeV.

4.3. Discussion of $b\overline{b}b\overline{b}$ Searches

ATLAS and CMS both performed searches in the $b\overline{b}b\overline{b}$ channel using resolved and boosted topologies. For low resonance masses, the $b\overline{b}b\overline{b}$ channel presents the challenges of a large QCD multijet background and a roughly isotropic resolved signal topology that is difficult to distinguish from background. For high resonance masses, however, the large $b\overline{b}b\overline{b}$ branching ratio can be efficiently exploited using boosted topologies.

In the resolved topology, the greatest difficulty comes from pairing b-tagged jets to form two H candidates. This pairing is necessary to provide kinematic features that can be used to separate signal from background. As shown in Figure 10, algorithms with strong $m_H$ requirements, such as the one used in the ATLAS VBF search, can sculpt the background distribution to peak exactly in the signal region. The use of machine learning techniques to pair the jets, such as in the ATLAS resolved ggF search, can help to reduce this sculpting while maintaining a good signal reconstruction efficiency. As shown in Figure 4, this can result in less severe sculpting of the background estimate with a broad peak partially overlapping with the signal region. The MMR in the CMS resolved search uses a $\Delta R$ requirement to determine the pairing strategy, which does not sculpt the background significantly. As shown in Figure 14, this results in a smooth data distribution, consisting primarily of QCD multijet background events.

The use of large-R jets in the boosted topology significantly simplifies the reconstruction and identification of $H\to b\overline{b}$ candidates. Particle-flow large-R jets identified with the constituent-based DeepAK8 algorithm used by CMS and calorimeter-based large-R jets with b-tagged track jets used by ATLAS both provide excellent performance.Additionally, the simple reconstruction of using two large-R jets or one large-R jet plus two b-tagged small-R jets does not appreciably sculpt the background estimate as shown in Figure 7 and Figure 17.

As shown in Figure 9, there is a significant range of resonance masses for which boosted and resolved reconstruction techniques are comparably sensitive. Ensuring orthogonality between the selection criteria and combining the two analysis techniques in the region of overlap can result in significantly stronger limits than either topology alone.

5. Searches for $\mathit{HH}$ Production in the $\mathit{b}\overline{\mathit{b}}{\mathbf{\tau }}^{+}{\mathbf{\tau }}^{-}$ Channel

The $b\overline{b}{\tau }^{+}{\tau }^{-}$ channel is the most sensitive to search for resonances with masses around 500 GeV decaying to $HH$. The large branching ratio of $H\to b\overline{b}$ combined with the relatively large branching ratio and unique signature of $H\to {\tau }^{+}{\tau }^{-}$ ensures a good signal-to-background ratio. Both leptonically and hadronically decaying $\tau$ leptons are used to ensure nearly complete coverage of final states. The backgrounds in this channel primarily consist of events with a top quark, a Z boson, or one or more hadronic jets misidentified as an electron, muon, or hadronically decaying $\tau$ lepton.

5.1. ATLAS $b\overline{b}{\tau }^{+}{\tau }^{-}$ Searches

The ATLAS Collaboration has conducted two searches for ggF resonant $HH$ production in the $b\overline{b}{\tau }^{+}{\tau }^{-}$ final state using the full Run 2 dataset of 139 ${\mathrm{fb}}^{-1}$ of data collected between 2015 and 2018. The first analysis uses resolved topologies to search for resonance masses between 251 GeV and 1.6 TeV. The second analysis uses boosted topologies to search for resonance masses between 1 and 3 TeV.

5.1.1. ATLAS Resolved $b\overline{b}{\tau }^{+}{\tau }^{-}$ Search

The first analysis [54] is a search for ggF resonant $HH$ production with a resolved topology in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ and ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channels. The search is interpreted in the context of a generic narrow spin-0 benchmark model. The signal samples are generated with a width of 10 MeV. Limits are set on the benchmark model in the mass range from 251 GeV to 1.6 TeV.

The analysis is split into two channels based on the decay mode of the ${\tau }^{+}{\tau }^{-}$ system. The channel in which both $\tau$ leptons decay hadronically (${\tau }_{\mathrm{had}}$) is referred to as ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ and the channel in which one $\tau$ lepton decays hadronically and the other decays leptonically (${\tau }_{\mathrm{lep}}$) is referred to as ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$. The presence of a ${\tau }_{\mathrm{had}}$ is indicated by the presence of its visible decay products (${\tau }_{\mathrm{had}-\mathrm{vis}}$).

Events in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel are selected using a combination of triggers that require either one or two ${\tau }_{\mathrm{had}-\mathrm{vis}}$. The triggers used between 2016 and 2018 that require two ${\tau }_{\mathrm{had}-\mathrm{vis}}$ also require one or two anti-$k_t$ $R=0.4$ jets. Additionally, events are required to have exactly two ${\tau }_{\mathrm{had}-\mathrm{vis}}$ with opposite electric charge and exactly two b-tagged anti-$k_t$ $R=0.4$ jets. Events are rejected if they contain an electron or muon. The invariant mass of the $\mathrm{di}-\tau$ system ($m_{\tau \tau }^{\mathrm{MMC}}$) is estimated using the Missing Mass Calculator (MMC) [55], which uses both ${\tau }_{\mathrm{had}-\mathrm{vis}}$ and $E_{\mathrm{T}}^{\mathrm{miss}}$ with the assumption that $E_{\mathrm{T}}^{\mathrm{miss}}$ is exclusively from the neutrinos from the $\tau$ lepton decays. Events are required to have $m_{\tau \tau }^{\mathrm{MMC}}>60$ GeV.

Events in the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channel are selected using a combination of single-lepton triggers (SLTs) that require a single lepton and lepton-plus-${\tau }_{\mathrm{had}-\mathrm{vis}}$ triggers (LTTs) that require a single lepton and a ${\tau }_{\mathrm{had}-\mathrm{vis}}$. The LTTs used in 2017 and 2018 one or two jets. Events are split into the SLT and LTT categories based on the triggers used to select them. If an event passes SLT and LTT requirements, it is removed from the LTT category. Events in both categories are required to have exactly one electron or muon, a ${\tau }_{\mathrm{had}-\mathrm{vis}}$ with opposite electric charge to the lepton, and exactly two b-tagged anti-$k_t$ $R=0.4$ jets. The MMC is used to estimate the $\mathrm{di}-\tau$ mass from the ${\tau }_{\mathrm{had}-\mathrm{vis}}$, the lepton, and $E_{\mathrm{T}}^{\mathrm{miss}}$. Events are required to have $m_{\tau \tau }^{\mathrm{MMC}}>60$ GeV. Additionally, events are required to have an invariant mass of the two b-tagged jets of $m_{b\overline{b}}<150$ GeV.

The backgrounds in both channels are estimated using a combination of simulation and data-driven methods. The primary backgrounds come from top quark, Z+jets, W+jets, diboson, single Higgs boson, and QCD multijet processes. These backgrounds contain ${\tau }_{\mathrm{had}-\mathrm{vis}}$ originating from a ${\tau }_{\mathrm{had}}$ decay (true ${\tau }_{\mathrm{had}-\mathrm{vis}}$), from a misidentified quark- or gluon-initiated jet (fake ${\tau }_{\mathrm{had}-\mathrm{vis}}$), or from a misidentified lepton. Background events with true ${\tau }_{\mathrm{had}-\mathrm{vis}}$ and misidentified leptons as well as background with fake ${\tau }_{\mathrm{had}-\mathrm{vis}}$ other than $t\overline{t}$ and QCD multijet are estimated using simulation. The normalizations of the $t\overline{t}$ and Z plus heavy flavor jets (Z+HF) backgrounds are derived using a dedicated control region.

The QCD multijet and $t\overline{t}$ backgrounds containing one or more fake ${\tau }_{\mathrm{had}-\mathrm{vis}}$ are estimated using data-driven methods. In the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channel, the QCD multijet and $t\overline{t}$ backgrounds are estimated using a fake factor method. Fake factors are found separately for each background process using dedicated control regions. In the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel, two different data-driven methods are used for the QCD multijet and $t\overline{t}$ backgrounds. The QCD multijet background is estimated using a fake factor method similar to the one used in the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channel. The $t\overline{t}$ background with fake ${\tau }_{\mathrm{had}-\mathrm{vis}}$ in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel is estimated using simulation with corrections derived from data in the $t\overline{t}$ control region from the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ data-driven background estimate. The $m_{HH}$ distributions for the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ and ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ SLT categories are shown in Figure 19 for the background estimate, data, and several signal hypotheses.

Parameterized neural networks (PNNs) are used to distinguish signal from background. The PNNs are parameterized in the mass of the resonance hypotheses, providing good sensitivity and continuity over the range of resonance mass hypotheses. The PNNs are trained using the simulated signal as well as the sum of all background estimates normalized to their SM cross-sections. All backgrounds, including those containing fake ${\tau }_{\mathrm{had}-\mathrm{vis}}$, are modeled for the training using simulation, except for the QCD multijet background in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel, which is estimated using the data-driven technique described above. The PNNs are trained using a variety of kinematic variables including $m_{HH}$, $m_{\tau \tau }^{\mathrm{MMC}}$, $m_{b\overline{b}}$, and angular information about all of the decay products. The distributions of PNN outputs in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel for two signal mass hypotheses are shown in Figure 20.

The dominant uncertainty is the statistical uncertainty of data. Systematic uncertainties are evaluated on the modeling of the detector response, modeling of the $t\overline{t}$, Z+jets and single Higgs boson background simulations, the data driven background estimates, and the choice of PDF and parton shower simulation used for the signal hypotheses.

A simultaneous binned maximum-likelihood fit is performed to the PNN output distributions in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel and both ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ categories and to the $m_{\ell \ell }$ distribution in the control region used for the $t\overline{t}$ and Z+HF normalizations. The $t\overline{t}$ and Z+HF normalizations are free parameters in the fit. The binnings of the PNN output distributions are chosen to minimize the number of bins while maximizing the expected sensitivity and ensuring the stability of the fit.

The upper limits on the production cross-section times branching ratio are set at 95% CL using the asymptotic ${\mathrm{CL}}_{\mathrm{s}}$ method and are shown in Figure 21. Limits are shown for the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ and the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channels separately as well as combined. A broad excess is observed in both channels in the signal mass range $700\mathrm{GeV}<m_X<1.2$ TeV. The most significant combined excess is at a signal hypothesis mass of 1 TeV with a local significance of 3.0 $\sigma$ and a global significance of ${2.0}_{-0.2}^{+0.4}\sigma$. A deficit is observed in the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channel in the low-mass region with the largest deficit at a mass of 280 GeV with a local significance of 2.4 $\sigma$. Neither the excess at 1 TeV nor the low-mass deficit are reflected in the $m_{HH}$ distributions shown in Figure 19.

5.1.2. ATLAS Boosted $b\overline{b}{\tau }^{+}{\tau }^{-}$ Search

The second analysis [56] is a search for high-mass ggF resonant $HH$ production using a novel reconstruction technique for boosted final states in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel. The search is interpreted in the context of a generic narrow spin-0 benchmark model. The signal samples are generated with a width of that is much smaller than the detector resolution. Limits are set on the benchmark model in the mass range from 1 to 3 TeV.

A novel technique is used to reconstruct and identify boosted $H\to {\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ decays such that the hadronic decay products overlap in the detector and cannot be distinguished using standard ${\tau }_{\mathrm{had}}$ reconstruction. In this method, a $\mathrm{di}-\tau$ object is reconstructed from an ungroomed anti-$k_t$ $R=1.0$ jet with $p_{\mathrm{T}}>300$ GeV. The constituents of the large-R jet are reclustered into anti-$k_t$ $R=0.2$ subjets, the two $p_{\mathrm{T}}$-leading of which are used to reconstruct the $\mathrm{di}-\tau$ system. Tracks are matched to the subjets and are referred to as “$\tau$ tracks”. Other tracks associated to the large-R jet are referred to as “isotracks”. All tracks are required to pass criteria on their association to the primary vertex. The charge of each subjet is defined as the sum of the charge of the $\tau$-tracks, and the charge product of the $\mathrm{di}-\tau$ object is the product of the charges of the two subjets. An illustration of a $\mathrm{di}-\tau$ object is shown in Figure 22.

Requirements are placed on $\mathrm{di}-\tau$ objects to identify boosted $H\to {\tau }^{+}{\tau }^{-}$ decays. Both of the $p_{\mathrm{T}}$-leading subjets are required to have either one or three associated tracks within $\Delta R<0.1$ to separate ${\tau }_{\mathrm{had}}$ decays from hadronic jets. Additionally, a BDT is trained to differentiate between $H\to {\tau }^{+}{\tau }^{-}$ and quark- or gluon-initiated jets. The BDT uses information about the $\tau$ tracks, isotracks, $p_{\mathrm{T}}$-leading subjets, and large-R jet. A cut is implemented on the BDT output to have an approximately 60% signal efficiency.

Events are selected using triggers that require one high-$p_{\mathrm{T}}$ large-R jet. Additionally, events are required to contain at least two large-R jets, at least one of which is a $\mathrm{di}-\tau$ object. If multiple $\mathrm{di}-\tau$ objects exist, the one with the highest $p_{\mathrm{T}}$ is selected as the $H\to {\tau }^{+}{\tau }^{-}$ candidate. The $H\to {\tau }^{+}{\tau }^{-}$ candidate is required to have no more than three subjets, and the $p_{\mathrm{T}}$-leading subjets are required to be within $\Delta R<0.8$ of each other. The two $p_{\mathrm{T}}$-leading subjets are also required to have charges whose product is $\pm 1$. Events are also required to have a large-R jet with a mass larger than 50 GeV and separated from the $H\to {\tau }^{+}{\tau }^{-}$ candidate by $\Delta R>1.0$ to reconstruct the boosted $H\to b\overline{b}$ decay. Finally, events have a minimum $E_{\mathrm{T}}^{\mathrm{miss}}$ requirement and are vetoed if they contain an electron, a muon, or more than one b-tagged large-R jet.

Three signal regions, two control regions, and three validation regions are defined based on the charge product of the $H\to {\tau }^{+}{\tau }^{-}$ candidate, the number of b-tagged track jets in the $H\to b\overline{b}$ jet, the $|\Delta \varphi |$ between the $E_{\mathrm{T}}^{\mathrm{miss}}$ and the $H\to {\tau }^{+}{\tau }^{-}$ candidate, the mass of the $H\to b\overline{b}$ jet, and the reconstructed mass of the visible $HH$ system $m_{HH}^{\mathrm{vis}}$. The signal regions are defined with a charge product of $-1$, exactly two b-tagged track jets in the $H\to b\overline{b}$ jet, $|\Delta \varphi |<1.0$ between $E_{\mathrm{T}}^{\mathrm{miss}}$ and the $H\to {\tau }^{+}{\tau }^{-}$ candidate, and an $H\to b\overline{b}$ jet mass between 60 and 160 GeV. The signal regions are split by $m_{HH}^{\mathrm{vis}}$. For signal hypotheses with $m_X\le 1.6$ TeV, no requirement is placed on $m_{HH}^{\mathrm{vis}}$. For signal hypotheses with $m_X\ge 1.6$ TeV, $m_{HH}^{\mathrm{vis}}$ is required to be at least 900 GeV, and for $m_X\ge 2.5$ TeV, $m_{HH}^{\mathrm{vis}}$ is required to be at least 1.2 TeV. The signal hypotheses with $m_X=1.6$ and 2.5 TeV are each evaluated with both $m_{HH}^{\mathrm{vis}}$ requirements that are relevant.

Following the signal region requirements, the primary backgrounds come from QCD multijet with hadronic jets misidentified as $\mathrm{di}-\tau$ objects as well as $ZH$ and Z+jets events with $Z\to {\tau }^{+}{\tau }^{-}$ decays. The QCD multijet background is estimated with a data-driven technique that uses a control region in which the $\mathrm{di}-\tau$ candidate has a charge product of $+1$ and is validated in two validation regions. The Z+jets background is estimated using simulation with a normalization derived from data in a control region with zero b-tagged track jets and validated in a validation region. An additional normalization is derived for Z+jets events with heavy-flavor jets from data in a control enriched with $Z\to {\ell }^{+}{\ell }^{-}$ events where ℓ is either an electron or a muon. Other background processes including W+jets, diboson, and events containing top quarks are estimated using simulation.

The distribution of $m_{HH}^{\mathrm{vis}}$ in the signal region without any requirement on $m_{HH}^{\mathrm{vis}}$ is shown in Figure 23 for data, the background estimate, and two signal hypotheses.

The primary systematic uncertainties come from the data-driven background estimates. Additional systematic uncertainties are evaluated on the signal modeling including the choice of PDF and parton shower modeling. Other systematic uncertainties are found to be negligible compared to the statistical uncertainty.

A single bin profile-likelihood fit is conducted for each signal hypothesis. No significant excesses are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method and are shown in Figure 24.

5.2. CMS $b\overline{b}{\tau }^{+}{\tau }^{-}$ Searches

The CMS Collaboration has conducted two searches for ggF resonant $HH$ production in the $b\overline{b}{\tau }^{+}{\tau }^{-}$ final state using a partial Run 2 dataset of 35.9 ${\mathrm{fb}}^{-1}$ of data collected in 2016. The first analysis uses resolved topologies to search for resonance masses between 250 and 900 GeV. The second analysis uses boosted topologies to search for resonance masses between 1 and 4 TeV.

5.2.1. CMS Resolved $b\overline{b}{\tau }^{+}{\tau }^{-}$ Search

The first analysis [57] is a search for ggF resonant $HH$ production with a resolved topology in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ and ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channels. The search is interpreted in the context of a generic narrow spin-0 benchmark model S. The signal samples are generated with a width that is much smaller than the detector resolution. Limits are set on the benchmark model in the mass range from 250 to 900 GeV.

The analysis is split into three channels based on the decay mode of the ${\tau }^{+}{\tau }^{-}$ system. The channel in which both $\tau$ leptons decay hadronically (${\tau }_{\mathrm{had}}$) is referred to as ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$; the channels in which one $\tau$ lepton decays hadronically and the other decays leptonically are referred to as ${\tau }_e{\tau }_{\mathrm{had}}$ and ${\tau }_{\mu }{\tau }_{\mathrm{had}}$, depending on the flavor of the lepton, or ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ when discussed inclusively. The presence of a ${\tau }_{\mathrm{had}}$ is indicated by the presence of its visible decay products (${\tau }_{\mathrm{had}-\mathrm{vis}}$).

Events in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel are selected using a trigger that requires two ${\tau }_{\mathrm{had}-\mathrm{vis}}$. Triggers that require a single lepton are used to select events in the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channels. Events in the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channels are required to have one isolated lepton and one ${\tau }_{\mathrm{had}-\mathrm{vis}}$, while events in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel are required to have two ${\tau }_{\mathrm{had}-\mathrm{vis}}$. The ${\tau }_{\mathrm{had}-\mathrm{vis}}$ in all channels are required to pass isolation criteria. Additionally, the visible decay products of the two $\tau$ leptons (${\tau }_{\mathrm{had}-\mathrm{vis}}$ or lepton) are required to have opposite sign electric charges. Finally, events are required to contain either two anti-$k_t$ $R=0.4$ jets, at least one of which is b-tagged, or one b-tagged anti-$k_t$ $R=0.8$ jet with at least two subjets and a mass larger than 30 GeV. If an event has a large-R jet meeting the criteria, it is categorized as boosted; otherwise, it is categorized as resolved. Events in the resolved category are divided into those with exactly one b-tagged jet and those with at least two b-tagged jets and are further split into low-mass and high-mass categories optimized for signal hypotheses with masses less than and greater than 350 GeV.

The invariant masses of the $b\overline{b}$ system ($m_{b\overline{b}}$) and the ${\tau }^{+}{\tau }^{-}$ system ($m_{\tau \tau }$) are reconstructed. In the resolved category, $m_{b\overline{b}}$ is reconstructed from the two selected jets, and in the boosted category, it is reconstructed from the selected large-R jet. In all channels, $m_{\tau \tau }$ is reconstructed from the $\tau$ lepton visible decay products using the SVFit method [58]. Events in the resolved category are required to satisfy requirements that $m_{b\overline{b}}$ and $m_{\tau \tau }$ are consistent with $m_H$.

The primary background processes are $t\overline{t}$, $Z/{\gamma }^{*}\to {\tau }^{+}{\tau }^{-}$, and QCD multijet production. The $t\overline{t}$, single Higgs boson, W+jets, and diboson backgrounds are estimated using simulation. The $Z/{\gamma }^{*}\to {\tau }^{+}{\tau }^{-}$ background is estimated using simulation with corrections derived from data in control regions enriched with $Z\to {\mu }^{+}{\mu }^{-}$ decays. The QCD multijet background is estimated using data in control regions in which $\tau$ lepton visible decay products fail the isolation criteria and events have same-sign pairs of ${\tau }_{\mathrm{had}-\mathrm{vis}}$ and leptons.

Two BDTs are used to discriminate signal from background in the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channels in the low- and high-mass categories. The BDTs are trained separately for each category using eight variables that consist of angular separations between particles, $E_{\mathrm{T}}^{\mathrm{miss}}$, and multiparticle systems as well as the transverse mass of the $E_{\mathrm{T}}^{\mathrm{miss}}$ plus the ${\tau }_{\mathrm{had}-\mathrm{vis}}$ or lepton. A kinematic fit [59] is used to reconstruct an invariant mass $m_{HH}^{\mathrm{KinFit}}$ by minimizing a function of the b-jet energy, and the $p_{\mathrm{T}}$ balance of the selected jets, $\tau$ lepton visible decay products, and $E_{\mathrm{T}}^{\mathrm{miss}}$. Figure 25 shows the distributions of $m_{HH}^{\mathrm{KinFit}}$ for data, background, and signal hypotheses in the low-mass resolved and boosted categories.

The dominant systematic uncertainties come from the QCD multijet background estimate, the cross-section of the simulated backgrounds, and the modeling of the detector response for $\tau$ leptons. Systematic uncertainties are additionally evaluated on the detector response modeling for other particles, the lepton trigger modeling, and theoretical uncertainties on the signal simulation.

A simultaneous binned maximum-likelihood fit is performed to the $m_{HH}^{\mathrm{KinFit}}$ distributions in all of the analysis categories. No significant excesses are observed over the predicted background. Upper limits on the production cross-section times branching ratio are set at 95% CL using the asymptotic ${\mathrm{CL}}_{\mathrm{s}}$ method and are shown in Figure 26. The theoretical prediction for a bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and $\kappa l=35$ is also shown. The limits are also interpreted as constraints in the $m_A-\tan \beta$ plane of the hMSSM as shown in Figure 27.

5.2.2. CMS Boosted $b\overline{b}{\tau }^{+}{\tau }^{-}$ Search

The second analysis [60] is a search for ggF resonant $HH$ production with a boosted topology using a partial Run 2 dataset of 35.9 ${\mathrm{fb}}^{-1}$ of data collected in 2016.

The search is interpreted in the context of narrow spin-0 and spin-2 benchmark models. A bulk radion with ${\Lambda }_{\mathrm{R}}=1$ TeV is used as the spin-0 benchmark model, and a Kaluza–Klein graviton with $\tilde{k}=\kappa /{\overline{M}}_{\mathrm{Pl}}=0.5$ is used as the spin-2 benchmark model. Both benchmark models are generated with a width that is smaller than the experimental resolution. Limits are set on both benchmark models in the mass range from 900 GeV to 4 TeV. The analysis is split into the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ and ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channels, and events are reconstructed using boosted techniques that make use of large-R jets.

A dedicated algorithm is used to reconstruct boosted $H\to {\tau }^{+}{\tau }^{-}$ candidates in the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ and ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channels. First, Cambridge-Aachen $R=0.8$ jets are used as seeds. The clustering sequence is undone iteratively until two subjets are found that each have a mass less than 2/3 that of the full jet. A $\tau$ lepton reconstruction algorithm is used on both subjets, and a BDT is used to identify ${\tau }_{\mathrm{had}}$. If no ${\tau }_{\mathrm{had}}$ is identified, the procedure is repeated with anti-$k_t$ $R=0.4$ jets as seeds. The $H\to {\tau }^{+}{\tau }^{-}$ candidate consists of either two ${\tau }_{\mathrm{had}}$ or one ${\tau }_{\mathrm{had}}$ and a lepton.

Events are selected with a combination of triggers that require large $E_{\mathrm{T}}^{\mathrm{miss}}$ along with other criteria such as high-$p_{\mathrm{T}}$ jets. Additionally, events are required to contain one $H\to {\tau }^{+}{\tau }^{-}$ candidate and a $H\to b\overline{b}$ candidate built from an anti-$k_t$ $R=0.8$ jet with a mass of 105–135 GeV and either one or two b-tagged subjets. Events are also required to have a large $E_{\mathrm{T}}^{\mathrm{miss}}$, a $\mathrm{di}-\tau$ mass estimated with the SVFit algorithm between 50 and 150 GeV, and an invariant mass $m_X$ calculated from the $H\to b\overline{b}$ and $H\to {\tau }^{+}{\tau }^{-}$ candidates greater than 750 GeV. Finally, events are rejected if they have any b-tagged anti-$k_t$ $R=0.4$ jets that do not overlap with the $H\to b\overline{b}$ candidate or if the two $\tau$ leptons have a $\Delta R$ separation greater than 1.5. Following the selection, events are divided into categories based on the number of ${\tau }_{\mathrm{had}}$ and the number of b-tagged subjets in the $H\to b\overline{b}$ candidate.

The primary background processes are $t\overline{t}$ and V+jets. The $t\overline{t}$ background is estimated using the simulation with a normalization derived from data in a control region with at least one b-tagged anti-$k_t$ $R=0.4$ jet that does not overlap with the $H\to b\overline{b}$ candidates. The V+jets background is estimated using data in regions in which the $H\to b\overline{b}$ candidate mass is in the range of 30–65 GeV or greater than 135 GeV. The distributions of both background processes are fit with analytic functions that are used to estimate the background contribution in the signal region. A transfer function is used to extrapolate the V+jets estimate to the signal region. The distributions of $m_X$ for data, the background estimate, and an example signal hypothesis in the 1 b-tag categories are shown in Figure 28.

Systematic uncertainties are evaluated on the background estimate, the choice of PDF and scales for the signal, and modeling of the detector response. The dominant uncertainties come from the $t\overline{t}$ and V+jets estimate normalization, the choice of signal PDF and scales, and the modeling of $\tau$ lepton identification.

A combined profile-likelihood fit of signal and background is performed in the $m_X$ distribution. No significant excess over the background prediction is observed. The upper limits on the production cross-section times branching ratio are set on both models at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method. The limits are shown in Figure 29. The theoretical predictions for a bulk radion with ${\Lambda }_{\mathrm{R}}=1$ TeV and for a Kaluza–Klein graviton with $\tilde{k}=\kappa /{\overline{M}}_{\mathrm{Pl}}=0.5$ are also shown. The bulk radion model is excluded for masses below 2.7 TeV.

5.2.3. Comparison of $b\overline{b}{\tau }^{+}{\tau }^{-}$ Searches

Both ATLAS and CMS performed searches with the $b\overline{b}{\tau }^{+}{\tau }^{-}$ final state using resolved and boosted topologies. The resolved analyses provide excellent sensitivity to resonance masses below 1 TeV. Both resolved analyses make use of the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ and ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channels. Multivariate techniques are used to discriminate signal from background, and data-driven techniques are used to estimate the background processes that include hadronic jets misidentified as $\tau$ leptons. A major difference between the ATLAS and CMS analyses is that the CMS analysis uses $m_{HH}$ as the fit variable while the ATLAS analysis uses the PNN output for the fit. The PNN score fit may be the cause of the broad nature of the excess observed around 1 TeV due to the fact that the resonance mass information is not directly used.

The CMS boosted search makes use of the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ and ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channels using large-R jets to reconstruct the $H\to {\tau }^{+}{\tau }^{-}$ decay. This results in sensitivity that is competitive at high resonance masses. The ATLAS boosted search uses the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ channel with dedicated $\mathrm{di}-\tau$ objects to reconstruct the $H\to {\tau }^{+}{\tau }^{-}$ decay. This provides a significantly better selection efficiency at high resonance masses than resolved reconstruction methods; however, the sensitivity is not competitive with other channels. Future iterations of the analysis would benefit from including the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ channel as well as optimizing the $\mathrm{di}-\tau$ identification criteria.

6. Searches for $\mathit{HH}$ Production in the $\mathit{b}\overline{\mathit{b}}\mathbf{\gamma }\mathbf{\gamma }$ Channel

Searches in the $b\overline{b}\gamma \gamma$ channel benefit from the large $H\to b\overline{b}$ branching ratio and the clean signature and excellent mass resolution from the $H\to \gamma \gamma$ decay. The channel has a very low background and provides excellent sensitivity to low-mass resonance hypotheses, below approximately 350 GeV.

6.1. CMS $b\overline{b}\gamma \gamma$ Search

The CMS Collaboration conducted a search for ggF resonant $HH$ production in the $b\overline{b}\gamma \gamma$ channel [61] using a partial Run 2 dataset of 35.9 ${\mathrm{fb}}^{-1}$ of data collected in 2016.

The search is interpreted in the context of narrow spin-0 and spin-2 benchmark models. Two bulk radion models with ${\Lambda }_{\mathrm{R}}=2$ TeV and ${\Lambda }_{\mathrm{R}}=3$ TeV are used as the spin-0 benchmark models. Two Kaluza–Klein bulk graviton models with $\kappa /{\overline{M}}_{\mathrm{Pl}}$ set to 0.5 and 1.0 are used as the spin-2 benchmark models. All benchmark models are generated with a width of 1 MeV. Limits are set on all benchmark models in the mass range from 260 to 900 GeV.

Events are selected using triggers that require two photons that pass isolation requirements and have an invariant mass of $m_{\gamma \gamma }>90$ GeV. The two $p_{\mathrm{T}}$-leading of which are selected to form the $H\to \gamma \gamma$ candidate and are required to pass identification requirements and have an invariant mass of $100\mathrm{GeV}<m_{\gamma \gamma }<180$ GeV. The two photons are required to have transverse momenta that are at least 33% and 25% of $m_{\gamma \gamma }$. Events are also required to have at least two anti-$k_t$ $R=0.4$ jets, each of which is separated from the nearest selected photon by $\Delta R>0.4$. If there are more than two jets, the two with the highest b-tagging scores are selected to form the $H\to b\overline{b}$ candidate. The selected jets are required to have an invariant mass of $70\mathrm{GeV}<m_{jj}<190$ GeV.

Two methods are implemented to improve the mass resolution of the reconstructed objects. A multivariate regression technique based on heavy jet fragmentation features and $E_{\mathrm{T}}^{\mathrm{miss}}$ is used to correct the energy of the selected jets and improve the reconstructed $H\to b\overline{b}$ mass resolution. Additionally, a modified invariant mass of the $\gamma \gamma$ $jj$ system, ${\tilde{M}}_X$, is used in place of the invariant mass $m_{\gamma \gamma jj}$. The modified invariant mass is defined as

$${\tilde{M}}_X=m_{\gamma \gamma jj}-m_{jj}-m_{\gamma \gamma }+2m_H$$

(4)

.

As shown in Figure 30, ${\tilde{M}}_X$ gives an improved mass resolution for resonant signals.

The analysis is split into low- and high-mass categories for signal hypothesis with $m_X\le 600$ GeV and $m_X\ge 600$ GeV, respectively, with $m_X=600$ GeV being used in both categories. A BDT is trained in each category to separate signal from background. The BDTs use the b-tagging information for the selected jets, transverse momentum balance variables of the $\gamma \gamma$ and $jj$ systems, and three helicity angles of the $\gamma \gamma$, $jj$, and $\gamma \gamma$$jj$ systems in the Collins–Soper frame of the four-body system [62] as inputs. The BDTs are trained on the ensemble of signal samples in each category as well as background events taken from data in a control region in which one of the two selected photons fails the identification requirements.

The analysis is performed in unique signal regions for each signal hypothesis, defined using a ${\tilde{M}}_X$ window. Within each of these regions, the BDT output is used to define high- and medium-purity categories. The criteria for the purity categories for a signal hypothesis depend on the mass category containing the signal hypothesis.

The signal hypotheses are parameterized using fits of a double-sided Crystal Ball function [63], which consists of a Gaussian core and asymmetric power law tails, to both $m_{\gamma \gamma }$ and $m_{jj}$ in each signal region. The backgrounds containing a single Higgs boson are modeled using functions fit to the $m_{\gamma \gamma }$ and $m_{jj}$ distributions and are normalized to their SM predictions. A double-sided Crystal Ball function is fit to the background $m_{\gamma \gamma }$ distributions. Either a double-sided Crystal Ball function or a Bernstein polynomial is fit to the background $m_{jj}$ distributions, depending on the production mechanism. The $\gamma \gamma$ +jets background is modeled using first and second order Bernstein polynomials fit to data from the control region that are downsampled to match the total number of data events seen in the signal region.

Systematic uncertainties are evaluated on the single Higgs boson background and signal models. The experimental uncertainties include the modeling of the detector response for photons, jets, and b-tagging. Theoretical uncertainties include uncertainties on ${\alpha }_S$ and the choice of PDF as well as cross-section calculations for the single Higgs boson background processes.

The data are interpreted with an unbinned two-dimensional maximum likelihood fit in the $m_{\gamma \gamma }-m_{jj}$ plane. No significant excesses are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set on both models at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method. The limits are shown in Figure 31. The theoretical predictions for bulk radions with ${\Lambda }_{\mathrm{R}}=2$ TeV and ${\Lambda }_{\mathrm{R}}=3$ TeV and for bulk gravitons with $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.5$ and $\kappa /{\overline{M}}_{\mathrm{Pl}}=1.0$ are also shown.

6.2. ATLAS $b\overline{b}\gamma \gamma$ Search

The ATLAS Collaboration conducted a search for ggF resonant $HH$ production in the $b\overline{b}\gamma \gamma$ final state [64] using the full Run 2 dataset. This corresponds to 136 ${\mathrm{fb}}^{-1}$ of data collected between 2015 and 2018.

The search is interpreted in the context of a generic narrow spin-0 benchmark model. The signal samples are generated with a width of 10 MeV. Limits are set on the benchmark model in the mass range from 251 GeV to 1 TeV.

Events are selected using triggers that require two photons. Additionally, events are required to contain at least two photons that pass isolation requirements, the two $p_{\mathrm{T}}$-leading of which are selected to form the $H\to \gamma \gamma$ candidate. The selected photons are required to have an invariant mass of $105\mathrm{GeV}<m_{\gamma \gamma }<160$ GeV, and the two photons are required to have transverse momenta that are at least 35% and 25% of $m_{\gamma \gamma }$. Events are also required to have exactly two b-tagged anti-$k_t$ $R=0.4$ jets, fewer than six jets with $\left|\eta \right|<2.5$, and exactly zero electrons or muons.

The signal region is defined using a mass window of $120\mathrm{GeV}<m_{\gamma \gamma }<130$ GeV, which is determined by the $H\to \gamma \gamma$ mass resolution. The sideband region is defined as $105\mathrm{GeV}<m_{\gamma \gamma }<160$ GeV, excluding the signal region.

A modified invariant mass of the $b\overline{b}$ $\gamma \gamma$ system, $m_{b\overline{b}\gamma \gamma }^{*}$, is used in place of the invariant mass $m_{b\overline{b}\gamma \gamma }$. The modified mass is defined as

$$m_{b\overline{b}\gamma \gamma }^{*}=m_{b\overline{b}\gamma \gamma }-m_{b\overline{b}}-m_{\gamma \gamma }+250\mathrm{GeV}$$

(5)

.

As shown in Figure 32, $m_{b\overline{b}\gamma \gamma }^{*}$ gives an improved resolution for resonant signals.

A BDT-based method is used to separate signal from background. All signal samples are used together in the training, reweighted event-by-event to have the same $m_{b\overline{b}\gamma \gamma }^{*}$ distribution as the background events. Two separate BDTs are trained: one optimized for separating signal from the continuum $\gamma \gamma$ background and the other optimized for separating signal from backgrounds containing a single Higgs boson (primarily $ZH$ and $t\overline{t}H$). The outputs of the two BDTs are combined to construct a single discriminating variable. A minimum threshold on the combined BDT score is chosen for each signal hypothesis to maximize signal significance while ensuring a minimum number of events in the sideband region.

Following the selection requirements, the background consists of the production of single Higgs bosons in the $H\to \gamma \gamma$ decay mode, SM production of $HH$ in the $b\overline{b}\gamma \gamma$ decay mode, and continuum $\gamma \gamma$+jets events that either contain at least two real photons or one real photon and one or more jets misidentified as photons. The continuum $\gamma \gamma$+jets background is parameterized with a functional form fit to a high-statistics simulated background template and normalized using data in the sideband region. The potential bias of various analytic functions on the signal event yield, referred to as “spurious signal”, is used to determine the optimal functional form. The functional form with the minimal number of degrees of freedom while remaining below a spurious signal threshold is chosen as $\exp (a·m_{\gamma \gamma })$.

The signal as well as backgrounds involving a single Higgs boson and SM $HH$ production are parameterized by fitting the $m_{\gamma \gamma }$ distribution in simulated samples. The distributions are fit with a double-sided Crystal Ball function [65]. The $m_{\gamma \gamma }$ distributions for signal and background simulation as well as data after the optimized BDT score requirements are applied are shown for two signal hypotheses in Figure 33.

The primary systematic uncertainty comes from the spurious signal effects used to select the functional form for the continuum $\gamma \gamma$ background estimate. Other systematic uncertainties are evaluated on the modeling of the diphoton triggers and the photon and jet modeling, as well as on the PDF and parton showering used in the signal simulation.

A maximum likelihood fit of the $m_{\gamma \gamma }$ distribution is used to interpret the data. No significant excesses are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method and are shown in Figure 34.

6.3. Discussion of $b\overline{b}\gamma \gamma$ Searches

ATLAS and CMS both performed searches in the $b\overline{b}\gamma \gamma$ channel. The $H\to \gamma \gamma$ decay provides excellent $m_H$ resolution and the addition of two b-tagged jets results in a small background.

Both analyses make use of corrected four-body invariant masses to improve the signal mass resolution otherwise degraded by the b-jet energy resolution. Both analyses also use multivariate techniques to discriminate signals from background. Finally, both analyses fit data in the $m_{\gamma \gamma }$ sidebands to estimate the continuum $\gamma \gamma$ background in the signal mass window. The ATLAS search fits the $m_{\gamma \gamma }$ spectrum, while the CMS search does a simultaneous fit to the $m_{\gamma \gamma }$ and $m_{jj}$ spectra. It is unclear whether the additional constraint of $m_{jj}$ improves the sensitivity due to the poor $m_{jj}$ resolution. Both analyses are dominated by statistical uncertainties but provide excellent sensitivity for low resonance masses.

7. Searches for $\mathit{HH}$ Production in the $\mathit{b}\overline{\mathit{b}}{\mathit{VV}}^{*}$ Channels

The $b\overline{b}V{V}^{*}$ channels offer several advantages to searches for resonant $HH$ production. The large $H\to b\overline{b}$ and $H\to W{W}^{*}$ branching ratios make $b\overline{b}W{W}^{*}$ the channel with the second highest $HH$ branching ratio. For both $b\overline{b}W{W}^{*}$ and $b\overline{b}Z{Z}^{*}$, the final states including one or more leptons helps to significantly reduce QCD multijet backgrounds. Additionally, the presence of intermediate W or Z bosons resonances provides a way to further reduce backgrounds. A complication of these channels is that one of the vector bosons is produced off its mass shell. The major backgrounds for these channels are $t\overline{t}$ and W+jets.

7.1. CMS $b\overline{b}V{V}^{*}\to b\overline{b}\ell \ell \nu \nu$ Search

The CMS Collaboration has conducted a search for ggF resonant $HH$ production in the $b\overline{b}W{W}^{*}$ and $b\overline{b}Z{Z}^{*}$ channels with the $b\overline{b}\ell \ell \nu \nu$ final state [66] using a partial Run 2 dataset of 35.9 ${\mathrm{fb}}^{-1}$ of data collected in 2016.

The search is interpreted in the context of narrow spin-0 and spin-2 benchmark models. The RS model in warped extra dimensions with ${\Lambda }_{\mathrm{R}}=1$ TeV and $\kappa l=35$ is used for both scenarios. A bulk radion is used as the spin-0 benchmark, and a Kaluza–Klein graviton with $\tilde{k}=\kappa /{\overline{M}}_{\mathrm{Pl}}=0.1$ is used as the spin-2 benchmark.

Events are selected using triggers that require two leptons. Additionally, events are required to contain two b-tagged anti-$k_t$ $R=0.4$ jets and two leptons with opposite electric charge and a dilepton invariant mass between 12 GeV and $m_Z-15$ GeV, where $m_Z$ is the mass of the Z boson. The dilepton invariant mass requirement suppresses backgrounds containing quarkonia resonances and Z+jets processes while preserving signal events in the $b\overline{b}W{W}^{*}$ channel and in the $b\overline{b}Z{Z}^{*}$ channel when the off-shell Z boson decays leptonically.

The dominant background is $t\overline{t}$ production. The second largest background process is Drell–Yan (DY) production. All backgrounds except DY $e^{+}{e}^{-}$ and ${\mu }^{+}{\mu }^{-}$ production are estimated using simulation. The $e^{+}{e}^{-}$ and ${\mu }^{+}{\mu }^{-}$ DY backgrounds are estimated using a data-driven method. This is performed using data from a control region that has no b-tagged jet requirement. Events from this region are weighted to estimate the effects of the b-tagging requirement in the signal regions.

A PNN is used to discriminate signal from the large $t\overline{t}$ background. The PNN makes use of kinematic variables and the flavor of the dilepton pair ($e^{+}{e}^{-}$, ${\mu }^{+}{\mu }^{-}$, or $e^{\pm }{\mu }^{\mp }$). Three regions are defined using the invariant mass of the two b-tagged jets, $m_{jj}$. A signal-enriched region is defined as $m_{jj}\in [75,140)$ GeV, and background-enriched regions are defined on either side of this range. The PNN output is used as the final discriminant in each region.

Systematic uncertainties are evaluated on the data-driven background estimate, theoretical predictions, and detector response. Theoretical uncertainties are evaluated on the choice of PDF as well as the renormalization and factorization scales used in simulation. Detector response uncertainties are evaluated on trigger efficiencies, lepton identification, jet energy measurements, and b-tagging. The data-driven background uncertainty consists of propagated detector response uncertainties plus an additional normalization uncertainty.

Results are obtained through a maximum likelihood fit of the PNN discriminant in the three $m_{jj}$ regions in each of the three lepton flavor categories. No significant excesses are observed over the predicted background. The upper limits are set at 95% CL using the asymptotic ${\mathrm{CL}}_{\mathrm{s}}$ method on the production cross-section times branching ratio for both benchmark models.The upper limits on cross-section times branching ratio are shown in Figure 35. The theoretical predictions for a bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and $\kappa l=35$, for a bulk gravitons with $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.1$ and $\kappa l=35$ are also shown.

7.2. CMS $b\overline{b}Z{Z}^{*}$ Search

The CMS Collaboration conducted a search for ggF resonant $HH$ production in the $b\overline{b}Z{Z}^{*}$ channel with the $b\overline{b}\ell \ell$ final state [67] using a partial Run 2 dataset of 35.9 ${\mathrm{fb}}^{-1}$ of data collected in 2016.

The search is interpreted in the context of narrow spin-0 and spin-2 benchmark models. The RS model in warped extra dimensions with ${\Lambda }_{\mathrm{R}}=1$ TeV and $\kappa l=35$ is used for both scenarios. A bulk radion is used as a spin-0 benchmark, and a Kaluza–Klein graviton with $\tilde{k}=\kappa /{\overline{M}}_{\mathrm{Pl}}=0.1$ is used as a spin-2 benchmark. In addition to setting cross-section times branching ratio limits on these, scans of the ${\Lambda }_{\mathrm{R}}$ and $\kappa /{\overline{M}}_{\mathrm{Pl}}$ parameters are performed. The search is also interpreted in the context of the N2HDM where the masses of $H_1$ and $H_2$ are both set to 125 GeV and $H_3$ is treated as the heavy spin-0 resonance. Two benchmark points are chosen with $\tan \beta =0.5$ and 2.0. In both cases, the scalar vev is set to 45 GeV, and the mixing angles ${\alpha }_1$, ${\alpha }_2$ and ${\alpha }_3$ are set to 076, 0.48, and 1.00, respectively. This results in an increase of the $HH$ branching fraction to $b\overline{b}Z{Z}^{*}$ of 33% relative to the SM prediction for $\tan \beta =0.5$ and 5% for $\tan \beta =2.0$. All of the signal samples are simulated in the mass range of $260\le m_X\le 1000$ GeV with narrow resonances.

The analysis is split into channels to separate the $b\overline{b}\ell \ell q\overline{q}$ (denoted as the $b\overline{b}\ell \ell jj$ channel) and $b\overline{b}\ell \ell \nu \nu$ decay modes. Events in both channels are selected using triggers that require two muons or two electrons. Events in both channels are also required to have two same-flavor leptons with opposite electric charge. The hadronic decay products in both channels are reconstructed using anti-$k_t$ $R=0.4$ jets. A BDT is trained for each mass and spin hypothesis in each lepton channel to maximize sensitivity, for a total of 48 BDTs.

Events in the $b\overline{b}\ell \ell \nu \nu$ channel are required to have a dilepton invariant mass of $m_{\ell \ell }\ge 15$ GeV and at least two jets, at least one of which is b-tagged. Additionally, events are required to have a minimum $E_{\mathrm{T}}^{\mathrm{miss}}$, the threshold of which is dependent on $m_X$. The $H\to b\overline{b}$ candidate is reconstructed from the pair of jets with the highest values of the b-tagging discriminant if there are at least two b-tagged jets. If there is a single b-tagged jet, it is paired with the jet that gives an invariant mass closest to 125 GeV to form the $H\to b\overline{b}$ candidate. The $H\to Z{Z}^{*}$ candidate is reconstructed from the pair of leptons and the $E_{\mathrm{T}}^{\mathrm{miss}}$. A BDT is trained for each signal hypothesis with 22 kinematic variables as inputs and events are required to pass a minimum threshold of the BDT score.

Events in the $b\overline{b}\ell \ell jj$ channel are required to have $m_{\ell \ell }\ge 15$ GeV and at least four jets, at least one of which is b-tagged. Additionally, events are required to fail the $m_X$-dependent $E_{\mathrm{T}}^{\mathrm{miss}}$ criteria applied in the $b\overline{b}\ell \ell \nu \nu$ channel. The $H\to b\overline{b}$ candidate is reconstructed following the same method as in the $b\overline{b}\ell \ell \nu \nu$ channel. The $H\to Z{Z}^{*}$ candidate is reconstructed from the two leptons and the two remaining jets that result in the $\ell \ell jj$ invariant mass that is closest to 125 GeV. A BDT is trained for each signal hypothesis with nine kinematic variables as inputs.

The main background processes in the $b\overline{b}\ell \ell \nu \nu$ channel are $t\overline{t}$ and $Z/{\gamma }^{*}+\mathrm{jets}$, with smaller contributions from other non-QCD SM processes. The QCD multijet background is negligible. The non-negligible backgrounds are estimated using simulation. The normalization for the $t\overline{t}$ and $Z/{\gamma }^{*}+\mathrm{jets}$ backgrounds are derived from data in dedicated control regions that are fit simultaneously with the signal region in the distribution of the pseudo transverse mass of the $HH$ system ${\tilde{M}}_{\mathrm{T}}\left(HH\right)$.

The main background processes in the $b\overline{b}\ell \ell jj$ channel are $t\overline{t}$ and $Z/{\gamma }^{*}+\mathrm{jets}$, with smaller contributions from other SM processes, including QCD multijet events. The non-QCD backgrounds are all estimated using simulation. The $t\overline{t}$ and $Z/{\gamma }^{*}+\mathrm{jets}$ backgrounds are normalized using data in dedicated control regions. The QCD multijet background is estimated using data events with leptons with the same sign electric charge.

Systematic uncertainties are evaluated on the background model, theoretical predictions, and detector response. The background modeling systematic uncertainties include the normalization and shape determinations. The theoretical uncertainties include the normalization and factorization scales of the background simulation as well as the PDF and ${\alpha }_S$ for the signal simulation. The dominant detector systematic uncertainty is related to the energy of jets.

Results are obtained through a binned maximum likelihood fit. In the $b\overline{b}\ell \ell jj$ channel, this is performed on distributions of the BDT scores. In the $b\overline{b}\ell \ell \nu \nu$ channel, the ${\tilde{M}}_{\mathrm{T}}\left(HH\right)$ is fit simultaneously in the signal region and both control regions for each signal hypothesis. No significant excesses are observed over the predicted background. The upper limits are set at 95% CL using the asymptotic ${\mathrm{CL}}_{\mathrm{s}}$ method on the production cross-section times branching ratio, as well as on the ${\Lambda }_{\mathrm{R}}$ and the $\tilde{k}=\kappa /{\overline{M}}_{\mathrm{Pl}}$ parameters of the RS model. Limits are set in each channel separately as well as in both channels combined statistically. The upper limits on cross-section times branching ratio are shown in Figure 36 for both channels as well as the combination. The theoretical predictions for a bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and $\kappa l=35$, for a bulk gravitons with $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.1$, and for N2HDM models with $\tan \beta =0.5$ and 2.0 are also shown. Combined exclusion limits on the RS model parameters are shown in Figure 37 along with limits from each channel individually.

7.3. CMS $b\overline{b}W{W}^{*}$ Search

The CMS Collaboration has conducted a search for ggF resonant $HH$ production in the $b\overline{b}W{W}^{*}$ and $b\overline{b}{\tau }^{+}{\tau }^{-}$ channels in the $b\overline{b}$ +leptons final state [68] using the full Run 2 dataset of 138 ${\mathrm{fb}}^{-1}$ of data collected between 2015 and 2018. The search includes the single lepton final state from the $HH\to b\overline{b}W{W}^{*}\to b\overline{b}\ell \nu q\overline{q}$ decay mode and two lepton final states from the $HH\to b\overline{b}W{W}^{*}\to b\overline{b}\ell \nu \ell \nu$ and $HH\to b\overline{b}{\tau }^{+}{\tau }^{-}\to b\overline{b}\ell \nu \nu \ell \nu \nu$ decay modes.

The search is interpreted in the context of narrow spin-0 and spin-2 benchmark models. A bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and a branching fraction to $HH$ of 25% is used as the spin-0 benchmark model. Two Kaluza–Klein bulk graviton models with branching fractions to $HH$ of 10% and $\tilde{k}=\kappa /{\overline{M}}_{\mathrm{Pl}}$ set to 0.3 and 0.5 are used as the spin-2 benchmark models. Both benchmark models are generated with a width of 1 MeV. Limits are set on all benchmark models in the mass range from 800 GeV to 4.5 TeV.

The analysis is split into single lepton (SL) and dilepton (DL) channels. These channels are further split into a total of twelve analysis categories, based on the lepton multiplicity, lepton flavor, b-tagging information, and kinematics of the leptonic decay products. The $H\to b\overline{b}$ decay is reconstructed using a single large-R jet in all categories to exploit the boosted topology.

Events are selected with a combination of triggers that require a single electron or muon (denoted as leptons) or a large scalar sum of hadronic jet $p_{\mathrm{T}}$. After the trigger selection, events are required to contain at least one lepton and a large scalar sum of jet $p_{\mathrm{T}}$. Events in the DL channel are required to have exactly two leptons with opposite electric charge that pass isolation criteria optimized for nearby leptons in boosted topologies and pass loose impact parameter requirements to accept leptons from $H\to {\tau }^{+}{\tau }^{-}$ decays. Events in the SL channel are required to have exactly one lepton that passes isolation criteria optimized for topolgies without nearby leptons and no more than one lepton that passes the DL lepton criteria. Events in both channels are required to contain exactly one anti-$k_t$ $R=0.8$ jet, denoted as the $b\overline{b}$ jet, that is tagged as being consistent with a $H\to b\overline{b}$ decay using the DeepAK8 tagger. Events with a b-tagged anti-$k_t$ $R=0.4$ jet that is $\Delta R>1.2$ from the $b\overline{b}$ jet are vetoed to reduce the $t\overline{t}$ background.

Events in the SL channel are required to have a second anti-$k_t$ $R=0.8$ jet, denoted as the $q\overline{q}$ jet, that is consistent with a $W^{(*)}\to q\overline{q}$ decay. The $q\overline{q}$ jet is chosen as the anti-$k_t$ $R=0.8$ jet that is closest in $\Delta R$ to the lepton. The $q\overline{q}$ jet is required to be within $\Delta R<1.2$ of the lepton and to have substructure that is consistent with a two-body decay. The $b\overline{b}$ jet is required to be $\Delta R>2.0$ from the lepton and $\Delta R>1.6$ from the $q\overline{q}$ jet. In DL channel events, the $b\overline{b}$ jet is required to be $\Delta R>2.0$ from the two lepton system ($\ell \ell$) and neither lepton is allowed to overlap with the $b\overline{b}$ jet cone.

A likelihood-based method is used to fully reconstruct the $H\to W{W}^{*}$ decay in the SL channel. A likelihood function is constructed from five probability density functions to extract the three components of the neutrino momentum, an indicator of whether the hadronically decaying W boson is on- or off-shell, and a correction factor for the $p_{\mathrm{T}}$ of the $q\overline{q}$ jet. The full $H\to W{W}^{*}$ system is reconstructed from the lepton, the extracted neutrino momentum, and the corrected $q\overline{q}$ jet. Additionally, a discriminating variable $D_{\ell \nu q\overline{q}}$ is constructed using the likelihood function.

The $H\to W{W}^{*}$ decay is reconstructed in the DL channel with assumptions about the decay kinematics. The $\eta$ of the two neutrino system $\nu \nu$ is set to that of $\ell \ell$. Additionally, the $\nu \nu$ invariant mass is set to 55 GeV, which is the average of the truth-level distribution in simulated signals. The $H\to W{W}^{*}$ system is reconstructed from $\nu \nu$ and $\ell \ell$.

In both channels, the $HH$ invariant mass $m_{HH}$ is calculated from the reconstructed $H\to W{W}^{*}$ and the $b\overline{b}$ jet.

Additional criteria are used to separate signal from background. In the SL channel, the ratio of the $H\to W{W}^{*}$ $p_{\mathrm{T}}$ to $m_{HH}$, denoted as $p_{\mathrm{T}}/m$, is required to be greater than 0.3. In the DL channel, several criteria are applied to $\ell \ell$ and $E_{\mathrm{T}}^{\mathrm{miss}}$. The $\ell \ell$ system is required to have an invariant mass between 6 and 75 GeV and a angular separation of $\Delta R{}_{\ell \ell }<1.0$. Additionally, $E_{\mathrm{T}}^{\mathrm{miss}}$ and $\ell \ell$ are required to have a $\Delta \varphi$ separation less than $\pi /2$. Finally, events are required to have $E_{\mathrm{T}}^{\mathrm{miss}}>85$ GeV.

Events are split into twelve categories based on several properties. The lepton flavor and the DeepAK8 discriminant $D_{Z/H\to b\overline{b}}$ on the $b\overline{b}$ jet are used in both the SL and DL channels. Additionally, discriminants on the $H\to W{W}^{*}$ system are used to create high- and low-purity categories in the SL channel. These discriminants are $D_{\ell \nu q\overline{q}}$ and the ${\tau }_2/{\tau }_1$ N-subjettiness ratio [69] for the $q\overline{q}$ jet, which is a substructure variable used to identify jets that are consistent with a two-body hadronic decay. The category labels are defined in

Table 1. Event categorization for the SL channel. All combinations of the three categorization types are used to form eight independent event categories.

Categorization Type	Selection	Category Label
Lepton flavor	Electron	e
	Muon	$\mu$
$b\overline{b}$ jet tagging	Loose $D_{Z/H\to b\overline{b}}$	bL
	Tight $D_{Z/H\to b\overline{b}}$	bT
$H\to W{W}^{*}$ purity	High ${\tau }_2/{\tau }_1$ or high $D_{\ell \nu q\overline{q}}$	LP
	Low ${\tau }_2/{\tau }_1$ and low $D_{\ell \nu q\overline{q}}$	HP

and

Table 2. Event categorization for the DL channel. All combinations of the two categorization types are used to form four independent event categories.

Categorization Type	Selection	Category Label
Lepton flavor	Two electron or two muons	SF
	One electron and one muon	OF
$b\overline{b}$ jet tagging	Loose $D_{Z/H\to b\overline{b}}$	bL
	Tight $D_{Z/H\to b\overline{b}}$	bT

.

Two Control Regions (CRs) are defined to validate the SM background estimation and systematic uncertainties. The top CR is defined to select events containing top quarks, especially $t\overline{t}$. This CR is defined by requiring at least one b-tagged anti-$k_t$ $R=0.4$ jet that is far from the $b\overline{b}$ jet. Additionally, requirement on $p_{\mathrm{T}}/m$ is removed for the SL channel, and the $\Delta R{}_{\ell \ell }$ requirement is changed to $\Delta R{}_{\ell \ell }>0.4$ for the DL channel. The top CR is divided into the same twelve categories as the signal region. The nontop CR is defined to select events from $Z/{\gamma }^{*}+\mathrm{jets}$, W+jets and QCD multijet processes. This CR is defined in the same way as the signal region, except the $D_{Z/H\to b\overline{b}}$ requirement on the $b\overline{b}$ jet is changed to reject events containing $H\to b\overline{b}$ decays. The nontop CR is divided into six categories following the lepton flavor and $H\to W{W}^{*}$ purity discriminants.

The background is split into components using generator-level information to ensure distinct $m_{b\overline{b}}$ distributions. These components are defined by the number of generator-level quarks from the immediate decay of a top quark or vector boson that are within $\Delta R<0.8$ of the reconstructed $b\overline{b}$ jet axis. The “$m_t$” component consists of events in which three quarks fulfill the criterion. The “$m_W$” component consists of events in which two quarks do. The “lost $t/W$” component consists of events in which one quark does. The “$q/g$” component consists of all other events. The first three consist primarily of $t\overline{t}$ events, and the $q/g$ component consists primarily of W+jets and QCD multijet events.

Signal and background are modeled in the $m_{HH}-m_{b\overline{b}}$ plane in each of the twelve event categories using smooth templates created from simulation. The background templates are modeled using conditional probabilities of $m_{b\overline{b}}$ as a function of $m_{HH}$ based on distributions of the two variables in simulation. The signal templates are modeled similarly but using conditional probabilities of $m_{b\overline{b}}$ and $m_{HH}$ as a function of the resonance mass $m_X$. The $m_{b\overline{b}}$ and $m_{HH}$ distributions in the $\mu$ bT LP category are shown in Figure 38 for the background estimate, data, and example signal models. Alternate background templates for all four components are built with parameters proportional to $m_{HH}$ and 1/$m_{HH}$. For the “$q/g$” and “lost $t/W$” background components, additional templates are built with parameters proportional to $m_{b\overline{b}}$ and 1/$m_{b\overline{b}}$.

Systematic uncertainties are evaluated on the background and signal models. The background uncertainties include variations of the background component normalizations, the $b\overline{b}$ jet mass, and the template definitions. The signal uncertainties include uncertainties on theoretical predictions, luminosity measurements, pileup modeling, and detector response modeling for leptons, jet mass and energy scale, jet substructure, and b-tagging.

The data are interpreted with a simultaneous two-dimensional maximum likelihood fit in the $m_{b\overline{b}}-m_{HH}$ plane in all twelve categories. No significant excesses are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set on both models at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method and are shown in Figure 39. The theoretical predictions for a bulk radion with ${\Lambda }_{\mathrm{R}}=3$ TeV and for bulk gravitons with $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.3$ and $\kappa /{\overline{M}}_{\mathrm{Pl}}=0.5$ are also shown. The expected 95% CL upper limits for each of the twelve event categories are shown independently in Figure 40.

7.4. ATLAS $b\overline{b}W{W}^{*}$ Search

The ATLAS Collaboration has conducted a search for ggF resonant $HH$ production in the $b\overline{b}W{W}^{*}$ channel in the $b\overline{b}\ell \nu q\overline{q}$ decay mode [70] using a partial Run 2 dataset of 36.1 ${\mathrm{fb}}^{-1}$ of data collected in 2015 and 2016.

The search is interpreted in the context of narrow spin-0 and spin-2 benchmark models. A generic scalar is used as the spin-0 benchmark model. Two Kaluza–Klein bulk graviton models with $c=\kappa /{\overline{M}}_{\mathrm{Pl}}$ set to 1.0 and 2.0 are used as the spin-2 benchmark models. The benchmark models are generated with a narrow width that is much smaller than the detector resolution. Limits are set on all benchmark models in the mass range from 500 GeV to 3 TeV.

The analysis is split into resolved and boosted channels that are sensitive to resonance masses less than and greater than approximately 1 TeV, respectively. The resolved analysis uses anti-$k_t$ $R=0.4$ jets to reconstruct all hadronic decay products. The boosted analysis uses a combination of anti-$k_t$ $R=0.4$ jets and anti-$k_t$ $R=1.0$ (large-R) jets.

Events in both channels are selected with a combination of triggers that require a single lepton. Events are also required to contain at least one lepton that fulfills criteria on the impact parameters relative to the primary vertex.

Events in the resolved channel are required to have at least four anti-$k_t$ $R=0.4$ jets, exactly two of which are required to be b-tagged. The two b-tagged jets are used to reconstruct the $H\to b\overline{b}$ candidate. If there are exactly two untagged jets, they are used to reconstruct the hadronic W boson candidate $W_{\mathrm{had}}$. If there are more than two untagged jets, the three $p_{\mathrm{T}}$-leading jets are considered, and the pair with the smallest $\Delta R$ separation is used to reconstruct $W_{\mathrm{had}}$.

The full $H\to W{W}^{*}\to \ell \nu q\overline{q}$ topology is reconstructed by solving for the z-component of the neutrino momentum using the Higgs boson mass constraint. If two real solutions exist, the result that minimizes $\Delta R$ between the neutrino and the lepton is used. If only a complex solution exists, the real part of the solution is used. The $H\to W{W}^{*}$ system is reconstructed from the lepton, the neutrino solution, and $W_{\mathrm{had}}$.

Three signal regions are defined to be sensitive to different ranges of resonance masses. The first targets signal hypotheses with a mass of 500 GeV. The second is the low-mass range that targets resonance masses between 600 GeV and 1.3 TeV. The third is the high-mass range that targets resonance masses between 1.4 and 3 TeV.

A set of requirements on kinematic variables is optimized to maximize the expected sensitivity to signal hypotheses in each signal region. The variables used are $E_{\mathrm{T}}^{\mathrm{miss}}$, the mass and $p_{\mathrm{T}}$ of the $W{W}^{*}$ system, the mass and $p_{\mathrm{T}}$ of the $b\overline{b}$ system, and the $\Delta R$ separation between the two reconstructed W bosons. The same selection is used for spin-0 and spin-2 signal hypotheses.

The dominant backgrounds come from $t\overline{t}$ events with subdominant contributions from QCD multijet, $W/Z$+jets, single top quark, and diboson processes. The $t\overline{t}$ background is estimated using simulation and then normalized using data in $t\overline{t}$-enriched control regions that correspond to each signal region. The QCD multijet background is estimated in each signal and $t\overline{t}$ control region using a data-driven method. The other backgrounds are all estimated using simulation.

The $m_{HH}$ distributions in the low-mass and high-mass regions are shown in Figure 41 for data, the background estimate, and example signal hypotheses.

Systematic uncertainties are evaluated on the background and signal models as well as detector response modeling. The background uncertainties include components for the $t\overline{t}$ simulation and normalization method, the W+jets scale, PDF, and generator modeling, as well as the data-driven QCD multijet estimate. Systematic uncertainties are derived for the scale, PDF set, and parton shower used for the signal samples. Detector systematic uncertainties are used for all physics objects and are dominated by uncertainties on the energy scale of jets.

A maximum likelihood fit is performed on the $m_{HH}$ distribution simultaneously in the signal and control regions. The $t\overline{t}$ and QCD multijet normalizations are allowed to float in the fit. No significant excess are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set on the signal models at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method across the full resonance mass range. The limits are shown for each signal model in Figure 42.

Events in the boosted channel are required to have at least one large-R jet with an angular distance of $\Delta R>1.0$ from the lepton. The large-R jet with the highest $p_{\mathrm{T}}$ is used as the $H\to b\overline{b}$ candidate. The $H\to b\overline{b}$ candidate is required to have a mass between 30 and 300 GeV. Events are required to have at least two $R=0.4$ jets with an angular distance of $\Delta R>1.4$ from the $H\to b\overline{b}$ candidate. The hadronically and leptonically decaying W bosons are reconstructed using the same method as the resolved channel. Events are rejected if any jets with $\Delta R>1.4$ from the $H\to b\overline{b}$ candidate are b-tagged.

The signal region is defined by requiring the $H\to b\overline{b}$ candidate to have at least two associated track jets and that the two $p_{\mathrm{T}}$-leading associated track jets be b-tagged. Additionally, the $H\to b\overline{b}$ candidate is required to have a mass between 90 and 140 GeV. A minimum $E_{\mathrm{T}}^{\mathrm{miss}}$ requirement is applied to reduce the QCD multijet background.

A validation region is defined to assess the modeling of the $t\overline{t}$ background. This region is defined by requiring the $H\to b\overline{b}$ candidate have a mass that lies outside the range of 90–140 GeV.

As in the resolved channel, the dominant backgrounds come from $t\overline{t}$ events with subdominant contributions from QCD multijet, $W/Z$+jets, single top quark, and diboson processes. The non-QCD backgrounds are all estimated using simulation. The QCD multijet background is estimated using a data-driven technique that is very similar to the one used in the resolved channel.

The $m_{HH}$ distribution for data, the background estimate, and example signal hypotheses in the boosted channel after the global likelihood fit is shown in Figure 43.

The systematic uncertainties in the boosted channel are evaluated in a very similar way to those in the resolved channel. Additional detector response uncertainties are evaluated on the large-R jet mass and energy as well as b-tagged track jets.

A maximum likelihood fit is performed on the $m_{HH}$ distribution in the signal region. Unlike in the resolved analysis, the QCD multijet estimate is not allowed to float in the fit. No significant excess are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set on the signal models at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method across the full resonance mass range. The limits are shown for each signal model in Figure 44.

The resolved and boosted channels are both used to set limits across the full resonance mass range of 500 GeV to 3 TeV. The final analysis limits are found by using the limits from whichever channel are the strongest at each resonance mass hypothesis as shown in Figure 45. This results in a discontinuity in the limits at 1.3 TeV for the spin-0 benchmark model and at 800 GeV for the spin-2 benchmark models.

7.5. Discussion of $b\overline{b}V{V}^{*}$ Searches

ATLAS and CMS have both performed searches in $b\overline{b}V{V}^{*}$ channels. The large $H\to b\overline{b}$ and $H\to V{V}^{*}$ branching fractions and the good QCD multijet suppression due to leptonic final states help to make these channels sensitive across a wide range of resonance masses.

CMS performed two analyses that search for low-mass resonances in the 2-lepton $b\overline{b}V{V}^{*}$ channel. The first is optimized for the $b\overline{b}W{W}^{*}$ channel, and the second is optimized for the $b\overline{b}Z{Z}^{*}$ channel in both the $b\overline{b}\ell \ell q\overline{q}$ and $b\overline{b}\ell \ell \nu \nu$ decay modes. Both of these channels have complex signature, and machine learning techniques are used to maximize sensitivity. These channels are nonetheless limited in their sensitivity compared to other channels at low mass.

The ATLAS $b\overline{b}W{W}^{*}$ analysis uses resolved techniques to identify and reconstruct the 1-lepton $H\to W{W}^{*}$ system. This is complicated by the fact that half of the signal events contain a very soft lepton from the decay of the off-shell W boson, decreasing the efficiency of the single lepton triggers. The resolved analysis is further complicated by the fact that in the other half of signal events, the hadronic W boson is off-shell, resulting in low-$p_{\mathrm{T}}$ jets. Additionally, the neutrino reconstruction method is detrimental to the analysis sensitivity. In a significant fraction of events, using the H mass constraint results in the correct solution being mathematically impossible to obtain. In addition, the H mass constraint strongly sculpts the background to look like signal. In the boosted analysis, the hadronic W boson decay products overlap with each other and with the lepton for the resonance masses that result in a boosted $H\to b\overline{b}$ decay. As a result, the overlap removal between the lepton and jets results in a low signal selection efficiency and inclusion of radiated jets in the $H\to W{W}^{*}$ reconstruction. Future iterations of the analysis would benefit from additional triggers. The resolved analysis would benefit from more sophisticated selection and reconstruction techniques. The boosted analysis would benefit significantly from particle flow large-R jets and leptons for the $H\to W{W}^{*}$ reconstruction.

The CMS boosted $b\overline{b}W{W}^{*}$ analysis makes use of particle flow large-R jets and demonstrates the sensitivity of the 1- and 2-lepton channels for large resonance masses. For masses above 3 TeV, the single muon channel is competitive with the $b\overline{b}b\overline{b}$ channel. For masses above 1 TeV, the 2-lepton channel can provide additional sensitivity that is comparable to the 1-lepton and $b\overline{b}b\overline{b}$ channels.

8. Searches for $\mathit{HH}$ Production in Other Channels

Other $HH$ decay channels that do not include an $H\to b\overline{b}$ decay offer additional ways to search for signals. The relatively large $H\to W{W}^{*}$ branching fraction is exploited along with the low backgrounds and clean signatures provided by diphoton and multilepton final states.

8.1. ATLAS $W{W}^{*}W{W}^{*}$ Search

The ATLAS Collaboration has conducted a search for ggF resonant $HH$ production in the $W{W}^{*}W{W}^{*}$ channel in the multilepton final state [71] using a partial Run 2 dataset of 36.1 ${\mathrm{fb}}^{-1}$ of data collected in 2015 and 2016.

The search is interpreted in the context of a generic narrow spin-0 benchmark model. The signal samples are generated with a width that is much smaller than the detector resolution. Limits are set on the benchmark model in the mass range from 260 to 500 GeV.

The analysis is split into channels by the number of leptons in the final state. The channels are defined as having two leptons with the same sign electric charge, three leptons, and four leptons. The two-lepton channel is split into three categories based on the flavor of the leptons ($ee$, $e\mu$ and $\mu \mu$). The three-lepton channel is split into two categories based on the number of same-flavor opposite-sign (SFOS) lepton pairs ($N_{\mathrm{SFOS}}=0$ and $N_{\mathrm{SFOS}}=1,2$). The four-lepton channel is split into four categories based on the four lepton invariant mass ($m_{3\ell }<180$ GeV and $m_{3\ell }>180$ GeV) and the number of SFOS lepton pairs ($N_{\mathrm{SFOS}}=0,1$ and $N_{\mathrm{SFOS}}=2$).

Events are selected using triggers that require either one or two leptons. In the two lepton channel, events are required to have exactly two leptons with the same sign electric charge and at least three anti-$k_t$ $R=0.4$ jets. Events in the three lepton channel are required to have exactly three leptons with a summed electric charge of $\pm 1$ and at least two jets. Both channels have additional requirements on $E_{\mathrm{T}}^{\mathrm{miss}}$ and the $p_{\mathrm{T}}$ of the leptons. Events are rejected if they contain a SFOS lepton pair with an invariant mass $m_{\ell \ell }$ of $|m_{\ell \ell }-m_Z|<10$ GeV or $m_{\ell \ell }<15$ GeV. In the four lepton channel, events are required to have exactly four leptons with a summed electric charge of 0. Events are rejected if they have a SFOS lepton pair with $m_{\ell \ell }<4$ GeV. Events in all channels are rejected if they contain any b-tagged jets.

The backgrounds include processes containing prompt leptons, leptons with incorrectly identified charges, and fake leptons that consist of nonprompt leptons and hadronic jets misidentified as leptons. The prompt lepton backgrounds include diboson, triboson, and $t\overline{t}Z$ processes and are estimated using simulation. The two- and three-lepton channels have nonprompt lepton backgrounds that come from the conversion of prompt photons in $V\gamma$ processes that are estimated using simulation. The remaining fake lepton background contributions and the incorrectly identified charge background are estimated using data-driven methods. Figure 46 shows the invariant masses of the two- and four-lepton systems in the corresponding channels.

Optimized selection criteria consisting of requirements on four variables are used to distinguish signal from background. The set of variables and the requirements on each are optimized independently for each signal hypothesis in the two- and three-lepton channels and for each category in the four-lepton channel. The variables include invariant masses and angular separations of combinations of leptons and jets. The yields in each category after the selection optimized for the $m_X=260$ GeV signal hypothesis are shown in Figure 47.

Systematic uncertainties are evaluated on the modeling of leptons, jets, and $E_{\mathrm{T}}^{\mathrm{miss}}$ as well as the data-driven background estimate and theoretical modeling of all simulated samples. The dominant uncertainties come from the jet modeling and the fake lepton background estimate.

A statistical analysis using a profile-likelihood-ratio test statistic based on the yields in each analysis category is performed in each channel separately as well as a combination of the three channels. No significant excesses are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set at 95% CL using the asymptotic ${\mathrm{CL}}_{\mathrm{s}}$ method and are shown in Figure 48.

8.2. ATLAS $W{W}^{*}\gamma \gamma$ Search

The ATLAS Collaboration conducted a search for ggF resonant $HH$ production in the $W{W}^{*}\gamma \gamma$ channel in the $\gamma \gamma \ell \nu jj$ final state [72] using a partial Run 2 dataset of 36.1 ${\mathrm{fb}}^{-1}$ of data collected in 2015 and 2016.

The search is interpreted in the context of a generic narrow spin-0 benchmark model. The signal samples are generated with a width that is much smaller than the detector resolution. Limits are set on the benchmark model in the mass range from 260 to 500 GeV.

Events are selected using triggers that require two photons. Additionally, events are required to contain at least two photons, the two $E_{\mathrm{T}}$-leading of which are selected to form the $H\to \gamma \gamma$ candidate. The selected photons are required to have an invariant mass of $105\mathrm{GeV}<m_{\gamma \gamma }<160$ GeV, and the two photons are required to have transverse energies that are at least 35% and 25% of $m_{\gamma \gamma }$. Events are also required to have at least two anti-$k_t$ $R=0.4$ jets, at least one lepton and no b-tagged anti-$k_t$ $R=0.4$ jets. Finally, events are required to have a large transverse momentum of the $H\to \gamma \gamma$ candidate $p_{\mathrm{T}}^{\gamma \gamma }$ for signal hypothesis with $m_X>400$ GeV, defining two signal regions.

The signal regions are both defined using a window in the diphoton invariant mass of $121.7\mathrm{GeV}<m_{\gamma \gamma }<128.5$ GeV, which is determined by the $H\to \gamma \gamma$ mass resolution. The sideband regions are defined as $105\mathrm{GeV}<m_{\gamma \gamma }<160$ GeV, excluding the signal regions.

The background consists of the production of single Higgs bosons in the $H\to \gamma \gamma$ decay mode, SM production of $HH$ in the $W{W}^{*}\gamma \gamma$ decay mode, and continuum $\gamma \gamma$+jets events that either contain at least two real photons or one real photon and one or more jets misidentified as photons. The continuum $\gamma \gamma$ +jets background is parameterized with a second-order polynomial fit to data in the sideband.

The signal as well as backgrounds involving a single Higgs boson and SM $HH$ production are parameterized by fitting the $m_{\gamma \gamma }$ distribution in simulated samples. The distributions are fit with a double-sided Crystal Ball function. The $m_{\gamma \gamma }$ distributions for data and the parameterized background fits are shown in Figure 49.

The primary systematic uncertainty comes from the spurious signal effects used to select the functional form for the continuum $\gamma \gamma$ background estimate, similar to the method discussed in Section 6.2. Other systematic uncertainties are evaluated on the modeling of the diphoton triggers and the photon, jet, and b-tagging modeling as well as on the PDF and parton showering used in the signal simulation.

A maximum likelihood fit of the $m_{\gamma \gamma }$ distribution is used to perform the background estimate and interpret the data. No significant excesses are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method and are shown in Figure 50.

8.3. Discussion of Searches in Other Channels

ATLAS has performed searches in the $W{W}^{*}W{W}^{*}$ and the $W{W}^{*}\gamma \gamma$ channels. Both searches make use of the low backgrounds and clean events offered by $H\to \gamma \gamma$ decays and multilepton final states. The relatively large $H\to W{W}^{*}$ branching ratio is offset by the small branching ratios of W boson decays to leptons. Both searches are performed for resonance masses below 500 GeV where they are expected to be most sensitive. The low branching ratios, poor mass resolutions due to neutrinos, and the very low statistics result in these channels not being as sensitive as channels that include $H\to b\overline{b}$ decays. Future datasets that are significantly larger may make these channels more competitive.

9. Combination of $\mathit{HH}$ Search Channels

No single decay channel is optimally sensitive to resonant $HH$ production, and different ranges of resonance mass hypotheses are dominated by different channels. A statistical combination of the individual channels is performed to set limits on the signal hypotheses.

9.1. ATLAS Channel Combinations

The ATLAS Collaboration has performed two ggF resonant $HH$ channel combinations: The first as a combination of individual channel searches using a partial Run 2 dataset of up to 36.1 ${\mathrm{fb}}^{-1}$ [73] and the second as a combination of individual channels using the full Run 2 dataset of 126–139 ${\mathrm{fb}}^{-1}$ [74]. A statistical combination is performed on the results of the individual analyses with a simultaneous fit to the data for the signal hypothesis cross-sections. Nuisance parameters that encode the statistical and systematic uncertainties for each individual channel are included in the fit. The upper limits on the production cross-section times branching ratio are set on the signal models at 95% CL using the asymptotic ${\mathrm{CL}}_{\mathrm{s}}$ method. The signal regions used in the simultaneous fit are either orthogonal by construction or have negligible overlap.

The partial Run 2 dataset combination is conducted with searches performed in the $b\overline{b}b\overline{b}$ [47], $b\overline{b}{\tau }^{+}{\tau }^{-}$ [75], $b\overline{b}\gamma \gamma$ [76], $b\overline{b}W{W}^{*}$ [70], $W{W}^{*}W{W}^{*}$ [71] and $W{W}^{*}\gamma \gamma$ [72] channels. The partial dataset $b\overline{b}b\overline{b}$, $b\overline{b}{\tau }^{+}{\tau }^{-}$ and $b\overline{b}\gamma \gamma$ analyses are similar to the full dataset analyses described inSection 4.1, Section 5.1 and Section 6.2, respectively. The partial dataset $b\overline{b}W{W}^{*}$, $W{W}^{*}W{W}^{*}$ and $W{W}^{*}\gamma \gamma$ analyses are described in Section 7.4, Section 8.1 and Section 8.2, respectively.

The combined results are interpreted in the context of spin-0 and spin-2 benchmark models. A generic scalar S is used as the spin-0 benchmark and is generated with a narrow width that is much smaller than the detector resolution. The spin-2 benchmark are Kaluza–Klein gravitons $G_{\mathrm{KK}}$ with $\kappa /{\overline{M}}_{\mathrm{Pl}}=1$ and 2 with generated widths ranging from 3% to 25% of the resonance masses. Limits are set on all three benchmark models for a mass range from 260 GeV to 3 TeV. The limits for all three benchmark models are shown in Figure 51 with $G_{\mathrm{KK}}$ theory predictions overlaid on the respective plots. The $G_{\mathrm{KK}}$ model with $\kappa /{\overline{M}}_{\mathrm{Pl}}=1$ is excluded for the mass range of 310–1380 GeV, and the model with $\kappa /{\overline{M}}_{\mathrm{Pl}}=2$ is excluded for the mass range of 260–1760 GeV.

Exclusion limits are set on the EWK-singlet model and the hMSSM using a combination of the $b\overline{b}b\overline{b}$, $b\overline{b}{\tau }^{+}{\tau }^{-}$, and $b\overline{b}\gamma \gamma$ channels. Experimental limits on the spin-0 benchmark model are interpreted as constraints in the $m_S-m_{\alpha }$ plane in the EWK-singlet model for $\tan \beta =1$ and $\tan \beta =2$ as shown in Figure 52. Limits are also set in the $\sin \alpha -\tan \beta$ plane for $m_S=260$ GeV as shown in Figure 53a. The limits are additionally interpreted as constraints in the $m_A-\tan \beta$ plane of the hMSSM as shown in Figure 53b.

The full Run 2 dataset combination uses searches in the $b\overline{b}b\overline{b}$ [42], $b\overline{b}{\tau }^{+}{\tau }^{-}$ [54], and $b\overline{b}\gamma \gamma$ [64] analyses described in Section 4.1, Section 5.1, and Section 6.2, respectively.

The combined results are interpreted in the context of a spin-0 benchmark model. A generic scalar X is used as the benchmark and is generated with a width of 10 MeV. Limits are set for a mass range from 251 GeV to 3 TeV and are shown in Figure 54. The $b\overline{b}\gamma \gamma$ analysis is the most sensitive in the 251–400 GeV mass range, the $b\overline{b}{\tau }^{+}{\tau }^{-}$ analysis is the most sensitive for 400–800 GeV, and the $b\overline{b}b\overline{b}$ analysis is the most sensitive for 800–3000 GeV.

The largest deviation from the SM expectation is observed at $m_X=1.1$ TeV, corresponding to the deviation observed in the $b\overline{b}{\tau }^{+}{\tau }^{-}$ channel. The local significance of this deviation is $3.2\sigma$ and the global significance is $2.1\sigma$ as shown in Figure 55.

Figure 56 shows an overlay of the limits from the partial Run 2 combination and the limits from the full Run 2 analyses in the $b\overline{b}\gamma \gamma$ (Section 6.2), resolved and boosted $b\overline{b}{\tau }^{+}{\tau }^{-}$ (Section 5.1), and $b\overline{b}b\overline{b}$ (Section 4.1) channels.

9.2. CMS Channel Combinations

The CMS Collaboration performed a ggF resonant $HH$ channel combination using a partial Run 2 dataset of 35.9 ${\mathrm{fb}}^{-1}$ [79].

Likelihood fits are performed to combine the results of the individual analyses. Systematic uncertainties from each channel are accounted for as nuisance parameters in the fits, some of which are correlated across multiple channels. The upper limits on the production cross-section times branching ratio are set on narrow-width spin-0 and spin-2 benchmark signal models at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method in the mass range 250 GeV to 3 TeV. The combination is conducted with searches performed in the $b\overline{b}b\overline{b}$ [48,80,81], $b\overline{b}{\tau }^{+}{\tau }^{-}$ [57], $b\overline{b}\gamma \gamma$ [61], and $b\overline{b}V{V}^{*}$ [66] channels.

The partial dataset boosted $b\overline{b}b\overline{b}$ analysis is similar to the full dataset analysis described in Section 4.1. The partial dataset resolved $b\overline{b}b\overline{b}$, resolved $b\overline{b}{\tau }^{+}{\tau }^{-}$, $b\overline{b}\gamma \gamma$, and $b\overline{b}V{V}^{*}$ analyses are described in Section 4.2, Section 5.2, Section 6.1, and Section 7.1, respectively.

The limits for both benchmark models are shown in Figure 57.

Figure 58 shows an overlay of the limits from the combination, the individual channels used in the combination, and the partial Run 2 $b\overline{b}\ell \nu q\overline{q}$ analysis [82].

10. Searches for Resonant $\mathit{SH}$ and $\mathit{SS}$ Production

Both ATLAS and CMS have conducted searches for resonant production of additional scalar bosons. The searches assume ggF production of a heavy scalar that decays into a Higgs boson plus an additional scalar S ($SH$) or into a pair of S ($SS$). As discussed in Section 2.2, S is expected to have mass-dependent couplings to SM particles that are proportional to those of the SM Higgs boson, with a possible suppression of couplings to vector bosons. The branching ratios of $SH$ and $SS$ as a function of $m_S$ are shown in Figure 59 and Figure 60, respectively, assuming no vector boson coupling suppression.

10.1. CMS $SH\to b\overline{b}{\tau }^{+}{\tau }^{-}$ Search

The CMS Collaboration conducted a search for resonant production of a Higgs boson plus an additional scalar in the $b\overline{b}{\tau }^{+}{\tau }^{-}$ channels in the $b\overline{b}$ ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ and $b\overline{b}$ ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ final states [84] using the full Run 2 dataset of 137 ${\mathrm{fb}}^{-1}$ of data collected between 2016 and 2018. A heavy scalar H decays into a Higgs boson h and an another scalar $h_S$ with SM Higgs boson-like couplings to SM particles. The decay mode in which h decays to ${\tau }^{+}{\tau }^{-}$ and $h_S$ decays to $b\overline{b}$ is used.

The search is interpreted in the context of the NMSSM as well as generic models predicting extra scalars. Limits are set for $m_H$ in the range 240 GeV to 3 TeV and $m_{h_S}$ in the range 60 GeV to 2.8 TeV with $m_{h_S}<m_H-125$ GeV.

Events are selected with a combination of triggers that require a single lepton, a lepton plus a ${\tau }_{\mathrm{had}-\mathrm{vis}}$, or a pair of ${\tau }_{\mathrm{had}-\mathrm{vis}}$. Additionally, events are required to contain one lepton that passes isolation criteria and one ${\tau }_{\mathrm{had}-\mathrm{vis}}$ that passes $\tau$ lepton identification criteria or two ${\tau }_{\mathrm{had}-\mathrm{vis}}$ that pass the identification criteria. The $\tau$ lepton visible decay products are required to have opposite sign electric charge and be geometrically separated by $\Delta R>0.5$. Events are also required to contain at least one b-tagged anti-$k_t$ $R=0.4$ jet plus an additional jet. If the event contains two or more b-tagged jets, the h candidate is built from the two that have the highest $p_{\mathrm{T}}$. If the event contains one b-tagged jet, it is paired with the remaining jet with the highest b-tagging score to reconstruct h.

A set of multiclassifier neural networks (NNs) are used to discriminate signal hypotheses from background. Each NN is trained on a group of signal hypotheses with similar $m_H$ and $m_{h_S}$ values. The NNs use kinematic properties of the selected particles, invariant masses of combinations of particles, and the b-tagging scores of the jets used to reconstruct h. Each NN classifies events into five exclusive categories: signal events, background events with two real $\tau$ leptons, events with hadronic jets misidentified as ${\tau }_{\mathrm{had}}$, $t\overline{t}$ events with no more than one real ${\tau }_{\mathrm{had}}$, and events from other background processes such as Z+jets and single Higgs boson production.

The primary background process in the ${\tau }_{\mathrm{lep}}{\tau }_{\mathrm{had}}$ final state is $t\overline{t}$ production with one real lepton and one real $\tau$ lepton, which is estimated using simulation. In the ${\tau }_{\mathrm{had}}{\tau }_{\mathrm{had}}$ final state, the background is dominated by QCD multijet events with hadronic jets misidentified as ${\tau }_{\mathrm{had}}$ and Z+jets events where the Z decays into two real ${\tau }_{\mathrm{had}}$. Background processes that contain two real ${\tau }_{\mathrm{had}}$, either from the decay of a Z boson or two W bosons, are estimated using a $\tau$-embedding method [85]. Data events that contain two muons are selected, and the muon signatures are replaced with signatures of simulated ${\tau }_{\mathrm{had}}$ with the same kinematic properties.

The QCD multijet background as well as $t\overline{t}$ and W+jets events that contain hadronic jets misidentified as ${\tau }_{\mathrm{had}}$ are estimated using a data-driven fake factor method. Three dedicated control regions (CRs) enriched in QCD multijet, W+jets and $t\overline{t}$ events are used to determine the fake factors associated with each process. The QCD multijet CR is defined by a requirement that the two $\tau$ lepton visible decay products have the same sign electric charge. A large transverse mass of the lepton and $E_{\mathrm{T}}^{\mathrm{miss}}$ requirement and a veto on b-tagged jets are used to define the W+jets CR. Events in the $t\overline{t}$ CR are required to have more than two leptons. Corrections to the fake factors are derived in additional control regions to account for nonclosure effects.

All other background processes for both final states are estimated using simulation.

Experimental and theoretical uncertainties are evaluated on the background estimates as well as the signal hypotheses. Uncertainties are evaluated on several aspects of the detector response modeling, the dominant of which is the ${\tau }_{\mathrm{had}}$ trigger efficiency and the rate at which leptons are misidentified as ${\tau }_{\mathrm{had}}$. The $\tau$-embedding process has associated uncertainties, including an uncertainty on the composition of the events. The fake factor method has uncertainties that include normalization and nonclosure effects.

An extended binned likelihood is used to fit the outputs of the NNs in each of the five categories. No significant excesses are observed over the predicted background. The upper limits on the production cross-section times branching ratio are set on the signal hypotheses at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method, combining both final states. The limits are shown in Figure 61 as a function of $m_{h_S}$ for each value of $m_H$. The limits are also shown in the $m_H-m_{h_S}$ plane in Figure 62 along with an indication of the regions that exclude the maximally allowed values in the NMSSM.

10.2. ATLAS $SS\to W{W}^{(*)}W{W}^{(*)}$ Search

For extended Higgs sector models in which bosonic decay modes of S are not suppressed, $S\to W{W}^{(*)}$ is the dominant decay mode for $m_S\gtrsim 135$ GeV. Therefore, the $W{W}^{(*)}W{W}^{(*)}$ channel provides a combination of a clean signature with low background and a high branching ratio to search for resonant $X\to SS$ production.

The search for $HH$ in the $W{W}^{*}W{W}^{*}$ channel conducted by the ATLAS Collaboration using 36.1 ${\mathrm{fb}}^{-1}$ data as described in Section 8.1 was also used to search for $SS$ production in the same channel. The methodology is the same for both signal models, with dedicated selection optimizations for each $X\to SS$ signal hypothesis. The event yields in each category after the selection optimized for the $m_X=280$ GeV $m_S=135$ GeV signal hypothesis are shown in Figure 63.

The upper limits on the production cross-section times branching ratio are set at 95% CL using the ${\mathrm{CL}}_{\mathrm{s}}$ method on signal hypotheses with $m_X=340$ GeV and $m_S$ in the range of 135–165 GeV as well as $m_S=135$ GeV and $m_X$ in the range of 280–340 GeV. The limits are shown in Figure 64.

10.3. Discussion of $SH$ and $SS$ Searches

CMS and ATLAS have both performed searches for resonant production of extra scalar bosons.

The CMS analysis uses the $b\overline{b}{\tau }^{+}{\tau }^{-}$ final state to search for $SH$ production where H decays to ${\tau }^{+}{\tau }^{-}$ and S decays to $b\overline{b}$. The search is performed over a large range of $m_S$ from 60 to 2975 GeV. For $m_S<m_H$, the branching ratio of S decaying to $b\overline{b}$ remains approximately the same as for $HH$. Under models that follow the sum rule, $S\to b\overline{b}$ remains important for $m_S>m_H$. Constraining the search to use $S\to b\overline{b}$, reduces the total branching ratio by a factor of about 2 but offers advantages over including $S\to {\tau }^{+}{\tau }^{-}$ decays. For low values of $m_X$ and $m_S$, an $S\to {\tau }^{+}{\tau }^{-}$ decay would be very soft, making it difficult to select events with triggers that require leptons or hadronically decaying $\tau$ leptons. Additionally, the $m_H$ constraint allows the ${\tau }^{+}{\tau }^{-}$ system to be approximately reconstructed as a way to discriminate signal from background. The exclusion limits are presented in a two-dimensional mass plane under the assumption of the NMSSM.

The ATLAS analysis uses the $W{W}^{*}W{W}^{*}$ decay mode in multilepton final states to search for $SS$ production. The search is constrained to $m_S$ between 135 and 165 GeV. Under the assumption that the sum rule is not followed, $S\to W{W}^{*}$ has the dominant branching ratio for $m_S>135$ GeV. The upper bound is used based on the assumption that for $m_S>2m_t$, S would decay primarily into $t\overline{t}$. This assumption has been shown to be invalid. Future iterations of the search would benefit from an extended mass range. Additionally, the exclusion limits in future iterations would be more useful if presented in a two-dimensional plane.

These are the first two experimental results testing the existence of such models. A wide range of final states and topologies need to be studied to provide a comprehensive search for both $SH$ and $SS$ production. The two searches represent the beginning of a much larger search program for both collaborations.

11. Conclusions

A comprehensive overview of the state-of-the-art experimental searches for resonant production of scalar boson pairs by the ATLAS and CMS Collaborations using $\sqrt{s}=13$ TeV $pp$ collisions from Run 2 LHC data is presented. The searches use between 35.9 and 139 ${\mathrm{fb}}^{-1}$ of data.

Searches for resonant $HH$ production are performed in numerous channels by both ATLAS and CMS. The results from the searches are interpreted in the context of multiple benchmark signal models. A summary of the searches performed by ATLAS is given in

Table 3. Summary of the searches for resonant $HH$ production performed by the ATLAS Collaboration using Run 2 LHC data.

Channel	Analysis	Mass Range	Lumi.	Section	Ref.
$b\overline{b}b\overline{b}$	ggF resolved	251–1500 GeV	126 ${\mathrm{fb}}^{-1}$	Section 4.1.1	[42]
	ggF boosted	900–3000 GeV	139 ${\mathrm{fb}}^{-1}$
	VBF resolved	260–100 GeV	126 ${\mathrm{fb}}^{-1}$	Section 4.1.2	[45]
$b\overline{b}{\tau }^{+}{\tau }^{-}$	resolved	251–1600 GeV	139 ${\mathrm{fb}}^{-1}$	Section 5.1.1	[54]
	boosted	1000–3000 GeV		Section 5.1.2	[56]
$b\overline{b}\gamma \gamma$	resolved	251–1000 GeV	139 ${\mathrm{fb}}^{-1}$	Section 6.2	[64]
$b\overline{b}W{W}^{*}$	resolved 1ℓ	500–3000 GeV	36.1 ${\mathrm{fb}}^{-1}$	Section 7.4	[70]
	boosted 1ℓ	800–3000 GeV
$W{W}^{*}W{W}^{*}$	multilepton	260–500 GeV	36.1 ${\mathrm{fb}}^{-1}$	Section 8.1	[71]
$W{W}^{*}\gamma \gamma$	1-lepton	251–1000 GeV	36.1 ${\mathrm{fb}}^{-1}$	Section 8.2	[72]

and a summary of the searches performed by CMS is given in

Table 4. Summary of the searches for resonant $HH$ production performed by the CMS Collaboration using Run 2 LHC data.

Channel	Analysis	Mass Range	Lumi.	Section	Ref.
$b\overline{b}b\overline{b}$	resolved	260–1200 GeV	35.9 ${\mathrm{fb}}^{-1}$	Section 4.2.1	[48]
	boosted	1000–3000 GeV	138 ${\mathrm{fb}}^{-1}$	Section 4.2.2	[52]
$b\overline{b}{\tau }^{+}{\tau }^{-}$	resolved	250–900 GeV	35.9 ${\mathrm{fb}}^{-1}$	Section 5.2.1	[57]
	boosted	900–4000 GeV		Section 5.2.2	[60]
$b\overline{b}\gamma \gamma$	resolved	250–900 GeV	35.9 ${\mathrm{fb}}^{-1}$	Section 6.1	[61]
$b\overline{b}V{V}^{*}$	resolved $b\overline{b}\ell \ell \nu \nu$	260–900 GeV	35.9 ${\mathrm{fb}}^{-1}$	Section 7.1	[66]
	resolved $b\overline{b}Z{Z}^{*}$	260–1000 GeV		Section 7.2	[67]
	boosted 1ℓ/2ℓ	800–4500 TeV	138 ${\mathrm{fb}}^{-1}$	Section 7.3	[68]

. Results from the individual channels are combined and shown in Section 9.1 and Section 9.2.

Additionally, a search for $SH$ production in the $b\overline{b}{\tau }^{+}{\tau }^{-}$ channel is performed by CMS, and a search for $SS$ production in the $W{W}^{*}W{W}^{*}$ channel is performed by ATLAS.

No significant excesses have been observed, but searching for resonant scalar pair production is a very active area of research with many ongoing analyses in both ATLAS and CMS. Many updated and new search results are expected as the full Run 2 datasets continues to be analyzed and as the LHC Run 3 data collection begins.
