# Sensitivity Analysis of Key Formulations of Topology Optimization on an Example of Cantilever Bending Beam

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

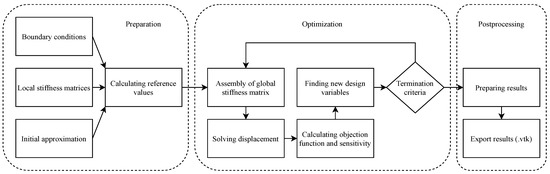

#### 2.1. Description of the Optimization Problem

#### 2.1.1. The Optimization Problem

_{0}] is the stiffness matrix with unit elastic modulus and n is the number of elements. Penalization is introduced in Section 2.1.3.

#### 2.1.2. Material Model

#### 2.1.3. Penalization

#### 2.1.4. Finite Element Method

#### 2.1.5. The Optimality Criterion Algorithm

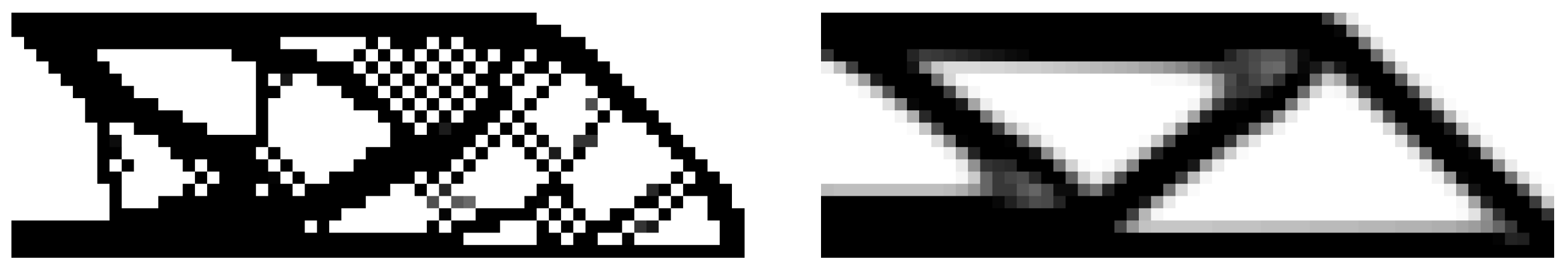

#### 2.1.6. Filtering Methods

#### Density Filter

#### Sensitivity Filter

#### Grayscale Filter

#### 2.1.7. Displacement Solver and Termination Criteria

#### 2.2. Key Formulations

**Formulation of the filter radius**mentioned in Section 2.1.6 is important because the radius defines the element’s neighborhood. If the defined range is too small, the energy is distributed only to a few elements. However, if the neighborhood is too large, the energy is scattered to a point where it is difficult to evaluate the optimum.

**Formulation of the filter type**was already mentioned in Section 2.1.6 but the theory does not provide an answer to the question of which filter should perform best.

**Formulation of the penalization**was also mentioned in Section 2.1.3; the theory, however, is able to provide only the lower boundary, not the upper one.

**Formulation of the element approximation**mentioned in Section 2.1.4 is a necessary step in the initiation of optimization. The element approximations greatly affect the accuracy of the solved displacement and the value of the objective function.

**The formulation of the type of the weight factor**mentioned in Section 2.1.6 is defined by two functions. However, theory does not provide enough evidence to decide, which function offers the better performance.

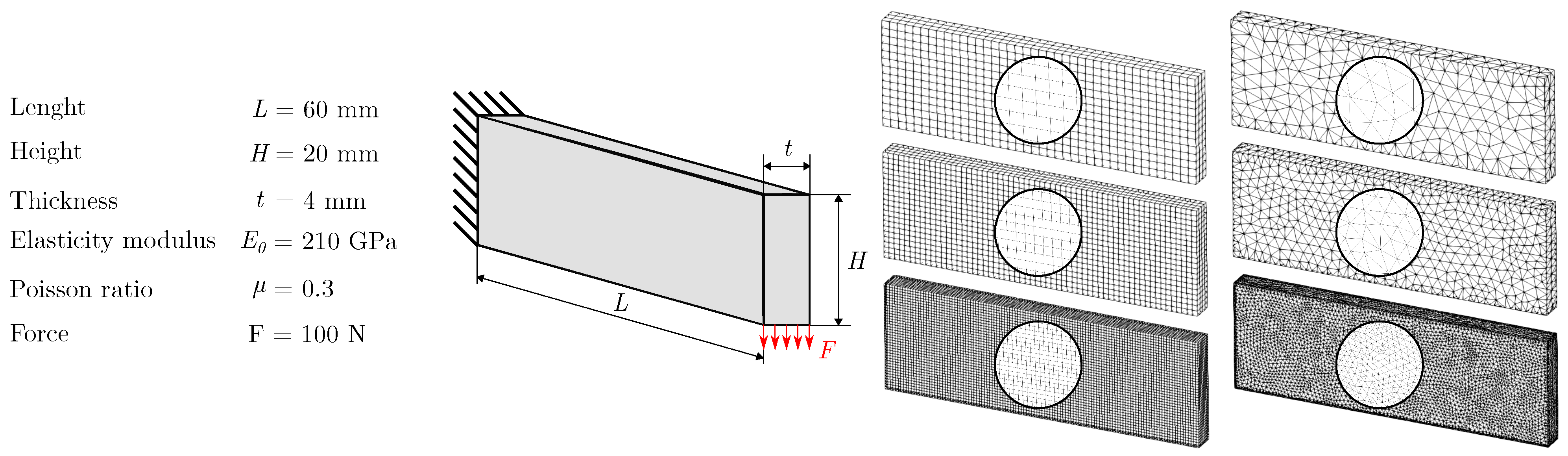

#### 2.3. Description of Numerical Test

## 3. Results

#### 3.1. Formulation of Filter Radius

#### 3.2. Formulation of Filter Type

#### 3.3. Formulation of Penalization

#### 3.4. Formulation of Element Approximation

#### 3.5. Formulation of Type of Weight Factor

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

3D | Three Dimensional |

2D | Two Dimensional |

AWB | ANSYS Workbench |

KKT | Karush-Kuhn-Tucker |

SIMP | Solid Isotropic Material with Penalty |

TET | Tetrahedral |

HEX | Hexahedral |

DOF | Degrees of Freedom |

OC | Optimality Criterion |

SAO | Sequential Approximate Optimization |

1D | One Dimensional |

$ES$ | Element Size |

NF | No Filter |

D | Density filter |

S | Sensitivity filter |

G | Gray scale filter |

SG | Combination of Sensitivity and Gray scale Filters |

## References

- COMSOL Multiphysics Modeling Software. 2020. Available online: https://www.comsol.com/optimization-module (accessed on 3 March 2021).
- Hecht, F. New development in FreeFem++. J. Numer. Math.
**2012**, 20, 251–265. [Google Scholar] [CrossRef] - A FreeFem++ Toolbox for Shape Optimization (Geometry and Topology). 2008. Available online: http://www.cmap.polytechnique.fr/~allaire/freefem_en.html (accessed on 3 March 2021).
- Hunter, W. ToPy—Topology Optimization with Python. 2017. Available online: https://github.com/williamhunter/topy (accessed on 3 March 2021).
- Bendsøe, M.P.; Sigmund, O. Topology Optimization, 2nd ed.; Corrected Printing ed.; Springer: Berlin, Germany, 2004. [Google Scholar]
- Bendsøe, M.P.; Sigmund, O. Material interpolation schemes in topology optimization. Arch. Appl. Mech. (Ingenieur. Archiv.)
**1999**, 69, 635–654. [Google Scholar] [CrossRef] - Sigmund, O. A 99 line topology optimization code written in Matlab. Struct. Multidiscip. Optim.
**2001**, 21, 120–127. [Google Scholar] [CrossRef] - Sigmund, O. Morphology-based black and white filters for topology optimization. Struct. Multidiscip. Optim.
**2007**, 33, 401–424. [Google Scholar] [CrossRef] [Green Version] - Liu, K.; Tovar, A. An efficient 3D topology optimization code written in Matlab. Struct. Multidiscip. Optim.
**2014**, 50, 1175–1196. [Google Scholar] [CrossRef] [Green Version] - Hunter, W. Predominantly Solid-Void Three-Dimensional Topology Optimisation Using Open Source Software. Master’s Thesis, University of Stellenbosch, Stellenbosch, South Africa, 2009. [Google Scholar]
- Michell, A. LVIII. The limits of economy of material in frame-structures. Lond. Edinb. Dublin Philos. Mag. J. Sci.
**1904**, 8, 589–597. [Google Scholar] [CrossRef] [Green Version] - Hunar, M.; Jancar, L.; Krzikalla, D.; Kaprinay, D.; Srnicek, D. Comprehensive View on Racing Car Upright Design and Manufacturing. Symmetry
**2020**, 12, 1020. [Google Scholar] [CrossRef] - Pagac, M.; Hajnys, J.; Halama, R.; Aldabash, T.; Mesicek, J.; Jancar, L.; Jansa, J. Prediction of Model Distortion by FEM in 3D Printing via the Selective Laser Melting of Stainless Steel AISI 316L. Appl. Sci.
**2021**, 11, 1656. [Google Scholar] [CrossRef] - Sotola, M.; Stareczek, D.; Rybansky, D.; Prokop, J.; Marsalek, P. New Design Procedure of Transtibial Prosthesis Bed Stump Using Topological Optimization Method. Symmetry
**2020**, 12, 1837. [Google Scholar] [CrossRef] - Sotola, M. Study of Topological Optimization. Master’s Thesis, VSB-TUO, Ostrava, Czech Republic, 2020. [Google Scholar]
- Hughes, T.J.R. The Finite Element Method, 1st ed.; Prentice Hall: Hoboken, NJ, USA, 1987. [Google Scholar]
- Ravindran, A.; Ragsdell, K.; Reklaitis, G. Engineering Optimization: Methods and Applications, 2nd ed.; John Wiley and Sons: Hoboken, NJ, USA, 2007. [Google Scholar] [CrossRef]
- Allaire, G. Shape Optimization by the Homogenization Method, 1st ed.; Springer: New York, NY, USA, 2002. [Google Scholar]
- Allaire, G.; Bonnetier, E.; Francfort, G.; Jouve, F. Shape optimization by the homogenization method. Numer. Math.
**1997**, 76, 27–68. [Google Scholar] [CrossRef] - Bourdin, B.; Chambolle, A. Design-dependent loads in topology optimization. ESAIM Control. Optim. Calc. Var.
**2003**, 9, 19–48. [Google Scholar] [CrossRef] - Auricchio, F.; Bonetti, E.; Carraturo, M.; Hömberg, D.; Reali, A.; Rocca, E. A phase-field-based graded-material topology optimization with stress constraint. Math. Model. Methods Appl. Sci.
**2020**, 30, 1461–1483. [Google Scholar] [CrossRef] - Burger, M. A framework for the construction of level set methods for shape optimization and reconstruction. Interfaces Free Boundaries
**2003**, 5, 301–329. [Google Scholar] [CrossRef] [Green Version] - Dostal, Z. Optimal Quadratic Programming Algorithms, 1st ed.; Springer: New York, NY, USA, 2009. [Google Scholar] [CrossRef]
- Bendsøe, M.P.; Díaz, A.; Kikuchi, N. Topology and Generalized Layout Optimization of Elastic Structures. Topol. Des. Struct.
**1993**, 227, 159–205. [Google Scholar] [CrossRef] - Díaz, A.; Sigmund, O. Checkerboard patterns in layout optimization. Struct. Optim.
**1995**, 10, 40–45. [Google Scholar] [CrossRef] - Sigmund, O.; Petersson, J. Numerical instabilities in topology optimization: A survey on procedures dealing with checkerboards, mesh-dependencies and local minima. Struct. Optim.
**1998**, 16, 68–75. [Google Scholar] [CrossRef] - Rozvany, G.I.N. On symmetry and non-uniqueness in exact topology optimization. Struct. Multidiscip. Optim.
**2011**, 43, 297–317. [Google Scholar] [CrossRef] - Bathe, K.J. Finite Element Procedures, 1st ed.; Prentice Hall: Hoboken, NJ, USA, 2006. [Google Scholar]
- Bhatti, M.A. Fundamental Finite Element Analysis and Applications; John Wiley: Hoboken, NJ, USA, 2005. [Google Scholar]
- Bhatti, M.A. Advanced Topics in Finite Element Analysis of Structures, 2nd ed.; John Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
- Ansys Workbench Help. 2020. Available online: https://ansyshelp.ansys.com (accessed on 10 January 2021).
- Munro, D.P. A Direct Approach to Structural Topology Optimization. Ph.D. Thesis, University of Stellenbosch, Stellenbosch, South Africa, 2017. [Google Scholar]
- Wang, M.Y.; Wang, S. Bilateral filtering for structural topology optimization. Int. J. Numer. Methods Eng.
**2005**, 63, 1911–1938. [Google Scholar] [CrossRef] - Bruns, T.E.; Tortorelli, D.A. An element removal and reintroduction strategy for the topology optimization of structures and compliant mechanisms. Int. J. Numer. Methods Eng.
**2003**, 57, 1413–1430. [Google Scholar] [CrossRef] - Andreassen, E.; Clausen, A.; Schevenels, M.; Lazarov, B.S.; Sigmund, O. Efficient topology optimization in MATLAB using 88 lines of code. Struct. Multidiscip. Optim.
**2011**, 43, 1–16. [Google Scholar] [CrossRef] [Green Version] - Bourdin, B. Filters in topology optimization. Int. J. Numer. Methods Eng.
**2001**, 50, 2143–2158. [Google Scholar] [CrossRef] - Bruns, T.E.; Tortorelli, D.A. Topology optimization of non-linear elastic structures and compliant mechanisms. Comput. Methods Appl. Mech. Eng.
**2001**, 190, 3443–3459. [Google Scholar] [CrossRef] - Groenwold, A.A.; Etman, L.F.P. A simple heuristic for gray-scale suppression in optimality criterion-based topology optimization. Struct. Multidiscip. Optim.
**2009**, 39, 217–225. [Google Scholar] [CrossRef] - Golub, G.H.; Loan, C.F.V. Matrix Computations, 3rd ed.; Johns Hopkins University Press: Baltimore, MD, USA, 1996. [Google Scholar]
- Amir, O.; Sigmund, O. On reducing computational effort in topology optimization. Struct. Multidiscip. Optim.
**2011**, 44, 25–29. [Google Scholar] [CrossRef] - Stolpe, M.; Svanberg, K. On the trajectories of penalization methods for topology optimization. Struct. Multidiscip. Optim.
**2001**, 21, 128–139. [Google Scholar] [CrossRef] - Zuo, K.T.; Chen, L.P.; Zhang, Y.Q.; Yang, J. Study of key algorithms in topology optimization. Int. J. Adv. Manuf. Technol.
**2007**, 32, 787–796. [Google Scholar] [CrossRef] - Markopoulos, A.; Hapla, V.; Cermak, M.; Fusek, M. Massively parallel solution of elastoplasticity problems with tens of millions of unknowns using PermonCube and FLLOP packages. Appl. Math. Comput.
**2015**, 267, 698–710. [Google Scholar] [CrossRef] - Marsalek, P.; Sotola, M.; Rybansky, D.; Repa, V.; Halama, R.; Fusek, M.; Prokop, J. Modeling and Testing of Flexible Structures with Selected Planar Patterns Used in Biomedical Applications. Materials
**2021**, 14, 140. [Google Scholar] [CrossRef] - Rybansky, D.; Sotola, M.; Marsalek, P.; Poruba, Z.; Fusek, M. Study of Optimal Cam Design of Dual-Axle Spring-Loaded Camming Device. Materials
**2021**, 14, 1940. [Google Scholar] [CrossRef]

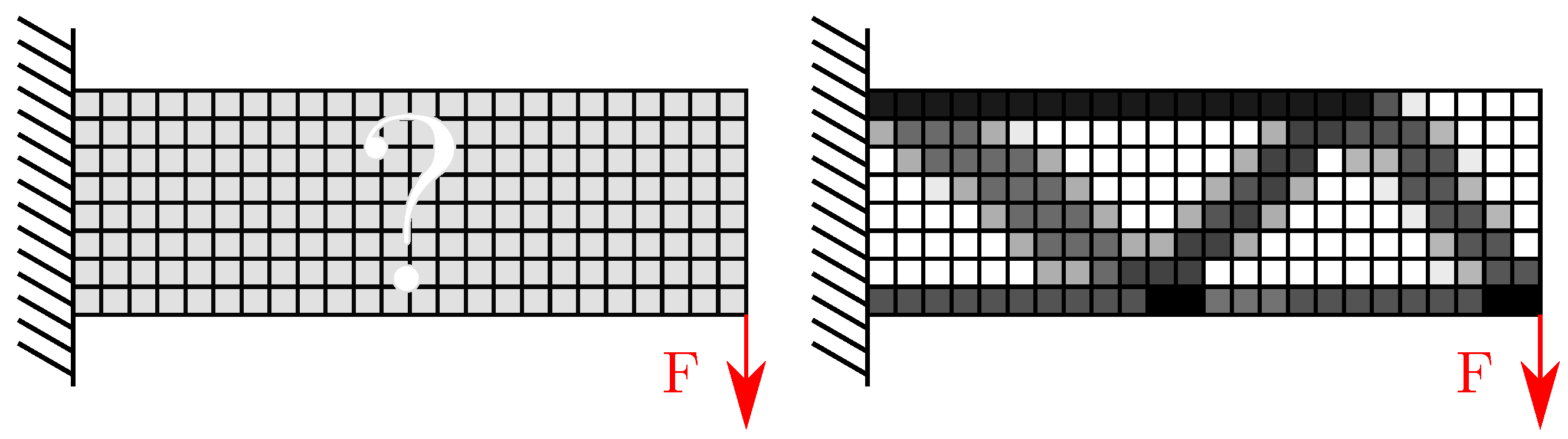

**Figure 1.**Topology optimization of cantilever bending; the initial geometry (

**left**) and the optimal shape in the form of design variables (

**right**).

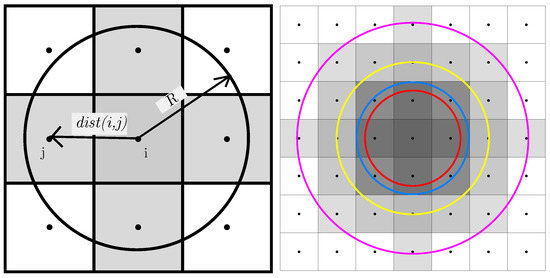

**Figure 4.**2D Neighborhood of element (

**left**), examples of the radius dependence on the element size $ES$ in 2D; R = $1.2\phantom{\rule{4pt}{0ex}}ES$ for the red circle, R = $1.5\phantom{\rule{4pt}{0ex}}ES$ for the blue circle, R = $2.0\phantom{\rule{4pt}{0ex}}ES$ for the yellow circle and R = $3.0\phantom{\rule{4pt}{0ex}}ES$ for the purple circle.

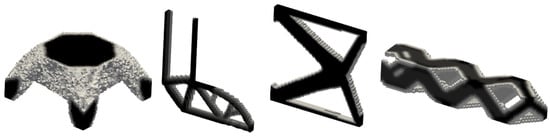

**Figure 6.**Results of numerical examples of topology optimization; from left to right-four point bending, L problem, two-loadcase cantilever plate, beam with square cross-section subjected to torsion.

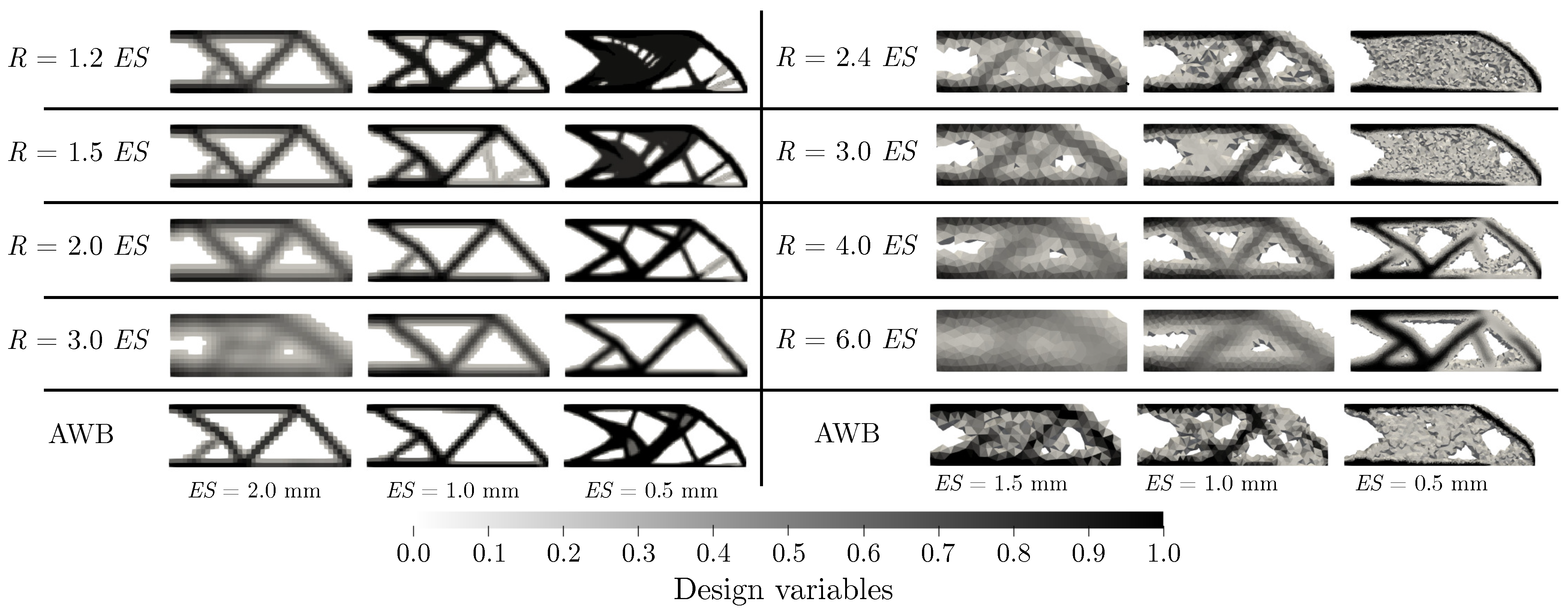

**Figure 8.**Final shapes for linear HEX elements (

**left**) and linear TET elements (

**right**) with various radii, Density filter (D).

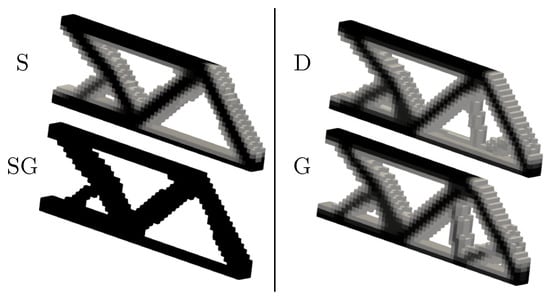

**Figure 9.**Results of individual filtering algorithms: Density filter (D), Sensitivity filter (S), Grayscale filter (G), Combination of the Sensitivity and Grayscale filters (SG).

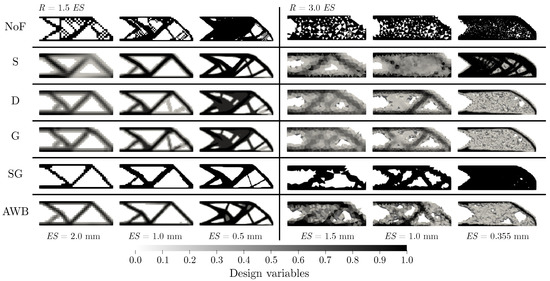

**Figure 10.**The final shape for linear HEX elements (

**left**) and linear TET elements (

**right**) with various filters, HEX radius $R=1.5$ $ES$ and TET radius $R=3.0$ $ES$.

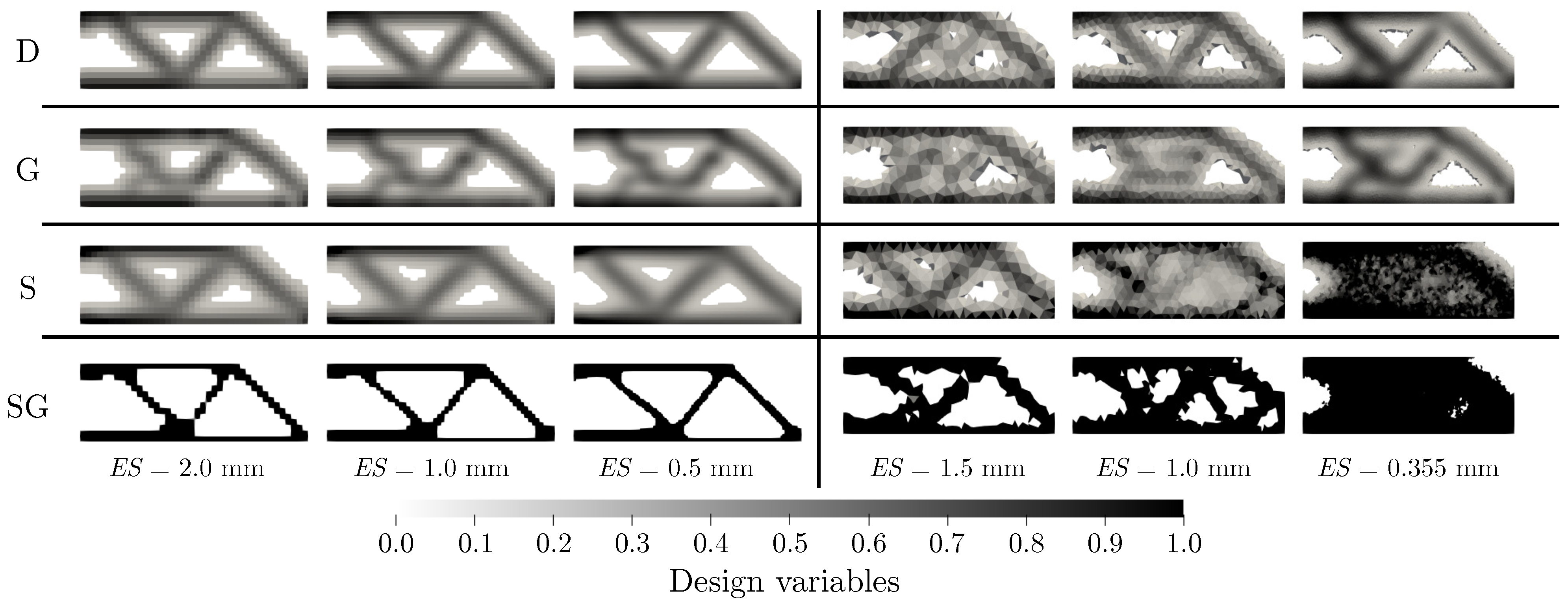

**Figure 11.**The final shape for linear HEX elements (

**left**) and linear TET elements (

**right**) with various filters, radius $R=4$ mm.

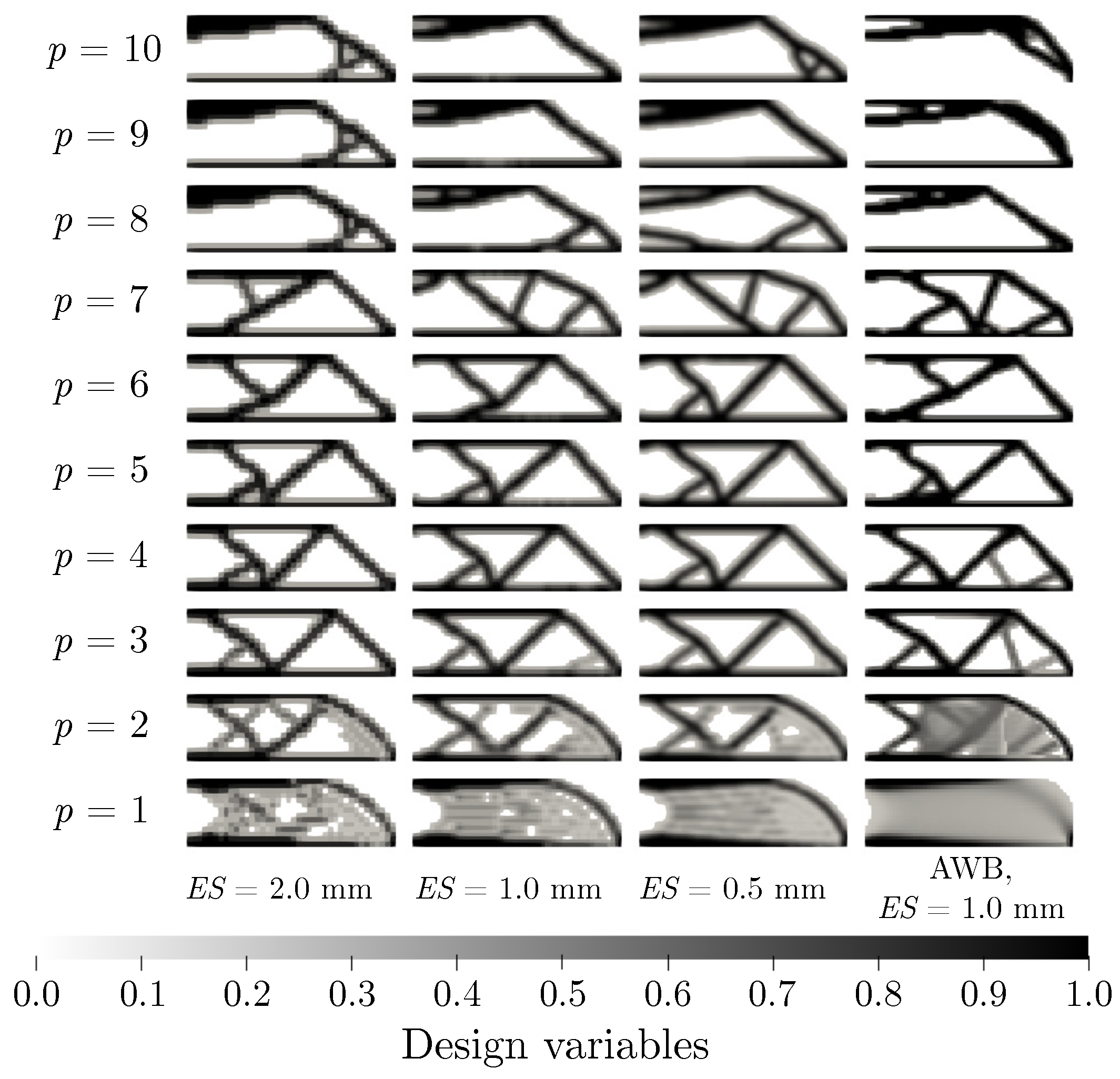

**Figure 12.**The final shapes for different values of penalization p, Density filter, radius of filter R = 2 mm.

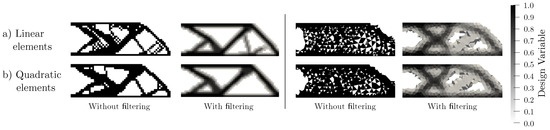

**Figure 13.**The final shapes for evaluation of element approximations of HEX elements (

**left**) and TET elements (

**right**); Density filter, radius $R=\phantom{\rule{4pt}{0ex}}1.5\phantom{\rule{3.33333pt}{0ex}}Es$ for HEX and radius $R=\phantom{\rule{4pt}{0ex}}3.0\phantom{\rule{3.33333pt}{0ex}}Es$ for TET.

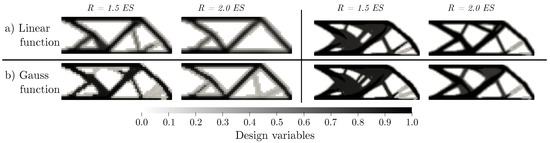

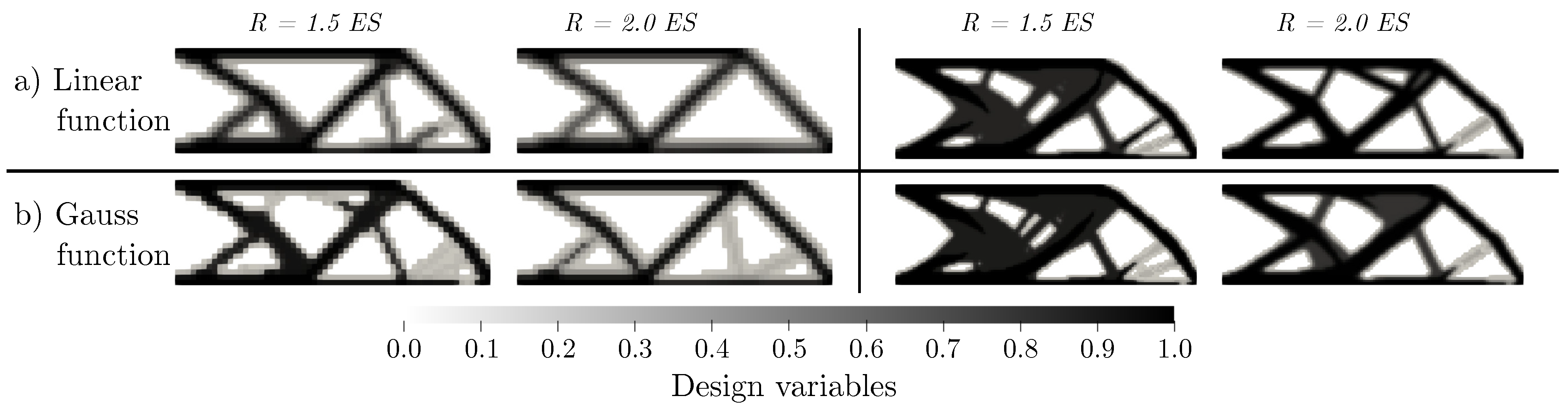

**Figure 14.**The final shape with different weight functions, mesh with element size $ES$ = 1.0 mm (

**left**), mesh with element size $ES$ = 0.5 mm (

**right**), Density filter.

TET Elements | HEX Elements | ||
---|---|---|---|

Coaser mesh | Number of nodes | 686 | 2460 |

Number of elements | 2034 | 1680 | |

Element size [mm] | 1.500 | 2.000 | |

Normal mesh | Number of nodes | 1403 | 6405 |

Number of elements | 4458 | 4800 | |

Element size [mm] | 1.000 | 1.000 | |

Fine mesh | Number of nodes | 10,850 | 44,650 |

Number of elements | 38,740 | 38,400 | |

Element size [mm] | 0.355 | 0.500 |

**Table 2.**Results of optimization with different radius, for meshes with linear HEX elements (first multiplier) or linear TET elements (latter multiplier).

HEX Elements | TET Elements | ||||||
---|---|---|---|---|---|---|---|

Radius | Value | 2.0 mm | 1.0 mm | 0.5 mm | 1.5 mm | 1.0 mm | 0.355 mm |

1.2/2.4 $ES$ | Deformation energy [mJ] | 6.1 | 4.1 | 3.4 | 8.0 | 5.6 | 3.6 |

Normed value [-] | 4.2 | 2.8 | 2.3 | 5.8 | 3.9 | 2.5 | |

Iteration | 110 | 96 | 200 | 200 | 200 | 200 | |

Volume fraction [%] | 63.6 | 56.0 | 46.9 | 75.6 | 67.4 | 54.4 | |

1.5/3.0 $ES$ | Deformation energy [mJ] | 7.2 | 4.6 | 3.7 | 9.8 | 6.7 | 3.9 |

Normed value [-] | 5.0 | 3.1 | 2.5 | 7.1 | 4.8 | 2.7 | |

Iteration | 83 | 200 | 200 | 200 | 200 | 200 | |

Volume fraction [%] | 64.6 | 57.6 | 50.2 | 81.1 | 72.0 | 59.9 | |

2.0/4.0 $ES$ | Deformation energy [mJ] | 9.7 | 5.2 | 4.0 | 12.6 | 9.0 | 4.3 |

Normed value [-] | 6.7 | 3.5 | 2.7 | 9.1 | 6.3 | 3.0 | |

Iteration | 167 | 200 | 200 | 200 | 200 | 200 | |

Volume fraction [%] | 78.2 | 55.3 | 50.2 | 87.4 | 75.7 | 58.5 | |

3.0/6.0 $ES$ | Deformation energy [mJ] | 14.5 | 7.2 | 4.5 | 18.4 | 12.4 | 5.1 |

Normed value [-] | 10.1 | 4.9 | 3.1 | 13.3 | 8.7 | 3.5 | |

Iteration | 200 | 200 | 200 | 139 | 200 | 200 | |

Volume fraction [%] | 89.7 | 66.1 | 51.6 | 98.3 | 87.0 | 62.8 | |

AWB | Deformation energy [mJ] | 5.7 | 4.9 | 3.9 | 2.7 | 5.5 | 4.7 |

Normed value [-] | 3.9 | 3.4 | 2.7 | 2.0 | 3.9 | 3.2 | |

Iteration | 35 | 42 | 33 | 31 | 57 | 33 | |

Volume fraction [%] | 51.7 | 51.3 | 40.3 | 78.4 | 58.6 | 58.5 |

**Table 3.**Results of optimization for various filters for each mesh, dependent radius, filter radius of linear HEX mesh is R = 1.5 $ES$ an filter radius of linear TET mesh is R = 3.0 $ES$.

HEX Elements | TET Elements | ||||||
---|---|---|---|---|---|---|---|

Filter | Value | 2.0 mm | 1.0 mm | 0.5 mm | 1.5 mm | 1.0 mm | 0.355 mm |

S | Deformation energy [mJ] | 6.1 | 3.9 | 3.4 | 7.7 | 9.3 | 3.5 |

Norm value [-] | 4.3 | 2.7 | 2.3 | 5.5 | 6.6 | 2.4 | |

Iteration | 117 | 53 | 200 | 80 | 26 | 167 | |

Volume fraction [%] | 71.2 | 54.1 | 45.5 | 82.4 | 93.4 | 58.8 | |

G | Deformation energy [mJ] | 7.6 | 4.9 | 3.9 | 10.6 | 7.5 | 4.1 |

Norm value [-] | 5.3 | 3.3 | 2.6 | 7.6 | 5.3 | 2.8 | |

Iteration | 35 | 34 | 34 | 34 | 36 | 34 | |

Volume fraction [%] | 63.4 | 59.5 | 51.0 | 82.9 | 72.6 | 61.8 | |

D | Deformation energy [mJ] | 7.2 | 4.6 | 3.7 | 9.8 | 6.7 | 3.9 |

Norm value [-] | 5.0 | 3.1 | 2.5 | 7.1 | 4.8 | 2.7 | |

Iteration | 83 | 200 | 200 | 200 | 200 | 200 | |

Volume fraction [%] | 64.6 | 57.6 | 50.2 | 81.1 | 72.0 | 59.9 | |

SG | Deformation energy [mJ] | 3.8 | 3.3 | 3.1 | 3.7 | 3.3 | 3.0 |

Norm value [-] | 2.6 | 2.2 | 2.1 | 2.7 | 2.4 | 2.1 | |

Iteration | 74 | 45 | 47 | 47 | 51 | 49 | |

Volume fraction [%] | 30.0 | 30.0 | 30.1 | 30.0 | 30.0 | 30.0 | |

AWB | Deformation energy [mJ] | 5.7 | 4.9 | 3.9 | 2.7 | 5.5 | 4.7 |

Norm value [-] | 3.9 | 3.4 | 2.7 | 2.0 | 3.9 | 3.2 | |

Iteration | 35 | 42 | 33 | 31 | 57 | 33 | |

Volume fraction [%] | 51.7 | 51.3 | 40.3 | 78.4 | 58.6 | 58.5 |

**Table 4.**Results of optimization for various filters for each mesh, independent radius, filter radius R = 4 mm.

HEX Elements | TET Elements | ||||||
---|---|---|---|---|---|---|---|

Filter | Value | 2.0 mm | 1.0 mm | 0.5 mm | 1.5 mm | 1.0 mm | 0.355 mm |

S | Deformation energy [mJ] | 9.9 | 9.8 | 9.6 | 7.4 | 8.2 | 5.1 |

Norm value [-] | 6.9 | 6.7 | 6.5 | 5.3 | 5.8 | 3.5 | |

Iteration | 101 | 117 | 135 | 54 | 50 | 24 | |

Volume fraction [%] | 84.9 | 84.5 | 84.3 | 82.8 | 92.1 | 92.7 | |

G | Deformation energy [mJ] | 11.1 | 10.9 | 10.6 | 9.6 | 10.4 | 9.6 |

Norm value [-] | 7.7 | 7.4 | 7.2 | 6.9 | 7.4 | 6.6 | |

Iteration | 41 | 35 | 39 | 36 | 34 | 36 | |

Volume fraction [%] | 78.8 | 79.8 | 79.6 | 80.4 | 80.2 | 80.3 | |

D | Deformation energy [mJ] | 9.7 | 9.6 | 9.5 | 8.7 | 9.0 | 9.7 |

Norm value [-] | 6.7 | 6.6 | 6.44 | 6.3 | 6.3 | 6.7 | |

Iteration | 167 | 158 | 200 | 200 | 200 | 200 | |

Volume fraction [%] | 78.2 | 76.9 | 79.6 | 77.2 | 75.7 | 77.5 | |

SG | Deformation energy [mJ] | 3.9 | 3.8 | 3.7 | 3.7 | 4.1 | 3.0 |

Norm value [-] | 2.7 | 2.6 | 2.5 | 2.7 | 2.9 | 2.0 | |

Iteration | 47 | 48 | 38 | 34 | 37 | 50 | |

Volume fraction [%] | 30 | 30 | 29.2 | 30.0 | 30.0 | 30.0 |

Penalization | $\mathit{ES}$ = 2.0 mm | $\mathit{ES}$ = 1.0 mm | $\mathit{ES}$ = 0.5 mm | AWB, $\mathit{ES}$ = 1.0 mm |
---|---|---|---|---|

1 | 3.02 | 2.90 | 2.85 | 2.90 |

2 | 4.68 | 4.78 | 4.76 | 4.23 |

3 | 5.54 | 5.68 | 5.66 | 4.96 |

4 | 6.78 | 6.88 | 6.90 | 5.44 |

5 | 8.69 | 8.97 | 8.66 | 6.02 |

6 | 9.40 | 11.02 | 10.31 | 6.66 |

7 | 10.18 | 14.16 | 14.39 | 7.82 |

8 | 24.27 | 27.67 | 36.70 | 11.91 |

9 | 30.66 | 26.97 | 24.55 | 21.58 |

10 | 34.16 | 29.08 | 29.98 | 62.78 |

Linear Elements | Quadratic Elements | ||
---|---|---|---|

Number of nodes | 6405 | 23,930 | |

HEX | Number of elements | 4800 | 4800 |

Element size [mm] | 1.0 | 1.0 | |

Number of nodes | 1391 | 8269 | |

TET | Number of elements | 4351 | 4351 |

Element size [mm] | 1.0 | 1.0 |

Linear Elements | Quadratic Elements | ||||
---|---|---|---|---|---|

With Filter | Without Filter | With Filter | Without Filter | ||

HEX elements | Deformation energy [-] | 4.6 | 3.63 | 4.79 | 3.73 |

Norm value [-] | 3.16 | 2.49 | 3.22 | 2.51 | |

Iteration | 100 | 33 | 100 | 57 | |

Volume fraction [%] | 58.1 | 30.2 | 56.4 | 30.1 | |

Solving time [s] | 140 | 51.7 | 4820 | 3260 | |

TET elements | Deformation energy [-] | 6.71 | 2.83 | 10.07 | 4.64 |

Norm value [-] | 4.74 | 2.00 | 4.91 | 2.27 | |

Iteration | 100 | 24 | 100 | 58 | |

Volume fraction [%] | 73.6 | 30.1 | 73.9 | 30.1 | |

Solving time [s] | 50 | 17.1 | 118.9 | 77.1 |

$\mathit{ES}$ = 1.0 mm | $\mathit{ES}$ = 0.5 mm | ||||
---|---|---|---|---|---|

$\mathit{R}\mathbf{=}\mathbf{1.5}\phantom{\rule{4pt}{0ex}}\mathit{ES}$ | $\mathit{R}\mathbf{=}\mathbf{2.0}\phantom{\rule{4pt}{0ex}}\mathit{ES}$ | $\mathit{R}\mathbf{=}\mathbf{1.5}\phantom{\rule{4pt}{0ex}}\mathit{ES}$ | $\mathit{R}=\mathbf{2.0}\phantom{\rule{4pt}{0ex}}\mathit{ES}$ | ||

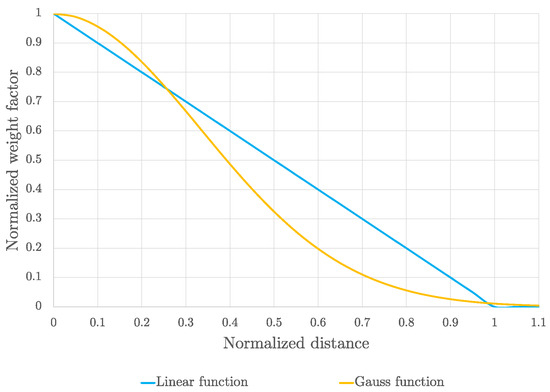

Linear function | Deformation energy [mJ] | 4.61 | 5.26 | 3.74 | 4.02 |

Norm value [-] | 3.16 | 3.61 | 2.53 | 2.72 | |

Iteration | 100 | 100 | 100 | 100 | |

Volume fraction [%] | 58.15 | 56.2 | 50.2 | 50.3 | |

Gauss function | Deformation energy [mJ] | 4.11 | 4.67 | 3.61 | 3.91 |

Norm value [-] | 2.82 | 3.2 | 2.44 | 2.65 | |

Iteration | 100 | 100 | 100 | 100 | |

Volume fraction [%] | 59.25 | 59.15 | 50.8 | 50.0 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Sotola, M.; Marsalek, P.; Rybansky, D.; Fusek, M.; Gabriel, D.
Sensitivity Analysis of Key Formulations of Topology Optimization on an Example of Cantilever Bending Beam. *Symmetry* **2021**, *13*, 712.
https://doi.org/10.3390/sym13040712

**AMA Style**

Sotola M, Marsalek P, Rybansky D, Fusek M, Gabriel D.
Sensitivity Analysis of Key Formulations of Topology Optimization on an Example of Cantilever Bending Beam. *Symmetry*. 2021; 13(4):712.
https://doi.org/10.3390/sym13040712

**Chicago/Turabian Style**

Sotola, Martin, Pavel Marsalek, David Rybansky, Martin Fusek, and Dusan Gabriel.
2021. "Sensitivity Analysis of Key Formulations of Topology Optimization on an Example of Cantilever Bending Beam" *Symmetry* 13, no. 4: 712.
https://doi.org/10.3390/sym13040712
