# Assessing a Multi-Objective Genetic Algorithm with a Simulated Environment for Energy-Saving of Air Conditioning Systems with User Preferences

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Algorithm Design

#### 2.1. Problem Definition

#### 2.2. GA and NSGA II

**Population**. We use a vector of one hundred solutions for both algorithms, where each solution $\left({T}_{{o}_{i}}\in \mathbb{R}\right)$ is a possible temperature between 22 and 27 °C.

**Selection**. The algorithms use a binary tournament between random individuals of the population to select the parents for the crossover operator. The GA uses a binary tournament, comparing the solutions’ objective values, and the winners are selected for crossover. On the other hand, the NSGA II algorithm uses the rank of the Pareto front of each solution to identify the winner, which will be the solution with the lowest level on the Pareto front, meaning that it is less dominated than the other solution. However, suppose both solutions are in the same level of the Pareto front. In that case, we use the crowded comparison operator (${>}_{n}$), which identifies the solution with the largest crowding distance, which will be explained further in this section.

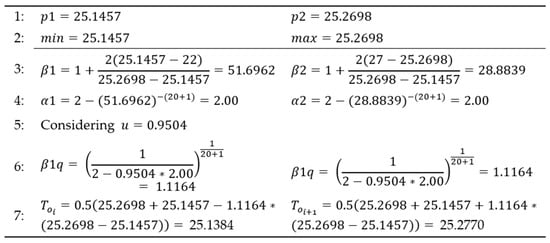

**Crossover**. As stated before, our GA and NSGA II have a static population of one hundred solutions; then, another one hundred solutions are produced as offspring, using the Simulated Binary Crossover operator [9]. This operator requires two parents ($p1$ and $p2$) to obtain two new individuals (${T}_{{o}_{i}}$ and ${T}_{{o}_{i+1}}$).

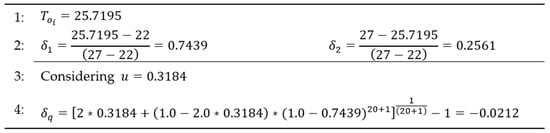

**Mutation**. As a mutation operator, we used the polynomial mutation operator [10], which is applied to fifty percent of the solutions generated in the crossover operator.

**Fast Non-Dominated Sort**. This procedure allocates the solutions of the pool of solutions ($P$) into Pareto fronts of non-dominated individuals; this allows elitism in selecting the parents for the offspring of NSGA II.

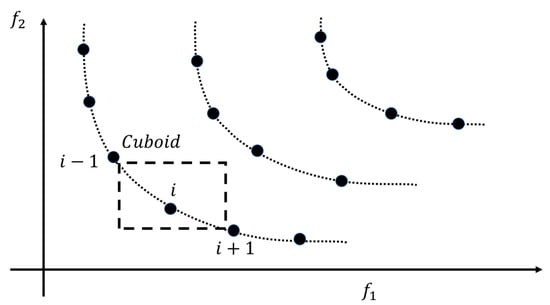

**Crowding Distance**. A particular solution’s crowding distance value is the average distance of its two neighboring solutions [11]. Figure 4 shows the calculation of the crowding distance of the solution i, which is an estimate of the size of the largest cuboid enclosing i without including any other solution. The algorithm used in this implementation is a normalized version of the original algorithm with the minimum ($MI{N}_{m}$) and maximum ($MA{X}_{m}$) values per objective ($m$) [12]; this algorithm is calculated for each generation for the current population. The algorithm requires a set of non-dominated individuals ($\mathrm{l}$) to calculate their distance.

## 3. Simulator

## 4. Experimental Results

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Collotta, M.; Pau, G. A Solution Based on Bluetooth Low Energy for Smart Home Energy Management. Energies
**2015**, 8, 11916–11938. [Google Scholar] [CrossRef][Green Version] - Attoue, N.; Shahrour, I.; Younes, R. Smart Building: Use of the Artificial Neural Network Approach for Indoor Temperature Forecasting. Energies
**2018**, 11, 395. [Google Scholar] [CrossRef][Green Version] - Chen, Y.; Fu, G.; Liu, X. Air-Conditioning Load Forecasting for Prosumer Based on Meta Ensemble Learning. IEEE Access
**2020**, 8, 123673–123682. [Google Scholar] [CrossRef] - Treanţă, S. On a Class of Constrained Interval-Valued Optimization Problems Governed by Mechanical Work Cost Functionals. J. Optim. Theory Appl.
**2021**, 1–12. [Google Scholar] [CrossRef] - Treanţă, S. Efficiency in uncertain variational control problems. Neural Comput. Appl.
**2020**, 1–14. [Google Scholar] [CrossRef] - Shah, Z.A.; Sindi, H.F.; Ul-Haq, A.; Ali, M.A. Fuzzy Logic-Based Direct Load Control Scheme for Air Conditioning Load to Reduce Energy Consumption. IEEE Access
**2020**, 8, 117413–117427. [Google Scholar] [CrossRef] - Arikiez, M.; Grasso, F.; Kowalski, D.; Zito, M. Heuristic algorithm for minimizing the electricity cost of air conditioners on a smart grid. In Proceedings of the 2016 IEEE International Energy Conference (ENERGYCON), Leuven, Belgium, 4–8 April 2016; pp. 1–6. [Google Scholar]
- Ullah, I.; Kim, D. An Improved Optimization Function for Maximizing User Comfort with Minimum Energy Consumption in Smart Homes. Energies
**2017**, 10, 1818. [Google Scholar] [CrossRef][Green Version] - Deb, K.; Kumar, A. Real-coded Genetic Algorithms with Simulated Binary Crossover: Studies on Multimodal and Multiobjective Problems. Complex Syst.
**1995**, 9, 431–454. [Google Scholar] - Deb, K.; Goyal, M. A combined genetic adaptive search (GeneAS) for engineering design. Comput. Sci. Inform.
**1996**, 26, 30–45. [Google Scholar] - Raquel, C.R.; Naval, P.C. An Effective Use of Crowding Distance in Multiobjective Particle Swarm Optimization. In Proceedings of the 7th Annual Conference on Genetic and Evolutionary Computation, Washington, DC, USA, 25–29 June 2005; pp. 257–264. [Google Scholar]
- Pedersen, G.K.M.; Goldberg, D.E. Dynamic Uniform Scaling for Multiobjective Genetic Algorithms. Comput. Vis.
**2004**, 3103, 11–23. [Google Scholar]

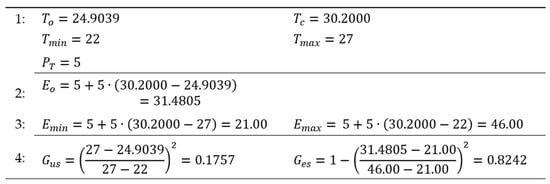

**Figure 1.**Example of user satisfaction gain (${G}_{us}$) and the energy-saving gain (${G}_{es}$) calculation.

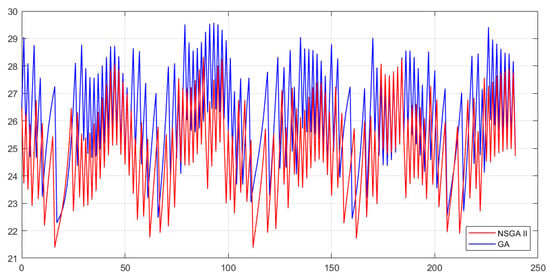

**Figure 11.**Simulation of temperature according to the recommendation of the genetic algorithms for configuration A.

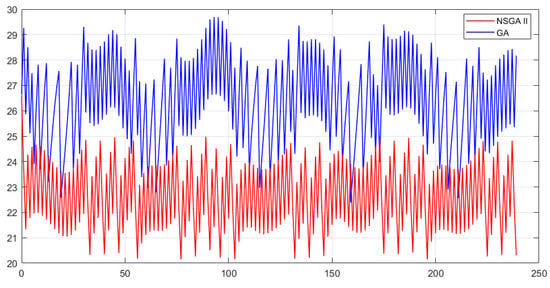

**Figure 12.**Simulation of temperature according to the recommendation of the genetic algorithms for configuration B.

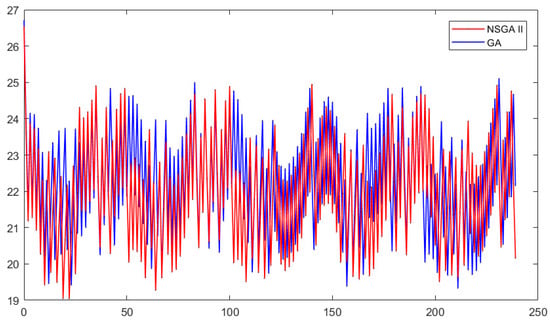

**Figure 13.**Simulation of temperature according to the recommendation of the genetic algorithms for configuration C.

Configuration | ${\mathit{\alpha}}_{\mathit{u}\mathit{s}}$ | ${\mathit{\alpha}}_{\mathit{e}\mathit{s}}$ |
---|---|---|

A | 0.2 | 0.8 |

B | 0.5 | 0.5 |

C | 0.8 | 0.2 |

Configuration | NSGA II | GA |
---|---|---|

A | 698.10343 | 993.36546 |

B | 316.98898 | 1058.35429 |

C | 313.84696 | 313.88824 |

Configuration | NSGA II | GA | ||
---|---|---|---|---|

kWh | Cost | kWh | Cost | |

A | 83.74032 | $250.97 | 86.01629 | $257.79 |

B | 94.29362 | $282.60 | 93.56877 | $280.43 |

C | 89.98913 | $269.70 | 91.99613 | $275.71 |
