A TwoParameter Modified Logistic Map and Its Application to Random Bit Generation
Abstract
:1. Introduction

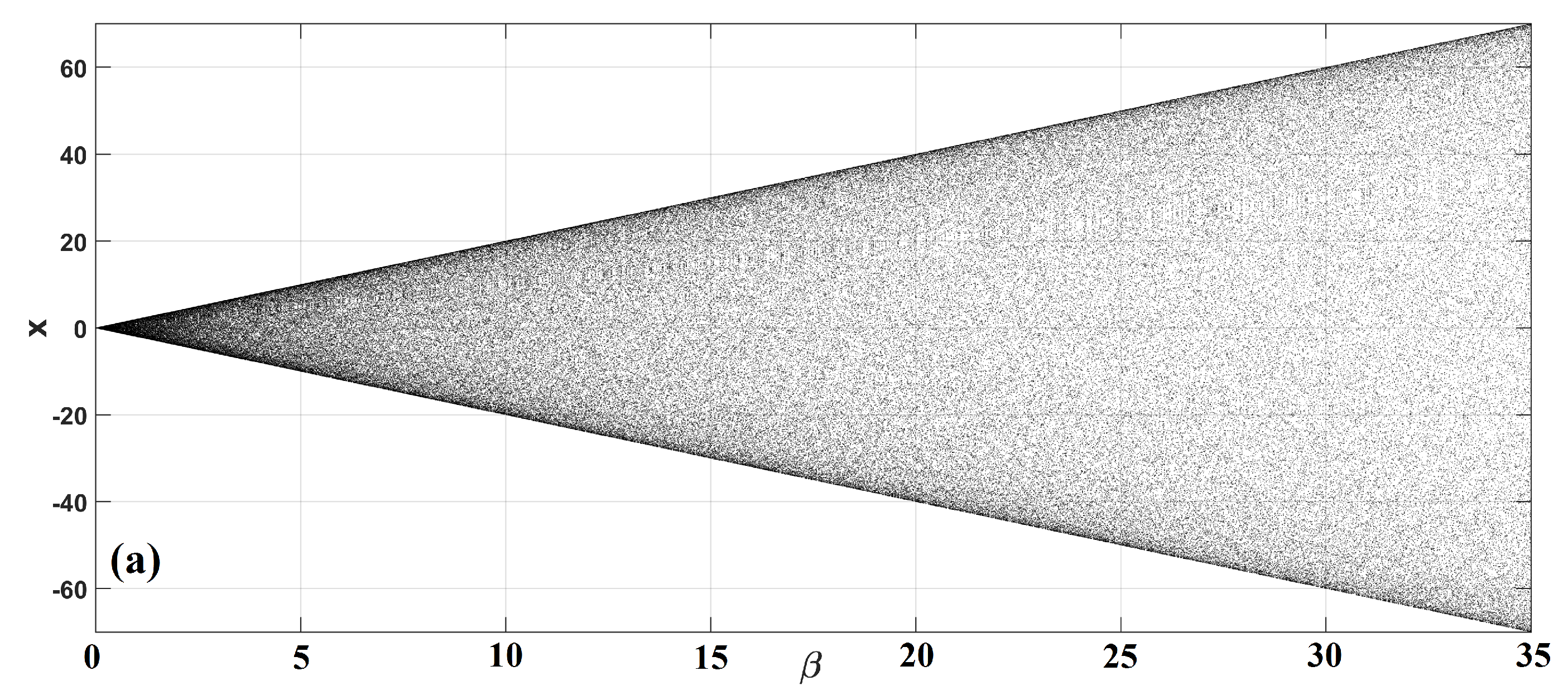

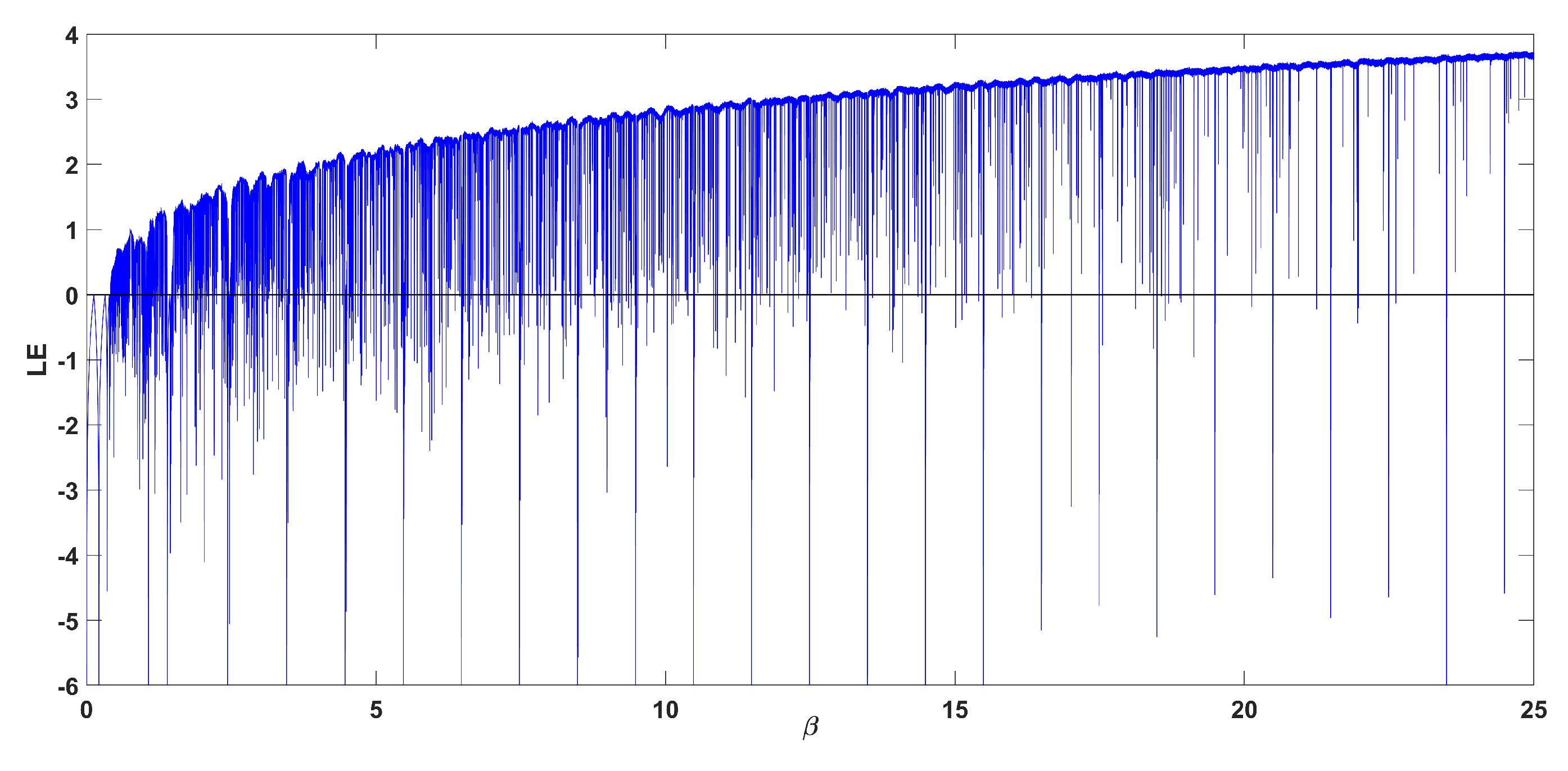

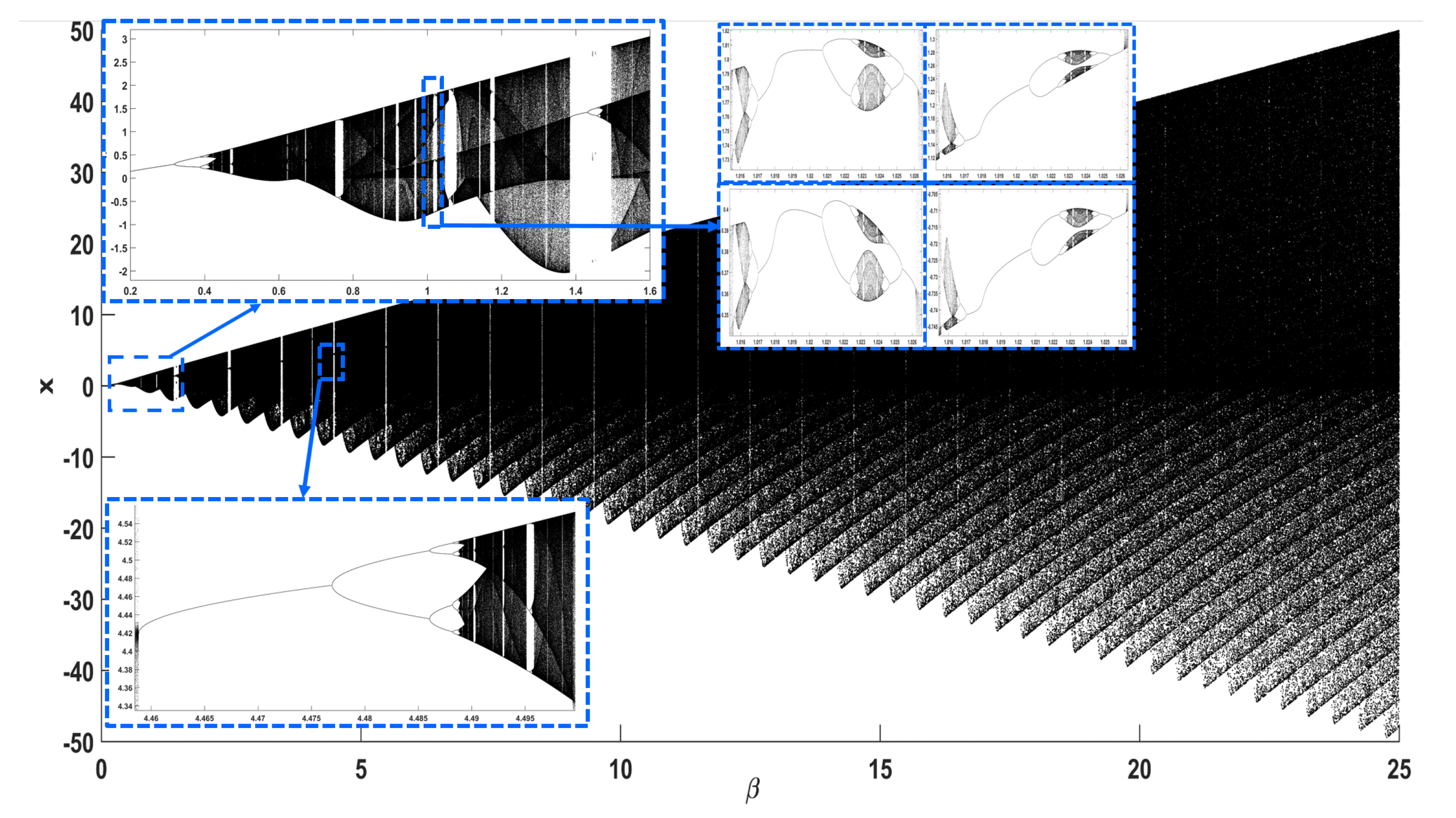

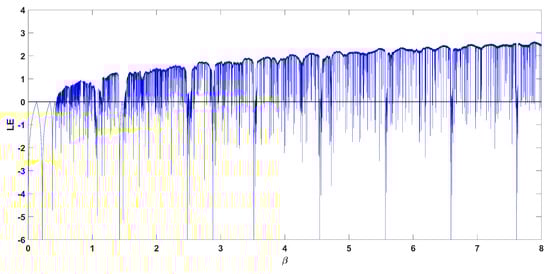

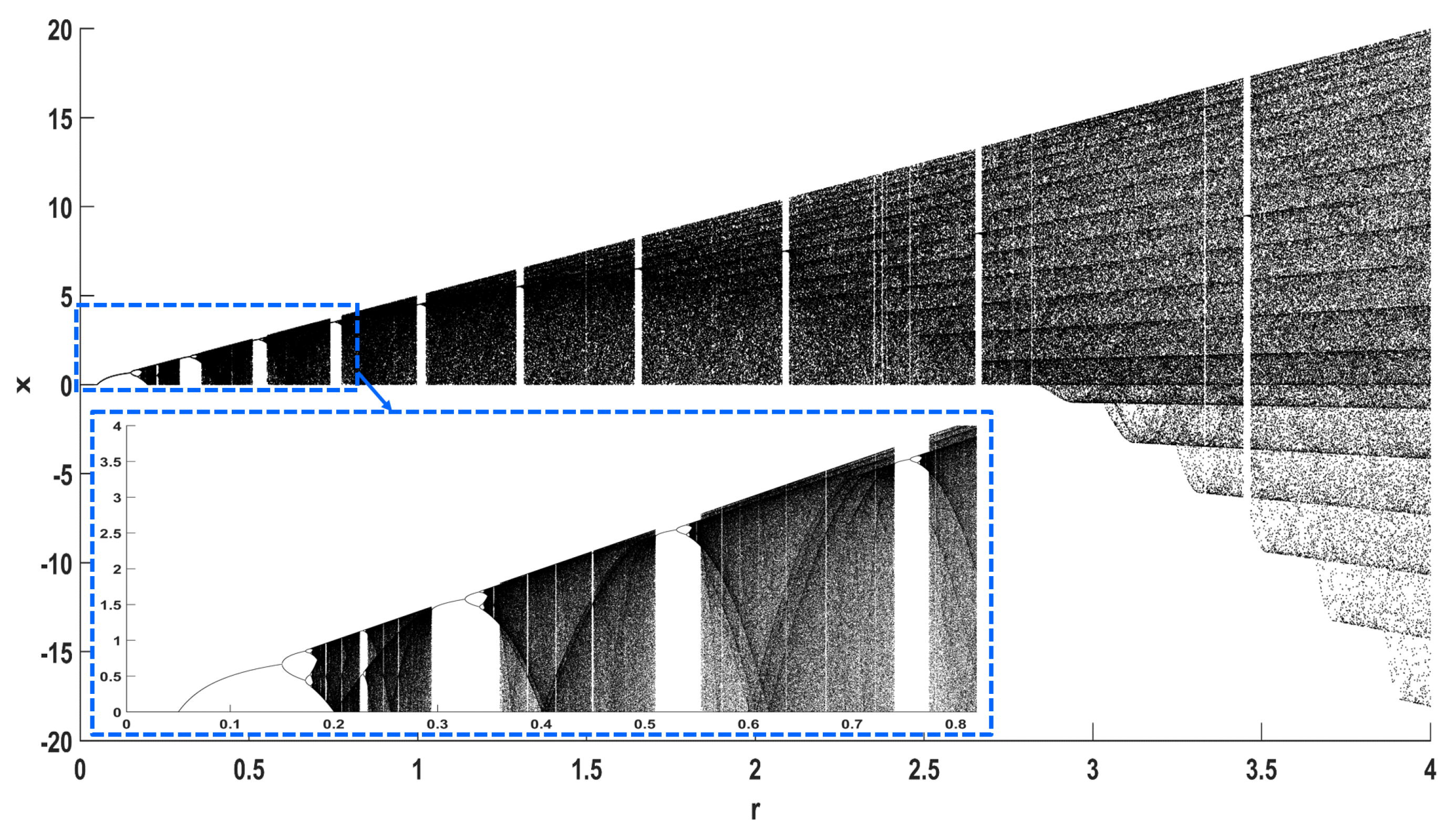

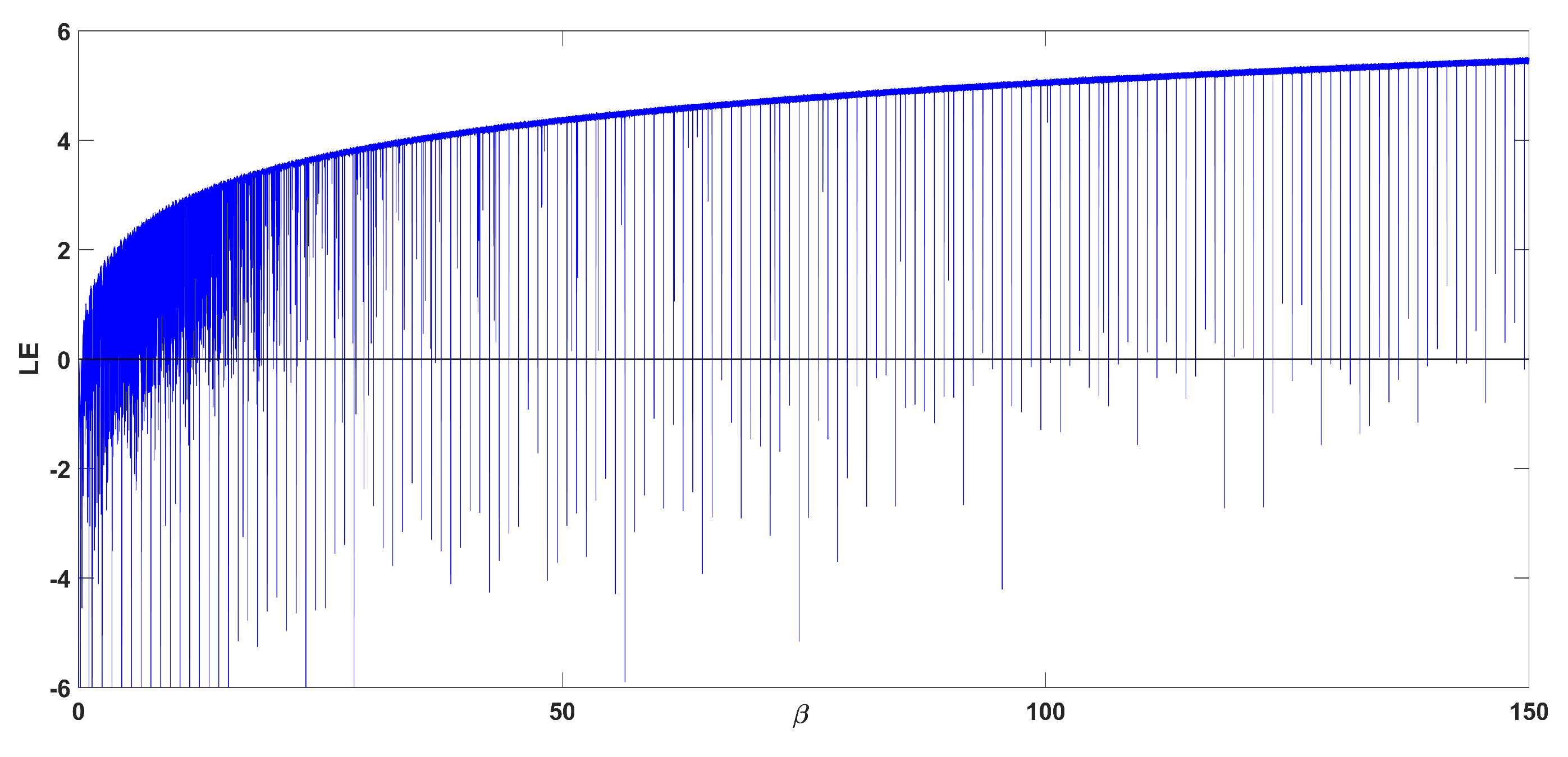

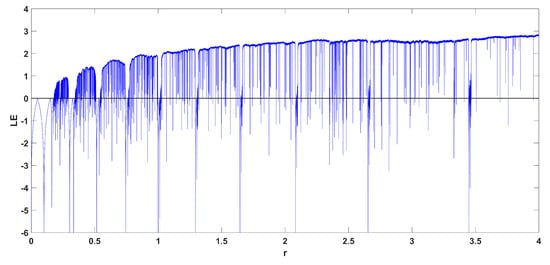

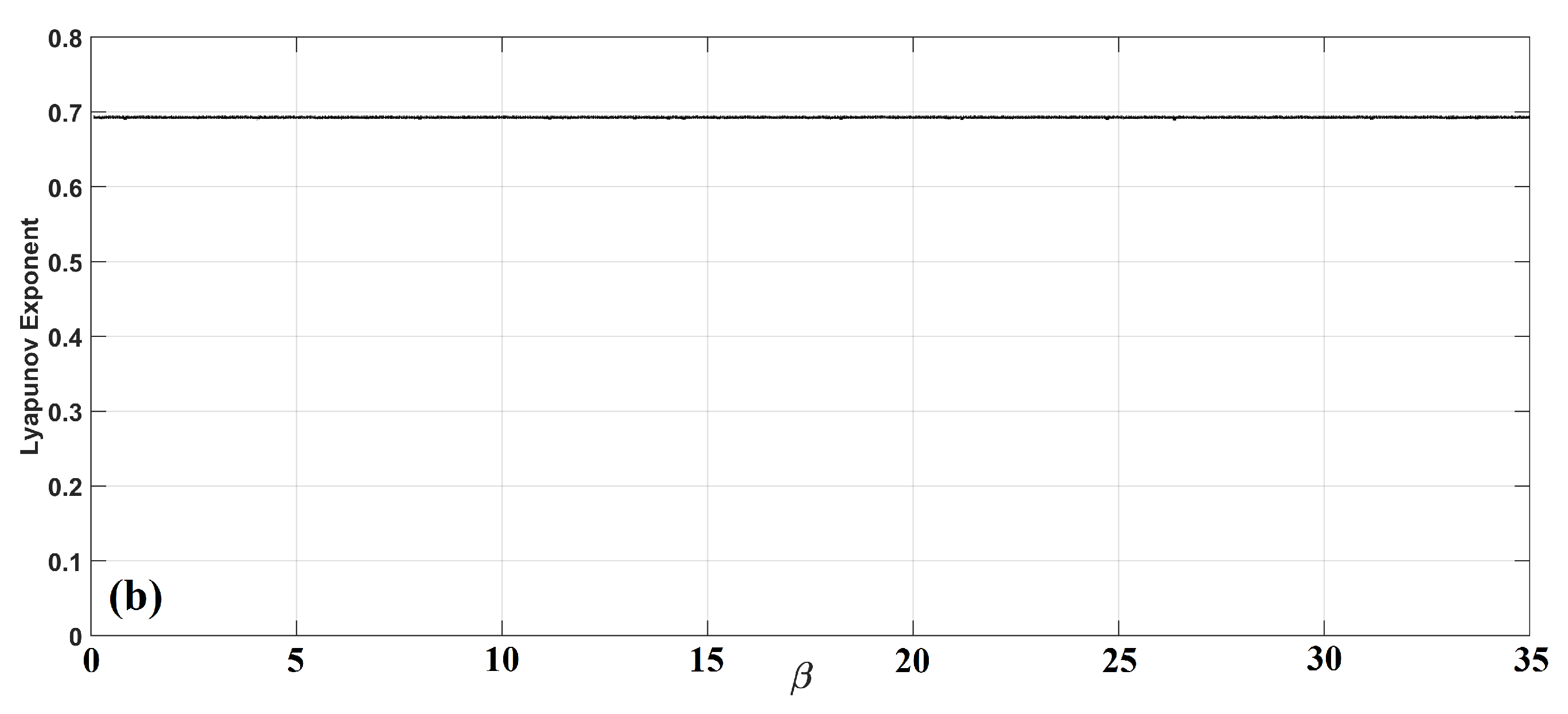

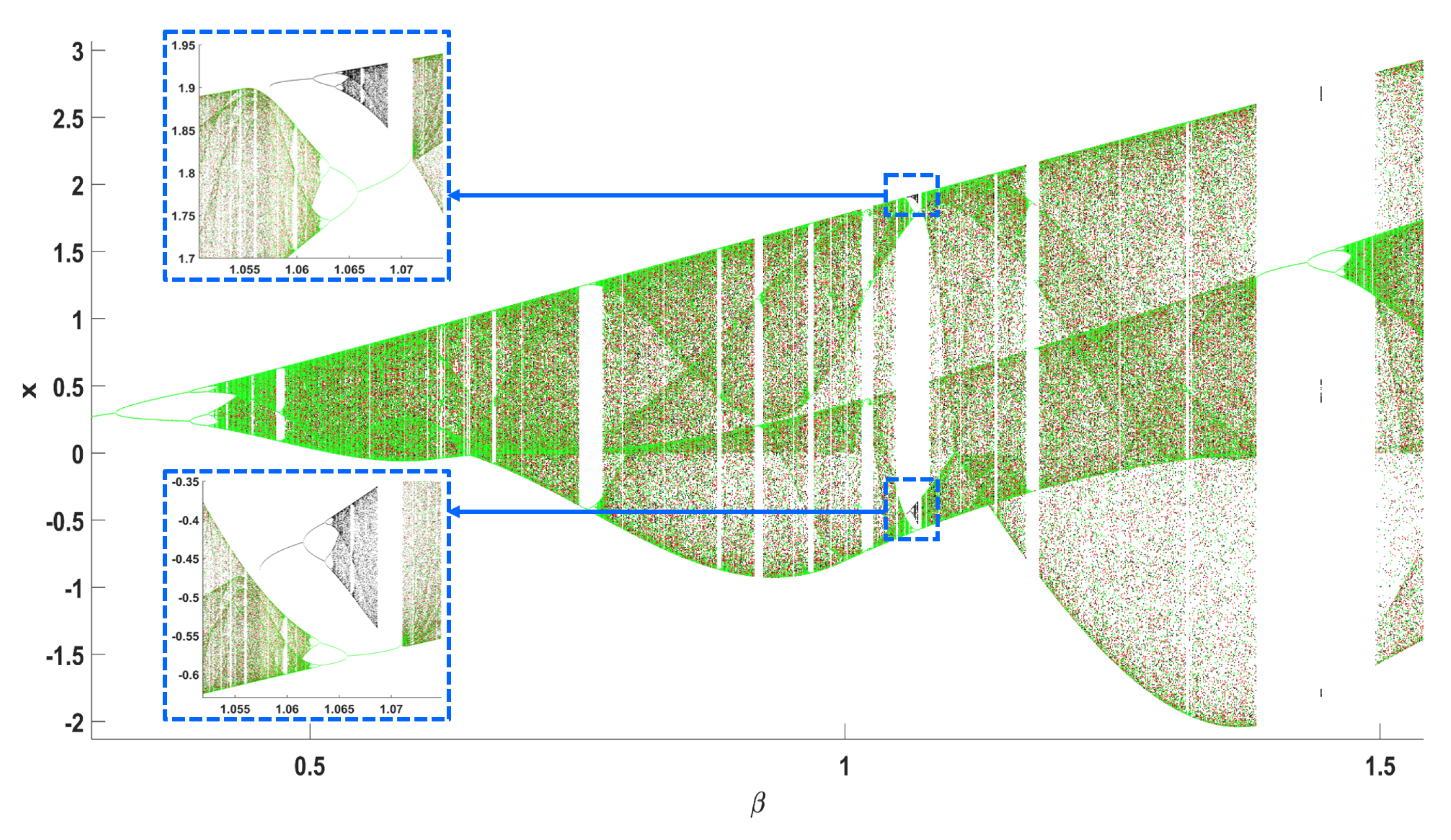

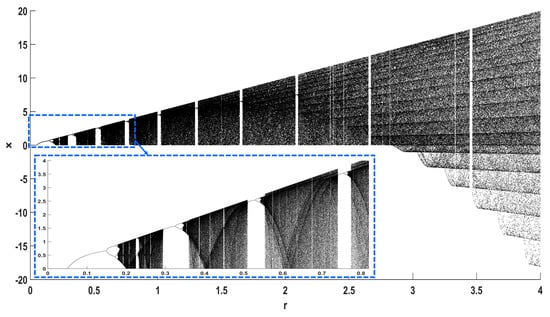

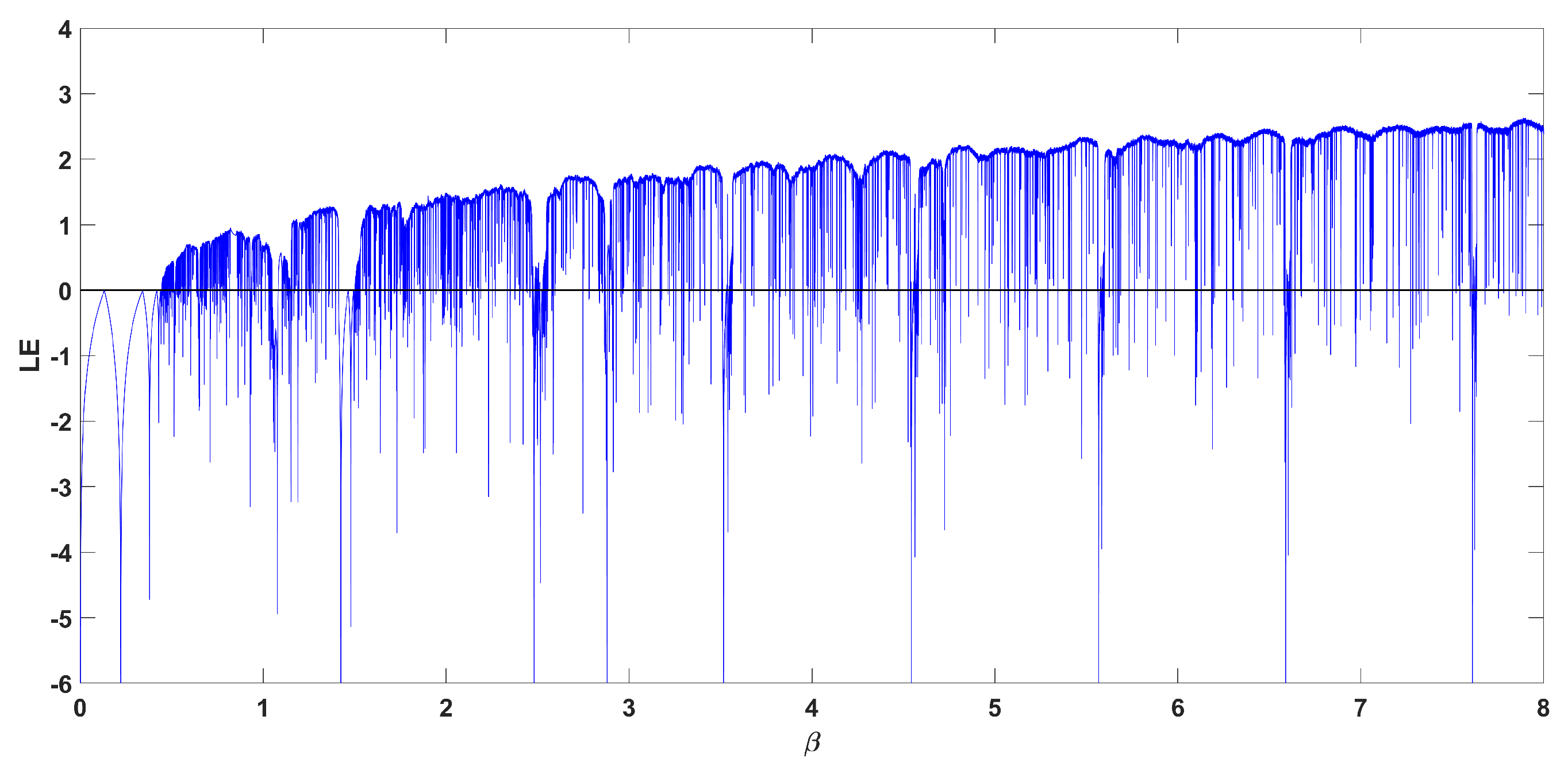

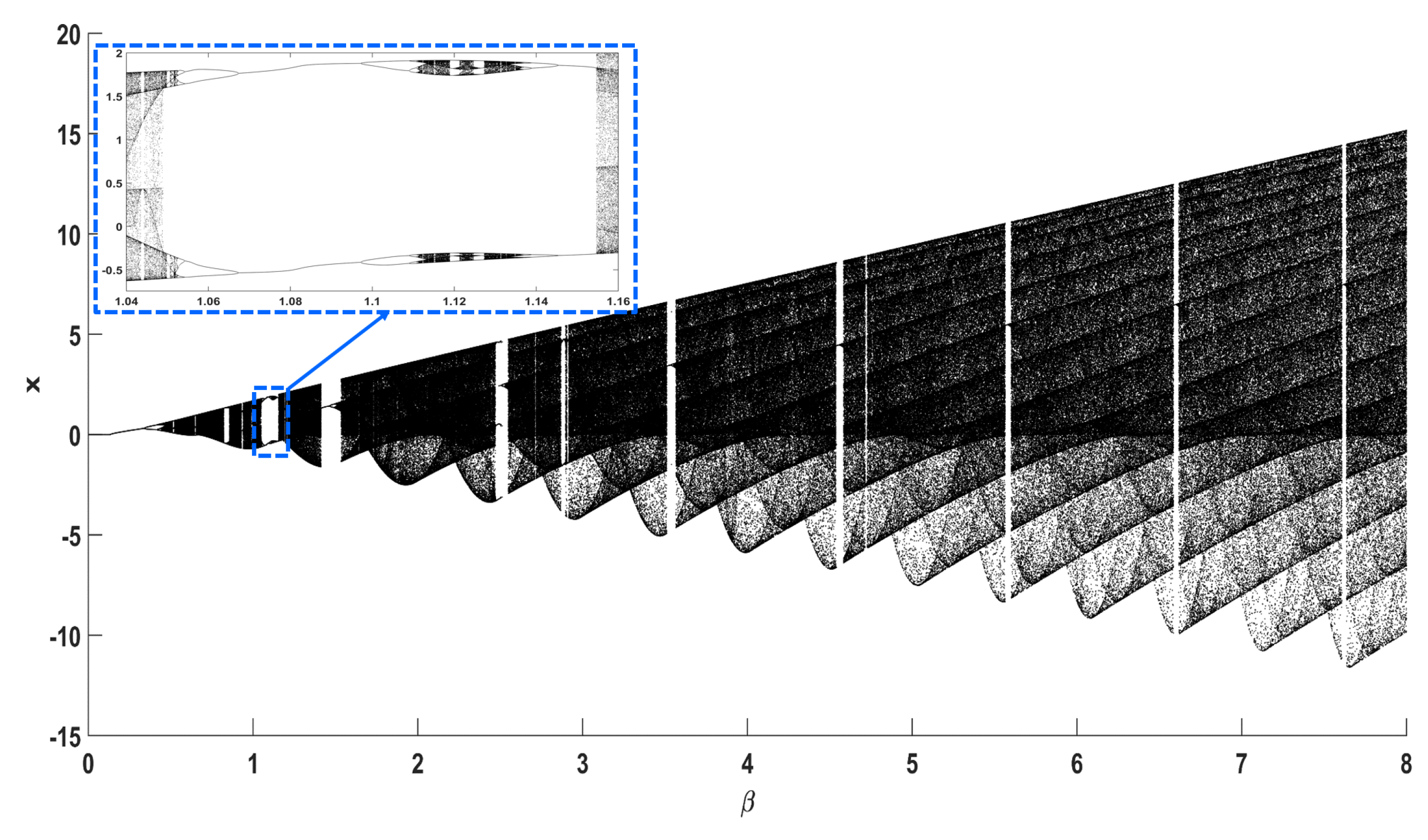

2. The Proposed Map

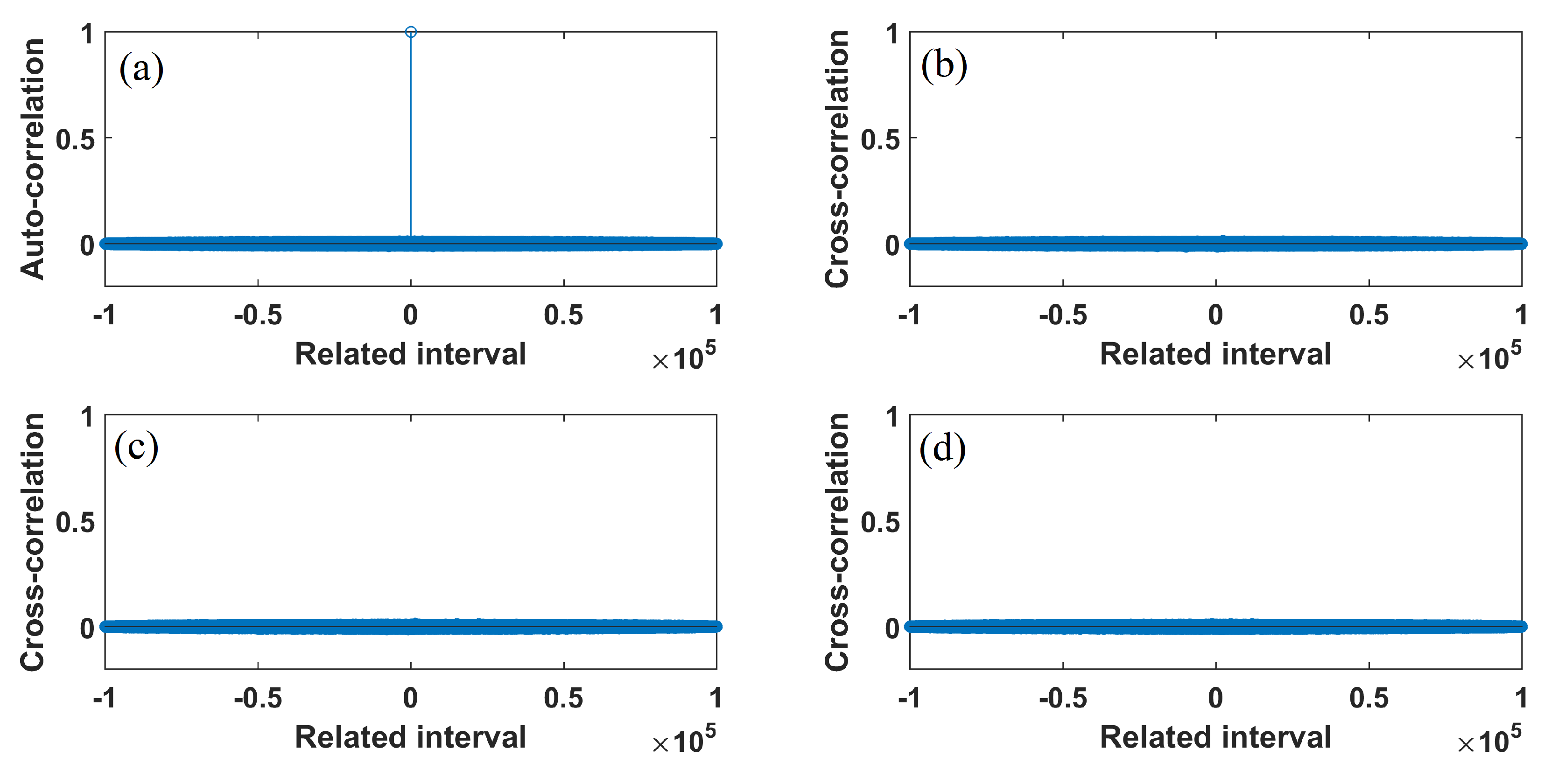

3. Application to Random Bit Generation
 Step 1.
 First, two modified logistic maps ${x}_{0},{y}_{0}$, one classic logistic map ${z}_{0}$, as well as two bit sequences ${b}_{0},{d}_{0}$ are initialized, and the maps’ parameters are chosen.
 Step 2.
 In every iteration, the decimal part of ${x}_{i}+{y}_{i}$ is compared to the decimal part of ${10}^{6}({x}_{i}\xb7{y}_{i})$ and depending on the result a 0 or 1 is produced and saved in ${b}_{i}$. Similarly, the decimal part of ${10}^{6}({x}_{i}+{y}_{i})$ is compared to the decimal part of ${x}_{i}\xb7{y}_{i}$ and depending on the result a 0 or 1 is produced and saved in ${d}_{i}$.
 Step 3.
 For every 10 iterations, the value of the logistic map $z\left(\frac{i}{10}\right)$ is compared to the decimal part of ${x}_{i}+{y}_{i}$. Depending on the result, a bit reversal is performed on the last ten digits of b or d.
 Step 4.
 Once the desired bitstream length is reached, the obtained sequence is computed using $XOR(b,d)$.
Algorithm 1 The Proposed Random Bit Generator.
Data: Initialize initial conditions: ${x}_{0},{y}_{0},{z}_{0}$, parameter values: ${r}_{x},{r}_{y},{r}_{z},{\beta}_{x},{\beta}_{y}$, Bit subsequences ${b}_{0},{d}_{0}$ and bitstream length: ℓ.

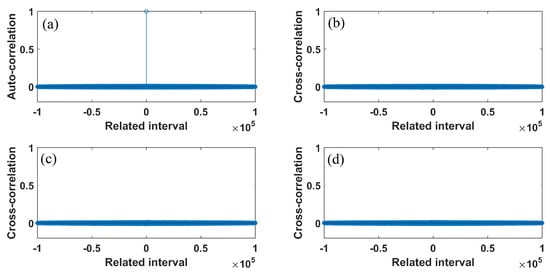

4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
 Strogatz, S.H. Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chemistry, and Engineering; CRC Press: Boca Raton, FL, USA, 2018. [Google Scholar]
 Volos, C.K.; Kyprianidis, I.M.; Stouboulos, I.N. Image encryption process based on chaotic synchronization phenomena. Signal Process. 2013, 93, 1328–1340. [Google Scholar] [CrossRef]
 Huang, X.; Liu, L.; Li, X.; Yu, M.; Wu, Z. A New Pseudorandom Bit Generator Based on Mixing ThreeDimensional Chen Chaotic System with a Chaotic Tactics. Complexity 2019, 6567198. [Google Scholar] [CrossRef] [Green Version]
 Moysis, L.; Petavratzis, E.; Volos, C.; Nistazakis, H.; Stouboulos, I. A chaotic path planning generator based on logistic map and modulo tactics. Robot. Auton. Syst. 2020, 124, 103377. [Google Scholar] [CrossRef]
 Nepomuceno, E.G.; Lima, A.M.; AriasGarcía, J.; Perc, M.; Repnik, R. Minimal digital chaotic system. Chaos Solitons Fractals 2019, 120, 62–66. [Google Scholar] [CrossRef]
 Wang, H.; Song, B.; Liu, Q.; Pan, J.; Ding, Q. FPGA design and applicable analysis of discrete chaotic maps. Int. J. Bifurc. Chaos 2014, 24, 1450054. [Google Scholar] [CrossRef]
 May, R.M. Simple mathematical models with very complicated dynamics. Nature 1976, 261, 459–467. [Google Scholar] [CrossRef] [PubMed]
 Ausloos, M.; Dirickx, M. The Logistic Map and the Route to Chaos: From the Beginnings to Modern Applications; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2006. [Google Scholar]
 Han, C. An image encryption algorithm based on modified logistic chaotic map. Optik 2019, 181, 779–785. [Google Scholar] [CrossRef]
 Wang, Y.; Liu, Z.; Ma, J.; He, H. A pseudorandom number generator based on piecewise logistic map. Nonlinear Dyn. 2016, 83, 2373–2391. [Google Scholar] [CrossRef]
 MurilloEscobar, M.; CruzHernández, C.; CardozaAvendaño, L.; MéndezRamírez, R. A novel pseudorandom number generator based on pseudorandomly enhanced logistic map. Nonlinear Dyn. 2017, 87, 407–425. [Google Scholar] [CrossRef]
 Radwan, A.G. On some generalized discrete logistic maps. J. Adv. Res. 2013, 4, 163–171. [Google Scholar] [CrossRef] [Green Version]
 Liu, L.; Miao, S.; Hu, H.; Deng, Y. Pseudorandom bit generator based on nonstationary logistic maps. IET Inf. Secur. 2016, 10, 87–94. [Google Scholar] [CrossRef]
 Liu, L.; Miao, S. A new image encryption algorithm based on logistic chaotic map with varying parameter. SpringerPlus 2016, 5, 289. [Google Scholar] [CrossRef] [PubMed] [Green Version]
 Chen, S.L.; Hwang, T.; Lin, W.W. Randomness enhancement using digitalized modified logistic map. IEEE Trans. Circuits Syst. II Express Briefs 2010, 57, 996–1000. [Google Scholar]
 Borujeni, S.E.; Ehsani, M.S. Modified logistic maps for cryptographic application. Appl. Math. 2015, 6, 773. [Google Scholar] [CrossRef] [Green Version]
 Li, S.; Yin, B.; Ding, W.; Zhang, T.; Ma, Y. A nonlinearly modulated logistic map with delay for image encryption. Electronics 2018, 7, 326. [Google Scholar] [CrossRef] [Green Version]
 Irfan, M.; Ali, A.; Khan, M.A.; Ehatishamul Haq, M.; Mehmood Shah, S.N.; Saboor, A.; Ahmad, W. Pseudorandom Number Generator (PRNG) Design Using HyperChaotic Modified Robust Logistic Map (HCMRLM). Electronics 2020, 9, 104. [Google Scholar] [CrossRef] [Green Version]
 Ahmad, M.; Doja, M.; Beg, M.S. A new chaotic map based secure and efficient pseudorandom bit sequence generation. In Proceedings of the International Symposium on Security in Computing and Communication, Bangalore, India, 19–22 September 2018; pp. 543–553. [Google Scholar]
 Ge, R.; Yang, G.; Wu, J.; Chen, Y.; Coatrieux, G.; Luo, L. A Novel ChaosBased Symmetric Image Encryption Using BitPair Level Process. IEEE Access 2019, 7, 99470–99480. [Google Scholar] [CrossRef]
 François, M.; Grosges, T.; Barchiesi, D.; Erra, R. Pseudorandom number generator based on mixing of three chaotic maps. Commun. Nonlinear Sci. Numer. Simul. 2014, 19, 887–895. [Google Scholar] [CrossRef]
 Alawida, M.; Samsudin, A.; Teh, J.S. Enhanced digital chaotic maps based on bit reversal with applications in random bit generators. Inf. Sci. 2020, 512, 1155–1169. [Google Scholar] [CrossRef]
 Wang, X.Y.; Xie, Y.X. A design of pseudorandom bit generator based on single chaotic system. Int. J. Mod. Phys. C 2012, 23, 1250024. [Google Scholar] [CrossRef]
 Patidar, V.; Sud, K.K.; Pareek, N.K. A pseudo random bit generator based on chaotic logistic map and its statistical testing. Informatica 2009, 33, 441–452. [Google Scholar]
 Stojanovski, T.; Kocarev, L. Chaosbased random number generatorspart I: analysis [cryptography]. IEEE Trans. Circuits Syst. Fundam. Theory Appl. 2001, 48, 281–288. [Google Scholar] [CrossRef]
 Volos, C.; Kyprianidis, I.; Stouboulos, I. Experimental investigation on coverage performance of a chaotic autonomous mobile robot. Robot. Auton. Syst. 2013, 61, 1314–1322. [Google Scholar] [CrossRef]
 Hamza, R. A novel pseudo random sequence generator for imagecryptographic applications. J. Inf. Secur. Appl. 2017, 35, 119–127. [Google Scholar] [CrossRef]
 Nepomuceno, E.G.; Nardo, L.G.; AriasGarcia, J.; Butusov, D.N.; Tutueva, A. Image encryption based on the pseudoorbits from 1D chaotic map. Chaos Interdiscip. J. Nonlinear Sci. 2019, 29, 061101. [Google Scholar] [CrossRef]
 Tutueva, A.V.; Nepomuceno, E.G.; Karimov, A.I.; Andreev, V.S.; Butusov, D.N. Adaptive chaotic maps and their application to pseudorandom numbers generation. Chaos Solitons Fractals 2020, 133, 109615. [Google Scholar] [CrossRef]
 Akgül, A.; Arslan, C.; Arıcıoğlu, B. Design of an Interface for Random Number Generators based on Integer and Fractional Order Chaotic Systems. Chaos Theory Appl. 2019, 1, 1–18. [Google Scholar]
 Khanzadi, H.; Eshghi, M.; Borujeni, S.E. Image encryption using random bit sequence based on chaotic maps. Arab. J. Sci. Eng. 2014, 39, 1039–1047. [Google Scholar] [CrossRef] [Green Version]
 Andrecut, M. Logistic map as a random number generator. Int. J. Mod. Phys. B 1998, 12, 921–930. [Google Scholar] [CrossRef]
 Wang, L.; Cheng, H. PseudoRandom Number Generator Based on Logistic Chaotic System. Entropy 2019, 21, 960. [Google Scholar] [CrossRef] [Green Version]
 MeranzaCastillón, M.; MurilloEscobar, M.; LópezGutiérrez, R.; CruzHernández, C. Pseudorandom number generator based on enhanced Hénon map and its implementation. AEUInt. J. Electron. Commun. 2019, 107, 239–251. [Google Scholar] [CrossRef]
 Persohn, K.; Povinelli, R.J. Analyzing logistic map pseudorandom number generators for periodicity induced by finite precision floatingpoint representation. Chaos Solitons Fractals 2012, 45, 238–245. [Google Scholar] [CrossRef]
 Phatak, S.; Rao, S.S. Logistic map: A possible randomnumber generator. Phys. Rev. E 1995, 51, 3670. [Google Scholar] [CrossRef] [PubMed] [Green Version]
 Volos, C.K.; Kyprianidis, I.; Stouboulos, I. Text Encryption Scheme Realized with a Chaotic PseudoRandom Bit Generator. J. Eng. Sci. Technol. Rev. 2013, 6, 9–14. [Google Scholar] [CrossRef]
 Rukhin, A.; Soto, J.; Nechvatal, J.; Smid, M.; Barker, E. A Statistical Test Suite for Random and Pseudorandom Number Generators for Cryptographic Applications; Technical Report; BoozAllen and Hamilton Inc.: Mclean, VA, USA, 2001. [Google Scholar]
 Kahan, W. IEEE standard 754 for binary floatingpoint arithmetic. Lect. Notes Status IEEE 1996, 754, 11. [Google Scholar]
 Alvarez, G.; Li, S. Some basic cryptographic requirements for chaosbased cryptosystems. Int. J. Bifurc. Chaos 2006, 16, 2129–2151. [Google Scholar] [CrossRef] [Green Version]
 Butusov, D.N.; Karimov, A.I.; Pyko, N.S.; Pyko, S.A.; Bogachev, M.I. Discrete chaotic maps obtained by symmetric integration. Phys. A Stat. Mech. Its Appl. 2018, 509, 955–970. [Google Scholar] [CrossRef]
If $\mathit{P}\ge \mathit{\alpha}$, the Test is Successful

No.  Statistical Test  pValue  Proportion  Result
1  Frequency  0.289667  49/50  success
2  Block Frequency  0.383827  48/50  success
3  Cumulative Sums  0.419021  49/50  success
4  Runs  0.122325  50/50  success
5  Longest Run  0.383827  50/50  success
6  Rank  0.616305  49/50  success
7  FFT  0.191687  49/50  success
8  NonOverlapping Template  0.991468  49/50  success
9  Overlapping Template  0.739918  50/50  success
10  Universal  0.699313  50/50  success
11  Approximate Entropy  0.534146  50/50  success
12  Random Excursions  0.407091  32/32  success
13  Random Excursions Variant  0.066882  32/32  success
14  Serial  0.171867  50/50  success
15  Linear Complexity  0.911413  48/50  success
