Variable Viscosity Effects on Unsteady MHD an Axisymmetric Nanofluid Flow over a Stretching Surface with Thermo-Diffusion: FEM Approach

Abstract

The present study investigated the unsteady magnetohydrodynamic (MHD) nanofluid flow over a radially nonlinear stretching sheet along with the viscosity dependent on temperature, convective boundary condition, thermo-diffusion, and the radiation effects. Moreover, the nanofluid’s viscous effects were considered dependent on temperature and the exponential Reynolds model was considered in this context. It was additionally assumed that a uniform suspension of nanoparticles is present in the base fluid. The Buongiorno model, which involves the thermophoresis and Brownian motion effects, was considered. For the sake of a solution, the variational finite element method was selected with coding in MATLAB and the numerical results were contrasted with the published articles. The influence of various physical parameters on the velocity, temperature, and concentration profiles are discussed by the aid of graphs and tables. It was detected that the nanofuid viscosity parameter declines the fluid flow velocity, while, for the temperature and the concentration profiles, it accomplished the reverse phenomenon.

1. Introduction

The exploration of unsteady nano-fluid flow through a nonlinear stretching surface has been fundamentally prolonged for the impressive consideration during the most recent years because of numerous appliances in the engineering field. It consists of a micro-electro-mechanical structure that is highly developed in nuclear schemes; glass fiber, fuel cells, and paper fabrication have an imperative part in our daily life. A suspension containing nanoparticles in a base liquid (water, mixture of base fluid, kerosene, biofluids, and organic liquids), which changes the base fluid’s viscosity, thermal conductivity, density, and mass diffusivity, is called a nanofluid. The composition of nanoparticles is made from metal nitride, metals, oxide, ceramics, and carbide ceramics. The erudition of magneto hydrodynamics is a momentous chore as it has insinuations in industry as well as flow phenomena. In the last few centuries, enterprises to investigate the fluid physics at the nano and micro scales have enhanced. Aziz et al. [1] described that the change in flow geometry, enhancing thermal conditions, using porous medium and boundary conditions can improve heat transfer capacity of the fluid. The perceptions of nano-fluid were commenced by Choi [2] to illustrate that a base fluid such as water or ethylene–glycol mixture can improve its thermal conductivity with the addition of nanoparticles. Ariel [3] portrayed a model of axisymmetric flow caused by radically stretched sheet and gauged the consequences by the finite difference method. Recently, Mustafa et al. [4] deliberated that the nanofluids flow through radially stretching sheet and evaluated it both numerically and analytically. Akbari et al. [5] examined the impact of nanoparticles existing of non-Newtonian nano-fluid and illustrated that thermal conductivity enlarges due to enhancement in the nanoparticles. Mohyud-Din et al. [6] similarly scrutinized the performance of nanoparticles.

In the flow of a fluid, thermal radiation is significant and therefore the impacts of thermal radiation on heat and mass transfer have been widely studied. Raza [7] explored the effects of radiation on temperature. Ashraf and coauthors [8] also investigated the thermal conductivity impacts of the non-Newtonian fluid. Chen [9] inspected the mixed convection fluid flow over a stretching sheet. Speculating on a micro-polar fluid, Sankara et al. [10] scrutinized the micro-polar fluids flow through a stretching sheet. The consequences of a magnetic field on the constricting viscous fluid flow along with the parallel plates were conferred and explained using the perturbation method by Hamza [11].

The fluid flow of the boundary layer induced by the stretching sheet is an important form of flow occurring in flow processes in chemical industries and engineering. These incorporate paper production, fluid metal, glass fiber, and polymer sheet manufacturing. Non-Newtonian fluids, including physiological fluids, oils, paints, natural fluids, colloidal fluids, and foodstuffs, play a significant role in our daily lives [12,13]. Rana et al. [14] studied the impact of mixed convection and magnetic field on the thermal conductivity in the presence of nanoparticles. Thumma et al. [15] investigated the numerical study of heat source on dissipative magnetic nanofluid flow from a nonlinear inclined stretching surface. Seth et al. [16] analyzed the effects of radiation and chemical on the MHD natural convection heat and mass transfer flow. Takhar et al. [17] studied the Mixed convection flow of a micro-polar fluid over a stretching sheet. Qiu et al. [18] reviewed recent advances in thermophysical properties at the nanoscale from solid state to colloids. For viscous dissipation, Dhanai et al. [19] studied the MHD heat transfer flow and investigated the dual solution. Nayak et al. [20] found steady axisymmetric flow and heat transfer of fluid flow over a radially stretching surface. Ashraf et al. [21] analyzed the magnetohydrodynamic flow of non-Newtonian fluid and also studied the heat flow utilizing the stretchable disk. They acquired the numerical outcomes of an axisymmetric flow over a stretchable surface. Faraz et al. [22] studied the transfer of heat from an axisymmetric viscous fluid over a stretching radially surface.

The novelty of this work is to consider the Reynolds exponential viscosity model with convective boundary condition over radially nonlinear stretched sheet, heat and mass transfer characteristics of the thermo-diffusion, and radiation effects. Another aspect of this work is the numerical method of solution, especially the finite element method (FEM) was chosen, which is the most robust method to solve the differential equations [23,24]. Kumar et al. [25] described that finite element method is especially utilized in business software akin to MATLAB, ADINA, Abaqus, and Ansys.

The article is organized as follows. Section 1 is the introduction, which contains the literature review. In Section 2, we model the physical problem, starting from the modeled partial differential equations. Then, we transform PDEs into ODEs using appropriate similarity transformation. Section 3 is completely devoted to develop the variational finite element method solution. In Section 4, the graphic plots are presented under the influence of several important entities, as well as a detailed analysis of velocity, temperature, and concentration profiles. Further, a comparison of the skin friction coefficient and Nusselt number is made with the numerical results reported in the literature to confirm the validity of the present consequences of the finite element method. Finally, the concluding remarks are describe in Section 5.

2. Mathematical Formulation

Let us consider an unsteady magnetohydrodynamic flow of incompressible viscous flow of nano-fluid over a nonlinear stretching sheet, with $z=0$. The flow of the conducting fluid is assumed to be in the radial direction $U_w=c_0{r}^m/(1-\lambda t)$, where $c_0>0$, $m\ge 0$ are dimensional constant. The temperature of the sheet is regulated by a convective heating process characterized by hot fluid $T_f$ temperature and variable heat transfer coefficient $h_f\left(x\right)$, solutal concentration, and nanoparticle concentration represent ($C_w$ and ${\psi }_w$, respectively). The ambient values of the temperature, solutal concentration, and nanoparticle concentration are denoted by $T_{\infty }$, $C_{\infty }$, and ${\varphi }_{\infty }$, respectively (see Figure 1). $B(r,t)$ denotes the variable magnetic field intensity where t is time. The magnetic field acts normally to the sheet in the positive z-direction and $B(r,t)$ generalizes the magnetic field term previously given in [26] to $B(r,t)=B_0{r}^{\frac{(m-1)}{2}}/\sqrt{(1-\lambda t)}$. $B_0$ is the uniform strength of the magnetic field, $m>0$ is the power-law index, and $\lambda$ denotes the unsteadiness parameter. Under the above conditions, the governing equations of continuity, momentum conservation, energy conservation, and nanoparticle volume fraction can be expressed as (see [12,27]):

$$\frac{\partial u}{\partial r}+\frac{u}{r}+\frac{\partial w}{\partial z}=0,$$

(1)

$$\rho \left(\frac{\partial u}{\partial t}+u\frac{\partial u}{\partial r}+w\frac{\partial u}{\partial z}\right)=\frac{\partial }{\partial z}\left(\mu \left(T\right)\frac{\partial u}{\partial z}\right)-\sigma B^2\left(r\right)u$$

(2)

$$\frac{\partial T}{\partial t}+u\frac{\partial T}{\partial r}+w\frac{\partial T}{\partial z}=\alpha \left(1+\frac{16T_{\infty }^3{\sigma }^{*}}{3k^{*}\kappa }\right)\frac{{\partial }^{2}T}{\partial z^2}+\tau D_B\frac{\partial \psi }{\partial z}\frac{\partial T}{\partial z}+\tau \frac{D_T}{T_{\infty }}{\left(\frac{\partial T}{\partial z}\right)}^2+D_{TC}\frac{{\partial }^{2}C}{{\partial }^{2}z}$$

(3)

$$\frac{\partial C}{\partial t}+u\frac{\partial C}{\partial r}+w\frac{\partial C}{\partial z}=D_s\frac{{\partial }^{2}C}{\partial z^2}+D_{CT}\frac{{\partial }^{2}C}{{\partial }^{2}z}$$

(4)

$$\frac{\partial \psi }{\partial t}+u\frac{\partial \psi }{\partial r}+w\frac{\partial \psi }{\partial z}=D_B\frac{{\partial }^2\psi }{\partial z^2}+\frac{D_T}{T_{\infty }}\frac{{\partial }^{2}T}{{\partial }^{2}z}$$

(5)

where u and w are component of velocity along r and z directions, respectively; $\sigma$, $\nu$, and $\rho$ are the electrical conductivity, kinetic viscosity, and viscosity of fluid, respectively; $D_B$ and $D_T$ are the Brownian diffusion and thermophoretic diffusion coefficient, respectively; $D_s$, $D_{CT}$, and $D_{TC}$ are the solutal, Soret and Dufour diffusities, respectively; ${\sigma }^{*}$ is the Stefan–Boltzmann constant; $k^{*}$ is the mean absorption coefficient; and $\alpha$ is the thermal diffusivity of the fluid. The corresponding boundary conditions are (see [20,28]):

$$\begin{array}{c}u=U_w,w=W_0,-{\kappa }_f\frac{\partial T}{\partial z}=h_f(T_f-T),C=C_w,\psi ={\psi }_w,atz=0\end{array}$$

(6)

$$\begin{array}{c}u\to 0,T\to \infty ,C\to \infty ,\psi \to \infty ,asz\to \infty ,\end{array}$$

(7)

where ${\kappa }_f={\kappa }_0\sqrt{(1-\lambda t)}$ is the thermal conductivity of base fluid and ${\kappa }_0$ is a constant. If the Biot number, $Bi=h_f\sqrt{\nu }{\kappa }_0\sqrt{c_0{r}^{m-1}}$, is a constant and the heat transfer coefficient $h_f$ is proportional to $r^{(m-1)2}$, then the coefficient of heat transfer is expressed as $h_f=b_0{r}^{(m-1)2}$, where $b_0$ is constant. The Biot number can be written as $Bi=h_0\sqrt{\left(\nu c_0\right)}{\kappa }_0$.

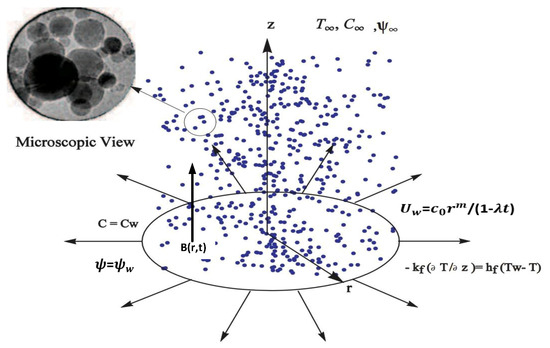

Figure 1. Physical configuration and coordinate system.

Followings are the similarity transformations to solve Equations (1)–(5) stated as (see [12,27]):

$$\begin{array}{c}\xi =\sqrt{\frac{c_o}{\nu (1-\lambda t)}}{r}^{(m-1)2}z,u=\frac{c_0{r}^m}{(1-\lambda t)}\frac{df}{d\xi },w=-\frac{c_0{r}^{(m-1)2}}{(1-\lambda t)}\sqrt{\frac{\nu }{c_0}}\left(\left(\frac{m+3}{2}\right)f\left(\xi \right)+\left(\frac{m-1}{2}\right)\xi \frac{df}{d\xi }\right),\\ \theta \left(\xi \right)=\frac{T-T_{\infty }}{T_w-T_{\infty }},S\left(\xi \right)=\frac{C-C_{\infty }}{C_w-C_{\infty }},\varphi \left(\xi \right)=\frac{\psi -{\psi }_{\infty }}{{\psi }_w-{\psi }_{\infty }}\end{array}$$

(8)

The fluid’s viscosity in Equation (2) depends on the temperature and it varies exponentially. The mathematical form of the Reynolds exponential viscosity model is [29]:

$$\mu \left(T\right)={\mu }_0{e}^{-H(T-T_{\infty })}$$

(9)

where the dependence of intensity between T and $\mu \left(T\right)$ is indicated by H. ${\mu }_0$ displays the fluid’s viscosity at $T_{\infty }$. Using the transformation of similarity in Equation (8) and then the Maclaurin’s expansion, we get [29]:

$$e^{-\lambda \theta }=1-\lambda \theta +O\left({\lambda }^2\right)$$

(10)

The following dimensionless system is now accomplished using similarity transformations (Equation (8)),

$$\begin{array}{c}\hfill (1-\lambda \theta )\frac{d^{3}f}{d{\xi }^3}-\lambda \frac{d\theta }{d\xi }\frac{d^{2}f}{d{\xi }^2}+\left(\frac{m+3}{2}\right)f\frac{d^{2}f}{d{\xi }^2}-Ha\frac{df}{d\xi }-\sigma (\frac{df}{d\xi }+\frac{1}{2}\xi \frac{d^{2}f}{d{\xi }^2})-m{\frac{df}{d\xi }}^2=0,\end{array}$$

(11)

$$\begin{array}{c}\hfill \frac{1}{Pr}(1+Nr)\frac{d^2\theta }{d{\xi }^2}-\frac{\sigma }{2}\xi \frac{d\theta }{d\xi }+\left(\frac{m+3}{2}\right)f\frac{d\theta }{d\xi }+Nt{\left(\frac{d\theta }{d\xi }\right)}^2+Nb\frac{d\varphi }{d\xi }\frac{d\theta }{d\xi }+D_f\frac{d^{2}S}{d{\xi }^2}=0\end{array}$$

(12)

$$\begin{array}{c}\hfill \frac{1}{Sc}\frac{d^{2}S}{d{\xi }^2}-\frac{\sigma }{2}\xi \frac{dS}{d\xi }+\left(\frac{m+3}{2}\right)f\frac{dS}{d\xi }+Sr\frac{d^2\theta }{d{\xi }^2}=0\end{array}$$

(13)

$$\begin{array}{c}\hfill \frac{d^2\varphi }{d{\xi }^2}-\frac{\sigma Le}{2}\xi \frac{d\varphi }{d\xi }+\frac{Nt}{Nb}\frac{d^2\theta }{d{\xi }^2}+Le\left(\frac{m+3}{2}\right)f\frac{d\varphi }{d\xi }=0\end{array}$$

(14)

and the transformed boundary conditions in Equations (6) and (7) are:

$$\begin{array}{c}f\left(\xi \right)=S,\frac{df}{d\xi }=1,-\frac{d\theta }{d\xi }=-Bi[1-\theta \left(\xi \right)],S\left(\xi \right)=1,\varphi \left(\xi \right)=1,at\xi =0,\end{array}$$

(15)

$$\begin{array}{c}\frac{df\left(\xi \right)}{d\xi }\to 0,\theta (\infty )\to 0,S(\infty )\to 0,\varphi (\infty )\to 0at\xi =\infty \end{array}$$

(16)

The emerging parameters in Equations (11)–(15) are described as:

$Ha=\frac{\sigma B_0^2}{\rho c_o}$, $\sigma =\frac{\lambda }{c_0{r}^{m-1}}$, $Pr=\frac{\nu }{\alpha }$, $Nb=\frac{\tau D_B({\psi }_w-{\psi }_{\infty })}{\nu }$, $Nt=\frac{\tau D_T(T_f-T_{\infty })}{\nu T_{\infty }}$, $D_f=\frac{D_{Tc}(C_w-C_{\infty })}{\nu (T_f-T_{\infty })}$, $Sr=\frac{D_{CT}(T_f-T_{\infty })}{\nu (C_w-C_{\infty })}$, $Sc=\frac{\nu }{D_s}$, $Le=\frac{\sigma }{D_B}$, $Bi=h_0\sqrt{(\nu /c_0)}{\kappa }_0$, $\lambda =H(T_f-T_{\infty })$, $S=-\frac{2W_0(1-\lambda t)}{(m+3)r^{(m-1)2}\sqrt{c_0\nu }}$, where $Ha$ is magnetic parameter, $\sigma$ is the unsteadiness, Prandtl number is $Pr$, Brownian motion is $Nb$, $Nt$ is the thermophoresis parameter, $D_f$ is the Dufour parameter, $Sr$ is the Soret parameter, $Sc$ is the Schmidt number, $Le$ is the Lewis number, $Bi$ is the Biot number, $\lambda$ is the variable viscosity, and S represents the mass transfer rate at the surface. $S>0$ indicates the suction case and $S<0$ the injection case.

3. Finite Element Method Solutions

Equations (11)–(14) were solved numerically using the finite element method (FEM) under the boundary conditions in Equations (15) and (16). FEM has been used to research various computational fluid dynamics problems and is a highly efficient approach to solve various nonlinear problems [30,31,32]. Reddy [33] described the method of variational finite elements in excellent detail. This approach is better suited and more accurate than other numerical methods such as ADM, HPM, and FDM. It is also very proficient and has been applied in many other fields [34] to research various problems in fluid mechanics and computational fluid dynamics, solid mechanics, mass transfer, and heat transfer [24,35,36]. To apply FEM to the simultaneous nonlinear differential equations (Equations (11)–(14)), and to use the boundary conditions in Equations (15) and (16), we consider:

$$\begin{array}{c}\frac{df}{d\xi }=h,\end{array}$$

(17)

Equations (11)–(14) thus reduce to

$$\begin{array}{c}(1-\lambda \theta )\frac{d^{2}h}{d{\xi }^2}-\lambda \frac{d\theta }{d\xi }\frac{dh}{d\xi }+\left(\frac{m+3}{2}\right)f\frac{dh}{d\xi }-Hah-\sigma (h+\frac{1}{2}\xi \frac{dh}{d\xi })-m{h}^2=0,\end{array}$$

(18)

$$\begin{array}{c}\frac{1}{Pr}(1+Nr)\frac{d^2\theta }{d{\xi }^2}-\frac{\sigma }{2}\xi \frac{d\theta }{d\xi }+\left(\frac{m+3}{2}\right)f\frac{d\theta }{d\xi }+Nb\frac{d\varphi }{d\xi }\frac{d\theta }{d\xi }+Nt{\left(\frac{d\theta }{d\xi }\right)}^2+D_f\frac{d^{2}S}{d{\xi }^2}=0,\end{array}$$

(19)

$$\begin{array}{c}\frac{1}{Sc}\frac{d^{2}S}{d{\xi }^2}-\frac{\sigma }{2}\xi \frac{dS}{d\xi }+\left(\frac{m+3}{2}\right)f\frac{dS}{d\xi }+Sr\frac{d^2\theta }{d{\xi }^2}=0,\end{array}$$

(20)

$$\begin{array}{c}\frac{d^2\varphi }{d{\xi }^2}-Le\frac{\sigma }{2}\xi \frac{d\varphi }{d\xi }+Le\left(\frac{m+3}{2}\right)f\frac{d\varphi }{d\xi }+\frac{Nt}{Nb}\frac{d^2\theta }{d{\xi }^2}=0,\end{array}$$

(21)

The corresponding boundary conditions reduce to the following form:

$$\begin{array}{c}f\left(\xi \right)=S,h\left(\xi \right)=1,-\frac{d\theta }{d\xi }=-Bi[1-\theta \left(\xi \right)],S\left(\xi \right)=1,\varphi \left(\xi \right)=1,at\xi =0,\end{array}$$

(22)

$$\begin{array}{c}h\left(\xi \right)\to 0,\theta (\infty )\to 0,S(\infty )\to 0,\varphi (\infty )\to 0at\xi =\infty \end{array}$$

(23)

3.1. Variational Formulations

The weak form connected with Equations (17)–(21) over a linear element ${\mathsf{\Omega }}_a=({\xi }_a,{\xi }_{a+1})$ is given by the following:

$$\begin{array}{c}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{s}_1\left\{\frac{df}{d\xi }-h\right\}d\eta =0,\end{array}$$

(24)

$$\begin{array}{c}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{s}_2\left\{(1-\lambda \theta )\frac{d^{2}h}{d{\xi }^2}-\lambda \frac{d\theta }{d\xi }\frac{dh}{d\xi }+\left(\frac{m+3}{2}\right)f\frac{dh}{d\xi }-Hah-\sigma (h+\frac{1}{2}\xi \frac{dh}{d\xi })-m{h}^2\right\}d\xi =0,\end{array}$$

(25)

$$\begin{array}{c}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{s}_3\left\{\frac{1}{Pr}(1+Nr)\frac{d^2\theta }{d{\xi }^2}-\frac{\sigma }{2}\xi \frac{d\theta }{d\xi }+\left(\frac{m+3}{2}\right)f\frac{d\theta }{d\xi }+Nb\frac{d\varphi }{d\xi }\frac{d\theta }{d\xi }+Nt{\left(\frac{d\theta }{d\xi }\right)}^2+D_f\frac{d^{2}S}{d{\xi }^2}\right\}d\xi =0,\end{array}$$

(26)

$$\begin{array}{c}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{s}_4\left\{\frac{1}{Sc}\frac{d^{2}S}{d{\xi }^2}-\frac{\sigma }{2}\xi \frac{dS}{d\xi }+\left(\frac{m+3}{2}\right)f\frac{dS}{d\xi }+Sr\frac{d^2\theta }{d{\xi }^2}\right\}d\xi =0,\end{array}$$

(27)

$$\begin{array}{c}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{s}_5\left\{\frac{d^2\varphi }{d{\xi }^2}-\frac{\sigma }{2}\xi \frac{d\varphi }{d\xi }+Le\left(\frac{m+3}{2}\right)f\frac{d\varphi }{d\xi }+\frac{Nt}{Nb}\frac{d^2\theta }{d{\xi }^2}\right\}d\xi =0,\end{array}$$

(28)

where $s_1,s_2,s_3,s_4$, and $s_5$ are arbitrary test functions.

3.2. Finite Element Formulations

The finite element model may be obtained from Equations (24)–(28) by plugging in the following finite element approximation form:

$$\begin{array}{c}\hfill \overline{f}=\sum _{n=1}^2{\overline{f}}_n{\psi }_n,\overline{h}=\sum _{n=1}^2{\overline{h}}_n{\psi }_n,\frac{\overline{d}\theta }{d\xi }=\sum _{n=1}^2\frac{\overline{d}{\theta }_n}{d\xi }{\psi }_n,\frac{\overline{d}\varphi }{d\xi }=\sum _{n=1}^2\frac{\overline{d}{\varphi }_n}{d\xi }{\psi }_n\end{array}$$

(29)

with $s_1=s_2=s_3=s_4=s_5={\psi }_n(n=1,2)$, where the test functions ${\psi }_n$ for a typical length element ${\mathsf{\Omega }}_e=({\xi }_a,{\xi }_{a+1})$ are given by.

$${\psi }_1=\frac{{\xi }_{a+1}-\xi }{{\xi }_{a+1}-{\xi }_a},{\psi }_2=\frac{\xi -{\xi }_a}{{\xi }_{a+1}-{\xi }_a},{\xi }_a\le \xi \le {\xi }_{a+1}.$$

(30)

The finite element model equations are, therefore, given by.

$$\left[\begin{array}{ccccc}\left[A^{11}\right]& \left[A^{12}\right]& \left[A^{13}\right]& \left[A^{14}\right]& \left[A^{15}\right]\\ \left[A^{21}\right]& \left[A^{22}\right]& \left[A^{23}\right]& \left[A^{24}\right]& \left[A^{25}\right]\\ \left[A^{31}\right]& \left[A^{32}\right]& \left[A^{33}\right]& \left[A^{34}\right]& \left[A^{35}\right]\\ \left[A^{41}\right]& \left[A^{42}\right]& \left[A^{43}\right]& \left[A^{44}\right]& \left[A^{45}\right]\\ \left[A^{51}\right]& \left[A^{52}\right]& \left[A^{53}\right]& \left[A^{54}\right]& \left[A^{55}\right]\end{array}\right]\left[\begin{array}{c}\left\{f\right\}\\ \left\{h\right\}\\ \left\{\theta \right\}\\ \left\{S\right\}\\ \left\{\varphi \right\}\end{array}\right]=\left[\begin{array}{c}\left\{b_1\right\}\\ \left\{b_2\right\}\\ \left\{b_3\right\}\\ \left\{b_4\right\}\\ \left\{b_5\right\}\end{array}\right]$$

(31)

where $A_{mn}$ are the matrices of order $2\times 2$ and $b_m$ are the matrices of $2\times 1$. ($m,n=1,2,3,4,5$)

$$\begin{array}{ccc}\hfill A_{ij}^{11}& =& {\int }_{{\xi }_a}^{{\xi }_{a+1}}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi ,A_{ij}^{12}=-{\int }_{{\xi }_a}^{{\xi }_{a+1}}{\psi }_i{\psi }_{j}d\xi ,A_{ij}^{13}=A_{ij}^{14}=0,A_{ij}^{15}=A_{ij}^{21}=0,\hfill \end{array}$$

$$\begin{array}{ccc}\hfill A_{ij}^{22}& =& -{\int }_{{\xi }_a}^{{\xi }_{a+1}}\frac{d{\psi }_i}{d\xi }\frac{d{\psi }_j}{d\xi }d\xi +\left(\frac{m+3}{2}\right){\int }_{{\xi }_a}^{{\xi }_{a+1}}\overline{f}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi -m{\int }_{{\xi }_a}^{{\xi }_{a+1}}\overline{h}{\psi }_i{\psi }_{j}d\xi -Ha{\int }_{{\xi }_a}^{{\xi }_{a+1}}{\psi }_i{\psi }_{j}d\xi \hfill \\ & +& \lambda {\int }_{{\xi }_a}^{{\xi }_{a+1}}\overline{\theta }\frac{d{\psi }_i}{d\xi }\frac{d{\psi }_j}{d\xi }d\xi -\lambda {\int }_{{\xi }_a}^{{\xi }_{a+1}}{\overline{\varphi }}^{\prime }{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi -\sigma {\int }_{{\xi }_a}^{{\xi }_{a+1}}{\psi }_i{\psi }_{j}d\xi -\frac{\xi }{2}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi ,\hfill \end{array}$$

$$\begin{array}{ccc}\hfill A_{ij}^{23}& =& 0,A_{ij}^{24}=0,A_{ij}^{25}=0,A_{ij}^{31}=0,A_{ij}^{32}=0,\hfill \end{array}$$

$$\begin{array}{ccc}\hfill A_{ij}^{33}& =& -\frac{1}{Pr}(1+Nr){\int }_{{\xi }_a}^{{\xi }_{a+1}}\frac{d{\psi }_i}{d\xi }\frac{d{\psi }_j}{d\xi }d\xi -\frac{\xi }{2}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi +\left(\frac{m+3}{2}\right){\int }_{{\xi }_a}^{{\xi }_{a+1}}\overline{f}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi ,\hfill \\ & +& Nb{\int }_{{\xi }_a}^{{\xi }_{a+1}}{\overline{\varphi }}^{\prime }{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi +Nt{\int }_{{\xi }_a}^{{\xi }_{a+1}}{\overline{\theta }}^{\prime }{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi ,A_{ij}^{34}=-D_f{\int }_{{\xi }_a}^{{\xi }_{a+1}}\frac{d{\psi }_i}{d\xi }\frac{d{\psi }_j}{d\xi }d\xi ,\hfill \\ \hfill A_{ij}^{35}& =& 0,A_{ij}^{41}=A_{ij}^{42}=0,A_{ij}^{43}=-Sr{\int }_{{\xi }_a}^{{\xi }_{a+1}}\frac{d{\psi }_i}{d\xi }\frac{d{\psi }_j}{d\xi }d\xi ,A_{ij}^{45}=A_{ij}^{51}=A_{ij}^{52}=A_{ij}^{54}=0\hfill \end{array}$$

$$\begin{array}{ccc}\hfill A_{ij}^{44}& =& -\frac{1}{Sc}{\int }_{{\xi }_a}^{{\xi }_{a+1}}\frac{d{\psi }_i}{d\xi }\frac{d{\psi }_j}{d\xi }d\xi -\frac{\xi }{2}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi +\left(\frac{m+3}{2}\right){\int }_{{\xi }_a}^{{\xi }_{a+1}}\overline{f}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi ,,A_{ij}^{53}=-\frac{Nt}{Nb}{\int }_{{\xi }_a}^{{\xi }_{a+1}}\frac{d{\psi }_i}{d\xi }\frac{d{\psi }_j}{d\xi }d\xi \hfill \end{array}$$

$$\begin{array}{ccc}\hfill A_{ij}^{55}& =& -{\int }_{{\xi }_a}^{{\xi }_{a+1}}\frac{d{\psi }_i}{d\xi }\frac{d{\psi }_j}{d\xi }d\xi +Le\left(\frac{m+3}{2}\right){\int }_{{\xi }_a}^{{\xi }_{a+1}}\overline{f}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi -Le\frac{\xi }{2}{\int }_{{\xi }_a}^{{\xi }_{a+1}}{\psi }_i\frac{d{\psi }_j}{d\xi }d\xi ,\hfill \end{array}$$

and

$$\begin{array}{ccc}\hfill b_i^1& =& 0,b_i^2=-{\left(\psi \frac{dh}{d\xi }\right)}_{{\xi }_a}^{{\xi }_a+1},b_i^3=-\frac{1}{Pr}(1+Nr){\left(\psi \frac{d\theta }{d\xi }\right)}_{{\xi }_a}^{{\xi }_a+1}-D_f{\left(\psi \frac{dS}{d\xi }\right)}_{{\xi }_a}^{{\xi }_a+1},\hfill \\ \hfill b_i^4& =& -\frac{1}{Sc}{\left(\psi \frac{dS}{d\xi }\right)}_{{\xi }_a}^{{\xi }_a+1}-Sr{\left(\psi \frac{d\theta }{d\xi }\right)}_{{\xi }_e}^{{\xi }_e+1},b_i^5=-{\left(\psi \frac{d\varphi }{d\xi }\right)}_{{\xi }_a}^{{\xi }_a+1}-\frac{Nt}{Nb}{\left(\psi \frac{d\theta }{d\xi }\right)}_{{\xi }_e}^{{\xi }_e+1},\hfill \end{array}$$

(32)

where $\overline{f}={\sum }_{j=1}^2{\overline{f}}_j{\psi }_j,\overline{h}={\sum }_{j=1}^2{\overline{h}}_j{\psi }_j,\frac{\overline{d}\theta }{d\xi }={\sum }_{n=1}^2\frac{\overline{d}{\theta }_n}{d\xi }{\psi }_n$ and $\frac{\overline{d}\varphi }{d\xi }={\sum }_{n=1}^2\frac{\overline{d}{\varphi }_n}{d\xi }{\psi }_n$ are supposed to be known. Equation (32) is of the order $10\times 10$ and the whole flow domain is divided into 1000 linear elements of same size. We obtain a matrix after assembling all of the element equations. After the assemblage of the system of element equations, an ensuing system of nonlinear equations is attained. Subsequently, an iterative method is imposed to compute it for a dexterous solution. To compute $\overline{f}$, $\overline{h}$, ${\overline{\theta }}^{\prime }$, and ${\overline{\varphi }}^{\prime }$ functions are presumed to be notorious at a lower iteration level to linearize the system. Then, the estimations for the velocity, solutal, nano-fluid, temperature, and volume fraction profile are fulfilled for a high level, and continued until the desired accuracy of 0.00005 is attained. To ensure the mesh independence, the mesh impact ability is executed. No considerable disparity in the consequences is observed for $\xi >10$. Thus, $\xi$ is fixed at 10. For the corroboration of the convergence of consequences, we intended that the quantity of elements is enlarging ($n=100,200,400,600,700,1000,1200$, and 1300); the results are demarcated in Table 1. In addition, it was found that, as n enhances further than 1200, no considerable alteration in velocity, temperature, and concentration functions is exposed, thus the results at the final outcomes are reported for $n=1200$ elements.

Table 1. FEM Convergence results for active control of nanoparticles when $Pr=0.773;Ha=2;Nb=S=Nt=0.3,Sc=5,D_f=Sr=0.1;Le=2;m=2,Bi=1,\lambda =Nr=0.5,$ and $\sigma =0.2$.

Number of Elements	$\mathit{f}\left(1.3\right)$	$\mathit{h}\left(1.3\right)$	$\mathit{\theta }\left(1.3\right)$	$\mathit{S}\left(1.3\right)$	$\mathit{\varphi }\left(1.3\right)$
100	0.643350	0.031597	0.019678	0.389363	0.130666
200	0.644363	0.031894	0.019659	0.388431	0.130627
400	0.644616	0.031968	0.019656	0.388199	0.130617
600	0.644663	0.031982	0.019655	0.388156	0.130616
700	0.644673	0.031984	0.019655	0.388147	0.130615
1000	0.644687	0.031989	0.019654	0.388134	0.130615
1200	0.644691	0.031989	0.019654	0.388130	0.130615
1300	0.644692	0.031990	0.019654	0.388130	0.130615

4. Results and Discussion

To determine the unknown functions of velocity profile, temperature, and concentration profiles, the above set of Equations (11)–(14) and boundary conditions in Equations (15) and (16) were solved using the variational finite element method. We validated our results with the existing literature listed in Table 2 and Table 3 before plotting the results.

Table 2. The coefficient of skin friction comparison with different values of magnetic parameter M.

S	$\mathit{\sigma }$	Azeem et al. [12]	Faraz et al. [22]	(Our Results)
		(HAM)	(KBM)	(FEM)
−1.0	0.5	0.620400	0.620436	0.620437
−0.5		0.887200	0.887247	0.887247
0.0		1.308999	1.308670	1.308668
0.5		1.907999	1.907973	1.907973
1.0		2.655999	2.655591	2.655588
0.5	0.0	1.798999	1.798668	1.798667
	0.5	1.907999	1.907973	1.907972
	1.0	2.016999	2.016665	2.016667

Table 3. Values of Reduced Nusselt and Sherwood Numbers Nur and Shr for Different Values of $Pr$, $Le$, and $Bi$ when $Nb=Nt=0.1$, $m=1$, and other parameters are zero.

$\mathit{Bi}$	$\mathit{Le}$	$\mathit{Pr}$	Mustafa et al. [4]		FEM (Present Results)
			$-{\mathit{\theta }}^{\prime }\left(\mathbf{0}\right)$	$-{\mathbf{\varphi }}^{\prime }\left(\mathbf{0}\right)$	$-{\mathit{\theta }}^{\prime }\left(\mathbf{0}\right)$	$-{\mathbf{\varphi }}^{\prime }\left(\mathbf{0}\right)$
0.1	1.0	1.00	0.088980	0.793545	0.088980	0.793541
0.4			0.266901	0.676928	0.266900	0.676926
1.0			0.443452	0.561546	0.443450	0.561546
2.0			0.567859	0.480446	0.567857	0.480448
0.5	0.4	1.00	0.310557	0.193614	0.310540	0.195635
	0.7		0.308900	0.446367	0.308899	0.446420
	2.0		0.305905	1.160300	0.305904	1.160294
	10.0		0.303021	3.222890	0.303021	3.222894
0.5	1.00	0.40	0.230078	0.710803	0.230424	0.711456
		0.72	0.281948	0.671917	0.281951	0.671938
		2.00	0.353934	0.605337	0.353933	0.605334
		10.0	0.422650	0.515390	0.422649	0.515386

We found an excellent agreement between our solution and that of the already published research articles; this confirms the validity and accuracy of the present results. Variation of existing parameters $Ha$, m, $\sigma$, $Pr$, $Nb$, $Nt$, $D_f$, $Sr$, $Sc$, $Le$, $Bi$, S, and $\lambda$ are plotted in Figure 2. Profile functions for velocity, temperature, and concentration, for different value of viscosity parameter, magnitude of velocity, temperature, and concentration profiles are given in all upcoming figures: (i) $\lambda =0$ (shown as green solid lines); and (ii) $\lambda =0.5$ (shown as red dotted lines). The base amount of these parameters are considered to be $Pr=0.773$, $Ha=2.0$, $Nb=Nt=S=0.3$, $Sc=5.0$, $D_f=Sr=0.1$, $Le=m=2.0$, $Bi=1.0$, $R_d=0.3$, $Nr=0.5$, and $\sigma =0.2$.

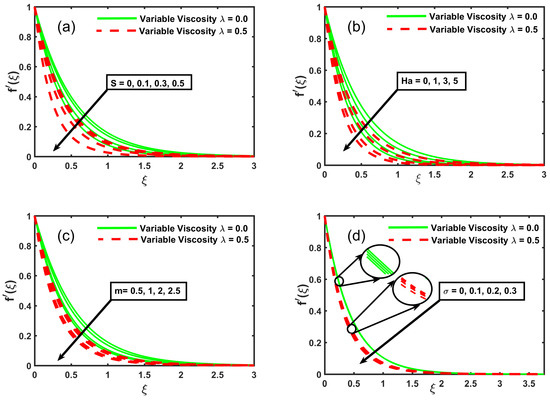

Figure 2. Impact of $f^{\prime }\left(\xi \right)$ for suction S, magnetic field Ha, stretching sheet m, unsteadiness $\sigma$, and variable viscosity $\lambda$.

Figure 2a shows the effect of the suction S and variable viscosity $\lambda$ parameters. In the velocity function, the decline is observed when the suction is $S>0$ and the fluid velocity is decreased for $\lambda >0$. Figure 2a depicts that the fluid flow velocity displays a decreasing trend with the rising values of $\lambda$. The reason behind this is the rise in viscous effects with a higher viscosity, which decreases the fluid flow as a result. In addition, the thickness of the momentum boundary layer has been perceived as an enhancement. Likewise, with the impacts of the magnetic field, one can observe retardation in the velocity activity (see Figure 2b). This is because of the forces of Lorentz, which act as resistive forces and thus oppose the movement of fluids. Therefore, the magnetic field manages the fluid flow successfully. Figure 2c shows the variation of stretching sheet parameter m on the fluid velocity. The magnitude of the velocity’s radial component decreases as m increases. m, in contrast, has a significant impact on $\xi$ and the velocity components u and w, respectively. A similar trend is observed in variable viscosity $\lambda$. Figure 2d shows that, with rising values of $\sigma >0$, the velocity profiles decrease, and a similar trend is observed for the growing value of the viscosity variable.

The effect of varying Biot number $Bi$ values on the distribution of temperature are shown in Figure 3a. The thermal layer shows an increase with the $Bi$ increasing values caused by the greater temperature of the fluid. Figure 3b illustrates the effect of the Hartmann number on the temperature distribution. As the value of Hartmann’s number increases, the temperature rises. The increasing magnetic field increases the friction impacts, which heats up the fluid and thus increases the fluid’s temperature. In contrast, with the rise in variable viscosity $\lambda$, the thickness of the thermal boundary layer also increases. The temperature profile decreases as the value of m increases. The thermal boundary layer thickness is often shown to be greater than m when considering the parameter viscosity $\lambda =0.5$ (see Figure 3c). Figure 3d displays temperature trends for different viscosity parameter $\lambda$ and radiation parameter $Nr$ values. With the rising viscosity parameter $\lambda$, the temperature rises. Moreover, the thermal boundary layer thickness is also increasing. Figure 3d illustrates the impact of the radiation parameter on the temperature distribution. As the value of radiation $Nr$ increases, the temperature rises. Temperature behavior is shown in Figure 3e,f, respectively, under the impact of thermophoresis $Nt$ and Brownian motion $Nb$. The temperature is decreasing with the increasing number of $Nt$ and the value of $Nb$.

Figure 3. Impact of ${\theta }^{\prime }\left(\xi \right)$ for Biot number $Bi$, magnetic field Ha, stretching sheet m, radiation $Nr$, thermophoresis $Nt$, Brownian motion $Nb$, and variable viscosity $\lambda$.

Figure 4a,b show the effect on the dimensionless concentration profile of the stretching parameter m, the Schmidt number $Sc$, and the viscosity parameter $\lambda$. For distinct values of $\lambda =0$ and $\lambda =0.5$, an increasing behavior is shown in the concentration profile. Moreover, the concentration profile decreases as the value of m and $Sc$ increases. The influences of the thermophoresis parameter $Nt$, the Brownian motion parameter $Nb$, and the viscosity parameter $\lambda$ on the dimensionless nanoparticle concentration profiles are sketched in Figure 4c,d. The variation in nanoparticle concentration profile because of changing $Nt$ is shown in Figure 4c. The nanoparticle concentration profile demonstrates a strong decreasing behavior at and near the wall with the increasing thermophoresis parameter $Nt$.

Figure 4. Impact of $S\left(\xi \right)$ and $\varphi \left(\xi \right)$ for stretching sheet m, Schmidt number $Sc$, thermophoresisb $Nt$, Brownian motion $Nb$, and variable viscosity $\lambda$.

On the other hand, relative to the thermophoresis parameter $Nt$, the effect of the Brownian motion parameter $Nb$ is quite different (see Figure 4d). The nanoparticle concentration profile magnitude depicts a declining behavior with rising Nb values. Moreover, with the rising viscosity parameter $\lambda$, the nanoparticle concentration profile rises.

In Figure 5a, with the increasing value of suction S, stretching sheet parameter m, and viscosity variable parameter $\lambda$, one can observe an increase in the magnitude of $CfR{e}_x^{1/2}$. Figure 5b elaborates the variance for different $Ha$, $\lambda$, and $Nr$ values in the Nusselt number coefficient $NuR{e}_x^{-1/2}$. The magnitude of $NuR{e}_x^{-1/2}$ shows a decline on increasing values of $Ha$ and $\lambda$. Moreover, the inverse behavior of $Nr$ is observed. A declining trend is observed in terms of Sherwood number coefficient $ShrR{e}_x^{1/2}$ as $Ha$, $\lambda$, and $Nt$ increase. Figure 5c clearly shows the decreasing value of Sherwood number coefficient $ShrR{e}_x^{1/2}$.

Figure 5. Impact of $CfR{e}_x^{1/2}$, $NuR{e}_x^{-1/2}$, and $ShrR{e}_x^{1/2}$ for suction S, stretching sheet m, magnetic field Ha, radiation $Nr$, thermophoresisb $Nt$, and variable viscosity $\lambda$.

Table 4 is structured with the numerical results of the skin friction coefficient, Nusselt number $-{\theta }^{\prime }\left(0\right)$, and Sherwood number $-{\varphi }^{\prime }\left(0\right)$ for various value of $m,Ha,Bi$, and $Sc$ by assuming the cases of variable viscosity $\lambda =0$ and $\lambda =0.5$, respectively. In this table, an increase in the magnitude of the skin friction coefficient, Nusselt number $-{\theta }^{\prime }\left(0\right)$, and Sherwood number $-{\varphi }^{\prime }\left(0\right)$ can be observed with the increasing viscosity parameter values $\left(\lambda \right)$, m, and Ha; however, for the magnitude of Nusselt and Sherwood numbers against Hartman number Ha, the opposite behavior is recorded. The decline in Nusselt number and Sherwood number magnitude can be observed with the increasing viscosity parameter values ($\lambda$) and $Bi$, but the opposite behavior is recorded for the magnitude of Nusselt and Sherwood numbers against Schmidt number Sc (see Table 4).

Table 4. Assessment of $-f^{″}\left(0\right)$, $-{\theta }^{\prime }\left(0\right)$, and $-{\varphi }^{\prime }\left(0\right)$ for numerous values of m, $Ha$, $Bi$, and $Sc$ when $Nb=0.3$; $Nt=0.3$; $\sigma =0.2$; $Le=2$; $D_f=0.1$; $Sr=0.1$; $Nr=0.5$; $S=0.3$; and $Pr=0.773$.

m	$\mathit{Ha}$	$\mathit{Bi}$	$\mathit{Sc}$	Variable Viscosity $\mathit{\lambda }=0$			Variable Viscosity $\mathit{\lambda }=0.5$
				$-{\mathit{f}}^{″}\left(0\right)$,	$-{\mathit{\theta }}^{\prime }\left(0\right)$,	$-{\mathit{\varphi }}^{\prime }\left(0\right)$	$-{\mathit{f}}^{″}\left(0\right)$	$-{\mathit{\theta }}^{\prime }\left(0\right)$	$-{\mathit{\varphi }}^{\prime }\left(0\right)$
1.0	1.0	1.0	5.0	1.917015	0.197352	1.966102	1.500390	0.160016	1.887431
3.0				2.531770	0.249901	2.677550	2.030868	0.222542	2.586780
5.0				3.066937	0.282943	3.365334	2.500620	0.260220	3.268914
1.0	1.0	1.0	5.0	1.917015	0.197352	1.966102	1.500390	0.160016	1.887431
	3.0			2.445511	0.161933	1.897593	1.886349	0.117210	1.812817
	5.0			2.868619	0.137579	1.853265	2.187080	0.091258	1.768997
1.0	1.0	1.0	5.0	1.917015	0.197352	1.966102	1.500390	0.160016	1.887431
		2.0		1.917015	0.234919	1.939081	1.460656	0.181408	1.858082
		4.0		1.917015	0.259440	1.921454	1.436016	0.193590	1.840234
1.0	1.0	1.0	5.0	1.917015	0.197352	1.966102	1.500390	0.160016	1.887431
			7.0	1.917015	0.148547	2.018283	1.472408	0.105062	1.932371
			9.0	1.917015	0.100783	2.070145	1.443607	0.050675	1.976854

5. Conclusions

This investigation comprised the numerical study of the magnetohydrodynamic (MHD) nanofluid flow over a radially stretching sheet along with the viscosity dependent on temperature, convective boundary condition, thermo-diffusion, and the radiation effects. Using the suitable similarity transformation, nonlinear PDEs are changed into a set of highly nonlinear ODEs, and nonlinear coupled ODEs were solved using a robust variational finite element (FEM) method. Moreover, graphic pictures demonstrating the effect of different emerging parameters on the properties of fluid velocity, temperature and concentration profiles are also given. The main findings of this research article are as follows:

• The velocity of fluid declines with the increasing values of suction, Hartmann number, stretching sheet, and unsteadiness parameters.
• The temperature rises with the increasing values of Hartmann number, radiation, thermophoresis, Brownian motion, and Biot number parameters.
• The solutal concentration profile illustrates a decreasing impact with the growing of the stretching sheet parameter and the Schmidt number.
• The concentration profile of nanoparticles indicates a decline with the growing values of the Brownian motion, Moreover, the elevation of the thermophoresis parameter enhances the concentration profile of nanoparticles.
• The growing values of the viscosity parameter decline the velocity of nanofluid but elevates the concentration and temperature profiles.
• An increase in the magnitude of skin friction coefficient, Nusselt number, and Sherwood number can be detected with the growing viscosity parameter values, stretching sheet parameter, and Hartmann number; however, for the magnitude of Nusselt and Sherwood numbers against Hartman number, an opposite behavior was noted.
• The decline in Nusselt number and Sherwood number magnitude was recorded with the increasing viscosity parameter values and Biot number, but an opposite behavior was recorded for the magnitude of Nusselt and Sherwood numbers against Schmidt number.
• The present study was restricted to the unsteady state flow and neglected the slip effects at the sheet. For future study, stagnation point flow with viscous dissipation effects at the sheet will be examined.
