Towards an Efficient PrivacyPreserving Decision Tree Evaluation Service in the Internet of Things
Abstract
:1. Introduction
1.1. Motivation
1.2. Our Contributions
 We newly design a secure comparison protocol that can return additive shares of the comparison result on additively secret shared inputs. Compared with the Huang et al.’s work [21] and Zheng et al.’s work [20], the number of additive multiplications required can be reduced from $2l$ and $3l$ to l respectively, where l is the bitlength of a feature vector’s element. Compared with Liu et al.’s work [22], which is based on additive secret sharing and additively homomorphic cryptosystem, the proposed work is more secure and efficient.
 With the additive secret sharing technology and an asymmetrically homomorphic cryptosystem, i.e., Paillier cryptosystem [23], the privacypreserving decision tree scheme based on the twocloud model is proposed in this work. The scheme is tested on several widely used realworld datasets. The experimental results show that compared with the most recent work, i.e., Zheng et al.’s work [20], our scheme is more efficient when dealing with deeper trees. Particularly, the communication cost of our scheme is just 1/709 of Zheng et al.’s work [20].
 We show that our scheme can fully protect the privacy of the client. At the same time, during the evaluation process, the client also learns nothing of the decision tree. Additionally, since there are two clouds involved, we can also prove the model is not leaked to the other cloud except the number of the decision node.
1.3. Organization
2. Preliminaries

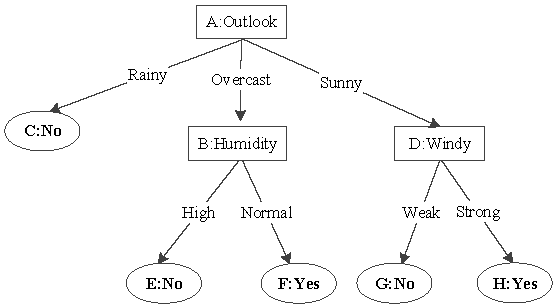

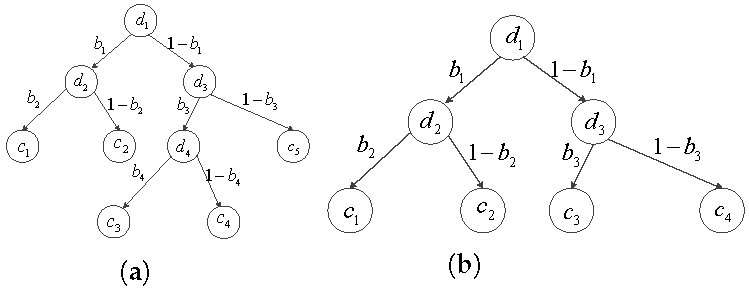

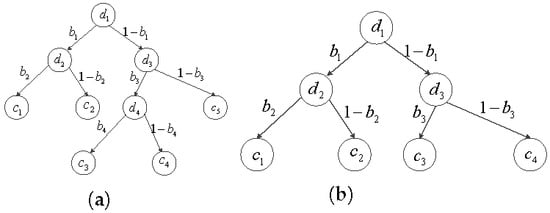

2.1. Decision Tree
2.2. Additive Secret Sharing
2.2.1. Addition of Additive Shares
2.2.2. Multiplication of Additive Shares
2.3. Paillier Cryptosystem
 Homomorphic Addition: If we have two ciphertext, e.g., $\left[x\right]$, $\left[y\right]$, encrypted by the same public key, we can easily compute $\mathtt{Dec}\left(\right[x]\xb7[y\left]\right)=x+y$.
 Scalar Multiplication: If given the ciphertext $\left[x\right]$ and a constant integer c, we could easily compute $\mathtt{Dec}\left({\left[x\right]}^{c}\right)=c\xb7x$. Particularly, if c is $N1$, we can easily obtain that $\mathtt{Dec}\left({\left[x\right]}^{N1}\right)=x$, where $x=Nx$.
3. System Model and Design Goals

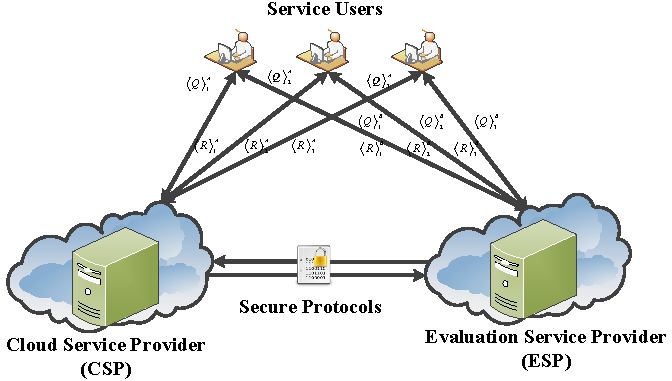

3.1. System Model
 Service Users: The Service User (SU) in our system wants to use a decision tree evaluation service in a privacypreserving way. The SU splits the query vector into two additive shares before sending them to two clouds respectively.
 Cloud Service Provider: Assume that a trained decision tree model belongs to Cloud Service Provider. The CSP provides a decision tree classification service to SU. Since only one of the shares is sent to it, CSP needs to cooperate with the Evaluation Service Provider to fulfill the evaluation.
 Evaluation Service Provider: In our system, the ESP’s mission is to cooperate with the CSP to give the SU the evaluation result of the decision tree model in a privacypreserving way. Besides, ESP generates the public/private key pair of the Paillier cryptosystem and reveals the public key to CSP.
3.2. Threat Model
 $\mathcal{A}$ may eavesdrop the communication channel between CSP and ESP.
 $\mathcal{A}$ may compromise ESP.
3.3. Design Goals
 Data Protection. For this decision tree evaluation scheme, data security and privacy issues are the most important ones to be solved. As we know, the outsourced data and the calculated classification result contain sensitive information that should be kept secret to the cloud, including CSP and ESP. Besides, for the CSP, the decision tree model is its assert, which also should not be leaked to ESP and the SUs. Moreover, all such information should be confidential to the active adversary $\mathcal{A}$.
 Classification Result’s Accuracy. The classification result should be the same as the nonprivacy preserving one.
 Efficiency. In this scheme, we insist that the two clouds should finish the evaluation process as fast as they can and return the classification labels to SUs quickly. Thus, the computation and communication costs of the clouds should be small enough.
 Offline SUs. As we know, SUs in the IoT usually do not have strong computation power and large storage space. Therefore, we should minimize the computation and communication burdens for the SUs. Thus, once sending the query to CSP and ESP, SUs should stay offline until obtaining results. We also should note that many clients are using this decision tree evaluation service. Thus, for the scalability of the system, this scheme is supposed to support offline SUs.
4. PrivacyPreserving Decision Tree Evaluation
4.1. Secure Comparison Algorithm
Algorithm 1 Secure Comparison (SC)

4.2. PrivacyPreserving Decision Tree Evaluation
4.2.1. Query Request Issuing
4.2.2. Secure Decision Tree Evaluation
5. Security Analysis
5.1. Security of Cryptographic Blocks
5.2. Security of PrivacyPreserving Decision Tree Evaluation Scheme
6. Performance Analysis and Comparison

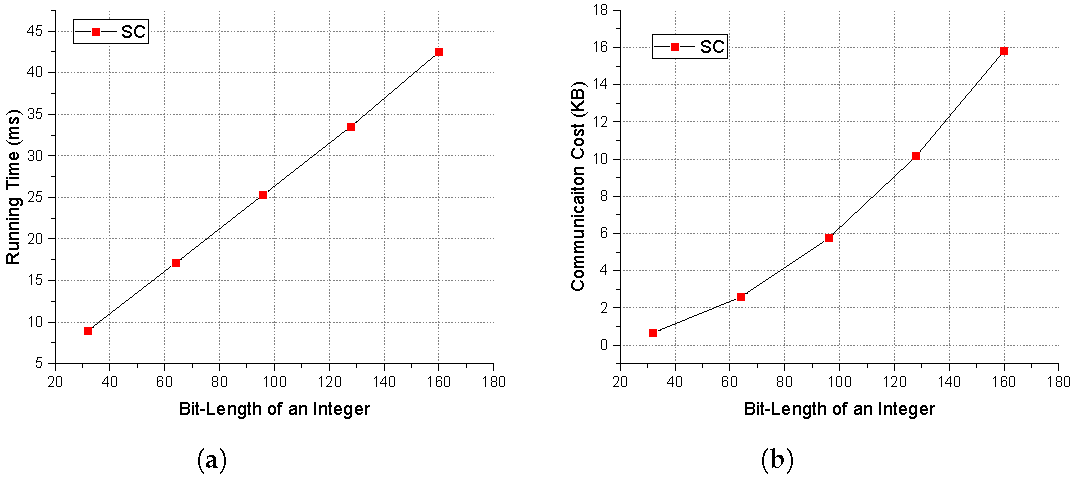

6.1. Experiment Analysis
6.2. Performance Comparison and Analysis
6.3. Comparative Analysis
7. Related Work
8. Conclusions and Future Work
Author Contributions
Funding
Conflicts of Interest
References
 Mahdavinejad, M.S.; Rezvan, M.; Barekatain, M.; Adibi, P.; Barnaghi, P.; Sheth, A.P. Machine learning for Internet of Things data analysis: A survey. Digit. Commun. Netw. 2018, 4, 161–175. [Google Scholar] [CrossRef]
 Amazon Machine Learning Service. Available online: https://aws.amazon.com/cn/machinelearning/ (accessed on 16 December 2019).
 Google Cloud, A.I. Available online: https://cloud.google.com/products/ai/ (accessed on 16 December 2019).
 Microsoft AI Service. Available online: https://www.microsoft.com/enus/ai/aiplatform (accessed on 16 December 2019).
 Li, J.; Chen, R.; Su, J.; Huang, X.; Wang, X. METLS: MiddleboxEnhanced TLS for Internetofthings Devices. IEEE Internet Things J. 2019. [Google Scholar] [CrossRef]
 Zhao, B.; Liu, P.; Wang, X.; You, I. Toward efficient authentication for spaceairground integrated Internet of things. Int. J. Distrib. Sens. Netw. 2019, 15. [Google Scholar] [CrossRef] [Green Version]
 Yang, Z.; Chen, R.; Li, C.; Qu, L.; Yang, G. On the Security of LWE Cryptosystem against Subversion Attacks. Comput. J. 2019. [Google Scholar] [CrossRef]
 Wang, Y.; Chen, R.; Liu, C.; Wang, B.; Wang, Y. Available online: https://doi.org/10.1007/s0077901801193x (accessed on 02 January 2019).
 Rago, A.; Marcos, C.; Diazpace, J.A. Using semantic roles to improve text classification in the requirements domain. Lang. Resour. Eval. 2018, 52, 801–837. [Google Scholar] [CrossRef]
 Singh, A.; Guttag, J.V. A comparison of nonsymmetric entropybased classification trees and support vector machine for cardiovascular risk stratification. In Proceedings of the 2011 Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Boston, MA, USA, 30 August–3 September 2011; pp. 79–82. [Google Scholar]
 Azar, A.T.; Elmetwally, S.M. Decision tree classifiers for automated medical diagnosis. Neural Comput. Appl. 2013, 23, 2387–2403. [Google Scholar] [CrossRef]
 Koh, H.C.; Tan, W.C.; Goh, C.P. Available online: https://ijbi.org/ijbi/article/view/5 (accessed on 12 November 2019).
 Lindell, Y.; Pinkas, B. Privacy preserving data mining. In Proceedings of the Annual International Cryptology Conference, Santa Barbara, CA, USA, 20–24 August 2000; pp. 36–54. [Google Scholar]
 Agrawal, R.; Srikant, R. Privacypreserving data mining. In ACM Sigmod Record; ACM: New York, NY, USA, 2000; Volume 29, pp. 439–450. [Google Scholar]
 Bost, R.; Popa, R.A.; Tu, S.; Goldwasser, S. Machine learning classification over encrypted data. In Proceedings of the NDSS, San Diego, CA, USA, 8–11 February 2015; Volume 4324, p. 4325. [Google Scholar]
 Wu, D.J.; Feng, T.; Naehrig, M.; Lauter, K. Privately evaluating decision trees and random forests. Proc. Priv. Enhancing Technol. 2016, 2016, 335–355. [Google Scholar] [CrossRef] [Green Version]
 Tai, R.K.; Ma, J.P.; Zhao, Y.; Chow, S.S. PrivacyPreserving Decision Trees Evaluation via Linear Functions. In Proceedings of the European Symposium on Research in Computer Security, Oslo, Norway, 11–15 September 2017; pp. 494–512. [Google Scholar]
 Tueno, A.; Kerschbaum, F.; Katzenbeisser, S. Private evaluation of decision trees using sublinear cost. Proc. Priv. Enhancing Technol. 2019, 2019, 266–286. [Google Scholar] [CrossRef] [Green Version]
 Liang, J.; Qin, Z.; Xiao, S.; Ou, L.; Lin, X. Efficient and Secure Decision Tree Classification for CloudAssisted Online Diagnosis Services. IEEE Trans. Dependable Secur. Comput. 2019. [Google Scholar] [CrossRef]
 Zheng, Y.; Duan, H.; Wang, C. Towards Secure and Efficient Outsourcing of Machine Learning Classification. In Proceedings of the European Symposium on Research in Computer Security, Luxembourg, 23–27 September 2019; pp. 22–40. [Google Scholar]
 Huang, K.; Liu, X.; Fu, S.; Guo, D.; Xu, M. A Lightweight PrivacyPreserving CNN Feature Extraction Framework for Mobile Sensing. IEEE Trans. Dependable Secur. Comput. 2019. [Google Scholar] [CrossRef]
 Liu, L.; Su, J.; Chen, R.; Chen, J.; Sun, G.; Li, J. Secure and Fast Decision Tree Evaluation on Outsourced Cloud Data. In Proceedings of the Second International Conference on Machine Learning for Cyber Security, Xi’an, China, 19–21 September 2019; pp. 1–17. [Google Scholar]
 Paillier, P. Publickey cryptosystems based on composite degree residuosity classes. In International Conference on the Theory and Applications of Cryptographic Techniques; Springer: Berlin/Heidelberg, Germany, 1999; Volume 99, pp. 223–238. [Google Scholar]
 Shamir, A. How to share a secret. Commun. ACM 1979, 22, 612–613. [Google Scholar] [CrossRef]
 Yao, A.C.C. How to generate and exchange secrets. In Proceedings of the 27th Annual Symposium on Foundations of Computer Science (sfcs 1986), Toronto, ON, Canada, 27–29 October 1986; pp. 162–167. [Google Scholar]
 Beaver, D. Efficient multiparty protocols using circuit randomization. In Proceedings of the Annual International Cryptology Conference, Santa Barbara, CA, USA, 11–15 August 1991; pp. 420–432. [Google Scholar]
 Ohrimenko, O.; Schuster, F.; Fournet, C.; Mehta, A.; Nowozin, S.; Vaswani, K.; Costa, M. Oblivious MultiParty Machine Learning on Trusted Processors. In Proceedings of the USENIX Security Symposium, Austin, TX, USA, 10–12 August 2016; pp. 619–636. [Google Scholar]
 Liu, L.; Su, J.; Liu, X.; Chen, R.; Huang, K.; Deng, R.H.; Wang, X. Towards Highly Secure Yet Efficient KNN Classification Scheme on Outsourced Cloud Data. IEEE Internet Things J. 2019, 6, 9841–9852. [Google Scholar] [CrossRef]
 Liu, X.; Choo, R.; Deng, R.; Lu, R.; Weng, J. Efficient and privacypreserving outsourced calculation of rational numbers. IEEE Trans. Dependable Secur. Comput. 2016, 15, 27–39. [Google Scholar] [CrossRef]
 Liu, L.; Su, J.; Chen, R.; Liu, X.; Wang, X.; Chen, S.; Leung, H. Privacypreserving mining of association rule on outsourced cloud data from multiple parties. In Proceedings of the Australasian Conference on Information Security and Privacy, Wollongong, NSW, Australia, 11–13 July 2018; pp. 431–451. [Google Scholar]
 Luo, Y.; Jia, X.; Fu, S.; Xu, M. pRide: PrivacyPreserving Ride Matching Over Road Networks for Online RideHailing Service. IEEE Trans. Inf. Forensics Secur. 2018, 14, 1791–1802. [Google Scholar] [CrossRef]
 Damgård, I.; Fitzi, M.; Kiltz, E.; Nielsen, J.B.; Toft, T. Unconditionally secure constantrounds multiparty computation for equality, comparison, bits and exponentiation. In Proceedings of the Theory of Cryptography Conference, New York, NY, USA, 4–7 March 2006; pp. 285–304. [Google Scholar]
 Hazay, C.; Mikkelsen, G.L.; Rabin, T.; Toft, T.; Nicolosi, A.A. Efficient RSA Key Generation and Threshold Paillier in the TwoParty Setting. J. Cryptol. 2019, 32, 265–323. [Google Scholar] [CrossRef] [Green Version]
 Veugen, T. Improving the DGK comparison protocol. In Proceedings of the 2012 IEEE International Workshop on Information Forensics and Security (WIFS), Tenerife, Spain, 2–5 December 2012; pp. 49–54. [Google Scholar]
 Goldreich, O. Foundations of Cryptography: Volume 2, Basic Applications; Cambridge University Press: Cambridge, UK, 2009. [Google Scholar]
 GNU MP Library. Available online: https://gmplib.org/ (accessed on 16 December 2016).
 UC Irvine Machine Learning Respository. Available online: https://archive.ics.uci.edu/ml/index.php (accessed on 16 December 2019).
 Joye, M.; Salehi, F. Private yet efficient decision tree evaluation. In Proceedings of the IFIP Annual Conference on Data and Applications Security and Privacy, Bergamo, Italy, 16–18 July 2018; pp. 243–259. [Google Scholar]
 De Cock, M.; Dowsley, R.; Horst, C.; Katti, R.; Nascimento, A.; Poon, W.S.; Truex, S. Efficient and private scoring of decision trees, support vector machines and logistic regression models based on precomputation. IEEE Trans. Dependable Secur. Comput. 2017, 16, 217–230. [Google Scholar] [CrossRef]
 Luo, Y.; Xu, M.; Huang, K.; Wang, D.; Fu, S. Efficient auditing for shared data in the cloud with secure user revocation and computations outsourcing. Comput. Secur. 2018, 73, 492–506. [Google Scholar] [CrossRef]
 Karapiperis, D.; Verykios, V.S. An LSHbased blocking approach with a homomorphic matching technique for privacypreserving record linkage. IEEE Trans. Knowl. Data Eng. 2014, 27, 909–921. [Google Scholar] [CrossRef]
 Dritsas, E.; Kanavos, A.; Trigka, M.; Sioutas, S.; Tsakalidis, A. Storage Efficient Trajectory Clustering and kNN for Robust Privacy Preservation SpatioTemporal Databases. Algorithms 2019, 12, 266. [Google Scholar] [CrossRef] [Green Version]
 Brickell, J.; Porter, D.E.; Shmatikov, V.; Witchel, E. Privacypreserving remote diagnostics. In Proceedings of the 14th ACM Conference on Computer and Communications Security, Alexandria, VA, USA, 28–31 October 2007; pp. 498–507. [Google Scholar]
Notations  Definition

${\langle x\rangle}^{A}/{\langle x\rangle}^{B}$  Additive secret share of x belongs to A/B
$\parallel x\parallel $  The bit length of x
$\left[x\right]$  The ciphertext of x encrypted by Paillier
Add(·)  Addition on additive shares
Mul(·)  Multiplication on additive shares
Rec($\xb7,\xb7$)  x’s value’s reconstruction
SC  Secure Comparison
SDTE  Secure Decision Tree Evaluation
Dataset  n  d  m  Time  Comm. Cost  Time [16]  Comm. Cost [16]  Time [20]  Comm. Cost [20]

breastcancer  9  8  12  0.256 s  40.59 KB  0.545 s  132.0 KB  0.0081 s  73.22 KB
heatdisease  13  3  5  0.103 s  17.35 KB  0.370 s  43.9 KB  0.0003 s  2.66 KB
housing  13  13  92  1.867 s  306.19 KB  4.081 s  1795.2 KB  0.3052 s  2855 KB
creditscreening  15  4  5  0.109 s  17.45 KB  0.551 s  45.0 KB  0.0007 s  5.93 KB
spambase  57  17  58  1.283 s  191.31 KB  16.595 s  17363.3 KB  14.639 s  135807 KB
Algorithm  Support Offline  Query Privacy  Classification Privacy  Cryptosystem  Model Leakage  Trust Third Party  Server Complexity

[15]  ×  ✓  ✓  FHE  m  ×  $O\left(ml\right)$
[16]  ×  ✓  ✓  AHE, OT  $m,d$  ×  $O(ml+{2}^{d})$
[17]  ×  ✓  ✓  AHE, OT  m  ×  $O\left(ml\right)$
[39]  ×  ✓  ✓  SS  m  ✓  $O\left(ml\right)$
[38]  ×  ✓  ✓  AHE  m  ×  $O(m+dl)$
[18]  ×  ✓  ✓  GC, OT, ORAM  $m,d$  ×  $O\left(dl\right)$
[19]  ✓  ✓  ✓  SSE  ×  ×  $O\left({2}^{m}\right)$
[22]  ✓  ✓  ✓  AHE, SS  ×  ✓  $O\left(ml\right)$
[20]  ✓  ✓  ✓  SS  d  ×  $O\left({2}^{d}l\right)$
SDTEI  ✓  ✓  ✓  SS  m  ×  $O\left(ml\right)$
SDTEII  ✓  ✓  ✓  SS  ×  ×  $O\left(ml\right)$
