Internet of Things Meets Vehicles: Sheltering In-Vehicle Network through Lightweight Machine Learning
Abstract
:1. Introduction
1.1. Internet of Things Meets Vehicles

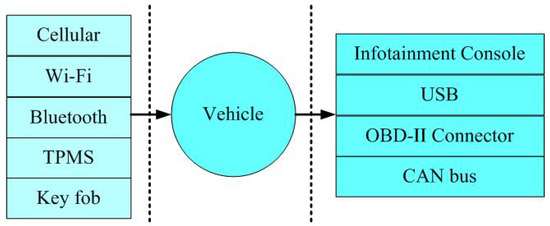

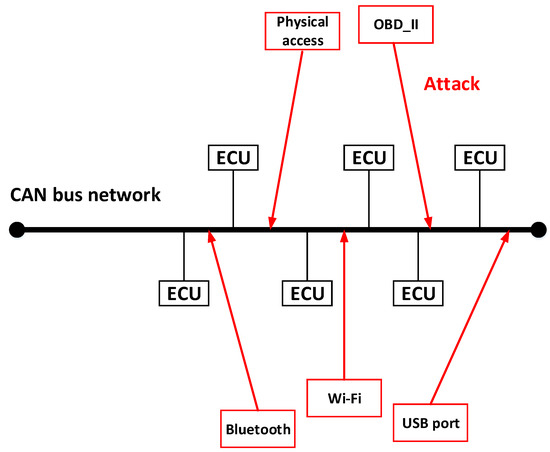

1.2. Attack Surfaces
1.3. Can Bus
1.4. Our Contributions
- To suit the actual situation of an in-vehicle network, we present a new recurrent neural network (RNN) model named SECCU.

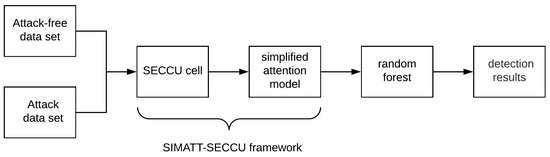

- We propose the simplified attention (SIMATT) model that can be computed using the computing power of vehicle electronics and improve detection accuracy.
- The experimental results demonstrate that our proposed SIMATT-SECCU symmetry framework has the best performance in comparison with many classic models.
- Our detecting model is fully data-driven and does not require any domain knowledge about the CAN protocol.
- Our proposed model focuses on a lightweight anomaly detection method for in-vehicle network based on machine learning, which solves the problem of insufficient computing power of networked vehicle electronic devices when applying machine learning algorithms.
2. Related Work
3. Recurrent Neural Network

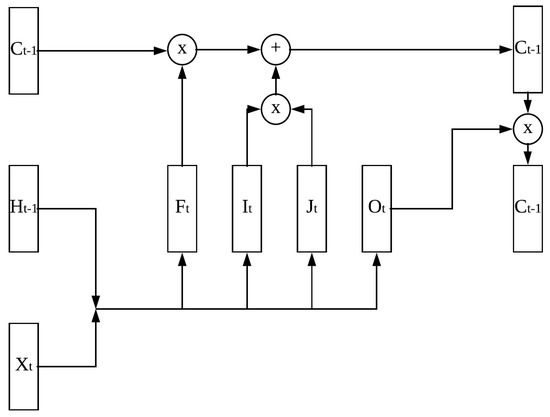

3.1. Long Short-Term Memory

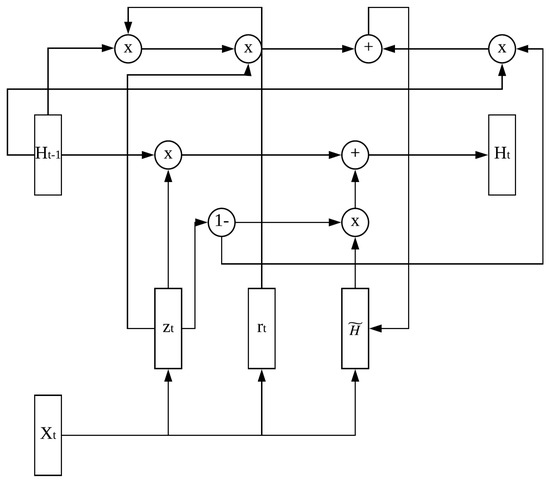

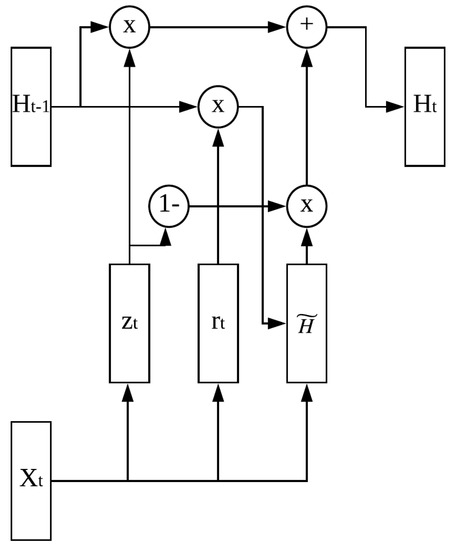

3.2. Gated Recurrent Unit
3.3. Security Control Unit
4. Attention Model

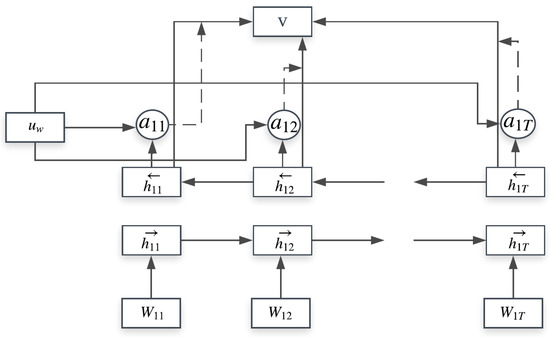

4.1. Hierarchical Attention Model

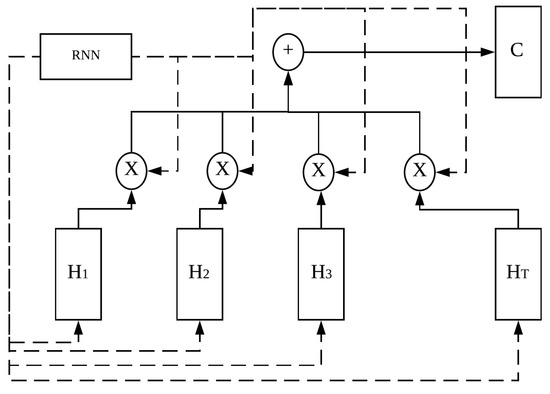

4.2. Simplified Attention Model
5. Can Bus and Dataset
5.1. Can Bus

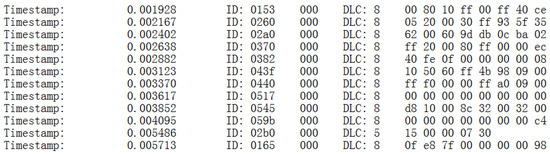

5.2. Can Bus Dataset
- Attack-free: This data set consists of CAN data generated under normal conditions after the vehicle has been started.

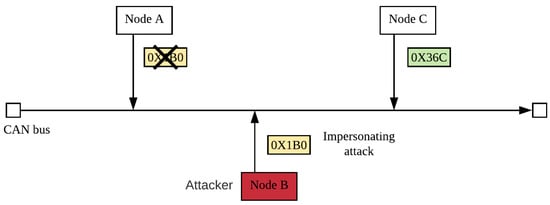

- Impersonation attack: After an attacker has attacked an ECU and disabled it, the attacker inserts his/her ECU for a specific purpose. The inserted ECU is disguised as the disabled ECU, and it can periodically reply to request from other ECU [31,32]. Impersonation attack does not change the original frequency of CAN messages, so IDSs based on frequency characteristics cannot detect this attack. If the attacker does not change the contents of the CAN messages, the inserted ECU looks like a legitimate ECU, and the attacker can then launch other types of attacks. We refer the reader to [31] for further details about the construction and distribution characteristics of the impersonation attack data set. This attack mode is shown in Figure 11.

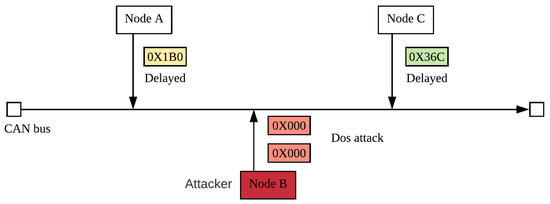

- DoS attack: This dataset consists of data generated while an attacker periodically injected high-priority CAN instructions so that legitimate instructions are not sent in time. In this data set, the attacker injected the highest priority instruction (ID 0000). This attack mode is shown in Figure 12.

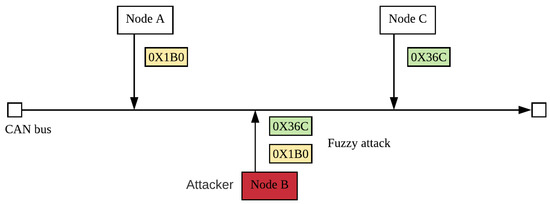

- Fuzzy attack: This dataset consists of data generated while an attacker randomly sends instructions to cause the vehicle to perform unexpectedly. To implement a fuzzy attack, the attacker needs to collect detailed information about the target vehicle. For example, instruction ID that can produce unexpected behavior. It is different from DoS attack by occupancy bus to delay normal information transmission. The Fuzzy attack caused the vehicle function to be unavailable. This attack mode is shown in Figure 13.
6. Experiment Procedure and Results
6.1. Experiment Procedure
- We take the first 80% of the instruction sequences in all data sets and divide them into 10 equal parts.
- Each part is treated as a test set, and the remaining nine parts are used as a training set. A total of 10 test results are obtained.
- The SIMATT model was removed and the SECCU cell was replaced with an LSTM cell or a GRU cell to compare the proposed model with the LSTM and GRU models, respectively. Only the SIMATT model was removed to obtain the SECCU-based model.
- The SIMATT model was replaced by the HIEATT model, and the SECCU cell was replaced by an LSTM cell or a GRU cell to obtain the HIEATT-LSTM and HIEATT-GRU models, respectively. The HIEATT-SECCU model was obtained by replacing the SIMATT model with the HIEATT model.
- The SECCU cell was replaced with an LSTM cell or GRU cell to obtain the SIMATT-LSTM and SIMATT-GRU models, respectively.
6.2. Introduction to Experimental Evaluation Indicators

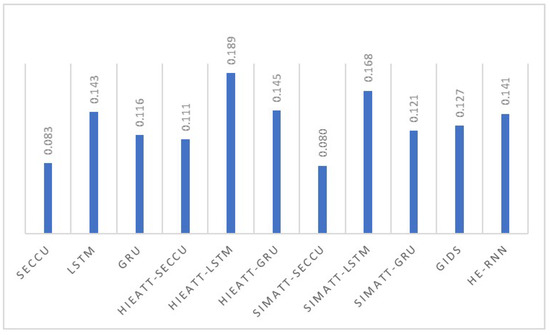

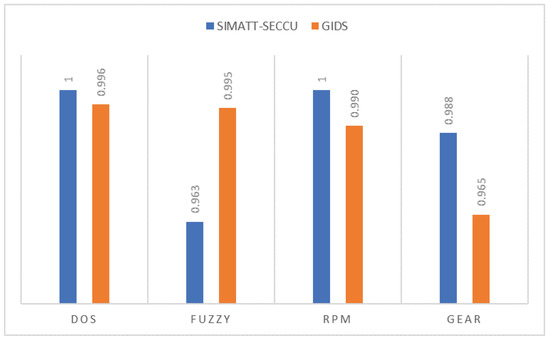

6.3. Model Performance Analysis
