# The Solutions of Non-Integer Order Burgers’ Fluid Flowing through a Round Channel with Semi Analytical Technique

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Governing Equations

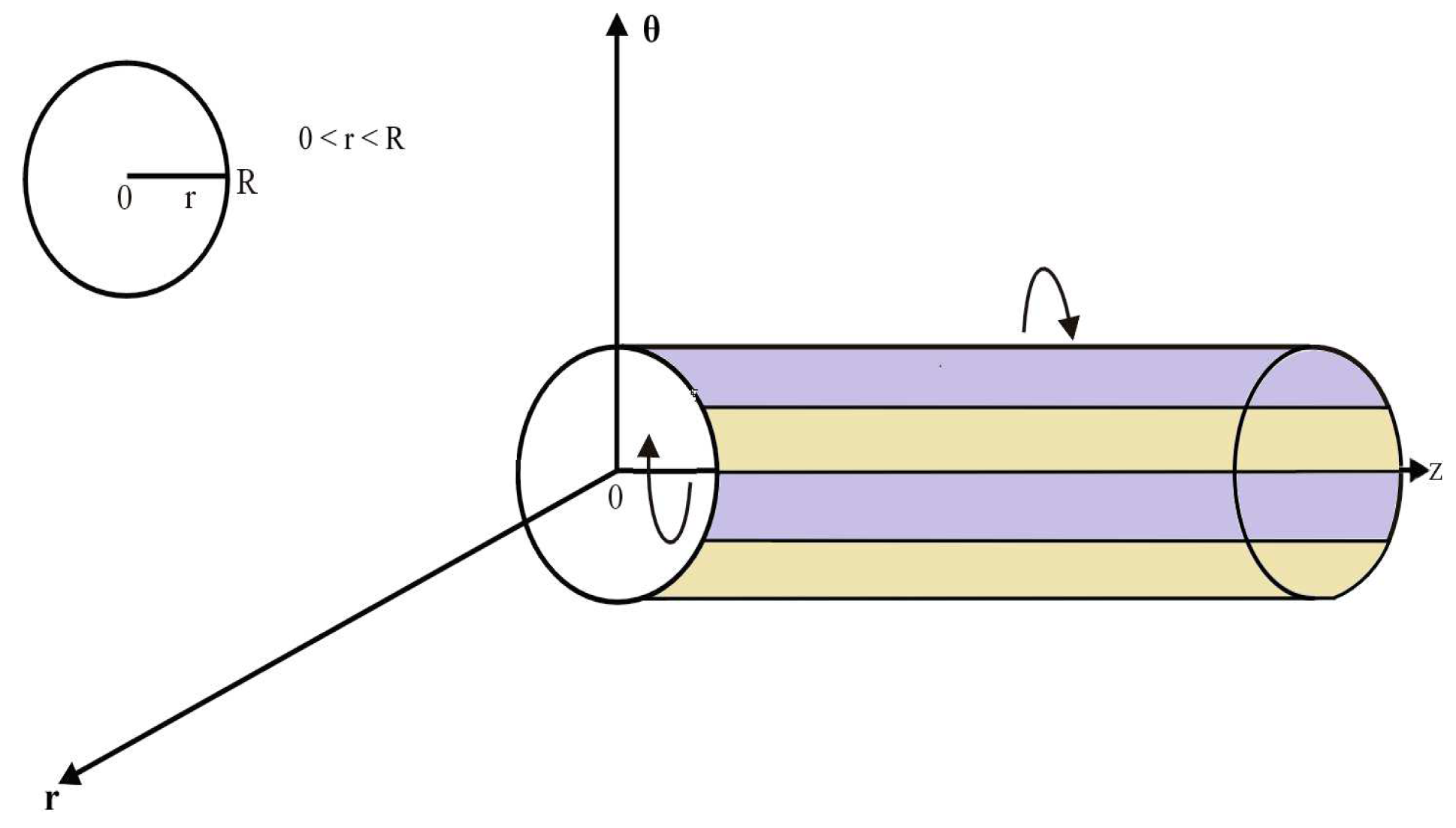

## 3. Imposing Condition and Geometry

#### 3.1. Velocity Field Due to Rotating Circular Pipe

#### 3.2. Shear Stress Due to Rotating Circular Cylinder

## 4. Results and Discussions

## 5. Conclusions

- The ordinary fluid have less velocity as compared to fractional order derivative fluid models. This result can be verify from the graph of fractional parameter $\alpha $ available in Figure 12, which has decreasing altitude when the velocity is increasing.
- The velocity of the fluid increases for Burgers’ fluid model as fluid becomes more thick in this model.
- The graph of the parameters $\beta $, ${\lambda}_{3}$, $\nu $, t, r, and $\mu $ showed an increase/upward in behaviour with increase in velocity and stress function.
- The parameters ${\lambda}_{1}$, ${\lambda}_{2}$ and $\alpha $ are behaving opposite to the influence of velocity and shear stress.

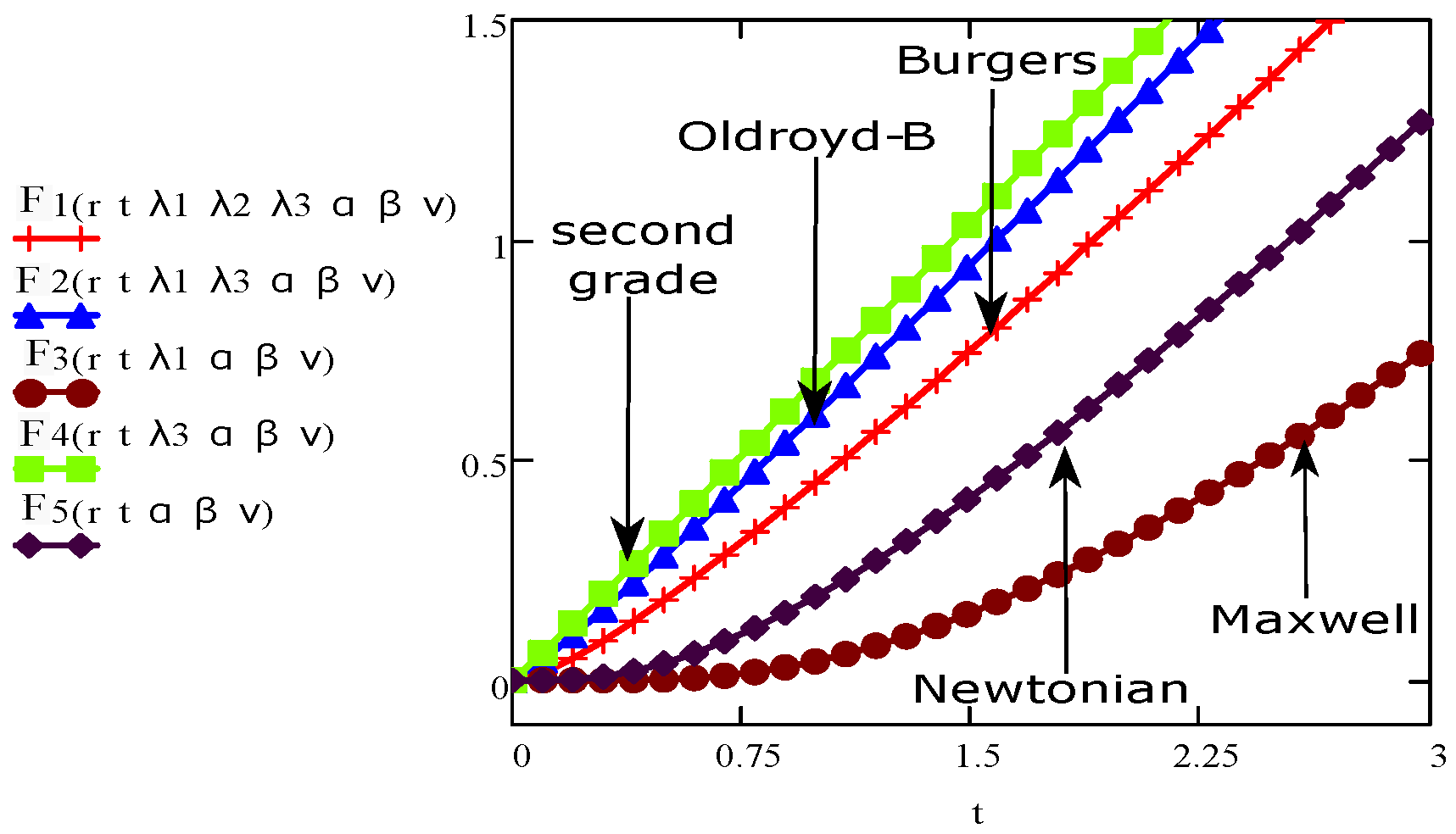

- The fractional Burgers’ fluid is flowing faster than the Maxwell and Newtonian fluids.
- In future, authors will try to study the fluid motion by considering the effects of temperature and magnetic field.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Taylor, G.I. Stability of a viscous liquid contained between two rotating cylinders. Philos. Trans. R. Soc. Lond. Ser. A Contain. Pap. A Math. Phys. Character
**1923**, 223, 289–343. [Google Scholar] [CrossRef] - Childress, S. An Introduction to Theoretical Fluid Mechanics; American Mathematical Society: New York, NY, USA, 2009; Volume 19. [Google Scholar]
- Waters, N.; King, M. The unsteady flow of an elastico-viscous liquid in a straight pipe of circular cross section. J. Phys. D Appl. Phys.
**1971**, 4, 204–211. [Google Scholar] [CrossRef] - Rahaman, K.; Ramkissoon, H. Unsteady axial viscoelastic pipe flows. J. Non-Newton. Fluid Mech.
**1995**, 57, 27–38. [Google Scholar] [CrossRef] - Wood, W. Transient viscoelastic helical flows in pipes of circular and annular cross-section. J. Non-Newton. Fluid Mech.
**2001**, 100, 115–126. [Google Scholar] [CrossRef] - Fox, R.W.; McDonald, A.T. Introduction to Fluid Mechanics; John Wiley & Sons. Inc.: New York, NY, USA, 1994. [Google Scholar]
- Fetecau, C. Analytical solutions for non-Newtonian fluid flows in pipe-like domains. Int. J. Non-Linear Mech.
**2004**, 39, 225–231. [Google Scholar] [CrossRef] - Ting, T.W. Certain non-steady flows of second-order fluids. Arch. Ration. Mech. Anal.
**1963**, 14, 1–26. [Google Scholar] [CrossRef] - Srivastava, P. Non-steady helical flow of a visco-elastic liquid(Nonsteady helical flow of viscoelastic liquid contained in circular cylinder, noting occurrence of oscillations in fluid decaying exponentially with time). Arch. Mech. Stosow.
**1966**, 18, 145–150. [Google Scholar] - Sherief, H.; Faltas, M.; El-Sapa, S. Pipe flow of magneto-micropolar fluids with slip. Can. J. Phys.
**2017**, 95, 885–893. [Google Scholar] [CrossRef] - Fetecău, C.; Fetecău, C. On the uniqueness of some helical flows of a second grade fluid. Acta Mech.
**1985**, 57, 247–252. [Google Scholar] [CrossRef] - Hayat, T.; Khan, M.; Ayub, M. Some analytical solutions for second grade fluid flows for cylindrical geometries. Math. Comput. Model.
**2006**, 43, 16–29. [Google Scholar] [CrossRef] - Fetecau, C.; Fetecau, C.; Vieru, D. On some helical flows of Oldroyd-B fluids. Acta Mech.
**2007**, 189, 53–63. [Google Scholar] [CrossRef] - Vieru, D.; Akhtar, W.; Fetecau, C.; Fetecau, C. Starting solutions for the oscillating motion of a Maxwell fluid in cylindrical domains. Meccanica
**2007**, 42, 573–583. [Google Scholar] [CrossRef] - Nadeem, S.; Asghar, S.; Hayat, T.; Hussain, M. The Rayleigh Stokes problem for rectangular pipe in Maxwell and second grade fluid. Meccanica
**2008**, 43, 495–504. [Google Scholar] [CrossRef] - Podlubny, I. Fractional Differential Equations, vol. 198 of Mathematics in Science and Engineering; Academic Press: San Diego, CA, USA, 1999. [Google Scholar]
- Bagley, R.L.; Torvik, P.J. On the fractional calculus model of viscoelastic behavior. J. Rheol.
**1986**, 30, 133–155. [Google Scholar] [CrossRef] - Friedrich, C. Relaxation and retardation functions of the Maxwell model with fractional derivatives. Rheol. Acta
**1991**, 30, 151–158. [Google Scholar] [CrossRef] - Tan, W.; Xian, F.; Wei, L. An exact solution of unsteady Couette flow of generalized second grade fluid. Chin. Sci. Bull.
**2002**, 47, 1783–1785. [Google Scholar] [CrossRef] - Tong, D.; Shan, L. Exact solutions for generalized Burgers’ fluid in an annular pipe. Meccanica
**2009**, 44, 427–431. [Google Scholar] [CrossRef] - Shah, S.H.A.M. Some helical flows of a Burgers’ fluid with fractional derivative. Meccanica
**2010**, 45, 143–151. [Google Scholar] [CrossRef] - Xu, M.; Tan, W. Theoretical analysis of the velocity field, stress field and vortex sheet of generalized second order fluid with fractional anomalous diffusion. Sci. China Ser. A Math.
**2001**, 44, 1387–1399. [Google Scholar] [CrossRef] - Song, D.Y.; Jiang, T.Q. Study on the constitutive equation with fractional derivative for the viscoelastic fluids–modified Jeffreys model and its application. Rheol. Acta
**1998**, 37, 512–517. [Google Scholar] [CrossRef] - Wenchang, T.; Wenxiao, P.; Mingyu, X. A note on unsteady flows of a viscoelastic fluid with the fractional Maxwell model between two parallel plates. Int. J. Non-Linear Mech.
**2003**, 38, 645–650. [Google Scholar] [CrossRef] - Wenchang, T.; Mingyu, X. Unsteady flows of a generalized second grade fluid with the fractional derivative model between two parallel plates. Acta Mech. Sin.
**2004**, 20, 471–476. [Google Scholar] [CrossRef] - Abdullah, M.; Butt, A.R.; Raza, N.; Haque, E.U. Semi-analytical technique for the solution of fractional Maxwell fluid. Can. J. Phys.
**2017**, 95, 472–478. [Google Scholar] [CrossRef] - Stehfest, H. Algorithm 368: Numerical inversion of Laplace transforms [D5]. Commun. ACM
**1970**, 13, 47–49. [Google Scholar] [CrossRef] - Kamran, M.; Imran, M.; Athar, M. Exact solutions for the unsteady rotational flow of an Oldroyd-B fluid with fractional derivatives induced by a circular cylinder. Meccanica
**2013**, 48, 1215–1226. [Google Scholar] [CrossRef] - Safdar, R.; Imran, M.; Sadiq, N.; Ahmad, F. Unsteady Rotational Flow of a Burgers’ Fluid through a Pipe with Non-Integer Order Fractional Derivatives. J. Appl. Environ. Biol. Sci
**2018**, 8, 144–156. [Google Scholar] - Imran, M.; Athar, M.; Kamran, M. On the unsteady rotational flow of a generalized Maxwell fluid through a circular cylinder. Arch. Appl. Mech.
**2011**, 81, 1659–1666. [Google Scholar] [CrossRef]

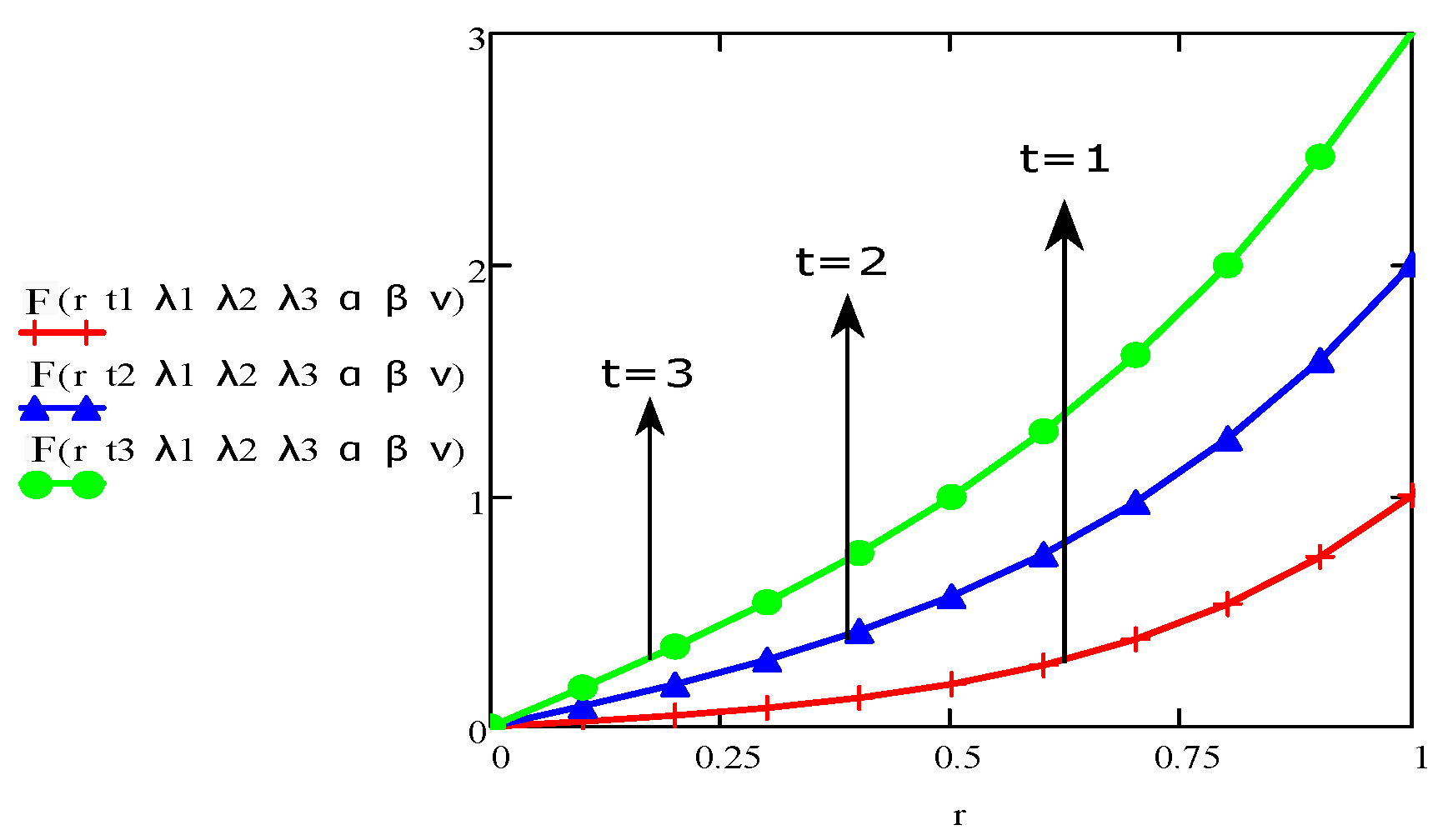

**Figure 2.**The aspect of velocity $F(\mathrm{r},t)$ for various values of t and fixed values for $\mathsf{\Omega}=1,R=1,p=1,s=1,\alpha =0.3,\beta =0.7,\nu =0.053,n=12,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

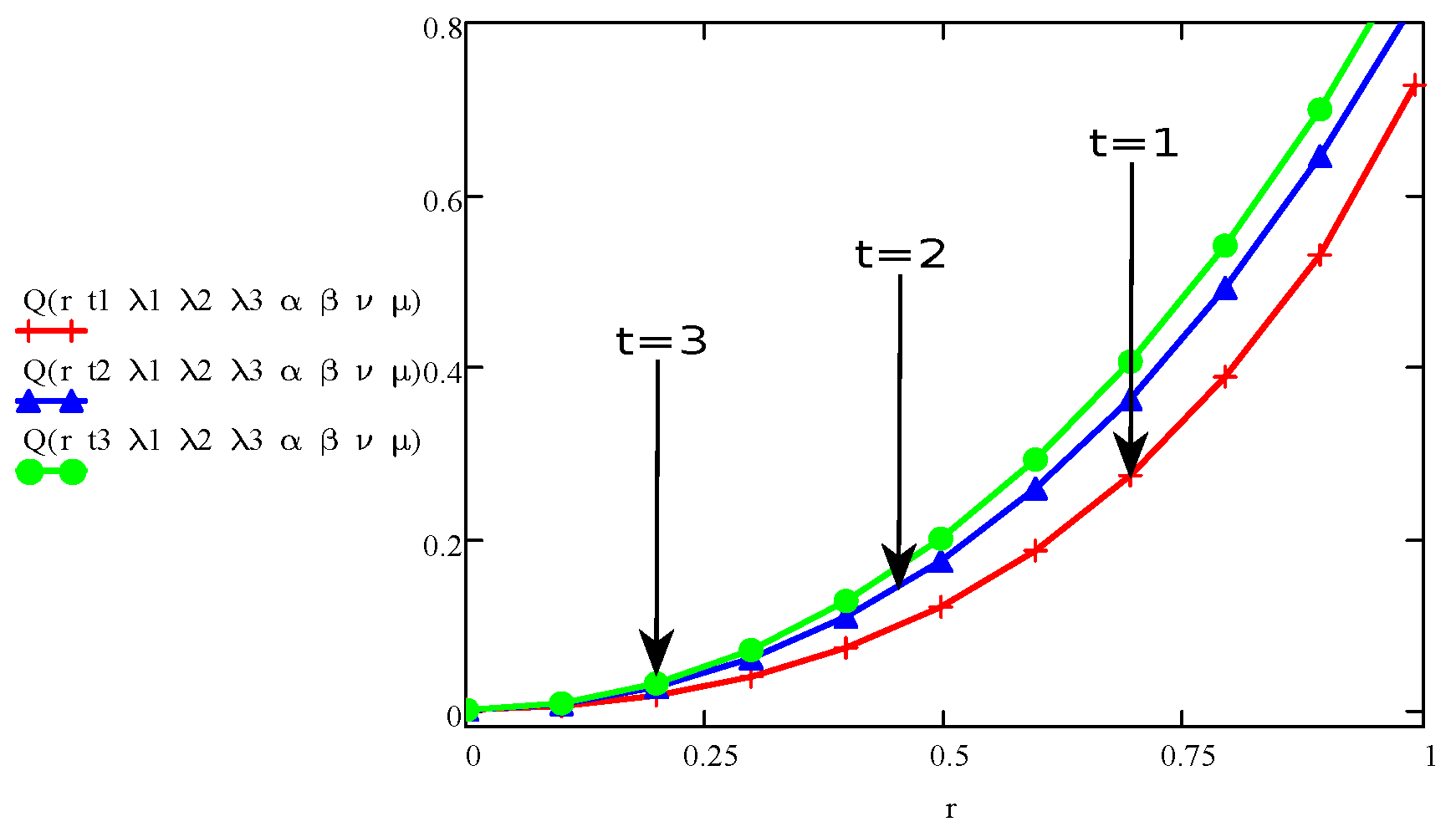

**Figure 3.**The aspect of stress $Q(\mathrm{r},t)$ for various values of t and fixed values for $\mu =0.010,\mathsf{\Omega}=2.5,R=1,p=1,s=1,\alpha =0.3,\beta =0.7,\nu =0.053,n=12,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

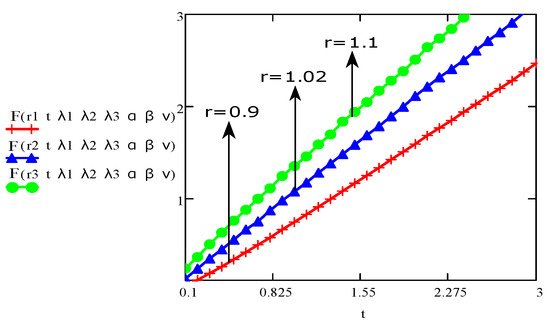

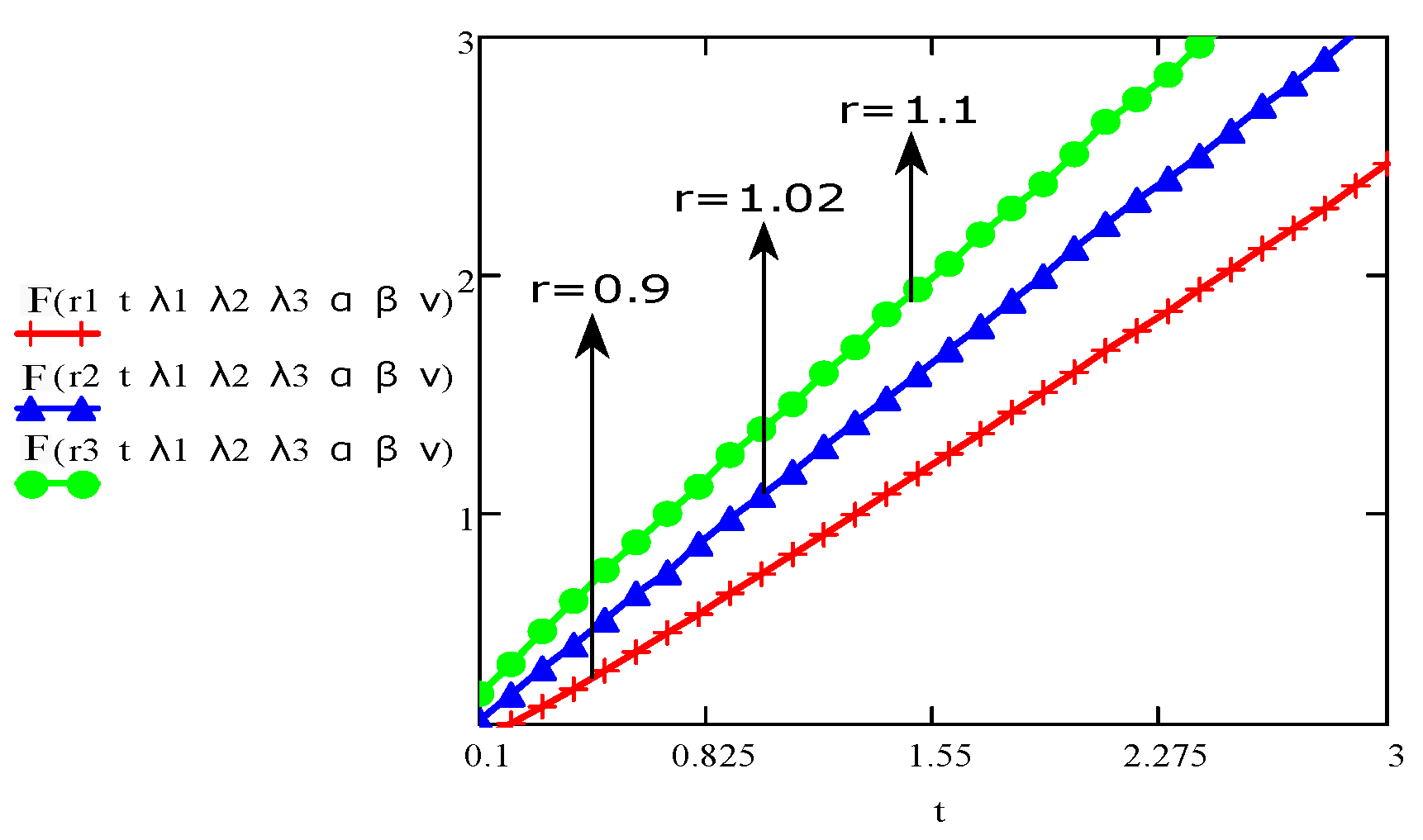

**Figure 4.**The aspect of velocity $F(\mathrm{r},t)$ for various values of $\mathrm{r}$ and fixed values for $\mathsf{\Omega}=1,R=1,p=1,s=1,\alpha =0.3,\beta =0.7,\nu =0.053,n=12,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

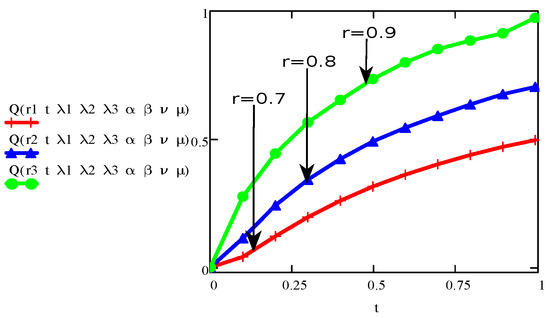

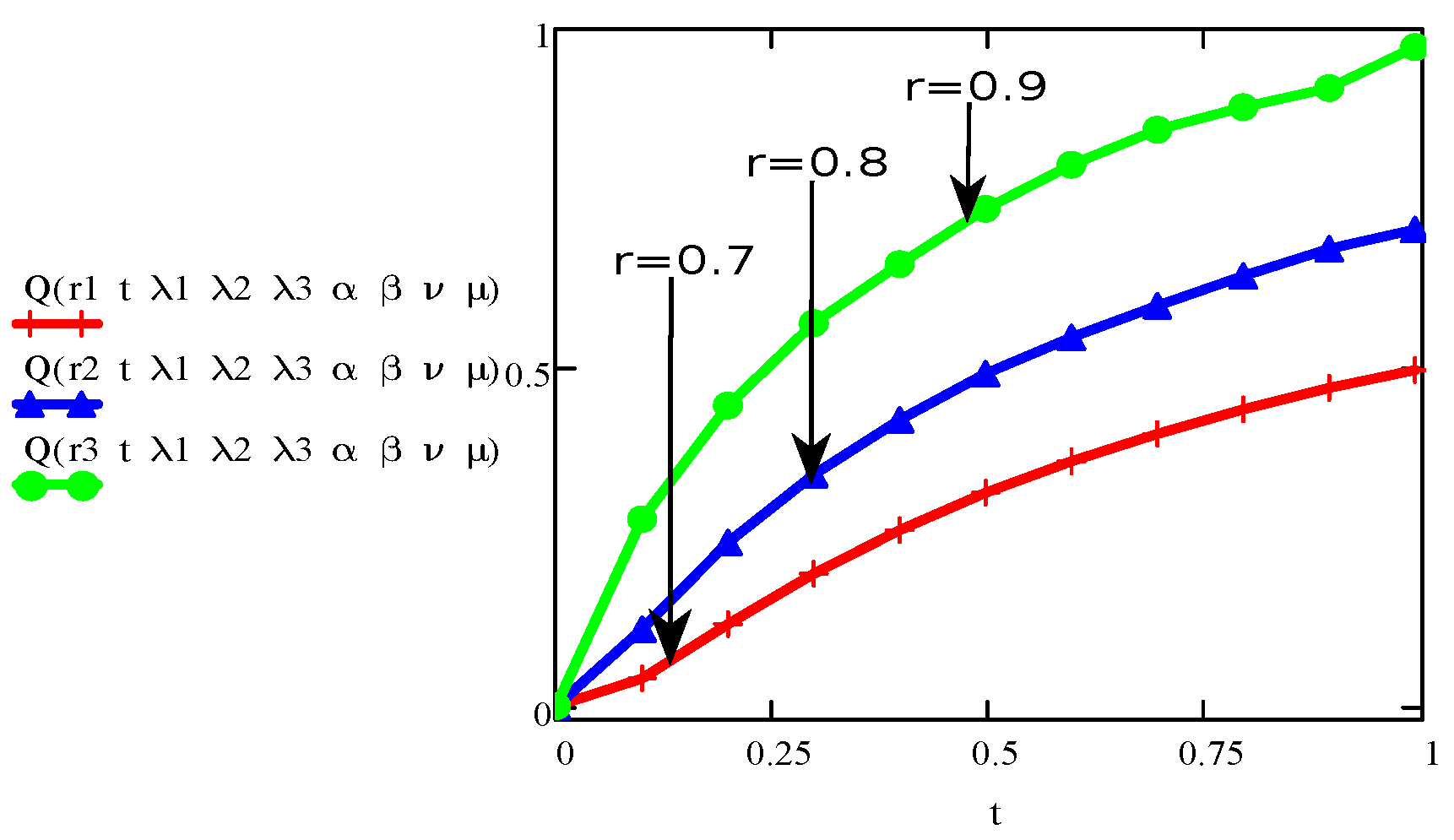

**Figure 5.**The aspect of stress $Q(\mathrm{r},t)$ for various values of $\mathrm{r}$ and fixed values for $\mu =0.09,\mathsf{\Omega}=1.5,R=1,p=1,s=1,\alpha =0.3,\beta =0.7,\nu =0.053,n=12,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

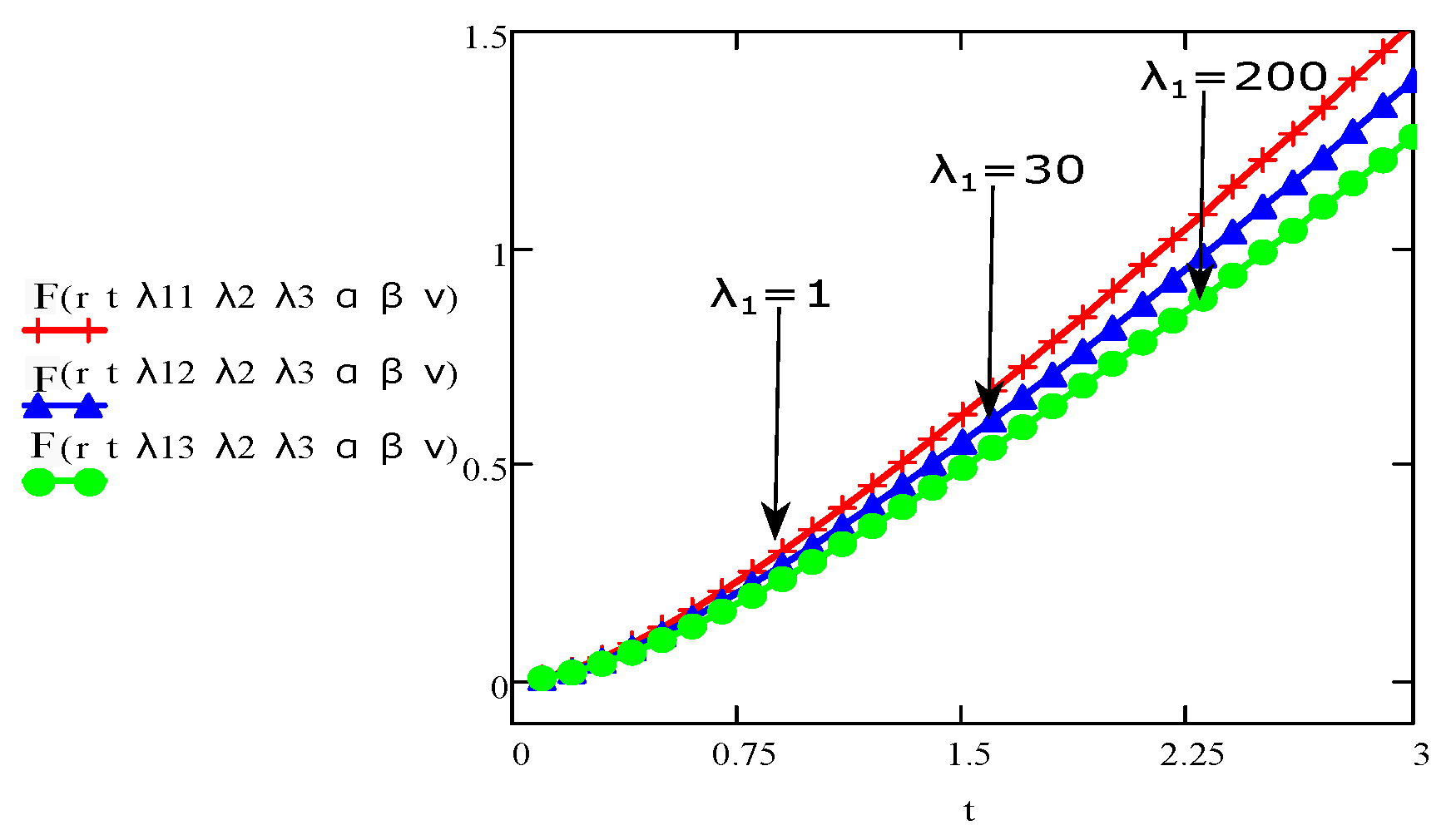

**Figure 6.**The aspect of velocity $F(\mathrm{r},t)$ for various values of ${\lambda}_{1}$ and fixed values for $\mathsf{\Omega}=1,R=1,p=1,s=1,\alpha =0.3,\beta =0.8,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

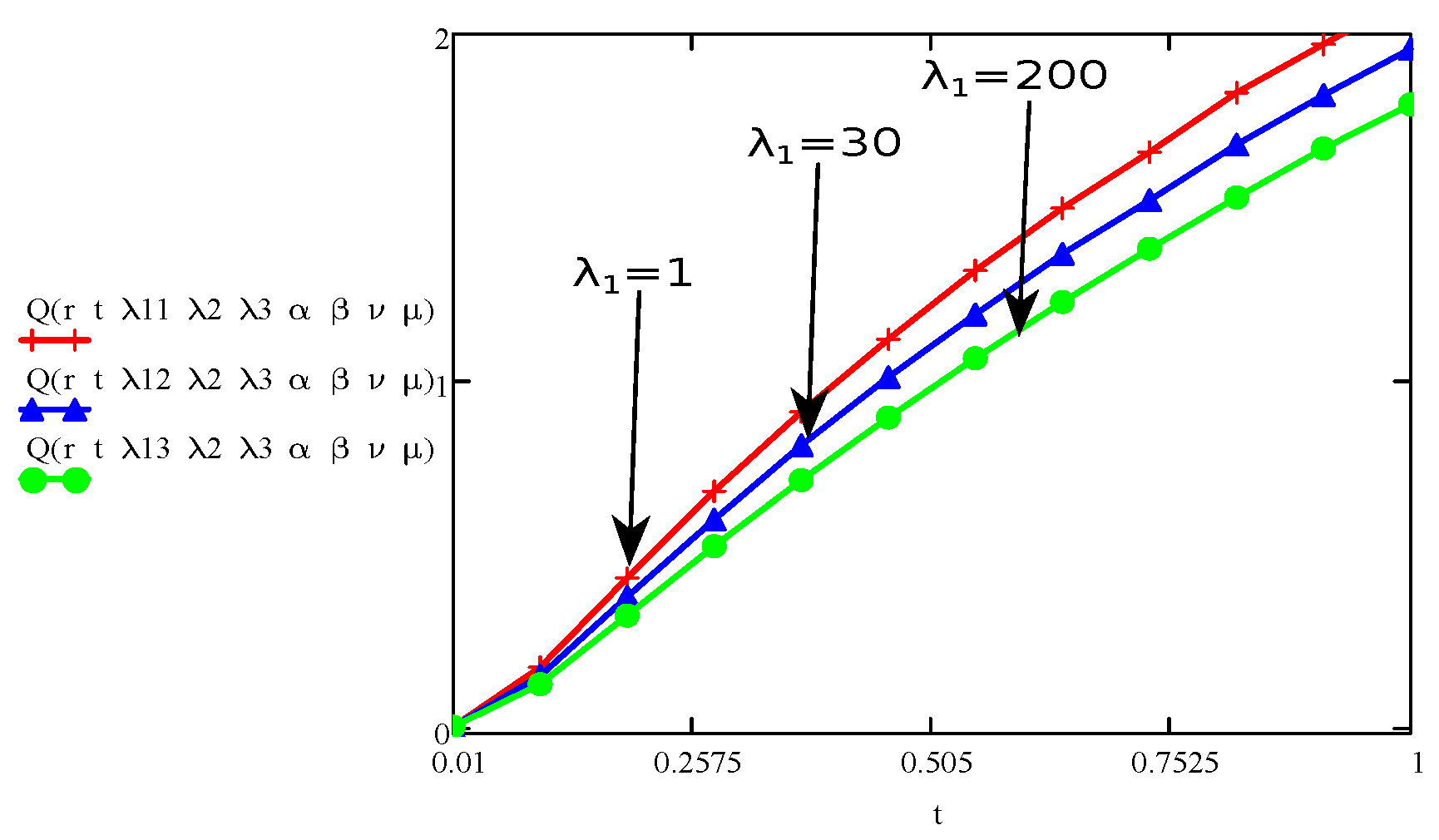

**Figure 7.**The aspect of stress $Q(\mathrm{r},t)$ for various values of ${\lambda}_{1}$ and fixed values for $\mu =0.09,\mathsf{\Omega}=2.5,R=1,p=1,s=1,\alpha =0.3,\beta =0.8,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

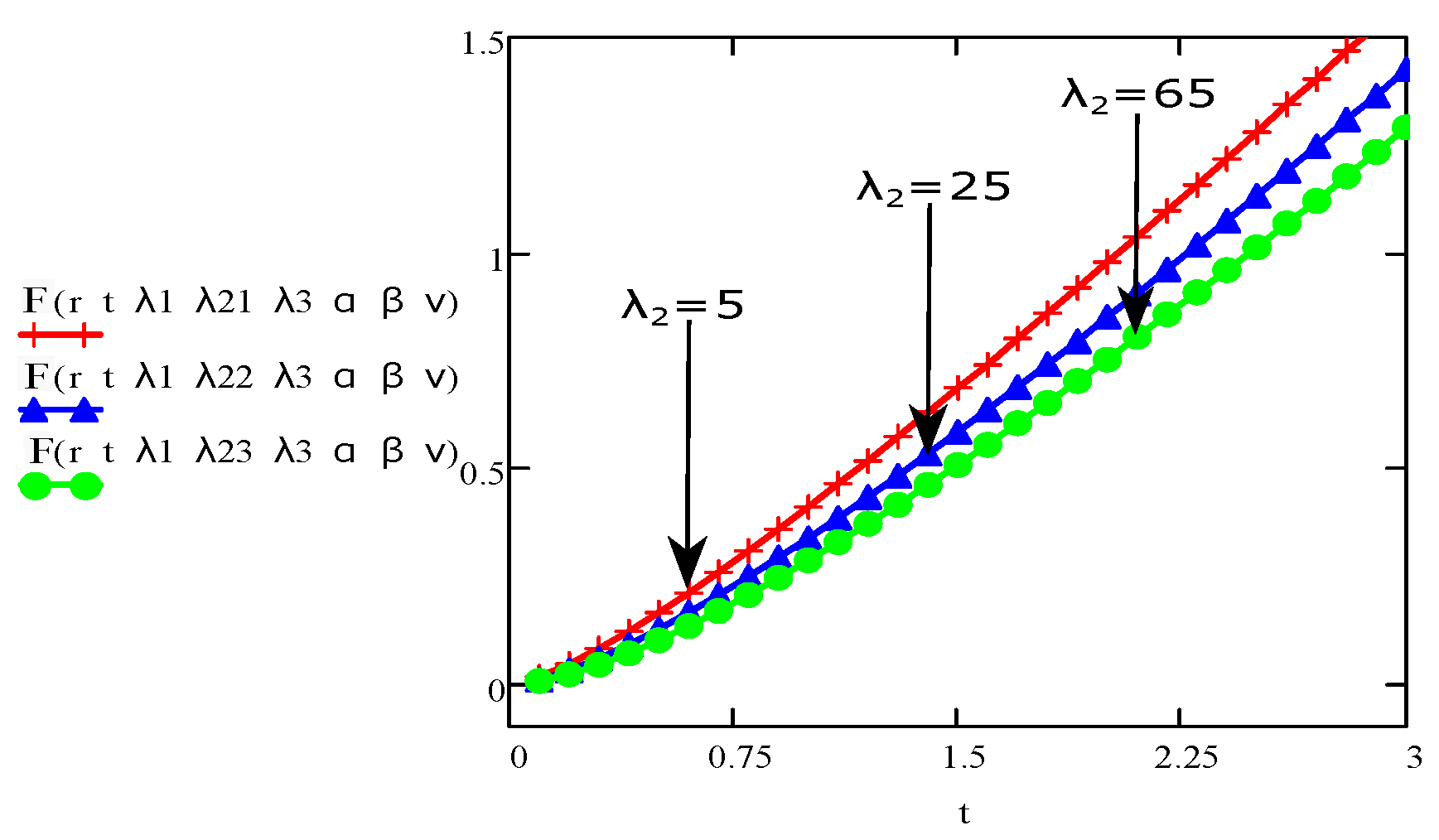

**Figure 8.**The aspect of velocity $F(\mathrm{r},t)$ for various values of ${\lambda}_{2}$ and fixed values for $\mathsf{\Omega}=1,R=1,p=1,s=1,\alpha =0.2,\beta =0.7,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5$ and ${\lambda}_{3}=55$.

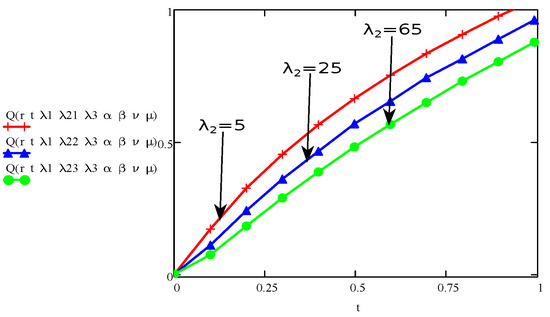

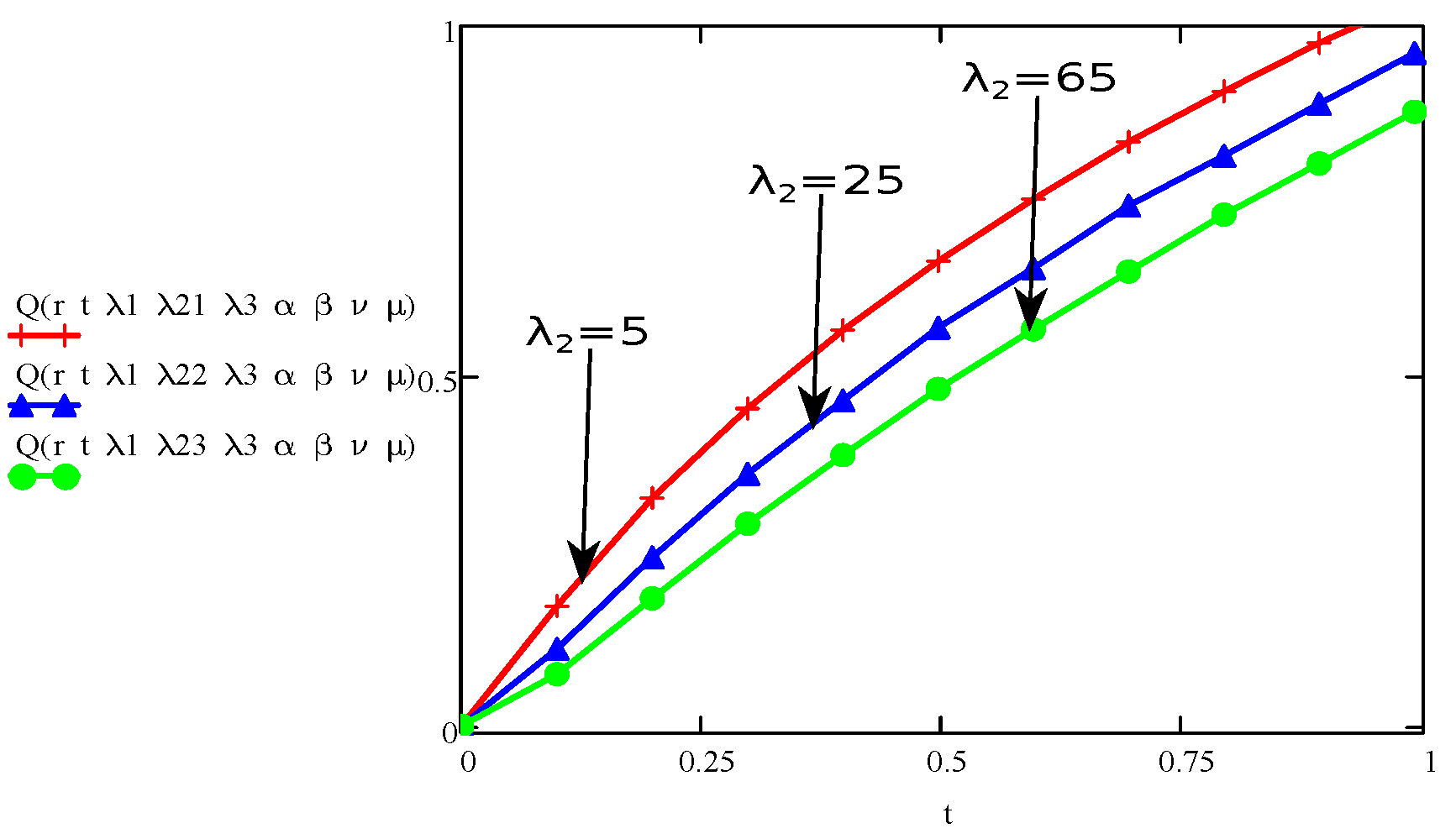

**Figure 9.**The aspect of stress $Q(\mathrm{r},t)$ for various values of ${\lambda}_{2}$ and fixed values for $\mu =0.09,\mathsf{\Omega}=1.2,R=1,p=1,s=1,\alpha =0.2,\beta =0.7,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5$ and ${\lambda}_{3}=55$.

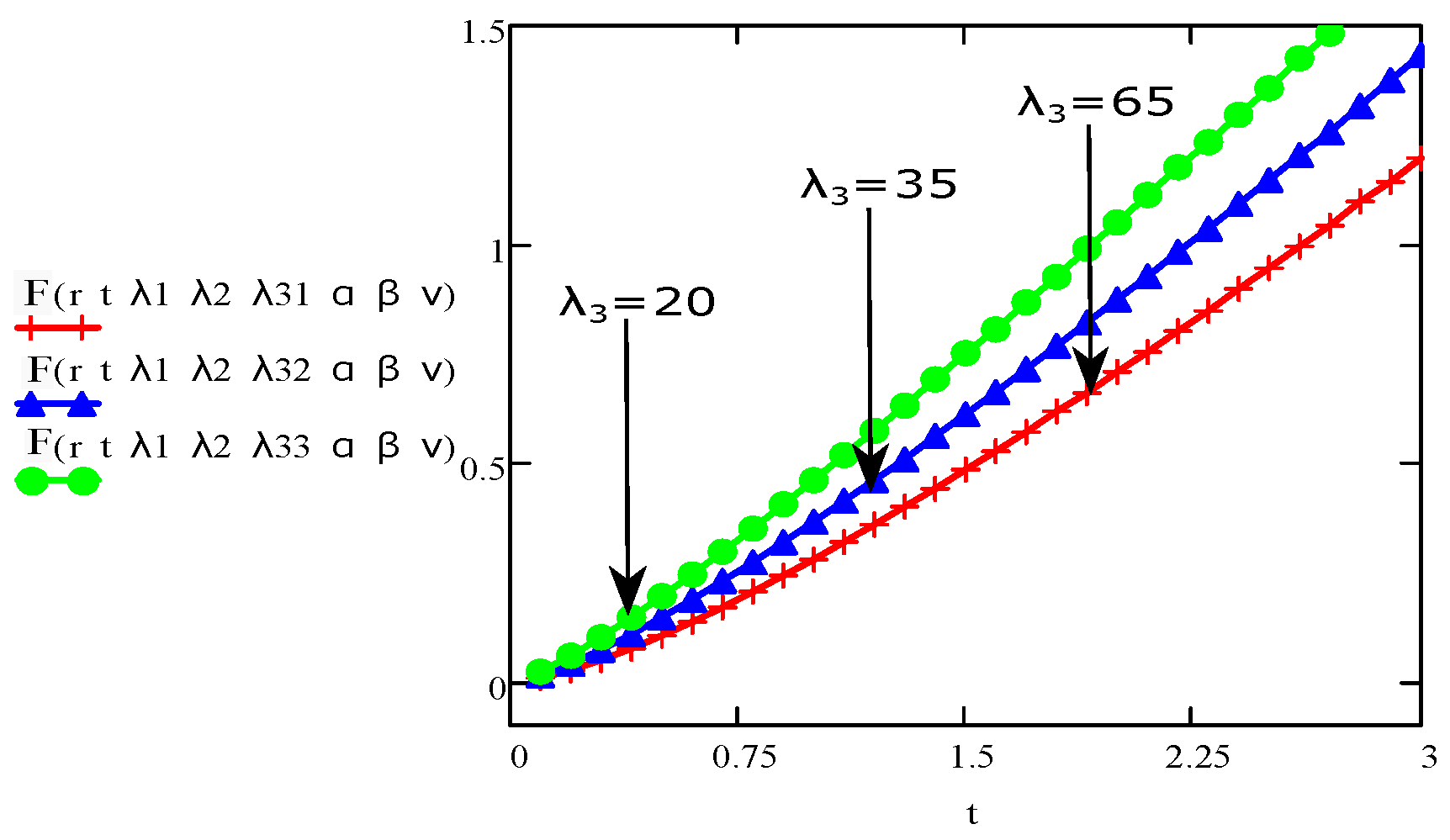

**Figure 10.**The aspect of velocity $F(\mathrm{r},t)$ for various values of ${\lambda}_{3}$ and fixed values for $\mathsf{\Omega}=1,R=1,p=1,s=1,\alpha =0.2,\beta =0.8,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5$ and ${\lambda}_{2}=20$.

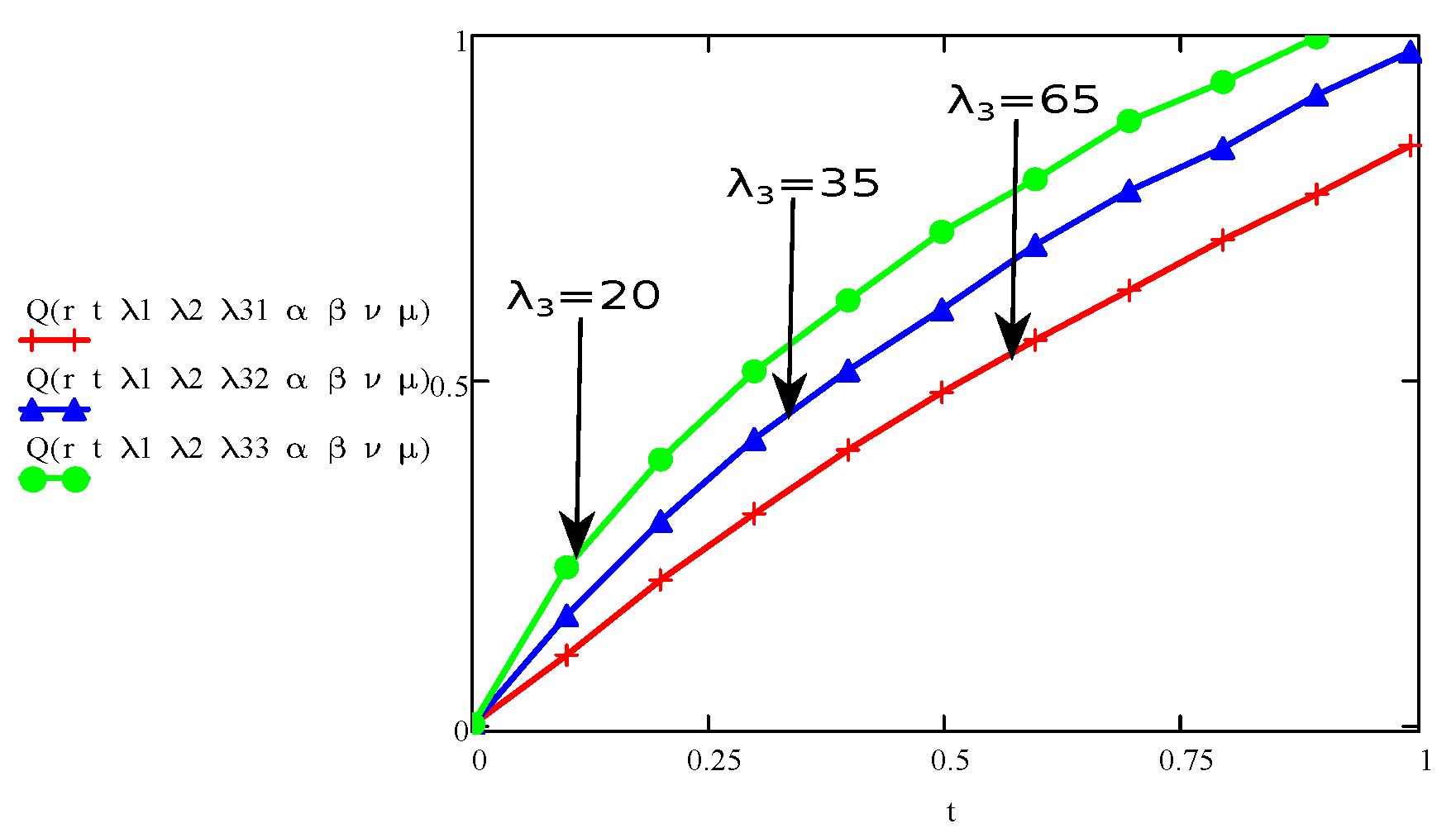

**Figure 11.**The aspect of stress $Q(\mathrm{r},t)$ for various values of ${\lambda}_{3}$ and fixed values for $\mu =0.09,\mathsf{\Omega}=1.2,R=1,p=1,s=1,\alpha =0.2,\beta =0.8,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5$ and ${\lambda}_{2}=20$.

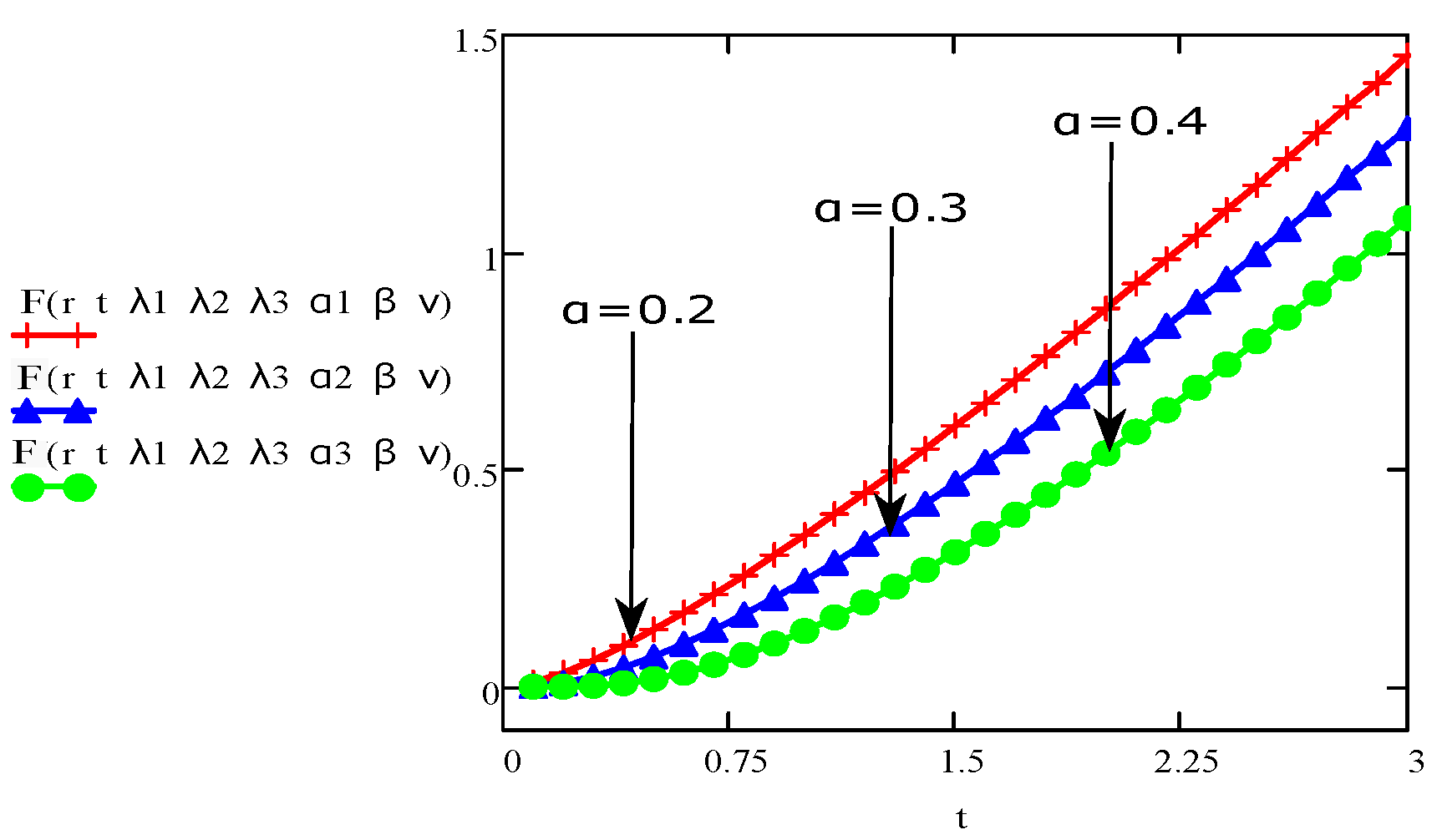

**Figure 12.**The aspect of velocity $F(\mathrm{r},t)$ for various values of $\alpha $ and fixed values for $\mathsf{\Omega}=1,R=1,p=1,s=1,\beta =0.7,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

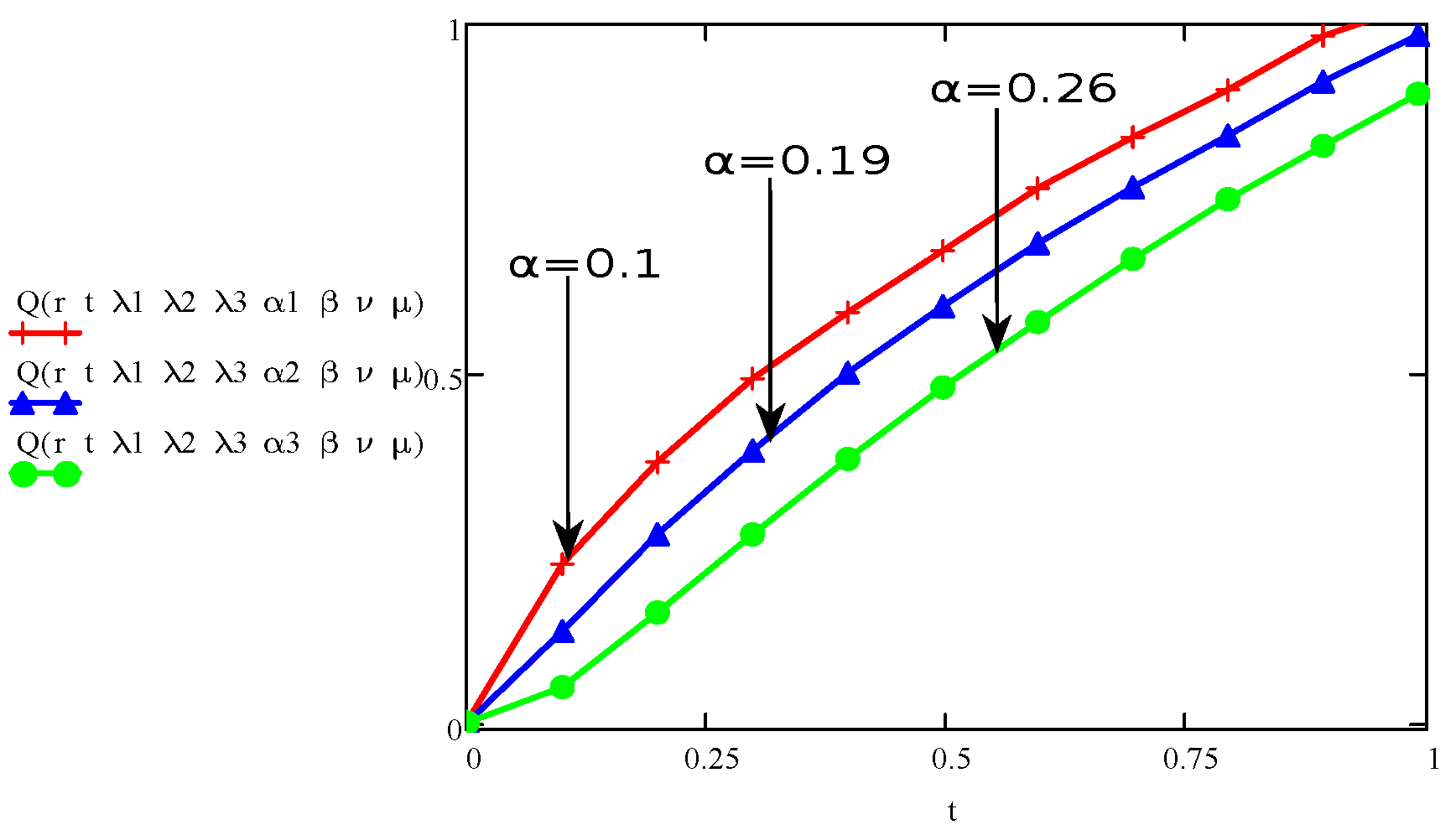

**Figure 13.**The aspect of stress $Q(\mathrm{r},t)$ for various values of $\alpha $ and fixed values for $\mu =0.09,\mathsf{\Omega}=1.2,R=1,p=1,s=1,\beta =0.7,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

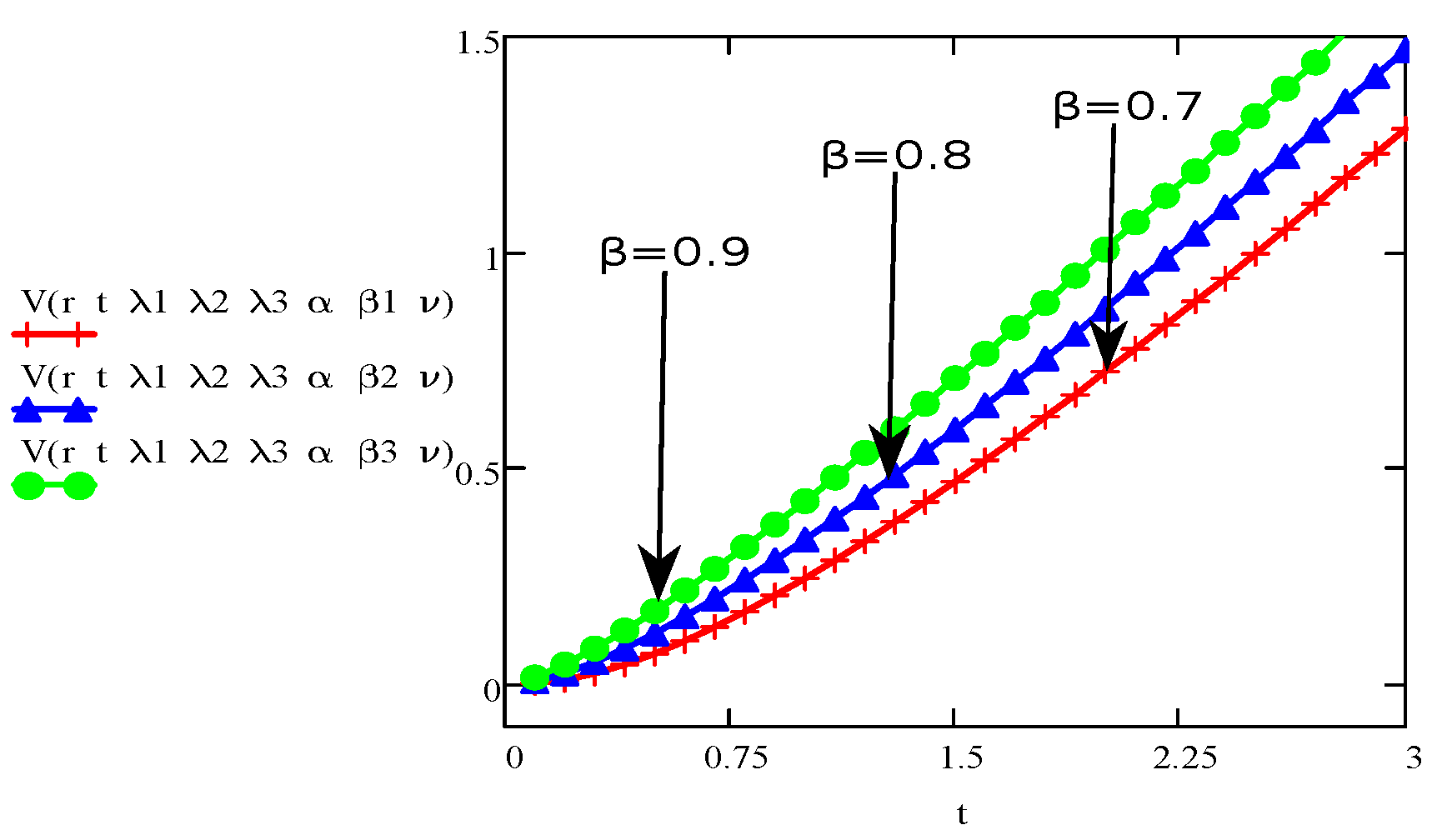

**Figure 14.**The aspect of velocity $F(\mathrm{r},t)$ for various values of $\beta $ and fixed values for $\mathsf{\Omega}=1,R=1,p=1,s=1,\alpha =0.3,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

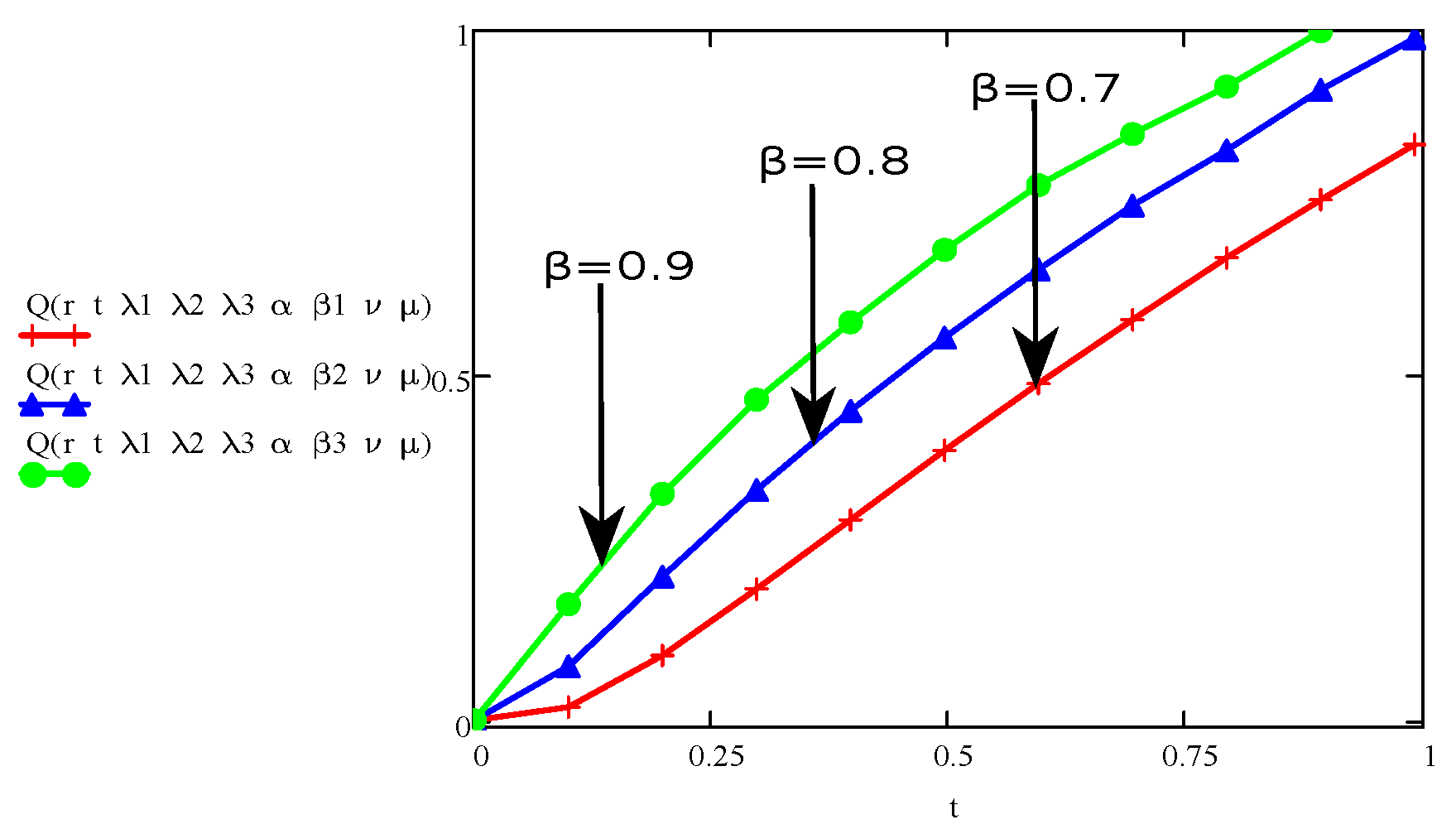

**Figure 15.**The aspect of stress $Q(\mathrm{r},t)$ for various values of $\beta $ and fixed values for $\mu =0.09,\mathsf{\Omega}=1.2,R=1,p=1,s=1,\alpha =0.3,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

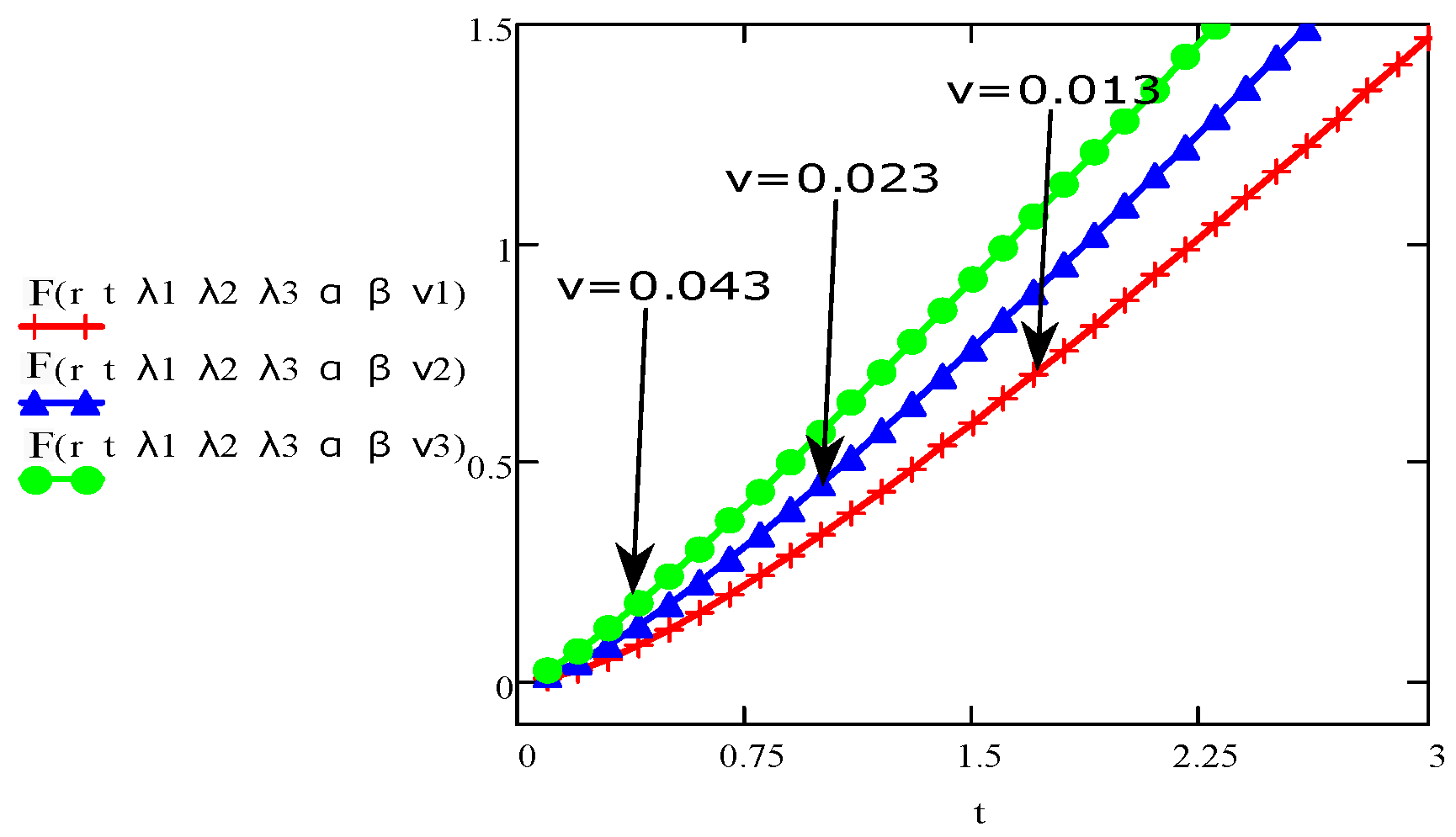

**Figure 16.**The aspect of velocity $F(\mathrm{r},t)$ for various values of $\nu $ and fixed values for $\mathsf{\Omega}=1,R=1,p=1,s=1,\alpha =0.3,\beta =0.8,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.

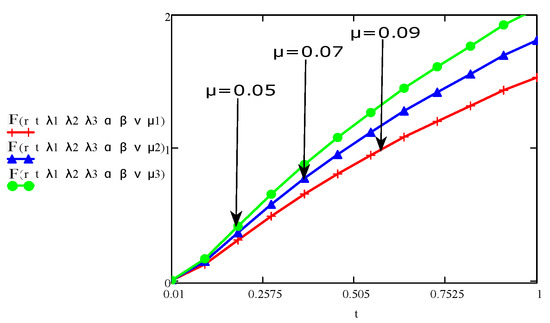

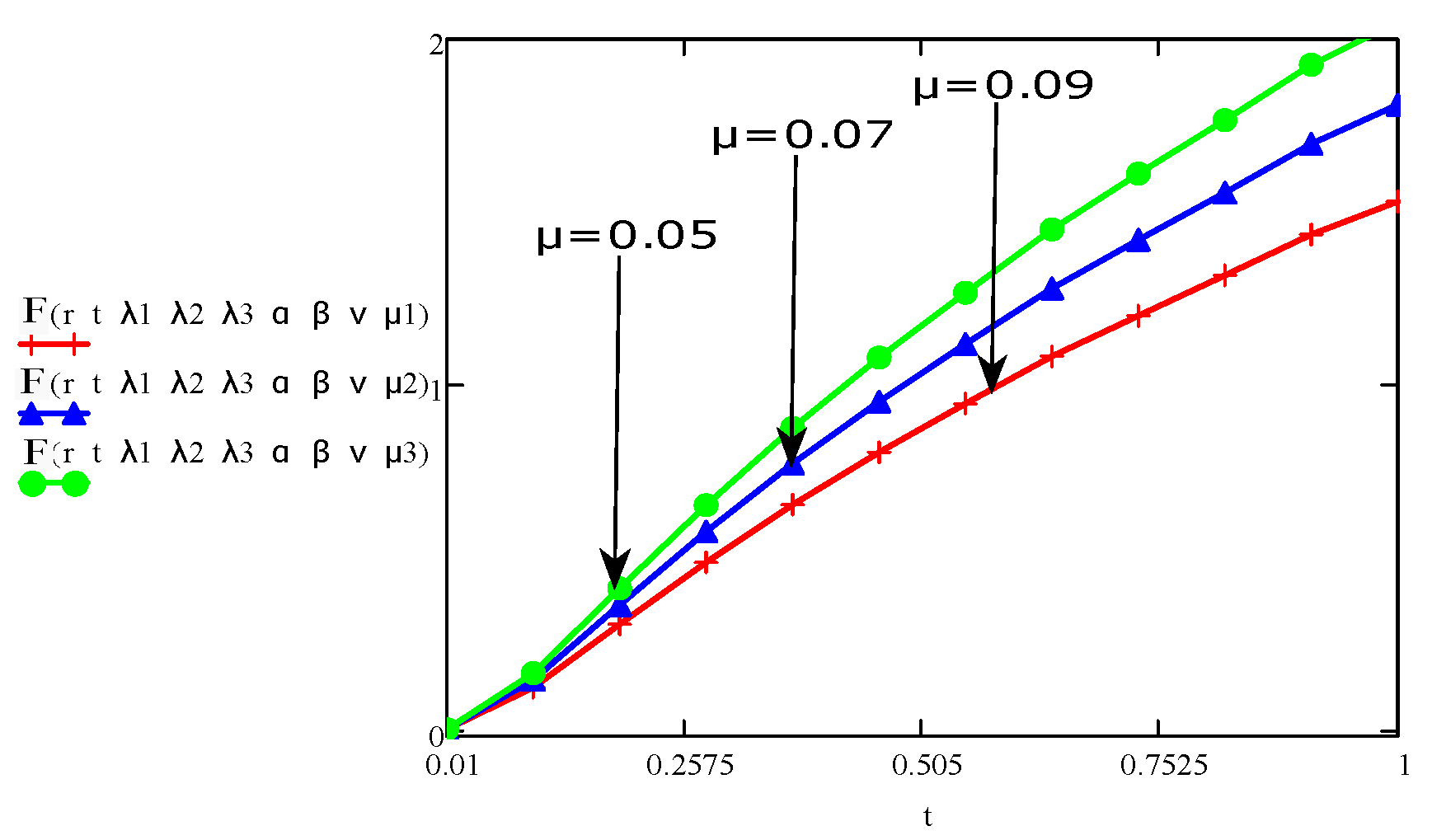

**Figure 17.**The aspect of stress $Q(\mathrm{r},t)$ for various values of $\mu $ and fixed values for $\mathsf{\Omega}=2.5,R=1,p=1,s=1,\alpha =0.3,\beta =0.8,\nu =0.013,n=12,\mathrm{r}=0.8,{\lambda}_{1}=5,{\lambda}_{2}=20$ and ${\lambda}_{3}=55$.
