# Coreness Variation Rule and Fast Updating Algorithm for Dynamic Networks

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

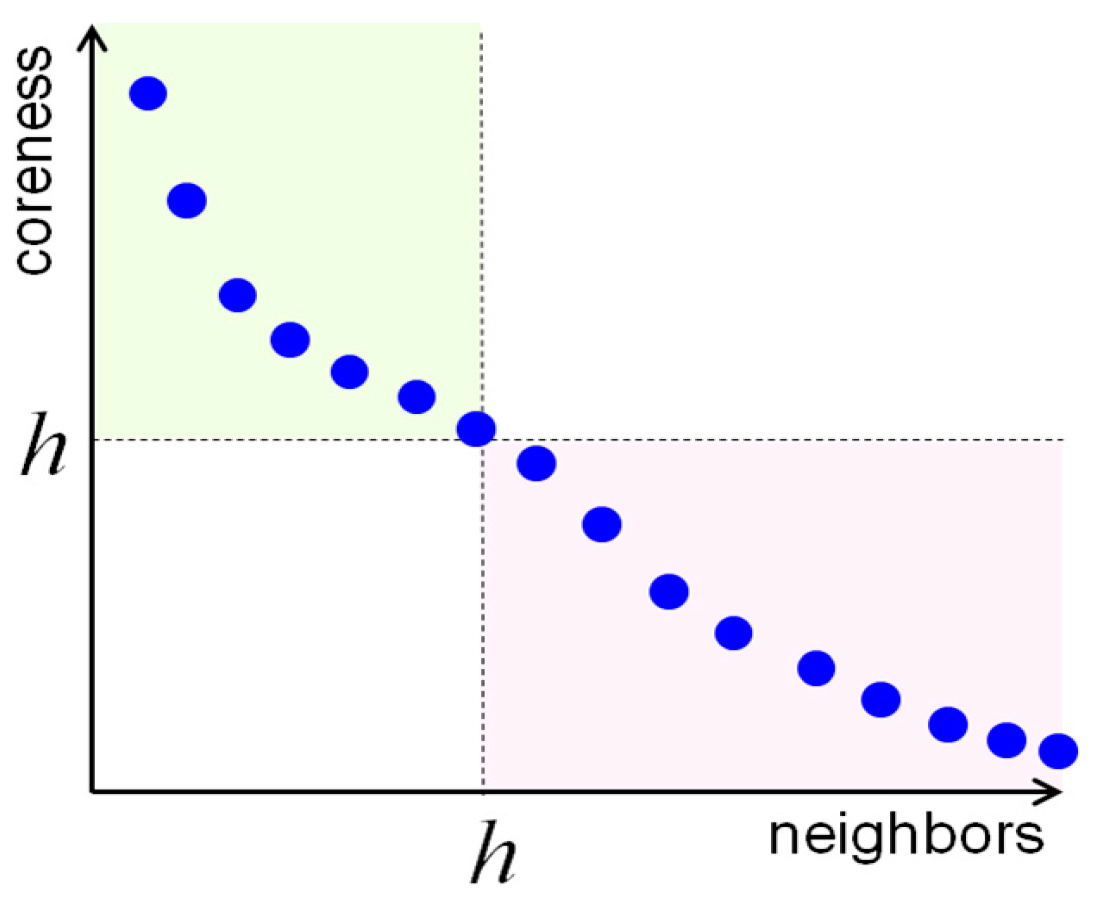

## 2. $\mathcal{H}$ Operator Method for Coreness Calculation

## 3. Coreness Variation in Dynamic Networks

#### 3.1. DE Experiments

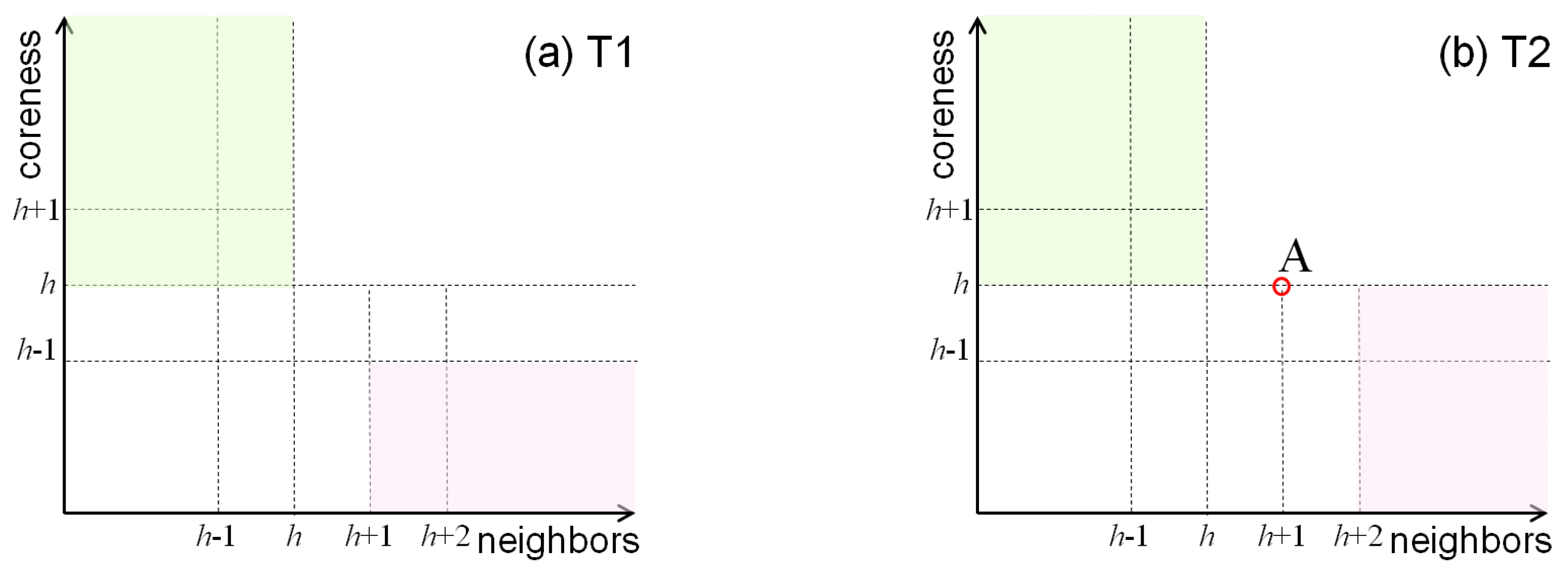

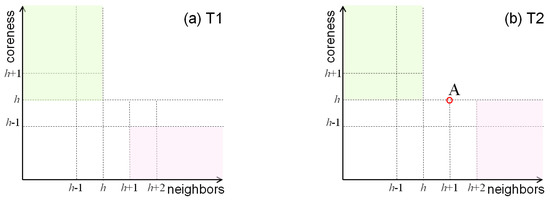

#### 3.1.1. Classification of Nodes with the Same Coreness

#### 3.1.2. Coreness Variation Rule and CHDE Algorithm

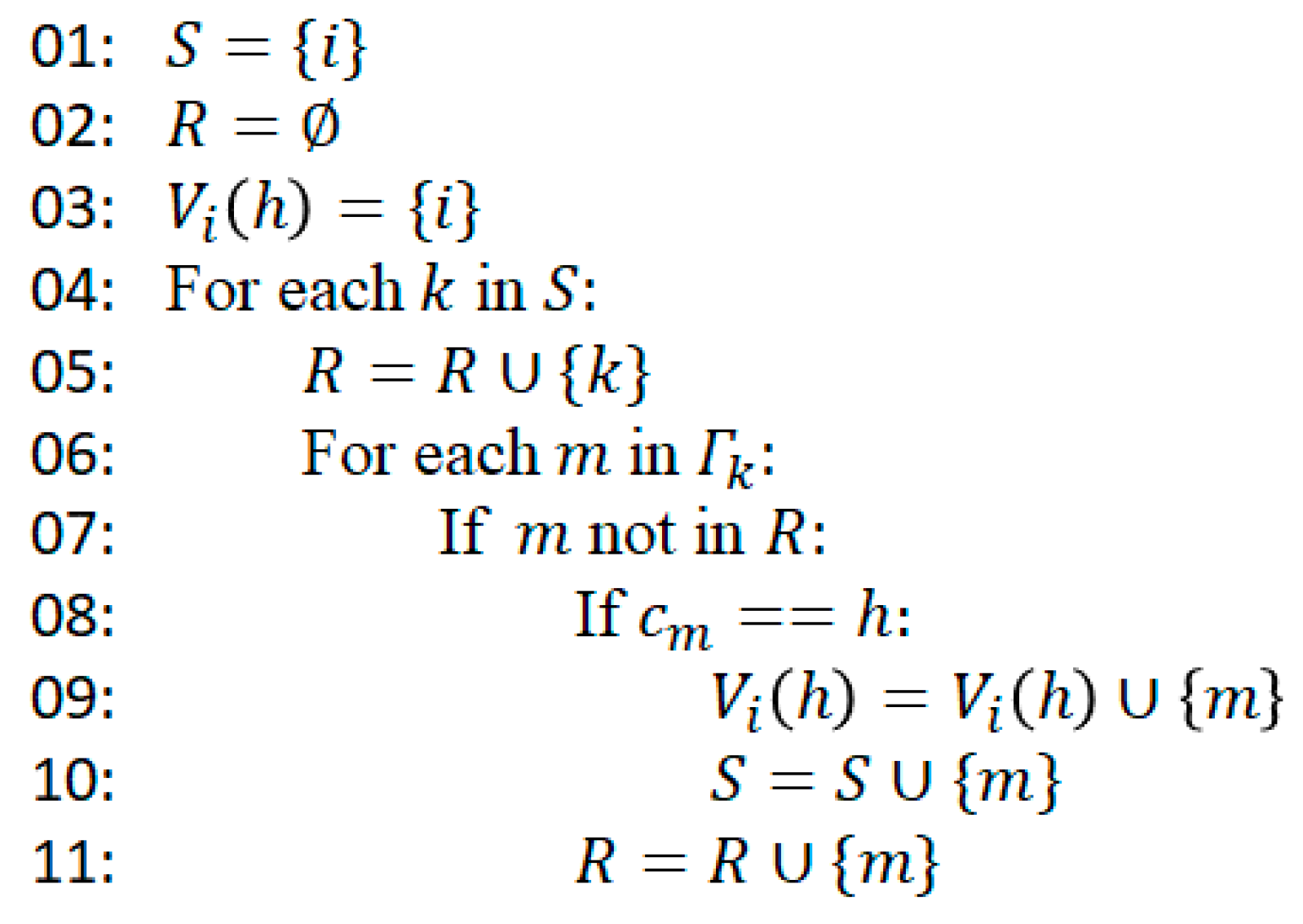

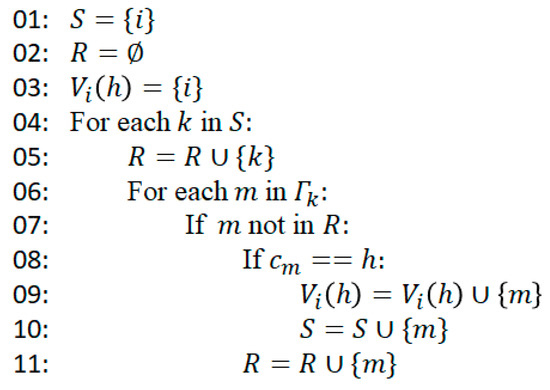

**Step 1**: Judge the type of node $i$. If $i\in T1$, then find out the connected subgraph ${V}_{i}\left(h\right)$ by the searching algorithm (Figure 4). Otherwise if $i\in T2$, the coreness of any node will not vary, and the CHDE algorithm ends.

**Step 2**: Update the coreness of all nodes in the connected subgraph ${V}_{i}\left(h\right)$ by the $\mathcal{H}$ operator method [29].

#### 3.2. AE Experiments

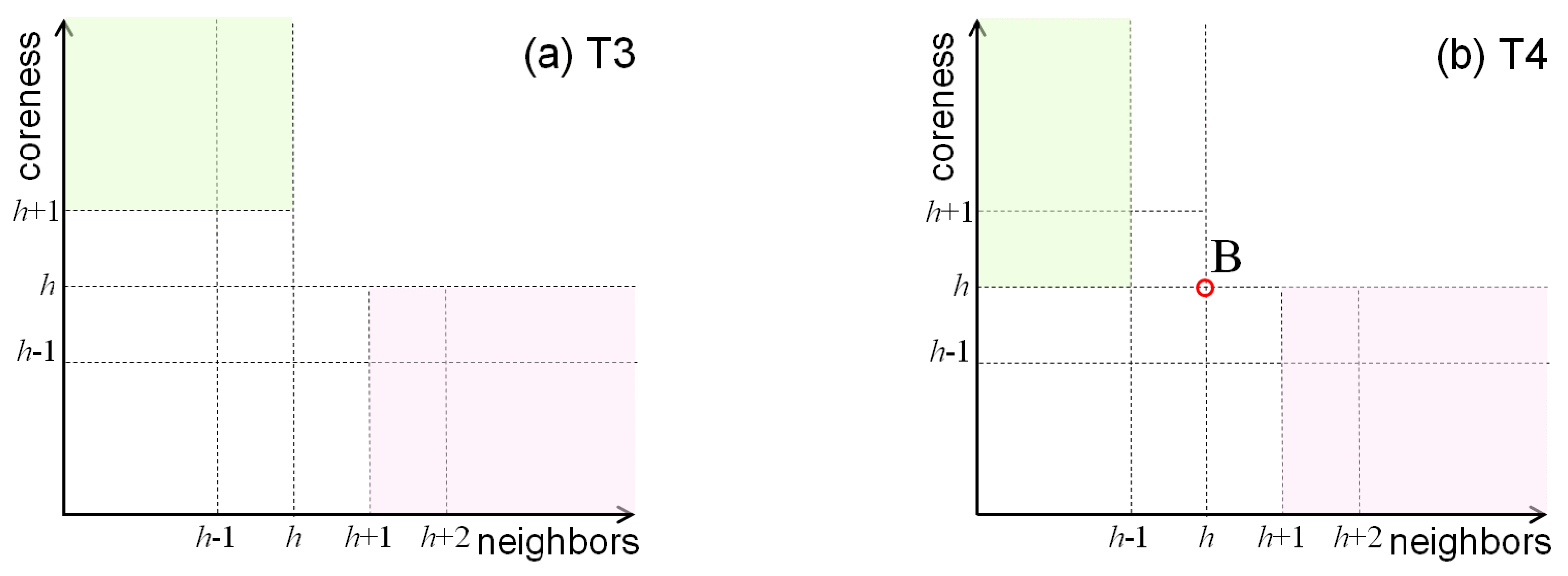

#### 3.2.1. Classification of Nodes with the Same Coreness

#### 3.2.2. Coreness Variation Rule and CHAE Algorithm

**Step1**: Judge the type of node $i$. If $i\in T4$, then find out the connected subgraph ${V}_{i}\left(h\right)$ by the searching algorithm (Figure 4). Otherwise, if $i\in T3$, ${c}_{i}^{AE}={c}_{i}+1=h+1$, then the CHAE algorithm ends.

**Step 2**: Set the coreness of all nodes in the connected subgraph ${V}_{i}\left(h\right)$ as $h+1$, then update the coreness of all nodes in ${V}_{i}\left(h\right)$ by the $\mathcal{H}$ operator method [29].

## 4. Case Study

#### 4.1. Computational Efficiency of CHDE Algorithm

#### 4.2. Computational Efficiency of CHAE Algorithm

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Yu, S.; Gao, L.; Xu, L.; Gao, Z.Y. Identifying influential spreaders based on indirect spreading in neighborhood. Phys. A
**2019**, 523, 418–425. [Google Scholar] [CrossRef] - Gao, L.; Shan, X.; Qin, Y.; Yu, S.; Xu, L.; Gao, Z.Y. Scaling tunable network model to reproduce the density-driven superlinear relation. Chaos
**2018**, 28, 033122. [Google Scholar] [PubMed] - Gao, L.; Miao, Y.; Qin, Y.; Zhao, X.; Gao, Z.Y. Finding topological center of a geographic space via road network. Phys. A
**2015**, 419, 128–133. [Google Scholar] [CrossRef] - Zeng, G.; Li, D.; Guo, S.; Gao, L.; Gao, Z.; Stanley, H.E.; Havlin, S. Switch between critical percolation modes in city traffic dynamics. Proc. Natl. Acad. Sci. USA
**2019**, 116, 23–28. [Google Scholar] [CrossRef] - Wang, P.; Lü, J.; Yu, X. Identification of Important Nodes in Directed Biological Networks: A Network Motif Approach. PLoS ONE
**2014**, 9, e106132. [Google Scholar] [CrossRef] [PubMed] - Pastor-Satorras, R.; Vespignani, A. Immunization of complex networks. Phys. Rev. E
**2002**, 65, 036104. [Google Scholar] [CrossRef] - Cohen, R.; Benavraham, D.; Havlin, S. Efficient immunization of populations and computers. Phys. Rev. Lett.
**2002**, 91, 12343. [Google Scholar] - Pastor-Satorras, R.; Castellano, C.; Van Mieghem, P.; Vespignani, A. Epidemic processes in complex networks. Rev. Mod. Phys.
**2015**, 87, 925–979. [Google Scholar] [CrossRef] [Green Version] - Leskovec, J.; Adamic, L.; Huberman, B. The dynamics of viral marketing. ACM Trans. Web.
**2007**, 1, 5. [Google Scholar] [CrossRef] [Green Version] - Albert, R.; Albert, I.; Nakarado, G.L. Structural vulnerability of the North American power grid. Phys. Rev. E
**2004**, 69, 025103. [Google Scholar] [CrossRef] - Bavelas, A. Communication patterns in task-oriented groups. J. Acoust. Soc. Am.
**1950**, 22, 725–730. [Google Scholar] [CrossRef] - Freeman, L. Centrality in social networks: Conceptual clarification. Soc. Netw.
**1979**, 1, 215–239. [Google Scholar] [CrossRef] - Hirsch, J. An index to quantify an individual’s scientific research output. Proc. Natl. Acad. Sci. USA
**2005**, 102, 16569–16572. [Google Scholar] [CrossRef] [PubMed] - Dorogovtsev, S.; Goltsev, A.; Mendes, J. K-core organization of complex networks. Phys. Rev. Lett.
**2006**, 96, 040601. [Google Scholar] [CrossRef] - Albert, R.; Jeong, H.; Barabasi, A.-L. Error and attack tolerance of complex networks. Nature
**2000**, 406, 378–482. [Google Scholar] [CrossRef] - Pastor-Satorras, R.; Vespignani, A. Epidemic spreading in scale-free networks. Phys. Rev. Lett.
**2001**, 86, 3200–3203. [Google Scholar] [CrossRef] [PubMed] - Cohen, R.; Erez, K.; ben-Avraham, D.; Havlin, S. Breakdown of the Internet under intentional attack. Phys. Rev. Lett.
**2001**, 86, 3682–3685. [Google Scholar] [CrossRef] - Kitsak, M.; Gallos, L.K.; Havlin, S.; Liljeros, F.; Muchnik, L.; Stanley, H.E.; Makse, H.A. Identification of influential spreaders in complex networks. Nat. Phys.
**2010**, 6, 888–893. [Google Scholar] [CrossRef] [Green Version] - Pei, S.; Muchnik, L.; Andrade, J.S., Jr.; Zheng, Z.; Makse, H.A. Searching for super spreaders of information in real-world social media. Sci. Rep.
**2014**, 4, 5547. [Google Scholar] [CrossRef] - Castellano, C.; Pastor-Satorras, R. Competing activation mechanisms in epidemics on networks. Sci. Rep.
**2012**, 2, 371. [Google Scholar] [CrossRef] [PubMed] - Liu, Y.; Tang, M.; Zhou, T.; Do, Y. Core-like groups result in invalidation of identifying super-spreader by k-shell decomposition. Sci. Rep.
**2015**, 5, 9602. [Google Scholar] [CrossRef] [PubMed] - Hu, Q.; Gao, Y.; Ma, P.; Yin, Y.; Zhang, Y.; Xing, C. A new approach to identify influential spreaders in complex networks. Acta Phys. Sin.
**2013**, 62, 140101. [Google Scholar] - Seidman, S.B. Network structure and minimum degree. Soc. Netw.
**1983**, 5, 269–287. [Google Scholar] [CrossRef] - Batagelj, V.; Zaversnik, M. An O(m) algorithm for cores decomposition of networks. arXiv, 2003; arXiv:cs/0310049. [Google Scholar]
- Sarıyüce, A.E.; Gedik, B.; Jacques-Silva, G.; Wu, K.L.; Çatalyürek, Ü.V. Incremental k-core decomposition: Algorithms and evaluation. VLDB J.
**2016**, 25, 425–447. [Google Scholar] [CrossRef] - Jin, H.; Wang, N.; Yu, D.; Hua, Q.S.; Shi, X.; Xie, X. Core Maintenance in Dynamic Graphs: A Parallel Approach Based on Matching. IEEE Trans. Parallel Distrib. Syst.
**2018**, 29, 2416–2428. [Google Scholar] [CrossRef] [Green Version] - Wen, D.; Qin, L.; Zhang, Y.; Lin, X.; Yu, J.X. I/O Efficient Core Graph Decomposition: Application to Degeneracy Ordering. IEEE Trans. Knowl. Data Eng.
**2019**, 31, 75–90. [Google Scholar] [CrossRef] - Lü, L.; Zhou, T.; Zhang, Q.; Stanley, H.E. The h-index of a network node and its relation to degree and coreness. Nat. Commun.
**2016**, 7, 10168. [Google Scholar] [CrossRef] - Lee, Y.; Zhou, T. Fast asynchronous updating algorithms for k-shell indices. Phys. A
**2017**, 482, 524–531. [Google Scholar] [CrossRef]

**Table 1.**Basic topological characteristics of five real networks. $\overline{k}$ is the average degree; $L$ is the average shortest path length; $C$ is the average clustering coefficient.

Network | $\mathit{N}$ | $\mathit{M}$ | $\overline{\mathit{k}}$ | $\mathit{L}$ | $\mathit{C}$ |
---|---|---|---|---|---|

1133 | 5450 | 9.622 | 3.606 | 0.220 | |

US Power Grid | 4941 | 6594 | 2.669 | 18.990 | 0.080 |

Petster-Hamster | 2426 | 16,631 | 13.711 | 3.588 | 0.538 |

ca-AstroPh | 18771 | 198,050 | 21.102 | 4.194 | 0.631 |

loc-brightkite | 58,228 | 214,078 | 7.035 | 3.789 | 0.172 |

${\mathit{c}}_{\mathit{i}}\mathbf{<}{\mathit{c}}_{\mathit{j}}$ | ${\mathit{c}}_{\mathit{i}}\mathbf{=}{\mathit{c}}_{\mathit{j}}$ | ||||
---|---|---|---|---|---|

DE | (1) $i\in T1$ | (2) $i\in T2$ | (3) $i\in T1$ and $j\in T1$ | (4) $i\in T1$ and $j\in T2$ | (5) $i\in T2$ and $j\in T2$ |

AE | (1) $i\in T3$ | (2) $i\in T4$ | (3) $i\in T3$ and $j\in T3$ | (4) $i\in T3$ and $j\in T4$ | (5) $i\in T4$ and $j\in T4$ |

**Table 3.**Relative computational efficiency (${R}_{\mathcal{H},DE}$) of CHDE Algorithm for five real networks.

Real Network | ${\mathit{R}}_{\mathcal{H}\mathbf{,}\mathit{D}\mathit{E}}$ | |||
---|---|---|---|---|

${\mathit{c}}_{\mathit{i}}\mathbf{<}{\mathit{c}}_{\mathit{j}}$ | ${\mathit{c}}_{\mathit{i}}\mathbf{=}{\mathit{c}}_{\mathit{j}}$ | |||

$\mathit{i}\mathbf{\in}\mathit{T}\mathbf{1}$ | $\mathit{i}\mathbf{\in}\mathit{T}\mathbf{1}$ $\mathit{j}\mathbf{\in}\mathit{T}\mathbf{1}$ | $\mathit{i}\mathbf{\in}\mathit{T}\mathbf{1}$ $\mathit{j}\mathbf{\in}\mathit{T}\mathbf{2}$ | ||

BEST | 426.98 | 301.58 | 281.19 | |

AVERAGE | 200.89 | 50.80 | 31.73 | |

US Power Grid | BEST | 474.56 | 245.87 | 379.19 |

AVERAGE | 285.67 | 20.30 | 60.02 | |

Petster-Hamster | BEST | 772.38 | 801.65 | 697.01 |

AVERAGE | 409.58 | 229.86 | 145.83 | |

ca-AstroPh | BEST | 1185.59 | 1139.01 | 1079.72 |

AVERAGE | 648.10 | 251.57 | 186.91 | |

loc-brightkite | BEST | 986.95 | 1125.96 | 1066.01 |

AVERAGE | 526.01 | 685.42 | 416.63 |

**Table 4.**Relative computational efficiency (${R}_{\mathcal{H},AE}$) of CHAE Algorithm for five real networks.

Real Network | ${\mathit{R}}_{\mathcal{H}\mathbf{,}\mathit{A}\mathit{E}}$ | |||
---|---|---|---|---|

${\mathit{c}}_{\mathit{i}}\mathbf{<}{\mathit{c}}_{\mathit{j}}$ | ${\mathit{c}}_{\mathit{i}}\mathbf{=}{\mathit{c}}_{\mathit{j}}$ | |||

$\mathit{i}\mathbf{\in}\mathit{T}\mathbf{4}$ | $\mathit{i}\mathbf{\in}\mathit{T}\mathbf{3}$ $\mathit{j}\mathbf{\in}\mathit{T}\mathbf{4}$ | $\mathit{i}\mathbf{\in}\mathit{T}\mathbf{4}$ $\mathit{j}\mathbf{\in}\mathit{T}\mathbf{4}$ | ||

BEST | 157.18 | 238.72 | 227.78 | |

AVERAGE | 9.28 | 74.15 | 54.71 | |

US Power Grid | BEST | 291.71 | 312.42 | 285.64 |

AVERAGE | 8.93 | 80.33 | 56.70 | |

Petster-Hamster | BEST | 874.83 | 547.72 | 512.52 |

AVERAGE | 104.43 | 158.35 | 114.82 | |

ca-AstroPh | BEST | 1018.30 | 1055.64 | 1059.94 |

AVERAGE | 170.80 | 233.28 | 229.48 | |

loc-brightkite | BEST | 821.53 | 955.76 | 857.46 |

AVERAGE | 271.96 | 332.20 | 304.58 |
