Article

A Study of the Effect of Medium Viscosity on Breakage Parameters for Wet Grinding

by
Adriana M. Osorio
1,
Moisés O. Bustamante
2,
Gloria M. Restrepo
1,
Manuel M. M. López
3 and
Juan M. Menéndez-Aguado
3,*
1
Facultad de Ingeniería, Universidad de Antioquia, Calle 70 # 52-21, 050010 Medellin, Colombia
2
Instituto de Minerales CIMEX, Universidad Nacional de Colombia, Carrera 65 #63-20, 050010 Medellin, Colombia
3
Escuela Politécnica de Mieres, Universidad de Oviedo, Calle Gonzalo Gutiérrez Quirós, s/n 33600 Mieres, Spain
*
Author to whom correspondence should be addressed.
Symmetry 2019, 11(10), 1202; https://doi.org/10.3390/sym11101202
Submission received: 24 July 2019 / Revised: 17 September 2019 / Accepted: 19 September 2019 / Published: 25 September 2019
(This article belongs to the Special Issue Symmetry in Mechanical Engineering)

Abstract

:
The rheological behavior of mineral slurries shows the level of interaction or aggregation among particles, being a process control variable in processes such as slurry transportation, dehydration, and wet grinding systems. With the aim to analyze the effect of medium viscosity in wet grinding, a series of monosize grinding ball mill tests were performed to determine breakage parameters, according to the generally accepted kinetic approach of grinding processes. A rheological modifier (polyacrylamide, PAM) was used to modify solutions viscosity. A model was proposed by means of dimensional analysis (Buckingham’s Pi theorem) in order to determine the behavior of the specific breakage rate (Sj) for a ball grinding process in terms of the rheology of the system. In addition to this, a linear adjustment was established for the relationship between specific breakage rates with and without PAM addition, based on the reduced viscosity, μr. Furthermore, within a certain interval of viscosity, it was proved that an increment of viscosity can increase the specific breakage rate, and consequently the grinding degree.

1. Introduction

The importance of comminution operations in the mineral processing industry has bolstered in the last decades the search for greater process knowledge. More accurate models have been proposed [1,2,3,4,5,6,7,8,9] with the aim to get a better phenomenological processes description and to overcome the apparent technological barriers related to energy efficiency in grinding operations. In the last decades, considerable work has been done on the optimization of energy consumption in grinding mills using phenomenological grinding kinetics models based on population balance (PB) considerations [10]. PB modeling is based on first order kinetics and uses two functions, namely the specific rate of breakage Si and the breakage function (bij), which provide the fundamental size-mass balance equation for fully mixed batch grinding operations.
The rheological behavior of mineral slurries shows the level of interaction or aggregation among particles, being a process control variable in processes such as slurry transportation, dehydration, and wet grinding systems [11]. Ball mill grinding is one of the most used industrial comminution solutions [12,13,14], and it is a process that depends on different conditions such as mill dimensions, rotation speed, filling degree, ball size distribution in the charge, feed size distribution, etc. An exhaustive and broad review of the importance of rheology in mineral processing has been recently published by Cruz et al. [15].
The importance of solids concentration and slurry viscosity to determine the operating conditions has been remarked by Yin et al. [16]. It seems proven that the physic–chemical properties in the slurry can be modified in wet grinding due to changes in physical and chemical conditions (such as size distribution, concentration of solids, temperature, shear rate, pH value, the use of grinding aids, etc.). The use of polyacrylamide (PAM) in water as a viscosity modifier has been broadly studied previously [17,18].
The main goal of this study was to set a model by means of dimensional analysis in order to analyze the behavior of the specific breakage rate (Sj) for a ball grinding process in terms of the rheology of the system. In addition to this, a linear adjustment could be established for the relationship between specific breakage rates with and without PAM addition, based on the reduced viscosity, μr. Furthermore, within the validity interval of viscosity, it will be studied whether an increment of viscosity can increase the specific breakage rate, and consequently the grinding degree.

2. Methodology

2.1. Materials

To carry out the tests, representative samples in a quartz ore quarry were selected and characterized with X-ray fluorescence in a Bruker XRF, model S-4 Pioneer. Trace element detection was performed through ICP-OES, after digestion in aqua regia, in a Varian, model Vista-PRO. To perform the mineralogical characterization through X-ray diffraction, a Bruker XRD device, model D8 Advance was used. Results of XRF characterization are shown in Table 1, and ICP-OES results are shown in Table 2.
Mineralogical analysis results are shown in Figure 1, in which it is clear the abundance of quartz, with the presence of clay components as illite and nacrite. This sample has been used in previous research work and further information about it can be found in Menendez-Aguado et al. [19].

2.2. Methods

To carry out the grinding tests, quartz monosize slurries were carefully prepared through sieving, and ASTM standard sieves were used to prepare the samples and determine the particle sizes. Quartz monosizes were prepared through careful wet sieving within the intervals 53/45, 45/38, and 38/30 microns, naming each monosize with the greater size in the interval. Slurries with different viscosity fluids were prepared (1, 4, 6 y 8 cP); suspension liquid viscosity was modified with different levels of PAM addition to the suspending liquid, distilled water. The PAM used was commercial grade (Sigma-Aldrich, CAS number 9003-05-8), with average molecular weight 40,000 g/mol. It is important to remark here that the low value of the molecular weight dismiss the possibility of aggregation effects on particles [20,21]. Viscosity measurements were carried out in a Brookfield viscometer with accessories, and specific gravity of suspensions was determined using a Marcy scale.
In order to determine breakage parameters, more specifically the specific breakage rate, a series of grinding tests were carried out at each fluid viscosity (including dry grinding test) and at each grinding time (0.5, 1, 3, 5, and 10 min) in laboratory a jar mill (Figure 2). Each test was repeated for each ball size diameter. A block diagram depicting the grinding tests performed for each monosize is shown in Figure 3. The grinding parameters that were fixed during the tests are shown in Table 3. Grinding tests were performed in a laboratory ball mill (0.16 m in diameter and 0.18 m long), with grinding charge made of manganese steel alloy balls, with diameters 2, 3, and 4 cm. To carry out the viscosity measurements, a Brookfield RVDV-2 +Pro device was used (Figure 4), with a shear rate of 66.93 s−1. This value was experimentally determined considering a fixed rotational speed of 100 rpm, and according to the Brookfield recommendations for the selected configuration.
Buckingham’s Pi theorem was used to determine the final model. It states that if there are n variables in a problem and these variables contain m primary dimensions the equation relating all the variables will have (n−m) dimensionless groups, which are referred to as Π groups. The Π groups must be independent of each other and no one group should be formed by multiplying together powers of other groups. [22,23,24].
The objective was to analyze the specific breakage rate, Sj, in terms of the variables that it is expected to have more influence on its behavior:
  • viscosity of the suspending fluid, μl;
  • viscosity of the suspension, μs;
  • particle diameter, dp;
  • density of the grinding media, ρb.

3. Results and Discussion

Table 4 shows the specific breakage rates found for the different grinding tests, in the case of 2, 3, and 4 cm ball diameter. The correlation coefficients show that the results of the tests follow a first order law. These values are similar to those mentioned by Tangsathitkulchai [25,26], who found values of specific breakage rate for quartz grinding between 0.21 and 0.24 min−1.
Figure 5, Figure 6 and Figure 7 show the effect of suspension viscosity on the specific breakage rate, Sj, in the case of each monosize. Greater values of Sj pose higher probability of particle breakage, so in general terms it seems that, within certain intervals, an increase in the viscosity of suspension can entail an increase in the breakage probability. This effect is more evident in the case of monosize 53 microns (Figure 5), while in the case of monosizes 45 and 38 microns over some value of suspension viscosity, an increase in suspension viscosity reduces the probability of particle breakage (Figure 6 and Figure 7). This behavior is different in the case of different ball sizes in the grinding charge, although in the case of 3 cm the variations in Sj due to suspension viscosity changes is less noticeable. This probably can be caused by hydrodynamic reasons due to the combination of particle and ball dimensions, and rheological conditions, but this way of analysis evidences that the relationships among variables and their influence cannot be easily analyzed and understood, for further research should be performed to define a clear picture of the phenomenological model. This is the reason why an alternative way of analyzing these data was tried and introduced in this paper. To do this, the following notation is going to be used: We will refer as Sjw in the case of specific breakage rate when the fluid is just water, and Sjd in the rest of the cases in which the water properties have been modified with the dissolution of the abovementioned reagent.
With the aim of performing an analysis of the data obtained in the laboratory tests, the effect of different variables was considered when defining the Π groups. According to the Buckingham’s Pi theorem, the following non-dimensional Π groups were defined:
Π 1 = S j w S j d
Π 2 = μ s ρ b · S j d · d p 2
Π 3 = μ l ρ b · S j d · d p 2
Being dimensionless parameters, the following relationship can be considered:
Π 2 Π 3 = μ s μ l = μ r
where μr is the reduced viscosity.
According to the expressions above, when plotting Π1 versus Π23 (see Figure 8) we can analyze the behavior the specific grinding rate at different specific gravities as a function of μr. Figure 8, Figure 9 and Figure 10 show the behavior of the abovementioned relationship for the systems studied. In all cases, an increase of μr poses a decrease in Π1, that is, an increase in Sjd. In most of the cases the linearity obtained can be satisfactory, although in the case of 2 cm diameter balls, the R2 values are lower in the case of the monosizes 45 and 38 microns.
It can be observed that there is a reduced viscosity range for which the relationship between the specific fracture rates can be considered linear. The coefficients of the models that represent each system and the suspending fluid viscosity range for which it is valid are shown in Table 5 below.
Results suggest that the viscosity of the suspension fluid influences the specific breakage rate, and that this influence is different depending on some other conditions, as is the case of ball diameter. The explanation to this phenomenon is that within a given range, an increase in the viscosity increases the chance of particle breakage as the mobility decreases within the slurry. Besides, when the viscosity is increased over a given range, the positive effect of decreasing particle mobility on grinding kinetics is reduced due to energy dissipation in ball dynamics, resulting in an inefficient fragmentation process. Thus, it could be stated that under any grinding conditions there can be defined a fluid viscosity that maximizes the breakage kinetics, and this can be an interesting strategy to optimize the grinding process from the point of view of power efficiency. Nevertheless, further research is needed to get a better understanding of the process and to set a reliable conceptual background in the development of that optimization strategy.

4. Conclusions

The influence of fluid viscosity on specific breakage rate has been studied under different test conditions. In general terms, specific breakage rate can be modified when increasing the suspension viscosity, within certain ranges. For the test conditions, that relationship could be established using the dimensional analysis by means of Pi-Buckingham’s theorem for different grinding conditions. Results suggest that there is a reduced viscosity range for which the relationship between the specific fracture rates can be considered linear. Furthermore, it can be stated that under any grinding conditions a fluid viscosity that maximizes the breakage kinetics can be defined, and this can be an interesting strategy to optimize the grinding process from the point of view of power efficiency. Nevertheless, further research is needed to get a better understanding of the process and to set a reliable conceptual background in the development of that optimization strategy.

Author Contributions

Conceptualization, A.M.O. and M.O.B.; Methodology, J.M.M.-A. and A.M.O.; Software, A.M.O. and G.M.R.; Formal analysis, A.M.O.; Investigation, A.M.O. and J.M.M.-A.; Writing—original draft preparation, A.M.O., M.O.B. and G.M.R.; Writing—review and editing, J.M.M.-A. and M.M.M.L.; Supervision, J.M.M.-A.; Project administration, A.M.O. and G.M.R.; Funding acquisition, A.M.O. and J.M.M.-A.

Funding

This research received no external funding.

Acknowledgments

Authors thank to COLCIENCIAS, the University of Antioquia (Colombia) and OPTIMORE H2020 project (Grant n. 642201) for research support.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Coello Velázquez, A.L.; Menéndez-Aguado, J.M.; Brown, R.L. Grindability of lateritic nickel ores in Cuba. Powder Technol. 2008, 182, 113–115. [Google Scholar] [CrossRef]
  2. Aguado, J.M.M.; Velázquez, A.L.C.; Tijonov, O.N.; Díaz, M.A.R. Implementation of energy sustainability concepts during the comminution process of the Punta Gorda nickel ore plant (Cuba). Powder Technol. 2006, 170, 153–157. [Google Scholar] [CrossRef]
  3. Umucu, Y.; Altınigne, M.Y.; Deniz, V. The effects of ball types on breakage parameters of barite. J. Pol. Min. Eng. Soc. 2014, 15, 113–117. [Google Scholar]
  4. Zhang, W. Optimizing Performance of SABC Comminution Circuit of the Wushan Porphyry Copper Mine—A Practical Approach. Minerals 2016, 6, 127. [Google Scholar] [CrossRef]
  5. Liang, G.; Wei, D.; Xu, X.; Xia, X.; Li, Y. Study on the Selection of Comminution Circuits for a Magnetite Ore in Eastern Hebei, China. Minerals 2016, 6, 39. [Google Scholar] [CrossRef]
  6. Petrakis, E.; Komnitsas, K. Improved Modeling of the Grinding Process through the Combined Use of Matrix and Population Balance Models. Minerals 2017, 7, 67. [Google Scholar] [CrossRef]
  7. Mariño-Salguero, J.; Jorge, J.; Menéndez-Aguado, J.M.; Álvarez-Rodriguez, B.; De Felipe, J.J. Heat generation model in the ball-milling process of a tantalum ore. Miner. Metall. Process. 2017, 34, 10–19. [Google Scholar] [CrossRef]
  8. Pedrayes, F.; Norniella, J.G.; Melero, M.G.; Menéndez-Aguado, J.M.; del Coz-Díaz, J.J. Frequency domain characterization of torque in tumbling ball mills using DEM modelling: Application to filling level monitoring. Powder Technol. 2018, 323, 433–444. [Google Scholar] [CrossRef]
  9. Lee, H.; Kim, K.; Lee, H. Analysis of grinding kinetics in a laboratory ball mill using population-balance-model and discrete-element-method. Adv. Powder Technol. 2019. [Google Scholar] [CrossRef]
  10. Petrakis, E.; Stamboliadis, E.; Komnitsas, K. Identification of Optimal Mill Operating Parameters during Grinding of Quartz with the Use of Population Balance Modeling. KONA Powder Part. J. 2017, 34, 213–223. [Google Scholar] [CrossRef] [Green Version]
  11. Muster, T.H.; Prestidge, C.A. Rheological investigations of sulphide mineral slurries. Miner. Eng. 1995, 8, 1541–1555. [Google Scholar] [CrossRef]
  12. Klimpel, R.R. Slurry rheology influence on the performance of mineral/coal grinding circuits. Part I. Miner. Eng. 1982, 34, 1665–1688. [Google Scholar]
  13. Klimpel, R.R. Slurry rheology influence on the performance of mineral/coal grinding circuits. Part II. Miner. Eng. 1982, 35, 21–26. [Google Scholar]
  14. Ding, Z.; Yin, Z.; Liu, L.; Chen, Q. Effect of grinding parameters on the rheology of pyrite-heptane slurry in a laboratory stirred media mill. Miner. Eng. 2007, 20, 701–709. [Google Scholar] [CrossRef]
  15. Cruz, N.; Forster, J.; Bobicki, E.R. Slurry rheology in mineral processing unit operations: A critical review. Can. J. Chem. Eng. 2019, 97, 2102–2120. [Google Scholar] [CrossRef]
  16. Yin, Z.; Peng, Y.; Zhu, Z.; Ma, C.; Yu, Z.; Wu, G. Effect of mill speed and slurry filling on the charge dynamics by an instrumented ball. Adv. Powder Technol. 2019, 30, 1611–1616. [Google Scholar] [CrossRef]
  17. Barvenik, F.W. Polyacrylamide characteristics related to soil applications. Soil Sci. 1994, 158, 235–243. [Google Scholar] [CrossRef]
  18. Jung, J.; Jang, J.; Ahn, J. Characterization of a Polyacrylamide Solution Used for Remediation of Petroleum Contaminated Soils. Materials 2016, 9, 16. [Google Scholar] [CrossRef] [PubMed]
  19. Menéndez-Aguado, L.D.; Marina Sánchez, M.; Rodríguez, M.A.; Coello Velázquez, A.L.; Menéndez-Aguado, J.M. Recycled Mineral Raw Materials from Quarry Waste Using Hydrocyclones. Materials 2019, 12, 2047. [Google Scholar] [Green Version]
  20. Schild, H.G. Poly(N-isopropylacrylamide): Experiment. theory and application. Prog. Polym. Sci. 1992, 17, 163–249. [Google Scholar] [CrossRef]
  21. Nasser, M.S.; James, A.E. The effect of polyacrylamide charge density and molecular weight on the flocculation and sedimentation behaviour of kaolinite suspensions. Sep. Purif. Technol. 2006, 52, 241–252. [Google Scholar] [CrossRef]
  22. Langhaar, H.L. Dimensional Analysis and Theory of Models; Wiley: New York, NY, USA, 1951. [Google Scholar]
  23. Curtis, W.D.; David Logan, J.; Parker, W.A. Dimensional Analysis and the Pi Theorem. Linear Algebra Appl. 1982, 47, 117–126. [Google Scholar] [CrossRef]
  24. Pobedrya, B.E.; Georgievskii, D.V. On the proof of the Pi-Theorem in Dimension Theory. Russ. J. Math. Phys. 2006, 13, 431–437. [Google Scholar] [CrossRef]
  25. Tangsathikulchai, C. The effect of slurry rheology on fine grinding in a laboratory ball mill. Int. J. Miner. Process. 2003, 69, 29–47. [Google Scholar] [CrossRef]
  26. Tangsathikulchai, C. Effect of Medium Viscosity on Breakage Parameters of Quartz in a Laboratory Ball-Mill. Ind. Eng. Chem. Res. 2004, 43, 2104–2112. [Google Scholar] [CrossRef]

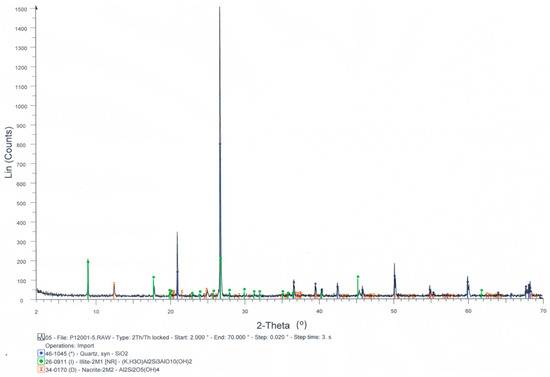

Figure 1. Results from XRD characterization.
Figure 1. Results from XRD characterization.
Symmetry 11 01202 g001

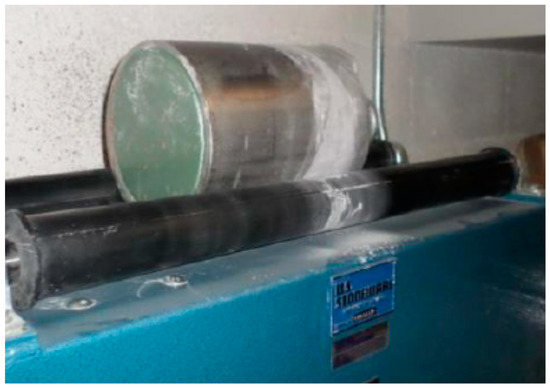

Figure 2. Jar mill.
Figure 2. Jar mill.
Symmetry 11 01202 g002

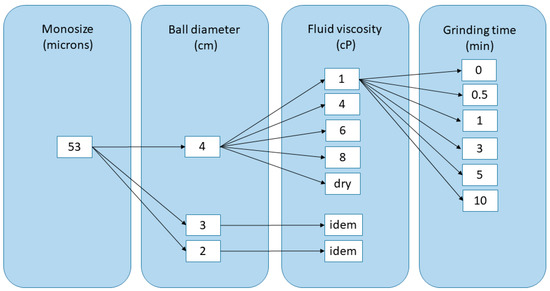

Figure 3. Block diagram, monosize 53 microns.
Figure 3. Block diagram, monosize 53 microns.
Symmetry 11 01202 g003

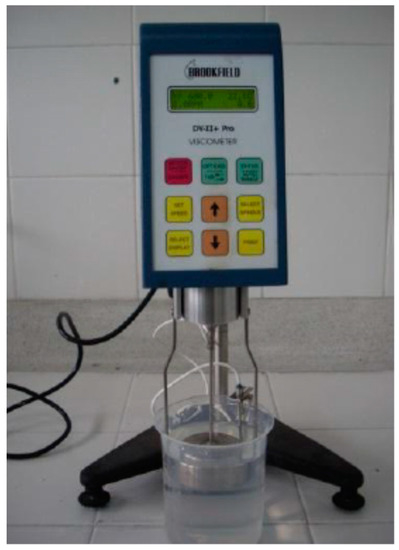

Figure 4. Viscometer.
Figure 4. Viscometer.
Symmetry 11 01202 g004

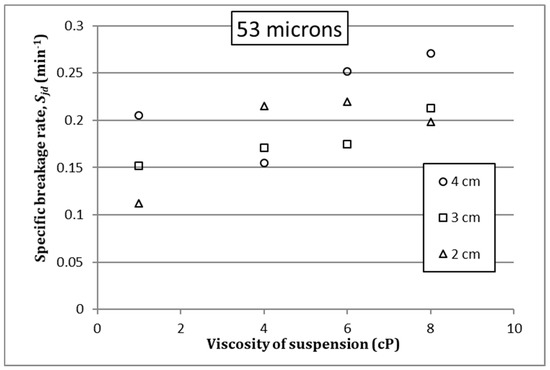

Figure 5. Effect of suspension viscosity on Sjd, monosize 53 microns.
Figure 5. Effect of suspension viscosity on Sjd, monosize 53 microns.
Symmetry 11 01202 g005

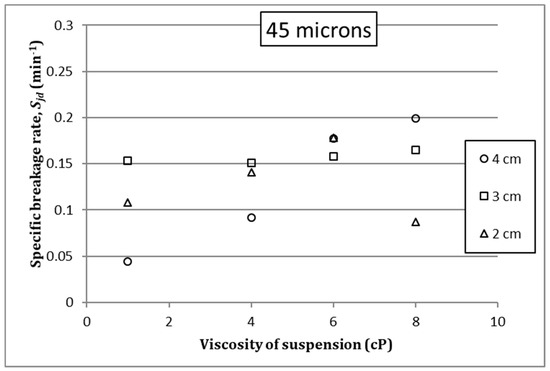

Figure 6. Effect of suspension viscosity on Sjd, monosize 45 microns.
Figure 6. Effect of suspension viscosity on Sjd, monosize 45 microns.
Symmetry 11 01202 g006

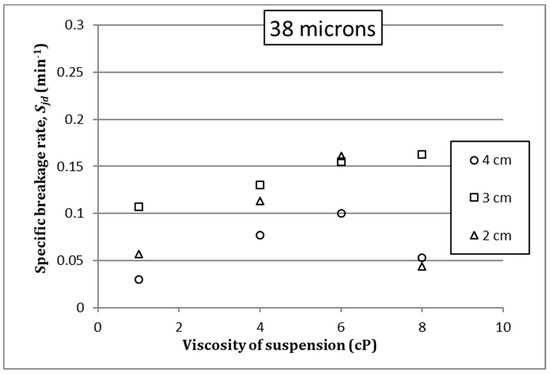

Figure 7. Effect of suspension viscosity on Sjd, monosize 38 microns.
Figure 7. Effect of suspension viscosity on Sjd, monosize 38 microns.
Symmetry 11 01202 g007

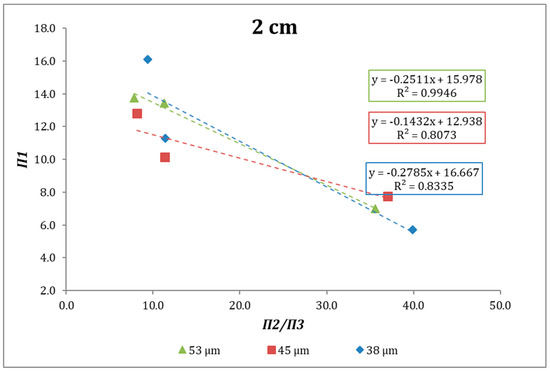

Figure 8. Fitting to the developed model, ball size 2 cm.
Figure 8. Fitting to the developed model, ball size 2 cm.
Symmetry 11 01202 g008

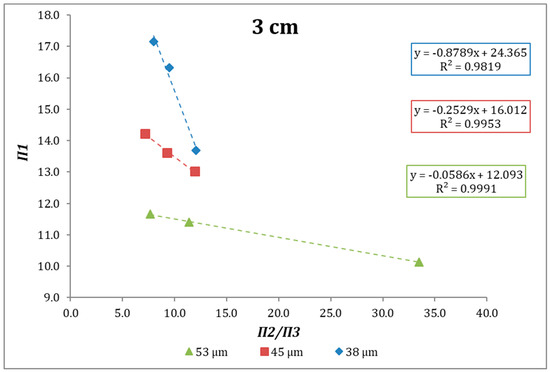

Figure 9. Fitting to the developed model, ball size 3 cm.
Figure 9. Fitting to the developed model, ball size 3 cm.
Symmetry 11 01202 g009

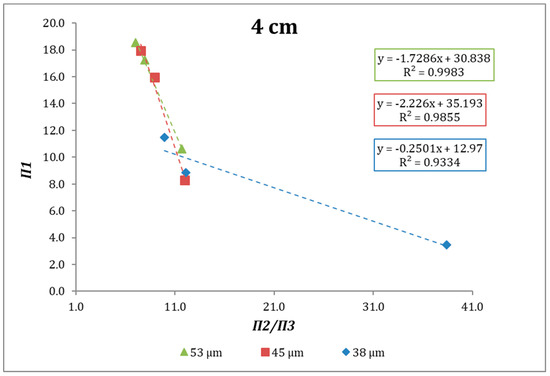

Figure 10. Fitting to the developed model, ball size 4 cm.
Figure 10. Fitting to the developed model, ball size 4 cm.
Symmetry 11 01202 g010
Table 1. Mineralogical composition of the quartz sample by XRF (%).
Table 1. Mineralogical composition of the quartz sample by XRF (%).
Al2O3SiO2Fe2O3TiO2CaOMgONa2OK2OP2O5LOI
6.4989.420.730.67<0.1<0.10.031.10<0.11.54
Table 2. Trace elements in the quartz sample by ICP-OES (ppb).
Table 2. Trace elements in the quartz sample by ICP-OES (ppb).
AsBaSrSbCoCrCuCdHgPbZnZrNiMnSn
1814215<10143122<10<10<10<1085<1017<10
Table 3. Mill operating conditions.
Table 3. Mill operating conditions.
SampleQuartz
Solids concentration, ϕ (%w/v)60
Mill lentgh, L (m)0.18
Mill diameter, D (m)0.16
L/D ratio1.16
Fraction of critical speed, ϕC0.75
Ball filling fraction, J0.3
Hole fraction, U1.0
Bed normal porosity0.4
Table 4. Specific breakage rates for the different tests.
Table 4. Specific breakage rates for the different tests.
Ball Diameter (cm)
234
Monosize (μm)Suspension Fluid Viscosity (cP)Sj (min−1)R2Sj (min−1)R2Sj (min−1)R2
5310.1120.97930.1520.97710.2050.9826
5340.2150.98430.1710.94550.1550.9612
5360.2200.97390.1750.98920.2520.9890
5380.1980.98600.2130.97960.2710.9809
4510.1080.95320.1530.96400.0440.9820
4540.1410.98140.1510.98340.0920.9869
4560.1780.96190.1580.96200.1770.9871
4580.0870.95670.1650.98290.1990.9896
3810.0570.96380.1070.97970.0300.921
3840.1130.98240.1300.98910.0770.9706
3860.1610.98850.1550.98700.1000.9780
3880.0440.98200.1630.97230.0530.9891
Table 5. Linear adjustment parameters for the relationship Sjw/Sjd as a function of μr.
Table 5. Linear adjustment parameters for the relationship Sjw/Sjd as a function of μr.
Ball Size (cm)Monosize (μm)abR2Range of Linearity
253−0.251115.97800.99461–6 cp
45−0.143212.93800.80731–6 cp
38−0.278516.66700.83351–6 cp
353−0.0586 12.0930 0.9991 1–6 cp
45−0.2529 16.0120 0.9953 4–8 cp
38−0.8789 24.3650 0.9819 4–8 cp
453−1.7286 30.8380 0.9983 4–8 cp
45−2.2260 35.1930 0.9855 4–8 cp
38−0.2501 12.9700 0.9334 1–6 cp
