Article

Documentary Evidence of 17th Century Landcover and Climate Change in Northern China and Mongolia Compared to Modern Spectral Greening Trends

by 1,2
1
Physical Geography, Institute of Environmental Social Science and Geography, University of Freiburg, Schreiberstr. 20, 79085 Freiburg, Germany
2
Department of Archaeology and Museology, Faculty of Arts, Masaryk University, Arne Nováka 1, 60200 Brno, Czech Republic
Land 2022, 11(1), 100; https://doi.org/10.3390/land11010100
Received: 29 November 2021 / Revised: 31 December 2021 / Accepted: 6 January 2022 / Published: 8 January 2022

Abstract

:
Fighting land degradation of semi-arid and climate-sensitive grasslands are among the most urgent tasks of current eco-political agenda. Particularly, northern China and Mongolia are prone to climate-induced surface transformations, which were reinforced by the heavily increased numbers of livestock during the 20th century. Extensive overgrazing and resource exploitation amplified regional climate change effects and triggered intensified land degradation that forced policy-driven interventions to prevent desertification. In the past, however, the regions have been subject to continuous shifts in environmental and socio-cultural and political conditions, which makes it particularly difficult to distinguish into regional anthropogenic impact and global climate change effects. This article presents analyses of historical written sources, palaeoenvironmental data, and Normalized Difference Vegetation Index (NDVI) temporal series from the Moderate Resolution Imaging Spectroradiometer (MODIS) to compare landcover change during the Little Ice Age (LIA) and current spectral greening trends over the period 2001–2020. Results show that decreasing precipitation and temperature records triggered increased land degradation during the late 17th century in the transition zone from northern China and Inner Mongolia Autonomous Region to Mongolia. From current climate change perspectives, modern vegetation shows enhanced physical vegetation response related to an increase in precipitation (Ptotal) and temperature (T). Vegetation response is strongly related to Ptotal and T and an increase in physical plant condition indicates local to regional grassland recovery compared to the past 20-year average.

1. Introduction

Climate and land cover changes, heavy grazing, and agricultural and resource exploitation contribute significantly to land degradation and desertification processes in sensitive arid and semi-arid regions of Earth [1,2,3,4,5,6,7,8]. Particularly, seasonal vegetation cover plays a major role in the ecosystem’s functionalities, affecting soil development, sediment deposition, water infiltration rate, and wind-driven erosion during high-cover and low-cover periods and within the spatial patterns of species differentiation [9,10,11]. From a historical perspective, seasonal vegetation dynamics control transhumance (seasonal nomadic), socio-cultural, and socio-economic strategies, which nowadays have turned into politically motivated intensified sedentary patterns with regional and supra-regional environmental overstraining. In many cases, severe surface damage and sandy desertification were caused through increased livestock grazing [6,12,13,14,15]. The system-inherent interactions of land degradation, climate forcing, anthropogenic impact, and ecological functionalities have been recently emphasized by multiple authors, who suggested complexity not only within physically, but also socio-culturally controlled systems [5,12,16,17].
Particularly, China’s Inner Mongolia Autonomous Region and Mongolia have experienced massive political and economic development during the past decades, which enabled a strong transformation of the social, rural, and environmental life [18,19,20,21,22], followed by governmental grassland restoration projects and policies to prevent desertification [23,24,25]. Although the modern anthropogenic impact on semi-arid environments of the region has recently been emphasized by many authors [13,19,26,27,28], isolating the climatic signal affecting land degradation processes from human-induced landcover change still provides a great challenge [27,29].
In this article, historical documentary sources from 1688 AD were used to evaluate non-standardized measures of climatic and surface conditions during the Little Ice Age (LIA) in northern China and Mongolia and to compare them to modern landcover development, partly deriving from satellite hyperspectral imagery, Copernicus Global Land Service data, and historical and current climate proxy datasets. The historical data allows the surface vulnerability and land transformation processes through intensified wind-blown sand transport during the exceptional cold and dry period of the so-called Maunder Minimum of the Little Ice Age to be traced [30,31,32,33,34,35]. The comparison of surface conditions during the late 17th century AD further enables the evaluation of current global climate change and the cross-validation of the strong anthropogenic overprint in semi-arid grasslands of northern China and southern Mongolia [21]. Here, a particular focus is put on global spectral greening trends and vegetation response to global warming. Eventually, this article emphasizes the applicability of historical written sources to understand not only past but also current climate change effects on the local to the regional scale, a methodological problem, which has recently gained further momentum [17,36,37,38,39].

2. Materials and Methods

2.1. Environmental Settings

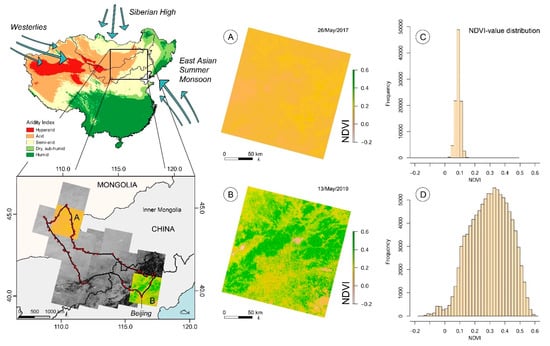

The core research area covers southern Mongolia, China’s Inner Mongolia Autonomous Region, and parts of China north of Beijing (Figure 1). Mongolia is a landlocked country north of China with a highly continental climate, extremely cold and dry winters, and short and hot summers [40]. After long-term summer droughts, climate extreme events in winter (dzud) have frequently led to severe livestock perish, which caused a strong socio-economic crisis due to a domestic product market dependency of about 20% [41,42]. Inner Mongolia is situated to the south at the northern margins of China and stretches from northeast to the northwest (37°30′–53°23′ N, 97° 10′–125°50′ E) [43]. Most of the plateau-like elevated region is dominated by extensive grasslands, which are characterized by various types of steppe vegetation and a great sensitivity to climate and land-use change [44,45,46]. The climate is monsoon-controlled, arid to semi-arid with cold and dry winters and hot and more humid conditions during summer and towards the subhumid north-eastern part [43,44]. Different climatic zones have developed under a prevailing continental climate, with temperate and semi-humid conditions in the east and more semi-arid and arid conditions towards the western part [21]. Mean monthly precipitation ranges from 0–200 mm (long-term average < 200 mm [47]) with a peak during July and September (Figure 2), temporally limiting plant growth [21]. In combination with the high environmental vulnerability and climate extremes, the strongly increased water consumption for agricultural purposes, animal husbandry, and particularly intensified state-controlled mining activities has locally amplified the drought risk of the region and led to a sequence of water shortages [42,47,48,49,50].

2.2. Route Reconstruction and Historical Environmental Analysis

A comparison of historical written sources [52] and environmental data attributes was carried out to evaluate modern land degradation and desertification dynamics in northern China and southern Mongolia. Historical data derived from a day-by-day diary, documented by the French missionary Jean-François Gerbillon in the year 1688 during his employment at the imperial court at Beijing. While he was travelling from Beijing through Inner Mongolia and Mongolia during the period from the 30 May to the 6 October 1688, Gerbillon documented climatic and surface conditions as well as general environmental, social, cultural, and political phenomena [53]. From the documentary sources, a route model was reconstructed using terrain-dependent least-cost-path (LCP) analysis. The model is based on surface roughness and slope gradients because directional movement patterns were emphasized only in cardinal directions [54,55,56]. For this reason, a digital elevation model was downloaded from the United States Geological Survey (USGS, SRTM 1-arc-second/30 m resolution [57]) and resampled to a 100 m grid size. The route model was calculated in QGIS (QGIS Geographic Information System. QGIS Association. http://www.qgis.org, last accessed 5 January 2022) using a cumulative friction surface and movement directions between the single stopping points. Around the reconstructed route, a 20 km buffer was created to visualize the historical environmental conditions within a suitable range. The corridor does not represent the accessibility of the area but was chosen to interpolate the reconstructed point-based data to a raster. Climatic conditions were classified on a discrete scale from 1–6 with very hot (6), hot (5), warm (4), moderate (3), cold (2), and very cold (1). Wind speed was estimated using cardinal directions and four classes from calm (0), breeze (1), wind (2) to storm (3). Surface conditions were distinguished according to the Copernicus Global Land Cover collection using the classification into bare/sand (0), herbaceous (1), shrub (2), cropland/grassland (3), forest/mixed (4), built-up (5), and water surface (6) [58,59]. Climatic and surface data were interpolated within a 20 km range along the route to allow for comparison with modern landcover datasets. The data was then compared to modern land cover and temperature variations using the Copernicus Global Land Cover 100 m collection from 2019 [58] and precipitation and temperature comparison datasets [60,61].

2.3. Comparison Environmental Data

To measure the relationship between climate variables and vegetation feedback, a global NDVI monthly time series dataset (2000–2020) was acquired from the Earthdata server of the USGS (https://lpdaac.usgs.gov/products/mod13c2v006/, last accessed 16 April 2021) [62]. The data has a complete spectrum for the period 2001–2020. The year 2000 is incomplete and was partly removed for the trend analysis. The aridity index (Figure 1) is based on the Global Aridity Index and Potential Evapotranspiration Climate Database v2 [51] and was cropped to the administrative boundaries of Mongolia and China to visualize the broader environmental context of the study area. Because desertification and land degradation processes are strongly connected to windspeed and surface erosion, the historical wind direction and intensity were compared to modern data extracted from the Global Windatlas [63].
Due to the temporal variation of the surface and the climatic conditions, the study area was differentiated into equal monthly sectors using Voronoi polygons. Monthly maximum temperature and precipitation totals were plotted in each sector to trace the seasonal variability in Inner Mongolia and southern Mongolia over the summer period. To cross-check the historical data results, a set of comparison climate data was acquired from the National Centers for Environmental Information (NOAA, last accessed 5 January 2021) and plotted using a locally estimated scatterplot smoother (LOESS) [64] and the R environment (R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. URL https://www.R-project.org/, last accessed 5 January 2022) with smoothing parameters 1, 0.5, and 0.3. Temperature anomaly and reconstructed temperature is based on a stalagmite from Shihua Cave, Beijing, China and instrumental meteorological records [65]. Long-term streamflow variation of the River Kherlen derived from the dataset by Pederson and colleagues and spatial and temporal tree-ring replication and nested model methods by Davi and colleagues [7,66]. Streamflow variation of the river Selenge in Mongolia is based on tree-ring-width chronologies [67] and precipitation reconstruction in north-eastern Mongolia and for two regions in China derived from tree-ring-width data [7,68].

2.4. NDVI Temporal Anomalies, Trend Analysis, and Environmental Parameter Correlation

To trace the response of plant growth to precipitation and temperature variation in the study area, a temporal series of NDVI from MODIS/Terra Vegetation Indices Monthly L3 Global 0.05Deg CMG V006 imagery was created, which provide a pixel size of 5600 m and cover the period 2002–2020. Monthly total precipitation and monthly temperature were extracted from the CRU (Climate Research Unit) dataset [61]. The data comes in .nc file format and can be read and extracted using the ncdf4 package by David Pierce. Precipitation and temperature were used to compare climate change signals to global spectral greening trends [69,70]. Particularly, the early growing phase in Inner Mongolia [71] is sensitive to trends in precipitation and temperature variability, which impacts the growth behavior. A Spearman’s rank correlation was performed on raster annual time series stacks to analyze the spatial relationship between climate variables and vegetation response across China and Mongolia. Spectral greening and browning trends as well as trends in precipitation and temperature variability were identified using a pixel-wise raster analysis in R. The method and the workflow is well-described by Martin Brandt (2013) and is publicly available from the website (https://matinbrandt.wordpress.com/2013/11/15/pixel-wise-time-series-trend-anaylsis-with-ndvi-gimms-and-r/, last accessed, 28 December 2021).
The recent vegetation behavior in northern China and Mongolia was analyzed for yearly anomalies compared to the long-term record from 2000–2020. For this reason, the mean total NDVI value (m) and yearly average NDVI values were calculated from the cumulated monthly MODIS datasets. The standard deviation (SD) was calculated for all values and subtracted from and added to the multiannual mean value (m − SD; m + SD) to create the range of the standard deviation for the period 2000–2020. Consequently, annual NDVI anomalies were calculated by distinguishing into positive or negative deviation from the standard deviation range. For each year, the (m + SD) was subtracted from the annual mean NDVI value and all values ≤ 0 were removed. According to the lower limits of the standard deviation range, (m − SD) was subtracted from each annual mean NDVI value and all values ≥ 0 were removed. Eventually, a set of raster layer was generated, which shows negative and positive annual NDVI anomalies compared to the long-term temporal series of 20 years. Additionally, the histograms and density estimations of the anomaly value distribution were plotted to visualize the trends in physical plant activity (see the Supplementary Materials to this article). From the time series, a temporal plot and linear regression analyses were calculated to visualize the development in physical plant conditions in the study area. These anomaly datasets allow an understanding of the recent surfaces transformations in northern China to be obtained and comparison of them to past and current climate change models.

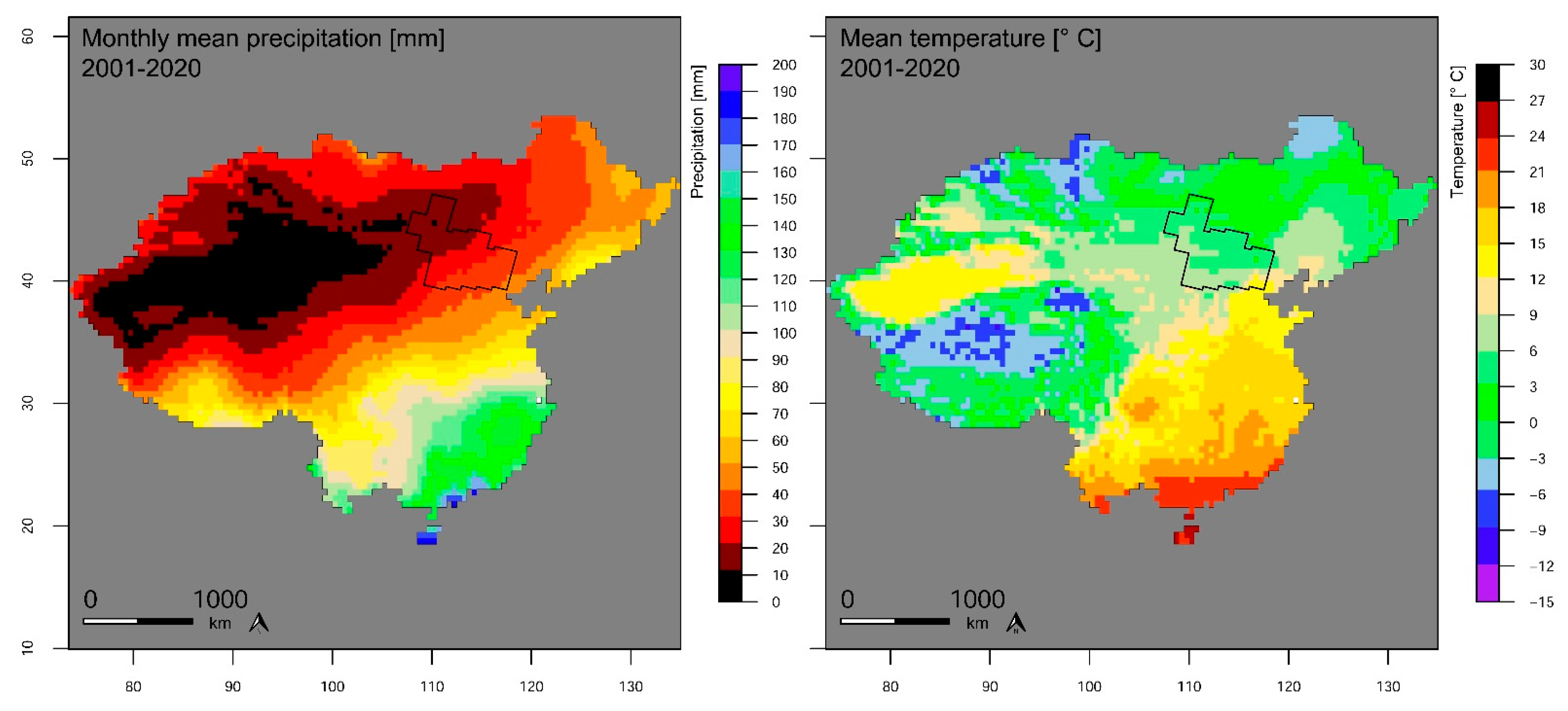

Figure 2. Multiannual average monthly total precipitation and mean temperature over the period 2001–2020, based on CRU TS4.05 (Climatic Research Unit Time Series) gridded data of month-by-month variation [61].
Figure 2. Multiannual average monthly total precipitation and mean temperature over the period 2001–2020, based on CRU TS4.05 (Climatic Research Unit Time Series) gridded data of month-by-month variation [61].
Land 11 00100 g002

3. Results and Discussion

Today, the transition zone from northern China to Inner Mongolia and Mongolia is characterized by a pronounced landcover gradient from moderate forested areas in the south and the south-east to increasingly semi-arid and arid conditions towards the Mongolian Plateau and the extensive grasslands of Inner Mongolia and Mongolia (Figure 3). The Copernicus data highlights the modern landcover sequences and compares topographical features for each landcover class in the study area. Forested zones are mostly abundant in lower elevated areas of the subhumid belt north of Beijing. With increasing elevation, patterns of herbaceous grassland and shrubs prevail. Towards the north-west, extensive sandy lands occur with a mean elevation of about 1000 m a.s.l. Croplands are frequently interspersed into semi-arid grassland patches, which points towards an active anthropogenic land-use. Figure 3 further visualizes the historical route patterns and the daily camps of the travels of Gerbillon from 1688. From these route reconstructions, a cross-validation of hermeneutic sources and modern landcover and climate data was derived.

3.1. Historical Landcover Change and Environmental Reconstruction

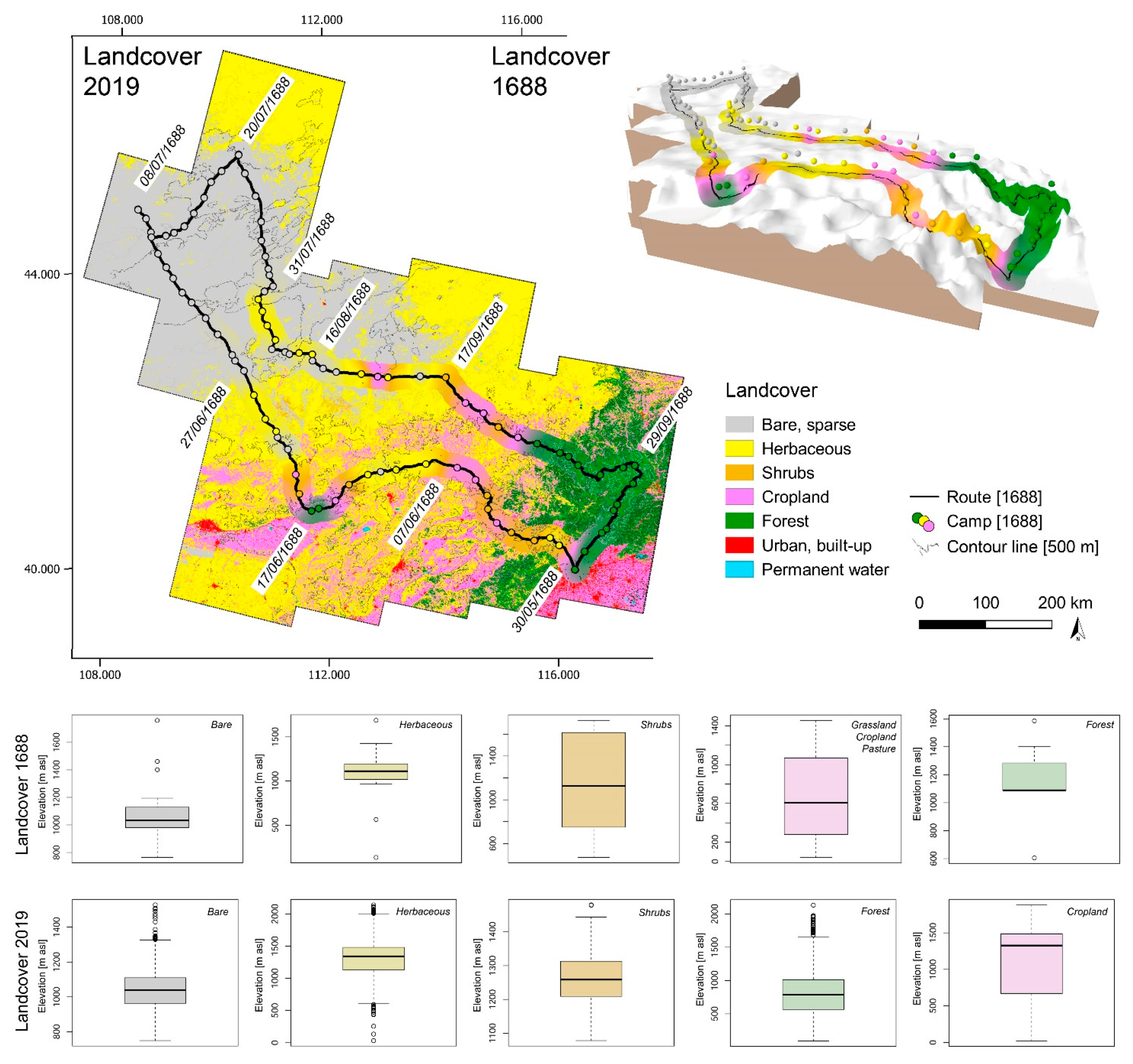

A route was reconstructed from the historical data, which starts at Beijing on the 30 May 1688. Travelling to the north-west, the group crossed the mountain range north of China’s capital before entering the Mongolian Plateau on the first week of June. According to topographical changes, the landcover transformed rapidly from forested to sparsely forested and herbaceous surfaces, and then to shrubland, grassland, and steppe vegetation from the south-east to the north-west (Figure 3). During the first week, Gerbillon reported from small-scale agricultural crop production, which were interspersed into extensive grasslands. Furthermore, he frequently highlighted the absence of field systems despite the high suitability for intensive agricultural utilization of the region, which was connected to a prior nomadic lifestyle of the local population [21,22,72,73]. The weather conditions were generally very dry with very high temperatures during the onset of June and more humid and moderate conditions during the second half of the month when the group turned to the south-west and crossed extensive sandy grasslands with poor vegetation cover and bare hilltops (Figure 4). On the 17 June, they reached Hohhot, which is located on the Tumuochuan Plain and surrounded by the Hetao Plateau to the south and the Daqing Mountain to the north [74]. The average temperature (6.7 °C) and the annual total precipitation (400 m/a) at Hohhot are low, which supports a semi-arid steppe climate [74]. Both the modern data and the historical landcover reconstruction indicate forested zones in the area, which are probably connected to the lower elevation compared to the surrounding hills. After the 17 June, the group moved northwards, and the vegetation cover declined according to an increase in aridity and windspeed (Figure 5). After the 27th, Gerbillon reported from bare lands with no vegetation but loose sand coverage until the 31 July 1688. In contrast to the 2019 landcover, the 1688 landcover reconstruction shows increasing herbaceous vegetation patterns after the 31 July despite continuously very dry conditions during August. The surface description of the following period until the 17 September again differs considerably from modern landcover data. There is a signal towards more herbaceous and shrubby vegetation and increasing agricultural exploitation during the late 17th century. During the rest of September, the group travelled continuously to the east and entered the forested mountains around the 22 September. Compared to the modern data, the extent of the forested areas reached further to the north and the north-west, which is most likely linked to strong modern human impact, forest management and climate change during the first half of the 20th century [75]. Climatic conditions were reported to be very dry and extremely cold during October 1688, which aligns with the climatic tendency towards a drier and cooler period around 1700 AD and the climate depression during the Maunder Minimum of the LIA. From the palaeoenvironmental reconstructions, 1688 can be considered an extremely anomalous year compared to the long-term average and marks the transition into a generally colder and drier phase that lasts until about 1715/30 AD [35].

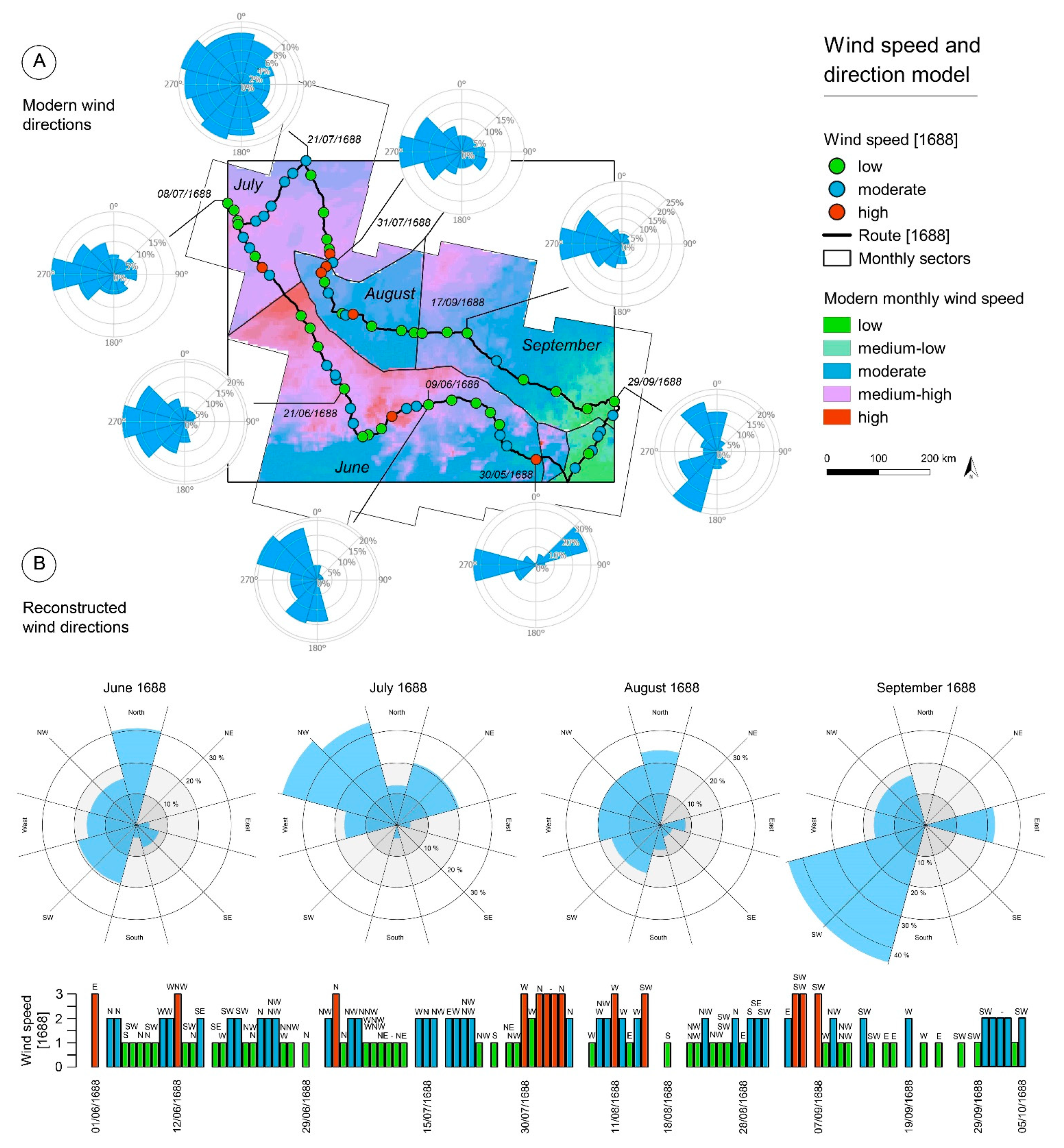

These findings are further supported by the windspeed model and the average wind direction from 1688 compared to modern data [63]. The diary reports continuously blowing wind with local extreme events and massively increased sand transport and dune activity. The reconstruction indicates an increase in windspeed and a general change in wind direction during the LIA (Figure 5). During the past decades, the landcover became even more vulnerable to wind erosion due to the locally decreased vegetation cover and intensified overgrazing, which reactivated sand depositions and enabled dust transportation and dune development. The accumulation of coarse particles further supported the degradation of cropland and pasture [76,77,78,79]. Sand and dust storms over Inner Mongolia were not only enhancing erosion and accumulation of fine-grained particles in the semi-arid steppe region but also led to the transportation of dust and high concentrations of particulate pollutants into the area of Beijing [80,81,82].

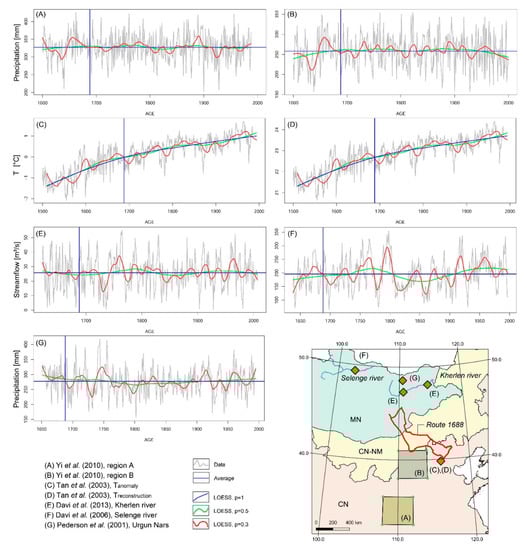

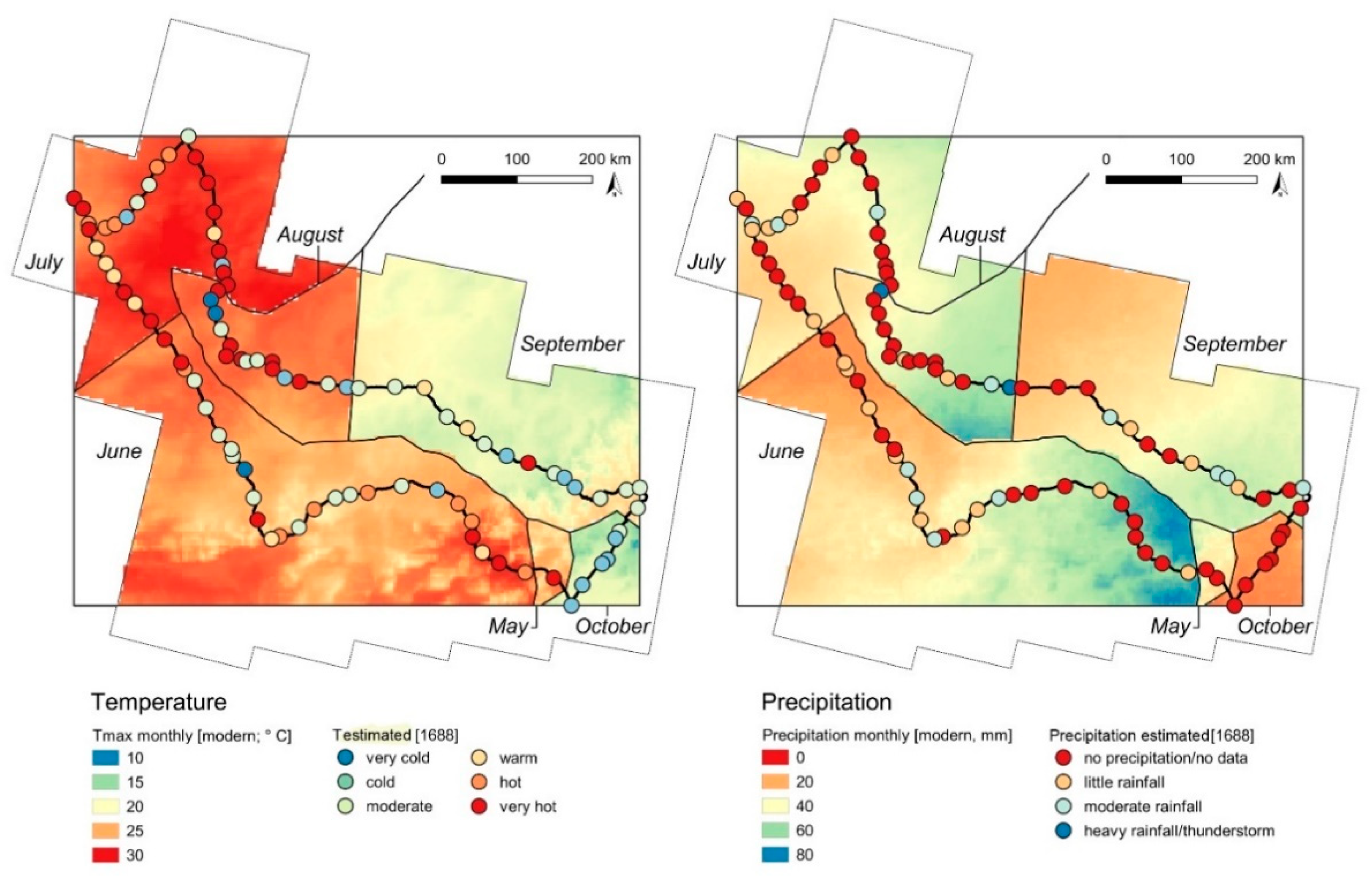

To cross-validate the hermeneutic sources, historical and current environmental conditions in the study area were evaluated using palaeoenvironmental proxies from different data sources [7,65,66,67,68] and interpolated datasets from modern weather stations [60,61]. Monthly total precipitation in Inner Mongolia and Mongolia shows a significantly positive trend compared to the reference period 2001–2020 [11,83]. Palaeoclimate show a tendency towards greater annual variation (Figure 6). As expected from global climate change models [84,85,86,87], the reconstructed temperature increased significantly during the past 500 years and particularly during the period 2001–2020. Reconstructed streamflow runoff in Mongolia is connected to the precipitation variability, and an increase in rainfall triggered peaks in runoff totals. However, there is no negative trend in river runoff during the past 400 years. It is particularly striking that the year 1688, which marks the peak of the Maunder Minimum of the LIA, can be characterized as an exceptionally cold and dry year compared to the long-term average. The period 1675 to 1715, which is characterized by a sunspot minimum and decreased solar activity, is clearly visible in the temperature reconstruction from the tree-ring width and peaks around 1700 [65]. The minimum could have affected the East Asian Summer Monsoon (EASM) according to the 11-year solar cycle [88,89]. The precipitation records of Urgun Nars [7] show a negative trend during the Maunder Minimum, pointing towards decreased humidity transport into semi-arid and arid Mongolia caused by a potential decline and a southward shift of the EASM [90,91].

3.2. Modern Climatic and Surface Transformation Processes

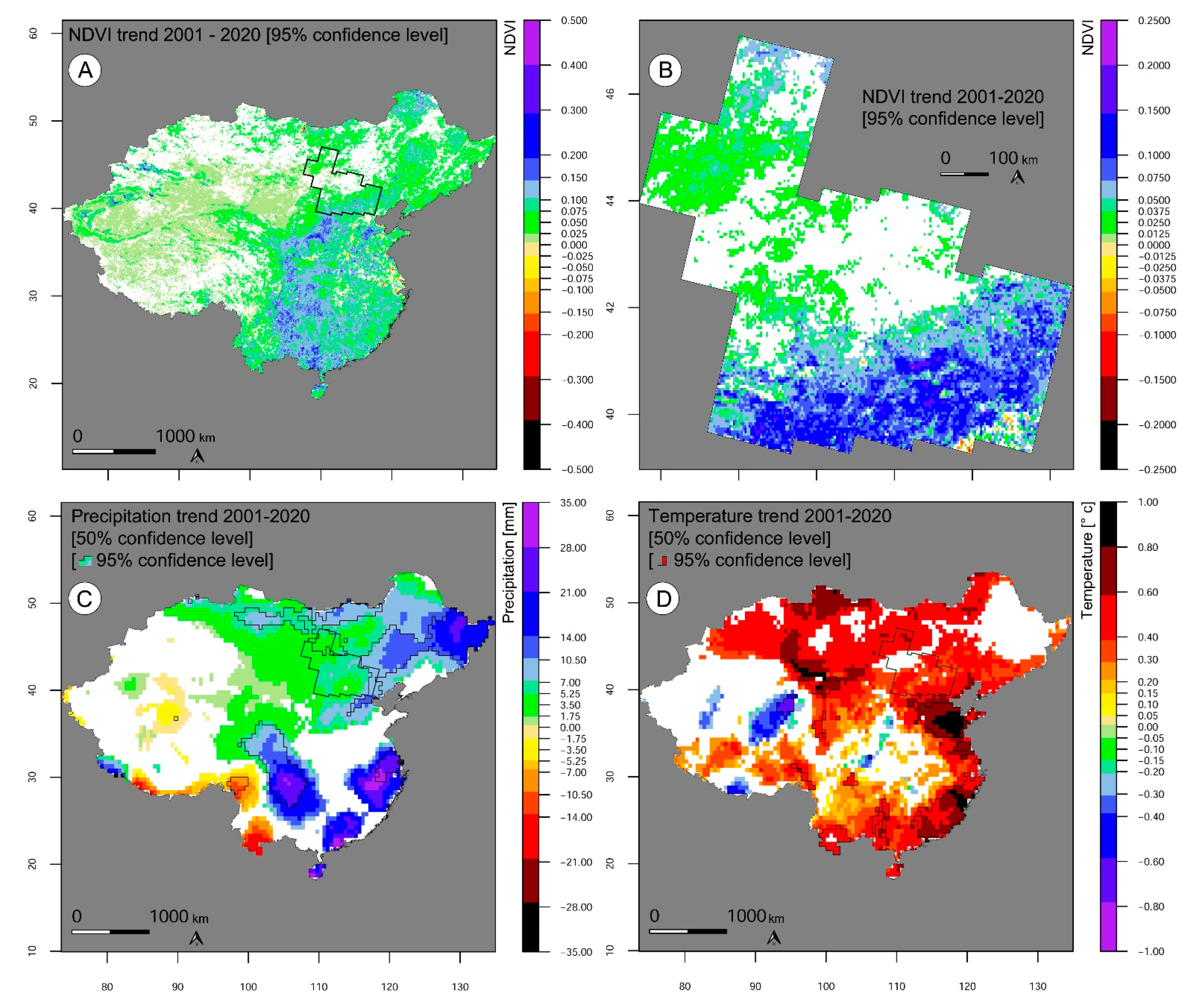

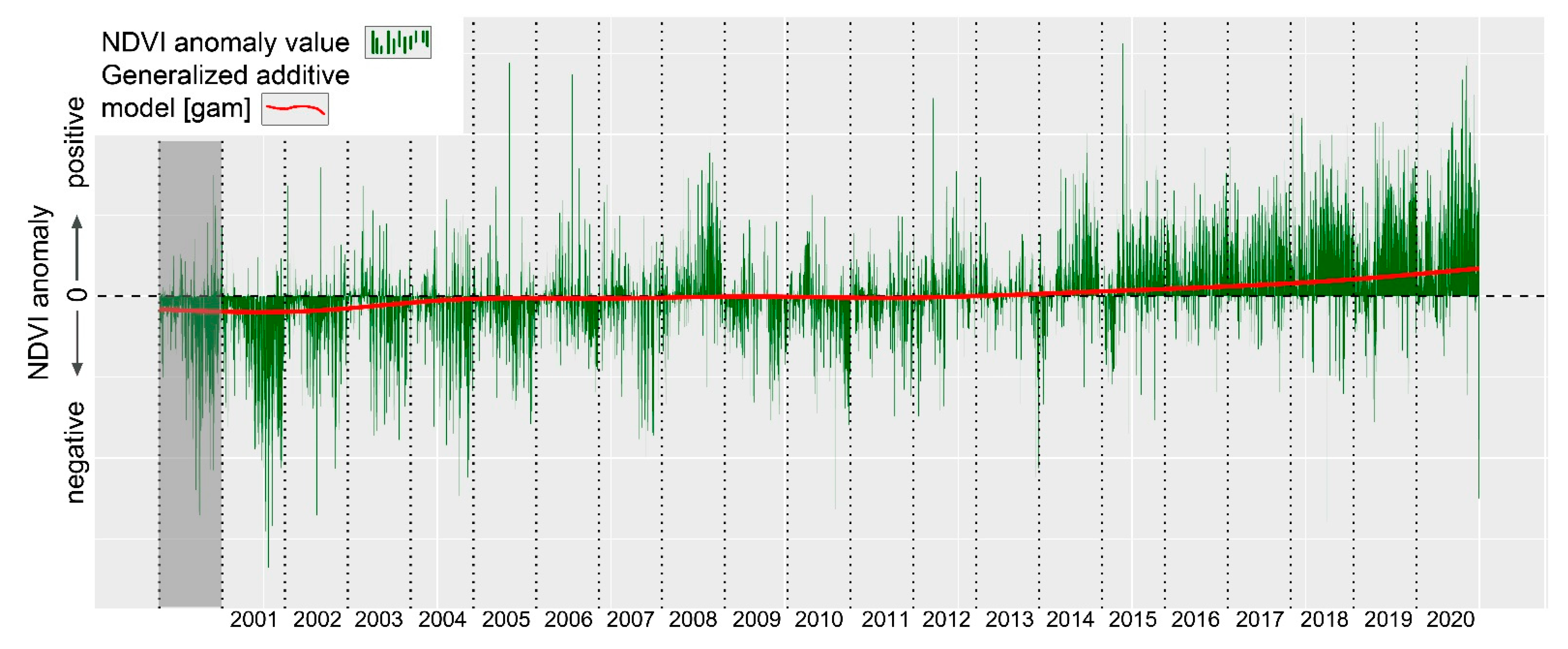

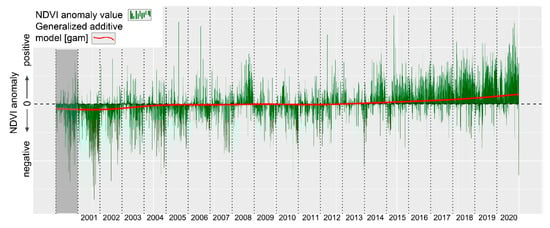

Modern NDVI time series were used to monitor vegetation canopy changes and surface transformations linked to climate change and anthropogenic overstraining. Vegetation indices of subsequent months and years and on various spatial scales allow for temporal in-depth observations of physical plant behavior or drought periods and are a common tool in remote sensing of ecological and climatic processes [92,93,94,95,96,97]. As derived from the Copernicus landcover data and the aridity index, the north-western parts of China and Mongolia reveal significantly low plant physiological activity and bare and sandy areas. This accounts for most of the transitional zone between China and Mongolia. The long-term MODIS NDVI temporal series from 2000–2020 show a significantly positive trend in spectral greening in most regions across China and Mongolia (Figure 7 and Figure 8). Particularly, the early growing season is the most important period to determine vegetation dynamics [71,98]. According to Ren et al. (2012), who highlighted the variability of rainfall and temperature as the most important driving factor of vegetation dynamics in Inner Mongolia, the results from the NDVI trend analyses confirm the strong relationship between precipitation development and vegetation response over China and Mongolia (Figure 9). Temperature increased significantly in the study area during the past two decades [99] and a positive trend in multiannual variation has been observed in precipitation totals [100]. In this context, Tong et al. (2017) reported from the eastern part of Inner Mongolia, where NDVI values increased between 1984 and 2013. The correlation between NDVI and precipitation and NDVI and temperature in the study area, which is most-likely connected to seasonal variation in precipitation totals in eastern Inner Mongolia and the annual cycle, can be confirmed for the period 2001–2020 (Figure 9) [15,99,100,101].

3.3. Vegetation Response to Anthropogenic Surface Transformation

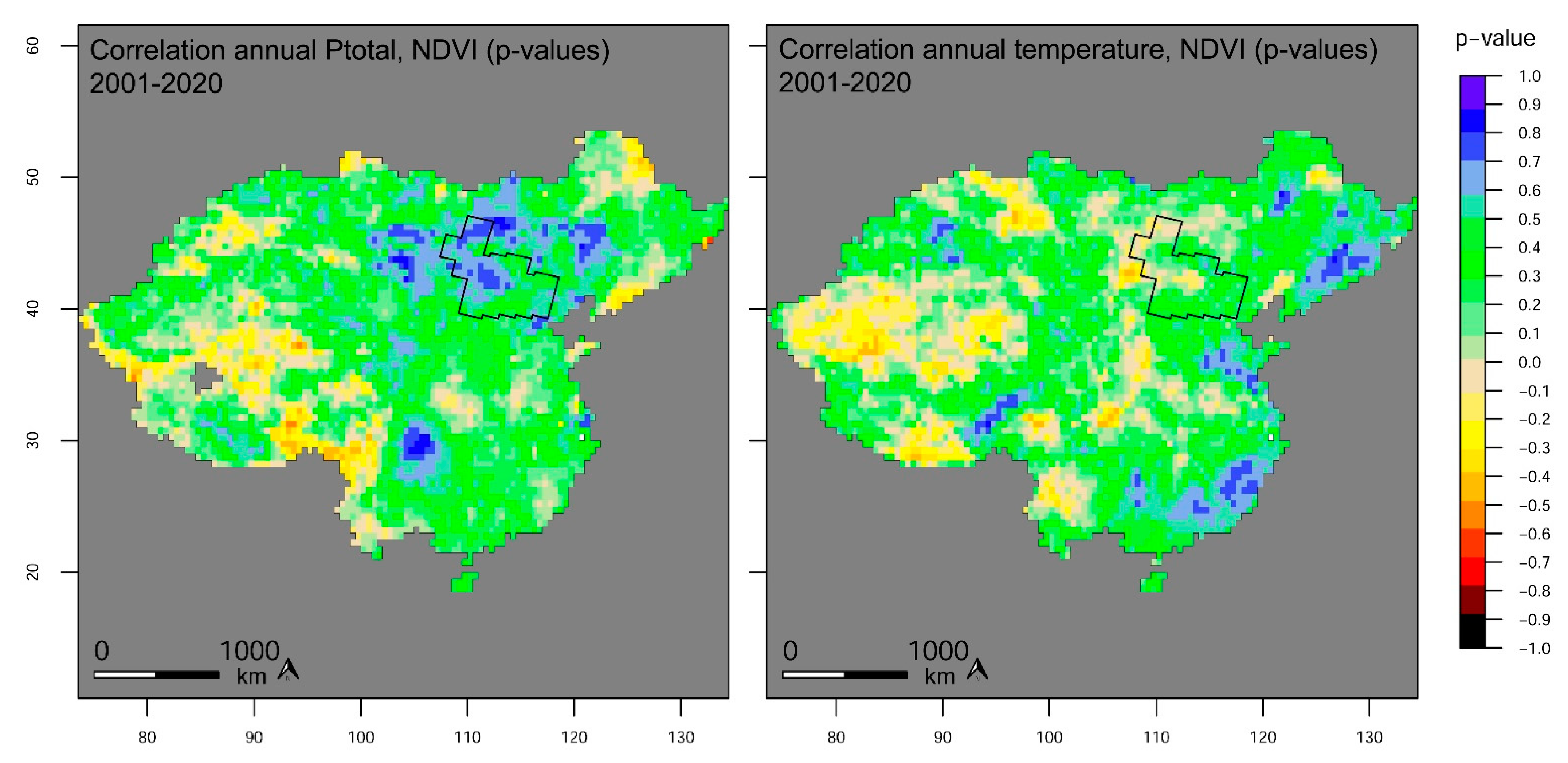

These results contribute to the discussion about the complexity of aboveground net primary productivity (ANPP) in grasslands and annual, interannual, seasonal, and previous-year precipitation variability as reported from Inner Mongolia and North America shortgrass steppe [96,102,103,104,105,106,107]. There is a stronger spatial gradient of the sensitivity to and the relationship between precipitation and maximum temperature in desert steppe vegetation than in the subhumid forest zones [106,108,109]. This could highlight the anthropogenically induced origin of local desertification processes through grazing activity after the growing season, which amplified the vulnerability and decreased the resilience to global climate change of Inner Mongolia’s grassland and steppe vegetation [109,110]. Grazing activity in Inner Mongolia’s grasslands temporally peaks from July to September, when plant growth terminates [98]. As seen from the MODIS trend analysis, there is a clear trend towards vegetation recovery, linked to higher precipitation totals and an increase in temperature. An increasing temperature during the early growing season would therefore advance the spring phenological phases; however, decreased soil moisture would delay them [111].
Recent articles have shown that land degradation has reduced considerably during the past 20 years and that desert extent reduction is not primarily caused by a reduction in human grazing activity but rather by an increase in precipitation [112]. Guo et al. (2020) reported a decrease in active desertification; however, this is mostly restricted to the more sub-humid northern part of Mongolia and the eastern parts of Inner Mongolia and does not totally affect the transitional zone between Inner Mongolia’s and Mongolia’s grasslands [112]. Cao et al. (2019; 2018a; 2018b) reported significantly reduced numbers of livestock in the Qinghai-Tibetan Plateau between 2001 and 2013 as a result of China’s livestock reduction policy and that grazing activity cannot solely be considered the trigger of extensive grassland degradation [11]. The authors furthermore point out that, due to market development, industrialization, population dynamics, and socio-cultural and socio-political transformation processes, the feedbacks of climate change, anthropogenic overprint, and land degradation are manifold and thoroughly interwoven [11,113,114]. Land degradation in northern China has increased constantly since the 1950s and peaked during the 1970s and 1980s and again until the beginning of the 21st century after when it decreased continuously [25,70]. According to Fang et al. (2021), the grassland productivity can be considered stable at least since 2009 [97]. From the anomaly model (Figure 8), a clear trend towards positive vegetation growth behavior can be observed since 2015 and the anomaly raster maps for the period 2015–2020 show significant trends to overall positive vegetation feedback compared to the reference period 2000–2020 (see the Supplementary Materials to this article). The raster trend analysis shows similar results for the extensive grasslands. However, large parts do not show significant vegetation trends.
There is ongoing debate about whether desertification processes are caused by anthropogenic overstraining and particularly overgrazing activity or by climate change phenomena [108,112,115,116]. Climate change and natural response cycles have been determined to trigger land degradation and the human impact caused extensive desertification at variable scales. The complexity of human-natural global change and the feedbacks are particularly visible in semi-arid climate-sensitive areas of Earth, where strong local anthropogenic impacts on short temporal scales have led to massively increased mobility of both humans and livestock after surface transformation and consequently the degradation of neighboring boundary zones [70]. This has led to a rapid decrease of the ecosystem’s functionality and landscape connectivity and enhances surface degradation through aeolian processes and dust accumulation. Subsequent dry years, hot drought phenomena, and rising temperatures during the early growing season and summer can further strengthen the vulnerability of the steppe grassland in northern China, despite a temporal increase in physical plant condition [117,118,119].
The results presented in this article show that over the entire study area, there is a significant increase in spectral greening and interannual vegetation variability, which is correlated to an increase in precipitation and temperature. These results show that decreasing grassland degradation during the 21st century can be related to climate change and increasing precipitation. Consequently, during a period of decreased precipitation totals and temperature, land degradation is supposed to advance significantly, as can be seen from the evaluation of the historical written sources and the reconstructed surface conditions during the 17th century in the study area. This points towards the climate-sensitive ecosystem functionalities of the grasslands at the transition zone from Northern China’s Inner Mongolia Autonomous Region to Mongolia and the vulnerability of the region to intensified anthropogenic impact. The historical data not only highlights the rapidly decreasing ecosystem resilience during the Little Ice Age but also how sensitive the region is to a strongly increasing number of livestock and changing socio-cultural and socio-political parameters and agendas [120]. Under recent climate change and regionally increasing heavy precipitation events and precipitation totals, grassland recovery and expansion could probably have been initiated earlier in the 20th century. However, the development was significantly delayed by strongly increased numbers of livestock and political influence in the region during the second half of the last century. The subsequent governmental restrictions to combat (human-induced) desertification processes in the region have eventually demonstrated success only since about 2015.

4. Conclusions

Northern China’s and Mongolia’s climate sensitive semi-arid regions experienced severe desertification during the 20th century, mostly linked to massively intensified livestock grazing activity, resource exploitation, and agricultural crop production, which increased water consumption and enhanced surface erosion. During the past decades, however, China’s policy-driven decision-making processes pushed local to regional programs to prevent land degradation and stabilize sandy areas and grasslands in order to decrease the potential of future soil erosion, surface transformation, and dust transport—a crucial factor, particularly in the context of Beijing’s high vulnerability to increased numbers of sandstorms. The actual cause and effect of desertification processes, however, is still heavily debated and it is yet unsolved whether local surface transformations are triggered by regional climate change feedbacks or whether they are connected to anthropogenically induced system transformation and governmental decision-making. It is a matter of fact that both are rooted in the human impact on the landscape functionalities, and land degradation and desertification mirror only the ultimate collapse and loss of resilience to withstand enhanced climatic or human pressure. From the results presented here, a strong relationship between environmental change and land degradation processes can be derived. This questions the recent impact of livestock grazing on the semi-arid regions of northern China and southern Mongolia. No negative trend in land degradation is seen from the long-term NDVI time series, but a significant increase in spectral greening and positive vegetation growth anomalies between 2000 and 2020. China’s government sought to restore extensive grasslands to maintain the regional population and one of the Earth’s largest and growing livestock. In the future, however, increasing seasonal variability in precipitation and significantly increasing temperature and drought risk during the growing season could re-enhance the climatic pressure on semi-arid landscapes and thus negatively affect grassland development.
To evaluate modern landcover transformation, historical climatological analysis and hermeneutics were merged with long-term palaeoenvironmental data. Documentary sources were used to reconstruct surface transformation and climate development during the LIA and to compare 17th century land degradation processes to modern desertification trends in semi-arid northern China and Mongolia. For this reason, written sources from 1688 were evaluated to extract a temporal series of landcover conditions for the period May to October 1688, a year that falls into a period of reduced sunspot activity and solar energy flux during the LIA. Palaeoenvironmental proxy have shown that precipitation and temperature records decreased during the Maunder Minimum (1675 to 1715 AD). 1688 is reported to peak with extreme climatic conditions by tree-ring-width and stalagmite composition analyses. According to written sources, the year was characterized by extremely low temperatures during the late grazing season of September and the onset of October and extremely dry conditions and severely high temperatures during the summer rainy season, which caused massive livestock perish in the region. Even though the evaluation of hermeneutically deduced historical environmental data remains strongly subjective, it represents an additional source to measure the dimension of human landcover change on the long-term scale. This is particularly important in grasslands and steppe vegetation areas, which are the Earth’s most climate-sensitive resources.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/land11010100/s1, Figure S1: NDVI anomalies.

Author Contributions

Research design, analyses, and writing: M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received funding from the European Union, Operational Programme Research, Development and Education—Project, “Postdoc2MUNI” (No. CZ.02.2.69/0.0/0.0/18_053/0016952), Masaryk University, Brno, Czech Republic.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data underlying this article are publicly available on the internet.

Acknowledgments

I would like to thank two reviewers for their constructive critics.

Conflicts of Interest

The author declares no conflict of interest.
