Artificial Neural Network-Based Prediction of Clogging Duration to Support Backwashing Requirement in a Horizontal Roughing Filter: Enhancing Maintenance Efficiency
Abstract
1. Introduction
2. Materials and Methods
2.1. Study Area and Water Quality Data

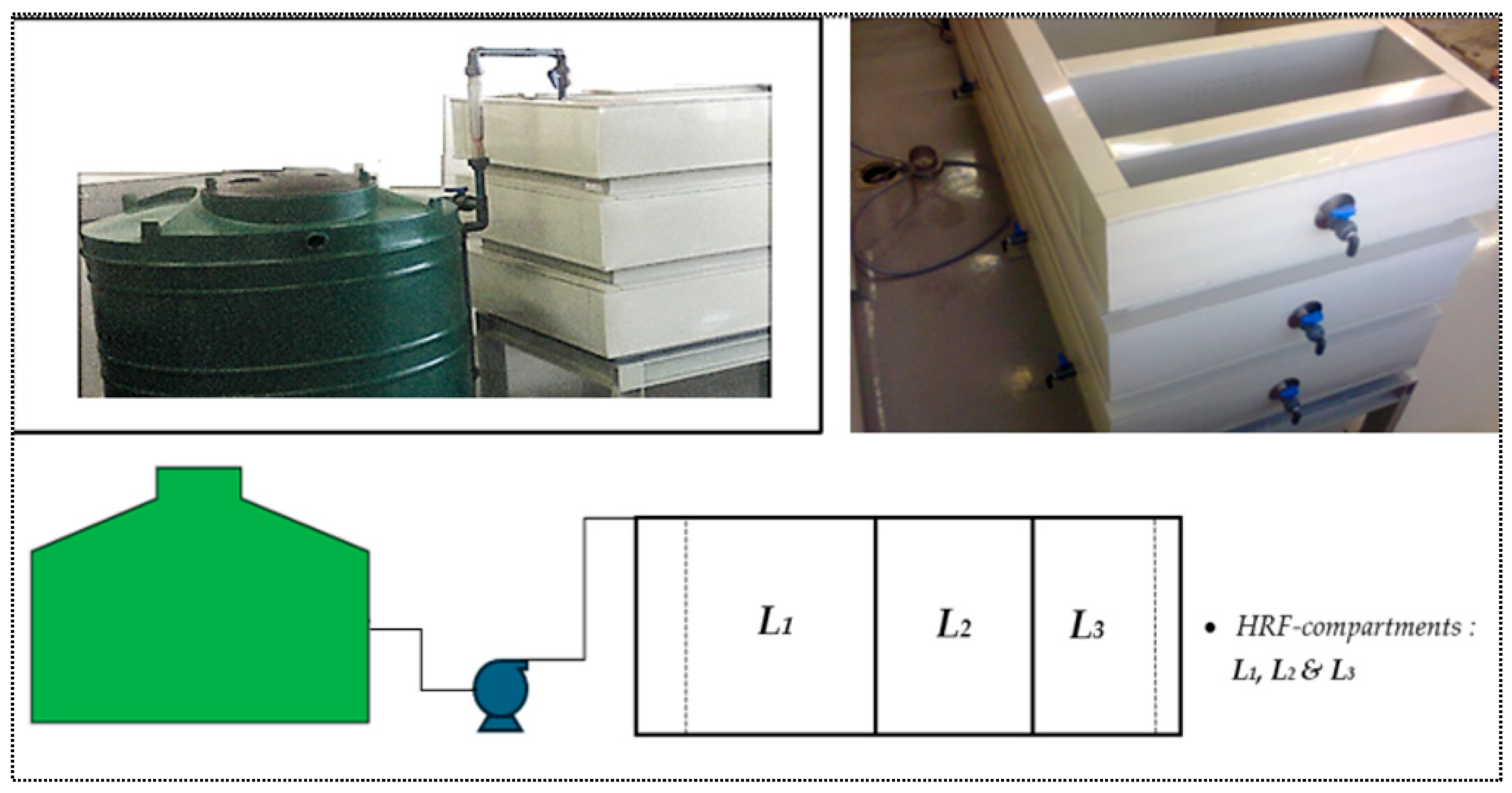

2.2. Constructed HRF Equipment
2.3. Experimental Data and Sampling
2.4. Water Measuring Instruments
2.5. ANN Software and Structure
2.6. Data Normalization
2.7. ANN Performance
2.8. ANN Training and Performance
3. Results
3.1. Experimental Results
Source Graywater Quality Indicators

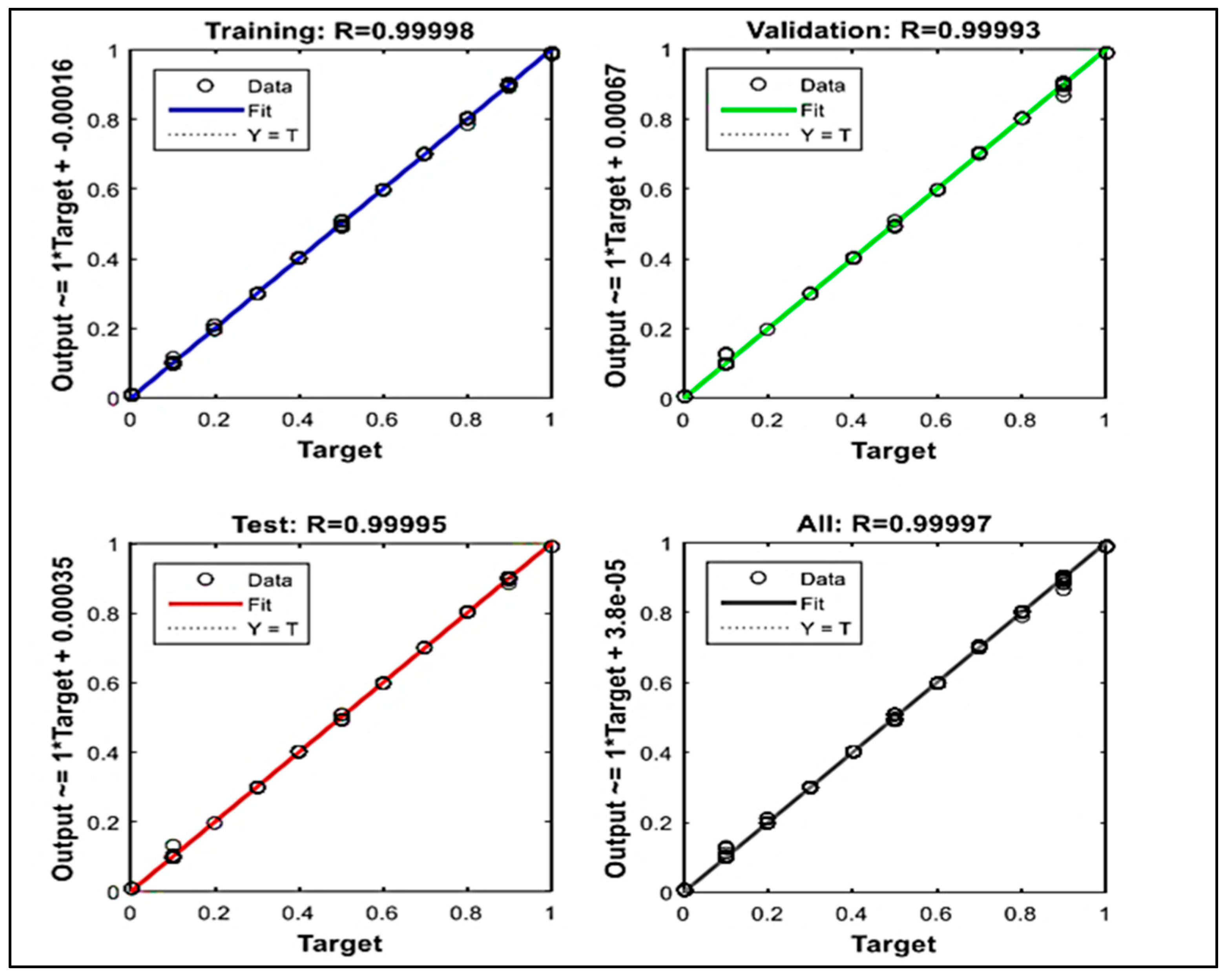

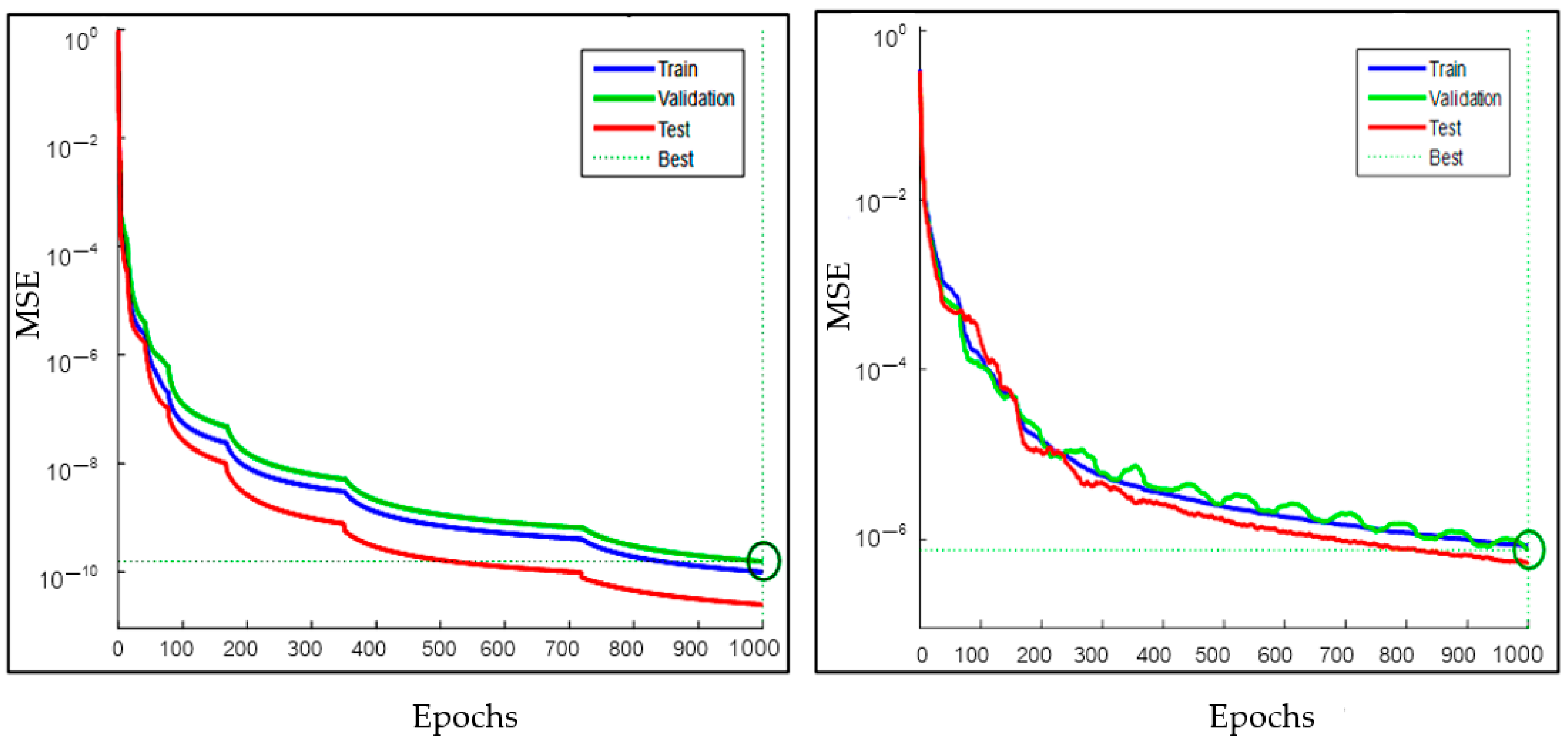

3.2. ANN Training Results
3.3. ANN Validation
4. Discussion
4.1. ANN Performance Analysis
4.2. ANN Applications and Implications for HRF Operation
4.3. Implications for HRF Operation and Maintenance
4.4. Limitations and Future Perspectives
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Boller, M. Filter mechanisms in roughing filters. J. Water Supply Res. Technol. AQUA 1993, 42, 174–185. [Google Scholar]
- Wegelin, M. Surface Water Treatment by Roughing Filters: A Design, Construction and Operation Manual; SANDEC Report No. 2/96; Swiss Centre for Development Cooperation in Technology and Management (SKAT): St. Gallen, Switzerland, 1996. [Google Scholar]
- Nkwonta, O.; Ochieng, G. Roughing filter for water pre-treatment technology in developing countries: A review. Int. J. Phys. Sci. 2009, 4, 455–463. [Google Scholar]
- El-Taweel, G.E.; Ali, G.H. Evaluation of roughing and slow sand filters for water treatment. Water Air Soil Pollut. 2000, 120, 21–28. [Google Scholar] [CrossRef]
- Clarke, B.A.; Lloyd, B.J.; Crompton, J.L.; Major, I.P. Cleaning of up-flow gravel pre-filters in multi-stage filtration water treatment plants. In Advances in Slow Sand and Alternative Biological Filtration; Graham, N., Collins, R., Eds.; Wiley & Sons: Chichester, UK, 1996; pp. 312–326. [Google Scholar]
- Collins, M.R.; Westersund, C.M.; Cole, J.O.; Roccaro, J.V. Evaluation of Roughing Filtration Design Variables; American Water Works Association Research Foundation and American Water Works Association: Denver, CO, USA, 1994. [Google Scholar]
- Galvis, G.; Latorre, J.; Visscher, J.T. Multi-Stage Filtration: An Innovative Water Treatment Technology; IRC International Water and Sanitation Centre: The Hague, The Netherlands, 1998. [Google Scholar]
- Wegelin, M.; Schertenleib, R.; Boller, M. The decade of roughing filters-Development of a rural water-treatment process for developing countries. J. Water SRT-Aqua 1991, 40, 304–316. [Google Scholar]
- Sittivate, D. How to estimate and design the filter run duration of a horizontal-flow roughing filter. Thammasat Int. J. Sci. Technol. 2000, 5, 2. [Google Scholar]
- Patil, V.B.; Kulkarni, G.S.; Kore, V.S. Performance of Horizontal Roughing Filters for Wastewater: A Review. Int. Res. J. Environ. Sci. 2012, 1, 53–55. [Google Scholar]
- Visscher, J.T.; Paramasivam, R.; Raman, A.; Heijnen, H.A. Slow Sand Filtration for Community Water Supply: Planning, Design, Construction, Operation and Maintenance; Technical Paper No. 24; IRC: The Hague, The Netherlands, 1987; pp. 20–32. [Google Scholar]
- Sorrentino, G.; Chellappah, K.; Biscontin, G. Understanding clogging mechanisms in filter media: An integration of laboratory findings and theoretical perspectives. Sep. Purif. Technol. 2025, 359, 130602. [Google Scholar] [CrossRef]
- Baveye, P.; Vandevivere, P.; Hoyle, B.L.; DeLeo, P.C.; Jacobson, A.R. Environmental impact and mechanisms of the biological clogging of saturated soils and aquifer materials. Crit. Rev. Environ. Sci. Technol. 1998, 28, 123–191. [Google Scholar] [CrossRef]
- Environmental Protection Agency (EPA). Water Treatment Manuals: Filtration; Johnstown Castle: Wexford, Ireland, 1995.
- Mukhopadhay, B.; Mujumder, M.; Barman, R.N.; Roy, P.K.; Mazumdar, A. Verification of filter efficiency of horizontal roughing filter by Wegelin’s design criteria and artificial neural network. Drink. Water Eng. Sci. Discuss. 2009, 2, 21–27. [Google Scholar] [CrossRef]
- Awasthi, A.; Gandhi, K.; Rayalu, S. Greywater treatment technologies: A comprehensive review. Int. J. Environ. Sci. Technol. 2024, 21, 1053–1082. [Google Scholar] [CrossRef]
- Mtsweni, S. Performance of a Horizontal Roughing Filtration System for the Pretreatment of Greywater. Master’s Thesis, Durban University of Technology, Durban, South Africa, 2016. [Google Scholar]
- World Health Organization (WHO). Guidelines for the Safe Use of Wastewater, Excreta and Greywater: Volume 4—Excreta and Greywater Use in Agriculture; WHO: Geneva, Switzerland, 2006.
- Dastanaie, J.; Nabi Bidhendi, G.R.; Nasrabadi, T.; Habibi, R.; Hoveidi, H. Use of horizontal flow roughing filtration in drinking water treatment. Int. J. Environ. Sci. Technol. 2007, 4, 379–382. [Google Scholar] [CrossRef]
- Fereidonian Dashti, A.; Abdul Aziz, H.; Ibrahim, A.H.; Zahed, M.A. Suspended Solid Removal of Palm Oil Mill Effluent Using Horizontal Roughing Filter and Calcinated Limestone. Water Air Soil Pollut. 2020, 231, 393. [Google Scholar] [CrossRef]
- Liu, Z.; Muhammad, T.; Puig-Bargués, J.; Han, S.; Ma, Y.; Li, Y. Horizontal roughing filter for reducing emitter composite clogging in drip irrigation systems using high sediment water. Agric. Water Manag. 2021, 258, 107215. [Google Scholar] [CrossRef]
- Mara, D. Domestic Wastewater Treatment in Developing Countries; Earthscan: London, UK, 2003. [Google Scholar]
- Morel, A.; Diener, S. Greywater Management in Low and Middle-Income Countries: Review of Different Treatment Systems for Households or Neighbourhoods; Sandec Report No. 14/06; Swiss Federal Institute of Aquatic Science and Technology (Eawag): Dübendorf, Switzerland, 2006. [Google Scholar]
- Jiménez, B.; Asano, T. Water Reuse: An International Survey of Current Practice, Issues and Needs; IWA Publishing: London, UK, 2008. [Google Scholar]
- Nisaa, A.F.; Krauss, M.; Spuhler, D. Adapting Santiago Method to Determine Appropriate and Resource Efficient Sanitation Systems. Water 2021, 13, 1197. [Google Scholar] [CrossRef]
- Cescon, A.; Jiang, J.-Q. Filtration Process and Alternative Filter Media Material in Water Treatment. Water 2020, 12, 3377. [Google Scholar] [CrossRef]
- Nkwonta, O.I.; Olufayo, O.A.; Ochieng, G.M.; Adeyemo, J.A.; Otieno, F.A.O. Turbidity Removal: Gravel and Char-coal as Roughing Filtration Media. S. Afr. J. Sci. 2010, 106, 1–5. [Google Scholar] [CrossRef]
- Bakare, B.F.; Mtsweni, S.; Rathilal, S. Pilot study of a horizontal roughing filtration system treating greywater generated from a peri-urban community in Durban, South Africa. J. Water Reuse Desal. 2019, 9, 123–134. [Google Scholar] [CrossRef]
- Mtsweni, S. Performance Optimization Modelling of a Horizontal Roughing Filter for the Treatment of Mixed Greywater. Ph.D. Thesis, Durban University of Technology, Durban, South Africa, 2021. [Google Scholar]
- Wegelin, M. Horizontal Flow Roughing Filtration (HRF): Design, Construction and Operation Manual; IRCWD Report No. 06/86; IRCWD: Dübendorf, Switzerland, 1986. [Google Scholar]
- Gyparakis, S.; Trichakis, I.; Daras, T.; Diamadopoulos, E. Artificial neural networks (ANNs) and multiple linear regression (MLR) analysis modelling for predicting chemical dosages of a water treatment plant (WTP). Water 2025, 17, 227. [Google Scholar] [CrossRef]
- Kim, Y.-S.; Kim, M.K.; Fu, N.; Liu, J.; Wang, J.; Srebric, J. Investigating the impact of data normalization methods on predicting electricity consumption in a building using different artificial neural network models. Sustain. Cities Soc. 2025, 118, 105570. [Google Scholar] [CrossRef]
- Mushila, C.; Ochieng, G.; Otieno, F.; Shitote, S.M. Performance of horizontal-flow roughing filter units under varied raw water conditions in Kenya. J. Glob. Resour. 2016, 2, 136–144. [Google Scholar]
- Hasnain, G.; Khan, Z. Treatment of high turbidity water through plain and coagulated up-flow roughing filter. Desalin. Water Treat. 2014, 52, 1035–1043. [Google Scholar] [CrossRef]
- Karki, B.K.; Amatya, I.M. A comparative study of water turbidity removal efficiency of anthracite and gravel in roughing filter. J. Innov. Eng. Educ. 2020, 3, 42–49. [Google Scholar] [CrossRef]
- Cahyana, G.H.; Firdaus, A.R.; Mulyani, T. Effectiveness of combined up-flow roughing filter and up-flow slow sand filter to reduce turbidity in Citarum water. IOP Conf. Ser. Earth Environ. Sci. 2021, 896, 012020. [Google Scholar] [CrossRef]
- Mahvi, A.H. Performance of a DHRF system in treatment of highly turbid water. Iran J. Environ. Health Sci. Eng. 2004, 1, 1–4. [Google Scholar]
- Huang, X.; Cao, H.; Jia, B. Optimization of Levenberg Marquardt algorithm applied to nonlinear systems. Processes 2023, 11, 1794. [Google Scholar] [CrossRef]
- Lee, C. Artificial neural networks and machine learning modeling employee behavior with management towards economic advancement of workers. Sustainability 2024, 16, 9516. [Google Scholar] [CrossRef]
- Yadav, R.K.; Sahoo, S.; Yadav, A.K.; Patil, S.A. Green wall system coupled with slow sand filtration for greywater management. NPJ Clean Water 2023, 6, 73. [Google Scholar] [CrossRef]
- Goffin, A.; Vasquez-Vergara, L.A.; Guérin-Rechdaoui, S.; Rocher, V.; Varrault, G. Temperature, turbidity, and inner filter effect correction in urban sewage analysis. Environ. Sci. Pollut. Res. 2020, 27, 35712–35723. [Google Scholar] [CrossRef]
- Magrì, S.; Ottaviani, E.; Prampolini, E.; Besio, G.; Fabiano, B.; Federici, B. Application of ML techniques to derive sea water turbidity from Sentinel-2 imagery. Remote Sens. Appl. Soc. Environ. 2023, 30, 100951. [Google Scholar]
- United States Environmental Protection Agency (EPA). Onsite Non-Potable Water Reuse Resources; United States Environmental Protection Agency (EPA): Washington, DC, USA, 2024.
- Parra, L.; Ahmad, A.; Sendra, S.; Lloret, J.; Lorenz, P. Combination of ML and RGB sensors to quantify water turbidity. Chemosensors 2024, 12, 34. [Google Scholar] [CrossRef]
- Samayamanthula, D.R.; Sabarathinam, C.; Bhandary, H. Treatment and effective utilization of greywater. Appl. Water Sci. 2019, 9, 90. [Google Scholar] [CrossRef]
- Alnajjar, H.Y.H.; Üçüncü, O. ANN-based pollution prediction model in WWTPs. Arab Gulf J. Sci. Res. 2023, 41, 1–15. [Google Scholar]
- Asteris, P.G.; Alexakis, D.E.; Tsoukalas, M.Z.; Gamvroula, D.E.; Guney, D. Machine learning approach for estimating five-day biochemical oxygen demand in wastewater. Water 2023, 15, 103. [Google Scholar] [CrossRef]
- Dantas, A.D.C.; De Oliveira, M.C.; De Oliveira, L.F.; De Oliveira, J.L.; De Oliveira, R.A. Artificial neural networks for performance prediction in full-scale wastewater treatment plants: A systematic review. Water Sci. Technol. 2023, 88, 1447–1465. [Google Scholar] [CrossRef]
- Mathaba, M.; Banza, J. A Comprehensive Review on Artificial Intelligence in Water Treatment for Optimization. J. Environ. Sci. Health A 2023, 58, 1047–1060. [Google Scholar] [CrossRef] [PubMed]
- Alprol, A.E.; Mansour, A.T.; Ibrahim, M.E.E.-D.; Ashour, M. Artificial intelligence technologies revolutionizing wastewater treatment: Current trends and future prospective. Water 2024, 16, 314. [Google Scholar] [CrossRef]
Filter Parameters | Recommended Literature Values by [2,7] | HRF Design Values | |
---|---|---|---|
Gravel media | Gravel L1 (mm) | 18–12 | 14 mm |
Gravel L2 (mm) | 12–8 | 10 mm | |
Gravel L3 (mm) | 8–4 | 8 mm | |
Gravel type | (Granite, Quartz, Local) | Quartzite | |
Filter depth (m) | 0.2–1.2 | 0.3 | |
Total height (m) | ≈1.2 | 1 | |
Filtration velocity (m/hr) | 0.3–1.5 | 0.3–0.9 | |
Hydraulic loading rate (m3/m2/day) | 7.2–21.6 | ||
Filter length (m) | L1 (m) | 1.5 | |
L2 (m) | 1 | ||
L3 (m) | 0.5 | ||
Filter width (m) | 1–2.3 | 1 | |
Filter material | Steel and PVC |
ANN Characteristics | Specification |
---|---|
1. Type of neural network | Feed Forward Back Propagation |
2. Number of neurons in the input layer | 4 |
3. Number of neurons in the hidden layer(s) | 4–10 |
4. Number of neuron(s) in the output layer | 2 |
5. Number of input parameters | 4 |
6. Number of output parameter | 2 |
7. Size of the ANN data cases | 637 |
8. Performance function | MSE, R-coefficients |
9. Training algorithms | LM and SCG |
10. Learning functions | learngdm, learngd |
11. Activation function in the hidden layer | tansig, logsig |
12. Activation function in the output layer | linear |
13. Maximum number of epochs | 1000 |
14. Minimum MSE Value | <0.001 |
Inputs | Outputs | |||||
---|---|---|---|---|---|---|
Filtration Rate (m/h) | pH (-) | Turbidity (NTU) | Conductivity (µS/cm) | Clogging Duration (days) | Turbidity (NTU) | |
Mean | - | 9.1 | 217 | 681 | 18 | 32 |
Min | 0.3 | 6.8 | 120 | 301 | 10 | 6 |
Max | 0.9 | 11.4 | 319 | 1094 | 25 | 95 |
