# Effects of Probability-Distributed Losses on Flood Estimates Using Event-Based Rainfall-Runoff Models

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Bootstrap-Based Goodness-of-Fit Procedure

#### 2.1. Probability Distributions

#### 2.2. Model Selection

- Kolmogorov Smirnov (K-S) test statistic:$$D=max\left(\underset{1\le i\le n}{\mathrm{max}}\left(\frac{i}{n}-{\widehat{Z}}_{i}\right),\underset{1\le i\le n}{\mathrm{max}}\left({\widehat{Z}}_{i}-\frac{i-1}{n}\right)\right)$$
- Cramér–von Mises (C–vM) test statistic:$${W}^{2}=\frac{1}{12n}+{{\displaystyle \sum}}_{i=1}^{n}{\left({\widehat{Z}}_{i}-\frac{2i-1}{2n}\right)}^{2}$$
- Anderson-Darling (A-D) test statistic:$${A}^{2}=-n-\frac{1}{n}{{\displaystyle \sum}}_{i=1}^{n}\left(2i-1\right)\left(log\left({\widehat{Z}}_{i}\right)+log\left(1-{\widehat{Z}}_{\left(n-i+1\right)}\right)\right)$$

- Estimate the model parameters ($\widehat{\vartheta}$) from $\left\{{x}_{1},\cdots ,{x}_{n}\right\}$ and construct the cumulative density function (CDF) ${\widehat{M}}_{\widehat{\vartheta}}$
- Evaluate $\overline{D}$, ${\overline{W}}^{2}$ and ${\overline{A}}^{2}$ (Equations (4)–(6)), where ${\widehat{Z}}_{i}={\widehat{M}}_{\widehat{\vartheta}}\left({x}_{i}\right)$
- Generate $B$ bootstrap samples of size $n$ from ${\widehat{M}}_{\widehat{\vartheta}}$, denoted as $\left\{{x}_{1,b}^{*},\cdots ,{x}_{n,b}^{*}\right\}$ given $b=\left\{1,\cdots ,B\right\}$
- Estimate ${\widehat{\vartheta}}_{b}^{*}$ from $\{{x}_{1,b}^{*},\cdots ,{x}_{n,b}^{*}\}$ and construct the CDF ${\widehat{M}}_{{\widehat{\vartheta}}_{b}^{*}}$
- Evaluate ${\overline{D}}_{b}^{*}$, ${({\overline{W}}^{2})}_{b}^{*}$ and ${({\overline{A}}^{2})}_{b}^{*}$ (Equations (1)–(3)), where ${\widehat{Z}}_{i}={\widehat{M}}_{{\widehat{\vartheta}}_{b}^{*}}\left({x}_{i,b}^{*}\right)$

## 3. Rainfall-Runoff Modeling

#### 3.1. Rainfall-Runoff Model

#### 3.2. Model Calibration

#### 3.3. Stochastic Design Storms

#### 3.4. Design Flood Estimation

## 4. Study Area and Data

#### 4.1. Historic Data Sets

#### 4.2. Study Catchments

## 5. Results

#### 5.1. Probability-Distributed Initial Losses

#### 5.2. Effect of Functional Form of Initial Losses on Flood Estimates

_{i}the ith candidate initial loss distribution given {i = 1, ⋯, m}.

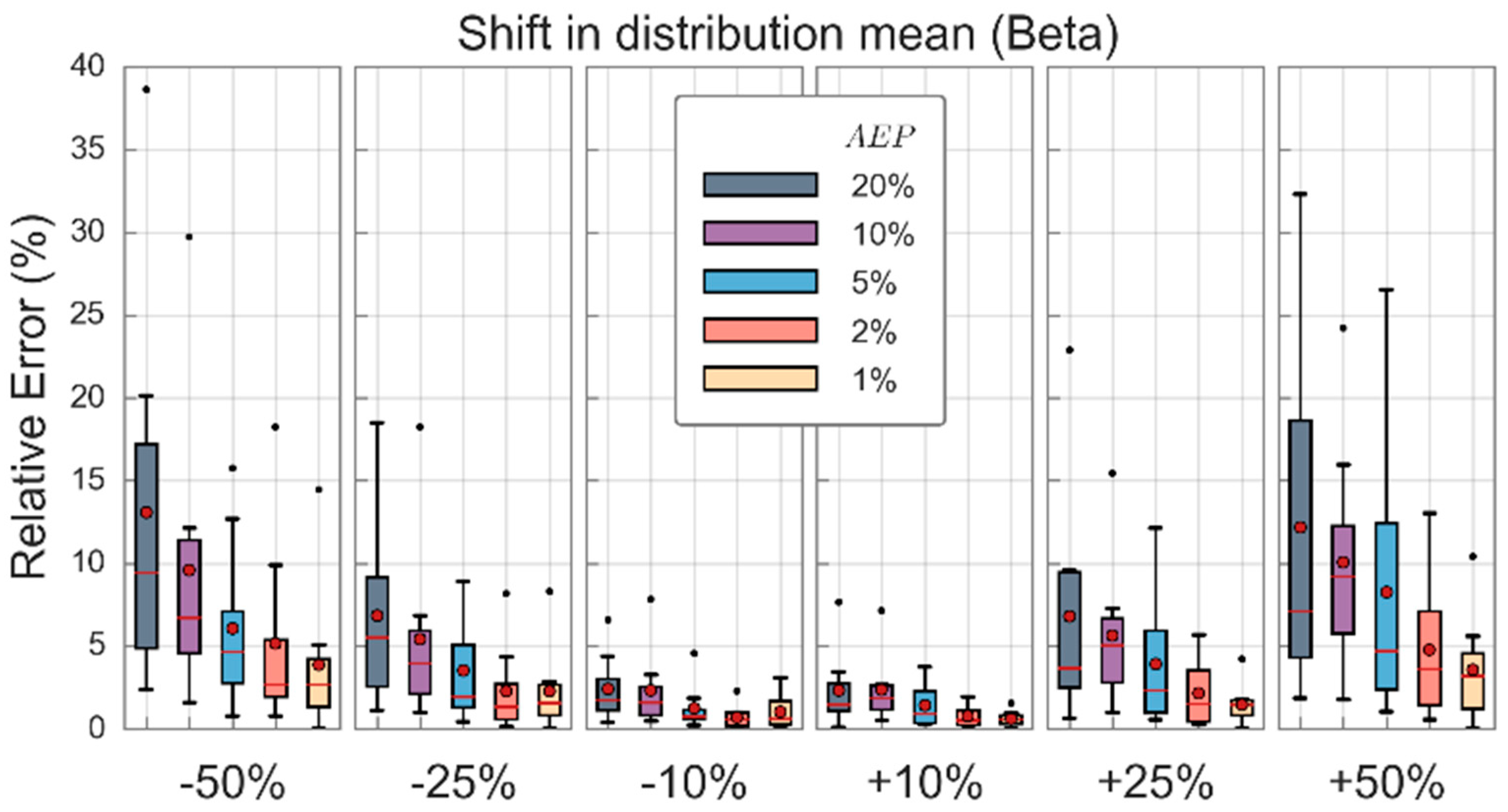

#### 5.3. Effect of Statistical Uncertainties in Initial Losses on Flood Estimates

#### 5.4. Effect of Regionalization of Initial Loss on Flood Estimates

- Regionalization of the probability distribution (dist): each candidate distribution is assumed to be the true underlying distribution at the site of interest, the first two statistical moments are derived from observed data and then the distribution parameters are estimated using the MoM.
- Regionalization of distribution parameters (param): candidate distributions are assumed to be the true underlying distribution and parameters are estimated as the average within a hydrologically similar region (where individual catchment parameters were estimated using the MLE).
- Regionalization of statistical moments (stat): the candidate distribution is assumed to be representative of the true underlying distribution, the first two statistical moments are regionalized within a hydrologically similar region and then the distribution parameters are estimated using the MoM.

- Regionalization of the probability distribution (dist): a standardized KDE distribution is assumed to be representative of the underlying distribution and the median value is derived from the observed data; the standardized KDE distribution is derived from individual KDE distributions within a hydrologically similar region, each distribution is normalized by the median value and the average distribution is determined.
- Regionalization of the probability distribution and median value (dist + median): a standardized KDE distribution is assumed to be the true underlying distribution and the median value is estimated from within a hydrologically similar region.

#### 5.5. Conclusions

- The functional form of the initial loss data in Australia can be approximated using the Beta and Gamma models. These results are in line with differing outcomes in previous studies, for instance Rahman et al. [12] recommend the use of the Beta distribution to represent initial losses, while Caballero and Rahman [28] determine the Gamma distribution to be most appropriate for initial loss data.
- By setting differing thresholds for the minimum sample size of initial loss data used to derive probability distributions, mixed results were found. This highlights the importance of sample size in deriving probability distributions of initial losses.
- Design flood estimates from successive candidate distributions showed relative errors typically within ±3%, similarly by shifting the distribution mean relative errors within approximately ±20% and a change in the distribution variance also resulted in relative errors within ±3%. These results lead us to conclude that knowledge of the central tendency of distributed initial losses is more important than knowledge of the true functional form of the initial loss data.
- Larger parameter sets generally present issues in regionalization; however, the comparison of the 4-parameter Beta and 2-parameter Gamma distributions showed that this was not the case in this study. Under the assumption that the catchments were ungauged, the relative errors of the design floods using the two distributions were comparable, with the Beta model producing slightly less uncertainty.
- Regionalization of the initial loss distributions led to design floods being estimated to within ±15% accuracy, with the largest uncertainty coming from errors in regionalization of the central tendency of initial loss data. This leads us to conclude that initial loss distributions can be regionalized relatively easily; however, difficulties lie in accurate estimation of the central tendency of the distribution.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Moore, R.J. The probability-distributed principle and runoff production at point and basin scales. Hydrol. Sci. J.
**1985**, 30, 273–297. [Google Scholar] [CrossRef] [Green Version] - Hao, R.J.; Zhuang, Y.L.; Fang, L.R.; Liu, X.R.; Zhang, Q. The Xinanjiang model. In Hydrological Forecasting; Proceedings of the Oxford Symposium; IAHS: Oxford, UK, 1980. [Google Scholar]
- Bennett, T.; Peters, J. Continuous Soil Moisture Accounting in the Hydrologic Engineering Center Hydrologic Modeling System (HEC-HMS). Build. Partnersh.
**2000**. [Google Scholar] [CrossRef] - Boughton, W.; Srikanthan, S.; Weinmann, E. Benchmarking a New Design Flood Estimation System. Australas. J. Water Resour.
**2002**, 6, 45–52. [Google Scholar] [CrossRef] - Heneker, T.M.; Lambert, T.M.; Kuczera, G. Overcoming the joint probability problem associated with initial loss estimation in design flood estimation. Aust. J. Water Resour.
**2003**, 7, 101–109. [Google Scholar] - Pathiraja, S.; Westra, S.; Sharma, A. Why continuous simulation? The role of antecedent moisture in design flood estimation. Water Resour. Res.
**2012**, 48, W06534. [Google Scholar] [CrossRef] [Green Version] - Aubert, D.; Loumagne, C.; Oudin, L. Sequential assimilation of soil moisture and streamflow data in a conceptual rainfall–runoff model. J. Hydrol.
**2003**, 280, 145–161. [Google Scholar] [CrossRef] - Bocchiola, D.; Rosso, R. Use of a derived distribution approach for flood prediction in poorly gauged basins: A case study in Italy. Adv. Water Resour.
**2009**, 32, 1284–1296. [Google Scholar] [CrossRef] - Camici, S.; Tarpanelli, A.; Brocca, L.; Melone, F.; Moramarco, T. Design soil moisture estimation by comparing continuous and storm-based rainfall-runoff modeling. Water Resour. Res.
**2011**, 47, W05527. [Google Scholar] [CrossRef] - Tramblay, Y.; Bouaicha, R.; Brocca, L.; Dorigo, W.; Bouvier, C.; Camici, S.; Servat, E. Estimation of antecedent wetness conditions for flood modelling in northern Morocco. Hydrol. Earth Syst. Sci.
**2012**, 16, 4375–4386. [Google Scholar] [CrossRef] [Green Version] - Svensson, C.; Kjeldsen, T.R.; Jones, D.A. Flood frequency estimation using a joint probability approach within a Monte Carlo framework. Hydrol. Sci. J.
**2013**, 58, 8–27. [Google Scholar] [CrossRef] [Green Version] - Rahman, A.; Weinmann, P.E.; Mein, R.G. The Use of Probability-Distributed Initial Losses in Design Flood Estimation. Australas. J. Water Resour.
**2002**, 6, 17–29. [Google Scholar] [CrossRef] - De Michele, C.; Salvadori, G. On the derived flood frequency distribution: Analytical formulation and the influence of antecedent soil moisture condition. J. Hydrol.
**2002**, 262, 245–258. [Google Scholar] [CrossRef] - Aronica, G.T.; Candela, A. Derivation of flood frequency curves in poorly gauged Mediterranean catchments using a simple stochastic hydrological rainfall-runoff model. J. Hydrol.
**2007**, 347, 132–142. [Google Scholar] [CrossRef] - Kjeldsen, T.R.; Svensson, C.; Jones, D.A. A joint probability approach to flood frequency estimation using Monte Carlo simulation. In British Hydrological Society Third International Symposium: Role of Hydrology in Managing Consequences of a Changing Global Environment, Newcastle, UK, 19–23 July 2010; Kirby, C., Ed.; British Hydrological Society: London, UK, 2010. [Google Scholar]
- Saghafian, B.; Golian, S.; Ghasemi, A. Flood frequency analysis based on simulated peak discharges. Nat. Hazards
**2013**, 71, 403–417. [Google Scholar] [CrossRef] - Rahman, A.; Weinmann, P.E.; Hoang, T.M.T.; Laurenson, E. MMonte Carlo simulation of flood frequency curves from rainfall. J. Hydrol.
**2002**, 256, 196–210. [Google Scholar] [CrossRef] - Zheng, F.; Leonard, M.; Westra, S. Efficient joint probability analysis of flood risk. J. Hydroinform.
**2015**, 17, 584–597. [Google Scholar] [CrossRef] - Li, J.; Thyer, M.; Lambert, M.; Kuczera, G.; Metcalfe, A. Incorporating seasonality into event-based joint probability methods for predicting flood frequency: A hybrid causative event approach. J. Hydrol.
**2016**, 533, 40–52. [Google Scholar] [CrossRef] - Hill, P.; Thomson, R. Losses. In Australian Rainfall and Runoff; Ball, J., Babister, M., Weeks, W., Weinmann, E., Retallick, M., Testoni, I., Eds.; Commonwealth of Australia: London, UK, 2016. [Google Scholar]
- Loveridge, M.; Rahman, A. Monte Carlo simulation for design flood estimation: A review of Australian practice. Australas. J. Water Resour.
**2018**, 22, 52–70. [Google Scholar] [CrossRef] - Tularam, G.A.; Ilahee, M. Initial loss estimates for tropical catchments of Australia. Environ. Impact Assess. Rev.
**2007**, 27, 493–504. [Google Scholar] [CrossRef] - Rahman, A.; Haddad, K.; Kuczera, G.; Weinmann, P.E. Regional flood methods. In Australian Rainfall and Runoff; Ball, J., Babister, M., Weeks, W., Weinmann, E., Retallick, M., Testoni, I., Eds.; Commonwealth of Australia: London, UK, 2019; Chapter 3, Book 3. [Google Scholar]
- Haddad, K.; Rahman, A. Regional flood frequency analysis in eastern Australia: Bayesian GLS regression-based methods within fixed region and ROI framework—Quantile Regression vs. Parameter Regression Technique. J. Hydrol.
**2012**, 430–431, 142–161. [Google Scholar] [CrossRef] - Stedinger, J.R.; Tasker, G.D. Regional hydrologic analysis, 1. Ordinary, weighted, and generalised least squares compared. Water Resour. Res.
**1985**, 21, 1421–1432. [Google Scholar] [CrossRef] - Ouarda, T.B.M.J.; Girard, C.; Cavadias, G.S.; Bobée, B. Regional flood frequency estimation with canonical correlation analysis. J. Hydrol.
**2001**, 254, 157–173. [Google Scholar] [CrossRef] - Gamage, S.H.P.W.; Hewa, G.A.; Beecham, S. Probability distributions for explaining hydrological losses in South Australian catchments. Hydrol. Earth Syst. Sci.
**2013**, 17, 4541–4553. [Google Scholar] [CrossRef] - Caballero, W.L.; Rahman, A. Development of regionalized joint probability approach to flood estimation: A case study for Eastern New South Wales, Australia. Hydrol. Process.
**2013**, 28, 4001–4010. [Google Scholar] [CrossRef] - Charalambous, J.; Rahman, A.; Carroll, D. Application of Monte Carlo Simulation Technique to Design Flood Estimation: A Case Study for North Johnstone River in Queensland, Australia. Water Resour. Manag.
**2013**, 27, 4099–4111. [Google Scholar] [CrossRef] - Loveridge, M.; Rahman, A. Quantifying uncertainty in rainfall–runoff models due to design losses using Monte Carlo simulation: A case study in New South Wales, Australia. Stoch. Environ. Res. Risk Assess.
**2014**, 28, 2149–2159. [Google Scholar] [CrossRef] - Ball, J.; Babister, M.; Nathan, R.; Weeks, W.; Weinmann, E.; Retallick, M.; Testoni, I. Australian Rainfall and Runoff: A Guide to Flood Estimation; Commonwealth of Australia: London, UK, 2016. [Google Scholar]
- Adamowski, K. A Monte Carlo comparison of parametric and nonparametric estimation of flood frequencies. J. Hydrol.
**1989**, 108, 295–308. [Google Scholar] [CrossRef] - Scott, D.W. Multivariate Density Estimation: Theory, Practice and Visualization; John Wiley: New York, NY, USA, 1992. [Google Scholar]
- Turlach, B.A. Bandwidth Selection in Kernel Density Estimation: A Review; CORE and Institut de Statistique: Loubain, Belgium, 1993. [Google Scholar]
- Bashtannyk, D.M.; Hyndman, R.J. Bandwidth selection for kernel conditional density estimation. Comput. Stat. Data Anal.
**2001**, 36, 279–298. [Google Scholar] [CrossRef] [Green Version] - Silverman, B.W. Density Estimation for Statistics and Data Analysis; Chapman and Hall: London, UK, 1986. [Google Scholar]
- Jones, M.C.; Marron, J.S.; Sheather, S.J. A Brief Survey of Bandwidth Selection for Density Estimation. J. Am. Stat. Assoc.
**1996**, 91, 401–407. [Google Scholar] [CrossRef] - Lilliefors, H.W. On the Kolmogorov-Smirnov Test for the Exponential Distribution with Mean Unknown. J. Am. Stat. Assoc.
**1969**, 64, 387–389. [Google Scholar] [CrossRef] - Efron, B. Bootstrap Methods: Another Look at the Jackknife. Ann. Stat.
**1979**, 7, 1–26. [Google Scholar] [CrossRef] - Chernick, M.R. Bootstrap Methods—A Guide for Practitioners and Researchers, 2nd ed.; Wiley Interscience: New York, NY, USA, 2007. [Google Scholar]
- Babu, G.J.; Rao, C.R. Bootstrap methodology. In Computational Statistics, Handbook of Statistics; Rao, C.R., Ed.; North Holland Publishing Co.: Amsterdam, The Netherlands, 1993; Chapter 9; pp. 627–659. [Google Scholar]
- Hosking, J.R.M.; Wallis, J.R. Some statistics useful in regional frequency analysis. Water Resour. Res.
**1993**, 29, 271–281. [Google Scholar] [CrossRef] - Laurenson, E.M.; Mein, R.G. RORB Version 3 Runoff Routing Program. Programmer Manual; Monash University: Melbourne, Australia, 1986. [Google Scholar]
- Patel, H.; Rahman, A. Probabilistic nature of storage delay parameter of the hydrologic model RORB: A case study for the Cooper’s Creek catchment in Australia. Hydrol. Res.
**2015**, 46, 400–410. [Google Scholar] [CrossRef] - Jordan, P.; Nathan, R.; Seed, A. Application of spatial and space-time patterns of design rainfall to design flood estimation. In Proceedings of the 36th Hydrology and Water Resources Symposium: The Art and Science of Water, Hobart, Australia, 7–10 December 2015; Engineers Australia: Barton, ACT, Australia, 2015; pp. 88–95. [Google Scholar]
- Loveridge, M.; Babister, M.; Retallick, M. Australian Rainfall and Runoff Revision Project 3: Temporal Patterns of Rainfall; ARR Report Number P3/S3/013; Engineers Australia Engineering House: Barton, ACT, Australia, 2015; ISBN 978-085825-9614. [Google Scholar]
- Waugh, A.S. Design Losses in Flood Estimation. In Proceedings of the International Hydrology & Water Resources Symposium, Hyatt Regency, Perth, Australia, 2–4 October 1991; pp. 629–630. [Google Scholar]
- Hill, P.I.; Maheepala, U.K.; Mein, R.G.; Weinmann, P.E. Empirical Analysis of Data to Derive Losses for Design Flood Estimation in South. Eastern Australia; Monash University: Clayton, Australia, 1996. [Google Scholar]
- Hill, P.; Graszkiewicz, Z.; Taylor, M.; Nathan, R. Australian Rainfall and Runoff Revision Project 6: Loss Models for Catchment Simulation: Phase 4 Analysis of Rural Catchments; P6/S3/016B; Geoscience Australia: Canberra, Australia, 2014. [Google Scholar]
- Ilahee, M. Modelling Losses in Flood Estimation. Ph.D. Thesis, Queensland University of Technology, Brisbane, Australia, 2005. Available online: http://eprints.qut.edu.au/16019 (accessed on 27 June 2017).
- Caballero, W.L. Enhanced Joint Probability Approach for Flood Modelling. Ph.D. Thesis, University of Western Sydney, Penrith, Australia, 2013. Available online: http://researchdirect.uws.edu.au/islandora/object/uws:28537 (accessed on 27 June 2017).

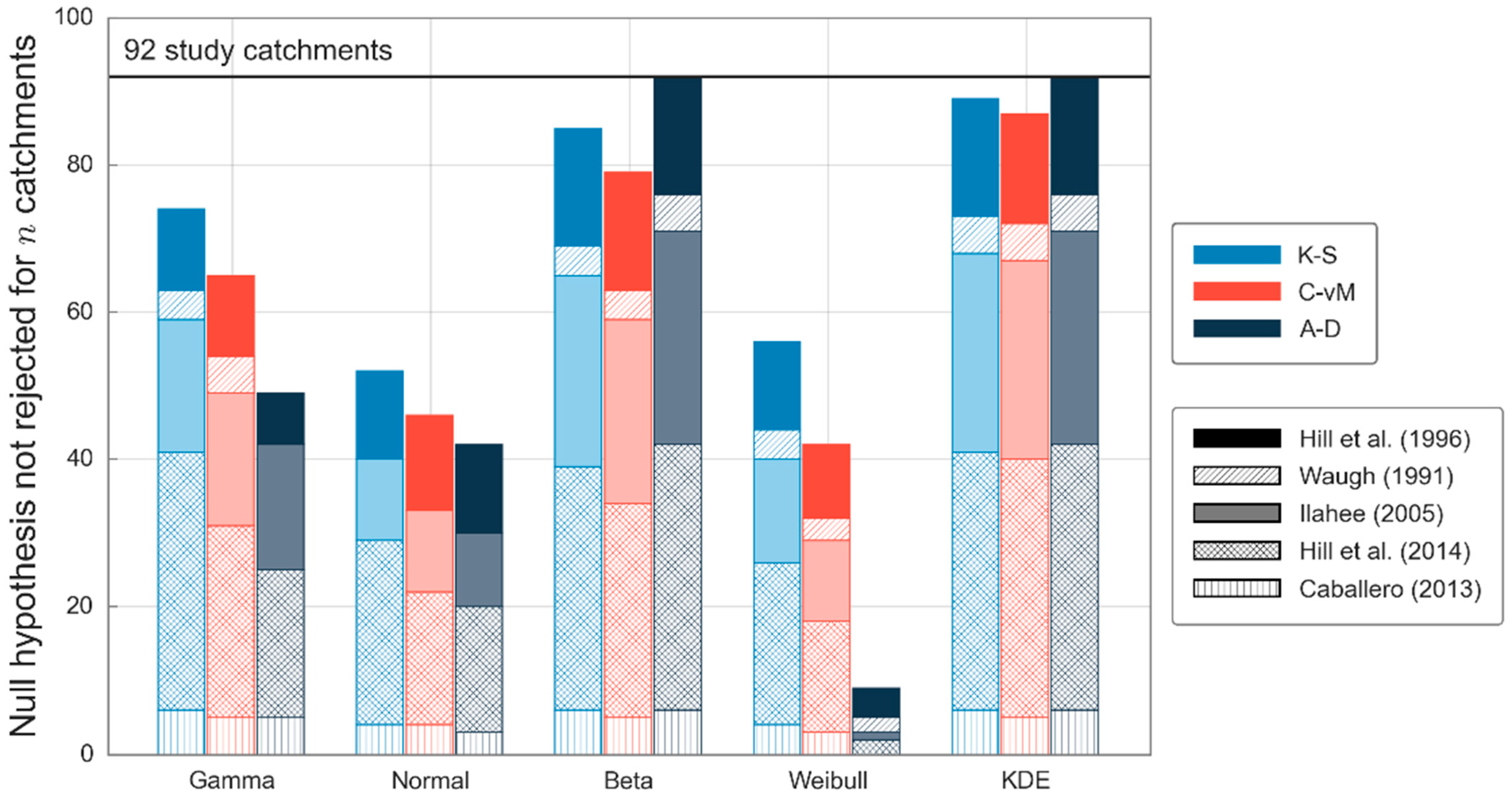

**Figure 2.**Number of catchments in which the null hypothesis is rejected by each goodness-of-fit test, for each study dataset.

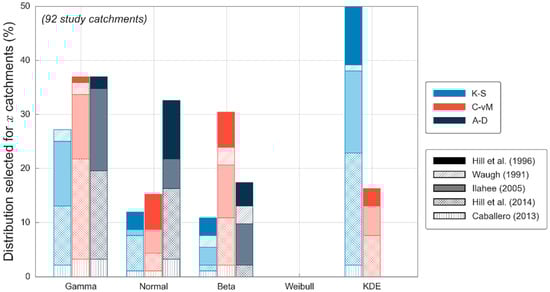

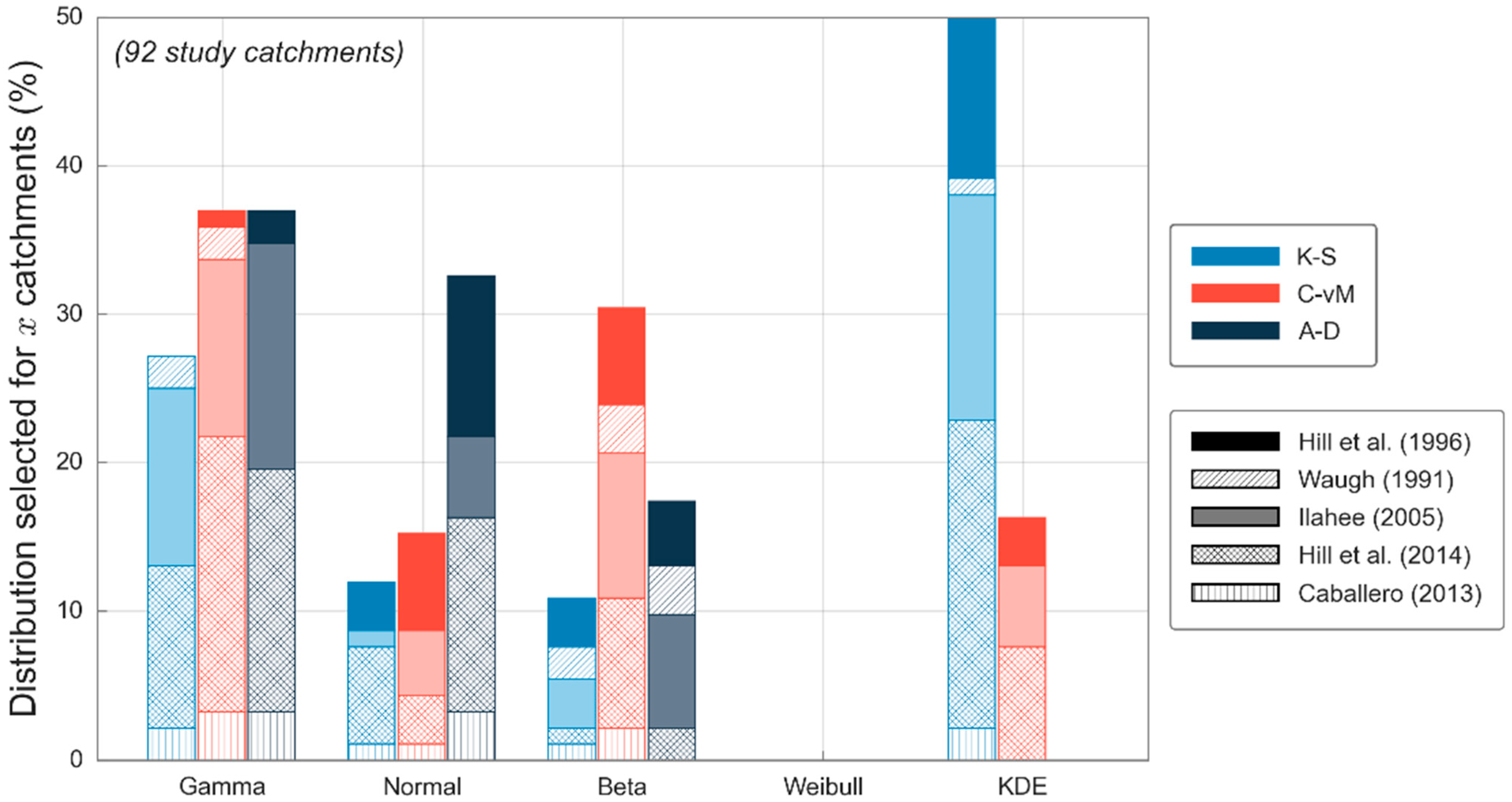

**Figure 3.**Percentage of catchments (with sample size greater than 10) in which each candidate distribution is selected by each goodness-of-fit test, for each study dataset.

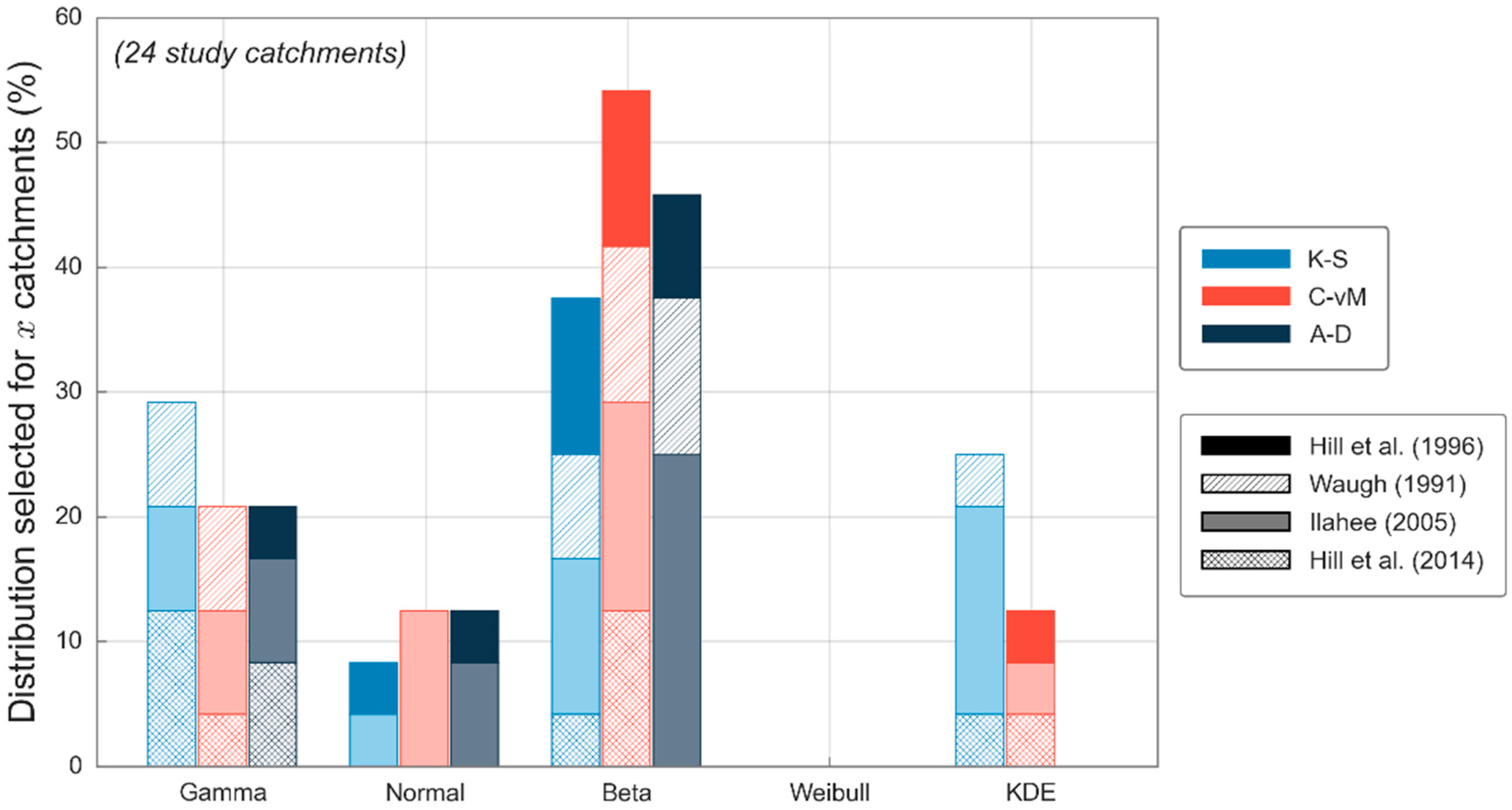

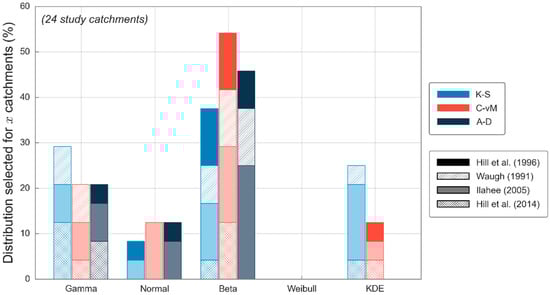

**Figure 4.**Percentage of catchments (with sample size greater than 30) in which each candidate distribution is selected by each goodness-of-fit test, for each study dataset.

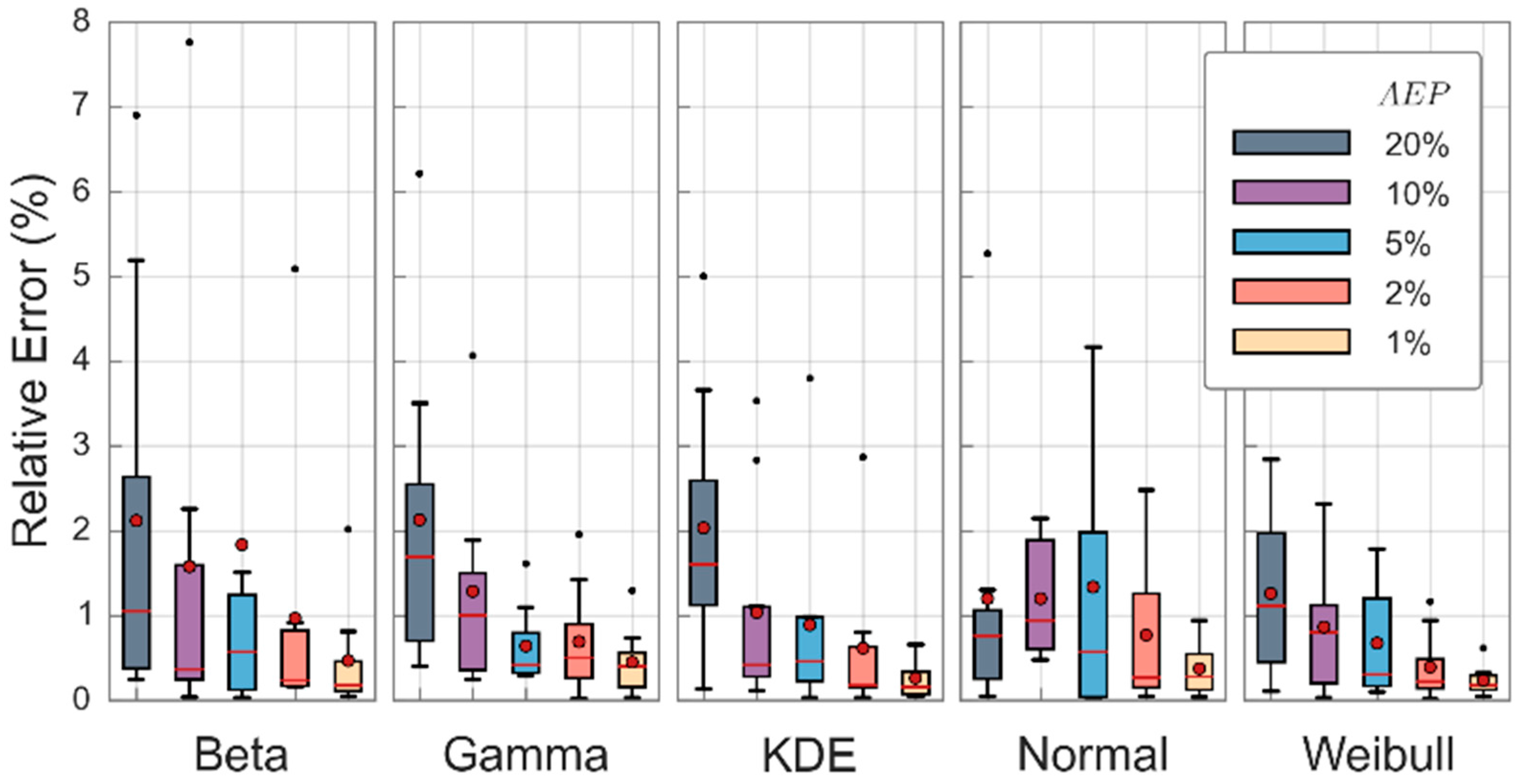

**Figure 5.**Distribution of relative errors in design flood estimates for each quantile across the eight study catchments using five candidate distributions to represent variability in initial losses. Here KDE (kernel density estimate) represents nonparametric method and AEP stands for annual exceedance probability.

**Figure 6.**Distribution of relative errors in design flood estimates for each flood quantile across the eight study catchments using distributions with the means shifted by specified percentages (Beta distribution).

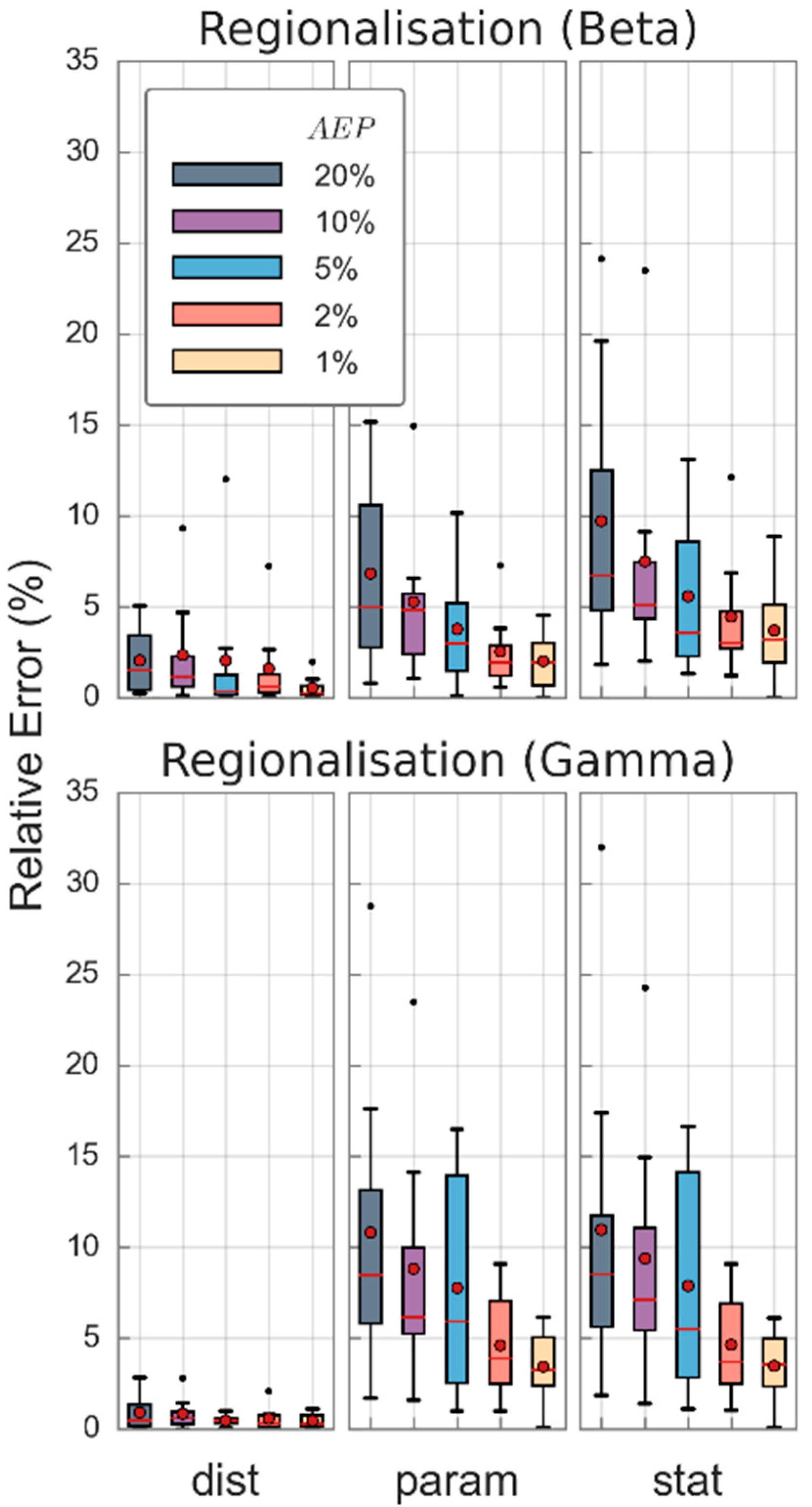

**Figure 7.**Distribution of relative errors in design flood estimates for each flood quantile across the eight study catchments using various methods to regionalize probability-distributed initial losses (parametric models). (Here, Beta and Gamma distributions are used to regionalize initial loss distribution).

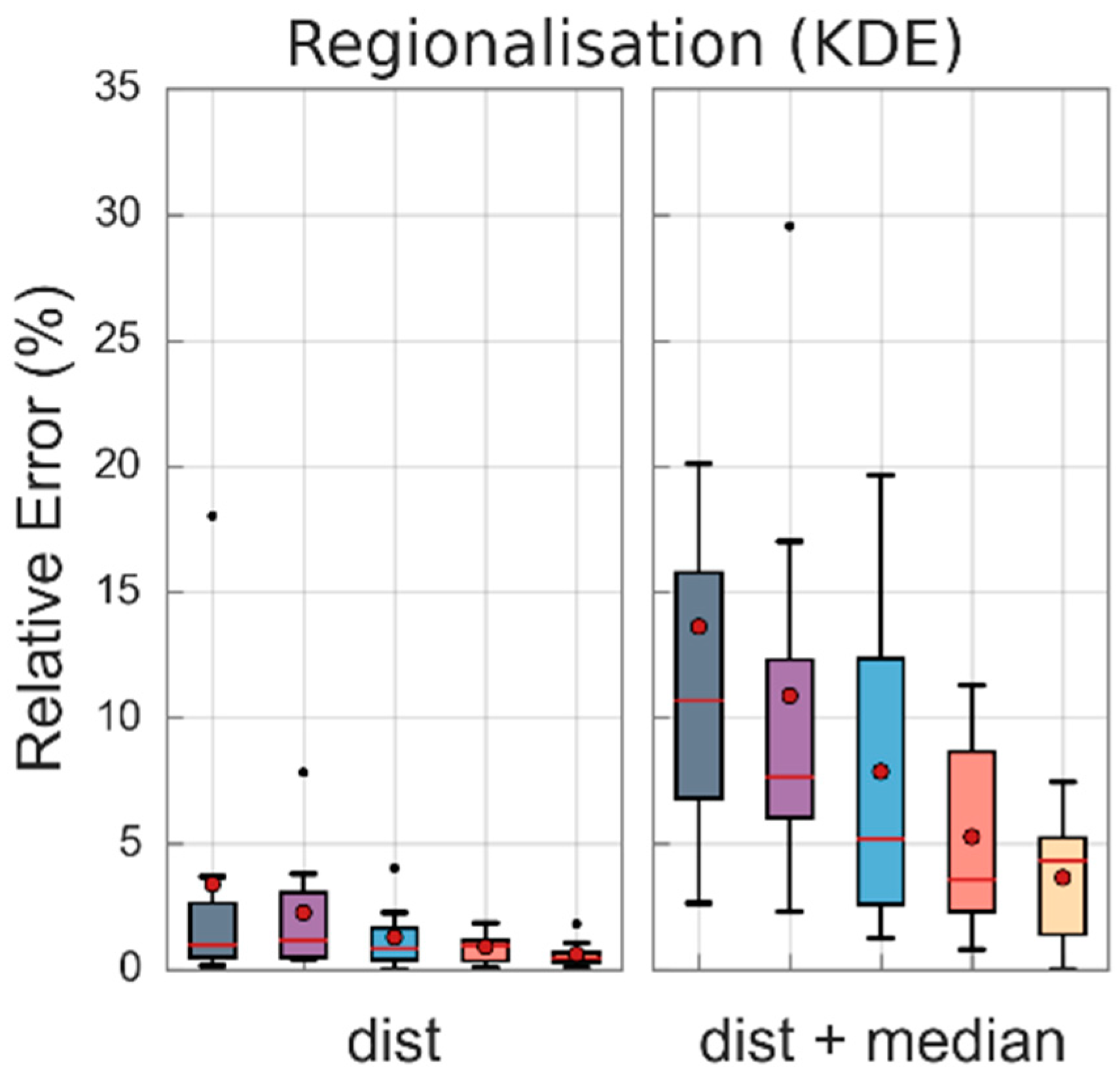

**Figure 8.**Distribution of relative errors in design flood estimates for each flood quantile across the eight study catchments using various methods to regionalize probability-distributed initial losses (nonparametric model).

**Table 1.**Geographic and meteorological catchment characteristics, including data availability for the selected study catchments.

Catchment | Drainage Area (km^{2}) | Mean Annual Rainfall (mm) | Mean Annual Runoff (mm) | Catchment Relief (mAHD) | Concurrent Rainfall-Runoff Record Length (Year) | Number of Events |
---|---|---|---|---|---|---|

Bielsdown | 82 | 1835 | 1424 | 362 | 29 (1971–1999) | 57 |

Leycester | 179 | 1541 | 525 | 943 | 45 (1967–2011) | 48 |

Macquarie | 35 | 1700 | 738 | 753 | 44 (1962–2005) | 26 |

Nowendoc | 218 | 972 | 298 | 595 | 41 (1971–2011) | 37 |

Orara | 135 | 1890 | 946 | 801 | 40 (1970–2009) | 37 |

Ourimbah | 83 | 1356 | 227 | 334 | 35 (1976–2010) | 38 |

Oxley | 218 | 1531 | 721 | 1179 | 47 (1965–2011) | 53 |

Pokolbin | 25 | 802 | 52 | 442 | 49 (1963–2011) | 36 |
